# Multi-Head Attention Network with Adaptive Feature Selection for RUL Predictions of Gradually Degrading Equipment

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. Data Preprocessing

#### 2.1.1. Exponential Smoothing

#### 2.1.2. Adaptive Feature Selection

- (I) Feature evaluation indices

- There exists a correlation between the features and the time series of the RUL; features change with the degradation of the equipment.
- Features should be monotonical owing to degradation being an irreversible process.
- Features should have good anti-interference properties against random noise.

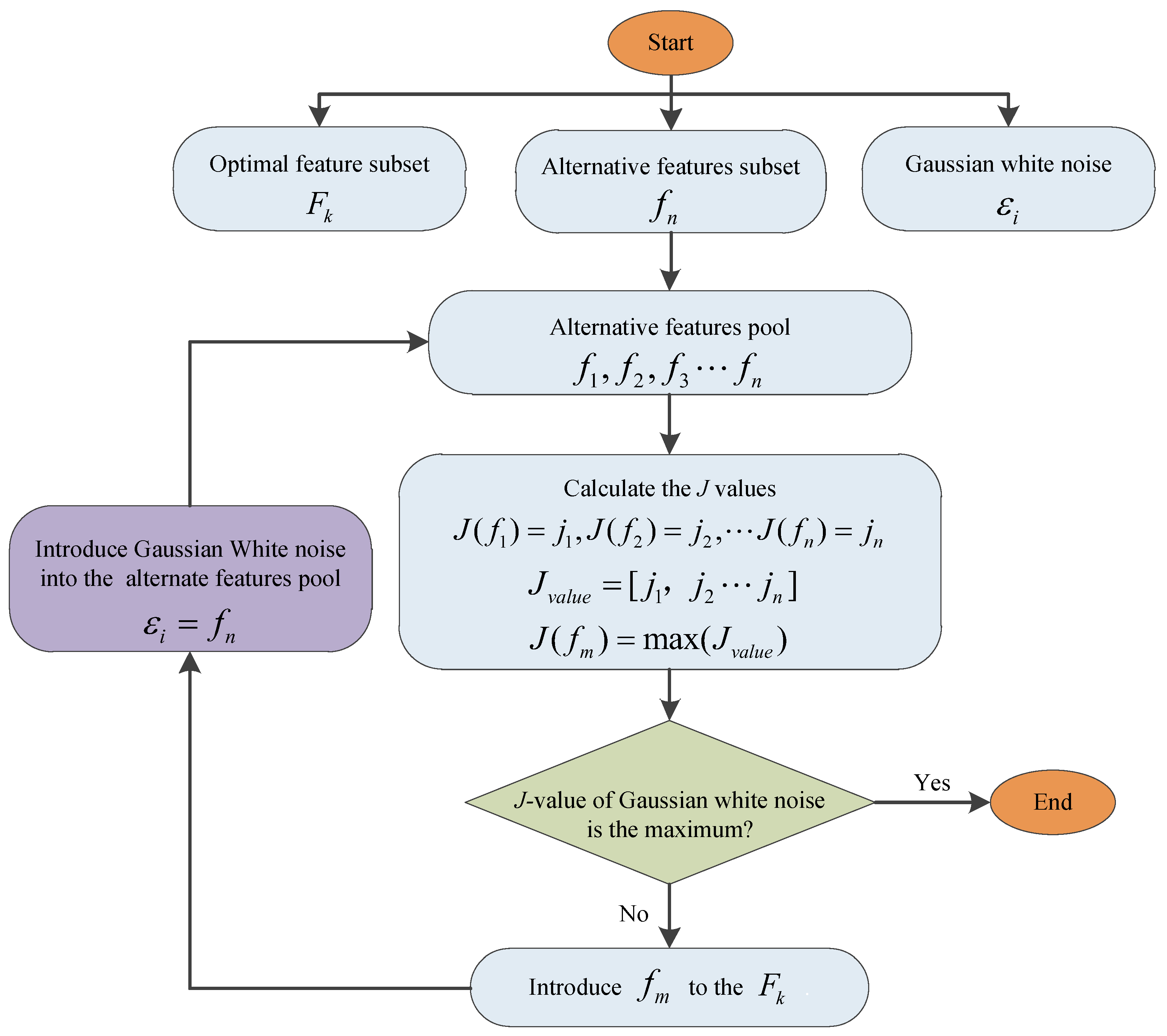

- (II) Feature selection

_{c}, ω

_{m}, ω

_{r}, are the weights of Corr, Mon and Rob in Equation (6), and $\overline{Corr}$, $\overline{Mon}$ and $\overline{Rob}$ the mean values of the CVs for the Corr, Mon and Rob, respectively.

#### 2.1.3. RUL Target Function

#### 2.2. Prediction Model Construction

#### 2.2.1. Basic Theory

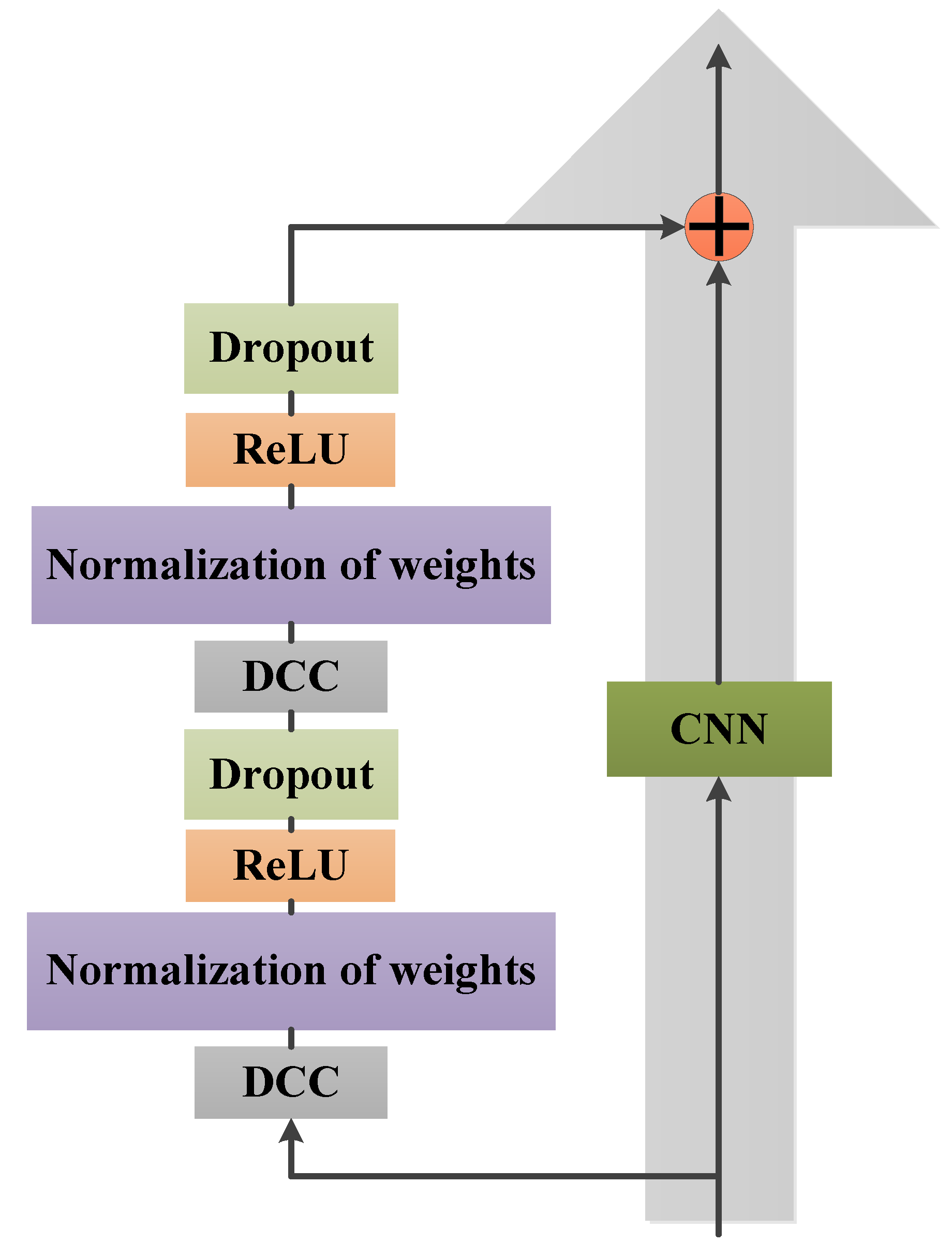

- (I) Temporal Convolutional Network

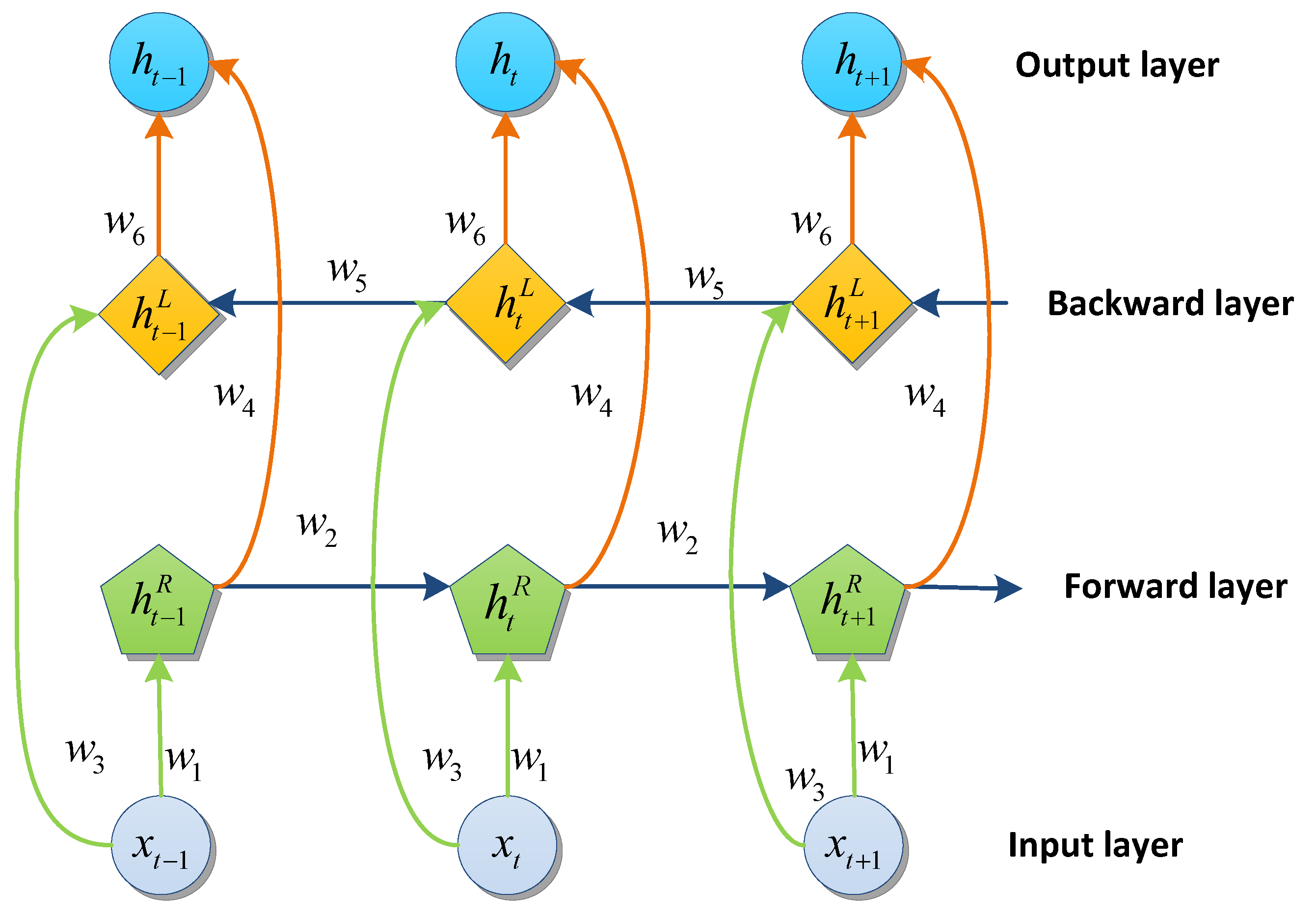

- (II) Bidirectional Long Short-Term Memory

^{R}represents the forward layer, h

^{L}represents the backward layer, h represents the output layer, w represents the weights, and f represents the function.

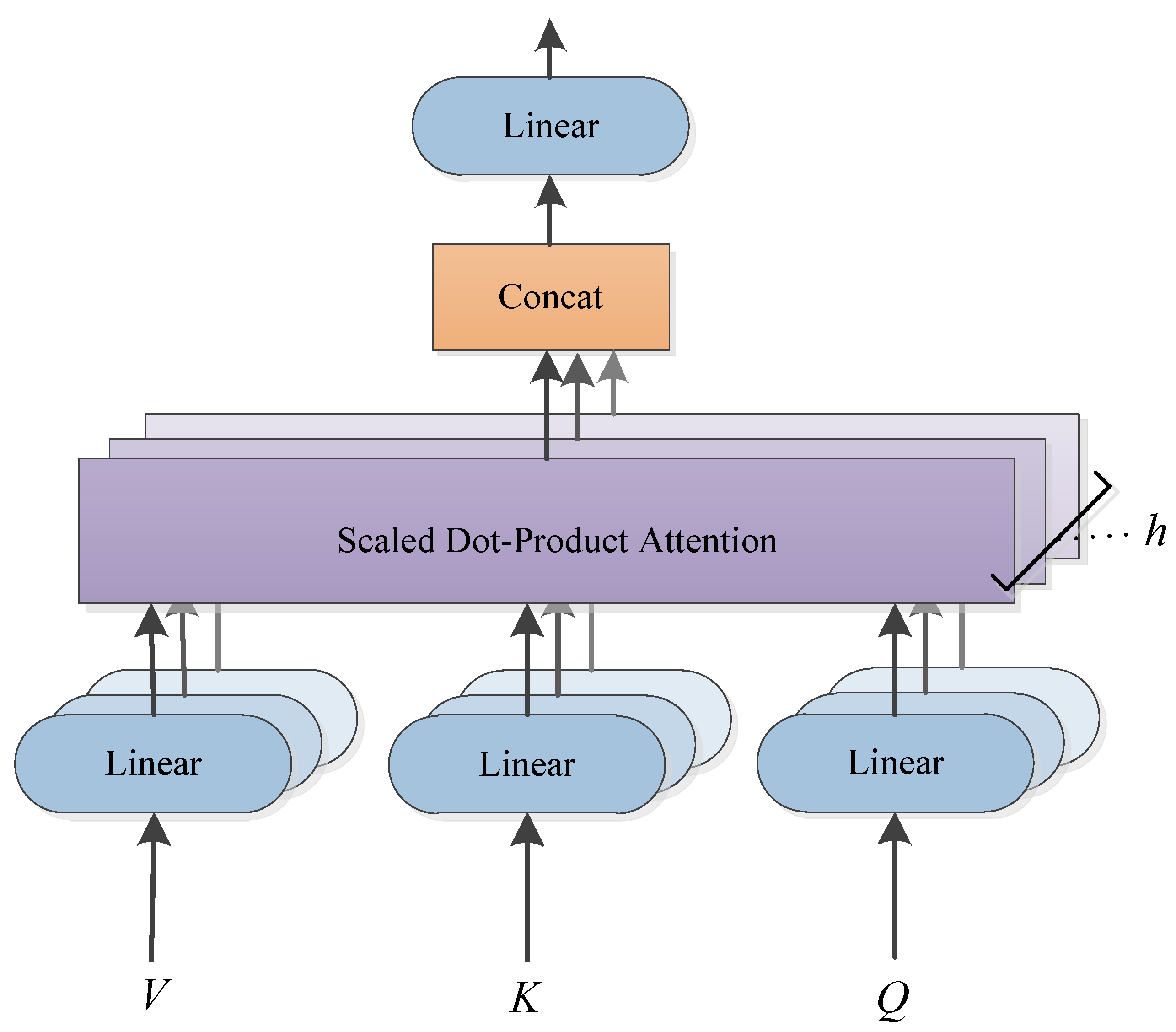

- (III) Multi-head Attention

#### 2.2.2. Metrics

- RMSE: It is a commonly used metric for evaluating prediction models in various fields, including machine learning, statistics, and engineering. It measures the differences between predicted values and actual values by computing the square root of the average squared difference between them. This metric provides a way to quantify the magnitude of the errors in the predictions and can be used to compare the performance of different prediction models.

- MAPE: It is another commonly used evaluation metric for predicting RUL. MAPE measures the percentage difference between predicted values and actual values, which makes it useful for assessing the accuracy of predictions when the scale of the data varies widely.

- SCORE: Early prediction is often more important and effective than later prediction for gradually degrading equipment, such as aircraft engines, bearings, etc., which experience gradual deterioration within their operational life cycle, and their failures typically develop gradually, causing progressive damage to the equipment over a period of time. By setting a penalty for later predictions compared to early predictions, the score function can better capture the preference for early predictions. This is particularly useful for capturing the early warning signs of equipment degradation and preventing catastrophic failures.

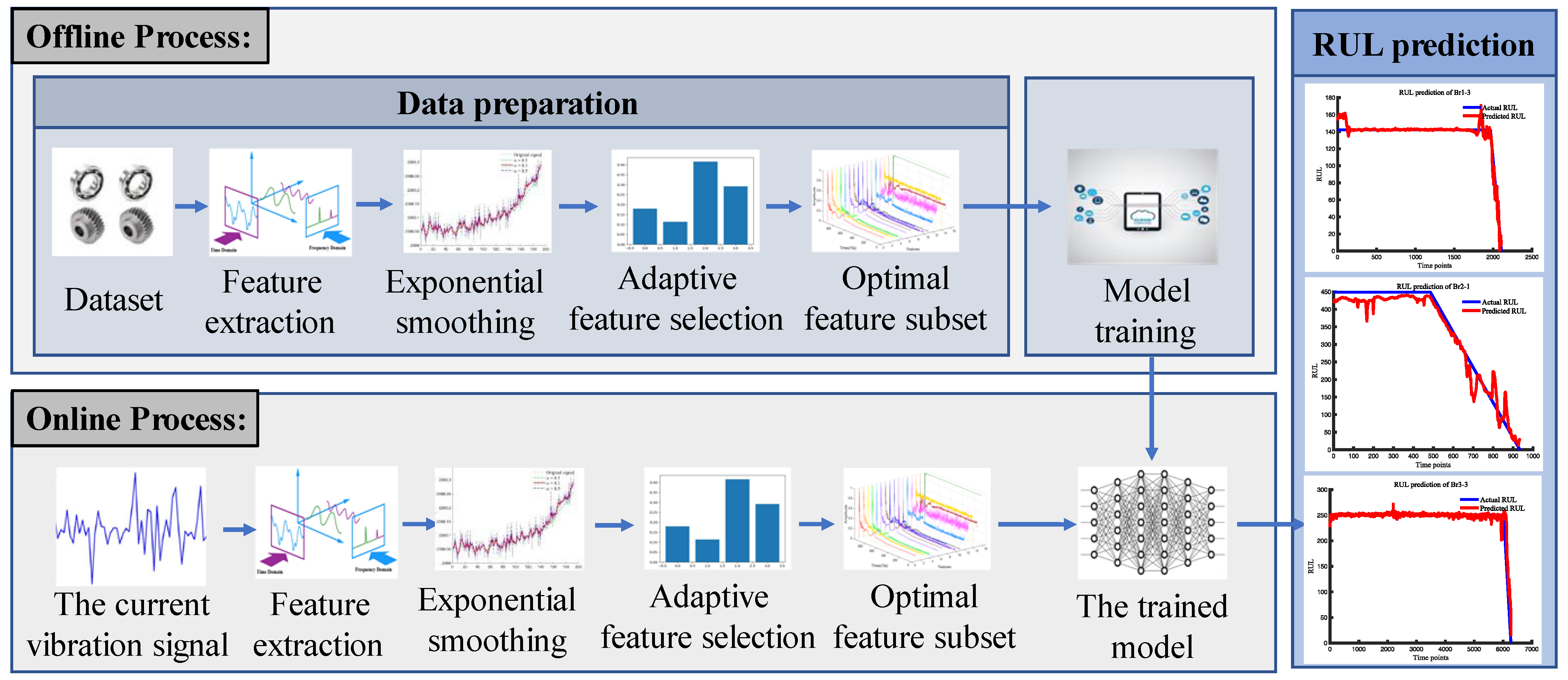

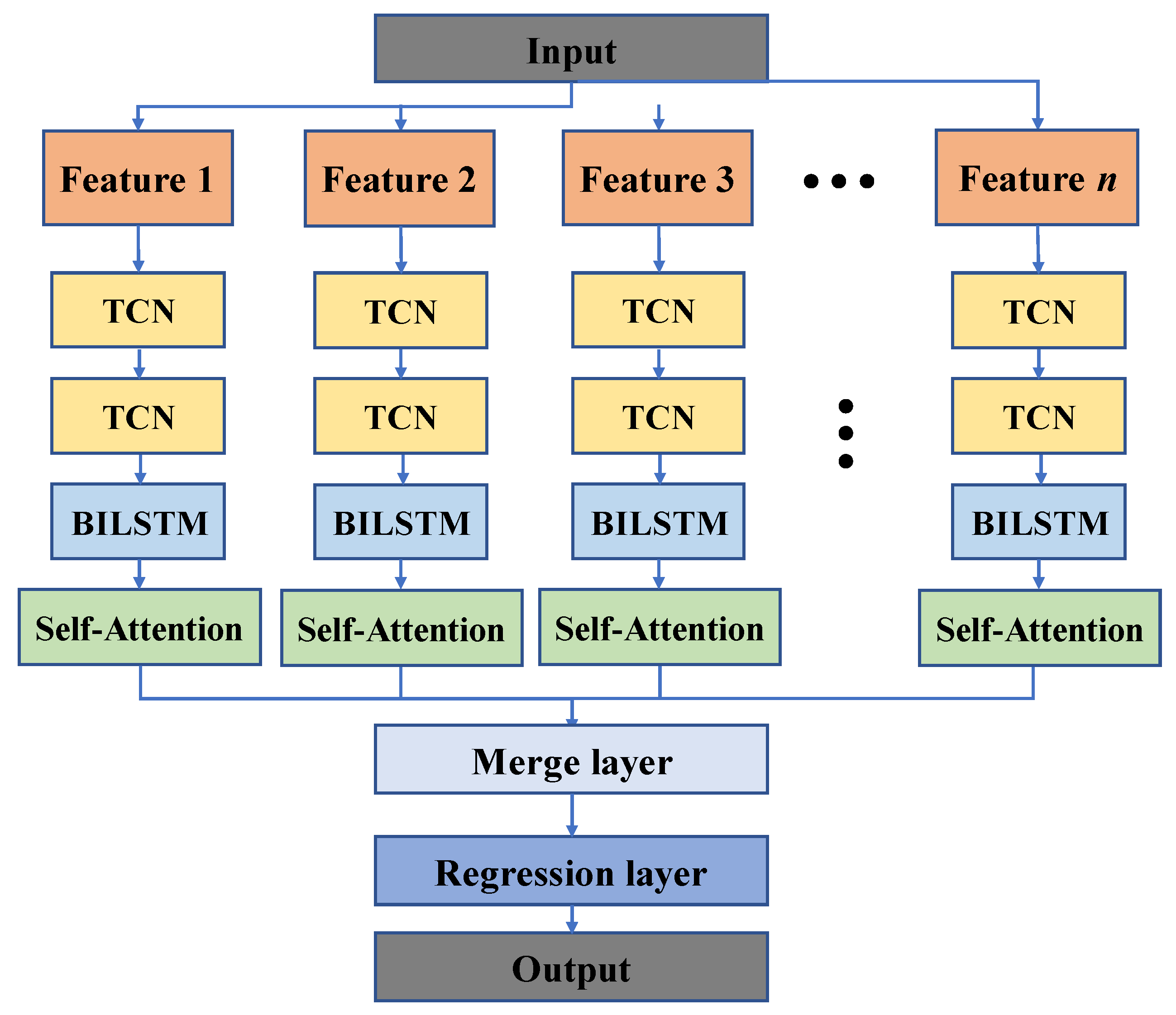

#### 2.2.3. Proposed Model

## 3. Case Studies

#### 3.1. Case Study1: Intelligent Maintenance System (IMS) Bearing Dataset

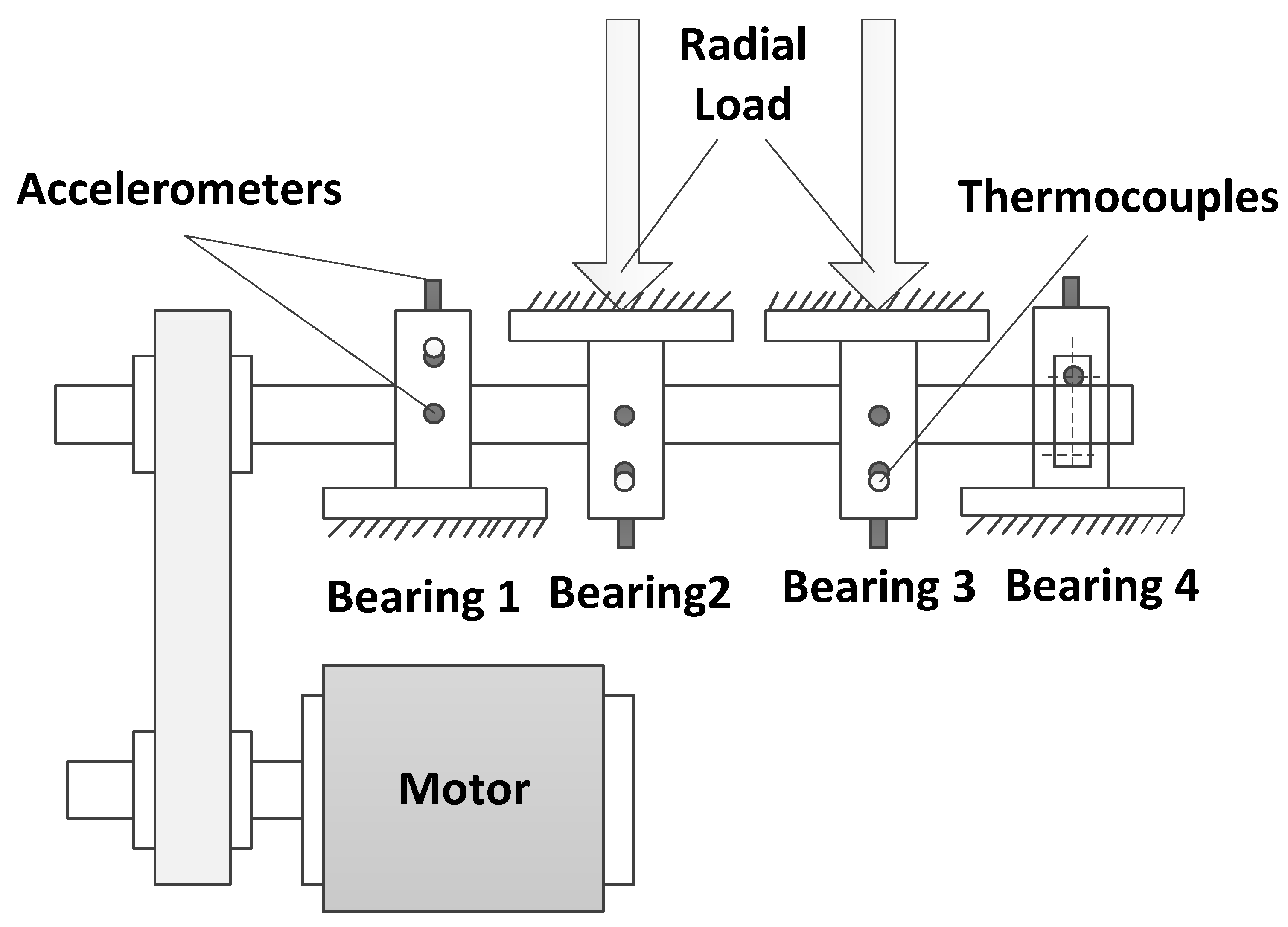

#### 3.1.1. Dataset Description

#### 3.1.2. Data Preparation

#### 3.1.3. Optimal Feature Subset

_{c}= 0.15, ω

_{m}= 0.64, and ω

_{r}= 0.21, using Equations (8)–(10) (Table 4).

#### 3.1.4. Discussion and Comparison

#### 3.2. Case Study2: C-MAPSS Aeroengines Dataset

#### 3.2.1. Dataset Description

#### 3.2.2. Data Preparation

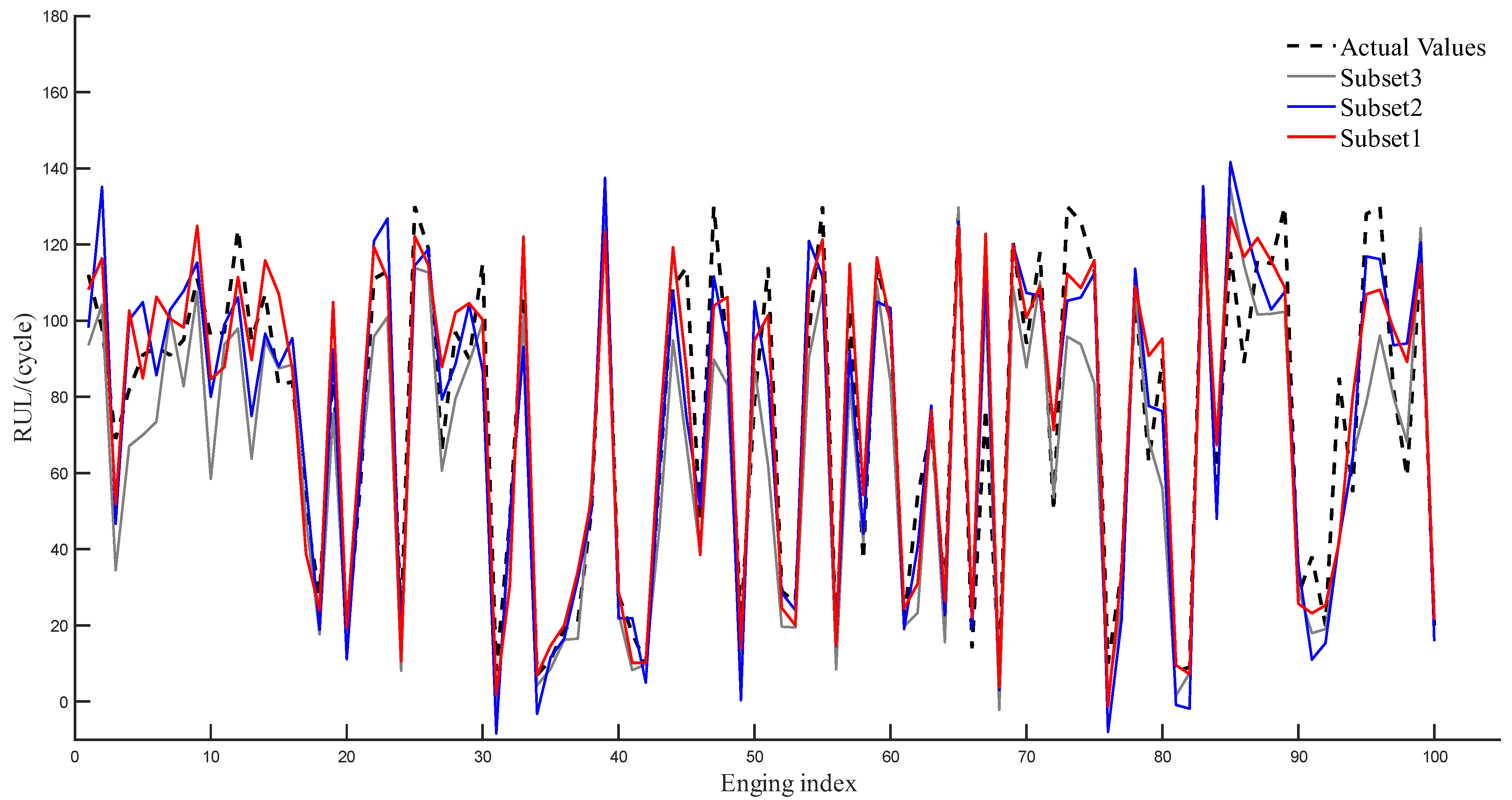

#### 3.2.3. Optimal Feature Subset

_{c}, ω

_{m,}and ω

_{r}of the C-MAPSS data were calculated as 0.29, 0.43, and 0.28, respectively. The 21-dimensional sensor detection features of the C-MAPSS data were filtered using the adaptive feature selection method (Section 2.1.2), and finally, an optimal feature subset consisting of 12-dimensional features was obtained. As shown in Table 10, in order to verify the effectiveness of the optimal feature subset, two other feature subsets were constructed (in the same manner as Section 3.1.3) for the comparative testing of aeroengine RUL prediction (Figure 14).

#### 3.2.4. Discussion and Comparison

## 4. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Lu, Y.; Li, Q.; Liang, S.Y. Physics-based intelligent prognosis for rolling bearing with fault feature extraction. Int. J. Adv. Manuf. Technol.
**2018**, 97, 611–620. [Google Scholar] [CrossRef] - Zhao, H.; Liu, H.; Jin, Y.; Dang, X.; Deng, W. Feature Extraction for Data-Driven Remaining Useful Life Prediction of Rolling Bearings. IEEE Trans. Instrum. Meas.
**2021**, 70, 3511910. [Google Scholar] [CrossRef] - Gao, T.; Li, Y.; Huang, X.; Wang, C. Data-Driven Method for Predicting Remaining Useful Life of Bearing Based on Bayesian Theory. Sensors
**2021**, 21, 182. [Google Scholar] [CrossRef] [PubMed] - Que, Z.; Jin, X.; Xu, Z. Remaining Useful Life Prediction for Bearings Based on a Gated Recurrent Unit. IEEE Trans. Instrum. Meas.
**2021**, 70, 3511411. [Google Scholar] [CrossRef] - Kai, G.; Celaya, J.; Sankararaman, S.; Roychoudhury, I.; Saxena, A. Prognostics: The Science of Making Predictions; CreateSpace Independent Publishing Platform: Scotts Valley, CA, USA, 2017. [Google Scholar]
- Shen, F.; Yan, R. A New Intermediate-Domain SVM-Based Transfer Model for Rolling Bearing RUL Prediction. IEEE/ASME Trans. Mechatron.
**2022**, 27, 1357–1369. [Google Scholar] [CrossRef] - Wang, F.; Liu, X.; Liu, C.; Li, H.; Han, Q. Remaining Useful Life Prediction Method of Rolling Bearings Based on Pchip-EEMD-GM(1,1) Model. Shock Vib.
**2018**, 2018, 3013684. [Google Scholar] [CrossRef] - Zhu, J.; Chen, N.; Shen, C. A new data-driven transferable remaining useful life prediction approach for bearing under different working conditions. Mech. Syst. Signal Process.
**2020**, 139, 106602. [Google Scholar] [CrossRef] - Guo, L.; Li, N.; Jia, F.; Lei, Y.; Lin, J. A recurrent neural network based health indicator for remaining useful life prediction of bearings. Neurocomputing
**2017**, 240, 98–109. [Google Scholar] [CrossRef] - Mi, J.; Liu, L.; Zhuang, Y.; Bai, L.; Li, Y.-F. A Synthetic Feature Processing Method for Remaining Useful Life Prediction of Rolling Bearings. IEEE Trans. Reliab.
**2022**, 72, 125–136. [Google Scholar] [CrossRef] - Saufi, M.S.R.M.; Hassan, K.A. Remaining useful life prediction using an integrated Laplacian-LSTM network on machinery components. Appl. Soft Comput.
**2021**, 112, 107817. [Google Scholar] [CrossRef] - Behera, S.; Misra, R.; Sillitti, A. Multiscale deep bidirectional gated recurrent neural networks based prognostic method for complex non-linear degradation systems. Inf. Sci.
**2021**, 554, 120–144. [Google Scholar] [CrossRef] - Zhang, Y.; Xin, Y.; Liu, Z.-W.; Chi, M.; Ma, G. Health status assessment and remaining useful life prediction of aero-engine based on BiGRU and MMoE. Reliab. Eng. Syst. Saf.
**2022**, 220, 108263. [Google Scholar] [CrossRef] - Xiang, S.; Qin, Y.; Luo, J.; Pu, H.Y.; Tang, B.P. Multicellular LSTM-based deep learning model for aero-engine remaining useful life prediction. Reliab. Eng. Syst. Saf.
**2021**, 216, 107927. [Google Scholar] [CrossRef] - Zhang, N.; Wu, L.; Wang, Z.; Guan, Y. Bearing Remaining Useful Life Prediction Based on Naive Bayes and Weibull Distributions. Entropy
**2018**, 20, 944. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Zhang, B.; Zhang, L.; Xu, J. Degradation Feature Selection for Remaining Useful Life Prediction of Rolling Element Bearings. Qual. Reliab. Eng. Int.
**2016**, 32, 547–554. [Google Scholar] [CrossRef] - Pan, M.; Hu, P.; Gao, R.; Liang, K. Multistep prediction of remaining useful life of proton exchange membrane fuel cell based on temporal convolutional network. Int. J. Green Energy
**2022**, 20, 408–422. [Google Scholar] [CrossRef] - Ding, H.; Yang, L.; Cheng, Z.; Yang, Z. A remaining useful life prediction method for bearing based on deep neural networks. Measurement
**2020**, 172, 108878. [Google Scholar] [CrossRef] - Niu, T.; Zhang, L.; Zhang, B.; Yang, B.; Wei, S. An Improved Prediction Model Combining Inverse Exponential Smoothing and Markov Chain. Math. Probl. Eng.
**2020**, 2020, 6210616. [Google Scholar] [CrossRef] - Lv, M.; Liu, S.; Su, X.; Chen, C. Early degradation detection of rolling bearing based on adaptive variational mode decomposition and envelope harmonic to noise ratio. J. Vib. Shock
**2021**, 40, 271–280. [Google Scholar] [CrossRef] - Cheng, Y.; Wu, J.; Zhu, H.; Or, S.W.; Shao, X. Remaining Useful Life Prognosis Based on Ensemble Long Short-Term Memory Neural Network. IEEE Trans. Instrum. Meas.
**2021**, 70, 3503912. [Google Scholar] [CrossRef] - Wu, J.Y.; Min, W.; Chen, Z.; Li, X.L.; Yan, R. Degradation-Aware Remaining Useful Life Prediction With LSTM Autoencoder. IEEE Trans. Instrum. Meas.
**2021**, 70, 3511810. [Google Scholar] [CrossRef] - Thakkar, U.; Chaoui, H. Remaining Useful Life Prediction of an Aircraft Turbofan Engine Using Deep Layer Recurrent Neural Networks. Actuators
**2022**, 11, 67. [Google Scholar] [CrossRef] - Liao, Y.; Zhang, L.; Liu, C. Uncertainty prediction of remaining useful life using long short-term memory network based on bootstrap method. In Proceedings of the 2018 IEEE International Conference on Prognostics and Health Management (ICPHM), Seattle, WA, USA, 11–13 June 2018; pp. 1–8. [Google Scholar]
- Zhang, C.; Lim, P.; Qin, A.K.; Tan, K.C. Multiobjective Deep Belief Networks Ensemble for Remaining Useful Life Estimation in Prognostics. IEEE Trans. Neural Netw. Learn. Syst.
**2017**, 28, 2306–2318. [Google Scholar] [CrossRef] [PubMed] - Shuai, Z.; Ristovski, K.; Farahat, A.; Gupta, C. Long Short-Term Memory Network for Remaining Useful Life estimation. In Proceedings of the 2017 IEEE International Conference on Prognostics and Health Management (ICPHM), Dallas, TX, USA, 19–21 June 2017. [Google Scholar]
- Sateesh Babu, G.; Zhao, P.; Li, X.-L. Deep Convolutional Neural Network Based Regression Approach for Estimation of Remaining Useful Life. In Proceedings of the Database Systems for Advanced Applications, Cham, Switzerland, 25 March 2016; pp. 214–228. [Google Scholar]
- Gu, Y.; Wylie, B.K.; Boyte, S.P.; Picotte, J.; Howard, D.M.; Smith, K.; Nelson, K.J. An Optimal Sample Data Usage Strategy to Minimize Overfitting and Underfitting Effects in Regression Tree Models Based on Remotely-Sensed Data. Remote Sens.
**2016**, 8, 943. [Google Scholar] [CrossRef] [Green Version]

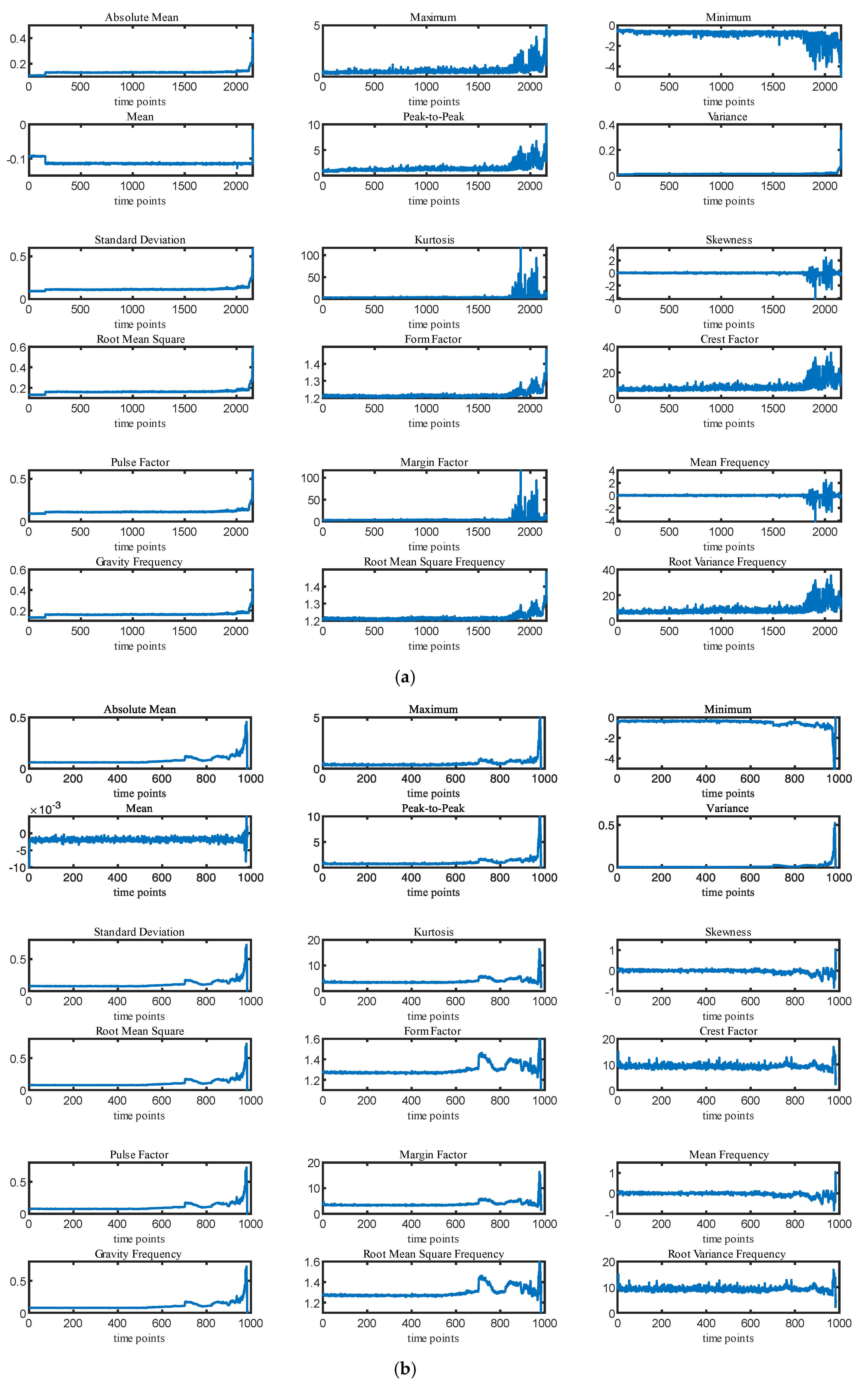

**Figure 8.**(

**a**) Feature extraction results of Br1-3; (

**b**) feature extraction results of Br2-1; (

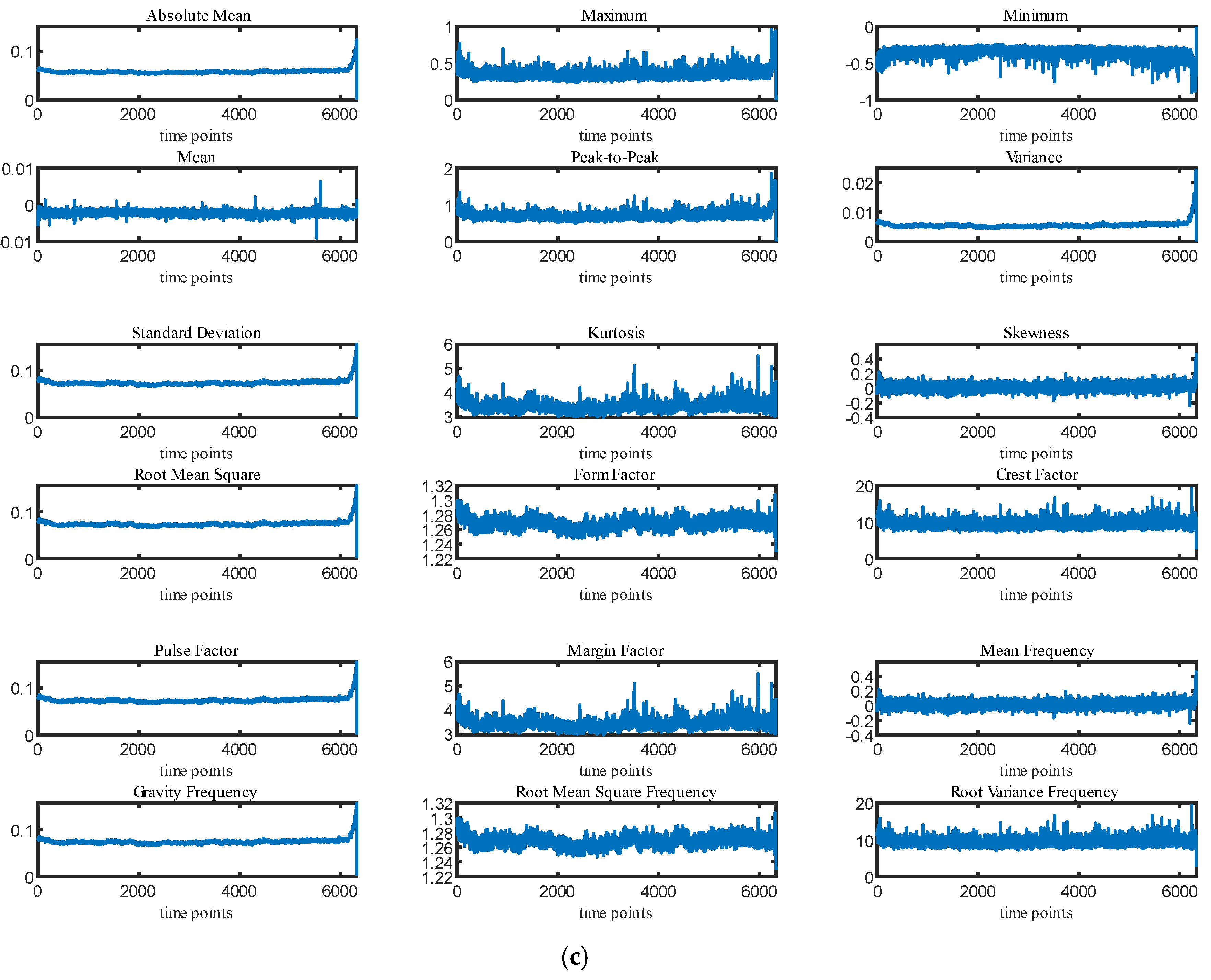

**c**) feature extraction results of r3-3.

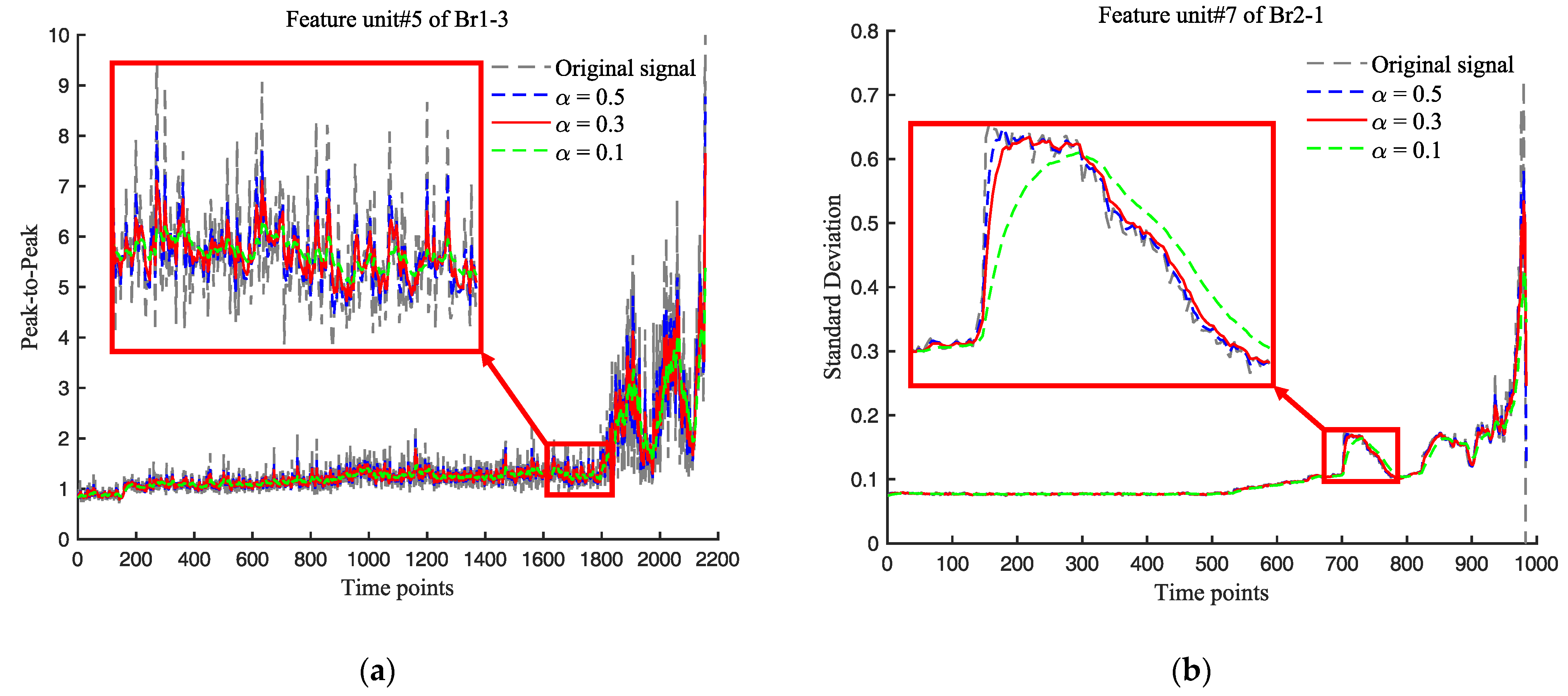

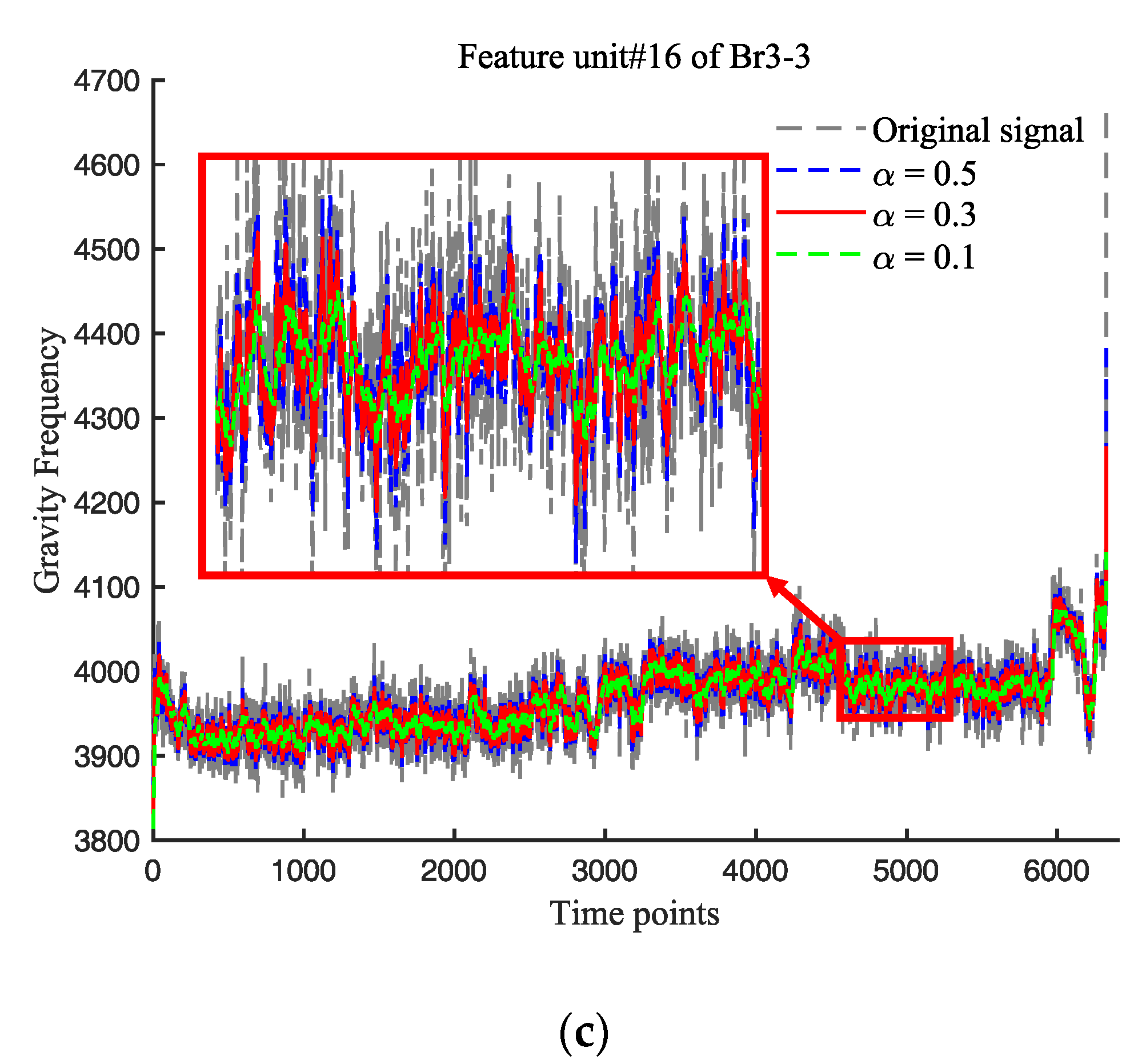

**Figure 9.**(

**a**) Performance of ES on peak-to-peak of Br1-3; (

**b**) performance of ES on standard deviation of Br2-1; (

**c**) 3; (

**b**) performance of ES on gravity frequency of Br3-3.

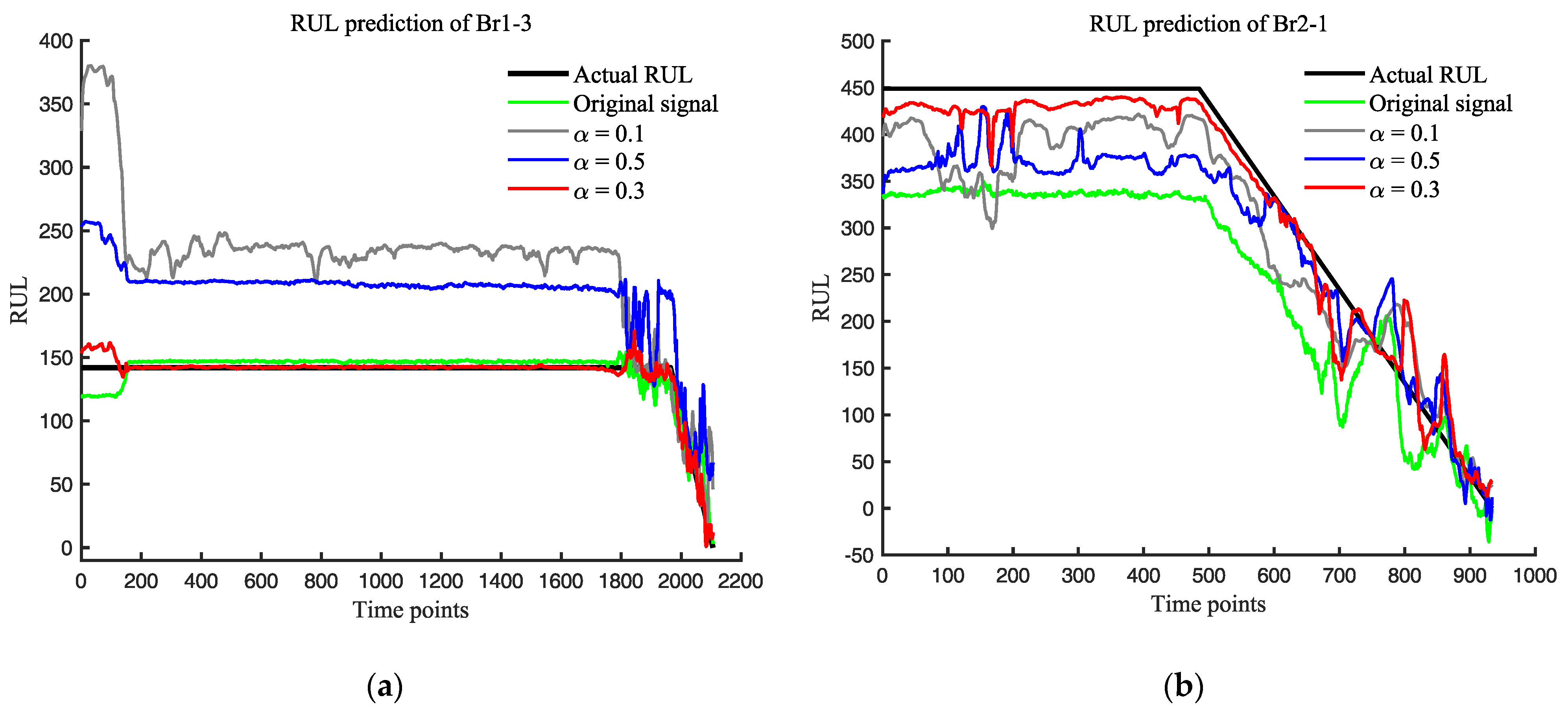

**Figure 10.**(

**a**) RUL prediction of different α on Br1-3; (

**b**) RUL prediction of different α on Br2-1; (

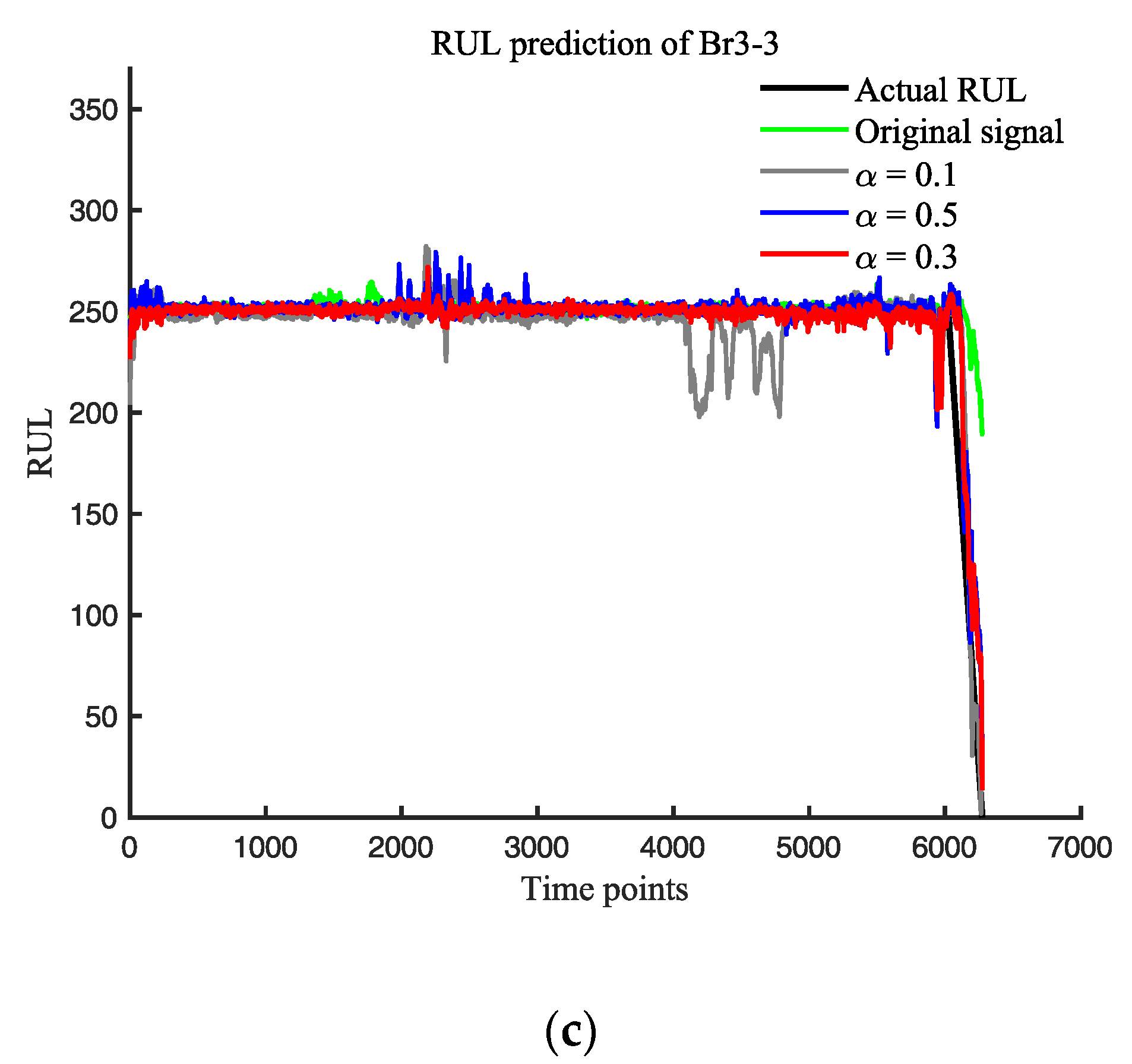

**c**) RUL prediction of different α on Br3-3.

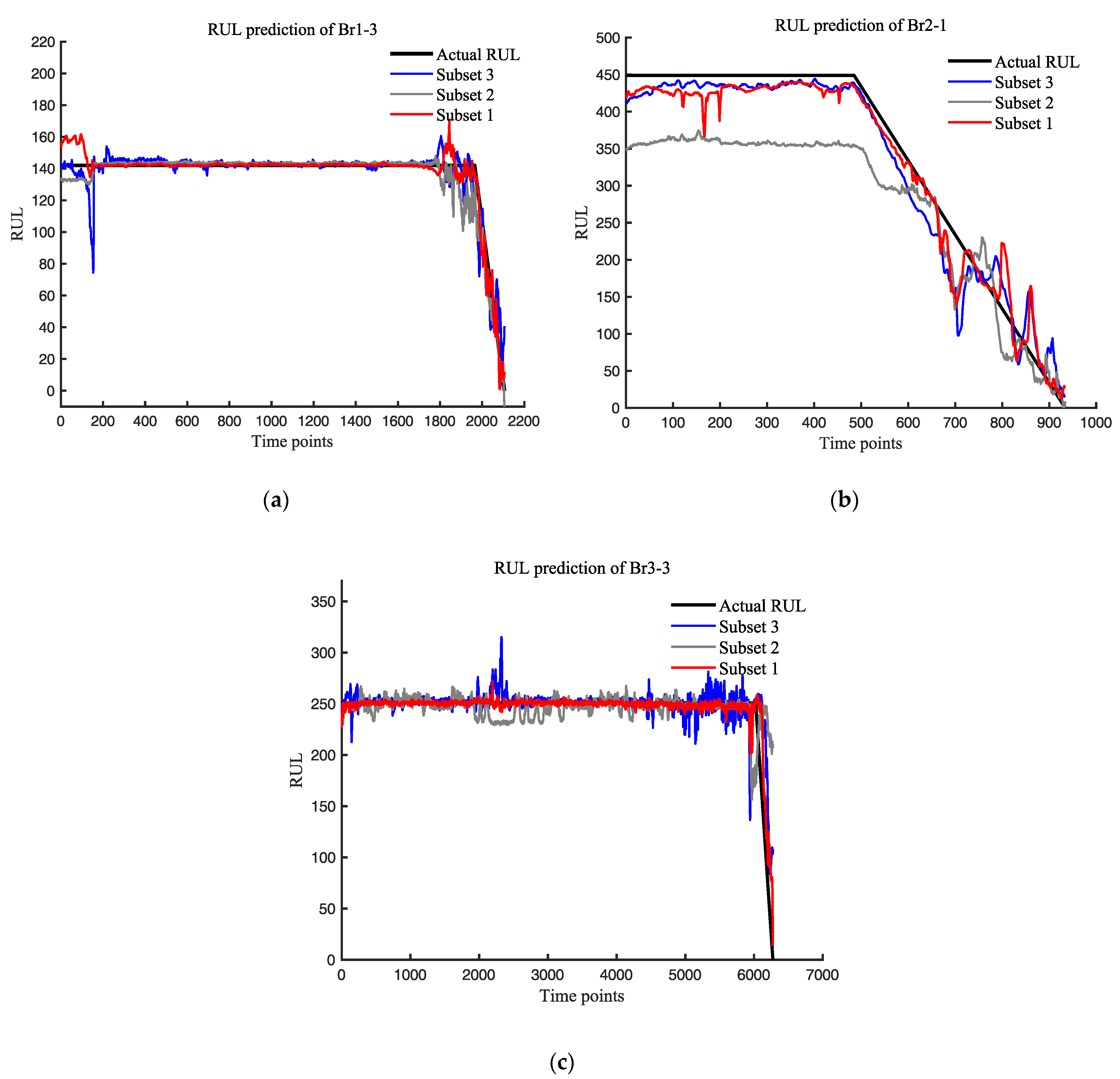

**Figure 11.**(

**a**) RUL prediction of different feature subsets on Br1-3; (

**b**) RUL prediction of different feature subsets on Br2-1; (

**c**) RUL prediction of different feature subsets on Br3-3.

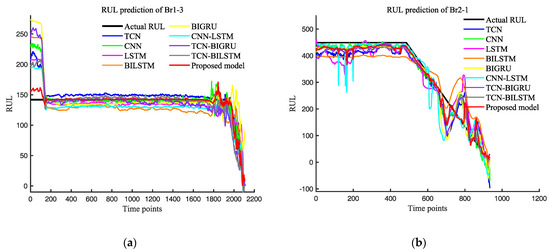

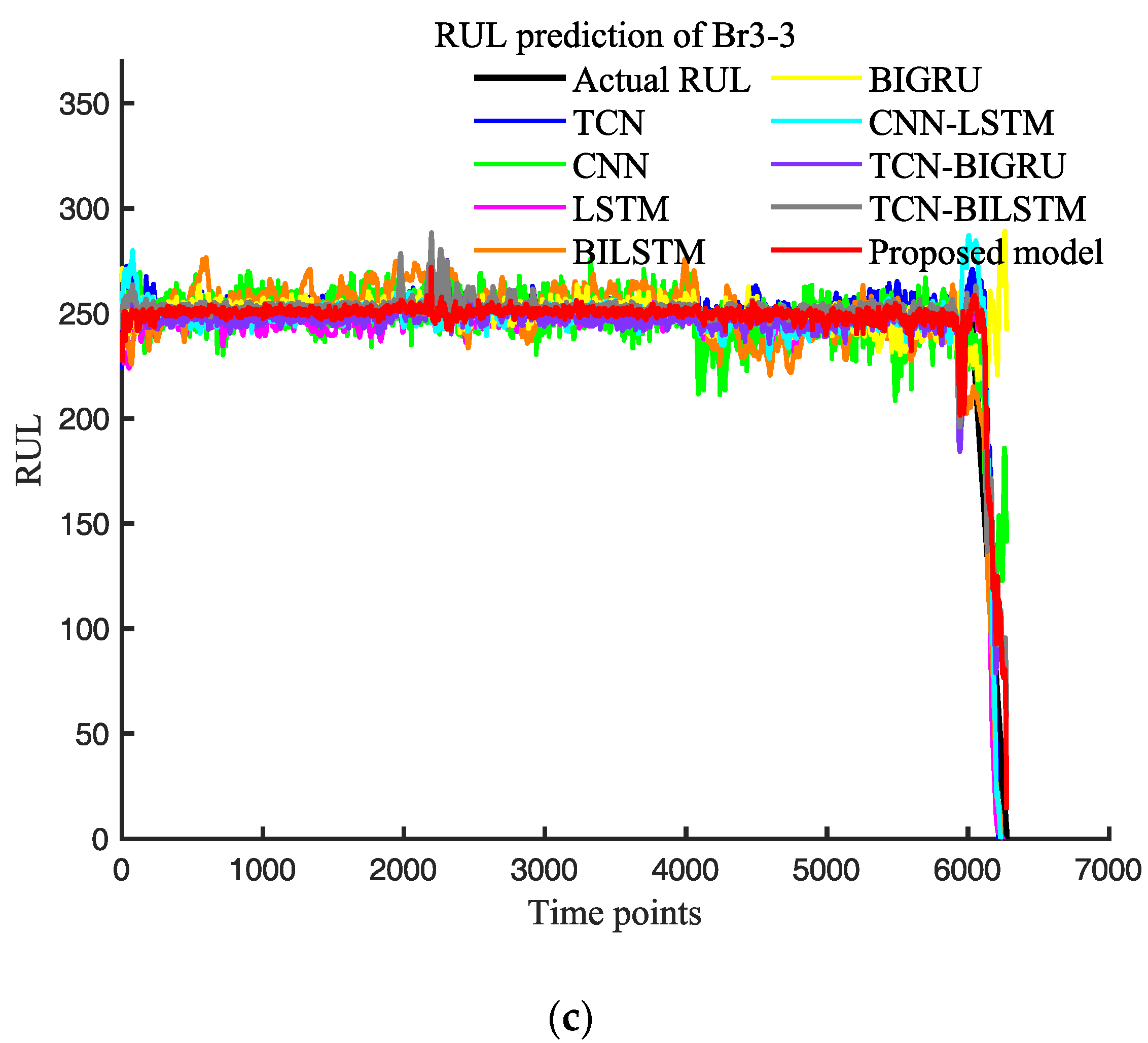

**Figure 12.**(

**a**) RUL prediction of different feature models on Br1-3; (

**b**) RUL prediction of different feature models on Br2-1; (

**c**) RUL prediction of different feature models on Br3-3.

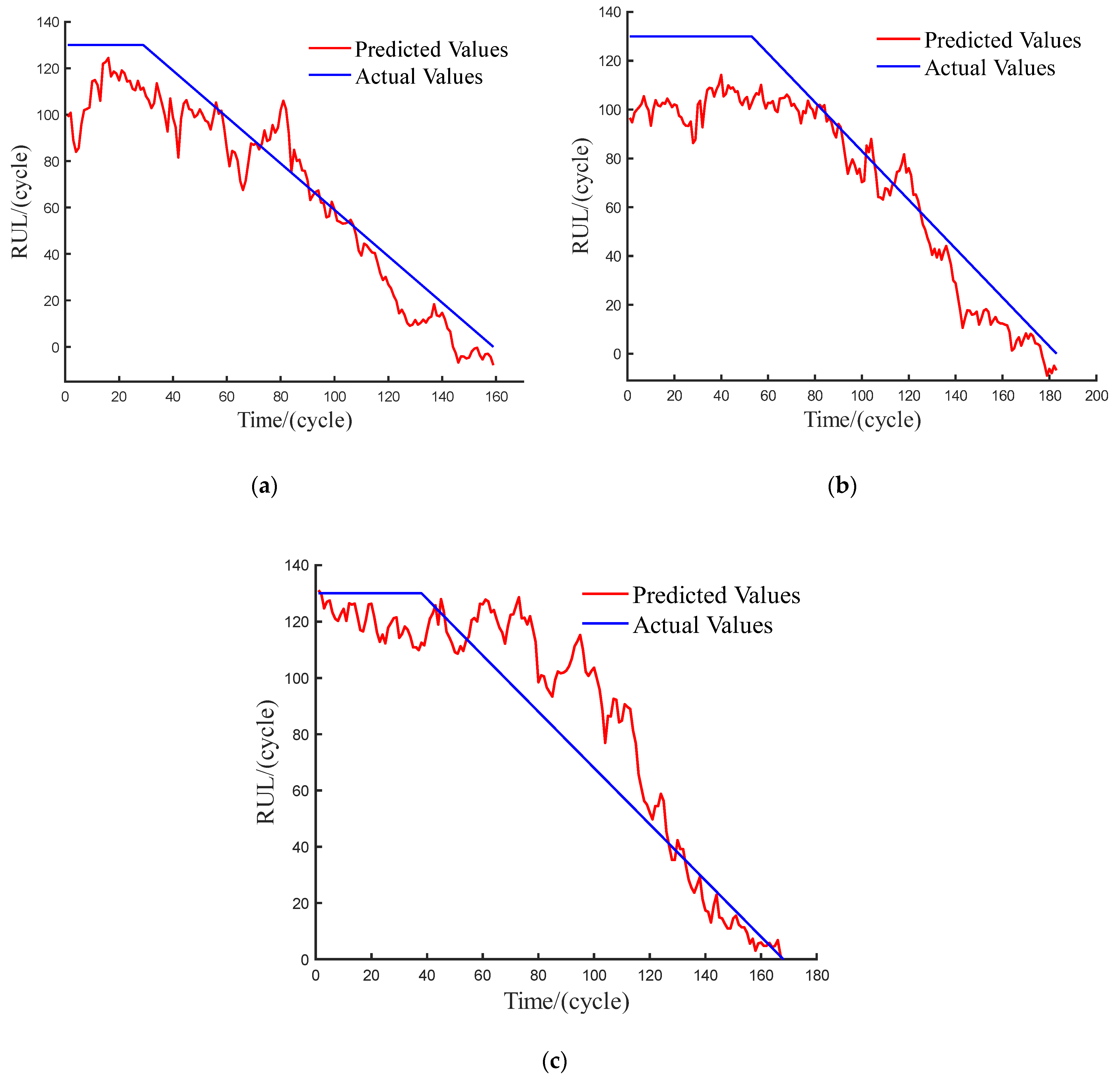

**Figure 15.**(

**a**) RUL prediction results for engine units #52 of FD001; (

**b**) RUL prediction results for engine units #81 of FD001; (

**c**) RUL prediction results for engine units #100 of FD001.

Type | Definition |
---|---|

Input Layer | The input layer |

TCN | filters = 32, kernel size = 3 |

Batch Norm | Batch normalization |

TCN | filters = 32, kernel size = 3 |

Batch Norm | Batch normalization |

Bidirectional(LSTM) | Units = 32 |

Batch Norm | Batch normalization |

SeqSelfAttention | Self-attentional layer |

MaxPooling1D | The pooling layer |

Flatten | Returns a 1D array |

Concatenate | Merge the channels |

Dense | Dense to 50 |

Dense | Dense to 1 |

Test Number | File Number | Fault Bearing | Symbol | Fault Bearing |
---|---|---|---|---|

Test 1 | 2156 | Bearing 3 | Br1-3 | inner race |

Test 2 | 984 | Bearing 1 | Br2-1 | outer race |

Test 3 | 6324 | Bearing 3 | Br3-3 | outer race |

Bearings | α | RMSE | SCORE | MAPE |
---|---|---|---|---|

Br1-3 | 0 | 9.30 | 3.55 × 10^{3} | 0.07 |

0.1 | 99.85 | 1.42 × 10^{12} | 0.74 | |

0.3 | 5.28 | 9.34 × 10^{2} | 0.03 | |

0.5 | 66.28 | 8.45 × 10^{6} | 0.56 | |

Br2-1 | 0 | 99.13 | 4.34 × 10^{6} | 0.36 |

0.1 | 56.41 | 1.27 × 10^{6} | 0.23 | |

0.3 | 26.18 | 1.22 × 10^{5} | 0.15 | |

0.5 | 62.36 | 3.46 × 10^{5} | 0.19 | |

Br3-3 | 0 | 25.61 | 8.01 × 10^{9} | 0.17 |

0.1 | 14.41 | 2.40 × 10^{5} | 0.04 | |

0.3 | 10.83 | 1.23 × 10^{5} | 0.05 | |

0.5 | 11.45 | 1.65 × 10^{5} | 0.05 |

Bearings | Corr | Mon | Rob |
---|---|---|---|

Br1-3 | 8.46 | 39.34 | 8.28 |

Br2-1 | 5.33 | 13.11 | 9.31 |

Br3-3 | 5.17 | 29.93 | 10.16 |

Feature Subsets | Features |
---|---|

Subset 1 | 1,10,4,15,6,7,5,8,2,3,9 |

Subset 2 | 1–18 |

Subset 3 | 1,10,7,15,16,18,6,3,17,5,14 |

Bearings | Subset | RMSE | SCORE | MAPE |
---|---|---|---|---|

Br1-3 | 1 | 5.28 | 9.34 × 10^{2} | 0.03 |

2 | 7.13 | 1.33 × 10^{3} | 0.04 | |

3 | 8.25 | 2.63 × 10^{3} | 0.07 | |

Br2-1 | 1 | 26.18 | 1.22 × 10^{5} | 0.15 |

2 | 74.07 | 6.44 × 10^{5} | 0.21 | |

3 | 31.11 | 1.74 × 10^{4} | 0.19 | |

Br3-3 | 1 | 10.83 | 1.23 × 10^{5} | 0.05 |

2 | 27.55 | 1.34 × 10^{10} | 0.19 | |

3 | 17.85 | 3.38 × 10^{6} | 0.10 |

Bearings | Model | RMSE | SCORE | MAPE |
---|---|---|---|---|

Br1-3 | TCN | 17.51 | 1.17 × 10^{5} | 0.11 |

CNN | 21.06 | 6.61 × 10^{5} | 0.07 | |

LSTM | 20.06 | 9.68 × 10^{4} | 0.12 | |

BILSTM | 30.05 | 3.03 × 10^{6} | 0.23 | |

BIGRU | 34.24 | 4.06 × 10^{7} | 0.26 | |

CNN-LSTM | 18.47 | 2.54 × 10^{4} | 0.19 | |

TCN-BIGRU | 28.27 | 7.41 × 10^{6} | 0.11 | |

TCN-BILSTM | 16.93 | 5.12 × 10^{4} | 0.08 | |

Proposed model | 5.28 | 9.34 × 10^{2} | 0.03 | |

Br2-1 | TCN | 45.63 | 5.24 × 10^{6} | 0.42 |

CNN | 28.48 | 1.07 × 10^{5} | 0.25 | |

LSTM | 52.98 | 1.28 × 10^{9} | 0.22 | |

BILSTM | 61.66 | 1.98 × 10^{8} | 0.36 | |

BIGRU | 40.48 | 1.91 × 10^{6} | 0.22 | |

CNN-LSTM | 44.93 | 9.44 × 10^{6} | 0.34 | |

TCN-BIGRU | 36.31 | 3.53 × 10^{5} | 0.14 | |

TCN-BILSTM | 29.62 | 4.16 × 10^{5} | 0.12 | |

Proposed model | 26.18 | 1.22 × 10^{5} | 0.15 | |

Br3-3 | TCN | 20.59 | 5.81 × 10^{9} | 0.19 |

CNN | 16.06 | 2.51 × 10^{8} | 0.13 | |

LSTM | 11.64 | 8.09 × 10^{4} | 0.04 | |

BILSTM | 13.24 | 1.56 × 10^{4} | 0.08 | |

BIGRU | 29.75 | 1.18 × 10^{13} | 0.22 | |

CNN-LSTM | 12.49 | 2.48 × 10^{5} | 0.06 | |

TCN-BIGRU | 12.06 | 1.00 × 10^{5} | 0.07 | |

TCN-BILSTM | 11.66 | 1.28 × 10^{5} | 0.07 | |

Proposed model | 10.83 | 1.23 × 10^{5} | 0.05 |

Dataset | FD001 | |
---|---|---|

Training Set | Testing Set | |

Engines | 100 | 100 |

Sensor measurements | 21 | 21 |

Operation conditions | H = 0 kft Ma = 0 TRA = 100° | |

Fault modes | Fault of high-pressure compressor |

No. | Symbol | Description | Units |
---|---|---|---|

1 | T2 | Total temperature at fan inlet | (°) |

2 | T24 | Total temperature at LPC outlet | (°) |

3 | T30 | Total temperature at HPC outlet | (°) |

4 | T50 | Total temperature at LPT outlet | (°) |

5 | P2 | Pressure at fan inlet | Pa |

6 | P15 | Total pressure in bypass-duct | Pa |

7 | P30 | Total pressure at HPC outlet | Pa |

8 | Nf | Physical fan speed | r/min |

9 | Nc | Physical core speed | r/min |

10 | epr | Engine pressure ratio (P50/P2) | - |

11 | Ps30 | Static pressure at HPC outlet | Pa |

12 | Phi | Ratio of fuel flow to Ps30 | pps/psi |

13 | NRf | Corrected fan speed | r/min |

14 | NRc | Corrected core speed | r/min |

15 | BPR | Bypass ratio | - |

16 | FarB | Burner fuel–air ratio | - |

17 | htBleed | Bleed enthalpy | - |

18 | Nf_dmd | Demanded fan speed | r/min |

19 | PCNfR_dmd | Demanded corrected fan speed | r/min |

20 | W31 | HPT coolant bleed | lbm/s |

21 | W32 | LPT coolant bleed | lbm/s |

Feature Subsets | Features |
---|---|

Subset 1 | 2,3,4,7,8,9,11,12,13,15,20,21 |

Subset 2 | 4,7,8,9,11,12,13,14,15,17,20,21 |

Subset 3 | 1–21 |

Subset | RMSE | SCORE |
---|---|---|

1 | 13.99 | 313 |

2 | 15.42 | 411 |

3 | 17.85 | 969 |
