Metaheuristic Identification for an Analytic Dynamic Model of a Delta Robot with Experimental Verification

Abstract

The dynamic-parameter identification process for developing a suitable precise mathematical model for the implementation and operation of parallel-link robots has received attention. In this study, an efficient and reliable system-identification method for a delta robot is proposed. The parallel-link robot’s dynamic behavior was mathematically modeled according to the principle of virtual work. The dynamic equations of motion are extended to the system of equations that explicitly characterizes the inertial and centripetal/Coriolis forces, and the frictional effects on the robot’s dynamic behavior. Next, the dynamic-parameter identification technique is presented to directly estimate a set of uncertain parameters that are included in the extended dynamic model. In addition, the development of the dynamic model with a generalized inertia matrix for determining the impact of the inertia-coupling characteristic on the robot’s dynamic behaviors is examined. Experimental results indicate that the proposed parameter-estimation technique is an extremely useful tool that can achieve the high-quality identification of an analytic dynamic model for a parallel-link robot.

1. Introduction

A delta robot comprises a spatial parallel structure with multiple links that is generally driven by three revolute actuators implemented on actuated links. Such robots comprise multiple closed-loop kinematic chains that connect the moving platform to the fixed base. This mechanism enables load sharing among the kinematic chains, thereby affording benefits such as higher structural rigidity, higher repetitive positioning accuracy, and faster pick-and-place operations compared with serial robots having sequentially connected links [1,2].

Modeling this type of parallel structure of the robot requires a complex dynamic mathematical model consisting of several nonlinear differential equations. The precision of the system parameters describing the robot’s dynamic model is critical for model-based controller designs, validation of robotic simulations, and accurate motion-planning tasks [3]. However, the physical data provided by manufacturers for crucial model parameters are usually limited and inaccurate. Furthermore, important information regarding the dynamic parameters related to frictional, inertial, centripetal, and Coriolis forces may be nonexistent. Therefore, the parameters describing the robot dynamic model inevitably contain uncertainties, resulting in the performance deterioration of the controller, as it is sensitive to the parameter values [4]. Therefore, a challenge in operating a parallel-link robot through a real-time model-based controller is to identify the large number of uncertain model parameters contained in its highly complex dynamic model. Accordingly, several studies have been conducted in recent years to identify the set of dynamic parameters included in the analytic model of parallel-link robots.

Angel and Viola [5] recently suggested a parametric identification method for the analytic dynamic model of parallel-link robots using a recursive least-squares (RLS) estimation algorithm. However, their dynamic model, which was derived by introducing the Euler–Lagrange formulation approach, disregarded frictional force terms. Therefore, frictional effects on the dynamic behavior of the robot could not be analyzed explicitly. Further, their RLS algorithm has several critical drawbacks for practical applications, such as the requirement of considerable computational power, high sensitivity to initial conditions, and the potential for the numerical instability of the output, particularly with limited-precision arithmetic. Lastly, their approach was examined using only the Adams–MATLAB cosimulation model and not an actual parallel-link robot. Liu et al. [6] studied a parameter-identification methodology for a class of parallel manipulators that was incorporated with the truncated singular value decomposition (SVD) algorithm. However, their identification scheme was intended for developing only the kinematic model, not the dynamic analytic model, of the robot. Mata et al. [7] proposed parameter-identification processes applicable to parallel manipulators. To perform identification, they first transformed the complex dynamic equations of parallel manipulators into a linear formulation with respect to uncertain system parameters. The resulting system of equations belonged to a mathematically overdetermined case because the dimension of the equations of motion was greater than the number of parameters to be identified. Therefore, the base parameters that were essential for uniquely determining the system dynamics had to be calculated in advance. However, recognizing a set of base parameters is usually a major challenge in dynamic identification. Further, no routine methodology is available for the analytical determination of such a minimal set of base parameters. Because of such difficulties in assessing the identifiability of the base parameters, they adopted a method that uses a simulated manipulator, additionally built using the dynamic simulation program Adams.

The purpose of the present study is to develop an efficient and reliable methodology for identifying multiple parameters involved in the analytic dynamic model of delta robots. The complex dynamic equations of motion are derived according to the virtual work principle and are then extended to a system of equations that explicitly characterize not only the inertial and centripetal/Coriolis forces, but also the frictional effects on the dynamic behavior of the robot. To directly identify a set of uncertain parameters included in such a dynamic model, the proposed scheme employs a particle swarm optimization (PSO) algorithm with a distributed cyclic neighborhood-search mechanism [8] that was modified to be applicable to parametric identification. During the identification process, the swarm of this metaheuristic optimization optimizes the iterative estimation of unknown dynamic parameters so that the torques computed from the analytic dynamic model using the resulting parameter estimation are as close as possible to the real torques actually applied to the parallel-link robot. The prerequisite in most conventional identification methods for a dynamic model of a delta-type robot is the transformation of complex dynamic equations into linear formulation concerning uncertain system parameters [5,6,7]. The RLS or SVD algorithm can be applied to the unknown parameter identification only after such a transformation task. In contrast, the proposed approach does not require an additional task for modifying the system of equations into a linear form, and the nonlinear dynamic equations are used as-is in the algorithm for parameter identification. This feature can be attributed to the flexibility of the metaheuristic PSO algorithm. This fact also means that the challenging problem related to the overdetermined system of equations does not occur in our identification process. Therefore, our approach can avoid the problem of cumbersome and time-consuming tasks for developing a simulated manipulator model for simply checking the identifiability of the base parameters. An experimental setup, namely, a high-speed pick-and-place parallel-link robot designed at NT Robot, Co. (Moscow, Russian), was established to evaluate the performance of the proposed direct parametric identification method for the analytic dynamic model of a robot. The experimental results clearly verify that our technique provides a simple and efficient approach that can directly achieve high-quality identification for an analytic dynamic model of a parallel-link robot without relying on the model transformation task or simulated manipulator implementation.

The remainder of this paper is organized as follows. In Section 2, the evaluation of the conventional analytic dynamic model for delta robots is presented. In Section 3, the analytical model structure of the delta robot derived according to the virtual work principle is presented. Then, the method of direct estimation of the parameters included in such a dynamic model using PSO in combination with the distributed cyclic neighborhood-search mechanism is described. Some experimental results are also presented in detail in this section. A discussion of the presented approach is provided in Section 4. Lastly, we present our conclusions in Section 5.

2. Evaluation of the Conventional Dynamic Analytic Model of a Parallel-Link Robot

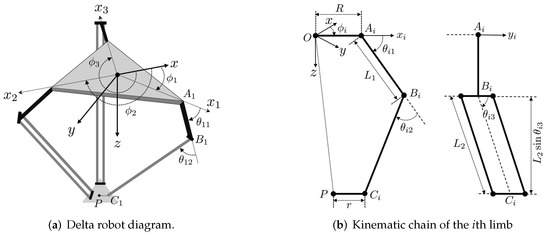

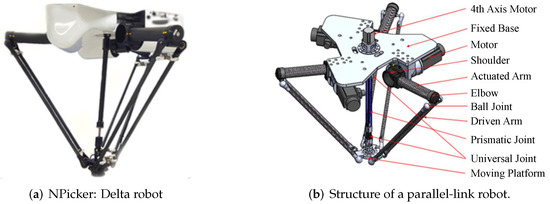

The parallel-link manipulator shown in Figure 1 is a three-degree-of-freedom robot that usually comprises three closed-loop kinematic chains, a fixed base, and a moving platform. Owing to the small mass of the manipulator and three actuators on the fixed base, this parallel-link robot can achieve high precision and high movement speed for pick-and-place tasks. Figure 2b shows the kinematic chain of this robot.

A global reference coordinate system O-$xyz$ is located at the center of the fixed base, where the x- and y axis lie on the fixed base and the z axis points vertically upward. Another coordinate system $A_i$-$x_i{y}_i{z}_i$ ($i=1,2,3$) is attached to the fixed base at a distance R (i.e., fixed base radius) along O-$xyz$, such that the $x_i$ axis is in line with the extension of $\overrightarrow{O{A}_i}$, the $y_i$ axis is directed along the revolute joint of the elbow, and the $z_i$ axis is parallel to the z axis of O-$xyz$. Angle ${\varphi }_i$ for $i=1,2,3$ is measured from the x axis to the $x_i$ axis, as depicted in Figure 2a, and is a constant parameter of the robot design measured to be ${\varphi }_1=\pi /3$, ${\varphi }_2=\pi$, and ${\varphi }_3=5\pi /3$. Let $\mathit{P}={\left[P_x{P}_y{P}_z\right]}^T$ denote the position vector of the centroid P of the moving platform relative to the O-$xyz$ coordinate system. The three joint angles ${\theta }_{i1}$, ${\theta }_{i2}$, and ${\theta }_{i3}$ associated with the ith limb are defined as follows: (1) ${\theta }_{i1}$ defines the angle of the actuated arm $A_i{B}_i$ and is measured from the $x_i$ axis to $\overrightarrow{A_i{B}_i}$, and (2) ${\theta }_{i2}$ and ${\theta }_{i3}$ represent the rotating angles of the driven arm $B_i{C}_i$. The lengths of the actuated and driven arms are denoted as $L_1$ and $L_2$, respectively. Let the radii of the fixed base and moving platform be denoted as R and r, respectively. The masses of the actuated arm, driven arm, and moving platform are denoted as $m_a$, $m_d$, and $m_p$, respectively.

The equations of motion of the considered delta robot can be derived using different methods such as Lagrangian equations, virtual work principle, and Newton–Euler methods. Let the vector of the actuator torques to be applied to the active joints at the shoulders in Figure 1b be denoted as $\mathbf{\tau }={\left[{\tau }_1{\tau }_2{\tau }_3\right]}^T$. Then, from the Euler–Lagrange formulation based on the energy considerations of robotic systems, the dynamic analytic model can be derived and expressed as follows [9,10,11]: for $i=1,2,3$,

$$\begin{array}{cc}\hfill {\tau }_i=& \left({\gamma }^2{I}_m+I_{L_1}+L_1^2{m}_d\right){\ddot{\theta }}_{i1}-\left(m_a{L}_{1c}+m_d{L}_1\right)gcos{\theta }_{i1}\hfill \\ \hfill & -2L_1{\lambda }_i\left[\left(P_{x}cos{\varphi }_i+P_{y}sin{\varphi }_i+r-R\right)sin{\theta }_{i1}-P_{z}cos{\theta }_{i1}\right],\hfill \end{array}$$

(1)

where Lagrangian multipliers ${\lambda }_i(i=1,2,3)$ are given as follows:

$$\left[\begin{array}{c}{\lambda }_1\\ {\lambda }_2\\ {\lambda }_3\end{array}\right]={\left[\begin{array}{ccc}{P}_x+r\mathrm{c}\left({\varphi }_1\right)-R\mathrm{c}\left({\varphi }_1\right)-L_1\mathrm{c}\left({\varphi }_1\right)\mathrm{c}\left({\theta }_{11}\right)& P_x+r\mathrm{c}\left({\varphi }_2\right)-R\mathrm{c}\left({\varphi }_2\right)-L_1\mathrm{c}\left({\varphi }_2\right)\mathrm{c}\left({\theta }_{21}\right)& P_x+r\mathrm{c}\left({\varphi }_3\right)-R\mathrm{c}\left({\varphi }_3\right)-L_1\mathrm{c}\left({\varphi }_3\right)\mathrm{c}\left({\theta }_{31}\right)\\ P_y+r\mathrm{s}\left({\varphi }_1\right)-R\mathrm{s}\left({\varphi }_1\right)-L_1\mathrm{s}\left({\varphi }_1\right)\mathrm{c}\left({\theta }_{11}\right)& P_y+r\mathrm{s}\left({\varphi }_2\right)-R\mathrm{s}\left({\varphi }_2\right)-L_1\mathrm{s}\left({\varphi }_2\right)\mathrm{c}\left({\theta }_{21}\right)& P_y+r\mathrm{s}\left({\varphi }_3\right)-R\mathrm{s}\left({\varphi }_3\right)-L_1\mathrm{s}\left({\varphi }_3\right)\mathrm{c}\left({\theta }_{31}\right)\\ P_z-L_1\mathrm{s}\left({\theta }_{11}\right)& P_z-L_1\mathrm{s}\left({\theta }_{21}\right)& P_z-L_1\mathrm{s}\left({\theta }_{31}\right)\end{array}\right]}^{-1}\left[\begin{array}{c}\left(m_p+3m_d\right){\ddot{P}}_x/2\\ \left(m_p+3m_d\right){\ddot{P}}_y/2\\ \left(m_p+3m_d\right)\left({\ddot{P}}_z-g\right)/2\end{array}\right].$$

(2)

where $\mathrm{s}$ denotes sin, and $\mathrm{c}$ denotes cos in the above expressions.

Table 1. Parameter values provided by the manufacturer for the dynamic analytic model in (1).

Parameter	Value	Unit
Mass of actuated arm ($m_a$)	$3.977$	kg
Mass of driven arm ($m_d$)	$0.402$	kg
Mass of moving platform ($m_p$)	2.033	kg
Length of actuated arm ($L_1$)	0.3423	m
Length of mass center of actuated arm ($L_{1c}$)	$0.1563$	m
Radius of moving platform (r)	0.045	m
Radius of fixed base (R)	0.2	m
Mass moment of inertia of actuated arm ($I_{L_1}$)	$191.9\times {10}^{-4}$	kg·m${}^2$
Motor inertia with gear ratio (${\gamma }^2{I}_m$)	${21}^2\times 2.25\times {10}^{-4}$	kg·m${}^2$

lists other parameter values provided by the manufacturer.

Once the path planning of the center of the moving platform determines $\mathit{P}={\left[P_x{P}_y{P}_z\right]}^T$, $\dot{\mathit{P}}$, and $\ddot{\mathit{P}}$, the command signal ${\tau }_i$ ($i=1,2,3$), that is, the amount of torque that the motor should exert on each parallel link to achieve the trajectory-tracking performance, can be determined as follows:

• From the inverse kinematics analysis given in Appendix B, three active joint angles ${\theta }_{11}$, ${\theta }_{21}$, and ${\theta }_{31}$ are numerically obtained.
• The actuated joint velocity ${\dot{\mathbf{\theta }}}_1$ for ${\mathbf{\theta }}_1={\left[{\theta }_{11}{\theta }_{21}{\theta }_{31}\right]}^T$ can be obtained from $\dot{\mathit{P}}=\mathit{J}{\dot{\mathbf{\theta }}}_1$, where $\mathit{J}$ denotes the Jacobian matrix described subsequently (see (16)). Further, angular acceleration ${\ddot{\mathbf{\theta }}}_1$ can be determined from $\ddot{\mathit{P}}=\mathit{J}{\ddot{\mathbf{\theta }}}_1+\dot{\mathit{J}}{\dot{\mathbf{\theta }}}_1$ (see (23) and (24)).
• By using $\mathit{P}$ and ${\mathbf{\theta }}_1$ and their time derivatives $\dot{\mathit{P}}$, $\ddot{\mathit{P}}$, ${\dot{\mathbf{\theta }}}_1$, and ${\ddot{\mathbf{\theta }}}_1$, Lagrangian multipliers ${\lambda }_i$ for $i=1,2,3$ can be obtained from (2).
• Command signals ${\tau }_1$, ${\tau }_2$, and ${\tau }_3$ for accomplishing the torque control of motors mounted on the fixed base, as shown in Figure 1b, can be determined from (1).

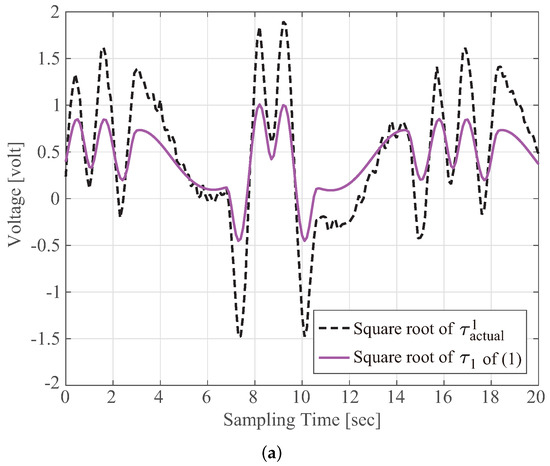

Command signals ${\tau }_i$ ($i=1,2,3$) that are numerically calculated using (1) by the aforementioned procedure should perfectly match the corresponding actual torque ${\tau }_{\mathrm{actual}}^i$ for guaranteeing that the centroid P of the moving platform perfectly tracks the three-dimensional trajectory $\mathit{P}$. In other words, an imprecise ${\tau }_i$ value can never provide high tracking performance for the predesigned trajectory of P. Therefore, a thorough similarity evaluation between ${\tau }_i$ and ${\tau }_{\mathrm{actual}}^i$ is an essential prerequisite for the practical application of delta robots. In this respect, the accuracy of ${\tau }_i$ obtained using (1) with the parameter values provided by the manufacturer, as listed in Table 1, is evaluated as follows. The actual torque ${\tau }_{\mathrm{actual}}^i$ that is delivered by the implemented motor to the actuated arm cannot be directly determined. Thus, the well-known fact that the torque is proportional to the square of the operating voltage (i.e., ${\tau }_{\mathrm{actual}}^i\approx {\left(v_{\mathrm{actual}}^i\right)}^2$) was introduced in the following experiments. First, the user-selected $v_{\mathrm{actual}}^i$ ($i=1,2,3$) was supplied to each motor to activate the parallel-link robot. The dashed line in Figure 3a indicates such a $v_{\mathrm{actual}}^1$ value that is approximately equal to the square root of ${\tau }_{\mathrm{actual}}^1$. Second, the active joint angle ${\theta }_{i1}$ was directly measured by sensors during robot operation. Angular velocity ${\dot{\theta }}_{i1}$ and acceleration ${\ddot{\theta }}_{i1}$ were calculated from the joint angle data by using central finite difference methods. Lastly, the computed command signal ${\tau }_i$ in (1) was obtained by using the parameter values listed in Table 1 and the ${\theta }_{i1}$, ${\dot{\theta }}_{i1}$, and ${\ddot{\theta }}_{i1}$ values. The solid line in Figure 3a denotes the computed voltage that is equivalent to the square root of the computed torque ${\tau }_1$. The discrepancy between ${\tau }_{\mathrm{actual}}^1$ and ${\tau }_1$ in Figure 3a implies that the amount of torque exerted by the motor with a computed voltage input $v_{\mathrm{computed}}^i(=\sqrt{{\tau }_i})$ cannot achieve the high-precision tracking of the predetermined reference trajectory $\mathit{P}$. By contrast, the reference-tracking errors may become small upon the implementation of a suitably designed controller. For example, inverse dynamic control or computed torque control is one of the most effective, well-accepted, and widely used control schemes for rigid robotic manipulator systems to drive the manipulator along the given trajectory as precisely as possible [12]. The key idea of such a control scheme is to introduce feedback linearization to cancel the nonlinear robot dynamics under the assumption that all parameters of the system model are exactly known. Therefore, the inexactness of the model parameters, which can be verified from the discrepancy between ${\tau }_{\mathrm{actual}}^1$ and ${\tau }_1$ in Figure 3a, results in the degradation of robot performance, even when a model-based motion controller is implemented. Accordingly, the development and identification of a dynamic analytic model of the delta robot are indispensable for calculating actuator torques with high precision. In addition, such an exact dynamic model can contribute to reducing the control effort of model-based controllers required for the trajectory-tracking behavior of robot manipulators.

3. Construction of an Identification-Based Dynamic Model of the Delta Robot

The analytic model structure of the delta robot shown in Figure 1 and Figure 2b was derived using the virtual work principle as follows. Vector ${\mathit{F}}_{GP}$ for the gravitational force of the moving platform is given as follows:

$${\mathit{F}}_{GP}={\tilde{m}}_P{\left[\begin{array}{ccc}0& 0& g\end{array}\right]}^T,$$

(3)

where g denotes the gravitational acceleration. ${\tilde{m}}_P$ denotes the equivalent mass of the moving platform and is defined as ${\tilde{m}}_P\approx m_p+3m_d$, where $m_p$ and $m_d$ are the masses of the moving platform and the driven arm, respectively. Vector ${\mathit{F}}_{IP}$ for the inertia force of the moving platform is obtained as follows:

$${\mathit{F}}_{IP}={\tilde{m}}_P\ddot{\mathit{P}}={\tilde{m}}_P{\left[\begin{array}{ccc}{\ddot{P}}_x& {\ddot{P}}_y& {\ddot{P}}_z\end{array}\right]}^T.$$

(4)

Further, vector ${\mathit{M}}_{GA}$ for the gravity torque of the actuated arm is given as follows:

$${\mathit{M}}_{GA}={\tilde{m}}_{A}g{L}_1{\left[\begin{array}{ccc}cos{\theta }_{11}& cos{\theta }_{21}& cos{\theta }_{31}\end{array}\right]}^T,$$

(5)

where $L_1$ denotes the length of the actuated arm. ${\tilde{m}}_A$ denotes the equivalent mass of the actuated arm and is defined as ${\tilde{m}}_A\approx m_a+0.5m_d$, where $m_a$ is the mass of the actuated arm. Vector ${\mathit{M}}_{IA}$ for the inertia torque of the actuated arm is

$${\mathit{M}}_{IA}={\mathit{I}}_A{\ddot{\mathbf{\theta }}}_1={\mathit{I}}_A{\left[\begin{array}{ccc}{\ddot{\theta }}_{11}& {\ddot{\theta }}_{21}& {\ddot{\theta }}_{31}\end{array}\right]}^T,$$

(6)

where ${\mathit{I}}_A$ denotes the inertia matrix of the actuated arm with respect to the fixed frame and is approximately given as follows:

$${\mathit{I}}_A=\left[\begin{array}{ccc}{I}_1& 0& 0\\ 0& I_2& 0\\ 0& 0& I_3\end{array}\right]\approx {\tilde{m}}_A{L}_1^2\mathit{I},$$

(7)

where $\mathit{I}$ is an identity matrix of order 3. Let the vector of the virtual angular displacements of joints $A_1$, $A_2$, and $A_3$ be denoted by $\delta {\mathbf{\theta }}_1={\left[\delta {\theta }_{11}\delta {\theta }_{21}\delta {\theta }_{31}\right]}^T$. The vector of the virtual linear displacement of the moving platform is denoted by $\delta \mathit{P}={\left[\delta P_x\delta P_y\delta P_z\right]}^T$. Then, the following dynamic model can be derived by applying the virtual work principle [13]:

$${\mathbf{\tau }}^T\delta {\mathbf{\theta }}_1+{\mathit{M}}_{GA}^T\delta {\mathbf{\theta }}_1+{\mathit{F}}_{GP}^T\delta \mathit{P}-{\mathit{M}}_{IA}^T\delta {\mathbf{\theta }}_1-{\mathit{F}}_{IP}^T\delta \mathit{P}=0,$$

(8)

where $\mathbf{\tau }={\left[{\tau }_1{\tau }_2{\tau }_3\right]}^T$. Next, $\delta \mathit{P}$ is defined in terms of $\delta {\mathbf{\theta }}_1$ as follows. The relationship between the velocity of the centroid of the moving platform, $\dot{\mathit{P}}$, and the actuated joint velocity, ${\dot{\mathbf{\theta }}}_1$, can be written as follows:

$$\dot{\mathit{P}}=\mathit{J}{\dot{\mathbf{\theta }}}_1,$$

(9)

where $\mathit{J}$ denotes the Jacobian matrix, which is derived as follows. Consider the following constraint condition that can be confirmed easily from Figure 2b [14]: for $i=1$, 2, and 3,

$$\parallel \overrightarrow{B_i{C}_i}{\parallel }^2-L_2^2=0,$$

(10)

where $L_2$ denotes the length of the driven arm. Let ${\mathit{s}}_i$ be the vector $\overrightarrow{B_i{C}_i}$ written as

$${\mathit{s}}_i=\overrightarrow{OP}-(\overrightarrow{O{A}_i}-\overrightarrow{P{C}_i}+\overrightarrow{A_i{B}_i})=\left[\begin{array}{c}{P}_x\\ P_y\\ P_z\end{array}\right]-\left[\begin{array}{ccc}\mathrm{c}\left({\varphi }_i\right)& -\mathrm{s}\left({\varphi }_i\right)& 0\\ \mathrm{s}\left({\varphi }_i\right)& \mathrm{c}\left({\varphi }_i\right)& 0\\ 0& 0& 1\end{array}\right]\left(\left[\begin{array}{c}R-r\\ 0\\ 0\end{array}\right]+\left[\begin{array}{c}{L}_1\mathrm{c}\left({\theta }_{i1}\right)\\ 0\\ L_1\mathrm{s}\left({\theta }_{i1}\right)\end{array}\right]\right),$$

(11)

where R and r are the radii of the fixed base and moving platform, respectively. Then, (10) can be rewritten as

$${\mathit{s}}_i^T{\mathit{s}}_i-L_2^2=0$$

(12)

The time derivative of (12) becomes

$${\mathit{s}}_i^T{\dot{\mathit{s}}}_i+{\dot{\mathit{s}}}_i^T{\mathit{s}}_i=0,$$

(13)

where

$${\dot{\mathit{s}}}_i=\underset{\dot{\mathit{P}}}{\underbrace{\left[\begin{array}{c}{\dot{P}}_x\\ {\dot{P}}_y\\ {\dot{P}}_z\end{array}\right]}}-\underset{{\mathbf{\Pi }}_i}{\underbrace{\left[\begin{array}{ccc}\mathrm{c}\left({\varphi }_i\right)& -\mathrm{s}\left({\varphi }_i\right)& 0\\ \mathrm{s}\left({\varphi }_i\right)& \mathrm{c}\left({\varphi }_i\right)& 0\\ 0& 0& 1\end{array}\right]\left[\begin{array}{c}-L_1\mathrm{s}\left({\theta }_{i1}\right)\\ 0\\ L_1\mathrm{c}\left({\theta }_{i1}\right)\end{array}\right]}}{\dot{\theta }}_{i1}=\dot{\mathit{P}}-{\mathbf{\Pi }}_i{\dot{\theta }}_{i1}$$

(14)

Then, from (14) and the commutative property for vector inner products, (13) becomes equivalent to

$${\mathit{s}}_i^T{\dot{\mathit{s}}}_i={\mathit{s}}_i^T(\dot{\mathit{P}}-{\mathbf{\Pi }}_i{\dot{\theta }}_{i1})={\mathit{s}}_i^T\dot{\mathit{P}}-{\mathit{s}}_i^T{\mathbf{\Pi }}_i{\dot{\theta }}_{i1}=0$$

(15)

Therefore, (9) can be derived from (15) as follows:

$$\dot{\mathit{P}}=\underset{\mathit{J}}{\underbrace{{\left[\begin{array}{c}{\mathit{s}}_1^T\\ {\mathit{s}}_2^T\\ {\mathit{s}}_3^T\end{array}\right]}^{-1}\left[\begin{array}{ccc}{\mathit{s}}_1^T{\mathbf{\Pi }}_1& 0& 0\\ 0& {\mathit{s}}_2^T{\mathbf{\Pi }}_2& 0\\ 0& 0& {\mathit{s}}_3^T{\mathbf{\Pi }}_3\end{array}\right]}}{\dot{\mathbf{\theta }}}_1=\mathit{J}{\dot{\mathbf{\theta }}}_1$$

(16)

${\mathit{s}}_i$, defined as (11), depends not only on ${\varphi }_i$ and ${\theta }_{i1}$, but also on the three-dimensional coordinate $\mathit{P}={\left[P_x{P}_y{P}_z\right]}^T$ of the terminal moving platform. Such a positional coordinate can be obtained by measuring the actuated joint angles ${\theta }_{i1}$ ($i=1,2,3$), as described in Appendix A. The derivative of $\mathit{P}$ and ${\mathbf{\theta }}_1$ with respect to time t can be represented as the ratio of an infinitesimal change in time-varying variables. From this fact, it follows that (16) can be expressed as

$$\delta \mathit{P}=\mathit{J}\delta {\mathbf{\theta }}_1$$

(17)

Thus, substituting (17) into (8) gives

$${\mathbf{\tau }}^T\delta {\mathbf{\theta }}_1+{\mathit{M}}_{GA}^T\delta {\mathbf{\theta }}_1+{\mathit{F}}_{GP}^T\mathit{J}\delta {\mathbf{\theta }}_1-{\mathit{M}}_{IA}^T\delta {\mathbf{\theta }}_1-{\mathit{F}}_{IP}^T\mathit{J}\delta {\mathbf{\theta }}_1=\left({\mathbf{\tau }}^T+{\mathit{M}}_{GA}^T+{\mathit{F}}_{GP}^T\mathit{J}-{\mathit{M}}_{IA}^T-{\mathit{F}}_{IP}^T\mathit{J}\right)\delta {\mathbf{\theta }}_1=0$$

(18)

Because (18) holds for any virtual displacement $\delta {\mathbf{\theta }}_1$,

$$\mathbf{\tau }={\mathit{M}}_{IA}+{\mathit{J}}^T{\mathit{F}}_{IP}-{\mathit{M}}_{GA}-{\mathit{J}}^T{\mathit{F}}_{GP}$$

(19)

By contrast, the dynamic model in (19) does not cover all the forces acting on the parallel-link robot; that is, (19) includes only some forces that can be readily analyzed from the rigid-body mechanics [15]. The important forces that are not considered in the aforementioned derivation are those due to friction. Therefore, the aforementioned dynamic model should be extended to at least roughly include the frictional forces in order to render such a model reflect the reality of the physical behavior of the robot and thereby improve the model quality. First, the mathematical model of viscous friction in which each torque in ${\mathbf{\tau }}_v$ caused by frictional force is proportional to the corresponding actuated joint velocity in ${\dot{\mathbf{\theta }}}_1$, is given as follows:

$${\mathbf{\tau }}_v=\underset{{\mathit{C}}_v}{\underbrace{\left[\begin{array}{ccc}{c}_{v_1}& 0& 0\\ 0& c_{v_2}& 0\\ 0& 0& c_{v_3}\end{array}\right]}}\left[\begin{array}{c}{\dot{\theta }}_{11}\\ {\dot{\theta }}_{21}\\ {\dot{\theta }}_{31}\end{array}\right]={\mathit{C}}_v{\dot{\mathbf{\theta }}}_1,$$

(20)

where $c_{v_i}$ ($i=1,2,3$) are viscous friction coefficients. Second, the Coulomb friction model is represented as

$${\mathbf{\tau }}_c=\underset{{\mathit{C}}_c}{\underbrace{\left[\begin{array}{ccc}{c}_{c_1}& 0& 0\\ 0& c_{c_2}& 0\\ 0& 0& c_{c_3}\end{array}\right]}}\left[\begin{array}{c}\mathrm{sgn}\left({\dot{\theta }}_{11}\right)\\ \mathrm{sgn}\left({\dot{\theta }}_{21}\right)\\ \mathrm{sgn}\left({\dot{\theta }}_{31}\right)\end{array}\right]={\mathit{C}}_c\mathrm{sgn}\left({\dot{\mathbf{\theta }}}_1\right),$$

(21)

where $c_{c_i}$ ($i=1,2,3$) are Coulomb friction coefficients, and $\mathrm{sgn}(·)$ denotes a signum function. This model shows that each torque in ${\mathbf{\tau }}_c$ due to Coulomb friction is constant except for the sign, which depends on the actuated joint velocity. Therefore, the extended formula for joint torques that considers the forces due to friction can be derived from (19), (20), and (21) as follows:

$$\mathbf{\tau }={\mathit{M}}_{IA}+{\mathit{J}}^T{\mathit{F}}_{IP}-{\mathit{M}}_{GA}-{\mathit{J}}^T{\mathit{F}}_{GP}-{\mathbf{\tau }}_v-{\mathbf{\tau }}_c$$

(22)

Because $\dot{\mathit{P}}=\mathit{J}{\dot{\mathbf{\theta }}}_1$, as shown in (16), it holds that

$$\ddot{\mathit{P}}=\mathit{J}{\ddot{\mathbf{\theta }}}_1+\dot{\mathit{J}}{\dot{\mathbf{\theta }}}_1,$$

(23)

where

$$\dot{\mathit{J}}={\left[\begin{array}{c}{\mathit{s}}_1^T\\ {\mathit{s}}_2^T\\ {\mathit{s}}_3^T\end{array}\right]}^{-1}\left(\left[\begin{array}{ccc}{\dot{\mathit{s}}}_1^T{\mathbf{\Pi }}_1+{\mathit{s}}_1^T{\dot{\mathbf{\Pi }}}_1& 0& 0\\ 0& {\dot{\mathit{s}}}_2^T{\mathbf{\Pi }}_2+{\mathit{s}}_2^T{\dot{\mathbf{\Pi }}}_2& 0\\ 0& 0& {\dot{\mathit{s}}}_3^T{\mathbf{\Pi }}_3+{\mathit{s}}_3^T{\dot{\mathbf{\Pi }}}_3\end{array}\right]-\left[\begin{array}{c}{\dot{\mathit{s}}}_1^T\\ {\dot{\mathit{s}}}_2^T\\ {\dot{\mathit{s}}}_3^T\end{array}\right]\mathit{J}\right)$$

(24)

Then, from (3)–(6), (20), (21), and (23), (22) can be rewritten as follows:

$$\begin{array}{c}\hfill \begin{array}{cc}\hfill \mathbf{\tau }=& {\mathit{I}}_A{\ddot{\mathbf{\theta }}}_1+{\mathit{J}}^T{\tilde{m}}_P\ddot{\mathit{P}}-\underset{T_g}{\underbrace{{\tilde{m}}_{A}g{L}_1}}\left[\begin{array}{c}\mathrm{c}\left({\theta }_{11}\right)\\ \mathrm{c}\left({\theta }_{21}\right)\\ \mathrm{c}\left({\theta }_{31}\right)\end{array}\right]-{\mathit{J}}^T{\tilde{m}}_P\left[\begin{array}{c}0\\ 0\\ g\end{array}\right]-{\mathit{C}}_v{\dot{\mathbf{\theta }}}_1-{\mathit{C}}_c\mathrm{sgn}\left({\dot{\mathbf{\theta }}}_1\right)\hfill \\ \hfill =& {\mathit{I}}_A{\ddot{\mathbf{\theta }}}_1+{\mathit{J}}^T{\tilde{m}}_P\mathit{J}{\ddot{\mathbf{\theta }}}_1+{\mathit{J}}^T{\tilde{m}}_P\dot{\mathit{J}}{\dot{\mathbf{\theta }}}_1-T_g\left[\begin{array}{c}\mathrm{c}\left({\theta }_{11}\right)\\ \mathrm{c}\left({\theta }_{21}\right)\\ \mathrm{c}\left({\theta }_{31}\right)\end{array}\right]-{\mathit{J}}^T{\tilde{m}}_P\left[\begin{array}{c}0\\ 0\\ g\end{array}\right]-{\mathit{C}}_v{\dot{\mathbf{\theta }}}_1-{\mathit{C}}_c\mathrm{sgn}\left({\dot{\mathbf{\theta }}}_1\right),\hfill \end{array}\end{array}$$

(25)

where $T_g:={\tilde{m}}_{A}g{L}_1$. In conclusion, (25) results in the following form of the joint space dynamic model:

$$\mathbf{\tau }=\mathit{D}\left(\mathbf{\theta }\right){\ddot{\mathbf{\theta }}}_1+\mathit{C}(\mathbf{\theta },\dot{\mathbf{\theta }}){\dot{\mathbf{\theta }}}_1+\mathit{N}(\mathbf{\theta },\dot{\mathbf{\theta }}),$$

(26)

where

$$\begin{array}{c}\mathit{D}\left(\mathbf{\theta }\right)=\left[\begin{array}{ccc}{I}_1& 0& 0\\ 0& I_2& 0\\ 0& 0& I_3\end{array}\right]+{\mathit{J}}^T{\tilde{m}}_P\mathit{J},\hfill \end{array}$$

(27)

$$\begin{array}{c}\mathit{C}(\mathbf{\theta },\dot{\mathbf{\theta }})={\mathit{J}}^T{\tilde{m}}_P\dot{\mathit{J}}-\left[\begin{array}{ccc}{c}_{v_1}& 0& 0\\ 0& c_{v_2}& 0\\ 0& 0& c_{v_3}\end{array}\right],\hfill \end{array}$$

(28)

$$\begin{array}{c}\mathit{N}(\mathbf{\theta },\dot{\mathbf{\theta }})=-{\mathit{J}}^T{\tilde{m}}_P\left[\begin{array}{c}0\\ 0\\ g\end{array}\right]-T_g\left[\begin{array}{c}\mathrm{c}\left({\theta }_{11}\right)\\ \mathrm{c}\left({\theta }_{21}\right)\\ \mathrm{c}\left({\theta }_{31}\right)\end{array}\right]-\left[\begin{array}{ccc}{c}_{c_1}& 0& 0\\ 0& c_{c_2}& 0\\ 0& 0& c_{c_3}\end{array}\right]\left[\begin{array}{c}\mathrm{sgn}\left({\dot{\theta }}_{11}\right)\\ \mathrm{sgn}\left({\dot{\theta }}_{21}\right)\\ \mathrm{sgn}\left({\dot{\theta }}_{31}\right)\end{array}\right],\hfill \end{array}$$

(29)

where $\mathit{D}\left(\mathbf{\theta }\right)\in {\mathbb{R}}^{3\times 3}$ is the inertia matrix, $\mathit{C}(\mathbf{\theta },\dot{\mathbf{\theta }})\in {\mathbb{R}}^{3\times 3}$ is the matrix of viscous friction coefficients and Coriolis forces, and $\mathit{N}(\mathbf{\theta },\dot{\mathbf{\theta }})\in {\mathbb{R}}^3$ is the vector of gravity forces and Coulomb friction forces.

The PSO algorithm was inspired by the social and biological behaviors of bird flocks searching for food sources. In this nature-based algorithm, individuals are referred to as particles and fly through the search space seeking the best global position that minimizes (or maximizes) a given problem. The classical PSO algorithm is summarized in Appendix C. Next, the direct estimation of parameters in the derived dynamic model (26) with (27)–(29) using the PSO algorithm in combination with a distributed cyclic neighborhood search, which is a new variant of the aforementioned classical PSO algorithm, is described. Let the vector of the uncertain model parameters to be identified be defined as

$${\mathbf{M}}_{\mathbf{PAR}}:={\left[\begin{array}{ccccccccccc}{\tilde{m}}_p& T_g& I_1& I_2& I_3& c_{v_1}& c_{v_2}& c_{v_3}& c_{c_1}& c_{c_2}& c_{c_3}\end{array}\right]}^T\in {\mathbb{R}}^{11}$$

(30)

Let ${\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell }\in {\mathbb{R}}^{11}$ represent the position vector of each particle in the swarm at the iteration step $\ell (=0,1,2,\cdots ,{\ell }_{\max })$, where ${\ell }_{\max }$ denotes the maximum number of iterations and $i(=1,2,\cdots ,n_p)$ denotes the particle index. The vector of the sampled measurement of the supplied torques, ${\mathbf{\tau }}_{\mathrm{actual}}\left(t\right)={\left[{\tau }_{\mathrm{actual}}^1\left(t\right){\tau }_{\mathrm{actual}}^2\left(t\right){\tau }_{\mathrm{actual}}^3\left(t\right)\right]}^T$, is denoted by ${\mathbf{\tau }}_{\mathrm{actual}}\left(k\right)={\left[{\tau }_{\mathrm{actual}}^1\left(k\right){\tau }_{\mathrm{actual}}^2\left(k\right){\tau }_{\mathrm{actual}}^3\left(k\right)\right]}^T$, where $k=1,2,\cdots ,N_k$. Further, the sampled measurements of ${\mathbf{\theta }}_1\left(t\right)$, ${\dot{\mathbf{\theta }}}_1\left(t\right)$, and ${\ddot{\mathbf{\theta }}}_1\left(t\right)$ are denoted by ${\mathbf{\theta }}_1\left(k\right)$, ${\dot{\mathbf{\theta }}}_1\left(k\right)$, and ${\ddot{\mathbf{\theta }}}_1\left(k\right)$, respectively. Then, the estimation of ${\mathbf{\tau }}_{\mathrm{actual}}\left(k\right)$ is denoted by $\widehat{\mathbf{\tau }}\left(k\right)={\left[{\widehat{\tau }}_1\left(k\right){\widehat{\tau }}_2\left(k\right){\widehat{\tau }}_3\left(k\right)\right]}^T$. The identification process for developing the dynamic model of a delta robot involves the following steps.

Step 0.

Initialize the iteration number as $\ell =0$. The position vectors of $N_p$ particles are initialized with randomly chosen ${\mathbf{M}}_{{\mathbf{PAR}}_i}^0\in {\mathbb{R}}^{11}$. Then, ${\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{pbest},i}}^0$ and ${\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{sbest},i}}^0$ are, respectively, set as follows:

$$\begin{array}{c}{\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{pbest},i}}^0\leftarrow {\mathbf{M}}_{{\mathbf{PAR}}_i}^0\hfill \end{array}$$

(31)

$$\begin{array}{c}{\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{sbest},i}}^0\leftarrow arg\underset{{\mathbf{M}}_{\mathbf{PAR}}\in \{{\mathbf{M}}_{{\mathbf{PAR}}_j}^0|j=i-\frac{N_s}{2},\cdots ,i+\frac{N_s}{2}\}}{min}\mathcal{F}\left({\mathbf{M}}_{\mathbf{PAR}}\right)\hfill \end{array}$$

(32)

where the predefined even-valued $N_s(<N_p)$ is the number of neighbors of the ith particle, ${\mathbf{M}}_{{\mathbf{PAR}}_j}^{\ell }:={\mathbf{M}}_{{\mathbf{PAR}}_{(j-1\mathrm{mod}{N}_p)+1}}^{\ell }$ for $j<1$ or $N_p+1\le j$. Further, $\mathcal{F}\left({\mathbf{M}}_{\mathbf{PAR}}\right)$ is the objective function that is defined as follows:

$$\begin{array}{c}\hfill \mathcal{F}\left({\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell }\right):=\sum _{\zeta =1}^3\sum _{k=0}^{N_k}|{\tau }_{\mathrm{actual}}^{\zeta }\left(k\right)-{\widehat{\tau }}_{\zeta }({\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell };k)|\end{array}$$

(33)

where the $\zeta$th torque estimation denoted by ${\widehat{\tau }}_{\zeta }({\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell };k)$ is calculated from (26)–(29) using the identified parameters in ${\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell }$ and the discrete measurement data of ${\mathbf{\theta }}_1\left(k\right)$, ${\dot{\mathbf{\theta }}}_1\left(k\right)$, and ${\ddot{\mathbf{\theta }}}_1\left(k\right)$. The aim of the objective function in (33) is to minimize the deviation between the measurement of the supplied torques and their estimation by employing the joint space dynamic model in (26) with (27)–(29) at each sampling time.

Step 1.

Once the termination criterion, set as the total number of iterations performed, is satisfied, the identification process is terminated with the optimal parameters given by

$$\begin{array}{c}\hfill {\mathbf{M}}_{\mathbf{PAR}}^{*}:=arg\underset{{\mathbf{M}}_{\mathbf{PAR}}\in \{{\mathbf{M}}_{{\mathbf{PAR}}_i}^j|i=1,\cdots ,N_p;j=0,\cdots ,\ell \}}{min}\mathcal{F}\left({\mathbf{M}}_{\mathbf{PAR}}\right)\end{array}$$

Otherwise, the optimization process continues until the termination criterion is satisfied.

Step 2.

Each particle in the swarm evolves according to the following equation:

$$\begin{array}{c}\hfill {\widehat{\mathbf{M}}}_{{\mathbf{PAR}}_i}^{\ell +1}\leftarrow c_0{\widehat{\mathbf{M}}}_{{\mathbf{PAR}}_i}^{\ell }+c_1{r}_{1,i}^{\ell }({\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{pbest},\mathrm{i}}}^{\ell }-{\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell })+c_2{r}_{2,i}^{\ell }({\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{sbest},i}}^{\ell }-{\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell })\end{array}$$

(34)

where $c_0$, $c_1$, and $c_2$ are the inertial factor, cognitive-scaling factor, and social-scaling factor, respectively; $r_{1,i}^{\ell }$ and $r_{2,i}^{\ell }$ are uniformly distributed random numbers generated separately in the unit interval $[0,1]$ at each iteration step ℓ; and the initial ${\widehat{\mathbf{M}}}_{{\mathbf{PAR}}_i}^{\ell }$ equals ${\widehat{\mathbf{M}}}_{{\mathbf{PAR}}_i}^0=\mathbf{0}\in {\mathbb{R}}^{11}$. Then, ${\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell +1}$ is updated as follows:

$$\begin{array}{c}\hfill {\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell +1}\leftarrow {\mathbf{M}}_{{\mathbf{PAR}}_i}^{\ell }+{\widehat{\mathbf{M}}}_{{\mathbf{PAR}}_i}^{\ell +1}\end{array}$$

(35)

Lastly, ${\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{pbest},i}}^{\ell +1}$ and ${\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{sbest},i}}^{\ell +1}$ are, respectively, updated as follows:

$$\begin{array}{c}{\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{pbest},i}}^{\ell +1}\leftarrow arg\underset{{\mathbf{M}}_{\mathbf{PAR}}\in \{{\mathbf{M}}_{{\mathbf{PAR}}_i}^j|j=0,1,\cdots ,\ell \}}{min}\mathcal{F}\left({\mathbf{M}}_{\mathbf{PAR}}\right)\hfill \\ {\mathbf{M}}_{{\mathbf{PAR}}_{\mathrm{sbest},i}}^{\ell +1}\leftarrow arg\underset{{\mathbf{M}}_{\mathbf{PAR}}\in \{{\mathbf{M}}_{{\mathbf{PAR}}_j}^{\ell }|j=i-\frac{n_s}{2},\cdots ,i+\frac{n_s}{2}\}}{min}\mathcal{F}\left({\mathbf{M}}_{\mathbf{PAR}}\right)\hfill \end{array}$$

Next, go to Step 1 with $\ell \leftarrow \ell +1$.

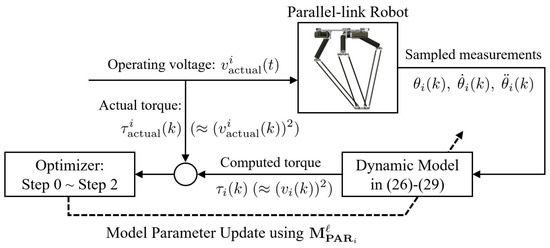

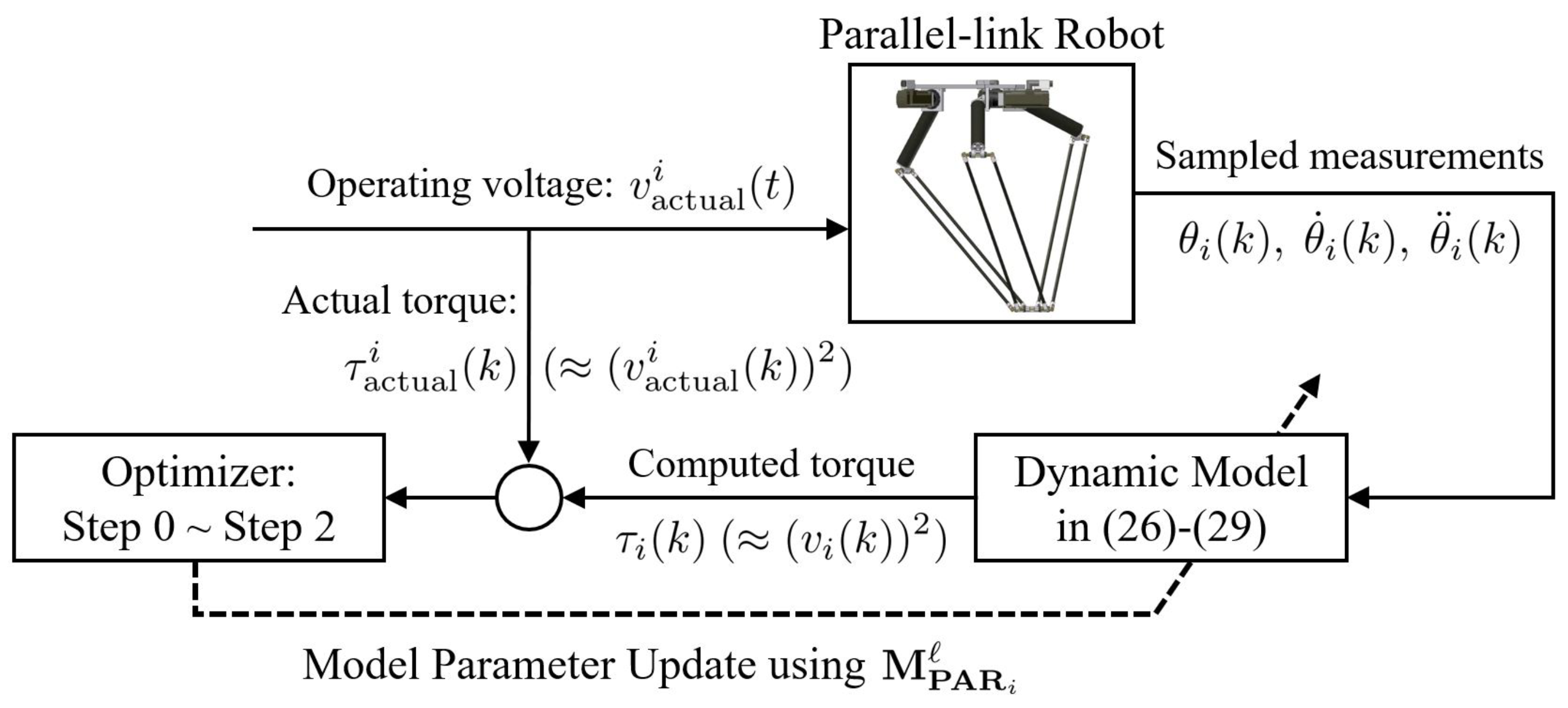

The task is now to determine the optimal parameter vector ${\mathbf{M}}_{\mathbf{PAR}}^{*}$ of ${\mathbf{M}}_{\mathbf{PAR}}$ in (30) that renders the torque $\mathbf{\tau }$ computed from (26) with ${\mathbf{M}}_{\mathbf{PAR}}^{*}$ as close as possible to the applied actual torque ${\mathbf{\tau }}_{\mathrm{actual}}$ obtained from $N_k$ measurements from ($\mathbf{\theta }\left(1\right)$, $\dot{\mathbf{\theta }}\left(1\right)$, $\ddot{\mathbf{\theta }}\left(1\right)$) to ($\mathbf{\theta }\left(N_k\right)$, $\dot{\mathbf{\theta }}\left(N_k\right)$, $\ddot{\mathbf{\theta }}\left(N_k\right)$). Such a parameter estimation is performed by using the aforementioned PSO-based optimization algorithm and the dataset of [$\mathbf{\theta }\left(k\right)$, $\dot{\mathbf{\theta }}\left(k\right)$, $\ddot{\mathbf{\theta }}\left(k\right)$] used for the comparison illustrated in Figure 3a. Figure 4 shows a schematic overview of the experimental setup designed at NT Robot, Co., to measure the actual torque ${\mathbf{\tau }}_{\mathrm{actual}}\left(k\right)$ and [$\mathbf{\theta }\left(k\right)$, $\dot{\mathbf{\theta }}\left(k\right)$, $\ddot{\mathbf{\theta }}\left(k\right)$] and update the dynamic model parameters via the proposed identification procedure. These data are acquired when the moving platform follows the trajectory shown in Figure 5a. The optimization task for parameter estimation is performed with $c_0=0.72984$, $c_1=c_2=1.49618$, $N_p=300$, $N_s=60$, and the maximum iteration number of PSO ${\ell }_{\max }=1000$. Then, the identified parameters of the dynamic model (26) with (27)–(29) are obtained as follows:

$$\begin{array}{ccc}\hfill {\mathbf{M}}_{\mathbf{PAR}}^{*}& =& {[{\tilde{m}}_p^{*},T_g^{*},I_1^{*},I_2^{*},I_3^{*},c_{v_1}^{*},c_{v_2}^{*},c_{v_3}^{*},c_{c_1}^{*},c_{c_2}^{*},c_{c_3}^{*}]}^T\hfill \\ & \approx & {[4.3963,5.3480,0.3823,0.3237,0.3047,3.2111,1.1688,3.1343,-9.1037,-7.6127,-9.2628]}^T\hfill \end{array}$$

(36)

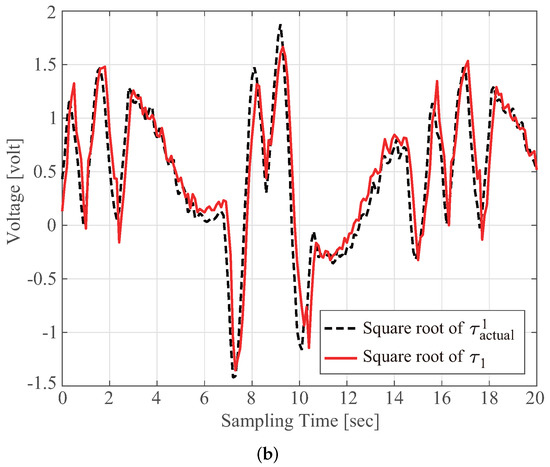

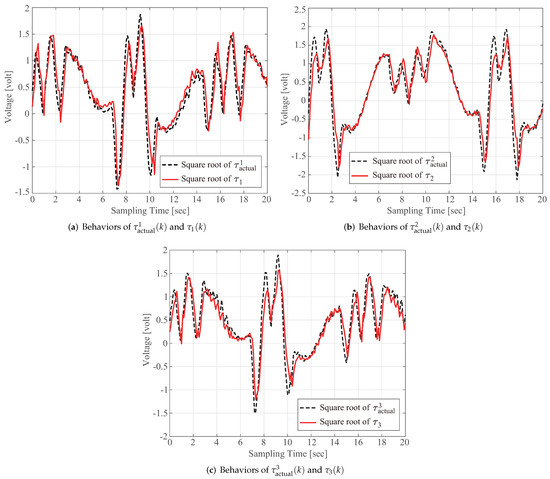

The solid line in Figure 3b shows the characteristics of the computed torque determined from (26) with the estimated parameters in (36). A comparison with the measured actual torque ${\tau }_{\mathrm{actual}}^i\left(k\right)$ indicates the good fidelity of the derived dynamic model providing ${\tau }_i\left(k\right)$. This high model fidelity is attributed to the PSO-based identification scheme introduced for nonlinear dynamic modeling (26) that includes the forces due to viscous and Coulomb frictions.

In summary, our study presented a simple and efficient approach that can directly achieve high-quality identification of an analytic dynamic model for a parallel-link robot. The phrase “simple and efficient” can be characterized from two aspects. First, PSO itself has the advantages of fast search speed, memory, limited parameters, and simple structure. In addition, it is easier to implement at the validation stage than other optimization algorithms are. In addition, the use of PSO facilitates generalized cost functions, which enables the direct identification of a large number of model parameters involved in the analytic dynamic model of delta robots. Second, our identification procedure does not require cumbersome and time-consuming tasks, such as model transformation or development of simulated manipulators used in conventional studies, which can be mainly attributed to the aforementioned flexibility of the PSO algorithm. Thus, our approach is simple and efficient and can directly identify the model parameters effectively. By contrast, the phrase, “high-quality identification”, can be explained as follows. Most robot-related studies that are not based on identification approaches use the physical data provided by manufacturers as model parameters. These physical parameter values often lead to a large discrepancy between the calculated and measured signals, as depicted in Figure 3a. However, with the application of our proposed approach for estimating model parameters, the model can be obtained with high accuracy. This result is experimentally demonstrated in Figure 6, wherein the discrepancy between the calculated and measured signals is considerably smaller than that in Figure 3a. This experimentally demonstrates that our approach enables the achievement of high-quality identification performance.

Remark 1.

The performance degradation of the classical PSO algorithm may mainly be due to the poor particle diversification characteristics, which, in practical implementation, often leads to the potential problem of premature convergence of the swarm to local optima. Diversification enables the optimizer to efficiently explore different regions, possibly resulting in a global search for a good optimum. However, most population-based evolutionary computation techniques, including PSO, depend on the principle of reducing the search space in the progression toward the global optima. Because of the swarm-movement pattern, after a certain number of evolutionary iterations, offspring that outperform their parents can no longer be produced; thus, all the particles remain trapped in a region that may not even contain the local optima. In such cases, if population diversity is not enhanced, particles evolving according to the conventional PSO mechanism may find reaching the true global optimal position challenging. On the basis of this background, the distributed cyclic neighborhood-search mechanism serves as a diversity-boosting tool in our PSO algorithm. This mechanism enables a particle to share information through a “nearby-neighbor” interaction with a series of successively numbered particles, with the particle as the center. In this structure, a particle’s nearby neighbors are not necessarily particles that are close to each other in the hyperdimensional search space. Instead, nearby neighbors are particles that share information on individual fitness values. Thus, the key improvement in the particles’ exploration abilities (or population diversity) in our PSO method can be attributed to their local social learning from their respective neighborhoods, rather than their learning from only one global best particle in the swarm, as in the canonical star topology.

Remark 2.

Although the total number of particles, $N_p$, is selected through an empirical approach, a systematic method may be required for our PSO algorithm to be more successful. Recently, Kononova et al. [16] revealed and quantified structural bias that, if present, would predispose the algorithm toward limiting its search to specific regions of the solution space. Their result would be useful in determining the suitable swarm size in this PSO scheme. However, the system-identification problem for a delta robot is solved via a one-run optimization process, which implies that the dynamic model is obtained through off-line system identification. Therefore, compared to online identification requiring computational efficiency, the computational complexity may not be a critical issue in this approach. Accordingly, the maximal number of iterations was set as a termination criterion in our study.

4. Discussion

To demonstrate the superiority of the proposed identification scheme, the conventional identification of a parallel robot proposed by Angel and Viola [5] is introduced. Their techniques for the parametric identification of the analytical dynamic model were mainly based on the RLS algorithm. With the aforementioned aim, the nonlinear dynamic model for a delta robot is formulated in the form of the linear regression model. From (1), we have

$$\begin{array}{cc}\hfill & {\tau }_1={\widehat{\theta }}_1{\ddot{\theta }}_{11}-{\widehat{\theta }}_2{P}_x\mathrm{s}\left({\theta }_{11}\right)-{\widehat{\theta }}_3{P}_y\mathrm{s}\left({\theta }_{11}\right)+{\widehat{\theta }}_4{P}_z\mathrm{c}\left({\theta }_{11}\right)-{\widehat{\theta }}_5\mathrm{c}\left({\theta }_{11}\right)+{\widehat{\theta }}_6\mathrm{s}\left({\theta }_{11}\right),\hfill \\ \hfill & {\tau }_2={\widehat{\theta }}_1{\ddot{\theta }}_{21}-{\widehat{\theta }}_7{P}_x\mathrm{s}\left({\theta }_{21}\right)-{\widehat{\theta }}_8{P}_y\mathrm{s}\left({\theta }_{21}\right)+{\widehat{\theta }}_9{P}_z\mathrm{c}\left({\theta }_{21}\right)-{\widehat{\theta }}_5\mathrm{c}\left({\theta }_{21}\right)+{\widehat{\theta }}_{10}\mathrm{s}\left({\theta }_{21}\right),\hfill \\ \hfill & {\tau }_3={\widehat{\theta }}_1{\ddot{\theta }}_{31}-{\widehat{\theta }}_{11}{P}_x\mathrm{s}\left({\theta }_{31}\right)-{\widehat{\theta }}_{12}{P}_y\mathrm{s}\left({\theta }_{31}\right)+{\widehat{\theta }}_{13}{P}_z\mathrm{c}\left({\theta }_{31}\right)-{\widehat{\theta }}_5\mathrm{c}\left({\theta }_{31}\right)+{\widehat{\theta }}_{14}\mathrm{s}\left({\theta }_{31}\right),\hfill \end{array}$$

(37)

where

$$\begin{array}{cc}\hfill & {\widehat{\theta }}_1:={\gamma }^2{I}_m+I_{L_1}+L_1^2{m}_d,{\widehat{\theta }}_2:=2L_1{\lambda }_{1}cos{\varphi }_1,{\widehat{\theta }}_3:=2L_1{\lambda }_{1}sin{\varphi }_1,{\widehat{\theta }}_4:=2L_1{\lambda }_1,\hfill \\ \hfill & {\widehat{\theta }}_5:=m_a{L}_{1c}+m_d{L}_1,{\widehat{\theta }}_6:=2L_1{\lambda }_1(R-r),{\widehat{\theta }}_7:=2L_1{\lambda }_{2}cos{\varphi }_2,{\widehat{\theta }}_8:=2L_1{\lambda }_{2}sin{\varphi }_2,\hfill \\ \hfill & {\widehat{\theta }}_9:=2L_1{\lambda }_2,{\widehat{\theta }}_{10}:=2L_1{\lambda }_2(R-r),{\widehat{\theta }}_{11}:=2L_1{\lambda }_{3}cos{\varphi }_3,{\widehat{\theta }}_{12}:=2L_1{\lambda }_{3}sin{\varphi }_3,\hfill \\ \hfill & {\widehat{\theta }}_{13}:=2L_1{\lambda }_3,{\widehat{\theta }}_{14}:=2L_1{\lambda }_3(R-r).\hfill \end{array}$$

(38)

Then, the following linear regression model is derived from (37):

$$\left[\begin{array}{c}{\tau }_1\\ {\tau }_2\\ {\tau }_3\end{array}\right]=:\mathbf{\tau }=\mathbf{\Psi }\widehat{\mathbf{\theta }}:=\left[\begin{array}{c}{\mathbf{\psi }}_1\\ {\mathbf{\psi }}_2\\ {\mathbf{\psi }}_2\end{array}\right]\left[\begin{array}{c}{\widehat{\theta }}_1\\ ⋮\\ {\widehat{\theta }}_{14}\end{array}\right]$$

(39)

where ${\mathbf{\psi }}_j^T\in {\mathbb{R}}^{14}$ and

$$\begin{array}{c}\hfill \mathbf{\psi }=\left[\begin{array}{cccccccc}{\ddot{\theta }}_{11}& -P_x\mathrm{s}\left({\theta }_{11}\right)& -P_y\mathrm{s}\left({\theta }_{11}\right)& P_z\mathrm{c}\left({\theta }_{11}\right)& -\mathrm{c}\left({\theta }_{11}\right)& \mathrm{s}\left({\theta }_{11}\right)& 0& 0\\ {\ddot{\theta }}_{21}& 0& 0& 0& -\mathrm{c}\left({\theta }_{21}\right)& 0& -P_x\mathrm{s}\left({\theta }_{21}\right)& -P_y\mathrm{s}\left({\theta }_{21}\right)\\ {\ddot{\theta }}_{31}& 0& 0& 0& -\mathrm{c}\left({\theta }_{31}\right)& 0& 0& 0\end{array}\right.\\ \hfill \left.\begin{array}{cccccc}0& 0& 0& 0& 0& 0\\ P_z\mathrm{c}\left({\theta }_{21}\right)& \mathrm{s}\left({\theta }_{21}\right)& 0& 0& 0& 0\\ 0& 0& -P_x\mathrm{s}\left({\theta }_{31}\right)& -P_y\mathrm{s}\left({\theta }_{31}\right)& P_z\mathrm{c}\left({\theta }_{31}\right)& \mathrm{s}\left({\theta }_{31}\right)\end{array}\right]\end{array}$$

(40)

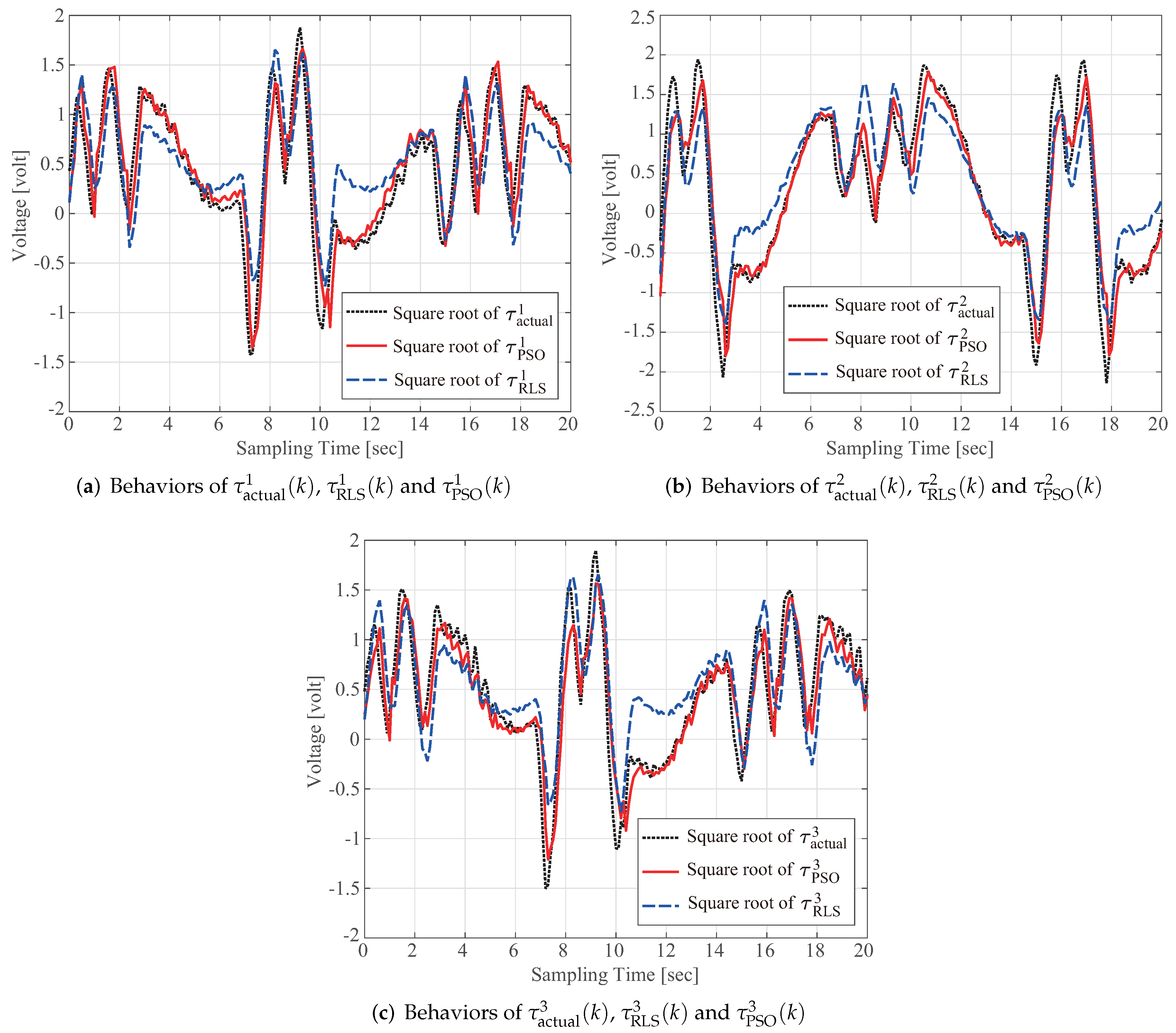

For the above linear regression model, the RLS algorithm presented in Islam and Bernstein [17] is applied, which yields the computed torque ${\tau }_{\mathrm{RLS}}^i\left(k\right)$ ($i=1,2,3$) shown in Figure 7, where ${\tau }_{\mathrm{PSO}}^i$ denotes the torque computed using our identification results. These experimental results clearly demonstrate that our identification scheme outperforms the conventional RLS-based method.

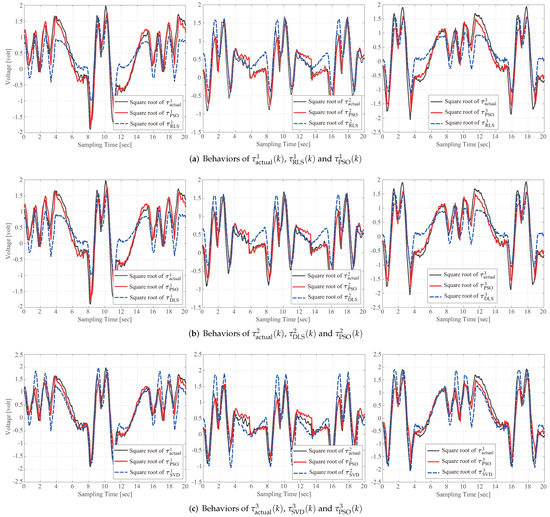

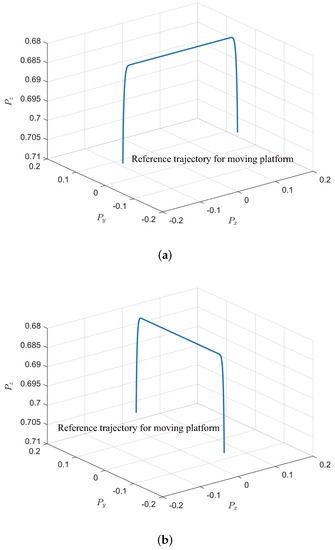

To further validate the high-quality identification performance of the proposed scheme, two other identification methods are examined. The first is the damped least-squares (DLS) method-based identification [18], and the second is the SVD method for least-squares identification [19]. Figure 8 and Figure 9 present the computed torques ${\tau }_{\mathrm{DLS}}^i\left(k\right)$ and ${\tau }_{\mathrm{SVD}}^i\left(k\right)$, respectively, for $i=1,2,3$. The above examinations clearly verify that the proposed identification scheme for a delta robot achieved better performance compared with the identification results obtained via conventional DLS- and SVD-based identification methods.

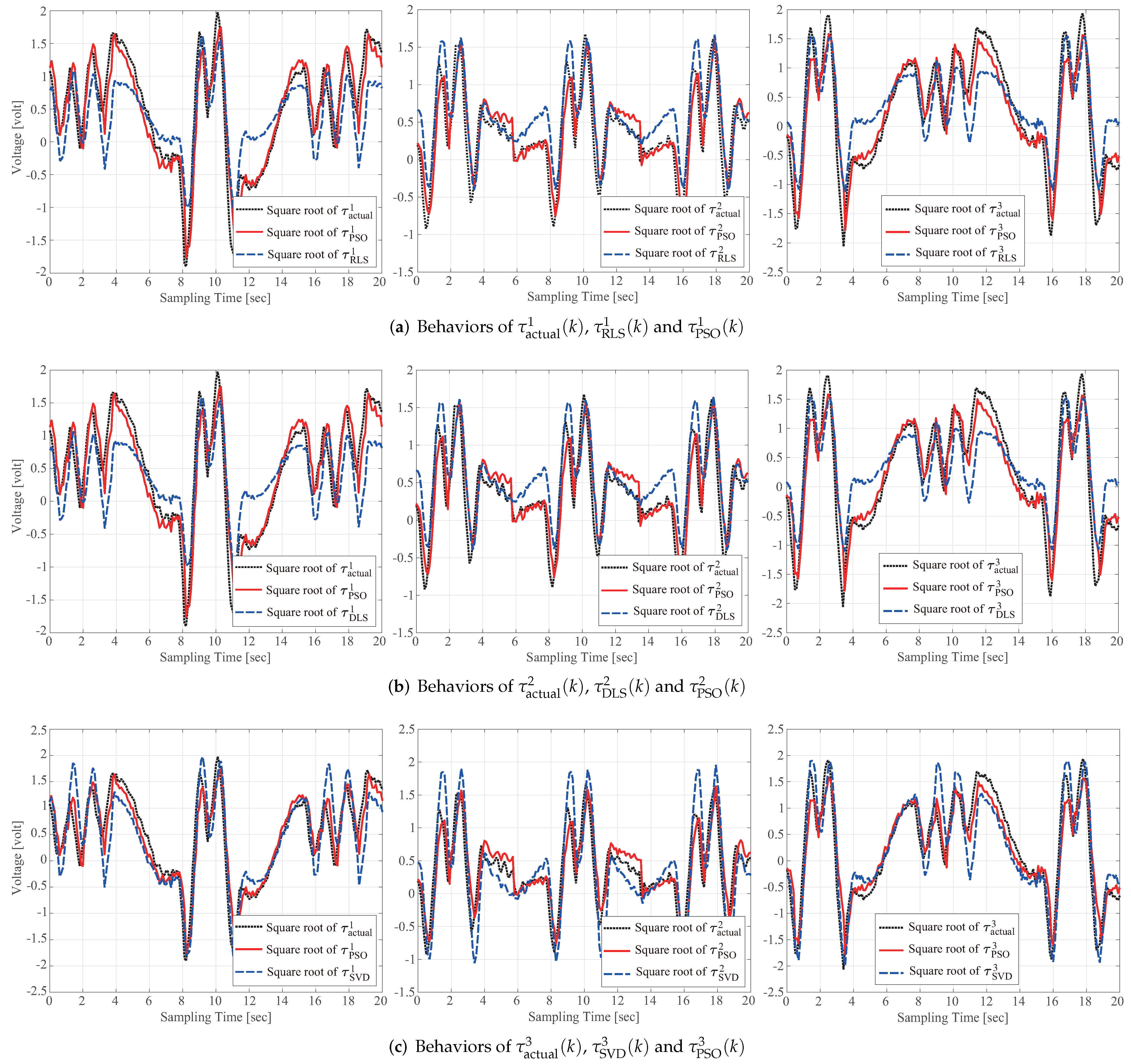

Lastly, to further illustrate the superiority of the presented identification scheme, the model validation is performed by using the actual torque ${\mathbf{\tau }}_{\mathrm{actual}}\left(k\right)$ and [$\mathbf{\theta }\left(k\right)$, $\dot{\mathbf{\theta }}\left(k\right)$, $\ddot{\mathbf{\theta }}\left(k\right)$], which are measured when the moving platform follows the reference trajectory given in Figure 5b. Figure 10 summarizes the model validation results of the PSO-, RLS-, DLS-, and SVD-based identification methods, which demonstrates the validity of our PSO-based identification scheme. The normalized root mean square error (NRMSE) index is introduced to quantitatively evaluate the model fitness, and results were calculated on the basis of the following equation for $i=1,2,3$ and are listed in

Table 2. Identified model fitness evaluated for each actuator torque.

Identification Methods	This Study	RLS-Based Method	DLS-Based Method	SVD-Based Method
Model fitness for ${\tau }_1$	0.9240	0.8724	0.8714	0.8545
Model fitness for ${\tau }_2$	0.9053	0.8679	0.8684	0.8001
Model fitness for ${\tau }_3$	0.9228	0.8761	0.8751	0.8604

:

$$\mathrm{Model}\mathrm{fitness}=1-\frac{\sqrt{\frac{{\sum }_{k=1}^{N_k}{({\tau }_{*}^i\left(k\right)-{\tau }_{\mathrm{actual}}^i\left(k\right))}^2}{N_k}}}{{\tau }_{*,\max }^i-{\tau }_{*,\min }^i}$$

(41)

where the notation “*” denotes PSO, RLS, DLS, or SVD, and ${\tau }_{*,\max }^{\zeta }$ and ${\tau }_{*,\min }^{\zeta }$ are the maximal and minimal elements of the sampled data from the computed torque ${\tau }_{*}^{\zeta }\left(k\right)$. A value for (41) close to 1 indicates less variance between the actual torque and model-based computed torque; thus, Table 2 verifies that the proposed scheme outperforms the conventional identification method.

5. Conclusions

In this study, an efficient and reliable parameter-identification method was proposed for the analytic dynamic model of a delta robot. The complex dynamic equations of motion were derived according to the virtual work principle and then extended to characterize the inertial and centripetal/Coriolis forces and the frictional effects on the robot’s dynamic behavior. To directly identify the set of uncertain parameters included in such a dynamic model, the PSO algorithm with a distributed cyclic neighborhood-search mechanism was employed. Compared to conventional methods, our identification technique exhibits the following distinctive features: (i) Owing to the flexibility of the PSO algorithm, the task of transforming the system of equations into a linear formulation with respect to the uncertain system parameters is not necessary. (ii) No cumbersome and time-consuming tasks, such as developing an additional robot-simulation model solely for identifying the parameters in an overdetermined set of equations, are required. The experimental results indicate that the proposed technique can directly achieve high-quality identification of an analytic dynamic model for a parallel-link robot.
