1. Introduction
Neospora caninum is an obligate intracellular apicomplexan protozoan parasite. An association of this parasite with abortion in cattle [
1,
2] and neuromuscular disease in dogs has been established based on seroepidemiological and pathological studies [
2,
3,
4,
5,
6]. Treatment and control of the disease caused by
N. caninum remains problematic; due to the high costs [
7], the difficulty in treating a eukaryotic pathogen in a eukaryotic host and the incomplete understanding of the host–parasite interaction, especially the process by which
N. caninum penetrates the blood brain barrier (BBB) and causes neuropathies [
8]. Although crossing the BBB is one of the hallmark features of
N. caninum infection, the mechanisms underpinning this event and the progression to brain damage are not well understood.
The BBB is highly vulnerable to injuries due to parasite invasion and traversal to the brain.
N. caninum must possess mechanisms that enable traversal of this complex interface, which separates the central nervous system (CNS) from the main blood supply [
9]. The BBB is an active tissue made up of astrocytes, pericytes and microvascular endothelial cells, and selectively controls intracellular and paracellular passage of substances between the CNS and blood [
9,
10]. These cellular components along with closely packed neurons constitute the neurovascular component, which forms the major functional unit of the BBB [
9]. Understanding the molecular changes that occur in the microvascular endothelial cells due to
N. caninum infection is therefore important because these cells maintain the functional integrity of the BBB and provide a highly selective barrier that protects the brain against pathogen invasion. Earlier studies have revealed disruption of the bioenergetics of microvascular endothelial cells in response to
N. caninum infection [
11,
12].
Transcriptomics analysis using microarray technology has been used to profile gene expression of host cells infected by
N. caninum [
13], yet this approach has not been applied in the context of BBB endothelial cell infection. The use of microarray analysis where mRNA transcription patterns of many thousands of genes are simultaneously revealed can identify previously unknown host factors and pathways that modulate host–parasite interaction. Likewise, the use of spectroscopic techniques, such as Fourier Transform Infrared (FTIR), can reveal alterations in the chemical constituents of infected cells [
14]. Additionally, synchrotron radiation X-ray fluorescence (μSR-XRF) is a chemical element imaging technique that can be used to generate X-ray fluorescence elemental maps of biological tissues [
15,
16,
17], with detection sensitivity and spatial resolution well-suited to characterize host–parasite interactions. Together, transcriptomics, spectroscopic FTIR and μSR-XRF approaches can provide an integrated global view of the transcriptional, chemical, and elemental changes that occur in BBB endothelial cells in response to
N. caninum infection.
In this study, we used the FTIR method to identify chemical changes that occur in human brain microvascular endothelial cells (hBMECs) following N. caninum infection. The levels of the trace elements Zn, Fe, and Cu in the infected and control cells were determined using quantitative μSR-XRF imaging analysis. We also profiled the expression of 84 genes involved in the biogenesis and function of mitochondria using RT-PCR-based focused pathway analysis. Furthermore, we analyzed the global differences in the patterns of gene expression in human and rat brain microvascular endothelial cell lines following N. caninum infection using genomic cDNA microarrays. FTIR imaging of infected hBMECs revealed significant changes in the major chemical macromolecules of the infected cells. Gene expression profiling of infected human and rat microvascular endothelial cells has identified differentially expressed genes and biological processes that mediate the parasite survival and replication within the host cells.
3. Discussion
In this study, we used a combination of approaches to investigate the effects of
N. caninum infection on the bioenergetic, chemical constituent, elemental content, gene expression, and biological processes of brain microvascular endothelial cells. Our results showed that
N. caninum tachyzoites were able to invade and replicate within hBMECs without significantly altering the cell viability or mitochondrial (Mt) function up to 48 hpi. This is consistent with a previous study, which showed that
N. caninum can infect hBMECs without disrupting the cell viability or Mt integrity [
11]. Mt gene expression profiling detected increased expression of 21 genes out of the 84 Mt examined genes. These upregulated Mt genes contribute to the function of Complex I (NADH-Coenzyme Q Reductase), Complex II (Succinate-Coenzyme Q Reductase), Complex III (Coenzyme Q-Cytochrome c Reductase), Complex IV (Cytochrome c Oxidase), and Complex V (ATP Synthase). For example,
cyc1 gene (cytochrome c1) encodes a subunit of the cytochrome bc1 complex, which plays an important role in the Mt respiratory chain by transferring electrons from the Rieske iron-sulfur protein to cytochrome c. Mutations in the
cyc1 gene may cause Mt complex III deficiency, nuclear type 6. Mt staining in a previous study [
11] and the present study did not reveal significant changes in the host cell Δψm up to 48 hpi. However, increased oxygen consumption was observed previously in
N. caninum-infected hBMECs [
11] and
N. caninum-induced enhanced expression of Mt genes was detected in the present study (
Table 1). These results suggest a modest increase in host cell bioenergetics to mitigate the increased metabolic pressure caused by the growing parasites within the host cells. Besides the basic function of providing energy, Mt are involved in various biological processes, such as calcium homeostasis, apoptosis, and cellular defense mechanisms. Hence, it is reasonable to assume that
N. caninum tachyzoites target and alter some of the Mt functions to promote their own survival.
Infection of hBMECs by
N. caninum was associated with a cell cycle arrest at the S and G2 phases. G2 phase is a period of rapid cell growth and protein synthesis during which the cells prepare for mitosis. Therefore, it is sensible to hypothesize that
N. caninum induces cell cycle arrest at G2/M phase, without compromising the overall viability of infected host cells, to promote favorable conditions for sustaining the parasite proliferation.
N. caninum has been previously thought to interfere with the host cell cycle or apoptotic pathways to promote its own intracellular survival [
11,
18]. Many pathogens, including
N. caninum, have evolved strategies to interrupt apoptosis to keep host cells alive until the pathogen development is completed.
N. caninum infection can inhibit apoptosis of mouse embryonic fibroblasts by inhibiting caspase activity [
19]. The same process may be occurring during
N. caninum infection of hBMECs. The closely related apicomplexan protozoan
Toxoplasma gondii is also known to alter the host cell cycle and apoptotic pathway [
20,
21,
22]. On the contrary, NcROP16, a key virulence factor in
N. caninum, can promote host cell apoptosis via increasing the transcription of apoptotic-related genes, such as
Fas,
FasL and
Bax, while enhancing the parasite pathogenicity by phosphorylating STAT3 [
23]. Given the distinct roles of
N. caninum in cell cycling and apoptotic pathways of host cells, future studies should characterize the molecular mechanisms underlying
N. caninum-induced cellular arrest and reveal host cell targets of
N. caninum-related proapoptotic effector proteins.

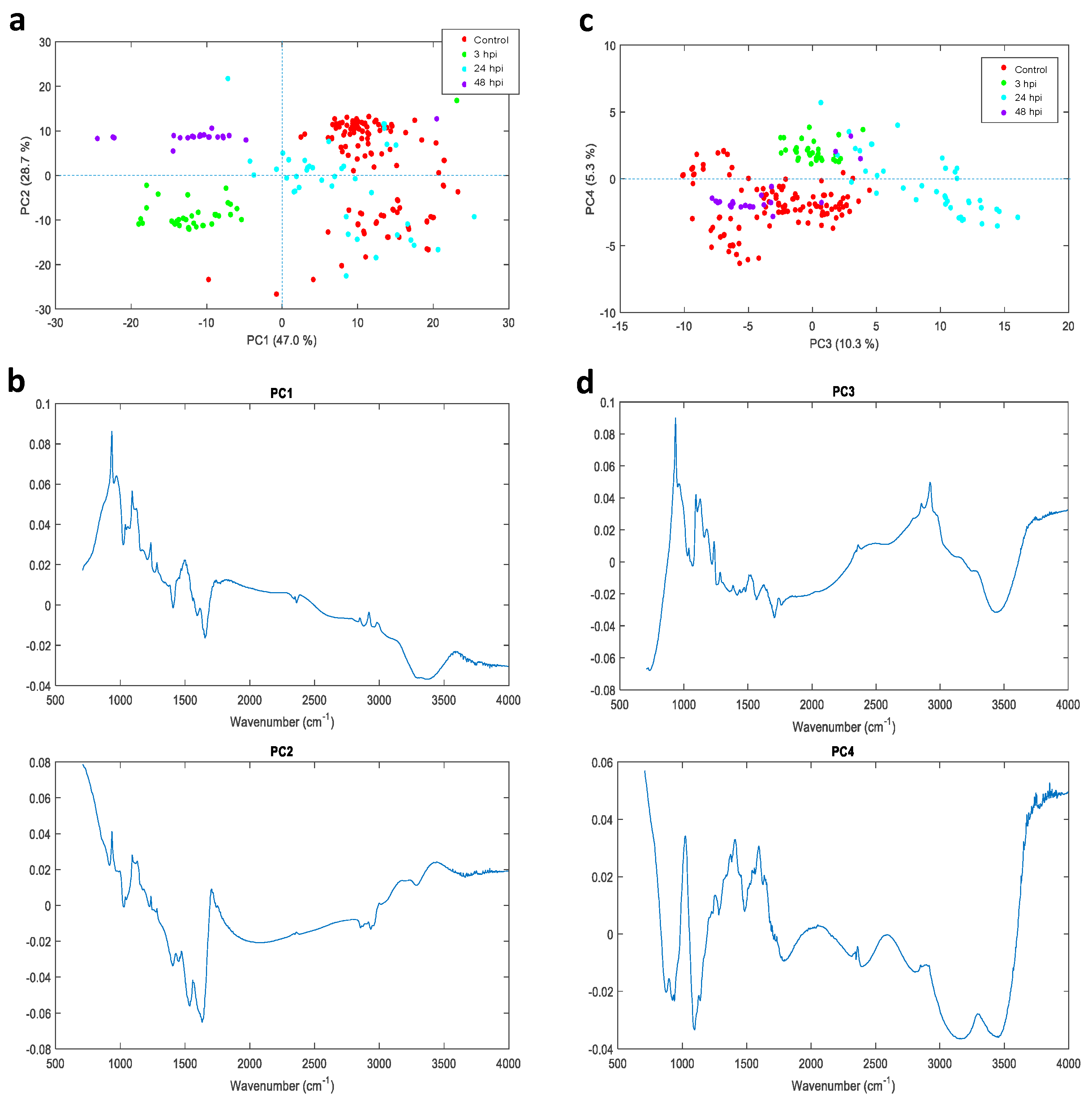

FTIR spectroscopy was used to the study response of hBMECs to
N. caninum infection at 3, 24 and 48 hpi by determining the chemical changes that occur in the host cells as infection advances. The detected chemical changes were significant at early infection (3 hpi) and late infection (48 hpi), prior to cell damage caused by the parasites exiting host cells. The FTIR profile seems to correlate with the progression of the parasite infection cycle. For example, during early infection (3 hpi) tachyzoites invade and establish a PV within host cells. At late infection (48 hpi), the tachyzoites have completed their development and are ready to exit the cells by rupturing the cell membrane. Both time points are associated with invasive events and more alterations are expected to happen at these two time points. However, at 24 hpi we noticed that the host cells’ metabolic status became more stabilized, probably to allow the tachyzoites to develop within the PV. We are cognizant that these chemical changes could be a direct effect of the cellular response to infection or an added parasite metabolome to the host cell metabolome. Chemometric analysis showed that PC1, PC2 and PC3 were required to discriminate between all samples. Alteration of the main chemical constituents of the host cells is anticipated because
N. caninum is an intracellular pathogen and most of its energy and metabolic requirements, which are crucial for its growth and survival, are derived from the host cells [
11,
12]. Previous work has also demonstrated high expression of genes involved in the growth of the virulent
N. caninum isolate Nc-Spain7, including genes involved in DNA replication, RNA metabolism, protein synthesis, cell division, and energy production [
24].
μSR-XRF mapping of
N. caninum-infected hBMECs revealed, for the first time, alterations in the levels of trace elements Zn and Cu in response to
N. caninum infection. Zn, Cu and Fe are essential trace elements required for a multitude of cellular housekeeping functions, such as enzymatic reactions, DNA synthesis, metabolic processes, and gene expression [
25]. Hence, homeostasis of these elements within cells is tightly regulated, and alteration in their levels can have an adverse impact on the host cell and its ability to respond to microbial infection. Of special interest is the remarkable increase in Zn in infected cells compared to control cells. The increase in Zn as infection progressed within cells suggests the important role of Zn in host immune defense against this intracellular parasite.
N. caninum infection induced the production of Th1-immune cytokines, (e.g., interleukin-12 (IL-12), interferon gamma (IFN-γ)) and increased the levels of reactive oxygen species [
4]. Also,
N. caninum reduced host cell apoptosis by inhibiting caspase activity [
19]. Zinc deficiency in mammals can adversely affect Th1 type immune response and IL-2 production [
26,
27] and apoptosis [
28]. Therefore, a correlation exists between increased Zn level and immune response against
N. caninum, and the ability of
N. caninum to impair host cell apoptosis; mechanisms that are critical for parasite survival within host cells. Hence, it is possible that increased Zn level—whether as a host cell response or parasite-induced—has a role to play in the protection against the cellular oxidative stress and DNA damage [
29,
30] produced during infection, suppression of cell apoptosis [
28], and enhancing cell mediated immunity [
26,
27]. The availability and restriction of Fe and Cu are also important aspects of host–pathogen interactions [
31]. However, the low level of Fe in the present study raises the possibility that this element might not be essential for
N. caninum intracellular growth. On the other hand, the rise of Cu from 3 to 24 hpi, followed by a sharp decrease at 30 hpi appears advantageous to the host–parasite interplay because excess Cu is toxic to the host cell and catalyzes the generation of free oxygen radicals that may damage host cell lipids, proteins and DNA, as well as the parasite [
32]. Hence, this particular trend of Cu levels might be part of the cellular response and the homeostatic control of Cu by host cells during infection.
We used genomic cDNA microarrays to profile the transcriptional changes that occur in hBMECs and rat rBMVECs, the first cell type thought to be targeted during cerebral N. caninum infection. The ability to compare and contrast gene expression profiles between endothelial cells of human and murine origins provided new insights into the differences between human and murine response to N. caninum infection. PCA of the full data set showed distinct separation between infected and control cells for both hBMECs and rBMVECs. Likewise, hierarchical clustering analysis using heat maps revealed a clear separation between infected and control cells in both cell lines, demonstrating N. caninum-dependent effect on host cell transcriptional response. Moreover, it was striking to see such a modest effect of N. caninum infection on gene expression of host cells, which indicates that endothelial cell transcriptional responses to N. caninum 24 hpi are limited, or it could be an evasion strategy by the parasite to subvert the host immune responses. Indeed, microarray data and the functional annotation of DEGs clearly showed that N. caninum can adapt well to the host cell microenvironment by inducing genes and processes that promote the intracellular parasite growth. These data are supported by the results of MTT assay, Mt gene expression, chemical fingerprinting and elemental analysis, which all-together showed how N. caninum effectively modulates the host cell microenvironment in various ways to sustain its survival.
The top five downregulated genes in hBMECs were
mtnd2,
insig1,
hist1h2ak,
hmgcs1, and
snora7b. The
mtnd2 is a mitochondrial gene coding for the NADH dehydrogenase 2 (ND2) protein, which is a subunit of the mitochondrial membrane respiratory chain NADH dehydrogenase (Complex I). Its significant downregulation supports the concept of metabolic pressure associated with
N. caninum infection. The
insig1 has been shown to play a role in innate immune response, which is essential for the host to counter infection [
33]. The
hist1h2ak encodes the nuclear histone H2A type 1 protein, which is responsible for the nucleosome structure of the chromosomal fiber, but its role in
N. caninum infection is unknown. The
hmgcs1 encodes a protein in the mevalonate pathway, which provides molecules for cholesterol synthesis [
34], and thus may play a role in lipid metabolism, which is required for the synthesis of the plasma membrane of the proliferating tachyzoites during the parasite’s asexual replication. The role of this gene in protozoal growth has been reported in a previous study, which showed that chemical inhibition of
hmgcs1 significantly inhibited the proliferation of the coccidian protozoan
Eimeria bovis [
35]. Hence, downregulation of
hmgcs1 might be a host cell strategy to limit the availability of essential nutrients for the parasite growth. Interestingly, chemical FTIR fingerprinting results showed that at 24 hpi, the cell chemical constituents were closer to control values than to early (3 hpi) and late (48 hpi) infections. Thus, it is possible that inhibition of
hmgcs1 is part of an overall calming-down event that occurs at 24 hpi. The role of the
snora7b gene in
N. caninum infection is unknown, but
snora/ds seems to improve cellular resistance to multiple viruses and has been hypothesized to play a role in virus-host interactions and/or virus-induced cell death [
36]. The top two upregulated genes in hBMECs were
tob2 and
bivm. The
tob2 belongs to a family of antiproliferative proteins, which are involved in the regulation of cell cycle progression. The
bivm encodes a poorly studied protein and its role in
N. caninum is unknown.
For rBMVECs, there was one upregulated gene (gem) that is known to play a role in receptor-mediated signal transduction. There were nine downregulated genes, including radical S-adenosyl methionine domain containing 2 (rsad2), chemokine (C-X-C motif) ligand 2 (cxcl2), tribbles homolog 3 (Drosophila) (Trib3), midasin homolog (yeast) (mdn1), interferon, alpha-inducible protein 27 like 2B (ifi27l2b), chemokine (C-X-C motif) ligand 10 (cxcl10), HECT and RLD domain containing E3 ubiquitin protein ligase family member 1 (herc1), growth arrest and DNA-damage-inducible, alpha (gadd45a), and ISG15 ubiquitin-like modifier (Isg15). The rsad2, cxcl2, ifi27l2b, cxcl10, and Isg15 play roles in immune response; trib3 plays a role in fatty acid biosynthesis; mdn1 is involved in transcription, herc1 in membrane trafficking, and gadd45a in apoptosis.
Previous gene expression profiling of spleen cells in mice infected by
N. caninum revealed differential expression of genes involved in cell proliferation, apoptosis, signal transduction, and transcription [
13]. In the present study, changes in gene expression in infected hBMECs included genes involved in bioenergetics, lipid synthesis, cell cycling and immune response, whereas infected rBMVECs exhibited differential expression in genes involved in immune response, membrane trafficking, fatty acid biosynthesis, transcription, apoptosis and signaling. There was a similarity between hBMECs and rBMVECs in terms of involvement of DEGs in lipid biosynthesis. This is anticipated because
N. caninum requires lipids to meet the high metabolic and biosynthetic demands of the growing and newly generated tachyzoites. Previous studies also showed that
N. caninum relies on plasma lipoproteins, scavenges cholesterol from NPC1-containing endocytic organelles and salvages sphingolipids from host Golgi Rab14 vesicles that the parasite sequesters into its PV [
37] and dysregulates mammalian lipid droplet biogenesis [
38]. The
insig1 is known to block the transcription of SREBP-1c (sterol regulatory element binding protein-1c), which leads to the inhibition of lipid biosynthesis [
39]. Thus, reduced expression of
insig1 is induced by
N. caninum most likely to promote the production of lipid synthesis for its own benefits. Evidence from our and previous studies highlight lipid metabolism as a promising target for therapeutic interventions. The down regulation of genes involved in immune response in both hBMECs and rBMVECs is noteworthy. The immune response against
N. caninum is predominantly Th1-biased, which is associated with the production of IL-12, IFN-γ, and nitric oxide (NO) by immune cells, such as macrophages, which underline the importance of cellular immune responses in the reduction of tissue parasitism and host survival, along with IgG2 production [
40,
41]. Previous studies demonstrated that initial
N. caninum recognition includes Toll-like receptor 2 (TLR2), TLR3, and TLR11 [
42,
43]. Engagement of these receptors can trigger the activation of MyD88 or TRIF-dependent pathways, which induce the immune response against
N. caninum [
43,
44]. CCR5 is also a key player in the immune response against
N. caninum through the production of cyclophilin, a parasite protein that modulates migration and activation of innate immune cells during early infection [
40,
45].
The differences in gene expression and pathways observed in our study compared to previous work [
13] are expected. It is possible that endothelial cells interact differently with
N. caninum compared with other host cell types.
N. caninum interaction with and crossing of BBB endothelial cells is a special event because BBB has highly selective properties to protect the CNS from pathogen invasion [
46]. The strain of
N. caninum (Nc-Liverpool) used in our study is also different from Nc-Nowra strain used by Ellis et al. [
13]. Any comparison between in vitro and in vivo studies should be made with caution, as the results of in vivo studies may be influenced by the host’s biological processes, whereas many of these variables are absent in the in vitro environment. As our investigation had an exploratory nature, only genes present on the microarray were investigated, other genes may be of relevance to the outcome of
N. caninum infection. The microarray analysis was conducted at only one time point in the human and rat cell lines. A time course study is required to reveal more temporal changes in gene expression during the full course of infection. Further studies should also compare host cell responses to infection by
N. caninum strains of different virulence.
4. Materials and Methods
4.1. Cell Lines and Culture Conditions
Human brain microvascular endothelial cells (hBMECs) provided by Naveed Khan (American University of Sharjah, Sharjah, UAE) were grown in complete RPMI-1640 Medium (cRPMI) supplemented with 10% heat inactivated fetal bovine serum (FBS), 2 mM L-glutamine, 1 mM Sodium Pyruvate, 1% MEM nonessential amino acids, 1% MEM vitamins and 2% penicillin/streptomycin as previously described [
11]. Rat Brain Microvascular Endothelial Cell line (rBMVEC), GPNT strain, was obtained from the European Collection of Authenticated Cell Cultures (ECACC, Health Protection Agency Culture Collections (HPACC), Salisbury, UK). Commercially prepared RBMVEC growth medium (ECACC, HPACC, Salisbury, UK) was used to maintain the rBMVEC culture. The rBMVECs were cultured in monolayer in flasks previously coated with Attachment Factor Solution (AFS), following the manufacturer’s instructions. African Green Monkey (
Cercopithecus aethiops) kidney epithelial (Vero) cells were obtained (ECACC, HPACC, Salisbury, UK) and grown in Dulbecco’s Modified Eagle Medium (DMEM) supplemented with 10% heat-inactivated fetal bovine serum, 25 mM HEPES, 2 mM L-glutamine, 10,000 U/mL penicillin G sodium, 10,000 μg/mL dihydrostreptomycin, 250 μg/mL amphotericin B, nonessential amino acids, and 100 mM sodium pyruvate. Vero cells were used to maintain the growth of
N. caninum tachyzoites.
All cell lines were maintained in a monolayer in T-75 cm2 culture flasks in a humidified 5% CO2-95% air at 37 °C. Cells were considered confluent when their expansion had reached a point where cells touched each other on all sides and no intercellular gaps were observed. When cells reached at least 80% confluency (~3–5 days), cell monolayers were trypsinized using trypsin-EDTA (Thermo Fisher Scientific, Waltham, MA, USA) and cell suspension were seeded in new flasks at a 1:3 passage ratio for hBMECs and Vero cells. In rBMVECs, an aliquot of trypsinized cell suspension was used to determine the number of cells/mL using a hemocytometer, and new culture flasks/plates were inoculated at 6 × 103 cells per cm2. To rule out if cell viability could be regarded as a factor affecting host cell–parasite interactions, which in turn might affect subsequent measurements, cell viability was assessed on a minimum of 100 cells using trypan blue exclusion assay prior to inoculation onto culture plates or flasks. Only cells with >98% viability were used.
4.2. Parasite Maintenance and Purification
Tachyzoites of
N. caninum Nc-Liverpool strain were maintained in Vero cell monolayers grown in 75 cm
2 culture flasks, as described previously [
18]. The inoculated cell culture was maintained in 15 mL of complete DMEM at 37 °C, 5% CO
2. The parasites were harvested when lysis of the Vero cells, due to infection, was completed, or until very few host cells remained intact, and a new Vero cell culture was inoculated in order to establish an on-going
N. caninum culture. Once nearly all of the Vero cells had been lysed by the parasite, the culture flask was gently agitated, and the entire contents were transferred to a 50 mL falcon tube. The contents were left to settle for 10 min and any floating cell debris was removed by pipetting, being careful not to disturb the parasites towards the bottom of the solution. The tube containing the parasite was then centrifuged at ambient temperature at 2000×
g for 5 min. The supernatant was carefully removed, and the parasite pellet re-suspended in 2.5 mL of sterile 1× Phosphate Buffered Saline (PBS; pH 7.2). The parasite suspension was then purified using PD-10 desalting columns filled with Sephadex-25 gel filtration material (GE Healthcare, Amersham, UK), as previously described [
47]. The purified parasites were then centrifuged at 3000×
g for 5 min. The supernatant was carefully removed, and the purified parasite pellet was re-suspended in 5 mL of the corresponding culture media (RBMVEC growth medium for rBMVECs and RPMI for hBMECs). An aliquot was used to count the number of tachyzoites per milliliter using a hemocytometer.
4.3. Transmission Electron Microscopy
hBMECs were cultured on poly-l-lysine-coated coverslips overnight prior to infection by tachyzoites of N. caninum at a host:parasite ratio of 1:2 (i.e., MOI; multiplicity of infection of 2). Twenty-four hours after incubation, cells were fixed in 1% glutardialdehyde-4% formaldehyde in 0.1M PBS at 4 °C for at least 2 h before processing. Samples were washed in 0.1 M PBS at 4 °C for 12 h, followed by a secondary fixation in 1% osmium tetraoxide-1.5% K4Fe(CN)6 in 0.1 M PBS (pH 7.2). Samples were washed twice in distilled water for 30 min and dehydrated in ethanol 50, 50, 70, 70, 90, 90, and 96% for 10 min and twice in ethanol 100% for 15 min. Samples were impregnated in equal volumes of epoxy resin (LX112) and ethanol 100% for 60 min at ambient temperature, followed by pure Epoxy resin (LX112) for 60 min at 37 °C. Resin was allowed to polymerize for 12 h at 60 °C. Sectioning of blocks was performed on a type LKB IV ultramicrotome at 40 nm, and then the sections were collected on a copper 200-mesh grid. Sections were incubated with 6% uranyl acetate for 10 min, followed by lead citrate for 1 min, before they were viewed under a Philips Morgangi 268 transmission electron microscope connected to a charge-coupled device camera (MegaView II).
4.4. Cell Viability Assessment Using MTT Assay
The nonradioactive colorimetric 3-(4,5-dimethyl-2-thiazolyl)-2,5- diphenyl tetrazolium bromide (MTT, Sigma) reduction assay was used to determine the effect of N. caninum infection on the viability of hBMECs at 1, 3, 6, 12, 24, and 48 h post infection (hpi). Cultured hBMECs (104 cells/well) in 96-well tissue culture plates (Nunc) were incubated in 100 μL of RPMI medium for 18 h in a humidified incubator (37 °C, 5% CO2) until they became confluent. Tachyzoites of N. caninum were added, in triplicate, to hBMECs at MOI 2 for 2 h, followed by removal of the medium and washing with fresh RPMI medium to remove extracellular, non-attached, parasites. Each well was filled with 100 μL of fresh RPMI medium and the plates were incubated at the above culture conditions. Dimethyl sulfoxide (DMSO, 0.1%) was used as a control. At the indicated time points after infection, MTT was added to each well (to a final concentration of 0.5 mg/mL), and incubation was continued for a further 3–4 h in the dark at 37 °C. The cells were then incubated for 1 h in 100 µL of solubilizing solution (10% sodium dodecyl sulfate in 0.01 M HCl). The optical density (OD) was measured using a microtiter plate reader at 570nm. The experiment was performed in triplicate.
4.5. Assessment of Mitochondrial Membrane Potential
The mitochondrial (Mt) membrane potential (ΔΨm) represents an important parameter for cellular metabolism in general and the Mt energy status in particular. Therefore, ΔΨm was measured in mock- and N. caninum-infected cells with a ΔΨm-sensitive fluorescent MitoTracker® Green FM dye that labels mitochondria irrespective of oxidative activity and can be used to assess Mt mass. hBMECs were plated (104 cells/well) in a black 96-well microtiter plate with a clear bottom and were infected by N. caninum tachyzoites at a MOI of 2. At 6, 24 and 48 hpi, cells were incubated at 37 °C with 600 nM of the MitoTracker® Green FM (Molecular Probes, Eugene, OR, USA) in PBS for 30 to 45 min and washed twice with prewarmed PBS. 1uM FCCP, a mitochondrial OXPHOS uncoupler, was used as a positive control for 1 h before plate reading. The fluorescence emission of MitoTracker® Green FM was analyzed using a multilabel microplate reader at 480/520 nm excitation/emission.
4.6. Propidium Iodide Staining and Flow Cytometry
To determine the effect of
N. caninum on host cell cycling, propidium iodide (PI) staining and flow cytometry analysis were performed as previously described [
18].
N. caninum-infected (MOI 2) and uninfected control hBMECs were detached using 0.1% (wt/vol) trypsin-0.2% (wt/vol) EDTA. Following centrifugation (400×
g for 10 min), the cells were fixed and permeabilized in ice-cold 70% ethanol for 60 min. Following washing with PBS, cells were incubated with freshly prepared PI staining solution (containing 50 µg of PI, 100 kunitz units of ribonuclease A (Sigma, UK), and 1 mg glucose in 1 mL of PBS) at ambient temperature in the dark for 60 min. After staining, the cells were run through a Beckman Coulter Altra flow cytometer (Beckman Coulter). Approximately 1 × 10
4 cells were measured for each sample using the 488nm laser for excitation and red fluorescence (>600 nm) and side scatter. After gating and removal of cell debris within the total cell population, the number of cells that were dead (apoptotic, hypo-diploid), normal (diploid, 2n), and dividing/mitotic, were recorded on a Global Worksheet.
4.7. RT2 Profiler PCR Array for Mitochondria-Related Gene Expression
Total RNAs from N. caninum-infected hBMECs (MOI 2) and matched (control) uninfected cells were isolated using RNeasy kit (Qiagen, Valencia, CA, USA). The extracted RNA yield and purity were determined with absorbance of 260nm and 280nm measured using the NanoDrop ND-1000 UV/Vis spectrophotometer according to manufacturer’s instructions (NanoDrop Technologies, Wilmington, DE, USA). RNA integrity was confirmed using the Agilent Bioanalyzser 2100 and RNA Nano 6000 Labchip kit, with ~250 ng RNA loaded on the chip according to the manufacturer’s instruction (Agilent Technologies, Palo Alto, CA). Reverse-transcriptase (RT) reaction was performed with 1000 ng of total RNA using an RT2 First Strand Kit (SABioscience). Random-primed cDNAs were processed for quantitative real-time reverse-transcriptase PCR (qRT-PCR) of 84 genes involved in biogenesis and function of mitochondria and 12 housekeeping genes including internal controls using an RT2 Profiler™ PCR Array Kit (RT2 ProfilerTM PCR Array Human Mitochondria, PAHS-087A, SABioscience) and an ABI 7300 real-time PCR system (Applied Biosystems, Foster City, CA, USA). PCR products were quantified by measuring SYBR Green fluorescent dye incorporation with ROX dye reference. Four independent pair-wise comparisons were performed to evaluate scored differences in gene changes with a correlation coefficient of R > 0.990. An integrated web-based software package for the PCR Array System performed ΔΔCt-based fold-change calculations from the uploaded raw threshold cycle data. The data were normalized and analyzed using fold change from control with positive values indicating an upregulation and negative values indicating a downregulation compared to control. Genes with >1.5 fold change in expression at a p-value of < 0.05 from control were considered as DEGs.
4.8. FTIR Spectroscopy Analysis
Cell monolayers of hBMECs were incubated at 37 °C with 5% CO2 in 6-well tissue culture plates. Cells were infected with N. caninum at MOI of 2, and after 2 h the medium including extracellular (unattached) tachyzoites was removed from each well and replaced with fresh medium. The infected cells were further incubated for 3, 24 and 48 hpi. At each time point, culture medium was discarded, and the cells were washed twice with PBS to remove any traces of the culture medium. Cells were trypsinized, centrifuged and resuspended in 4% paraformaldehyde (PFA). The fixed cell suspension was then pipetted on zinc selenide windows and left to air-dry. FTIR measurements were performed in the transmission mode using a liquid-nitrogen-cooled MCT detector fitted to an FTIR microscope (Bruker Hyperion 2000 microscope [Bruker Optics, Coventry, UK]) coupled to an FTIR spectrometer (Bruker Tensor 27 FTIR spectrometer [Bruker Optics, Coventry, UK]). The spectra were obtained in the wave number range of 4000–700 cm−1. Spectral resolution was set at 4 cm−1. The spectra collected were an average of 64 scans in order to increase the signal-to-noise ratio. Due to the possible heterogeneity of the samples caused by the different thickness of the cell layers at various regions of the prepared sample, and due to the possible presence of traces of PFA crystals, particularly in areas with a lower cell density, appropriate sample regions were selected. Background measurements were performed regularly on empty (cell-free) areas of the window to minimize noise and the signal from moisture. The sample area analyzed was 100 μm × 100 μm, to improve the signal/noise ratio. From each sample, at least 50 independent spectra were recorded. The experiment at all time points (3, 24 and 48 hpi) was performed in triplicate. The ratio analysis was performed to measure the change of chemical content in host cells with respect to different time points after infection. The raw spectra were first calibrated using cubic spline function from MATLAB 2017a. This has enabled the alignment of all the wavenumber to the same step size. All spectra were then normalized to zero mean and unity standard deviation.
4.9. Synchrotron-Based XRF Mapping
hBMECs were seeded on Quartz slides (UQG Ltd., Cambridge, UK) until they formed a monolayer after 24 h. Then, tachyzoites were added to the cell monolayer at a MOI of 2. Quartz slides were also seeded with cells, but without addition of parasites and were used as controls. At 3, 24 and 30 hpi, three slides with infected or non-infected control cells were washed 3X in sterile PBS and fixed in 4% PFA for 30 min. Then, washed 3X again in sterile PBS and left at 4 °C in PBS until measurements. All experiments were conducted at least in triplicate. A high-resolution synchrotron radiation X-ray fluorescence (μSR-XRF) imaging approach was used to map and quantify the levels of Zinc (Zn), Copper (Cu) and Iron (Fe) within the hBMECs. Control samples were also analyzed to establish a baseline for the levels of these metals. Controls and infected cells with incubation times of 3, 24 and 30 hpi were measured allowing the evaluation of the metal content levels within the cells at different incubation stages post infection. Imaging of the elemental maps of the three metals was performed on areas ~ 200 × 200 µm
2 from each sample on I18 with the beam focused to 3 × 5 μm
2 and a dwell time of 5 s per point. A thin-film reference material for XRF measurements (AXO Dresden GmbH) was used to evaluate the metal content in terms of ppms. The concentration maps were produced using Pymca [
48] that allows fitting of the acquired spectra and translating the intensity maps into concentration distributions by taking into account an approximate cellular matrix composition. From the concentration maps regions of interest within cells (three regions per sample) were statistically evaluated producing average concentration values for each of the three incubation times. In an effort to extract the most appropriate information possible, regions that contained single cells in contrast to a number of overlapping cells were identified and hotspots with excessive elemental counts were excluded from the measurement. Statistical significance was evaluated using the Student’s t-test (two tailed, assuming unequal variance) in the Excel software program. A
p-value of ≤0.05 was considered the cut-off for a significant difference.
4.10. Microarray Analysis
Here, in addition to studying the transcriptional response of hBMECs to infection by N. caninum, we also studied the transcriptome of rBMVECs to explore whether cerebromicrovascular endothelial cell response to infection varies between different host species (i.e., human versus rat).
4.10.1. Infection Protocol
Approximately 48 h before the parasite culture was likely to have lysed its host Vero cells; the rBMVEC and hBMEC cultures were trypsinized. An aliquot of the culture suspension was used to count the number of cells/mL using a hemocytometer. As shown in
Supplementary Figure S2, 6-well plates were seeded with rBMVECs or hBMECs at a density of approximately 6 × 10
3 cells/cm
2. Plates used for rBMVECs were pre-prepared with AFS. The final volume in each well was made up to 2 mL with the corresponding culture media (RBMVEC growth medium for rBMVECs and RPMI for hBMECs). The plates were then incubated at 37 °C, 5% CO
2 for 48 hr. Before infection, the culture media were removed from the seeded plates. Three wells in each plate were infected with purified tachyzoites in 2 mL fresh culture media at a MOI of 2. Three wells were mock inoculated with 2 mL of fresh culture media and used as controls. All plates were incubated at 37 °C and 5% CO
2 for 2 h. Then, culture media were removed from all wells, both infected and control plates, and 2 mL of fresh corresponding culture media were added. All plates were incubated at 37 °C and 5% CO
2 for further 24 h.
4.10.2. RNA Isolation and Quantification
Total RNA was isolated from three technical replicates of hBMEC- or rBMVEC-infected cultures and the corresponding controls at 24 hpi using the RNeasy® Plus mini kit (QIAGEN, UK), according to the manufacturer’s instructions for “Isolation of RNA from animal cells”. Approximately 1:10 dilutions of total RNA isolations were prepared in RNase-free H2O and stored at –80 °C. RNA concentrations and quality were determined using a Nanodrop spectrophotometer (Thermo Fisher Scientific, Wilmington, DE, USA). Only RNAs that passed the quality control cut-offs of A260/A280 ratio of ≥1.8 and A260/A2830 ratio of ≥1.6 were used. Moreover, RNA integrity number (RIN) was determined using the Agilent Bioanalyzer RNA 6000 Nano LabChip Kit (Agilent Technologies, Santa Clara, USA) in combination with the Agilent 2100 Bioanalyzer according to the manufacturer’s instructions.
4.10.3. RNA Amplification and Microarray
RNA samples from the rBMVECs (infected and control) with RIN >8 were submitted to Source Bioscience (Nottingham, UK) for hybridization to Affymetrix Rat Genome 230 2.0 array. Each microarray contained a total of 31,099 probe sets, encoding for over 28,000 rat genes. Each sample was hybridized to a separate array. RNA samples from the hBMECs were analyzed using Affymetrix GeneChip® Human Gene 1.0 ST Array (Affymetrix, Santa Clara, CA, USA) by the transcriptomics service at Nottingham Arabidopsis Stock Centre (NASC). The human array consisted of approximately 33,252 probe sets covering over 28,869 genes. The process was performed following the Affymetrix instructions. Briefly, double-stranded cDNA was synthesized by a chimerical oligonucleotide with oligo-dT and T7 RNA polymerase. The amplification and labeling processes were monitored using a GeneChip® Eukaryotic Poly-A RNA Control Kit (Affymetrix) with exogenous positive controls that were spiked into the total RNA before cDNA synthesis. About 25 µg of each biotinylated cRNA preparation was fragmented and placed in hybridization cocktail containing biotinylated hybridization controls (GeneChip® Expression Hybridization Controls, Affymetrix). Microarray scanned images were obtained with a GeneChip Scanner 3000 7G (Affymetrix) using the default settings. Images were visually inspected to eliminate hybridization artifacts.
4.10.4. Bioinformatic Analysis
Gene expression data were analyzed using Partek Genomics Suite 6.6 software (Partek Incorporated). The raw CEL files were normalized using the RMA background correction with quantile normalization, log base 2 transformation and mean probe-set summarization with adjustment for GC content. DEGs were identified by a two-way ANOVA. DEGs were considered significant if p-value was ≤ 0.05 and fold change of >1.5 or <−1.5. GO enrichment analysis of hBMEC data set was performed on the genes found to be over- or under-expressed in infected versus control cells using the three following ontologies: biological process, molecular function and cell compartment. GO analysis could not be done on rBMVECs because Partek software did not have the rat ontology files. Interestingly, Ensembl biomart was used to identify potential cross-species orthologues and no common genes were found. This may be attributed species differences or related to the low number of significantly DEGs identified.
4.10.5. Microarray Data Accession Numbers
The microarray data produced in the present study have been submitted to the European Bioinformatics Institute (EMBL-EBI) and deposited in ArrayExpress database (
https://www.ebi.ac.uk/arrayexpress/) under accession number E-MTAB-9411.
4.11. Statistical Analysis
Statistical analysis was performed using GraphPad Prism version 7.02 (GraphPad® Software Inc., San Diego, CA, USA). Statistical significance of differences in host cell viability, mitochondrial function, cell cycle between control (uninfected) and infected cells at different times post infection were determined by two-way analysis of variance (ANOVA) and Bonferroni’s post-hoc test for multiple comparisons as appropriate. A p value of <0.05 was considered significant.
