Buildings 2019, 9(7), 160; https://doi.org/10.3390/buildings9070160

Article
Ultimate Flexural Capacity of Reinforced Concrete Elements Damaged by Corrosion
1
Department of Structures for Engineering and Architecture, University of Naples Federico II, Via Claudio, 21, 80125 Napoli, Italy
2
Department of Civil Engineering, “Niccolò Cusano” University of Rome, Via Don Carlo Gnocchi, 3, 00166 Rome, Italy
3
Department of Civil Engineering and Energy Technology, Oslo Metropolitan University, Pilestredet 35, 0166 Oslo, Norway
*
Author to whom correspondence should be addressed.
Received: 14 June 2019 / Accepted: 29 June 2019 / Published: 2 July 2019

Abstract

:
Worldwide, steel corrosion is one of the greatest deterioration problems for reinforced concrete structures. Comparing some experimental results from literature with a complex FEM model, the present paper points out the principal aspects that characterize the static behavior of reinforced concrete (RC) elements damaged by corrosion. Moreover, the nondimensional abaci defined for some specific case studies finalized to the evaluation of the residual flexural strength of corroded elements highlight the dangerousness of the corrosion degradation if the failure of the element is governed by the steel.
Keywords:
corrosion; FEM model; degradation abaci; flexural strength

1. Introduction

The increased aggressiveness and environmental pollution have highlighted the issue of deterioration in reinforced concrete (RC), previously considered unalterable and nondegradable material with a long life. In recent decades, corrosion degradation has occurred on reinforced concrete structures, causing loss of load-bearing capacity, both in the service and in the ultimate limit state. The first evidence of corrosion degradation is formation of rust stains on the surface of the artifact; then, the concrete cracks [1] and the steel–concrete interaction is lost, the corrosion rate increases, and the reinforcement section is reduced. If not properly countered, depending on environmental aggressiveness, ductility and flexural strength can be drastically reduced, and consequently, the service life drops [2].
The evaluation of the behavior of structural elements subjected to corrosive phenomena cannot disregard the study of the degradation process and its implications on both the materials and the sectional geometry (Figure 1). To estimate the static behavior of RC elements damaged by corrosion, the first aspect to consider is related to the steel reinforcement degradation. Previous studies have demonstrated that the reduction of the steel cross-section is accompanied by a decay in the material and mechanical properties in tension and compression, under monotonic and cyclic behavior [3,4,5,6,7,8,9,10,11]. Since steel consumption is accompanied by the formation of corrosion products (characterized by a density lower than the original material), cracking and cover spalling of the concrete also occur [12,13,14,15,16,17]. Consequently, the bond interaction between concrete and steel is significantly modified [18,19,20,21,22,23,24,25].
Among the main contributions of analyzing the flexural behavior of corroded RC beams, the experimental works of Rodriquez et al. [26,27,28,29,30] must firstly be mentioned. These experimental results showed that the collapse is caused by steel failure accompanied by significant concrete cracking for a low amount of reinforcement, while a high reinforcement amount that is due to concrete crushing and buckling is accompanied by a considerable ductility reduction. Capozucca [31] observed 45% ultimate strength reduction for 13% diameter reduction, while Mangat and Elgarf [32] stated 25% ultimate strength reduction for 9.5% corrosion level. Analyzing the global behavior of naturally corroded beams, Castel [33] highlighted a significant increase of the maximum displacement and stiffness and ductility reduction. Moreover, Torres-Acosta [34] showed that 20% corrosion level causes about 60% flexural strength decay; Azad [35] confirmed the increase of deformation as a consequence of the corrosion; Zhang [36] related the pitting corrosion development with the ultimate capacity and the bending stiffness reduction, that is, the more sensitive parameter due to the steel–concrete bond loss. According to the latter, Du [37] experimentally found that under the same loads, the time-dependent deflections of corroded RC beams increased more rapidly than those of uncorroded RC beam and reached their limiting deflections prematurely. Other studies [38,39,40] on the flexural strength degradation of RC beams subjected to various levels of chloride-induced reinforcing corrosion, reported that the failure mode can change from ductile to brittle when corrosion occurs.
The brief review of the works proposed in the scientific literature shows that a reliable procedure to estimate the residual life of a reinforced concrete structure subjected to corrosion is not yet well defined. This procedure, due to a widespread uncertainty on the experimental results, often influenced by uncontrolled corrosion distribution. For this reason, at the scientific and regulatory level, a reliable methodology for simulating the flexural behavior of corrosion-damaged reinforced concrete elements has not yet been proposed. Only taking into account the degradation of the mechanical properties of reinforcements, the sectional capacity of any RC element appears significantly reduced in the time [40,41,42,43,44,45,46,47,48]. This aspect may significantly affect the seismic behavior of corroded structures [49,50,51,52,53,54]. Obviously, the decay may become more significant if the bond and cracking are also considered.
The aim of the present paper was to define a simple procedure to evaluate the residual flexural capacity of a corroded reinforced concrete beam by means of nondimensional abaci. To this purpose, the degradation model proposed by one the authors [11] was applied. Moreover, to evaluate their reliability, the approach was applied to a numerical model, in which a beam characterized by a uniform corrosion and tested by Rodriguez [30] was simulated. In the case of pitting corrosion, in fact, the reliability of the approach has been already demonstrated in other, previous studies [47,55].
The proposed abaci clearly show the decay in the flexural strength with the corrosion level as a function of the sectional reinforcement amount.

2. The Corroded Element with Flexure: Numerical Modeling

In order to predict the mechanical behavior of a corroded RC beam, an experimental case was selected to be simulated and analyzed using the nonlinear finite element (NLFE) method. In the chosen RC beam, the amount of the uniform corrosion on the tensile reinforcement was 14% steel cross-section reduction. In addition, geometry dimensions and rebar detailing of the selected beam are shown in Figure 2. Based on the amount of corrosion, the cross-section and material properties of corroded reinforcement (Equations (1)–(3)) with decayed bond-slip behavior (Equation (4)) were applied to the FE model.

2.1. Selected Experimental Case Study

Rodriguez [30] investigated the effect of reinforcement corrosion on the residual capacity of corroded and uncorroded RC beams under a four-point bending test. In these experimental tests, many beams with various types of failure were investigated. In order to assess the applicability of the decay laws proposed by one the authors [11], a beam for a numerical simulation was chosen from [30]. Specifically, the mechanical properties of the reinforcement were modified according to Equations (1)–(3) for the yielding strength, the ultimate strength, and the ultimate strain, respectively:
σ y , c o r r σ y , u n c o r r = 1 0.143453 · M c o r r [ % ]
σ u , c o r r σ u , u n c o r r = 1 0.125301 · M c o r r [ % ]
ε u , c o r r ε u , u n c o r r = e 0.024983 · M c o r r [ % ]
where σy and σu are, respectively, the yielding and ultimate stress of the reinforcement, Mcorr is the percentage of mass loss due to the corrosion, and εu is the ultimate strain. It is assumed that the yielding strain can be directly derived by the σy, since the elastic modulus of the reinforcement does not significantly change after the corrosion degradation.
Geometry dimensions and rebar detailing of the selected simply supported beam are shown in Figure 2. In the chosen beam, the amount of the uniform corrosion on the tensile reinforcement was 14% steel cross-section reduction, and the uniaxial compressive strength of concrete is 34 MPa. In the present study, reduction of the mechanical properties of corroded reinforcement was considered using Equations (1)–(3).

2.2. FE Analysis and Material Properties

The two-dimensional (2D) NLFE analysis was performed in DIANA [56] by incorporating the material models. Only half of the beams were modeled to take advantage of the symmetry in geometry, supports, and loading conditions. It was assumed that the corrosion is uniformly distributed along the tensile reinforcements. A vertical stepwise incremental displacement was applied at the loading point in the model (see Figure 3). In addition, the nonlinear problems were solved using the modified Newton–Raphson approach.
The concrete was modeled using four-node quadrilateral plane stress elements. The tensile and compressive behaviors of concrete were represented through a smeared rotating crack model with Hordijk and elastic–ideally plastic models, respectively. The details of these models are described in [56]. It was reported that the compressive strength of concrete in compression zone, which is subject to cracks due to the corrosion, might be reduced in comparison with that of undamaged concrete [57,58,59,60]. In this study, the reduced value of compressive strength was assigned to the concrete elements of the top cover for 2D FEM using a proposed equation by Coronelli and Gambarova [42].

2.3. Bond–Slip Model

In the FE model, a one-dimensional interface layer was modeled along the tensile rebars to consider the effect of bond–slip behavior. Interaction between the reinforcement and the concrete was modeled with 2 + 2 node line interface elements in 2D models. For the simulated corroded beam, bond slip behavior based on the fib Model Code 2010 [61], which is confined with steel stirrups, was adopted. In this study, the bond slip behavior was modified based on the amount of the uniform corrosion and kept constant along the tensile rebar. In addition, the bond strength was calculated according to [43] as a function of the concrete strength, the cover-to-diameter ratio, and stirrup confinement:
U max D = R · [ 0.55 + 0.24 ( c / d 0 ) ] · f c + 0.191 ( A s w · σ y t s s · d 0 )
where U max D is the reduced bond strength, c is the thickness of concrete cover, d0 is the diameter of the anchored rebar, fc is the concrete compressive strength, Asw and σyt are the stirrups cross-section and the stirrup yield strength, respectively, ss is the stirrup spacing, and R is a coefficient that depends on the corrosion and is equal to 1 for the selected case study.

2.4. Comparison between the Numerical and the Experimental Results

The obtained load–displacement curve at mid-span of corroded beam from nonlinear FE analysis (Figure 4) indicates good agreement with experimental observation at the ultimate limit state (ULS) and serviceability limit state (SLS). The results of FE simulation prove the accuracy and applicability of the proposed decay laws (Equations (1)–(4)) to modify the mechanical properties of corroded reinforcements.

3. Nondimensional Abaci for the Residual Flexural Strength of Corroded Rectangular Sections

The results proposed in the previous section highlight the feasibility of the decay laws in the estimation of the behavior of a corroded RC element under bending moment. As is well known, the flexural strength of a RC elements is characterized by the mechanical properties of the constituent materials, while its deformation is related to the interaction between the steel and the concrete and then by the sectional curvature. The latter, of course, influences both strains and tensional levels of the constituent materials. It also has relapses on the strength of section itself. In reinforced concrete elements, the perfect bond condition is usually assumed, and consequently, the full compatibility between concrete and reinforcement strains is then considered. When this hypothesis of decay for a high load level as well as when the cracking occurs, with the decrease of bond, the steel stress increases, reaching its maximum values on the crack. The tension stiffening effects results in a slight enhancement of the effective flexural strength of the element, then their neglection can then be regarded as conservative in terms of strength.
The application of decay laws for the steel to the classical models of structural engineering allows the definition of abaci to estimate the residual flexural strength of corroded RC element. The proposed relationships in the present paper were developed for the most typical pattern of exposed reinforced concrete beams in ordinary structures: the formed beam and the flat beam. For each kind of beam, the geometrical percentage of the tension reinforcement is varied in the range of 1.3‰Ac and 4%Ac, as proposed by EuroCode 2 [62]. For the compression reinforcement, a minimum quantity of 2ϕ14 diameter was imposed and increased up to the tensile reinforcement amount.
According to the Section 9.2 of EuroCode 2 [62], the minimum tension steel content should be:
A s , min = 0.26 · f c t m σ y · b · d
where fctm represents the mean tensile concrete strength, σy the reinforcement yielding strength, and b and d represent the section width and effective height, respectively, remembering that the mechanical reinforcement percentage is defined as:
ω = ρ · σ y f c k ·
ρ being the geometrical reinforcement percentage and fck the concrete compressive strength, a minimum mechanical reinforcement percentage, ωs,min, may be defined as:
ω s , min = 0.08 · 1 f c k 3
Then, assuming a (cubic) compressive strength of 35 MPa for the concrete and reinforcements with a yielding strength of 450 MPa, the previous positions (Equations (5)–(7)) indicate a minimum tension reinforcement of 2ϕ14 for both a (30 × 60) cm2 formed beam section and a (70 × 25) cm2 flat beam section.
Parametric analyses have been performed considering three different corrosion scenarios: (i) a section corroded all around its perimeter; corrosion of steel in tension; the steel in compression corroded with half of the bars in tension in terms of mass loss. For each degradation condition, the pitting corrosion pattern was considered by applying the aforementioned decay laws and a classic uniaxial stress–plastic strain curve constitutive law to the reinforcements. According to EuroCode2 [62], the ultimate strength of steel is assumed equal to 540 MPa, while the characteristic strains are assumed equal to 0.655‰ for hardening initiation and equal to 10% for collapse. The concrete is conventionally modeled to the conventional relationship of Mander [63], assuming the presence of stirrups ϕ8/30 accounts for the confinement.
The parametric analysis results were generalized by introducing the nondimensional ultimate bending moment after corrosion (mu,corr), defined as the ratio between the ultimate bending moment of the corroded section and the ultimate bending moment of the sound section. The adopted reinforcements for the both formed and flat beams are reported in Table 1 and Table 2, respectively. Since ωcorr depends only on the tension reinforcement, the mechanical reinforcement percentage reduces linearly with the corrosion level (Figure 5).
For the considered sections, the nondimensional ultimate bending moment after corrosion (mu,corr) was plotted as a function of the mass loss of the reinforcement in tension. Both in the case of the flat and the formed beams, the uniform corrosion causes a linear decay of flexural capacity with increasing of the corrosion level, see Figure 6 and Figure 7. The reduction is accompanied by a depth reduction of the neutral axis with the consequent increasing in curvature. Then, the work rate of the reinforcements in tension increases as its deformability.
Similar results were obtained for the all considered scenarios and reinforcement amount and configurations in the case of pitting corrosion, see Figure 8 and Figure 9. This means that the behavior of a RC concrete member can be easily studied by applying decay laws to the mechanical properties of reinforcements [11] and assuming the same corrosion level on the different steel layers. However, it is important to point out the dangerousness of the pitting corrosion morphology, which induces a quasi-parabolic decrease of the flexural capacity of the element.
The analysis of the ultimate curvature of the two beam typologies appears very thought-provoking (Figure 10). In the case of the formed beams, both the corrosion level and the decay of the mechanical properties of reinforcements modify the collapse mode of the section. In cases of corrosion losses up to 5% in mass loss, the sectional collapse is governed by the reinforcement and not by the concrete anymore. Then, when the pitting corrosion damages the formed beam, the residual flexural strength of the elements strongly depends on the amount of longitudinal reinforcements. In a different way, in the case of the flat beam, corrosion modifies the collapse mode only for higher mass losses, and the dependence of the flexural decay law on the longitudinal reinforcements amount appears quite negligible.
The abaci previously reported were defined considering beams whose dimensions and reinforcement comply with the principles of the current codes; the geometrical reinforcement percentage, in fact, is between 0.18% and 0.80% for the formed beams and between 1.75% and 2.35% for the flat beams. However, code limitations may not be satisfied by existing structures. For instance, in Italy, during the 1970s, the usual employed concrete had a mean (cubic) compressive strength of 20 MPa, while the reinforcements belonged to steels that were so-called A38 (σy = 380 MPa; σu = 460 MPa; εu = 14%) or AQ42 (σy = 230 MPa; σu = 420 MPa; εu = 20%). A (30 × 50) cm2 cross-section with a concrete cover of thickness equal to 2 cm typically characterized the formed beams. Moreover, the beams were designed to sustain only the gravitational loads and according to simplified formulations belonging to band criteria. Specifically, in compression, only two 12 mm diameter rebars were applied, with the mere function to support the stirrups, while in tension, from 2 to 6 bars with a diameter in the range from 12 mm to 22 mm were provided, depending on the effective load level. Some examples of abaci obtained for this typical condition are reported in Figure 11. The obtained results demonstrate once again the dangerousness of the pitting corrosion and the quasi-parabolic shape of the decay laws that are strictly related to the initial reinforcements mechanical properties.

4. Conclusions

Corrosion degradation can occur on reinforced concrete structures, causing loss of load-bearing capacity both in the service and in the ultimate limit state. To estimate the residual life of a reinforced concrete structure subjected to corrosion, a reliable procedure does not yet exist, even if it is now well known that the first aspects to consider are related to reinforcement degradation, and concrete cracking and cover spalling and decay in the between concrete and steel and.
In order to predict the mechanical behavior of a corroded RC beam, an experimental case was selected and analyzed by means of a nonlinear finite element method. The obtained results indicate good agreement with experimental observation at the ultimate and serviceability limit state, proving the accuracy and applicability of the adopted decay laws in the case of the uniform corrosion (Equations (1)–(4)). In the case of the pitting corrosion, instead, the reliability of the approach has already been demonstrated in other, previous studies [47,55]. The application of decay laws for the steel to the classical models of the structural engineering allows definition of a useful tool to estimate the residual flexural strength of the corroded RC element (Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11). The proposed abaci clearly highlight once again the dangerousness of corrosion degradation.

Author Contributions

Data curation, S.I. and M.K.; Investigation, S.I. and M.K.; Methodology, S.I. and A.B.; Supervision, A.B.; Validation, M.K.; Writing—original draft, S.I., M.K., and A.B.; Writing—review and editing, A.B., M.K., and S.I.

Funding

This research received no external funding.

Acknowledgments

This paper is part of the research convention “Effect of the corrosion on the steel-to-concrete interaction” between Niccolò Cusano University and Oslo Metropolitan University. We would like to show our gratitude to the Oslo Metropolitan University for the financial support of this project.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bossio, A.; Monetta, T.; Bellucci, F.; Lignola, G.P.; Prota, A. Modeling of concrete cracking due to corrosion process of reinforcement bars. Cem. Concr. Res. 2015, 71, 78–92. [Google Scholar] [CrossRef]
  2. Markeset, G.; Kioumarsi, M. Need for further development in service life modelling of concrete structures in chloride environment. Proc. Eng. 2017, 171, 549–556. [Google Scholar] [CrossRef]
  3. Almusallam, A.A. Effect of degree of corrosion on the properties of reinforcing steel bars. Constr. Build. Mater. 2001, 15, 361–368. [Google Scholar] [CrossRef]
  4. Cairns, J.; Plizzari, G.A.; Du, Y.; Law, D.W.; Franzoni, C. Mechanical properties of corrosion-damaged reinforcement. ACI Mater. J. 2005, 102, 256. [Google Scholar]
  5. Apostolopoulos, C.A.; Papadopoulos, M.P. Tensile and low cycle fatigue behavior of corroded reinforcing steel bars S400. Constr. Build. Mater. 2007, 21, 855–864. [Google Scholar] [CrossRef]
  6. Lee, H.S.; Cho, Y.S. Evaluation of the mechanical properties of steel reinforcement embedded in concrete specimen as a function of the degree of reinforcement corrosion. Int. J. Fract. 2009, 157, 81–88. [Google Scholar] [CrossRef]
  7. Apostolopoulos, C.A.; Demis, S.; Papadakis, V.G. Chloride-induced corrosion of steel reinforcement–Mechanical performance and pit depth analysis. Constr. Build. Mater. 2013, 38, 139–146. [Google Scholar] [CrossRef]
  8. Kashani, M.M.; Crewe, A.J.; Alexander, N.A. Nonlinear stress–strain behaviour of corrosion-damaged reinforcing bars including inelastic buckling. Eng. Struct. 2013, 48, 417–429. [Google Scholar] [CrossRef]
  9. Kashani, M.M.; Crewe, A.J.; Alexander, N.A. Nonlinear cyclic response of corrosion-damaged reinforcing bars with the effect of buckling. Constr. Build. Mater. 2013, 41, 388–400. [Google Scholar] [CrossRef]
  10. Caprili, S.; Salvatore, W. Cyclic behaviour of uncorroded and corroded steel reinforcing bars. Constr. Build. Mater. 2015, 76, 168–186. [Google Scholar] [CrossRef]
  11. Imperatore, S.; Rinaldi, Z.; Drago, C. Degradation relationships for the mechanical properties of corroded steel rebars. Constr. Build. Mater. 2017, 148, 219–230. [Google Scholar] [CrossRef]
  12. Al-Sulaimani, G.J.; Kaleemullah, M.; Basunbul, I.A. Influence of corrosion and cracking on bond behavior and strength of reinforced concrete members. ACI Struct. J. 1990, 87, 220–231. [Google Scholar]
  13. Andrade, C.; Alonso, C.; Molina, F.J. Cover cracking as a function of bar corrosion: Part I-Experimental test. Mater. Struct. 1993, 26, 453–464. [Google Scholar] [CrossRef]
  14. Cabrera, J.G. Deterioration of concrete due to reinforcement steel corrosion. Cem. Concr. Compos. 1996, 18, 47–59. [Google Scholar] [CrossRef]
  15. Broomfield, J.P. Corrosion of Steel in Concrete: Understanding, Investigation and Repair; CRC Press: London, UK, 2003. [Google Scholar]
  16. Vidal, T.; Castel, A.; Francois, R. Corrosion process and structural performance of a 17 year old reinforced concrete beam stored in chloride environment. Cem. Concr. Res. 2007, 37, 1551–1561. [Google Scholar] [CrossRef]
  17. Bossio, A.; Lignola, G.P.; Fabbrocino, F.; Monetta, T.; Prota, A.; Bellucci, F.; Manfredi, G. Nondestructive assessment of corrosion of reinforcing bars through surface concrete cracks. Struct. Concr. 2017, 18, 104–117. [Google Scholar] [CrossRef]
  18. Almusallam, A.A.; Al-Gahtani, A.S.; Aziz, A.R. Effect of reinforcement corrosion on bond strength. Constr. Build. Mater. 1996, 10, 123–129. [Google Scholar] [CrossRef]
  19. Lee, H.S.; Noguchi, T.; Tomosawa, F. Evaluation of the bond properties between concrete and reinforcement as a function of the degree of reinforcement corrosion. Cem. Concr. Res. 2002, 32, 1313–1318. [Google Scholar] [CrossRef]
  20. Coronelli, D. Corrosion cracking and bond strength modeling for corroded bars in reinforced concrete. ACI Struct. J. 2002, 99, 267–276. [Google Scholar]
  21. Fang, C.; Lundgren, K.; Plos, M.; Gylltoft, K. Bond behaviour of corroded reinforcing steel bars in concrete. Cem. Concr. Res. 2006, 36, 1931–1938. [Google Scholar] [CrossRef]
  22. Chung, L.; Kim JH, J.; Yi, S.T. Bond strength prediction for reinforced concrete members with highly corroded reinforcing bars. Cem. Concr. Compos. 2008, 30, 603–611. [Google Scholar] [CrossRef]
  23. Lundgren, K.; Kettil, P.; Hanjari, K.Z.; Schlune, H.; Roman AS, S. Analytical model for the bond-slip behaviour of corroded ribbed reinforcement. Struct. Infrastruct. Eng. 2012, 8, 157–169. [Google Scholar] [CrossRef]
  24. Choi, Y.S.; Yi, S.T.; Kim, M.Y.; Jung, W.Y.; Yang, E.I. Effect of corrosion method of the reinforcing bar on bond characteristics in reinforced concrete specimens. Constr. Build. Mater. 2014, 54, 180–189. [Google Scholar] [CrossRef]
  25. Coccia, S.; Imperatore, S.; Rinaldi, Z. Influence of corrosion on the bond strength of steel rebars in concrete. Mater. Struct. 2016, 49, 537–551. [Google Scholar] [CrossRef]
  26. Rodriguez, J.; Ortega, L.M.; Casal, J. Corrosion of reinforcing bars and service life of reinforced concrete structures: Corrosion and bond deterioration. In Proceedings of the International conference on concrete across borders, Odense, Denmark, 22–25 June 1994; Volume 2, pp. 315–326. [Google Scholar]
  27. Rodriguez, J.; Ortega, L.M.; Casal, J. Load carrying capacity of concrete structures with corroded reinforcement. In Proceedings of the International Conference on Structural Faults Repairs, London, UK, July 1995; Volume 2, pp. 189–198. [Google Scholar]
  28. Rodriguez, J.; Ortega, L.M.; Casal, J.; Diez, J.M. Corrosion of reinforcement and service life of concrete structures. In Proceedings of the 7th International Conference on Durability of Building Materials and Components, Stockholm, Sweden, 19–23 May 1996. [Google Scholar]
  29. Rodriguez, J.; Ortega, L.M.; Casal, J.; Diez, J.M. Assessing structural conditions of concrete structures with corroded reinforcement. In Concrete Repair, Rehabilitation and Protection; Dhir, R.K., Jones, M.R., Eds.; EFN Spon: London, UK, 1996; pp. 65–78. [Google Scholar]
  30. Rodriguez, J.; Ortega, L.M.; Casal, J. Load carrying capacity of concrete structures with corroded reinforcement. Constr. Build. Mater. 1997, 11, 239–248. [Google Scholar] [CrossRef]
  31. Capozucca, R.; Cerri, M.; Mariotti, A.; Menditto, G. Behaviour of rc structures subject to reinforcement corrosion. In Proceedings of the 5th International Conference on Structural Faults and Repairs, Edinburgh, UK, 29 June 1993. [Google Scholar]
  32. Mangat, P.S.; Elgarf, M.S. Flexural strength of concrete beams with corroding reinforcement. ACI Struct. J. 1999, 96, 149–158. [Google Scholar]
  33. Castel, A.; François, R.; Arliguie, G. Mechanical behaviour of corroded reinforced concrete beams—Part 1: Experimental study of corroded beams. Mater. Struct. 2000, 33, 539–544. [Google Scholar] [CrossRef]
  34. Torres-Acosta, A.A.; Navarro-Gutierrez, S.; Terán-Guillén, J. Residual flexure capacity of corroded reinforced concrete beams. Eng. Struct. 2007, 29, 1145–1152. [Google Scholar] [CrossRef]
  35. Azad, A.K.; Ahmad, S.; Azher, S.A. Residual strength of corrosion-damaged reinforced concrete beams. ACI Mater. J. 2007, 104, 40. [Google Scholar]
  36. Zhang, R.; Castel, A.; François, R. Serviceability limit state criteria based on steel–concrete bond loss for corroded reinforced concrete in chloride environment. Mater. Struct. 2009, 42, 1407. [Google Scholar] [CrossRef]
  37. Du, Y.; Cullen, M.; Li, C. Structural performance of RC beams under simultaneous loading and reinforcement corrosion. Constr. Build. Mater. 2013, 38, 472–481. [Google Scholar] [CrossRef]
  38. Xia, J.; Jin, W.L.; Li, L.Y. Effect of chloride-induced reinforcing steel corrosion on the flexural strength of reinforced concrete beams. Magaz. Concr. Res. 2012, 64, 471–485. [Google Scholar] [CrossRef]
  39. Zhu, W.; François, R.; Coronelli, D.; Cleland, D. Effect of corrosion of reinforcement on the mechanical behaviour of highly corroded RC beams. Eng. Struct. 2013, 56, 544–554. [Google Scholar] [CrossRef]
  40. Zhu, W.; François, R. Corrosion of the reinforcement and its influence on the residual structural performance of a 26-year-old corroded RC beam. Constr. Build. Mater. 2014, 51, 461–472. [Google Scholar] [CrossRef]
  41. Vu KA, T.; Stewart, M.G. Structural reliability of concrete bridges including improved chloride-induced corrosion models. Struct. Saf. 2000, 22, 313–333. [Google Scholar]
  42. Coronelli, D.; Gambarova, P. Structural assessment of corroded reinforced concrete beams: Modeling guidelines. J. Struct. Eng. 2004, 130, 1214–1224. [Google Scholar] [CrossRef]
  43. El Maaddawy, T.; Soudki, K.; Topper, T. Analytical model to predict nonlinear flexural behavior of corroded reinforced concrete beams. ACI Struct. J. 2005, 102, 550. [Google Scholar]
  44. Val, D.V. Deterioration of strength of RC beams due to corrosion and its influence on beam reliability. J. Struct. Eng. 2007, 133, 1297–1306. [Google Scholar] [CrossRef]
  45. Kioumarsi, M.M.; Hendriks, M.A.; Kohler, J.; Geiker, M.R. The effect of interference of corrosion pits on the failure probability of a reinforced concrete beam. Eng. Struct. 2016, 114, 113–121. [Google Scholar] [CrossRef]
  46. Imperatore, S.; Leonardi, A.; Rinaldi, Z. Mechanical behaviour of corroded rebars in reinforced concrete elements. In Mechanics, Models and Methods in Civil Engineering; Maceri, F., Ed.; Springer: Berlin/Heidelberg, Germany, 2012; pp. 207–220. [Google Scholar]
  47. Imperatore, S.; Leonardi, A.; Rinaldi, Z. Strength decay of RC sections for chloride attack. Int. J. Struct. Integr. 2016, 7, 194–212. [Google Scholar] [CrossRef]
  48. Kioumarsi, M.; Markeset, G.; Hooshmandi, S. Effect of pit distance on failure probability of a corroded RC beam. Proc. Eng. 2017, 171, 526–533. [Google Scholar] [CrossRef]
  49. Imperatore, S.; Zucconi, M.; Ferracuti, B. Pitting corrosion effects on the seismic behaviour of existing RC buildings. In Proceedings of the XVII Convegno ANIDIS L’ingegneria Sismica in Italia 2017; Pisa University Press: Pisa, Italy, 2017; pp. 114–124. [Google Scholar]
  50. Bossio, A.; Fabbrocino, F.; Monetta, T.; Lignola, G.P.; Prota, A.; Manfredi, G.; Bellucci, F. Corrosion effects on seismic capacity of reinforced concrete structures. Corros. Rev. 2019, 37, 45–56. [Google Scholar] [CrossRef]
  51. Apostolopoulos, C.; Drakakaki, A.; Basdeki, M. Seismic assessment of RC column under seismic loads. Int. J. Struct. Integr. 2019, 10, 41–54. [Google Scholar] [CrossRef]
  52. Zucconi, M.; Ferlito, R.; Sorrentino, L. Validation and extension of a statistical usability model for unreinforced masonry buildings with different ground motion intensity measures. Bull. Earthq. Eng. 2019, 1–29. [Google Scholar] [CrossRef]
  53. Romano, F.; Faggella, M.; Gigliotti, R.; Zucconi, M.; Ferracuti, B. Comparative seismic loss analysis of an existing non-ductile RC building based on element fragility functions proposals. Eng. Struct. 2018, 177, 707–723. [Google Scholar] [CrossRef]
  54. Ferlito, R.; Guarascio, M.; Zucconi, M. Assessment of a vulnerability model against post-earthquake damage data: The case study of the historic city centre of L’Aquila in Italy. In Proceedings of the 9th International Conference on Earthquake Resistant Engineering Structures, A Coruña, Spain, 8–10 July 2013. [Google Scholar]
  55. Di Carlo, F.; Meda, A.; Rinaldi, Z. Numerical evaluation of the corrosion influence on the cyclic behaviour of RC columns. Eng. Struct. 2017, 153, 264–278. [Google Scholar] [CrossRef]
  56. DIANA, User’s Manual, Release 9.4; TNO DIANA BV: Delft, The Netherlands, 2010.
  57. Capozucca, R.; Cerri, M.N. Influence of reinforcement corrosion—In the compressive zone—On the behaviour of RC beams. Eng. Struct. 2003, 25, 1575–1583. [Google Scholar] [CrossRef]
  58. Zandi Hanjari, K.; Kettil, P.; Lundgren, K. Analysis of mechanical behavior of corroded reinforced concrete structures. ACI Struct. J. 2011, 108, 532–541. [Google Scholar]
  59. Kioumarsi, M.M.; Hendriks, M.A.; Geiker, M.R. Quantification of the interference of localised corrosion on adjacent reinforcement bars in a concrete beam in bending. Nord. Concr. Res. 2014, 49, 39–57. [Google Scholar]
  60. Kioumarsi, M.M.; Hendriks, M.A.; Geiker, M.R. Interference of localised corrosion in adjacent reinforcement bar of a beam in bending. In Proceedings of the CIC—Concrete innovation conference, Oslo, Norway, 11–14 June 2014. [Google Scholar]
  61. Fib. Fib Model Code for Concrete Structures 2010; Ernst & Sohn. Wiley: Berlin, Germany, 2013. [Google Scholar]
  62. European Committee for Standardization. Eurocode 2: Design of Concrete Structures—Part 1–1: General Rules and Rules for Buildings; British Standards Institution: Brussels, Belgium, 2004. [Google Scholar]
  63. Mander, J.B.; Priestley, M.J.; Park, R. Theoretical stress-strain model for confined concrete. J. Struct. Eng. 1988, 114, 1804–1826. [Google Scholar] [CrossRef]

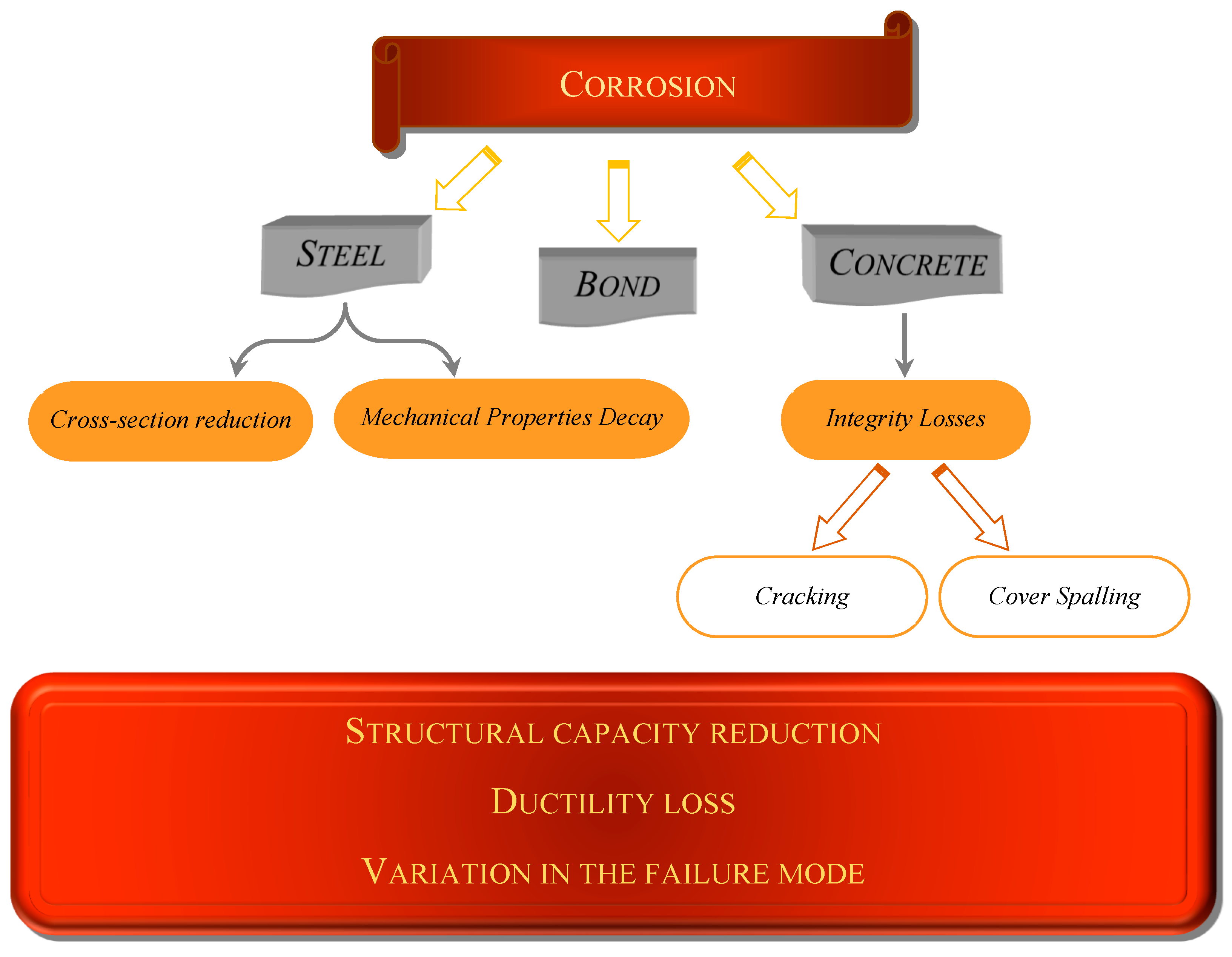

Figure 1. Corrosion influences on the behavior of a structural element.
Figure 1. Corrosion influences on the behavior of a structural element.
Buildings 09 00160 g001

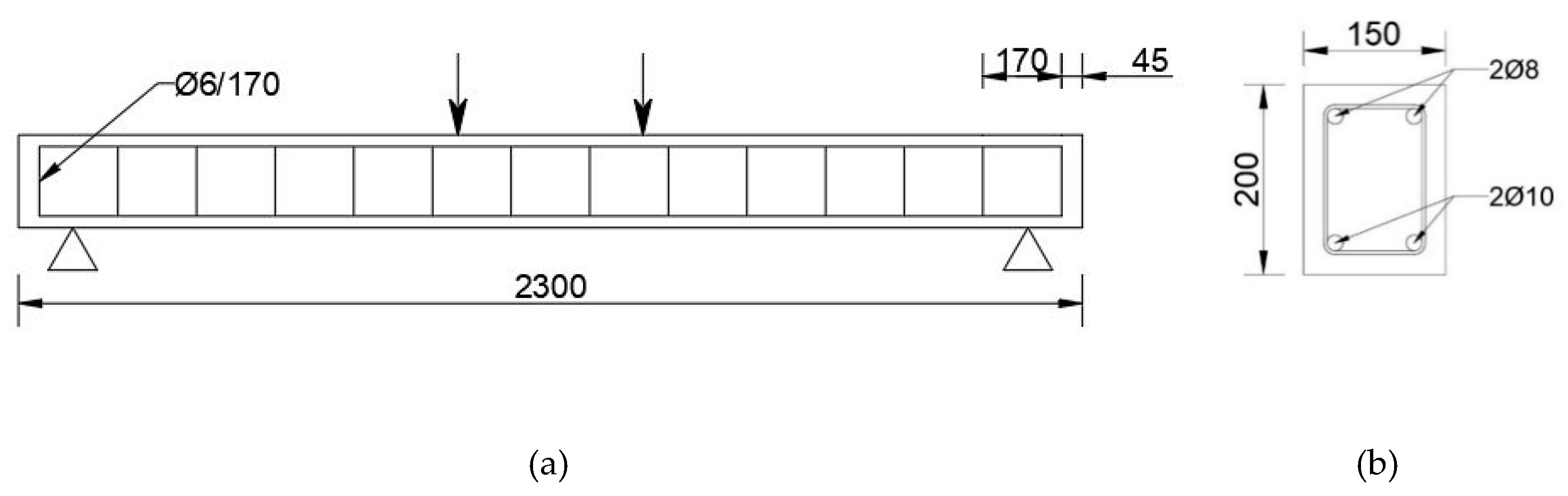

Figure 2. Geometry of simulated corroded reinforced concrete (RC) beams investigated by Rodriguez et al. [30] in mm. (a) longitudinal section; (b) cross-section.
Figure 2. Geometry of simulated corroded reinforced concrete (RC) beams investigated by Rodriguez et al. [30] in mm. (a) longitudinal section; (b) cross-section.
Buildings 09 00160 g002

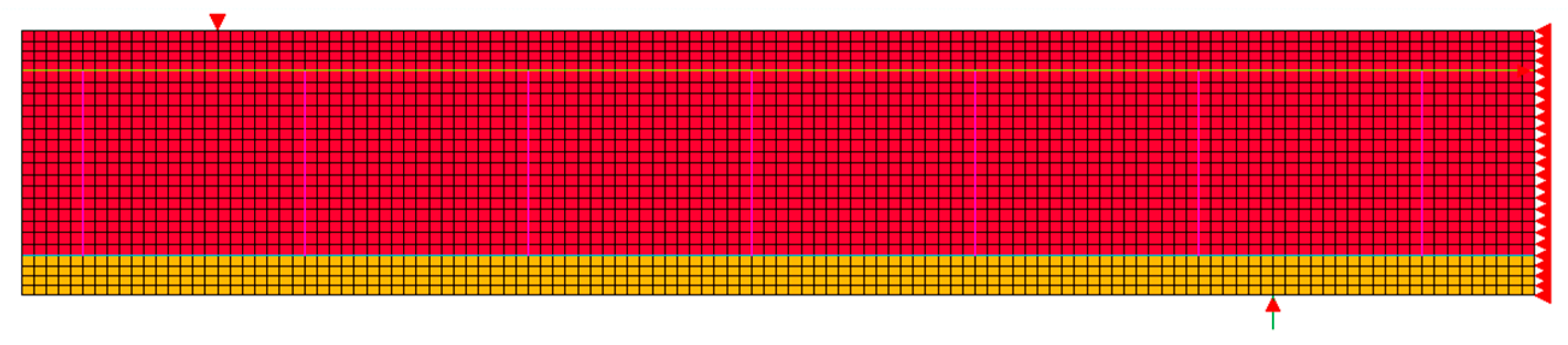

Figure 3. Mesh size and finite element model of one half of the beam.
Figure 3. Mesh size and finite element model of one half of the beam.
Buildings 09 00160 g003

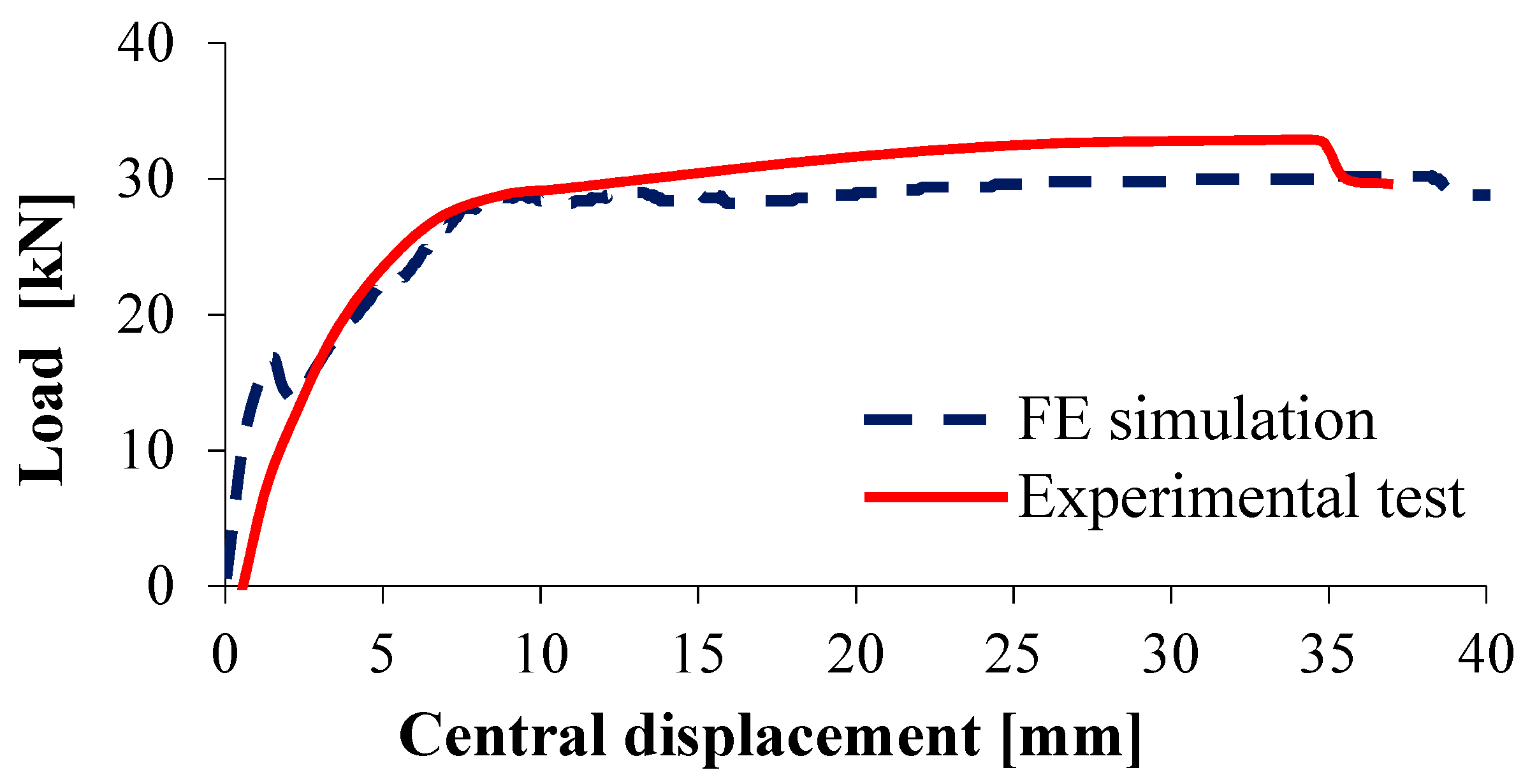

Figure 4. Comparison of load displacement curves at mid-span for 2D FE analysis and experimental results of a corroded RC beam no. 115; experimental data from [30].
Figure 4. Comparison of load displacement curves at mid-span for 2D FE analysis and experimental results of a corroded RC beam no. 115; experimental data from [30].
Buildings 09 00160 g004

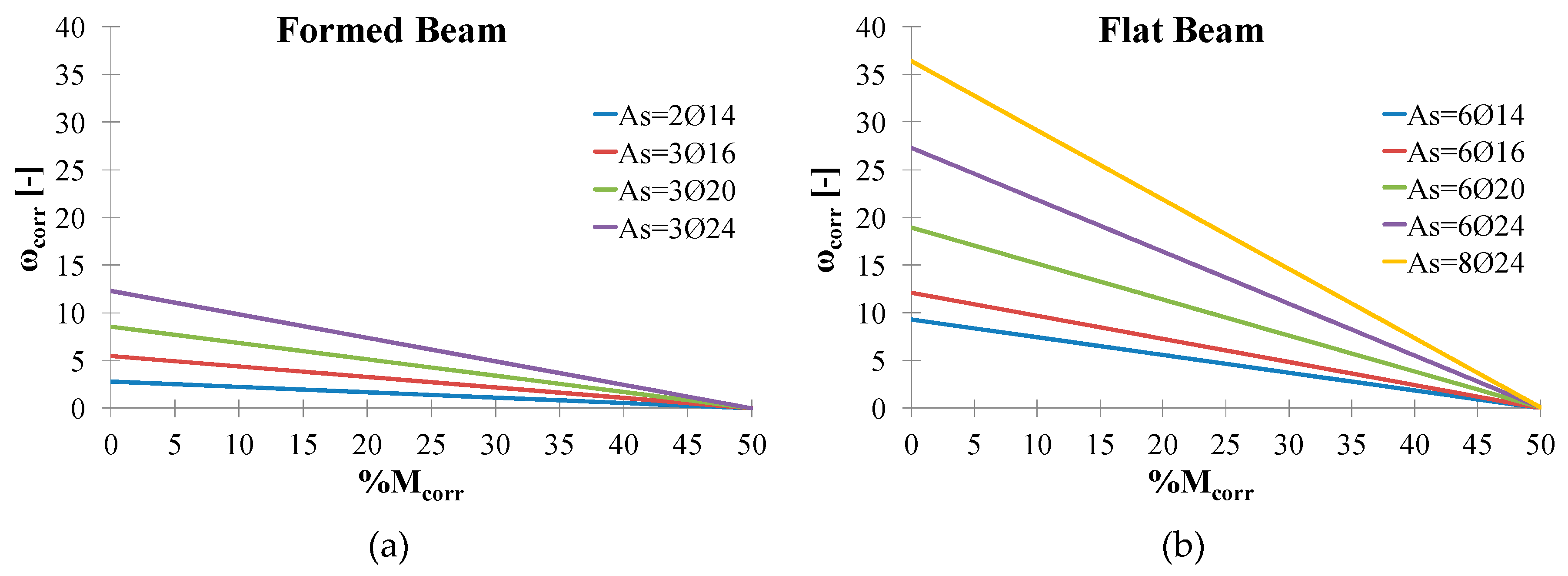

Figure 5. Decay of the mechanical reinforcement percentage with the corrosion levels. (a) formed beam; (b) flat beam.
Figure 5. Decay of the mechanical reinforcement percentage with the corrosion levels. (a) formed beam; (b) flat beam.
Buildings 09 00160 g005

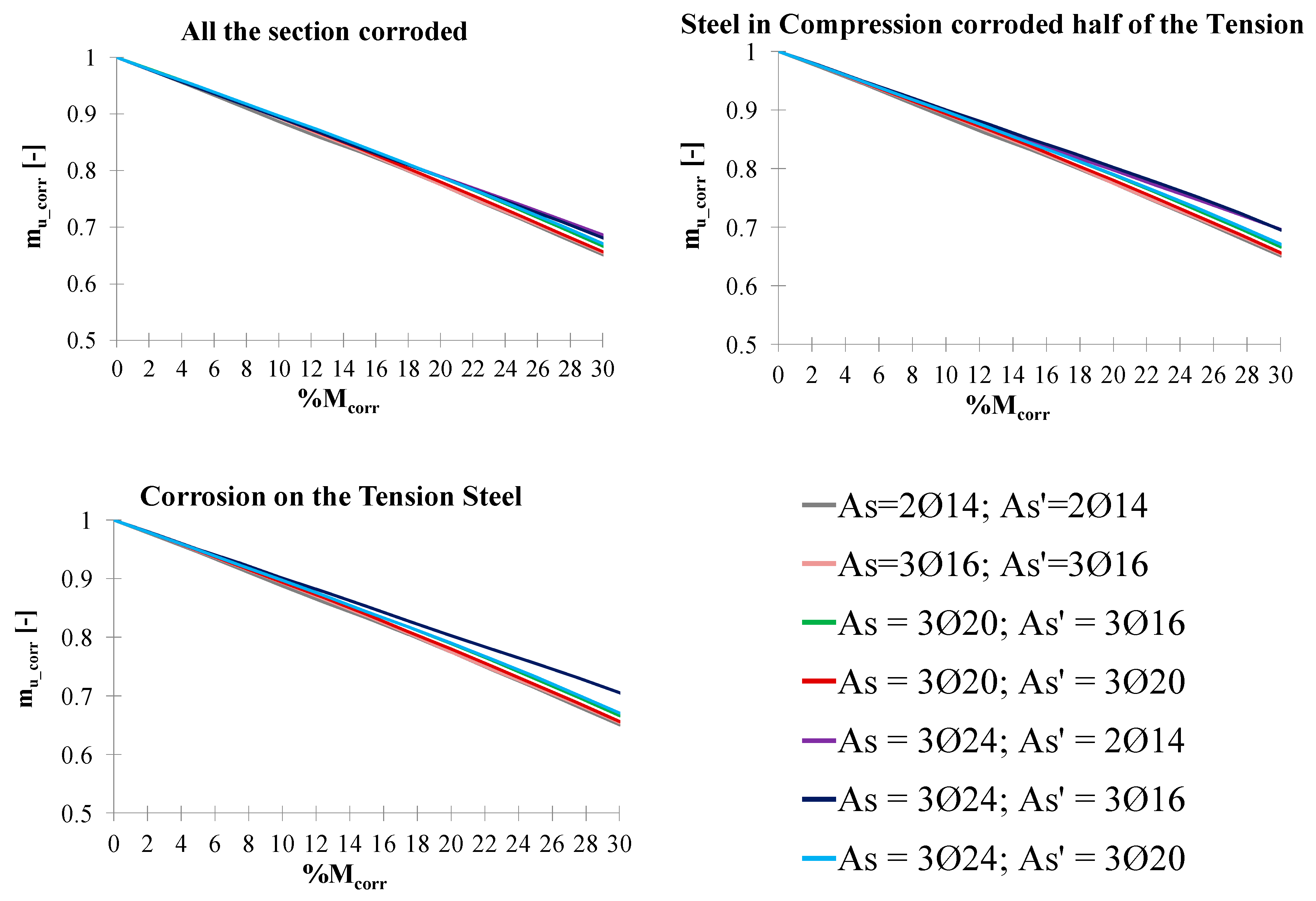

Figure 6. Nondimensional ultimate bending moment for different corrosion scenarios—formed Beam, uniform corrosion.
Figure 6. Nondimensional ultimate bending moment for different corrosion scenarios—formed Beam, uniform corrosion.
Buildings 09 00160 g006

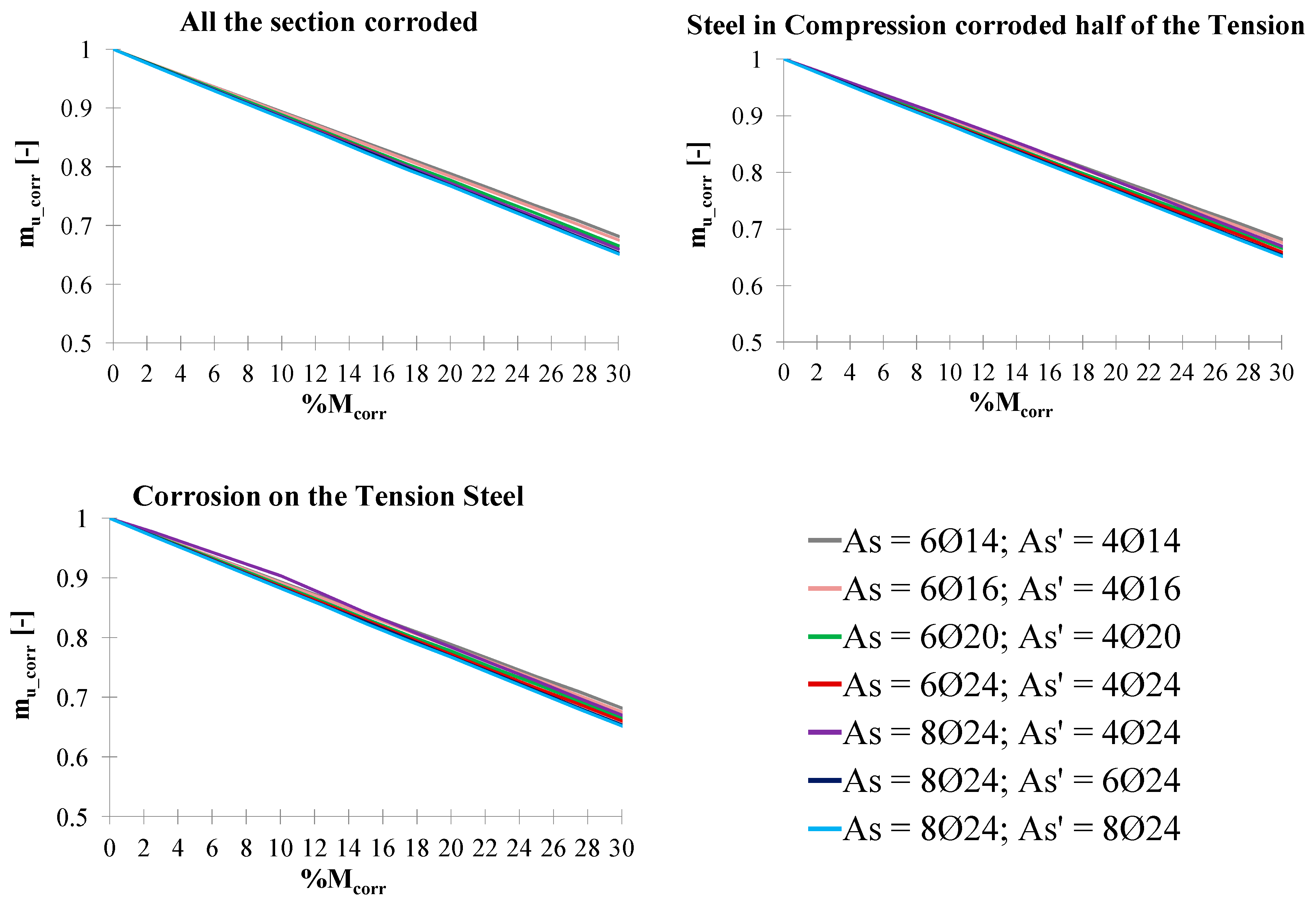

Figure 7. Nondimensional ultimate bending moment for different corrosion scenarios—flat Beam, uniform corrosion.
Figure 7. Nondimensional ultimate bending moment for different corrosion scenarios—flat Beam, uniform corrosion.
Buildings 09 00160 g007

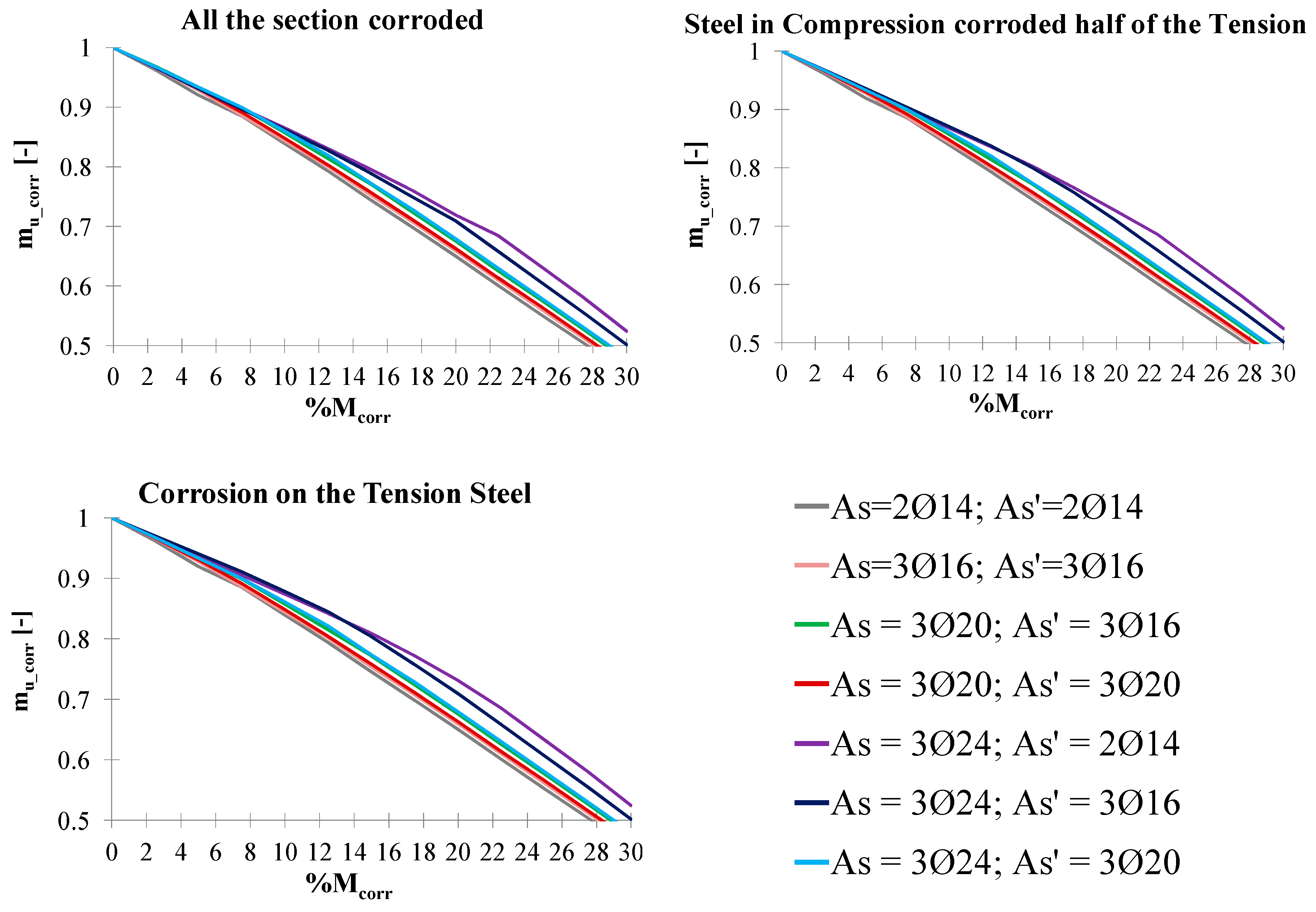

Figure 8. Nondimensional ultimate bending moment for different corrosion scenarios—formed Beam, pitting corrosion.
Figure 8. Nondimensional ultimate bending moment for different corrosion scenarios—formed Beam, pitting corrosion.
Buildings 09 00160 g008

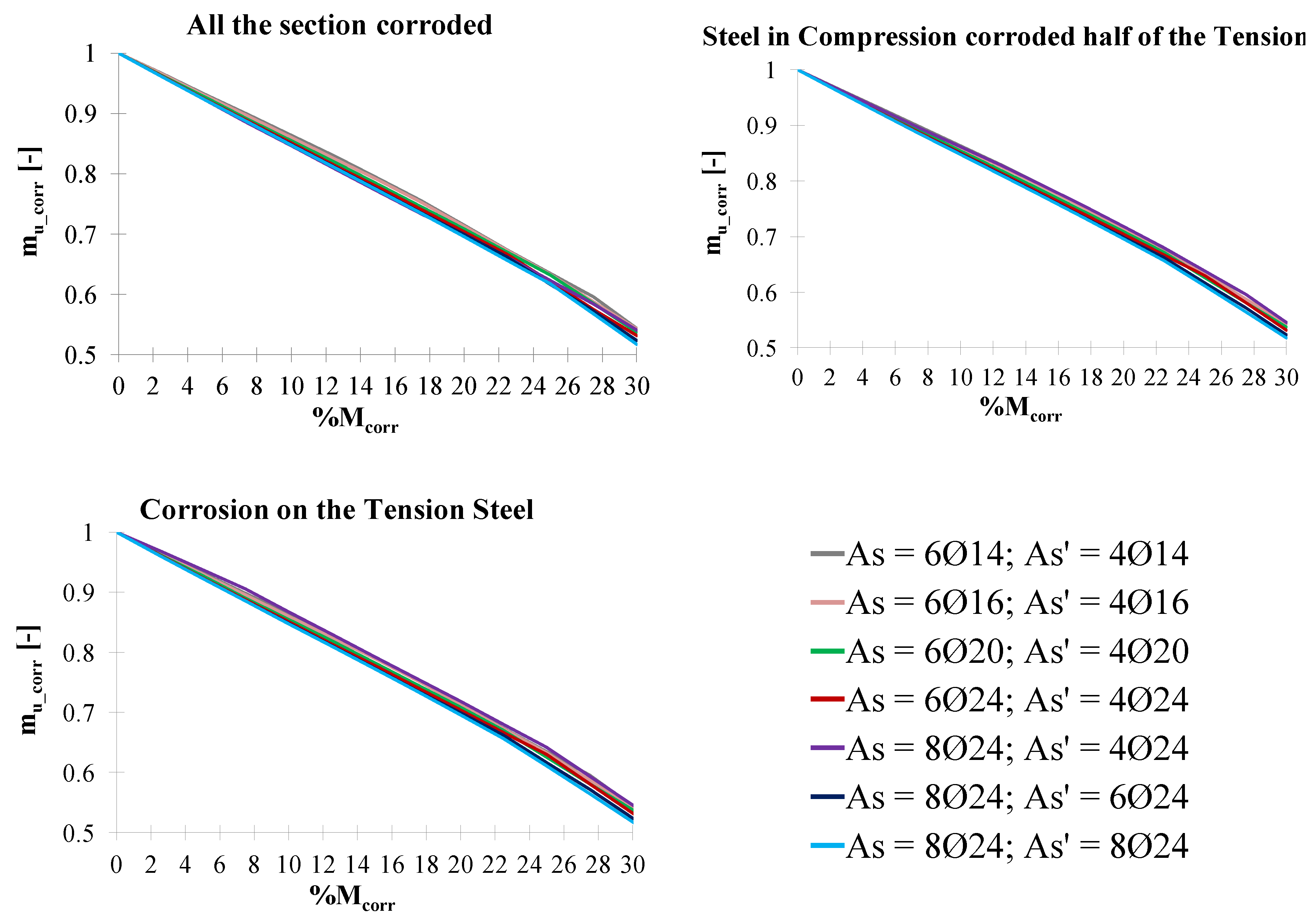

Figure 9. Nondimensional ultimate bending moment for different corrosion scenarios—flat beam, pitting corrosion.
Figure 9. Nondimensional ultimate bending moment for different corrosion scenarios—flat beam, pitting corrosion.
Buildings 09 00160 g009

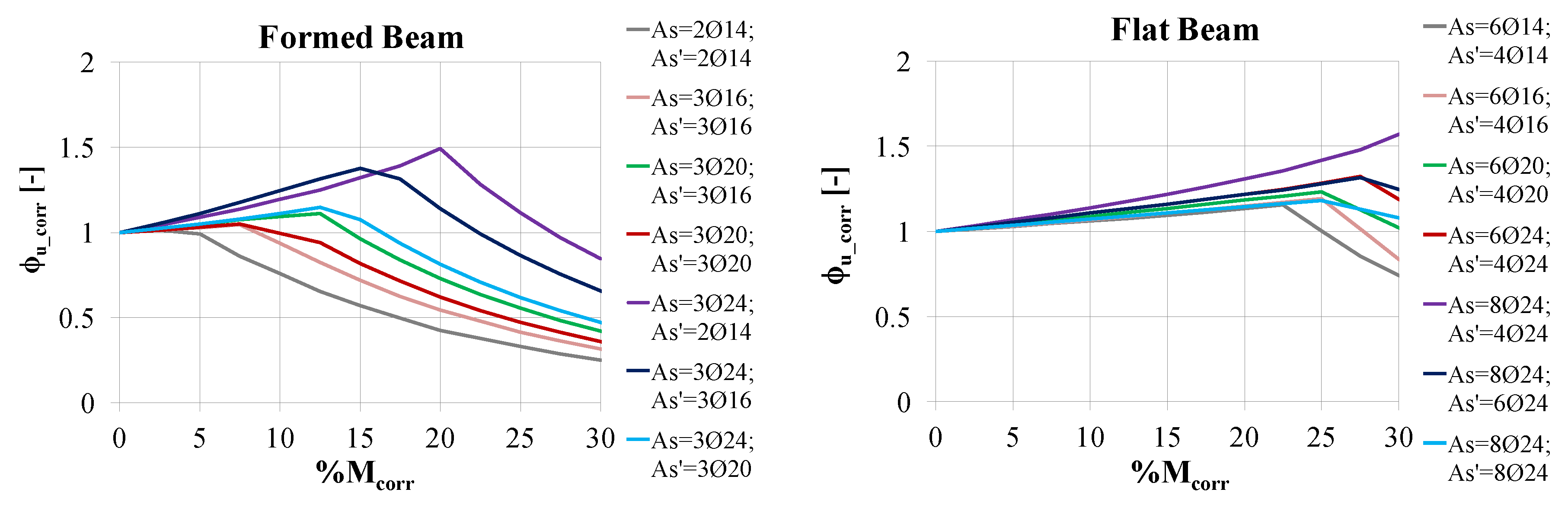

Figure 10. Nondimensional ultimate curvature after the pitting corrosion: differences between the flat and the formed beams.
Figure 10. Nondimensional ultimate curvature after the pitting corrosion: differences between the flat and the formed beams.
Buildings 09 00160 g010

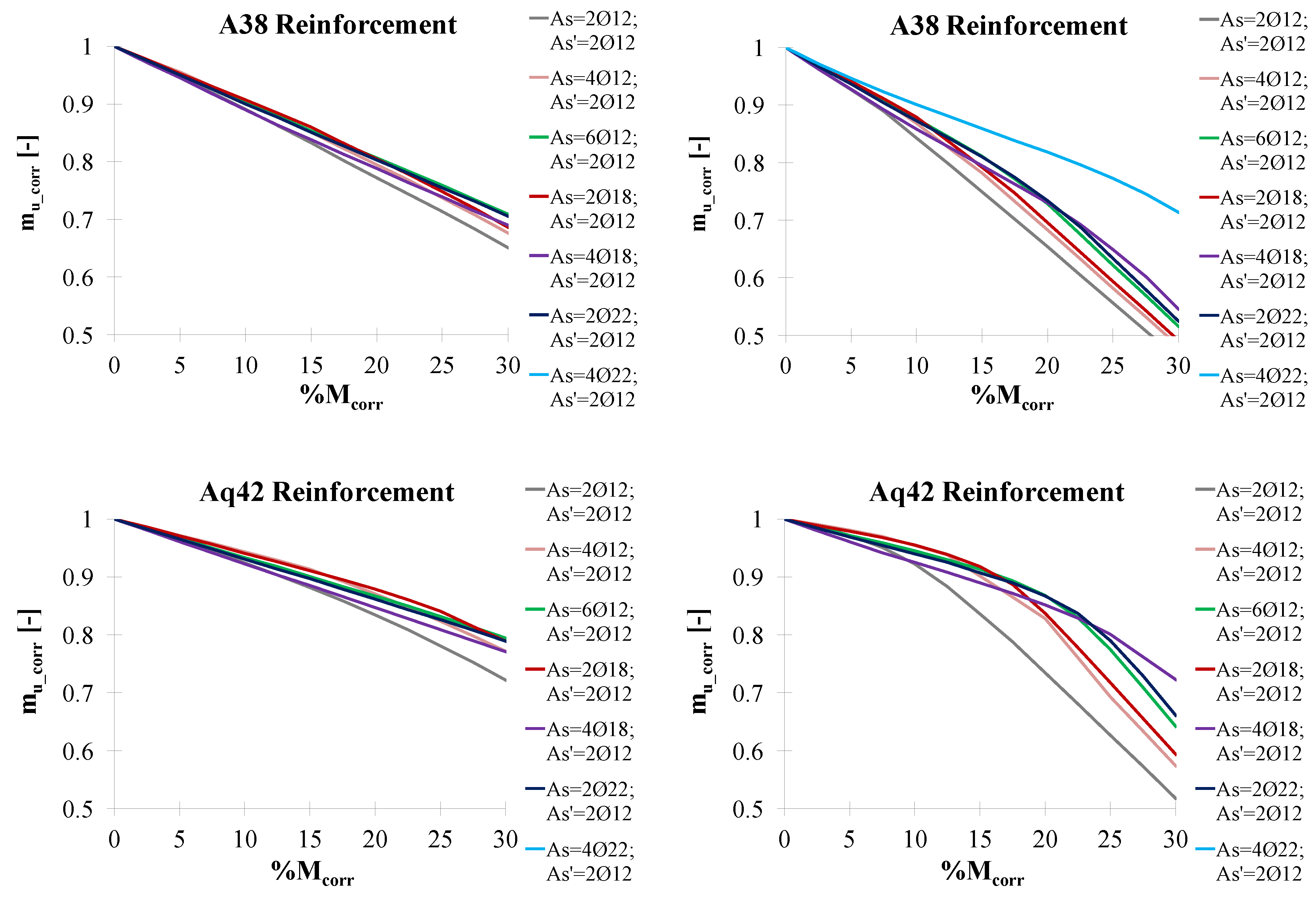

Figure 11. Nondimensional ultimate bending moment for existing formed beams: on the left the case of the uniform corrosion, on the right the pitting corrosion.
Figure 11. Nondimensional ultimate bending moment for existing formed beams: on the left the case of the uniform corrosion, on the right the pitting corrosion.
Buildings 09 00160 g011
Table 1. Compression and tension reinforcement in the formed beam.
Table 1. Compression and tension reinforcement in the formed beam.
Tension ReinforcementsCompression Reinforcements
2ϕ142ϕ14
3ϕ163ϕ16
3ϕ203ϕ163ϕ20
3ϕ242ϕ143ϕ163ϕ20
Table 2. Compression and tension reinforcement in the flat beam.
Table 2. Compression and tension reinforcement in the flat beam.
Tension ReinforcementsCompression Reinforcements
6ϕ144ϕ14
6ϕ164ϕ16
6ϕ204ϕ20
6ϕ244ϕ24
8ϕ244ϕ246ϕ248ϕ24
