Optimal Thermal Characteristics of the Courtyard in the Hot and Arid Climate of Isfahan

Department of Architecture, Qazvin Branch, Islamic Azad University, Qazvin 3414896818, Iran
School of Architecture and Environmental Design, Iran University of Science and Technology, Tehran 1684613114, Iran
Author to whom correspondence should be addressed.
Buildings 2018, 8(12), 166;
Received: 22 October 2018 / Revised: 20 November 2018 / Accepted: 21 November 2018 / Published: 26 November 2018


The courtyard is a common and traditional architectural concept in Middle Eastern countries, especially Iran. This study presents practical solutions to arrive at the optimal form and features of a courtyard based on this traditional architecture to cope with the hot and arid climate of Isfahan, Iran. A model using the ENVI-met 3.1 software was used to simulate the courtyard orientation, the height of the wall enclosure, the albedo of the materials and the vegetation level in Isfahan. As the first step of the simulation, different orientations were simulated. Based on the results, the northern courtyard is recommended as the optimum orientation for the remainder of the simulation process. A high wall enclosure is recommended in the second step of simulation to ensure cool temperatures at noon and warmth at night. In the third step, it is advised to use low-albedo material in the courtyards to avoid the extra reflected radiation of used materials on the inhabitants. The final step suggests that more than 50% of the courtyard plan should be covered by greenery to ensure thermal comfort in the courtyards. Based on these suggestions, designers can create more sustainable courtyards that are better suited to the hot and arid climate of Isfahan.

1. Introduction

Studies show that, in recent decades, temperatures have increased and we are facing the heat island phenomenon [1,2,3]. This heat has a negative impact on the thermal comfort of residents [4,5,6]. Iran is a large country with different climates [7] which lead to variations in the formation of vernacular architecture in different parts of the country [8]. Open spaces in residential complexes play an important role in improving the space quality and providing thermal comfort for inhabitants [9,10]. Open spaces connect the indoors, the outdoors, and the courtyard, as the main outdoor space is a factor of connection with nature [11]. Traditional houses in Iran are generally divided into two categories: introverted and extroverted houses [12]. The design is based on the presence or absence of a yard. The courtyard as a design solution serves to control temperature and energy consumption rates in the buildings in various climatic conditions [13,14,15,16].
The courtyard is considered the main space and the heart of the house in warm and dry climates [17]. It is built in a way that is deemed most compatible with the environment. It acts as a microclimate and temperature regulator, and its spatial structure includes social and environmental performance [18,19,20,21].
Among the studies performed in this regard, a few have surveyed optimized courtyards aiming to secure thermal comfort in the warm and dry climate of Isfahan [22]. In the historic houses of Iran and, especially in Isfahan, many examples of the central courtyard are seen in the spatial structure of houses [23] which are due to the climatic conditions of the area. But lack of sufficient knowledge about the optimum physical features of the courtyard leads architects to design deficient courtyards especially in terms of outdoor thermal comfort. Thus, the present study aims to carry out a quantitative and qualitative survey of the variables affecting the courtyards’ design as a microclimate moderator in residential blocks in the city of Isfahan and in ensuring the improvement of their thermal comfort through the simulation method. To do so, an optimized model of the courtyard is offered according to the effective performance in improving the environmental conditions of open spaces in Isfahan’s houses based on regional climatic conditions.
Therefore, the factors that are effective in the courtyards’ design and improvement of the thermal functioning conditions therein will be determined in the present study using the ENVI-met 3.1 software. In this way, in the study, the first step will explain the factors affecting the thermal structure of the central courtyards in terms of outdoor thermal comfort. In the next step, the validity of simulation software is compared by comparing field and simulation results. In the final step, simulation of the hypothetical courtyard is performed based on the determined factors, and the optimal values are extracted and explained.

2. Literature Review

In order to understand the climatic functions of courtyards and their application in architecture today, the role of courtyards in climate and change in their environments has been studied. In previous studies, the role of various physical factors on the environmental conditions in courtyards was investigated. It should be noted that most of these studies are carried out by measuring environmental factors and most of these studies were carried out in a static manner.
Therefore in these studies, the extent of the effect of physical factors on environmental factors cannot be established. In addition, in many studies, only one aspect of the physical aspect was investigated, and an integrated study was rarely carried out. Therefore, the aggregation of physical factors affecting the micro-climate of the courtyard is the most significant part of the literature review section of this paper. So, the first step is to scrutinize the performance of the central courtyard in promoting environmental quality in terms of micro-climate in previous studies, and in the next step, previous studies on physical factors affecting the level of thermal comfort are reviewed.

2.1. Courtyard Functions

The history of courtyard use and its application goes back thousands of years and extends across different parts of the world [24]. Courtyard houses existed in the oldest civilizations, such as Iran and China, as far back as 3000 BC [25].
Courtyard design elements such as shape, size, proportions, details, and surrounding walls differ due to climatic characteristics and performance. These differences arise from factors such as cultural, economic, social and environmental factors [26]. The geometry of the building, premises, surrounding areas, orientation, wind direction [27], the position of the sun, shade performance and sun absorption [19] have a significant impact on the environmental conditions of the courtyard. The height of the walls enclosing the courtyard [24,28,29], reflection of the surfaces [21,30,31], and vegetation [32,33,34,35,36,37,38], are other effective factors relating to the improvement of a courtyard’s characteristics.
A courtyard’s geometry plays a considerable role in its thermal functioning. The ratios of the height to the length and width, shape, geometry, size, area, number of floors, orientation and use of natural elements such as shading are among the factors that have a significant effect on the optimal design of the courtyard [39,40,41,42]. Courtyards with stretched and deep forms cause a reduction in energy consumption and courtyards with lower depth are predominantly used in cold weather, due to the higher rate of solar radiation absorption, which brings about a reduction of thermal energy consumption in winter [16]. Courtyards’ physical aspects have been evaluated and analyzed in different studies for different climates. In Table 1, studies related to the physical aspects of courtyard in different climates are cited with their study area.

2.2. Physical Factors

2.2.1. Orientation

The orientation of buildings and the determination of an appropriate direction for the courtyard are among the other effective factors playing a part in the optimization of courtyard functioning. The orientation and the height of the perimeter walls surrounding the courtyard have substantial effects on the thermal conditions of the courtyard and the adjacent spaces [28]. The optimum orientation differs in accordance with the various climatic conditions and the need for the varying extents of radiation absorption and reception of heat from the sun, as well as the degree to which a building needs to be shaded or needs to receive optimal levels of wind [47]. Orientation has a direct relationship with the wind speed and ventilation, such that the wind direction and speed cause a reduction in the temperature from 275.15 K to 276.15 K [24].
Zamani et al. [48] in another article, investigated the effect of a building’s orientation on the extent to which thermal energy is received as well as the effective internal heat, by carrying out simulations in three traditional houses in Isfahan. The results indicated that the northern view offers ideal climatic conditions with the highest amount of radiation and the lowest temperature. It was also found that the highest level of courtyard efficiency was obtained when the building stretched east to west and the width of the building was allocated along the eastern and western wings [48].

2.2.2. Vegetation

The use of plants and proper vegetative cover can improve a courtyard’s functional conditions in residential buildings. The green areas and the vegetative cover bring a reduction in the energy consumption, besides improving the psychological health conditions by reducing the temperature and the creation of shaded areas [49]. The existence of greenery influences the temperature, relative humidity, wind orientation and transpiration [47]. Taleghani et al. [50] discovered that vegetative cover plays a predominant role in reducing the temperature in areas featuring higher temperatures and lower relative humidity levels. Moreover, it exerts a considerable effect on the mean radiation temperature and PMV (predicted mean vote), and concomitantly lowers the chilling load consumption rate.
The shade created by trees is found to have a high influence on the amount of solar radiation absorption and reduction of the temperature, as well as a general cooling effect on the surrounding environment. The quality of the shade generated by trees depends on the height and type of the trees, and on the density of the leaves [51].
Shahidan et al. [52] investigated the physical characteristics of trees and the effect that these characteristics have on the shade that trees provide. This research made use of field studies and simulations to evaluate the physical features of trees, including the type of tree, the volume of leaves and phyllotaxy. A temperature difference of about 275.85 K was reported compared with the extant conditions. The findings demonstrated that the trees’ physical characteristics play a significant role in absorbing solar radiation. The reflection degree and evaporation and transpiration were proved to be of great help in the reduction of temperature and the augmentation of relative humidity. Srivanit and Hokao, (2013) studied the importance of greenery and vegetative cover as a method of reducing the temperature, especially along the sidewalks. The study used ENVI-met to evaluate two solutions for the change in vegetative cover, including the addition of greenery, and the creation of a green roof. The results indicated that with a 20% increase in the level of greenery, the maximum obtainable temperature decrease reaches 275.42 K, and in the case of both methods being applied, the mean and maximal reductions in the temperature are 273.39 K and 275.44 K, respectively [53]. Vegetative cover can act as a barrier to the penetration of sun radiation; therefore, it may hinder the extreme absorption of solar radiation, leading to a decrease in the ambient temperature and the peripheral spaces via evaporation and respiration [52].
Santos et al. [54] have evaluated the effect of present and future urban scenarios in Lisbon’s Avenidas Novas neighborhood. The results of this study indicate that:
  • Thermal comfort in this context in the morning and afternoon is mostly affected by the presence of new green areas foreseen by the urban project.
  • A reduction of up to 3 degrees in the morning (9 h) and up to 3 degrees in the afternoon (15 h).
  • The thermal characteristics of Lisbon and its future plan were simulated and described via ENVI-met software and suggested further simulation of this type.

2.2.3. Albedo

Considering optimum use of masonry and taking the reflection rates into consideration [55,56], the use of masonry with high thermal-functioning capabilities [31] is an effective method for creating conditions of thermal comfort. The ratio of return of light unique to every material can be of great help in the determination of the absorption rate and/or sun radiation on various surfaces. In general, bright surfaces absorb lower rates of radiation and are less likely to preserve the day temperature. Materials with high reflection rates cause a reduction in the environmental temperature and the various surfaces’ temperature via convection [56]. Benrazavi et al. [57] investigated the effect of various material types commonly used for floors on the surface temperature in equatorial climates. Some information regarding the materials causing higher reductions in the ambient temperature was provided therein. Taleghani et al. [38] in a study undertaken in Portland State University in the temperate climate of Oregon, USA, dealt with the materials’ reflection rate measurement and evaluated the reflection rate effect on the degree to which the temperature variations may change. They concluded that bright materials with a 0.9 reflection rate bring about a global temperature increase of 274.05 K and a mean radiation temperature increase of about 276.06 K as compared with dark materials, which caused increases in global temperature and mean radiation temperature by 273.52 K and 274.45 K, respectively.

2.3. The Computational Simulation

The simulation method was advanced by designers to predict their sketches and ideas and avoid further drawbacks [58,59]. The final approach is on the basis of computational simulation using software. The general procedure is to input the environmental parameters as well as trees, buildings, cloud cover etc. Consequently, the software will approximate the thermal condition of the study area introduced in the preferred thermal index [60]. Increasing the number of environmental factors requires sophisticated calculations. Matzarakis et al. at 2007 introduced freeware, namely “Rayman”, to calculate the mean radiant temperature (Tmrt) as the main indicator of heat stress. SVF (sky view factor) can be calculated through simple fish-eye photo and as well as three main thermal indexes including SET (standard effective temperature), PET (physiological equivalent temperature), and PMV [61].
This software has been used in many studies and the accuracy of its output was proven [62,63,64,65]. ParaGen has been used by Turrin et al. to scrutinize the passive thermal control of the sheltered environment in a semi-outdoor setting [66]. Furthermore, other software were introduced in order to predicate the outdoor and semi-outdoor conditions including ENVI-met [67]; SOLWEING [68] and Town Scope [69].

2.4. Simulation Usage at the Early Stage of Design

The assessment of outdoor comfort is a multifaceted issue that should be considered in all its aspects. Studies that have been conducted have often been the subject of evaluation of one particular factor. Therefore, these studies are one-dimensional in which the results are not generalizable. Therefore, changing the modality of studies from a static to dynamic mode has been a concern for researchers in this field. Recently, simulation tools have been developed to address this research disadvantage. Simulation enables researchers to examine the impact of several factors simultaneously. The most important advantage of using simulation is modelling different modes. Using this method, designers and researchers can check their design and schemes before construction, examine their weaknesses and strengths, and choose the most optimal option. In the table below, the review of studies of earlier stage consideration through a simulation method is presented. In the last decade, the simulation method is progressively replacing traditional methods at an early stage of design. Some related studies are cited in Table 2 with their study area.

3. Materials and Method

3.1. Procedure of Study

According to the literature review, most of the studies have been carried out in a static manner and variation of the variable cannot be predicted in these studies; thus, in order to examine the variables and the schemes, the following steps and scenarios are introduced:
For the purposes this study, four effective aspects of the courtyard were selected (as listed below) and simulated in terms of thermal features:
  • Orientation
  • Height of walls
  • Albedo
  • Green spaces
The aforementioned variables were examined via the Lutron LM-8000 Datalogger to measure the environmental parameters in four traditional and one modern courtyard to illustrate the deficiency of the courtyards in terms of optimum physical features. All the measured and simulated variables are described in the following sections.

3.1.1. Orientation

The ENVI-met 3.1 was used to examine the aforementioned parameters with steady-state algorithms.

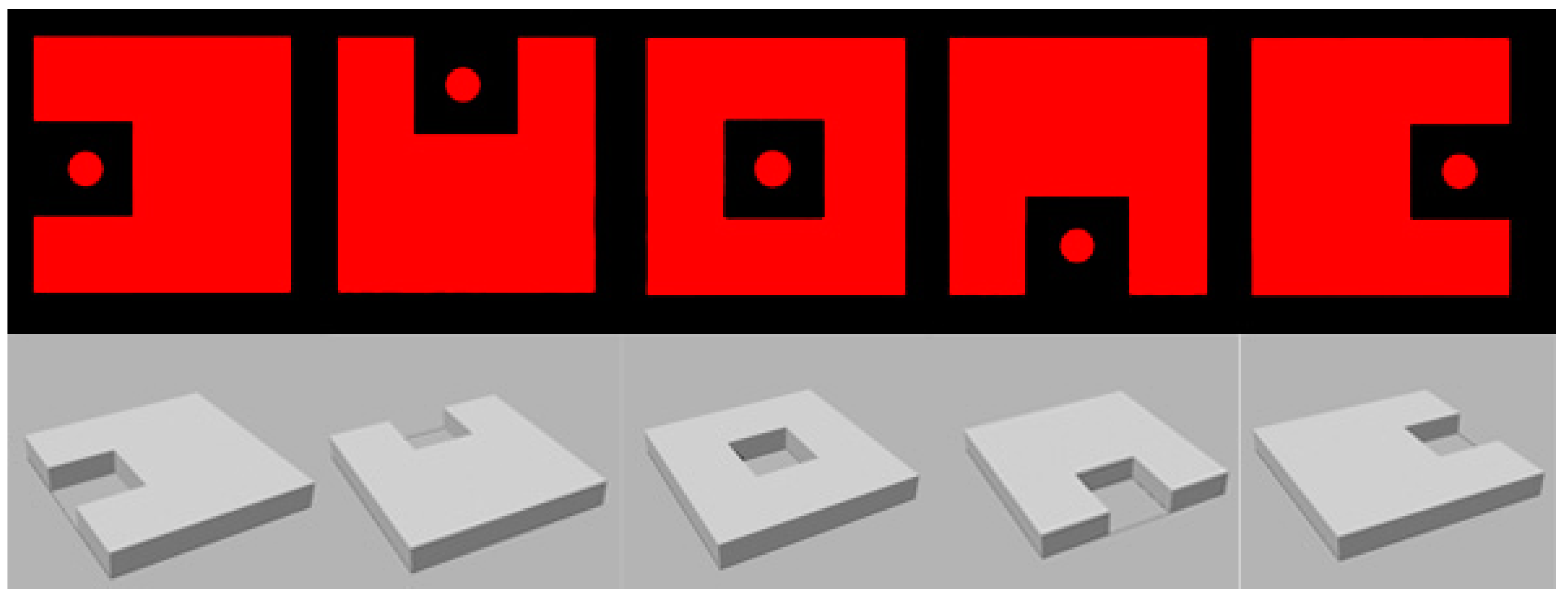

Accordingly, the orientation has 4 main sectors, including:
  • North orientation
  • East orientation
  • West orientation
  • Central courtyard
Orientation is a one of the most challenging issues in the environmental design. The accurate orientation of the courtyard will reduce the disturbing radiation and windspeed. It can make a great contribution to achieve thermal comfort in an outdoor setting. This part of the study will determine the suitable orientation and rest of the simulation will run on the optimum orientation.

3.1.2. Height of Walls

As next step, the enclosure condition of the wall will be examined through 3 simulation steps including:
  • One-story courtyard (4 m)
  • Three-story courtyard (12 m)
  • Six-story courtyard (24 m)
The height of the optimum courtyard will be determined in the step known as “wall enclosure”. The percentage of shaded open space is mainly affected by the wall’s height and it affects Tmrt directly. That is why it is one of the most critical issues in the simulation process.

3.1.3. Albedo

When it comes to the material of the façade, albedo is important; due to its effect on the surface temperature and pedestrians. Three different types of material are considered for examination including low reflection materials like brick and dark concrete, mid-range reflection like marble and finally high reflection materials like white plaster and glossy surfaces. Their albedos are listed respectively:
  • 0.3
  • 0.55
  • 0.93

3.1.4. Green Spaces

As the final step of the simulation, greenery requires study in depth due to its cooling and shading effects on the surrounding environment. Therefore, in this step, four different levels of green space are assumed.
  • 100% covered by grass (the ground)
  • 25% greenery with grass below
  • 50% greenery with grass below
  • 75% greenery with grass below

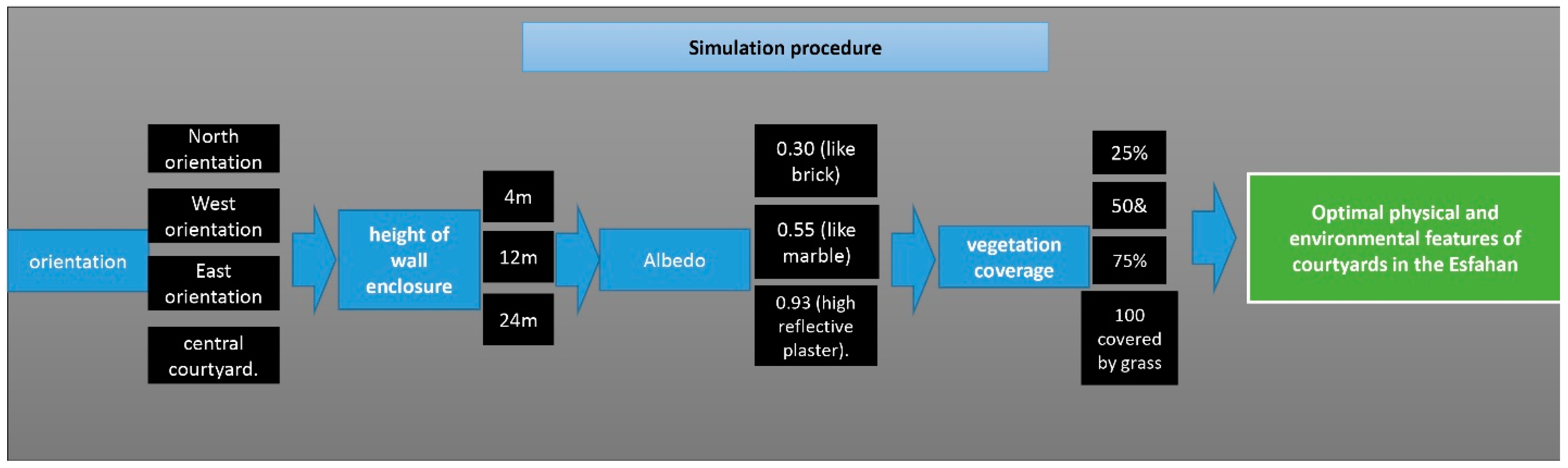

According to the steps described, the procedure is depicted integrally in Figure 1, and it shows how an optimal courtyard in terms of the outdoor thermal condition should be designed.
General Assumptions of blocks in the simulation are listed below:
  • Flat ground.
  • Box-shaped buildings.
  • Cubic grid with a horizontal resolution of 1 m higher resolution is enabled only for the vertical axis.
  • Empirical initial boundary conditions, found by trial and error, in order to attain good agreement with average measurement data.
  • Constant wind profile during all simulation times.
  • Buildings have constant indoor temperature and no heat storage.
  • 1D soil model considering a five-level profile of humidity and temperature.
  • Stomata, the interaction of humidity and radiation in soil and air.
One of the advantages of using ENVI-met is calculating accurate mean radiant temperature in complex environments [78,79,80]. This program simulated the microclimates’ data (e.g., Tmrt, Ta (Air temperature), RH (Relative Humidity), WS (Wind Speed) etc.) and the output was “measured” in points at a height of 1.4 m at different points of the center of the courtyards. The ENVI-met calculated predicted mean vote as an outdoor thermal index to measure the comfort condition [81,82,83] of the pedestrians in the courtyards. The PMV index was originally formulated for indoor thermal comfort; however, it has also recently been applied to outdoor conditions. This parameter is calculated using the Fanger equation modified for outdoor thermal comfort conditions [29,40].

3.2. The Climate of Isfahan, Iran

Isfahan is the capital city of Isfahan province in Iran, located around 340 KM (211 miles) south of Tehran. Isfahan had a population of 3,793,104 in the former (2011) census of Iran, the second most populous metropolitan area in Iran after Tehran. The climate of Isfahan is reported as hot and arid in the summer (, 2017). Average data of Isfahan has been reported in Table 3. In Table 3 all the longstanding (1951–2010) environmental parameters have been described monthly.
A large area of Isfahan province has a dry climate, which is the least handicapped area of annual rainfall in many parts of the province, and there is a high normal annual temperature in a wide range of Isfahan province. According to the physiological equivalent temperature thermal index (explained in detail in Figure 2), April, September and May, 29.4%, 21.4% and 20.2% are more comfortable in terms of outdoor thermal comfort.
Monthly analysis of outdoor thermal comfort conditions was carried out using the PET thermal index.

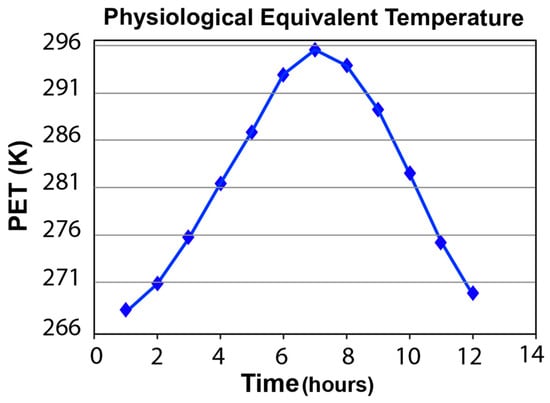

Based on the PET thermal index, only 19.35% of the days of the summer season are in the comfort range on the PET thermal index scale.

3.3. Selection of a Typical Day for the Simulation

The hottest day has been chosen for simulation purposes in many studies as a reference day [35,37,40,75,84,85]. The assumption is that when the outputs of the simulated environment are appropriate for the hottest day or the most critical conditions, then it will just as applicable for the other hot days; thus, the hottest day of summer of 2015 is selected for the simulation. A critical day, in terms of air temperature, is selected in order to determine the optimal thermal characteristic of the courtyard for the hottest day of the year to achieve and recommend the optimal physical features of the courtyard in the hot and arid climate of Isfahan for the remaining days of the summer.
The Meteorological Department of Iran reported (, 2015) 30 June as the hottest day of 2015 in Isfahan.
Therefore, this day was selected as the reference day for the simulation. Accordingly, this study selected 30 June, which was an average hot and sunny day with a low temperature of 296.15 K at 06:00 and a high temperature of 312.15 K at 15:00. The required environmental parameters including air temperature, pressure, dew point and wind speed are from the official environmental department of Iran and are reported in Table 4.

3.4. Characteristics of the Courtyard Model

Some environmental parameters are required for the simulation process. Therefore, fundamental input parameters, including the building, soil and meteorological data incorporated into the ENVI-met model, are given in Table 5. The sample courtyard was considered with plan dimensions of 30*30 m. These dimensions were derived from the average dimensions of Isfahan traditional houses including the dimension and height, known as the wall enclosure. Consequently, the plan dimension of the courtyard was considered to be 30*30 m. When it comes to the height, three different scenarios as common construction heights were considered as seen in the list below:
  • 1 story
  • 3 story
  • 6 story
As a final variable, greenery was simulated with 4 different scenarios:
  • Grass covered
  • 25% tree covered
  • 50% tree covered
  • 75% tree covered
These percentages were selected based on the greenery rate of the traditional courtyards in Isfahan covering 0% to 75%.

3.5. Introducing Simulation Features


The ENVI-met 3.1 urban microclimate was selected to simulate the atmospheric parameters (, 2014). ENVI-met is freeware software that recently has been used by researchers to simulate the effect of urban vegetation on the microclimate [86,87,88,89]. ENVI-met carries out detailed calculations relating to shortwave and long-wave radiation fluxes with respect to shading, reflection and radiation from building systems and the vegetation, and it considers the evapotranspiration and sensible heat flux from the vegetation into the air, including full simulation of all physical plant parameters. ENVI-met has a typical spatial resolution ranging from 0.5 to 10 m, and a temporal resolution of 10 s. A simulation should typically be carried out for at least six hours, but a 24-h period is more usual. The optimal time to start a simulation is at night or sunrise so that the simulation can follow the daily increase in solar radiation. ENVI-met requires an area input file with the three-dimensional geometry and a configuration file with the initialization input parameters [90]. The input parameter for vegetation in the ENVI-met model is that of LAD (leaf area density) (m2 m−3) and consists of 10 LAD values for each plant. The LAD values are, in turn, retrieved from a leaf area index. The physiological properties of the plants in ENVI-met characterize parameters such as moisture absorption by roots, stomatal resistance, and the albedo of leaves [91].
The second interface is the configuration editor, where databases for soil types, humidity, temperature, temporal input, etc. are entered. The third one is the modeling area, where additional parameters are present and the modeling process takes place. The output data can be interpreted and visualized in LEONARDO (as a visualization tool for ENVI-met). It is also possible to edit the data to other programs since the program structure is public [92].

3.6. Three-Dimensional Tree Canopy Structure

In the ENVI-met model, plants are considered as a one-dimensional permeable column which is subdivided into multiple LAD layers, expressed as m2 m−3 [93]. To account for the effect of greenery on atmospheric procedures, all predictive equations in the model are extended into the vegetation layers using source/sink terms describing heat, humidity and momentum exchanges [93,94].
Within ENVI-met, vertical LAD profiles are normalized from z/h = 0.1 (LAD1) to z/h = 1 (LAD10), where z is the height of the LAD entry and h is the total plant height (m). Each vertical profile thus consisted of 10 different horizontal LAD layers. For the theoretical tree crown representation, we used 8 unique vertical LAD profiles to be able to adjust the tree crown dimensions in relation to the distance to the center of the crown. The applied LAD values (0.1–1.15 m2 m−3) were based on standard deciduous LAD values provided in the local ENVI-met® database consisting of 27 different plant structures [91]. Therefore, in this particular study, 3 m dense trees with the ID = B1 (tree 3 m dense, distinct crown layer) with grass below was used in order to achieve more accurate results based on the actual trees (as described in Figure 3) which are used in traditional courtyards in Isfahan. Therefore, the related simulation parameters are described in Table 6 with the ID and description of trees in the ENVI-met.

3.7. Reliability of ENVI-Met 3.1

In order to achieve reliable simulation results, the ENVI-met software needs to be calibrated to the local context. In some studies, the ENVI-met is validated by the comparison of the measured and simulated data in quite a detailed manner [95,96,97]. Therefore, for calibration purposes, the investigation made a comparison of the measured and simulated data on particular summer days of 2014. The process of the measurement, simulation, and their comparison is described in Figure 4.
There are numerous traditional courtyards in Isfahan and most of them are removed from the urban heat island of the city and are located in the old region of the city with fewer traffic jams and subsequent pollution. Therefore, it is estimated that the simulated results and the measured data should become much more correlated. The measurements were carried out using a Javaheraha traditional house (as shown layout in Figure 5) to assess the reliability and calibration factor for ENVI-met for the climate of Isfahan. The effective factors of thermal comfort such as air temperature (as the main and most sensible factor) will be simulated to calibrate the simulation software [29,75].
In order to access accurate results, air temperature sensors were protected by a white shield to avoid a radiation effect on the sensor. The measurement was carried out for seven days in June of 2014 and among these, two days were selected randomly to be simulated. The simulation was carried out for 24 h (21:00–21:00) over three hourly intervals. The similarity of the simulated and measured days in terms of thermal conditions and sustainability of the climatic conditions during the hot summer days ensures that more days resemble each other in terms of environmental parameters which makes the validation process more reliable.
The measurement was done by a data logger, namely Lutron LM-800. Random days were the 15 and 19 June 2014. The data were measured in the center of Javaheriha courtyard at a height of 1.4 m. Initial data for simulation were retrieved from the local weather station. Accordingly, simulation for validation process requires some environmental parameters as input configuration file which are described in Table 7.

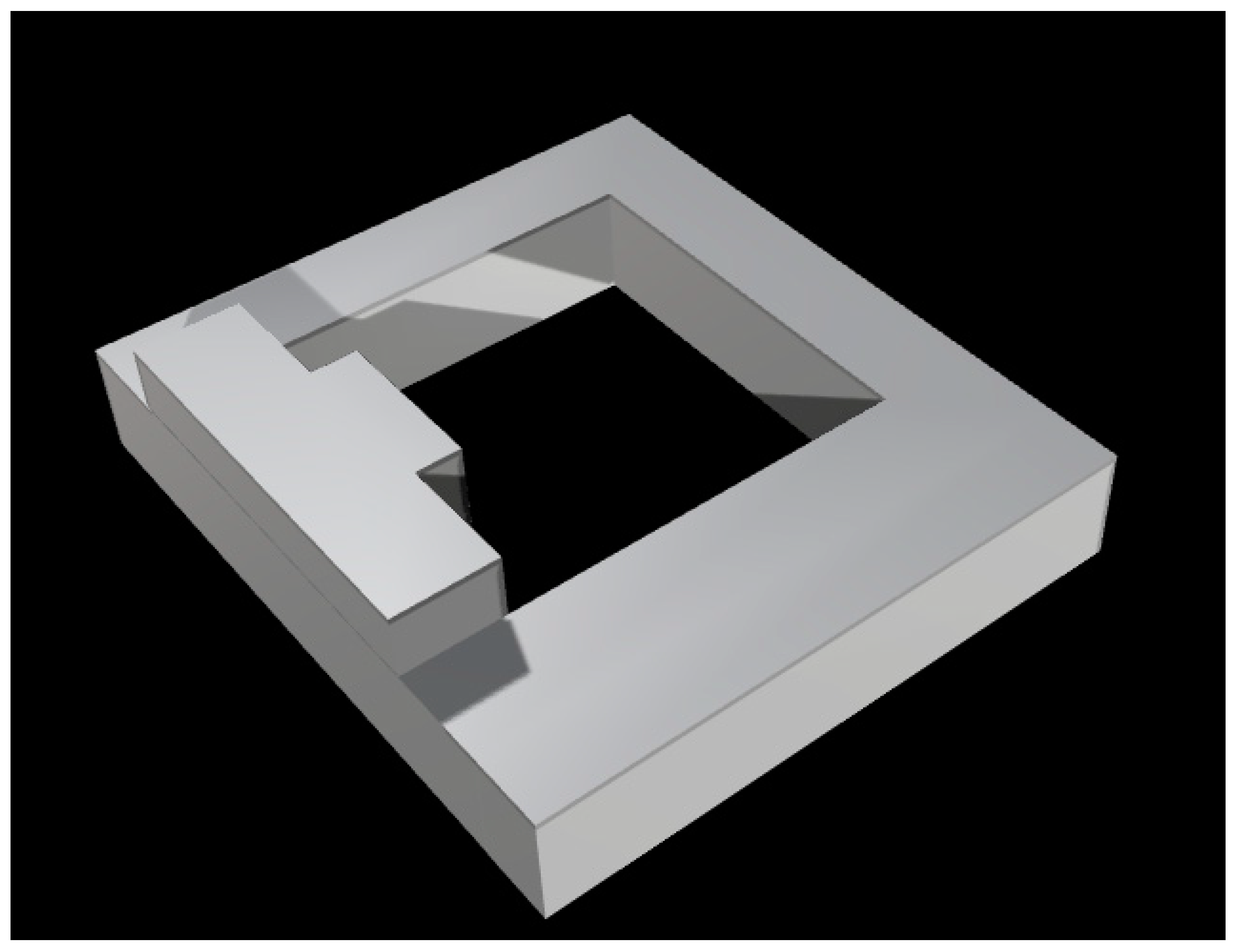

The Javaheriha house has been modeled with its neighborhood to reach more accurate results in terms of the effect of neighboring effect. Air temperature as the main parameter of output of the simulation process is described and compared in Table 8 and Table 9 for the first and second days. As expected, the air temperatures resemble each other during many hours of the days especially at the beginning and end of the simulation hours. To demonstrate how the measurement and simulated data are correlated, the R-correlation coefficient is needed to show their statistical correlation. This method is a valid statistical method in environmental studies and recently it has been used in different work [35,98,99,100].

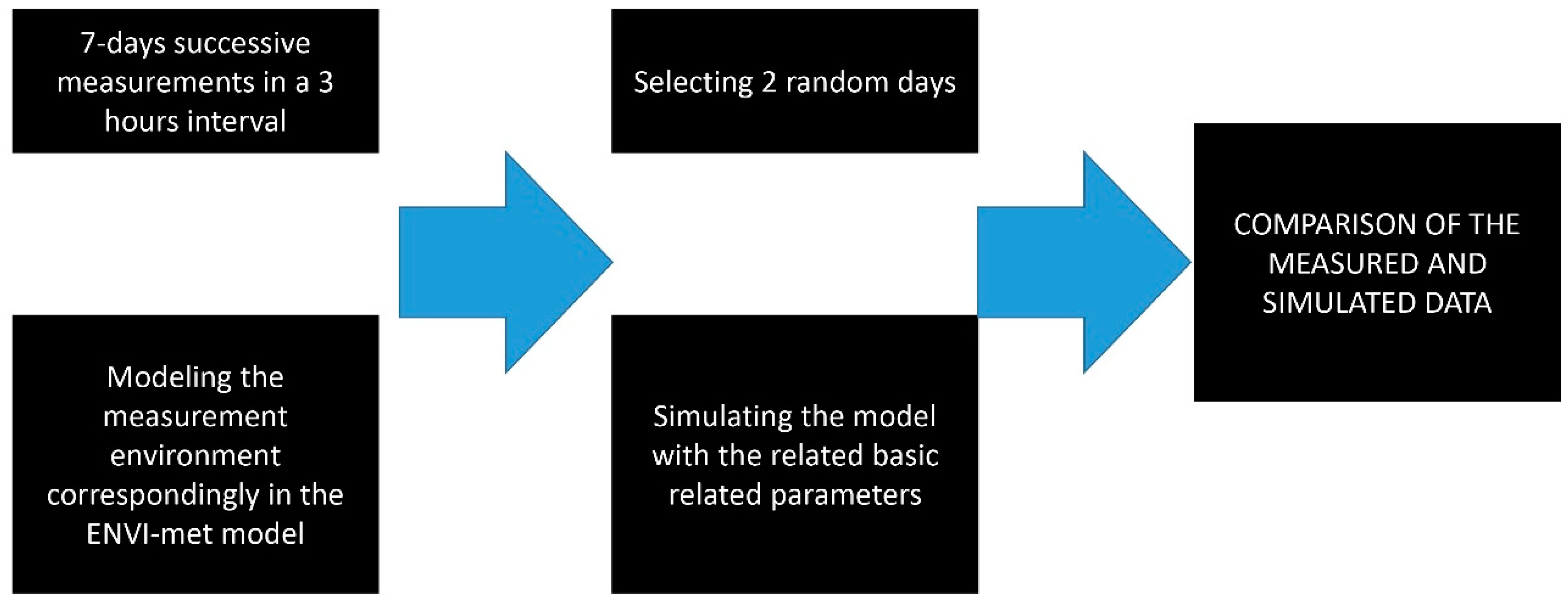

As the next step in the validation progress, the simulation results and field measurement data were compared statistically throughout three hourly intervals. The measured and simulated temperatures during the aforementioned days for selected random days are compared in Figure 6 and Figure 7.

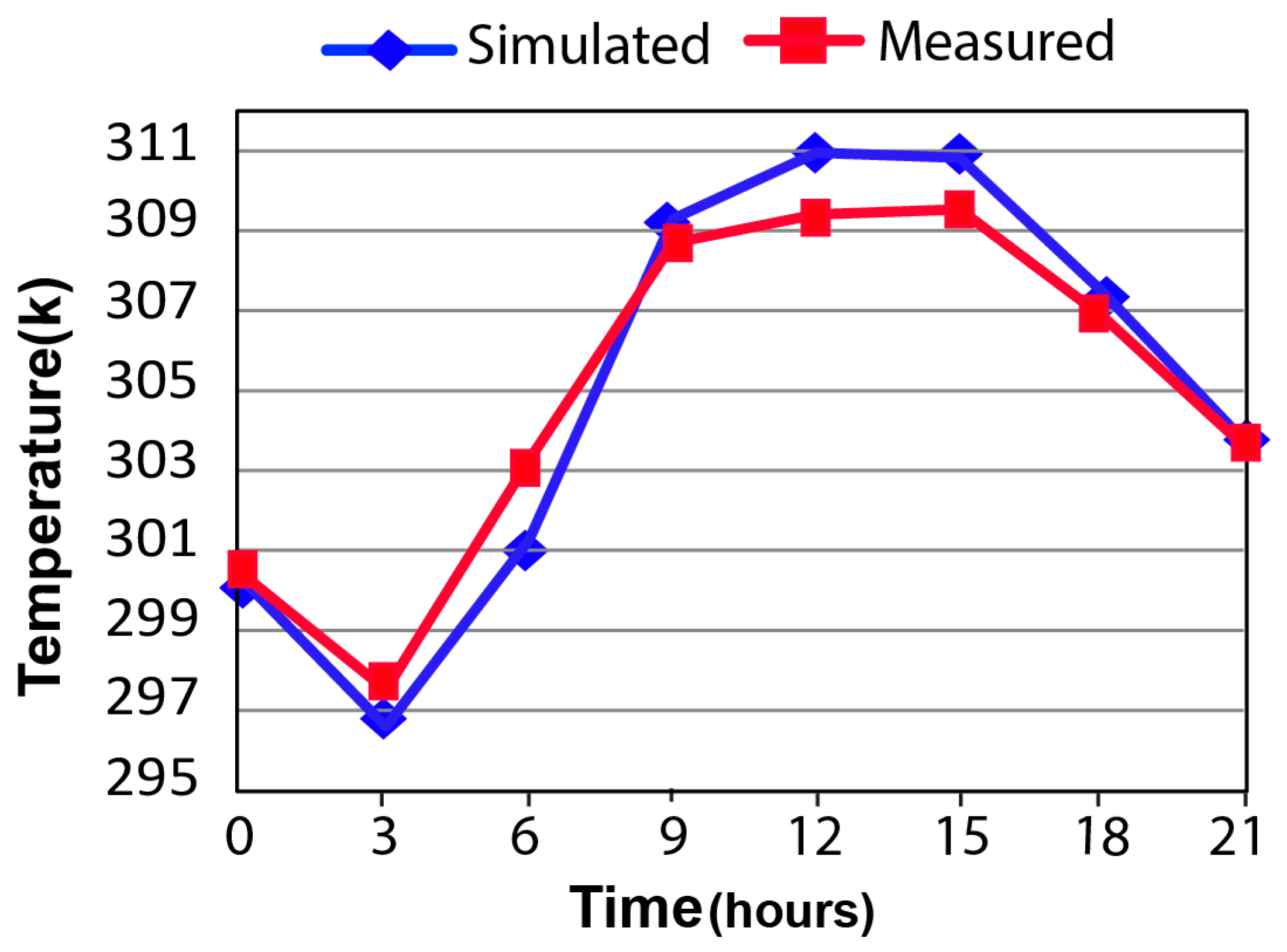

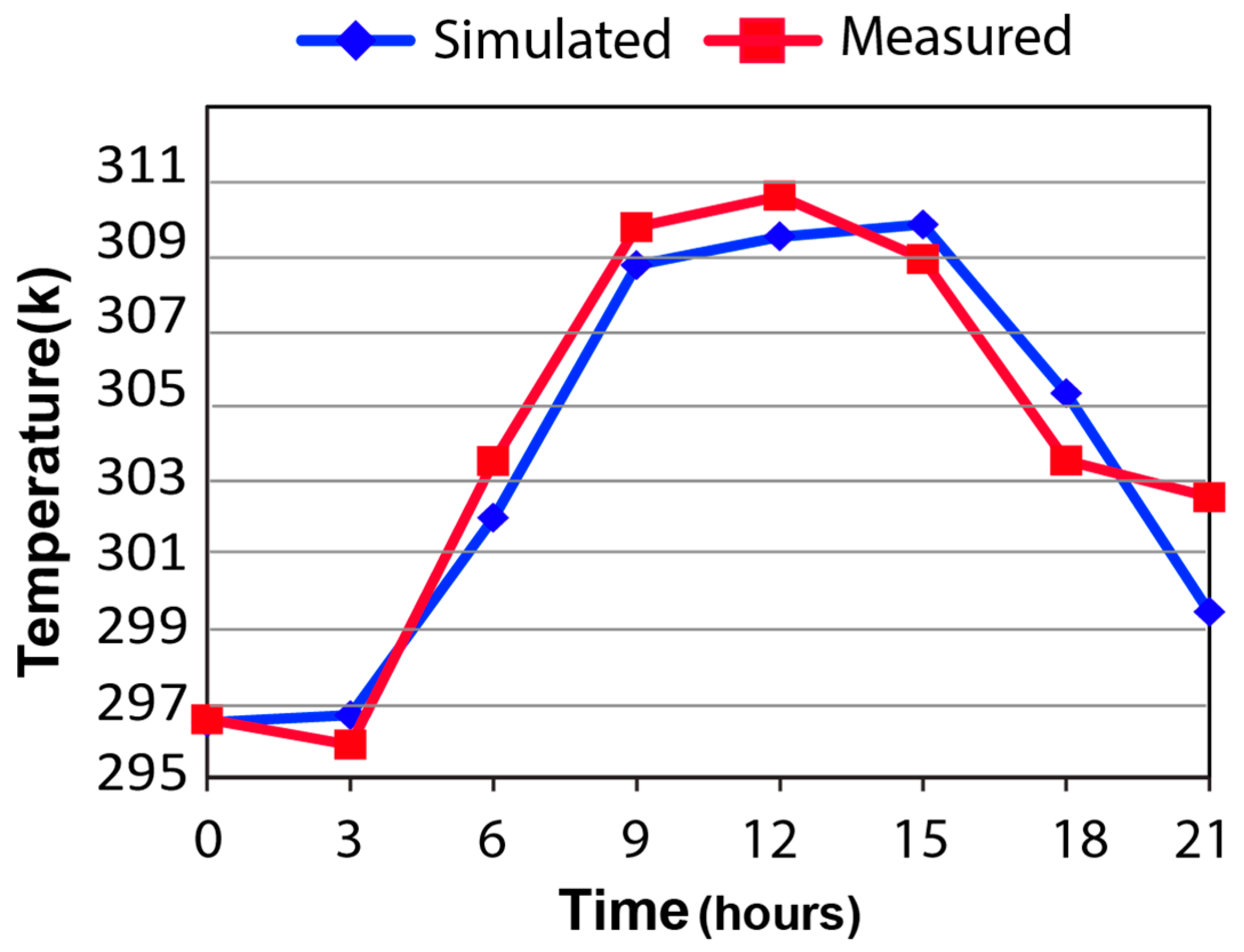

The measured and simulated data and their correlation calculation is the final step of the validation progress. Thus, in order to calculate the statistical correlation between field measurement data and the simulated data, SPSS analytical software is used to calculate the R-correlation value. Comparison of the measured air temperature in two random days and their correlation with the simulated data shows that on the first day, the results of the simulation illustrate more than 90% correlation (R = 0.92). This is also true for the second random day (19th) and the R-value is 0.95 and it means that there is 95% correlation between the measured data and the simulation results.

4. Discussion and Analysis

According to the methodology section, the hottest summer day is chosen as the reference day for simulation. The critical day and the critical conditions for simulation are intended to simulate the characteristics of the optimal courtyard according to the critical environmental parameters. Therefore, it is clear that when the outdoor comfort is provided during critical conditions, it will also perform just as well during more favorable conditions, and the conditions of this day can be applied to other days.

4.1. Physical Features of the Traditional Courtyards of Isfahan

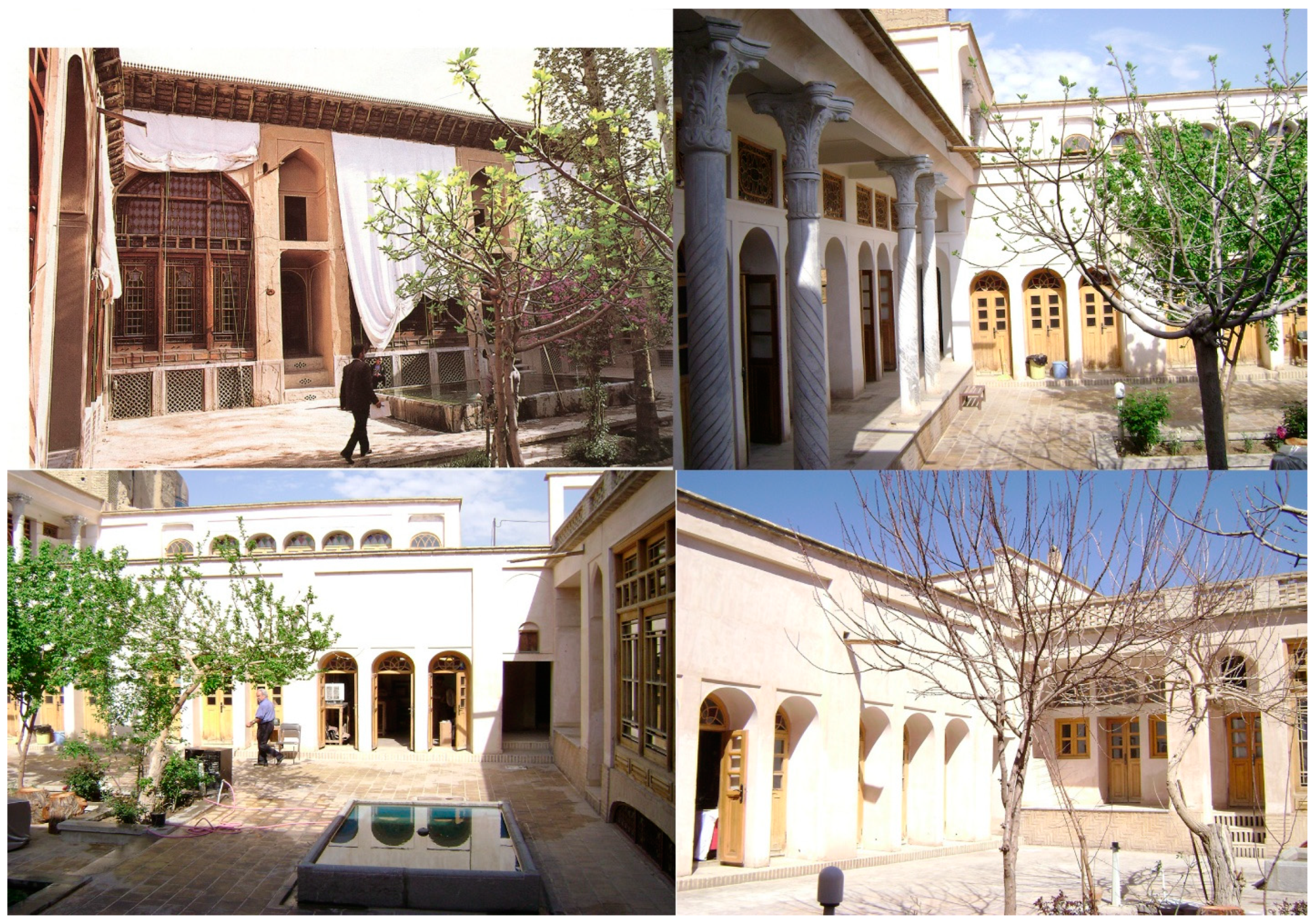

In this section, four traditional and two modern courtyards of Isfahan were selected to be assessed in terms of physical features and environmental factors:
  • Orientation
  • Height of walls
  • Albedo of materials
  • Green spaces
For this study, five courtyards were selected to be investigated:
  • Javaheri house
  • David and Sikias house
  • Sheikh Al-Islam house
  • Qazviniha house
  • Zeitoun complex
The aforementioned courtyard was examined through an experimental method via Lutron LM-8000 Data logger Ta9, RH10, and WS11. All data were measured at the height 1.6 m. According to Table 10, four variables including orientation, height, the albedo of façade and ratio of vegetation to the total area of the courtyard were considered. All the measurements were carried out simultaneously on 15 July 2015, at 3:00 pm.
According to Table 11, Javaheri house has a high albedo material and has less greenery and experiences a high air temperature, wind speed and low relative humidity. Qazvinha house with low albedo materials (0.35) and high enclosure of walls with a height of 8.75 m experiences the lowest air temperature among the traditional courtyards. When it comes to the Zeitoun residential complex (modern courtyard), it has high green spaces in its open spaces with relatively low albedo materials (0.46) and a high enclosure of wall with a height of 12.22 m to experience the coolest environment among all courtyards. None of the aforementioned courtyards have the optimum physical features, and ascertaining the optimum variables is the main question that will be answered in the following sections.

4.2. Effect of the Orientation

Orientation should be considered seriously at the early stage of design strategies. So, in the first step of the simulation, according to Figure 8, four main orientations were examined to reach the optimum orientation.
  • North orientation
  • West orientation
  • East orientation
  • Central courtyard.

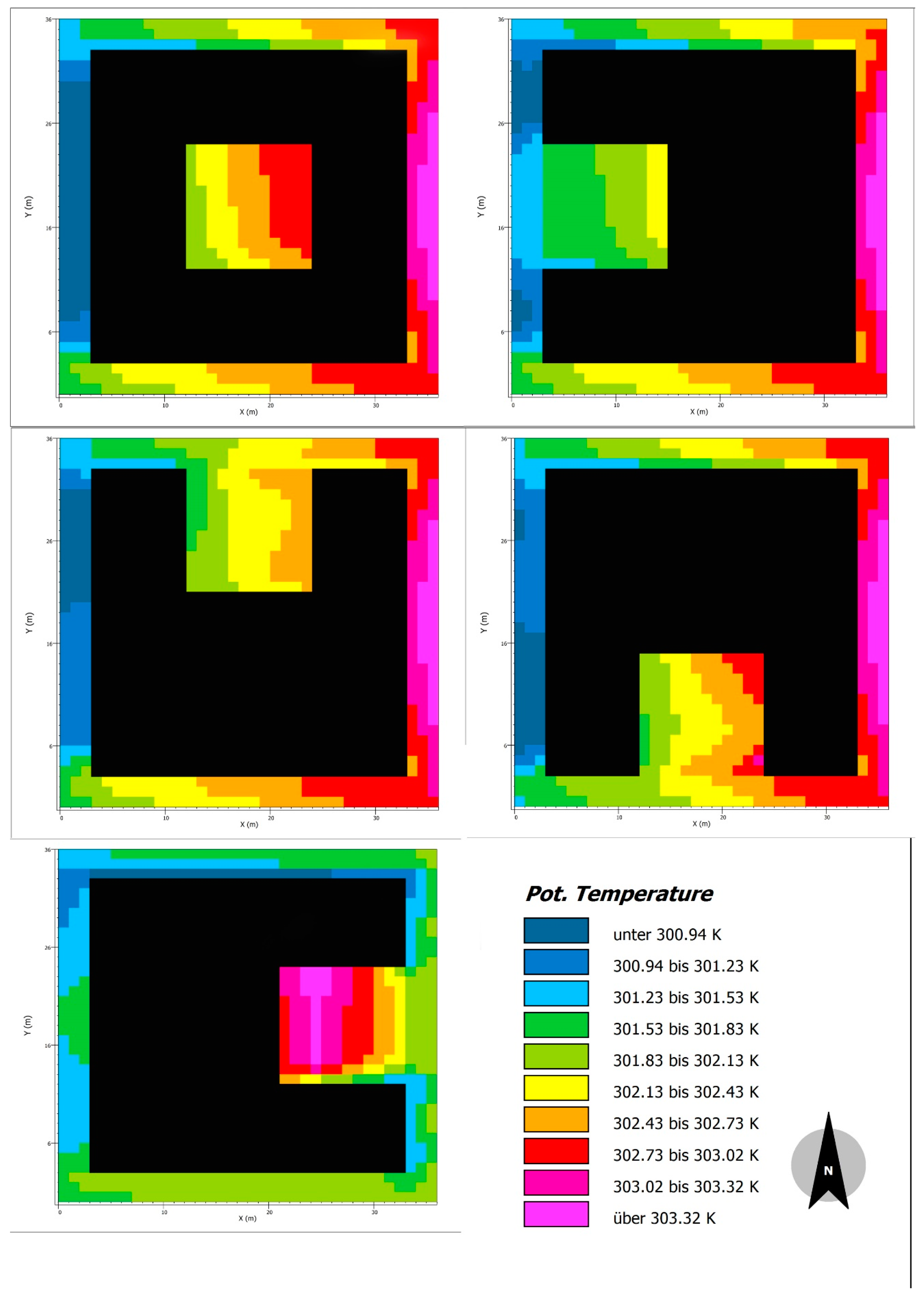

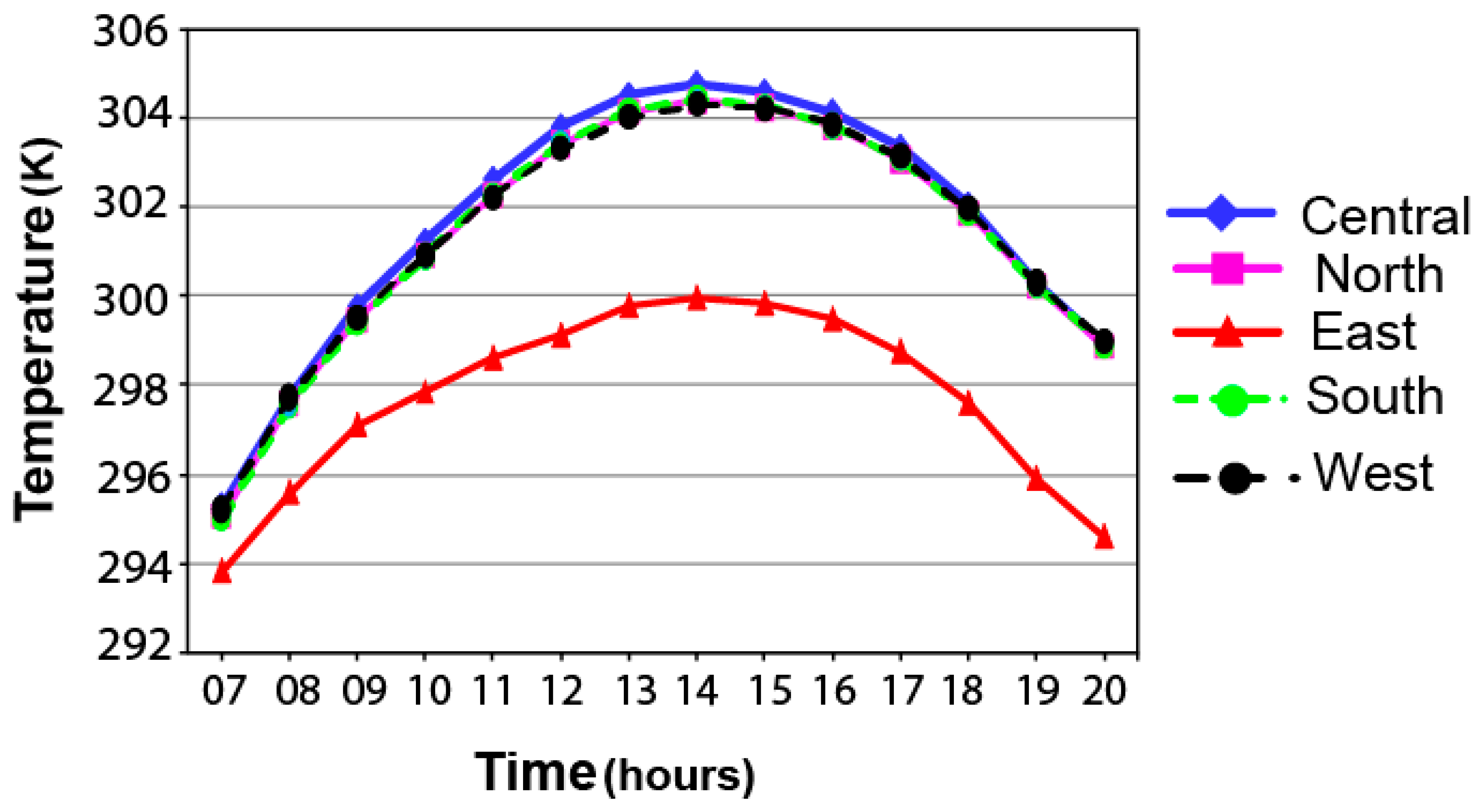

The effect of orientation in order to influence the microclimate factors, such as air temperature, mean radiant temperature, wind velocity, and relative humidity, are measured in the center of the courtyard with a height of 1.6 m. Based on the results of the simulation, the relative humidity and Tmrt values of simulated models are approximately equal (relative humidity and Tmrt of the four models are almost equal), but the models (four conditions of simulation) have different Ta (each model has its own different Ta). Comparison of the Ta of the models in Figure 9 illustrates that the east and north courtyards have cooler Ta and the east courtyard has the coolest Ta. Early in the morning of the reference day, the Ta of all models is in the equal range but the east model is 2 K cooler. From 10:00 to 17:00, the east courtyard is 5 K lower than all others; after 17:00, the difference becomes 4 K.

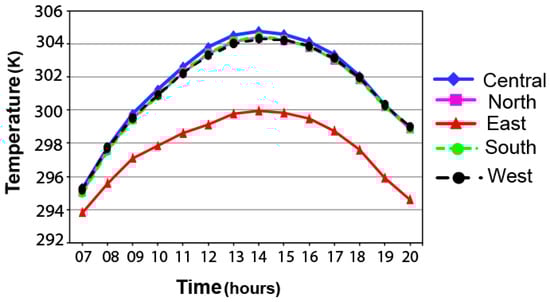

Among the other models, the north courtyard is slightly cooler and the west one is the hottest compared to the others. Early in the morning, the courtyard that faces the north has 0.24 K lower Ta, but in all hours of the day, the Ta differences are less than 1 K.

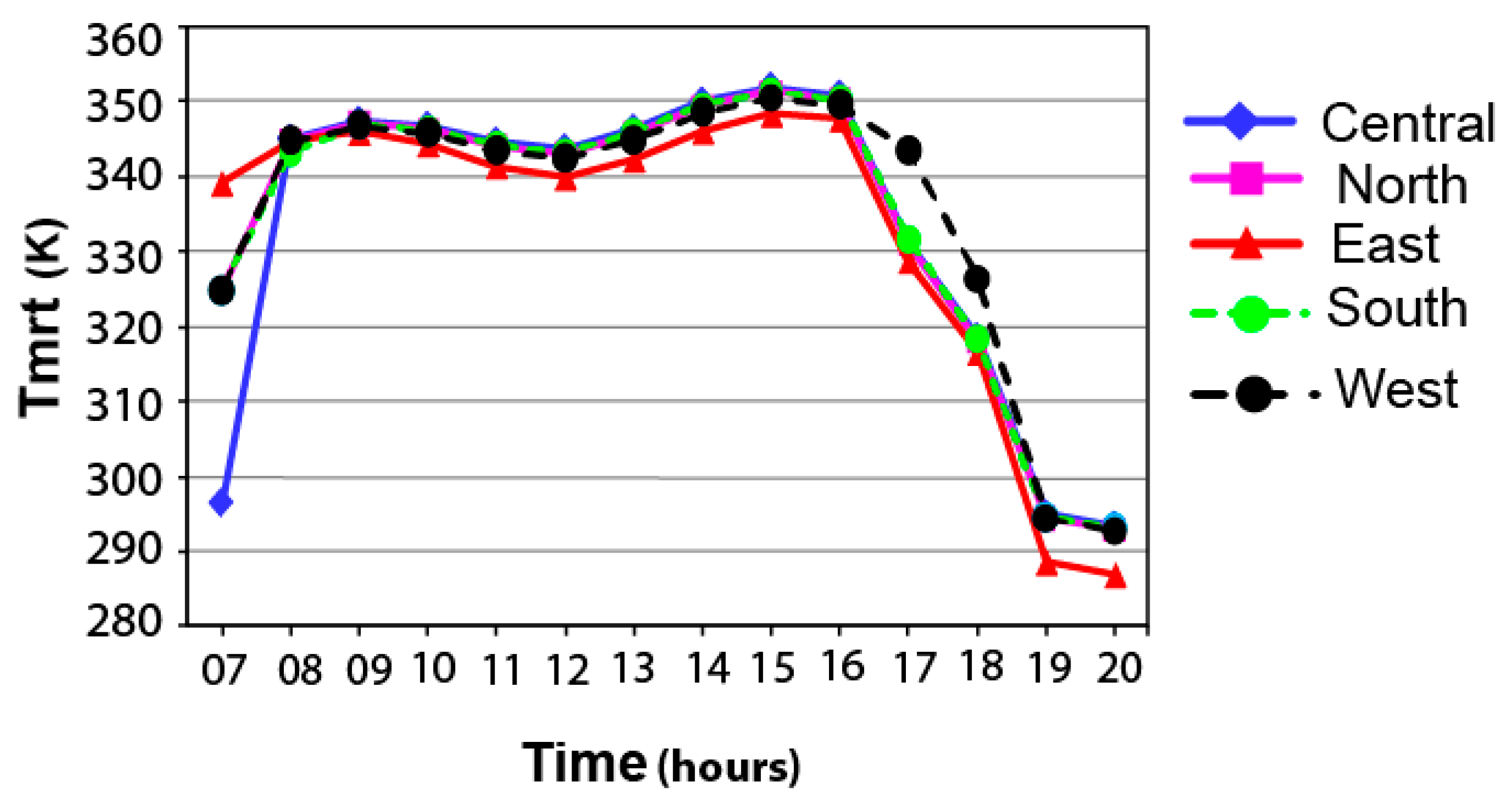

The mean radiant temperature of the courtyards show slight differences. Based on Figure 10, the central model has a lower Tmrt compared to the others early in the morning, but by sunrise, based on the Ta of all the models, the courtyards facing east and north have the lowest temperatures.
The outdoor thermal comfort and the PMV thermal index in the critical hours from 13:00 to 16:00 illustrate that all courtyards are thermally uncomfortable in the PMV thermal index. The long duration of solar radiation rays with less shaded places in the courtyards leads to heat-stressed conditions outdoors. Only in the early hours of the morning and the late hours of the simulation are some points in the shaded places within the comfort range of the PMV scale. According to Figure 9 and Figure 11, only the east and north courtyards have better conditions, but all models are within the uncomfortable range. Therefore, the results of this section show that courtyards of a short height that see direct solar radiation cannot have a thermally comfortable environment.
Avoiding sun radiation is a matter of greatly reducing the Tmrt, as it is obvious that the radiant temperature has a direct impact on the outdoor thermal sensation. Therefore, the proper geometry for the remaining simulation steps, is geometry that receives the lowest amount of radiation.
Due to the low air temperature in the eastern courtyard, the difference between the thermal index and the radiant temperature (as the most important indices in thermal stress) is not observed among the models. Therefore, in order to reduce the amount of received radiation, even in the morning, the yard is proposed on the north orientation.

4.3. Increasing the Height of Wall Enclosure

In the next step of the simulation, the height of the models is increased to 12 and 24 m (3-story and 6-story courtyards) to examine the effect of the height of the enclosure walls.

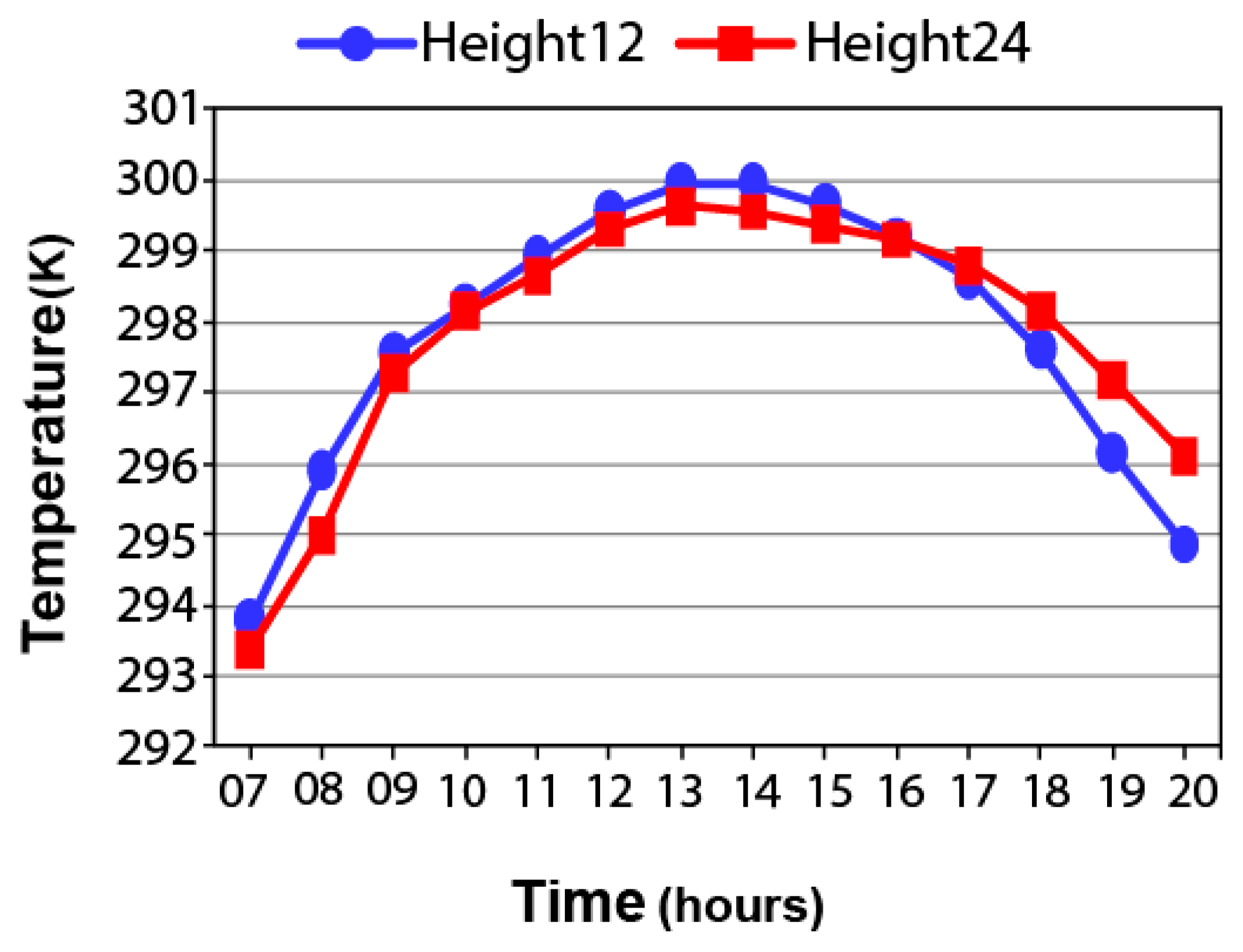

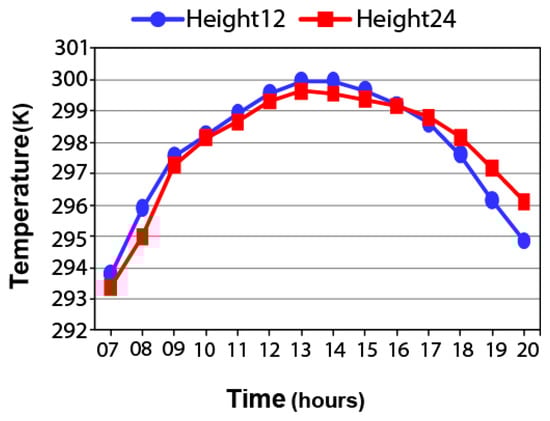

According to Figure 12, the height variations were implemented on the courtyard model facing north as this model has a slightly cooler environment. At noon, due to clear sky conditions and approximately vertical sun radiation, the environment is prone to be in a heat stress condition. Therefore, blocking solar radiation can help to create a more comfortable environment. The results of the simulation point out that increasing the height of the wall enclosures in courtyards decreases the Ta. Comparing the Ta of walls of 4, 12 and 24 m shows that from 7:00 to 17:00, the courtyard with 24-m-high walls has a lower temperature.
Overall, as the decreasing sky view factor (SVF) duration of receiving direct solar radiation is limited by walls, by increasing the height (decreasing SVF), courtyards get lower temperature duration early morning and critical hours of the day and higher temperature in the late hours of day and night time. Because of the heat reflux (due to the albedo of the materials) of the walls, by increasing the height of the walls, the amount of reflected radiation increases. Therefore, in the late hours of the day, all spaces of the courtyard are shaded. In this situation, more enclosed spaces are prone to receive more reflection. So, in the late hours of the day (after 17:00), the courtyards with higher walls have higher Ta. Therefore, it is important to assess the albedo of the wall materials in terms of the amount of reflected radiation.

4.4. Effect of Albedo of Materials

In order to examine the effect of the different albedo of materials and arrive at the optimum amount of albedo, three different levels of albedo were selected.
It is important to note that the reflection of the pavement proposed is a fixed value through the simulation process; therefore, by changing the amount of the albedo of the façade’s materials, the amount of albedo of pavement is a fixed value and its effect is fixed and is a unique value in all cases.
  • 0.3 (for example, brick)
  • 0.55 (for example, marble)
  • 0.93 (for example, high-reflective plaster).
The result of the simulation shows that the 0.3 model has a slightly lower air temperature. From 7:00 to 8:00, the 0.3 model (for example, brick) has a 0.79 K cooler environment in comparison with the other models.

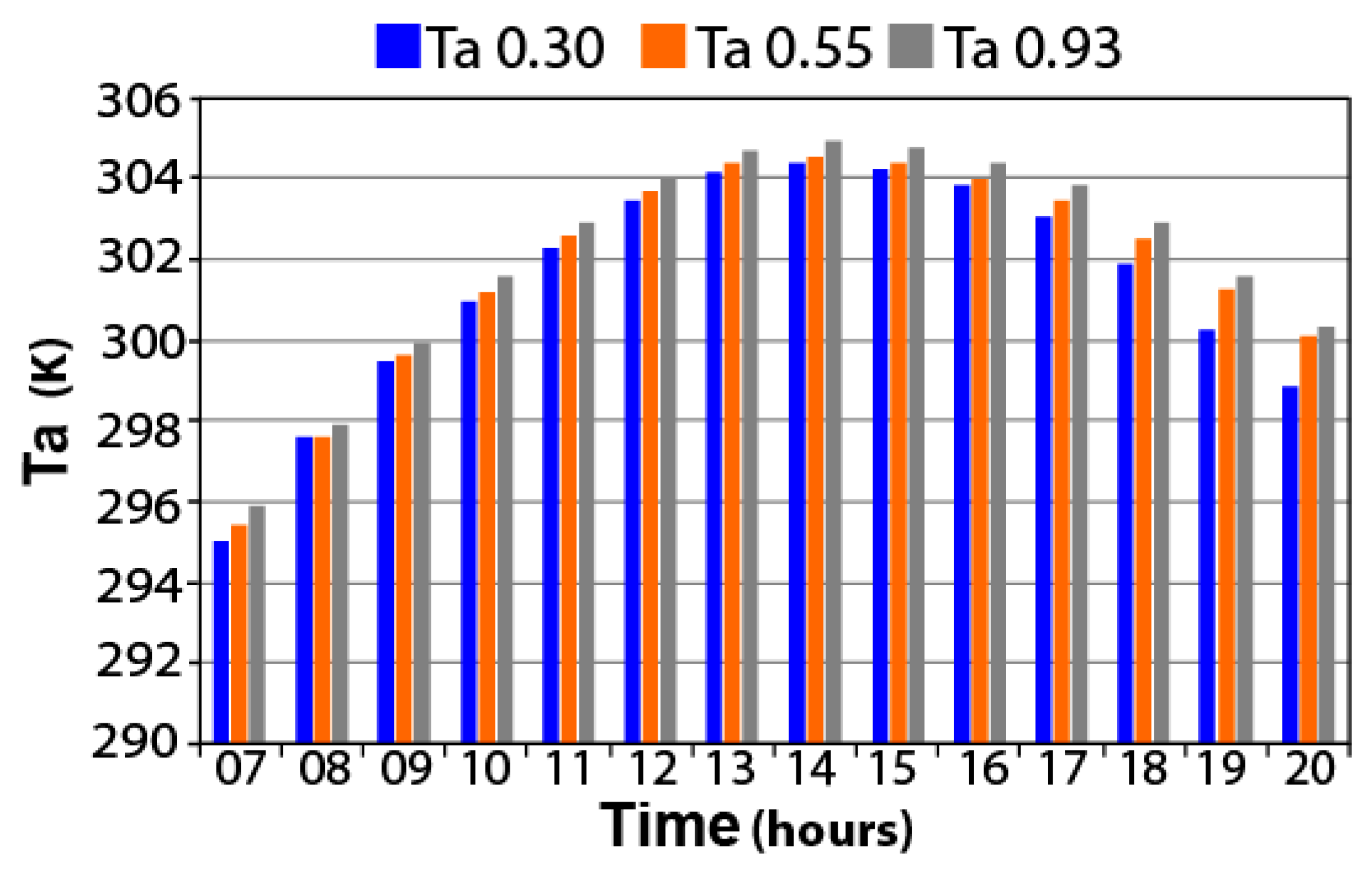

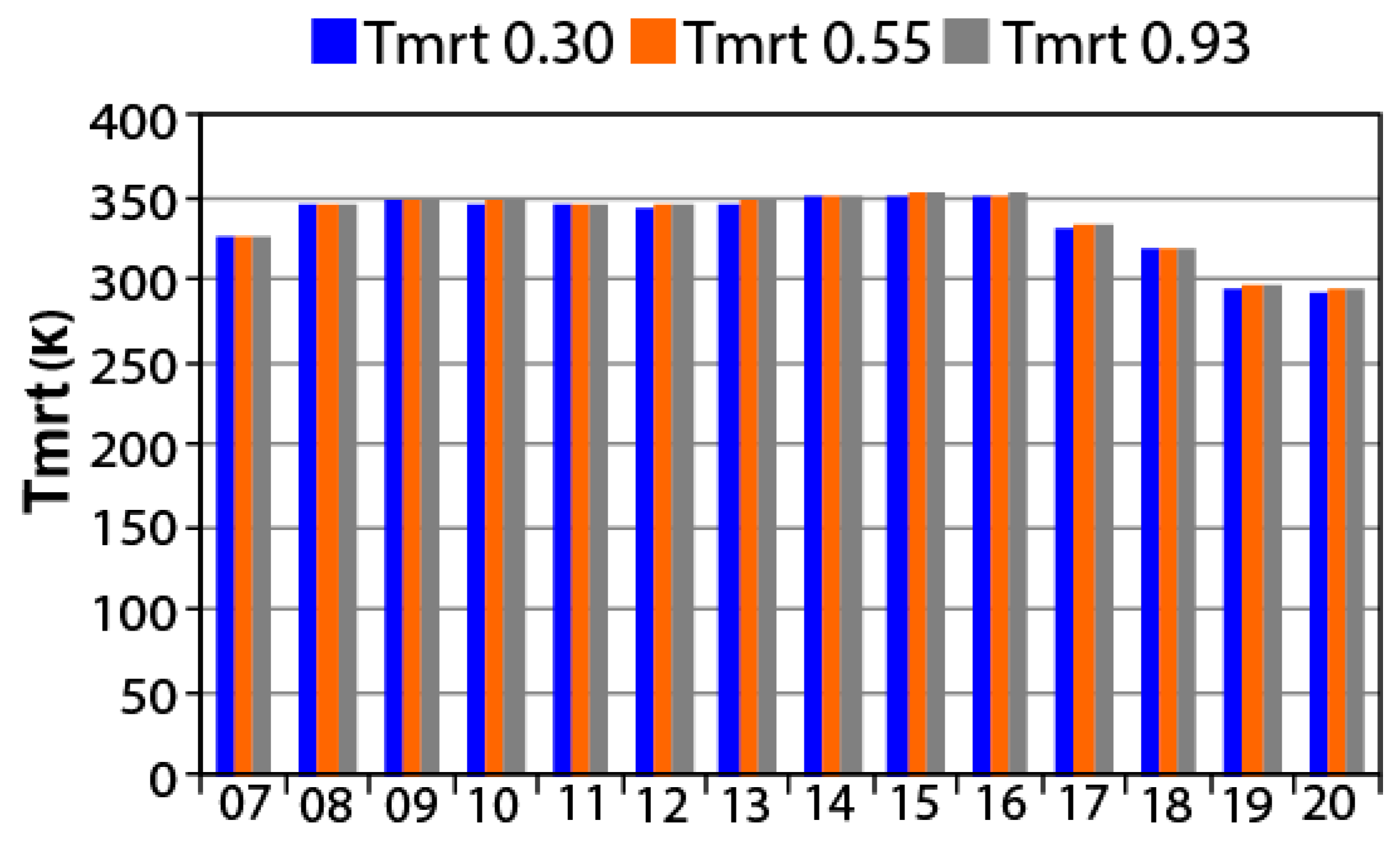

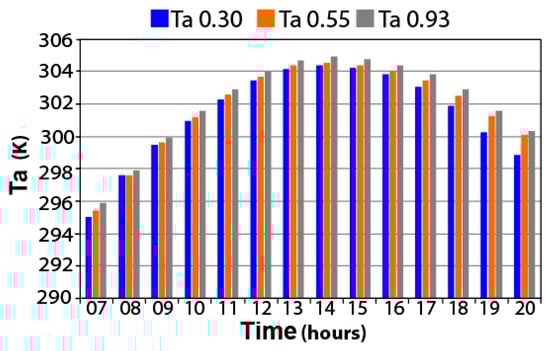

According to Figure 13, the 0.3 model has a cooler environment in the remaining hours of the reference day. After 17:00, the differences in Ta among the models increase. At 17:00, the difference between the hottest models (0.55) and the coolest one (0.3) is 0.76 K; accordingly, the differences are higher than in the previous hours. At 6:00, the difference between the hottest model (0.93) and the coolest one (0.3) is more than 1 K. In this manner, at 20:00, the difference between the models is 1.47 K.
The Tmrt, as an indicator of heat stress, should be compared to get an accurate result in order to choose the optimum material in terms of a suitable albedo. Comparing the Tmrt of the models revealed that, based on the Ta of the models, the 0.3 model has a cooler environment in terms of mean radiant temperature. The degree of reflection of the materials can directly affect the thermal sensation. It would be more important in creating a cooler environment in the daytime and a warmer environment at night. With increases in the time of day and the amount of sun, the total amount of radiation in both diffuse and direct conditions increases. In the second hour of the simulation, the differences between the maximum Tmrt and the minimum Tmrt is greater than 1 K. The differences in the Tmrt increase as time increases. After 11:00, this difference becomes greater than 2 K. The maximum difference is seen at 14:00 (2.05 K). After 17:00, due to the sunset and the low angle of the sun, the total amount of radiation starts to decrease with more speed than in the earlier hours. Based on Figure 14, three late hours are the coolest hours of the day. It can be concluded that the 0.3 model has the optimum albedo of the materials required for creating a cooler environment in terms of both Ta and Tmrt.

4.5. Effect of Vegetation Coverage

The final step of the simulation is to finalize the optimum physical features of the courtyard to create a sustainable environment in terms of thermal comfort in the hot and arid climates of Isfahan. In order to determine the best percentage of vegetative cover, the following four simulation conditions were selected:
  • 25%
  • 50%
  • 75%
  • 100 covered by grass (the ground)

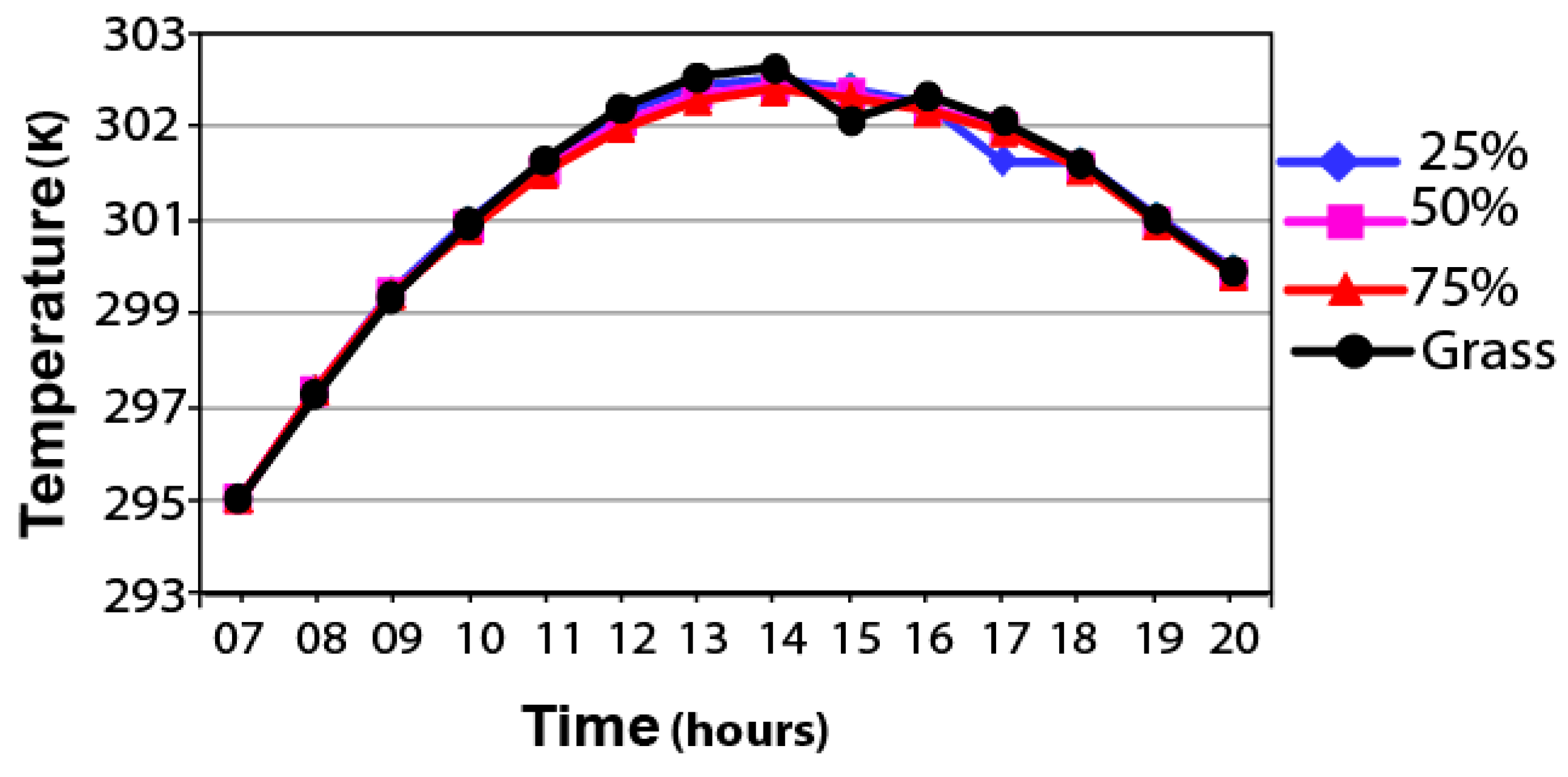

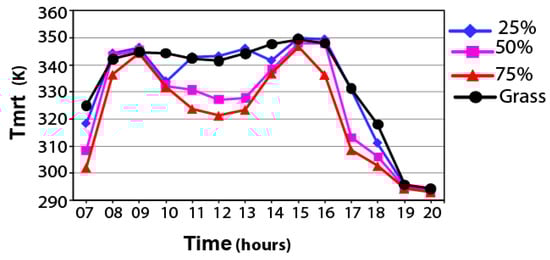

This step of the simulation is scrutinized in terms of Ta and Tmrt. Based on Figure 15, the air temperature of all four models is about 295 K. In all hours but 15:00 and 18:00, the Ta of all models are in the equal range. But in the hours mentioned, the grass-covered 25% model has a slightly warmer environment. These models follow logical behavior. It is necessary to note that the humidity and evapotranspiration have an effect on the wet bulb temperature, not dry bulb temperature, and its enthalpy value is fixed in evapotranspiration process; therefore, it is expected that air temperature (dry bulb temperature) will be steady and fixed.
This step of the simulation is scrutinized in terms of Ta and Tmrt. The air temperature of all four models is about 295 K. In all hours but 15:00 and 18:00, the Ta of all models are in the equal range. But in the hours mentioned, the grass-covered 25% model has a slightly warmer environment.

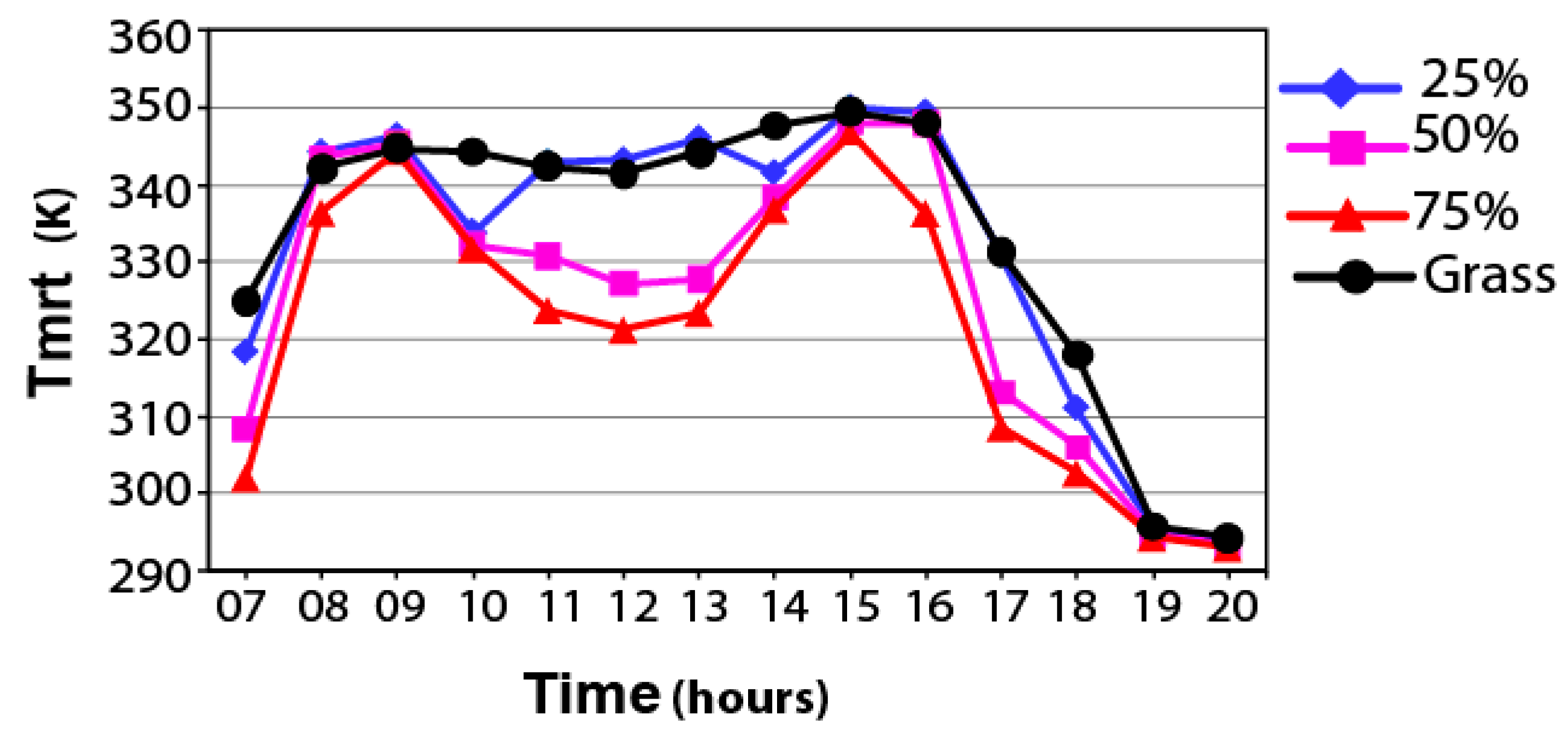

All four lines of the chart grow slowly by sunrise and decrease by sunset. But the chart shows different behavior for the Tmrt values. According to Figure 16, in the early hours of the day, the 75% model has a cooler environment of about 15 K in comparison with the hottest one (grass-covered model). After 9:00, the grass-covered 25% model gets warmer by 50 K and the 75% model gets cooler until 15:00. At 15:00, all four models have approximately equal Tmrt. After 15:00, all models start to have a cooler environment in terms of total Tmrt. Accordingly, the 50% and 75% models emitted more radiation fluxes and received less diffuse and direct radiation. Because of the low angle of the sun in the four late hours of the reference day, all four simulation conditions have similar amounts of Tmrt. Therefore, more greenery creates a cooler environment in terms of the mean radiant temperature. With the presence of more shaded areas, the total amount of diffuse and direct radiation decreases at noon. Consequently, the 75% model has a cooler environment during the hottest hours of the day. Thereby more than 50% of the courtyard should be covered trees and greenery.

5. Conclusions

Open spaces and their thermal conditions by and large depend on physical features. Courtyards in traditional Iranian architecture as an open space for homes are well suited for the level of outdoor thermal comfort. Courtyards are mainly used in hot and arid climates. The lack of sufficient scientific studies about the physical features of courtyards makes the modern courtyard less effective in terms of thermal comfort. Therefore, an accurate simulation method was carried out to develop an understanding of the local thermal characteristics of the courtyards in the climate of Isfahan. Four fundamental items are listed below:
  • Effect of orientation
  • Effect of the height of wall enclosure
  • Effect of the albedo of materials
  • Effect of vegetable coverage
Based on the results of this paper, the range of the simulation parameters was determined and an attempt was made to apply a practical range of parameters.
Initially, four different conditions of orientation were examined. It was concluded that the northern courtyard has better environmental parameters to create a comfortable environment. Among other models, the north and east courtyards were slightly cooler than the others.
The findings of this section demonstrate that short-height courtyards with direct solar radiation cannot achieve a comfortable environment; therefore, in order to avoid solar direct radiation even in the early hours of the morning, a north orientation is chosen for the next steps of the simulation.
The effect of the different heights of the enclosure walls was examined. The results demonstrate that, by increasing the height of the walls, the noontime temperature decreases and the nighttime air temperature is higher than in the courtyards with lower walls. Therefore, a high wall enclosure is recommended in Isfahan’s hot and arid climate.
The sky view factor (SVF) has a direct relation to the height of the walls of the central courtyard. Reducing this factor leads to stabilization of the temperature in the late hours of the day.
Therefore, as the decreasing SVF duration of receiving direct solar radiation is limited by walls, by increasing the height (decreasing SVF), courtyards gain lower temperature duration in the early morning and critical hours of the day and higher temperatures in the late hours of day and night time. Because of the heat reflux (due to the albedo of the materials) of the walls, by increasing the height of the walls, the amount of reflected radiation increases.
So, in the late hours of the day (after 17:00), the courtyards with higher walls have higher Ta. Therefore, it is important to assess the albedo of the wall materials in terms of the amount of reflected radiation.
To examine the radiation effect on human thermal sensation, three common material categories were considered. Regarding this point that thermal stress conditions occur in the mid-hours of the day (13–16 h), the high-albedo materials reflect more sun rays to the environment, thus making pedestrians more prone to being in the heat stress range. Therefore, low-albedo materials like brick are recommended for the hot and arid climate of Isfahan.
The result of the simulation shows that the 0.3 model has a slightly lower air temperature. From 7:00 to 8:00, the 0.3 model (for example, brick) has a 0.79 K cooler environment in comparison with the other models.
As a final step, four conditions of green spaces were simulated and the results of the simulation show that more green spaces create a more comfortable environment.
The results show that more greenery creates a cooler environment in terms of the mean radiant temperature. With the presence of more shaded areas, the total amount of diffuse and direct radiation decreases at noon. Consequently, the 75% model has a cooler environment during the hottest hours of the day. Hereby more than 50% of the courtyard should be covered trees and greenery.
It is necessary to point out that more green spaces have less ventilation; therefore, in order to reach an optimum level of thermal comfort, 50% greenery is recommended.
In this paper, the thermal characteristics of the courtyard in the hot and arid climate of Isfahan were simulated using some practical physical features of the courtyard. Therefore, it is recommended that more research should be carried out in other cities and climates, and with reference to other physical features.

Author Contributions

Conceptualization, R.H.H. and M.K.; Data curation, R.H.H.; Investigation, R.H.H.; Methodology, M.O.; Project administration, M.K.; Resources, R.H.H.; Software, M.O.; Supervision, M.K.; Validation, M.O., R.H.H.; Writing — original draft, R.H.H.; Writing — review & editing, R.H.H.


This research received no external funding.

Conflicts of Interest

The authors declare no conflicts of interest.


  1. Alcoforado, M.J.; Andrade, H. Global Warming and the Urban Heat Island, in Urban Ecology; Springer: New York, NY, USA, 2008; pp. 249–262. [Google Scholar]
  2. Corburn, J. Cities, climate change and urban heat island mitigation: Localising global environmental science. Urban Stud. 2009, 46, 413–427. [Google Scholar] [CrossRef]
  3. Giannaros, T.M.; Melas, D.; Daglis, I.A.; Keramitsoglou, I.; Kourtidis, K. Numerical study of the urban heat island over Athens (Greece) with the WRF model. Atmos. Environ. 2013, 73, 103–111. [Google Scholar] [CrossRef]
  4. Klemm, W.; Heusinkveld, B.G.; Lenzholzer, S.; Jacobs, M.H.; Van Hove, B. Psychological and physical impact of urban green spaces on outdoor thermal comfort during summertime in The Netherlands. Build. Environ. 2015, 83, 120–128. [Google Scholar] [CrossRef]
  5. Salata, F.; Golasi, I.; Petitti, D.; de Lieto Vollaro, E.; Coppi, M.; de Lieto Vollaro, A. Relating microclimate, human thermal comfort and health during heat waves: An analysis of heat island mitigation strategies through a case study in an urban outdoor environment. Sustain. Cities Soc. 2017, 30, 79–96. [Google Scholar] [CrossRef]
  6. Santamouris, M.; Synnefa, A.; Karlessi, T. Using advanced cool materials in the urban built environment to mitigate heat islands and improve thermal comfort conditions. Sol. Energy 2011, 85, 3085–3102. [Google Scholar] [CrossRef]
  7. Kasmai, M.; Ahmadinezhad, M. Climate and Architecture; Khak Nashr: Tehran, Iran, 2003. [Google Scholar]
  8. Baboli Biabani Moghadam, F.; Ibrahim, N.; Sharif, D.M. design characteristics and adaptive role of the traditional courtyard houses in the moderate climate of Iran. Procedia Soc. Behav. Sci. 2015, 201, 213–223. [Google Scholar] [CrossRef]
  9. Huang, K.-T.; Lin, T.-P.; Lien, H.-C. Investigating thermal comfort and user behaviors in outdoor spaces: A seasonal and spatial perspective. Adv. Meteorol. 2015, 2015, 423508. [Google Scholar] [CrossRef]
  10. Li, K.; Zhang, Y.; Zhao, L. Outdoor thermal comfort and activities in the urban residential community in a humid subtropical area of China. Energy Build. 2016, 133, 498–511. [Google Scholar] [CrossRef]
  11. Tavassoli, M. Organic unity between urban and architectural elements: Urban blocks, courtyard houses, ivans, domes, and wind catchers. In Urban Structure in Hot Arid Environments; Springer: Cham, Switzerland, 2016; pp. 107–138. [Google Scholar]
  12. Mirmoghtadaee, M. Process of housing transformation in Iran. J. Constr. Dev. Ctries. 2009, 14, 69–80. [Google Scholar]
  13. Al-Mamoori, H.S. How to activate courtyard in buildings of gridiron planning pattern to be of sustainable thermal comfort. Procedia Environ. Sci. 2016, 34, 190–201. [Google Scholar] [CrossRef]
  14. Cantón, M.A.; Ganem, C.; Barea, G.; Llano, J.F. Courtyards as a passive strategy in semi dry areas. assessment of summer energy and thermal conditions in a refurbished school building. Renew. Energy 2014, 69, 437–446. [Google Scholar]
  15. Mokhtarshahi Sani, R.; Mahasti, P. An inquiry into cultural continuity and change in housing: An Iranian perspective. Sociol. Mind 2013, 3, 230. [Google Scholar] [CrossRef]
  16. Tabesh, T.; Sertyesilisik, B. An Investigation into energy performance with the integrated usage of a courtyard and atrium. Buildings 2016, 6, 21. [Google Scholar] [CrossRef]
  17. Behbood, K.T.; Taleghani, M.; Heidari, S. Energy efficient architectural design strategies in hot-dry area of Iran: Kashan. Emir. J. Eng. Res. 2010, 15, 85–91. [Google Scholar]
  18. Gangwar, G. Environmental, behavioural and aesthetic aspects of courtyard design: Literature review. Imp. J. Interdiscip. Res. 2016, 2, 1712–1716. [Google Scholar]
  19. Soflaei, F.; Shokouhian, M.; Shemirani, S.M.M. Investigation of Iranian traditional courtyard as passive cooling strategy (a field study on BS climate). Int. J. Sustain. Built Environ. 2016, 5, 99–113. [Google Scholar] [CrossRef]
  20. Soflaei, F.; Shokouhian, M.; Zhu, W. Socio-environmental sustainability in traditional courtyard houses of Iran and China. Renew. Sustain. Energy Rev. 2017, 69, 1147–1169. [Google Scholar] [CrossRef]
  21. Yang, J.; Wang, Z.-H.; Kaloush, K.E.; Dylla, H. Effect of pavement thermal properties on mitigating urban heat islands: a multi-scale modeling case study in phoenix. Build. Environ. 2016, 108, 110–121. [Google Scholar] [CrossRef]
  22. Cho, S.; Mohammadzadeh, N. Thermal Comfort Analysis of a Traditional Iranian Courtyard for the Design of Sustainable Residential Buildings. In Proceedings of the 13th Conference of International Building Performance Simulation Association, Chambéry, France, 25–28 August 2013. [Google Scholar]
  23. Hejazi, M.; Saradj, F.M. Persian Architectural Heritage: Architecture, Structure and Conservation; WIT Press: Southampton, UK, 2014. [Google Scholar]
  24. Almhafdy, A.; Ibrahim, N.; Ahmad, S.S.; Yahya, J. Courtyard design variants and microclimate performance. Procedia Soc. Behav. Sci. 2013, 101, 170–180. [Google Scholar] [CrossRef]
  25. Bridson, D. Courtyard Housing Study-Djingis Khan and the Kingo Houses; Lund University: Lund, Sweden, 2012. [Google Scholar]
  26. Almhafdy, A.; Ibrahim, N.; Ahmad, S.S.; Yahya, J. Analysis of the courtyard functions and its design variants in the malaysian hospitals. Procedia Soc. Behav. Sci. 2013, 105, 171–182. [Google Scholar] [CrossRef]
  27. Ahadi, P.; Shemrani, S.M.M. Investigate and comparison physical patterns of courtyard in Iran’s cold and hot-arid climates (Case Studues: Tabriz and Yazd). Indian J. Fundam. Appl. Life Sci. 2014, 4, 1742–1750. [Google Scholar]
  28. Al-Masri, N.; Abu-Hijleh, B. Courtyard housing in midrise buildings: An environmental assessment in hot-arid climate. Renew. Sustain. Energy Rev. 2012, 16, 1892–1898. [Google Scholar] [CrossRef]
  29. Ghaffarianhoseini, A.; Berardi, U.; Ghaffarianhoseini, A. Thermal performance characteristics of unshaded courtyards in hot and humid climates. Build. Environ. 2015, 87, 154–168. [Google Scholar] [CrossRef]
  30. Cotana, F.; Rossi, F.; Filipponi, M.; Coccia, V.; Pisello, A.L.; Bonamente, E.; Petrozzib, A.; Cavalaglioa, G. Albedo control as an effective strategy to tackle global warming: A case study. Appl. Energy 2014, 130, 641–647. [Google Scholar] [CrossRef]
  31. Yang, J.; Wang, Z.H.; Kaloush, K.E. Environmental impacts of reflective materials: is high albedo a ‘silver bullet’ for mitigating urban heat island? Renew. Sustain. Energy Rev. 2015, 47, 830–843. [Google Scholar] [CrossRef]
  32. Cohen, P.; Potchter, O.; Matzarakis, A. Daily and seasonal climatic conditions of green urban open spaces in the mediterranean climate and their impact on human comfort. Build. Environ. 2012, 51, 285–295. [Google Scholar] [CrossRef]
  33. La Roche, P.; Berardi, U. Comfort and energy savings with active green roofs. Energy Build. 2014, 82, 492–504. [Google Scholar] [CrossRef]
  34. Makaremi, N.; Salleh, E.; Jaafar, M.Z.; Ghaffarian Hoseini, A. Thermal comfort conditions of shaded outdoor spaces in hot and humid climate of Malaysia. Build. Environ. 2012, 48, 7–14. [Google Scholar] [CrossRef]
  35. Morakinyo, T.E.; Dahanayake, K.K.C.; Ng, E.; Chow, C.L. Temperature and cooling demand reduction by green-roof types in different climates and urban densities: A co-simulation parametric study. Energy Build. 2017, 145, 226–237. [Google Scholar] [CrossRef]
  36. Nasir, R.A.; Ahmad, S.S.; Ahmed, A.Z. Adapting human comfort in an urban area: the role of tree shades towards urban regeneration. Procedia Soc. Behav. Sci. 2015, 170, 369–380. [Google Scholar] [CrossRef]
  37. Perini, K.; Magliocco, A. Effects of vegetation, urban density, building height, and atmospheric conditions on local temperatures and thermal comfort. Urban For. Urban Green. 2014, 13, 495–506. [Google Scholar] [CrossRef]
  38. Taleghani, M.; Sailor, D.J.; Tenpierik, M.; van den Dobbelsteen, A. Thermal assessment of heat mitigation strategies: The case of Portland State University, Oregon, USA. Build. Environ. 2014, 73, 138–150. [Google Scholar] [CrossRef]
  39. Abdulkareem, H.A. Thermal comfort through the microclimates of the courtyard. A critical review of the middle-eastern courtyard house as a climatic response. Procedia Soc. Behav. Sci. 2016, 216, 662–674. [Google Scholar] [CrossRef]
  40. Berkovic, S.; Yezioro, A.; Bitan, A. Study of thermal comfort in courtyards in a hot arid climate. Sol. Energy 2012, 86, 1173–1186. [Google Scholar] [CrossRef]
  41. Manioğlu, G.; Oral, G.K. Effect of courtyard shape factor on heating and cooling energy loads in hot-dry climatic zone. Energy Procedia 2015, 78, 2100–2105. [Google Scholar] [CrossRef]
  42. Rempel, A.R.; Rempel, A.W.; Gates, K.R.; Shaw, B. Climate-responsive thermal mass design for pacific northwest sunspaces. Renew. Energy 2016, 85, 981–993. [Google Scholar] [CrossRef]
  43. El-Deeb, K.; Sherif, A.; El-Zafarany, A. Effect of Courtyard Height and Proportions on Energy Performance of Multi-Storey Air-Conditioned Desert Buildings. In Proceedings of the 30th International Plea Conference, Ahmedabad, India, 16–18 December 2014. [Google Scholar]
  44. Almhafdy, A.; Ibrahim, N.; Ahmad, S.S.; Yahya, J. Thermal performance analysis of courtyards in a hot humid climate using computational fluid dynamics CFD method. Procedia Soc. Behav. Sci. 2015, 170, 474–483. [Google Scholar] [CrossRef]
  45. Yaşa, E.; Ok, V. Evaluation of the effects of courtyard building shapes on solar heat gains and energy efficiency according to different climatic regions. Energy Build. 2014, 73, 192–199. [Google Scholar]
  46. Zakhour, S. The impact of urban geometry on outdoor thermal comfort conditions in hot-arid region. J. Civ. Eng. Architect. Res. 2015, 2, 862–875. [Google Scholar]
  47. Jamei, E.; Rajagopalan, P.; Seyedmahmoudian, M.; Jamei, Y. Review on the impact of urban geometry and pedestrian level greening on outdoor thermal comfort. Renew. Sustain. Energy Rev. 2016, 54, 1002–1017. [Google Scholar] [CrossRef]
  48. Zamani, Z.; Taleghani, M.; Hoseini, S.B. Courtyard as solutions in green architecture to reduce environmental pollution. Energy Educ. Sci. Technol. 2012, 30, 385–396. [Google Scholar]
  49. Soflaei, F.; Shokouhian, M.; Mofidi Shemirani, S.M. Traditional Iranian courtyards as microclimate modifiers by considering orientation, dimensions, and proportions. Front. Architect. Res. 2016, 5, 225–238. [Google Scholar] [CrossRef]
  50. Taleghani, M.; Tenpierik, M.; van den Dobbelsteen, A. Energy performance and thermal comfort of courtyard/atrium dwellings in the netherlands in the light of climate change. Renew. Energy 2014, 63, 486–497. [Google Scholar] [CrossRef]
  51. Oliveira, S.; Andrade, H.; Vaz, T. The cooling effect of green spaces as a contribution to the mitigation of urban heat: A case study in Lisbon. Build. Environ. 2011, 46, 2186–2194. [Google Scholar] [CrossRef]
  52. Shahidan, M.F.; Jones, P.J.; Gwilliam, J.; Salleh, E. An evaluation of outdoor and building environment cooling achieved through combination modification of trees with ground materials. Build. Environ. 2012, 58, 245–257. [Google Scholar] [CrossRef]
  53. Srivanit, M.; Hokao, K. Evaluating the cooling effects of greening for improving the outdoor thermal environment at an institutional campus in the summer. Build. Environ. 2013, 66, 158–172. [Google Scholar] [CrossRef]
  54. Santos, T.; Silva, C.; Tenedório, J.A. Modelling Urban Thermal Comfort: Evaluating the Impact of the Urban Requalification Project of Praça Duque De Saldanha and Avenida Da República in Lisbon. In Proceedings of the International Conference on Geographical Information Systems Theory, Applications and Management, Rome, Italy, 26–27 April 2017. [Google Scholar]
  55. Dimoudi, A.; Zoras, S.; Kantzioura, A.; Stogiannou, X.; Kosmopoulos, P.; Pallas, C. Use of cool materials and other bioclimatic interventions in outdoor places in order to mitigate the urban heat island in a medium size city in Greece. Sustain. Cities Soc. 2014, 13, 89–96. [Google Scholar] [CrossRef]
  56. Santamouris, M. Cooling the cities—A review of reflective and green roof mitigation technologies to fight heat island and improve comfort in urban environments. Sol. Energy 2014, 103, 682–703. [Google Scholar] [CrossRef]
  57. Benrazavi, R.S.; Binti Dola, K.; Ujang, N.; Sadat Benrazavi, N. Effect of pavement materials on surface temperatures in tropical environment. Sustain. Cities Soc. 2016, 22, 94–103. [Google Scholar] [CrossRef]
  58. Bulmer, D. How can computer simulated visualizations of the built environment facilitate better public participation in the planning process. Online Plan. J. 2001, 11, 1–43. [Google Scholar]
  59. Christensen, V.; Walters, C.J. Ecopath with Ecosim: Methods, capabilities and limitations. Ecol. Model. 2004, 172, 109–139. [Google Scholar] [CrossRef]
  60. Goshayeshi, D.; Shahidan, M.F.; Khafi, F.; Ehtesham, E. A review of researches about human thermal comfort in semi-outdoor spaces. Eur. Online J. Nat. Soc. Sci. 2013, 2, 516. [Google Scholar]
  61. Matzarakis, A.; Rutz, F.; Mayer, H. Modelling radiation fluxes in simple and complex environments—Application of the RayMan model. Int. J. Biometeorol. 2007, 51, 323–334. [Google Scholar] [CrossRef] [PubMed]
  62. Hwang, R.L.; Lin, T.P.; Matzarakis, A. Seasonal effects of urban street shading on long-term outdoor thermal comfort. Build. Environ. 2011, 46, 863–870. [Google Scholar] [CrossRef]
  63. Lin, T.P.; Matzarakis, A. Tourism climate and thermal comfort in Sun Moon Lake, Taiwan. Int. J. Biometeorol. 2008, 52, 281–290. [Google Scholar] [CrossRef] [PubMed]
  64. Lin, T.P.; Matzarakis, A.; Hwang, R.L. Shading effect on long-term outdoor thermal comfort. Build. Environ. 2010, 45, 213–221. [Google Scholar] [CrossRef]
  65. Matzarakis, A.; Fröhlich, D.; Gangwisch, M. Effect of radiation and wind on thermal comfort in urban environments—Applications of the RayMan and SkyHelios model. In Proceedings of the 4th International Conference on Countermeasures to Urban Heat Island, Singapore, 30 May–1 June 2016. [Google Scholar]
  66. Turrin, M.; Von Buelow, P.; Kilian, A.; Stouffs, R. Performative skins for passive climatic comfort: A parametric design process. Autom. Constr. 2012, 22, 36–50. [Google Scholar] [CrossRef]
  67. Bruse, M.; Fleer, H. Simulating surface–plant–air interactions inside urban environments with a three dimensional numerical model. Environ. Model. Softw. 1998, 13, 373–384. [Google Scholar] [CrossRef]
  68. Lindberg, F.; Holmer, B.; Thorsson, S. SOLWEIG 1.0–Modelling spatial variations of 3D radiant fluxes and mean radiant temperature in complex urban settings. Int. J. Biometeorol. 2008, 52, 697–713. [Google Scholar] [CrossRef] [PubMed]
  69. Teller, J.; Azar, S. Townscope II—A computer system to support solar access decision-making. Sol. Energy 2001, 70, 187–200. [Google Scholar] [CrossRef][Green Version]
  70. Ochoa, C.E.; Capeluto, I.G. Advice tool for early design stages of intelligent facades based on energy and visual comfort approach. Energy Build. 2009, 41, 480–488. [Google Scholar] [CrossRef]
  71. Schlueter, A.; Thesseling, F. Building information model based energy/exergy performance assessment in early design stages. Autom. Constr. 2009, 18, 153–163. [Google Scholar] [CrossRef]
  72. Attia, S.; Gratia, E.; De Herde, A.; Hensen, J.L. Simulation-based decision support tool for early stages of zero-energy building design. Energy Build. 2012, 49, 2–15. [Google Scholar] [CrossRef][Green Version]
  73. Granadeiro, V.; Duarte, J.P.; Correia, J.R.; Leal, V.M. Building envelope shape design in early stages of the design process: Integrating architectural design systems and energy simulation. Autom. Constr. 2013, 32, 196–209. [Google Scholar] [CrossRef]
  74. Negendahl, K. Building performance simulation in the early design stage: An introduction to integrated dynamic models. Autom. Constr. 2015, 54, 39–53. [Google Scholar] [CrossRef]
  75. Taleghani, M.; Kleerekoper, L.; Tenpierik, M.; Van Den Dobbelsteen, A. Outdoor thermal comfort within five different urban forms in The Netherlands. Build. Environ. 2015, 83, 65–78. [Google Scholar] [CrossRef]
  76. Oliveira, S.; Marco, E.; Getting, B.; Organ, S. Outwith domain within terrain-Effects of early design energy modelling on architects’ design practice. In Proceedings of the International Conference on Integrated Design: Building Our Future, Bath, UK, 30 June–1 July 2016. [Google Scholar]
  77. Miyamoto, A.; Trigaux, D.; Nguyen Van, T.; Allacker, K.; De Troyer, F. From a Simple Tool for Energy Efficient Design in the Early Design Phase to Dynamic Simulations in a Later Design Stage. In Expanding Boundaries: Systems Thinking for the Built Environment; vdf Hochschulverlag: Zürich, Switzerland, 2016. [Google Scholar]
  78. Johansson, E.; Spangenberg, J.; Gouvêa, M.L.; Freitas, E.D. Scale-integrated atmospheric simulations to assessthermal comfort in different urbantissues in the warm humid summer of São Paulo, Brazil. Urban Clim. 2013, 6, 24–43. [Google Scholar] [CrossRef]
  79. Rosheidat, A.; Bryan, H.; Hoffman, D. Using Envi-Met Simulation as a Tool to Optimize Downtown Phoenix’s Urban Form for Pedestrian Comfort. In Proceedings of the SOLAR 2008: Catch the Clean Energy Wave, Including 37th ASES Annual Conference, 33rd National Passive Solar Conference and 3rd Renewable Energy Policy and Marketing Conference, San Diego, CA, USA, 3–8 May 2008. [Google Scholar]
  80. Rosheidat, A.; Hoffman, D.; Bryan, H. Visualizing pedestrian comfort using ENVI-met. Ibpsa-Usa J. 2008, 3, 198–205. [Google Scholar]
  81. Elnabawi, M.H.; Hamza, N.; Dudek, S. Use and Evaluation of the ENVI-met Model for two Different Urban Forms in Cairo, Egypt: Measurements and Model Simulations. In Proceedings of the 13th Conference of International Building Performance Simulation Association, Chambéry, France, 25–28 August 2013. [Google Scholar]
  82. Hedquist, B.C.; Brazel, A.J. Seasonal variability of temperatures and outdoor human comfort in Phoenix, Arizona, USA. Build. Environ. 2014, 72, 377–388. [Google Scholar] [CrossRef]
  83. Salata, F.; Golasi, I.; Vollaro, E.D.L.; Bisegna, F.; Nardecchia, F.; Coppi, M.; Gugliermetti, F.; Vollaro, A.D.L. Evaluation of different urban microclimate mitigation strategies through a PMV analysis. Sustainability 2015, 7, 9012–9030. [Google Scholar] [CrossRef]
  84. Ng, E.; Chen, L.; Wang, Y.; Yuan, C. A study on the cooling effects of greening in a high-density city: an experience from Hong Kong. Build. Environ. 2012, 47, 256–271. [Google Scholar] [CrossRef]
  85. Spangenberg, J.; Shinzato, P.; Johansson, E.; Duarte, D. Simulation of the influence of vegetation on microclimate and thermal comfort in the city of São Paulo. Revista da Sociedade Brasileira de Arborização Urbana 2008, 3, 1–19. [Google Scholar]
  86. Ali-Toudert, F.; Mayer, H. Effects of asymmetry, galleries, overhanging facades and vegetation on thermal comfort in urban street canyons. Sol. Energy 2007, 81, 742–754. [Google Scholar] [CrossRef]
  87. Peng, L.L.; Jim, C. Green-roof effects on neighborhood microclimate and human thermal sensation. Energies 2013, 6, 598–618. [Google Scholar] [CrossRef][Green Version]
  88. Skelhorn, C.P.; Levermore, G.; Lindley, S.J. Impacts on cooling energy consumption due to the UHI and vegetation changes in Manchester, UK. Energy Build. 2016, 122, 150–159. [Google Scholar] [CrossRef][Green Version]
  89. Yu, C.; Hien, W.N. Thermal benefits of city parks. Energy Build. 2006, 38, 105–120. [Google Scholar] [CrossRef]
  90. Akbari, H.; Wang, Y.; Berardi, U. Comparing the effects of urban heat island mitigation. J. Mol. Boil. 2015, 342, 131–143. [Google Scholar]
  91. Bruse, M. ENVI-Met 3.1 Online Manual. 2009. Available online: http://www. (accessed on 14 July 2014).
  92. Ozkeresteci, I.; Crewe, K.; Brazel, A.; Bruse, M. Use and evaluation of the ENVI-met model for environmental design and planning: An experiment on linear parks. In Proceedings of the 21st International Cartographic Conference (ICC), Durban, South Africa, 10–16 August 2003. [Google Scholar]
  93. Wania, A.; Bruse, M.; Blond, N.; Weber, C. Analysing the influence of different street vegetation on traffic-induced particle dispersion using microscale simulations. J. Environ. Manag. 2012, 94, 91–101. [Google Scholar] [CrossRef] [PubMed]
  94. Hofman, J.; Bartholomeus, H.; Janssen, S.; Calders, K.; Wuyts, K.; Van Wittenberghe, S. Influence of tree crown characteristics on the local PM10 distribution inside an urban street canyon in Antwerp (Belgium): A model and experimental approach. Urban For. Urban Green. 2016, 20, 265–276. [Google Scholar] [CrossRef]
  95. Huttner, S. Further Development and Application of the 3D Microclimate Simulation ENVI-Met. Ph.D. Thesis, Mainz University, Mainz, Germany, 2012. [Google Scholar]
  96. Song, B.G.; Park, K.H.; Jung, S.G. Validation of ENVI-met model with in situ measurements considering spatial characteristics of land use types. J. Korean Assoc. Geogr. Inf. Stud. 2014, 17, 156–172. [Google Scholar]
  97. Taleghani, M. Dwelling on courtyards: Exploring the energy efficiency and comfort potential of courtyards for dwellings in the Netherlands. Archit. Built Environ. 2014, 18. [Google Scholar] [CrossRef]
  98. Lee, H.; Mayer, H. Validation of the mean radiant temperature simulated by the RayMan software in urban environments. Int. J. Biometeorol. 2016, 60, 1775–1785. [Google Scholar] [CrossRef] [PubMed]
  99. Wang, Y.; Berardi, U.; Akbari, H. Comparing the effects of urban heat island mitigation strategies for Toronto, Canada. Energy Build. 2016, 114, 2–19. [Google Scholar] [CrossRef]
  100. Yang, X.; Zhao, L.; Bruse, M.; Meng, Q. Evaluation of a microclimate model for predicting the thermal behavior of different ground surfaces. Build. Environ. 2013, 60, 93–104. [Google Scholar] [CrossRef]
Figure 1. Different steps of the simulation by ENVI-met software.
Figure 1. Different steps of the simulation by ENVI-met software.
Buildings 08 00166 g001
Figure 2. Long-term physiological equivalent temperature (PET) frequency of Isfahan (1951–2010).
Figure 2. Long-term physiological equivalent temperature (PET) frequency of Isfahan (1951–2010).
Buildings 08 00166 g002
Figure 3. Example of common trees in the traditional courtyards of Isfahan.
Figure 3. Example of common trees in the traditional courtyards of Isfahan.
Buildings 08 00166 g003
Figure 4. The process of the validation procedure.
Figure 4. The process of the validation procedure.
Buildings 08 00166 g004
Figure 5. General layout of the Javaheriha house.
Figure 5. General layout of the Javaheriha house.
Buildings 08 00166 g005
Figure 6. Comparison of the Ta field measurement and simulation data in the first random day.
Figure 6. Comparison of the Ta field measurement and simulation data in the first random day.
Buildings 08 00166 g006
Figure 7. Comparison of the Ta field measurement and simulation data in the second random day.
Figure 7. Comparison of the Ta field measurement and simulation data in the second random day.
Buildings 08 00166 g007
Figure 8. General layout of the orientation step.
Figure 8. General layout of the orientation step.
Buildings 08 00166 g008
Figure 9. Comparison chart of Ta of the courtyard models.
Figure 9. Comparison chart of Ta of the courtyard models.
Buildings 08 00166 g009
Figure 10. Comparison chart of Tmrt of the courtyard models.
Figure 10. Comparison chart of Tmrt of the courtyard models.
Buildings 08 00166 g010
Figure 11. Ta LEONARDO visualization of the courtyards.
Figure 11. Ta LEONARDO visualization of the courtyards.
Buildings 08 00166 g011
Figure 12. Comparison chart of Ta of courtyards based on height variation.
Figure 12. Comparison chart of Ta of courtyards based on height variation.
Buildings 08 00166 g012
Figure 13. Comparison of Ta of courtyards based on albedo variation.
Figure 13. Comparison of Ta of courtyards based on albedo variation.
Buildings 08 00166 g013
Figure 14. Comparison of Tmrt of courtyards based on albedo variation.
Figure 14. Comparison of Tmrt of courtyards based on albedo variation.
Buildings 08 00166 g014
Figure 15. Comparison of Ta of courtyards based on vegetation variation.
Figure 15. Comparison of Ta of courtyards based on vegetation variation.
Buildings 08 00166 g015
Figure 16. Comparison of Tmrt of courtyards based on vegetation variation.
Figure 16. Comparison of Tmrt of courtyards based on vegetation variation.
Buildings 08 00166 g016
Table 1. A review of studies on factors affecting the environmental conditions of courtyards.
Table 1. A review of studies on factors affecting the environmental conditions of courtyards.
StudyThe Study AreaReferences
Studying the compatibility of yard elements with different weather conditions and orientation based on it.Cold and hot-arid regions of Iran, Tabriz, and Yazd[27]
Studying the climactic performance of a U-shaped yard in a general hospital in Malaysia based on the proportions of variables in yard size and orientation.Tropical climate[24]
Studying factors such as orientation, size, and height of walls around the yard, and their effect on comfort inside the yard and in surrounding areas.The hot-arid climate of Dubai, The United Arab Emirates[28]
Studying the effect of different ratios of a yard’s width to length on energy consumption in summer and winter.Hot-dry climates[41]
Modeling a 10-story building in Cairo’s desert climate and comparing this with a building in the temperate climate of Berlin in terms of the impact of height ratio and thickness of the built environment around the yard on energy consumption.Desert climates[43]
Studying the role of the suspended ceiling (canopy) and the proportions of the yard on wind speed and thermal comfort, as well as providing the appropriate ratio.Tropical climate[44]
Assessing the effect of the shape and size of the yard on the absorption of solar energy, energy consumption, and thermal performance of the building in different climates through changes in height.Hot-dry climate, Hot-moist climate and Cold climate” with different characteristics dominant in Turkey[45]
Investigating the effect of urban morphology and geometry on the environment and the outdoor thermal comfort of open space in a warm and dry climate.Hot-arid climate[46]
Table 2. Review of studies of simulation usage at the early stage of design.
Table 2. Review of studies of simulation usage at the early stage of design.
AuthorsStudy AreaResults
[70]Energy consumptionSurveying intelligent façade via energy plus simulation.
[71]Energy and exergyEmphasis on the importance of the earlier simulation.
[72]Simulation-based decisionAssessment of the different concepts of zero-energy houses.
[73]Integrated simulation conceptsA solution proposed to integrate energy simulation in design systems and methodology.
[74]Review study related to the earlier stage simulationThe paper concluded the advantages of earlier stage consideration in 5 general concepts.
[75]Urban forms and outdoor thermal comfortThe paper proposed an optimum urban form reaching maximum outdoor thermal comfort.
[76]Simulation’s role in architecture trainingThe paper provided an understanding of how architects negotiate the means of energy in the design.
[77]Assessment of different sketches through energy consumptionConsidering the energy consumption of high-rise building regarding its surrounding urban context.
Table 3. The monthly average of air temperature from 1951–2010. (, 2017).
Table 3. The monthly average of air temperature from 1951–2010. (, 2017).
Ta (min)Ta (max)Ta (mean)RH% (min)RH% (max)RH% (mean)Wind DirWind Speed m/sPET K
Table 4. Environmental data of the referenced day from the environmental department of Iran.
Table 4. Environmental data of the referenced day from the environmental department of Iran.
Environmental Parameters00 (UTC)03 (UTC)06 (UTC)09 (UTC)012 (UTC)015 (UTC)018 (UTC)021 (UTC)
Air temperature (°K)297.15296.15306.15311.15312.15311.15305.15301.15
Pressure hPa841.500842.600843.800842.900841.600840.900841.400842.700
Dew point (°K)274.15276.15274.15272.15270.15271.15275.15273.15
Wind speed m/s00265000
Table 5. Conditions used in the simulations with ENVI-met 3.1.
Table 5. Conditions used in the simulations with ENVI-met 3.1.
Simulation Day30.06.2015
Simulation period (h)14 h (6:00–20:00)
Spatial resolution (m)1 m horizontally, 2 m vertically
Initial Temperature (K)296.15 K
Wind speed (m/s)3 m/s
Wind direction (N = 0, E = 90)90
Relative humidity (in 2 m) (%)27%
Inside temperature (K)293 K
Heat transmission (w/m2)Wall = 1.6 w/m2
AlbedoWall = 0.35 roofs = 0.18
Walking Speed (m/s)0.0 m/s
Energy-Exchange (Col. 2 M/A)116
Mech. Factor (met)0.0
Heat transfer resistance cloths (clo)0.5 clo
Initial Temperature Upper Layer (0–20 cm) (K)296.16 K
Initial Temperature Middle Layer (20–50 cm) (K)294.15 K
Initial Temperature Deep Layer (below 50 cm) (K)290.15 K
Relative Humidity Upper Layer (0–20 cm) (%)27%
Relative Humidity Middle Layer (20–50 cm) (%)29%
Relative Humidity Deep Layer (below 50 cm) (%)32%
Table 6. List of the plants used in the simulation.
Table 6. List of the plants used in the simulation.
Plant’s IDDescription
B1Tree 3 m dense, distinct crown layer (Deciduous tree)
gGrass 50 cm aver. dense
Table 7. Isfahan configuration data for ENVI-met 3.1 validation.
Table 7. Isfahan configuration data for ENVI-met 3.1 validation.
Simulation ParametersDay 1Day 2
Simulation day15.06.201419.06.2014
Simulation period (h)24 h (21:00–21:00)24 h (21:00–21:00)
Spatial resolution (m)1 m horizontally, 2 m vertically1 m horizontally, 2 m vertically
Initial Temperature (K)295.15 K299.15 K
Wind speed (m/s)1 m/s315 m/s
Wind direction (N = 0, E = 90)00
Relative humidity (in 2 m) (%)65%52%
Indoor temperature (K)300 K300 K
Initial Temperature Upper Layer (0–20 cm) (K)295.15 K299.15 K
Initial Temperature Middle Layer (20–50 cm) (K)292.15 K296.15 K
Initial Temperature Deep Layer (below 50 cm) (K)288.15 K289.15 K
Relative Humidity Upper Layer (0–20 cm) (%)65%52%
Relative Humidity Middle Layer (20–50 cm) (%)67%54%
Relative Humidity Deep Layer (below 50 cm) (%)70%58%
Adjustment factor for solar radiation11
Turbulence modelUse default valuesUse default values
LBC(Lateral Boundary Conditions)For Ta, RH: Open, turbulence; forcedFor Ta, RH: Open, turbulence; forced
Table 8. The measured and simulated air temperature for the first day.
Table 8. The measured and simulated air temperature for the first day.
HoursSimulated Air Temperature (15.06.2015)Measured Air Temperature (15.06.2015)
00:00299.27 K299.4 K
03:00295.59 K296.51 K
06:00300.27 K302.27 K
09:00308.27 K307.69 K
12:00309.95 K308.41 K
15:00311.83 K308.53 K
18:00306.46 K305.85 K
21:00302.67 K302.56 K
Table 9. The measured and simulated air temperature for the second day.
Table 9. The measured and simulated air temperature for the second day.
HoursSimulated Air Temperature (19.06.2015)Measured Air Temperature (19.06.2015)
00:00296.48 K296.56 K
03:00296.67 K295.88 K
06:00301.96 K303.48 K
09:00308.74 K309.76 K
12:00309.51 K310.6 K
15:00309.83 K308.91 K
18:00305.31 K303.5 K
21:00299.44 K302.52 K
Table 10. Physical features of the selected courtyard.
Table 10. Physical features of the selected courtyard.
House NameVegetation Area/CourtyardAlbedo of Facade Total Height (m)Orientation
Javaheri house0.20.824.42Central
David and Sokias house0.560.338.20Southern yard
Sheikh Al-Islam house0.250.333.53Northern yard
Qazviniha house0.430.358.75Eastern yard
Zeitoun residential complex0.730.4612.22Central
Table 11. Environmental parameters of the selected courtyards.
Table 11. Environmental parameters of the selected courtyards.
House NameWS m/sRH%Ta k
Javaheri house5.111.56323.15
David and Sokias house2.614.3316.34
Sheikh Al-Islam house4.813.21317.25
Qazviniha house413.4310.15
Zeitoun residential complex4.215.23309.15

Share and Cite

MDPI and ACS Style

Hasehzadeh Haseh, R.; Khakzand, M.; Ojaghlou, M. Optimal Thermal Characteristics of the Courtyard in the Hot and Arid Climate of Isfahan. Buildings 2018, 8, 166.

AMA Style

Hasehzadeh Haseh R, Khakzand M, Ojaghlou M. Optimal Thermal Characteristics of the Courtyard in the Hot and Arid Climate of Isfahan. Buildings. 2018; 8(12):166.

Chicago/Turabian Style

Hasehzadeh Haseh, Roya, Mehdi Khakzand, and Morteza Ojaghlou. 2018. "Optimal Thermal Characteristics of the Courtyard in the Hot and Arid Climate of Isfahan" Buildings 8, no. 12: 166.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
