A Study of Factors Influencing the Compliance of Design Estimates at the Construction Stage of Residential Buildings
Abstract
:1. Introduction and Literature Review
1.1. Introductory Information
1.2. Definition of Research Problems
- 1.
- What are the degrees of dependencies between the data obtained for the monitored apartment buildings? This question was investigated in terms of the following:
- The size of an apartment building and the price indicator per 1 m3 of built-up space;
- The size of an apartment building and the cost estimate value from the design stage achieved during execution;
- The variability in the price indicator per 1 m3 of built-up space over time;
- The variability in the price indicator per 1 m3 of built-up space and the cost estimate value from the design stage achieved during execution;
- The variability in the cost estimate value from the design stage achieved during execution over time.
- 2.
- What factors and risks affect the issue of cost estimation during preparation and the costs achieved during execution?
- 3.
- What digitalization methods could help to refine the cost estimates from the design stage? How often are these methods applied in practice?
- 4.
- What sustainable technologies are currently being applied in the apartment building segment? Or, potentially, what are their implications for the values of price indicators and the differences between design cost estimates and execution costs?
1.3. Cost Estimate
1.4. Building Digitalization
- A single environment shared among the different participants in the construction process through the so-called Common Data Environment—during preparation, construction and management;
- A 3D view of the building or the entire project, including non-graphical data;
- More effective decision making related to project management bringing economic benefits.
1.5. Sustainability in Construction
1.6. Summary of Literature Review
- In general, there are not many up-to-date articles dealing with different methods of data collection, their evaluation and the setting of key factors affecting cost estimation in the building industry. Therefore, among others, the authors of this article perceive their published data as beneficial to the academic community.
- The key to successful cost estimation is current market information with some time-lagged prediction of future development. Within the construction segment, there are several cost databases, usually linked to local standards and produced by private engineering organizations. Nevertheless, these databases cannot be fully applied by construction companies, and they must always conduct their own market monitoring and price calculations according to their capabilities and resources.
- The current trend in cost estimation is parametric estimation in construction, based on the input information/parameters of a respective building and the documented price data. This discipline allows for the development of costs based on a few inputs about a future structure in its early design stages. However, a comprehensive corporate database from the company´s past projects and the proper evaluation of market trends are necessary.
- The BIM digitalization method in the form of a digital building model brings, among other things, the opportunity to increase the efficiency of cost estimation during production and the probability of cost compliance during the execution stage. However, the digital building model of a building is not the standard practice for all construction projects, and excessive standards for its creation are still being developed. This situation is likely to continue in the traditionally conservative building industry for several more years.
- The sustainability topic is gradually gaining momentum, both in terms of the search for “green solutions” to increase environmental friendliness and cost savings, particularly in the operational stage of the life cycle, and, more recently, the intensification of the requirements arising from legislation and the banking sector. A current drawback is the fact that most sustainable or innovative materials lack the necessary database related to cost estimation issues, which introduces a certain degree of risk and uncertainty. According to the reviewed publications, Nordic European countries (especially Norway, Denmark, Sweden) and selected Asian regions (e.g., Malaysia and Korea) seem to be leaders in the application of sustainable technologies. The authors of this article provide information on sustainable technologies and the frequency of their application in residential development on the Czech market and how “successful” it is to estimate the costs of the respective technologies during building design.
2. Materials and Methods
2.1. Structural and Technological Design of Selected Apartment Buildings

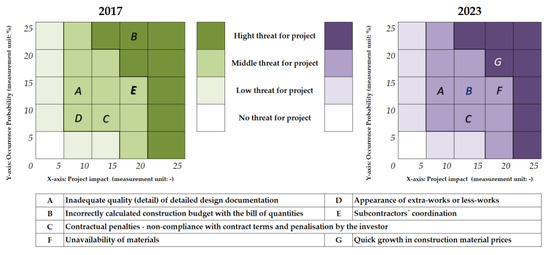

2.2. Factors and Risks
- Inadequate quality (detail) of detailed design documentation;
- Incorrectly calculated construction budget with the bill of quantities;
- Contractual penalties, non-compliance with contract terms and penalization by the investor;
- Appearance of extra work or less work;
- Subcontractors´ coordination;
- The unavailability of materials;
- Quick growth in construction material prices.

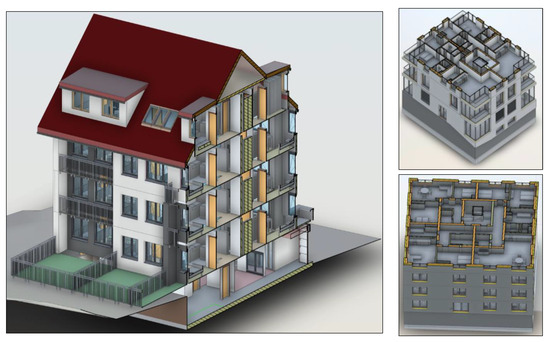

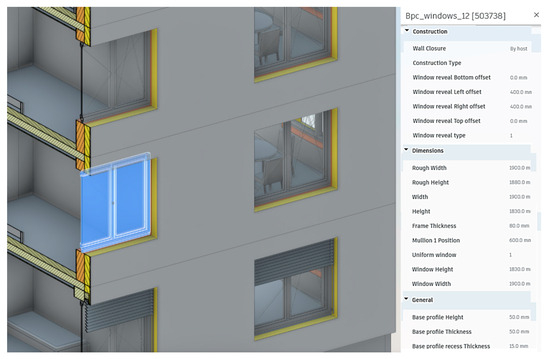

2.3. Digital Building Model
3. Results and Discussion

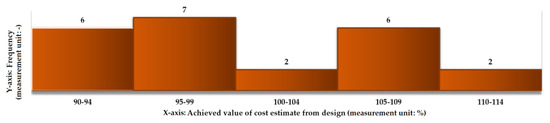

3.1. Overview of Results
3.2. Responses to Research Problems
- 1.
- What are the degrees of dependencies between the data obtained for the monitored apartment buildings?

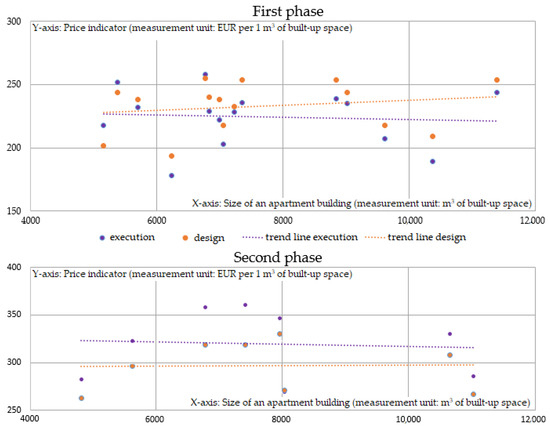

- The degree of correlation between the size of an apartment building and the price indicator per 1 m3 of built-up space:

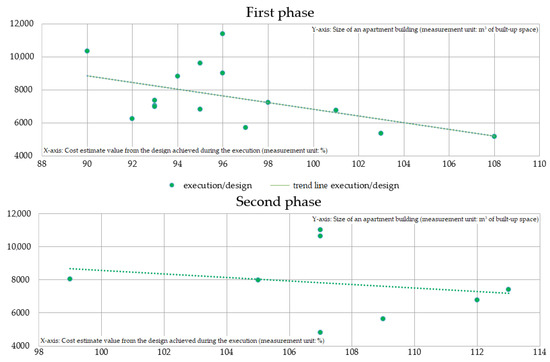

- The degree of correlation between the size of an apartment building and the cost estimate value from the design achieved during execution:

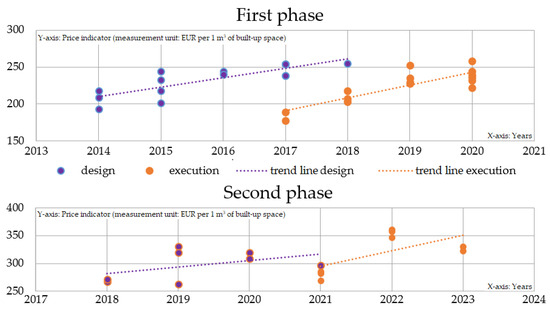

- The degree of correlation between the price indicator and time:

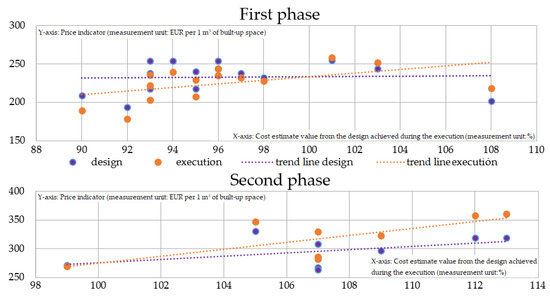

- The degree of correlation between of the price indicator and the cost estimate value from the design stage achieved during execution:

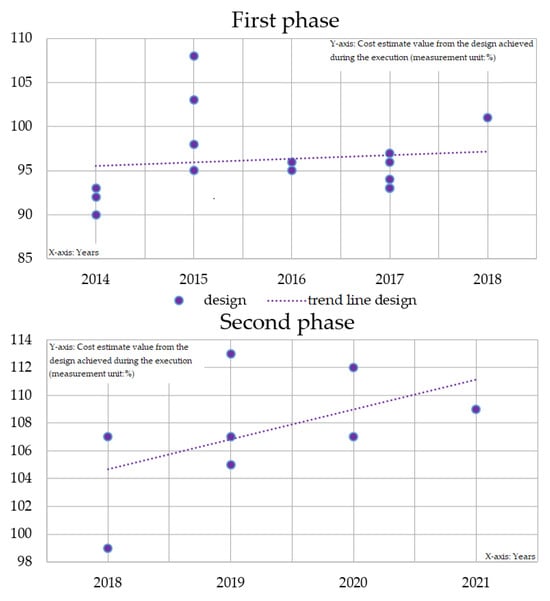

- The degree of correlation between the cost estimate value from the design stage and the costs achieved during execution over time:
- 2.
- What factors and risks enter the issue of estimating costs during preparation and the costs achieved during execution?
- 3.
- What digitalization methods could help to refine the cost estimates from the design stage? How often are these methods applied in practice?
- 4.
- What sustainable technologies are currently being applied in the apartment building segment? Or, potentially, what are their implications for the values of price indicators and the differences between design cost estimates and execution costs?
3.3. Summarization of Results
4. Conclusions
- The identification of the factors and risks affecting cost differences between the design and execution stage in two time frames with their probability of occurrence and potential impacts on the construction project;
- Capturing the evolution of price indicators over the last seven years, both in terms of the design and execution;
- Creating a realistic picture of the work with costs during the execution stage by comparing them with the estimate from the design stage;
- The compilation of different types of dependencies between the cost, time and technological parameters of a building, providing an interesting and well-founded picture of the obtained data;
- Capturing the differences between the cost estimates from the design stage and the actual costs achieved during execution over time;
- The compilation of types of sustainable technologies gradually incorporated within a selected segment of the building industry, including cost implications for design and execution;
- The determination of the frequency of the use of the BIM method (especially the BIM model) and its meaningfulness, especially in cost estimation in the design stage;
- The general approach to data collection and data evaluation in cost issues in the building industry.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Czech Statistical Office. Available online: https://www.czso.cz/csu/czso/inflation_rate (accessed on 15 March 2024).
- Eurostat. Available online: https://ec.europa.eu/eurostat/web/products-datasets/-/tec00118 (accessed on 6 April 2024).
- British Engineering Organization: Building Cost Information Service. Available online: https://bcis.co.uk/ (accessed on 10 May 2024).
- German Engineering Organization: F:Data, GmbH. Available online: https://www.baupreislexikon.de/ (accessed on 10 May 2024).
- Czech Engineering Organization: ÚRS CZ, a.s. Available online: https://www.urs.cz/ (accessed on 10 May 2024).
- Palaneeswaran, E.; Kumaraswamy, M.M. Contractor selection for design/build projects. J. Constr. Eng. Manag. 2000, 126, 331–339. [Google Scholar] [CrossRef]
- Heralová, R.S. Importance of Life Cycle Costing for Construction Projects. Eng. Rural. Dev. 2018, 17, 1223–1227. [Google Scholar] [CrossRef]
- Wang, B.; Dai, J. Discussion on the prediction of engineering cost based on improved BP neural network algorithm. J. Intell. Fuzzy Syst. 2019, 37, 6091–6098. [Google Scholar] [CrossRef]
- Idowu, O.S.; Lam, K.C. Conceptual Quantities Estimation Using Bootstrapped Support Vector Regression Models. J. Constr. Eng. Manag. 2020, 146, 04020018. [Google Scholar] [CrossRef]
- Jiang, F.; Xie, H.; Inti, S.; Issa, R.R.A.; Vanka, V.S.V.; Yu, Y.; Huang, T. Data-Driven Decision Support for Equipment Selection and Maintenance Issues for Buildings. Buildings 2024, 14, 436. [Google Scholar] [CrossRef]
- Alhammadi, Y.; Al-Mohammad, M.S.; Rahman, R.A. Modeling the Causes and Mitigation Measures for Cost Overruns in Building Construction: The Case of Higher Education Projects. Buildings 2024, 14, 487. [Google Scholar] [CrossRef]
- Jrade, A.; Alkass, S. Automated parametric cost estimating model for building projects. In Proceedings of the Annual Conference-Canadian Society for Civil Engineering, Toronto, ON, Canada, 2–4 June 2005; Volume 2005, pp. CT-126-1–CT-126-8. Available online: https://www.scopus.com/record/display.uri?eid=2-s2.0-33748959710&origin=inward&txGid=b3e5a2d15067241228fa024b9cf54bbb (accessed on 10 May 2024).
- Simion-Melinte, C. Factors Influencing the Choice of Cost Estimates Types And The Accuracy of Estimates For Construction Projects. In Proceedings of the 10th International Management Conference (IMC): Challenges of Modern Management, Ucharest, Romania, 3–4 November 2016; pp. 50–56. Available online: https://www.webofscience.com/wos/woscc/full-record/000396393900006 (accessed on 10 May 2024).
- Swei, O.; Gregory, J.; Kirchain, R. Construction cost estimation: A parametric approach for better estimates of expected cost and variation. Transp. Res. Part B Methodol. 2017, 101, 295–305. [Google Scholar] [CrossRef]
- Ji, S.; Park, M.; Lee, H.S.; Yoon, Y.S. Data preprocessing method for cost estimation of building projects. In Proceedings of the 27th International Symposium on Automation and Robotics in Construction, Bratislava, Slovakia, 25–27 June 2010; pp. 634–643. Available online: https://www.scopus.com/inward/record.uri?eid=2-s2.0-84863747420&partnerID=40&md5=bc7a925cfc2ed6d317847c5094b65bfd (accessed on 10 May 2024).
- Sonmez, R. Parametric range estimating of building costs using regression models and bootstrap. J. Constr. Eng. Manag. 2008, 134, 1011–1016. [Google Scholar] [CrossRef]
- Khosakitchalert, C.; Yabuki, N.; Fukuda, T. Automated modification of compound elements for accurate BIM-based quantity takeoff. Autom. Constr. 2020, 113, 103142. [Google Scholar] [CrossRef]
- Olatunji, O.A.; Sher, W. Perspectives on Modelling BIM-enabled Estimating Practices. Constr. Econ. Build. 2014, 14, 32–53. [Google Scholar] [CrossRef]
- British Engineering Organization: National Building Specification (NBS). Available online: https://www.thenbs.com/knowledge/what-is-building-information-modelling-bim (accessed on 12 March 2024).
- Alzraiee, H. Cost estimate system using structured query language in BIM. Int. J. Constr. Manag. 2020, 22, 2731–2743. [Google Scholar] [CrossRef]
- Harshit; Chaurasia, P.; Zlatanova, S.; Jain, K. Low-Cost Data, High-Quality Models: A Semi-Automated Approach to LOD3 Creation. ISPRS Int. J. Geo-Inf. 2024, 13, 119. [Google Scholar] [CrossRef]
- Taihairan, R.B.R.; Ismail, Z. BIM: Integrating Cost Estimates at Initial/Design Stage. Int. J. Sustain. Constr. Eng. Technol. 2015, 6, 62–74. Available online: https://www.webofscience.com/wos/woscc/full-record/000434610200006 (accessed on 10 May 2024).
- Elghaish, F.; Abrishami, S.; Hosseini, M.R.; Abu-Samra, S. Revolutionising cost structure for integrated project delivery: A BIM-based solution. Eng. Constr. Archit. Manag. 2021, 28, 1214–1240. [Google Scholar] [CrossRef]
- Tokla, S.; Subsomboon, K. Building costs for projects in Thailand. Int. J. Geomate 2020, 18, 101–107. [Google Scholar] [CrossRef]
- Austern, G.; Bloch, T.; Abulafia, Y. Incorporating Context into BIM-Derived Data—Leveraging Graph Neural Networks for Building Element Classification. Buildings 2024, 14, 527. [Google Scholar] [CrossRef]
- Gelder, J. The principles of a classification system for BIM: Uniclass 2015. In Living and Learning: Research for a Better Built Environment; 49th International Conference of the Architectural-Science-Association, 2015; Univ Melbourne, Fac Architecture Bldg & Planning: Melbourne, Australia; pp. 287–297. Available online: https://www.webofscience.com/wos/woscc/full-record/000381380100028 (accessed on 10 May 2024).
- Pupeikis, D.; Navickas, A.A.; Klumbyte, E.; Seduikyte, L. Comparative Study of Construction Information Classification Systems: CCI versus Uniclass 2015. Buildings 2022, 12, 656. [Google Scholar] [CrossRef]
- Akanbi, T.; Zhang, J.S. IFC-Based Algorithms for Automated Quantity Takeoff from Architectural Model: Case Study on Residential Development Project. J. Archit. Eng. 2023, 29, 05023007. [Google Scholar] [CrossRef]
- Molsa, M.; Demian, P.; Gerges, M. BIM Search Engine: Effects of Object Relationships and Information Standards. Buildings 2023, 13, 1591. [Google Scholar] [CrossRef]
- Yang, J.B.; Chou, H.Y. Subjective benefit evaluation model for immature BIM-enabled stakeholders. Autom. Constr. 2019, 106, 102908. [Google Scholar] [CrossRef]
- Zhang, W.; Xue, M.M. A New Method to Explore the Cost-Market-Efficiency of Green Buildings. In Proceedings of the International Symposium on Construction Economy and Management, Shenzhen, China, 21–22 May 2010; pp. 60–64. Available online: https://www.webofscience.com/wos/woscc/full-record/WOS:000288285000012 (accessed on 10 May 2024).
- Gou, Z.H. Green building for office interiors: Challenges and opportunities. Facilities 2017, 34, 614–629. [Google Scholar] [CrossRef]
- Qian, S.; Jian, Z.; Rui, H.; Jing, H.; Stephen, P. Identifying the critical factors for green construction—An empirical study in China. Habitat Int. 2013, 40, 1–8. [Google Scholar] [CrossRef]
- Mayne, J. Sustainability Analysis of Intervention Benefits: A Theory of Change Approach. Can. J. Program Eval. 2020, 35, 204–221. [Google Scholar] [CrossRef]
- Elnabawi, M.H. Building Information Modeling-Based Building Energy Modeling: Investigation of Interoperability and Simulation Results. Front. Built Environ. 2020, 6, 573971. [Google Scholar] [CrossRef]
- Zhang, J.S.; Zhao, L.H.; Ren, G.Q.; Li, H.J.; Li, X.F. Special Issue “Digital Twin Technology in the AEC Industry”. Adv. Civ. Eng. 2020, 2020, 8842113. [Google Scholar] [CrossRef]
- Nadir, A.M.; Alberton, A.; Saath, K.C.D. Tax benefits and sustainability: A study of municipalities in the state of Santa Catarina. Rev. Adm. Publica 2021, 55, 331–356. [Google Scholar] [CrossRef]
- Lozano, R.; Barreiro-Gen, M.; Zafar, A. Collaboration for organizational sustainability limits to growth: Developing a factors, benefits, and challenges framework. Sustain. Dev. 2021, 29, 728–737. [Google Scholar] [CrossRef]
- Manzoor, B.; Othman, I.; Kang, J.M.; Geem, Z.W. Influence of Building Information Modeling (BIM) Implementation in High-Rise Buildings towards Sustainability. Appl. Sci. 2021, 11, 7626. [Google Scholar] [CrossRef]
- Czech Statistical Office. Available online: https://www.czso.cz/csu/czso/bvz_cr (accessed on 15 March 2024).
- Czech Engineering Organization: RTS, a.s. Available online: https://www.cenovasoustava.cz/default.asp?Bid=3&ID=3 (accessed on 10 May 2024).
- Vitásek, S.; Žák, J. BIM for cost estimation. In Advances and Trends in Engineering Sciences and Technologies III.; CRC Press, Taylor & Francis Group: London, UK, 2019; pp. 543–549. [Google Scholar] [CrossRef]
- Vitásek, S. Using Building Information Modelling (BIM) in construction budget: Benefits and barriers. In Proceedings of the 18th International Scientific Conference, Engineering for Rural Development, Jelgava, Latvia, 22–24 May 2019; pp. 1699–1706. [Google Scholar] [CrossRef]
- Sonmez, R.; Ergin, A. Quantitative methodology for determination of cost contingency in international projects. J. Manag. Eng. 2007, 23, 35–39. [Google Scholar] [CrossRef]
- Sungho, T.; Sungwoo, S.; Hyungill, K.; Sungkyun, H.; Jongsun, L.; Sanghyun, H.; Jinwon, R. Life cycle environmental loads and economic efficiencies of apartment buildings built with plaster board drywall. Renew. Sustain. Energy Rev. 2011, 15, 4145–4155. [Google Scholar] [CrossRef]
- Lützkendorf, T. Assessing the environmental performance of buildings: Trends, lessons and tensions. Build. Res. Inf. 2018, 46, 594–614. [Google Scholar] [CrossRef]
Material/Product | Composite Index 2021–2023 |
---|---|
fresh concrete | 1.436 |
steel reinforcement for concrete | 1.835 |
grown structural timber | 1.117 |
concrete masonry element | 1.420 |
porous concrete masonry element | 1.404 |
burnt masonry element | 1.584 |
concrete masonry element | 1.420 |
ceramic tiles | 1.539 |
insulation product of polystyrene foam for buildings | 1.697 |
gypsum fibre board | 1.456 |
Apartment Building Marking | Built-Up Spaces [m3] | Achieved Value of Cost Estimate from Design [%] | Applied Technologies | |
---|---|---|---|---|
Completion by 2020 | A | 10,362 | 90 | GCB/L |
B | 6237 | 92 | HCP | |
C | 7047 | 93 | GCB/L | |
D | 5154 | 108 | HCP | |
E | 9607 | 95 | GCB/L | |
F | 7222 | 98 | HCP/BIM/L | |
G | 5370 | 103 | GCB/L | |
H | 9012 | 96 | GCB/L | |
I | 6829 | 95 | GCB | |
J | 7353 | 93 | GCB/L | |
K | 5696 | 97 | HCP /BIM | |
L | 8838 | 94 | GCB/L | |
M | 6984 | 93 | HCP /L | |
N | 11,383 | 96 | GCB/L | |
O | 6763 | 101 | GCB+FVE | |
Completion by 2023 | P | 11,029 | 107 | GCB+FVE/CR/L |
Q | 8043 | 99 | BIM/GCB+FVE/CR/L | |
R | 4823 | 107 | GCB+FVE/CR | |
S | 7968 | 105 | BIM/HP+EB+FVE/CR/L | |
T | 7418 | 113 | HP+EB/CR/L/GW | |
U | 6784 | 112 | HP+EB/CR/L | |
V | 10,659 | 107 | BIM/GCB/GF/CR/L | |
W | 5635 | 109 | BIM/GCB/L |
Apartment Building Marking | Design-Execution (End of Stage) | Price Indicator–Design [EUR/m3] | Price Indicator–Execution [EUR/m3] | |
---|---|---|---|---|
Completion by 2020 | A | 2014–2017 | 209 | 189 |
B | 2014–2017 | 193 | 178 | |
C | 2014–2018 | 218 | 203 | |
D | 2015–2018 | 201 | 218 | |
E | 2015–2018 | 218 | 207 | |
F | 2015–2019 | 232 | 228 | |
G | 2015–2019 | 244 | 252 | |
H | 2016–2019 | 244 | 235 | |
I | 2016–2019 | 240 | 229 | |
J | 2017–2020 | 254 | 236 | |
K | 2017–2020 | 238 | 232 | |
L | 2017–2020 | 254 | 239 | |
M | 2017–2020 | 238 | 222 | |
N | 2017–2020 | 254 | 244 | |
O | 2018–2020 | 255 | 258 | |
Completion by 2023 | P | 2018–2021 | 267 | 286 |
Q | 2018–2021 | 271 | 269 | |
R | 2019–2021 | 263 | 282 | |
S | 2019–2022 | 330 | 347 | |
T | 2019–2022 | 319 | 361 | |
U | 2020–2022 | 319 | 358 | |
V | 2020–2023 | 308 | 330 | |
W | 2021–2023 | 296 | 323 |
