Active Confinement of Masonry Walls with Stainless Steel Straps: The Effect of Strap Arrangement on the in-Plane Behavior of Strength, Poisson’s Ratio, and Pseudo-Ductility

Abstract

Among all the active confinement techniques, the use of pre-tensioned stainless steel straps has recently gained much attention. The flexibility of the stainless steel straps allows us to bend and pass them through the thickness of the masonry, thus creating a three-dimensional strengthening system between the two opposite facings. The use of the same perforation for the passage of several straps closed in a loop generates a continuous strengthening system that prevents parts of the structure from falling and injuring the occupants during seismic events. However, the perforations can nullify the in-plane strengthening, as they act as cylindrical hinges and make the reinforcement system labile for certain strap arrangements. Diagonal compression tests on square masonry panels performed in the present study show that the straps improve neither strength nor ductility when running along the mortar head and bed joints, arranged in square meshes. Conversely, they improve both strength and ductility when the straps make angles of ±45° with the mortar joints. Furthermore, the experimental results show that the straps exert an anisotropic effect that decreases the apparent in-plane Poisson ratio. They also provide new insights into the diagonal compression test and allow formulating a new proposal for the pseudo-ductility factor.

1. Introduction

Masonry structures are of great interest to civil engineering, as they constitute the majority of the historic building heritage of many countries and are a building typology still widely used throughout the world. Unfortunately, most of the existing masonry structures date from periods before the introduction of any seismic regulations [1]. Therefore, they are mainly suitable for bearing gravitational loads, while their lateral bearing capacity is poor. This, together with the inherently chaotic nature [2], high seismic mass, and limited ductility of the masonry material, makes unreinforced masonry (URM) structures highly vulnerable to seismic shaking [3,4,5,6,7]. The consequences for the safety of those inside or in the immediate vicinity of these structures are dramatic. Suffice it to say that masonry structures are believed to be the cause of about two-thirds of the total death toll from earthquakes over the last 100 years [8]. Therefore, finding a solution for the low tensile strength and poor ductility of masonry units—i.e., the main causes of their seismic vulnerability [9]—is a major concern of civil engineering [10]. This gave rise to the need to reinforce masonry structures and study the behavior of reinforced masonry (RM).

There are two main categories of reinforcement techniques for masonry buildings: passive reinforcements and active reinforcements [11]. The latter category, younger than the first category, is gaining more and more attention from designers [12,13,14,15]. Its strength compared to the first category is that it does not require structural damage to occur before going into operation. Contrary to passive reinforcements, in fact, active reinforcements act on structural elements from the moment of their installation.

1.1. General Information on the CAM^® System

Among the various techniques of active reinforcement, this work focuses on the CAM^® system (active confinement of masonry: CAM is the Italian acronym for active stitching of masonry) [16,17,18,19,20]. This system is an evolution of the strengthening method with post-tensioned horizontal and vertical tie rods [21,22,23,24,25,26,27]. The evolution consists of the strengthening elements of the CAM^® system [28], which are stainless steel straps instead of metal bars. The stainless steel straps pass through the thickness of the masonry thanks to openings made in the masonry by core drilling. Special stainless steel elements protect the edges of the masonry [29] where the stainless steel straps turn around the edges of the wall (Figure S1a) and enter the perforations (Figure S1b). Since up to six stainless steel straps share the same perforation (Figure S2), the CAM^® system is a continuous strengthening system (unlike the tie rods system and all other systems in the same strengthening category). This makes it possible to establish effective connections in three dimensions between all the construction elements (roof, floors, and walls)—starting from the foundations of the building—to obtain or re-establish the so-called box-type behavior (Figure S3).

The loop closure of the straps (Figure S4) creates a strong bond between the two opposite faces of the wall. This improves the monolithic behavior of the masonry wall, especially when the masonry wall consists of two or more weakly connected vertical layers. Furthermore, the closure equipment provides the stainless steel straps with tensile stress, which puts the enclosed portion of the masonry in compression (Figure S4). The transmission of stresses from the strengthening system to the masonry at the time of installation is why the CAM^® system is an active strengthening system.

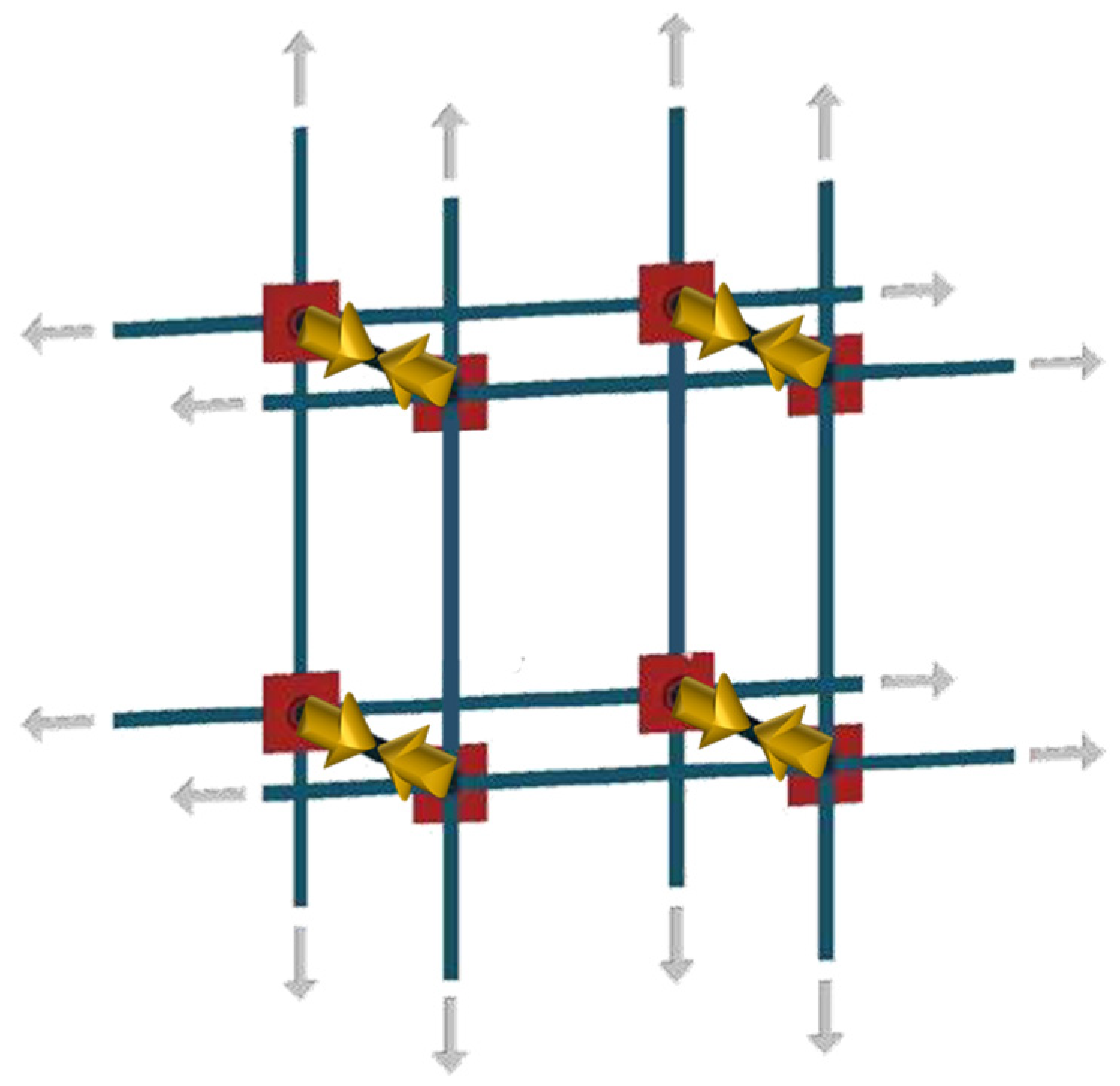

When four stainless steel straps share the perforations and the loops have horizontal and vertical directions (Figure S2), the CAM^® system replicates the reinforcement scheme with horizontal and vertical ties. In this case, known as a rectangular arrangement, the perforations divide the masonry wall into volume units in the shape of right parallelepipeds (Figure 1). The early studies on the CAM^® system [16,17,18,19,20,30,31,32] assumed that the three-dimensional arrangement of the loops provided the parallelepiped volume units with an additional compressive stress field that is hydrostatic, by extension in the three dimensions of the stress transfer mechanism shown in Figure S4. However, further theoretical analyses [11,29] revealed that the CAM^® system adds confinement forces only in the transverse direction (Figure 1), except for volume units located near the free ends of the masonry wall. Recently, the numerical results of a FEM simulation [15] also confirmed that the confinement provided by the CAM^® system to the wall is not isotropic.

1.2. The Idea behind the Experimental Program

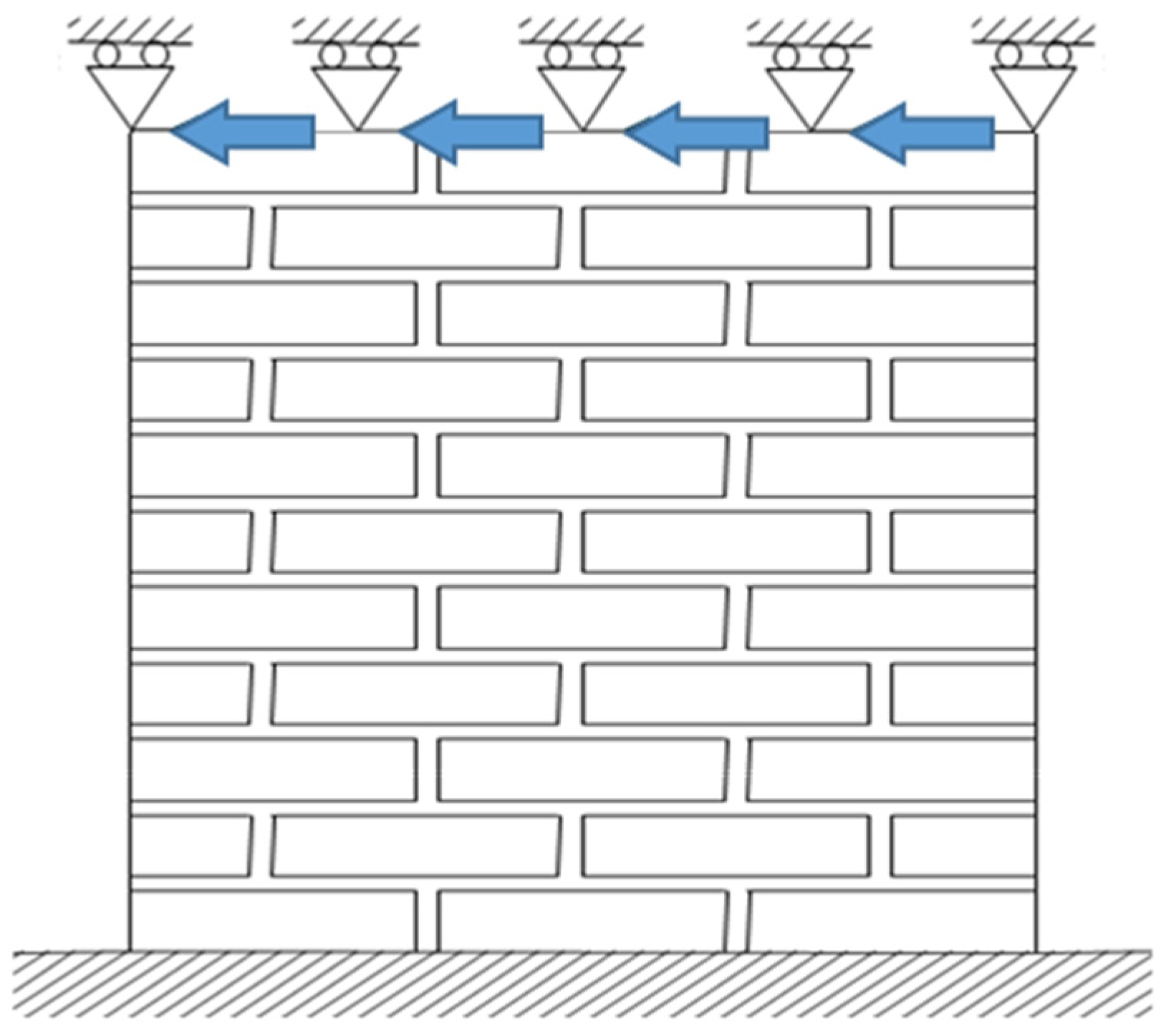

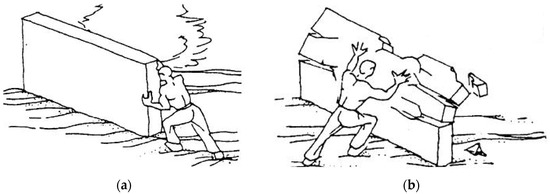

Seismic events impose two types of dominant loads on structures—the in-plane shear load (Figure 2a) and the out-of-plane bending load (Figure 2b)—which causes two types of dominant failure modes in URM structures [33,34]: the in-plane shear mechanisms and the out-of-plane bending mechanisms. The CAM^® system with a rectangular arrangement (Figure 1) is suitable for increasing the out-of-plane strength of masonry walls when used in conjunction with other strengthening systems [29,35,36]. In the plane of the wall, however, the rectangular arrangement does not bring any increase in strength or stiffness. Both in-depth experimental tests [37] and recent numerical analyses [38], in fact, have shown that the rectangular arrangement of the stainless steel straps leads to an almost negligible increase in the strength of the shear-loaded masonry panels while providing a significant increase in ductility. The use of steel grids on both faces of the masonry wall, conversely, increases both the shear strength and the ductility, but the ultimate displacement achieved with the steel grids is lower than that achieved with the CAM^® system [38].

The author of this article is of the opinion that the lack of increase in shear strength with the CAM^® system depends on the arrangement of the perforations, which makes the strengthening system labile to horizontal loads [29]. On the two wall facings, in fact, the straps of the rectangular arrangement form unbraced rectangular frame structures with hinged nodes. Under the action of horizontal forces, these nodes sway laterally exactly like the nodes of the simplified mechanical model in Figure 3a. Therefore, the perforations for the common passage of the straps are cylindrical hinges (Figure 3b), around which the loops connecting the two wall facings can rotate freely.

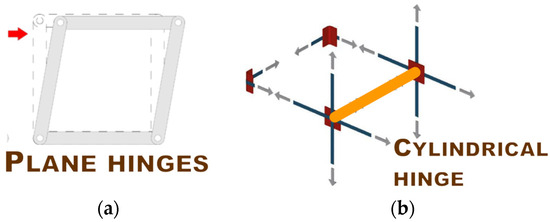

The in-plane lability of the strengthening system with a rectangular arrangement makes the CAM^® system useless under horizontal loads. In order to allow the CAM^® system with a rectangular arrangement to also improve the in-plane behavior of masonry walls subjected to seismic loads, it is therefore mandatory to eliminate its in-plane lability.

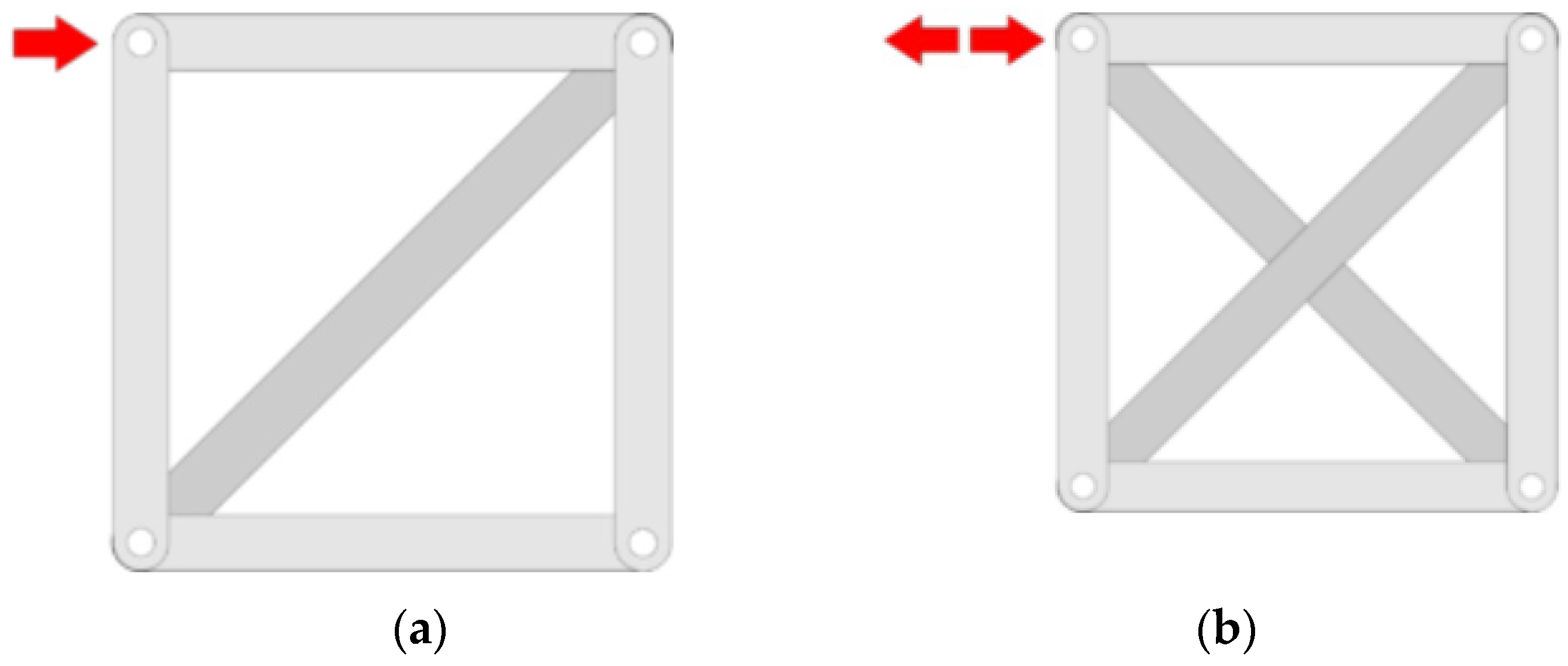

In rectangular frame structures, it is customary to cancel the horizontal displacement of the hinged nodes by bracing the structures along one or both diagonals, as shown in the simplified mechanical models of Figure 4a and Figure 4b, respectively.

The idea behind this article is that bracing is not the only possible solution to remedy the lability of the rectangular arrangement in the CAM^® system, because even labile static schemes can be in equilibrium for certain load directions. In fact, there is at least one load direction (in the plane) that keeps a labile static (plane) scheme in equilibrium. When the load has a fixed direction—such as during a seismic event—it is therefore possible to rotate the labile system, in search of an equilibrium configuration. This suggests that it is possible to avoid (expensive) bracing of the CAM^® system simply by arranging its straps along the most suitable directions in the plane of the wall [29]. The aim of this work was precisely to verify the relationship between the in-plane arrangement of the straps and the ultimate load in the horizontal direction.

The experimental results demonstrate that the CAM^® system with a rectangular arrangement is actually unable to increase the ultimate load under horizontal loads. However, a 45° rotation of the straps makes the rectangular arrangement effective even in the plane of masonry walls. The paper also offers insight into the elastic moduli, Poisson’s ratio, and the pseudo-ductility factor. Finally, the experimental results provided the opportunity to review some of the most commonly adopted assumptions in the interpretation of diagonal compression tests.

2. Experimental Program

There are two experimental methods suitable for characterizing the mechanical properties of a wall subjected to shear loading: the shear-compression test and the diagonal compression test. The first method consists of applying shear forces along the upper side of the specimen, preventing the points of application of the shear load from undergoing vertical displacements (Figure 5).

In the case of a test carried out in the laboratory, the apparatus for transmitting the shear load consists of a steel beam, made integral with the upper side of the specimen. Since the shear load causes the top face of the specimen to rotate about the center of the specimen, the vertical displacement constraint at the top nodes gives rise to positive and negative normal stresses along the specimen–steel beam interface (top side in Figure 6).

This causes detachments in the tensioned portion of the interface, as the interface bond is unable to withstand the tensile stresses. Since the detachments modify the transmission of forces from the steel beam to the specimen, this experimental method does not allow replicating the desired static scheme. Figures 32–34 of Reference [39] show the difference between the desired static scheme and the static scheme corresponding to the shear-compression test performed in the laboratory.

One solution to avoid differences between the desired and actual static schemes is to carry out the experimental test in situ, cutting the masonry wall along two vertical (parallel) paths with a length equal to twice the height of the specimen, while the distance between the two cuts fixes the specimen basis [40]. The application of a horizontal force at half-height of the cuts therefore determines a symmetrical load condition (with a horizontal axis of symmetry) that nullifies the vertical displacements of the points on the axis of symmetry (the line of action of the load). Consequently, the line of action of the load divides the portion of masonry enclosed between the two cuts in two superimposed specimens, both subjected to in-plane shear loading.

The second method is easier to perform than the shear-compression test [41]. It consists of loading one diagonal of a square masonry wall in compression, until failure, which usually involves the formation of cracks along the loaded diagonal. Since the ease of execution does not correspond to an equally easy interpretation of the experimental results (Appendix A), the diagonal compression test was chosen for this experimental program also with the aim of highlighting some contradictions in the most commonly used interpretations of this test [42,43].

With a view to having to collect an initial series of indications, preparatory to subsequent investigations, the experimental program consists of only three diagonal compression tests on as many square-shaped masonry specimens. In particular, the specimens are three single-headed masonry walls (Figure 7a), made with 18 rows of solid UNI bricks. The masonry walls have a thickness, $t$, of 120 mm, while the two sides in the plane, of equal length $w=h$, are 1160 mm long (Figure 7b). Sixteen perforations drilled at regular intervals of 325 mm with a diameter, $\varnothing$, of 40 mm (Figure 7b) ensure the passage through the wall thickness of the stainless steel straps of the active reinforcement.

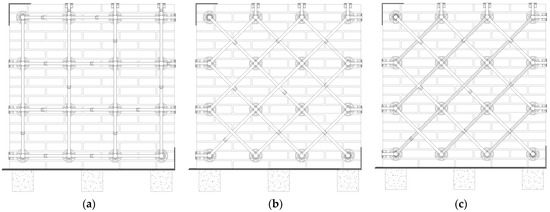

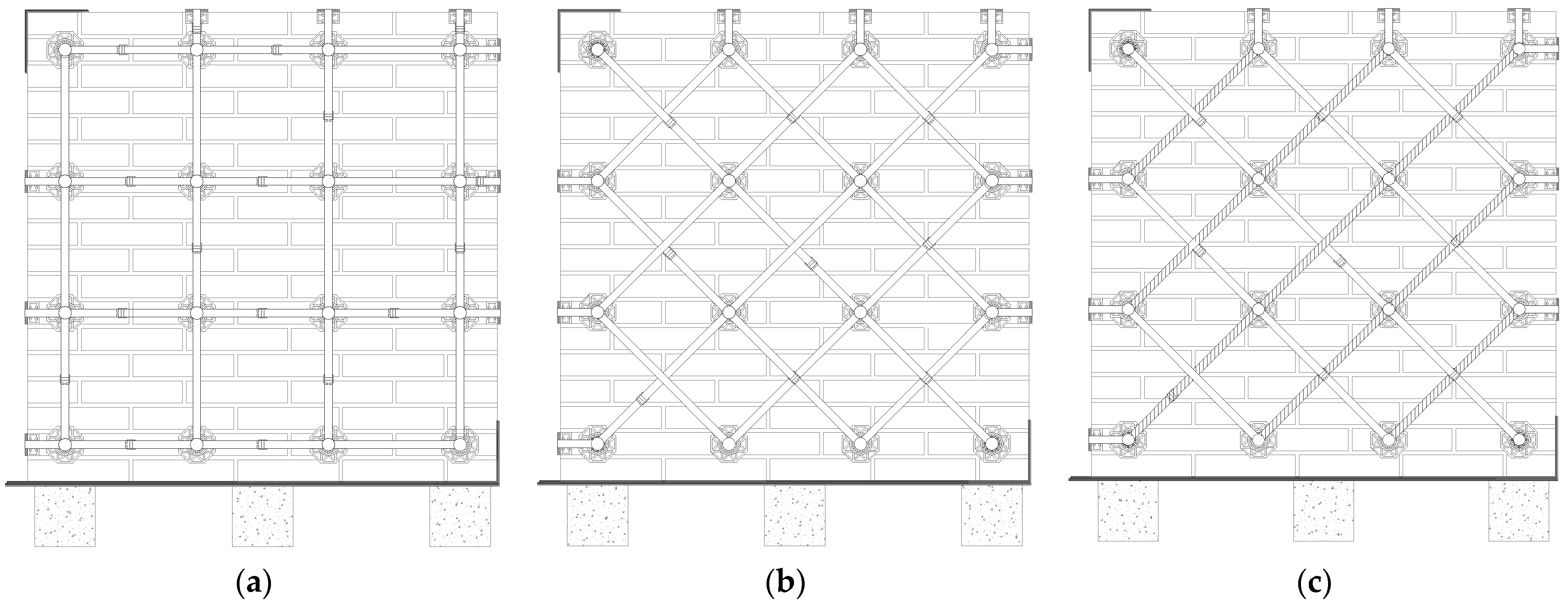

The three specimens differ in the arrangement and number of stainless steel straps per loop (Figure 8):

• Specimen M1-90: one strap per loop along the directions of the mortar head and bed joints (Figure 8a);
• Specimen M1-45: one strap per loop along the directions forming $\pm 45°$ angles with the mortar head and bed joints (Figure 8b), that is, along the compressed and tensioned directions (Appendix A);
• Specimen M2-45: one strap per loop along the compressed direction (straps without screening in Figure 8c) and two straps per loop along the tensioned direction (straps with screening in Figure 8c).

2.1. Material Properties

2.1.1. Bricks

The UNI solid bricks measure 250 mm long, 55 mm high, and 120 mm deep (L × H × D: 250 × 55 × 120 mm).

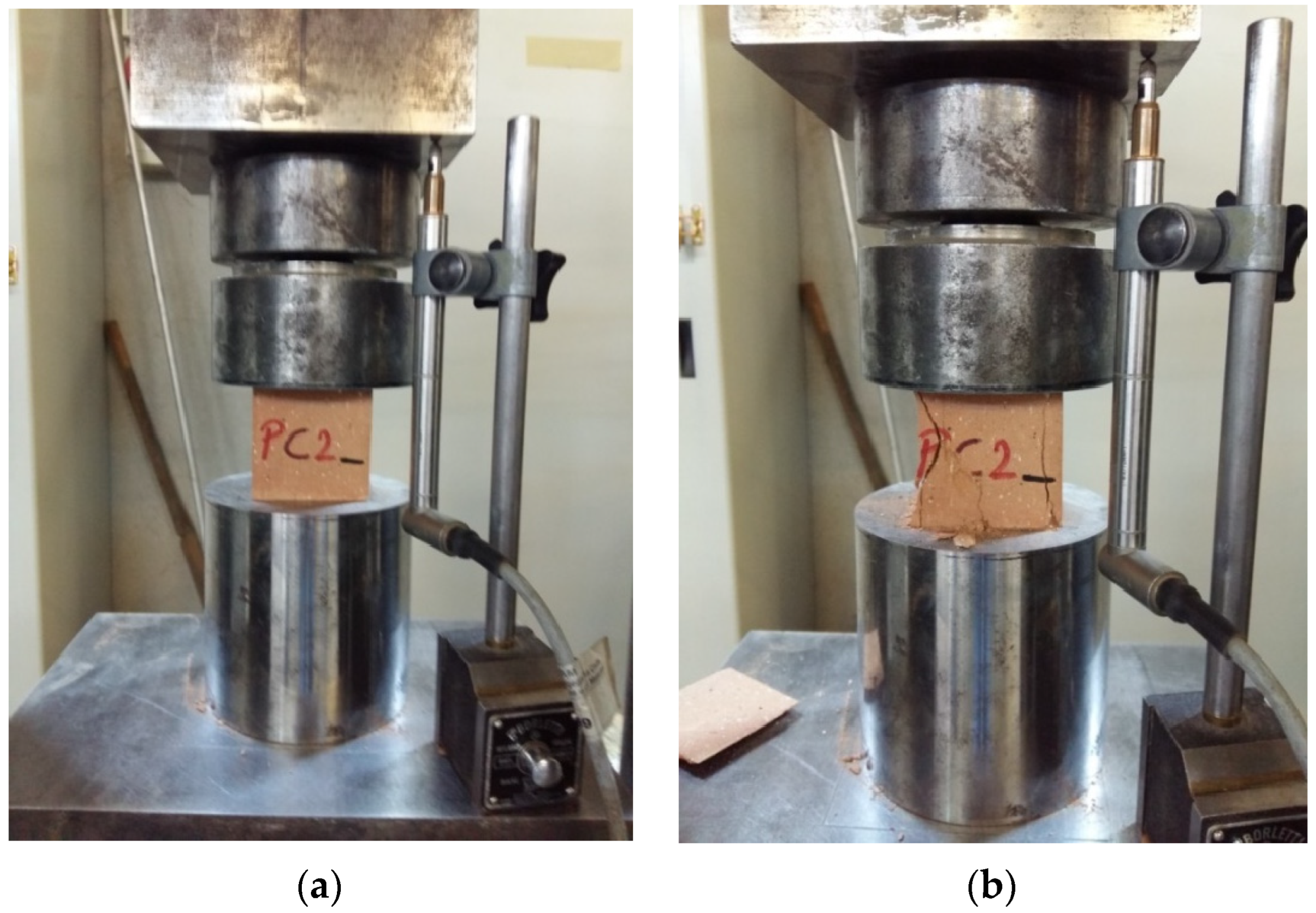

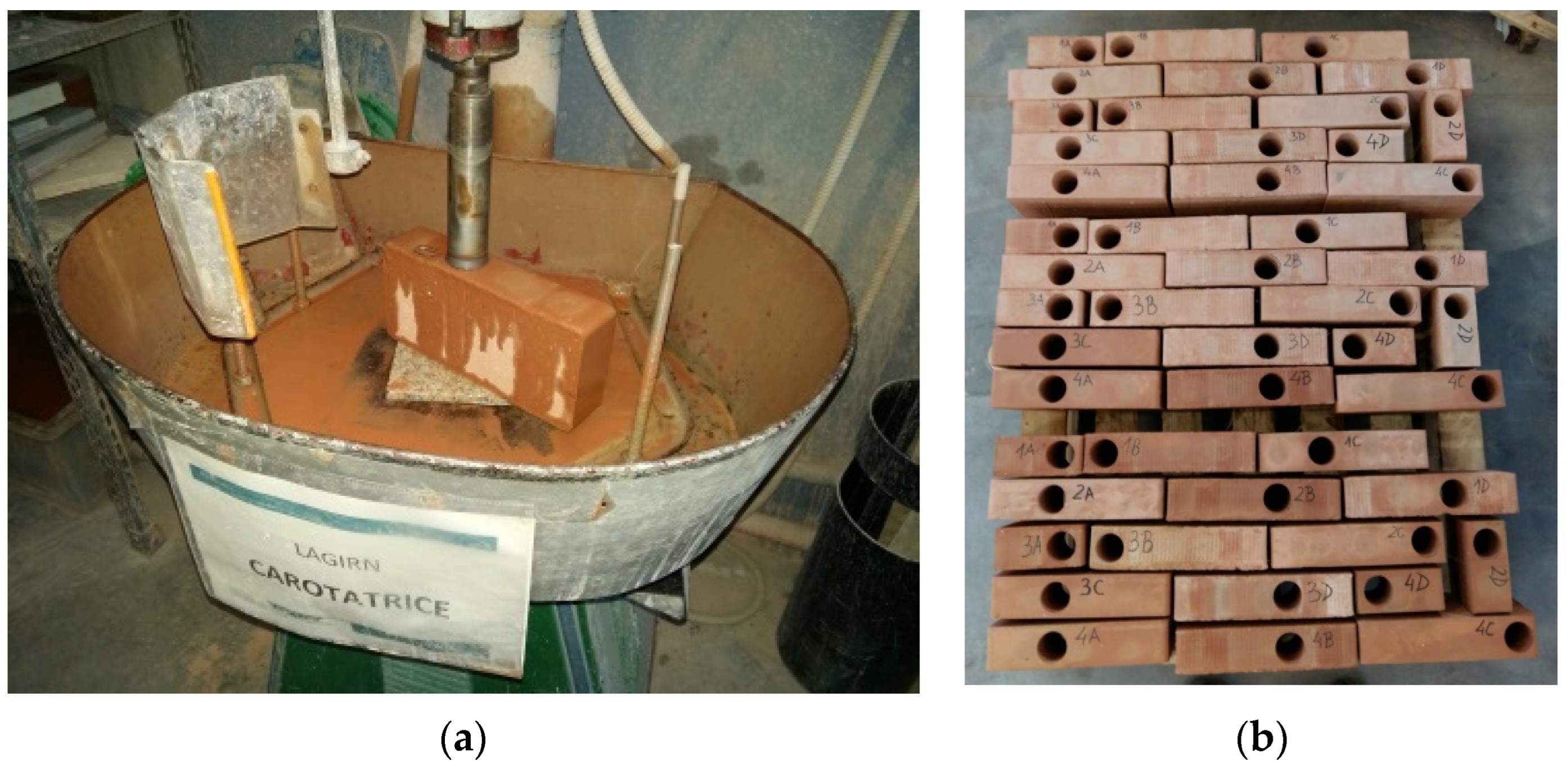

The reference standard for the mechanical characterization of bricks is UNI EN 772-1:2015 [44]. This required choosing three bricks from the delivered brick pallet and cutting them into six specimens measuring 50 × 50 × 50 mm (specimen labels: PA1, PA2, PB1, PB2, PC1, and PC2). The mechanical characterization then consisted of a uniaxial compression test (Figure 9a) until failure (Figure 9b). The testing machine was an Amsler compression-testing machine, with a maximum capacity of 588.399 kN (60 t).

The standard converts the compressive strength obtained for the specimens into a value that depends on the dimensions of the specimens (the normalized compressive strength for specimens obtained from bricks). To this end, it introduces the shape factor, $\delta$, as the corrective factor for the compressive strength. In the case of specimens of length 50 mm and height 50 mm, $\delta$ takes the value of 0.85 [44]. This gave rise to the values of normalized compressive strength in

Table 1. Results of the compression tests on bricks.

Specimen	Compressive Strength (MPa)	Normalized Compressive Strength (MPa)
PA1	36.43	30.96
PA2	36.18	30.75
PB1	35.30	30.01
PB2	33.27	28.28
PC1	37.87	32.19
PC2	38.31	32.57

, with an average value of $30.79 \mathrm{MPa}$.

2.1.2. Mortar

The mortar used in the experimental program was weber MP910 of Saint-Gobain Italia S.p.A., a pre-blended mortar of cement with compression resistance class M5 (in compliance with the European standard EN 998-2:2016 [45]).

Table 2. Technical data sheet of weber MP910 (Saint-Gobain Italia S.p.A.).

Technical Characteristic	Value
Maximum grain size [46]	$3 \mathrm{mm}$
Compressive strength—after 28 days [47]	$\ge 5.0 \mathrm{MPa}$
Flexural strength—after 28 days [47]	$\ge 2.0 \mathrm{MPa}$
Reaction to fire [48]	Euroclass A1: Non-combustible
Shrinkage rate	$-0.4 \mathrm{mm}/\mathrm{m}$
Bulk of hardened product	$1900 \mathrm{kg}/{\mathrm{m}}^3$
Water vapor permeability coefficient [49]	$\mu <15/35$
Cement content by weight	$11\%$
Lime content by weight	$3\%$
Aggregate content by weight	$86\%$
Thermal conductivity [50]	$0.76 \mathrm{W}/\mathrm{mK}$
Water absorption [51]	$W0 \left(0.5 \mathrm{kg}/{\mathrm{m}}^2{\min }^{1/2}\right)$
Hazardousness [52]	Eye Dam. 1, H318: Causes serious eye damage Skin Irrit. 2, H315: Causes skin irritation Skin Sens. 1, H317: May cause an allergic skin reaction

shows the main technical characteristics of the mortar.

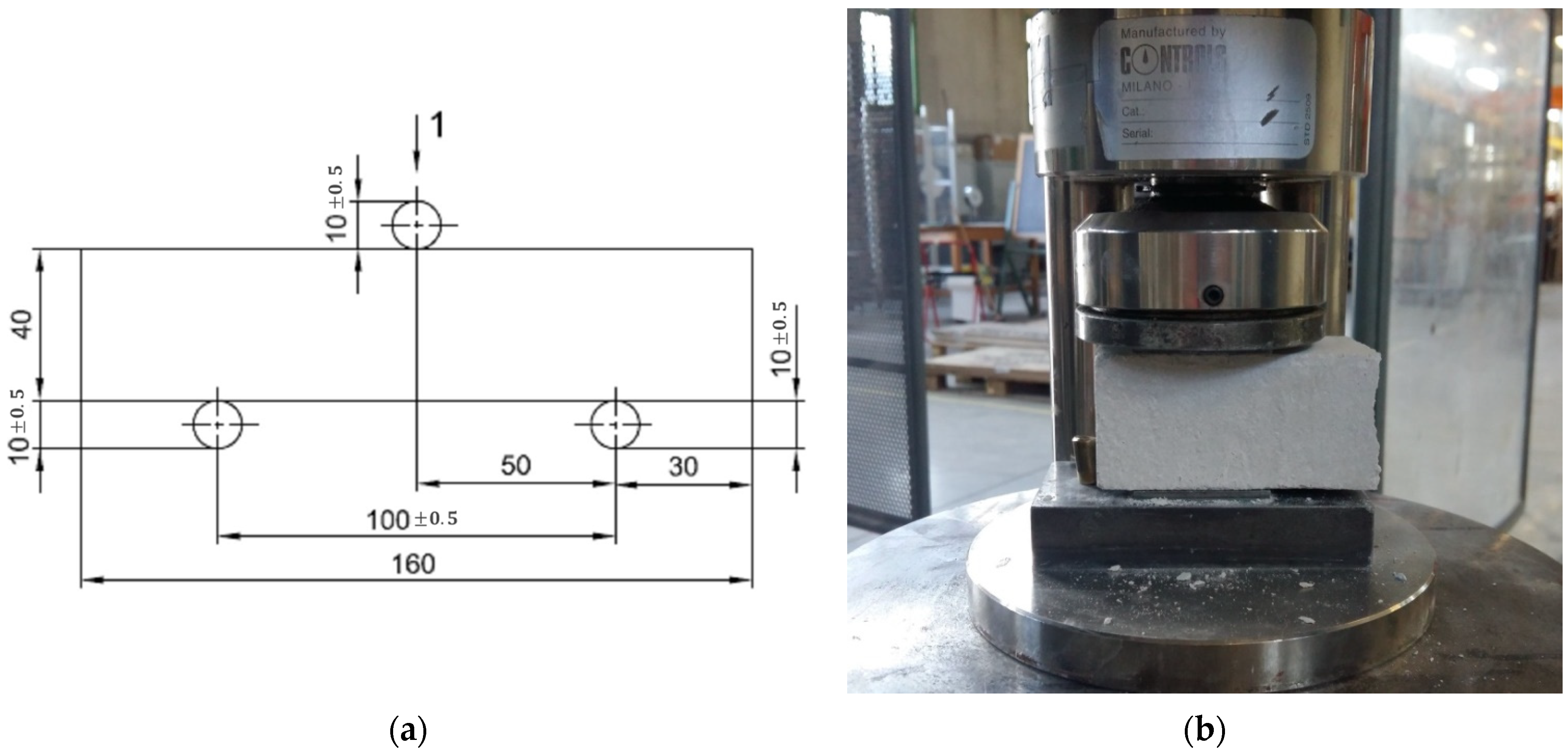

The UNI EN 1015-11:2019 standard [47] for calculating both the flexural strength and the compressive strength consists of carrying out three-point bending flexural tests on molded prismatic specimens, measuring 160 × 40 × 40 mm (Figure 10a). The test procedure requires a displacement-controlled mode, with a speed of $0.5–1 \mathrm{mm}/\min$. Once the bending failure of one specimen has occurred, the two halves of the specimen are useful for providing the compressive strength of the mortar, by means of a uniaxial compression test along one of the two directions orthogonal to the prism axis (Figure 10b).

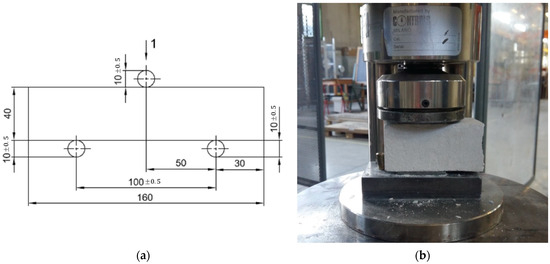

The testing machine used for the mechanical characterization of the mortar (both bending and compression tests) is a Galdabini universal testing machine, with a maximum capacity of 200 kN. The six prisms and related twelve half-prisms provided the strength values in

Table 3. Results of bending and compression tests on the mortar.

Specimen	Flexural Strength (MPa)	Broken Half-Specimen	Compressive Strength (MPa)
P1	2.74	P1A	9.28
		P1B	9.93
P2	2.85	P2A	9.56
		P2B	9.50
P3	3.22	P3A	9.72
		P3B	9.59
P4	2.10	P4A	7.06
		P4B	6.83
P5	2.29	P5A	6.72
		P5B	6.96
P6	2.29	P6A	7.58
		P6B	7.03

.

The average flexural strength is equal to $2.58 \mathrm{MPa}$ and the average compressive strength is equal to $8.3 \mathrm{MPa}.$ This means that the actual compressive strength is 1.66 times the (minimum) compressive strength declared by the manufacturer (Table 2).

2.1.3. Stainless Steel Straps and Seals

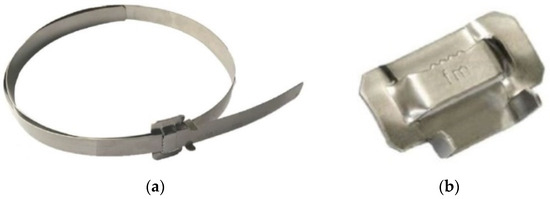

The active strengthening system consists of the ring closure of stainless steel straps 16 mm wide and 0.9 mm thick, using folding seals (also made of stainless steel) for pre-tensioned closure. The straps (Figure 11a) and seals (Figure 11b) used in this experimental program are not of the same type patented with the CAM^® system.

Table 4. Mechanical properties of stainless steel tape rolls, as declared by the manufacturer.

Mechanical Property	Value
Yield strength $\left(f_{yk}\right)$	$240 \mathrm{MPa}$
Breaking strength $\left(f_{tk}\right)$	$540 \mathrm{MPa}$
Elongation at break (also called fracture strain, or tensile elongation at break)	$20\%$

displays the mechanical properties declared by the manufacturer (Mauser) for the rolls of stainless steel straps.

Since the seal is notoriously the weak point of CAM^®-system-like reinforcements [29,30], one of the objectives of the experimental program was to verify how the sealing affects the strength and stiffness of the strapping system. Four specimens measuring 360 × 0.9 × 16 mm each were used for determining the tensile strength of clamped and unclamped straps:

• Specimen L2 consisted of a piece of steel tape (unclamped strap);
• Specimen L3 consisted of a piece of steel tape (unclamped strap);
• Specimen S2 consisted of two pieces of steel tape, fastened together by one seal (clamped strap);
• Specimen S3 consisted of two pieces of steel tape, fastened together by two seals (clamped strap).

The steel tapes of the specimens belonged to two different stainless steel rolls of the same brand (Mauser) and had the same characteristics (Table 4).

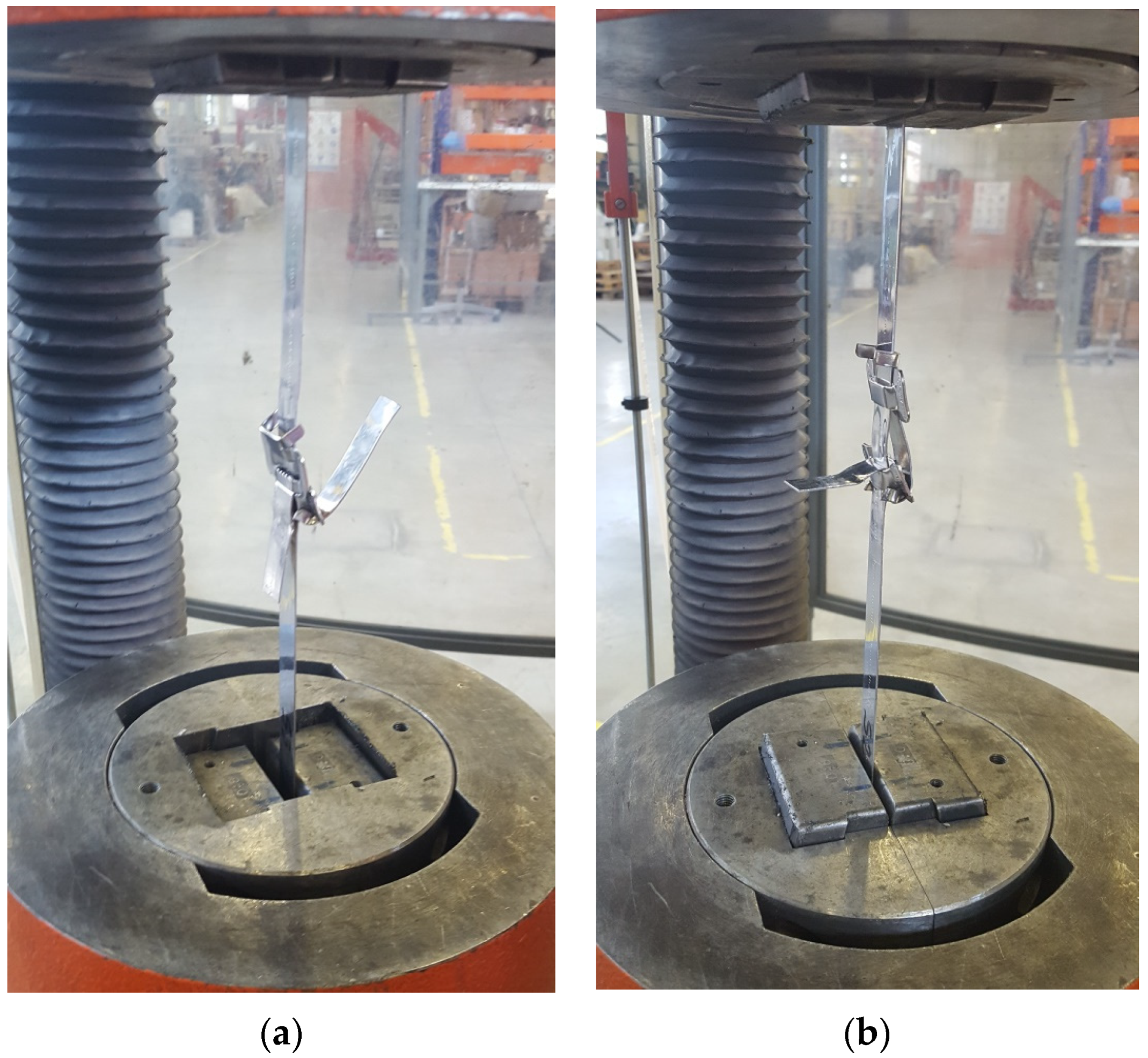

The reference standard for the mechanical characterization of the stainless steel straps is UNI EN ISO 6892-1:2020 [53]. As with the mortar tests, the testing machine was a Galdabini universal testing machine, with a maximum capacity of 200 kN. Figure 12 shows the results of the tensile tests performed on the four specimens.

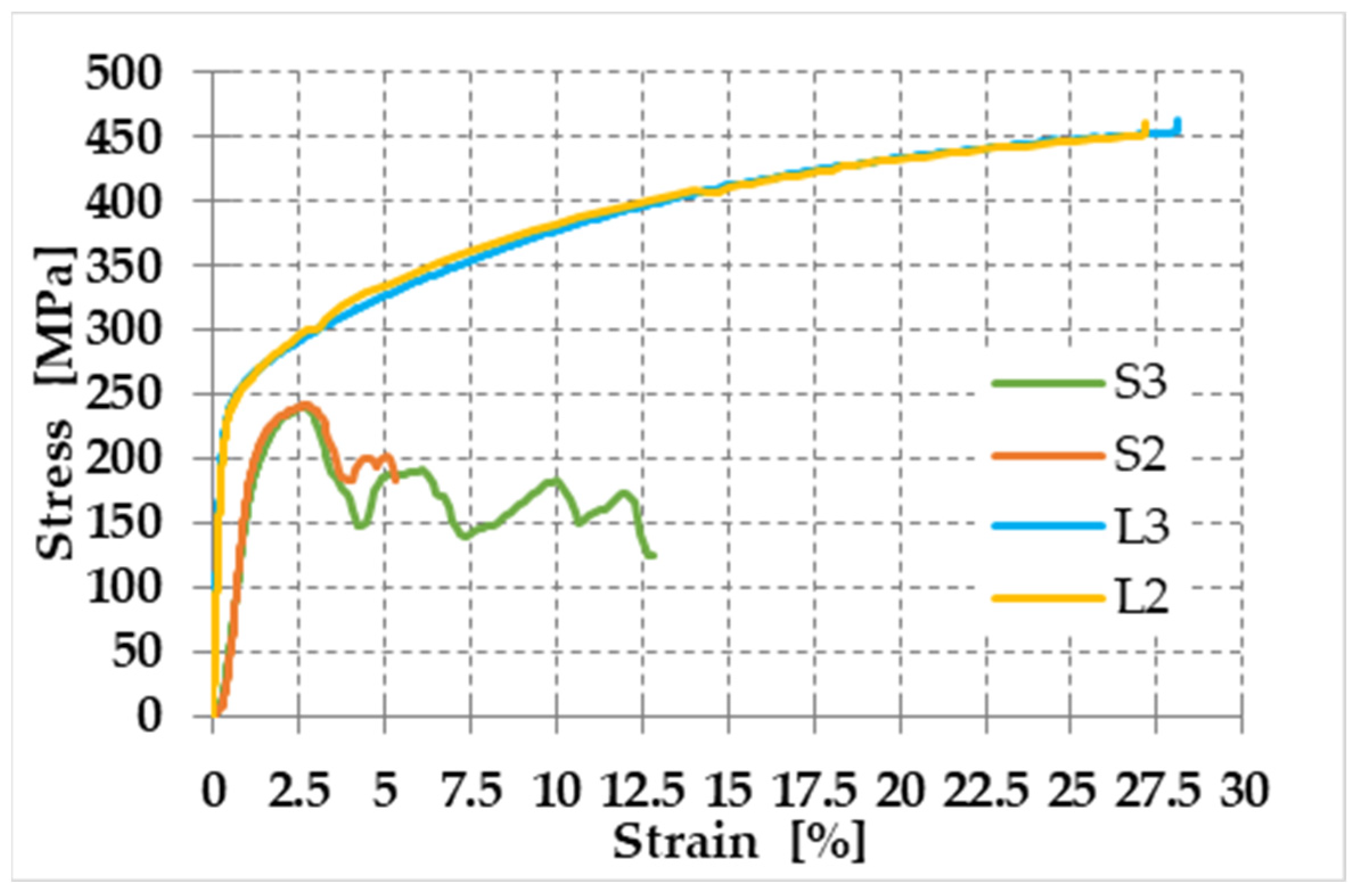

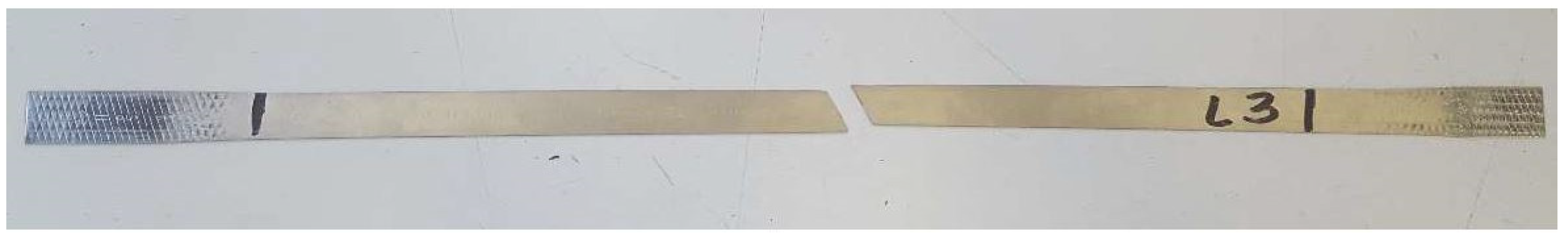

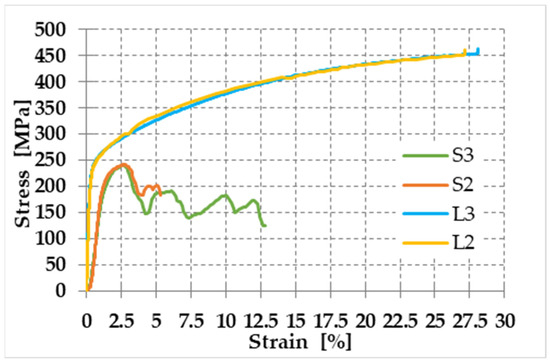

The mechanical characterization of the steel tape alone (specimens L2 and L3) therefore confirmed that $f_{yk}$ is equal to approximately $240 \mathrm{Mpa}$, while $f_{tk}$ was 17% lower than the value declared by the manufacturer (Table 4). The two unclamped specimens reached the crisis point with the formation of shear bands (oblique with respect to the main deformation axis), which then gave rise to the failure planes (Figure 13 shows specimen L3 after failure).

Figure 12 also shows that a value just over $240 \mathrm{Mpa}$ marks the functional limit of the clamped straps (specimens S2 and S3). In fact, the yield strength of specimens L2 and L3 is approximatively equal to the maximum stress of specimens S2 and S3. The maximum stress of specimens S2 and S3 is lower than the maximum stress of specimens L2 and L3 due to relative sliding movements inside the seals, which tend to open. The addition of a second seal (specimen S3) does not increase the maximum stress compared to the case of a single seal (specimen S2). It only increases the ultimate strain, since the second seal counteracts the sliding more effectively. In conclusion, the tensile strength of a clamped strap is approximatively equal to the yield strength of the steel tape that makes up the strap. The failure occurs when one of the two ends of the strap slips off from the seal (Figure 14a,b). The failure is ductile (with both one and two seals), while the failure of the clamping system patented with the CAM^® system is brittle [29].

As far as the stiffness is concerned, Figure 12 shows that the initial slopes of specimens S2 and S3 are significantly lower than the initial slopes of specimens L2 and L3. This means that the relative sliding movements within the seals occur throughout the entire tensile test, which decreases the stiffness of clamped straps compared to the stiffness of unclamped straps.

2.1.4. Elements for the Protection of the Edges of Masonry Walls

As anticipated in Section 1.1, the CAM^® system uses stainless steel rounded angles and funnel plates (Figure S1), which have the task of diffusing the action transmitted by the straps to the masonry. This experimental program replaced the stainless steel protective elements of the CAM^® system with the same protective elements as in [29,35,36], that is, 3D-printed elements made from a PLA (polymerized lactic acid) filament. The PLA filament is one of the most eco-friendly filaments in FDM (fused deposition modeling) 3D printing. In fact, PLA comes from annually renewable resources (cornstarch, tapioca roots, sugarcane, or other sugar-containing crops) and requires less energy to process compared to traditional (petroleum-based) plastics. The amount of carbon dioxide released during the printing process is the same as that removed by the plants used to make the filament during their life cycle. Once discarded in an exposed natural environment, an object made from PLA filament will naturally decompose.

The ultimate strength of a PLA filament is equal to $65 \mathrm{MPa}$, which characterizes the PLA filament as one of the strongest filaments for 3D printing. The ultimate strength of the filaments for 3D-printing, in fact, varies from $20 \mathrm{MPa}$ (MF: metal-filled filaments) to $78 \mathrm{MPa}$ (PVA: polyvinyl alcohol filaments). The stiffness of a PLA filament is also good when compared to that of other filaments for 3D-printing: it reaches a score of 7.5 on a scale of 1 to 10 (1 refers to flexible filaments, while 10 refers to HIPS (high-impact polystyrene) filaments, CF (carbon-filled) filaments, and MF filaments).

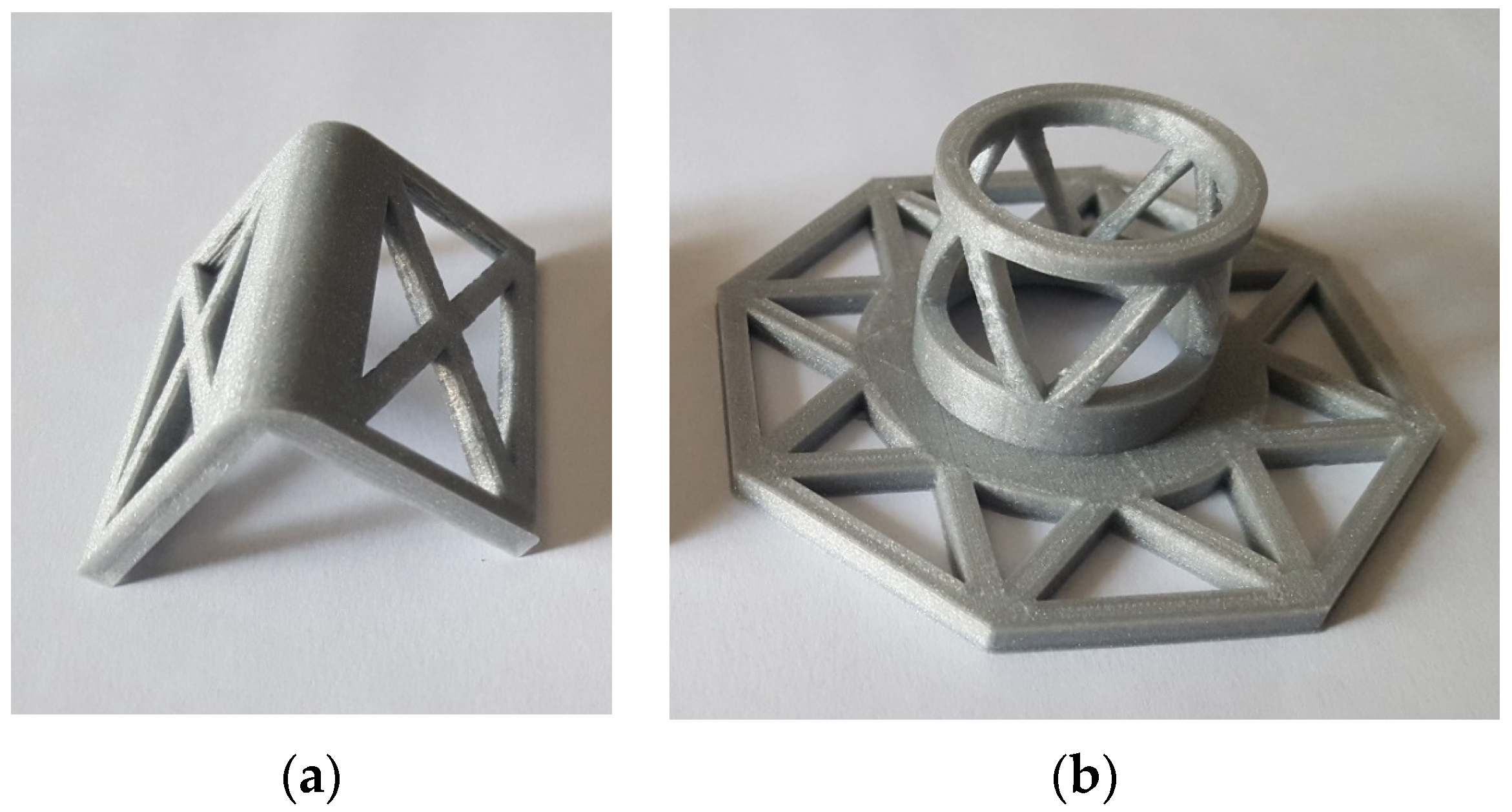

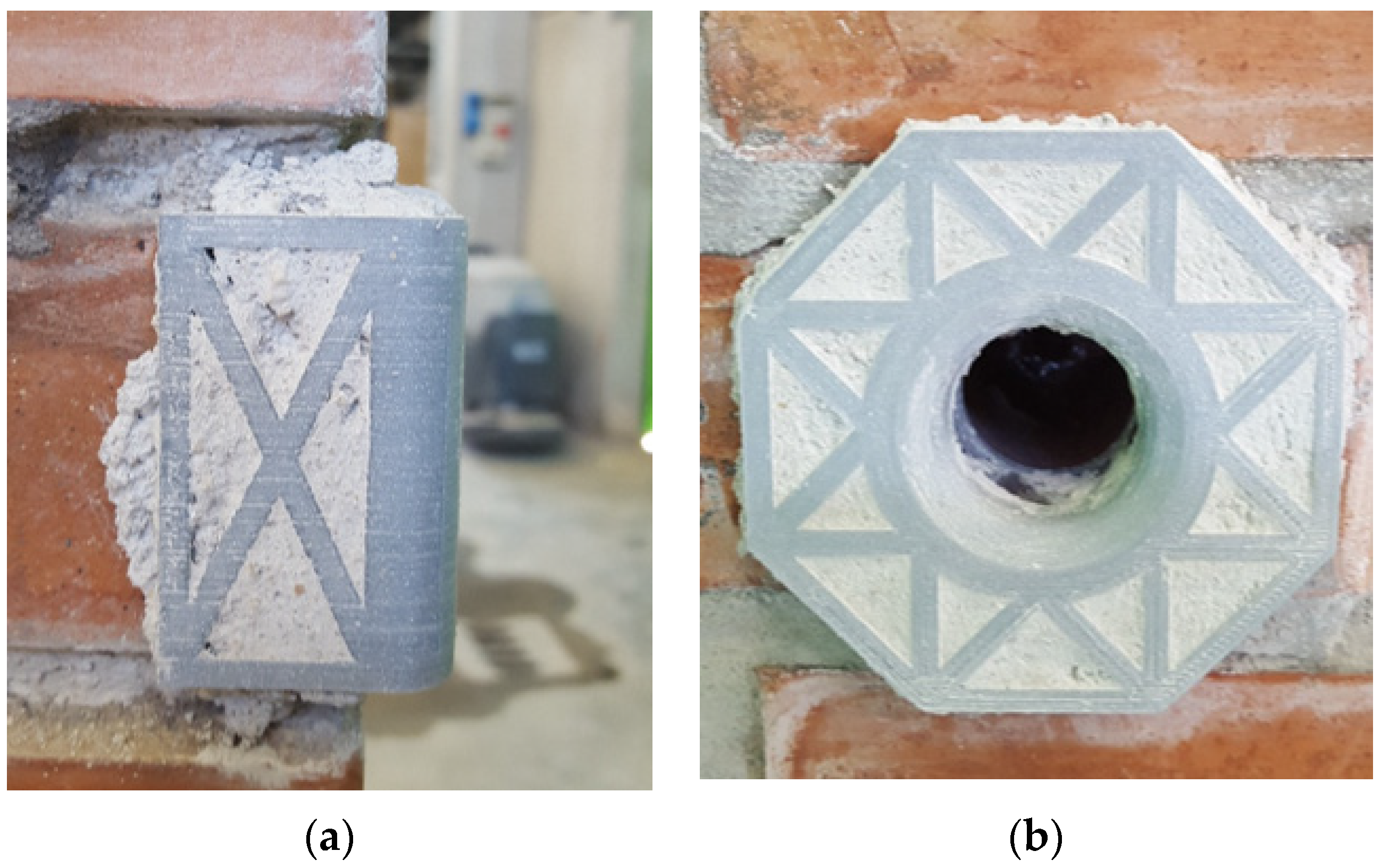

The 3D-printed protective elements are also of two types: rounded angles (Figure 15a) for the protection of the edges of the walls and funnel plates (Figure 15b) for the protection of the new edges generated by the perforations for the passage of the straps. In both cases, the infill percentage was 75%, the best compromise between the need to allow the elements to withstand the loads and minimize the use of material.

Both types of protective elements have rounded external corners (in contact with the straps) and 90° internal corners (in contact with the masonry). This allows us to avoid bending the straps at right angles and, at the same time, guarantees the correct positioning of the elements on the wall surface.

The trellis design of the surfaces has the dual function of saving material and improving the adhesion between the protective elements and the masonry. In fact, by filling the cavities of the trellis of the rounded angles (Figure 16a) and of the funnel plates (Figure 16b), the hardened mortar hinders possible relative sliding movements between the protective elements and the masonry.

2.2. Preparation of the Specimens

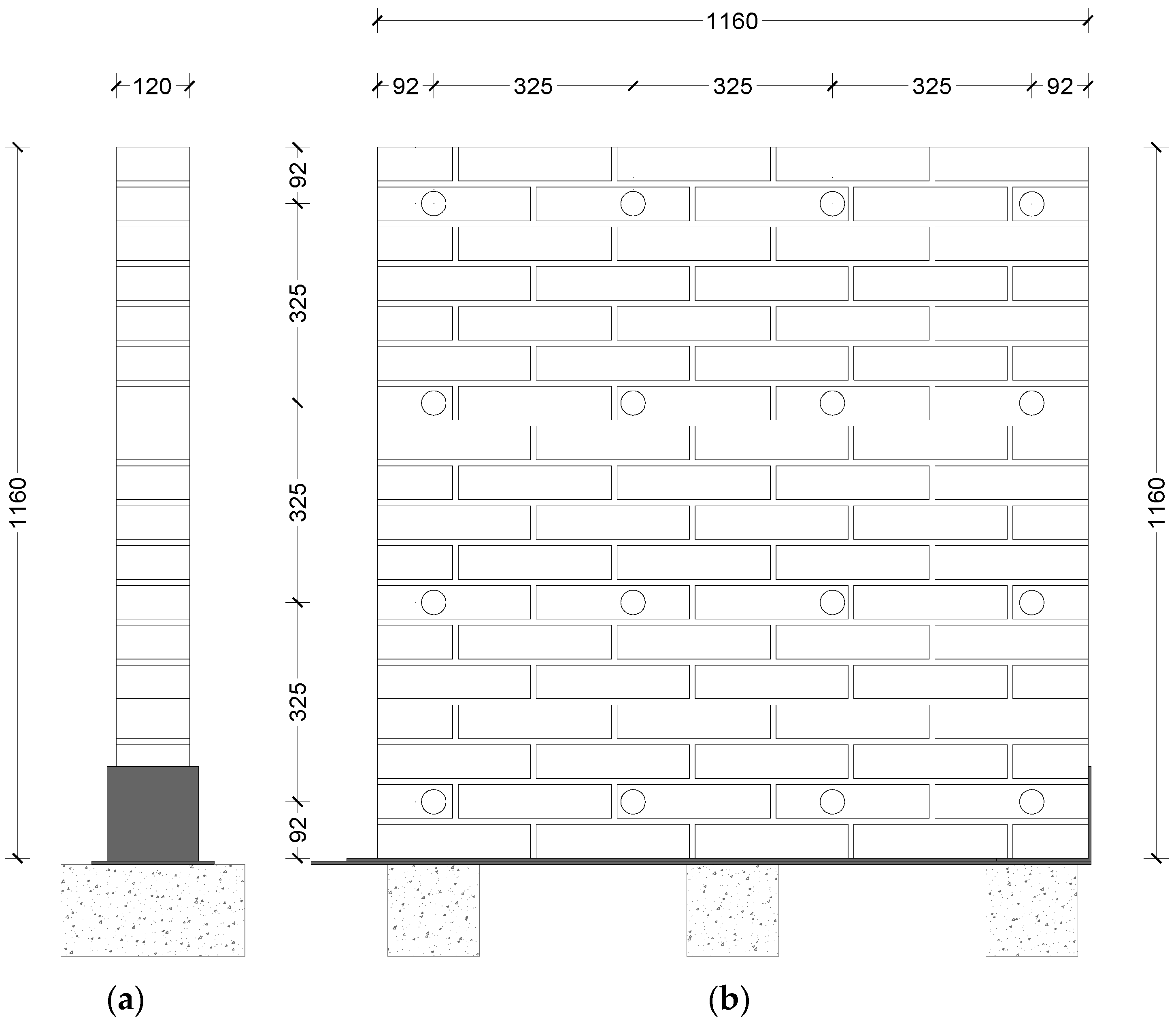

To avoid the problem of the overturning of the masonry specimens during the coring operations for the passage of the straps, core drilling took place on the individual brick units, before assembling them (Figure 17a). Figure 17b shows the hollow bricks left to dry after the coring operations.

The porous structure of the bricks can absorb part of the binder mixing water, thus compromising the mechanical properties of the mortar. This phenomenon is all the more evident the greater the porosity, the absorption capacity (of the brick), and the environmental temperature. Furthermore, it is all the more evident the lower the relative humidity of the air. To avoid compromising the mechanical properties, the Italian Association of Brick Industrialists (ANDIL) recommends wetting the bricks before use, with different methods depending on the absorption capacity and the time of year [54]. In the specific case of the bricks used in the experimental program (bricks produced industrially in soft paste) and the manufacturing period of the masonry specimens (summer), ANDIL suggests wetting the bricks by immersion in clean water. The pre-wetting of the bricks therefore took place according to ANDIL recommendations, with the bricks left in clean water until the air bubbles stopped escaping (wetting until saturation) and, once removed from the water, left to drip for at least a quarter of an hour. It is worth noting that the correct dripping of the bricks is an operation of fundamental importance. In fact, saturated bricks laid immediately after removal from the water could cause mortar drippings. Furthermore, the film of water that would remain between the mortar and the brick could cause a lack of adhesion between the two surfaces and reduce the resistance of the joint.

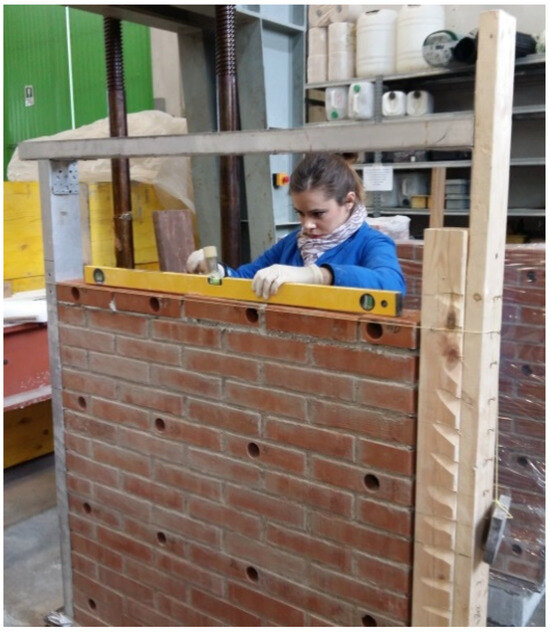

The laying of the bricks took place in accordance with the UNI EN 1015-2:2007 standard [55], which recommends mixing the mortar with 15% water. The use of a plumb guide frame, leveling strings, and a spirit level helped to check the verticality of the walls and the horizontality of each course of bricks (Figure 18).

The minimum time required for a brickwork (brick masonry) to cure is 7 days. However, to avoid the onset of viscous flows in the subsequent pre-tensioning phase of the active reinforcement, the chosen curing time was 28 days.

To avoid excessive evaporation and facilitate the hydraulic setting of the mortar, the curing of the specimens took place in a saturated environment (at room temperature), after having wetted and wrapped the specimens with cellophane film (a wrapped specimen is visible in the background of Figure 18). The prolonged curing period required cyclically removing the cellophane to re-wet the surfaces of the specimens.

The assembly of the 3D-printed protective elements (Section 2.1.4) took place once the curing period of the walls was finished. The mortar used for fixing the rounded corners and the funnel plates is the same used for laying the bricks (Section 2.1.2). Strengthening then occurred after a further 7-day curing period.

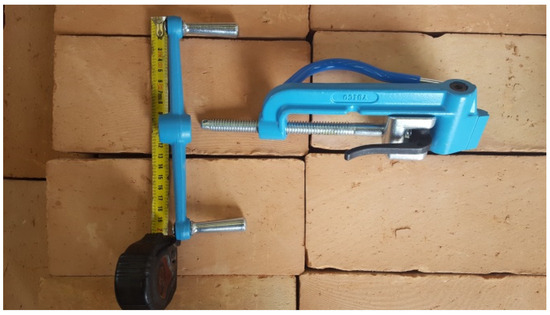

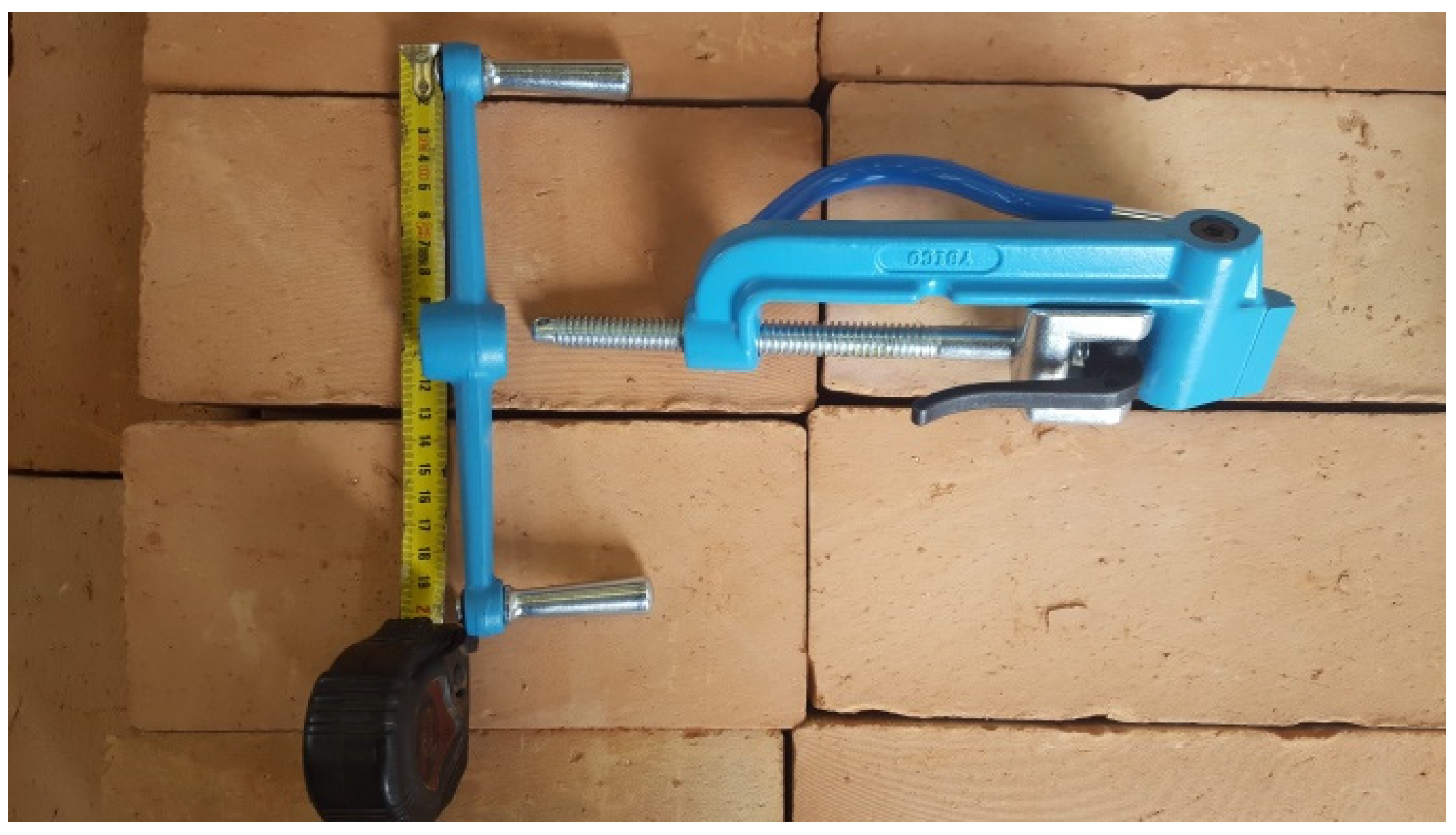

The strapping machine used to close the seals is a product for manual use, by the Barbero Mauser brand (Figure 19). When tightening the seals, it allows the application of a pre-tension of up to a maximum of $1.4 \mathrm{kN}$ to the straps. This generates a pre-tension equal to approximately 40% of the tensile strength shown in Figure 12 (cross-section dimensions: 16 × 0.9 mm).

2.3. Instrumentation and Test Setup

The testing machines used to carry out the diagonal compression tests were:

• LOSENHAUSEN hydraulic load frame with a load capacity of 200 kN, for specimen M1-90;
• LOSENHAUSEN UBP hydraulic load frame with a load capacity of 600 kN, for specimens M1-45 and M2-45.

The test mode was in displacement control for all specimens, with an average load application speed of $0.2 \mathrm{kN}/s$.

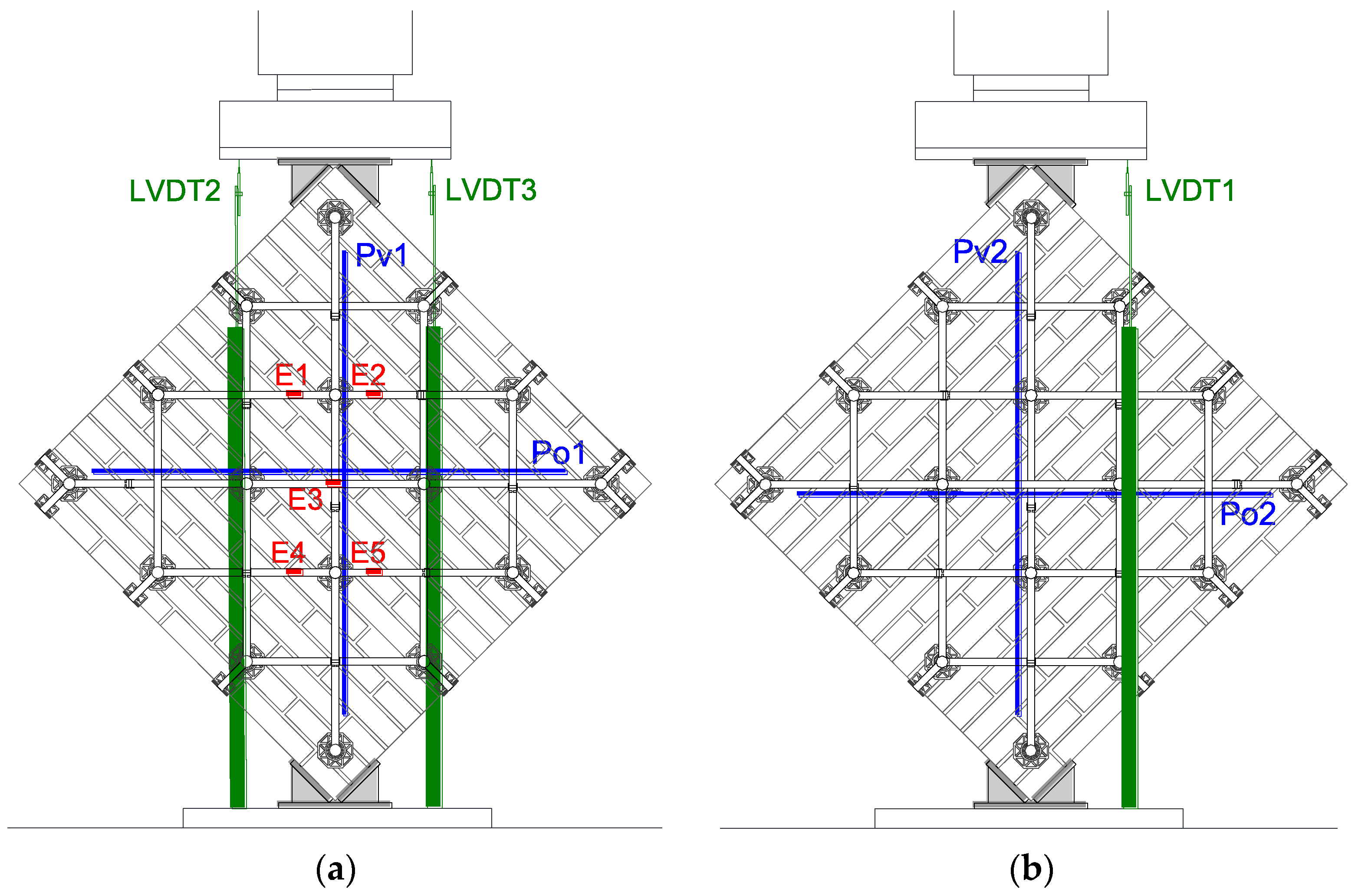

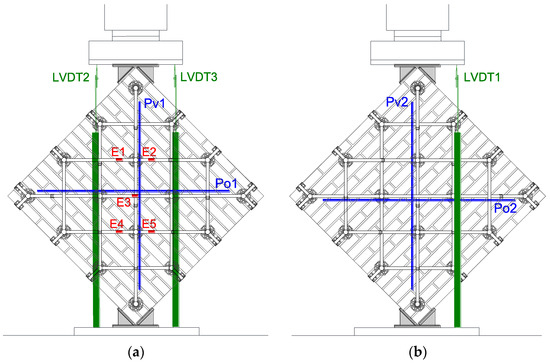

The sensors used to instrument the specimens were:

• Strain gauges produced by Tokyo Sokki Kenkyujo Co., Ltd. (Tokyo, Japan);
• Potentiometers produced by Gefran SpA (Brescia, Italy);
• Linear variable differential transformers (LVDTs) produced by Gefran SpA (Brescia, Italy).

The strain gauges were useful for measuring the strains of some of the straps positioned along the direction of the tensioned diagonal (red elements in Figure 20a, denoted by the initial letter E).

The function of the potentiometers was instead to measure the displacement along the two diagonals of the three specimens (blue elements in Figure 20a,b, denoted by the initial letter P). Finally, the three LVDTs measured the movements of the testing machine head of both specimen M1-45 (Figure 20a,b) and specimen M2-45, to check for any unwanted rotations. This required rigidly attaching the LVDTs to an external fixed system, using metal rods (thick green elements in Figure 20a,b). Specimen M1-90 did not require instrumentation with the LVDTs, as the expected short duration of the load test would hardly have resulted in rotations of the load head.

The strain gauges did not detect significant variations in the strains of the straps of any of the three specimens, at least until the opening of cracks crossing the straps themselves. Therefore, the strain gauge acquisitions are not significant for the purposes of this work.

More useful were the LVDT acquisitions. In particular, the average of the values provided by LVDT1 and LVDT3 (the two LVDTs in an axisymmetric position with respect to the load axis) provided the displacement along the load axis of specimen M1-45 and specimen M2-45 (Figure 21).

Furthermore, the displacement values provided by LVDT2 and LVDT3 allowed the identification of the rotation of the front face, ${\phi }_p$, assumed equal to the rotation of the middle plane:

$${\phi }_p=arctan\frac{u_2-u_3}{d_{23}},$$

(1)

where:

• $u_2$ is the displacement acquired by LVDT2 (positive values are downward displacements);
• $u_3$ is the displacement acquired by LVDT3 (positive values are downward displacements);
• $d_{23}$ is the distance between LVDT2 and LVDT3.

A similar expression gave ${\phi }_c$, the rotation of the vertical cross-section passing through LVDT1 and LVDT2 and assumed equal to the rotation of the vertical cross-section passing through the load heads:

$${\phi }_c=arctan\frac{u_1-u_2}{d_{12}},$$

(2)

where $u_2$ has the same meaning as in Equation (1) and:

• $u_1$ is the displacement acquired by LVDT1 (positive values are downward displacements);
• $d_{12}$ is the distance between LVDT1 and LVDT2.

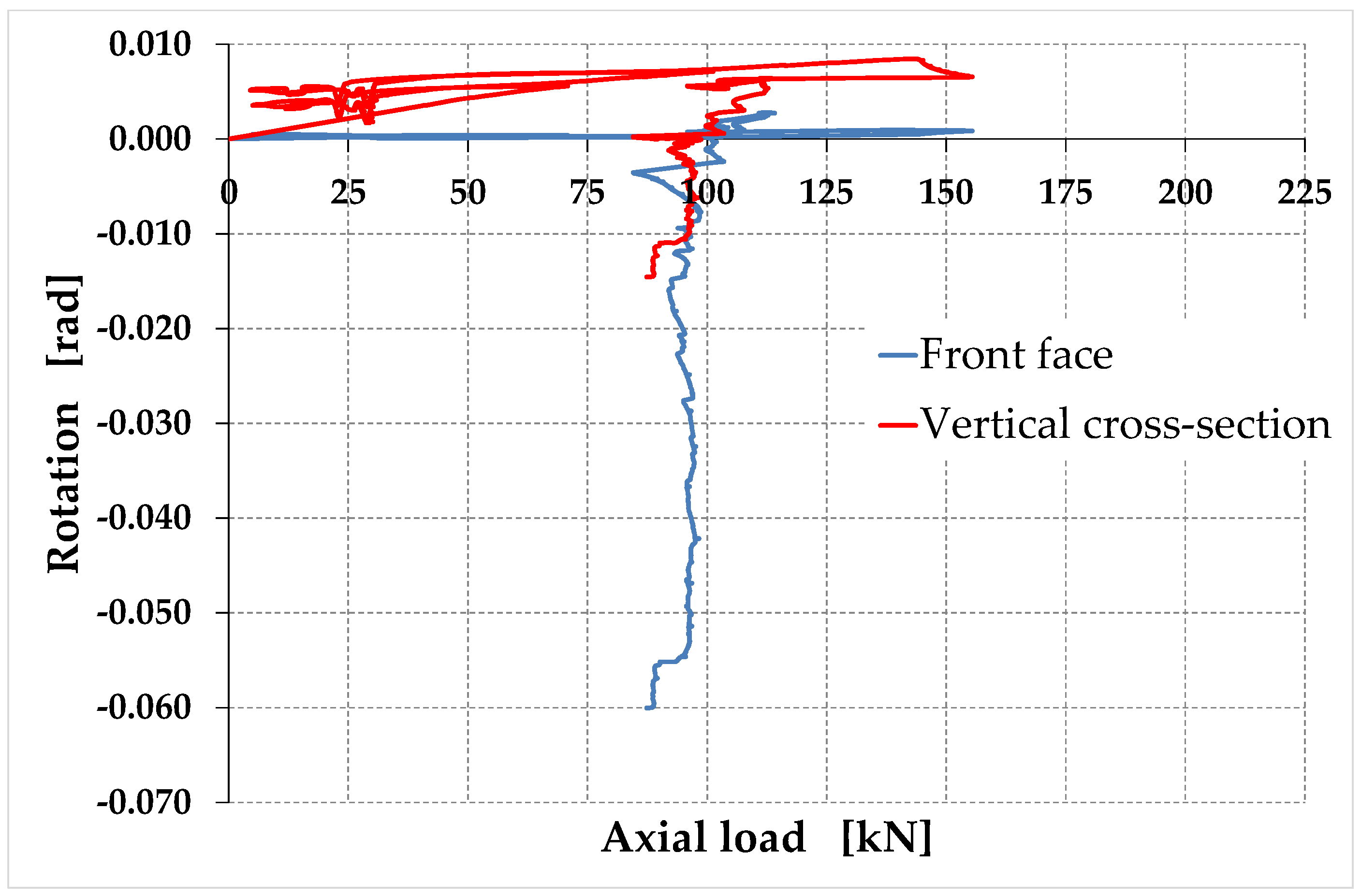

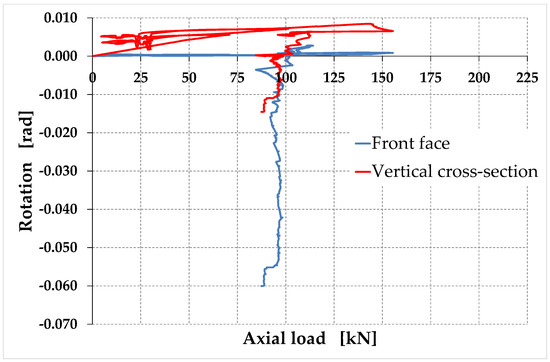

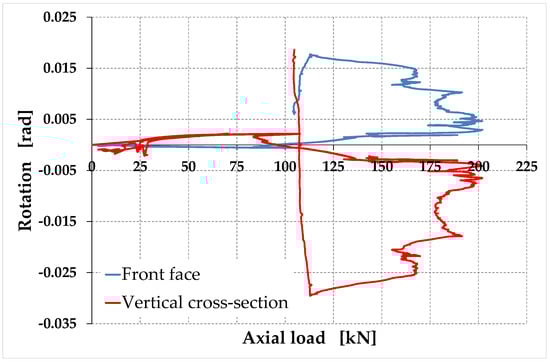

Figure 22 and Figure 23 relate ${\phi }_p$ and ${\phi }_c$ to the axial load. This allows us to appreciate the variation in the rotations at each load drop and during the long phase following the maximum load (softening branches of Figure 21).

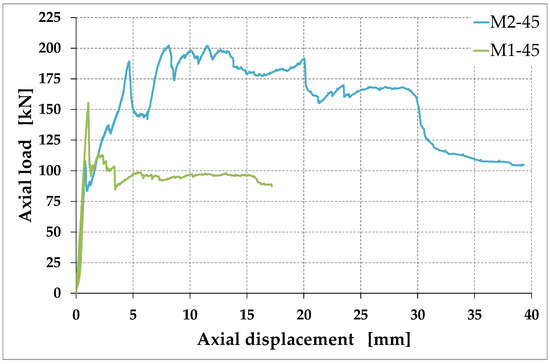

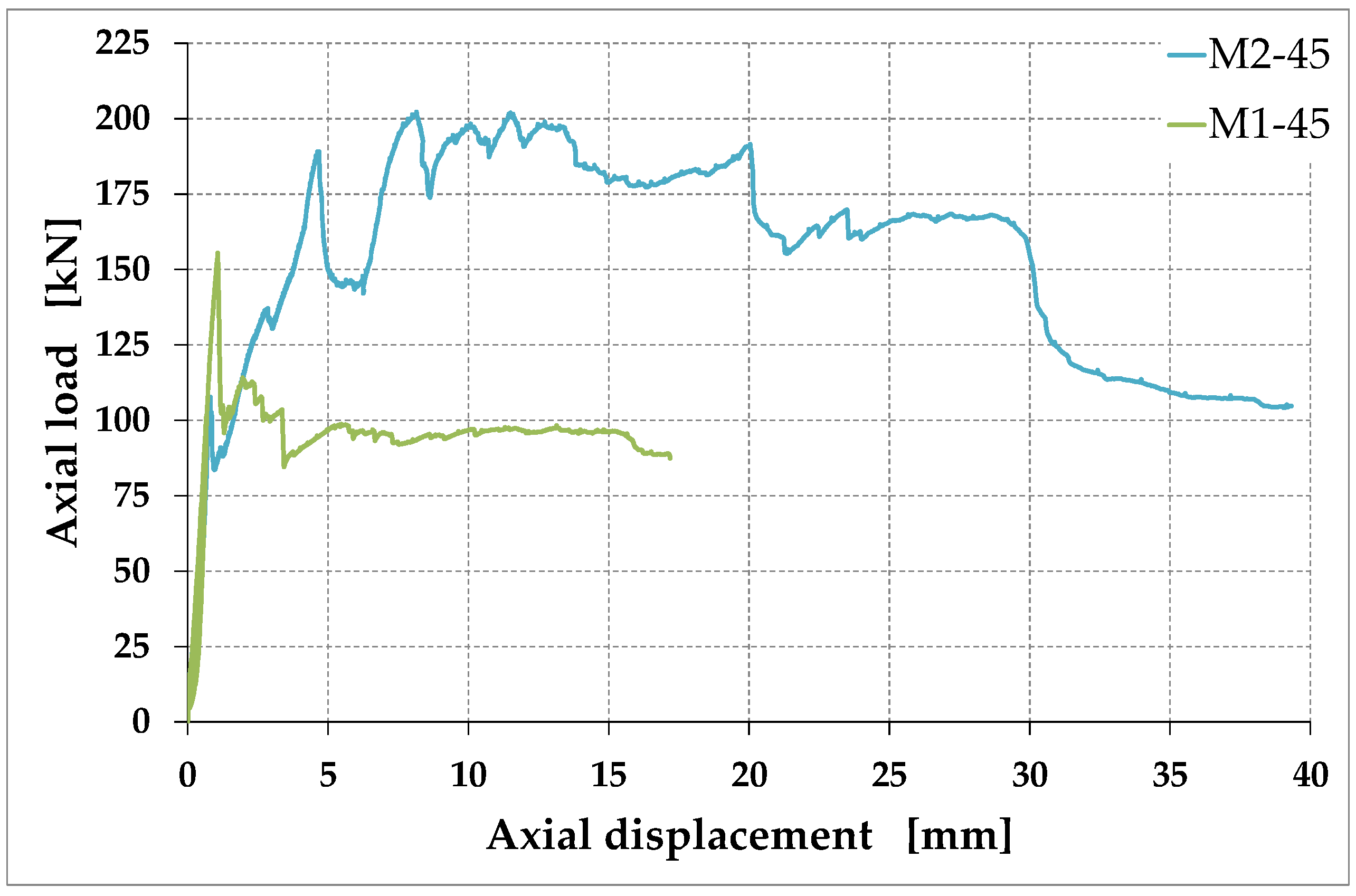

The cause of each load drop in Figure 21 is the failure of one of the elements of the strengthening system. When a new increase in load follows a load drop, it means that the remaining elements of the strengthening system are able to reorganize themselves in a new resistant configuration. In Figure 22 and Figure 23, there is no noticeable increase in rotations in the event of a load drop and subsequent load increase. This means that the reorganization of the strengthening system occurs almost instantaneously, without changing the specimen configuration.

A greater degree of correlation seems to exist between the softening phase and the increase in rotations. In fact, the greatest rotation values in Figure 22 and Figure 23 occur precisely in the descending load phase after reaching the maximum load ($155 \mathrm{kN}$ for specimen M1-45 and $202 \mathrm{kN}$ for specimen M2-45). It is worth noting, however, that the values of ${\phi }_p$ and ${\phi }_c$ obtained for specimen M1-45 (Figure 22) and specimen M2-45 (Figure 23) are very small for the entire duration of the load test. This means that the active reinforcement was able to keep the two specimens in axis despite the progression of the damage phenomena. In the last phase of the test on specimen M2-45, Figure 23 indicates a re-centering of the specimen along its load axis (decreasing values of ${\phi }_p$ and ${\phi }_c$, in absolute value) and subsequent inversion of the sign of the rotations on the vertical cross-section.

Figure 22 and Figure 23 allow us to quantify the main characteristic of CAM-like systems, that is, avoiding the global collapse of the structural element even when it has exhausted its structural function. The values of the rotations are actually so small that it is possible to consider the angles (measured in radians) equal to their tangents (small-angle approximation):

$${\phi }_p\cong \frac{u_2-u_3}{d_{23}},$$

(3)

$${\phi }_c\cong \frac{u_1-u_2}{d_{12}}.$$

(4)

3. Failure Mode of the Specimens

3.1. Specimen M1-90

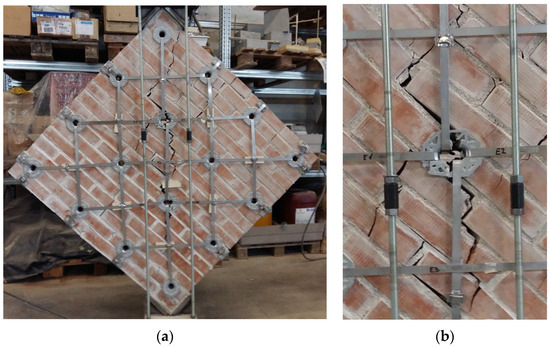

This specimen suffered failure along one of the bed joints (the bed joint near the second row of straps from the top, in Figure 24). The failure occurred suddenly at a load value of $160 \mathrm{kN}$, without giving any warning signal.

The strengthening system was unable to stop the relative sliding along the broken bed joint. The crisis mode of the strengthening system was in fact typical of a labile frame (Figure 3a), despite the pre-tension imparted to the straps (Section 2.2). The perforations made for the passage of the straps through the thickness of the wall therefore behaved like cylindrical hinges (Figure 3b). The relative sliding then ended thanks to the containment action of the protective steel structure built around the specimen (Figure 24). The boundary effects also caused the failure of two funnel plates in the upper left corner (Figure 25a) and lower right corner (Figure 25b) of the mechanism.

The fact that a mechanism has formed confirms the basic assumption of this experimental work, that is, the ineffectiveness of straps arranged along the mortar joints. In reality, since the broken bed joint is very close to a row of perforations, the suspicion arises that this arrangement of the straps is even harmful.

3.2. Specimen M1-45

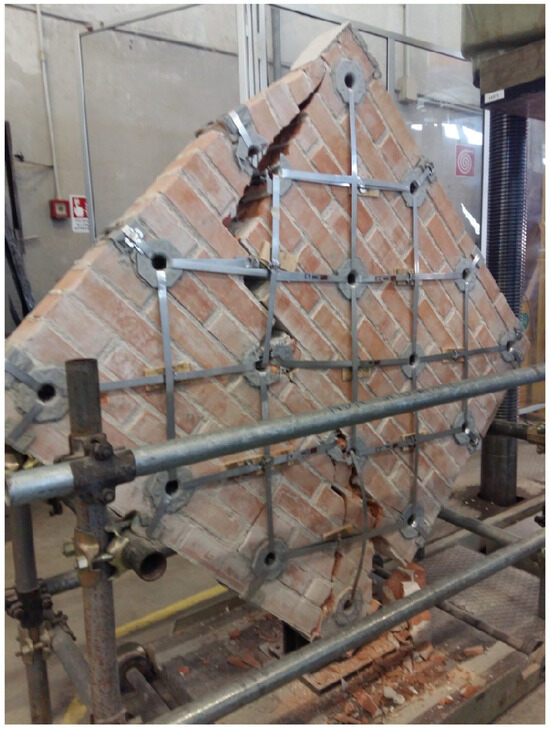

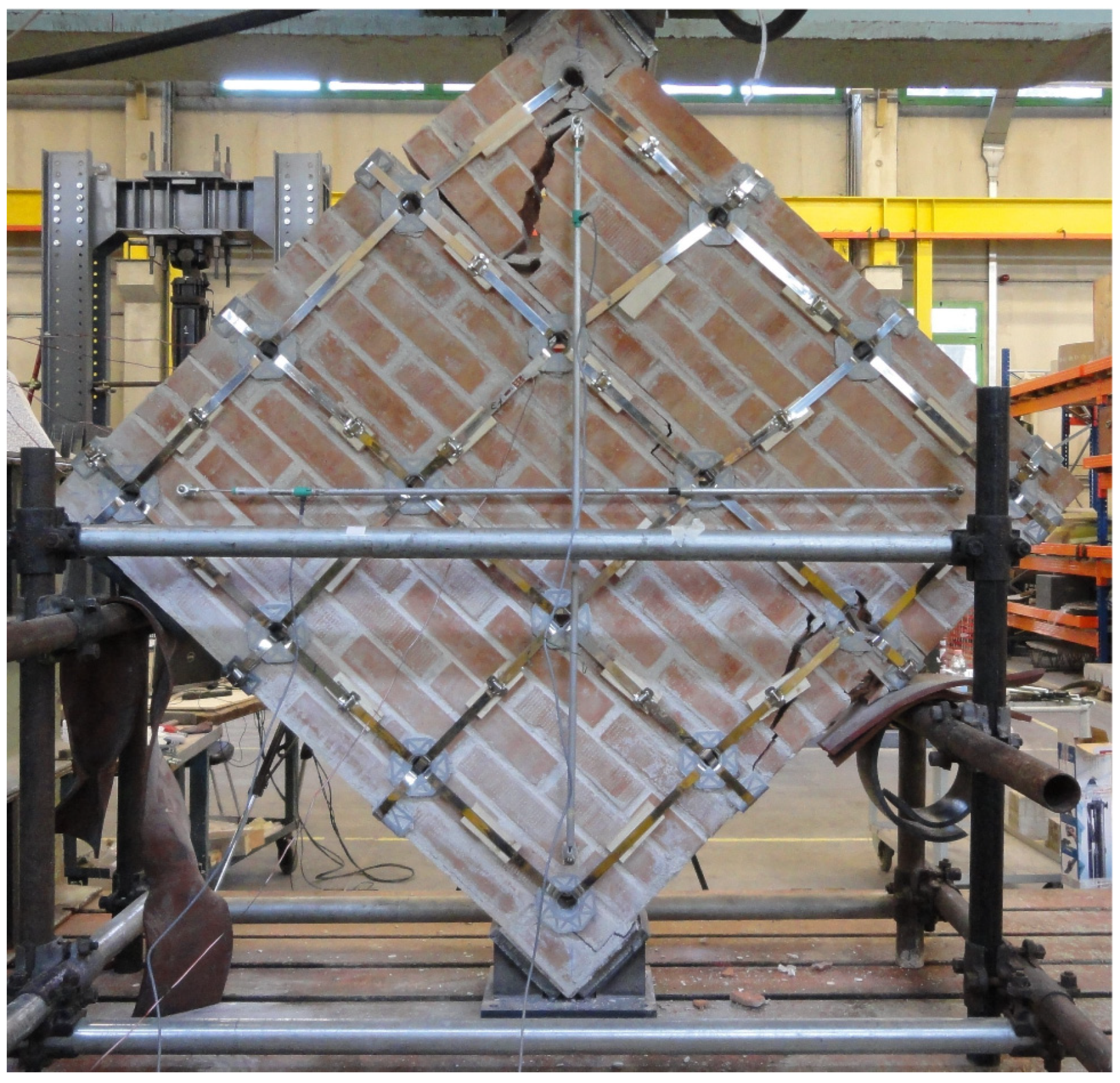

The failure mode of specimen M1-45 (Figure 26a) is completely different from that of specimen M1-90 (Figure 24). Some cracks began to form along the compressed diagonal at a load value of $155 \mathrm{kN}$ (the maximum load). The cracks appeared in the central area of the specimen and propagated towards the two heads of load application, partly following the mortar joints and partly crossing the bricks (Figure 26b). The failure also involved the funnel plates placed along the compressed diagonal (Figure 26b).

The failure was of a ductile type, with progressive crack propagation hindered by the action of the straps arranged along the tensioned diagonal. This gave rise to a softening branch after the maximum load (Figure 21), which was not present in the test carried out on specimen M1-90. At the end of the test, the crack extended along the entire compressed diagonal of the wall, but the strengthening system was almost intact and still able to resist the loads. This allowed the specimen to maintain its shape even after removal from the testing machine (Figure 26a). Since the straps are able to keep the two parts of the wall together after the event that caused it to break, this arrangement of straps is effective. The failure mode along the compressed diagonal is typical of a homogeneous solid subjected to a diagonal compression test. We can therefore say that the effect of a weak pretension with an effective arrangement of the straps is to homogenize the wall, which makes the defects and weaknesses of the mortar joints irrelevant.

3.3. Specimen M2-45

As with specimen M1-45, the crisis was of a ductile type, with a final softening branch (Figure 21). However, the doubling of the reinforcement along the direction of the tensioned diagonal hindered the opening of the cracks along the compressed diagonal to such an extent that the failure mode presented characteristics different from those of specimen M1-45:

• No primary cracks opened along the compressed diagonal;
• The maximum load ($202 \mathrm{kN}$) increased by 30% compared to the maximum load of specimen M1-45 ($155 \mathrm{kN}$);
• The high load values and the lack of cracks along the compressed diagonal meant that the failure occurred due to a combination of the punching effect of the load heads and boundary effects (Figure 27).

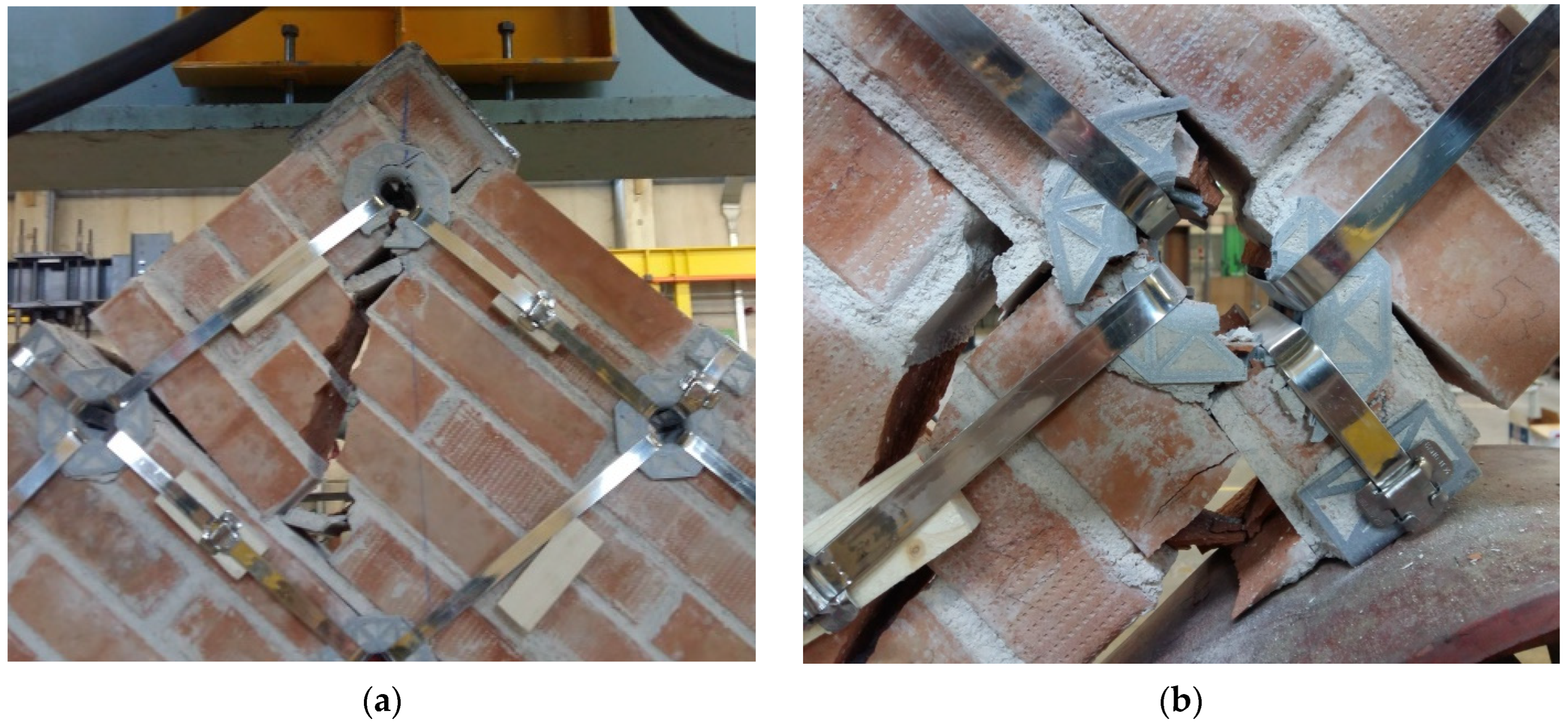

In the final stages of the test, a bed joint also partially failed (Figure 27). Since this only occurred at the end of the test, it is a secondary effect caused by the primary mechanism described above. Despite the high degree of damage at the end of the test, the strapping system turned out to be only partially damaged and still able to withstand loads.

This test also resulted in the breaking of some funnel plates (Figure 27). As already noted in Reference [36], this suggests that the maximum load could increase further by replacing the 3D-printed plates with metal rings [35].

4. Analysis of the Results

In the initial phase of a load test, some coupling phenomena occur between the testing machine and the specimen, which affects the acquisition of the experimental data [56]. This leads to a high degree of uncertainty regarding the experimental results for low load values and deprives the initial part of the stress/strain curves of any constitutive meaning. Since the initial slope of the stress/strain curve provides the material stiffness in the linear elastic range, it is therefore of paramount importance to define an adequate identification procedure for the reconstruction of the initial linear elastic behavior. The reconstruction procedure adopted here is the one described in Reference [57].

The stress redistribution occurring in the specimen in the non-linear range does not affect the value of the maximum principal stress, ${\sigma }_I$ (the tensile stress in Appendix A), computed with the linear elastic solution [58]. For this reason and for the discussion on the interpretation of the diagonal compression test in Appendix A, Equation (A26) will provide the values of the diagonal tensile strength later in this document, as in References [40,41,59,60,61]:

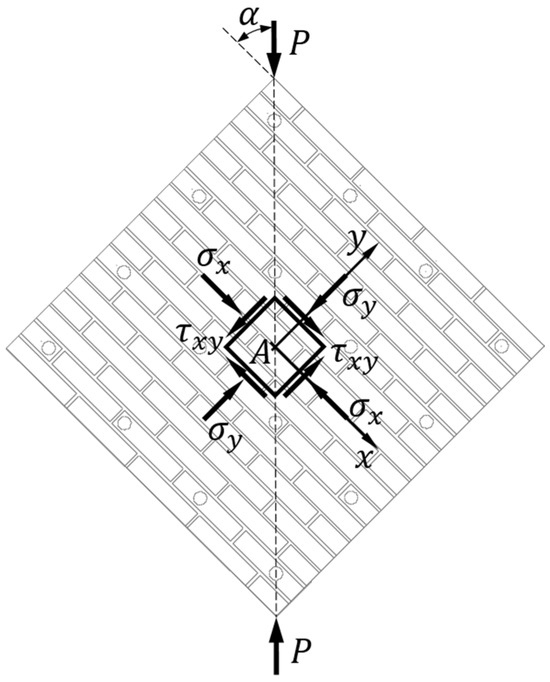

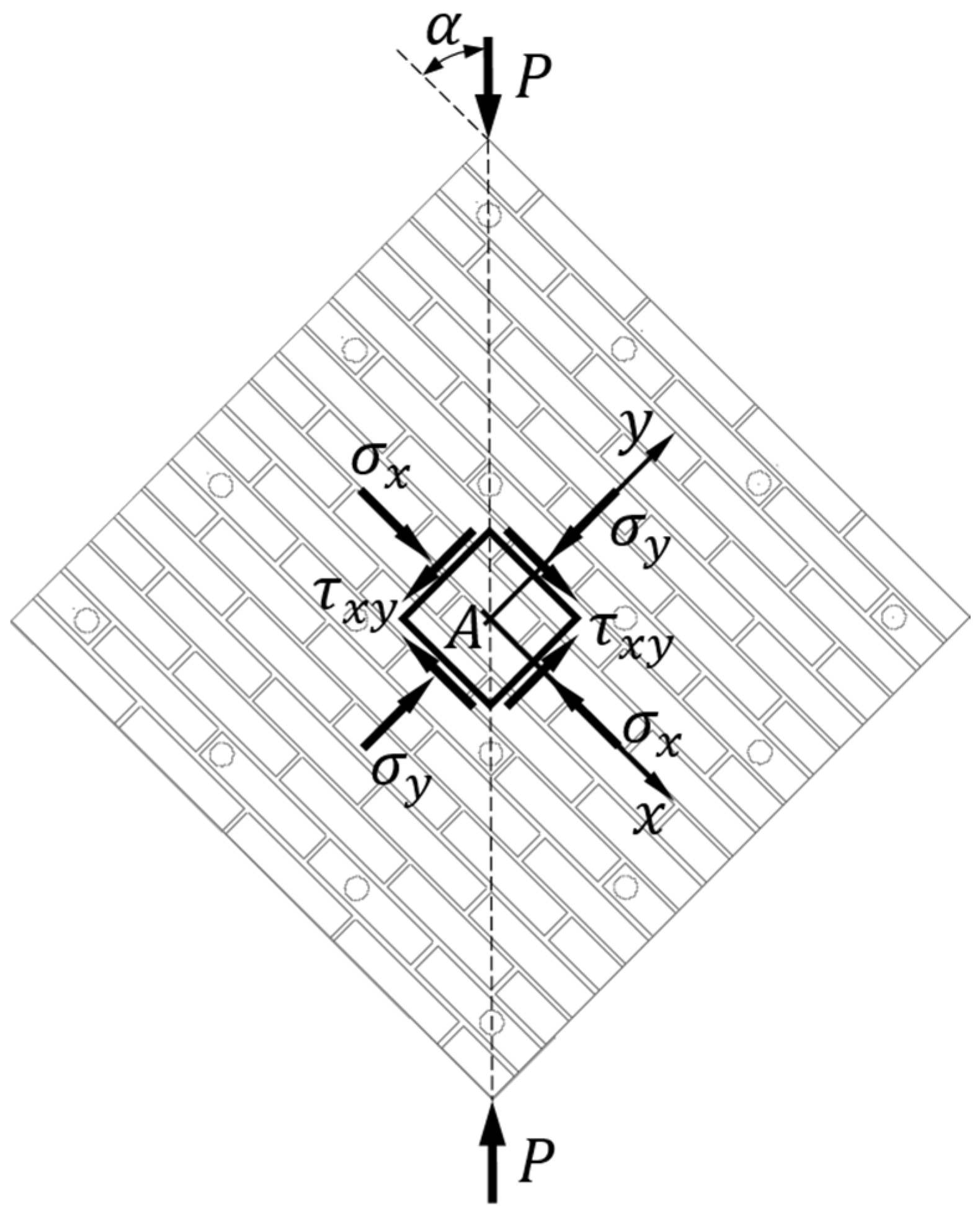

$$f_{dt}={\sigma }_{I_{max}}\cong 0.5\frac{{\left|P\right|}_{max}}{A_n},$$

(5)

where:

• ${\left|P\right|}_{max}$ is the absolute value of the diagonal compression load, $P$, at collapse;
• $A_n$ is the net transversal area of the specimen.

The size of the wall specimens also motivates this choice, because it is slightly smaller than the minimum specimen size ($1200\times 1200 \mathrm{mm}$) established by Reference [42] as reasonably representative of a full-size masonry assemblage. Since Equation (5) provides the diagonal tensile strength value recommended by Reference [43] specifically for small wall specimens, it seems more suitable for the interpretation of the experimental results of this work.

Having drilled the masonry wall for the passage of the straps, $A_n$ in Equation (5) is the transversal area of the specimen net of the four perforations of diameter $\varnothing$, made along the diagonals:

$$A_n=\left(\frac{w+h}{2}-4\varnothing \right)tn,$$

(6)

where $n$—the coefficient between 0 and 1, relating to the rate of voids in the specimen, with $n=1$ in the absence of voids (Appendix A)—takes the value 0.97, as in Reference [62] (for the meaning of $w$, $h$, and $t$ see Section 2).

It is worth noting that the tensioned straps compress the mid-plane of the masonry wall along the edges of the specimen but not at its center of gravity [11], where the additional compressive stresses are perpendicular to the mid-plane (Figure 1). Therefore, the tensile stress in the straps does not change Equation (5), as it refers to the center of gravity of the specimen. This determines the substantial difference between the diagonal compression test on wallettes strengthened with the CAM^® system and the diagonal compression test on wallettes strengthened with other surface strengthening systems, such as FRCM (fiber-reinforced cementitious matrix) materials. In the latter case, in fact, the shear strength is the sum of two contributions [63]: the shear strength of the un-strengthened wallette—related to the diagonal tensile strength of masonry, $f_{dt}$ [64,65]—and the in-plane contribution of the FRCM reinforcement in terms of shear force [41,66].

4.1. Shear Stress/Shear Strain Curves

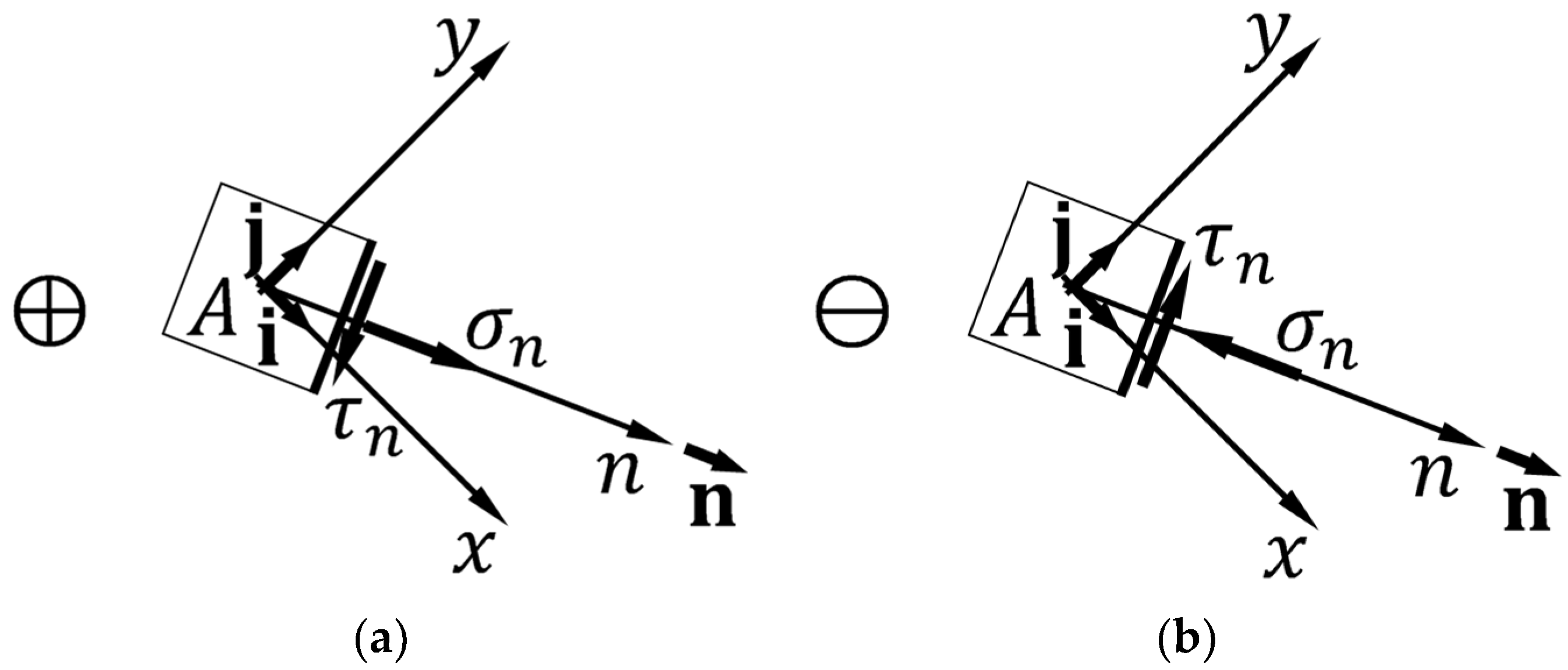

According to the discussion on the interpretation of the diagonal compression test (Appendix A), in the remainder of this paper the shear stress ${\tau }_{xy}$ will assume the approximated value provided by the RILEM guidelines [43] (Equation (A22)):

$${\tau }_{xy}=1.06\frac{\left|P\right|}{A_n},$$

(7)

with $A_n$ given by Equation (6).

The value used in this work for the shear strain is instead equal to the formulation proposed in Reference [42] and implemented by all the other standards:

$${\gamma }_{xy}=\frac{\Delta V+\Delta H}{g},$$

(8)

where:

• $\Delta V$ is the shortening in the direction parallel to loading (vertical direction);
• $\Delta H$ is the extension in the direction perpendicular to loading (horizontal direction);
• $g$ is the gage length in the direction parallel to loading (the gage length for the identification of $\Delta V$ must be equal to the gage length for the identification of $\Delta H$ [42]).

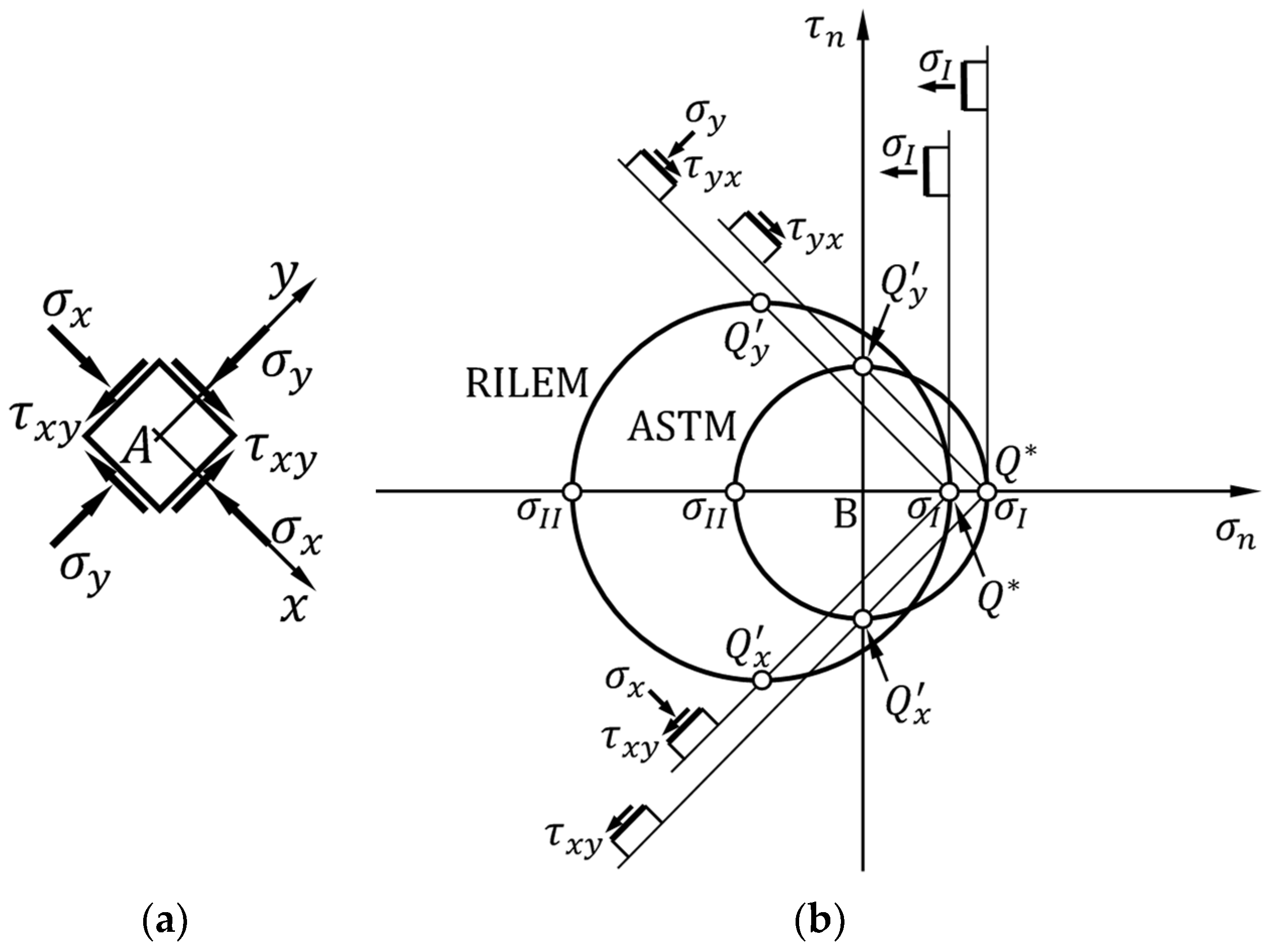

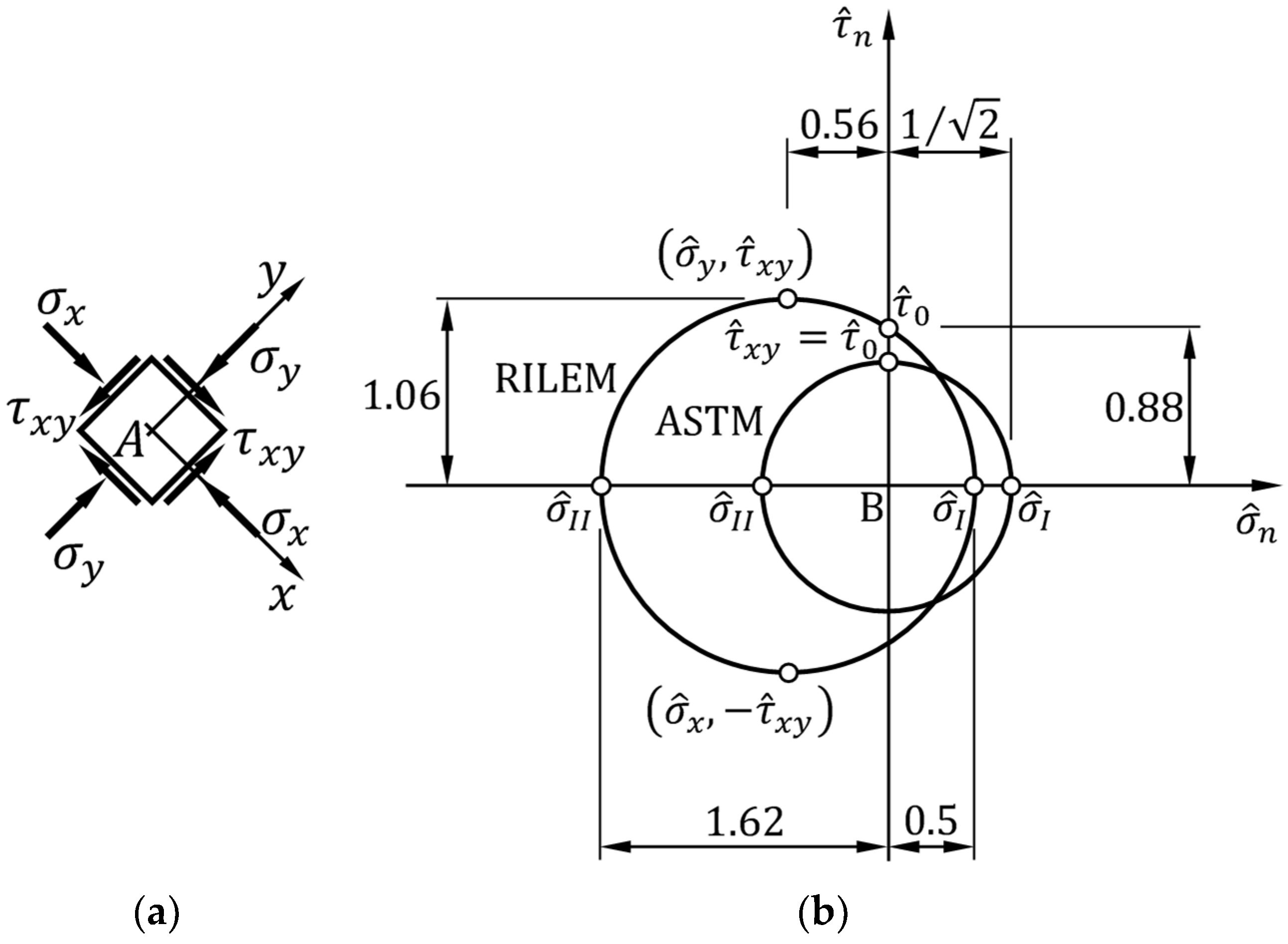

Using the RILEM proposal for shear stress (Equation (7)) instead of the ASTM proposal (Equation (A9)) gives an increase of about 50% in the estimated value of ${\tau }_{xy}$ and the shear modulus, $G$ (or modulus of rigidity, i.e., the modulus of elasticity in shear):

$${\tau }_{xy}^{RILEM}\cong 1.5{\tau }_{xy}^{ASTM},$$

(9)

$$G=\frac{{\tau }_{xy}}{{\gamma }_{xy}} \left(linear elastic range\right),$$

(10)

$$G^{RILEM}\cong 1.5G^{ASTM}.$$

(11)

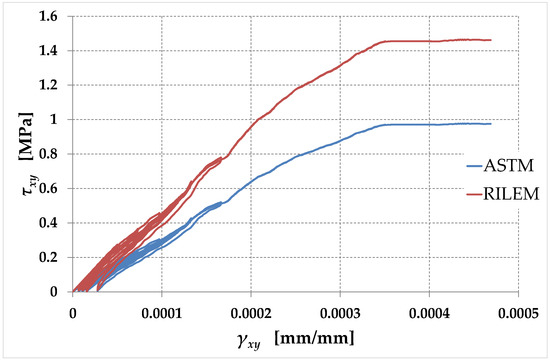

Figure 28 shows the difference between the two formulations in terms of shear stress/shear strain curves, for specimen M1-90.

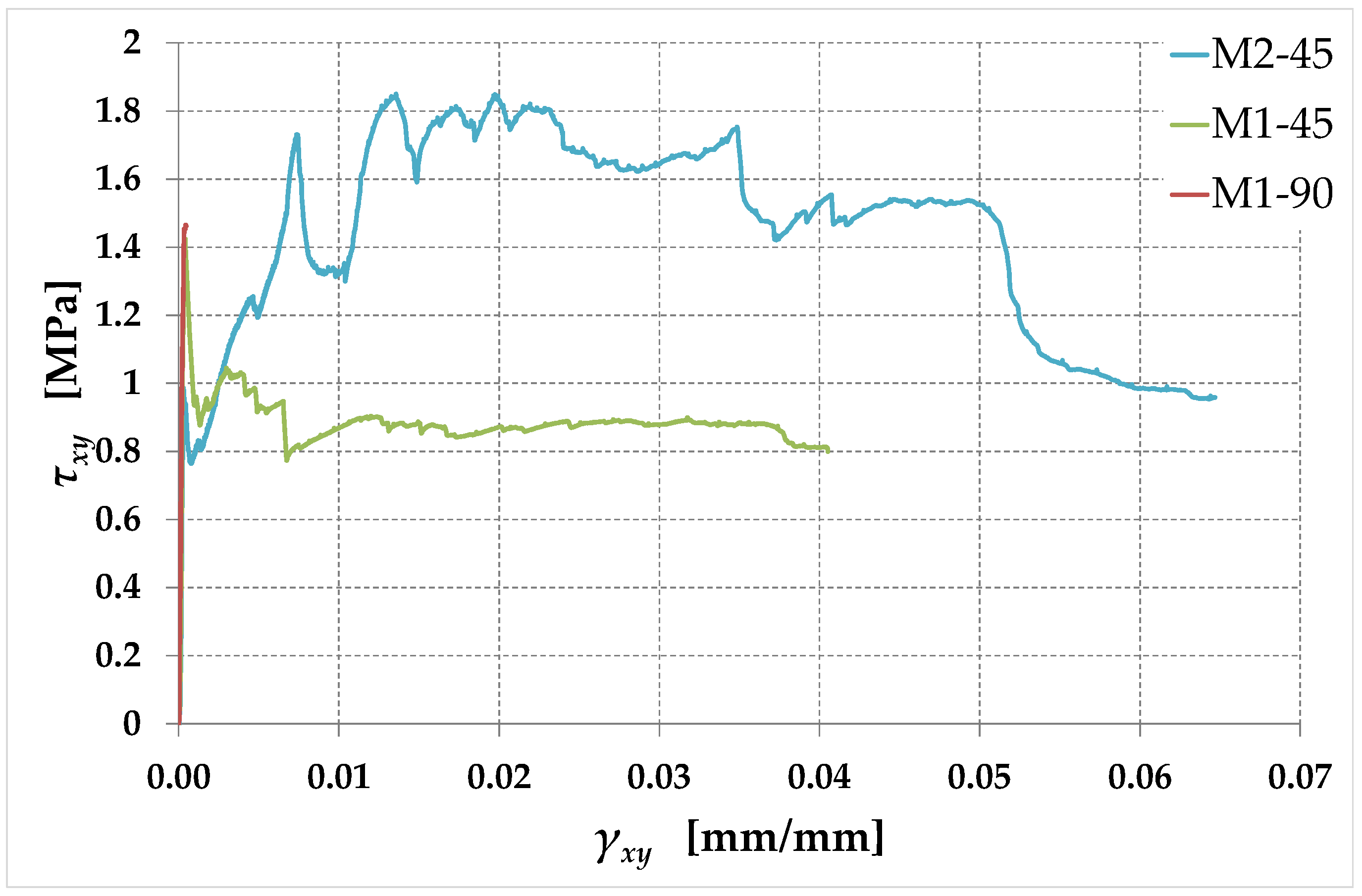

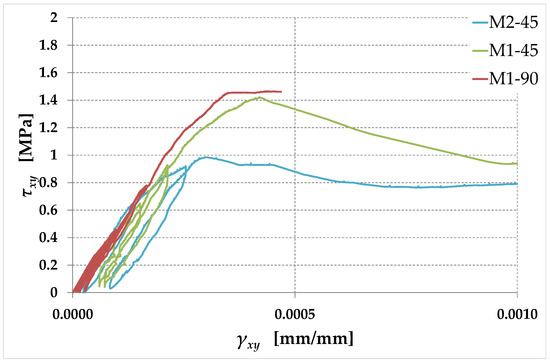

The comparison between the shear stress/shear strain curves for the three specimens (Figure 29) shows that neither the number of straps nor their arrangement has a significant effect on the tangent at the origin, i.e., the modulus of rigidity $G$. In fact, the differences between the tangents at the origin in Figure 29, better highlighted by the detail in Figure 30, largely fall within the dispersion range of the experimental data. The number and the arrangement of the straps, on the other hand, have a great impact on maximum shear stress (Section 4.1.1 and Section 4.1.2), elastic moduli in uniaxial loading (Section 4.2), apparent Poisson’s ratio (Section 4.3), and pseudo-ductility (Section 4.4).

It is worth noting that it is possible to compare the tangents at the origin in Figure 29 thanks to the reconstruction procedure adopted for low load values (Section 4). The reconstruction procedure, in fact, consists of replacing the initial experimental data in the shear stress–shear strain curve with an approximating straight-line segment [57]. This allows the identification of $G$ as the initial slope (tangent modulus) rather than the slope of the line connecting the origin to a point on the ascending branch, with a prefixed shear stress (secant modulus). The mean value of the modulus of rigidity in Figure 29 is:

$$G\cong 4952 \mathrm{MPa}.$$

(12)

This value, being independent of the number of straps applied, is reasonably equal to the URM modulus of rigidity.

4.1.1. Contribution of the Arrangement of the Straps to the Maximum Shear Stress

As far as the effect of the strap arrangement is concerned, the curves plotted in Figure 29 (together with the detail in Figure 30) lead to two main observations, with their respective consequences:

• As assumed in Section 1.2, the rectangular arrangement with straps parallel to the mortar joints (in both directions) is labile. In fact, after a short horizontal plateau at the maximum shear stress (Figure 30), specimen M1-90 undergoes a brittle failure. This means that the straps crossing the failure planes are unable to counteract the relative displacements activated by the failure process along the slip planes. Due to the forces acting orthogonally to their direction, these straps rotate around the hinged nodes of the CAM-like system, which activates the free nodal displacements of the unbraced scheme shown in Figure 3a. Consequently, the rectangular strengthening system with straps arranged along the mortar joints is ineffective in terms of increasing the maximum load. However, it is not entirely useless: keeping the various parts that make up the masonry wall together even after the activation of the slip planes prevents the debris from falling. In fact, the steel straps do not break at the maximum load. This allows them to act as a debris containment garrison, similar to rock-fall nets on rocky slopes. Furthermore, the box-type behavior created by the continuous strengthening system in a building (Figure S3) protects individual structural elements from out-of-plane overturning and prevents the entire structure from collapsing. Therefore, each structural element undergoes limited horizontal displacements after failure, which allows us to define a pseudo-ductility even for the building that has exceeded the shear strength. This makes the strap arrangement of specimen M1-90 a very useful tool for the (preventive) safety of the structures and, ultimately, for safeguarding the safety of the inhabitants. As a final remark, since specimen M1-90 deviates only slightly from linearity up to the maximum shear stress, it seems reasonable that the straps have no effect on the pre-peak behavior of specimen M1-90. Thus, the maximum shear stress of specimen M1-90 is, to a good approximation, the URM maximum shear stress.
• A $\pm 45°$ rotation of the straps allows the rectangular arrangement to find equilibrium while remaining a labile configuration. The curves of specimens M1-45 and M2-45 in Figure 29 testify to the effectiveness of the $\pm 45°$ arrangement, since they continue well beyond the first peak, caused by the initiation of the crisis in the masonry. This greatly increases the pseudo-ductility of the strengthened masonry wall (Section 4.4). The activation of the strengthening system allowed by the $\pm 45°$ rotation of the straps therefore transforms the failure of the specimen from brittle to markedly ductile. The continuation of the curves beyond the peak of the first crack (first peak) is possible as the $\pm 45°$ arrangement of the straps is labile but balanced, and therefore effective, given the particular load condition. Figure 31 provides an explanation in the Mohr plane of the effectiveness of the $\pm 45°$ arrangement for an actual case of masonry subjected to horizontal (seismic) loading, using the pole method (Appendix A).

These observations allow for a better understanding of the behavior of an entire masonry wall strengthened with the CAM^® system. In particular, Figure 31a shows the actual loading condition—under horizontal seismic loading—that the diagonal compression test aims to simulate. The stress state at the center of gravity, $A$, of Figure 31a is a pure shear stress state (as assumed by the ASTM guidelines), much more similar to that produced at $A$ by the shear test than by the diagonal compression test. Therefore, the center of the Mohr circle for the actual load is at the origin of the Mohr plane (Figure 31b). As explained in Appendix A, however, the location of the center has no effect on the principal directions found with the RILEM and ASTM guidelines. Furthermore, the axes of Figure 31a make 45° angles with the axes of Figure A4a ($x$ and $y$ are parallel to the horizontal and vertical mortar joints, respectively, in both figures). This does not change the positions of the $Q_x^{\prime }$ and $Q_y^{\prime }$ stress points of Figure A4b, but moves the Mohr pole, $Q^{*}$, at the point of coordinates $\left(0,{\tau }_{yx}\right)$ (Figure 31b).

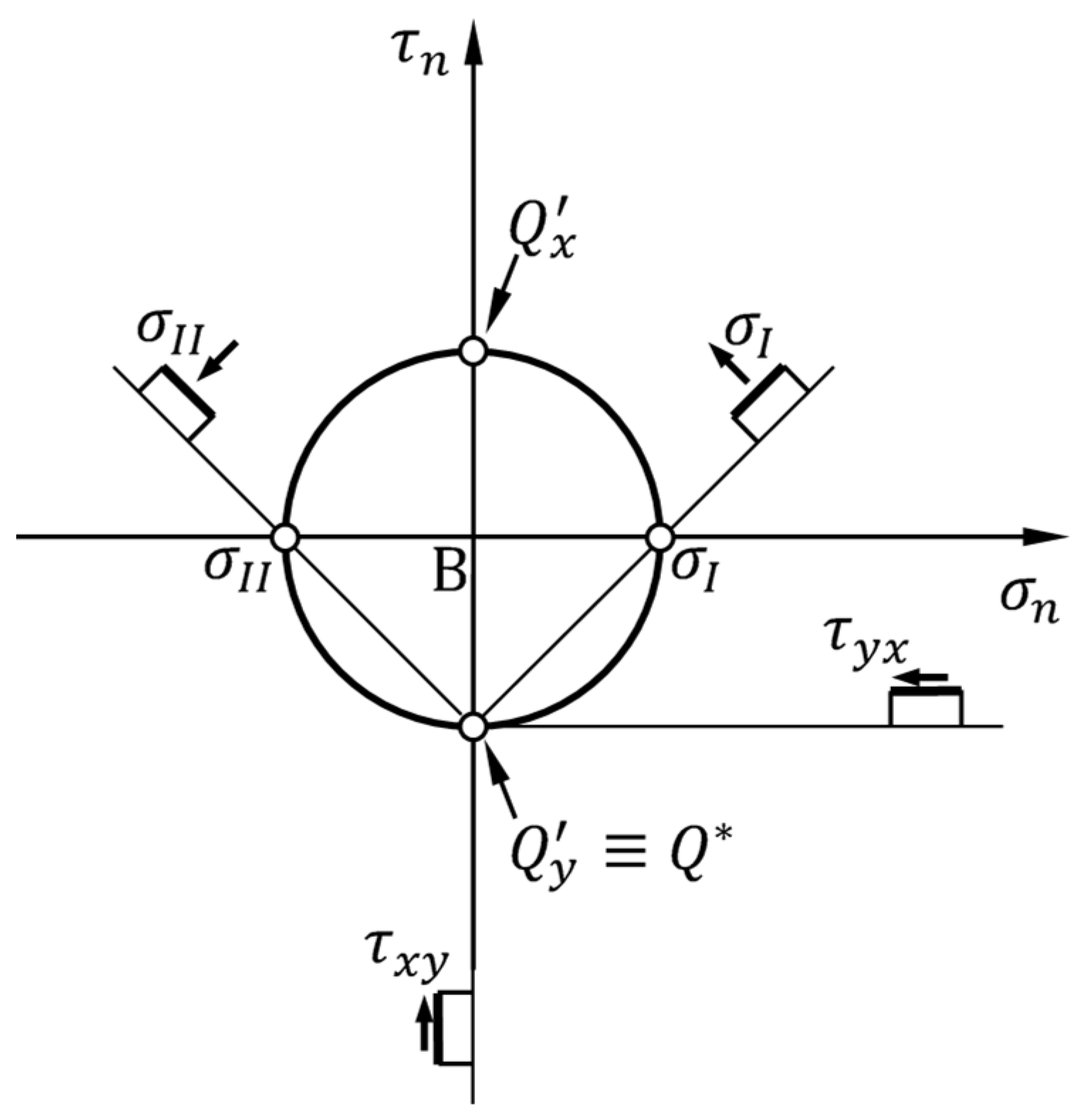

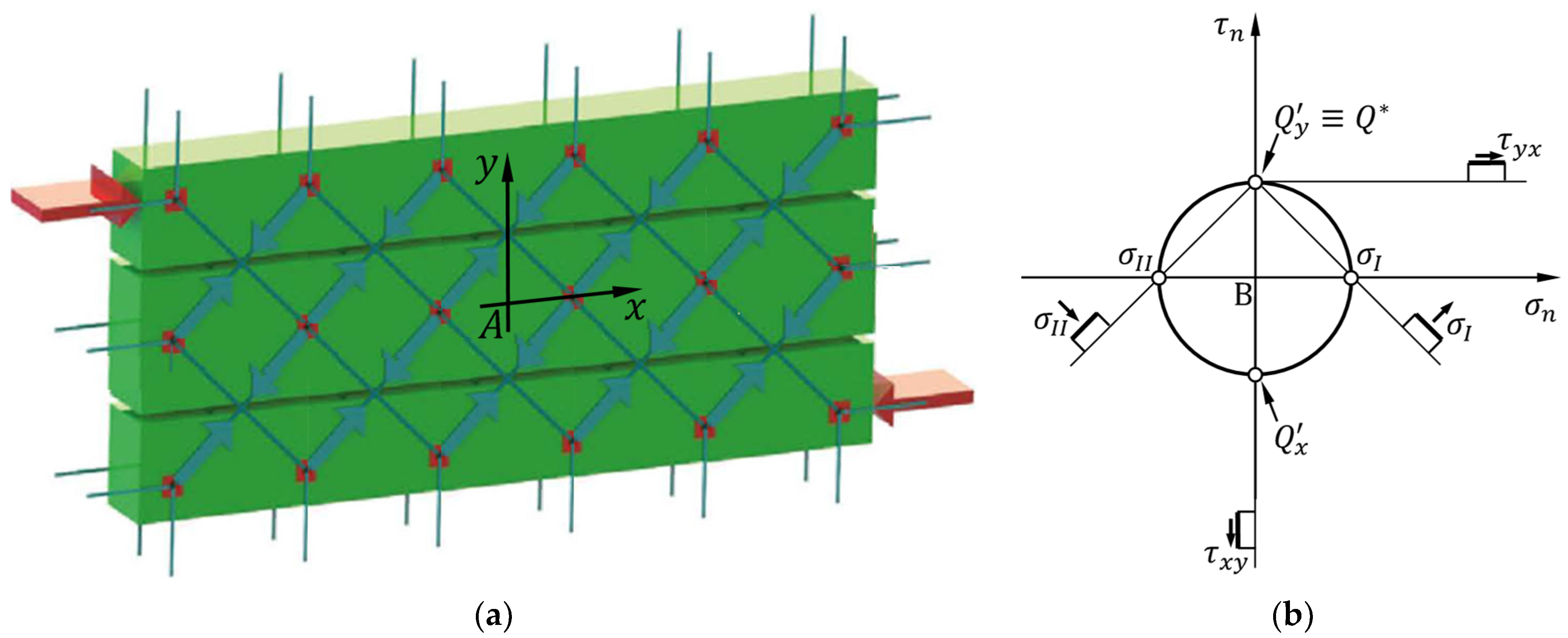

Of the two directions of the straps in Figure 31a, one coincides with the first principal direction (the direction of the maximum principal stress, ${\sigma }_I$, in Figure 31b), while the other coincides with the second principal direction (the direction of the minimum principal stress, ${\sigma }_{II}$, in Figure 31b). The straps arranged along the first principal direction undergo tensile stress, while those running along the second principal direction are compressed straps. Since there are no forces applied orthogonally to the straps, the external load does not modify the angles between the tensioned and compressed straps, although the static scheme of the strengthening system is still labile. This makes it no longer necessary to brace the strengthening system to eliminate the free nodal displacements.

The straps subjected to tension resist the load due to the tensile strength of the steel (straps with positive slope in Figure 31a). This delays the specimen failure as it counteracts the opening of the failure planes. In other words, the tensioned straps have the same function as the bracing strip in Figure 4a. The straps subjected to compression (straps with negative slope in Figure 31a) are instead ineffective as they undergo instability under axial compressive load. This is not a problem since the forces applied along the direction of the compressed straps are not directly responsible for the specimen failure. These straps are not needed (under the load in Figure 31a) just as the strip along the second diagonal in Figure 4a is not needed.

When the horizontal external force reverses due to the oscillatory nature of the seismic action, the two principal directions switch (Figure 32): the direction with positive slope becomes the principal direction of compression (second principal direction) and the direction with negative slope becomes the principal direction of traction (first principal direction). Due to the orthogonality between both the principal directions and the two directions of the straps, the sign of the stress in the straps also reverses. This means that, of the two directions of the straps, one coincides with the direction of the maximum principal stress whatever the direction of the external force. The straps that were in tension under the load in Figure 31a become ineffective, while those that were compressed in Figure 31a now behave as tie rods. This gives rise to a further scheme with a single bracing strip (Figure 4a) but with the bracing strip arranged along the second diagonal.

In conclusion, the $\pm 45°$ arrangement of the straps is effective whatever the direction of the external horizontal force. Furthermore, the coincidence between one of the two directions of the straps and the direction of the maximum principal stress whatever the direction of the external force ensures that the strengthening system has the same effectiveness for both directions of the (horizontal) seismic action. This is a strong point of the rectangular arrangement with straps at $\pm 45°$ compared to the triangular arrangement of the straps [19], as the latter (always balanced) is not always able to ensure the same degree of effectiveness when the external load reverses. Therefore, the rectangular arrangement with the straps oriented at $\pm 45°$ maximizes the effectiveness of the CAM^® system compared to other strap arrangements.

4.1.2. Contribution of the Number of Straps to the Maximum Shear Stress

If the effectiveness of the rectangular strengthening system depends on the arrangement of the straps, the degree of effectiveness depends on the number of straps used. In the $\pm 45°$ arrangement with only one strap per loop (specimen M1-45 in Figure 29), the number of straps is not enough to increase the maximum shear stress, which is almost the same as in specimen M1-90 (the URM maximum shear stress). Nevertheless, as highlighted in Section 4.1.1, the use of just one strap per loop in the $\pm 45°$ arrangement is more than sufficient to increase the pseudo-ductility of the masonry wall, considered a structural element isolated from the rest of the structure (i.e., net of the box-type behavior created by the CAM^® system). The ultimate shear strain of specimen M1-45 is, in fact, about 81 times the ultimate shear strain of specimen M1-90 (

Table 5. The main values of shear stress and shear strain.

Specimen	Shear Stress at the End of the Linear Range (MPa)	Shear Stress of First Peak (MPa)	Maximum Shear Stress (MPa)	Residual Shear Stress (MPa)	Shear Strain at the End of the Test (mm/mm)
M1-90	1.118	1.465	1.465	/	0.00047
M1-45	1.044	1.423	1.423	0.886	0.03806
M2-45	0.545	0.985	1.850	0.959	0.06469

). Furthermore, the action of the tensioned straps after the first peak ensures that the specimen has a residual shear load-bearing capacity, with a residual shear stress value of about $0.886 \mathrm{MPa}$ (Figure 29, Table 5). This value is equal to about 63% of the maximum shear stress and 60% of the URM maximum shear stress (Table 5). The residual shear stress value remains nearly constant until the end of the test, which provides the specimen with a long pseudo-plastic branch after the activation of the slip planes in the masonry.

In the case of the application of the reinforcement system to an entire masonry building, the benefit in terms of resistance to seismic action provided by the use of a single strap per loop depends on the structural ductility. That is, it depends on the ability of the single masonry element to bear the high values of shear deformation that characterize the pseudo-plastic phase when the seismic action persists beyond the peak of the first crack of the masonry. On the other hand, the individual masonry elements benefit from the continuity of the reinforcement system, implemented in the building by the CAM^® system. Since the continuity of the strengthening system contributes to decreasing the values of the horizontal displacements, we can conclude that even a single strap per loop is useful to increase the seismic resistance beyond the shear strength capacity of the masonry.

In the specimen with two straps per loop along the tensioned direction (specimen M2-45 in Figure 29), the maximum load increases by approximately 26% with respect to specimen M1-90. The ultimate shear strain also increases in specimen M2-45: it is approximately 138 times the ultimate shear strain of specimen M1-90 (Table 5). After the shear stress drop following the first peak, the tensioned straps allow specimen M2-45 to recover shear stress until it reaches and exceeds the shear stress of the first peak. A series of successive peaks follow the first peak, with increasing peak shear stress values, which corresponds to the activation of new slip planes in the masonry. This indicates that the damage to the masonry is a progressive phenomenon and does not occur in a single moment, as happens in specimen M1-90. After the phase with increasing values of peak shear stress, specimen M2-45 also shows a pseudo-plastic phase, which is even longer than the pseudo-plastic phase of specimen M1-45. This second time, however, the plastic threshold does not denote a residual shear load-bearing capacity, as the maximum shear stress reached in the plastic threshold is also the maximum shear stress attained by the specimen. The absence of a drop in shear stress between the point of maximum shear stress and the pseudo-plastic threshold assures us regarding structural ductility since large shear strains are not necessary for the structure to benefit from the contribution of the straps. The pseudo-plastic branch then weakly decreases, with some shear stress drops, due to the progressive but slow damage to the strengthening system. At the end of the load test, the specimen is still capable of withstanding a shear stress equal to 52% of the maximum shear stress and 65% of the URM maximum shear stress.

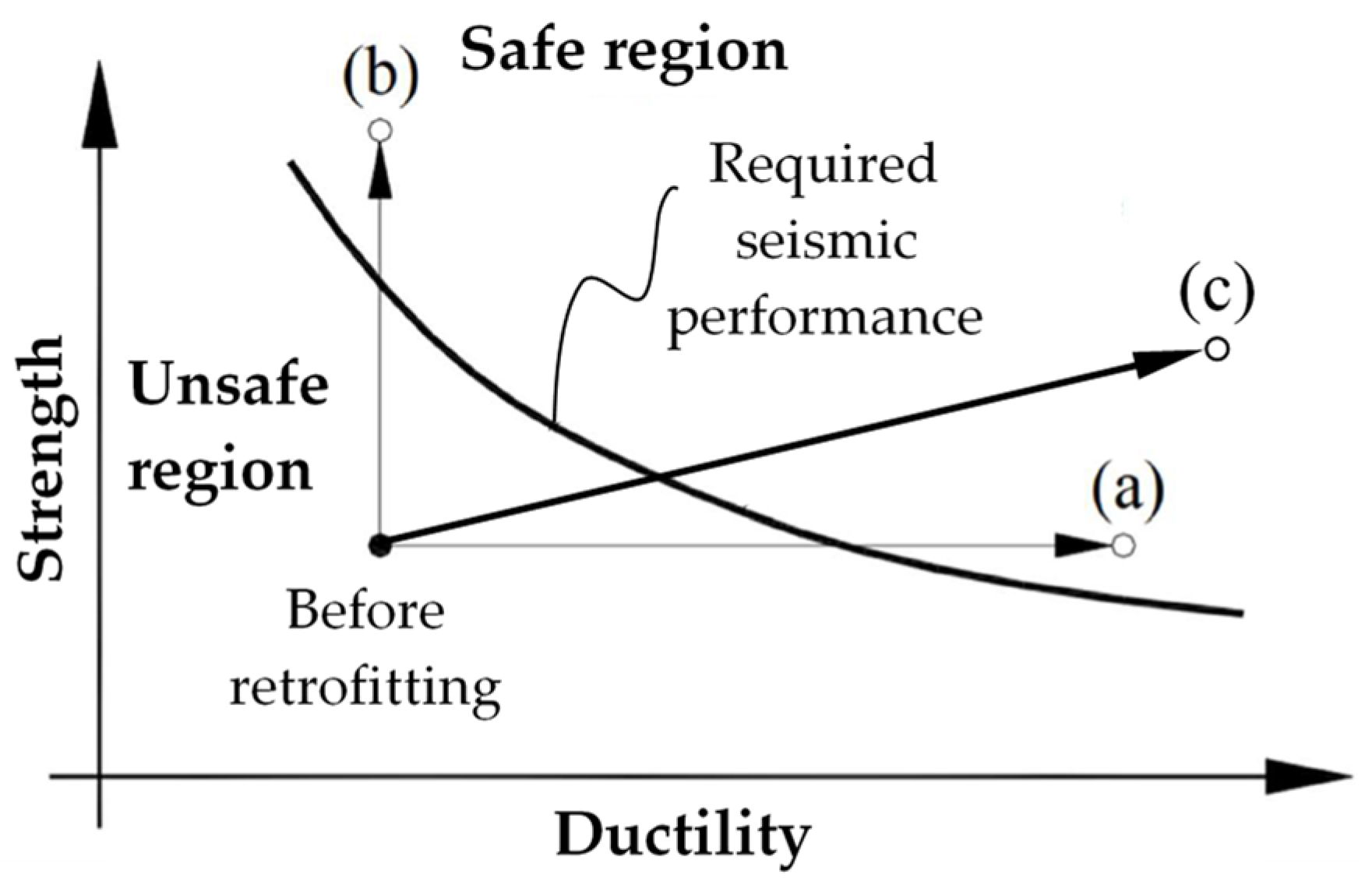

It is worth noting that the best-known traditional strengthening techniques share the common feature of increasing only the ductility (path (a) in Figure 33) or the strength (path (b) in Figure 33) of the strengthened structure. A strengthening technique using fiber-reinforced polymers (FRPs), for example, increases strength but not ductility, bringing the structure to point (b) along the vertical path in Figure 33. On the other hand, the CAM^® system with the traditional rectangular arrangement (specimen M1-90) increases ductility but not strength, bringing the structure to point (a) along the horizontal path in Figure 33. The $\pm 45°$ orientation of the straps in the rectangular arrangement does not change this behavior as long as the number of straps per loop is low (specimen M1-45). However, it is possible to improve both ductility and strength by increasing the number of straps per loop in the $\pm 45°$ arrangement (specimen M2-45). This makes the CAM^® system a strengthening system capable of increasing both ductility and strength, which brings the structure to point (c) in Figure 33.

Figure 29 (together with the detail in Figure 30) allows drawing one observation that concerns the shear stress of the first crack (shear stress of the first peak). For specimens M1-90 and M1-45, the shear stress of the first crack is equal to the maximum shear stress. The difference between the shear stresses of the first cracks of specimens M1-90 and M1-45 is small (Figure 30, Table 5) and could be within the dispersion range of the experimental data. However, specimen M1-45 loses linearity at approximately $1.044 \mathrm{MPa}$, which corresponds to 73% of the maximum shear stress, while specimen M1-90 is linear up to approximately $1.118 \mathrm{MPa}$, which corresponds to 76% of the maximum shear stress (Figure 30, Table 5). This indicates that damage occurs slightly earlier in the specimen with effective strengthening (specimen M1-45) than in the specimen with ineffective strengthening (specimen M1-90). Therefore, it appears that the use of effective strengthening anticipates the onset of damage in the masonry. Specimen M2-45 confirms this conclusion, as the increase in the number of straps considerably decreases the shear stress of the first crack, the shear stress at the end of the linear range, and the ratio between the latter and the shear stress of the first crack. The shear stress at the end of the linear range is, in fact, about 55% of the shear stress of the first peak.

A further effect of the number of straps on the damage suffered by the masonry concerns the reduction in the slopes at the exit of the linear range, markedly greater in specimen M2-45 than in specimen M1-45. Since a decrease in the slope of the shear stress/shear strain curve means that the shear stiffness decreases due to damage, the damage that occurs in specimen M2-45 at the exit of the linear range is therefore greater than the damage that occurs in specimen M1-45. Well, the cause–effect link between the increase in the number of straps of the CAM^® system and the early appearance of both the damage and the first crack confirms the findings of Reference [11], where this phenomenon finds a theoretical explanation in the Mohr plane.

4.2. Stress/Strain Curves

In most of the scientific literature, it is customary to derive the Young’s modulus (i.e., the modulus of elasticity in tension and compression) of masonry from the relationship valid for materials in the linear elastic, homogeneous, and isotropic states [67]:

$$E=2\left(1+\nu \right)\mathrm{G},$$

(13)

where:

• $E$ is the Young’s modulus;
• $\nu$ is the Poisson ratio, conventionally assumed equal to 0.25 [34,68,69,70];
• $\mathrm{G}$ is the shear modulus, defined by Equation (10).

The choice of the value 0.25 for the Poisson ratio, however, does not seem appropriate for masonry. This is, in fact, a more appropriate value for cast iron or carpentry steel, while brittle materials such as concrete have much smaller Poisson ratios in the linear elastic range [71]. Since it seems reasonable that this also applies to masonry, in this article we will not use the conventional value $\nu =0.25$ for the calculation of $E$. Instead, we will adopt an approach based on the interpretation of the diagonal compression test in the Mohr plane. The pole method (Appendix A), in fact, associates the principal stresses to the directions of the two diagonals (Figure A4), which are also the directions of acquisition of the displacements. This allows for the identification of approximated stress/strain relationships in both uniaxial tension and uniaxial compression (Figure 34, Figure 35 and Figure 36), with:

• The stresses given by the principal stresses, ${\sigma }_I$ and ${\sigma }_{II}$, in the RILEM interpretation of the diagonal compression test (Equation (A24));
• The strains, ${\epsilon }_h$ and ${\epsilon }_v$, obtained as the ratios of the relative displacements between the ends of the horizontal and vertical potentiometers (Section 2.3) to the initial lengths of the potentiometers:

$${\epsilon }_h=\frac{\Delta H}{g},$$

(14)

$${\epsilon }_v=\frac{\Delta V}{g},$$

(15)

where the symbols $\Delta H$, $\Delta V$, and $g$ take on the same meaning they have in Equation (8).

The slopes at the origin of the ${\sigma }_I/{\epsilon }_h$ and ${\sigma }_{II}/{\epsilon }_v$ curves do not provide exact values of Young’s modulus because the actual stress state in the center of gravity of the specimens is not uniaxial, but biaxial. Consequently, from Hooke’s laws for the biaxial state of stress, it follows that $E$ is not a coefficient of the direct relationship between ${\sigma }_I$ and ${\epsilon }_h$ and between ${\sigma }_{II}$ and ${\epsilon }_v$:

$${\epsilon }_h=\frac{1}{E}\left[{\sigma }_I-\nu {\sigma }_{II}\right],$$

(16)

$${\epsilon }_v=\frac{1}{E}\left[{\sigma }_{II}-\nu {\sigma }_I\right].$$

(17)

However, in the assumption that $\nu$ takes on very low values, it is permissible to neglect the Poisson effect (Section 4.3) to obtain Young’s moduli as a first approximation. The values of $\nu$ identified in Section 4.3 are actually significantly less than 0.25. It is worth noting, however, that the values of $\nu$ in Section 4.3 come from displacements acquired along the entire diagonals. Since these displacements include the non-rheological effect of crack openings (see Section 4.3 for further details), it is reasonable to assume that the Poisson ratios identified after excluding the non-rheological contribution would be even smaller. The ongoing revision of the interpretation of the diagonal comprehension test—which is an integral part of this article—is actually providing Poisson ratios one order of magnitude lower than those reported in Section 4.3. This makes the evaluation of $E$ using the ${\sigma }_I/{\epsilon }_h$ and ${\sigma }_{II}/{\epsilon }_v$ curves acceptable as a first approximation.

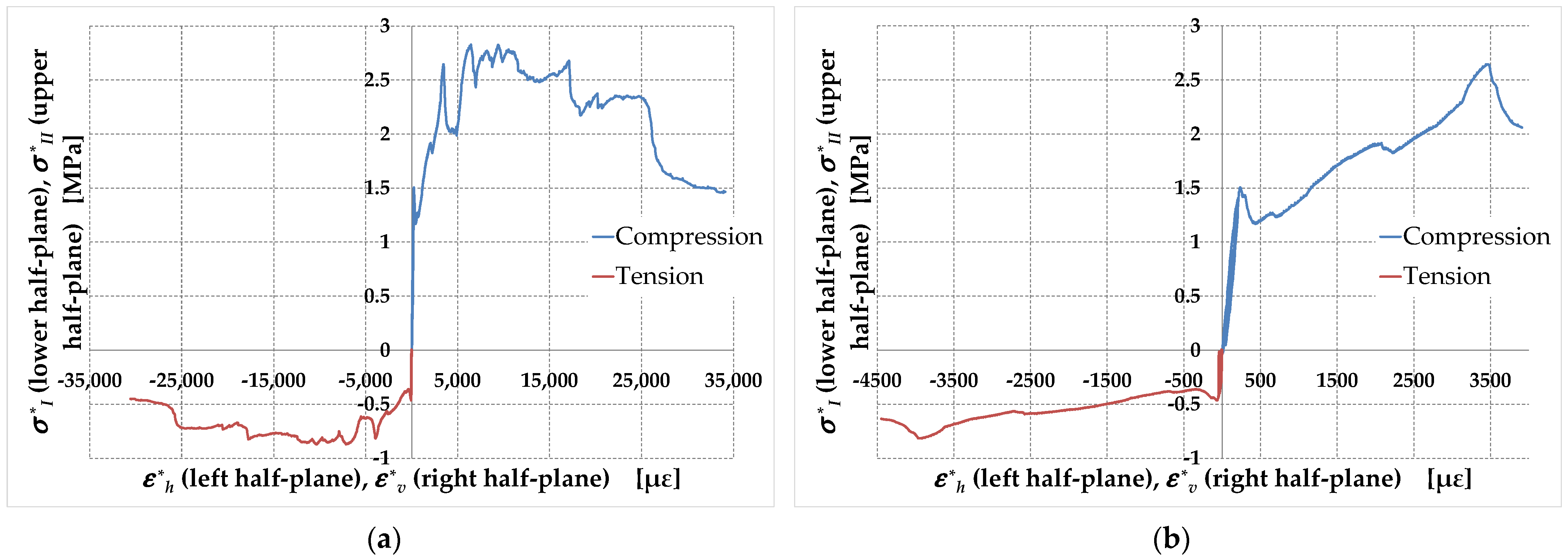

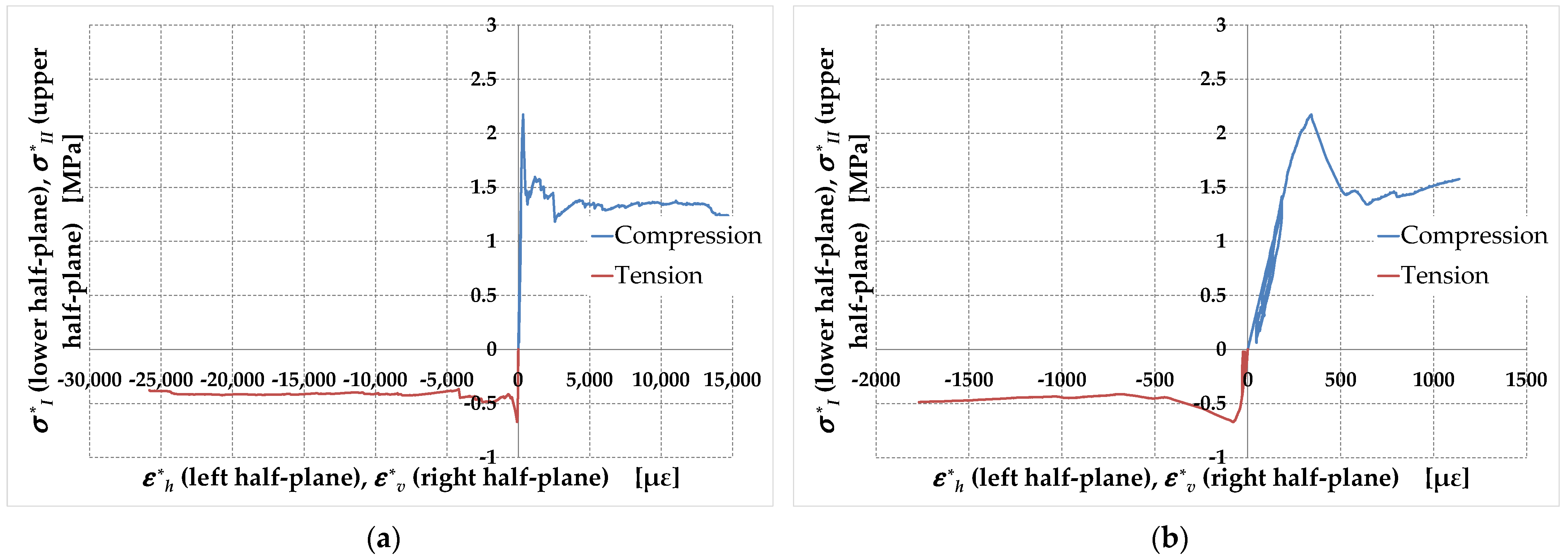

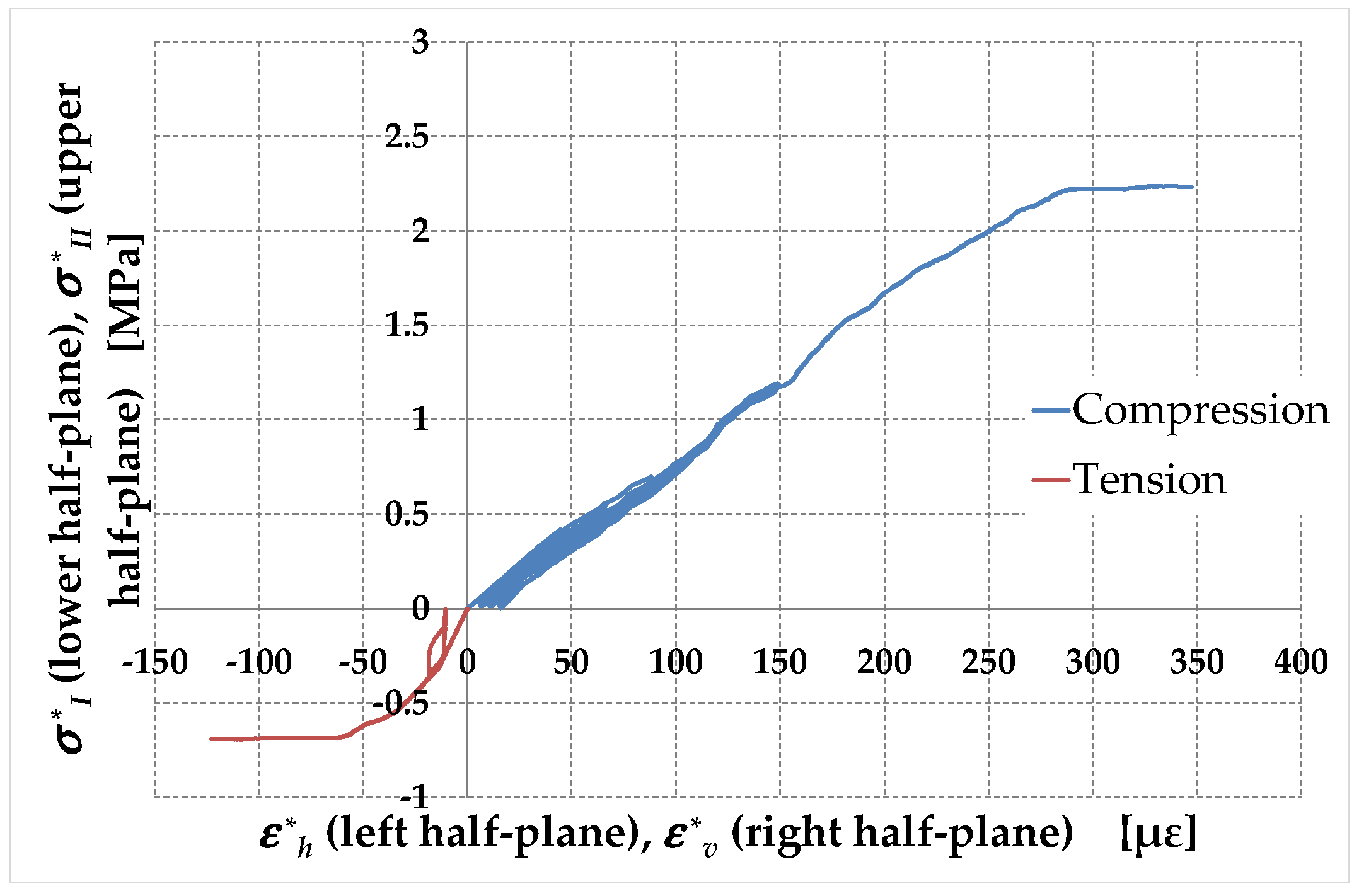

As usual with brittle materials, in Figure 34, Figure 35 and Figure 36, the stress–strain curves in uniaxial compression occupy the first quadrants and the stress–strain curves in uniaxial tension occupy the third quadrants. Therefore, the stresses along the vertical axes are the sign-changed principal stresses:

$${\sigma }^{*}{}_I=-{\sigma }_I,$$

(18)

$${\sigma }^{*}{}_{II}=-{\sigma }_{II},$$

(19)

and the strains along the horizontal axes are ${\epsilon }_h$ and ${\epsilon }_v$ changed in sign:

$${\epsilon }^{*}{}_h=-{\epsilon }_h,$$

(20)

$${\epsilon }^{*}{}_v=-{\epsilon }_v.$$

(21)

Due to the identification procedure adopted for the stress–strain curves under uniaxial loading, all comments on the effect of the arrangement and the number of straps made for the shear stress/shear strain curves (Section 4.1) extend to the curves in Figure 34, Figure 35 and Figure 36. In particular, the diagonal tensile strength given by Equation (5) returns almost the same value of $f_{dt}$ for specimen M1-90 and specimen M1-45, while the value of $f_{dt}$ in specimen M2-45 is 1.30 times the value of $f_{dt}$ in specimen M1-45.

In addition to this, the comparison between the first and third quadrants in Figure 34, Figure 35 and Figure 36 provides new information:

• The 0.3 ratio of the estimated diagonal tensile strength, $f_{dt}$:

  $$f_{dt}={\sigma }_{I_{max}}=-{\sigma }^{*}{}_{I_{min}},$$

  (22)

  to the estimated diagonal compressive strength, $f_{dc}$:

  $$f_{dc}=-{\sigma }_{I{I}_{min}}={\sigma }^{*}{}_{I{I}_{max}},$$

  (23)

  is a direct consequence of the ratio of the two principal stresses, ${\sigma }_I$ and ${\sigma }_{II}$, in Equation (A24). This value, however, is not consistent with the experimental results on the tensile and compressive strengths of masonries, $f_t$ and $f_c$, respectively. In fact, although it is difficult to identify a reliable value of tensile strength with the standard statistical methods, the ratio $f_t/f_c$ is usually less than $0.1$ [72]. As specified above, it is incorrect to confuse $f_{dt}$ with $f_t$ and $f_{dc}$ with $f_c$. However, the difference between the $f_{dt}/f_{dc}$ and $f_t/f_c$ ratios is too large to depend only on the approximations introduced.
• Since specimen M1-90 behaves like a URM specimen, the different values assumed by the initial slopes in the two opposite quadrants of Figure 34 would indicate that the tensile stiffness of the URMs is different from the compressive stiffness. In fact, even the difference between these slopes is too large to depend only on the approximations introduced. This would mean that there is no single Young’s modulus in tension and compression in the URMs, which is physically unacceptable. In particular, Figure 34 shows an estimated Young’s modulus in compression, $E_c$, that is significantly lower than the estimated Young’s modulus in tension, $E_t$ (

  Table 6. Estimated values of elastic moduli and their ratio.

  Specimen	${\mathit{E}}_{\mathit{c}}$ (MPa)	${\mathit{E}}_{\mathit{t}}$ (MPa)	${\mathit{E}}_{\mathit{t}}/{\mathit{E}}_{\mathit{c}}$
  M1-90	9551	22,676	2.37
  M1-45	7385	23,375	3.17
  M2-45	8080	31,496	3.90

  ).

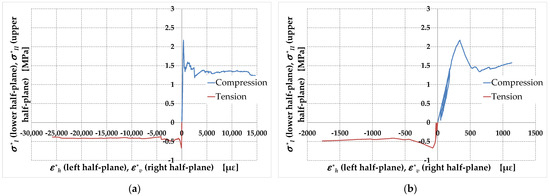

• The details in Figure 35b and Figure 36b show that $E_t$ and $E_c$ take on different values in both specimen M1-45 and specimen M2-45 (Table 6), which is not evident from Figure 35a and Figure 36a. However, although it is reasonable to think that the straps modify the stiffness along the first principal stress direction, the inconsistencies that emerged regarding the discussion on the values of $E_t$ and $E_c$ for specimen M1-90 do not allow us to reach definitive conclusions on the elastic moduli for the RMs.

It is worth noting that the ASTM interpretation of the diagonal compression test provides an even more unacceptable result, $f_{dt}/f_{dc}=1$, and an even greater difference between the two estimated elastic moduli (with $E_c<E_t$). Therefore, the RILEM approach is undoubtedly an improvement of the ASTM approach. However, the inconsistencies on the ratio $f_{dt}/f_{dc}$ and on the estimated Young’s modulus of specimen M1-90 seem to indicate that the RILEM interpretation of the diagonal compression test does not provide reliable values for ${\sigma }_I$ and ${\sigma }_{II}$, which leads to non-reliable values of $f_{dt}$ and $f_{dc}$. In particular, the RILEM approach seems to underestimate the hydrostatic stress state at the center of the specimen, which is responsible for the translation of the Mohr circle along the horizontal axis. In fact, a further translation along the direction of the negative semi-axis of ${\sigma }_n$ would decrease both the $f_{dt}/f_{dc}$ ratio and the $E_t/E_c$ ratio, leading to results more consistent with the experimental evidence. Since it requires too much space for complete development, the treatment of this specific aspect will be the subject of a subsequent article.

In conclusion, the estimated elastic moduli in Table 6 do not provide a useful quantitative indication of the effect that the reinforcement has on the elastic properties of masonry walls. Their ratio, however, could have some meaning. Obviously, it is not a meaning related to the numerical value itself, but a meaning related to the trend of the $E_t/E_c$ ratio as the number of active straps varies. In fact, given that it is logical to expect a value $E_t/E_c=1$ in specimen M1-90 (that is, in the URMs), the increase in $E_t/E_c$ as the straps become active and as the number of straps increases could indicate an anisotropy of the mechanical properties induced by the reinforcement. This actually makes sense, as the straps increase the stiffness along the tensile direction while being ineffective along the compressive direction. Ultimately, it is an effect of the unidirectionality of the active straps, which unites the CAM^® system with other uniaxially aligned reinforcement systems. Even the latter, in fact, lead to the anisotropy of strength and Young’s modulus [73].

4.3. Poisson’s Ratio and Apparent Poisson’s Ratio

The Poisson effect is the tendency of a material to expand along directions perpendicular to the uniaxial direction of compression and to contract along directions perpendicular to the uniaxial direction of tension. In order to provide a measure of the Poisson effect, it is customary to calculate the negative of the ratio of the strain in directions perpendicular to the direction of uniaxial loading, ${\epsilon }_h$, to the axial strain, ${\epsilon }_v$:

$$\nu =-\frac{{\epsilon }_h}{{\epsilon }_v},$$

(24)

where $\nu$ takes the name of Poisson’s ratio. As specified in Section 4.2, it is reasonable to assume that the actual value of the Poisson ratio for masonry in the linear elastic range is much lower than the conventional value of 0.25, suggested for the use of Equation (13). To verify this assumption, the problem now arises of identifying the Poisson ratio for the tests carried out. The values of the $-{\epsilon }_h/{\epsilon }_v$ ratio beyond the linear elastic field will then be useful to propose a new criterion for identifying the yield shear strain (Section 4.4), the value of which is still a source of debate among researchers.

In the specific case of the tests covered by this paper, ${\epsilon }_h$ is the tensile strain (Equation (14)) and ${\epsilon }_v$ is the compressive strain (Equation (15)). As already discussed in Reference [71], however, the second member in Equation (24) actually provides a measure of the Poisson effect only as long as it makes sense to treat the acquired data in the context of continuum mechanics. If a crack that propagates in Mode I (Figure 37) crosses one of the two potentiometers, in fact, the relative displacement between the ends of that potentiometer is the sum of two effects: the deformation of the body (rheological effect) and the opening of the crack (non-rheological effect). Given these assumptions, the ratios in Equations (14) and (15) no longer provide pure rheological information, that is, the strain at a given point. They continue to have meaning only in the sense of engineering strains. Consequently, the ratio in Equation (24) also loses all rheological meaning starting from the moment in which the cracks start to propagate in the specimen. For this reason, we will continue to refer to the second member of Equation (24) as the negative of the ratio of the engineering strains along the two diagonals, avoiding calling it Poisson’s ratio. For the sake of brevity, we will denote the second member of Equation (24) as the apparent Poisson’s ratio.

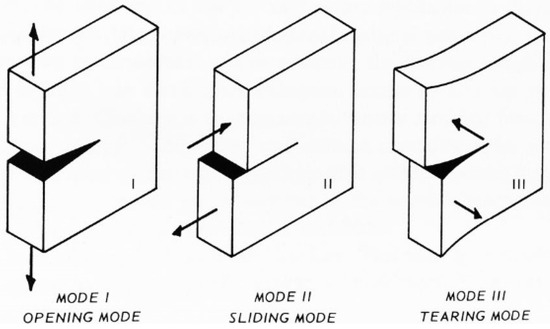

Incidentally, it is worth mentioning that the discussion on the displacements caused by the opening of cracks during a mechanical resistance test assumes a more general meaning, as it allows us to investigate the actual nature of strain-softening in brittle materials [56] and to formulate new constitutive laws in tension [74] and compression [75,76].

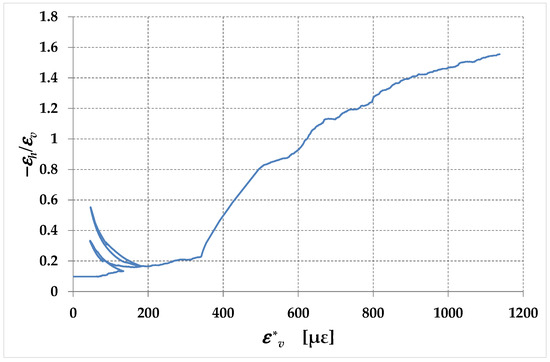

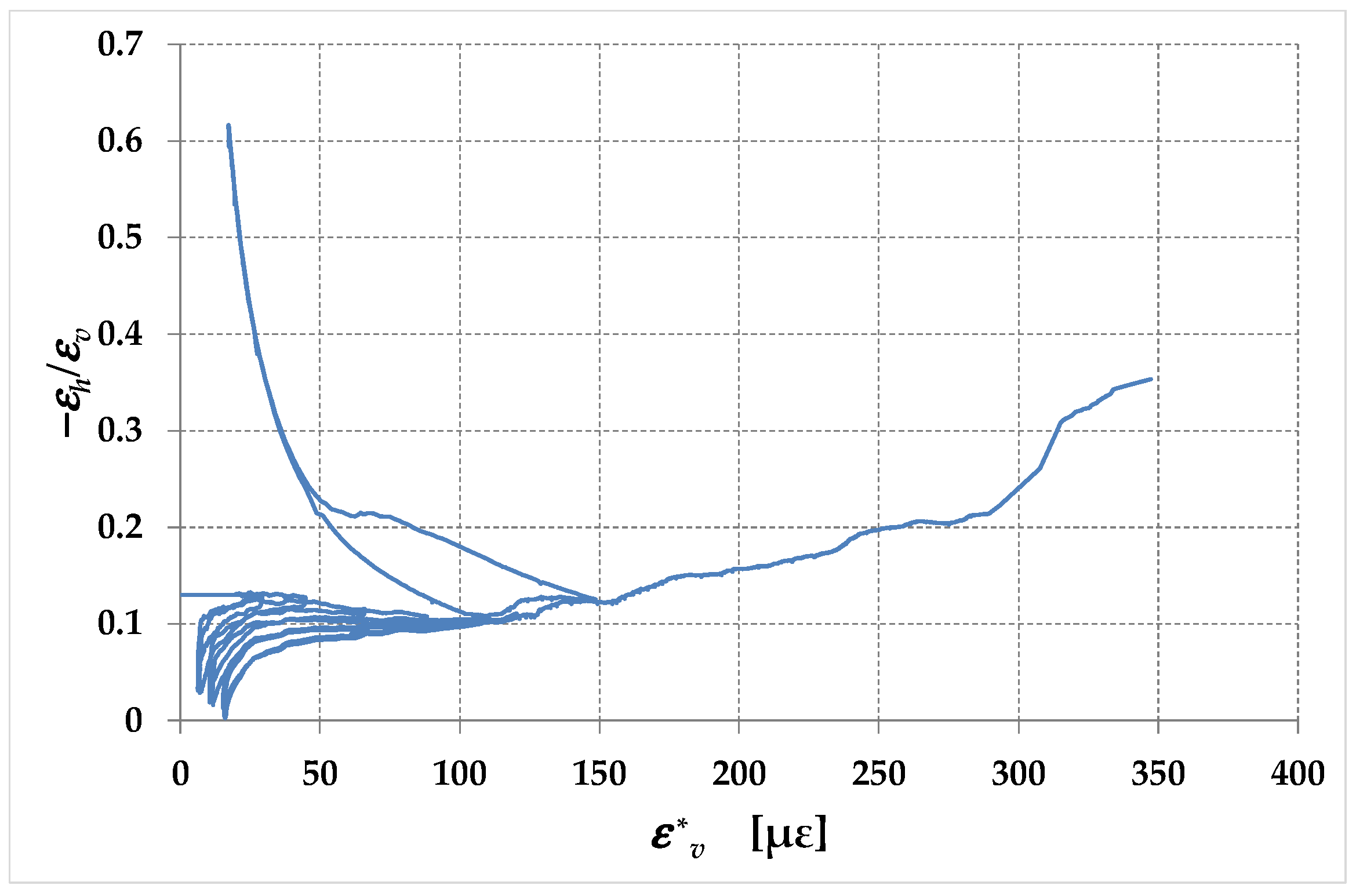

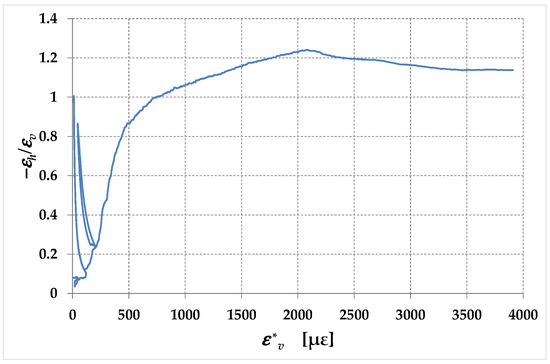

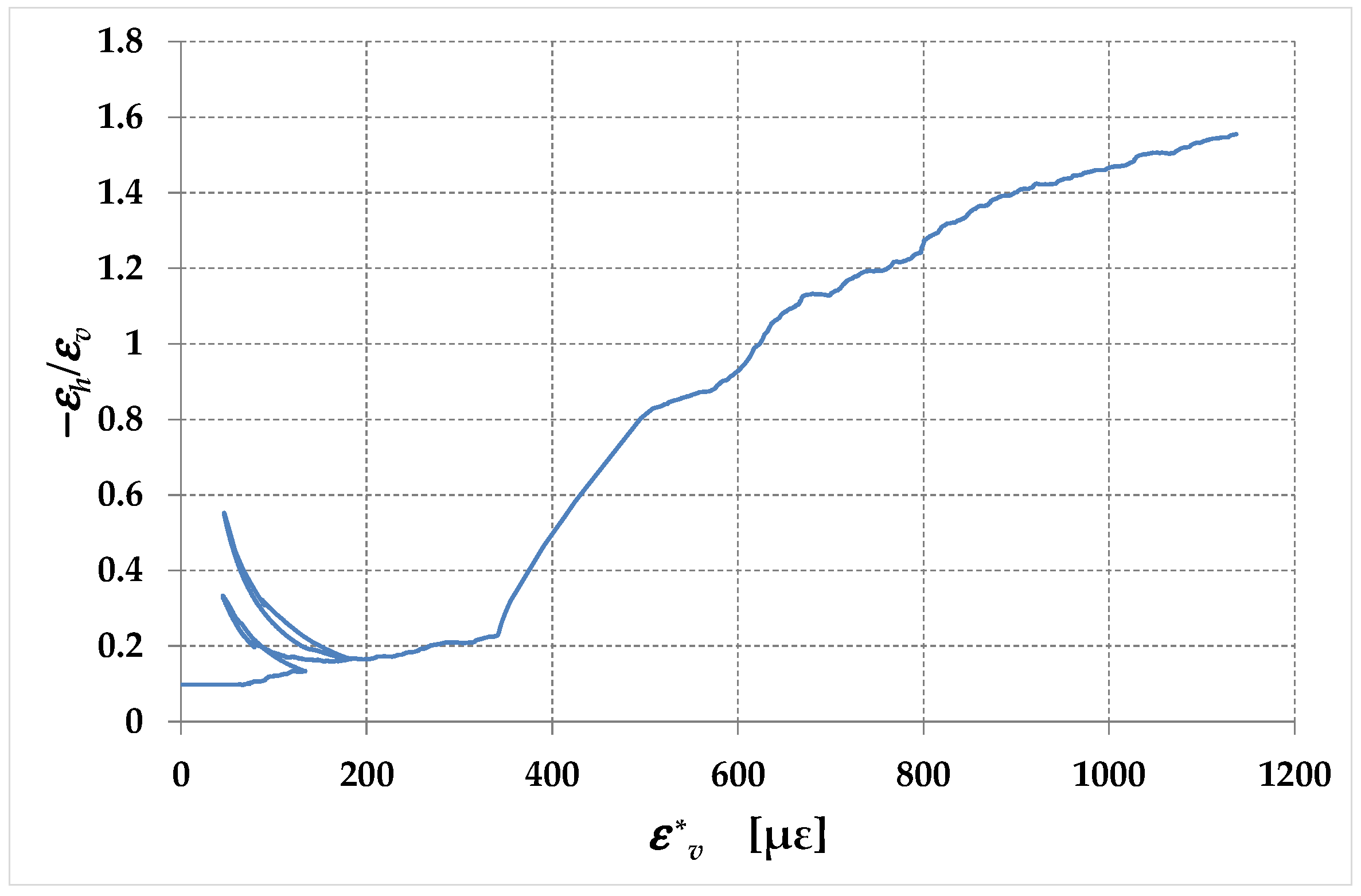

The ranges of compressive strains in the figures of the apparent Poisson’s ratio (Figure 38, Figure 39 and Figure 40) are the same as the ranges of ${\epsilon }^{*}{}_v$ in Figure 34 and the details in Figure 35b and Figure 36b, respectively.

Although devoid of actual rheological significance, the curves in Figure 38, Figure 39 and Figure 40 nonetheless provide some useful information. Of particular interest is the comparison between the values of the apparent Poisson’s ratio in the range $0\le {\epsilon }^{*}{}_v\le 100$. Specimen M1-90 is the only one of the three specimens for which the apparent Poisson’s ratio has a decreasing behavior in this range, after an initial constant branch. This may depend on the collapse of the walls of the internal micro-cavities, which occurs for a given critical load value, causing a partial implosion of the specimen.

It is possible that the pre-tensioning operations in specimens M1-45 and M2-45 caused crushing of the walls of the micro-cavities right along the direction of application of the load, while this did not occur in specimen M1-90. In the latter specimen, in fact, the initial crushing would at most have occurred along directions inclined by $\pm 45°$ with respect to that of application of the load. This could explain the absence of a decreasing behavior in the range $0\le {\epsilon }^{*}{}_v\le 100$ for the specimens M1-45 and M2-45, since the crushing of the walls of the micro-cavities in the direction of load application would have occurred before the start of the load test. In support of this hypothesis, the value of the apparent Poisson’s ratio at the end of the range $0\le {\epsilon }^{*}{}_v\le 100$ in specimen M1-90 is very similar to the initial value of the apparent Poisson’s ratio in specimen M1-45 ($-{\epsilon }_h/{\epsilon }_v=0.098$), which differs from specimen M1-90 in the orientation of the straps but not in the number of the straps. This could also explain why the value of $E_c$ in Table 6 is lower for specimen M1-45 than for specimen M1-90. The crushing along the direction of the load caused by the tensioning of the straps in specimen M1-45, in fact, determines a decrease in the value of the tangent at the origin of the ${\sigma }^{*}{}_{II}/{\epsilon }^{*}{}_v$ curve. In specimen M2-45, the combined action of the greater number of straps along the tensioned diagonal and of the Poisson effect partially compensates for this decrease.

As previously stated, only the initial values of the apparent Poisson’s ratios in Figure 38, Figure 39 and Figure 40 coincide with the actual Poisson’s ratios, $\nu$, of the three specimens. The values of $\nu$ identified as the apparent Poisson’s ratios at the beginning of the tests (

Table 7. Poisson’s ratio values identified from the acquired displacement data.

Specimen	ν
M1-90	0.130
M1-45	0.098
M2-45	0.079

) allow us to draw the following conclusions:

• Since the strengthening system of specimen M1-90 is labile (Section 4.1.1), the value $\mathsf{\nu }=0.130$ in Table 7 represents the URM Poisson’s ratio. This value is about 52% of the assumption $\mathsf{\nu }=0.25$, usually made to identify the Young’s modulus from the shear modulus with Equation (13). This constitutes a well-founded reason for uncertainty regarding the values of Young’s modulus obtained in the literature from the use of Equation (13) with $\mathsf{\nu }=0.25$, which leads to an overestimation of Young’s modulus equal to about 11%.
• The Poisson ratios of the specimens with effective strengthening (specimens M1-45 and M2-45) are lower than the Poisson ratio of the specimen with ineffective strengthening (specimen M1-90) and the difference is greater the greater the number of straps. The reason for this is twofold: the possible crushing of the walls of the micro-cavities during the pre-tensioning operations and the confining action of the straps arranged along the direction of the maximum principal stress (horizontal straps), which decreases the value of ${\mathsf{\epsilon }}_{\mathrm{h}}$. The decrease in Poisson’s ratio in RMs compared to URMs makes the use of Equation (13)—together with the hypothesis $\nu =0.25$—even more unacceptable in RMs than in URMs. In fact, the overestimations of Young’s modulus for specimen M1-45 and specimen M2-45 would be about 14% and 16%, respectively.

4.4. Pseudo-Ductility

Structural ductility is the ability of a building to undergo lateral displacements without collapsing. The pseudo-ductility factor, $\mu$, is a measure of the ductility of an individual structural element in a building:

$$\mu =\frac{{\gamma }_u}{{\gamma }_y},$$

(25)

where ${\gamma }_u$ is the ultimate shear strain and ${\gamma }_y$ is the yield shear strain of the structural element. The pseudo-ductility factor is useful in designs based on the demand capacity phase diagram, to generate a pushover curve for the building.

In masonry wall specimens, finding the ultimate shear strain and the yield shear strain is not easy due to the brittle behavior of masonry and the occurrence of micro-damage phenomena at relatively low load values. There are therefore various proposals in the literature for the identification of ${\gamma }_u$ and ${\gamma }_y$. Some of the more commonly used ones for ${\gamma }_u$ are:

• The shear strain at the ultimate point of the shear stress–shear strain curve [69];
• The shear strain at the peak point of the shear stress–shear strain curve [77];
• The shear strain at the point on the descending branch of the shear stress–shear strain curve where the shear stress is 80% of the maximum shear stress, ${\tau }_{max}$ [59,68,70,78];
• The shear strain at the point on the descending branch of the shear stress–shear strain curve where the shear stress is 50% of the maximum shear stress, ${\tau }_{max}$ [79].

Given the ability of the CAM^® system to avoid the collapse of the structural element even for a high degree of damage (Section 4.1.1), it seems reasonable to assume that the value of ${\gamma }_u$ for the tests performed in this work is the shear strain at the ultimate point of the shear stress–shear strain curve.

The determination of ${\gamma }_y$ is even more uncertain than that of ${\gamma }_u$, due to the lack of a clearly identifiable yield point in shear stress–shear strain curves. All proposals, however, share the common idea that ${\gamma }_y$ is the value of shear strain measured at a point of the (actual or linearized) first ascending branch of the shear stress–shear strain curve. In particular, ${\gamma }_y$ is the shear strain at the point:

• Where the shear stress–shear strain curve exits its linear state [77,80];
• Where the tangent at the origin intersects the horizontal tangent at the peak point of the curve [77];
• Where the second branch of the bilinear approximating relationship ends [81,82,83];
• Where the area under the experimental curve is equal to the area under the bilinear elastoplastic approximating relationship [68];
• Where [84]:
  • the shear stress is 85% of the maximum shear stress, ${\tau }_{max}$, if:

    $${\gamma }_u^2\le \frac{2A}{k_e},$$

    (26)

    where $A$ is the area below the shear stress–shear strain curve from the first point of the curve to the point corresponding to 80% of the maximum shear stress on the descending branch; $k_e$ is the slope of the line connecting the first point of the shear stress–shear strain curve to the point corresponding to 40% of the maximum stress;
  • the shear strain takes on the value:

    $${\gamma }_y={\gamma }_u-\sqrt{{\gamma }_u^2-\frac{2A}{k_e}} if {\gamma }_u^2>\frac{2A}{k_e};$$

    (27)

• Where the shear stress is 80% of the maximum shear stress, ${\tau }_{max}$ [78];
• Where the shear stress is 75% of the maximum shear stress, ${\tau }_{max}$ [9,59,80];
• Where the shear stress is 70% of the maximum shear stress, ${\tau }_{max}$ [80].

Despite the numerous existing formulations, it is common opinion that it is necessary to introduce a new definition for the yield shear strain in both the URMs and the RMs [68], since the previous ones often lead to inconsistent results in terms of pseudo-ductility [70]. The proposal made here is to use the apparent Poisson’s ratio as a critical parameter for the identification of ${\gamma }_y$ in masonry solids. Indeed, since masonry is a brittle material, its yield point is, more properly, the point at which the phenomena of progressive cracking significantly alter its behavior at the mesoscale. Well, being composed of a (constant) rheological quota and a non-rheological quota associated with the opening of cracks in Mode I, the variation in the apparent Poisson ratio is a valid indicator of the propagation of damage phenomena inside the specimen.

The curves in Figure 38, Figure 39 and Figure 40 share the common feature of showing an initial branch where the apparent Poisson’s ratio increases slowly and a second branch, separated from the previous one by a knee point, where the apparent Poisson’s ratio increases much more rapidly. Assuming that the instantaneous increase in the first derivative of the three curves indicates a significant modification of the resistant scheme at the mesoscale, the value of apparent Poisson’s ratio at the knee point (${\nu }_y$) is the critical parameter useful for the new definition of ${\gamma }_y$ in masonries. Therefore, in the remainder of this paper, ${\gamma }_y$ is the shear strain at the point where the apparent Poisson’s ratio equals ${\nu }_y$. The corresponding value of shear stress is ${\tau }_y$.

As shown in

Table 8. Pseudo-ductility factor and the parameters necessary for its identification.

Specimen	${\mathit{\gamma }}_{\mathit{u}}$ * (mm/mm)	${\mathit{\nu }}_{\mathit{y}}$	${\mathit{\tau }}_{\mathit{y}}$ (MPa)	${\mathit{\tau }}_{\mathit{y}}/{\mathit{\tau }}_{\mathit{m}\mathit{a}\mathit{x}}$ (%)	${\mathit{\gamma }}_{\mathit{y}}$ (mm/mm)	$\mathit{\mu }$
M1-90	0.00047	0.214	1.453	99	0.00035	1.34
M1-45	0.03806	0.210	1.369	96	0.00038	99.82
M2-45	0.06469	0.084	0.613	33	0.00013	513.97

* The values of this column are the same values collected in the last column of Table 5, transcribed here to facilitate the comparison between γ_u and γ_y.

, the two specimens with one strap per loop (specimens M1-90 and M1-45) reach the yield shear strain for almost the same value of ${\nu }_k$, even though the Poisson ratio of specimen M1-45 differs from that of specimen M1-90 by 25% (Table 7). Ultimately, this is a consequence of an observation made in Section 4.3, that is, two specimens with the same number of straps per loop tend to assume the same value of apparent Poisson’s ratio in the early stages of the load test, regardless of the arrangement of the straps. It therefore seems that the value of ${\nu }_k$ depends on the number of straps, while it does not depend on the arrangement of the straps. The latter instead has a strong impact on the pseudo-ductility (Table 8) since the arrangement of the straps in specimen M1-90 is ineffective while it is effective in specimen M1-45.

The values of ${\tau }_y$ in Table 8 confirm that the strengthening anticipates the onset of damage (Section 4.1.2). In fact, both the values of ${\tau }_y$ and the ${\tau }_y/{\tau }_{max}$ ratios are lower in the specimens with effective strengthening (specimens M1-45 and M2-45) compared to the specimen with ineffective strengthening (specimen M1-90), which is a direct consequence of the early occurrence of damage in specimens with effective strengthening. In particular, ${\tau }_y$ and the ${\tau }_y/{\tau }_{max}$ ratio depend on both the arrangement and the percentage of reinforcement, assuming smaller values the more effective the strengthening and the greater the number of straps. Furthermore, taking specimen M1-90 as the reference specimen (the URM specimen), the values of ${\tau }_y$ for specimens M1-45 and M2-45 are, respectively, 93% and 42% of the ${\tau }_{max}$ of specimen M1-90 (${\tau }_{max}^{URM}$). Therefore, the ${\tau }_y/{\tau }_{max}^{URM}$ ratio also depends on both the arrangement and the percentage of reinforcement, assuming smaller values the more effective the strengthening and the greater the number of straps.

As a final remark, the non-constant value of the ${\tau }_y/{\tau }_{max}$ ratio could explain why calculating ${\gamma }_y$ as the shear strain at a fixed percentage of the maximum shear stress can capture the behavior of only some specific reinforcement configurations in URMs and RMs, failing to obtain a generalizable formulation.

4.5. Comparisons

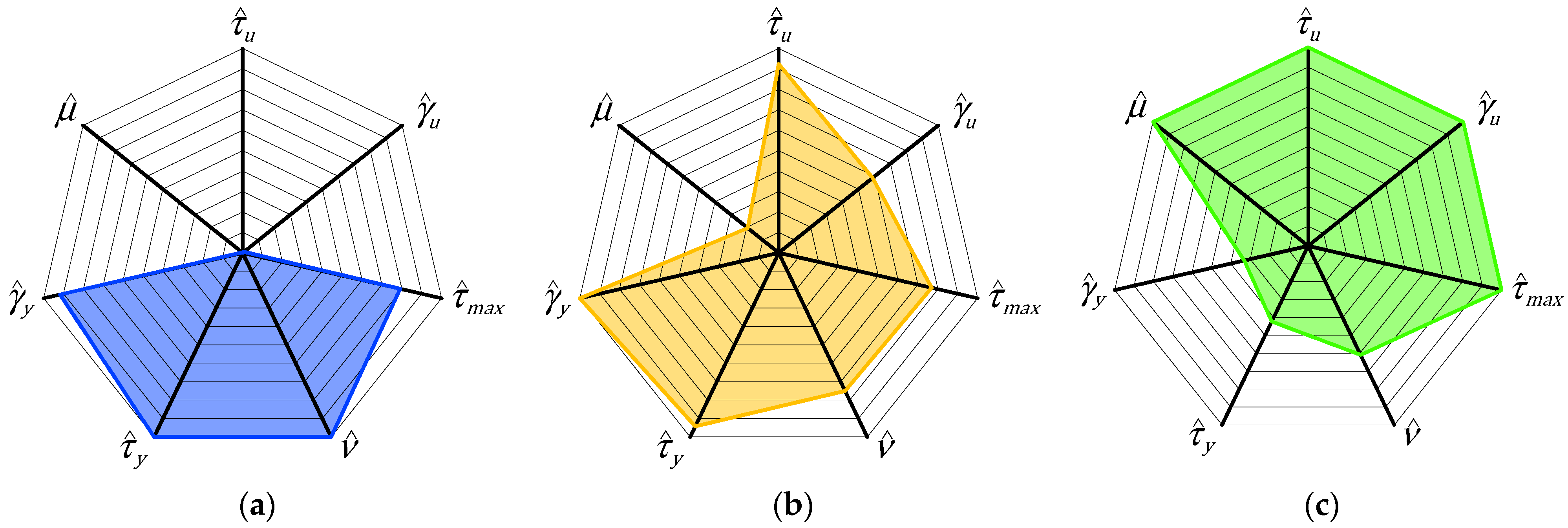

Figure 41 shows the experimental results in the form of radar diagrams, in which the values of each variable, $X$, are adimensionalized and rescaled so that they end up ranging from 0 to 1 (normalization of $X$, also known as the min–max scaling technique):

$$\widehat{X}=\frac{X-X_{min}}{X_{max}-X_{min}},$$

(28)

where $X_{max}$ is the maximum value in the dataset attained by the variable $X$ and $X_{min}$ is the minimum physically acceptable value for $X$ (in Figure 41, $X_{min}=0$ for all variables).

The seven variables in Figure 41 are the normalized values of:

• The residual shear stress at the end of the test (${\widehat{\tau }}_u$);
• The ultimate shear strain (${\widehat{\gamma }}_u$);
• The maximum shear stress (${\widehat{\tau }}_{max}$);
• The Poisson ratio ($\widehat{\nu }$);
• The shear stress at yielding (${\widehat{\tau }}_y$);
• The shear strain at yielding (${\widehat{\gamma }}_y$);
• The pseudo-ductility factor ($\widehat{\mu }$).

The radar diagrams in Figure 41 provide a synthetic and intuitive view of the effects of the strengthening technique on the mechanical properties of the RMs. In particular:

• The larger area covered by specimens M1-45 (Figure 41b) and M2-45 (Figure 41c) compared to specimen M1-90 (Figure 41a) along the axes of the variables $\widehat{\mu }$, ${\widehat{\tau }}_u$, ${\widehat{\gamma }}_u$, and ${\widehat{\tau }}_{max}$ is a measure of the increase in both shear strength and ductility, a specific feature of the CAM^® system. Of particular relevance are the values along the ${\widehat{\tau }}_u$ axis. In fact, since in specimen M1-90 ${\widehat{\tau }}_u=0$, the strengthening gives the masonry walls a characteristic that the masonry does not possess, that is, the ability to withstand shear stresses even for large values of the shear strains, without ever reaching an actual failure. Therefore, the strengthening not only significantly increases the low values of some variables in the ultimate state, such as ${\widehat{\gamma }}_u$ and $\widehat{\mu }$, but also gives the masonry walls completely new characteristics.
• The smaller area covered by specimens M1-45 (Figure 41b) and M2-45 (Figure 41c) compared to specimen M1-90 (Figure 41a) along the ${\widehat{\tau }}_y$ and ${\widehat{\gamma }}_y$ axes does not in itself have a negative meaning. It simply indicates that damage occurs earlier in RMs than in URMs, but this has no negative effect on the overall behavior at the ultimate state (governed by the variables $\widehat{\mu }$, ${\widehat{\tau }}_u$, and ${\widehat{\gamma }}_u$) and the shear strength (governed by the variable ${\widehat{\tau }}_{max}$).
• The variation in the values of $\widehat{\nu }$ indicates that the strengthening technique decreases the Poisson ratio, which requires evaluation of the single test setup.

For all of the above observations, the area of the radar diagram that returns a measure of the specimen performance is the one covered by the $\widehat{\mu }$, ${\widehat{\tau }}_u$, ${\widehat{\gamma }}_u$, and ${\widehat{\tau }}_{max}$ axes. Therefore, the larger this area, the better the sample performs. This means that the best performance belongs to specimen M2-45 (Figure 41c).

5. Conclusions

This paper investigated the effectiveness of CAM-like systems with stainless steel straps arranged in squares (rectangular arrangement) in increasing the shear strength of masonry walls. The experimental results showed that a non-optimal arrangement of the straps leads to only partial exploitation of the reinforcement. In particular, the effectiveness of CAM-like systems is a function of the direction of the straps, being minimum for straps parallel to the mortar head and bed joints and maximum for straps forming angles of $\pm 45°$ with the mortar joints:

• The straps parallel to the mortar joints (one strap per loop) provide no increase in either shear strength or ductility. However, they are helpful in preventing falling debris, which is a major cause of injury.
• The straps forming $\pm 45°$ angles with the mortar joints (one strap per loop) do not increase the maximum shear stress but provide the masonry wall with the ability to withstand large shear strains without losing shear-bearing capacity.
• By increasing the number of straps per loop in the $\pm 45°$ arrangement, both the maximum shear stress and the ductility increase. This means that the CAM^® system is a strengthening system capable of increasing both ductility and shear strength.

As discussed in the paper, these results were partly predictable as a direct consequence of the static analysis of a rectangle made of hinged strips, which is the reference static scheme in the CAM^® system with a rectangular arrangement. Precisely the predictability of these results is indeed the main motivation of this work. Besides the expected results, however, the analysis of the experimental results performed in the Mohr plane and the concept of apparent Poisson’s ratio—introduced in previous works—provided some unexpected findings on the mechanical properties of both URMs and RMs. As far as the mechanical properties of the URMs are concerned:

• The static analysis performed in the Mohr plane according to the RILEM interpretation of the diagonal compression test leads to stress/strain curves that are not consistent with the experimental evidence, for the values assumed by both the $f_{dt}/f_{dc}$ ratio and the $E_t/E_c$ ratio. The reason for this seems to lie in the underestimation of the hydrostatic stress at the center of the specimen by the RILEM approach. Therefore, the interpretation of the diagonal compression test needs a more accurate analysis in the Mohr plane.
• The Poisson ratio, $\nu$, is much smaller than $0.25$, which is the value usually taken as a reference in interpreting the experimental results of masonry walls. The experimental program provided the value $\nu =0.13$, which is about 52% of the conventional value $\nu =0.25$.
• In the context of linear elasticity for homogeneous and isotropic materials, the usual overestimation of the Poisson ratio leads to an overestimation of Young’s modulus of about 11%, which gives rise to a well-founded doubt regarding the values of Young’s moduli obtained in the literature from diagonal compression tests.
• The apparent Poisson’s ratio decreases for low values of the applied load and increases for high values of the applied load. The reason for the initial decreasing behavior could be the presence of micro-cavities that collapse during the early stages of the load test.

This second group of results shows that many of the assumptions usually made in the study of masonry are too simplistic and need further investigation. Therefore, the results of this work also provide some useful indications for a better understanding of the mechanical properties of masonry, going beyond the initial intent of a simple insight into the CAM^® system.

From the analysis of the results on the RMs, it was possible to conclude that:

• The use of CAM-like strengthening systems anticipates the onset of damage and shortens the length of the initial linear branch.
• The value of $\nu$ depends on the percentage of reinforcement. In particular, the greater the percentage of reinforcement, the lower the value of $\nu$. This makes it impossible to use a single value for the Poisson ratio in RMs, which is in any case lower than that in URMs.
• Being a greater overestimation in RMs than in URMS, the value of 0.25 usually assumed for the Poisson ratio leads to even greater overestimations of Young’s modulus.
• The trend of the apparent Poisson’s ratio is different from the trend of the apparent Poisson’s ratio in diagonal compression tests performed on URMs since it gives rise to a monotonically non-decreasing function. This could be a consequence of the pre-tensioning of the straps, in particular of those arranged along the direction of the load. In fact, the pre-tension could cause the collapse of the micro-cavities before the start of the load test, which would eliminate the initial decreasing branch in the law of the apparent Poisson’s ratio.
• The experimental program provided evidence of a possible anisotropy caused by the use of straps in CAM-like strengthening systems.

The experimental program therefore provided new insights into Poisson’s ratio and Young’s modulus even for masonry walls strengthened with CAM-like systems.

A final conclusion applies to both URMs and RMs, regarding the value of the yield shear strain, ${\gamma }_y$, useful for identifying the pseudo-ductility factor, $\mu$. Following the common idea that ${\gamma }_y$ needs a more coherent definition, the new proposal made in this paper is to relate ${\gamma }_y$ to the law of the apparent Poisson’s ratio: in this paper, ${\gamma }_y$ is the value of shear strain at which the first derivative of the apparent Poisson’s ratio undergoes a sudden increase. The new proposal for ${\gamma }_y$ resulted in values of $\mu$ that successfully represent the performance of the three specimens, while the formulations that identify the value of ${\gamma }_y$ as the shear strain at a fixed percentage of the maximum shear stress do not correctly capture the onset of damage.

6. Future Developments

The experimental results showed that the 3D-printed funnel plates for the protection of the perforations are the weak elements of CAM-like strengthening systems. In addition to causing drops in the applied load, the breakage of the funnel elements is particularly harmful because it interrupts the continuity of the strengthening system, which is the main characteristic of the CAM^® system. Despite the ecological motivation underlying the use of PLA in this research, in future experiments, it will therefore be desirable to use steel elements, which will allow exploiting the full potential of the strengthening system. In addition to steel funnel elements such as those patented with the CAM^® system, toroidal elements similar to those used in Reference [35] may be suitable for the purpose.

A further reason for future reflection derives from the inconsistencies that emerged in the use of the RILEM guidelines for the interpretation of the diagonal compression test. Due to the complexity associated with formulating a new interpretation of the diagonal compression test, this topic will be the subject of a subsequent article, which will constitute the continuation and completion of the present article. The new formulation will allow us to rework the experimental results of specimen M1-90, to identify more realistic values of the elastic coefficients $E$, $G$, and $v$ in the URMs.
