Monitoring and Assessing the Dynamics of Building Deformation Changes in Landslide Areas
Abstract
:1. Introduction
- −
- Measuring the landslide form by using absolute surveying coordinates—it confirmed the occurrence of slow mass movements in the ground surrounding the building; the maximum horizontal point displacement was 13.7 mm per quarter in the winter–spring period;
- −
- Measuring the observation (reference) points on the floor and building structure components in a relative system for the selected grid of control points that confirmed a spatial deformation of the building load-bearing system; the maximum horizontal displacement of floor points was 13.3 mm per quarter in the winter–spring period;
- −
- Measuring the deformations of building corners on a concentrated geodetic position (point) grid used to develop the calculation model to determine linear and angular deformations in building corner wall planes [17].
2. Materials and Methods

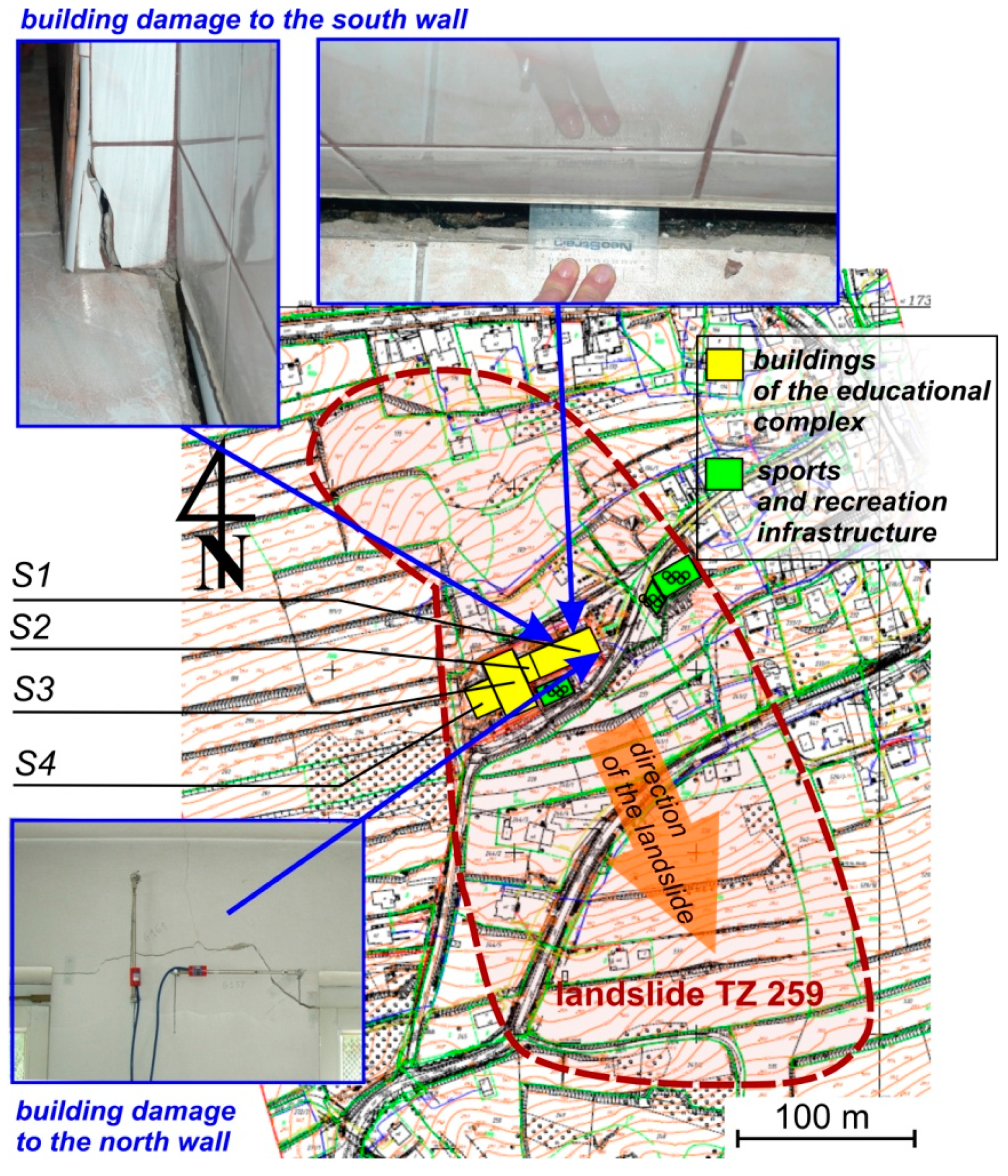

2.1. Geological Settings
- −
- Change in slope load conditions caused by extending the structure;
- −
- Disturbance in natural groundwater drainage by locating an extended building complex across the slope and creating a drainage-free area, where accumulating water was absorbed by colluvial material layers;
- −
- During long-term intense precipitation periods in 2010.
2.2. Measurement Model
- (a)
- Monofunctional i.e.,:
- −
- Wall benchmarks were used to determine WH vertical displacements (57 points type 5F-75STK);
- −
- 13RM21 Wall-mounted target plates used to determine horizontal WXY displacements (83 points).
- (b)
- Bifunctional, in the form of earth points (in the ground—18 points) or floor points (in the floors—18 points), module-type Plastmark 50 PP-PLAS50 or survey steel nails with a center type 5F-75STK and 10TK-45, which were used to determine both WXY horizontal and WH vertical displacement values.Measurements were performed by using:
- −
- A GNSS set consisting of an R8s antenna and a Trimble TSC3 controller for the horizontal positioning and elevation positioning of grid references (static measurement at the reference point for 1 h 20 min) with relation to ASG-EUPOS system reference stations;
- −
- TC 1800 Leica and 5503 DR Trimble total stations to determine the horizontal displacements of filling triangulation grid points;
- −
- Precise Leica Na 3003 code digital level to determine the vertical displacements of points.
- −

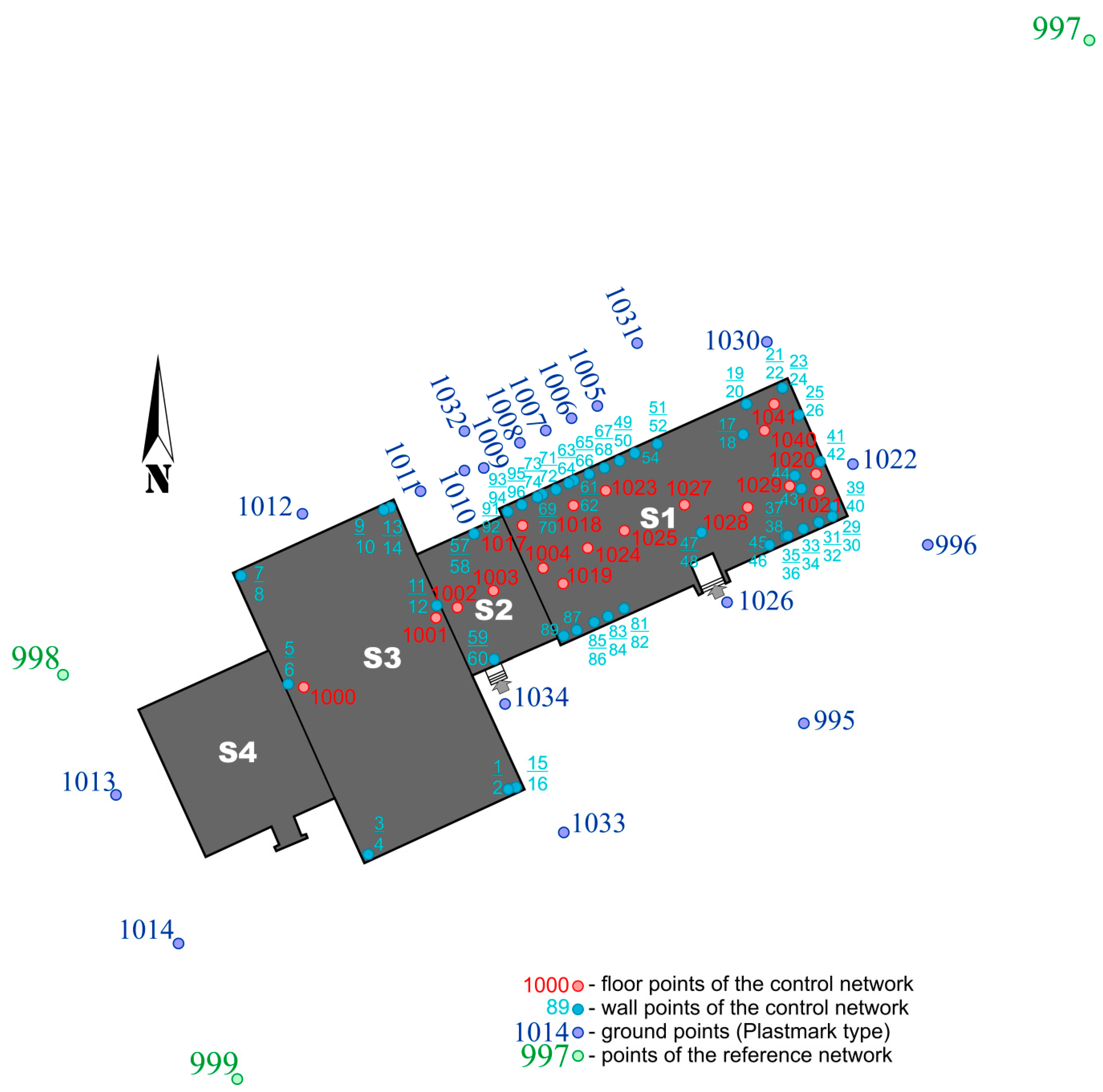

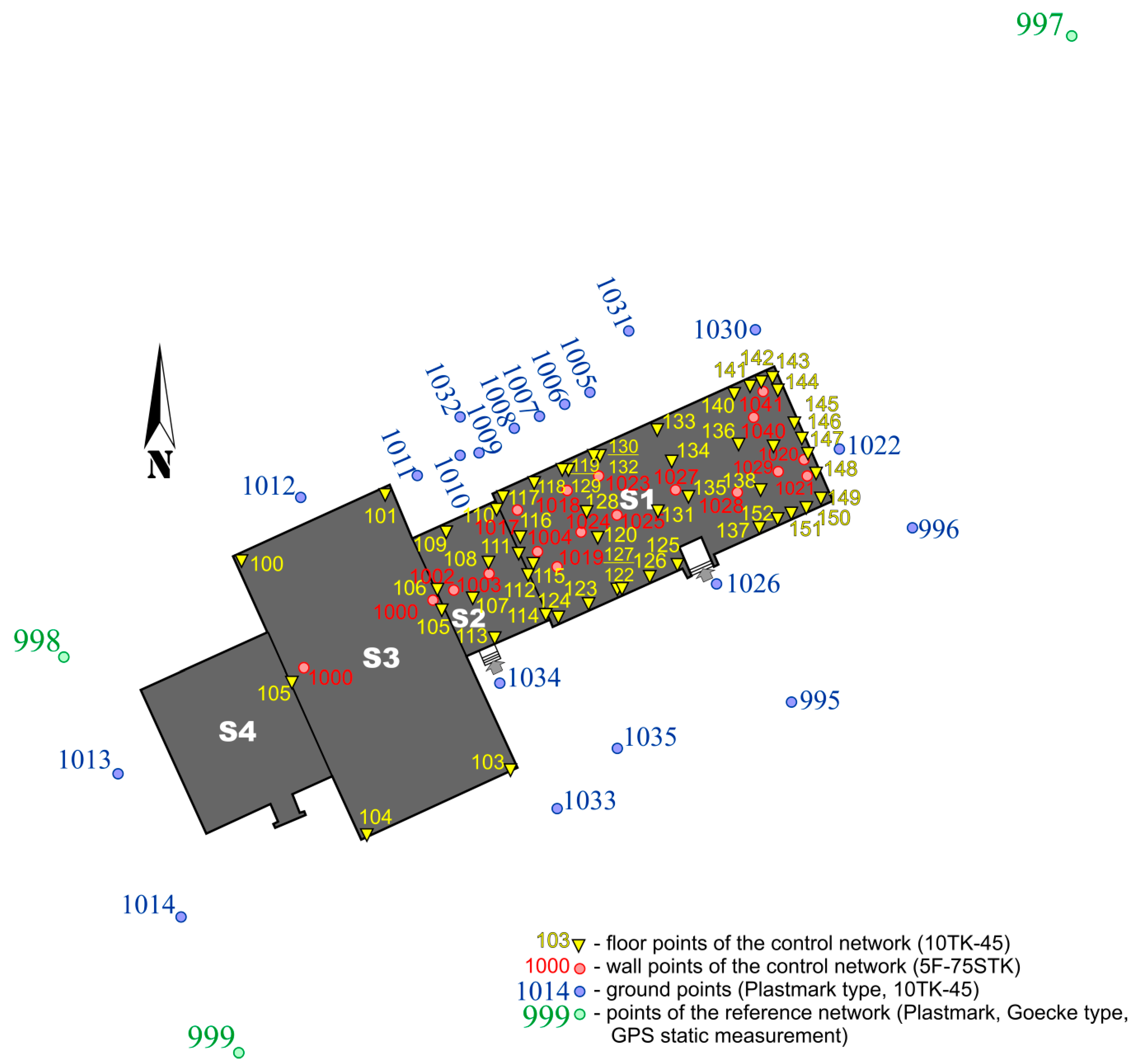

- Reference grid points (stabilization: modular point Plastmark 50 PP-PLA S50, benchmark 5F-75STK with center, measurement nail 10TK-45 with center)—five pieces in total;
- −
- Control grid points located around the building (stabilization: modular point Plastmark 50 PP-PLA S50, measurement nail 10TK-45 with center)—18 pieces in total;
- −
- Control grid points located inside the building (stabilization in the floors: modular point Plastmark 50 PP-PLA S50, measurement nail 10TK-25 with center)—18 pieces in total;
- −
- Points of control grid located inside the building (wall stabilization in the form of 13RM21 target plates, the so-called tape survey targets 40 × 40 mm)—83 pieces in total.
- −
- Reference grid points (stabilization: modular point Plastmark 50 PP-PLA S50, benchmark 5F-75STK with center, measurement nail 10TK-45 with center)—five pieces in total;
- −
- Control grid points located around the building (stabilization: modular point Plastmark 50 PP-PLA S50, measurement nail 10TK-45 with center)—18 pieces in total;
- −
- Control grid points located inside the building (stabilization in the floors: modular point Plastmark 50 PP-PLA S50, measurement nail 10TK-25 with center)—18 pieces in total.
3. Values and the Dynamics of Displacements

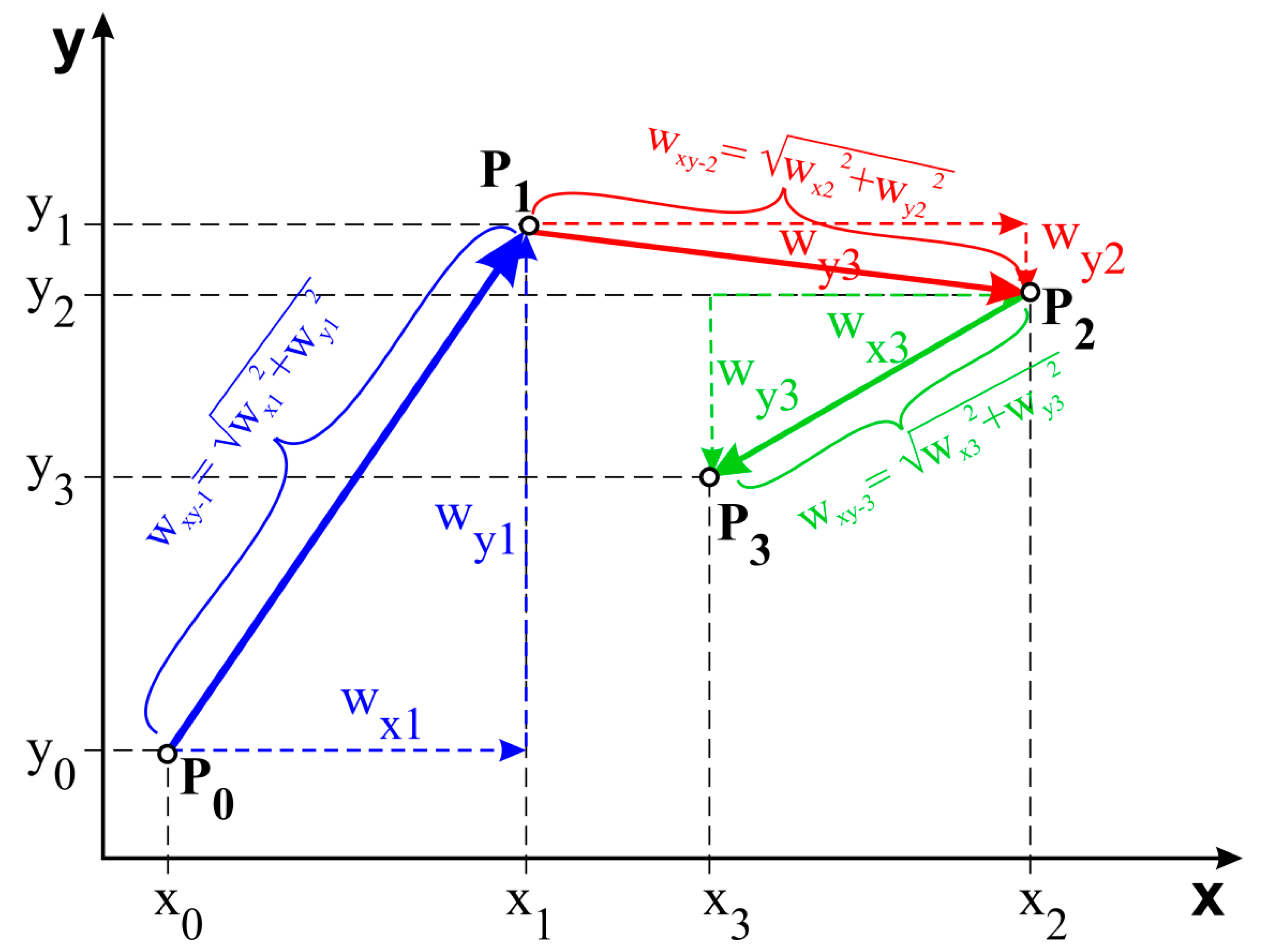

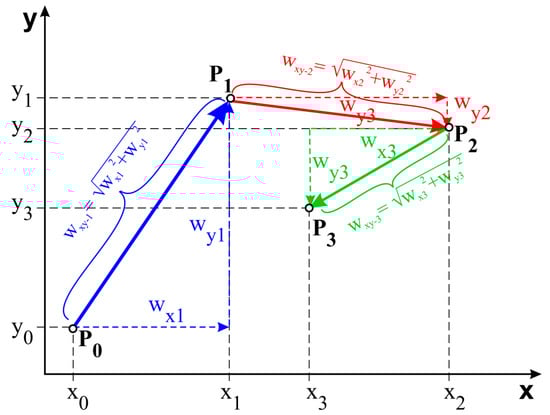

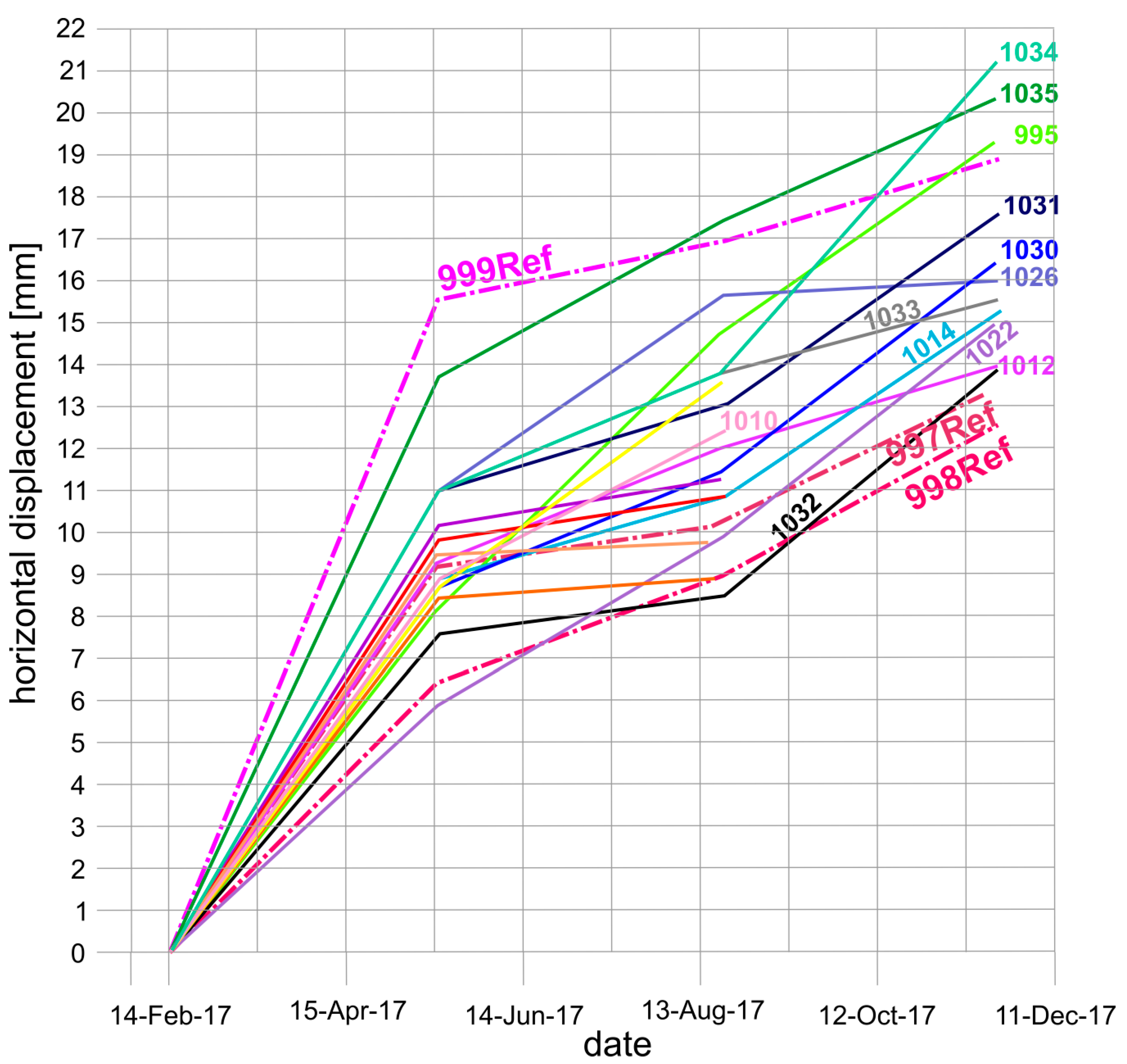

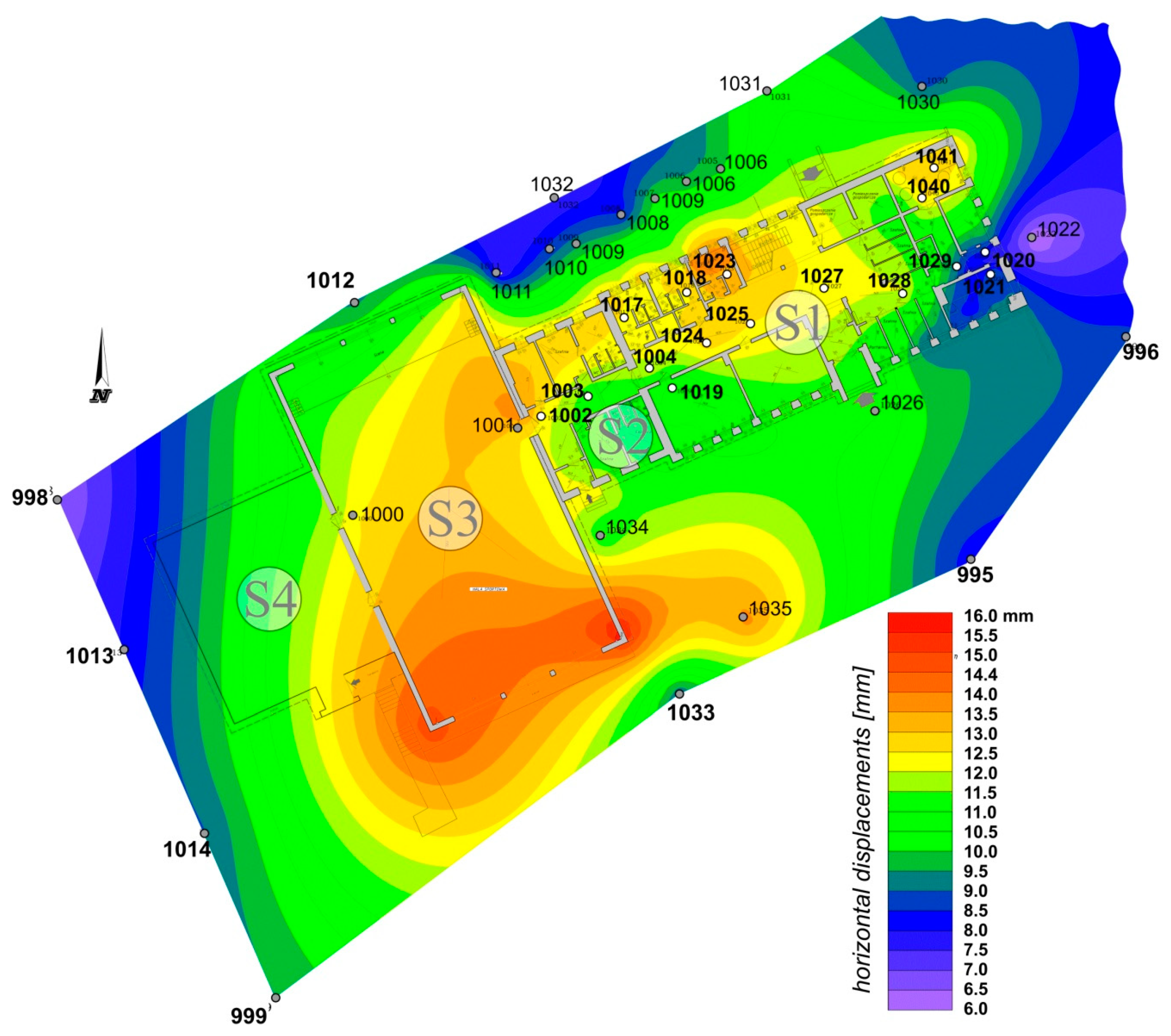

3.1. Land Surface Displacements
- −
- 13.7 mm per quarter in the winter–spring period (from 15 February to 15 May);
- −
- 4.8 mm per quarter in the spring–summer period (from 15 May to 24 August);
- −
- 7.3 mm per quarter in the summer–autumn period (from 24 August to 24 November).

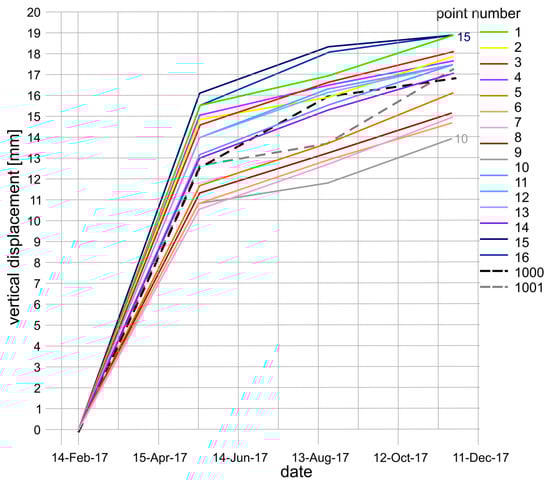

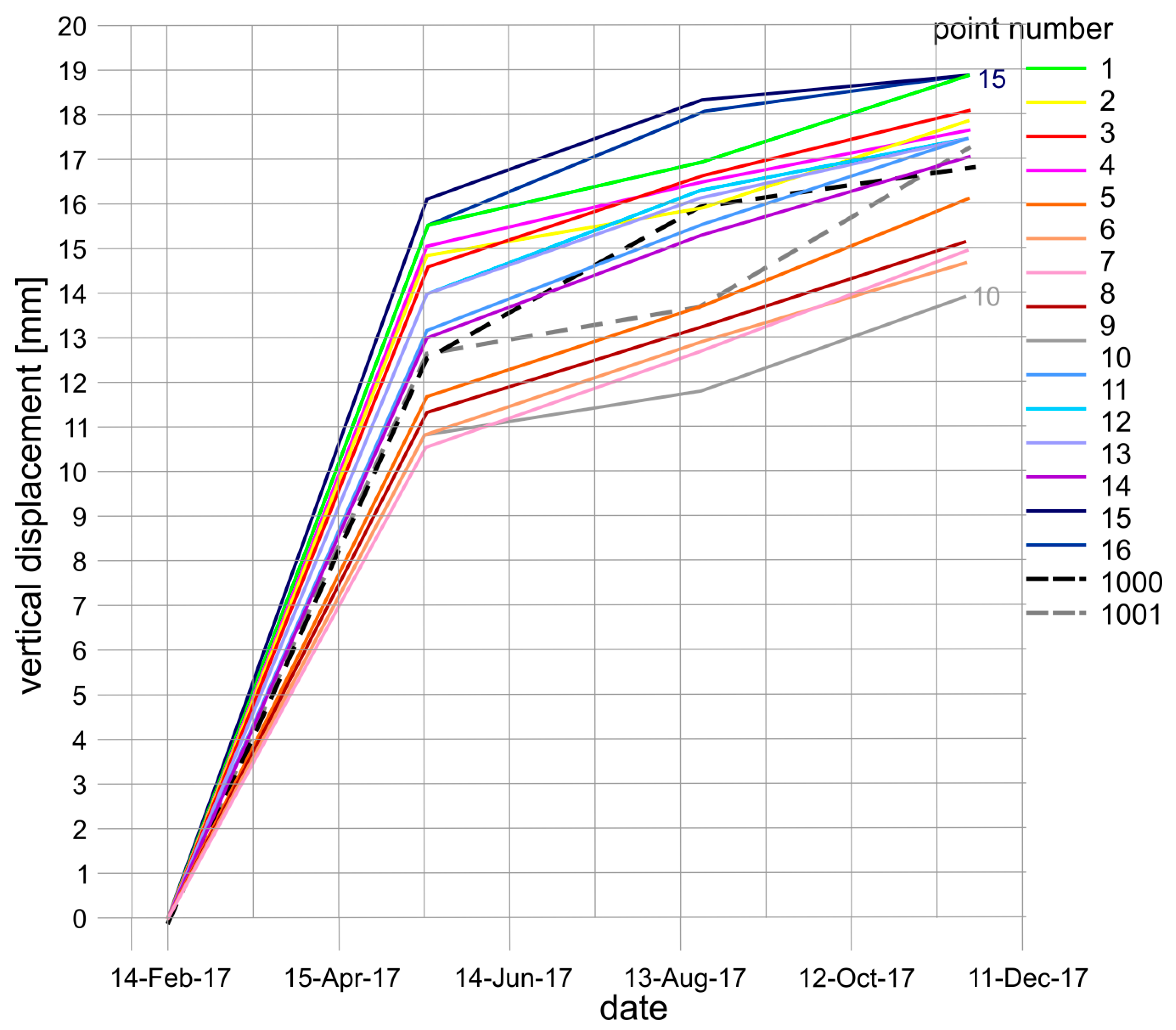

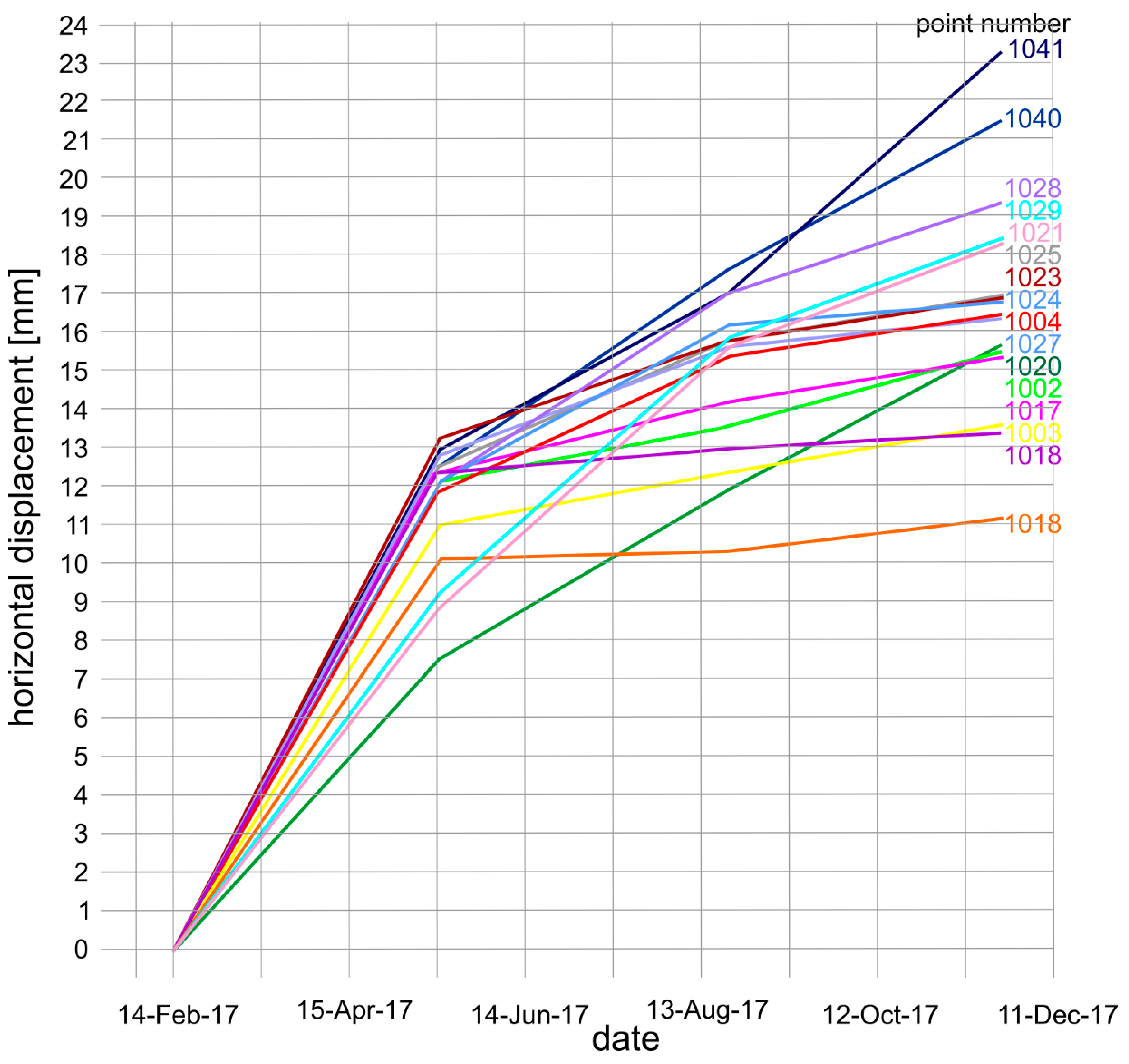

3.2. Displacement of Buildings
4. Summary and Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Davies, T. Chapter 1-Landslide hazards, risks, and disasters: Introduction. In Landslide Hazards, Risks, and Disasters, 1st ed.; Shroder, J., Davies, T., Eds.; Elsevier: Amsterdam, The Netherlands, 2014; pp. 1–16. ISBN 9780123964526. [Google Scholar] [CrossRef]
- Haque, U.; Blum, P.; Da Silva, P.; Andersen, P.; Pilz, J.; Chalov, S.R.; Malet, J.P.; Jemec Auflić, M.; Andres, N.; Poyiadji, E.; et al. Fatal landslides in Europe. Landslides 2016, 13, 1545–1554. [Google Scholar] [CrossRef]
- Wójcik, A.; Wojciechowski, T. Osuwisko jako jeden z ważniejszych elementów zagrożeń w Polsce. Przegląd Geologiczny 2016, 6, 701–709. [Google Scholar]
- Herrera, G.; Mateos, R.M.; Garcia-Davalillo, J.C.; Grandjean, G.; Poyiadji, E.; Maftei, R.; Filipciuc, T.-C.; Auflič, M.J.; Jež, J.; Podolszki, L.; et al. Landslide databases in the Geological Surveys of Europe. Landslides 2017, 15, 359–379. [Google Scholar] [CrossRef]
- Voight, B. Engineering Sites, 1st ed.; Voight, B., Ed.; Elsevier Science: New York, NY, USA, 1 January 1979; ISBN 9780444598011. [Google Scholar]
- Banasik, P.; Góral, W.; Maciaszek, J.; Szewczyk, J. Use of activegeodetic network (ASG-PL) to monitor point displacements in the Upper Silesian Industrial Region. Geodezja 2003, 9, 169–176. [Google Scholar]
- Szafarczyk, A.; Gawałkiewicz, R. Geodetic monitoring of some landslide located in the district of Kraków as an example of the fulfilment of mayor’s statutory tasks. In Proceedings of the Nationwide Landslide Conference, Wieliczka, Poland, 19–22 May 2015. [Google Scholar] [CrossRef]
- Van Den Eeckhaut, M.; Hervas, J. State of the art of national landslide databases in Europe and their potential for assessing landslide susceptibility, hazard and risk. Geomorphology 2012, 139–140, 545–558. [Google Scholar] [CrossRef]
- Mrozek, T.; Kułak, M.; Grabowski, D.; Wójcik, A. Landslide counteracting system SOPO: Inventory database of landslides in Poland. In Landslide Science for a Safer Geoenvironment; Springer International Publishing: New York, NY, USA, 2014; pp. 815–820. [Google Scholar]
- Ciampalini, A.; Bardi, F.; Bianchini, S.; Frodella, W.; Del Ventisette, C.; Moretti, S.; Casagli, N. Analysis of building deformation in landslide area using multisensory PSInSARTM technique. Int. J. Appl. Earth Obs. Geoinf. 2014, 33, 166–180. [Google Scholar] [CrossRef] [PubMed]
- Zhu, M.; Wan, X.; Fei, B.; Qiao, Z.; Ge, C.; Minati, F.; Vecchioli, F.; Li, J.; Constantini, M. Detection of Building and Infrastructure Instabilities by Automatic Spatiotemporal Analysis of Satellite SAR Interferometry Measurements. Remote Sens. 2018, 10, 1816. [Google Scholar] [CrossRef] [Green Version]
- Palmisano, F.; Vitone, C.; Cotecchia, F. Methodology for Landslide Damage Assessment. Procedia Eng. 2016, 161, 511–515. [Google Scholar] [CrossRef] [Green Version]
- Kanciruk, A. Methods for evaluating ground dislocations in mining areas. Arch. Min. Sci. 2012, 3, 487–496. [Google Scholar] [CrossRef]
- Li, Y.; Mo, P. A unified landslide classification system for loess slopes. A critical review. Geomorphology 2019, 340, 67–83. [Google Scholar] [CrossRef]
- Pánek, T.; Břežný, M.; Kapustová, V.; Lenart, J.; Chalupa, V. Large landslides and deep-seated gravitational slope deformations in the Czech Flysch Carpathians: New LiDAR-based Inventory. Geomorphology 2019, 346. [Google Scholar] [CrossRef]
- Rączkowski, W. Landslide hazard in the Polish Flysch Carpatians. Stud. Geomorph. Carpatho-Balcan. 2007, 41, 61–76. [Google Scholar]
- Florkowska, L.; Gawałkiewicz, R.; Bryt-Nitarska, I.; Cygan, J.; Maj, A. An example of the impact of geodynamic processes on building structure condition. Part 2. Measurement and calculation model for analysing deformations. Prace Naukowe IMG PAN 2018, 20, 285–293. Available online: imgpan.pl/wp-content/uploads/2019/04/Kwartalnik-20-4-03-Florkowska.pdf (accessed on 10 October 2019).
- Landslide Documentation Card Including Opinion; Reg. Number 1219055; Polish Geological Institute, National Research Institute, Carpathian Branch: Kraków, Poland, February 2017; (unpublished document).
- Moss, J.L. Using the Global Positioning System to monitor dynamic ground deformation networks on potentially active landslides. Int. J. Appl. Earth Obs. Geoinf. 2000, 2, 24–32. [Google Scholar] [CrossRef]
Technology | Instrument | Measurement Accuracy | |
---|---|---|---|
Horizontal | Vertical | ||
GNSS (static) | R8s Trimble antenna | ±5 mm + 0.5 ppm | ±5 mm + 1 ppm |
Polygonal grid | TC 1800 Leica | ±3 cc (angle) ±1 mm + 2 ppm (distance) | - |
5503 DR Trimble | ±9 cc (angle) ±2 mm + 2 ppm (distance) ±3 mm + 2 ppm 1 (distance) | ||
Precise leveling | Na 3003 Leica | - | ±0.4 mm/km (double levelling) |
Measurement Place | Measurement Period | Accuracy Min. [mm] | |||||
---|---|---|---|---|---|---|---|
15 February–15 May | 15 May–21 August | 21 August–21 November | |||||
Min. [mm] | Max. [mm] | Min. [mm] | Max. [mm] | Min. [mm] | Max. [mm] | ||
Terrain points | 6.0 (p. 1022) | 13.7 (p. 1035) | 0.9 (p. 1009) | 4.8 (p. 1033) | 0.4 (p. 1026) | 7.3 (1034) | ±2.2 |
S1 segment floor | 7.6 (p. 1020) | 13.3 (p. 1023) | 0.2 (p. 1019) | 6.6 (p. 1021) | 0.7 (p. 1024) | 6.2 (p. 1041) | |
S3 segment floor | 12.4 (p. 1000) | 12.6 (p. 1001) | 1.2 (p. 1001) | 3.6 (p. 1000) | 0.7 (p. 1000) | 3.4 (p. 1001) |
