Next Article in Journal
Online Tool Wear Monitoring by the Analysis of Cutting Forces in Transient State for Dry Machining of Ti6Al4V Alloy
Next Article in Special Issue
Preparation and Characterization of Mg-RE Alloy Sheets and Formation of Amorphous/Crystalline Composites by Twin Roll Casting for Biomedical Implant Application
Previous Article in Journal
The Microstructure, Mechanical Properties, and Corrosion Resistance of UNS S32707 Hyper-Duplex Stainless Steel Processed by Selective Laser Melting
Previous Article in Special Issue
Metallic Glasses: A New Approach to the Understanding of the Defect Structure and Physical Properties
Open AccessArticle

Dynamic Mechanical Relaxation in LaCe-Based Metallic Glasses: Influence of the Chemical Composition

1
School of Mechanics, Civil Engineering Architecture, Northwestern Polytechnical University, Xi’an 710072, China
2
Departament de Física, Barcelona Research Center in Multiscale Science and Technology & Institut de Tècniques Energètiques, Universitat Politècnica de Catalunya, 08930 Barcelona, Spain
3
MATEIS, UMR CNRS5510, Bat. B. Pascal, INSA-Lyon, F-69621 Villeurbanne CEDEX, France
*
Author to whom correspondence should be addressed.
Metals 2019, 9(9), 1013; https://doi.org/10.3390/met9091013
Received: 13 August 2019 / Revised: 3 September 2019 / Accepted: 14 September 2019 / Published: 17 September 2019
(This article belongs to the Special Issue Recent Advancements in Metallic Glasses)

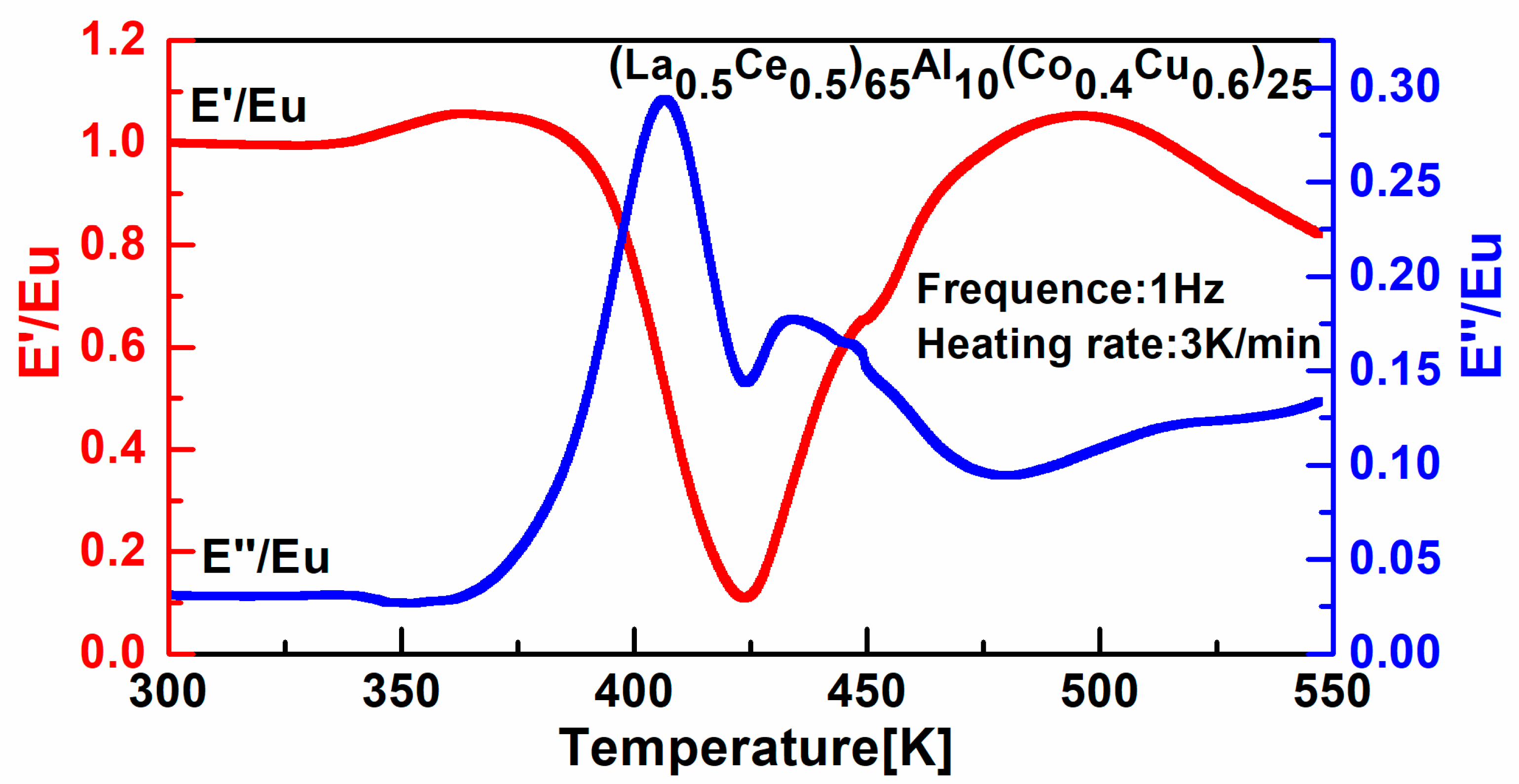

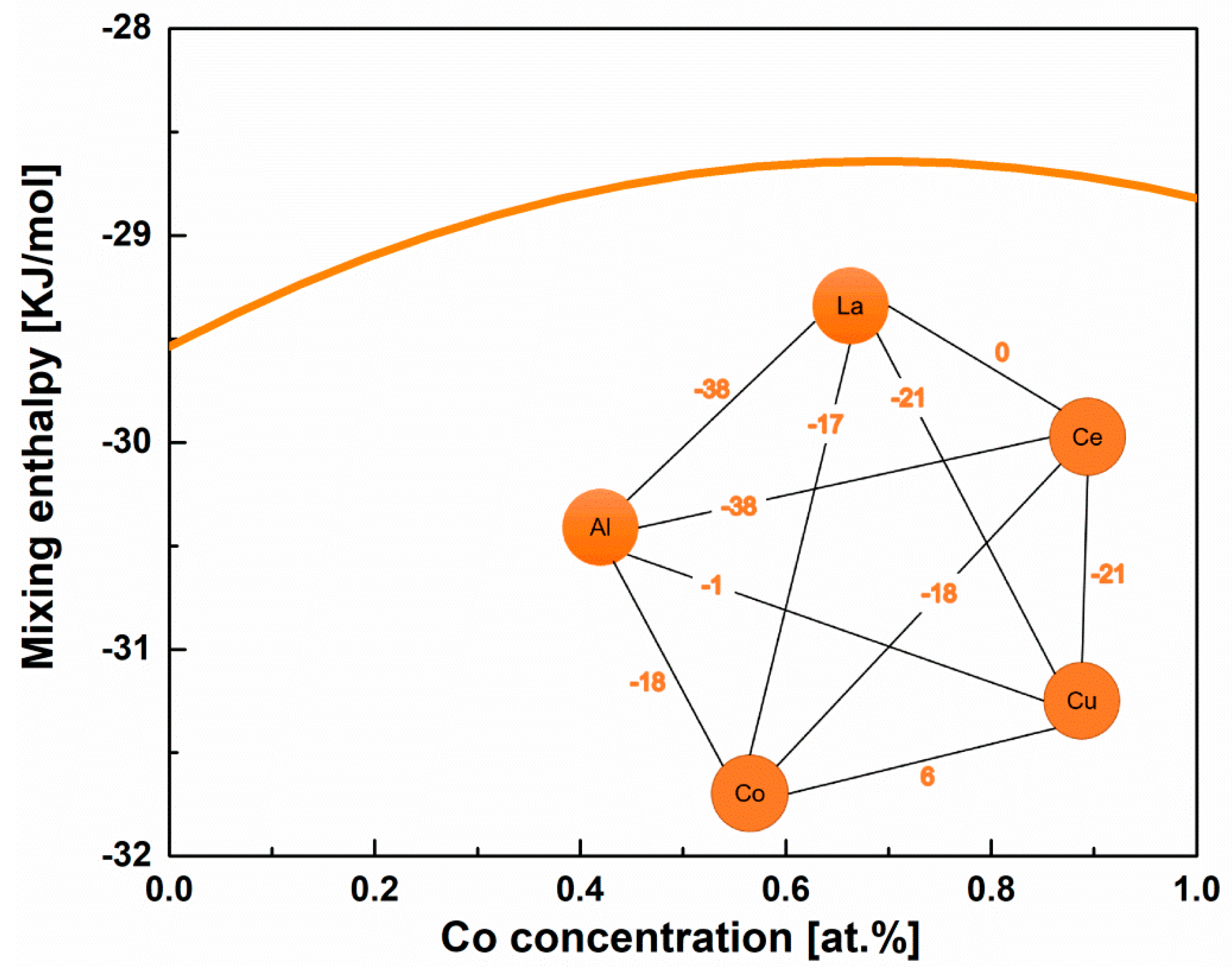

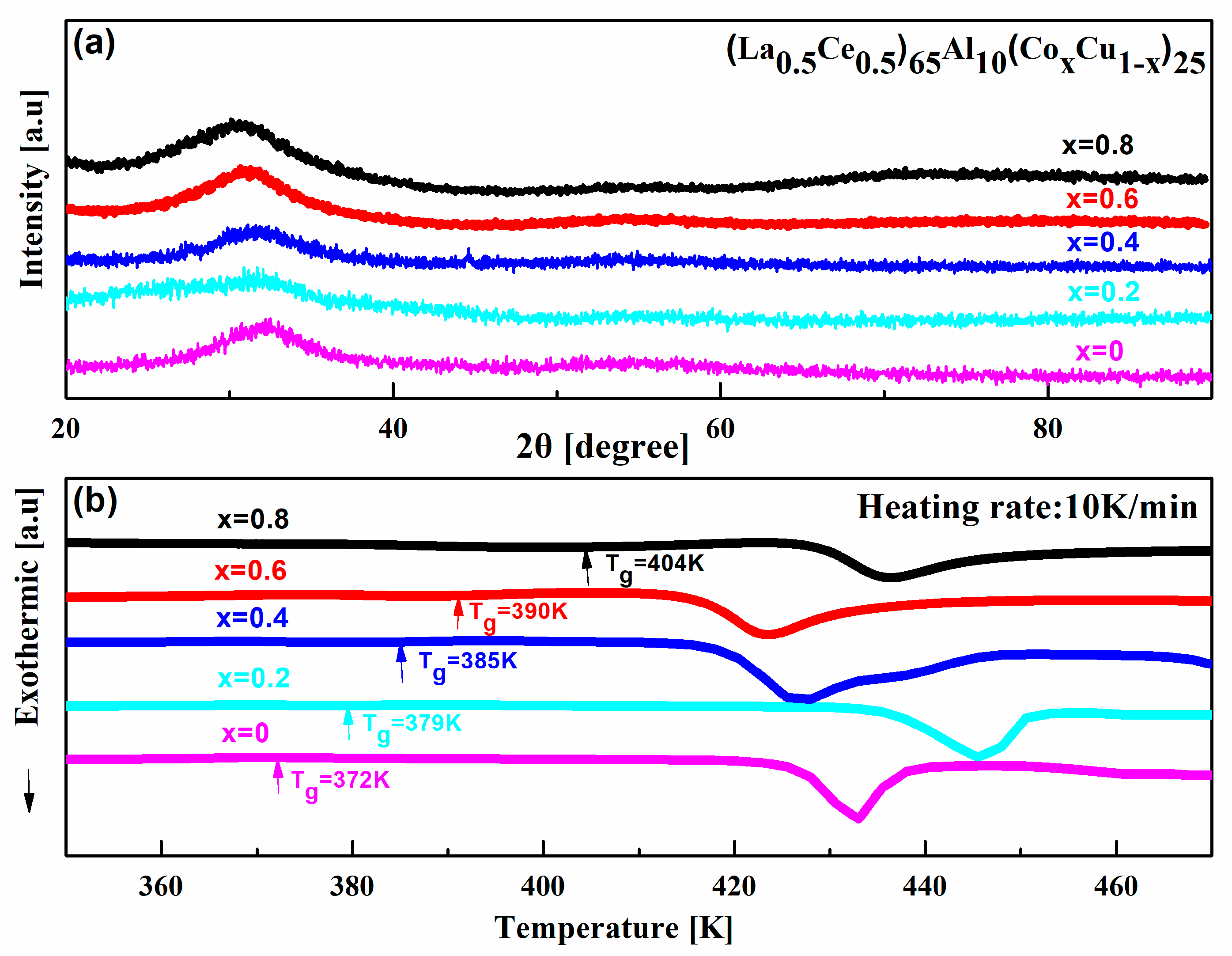

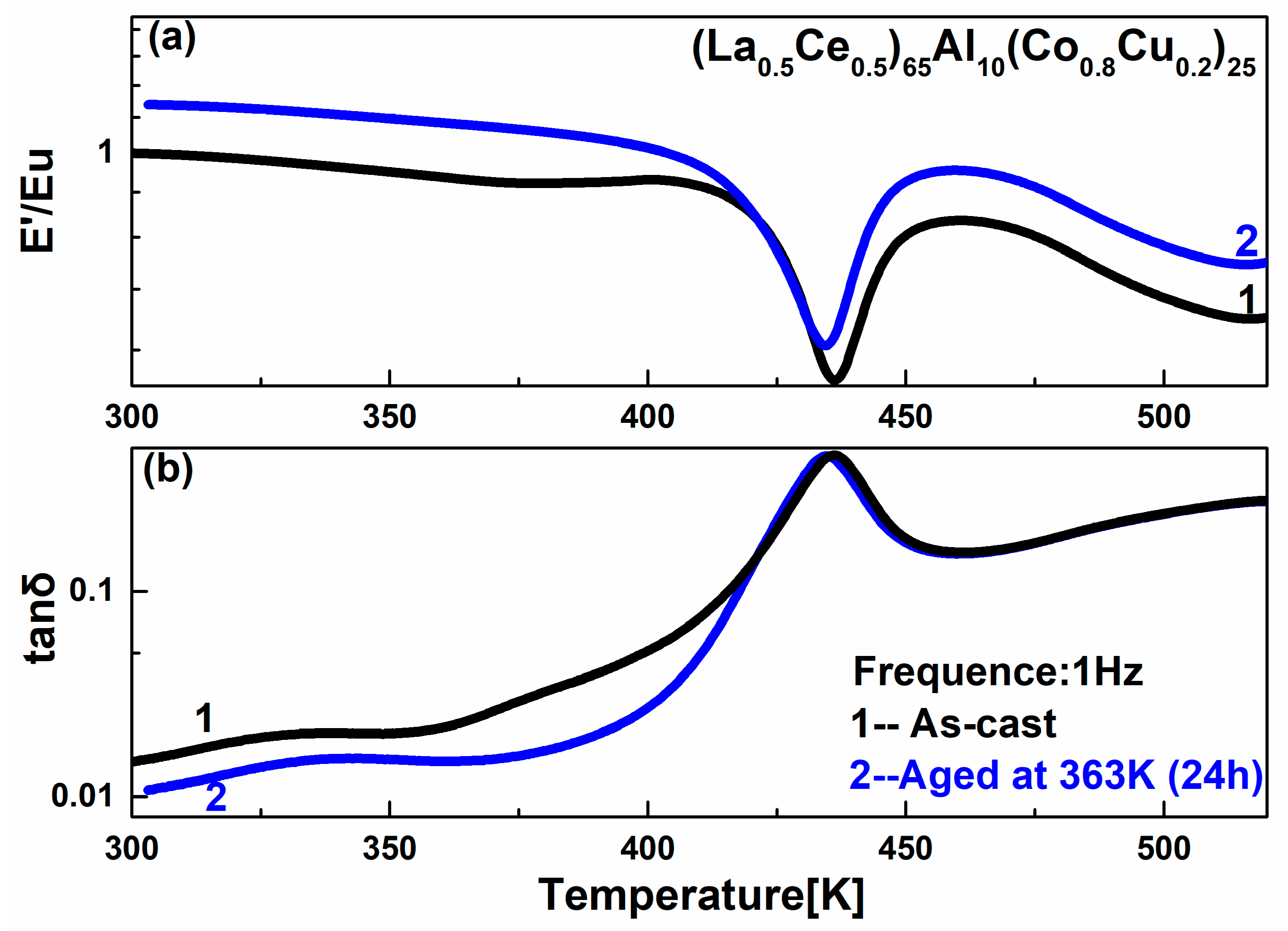

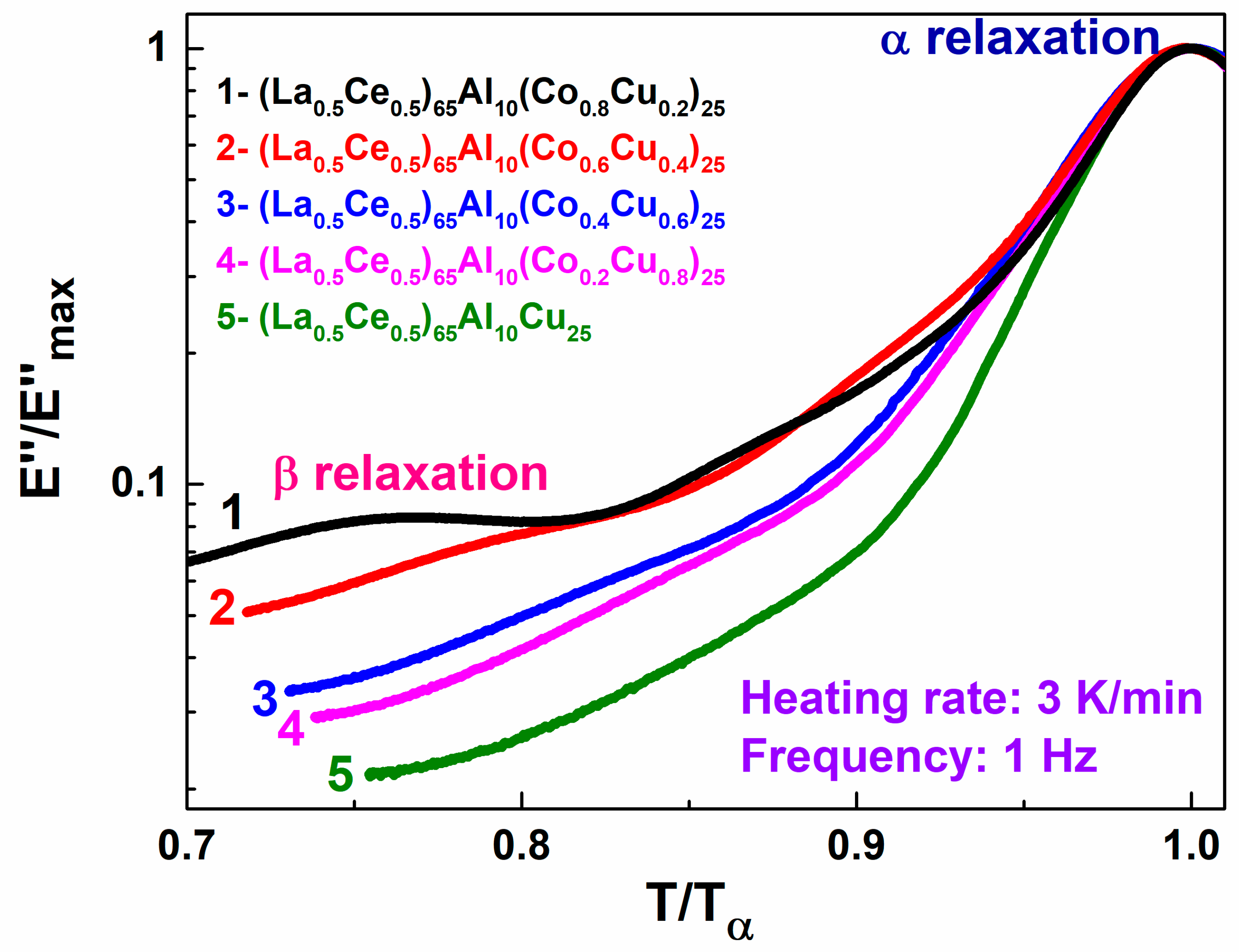

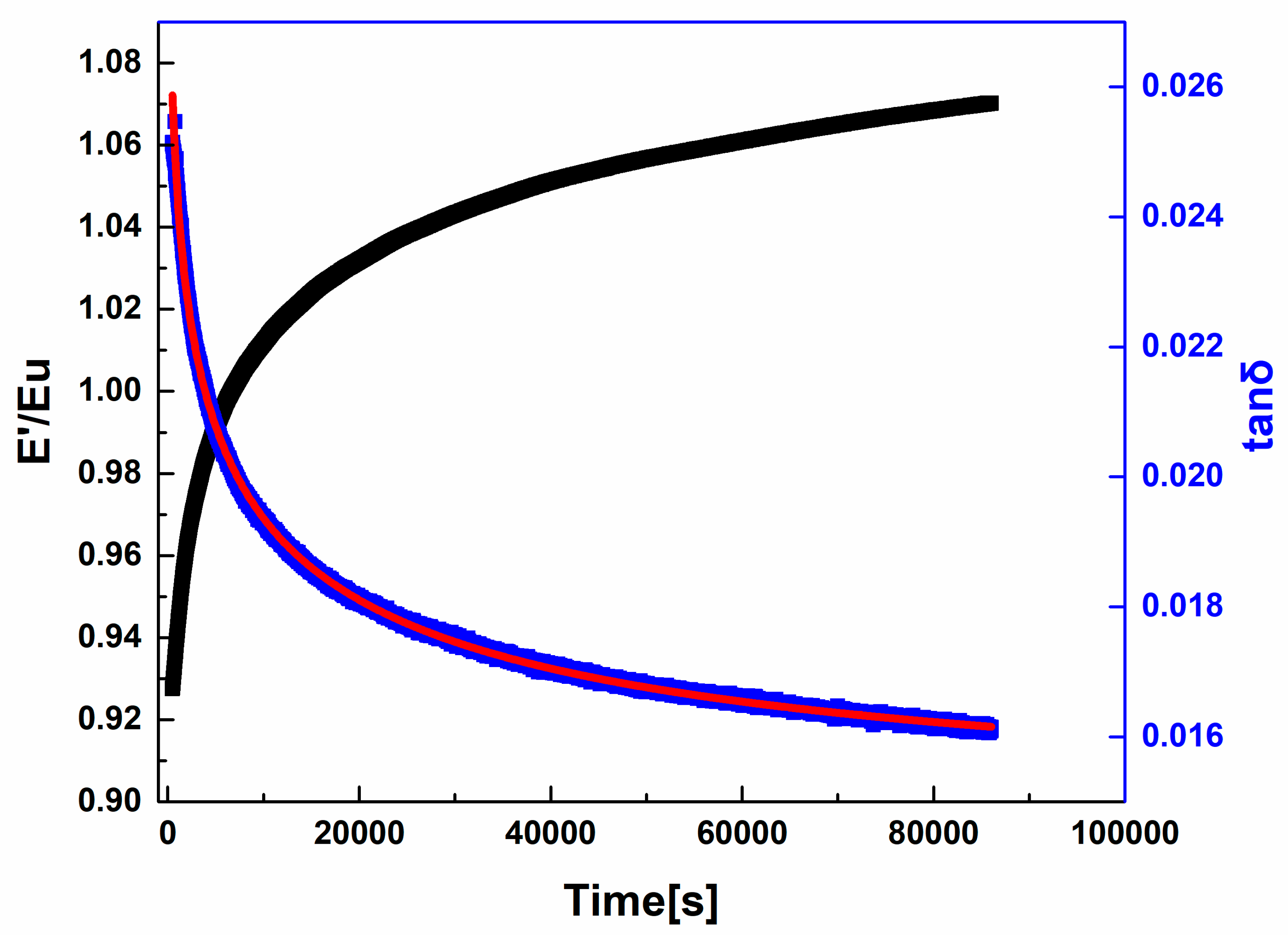

The mechanical relaxation behavior of the (La0.5Ce0.5)65Al10(CoxCu1−x)25 at% (x = 0, 0.2, 0.4, 0.6, and 0.8) metallic glasses was probed by dynamic mechanical analysis. The intensity of the secondary β relaxation increases along with the Co/Cu ratio, as has been reported in metallic glasses where the enthalpy of mixing for all pairs of atoms is negative. Furthermore, the intensity of the secondary β relaxation decreases after physical aging below the glass transition temperature, which is probably due to the reduction of the atomic mobility induced by physical aging. View Full-Text
Keywords: metallic glasses; mechanical spectroscopy; mixing enthalpy; Kohlrausch–Williams–Watts equation; structural heterogeneity metallic glasses; mechanical spectroscopy; mixing enthalpy; Kohlrausch–Williams–Watts equation; structural heterogeneity
Show Figures

Figure 1

MDPI and ACS Style

Liu, M.; Qiao, J.; Hao, Q.; Chen, Y.; Yao, Y.; Crespo, D.; Pelletier, J.-M. Dynamic Mechanical Relaxation in LaCe-Based Metallic Glasses: Influence of the Chemical Composition. Metals 2019, 9, 1013.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
