Next Article in Journal
Role of Vanadium Addition on Hot Deformation Behavior of Aluminum Alloy 5083
Previous Article in Journal
Deposits in Gas-fired Rotary Kiln for Limonite Magnetization-Reduction Roasting: Characteristics and Formation Mechanism
Previous Article in Special Issue
A New Method for Internal Force Detection of Steel Bars Covered by Concrete Based on the Metal Magnetic Memory Effect
Article Menu

Export Article

Open AccessArticle

Study on Microstructure and Properties of a New Warm-Stamped Niobium-Alloyed Steel

1
School of Material Science and Engineering, University of Science and Technology Beijing, Beijing 100083, China
2
Ansteel Technology Center, Anshan 114009, China
*
Authors to whom correspondence should be addressed.
Metals 2019, 9(7), 765; https://doi.org/10.3390/met9070765
Received: 21 May 2019 / Revised: 26 June 2019 / Accepted: 3 July 2019 / Published: 8 July 2019
(This article belongs to the Special Issue Advances in Structural Steel Research)
  |
PDF [22491 KB, uploaded 8 July 2019]
  |

Abstract

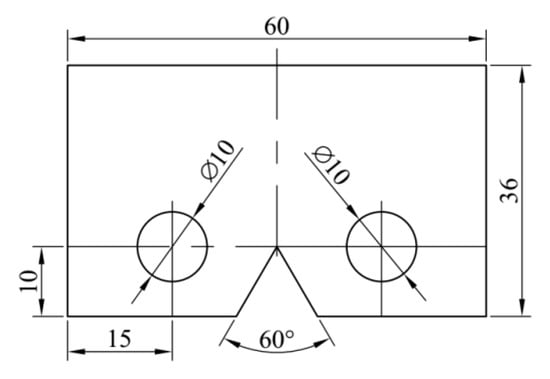

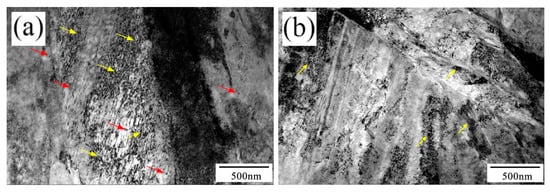

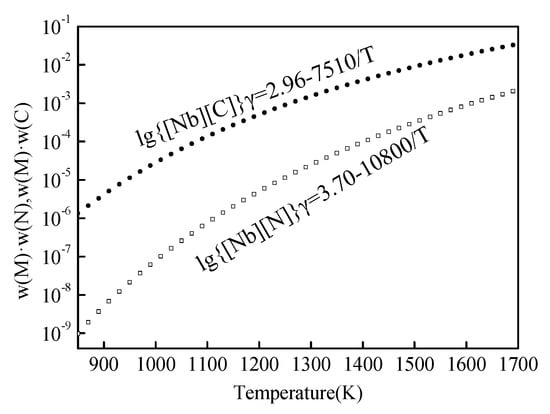

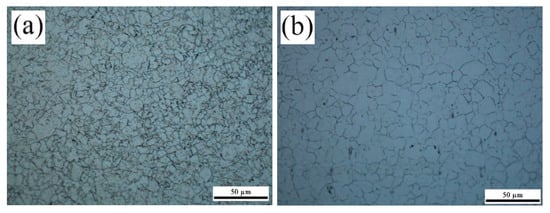

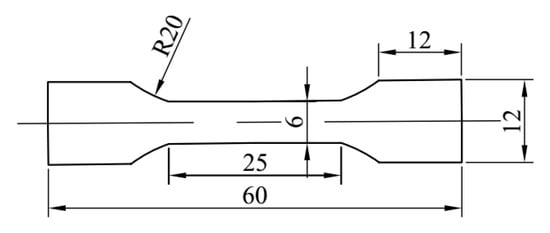

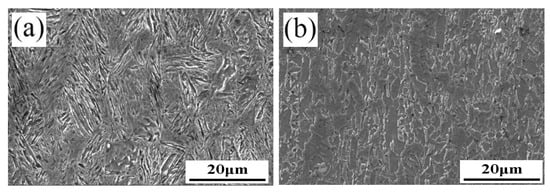

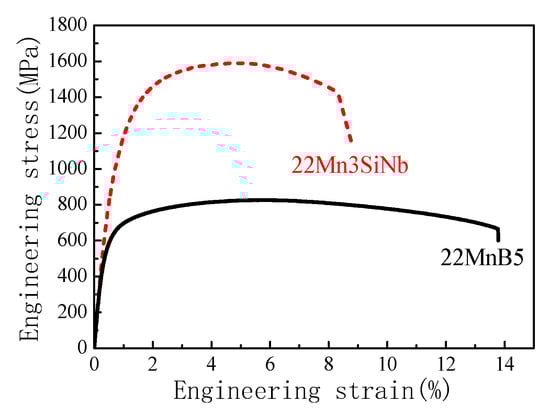

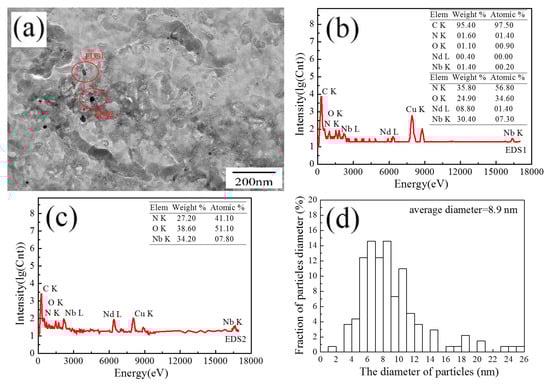

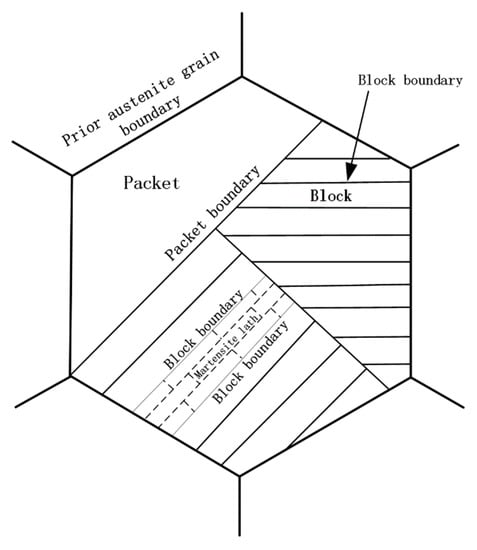

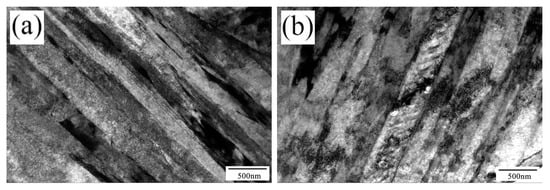

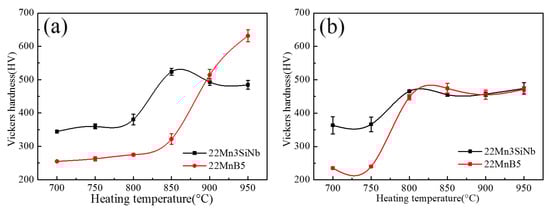

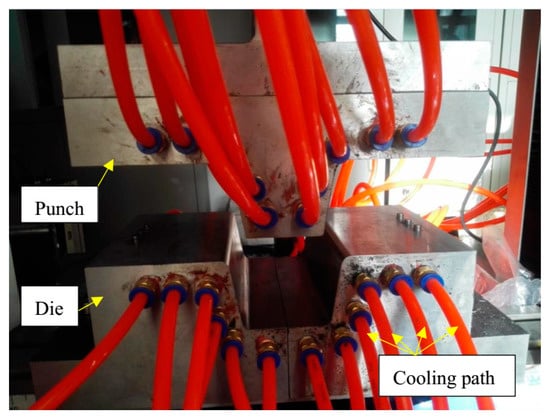

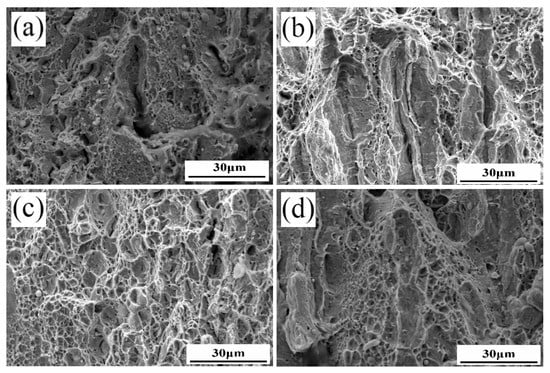

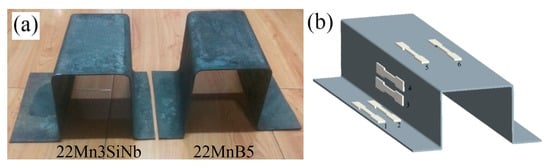

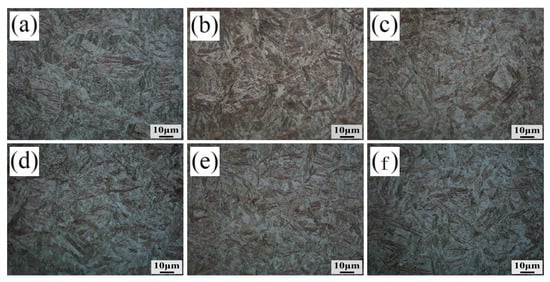

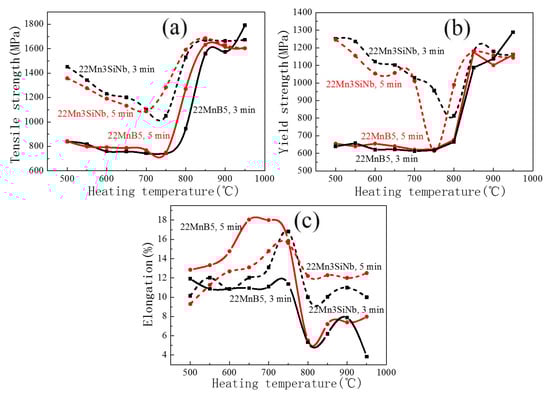

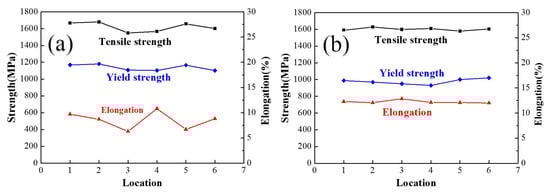

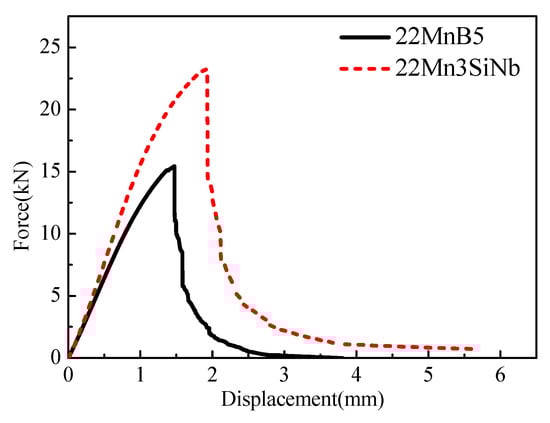

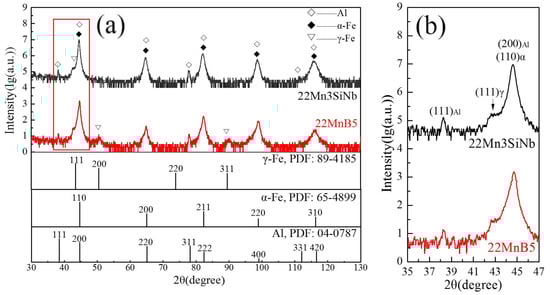

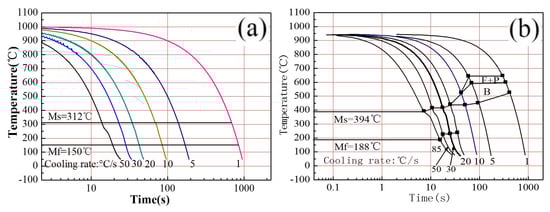

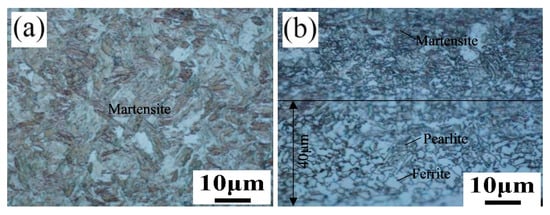

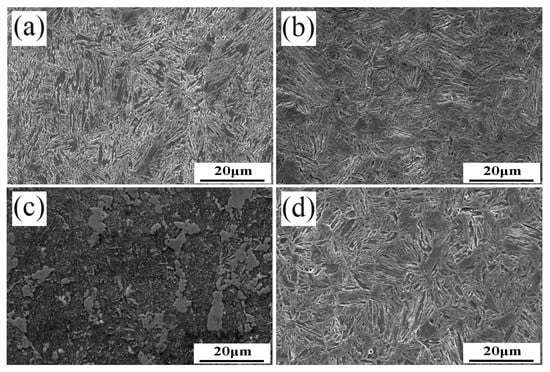

The warm stamping technology is a promising technology to meet the needs of car weight reduction and energy conservation. In order to compare with the mechanical properties of the traditional hot-stamped boron-alloyed steel 22MnB5, a new warm-stamped niobium-alloyed steel 22Mn3SiNb was designed and tested. The optimal heating parameters for warm forming process were explored through mechanical tests, and the process of their microstructure evolution was investigated by scanning electron microscope (SEM), transmission electron microscope (TEM) and X-ray diffraction (XRD), etc. The experimental results indicate that the optimal heating parameters for the niobium-alloyed steel 22Mn3SiNb are a heating temperature of 800 °C and a soaking time of 5 min. Compared to the hot-stamped boron-alloyed steel 22MnB5 under their respective optimal heating parameters, the properties and microstructure characteristics of 22Mn3SiNb are greatly improved, and nearly no decarburized layer is found on the surface of the niobium-alloyed steel 22Mn3SiNb. In addition, the addition of Nb produces the effects of grain refinement and precipitation strengthening due to the introduction of plenty of nano-precipitated particles and dislocations. In the end, it can be predicted that the new warm-stamped niobium-alloyed steel will replace the conventional hot-stamped boron-alloyed steel. View Full-Text
Keywords: warm stamping technology; boron-alloyed steel; hot-stamped steel; niobium-alloyed warm stamping technology; boron-alloyed steel; hot-stamped steel; niobium-alloyed
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Tian, P.; Liang, W.; Cui, Z.; Zhu, G.; Kang, Y.; Li, B.; Lin, L.; Liu, R. Study on Microstructure and Properties of a New Warm-Stamped Niobium-Alloyed Steel. Metals 2019, 9, 765.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
