Annealing Response of a Cold-Rolled Binary Al–10Mg Alloy

School of Material Sciences and Engineering, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(7), 759; https://doi.org/10.3390/met9070759
Received: 7 May 2019 / Revised: 30 June 2019 / Accepted: 3 July 2019 / Published: 5 July 2019
(This article belongs to the Special Issue Phase Transformations in Aluminium Alloys)
  |
PDF [6158 KB, uploaded 8 July 2019]
  |

Abstract

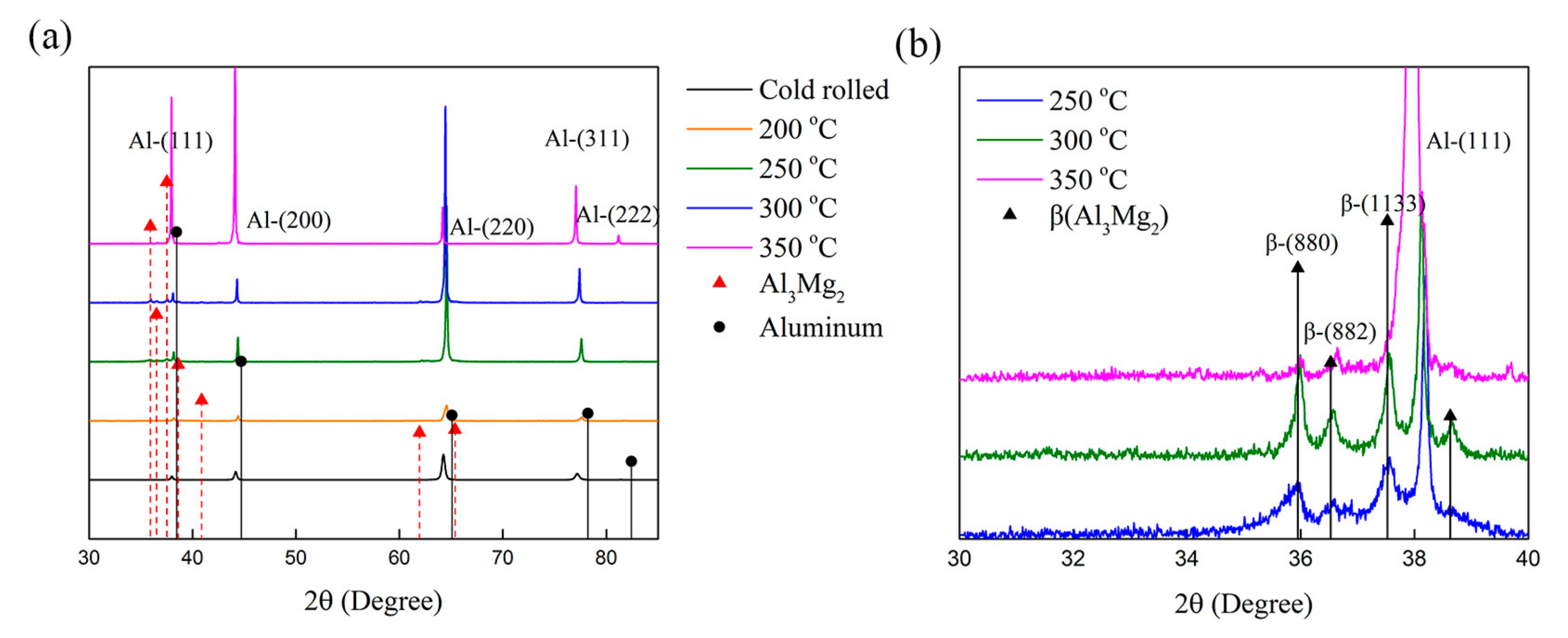

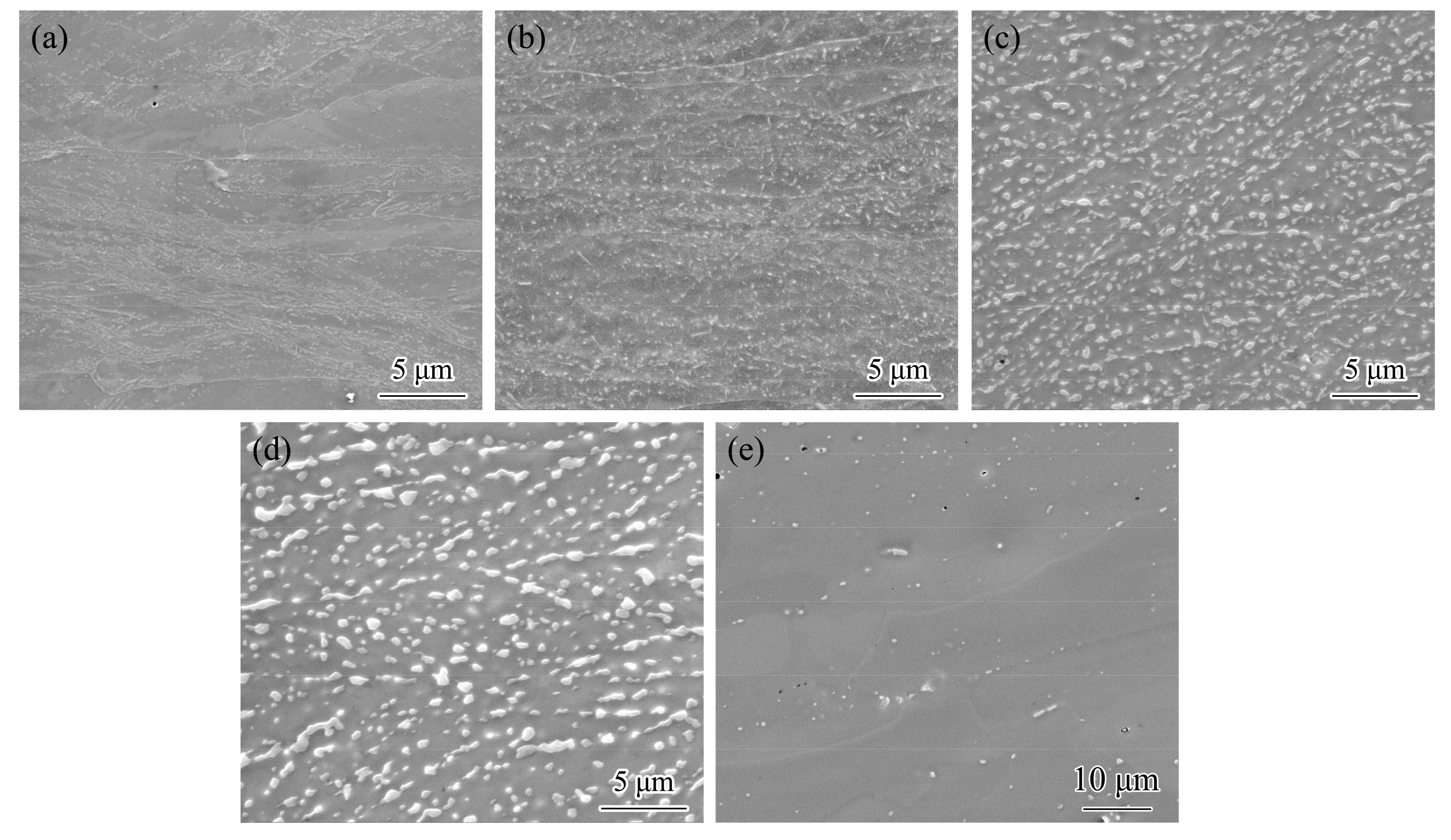

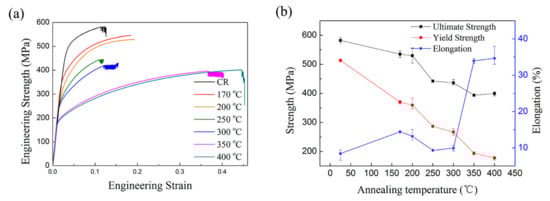

The effect of annealing temperature on microstructure and mechanical properties of a cold-rolled Al–10Mg alloy has been investigated by X-ray diffraction (XRD), scanning electron microscopy (SEM), electron backscatter diffraction (EBSD) and tensile testing. The results showed that supersaturated Mg precipitated along grain boundaries and deformation bands during annealing treatment and precipitation size and the concentration of solid solution Mg atoms increased with the rising of annealing temperature. When annealed at low temperature, accumulation and annihilation of dislocations were the primary way of recovery; as temperature increased to 300 °C, recrystallized grains were formed around the large size β phase through particle-stimulated nucleation. A high ultimate strength (550 MPa) and a middle ductility (14%) were obtained when the Al–10Mg alloy was annealed at 200 °C for 1 h. The abnormal decrease of elongation when the Al–10Mg alloy was annealed at 250–300 °C was due to the formation of a continuous network distribution of large size β phase particles along grain boundaries. View Full-Text
Keywords: Al–10Mg alloy; β phase; recrystallization; mechanical properties; annealing Al–10Mg alloy; β phase; recrystallization; mechanical properties; annealing
Figures

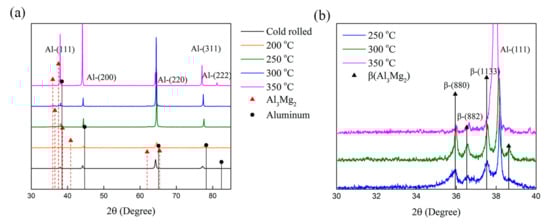

Figure 1
