Next Article in Journal
Continuous Electron Beam Post-Treatment of EBF3-Fabricated Ti–6Al–4V Parts
Previous Article in Journal
Accuracy and Surface Quality Improvements in the Manufacturing of Ti-6Al-4V Parts Using Hot Single Point Incremental Forming
Previous Article in Special Issue
Enhanced Ductility of a W-30Cu Composite by Improving Microstructure Homogeneity
Article Menu
Issue 6 (June) cover image

Export Article

Open AccessFeature PaperArticle

Comparative Study of Chip Formation in Orthogonal and Oblique Slow-Rate Machining of EN 16MnCr5 Steel

Faculty of manufacturing technologies with the seat in Presov, Technical University of Kosice, Sturova 31, 080 01 Presov, Slovakia
Faculty of Technology, UTB Tomas Bata University in Zlin, Vavreckova 275, 760 01 Zlin, Czech Republic
Faculty of Mechanical Engineering, VSB-Technical University of Ostrava, 17. listopadu 15/2172, 708 00 Ostrava-Poruba, Czech Republic
Faculty of Mechanical Engineering, West Bohemia University in Pilsen, Univerzitni 22, 301 00 Pilsen, Czech Republic
Author to whom correspondence should be addressed.
Metals 2019, 9(6), 698;
Received: 23 May 2019 / Revised: 15 June 2019 / Accepted: 18 June 2019 / Published: 20 June 2019
(This article belongs to the Special Issue Failure Mechanisms in Alloys)
PDF [6054 KB, uploaded 24 June 2019]

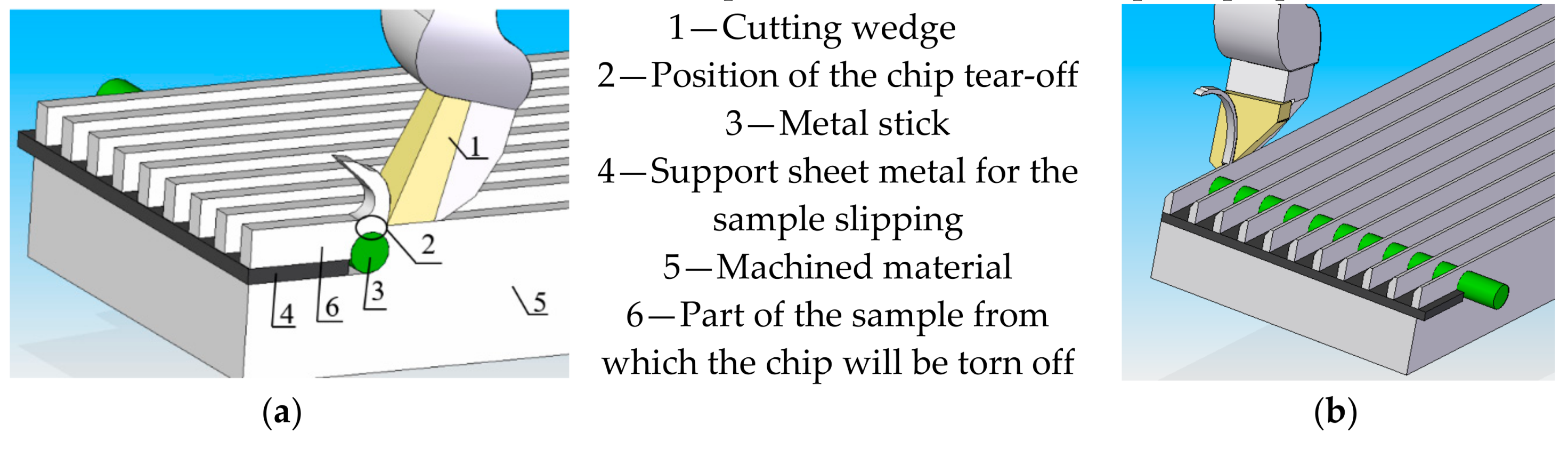

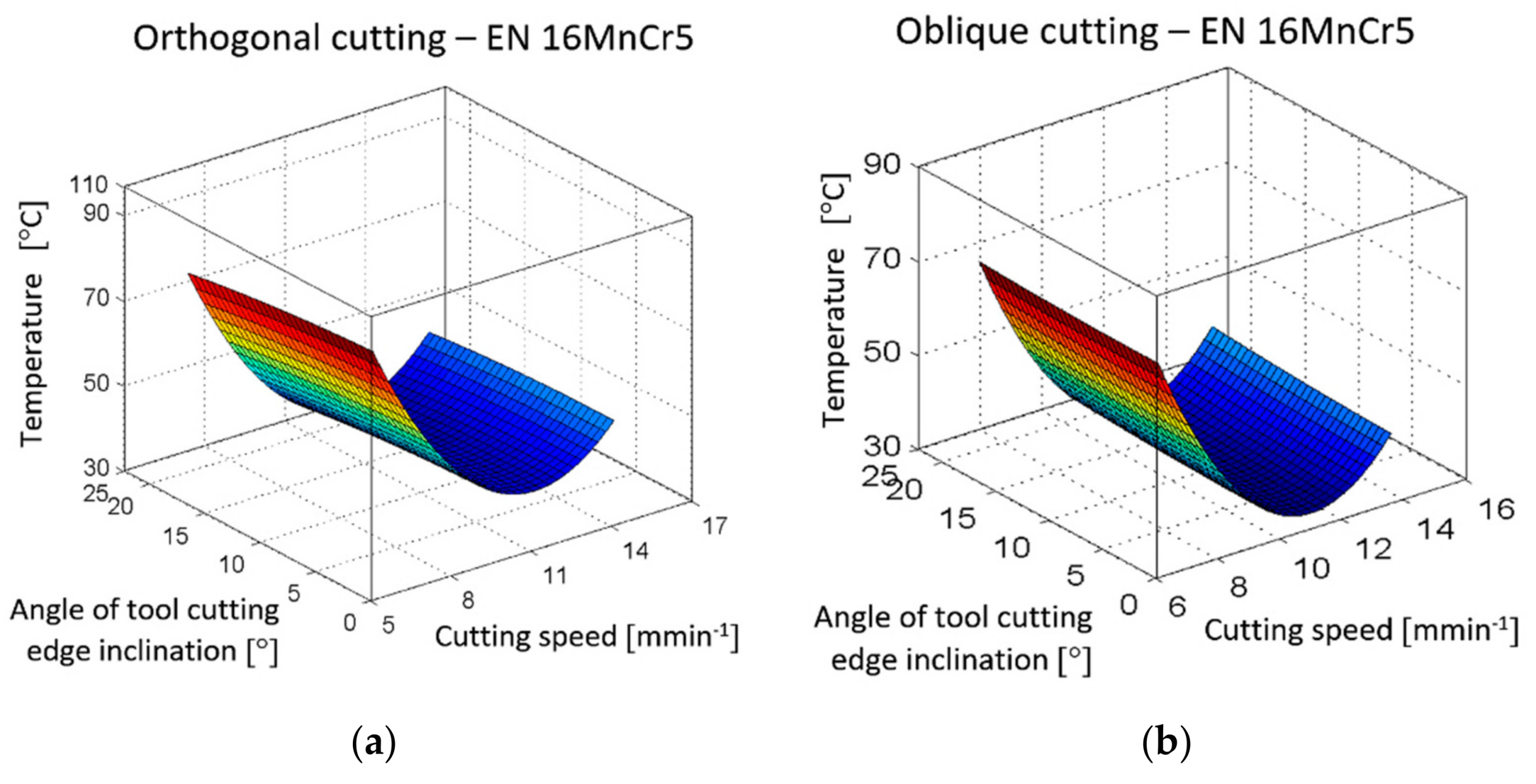

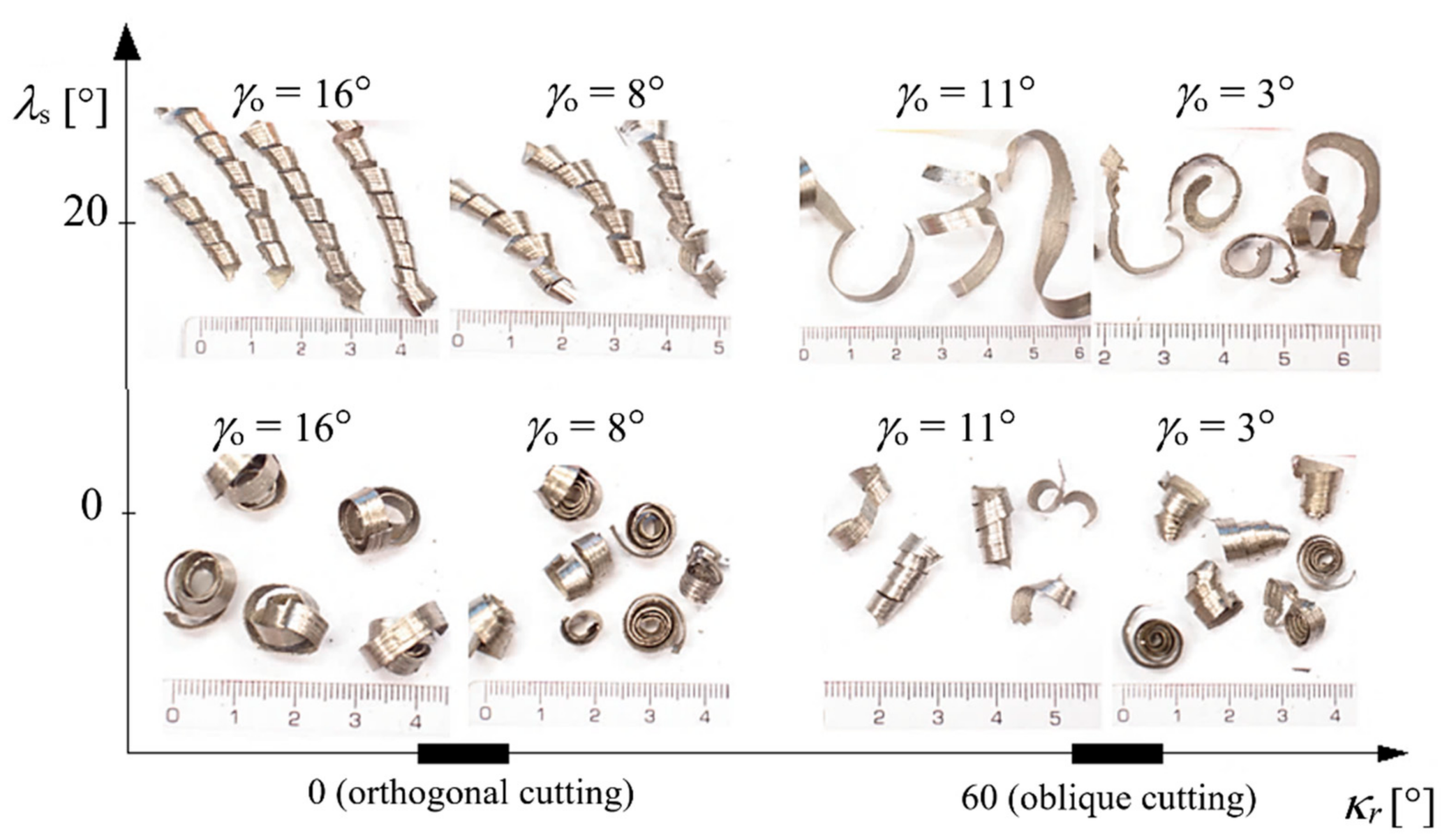

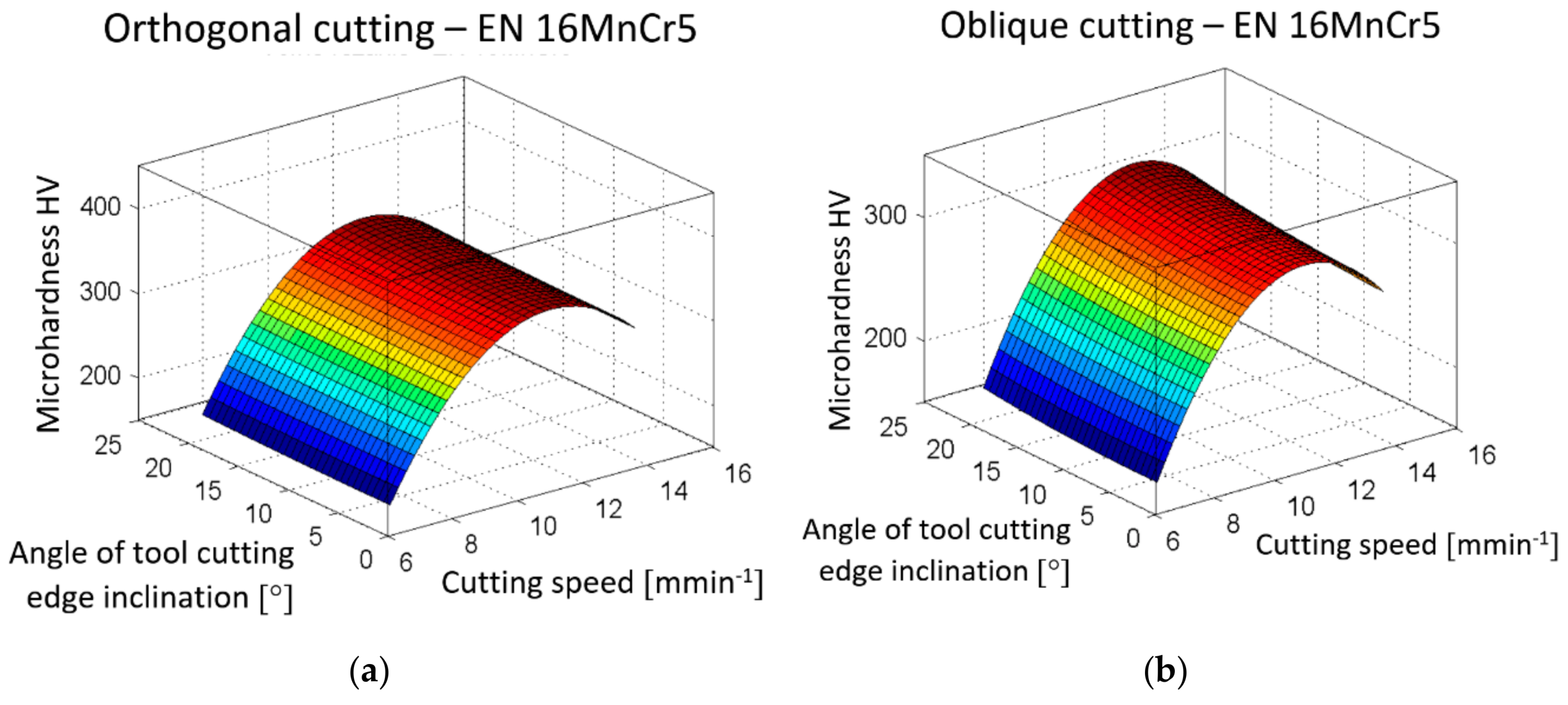

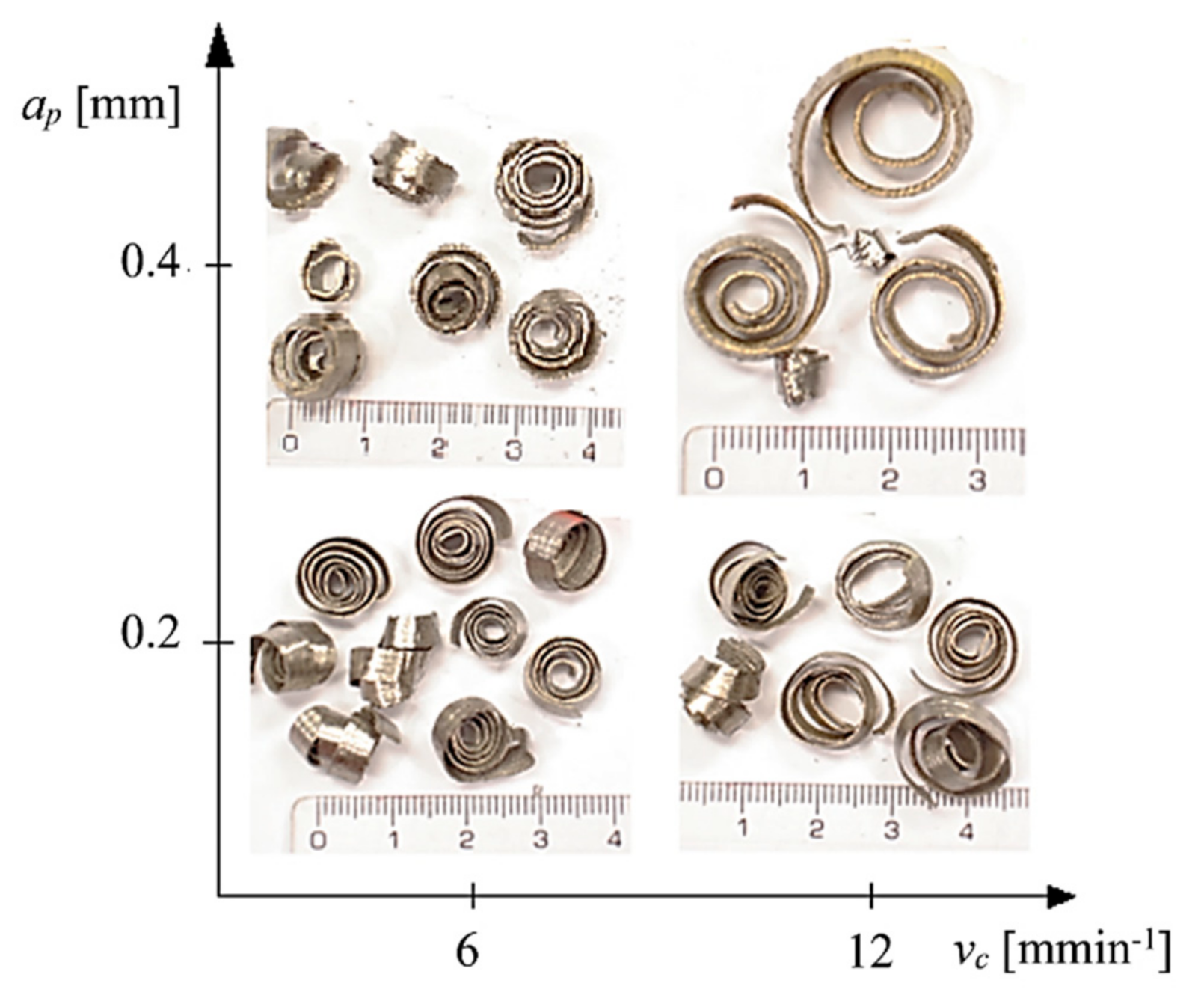

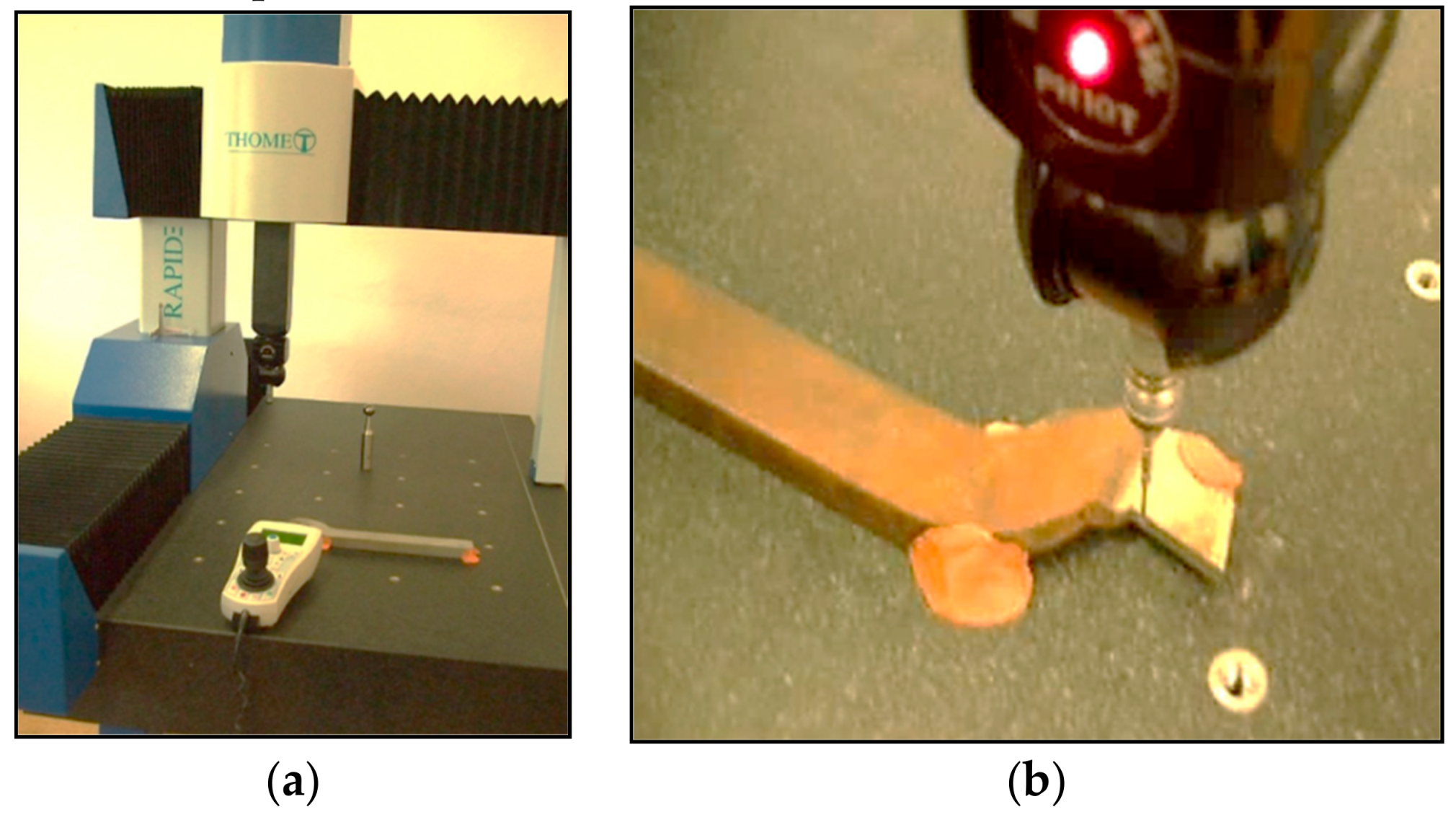

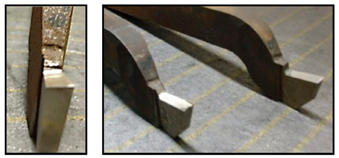

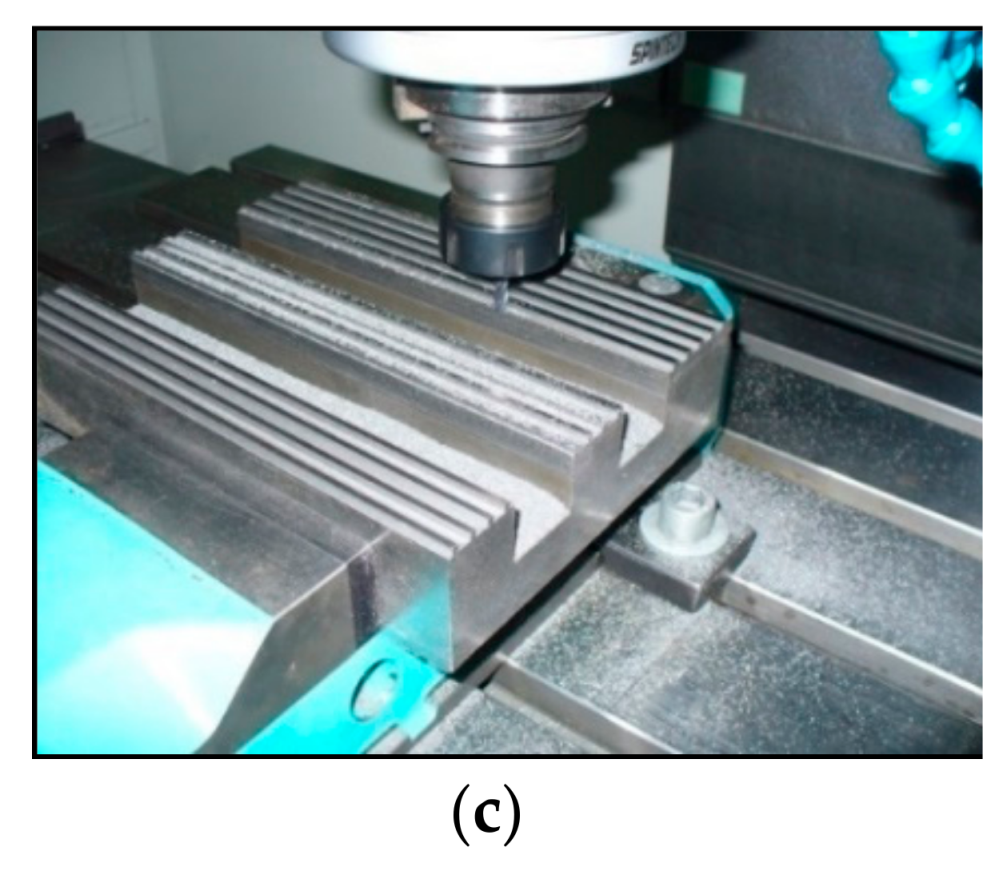

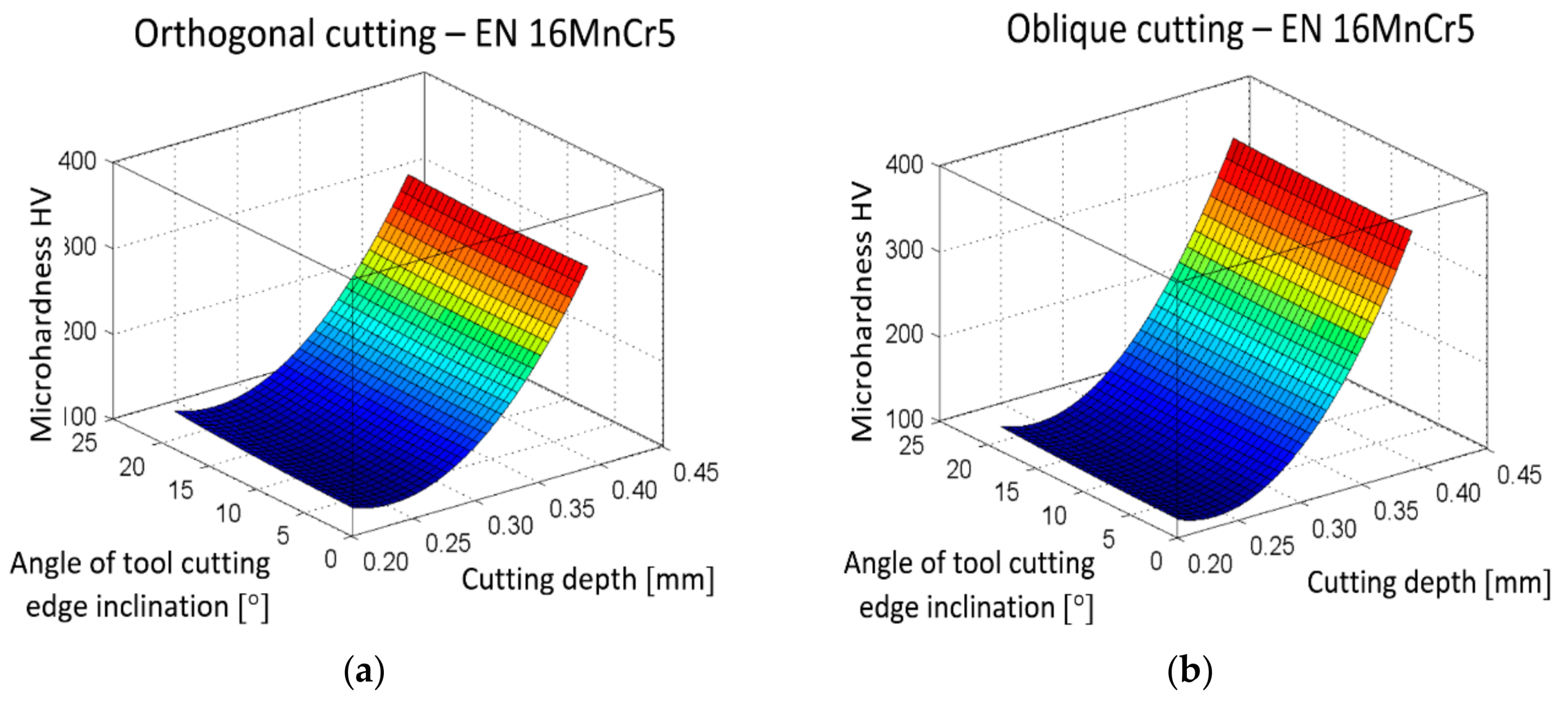

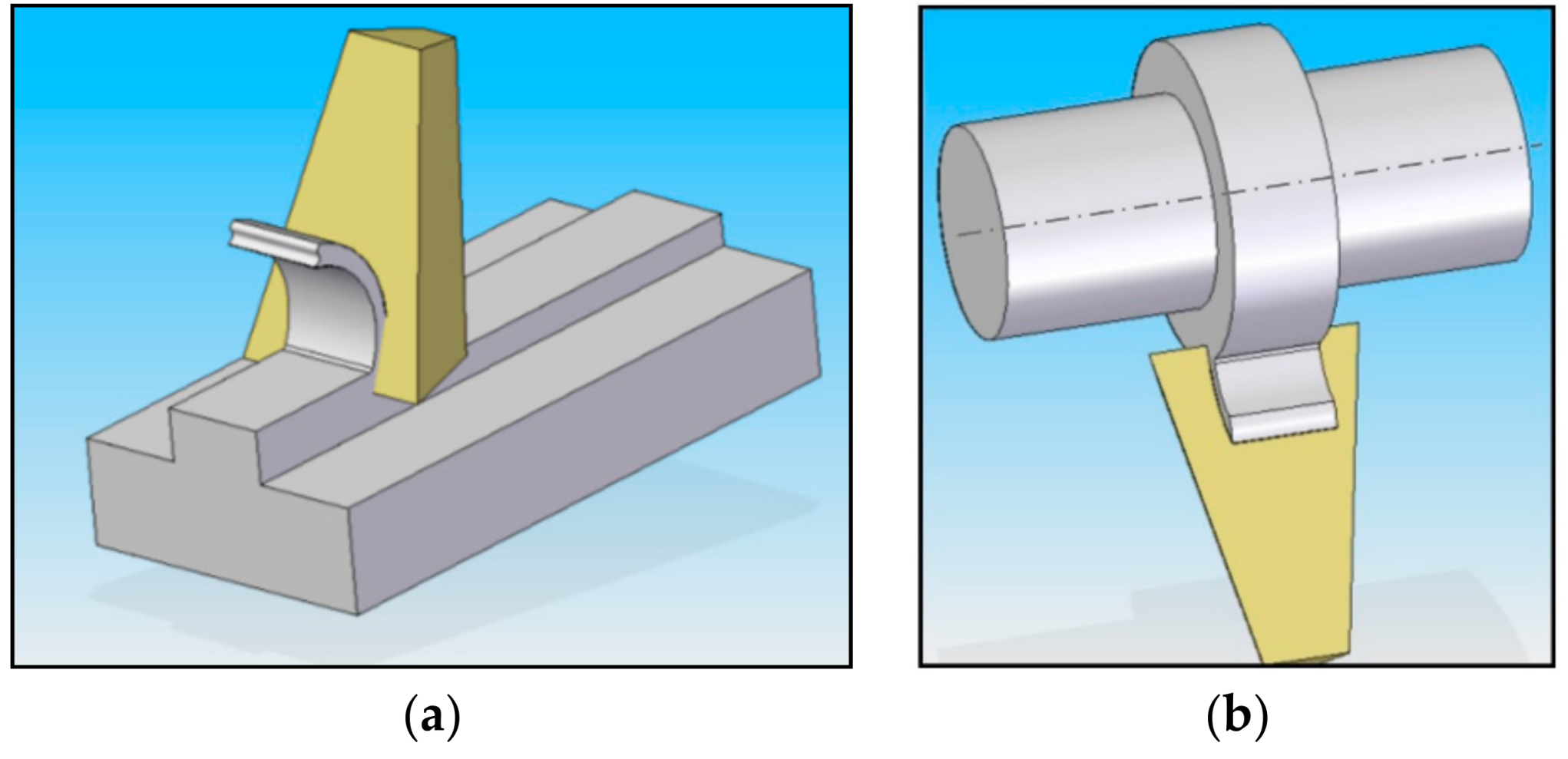

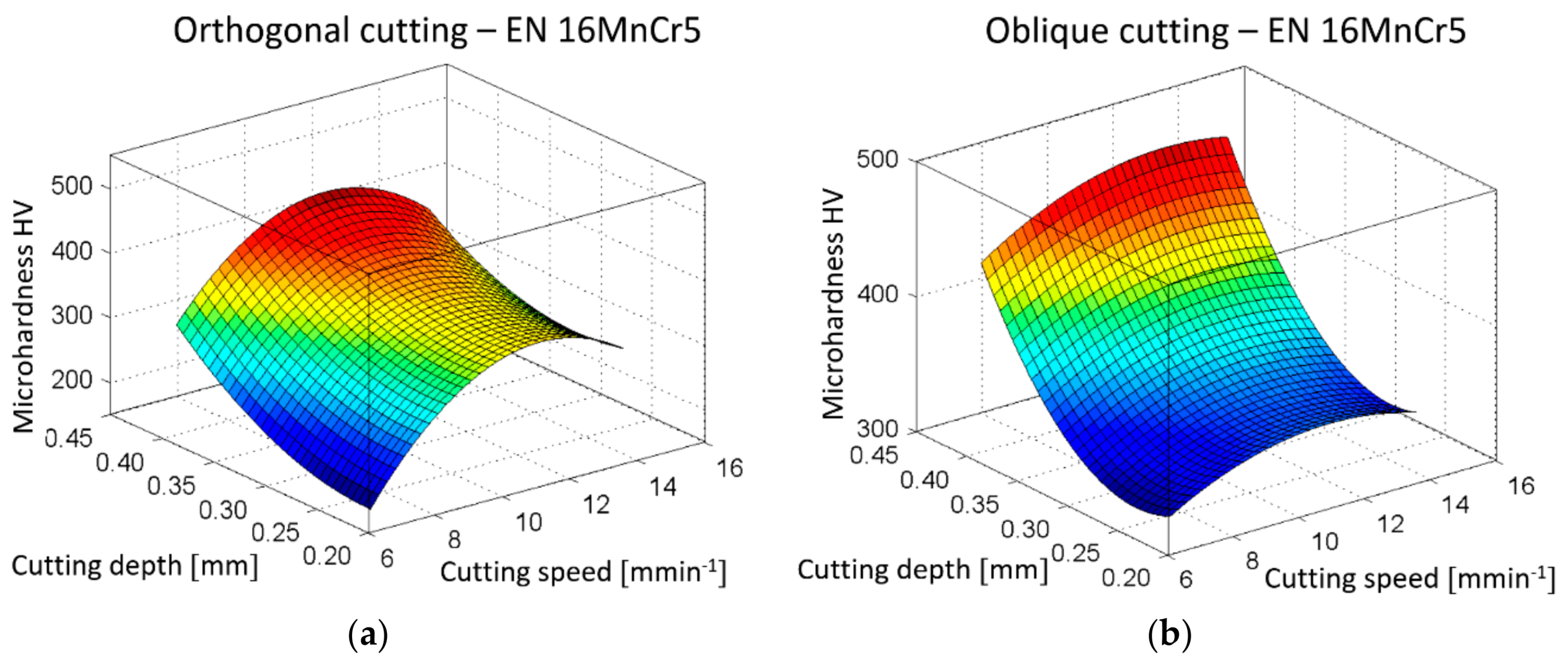

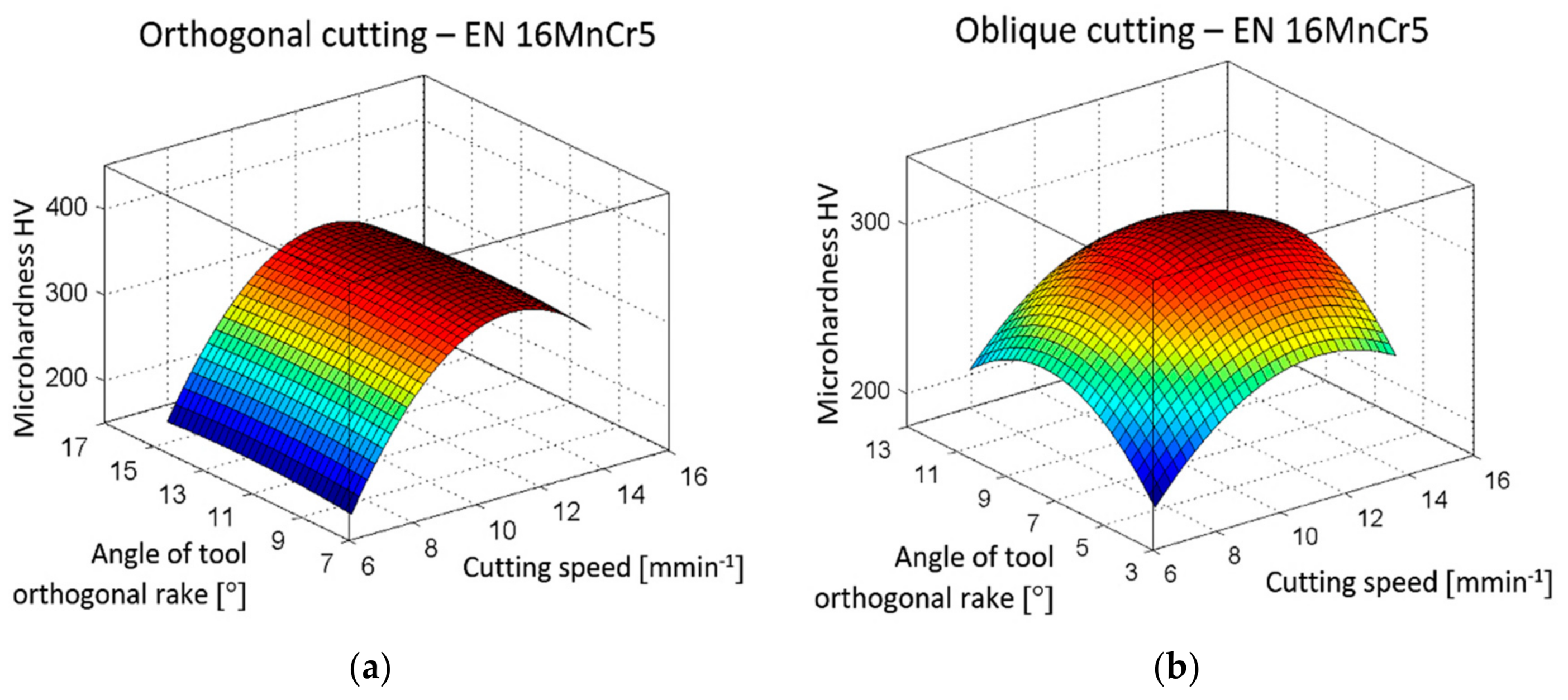

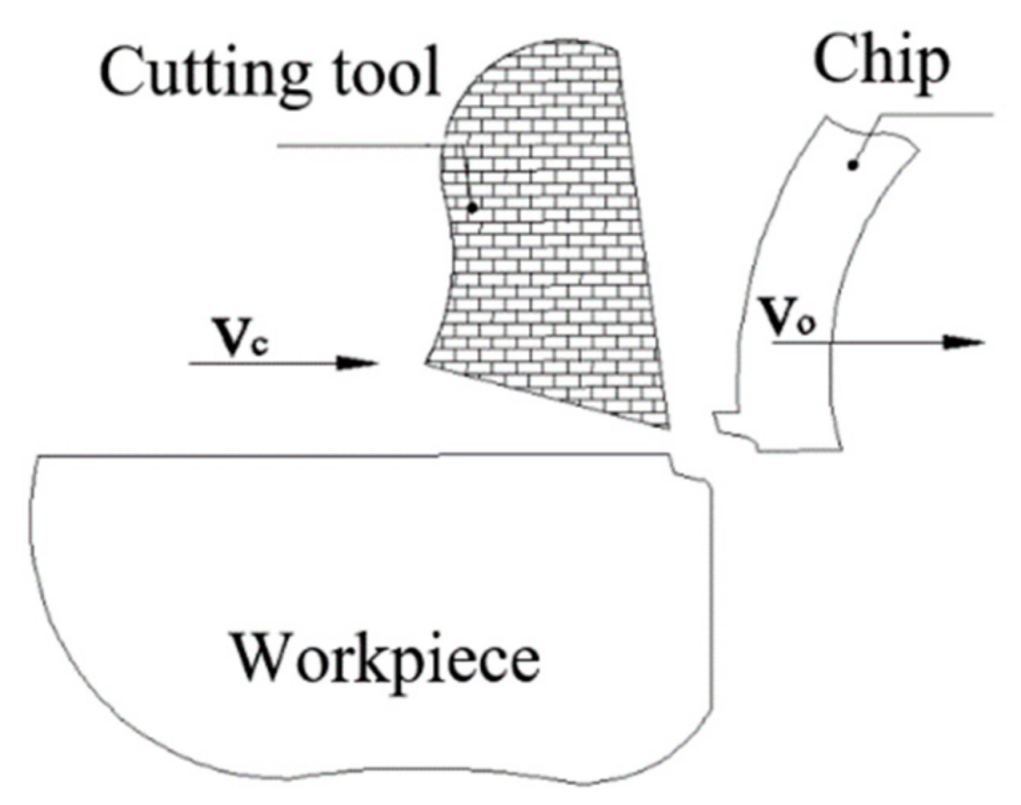

In today’s unmanned productions systems, it is very important that the manufacturing processes are carried out efficiently and smoothly. Therefore, controlling chip formation becomes an essential issue to be dealt with. It can be said that the material removal from a workpiece using machining is based on the degradation of material cohesion made in a controlled manner. The aim of the study was to understand the chip formation mechanisms that can, during uncontrolled processes, result in the formation and propagation of microcracks on the machined surface and, as such, cause failure of a component during its operation. This article addresses some aspects of chip formation in the orthogonal and oblique slow-rate machining of EN 16MnCr5 steel. In order to avoid chip root deformation and its thermal influence on sample acquisition, that could cause the changes in the microstructure of material, a new reliable method for sample acquisition has been developed in this research. The results of the experiments have been statistically processed. The obtained dependencies have uncovered how the cutting tool geometry and cutting conditions influence a chip shape, temperature in cutting area, or microhardness according to Vickers in the area of shear angle. View Full-Text

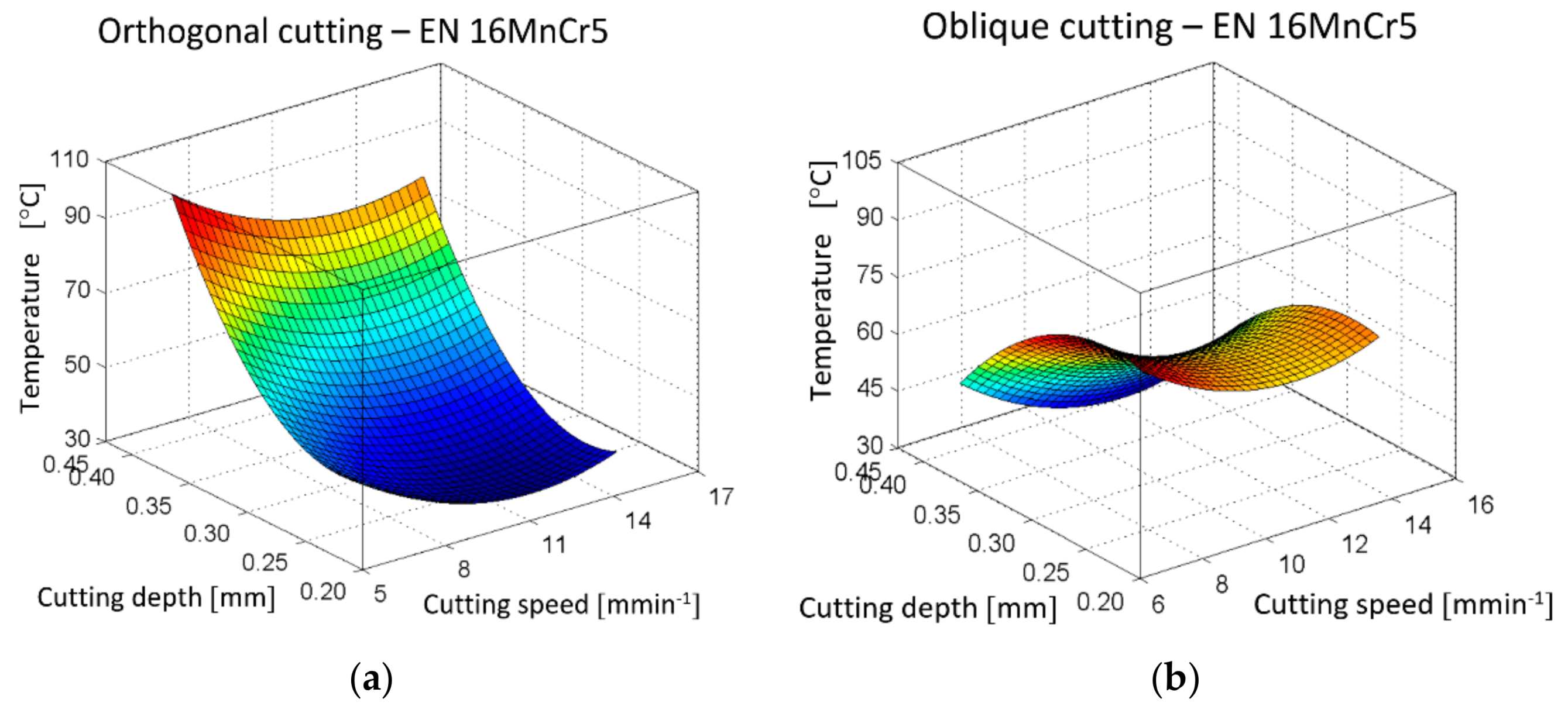

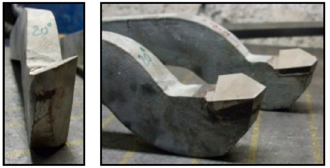

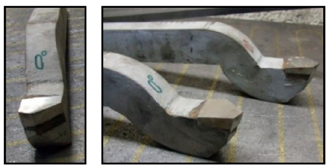

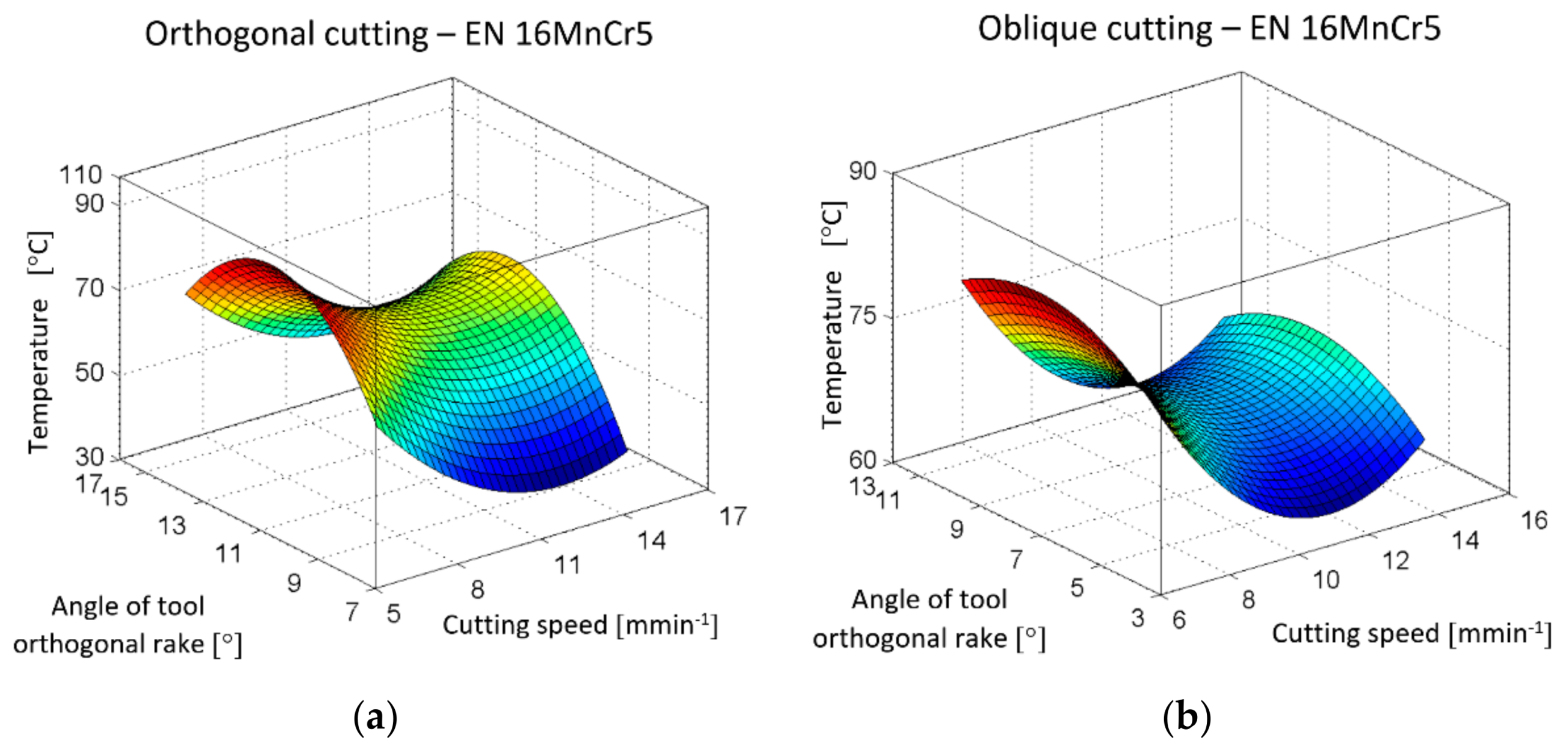

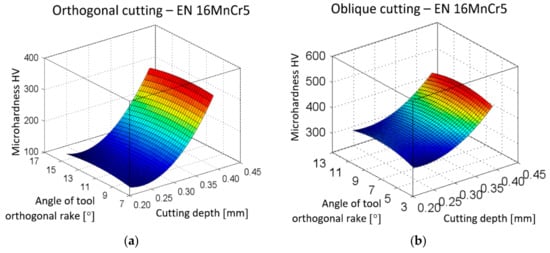

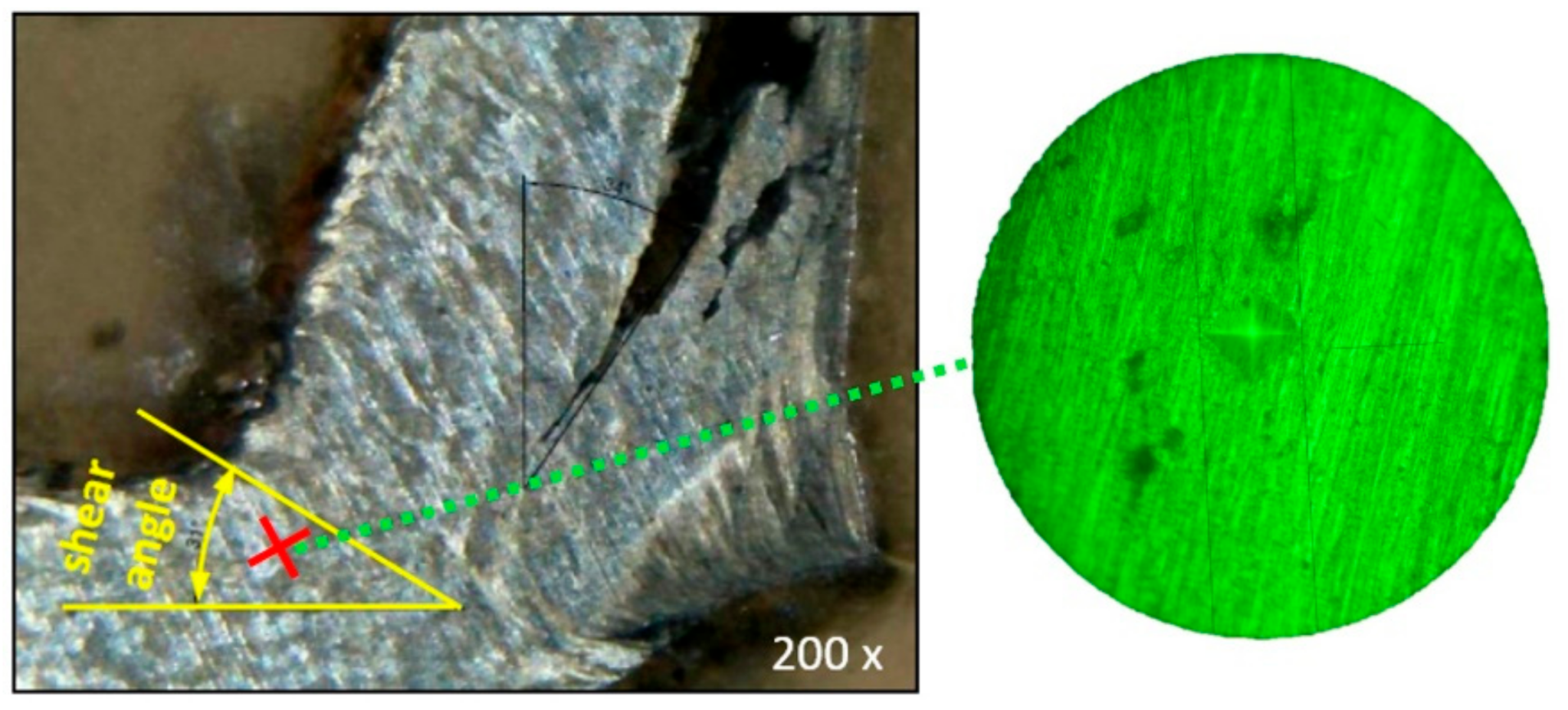

Keywords: slow-rate machining; chip formation; shape; temperature; microhardness HV slow-rate machining; chip formation; shape; temperature; microhardness HV

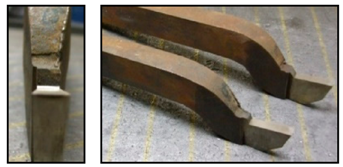

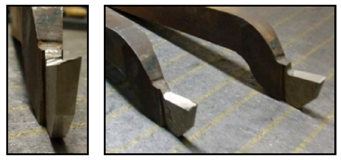

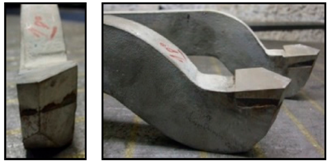

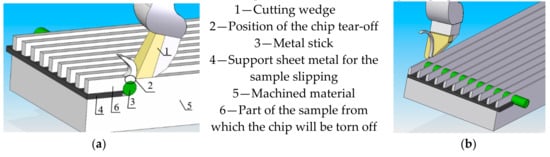

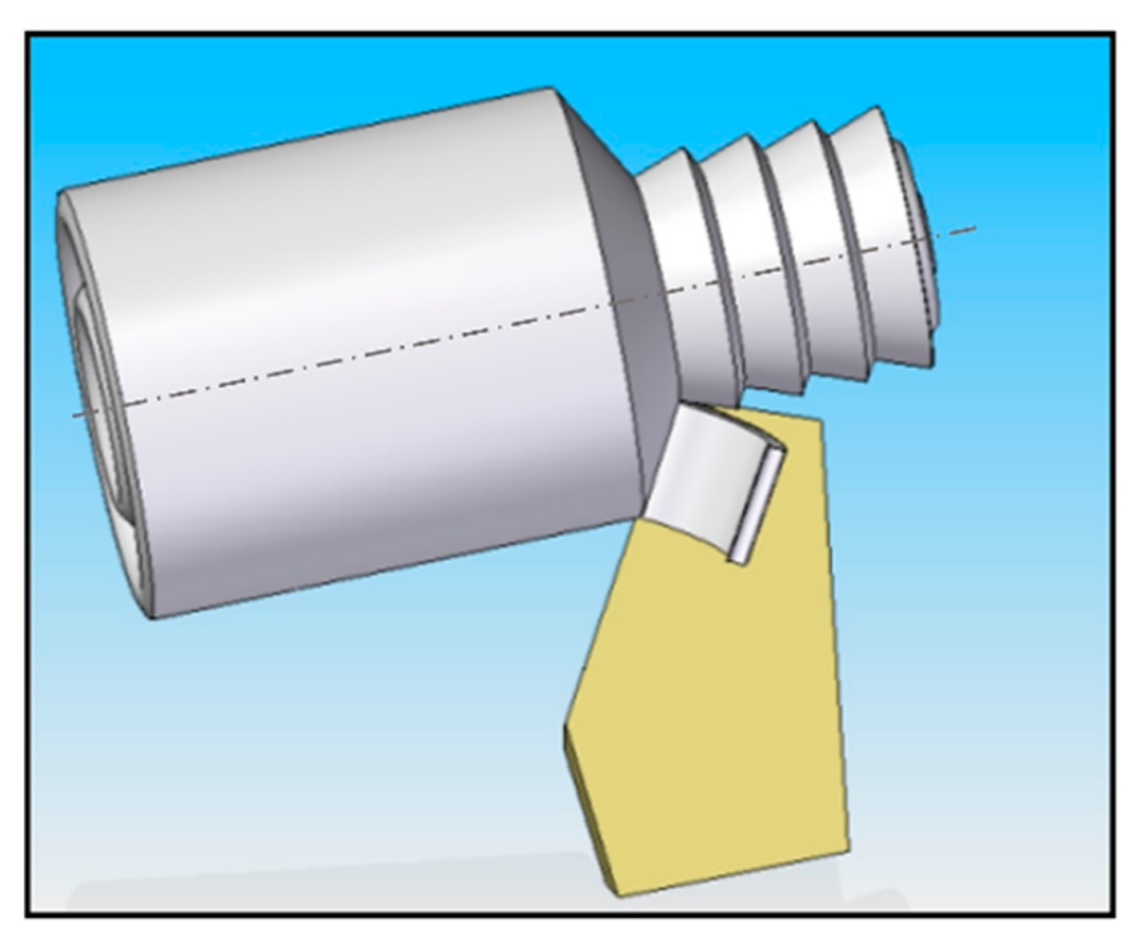

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Monkova, K.; Monka, P.P.; Sekerakova, A.; Hruzik, L.; Burecek, A.; Urban, M. Comparative Study of Chip Formation in Orthogonal and Oblique Slow-Rate Machining of EN 16MnCr5 Steel. Metals 2019, 9, 698.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
