Next Article in Journal
Effect of Differentiated Injection Ratio, Gas Flow Rate, and Slag Thickness on Mixing Time and Open Eye Area in Gas-Stirred Ladle Assisted by Physical Modeling
Previous Article in Journal
On the Free-Surface Roughness in Incremental Forming of a Sheet Metal: A Study from the Perspective of ISF Strain, Surface Morphology, Post-Forming Properties, and Process Conditions
Previous Article in Special Issue
Comparison of Transverse Uniform and Non-Uniform Secondary Cooling Strategies on Heat Transfer and Solidification Structure of Continuous-Casting Billet
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle

Reoxidation of Al-Killed Steel by Cr2O3 from Tundish Cover Flux

1
Engineering Research Institute, University of Science and Technology Beijing, Beijing 100083, China
2
School of Metallurgical and Ecological Engineering, University of Science and Technology Beijing, Beijing 100083, China
*
Authors to whom correspondence should be addressed.
Metals 2019, 9(5), 554; https://doi.org/10.3390/met9050554
Received: 2 April 2019 / Revised: 1 May 2019 / Accepted: 4 May 2019 / Published: 12 May 2019
(This article belongs to the Special Issue Refining and Casting of Steel)
  |
PDF [2573 KB, uploaded 12 May 2019]
  |     |

Abstract

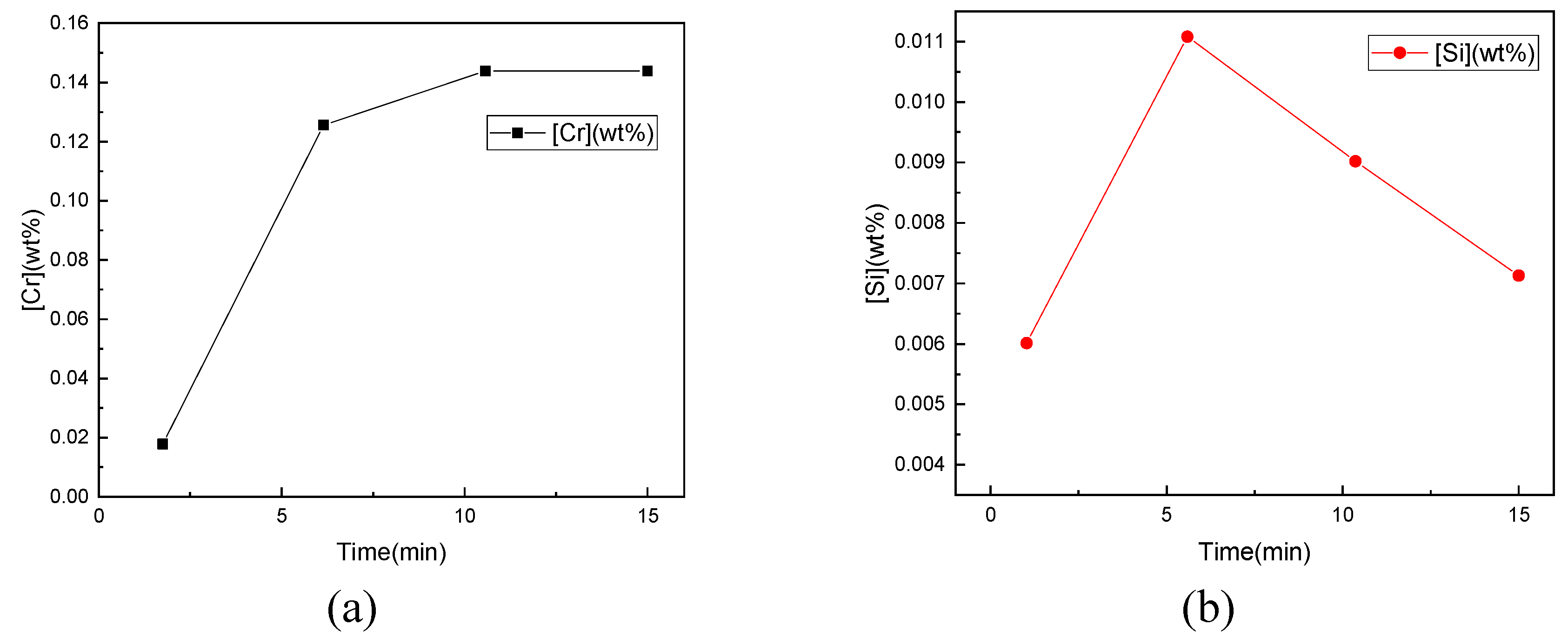

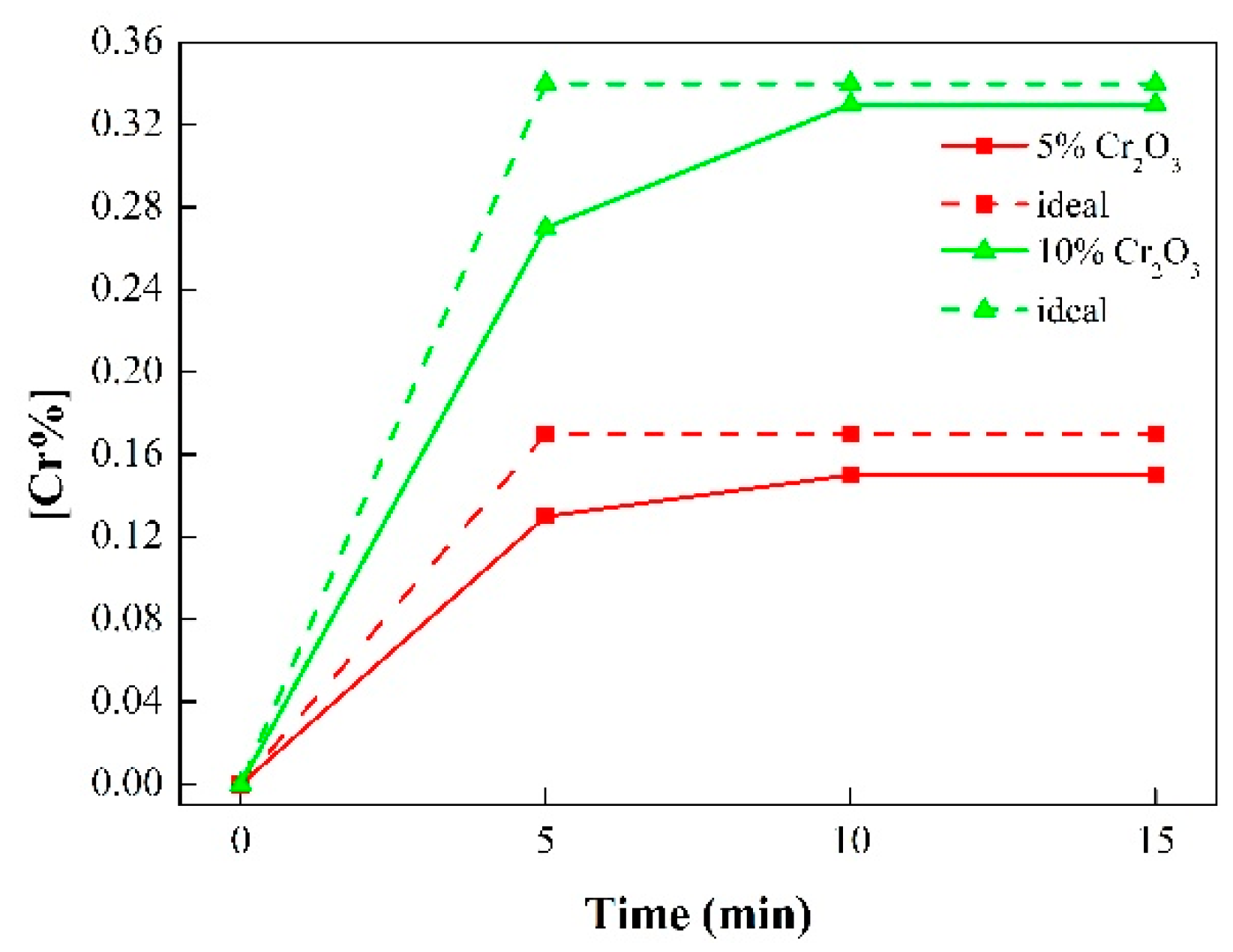

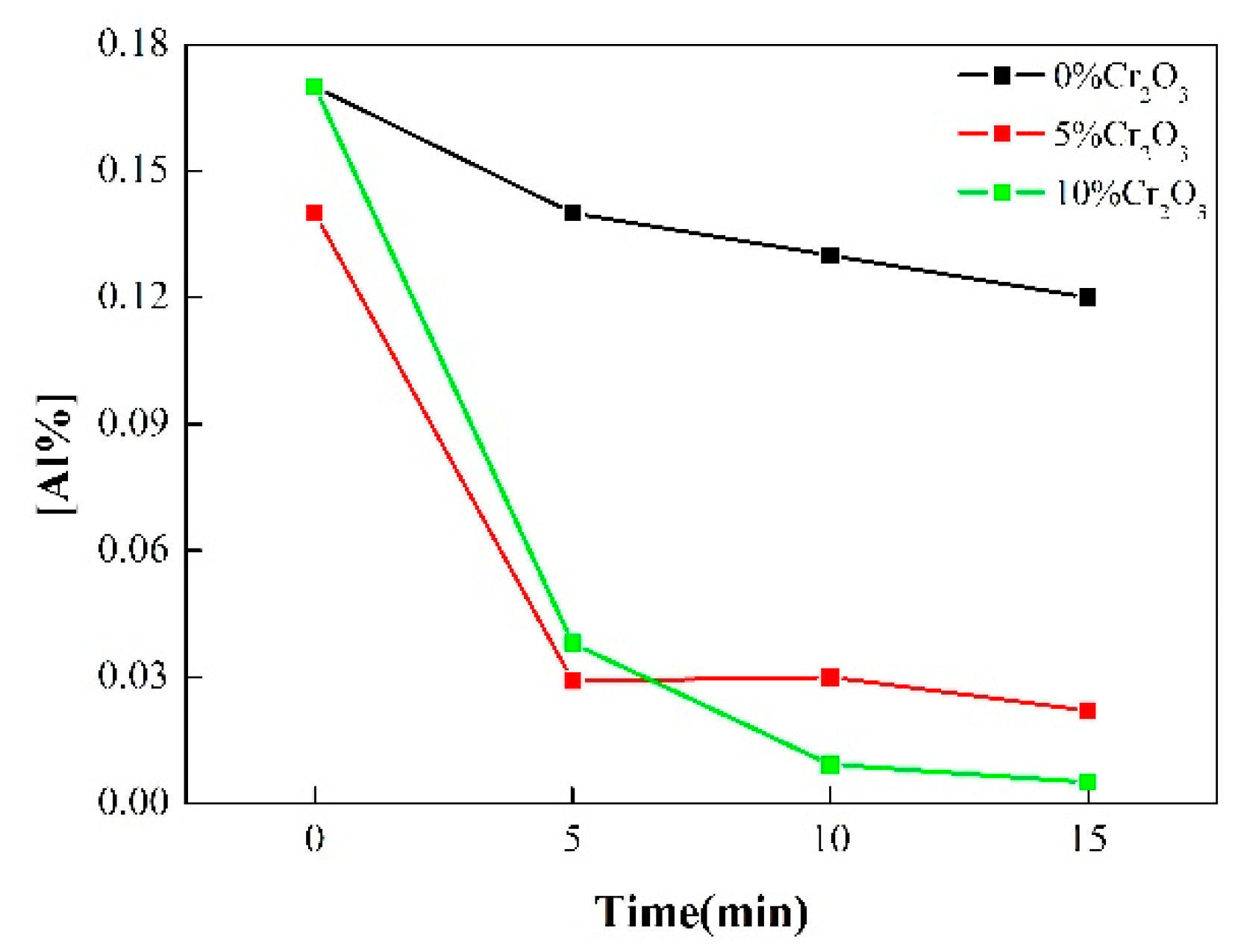

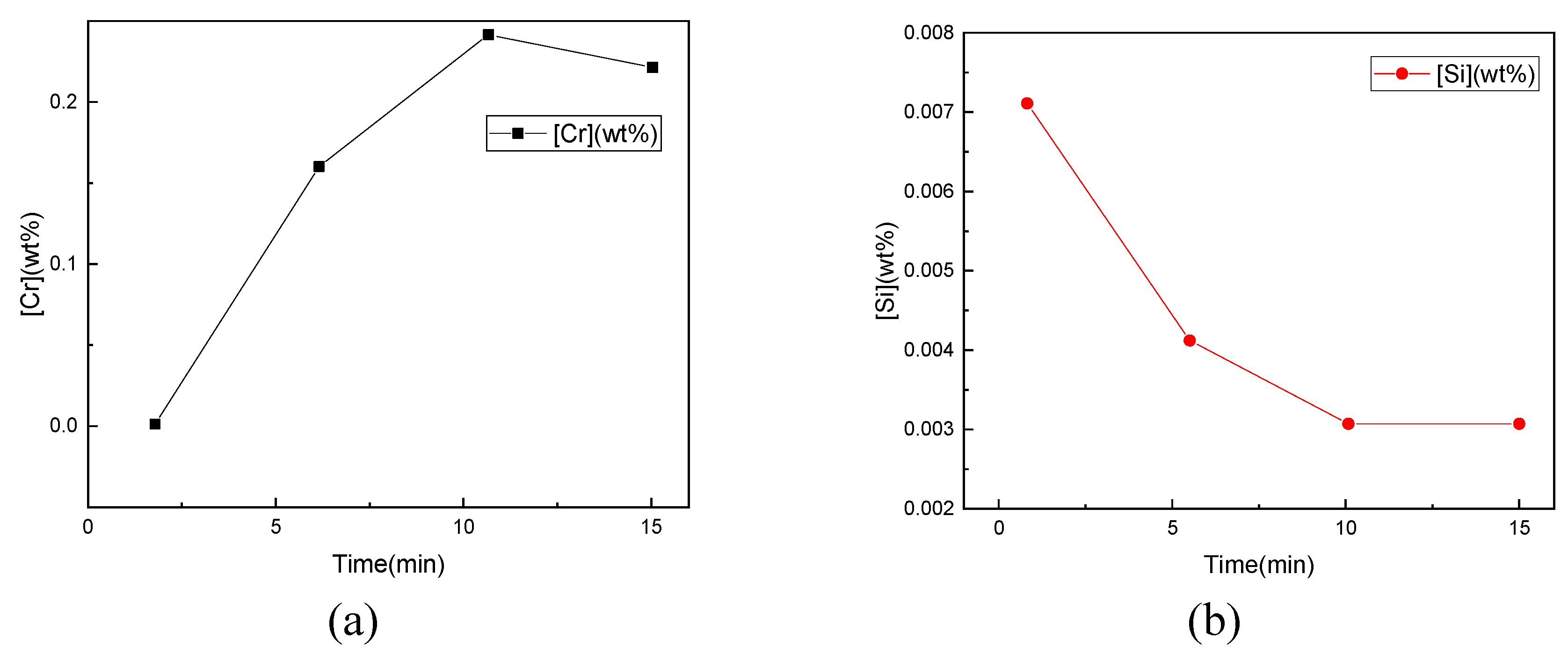

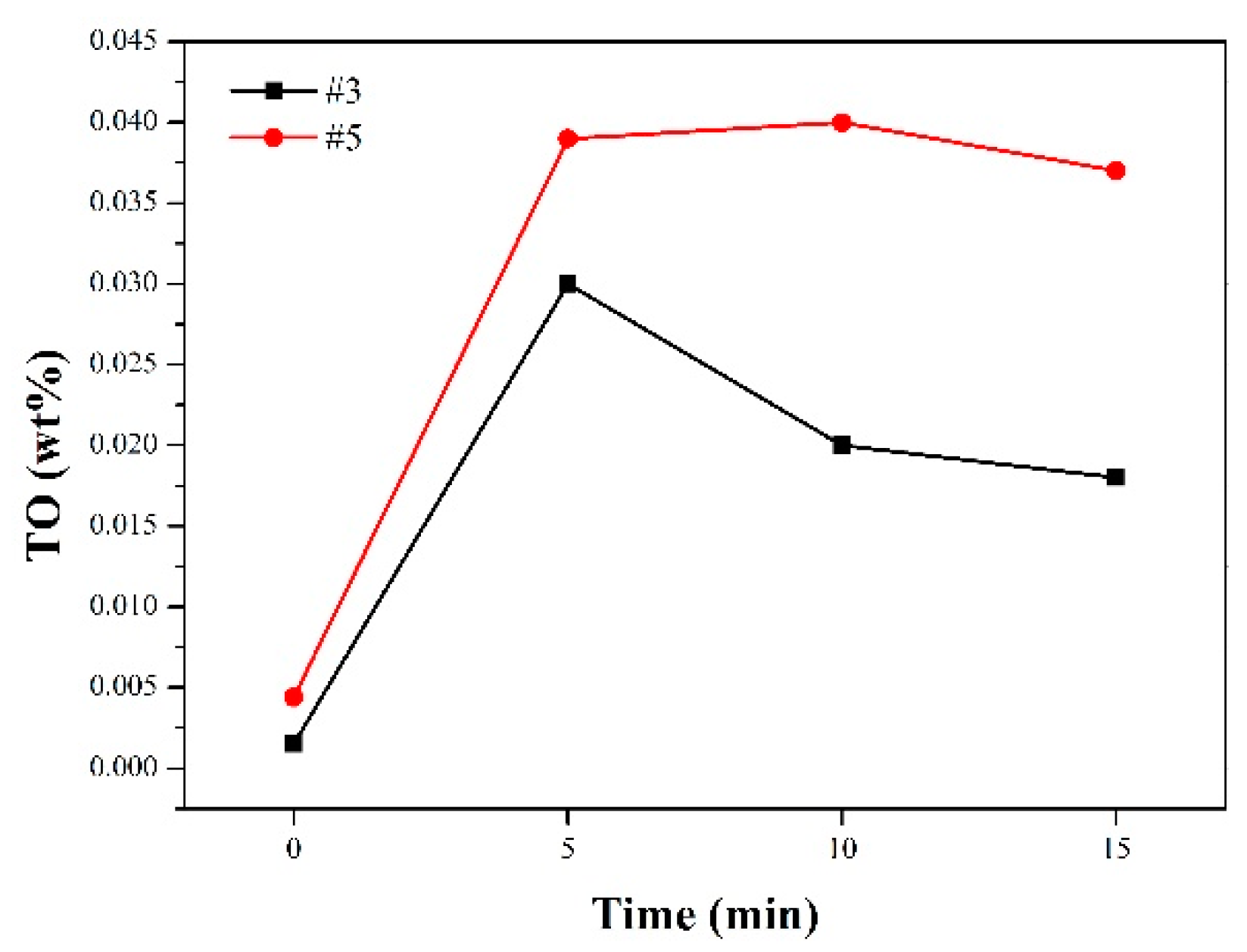

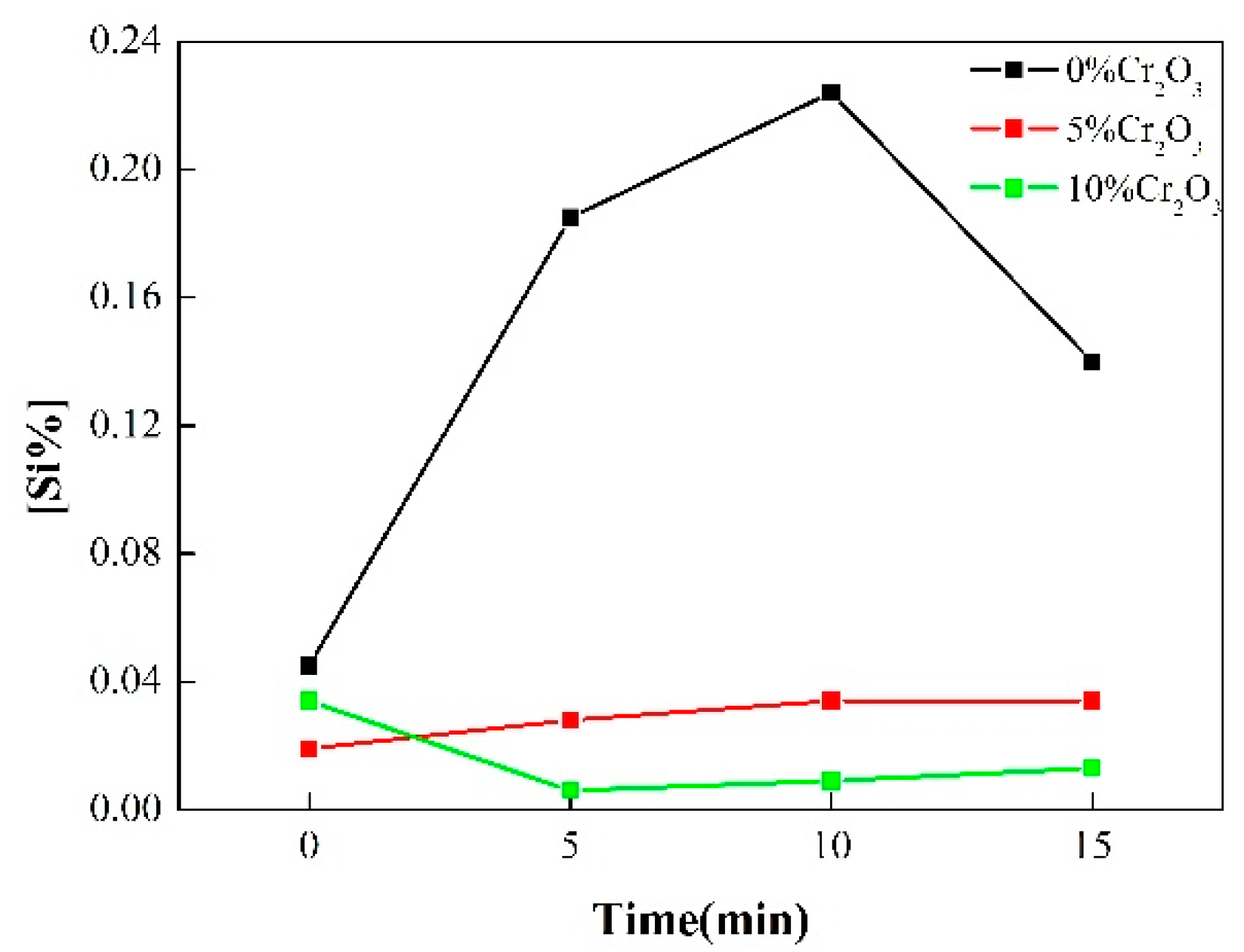

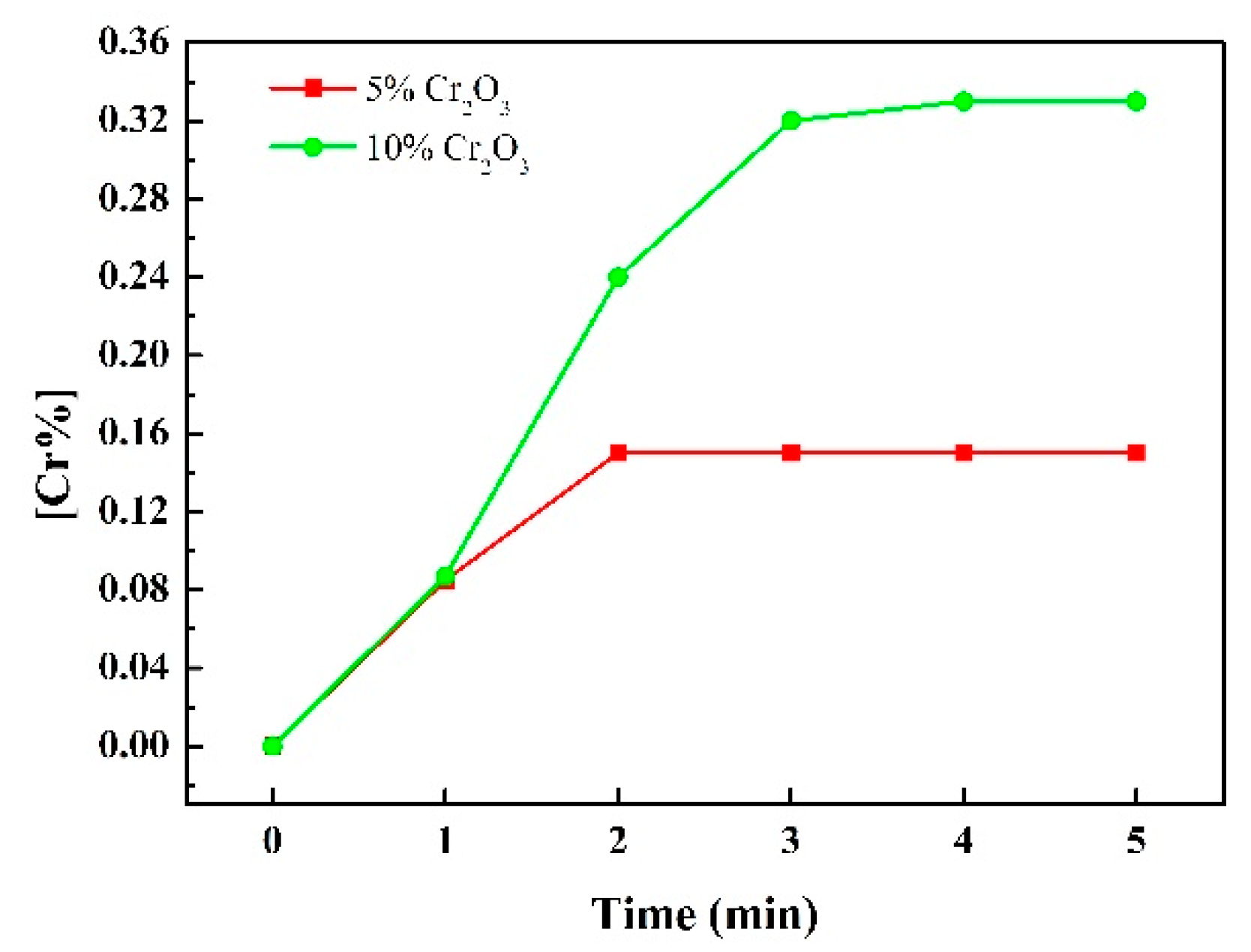

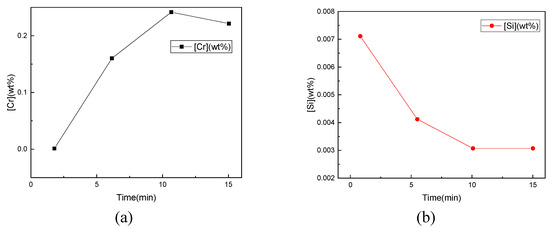

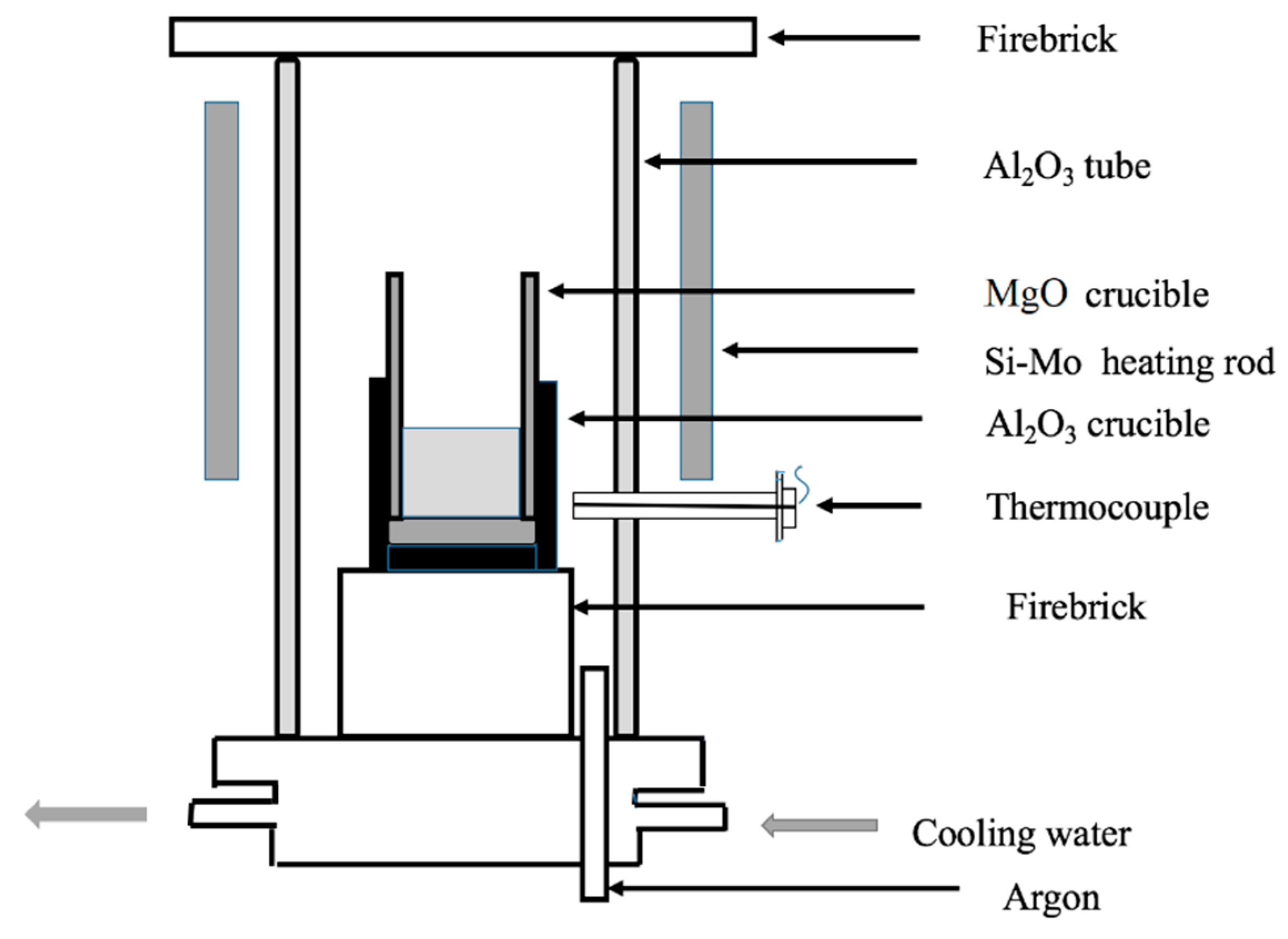

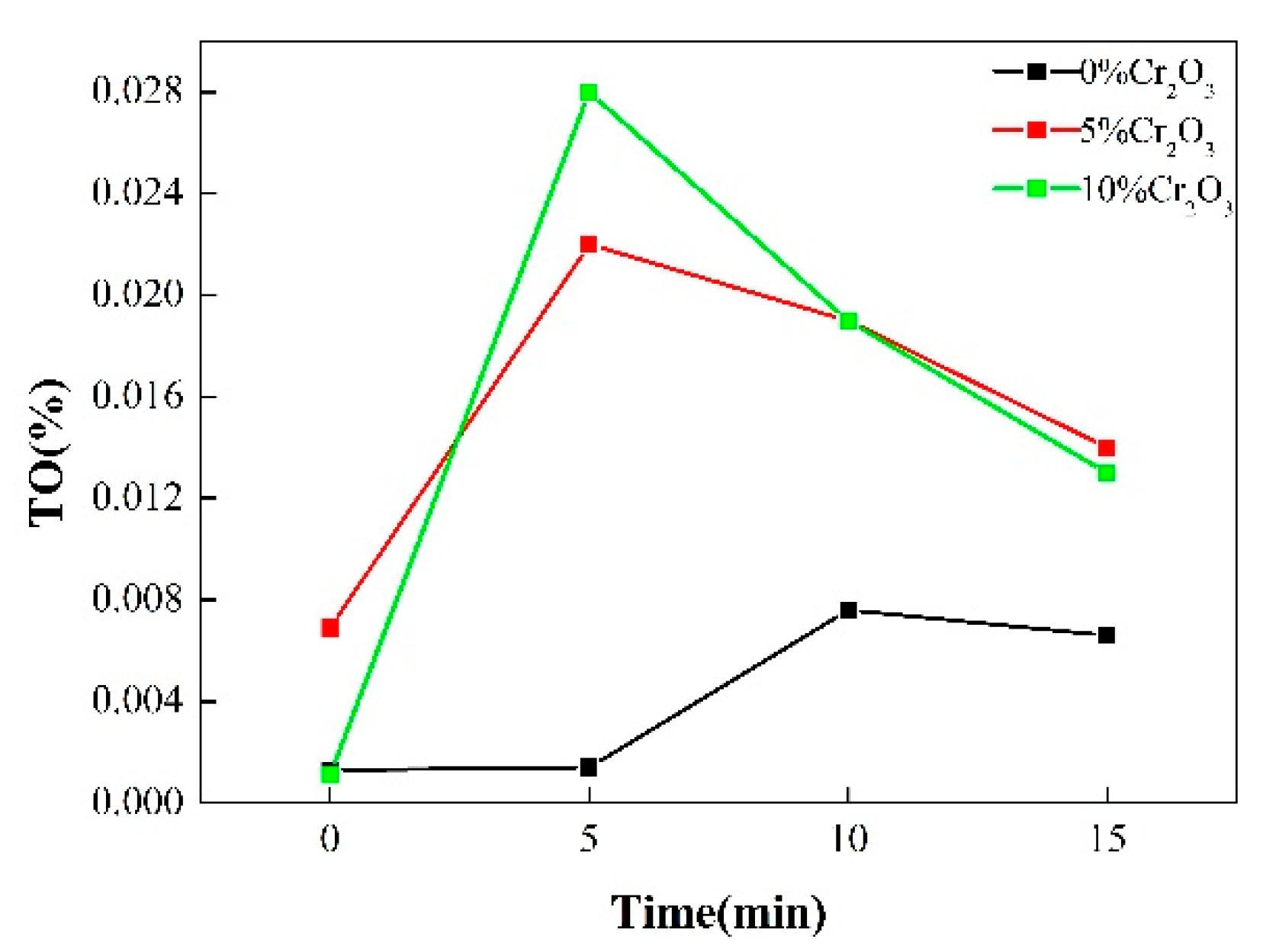

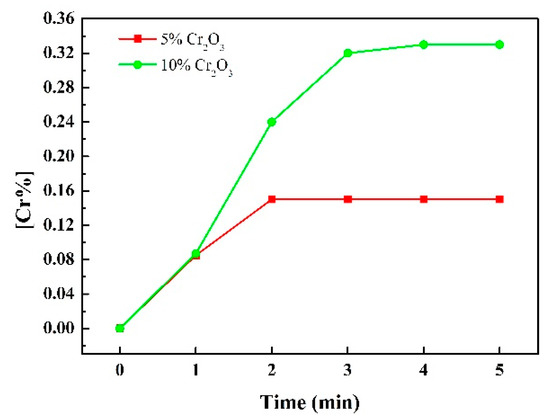

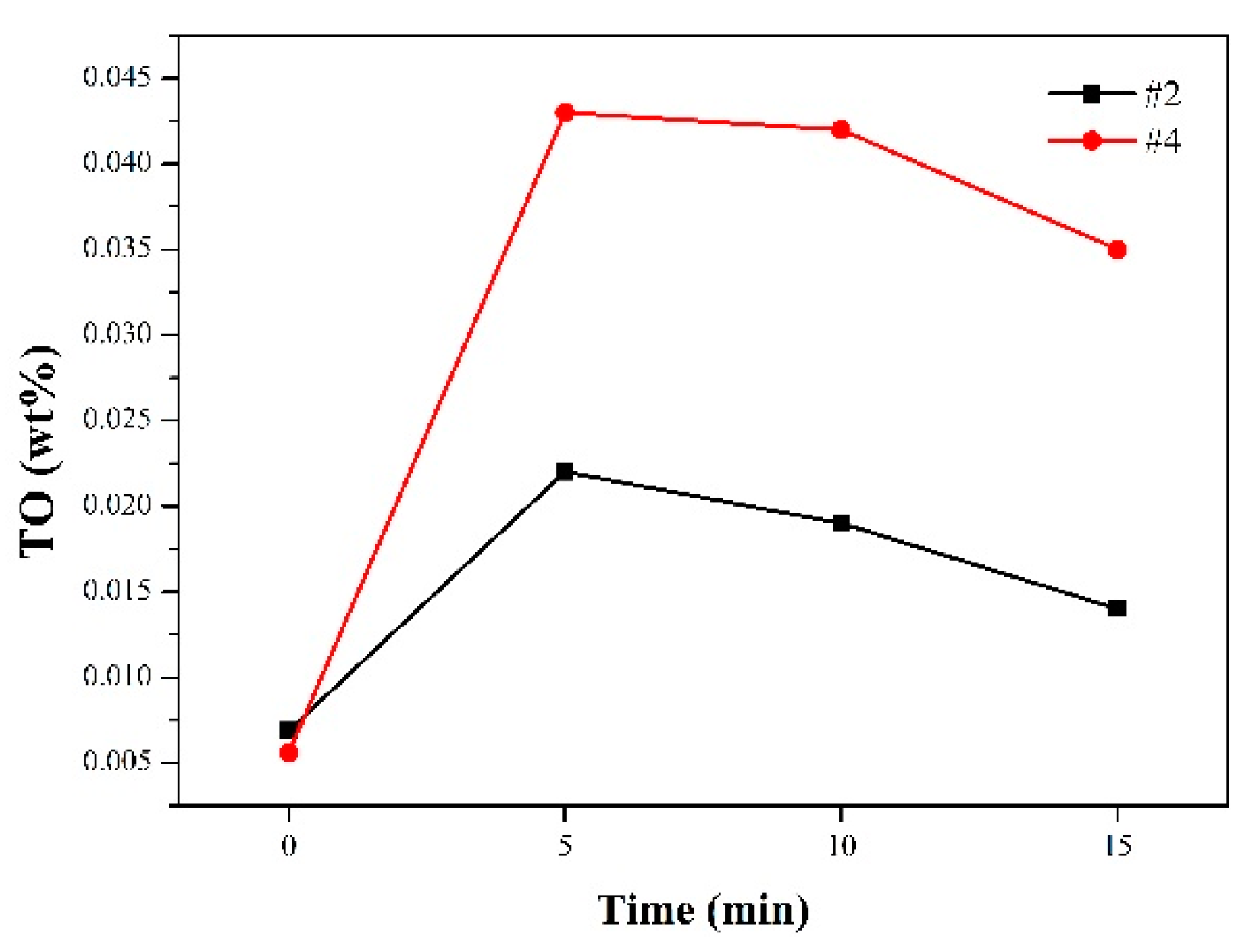

Reoxidation has long been a problem when casting ultra-low oxygen liquid steel. An experimental study of the reoxidation phenomenon caused by Cr2O3-bearing cover flux of Al-killed steel is presented here. MgO-CaO-SiO2-Al2O3-Cr2O3 tundish cover flux with various Cr2O3 contents were used to study the effects of Cr2O3 on total oxygen content (T[O]) and alumina and silicone loss of Al-killed steel at 1923 K (1650 °C). It was found that Cr2O3 can be reduced by Al to cause reoxidation, and the reaction occurs mainly within 2 to 3 min after the addition of the tundish cover flux with 5% and 10% Cr2O3 concentration. T[O] and Al loss increase with higher Cr2O3 concentration flux. Two controlled experiments were also made to investigate the oxygen transported to the steel by the decomposition of Cr2O3. It was calculated that when Al is present in steel, more than 90% of the reoxidation of Cr2O3 is caused by Al, and the rest is caused by decomposition. View Full-Text
Keywords: reoxidation; tundish cover flux; Cr2O3; decomposition reaction reoxidation; tundish cover flux; Cr2O3; decomposition reaction
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, F.; Liu, D.; Liu, W.; Yang, S.; Li, J. Reoxidation of Al-Killed Steel by Cr2O3 from Tundish Cover Flux. Metals 2019, 9, 554.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
