Interface Characterization of Ultrasonic Spot-Welded Mg Alloy Interlayered with Cu Coating

1
Graduate school of science and engineering, Ibaraki University, Hitachi, Ibaraki 316-8511, Japan
2
Department of Materials Science and Engineering, Ibaraki University, Hitachi, Ibaraki 316-8511, Japan
*
Author to whom correspondence should be addressed.
Metals 2019, 9(5), 532; https://doi.org/10.3390/met9050532
Received: 8 April 2019 / Revised: 30 April 2019 / Accepted: 5 May 2019 / Published: 8 May 2019
(This article belongs to the Special Issue Characterization of Welded Joints)
  |
PDF [9097 KB, uploaded 8 May 2019]
  |

Abstract

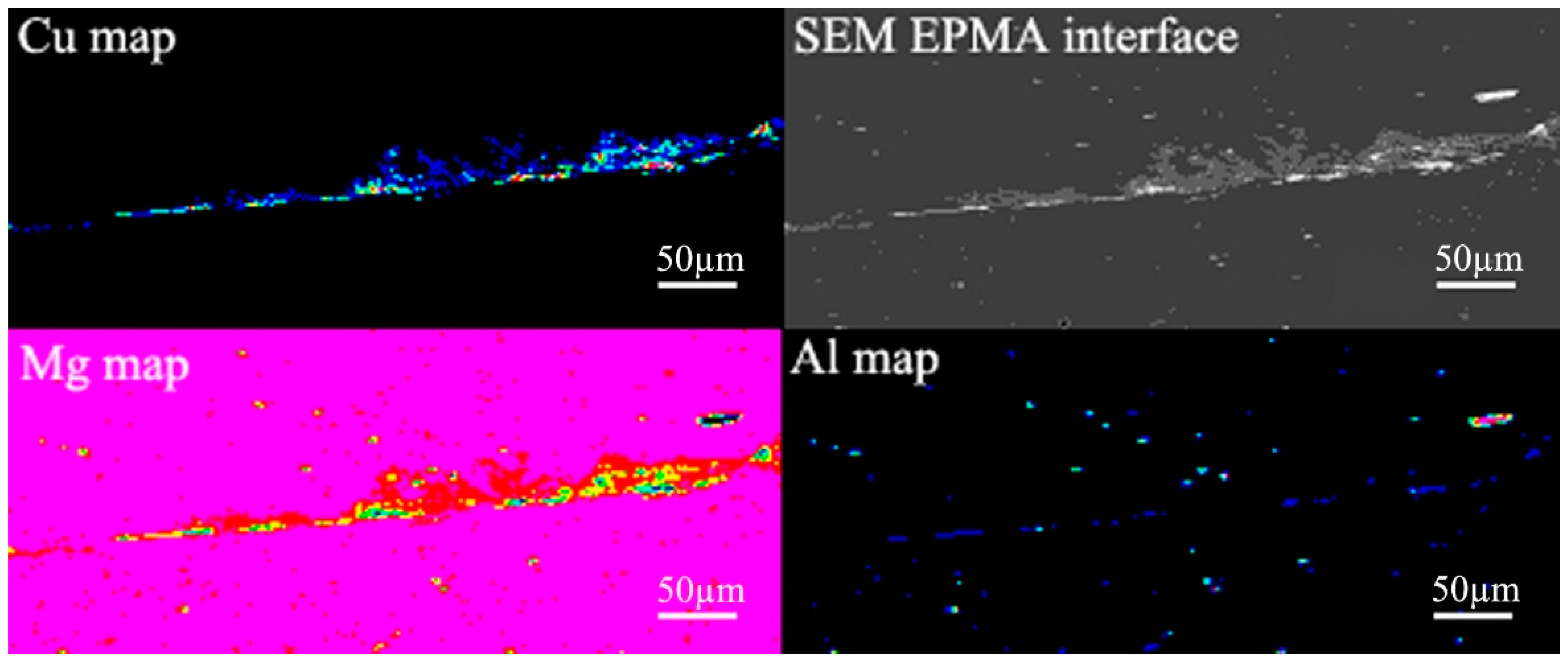

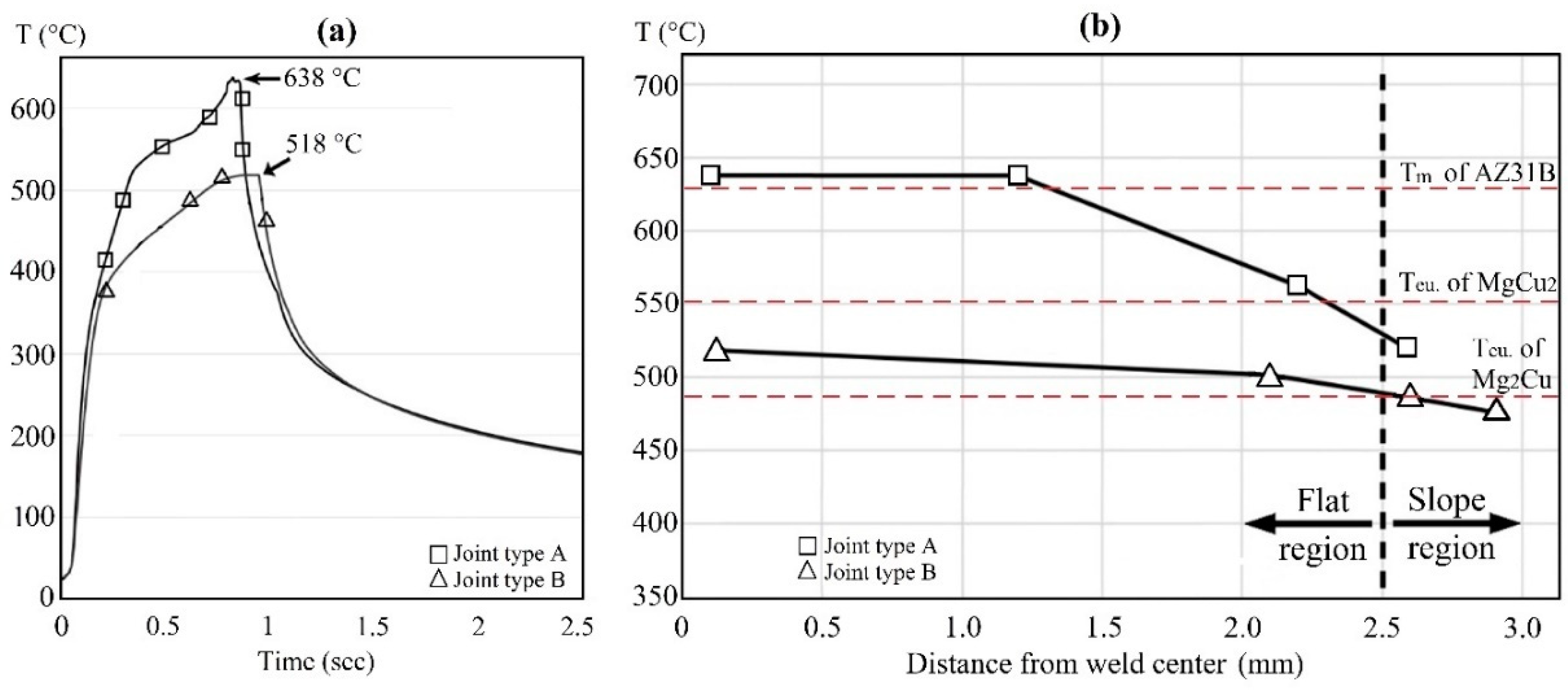

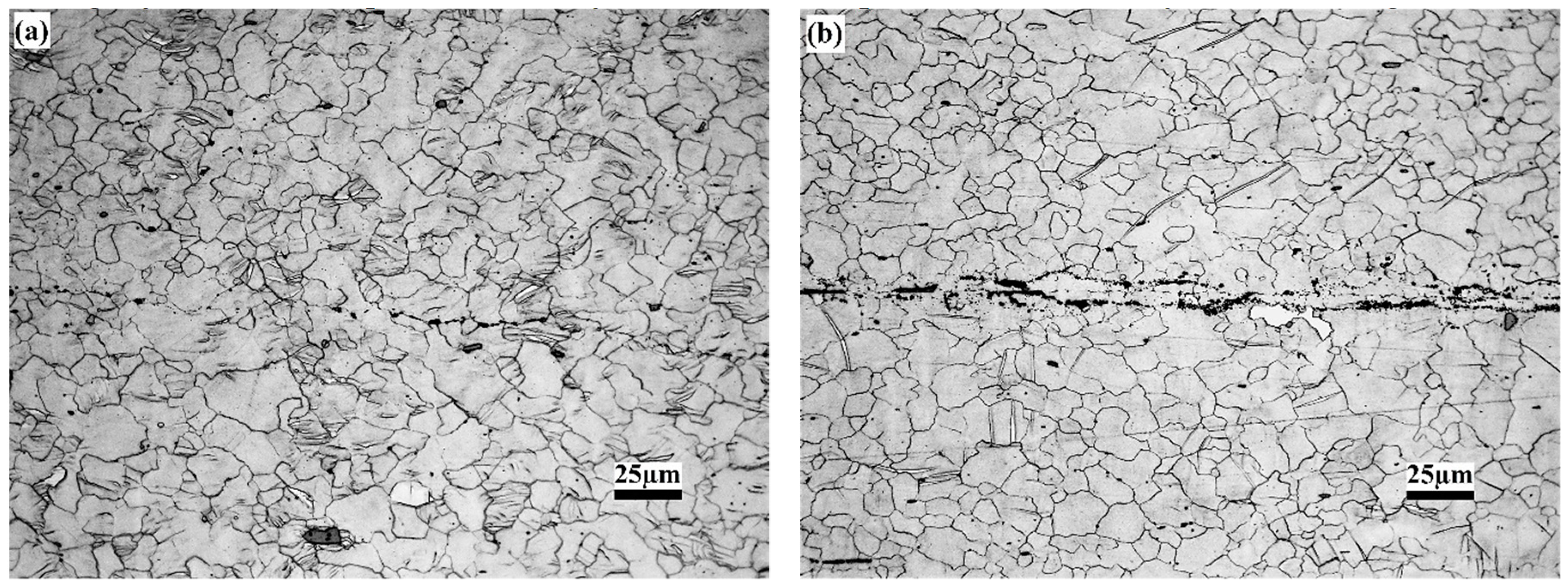

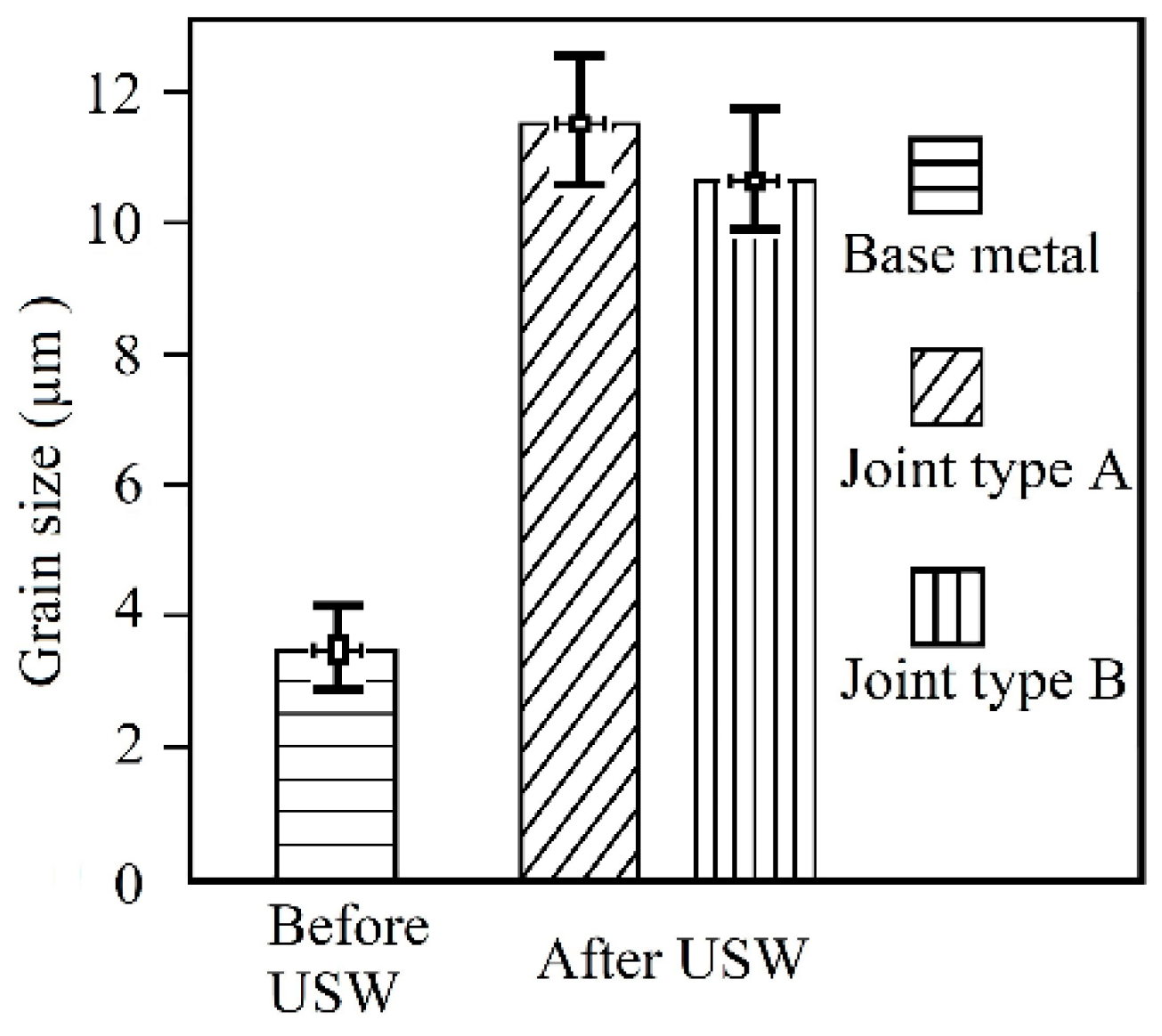

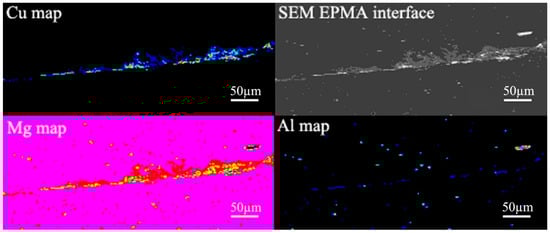

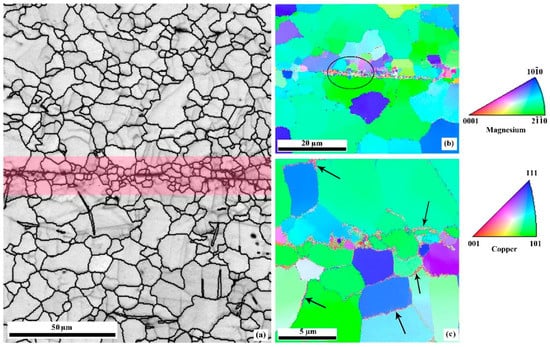

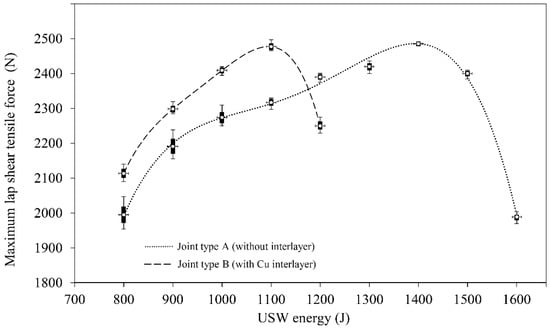

The effect of Cu coating metallic interlayer on the weldability, joint strength, and interfacial microstructure during high-power ultrasonic spot welding (HP-USW) of AZ31B Mg alloy has been studied. Interlayered samples exhibited good weldability and they resulted in strong sound joints with nearly the same strength as joints without interlayer, with the distinction of lower energy being required. The Cu interlayer affected the thermal and vibrational properties of the interface, as the maximum interface temperature decreased and approached better uniformity across the weld nugget. The base metal grain structure changed to equiaxed larger grains after ultrasonic welding and a chain of parent metal small grains were observed around the interface. A binary intermetallic compound product of Mg-Cu, which was rich in Mg, has been found around the interface that was diffused toward base metal. According to the electron probe micro-analyzer (EPMA) results, alongside temperature measurements and hardness data, the formation of Mg2Cu is suggested in this region. At the interface centerline, a narrow region was identified that was composed of Mg, Cu, and Al. Complementary transmission electron microscopy analysis estimated that Al-containing reaction product is a ternary alloy of the MgCuxAly type. The dispersion of fine grain intermetallic compounds as discrete particles inside Mg substrate in both interfacial regions formed a composite like structure that could participate in joint strengthening. View Full-Text
Keywords: high-power ultrasonic welding; interface; magnesium; cu interlayer; intermetallic compound high-power ultrasonic welding; interface; magnesium; cu interlayer; intermetallic compound
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Badamian, A.; Iwamoto, C.; Sato, S.; Tashiro, S. Interface Characterization of Ultrasonic Spot-Welded Mg Alloy Interlayered with Cu Coating. Metals 2019, 9, 532.
