Next Article in Journal
Finite Element Analysis and Statistical Optimization of End-Burr in Turning AA2024
Previous Article in Journal
Valorization of Mining Waste by Application of Innovative Thiosulphate Leaching for Gold Recovery
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Metals 2019, 9(3), 275; https://doi.org/10.3390/met9030275

Continuous Estimation of the Crack Growth Rate during Rotating‒Bending Fatigue Testing

1
Departamento de Ingeniería, Universidad de Monterrey, Av. Morones Prieto 4500, San Pedro Garza García 66238, Mexico
2
Facultad de Ingeniería Mecánica y Eléctrica, Universidad Autónoma de Nuevo León, Pedro de Alba s/n, San Nicolás de los Garza 66455, Mexico
*
Author to whom correspondence should be addressed.
Received: 24 January 2019 / Revised: 18 February 2019 / Accepted: 25 February 2019 / Published: 28 February 2019
Full-Text   |   PDF [3628 KB, uploaded 28 February 2019]   |

Abstract

A method for estimating the crack growth rate in steel during rotating‒bending fatigue testing is presented. Constant deflection tests were conducted in which the initial load remained constant prior to crack nucleation, when it decreased as the crack grew. In the proposed approach, steel samples were sharp-notched to produce a characteristic circular fracture upon loading and the final fracture area was correlated with a ratio of the load prior to fracture and the initial load. In this method, the deflection imposed is a function of a material’s elastic modulus rather than its yield strength and the correlation obtained to estimate the average crack length as a function of the instantaneous load is independent of the applied stress or steel grade. View Full-Text
Keywords: fatigue test; fracture; crack growth; steel; rotating‒bending fatigue test; fracture; crack growth; steel; rotating‒bending
Figures

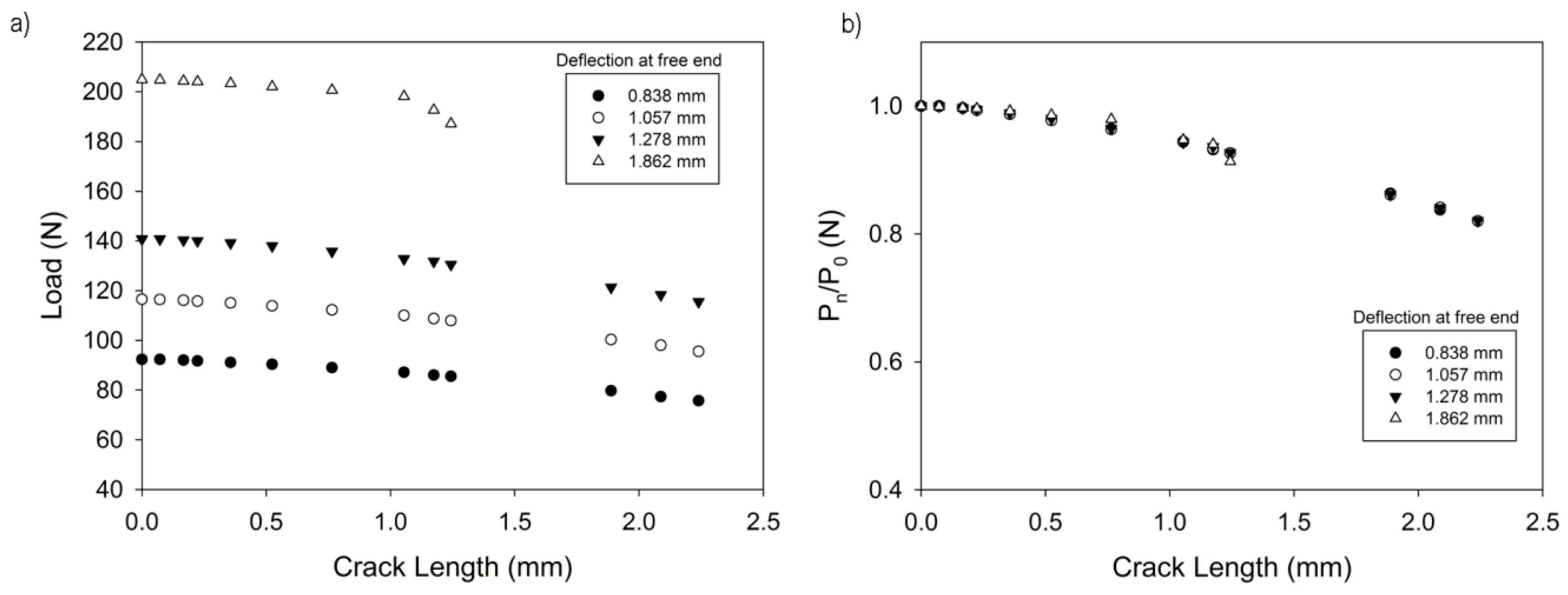

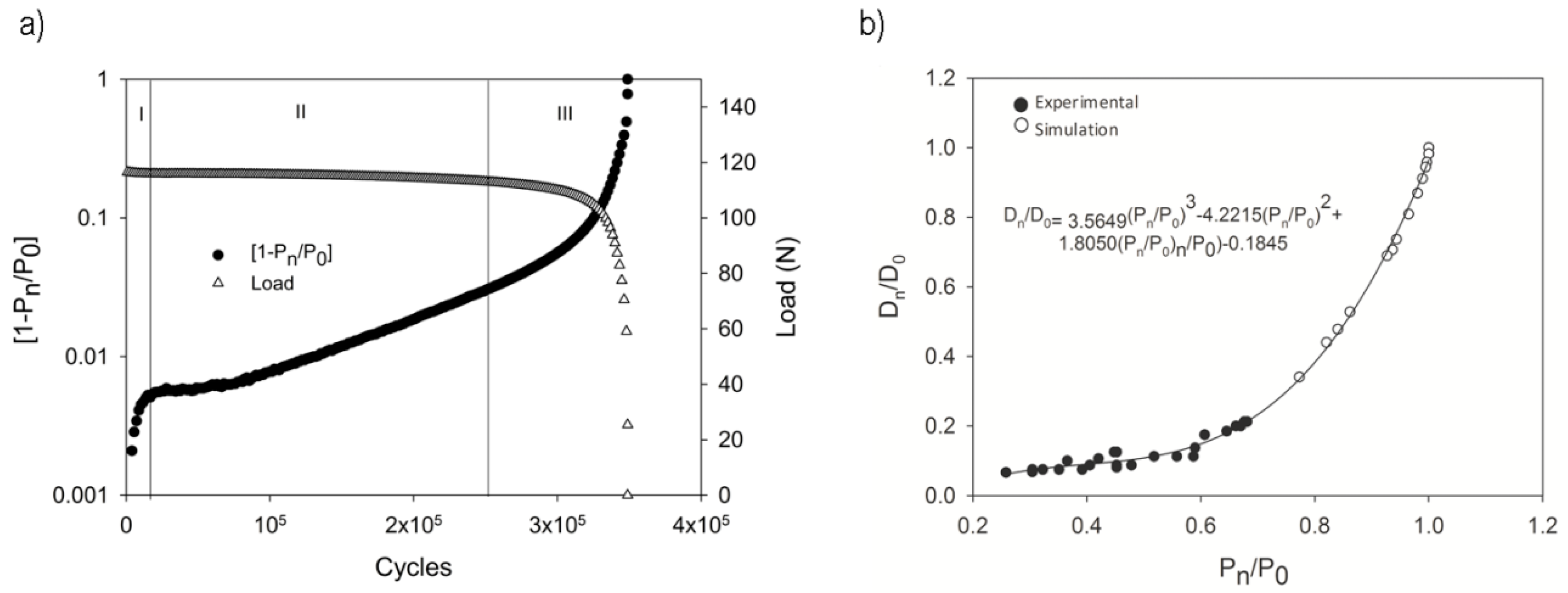

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Martinez-Cazares, G.; Mercado-Solis, R.; Bedolla-Gil, Y.; Lozano, D. Continuous Estimation of the Crack Growth Rate during Rotating‒Bending Fatigue Testing. Metals 2019, 9, 275.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
