Analysis of Ductile Fracture Obtained by Charpy Impact Test of a Steel Structure Created by Robot-Assisted GMAW-Based Additive Manufacturing

School of Mechanical Engineering, Northwestern Polytechnical University, Xi’an 710072, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(11), 1208; https://doi.org/10.3390/met9111208
Received: 23 October 2019 / Revised: 5 November 2019 / Accepted: 7 November 2019 / Published: 10 November 2019
(This article belongs to the Special Issue Dislocation Mechanics of Metal Plasticity and Fracturing)

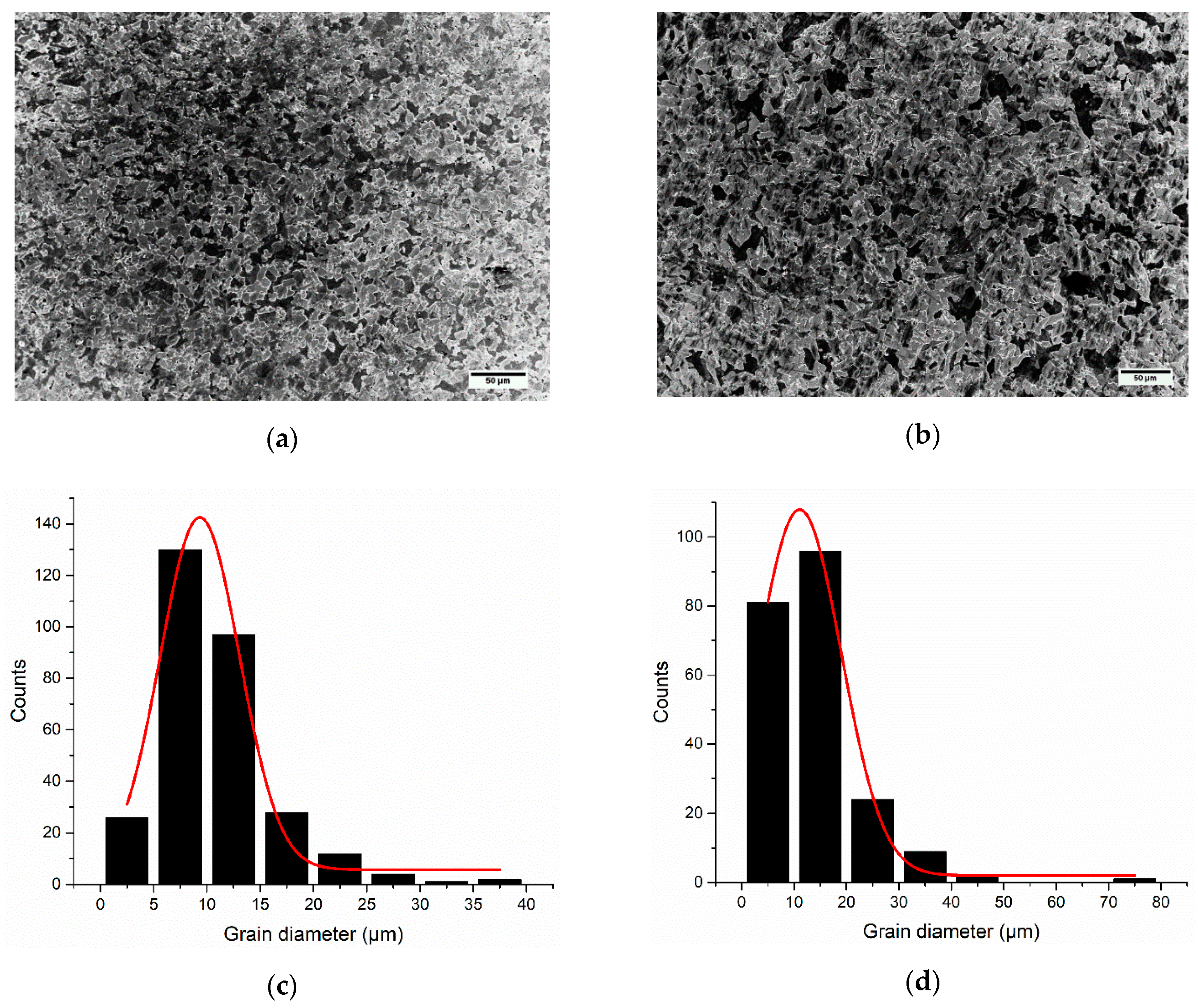

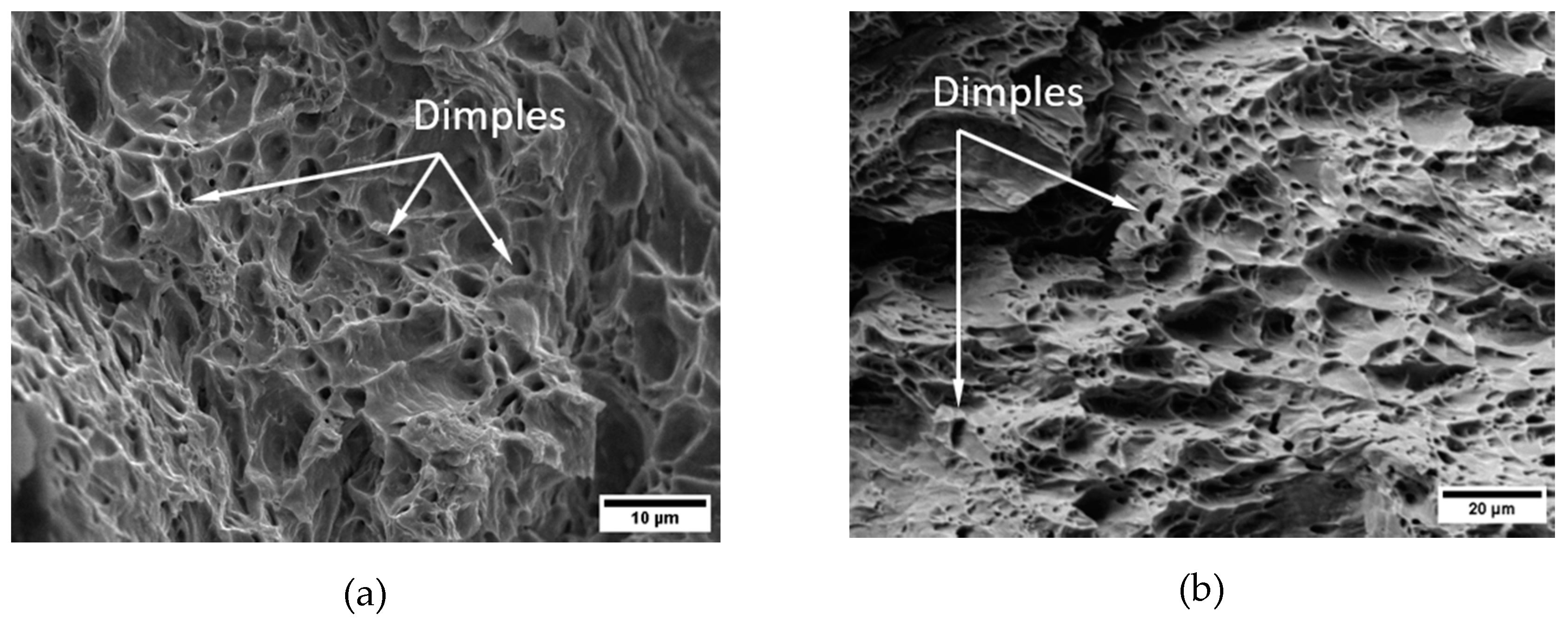

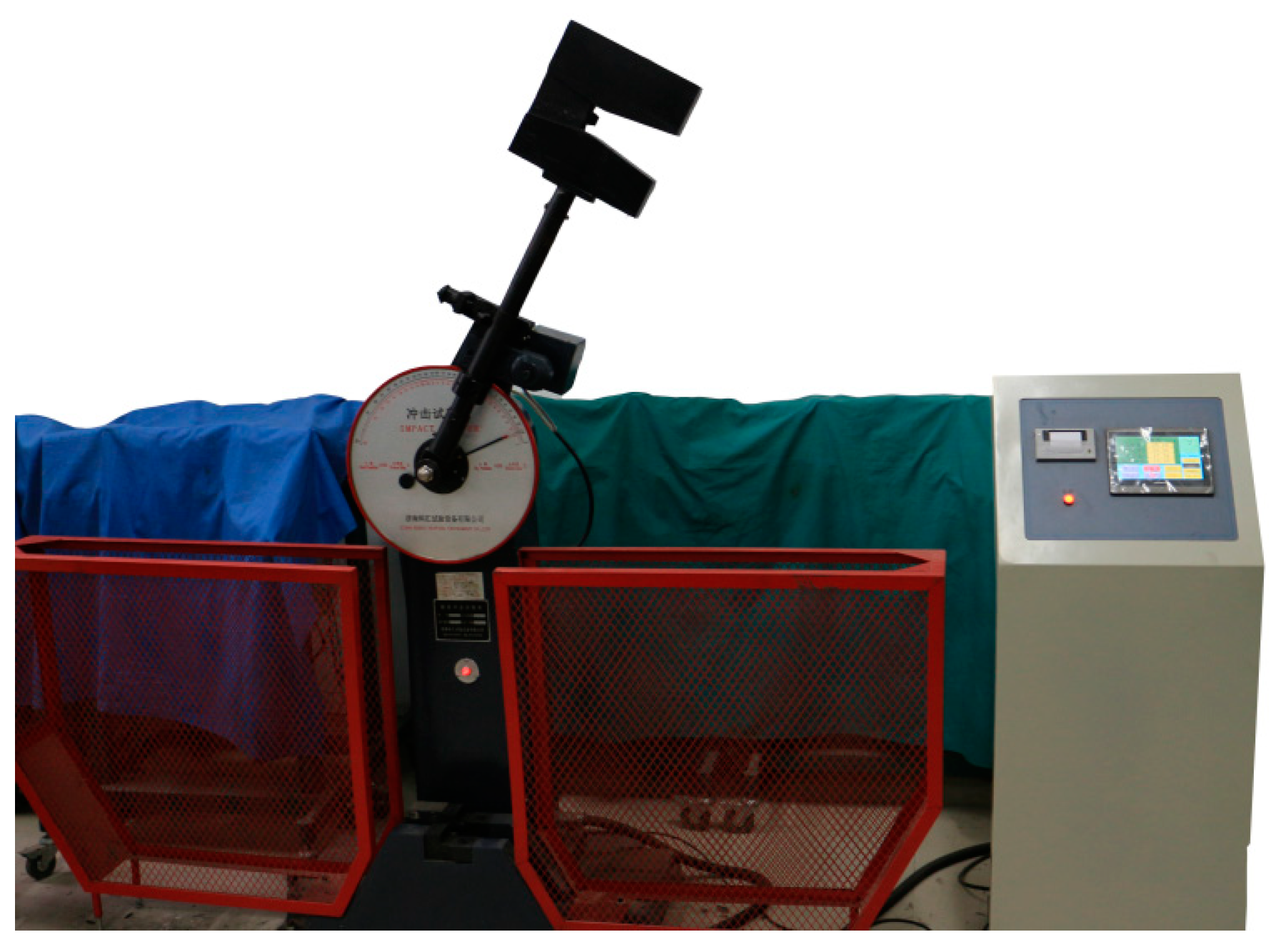

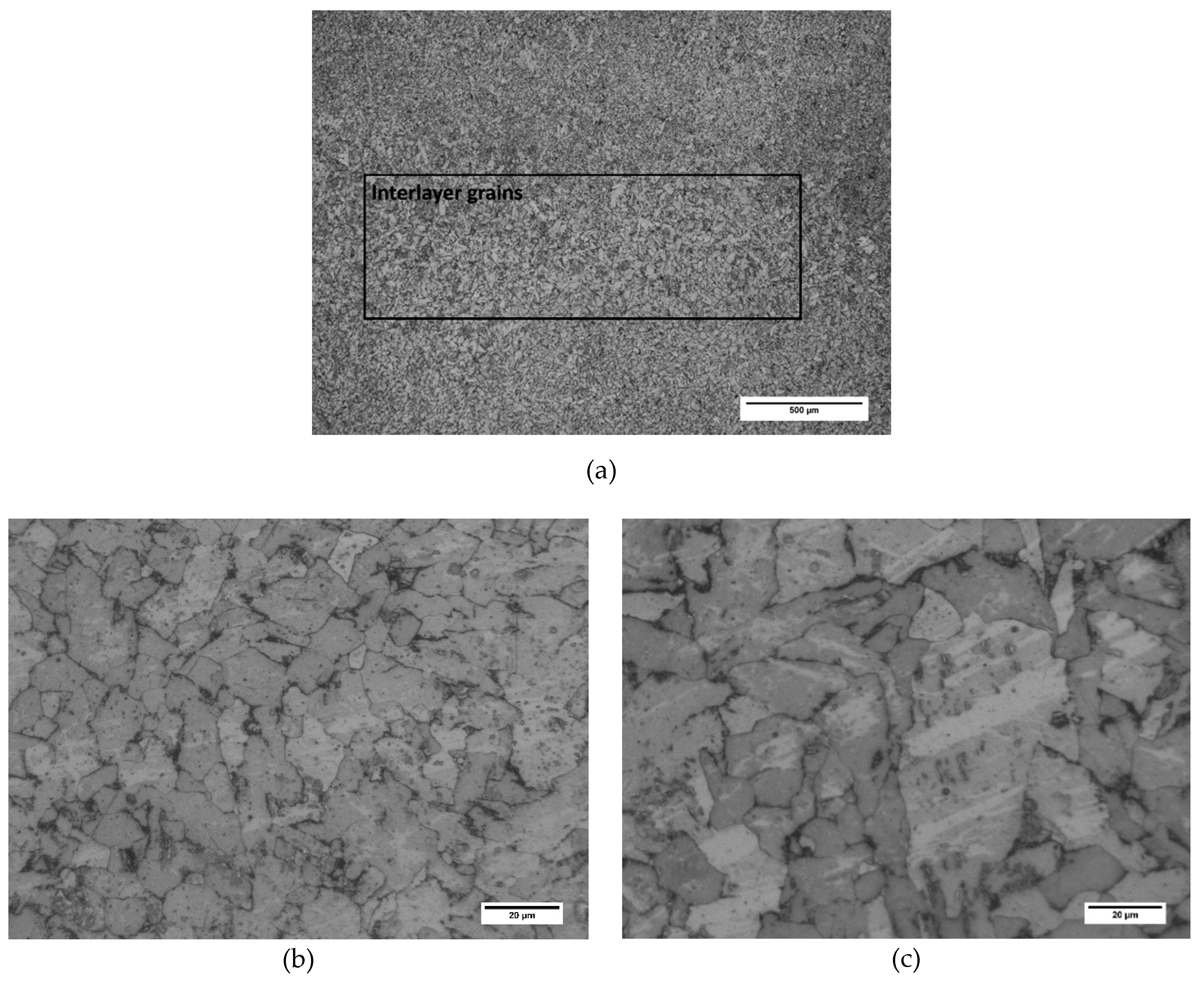

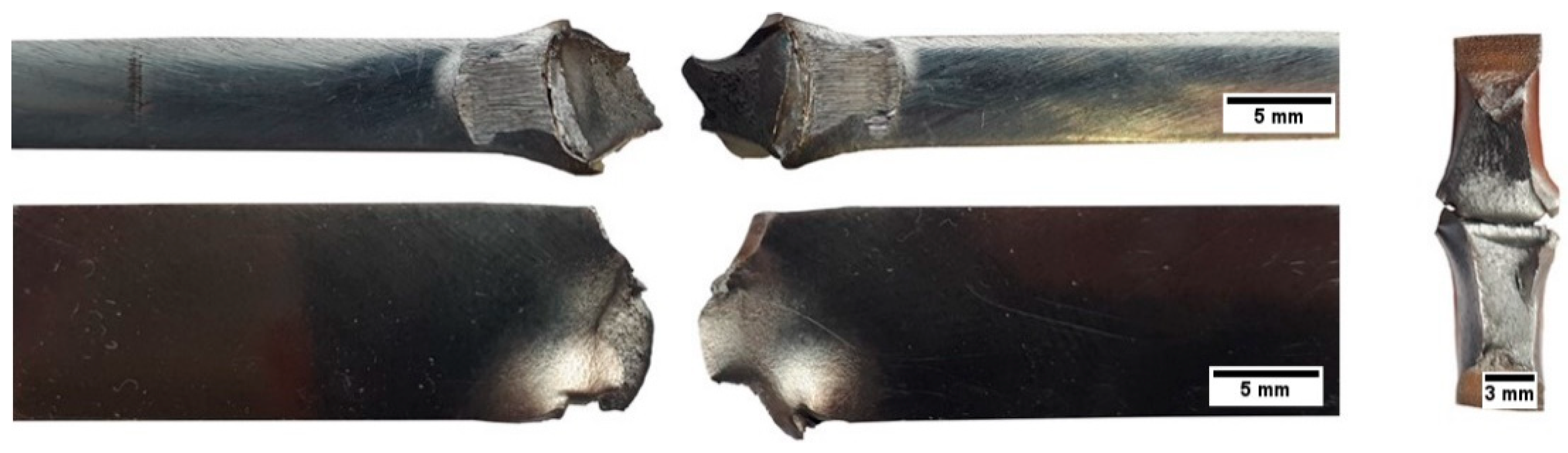

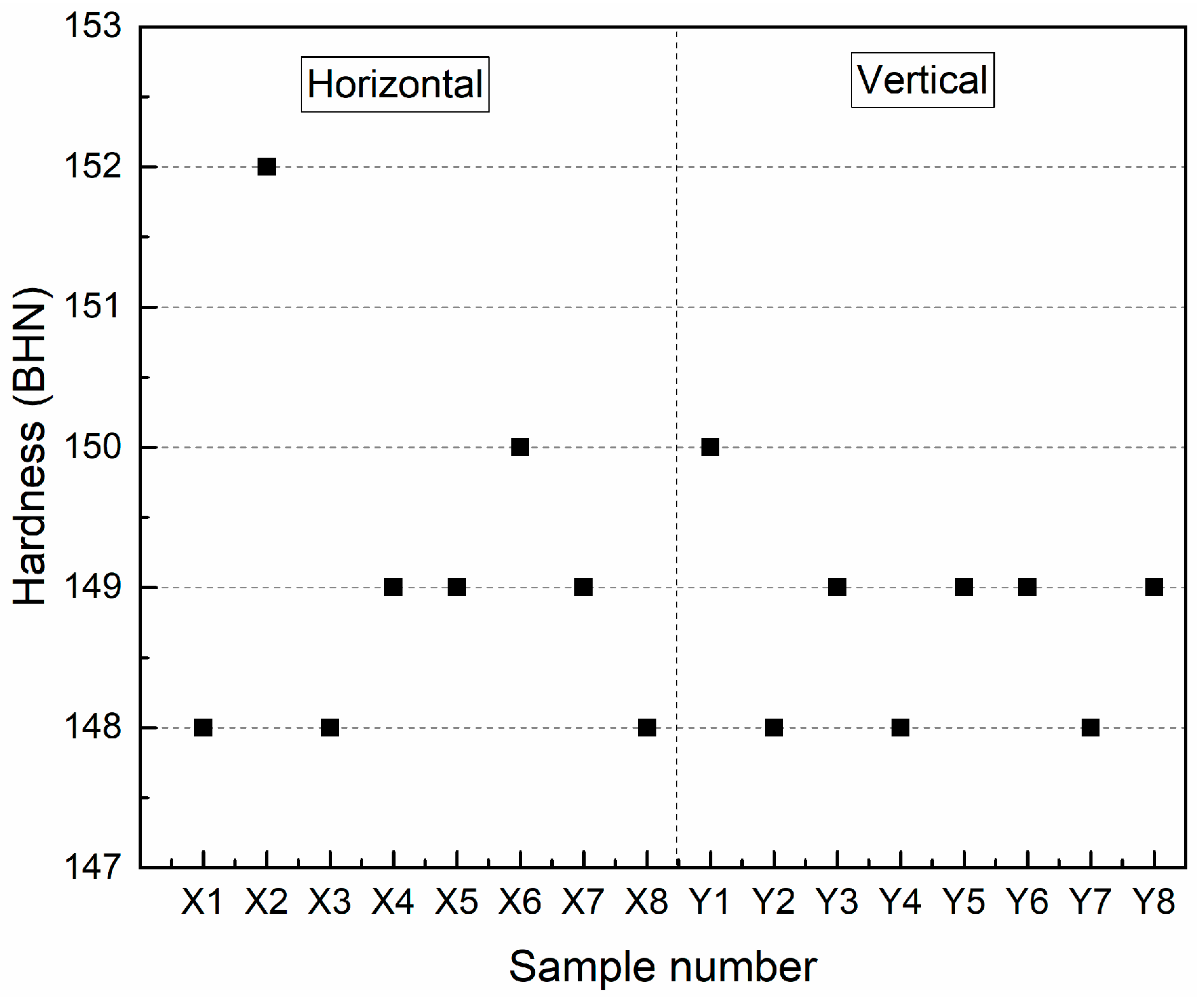

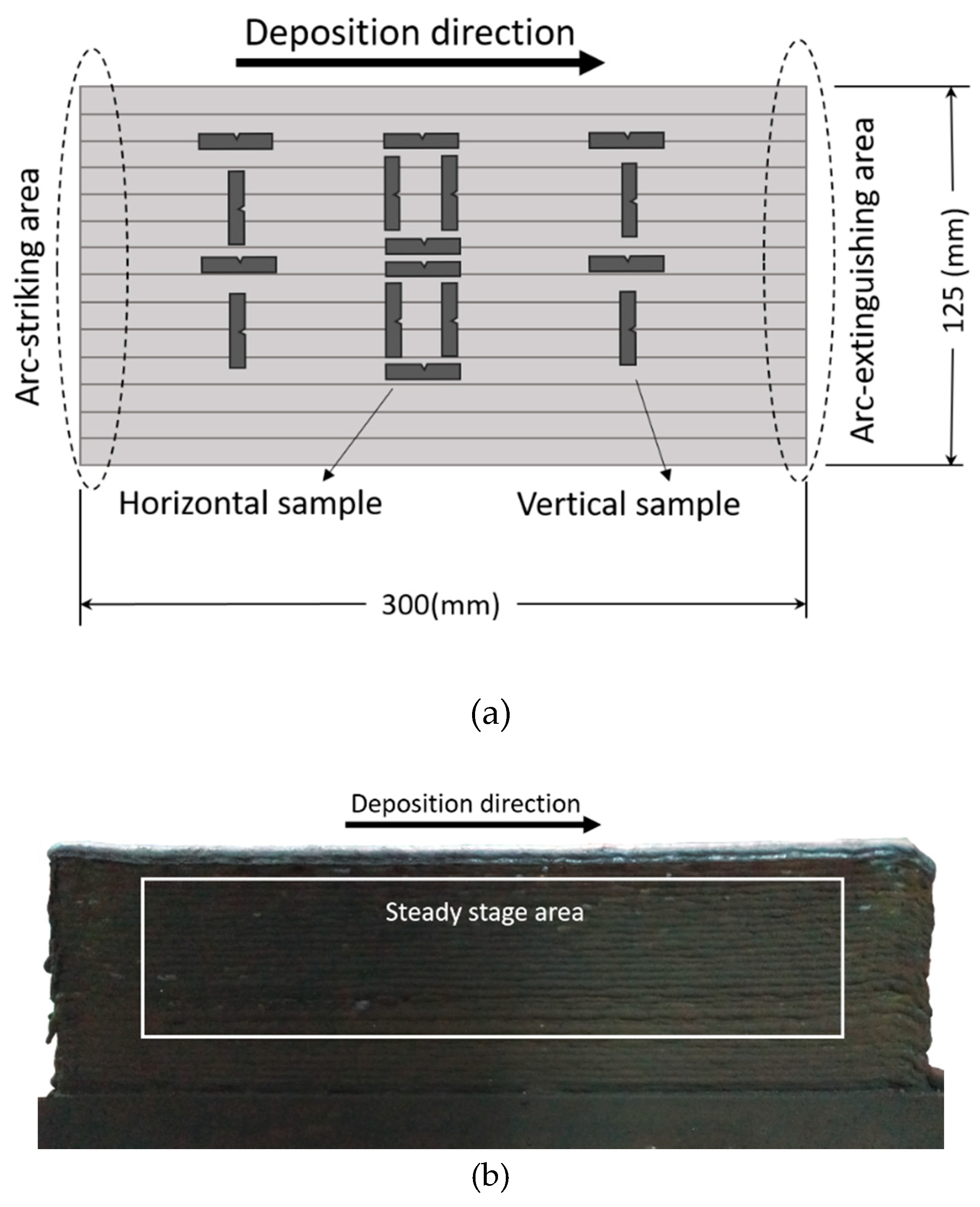

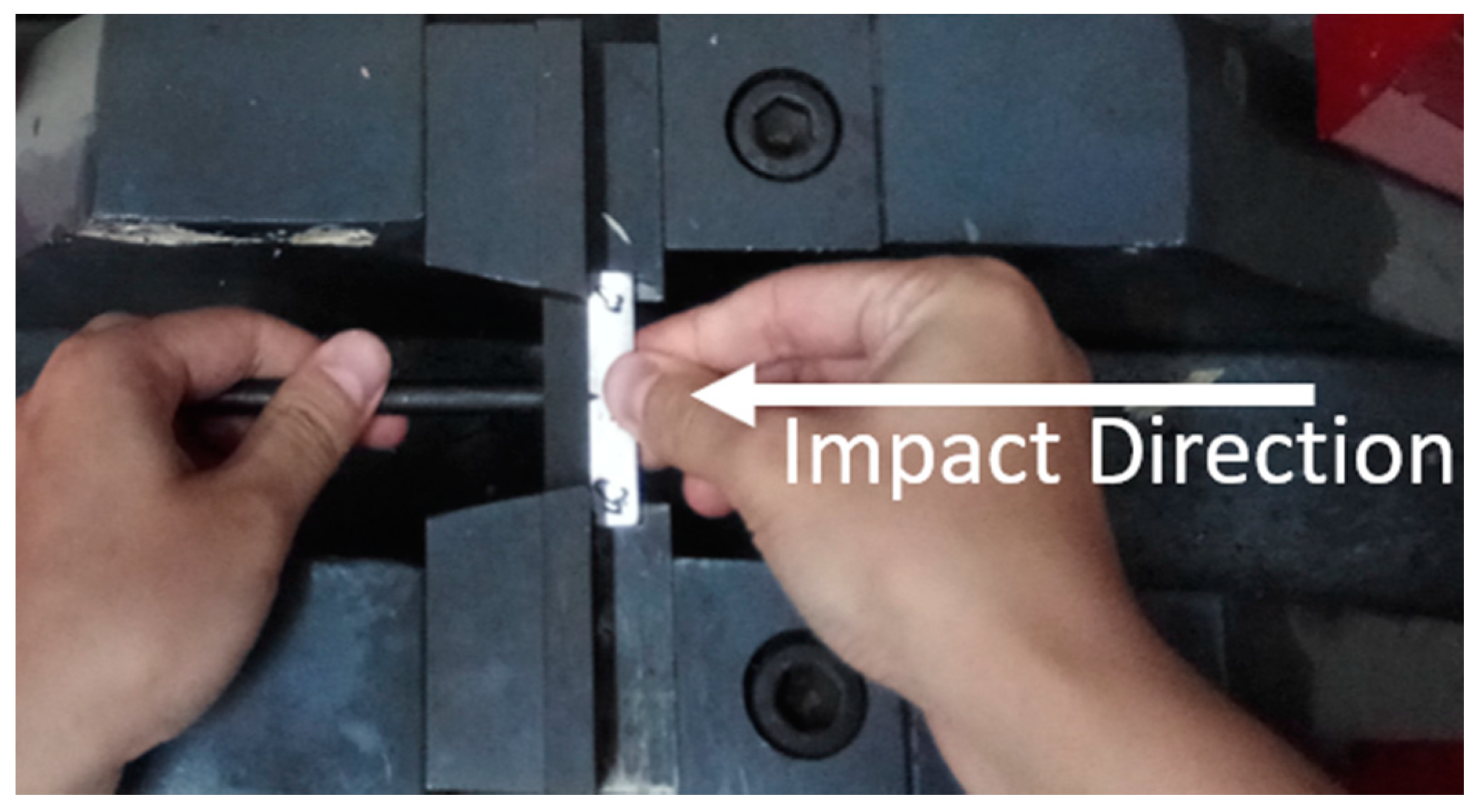

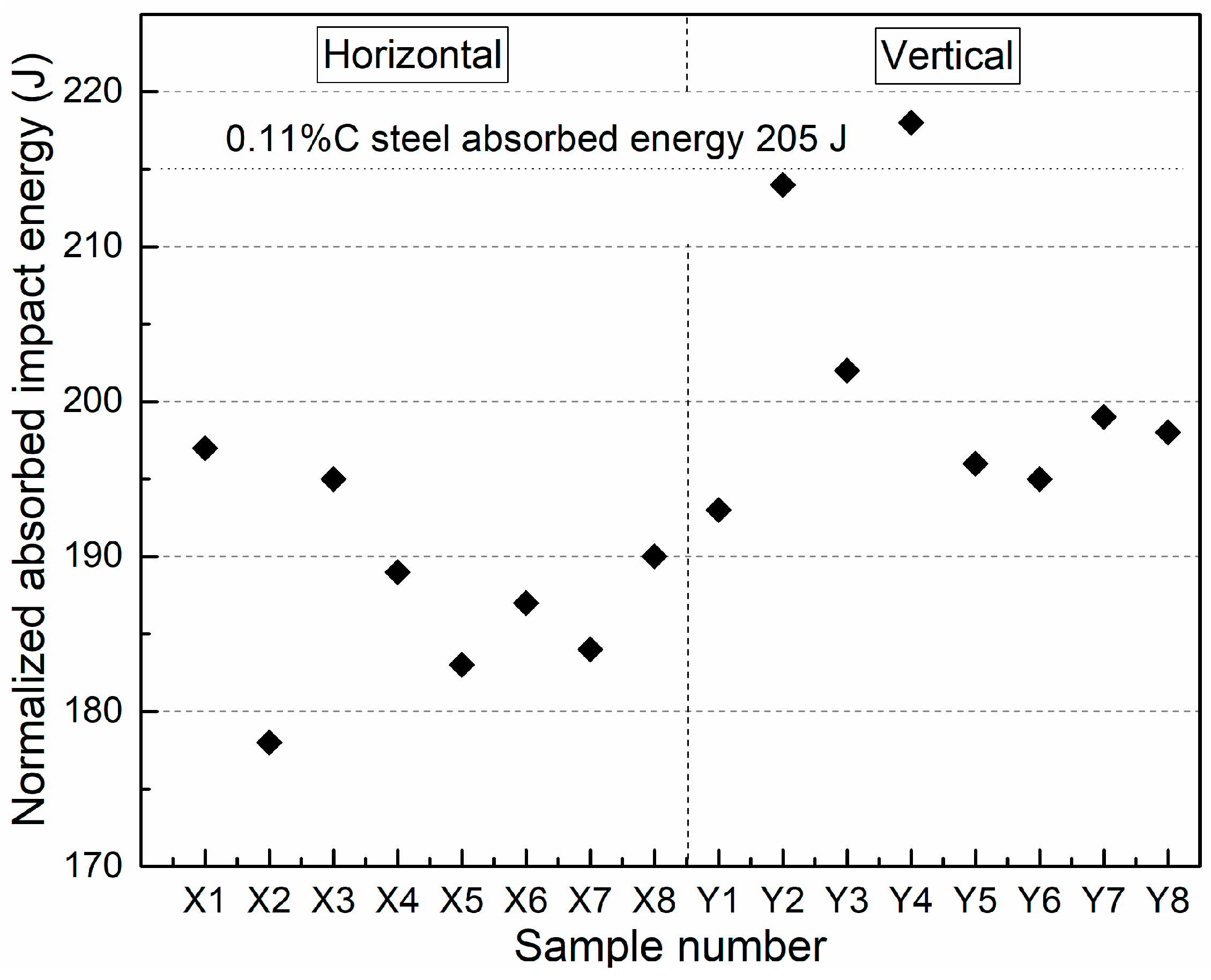

In this study, gas metal arc welding (GMAW) was used to construct a thin wall structure in a layer-by-layer fashion using an AWS ER70S-6 electrode wire with the help of a robot. The Charpy impact test was performed after extracting samples in directions both parallel and perpendicular to the deposition direction. In this study, multiple factors related to the resulting absorbed energy have been discussed. Despite being a layered structure, homogeneous behavior with acceptable deviation was observed in the microstructure, hardness, and fracture toughness of the structure in both directions. The fracture is extremely ductile with a dimpled fibrous surface and secondary cracks. An estimate for fracture toughness based on Charpy impact absorbed energy is also given. View Full-Text
Keywords: Charpy impact test; GMAW; additive manufacturing; secondary cracks Charpy impact test; GMAW; additive manufacturing; secondary cracks
Show Figures

Figure 1

MDPI and ACS Style

Waqas, A.; Qin, X.; Xiong, J.; Zheng, C.; Wang, H. Analysis of Ductile Fracture Obtained by Charpy Impact Test of a Steel Structure Created by Robot-Assisted GMAW-Based Additive Manufacturing. Metals 2019, 9, 1208.
