Next Article in Journal
Effect of the High-Pressure Torsion (HPT) and Subsequent Isothermal Annealing on the Phase Transformation in Biomedical Ti15Mo Alloy
Previous Article in Journal
Improving Fatigue Performance of Laser-Welded 2024-T3 Aluminum Alloy Using Dry Laser Peening


Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

On the Role of Grain Size and Carbon Content on the Sensitization and Desensitization Behavior of 301 Austenitic Stainless Steel

Materials and Mechanical Engineering, Centre for Advanced Steels Research, University of Oulu, 90014 Oulu, Finland
*
Author to whom correspondence should be addressed.
Metals 2019, 9(11), 1193; https://doi.org/10.3390/met9111193
Submission received: 14 October 2019 / Revised: 3 November 2019 / Accepted: 5 November 2019 / Published: 6 November 2019

Abstract

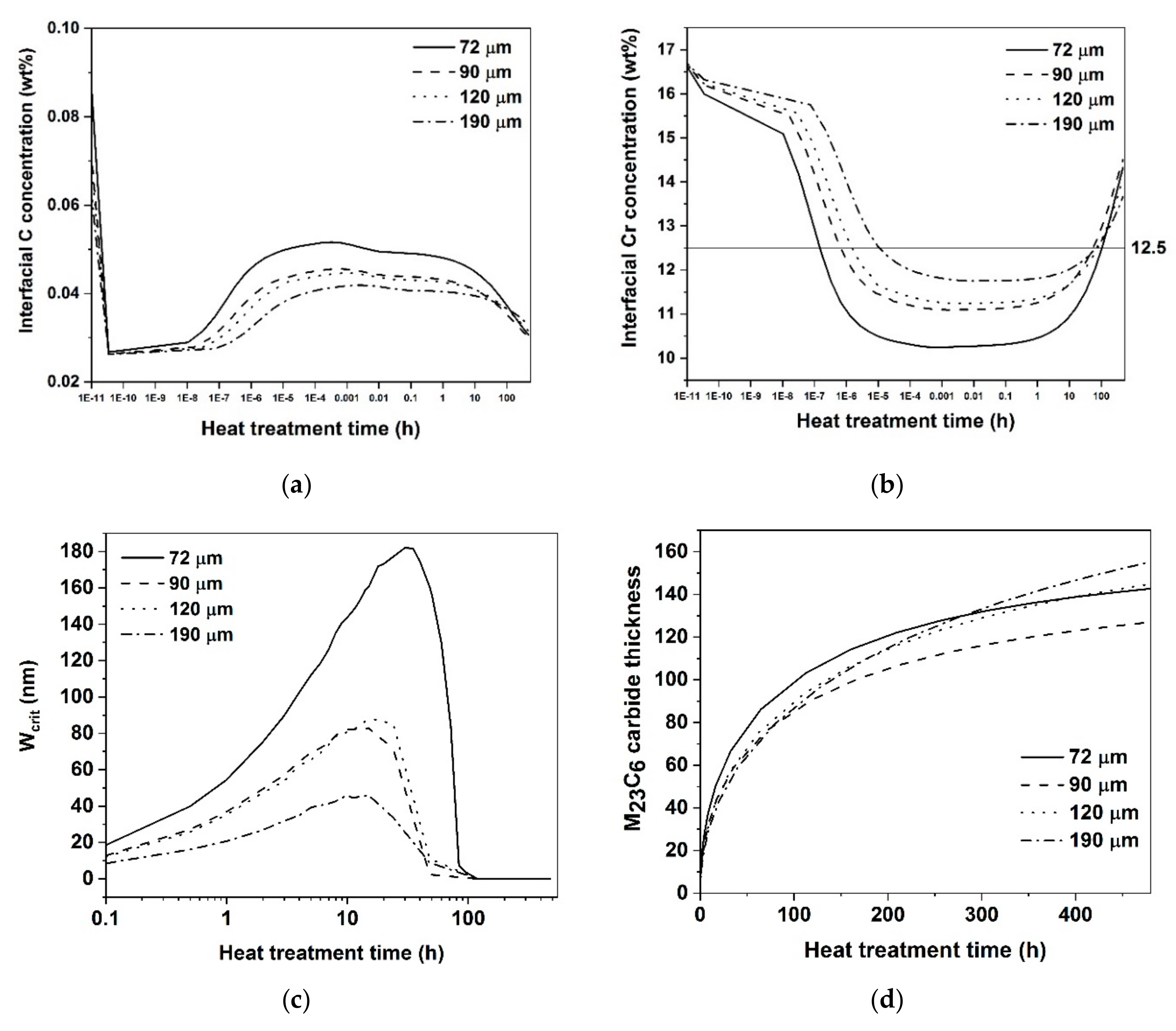

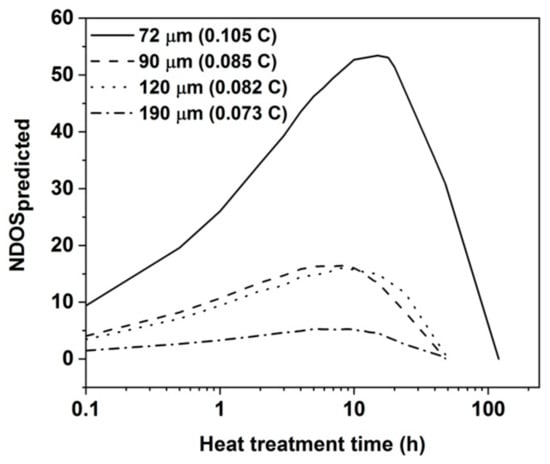

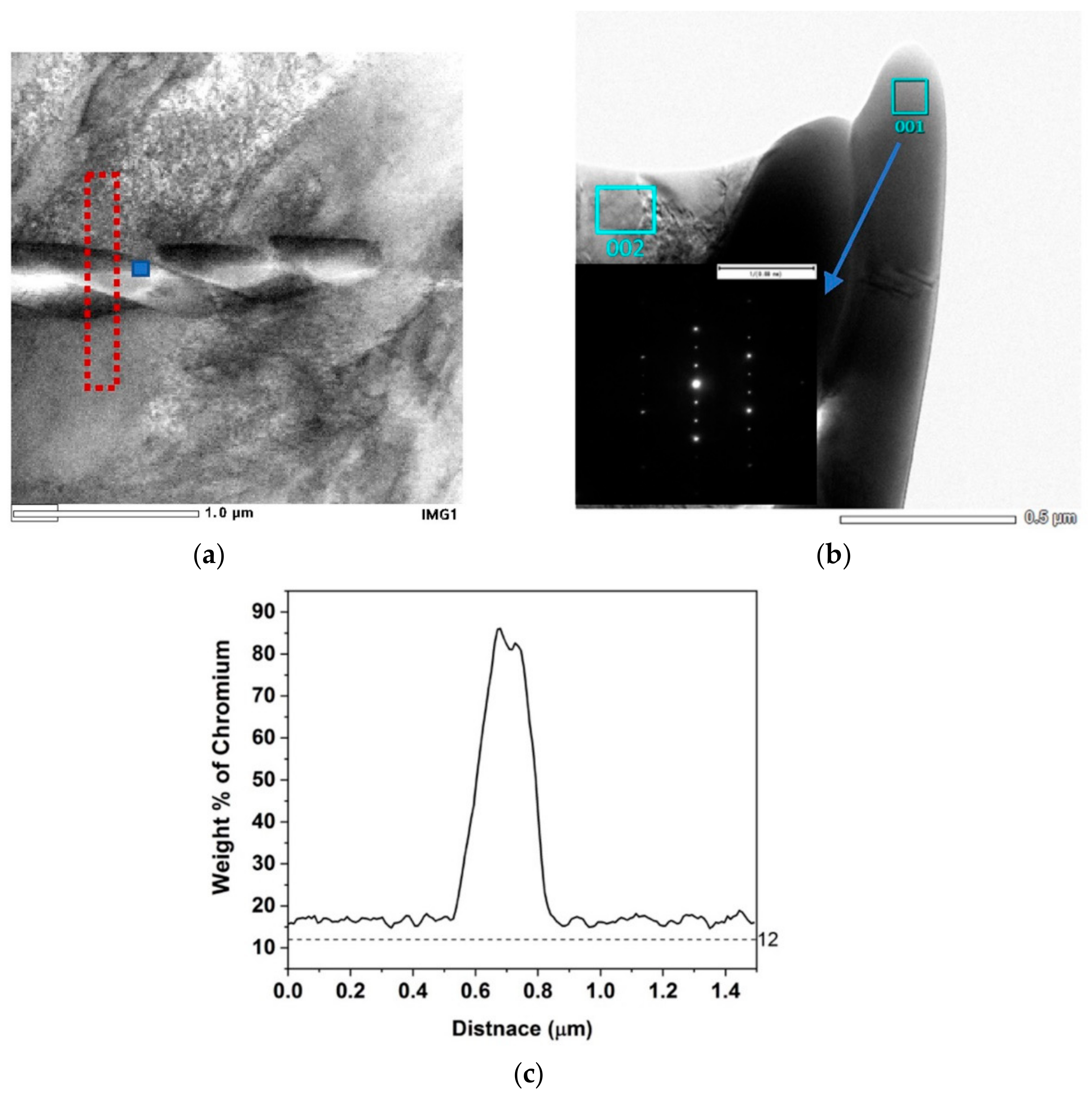

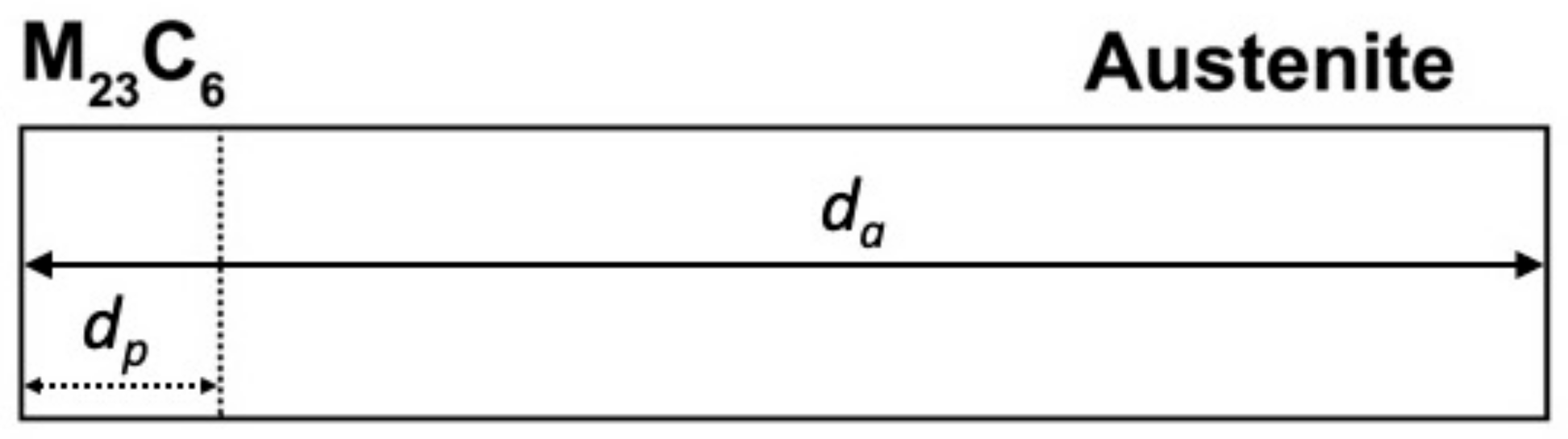

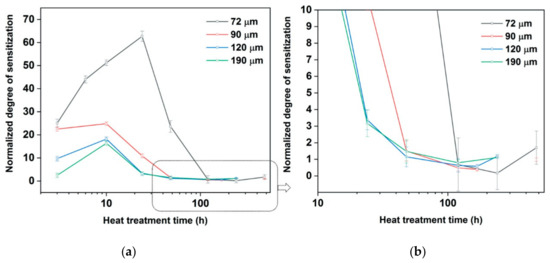

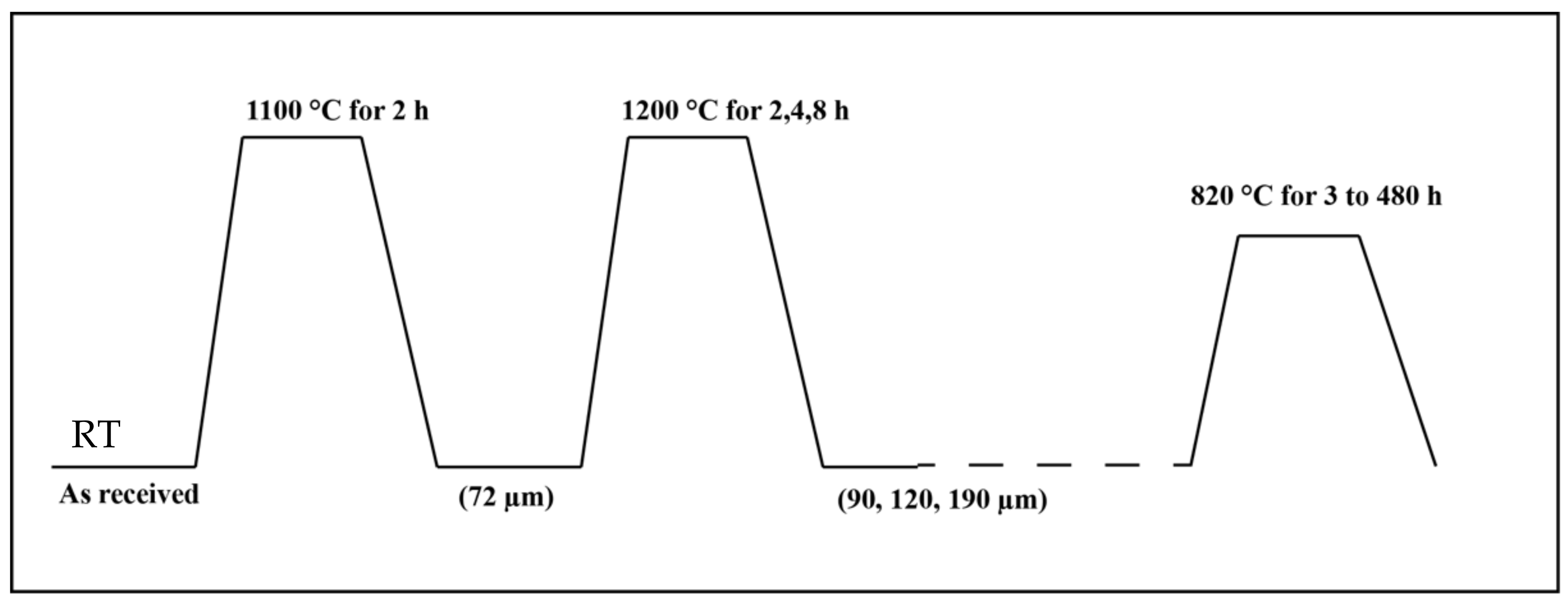

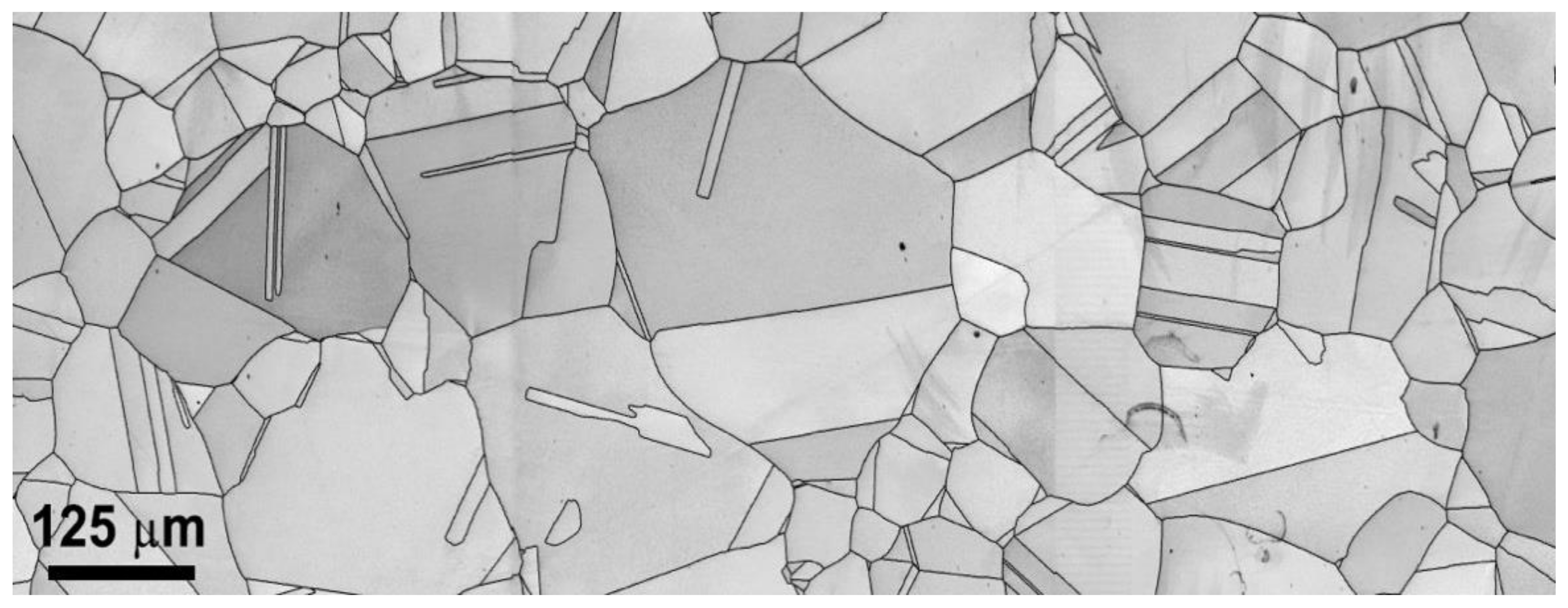

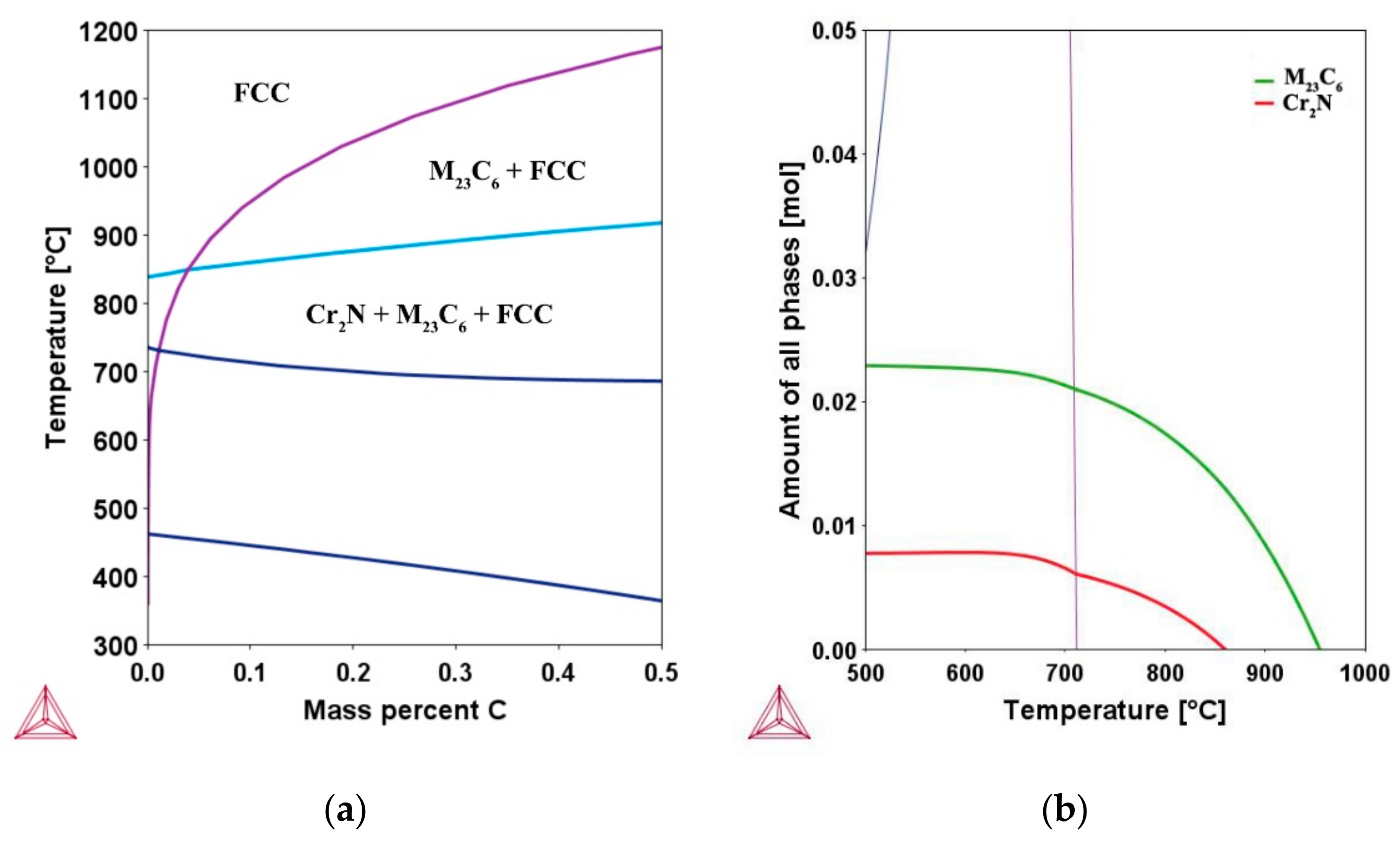

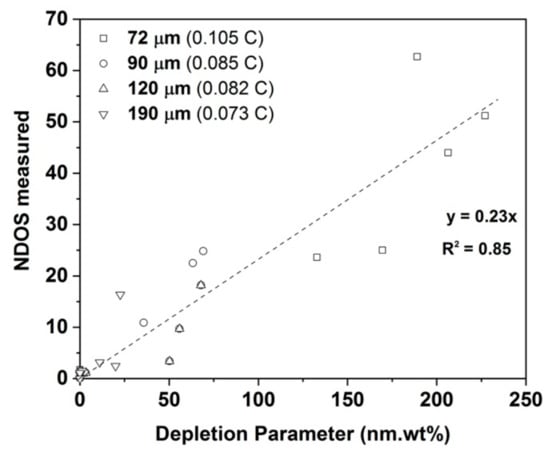

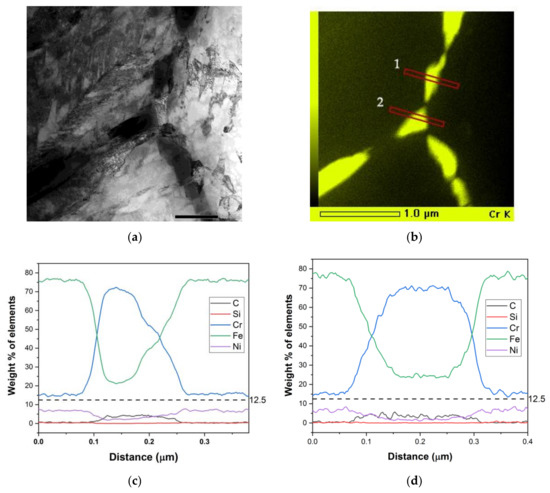

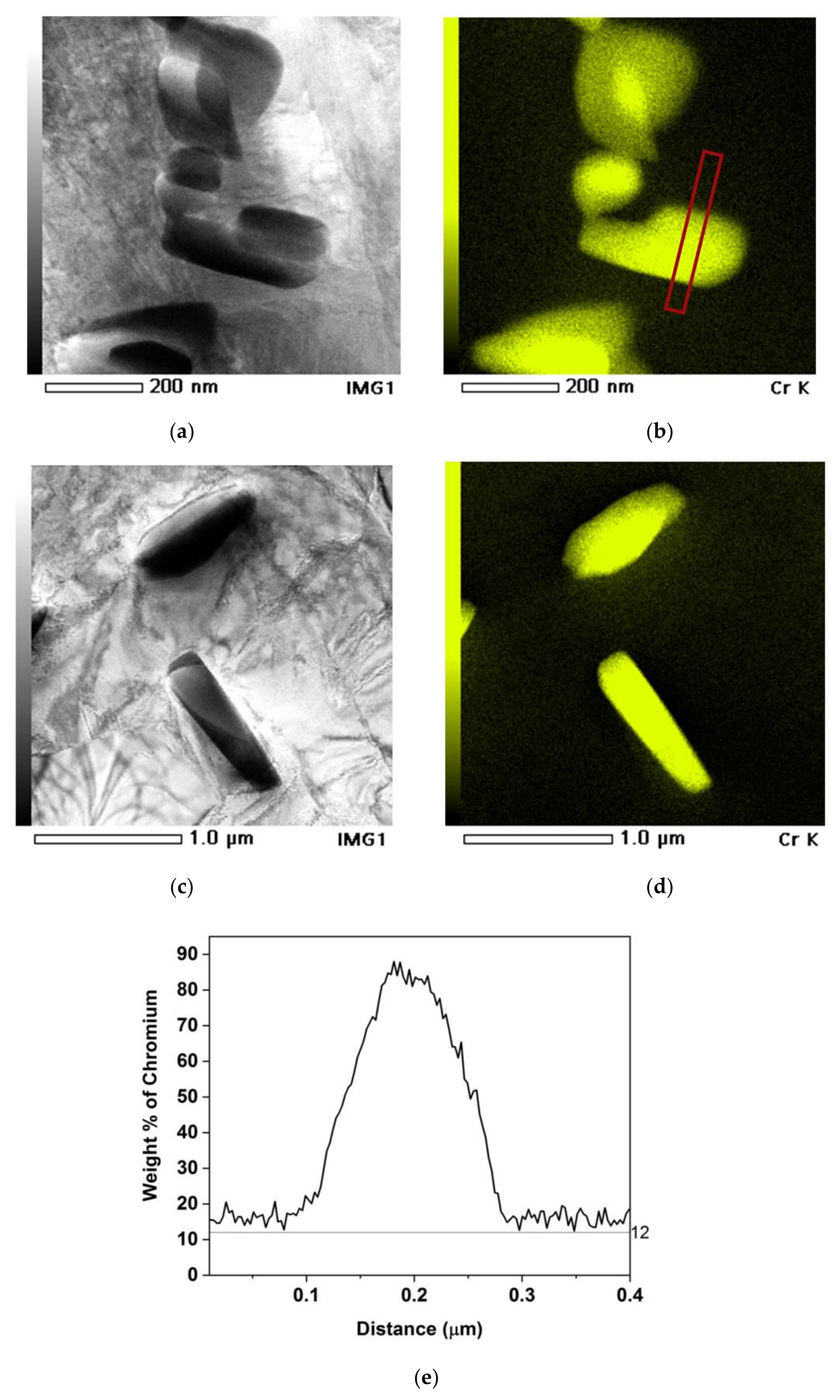

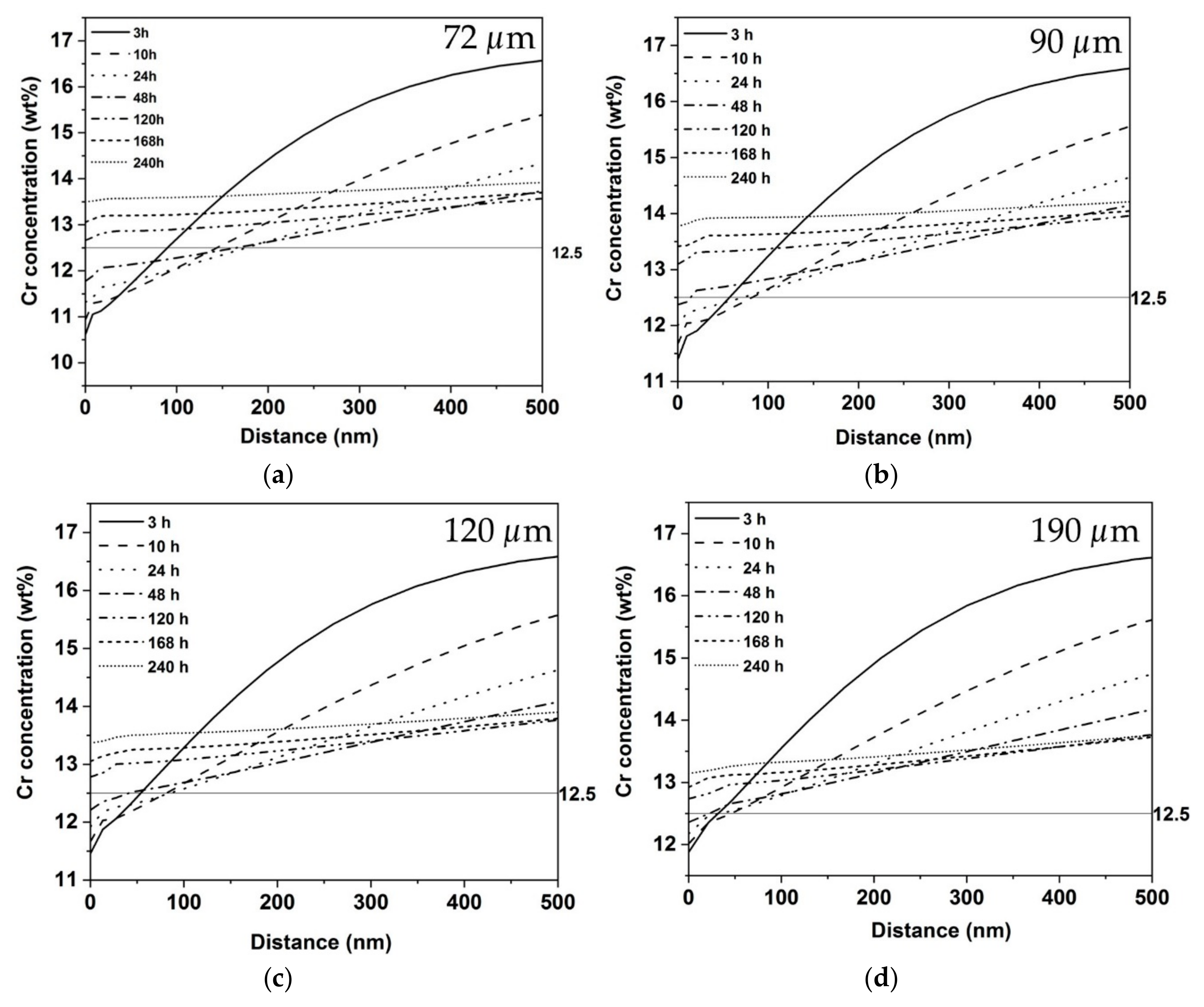

The effect of grain size in the range 72 to 190 μm and carbon content in the range 0.105–0.073 wt.% on the intergranular corrosion of the austenitic stainless steel 301 has been investigated. Grain boundary chromium depletion has been studied directly using energy dispersive X-ray spectroscopy combined with scanning transmission electron microscopy and indirectly using double loop electrochemical potentiokinetic reactivation tests. In addition, chromium depletion has been modelled using the CALPHAD Thermo-Calc software TC-DICTRA. It is shown that the degree of sensitization measured using the double loop electrochemical potentiokinetic reactivation tests can be successfully predicted with the aid of a depletion parameter based on the modelled chromium depletion profiles for heat treatment times covering both the sensitization and de-sensitization or self-healing. Additionally, along with intergranular M23C6 carbides, intragranular M23C6 and Cr2N nitrides that affect the available Cr for grain boundary carbide precipitation were also observed.
Keywords: sensitization; self-healing; Thermo-Calc; precipitation; diffusion; grain size sensitization; self-healing; Thermo-Calc; precipitation; diffusion; grain size

Share and Cite

MDPI and ACS Style

Kolli, S.; Javaheri, V.; Kömi, J.; Porter, D. On the Role of Grain Size and Carbon Content on the Sensitization and Desensitization Behavior of 301 Austenitic Stainless Steel. Metals 2019, 9, 1193. https://doi.org/10.3390/met9111193

AMA Style

Kolli S, Javaheri V, Kömi J, Porter D. On the Role of Grain Size and Carbon Content on the Sensitization and Desensitization Behavior of 301 Austenitic Stainless Steel. Metals. 2019; 9(11):1193. https://doi.org/10.3390/met9111193

Chicago/Turabian Style

Kolli, Satish, Vahid Javaheri, Jukka Kömi, and David Porter. 2019. "On the Role of Grain Size and Carbon Content on the Sensitization and Desensitization Behavior of 301 Austenitic Stainless Steel" Metals 9, no. 11: 1193. https://doi.org/10.3390/met9111193

APA Style

Kolli, S., Javaheri, V., Kömi, J., & Porter, D. (2019). On the Role of Grain Size and Carbon Content on the Sensitization and Desensitization Behavior of 301 Austenitic Stainless Steel. Metals, 9(11), 1193. https://doi.org/10.3390/met9111193

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
