Optimal Charge Planning Model of Steelmaking Based on Multi-Objective Evolutionary Algorithm
Abstract
:1. Introduction
2. Problem Description and Mathematical Model

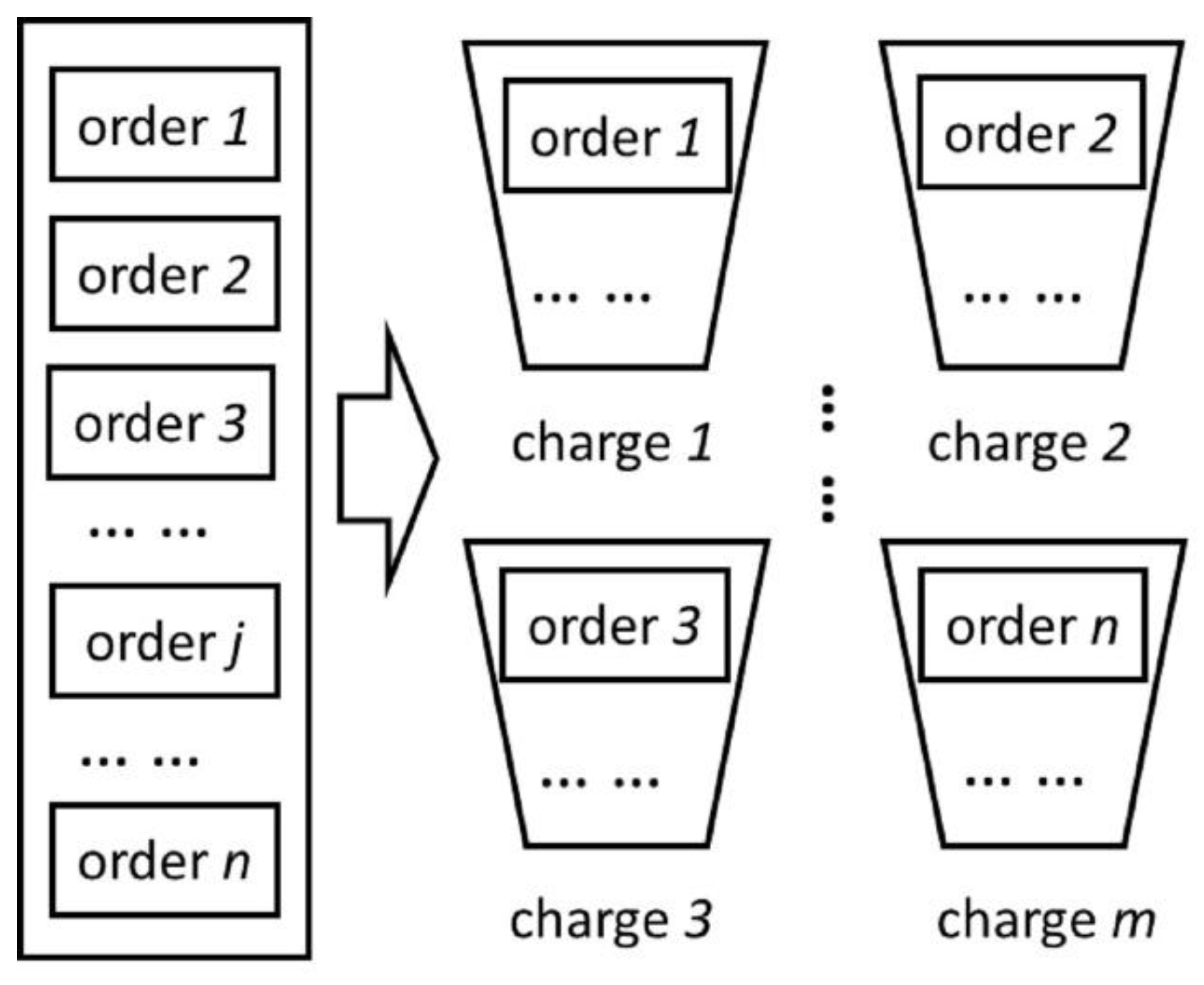

2.1. Preparing Procedures of Charge Plan
2.2. Mathematical Model of Charge Planning
- (1)
- The number of grouped charges is unknown beforehand.
- (2)
- All contract products are prepared into production in consideration of the stricter requirement of customers on the customization production.
- (3)
- Total weight of a charge can be varied in a certain range.
- (4)
- The steel grades and dimensions of the contract products have been known in advance.
- (5)
- The weight of any production order is less than the furnace capacity, which means the order cannot be split.
- (1)
- Indexes and Parameters:
- M: the number of orders;
- O: the assumed number of charges, and the upper limit of O equals to M;
- j: index of heats (charges), j = 1, 2, …, O;
- i: index of orders, i = 1, 2, …, M;
- di: the due date of order i;
- dej: the earliest due date of orders involved in charge j;
- wi: the weight of order i;
- Vmax: the maximum capacity of steelmaking furnace;
- a: the lower limit coefficient of the total weight of a charge, and Vmin equals to a·Vmax. The value of a depends on the actual production requirements of steel plants and is less than 100%.
- (2)
- Decision Variables:
- xij: binary variable representing whether order i is in charge j (xij = 1) or not (xij = 0);
3. Multi-Objective Evolutionary Algorithm

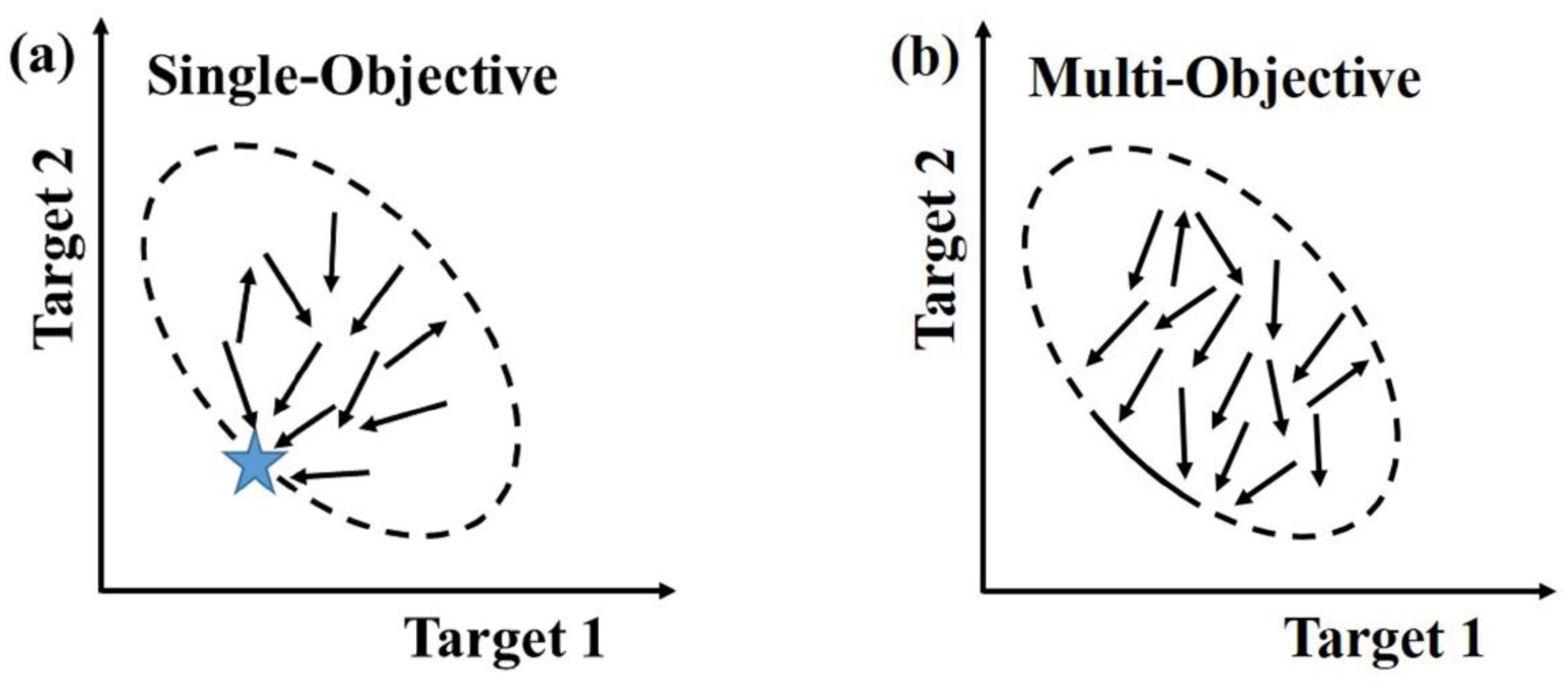

3.1. Solving Strategy

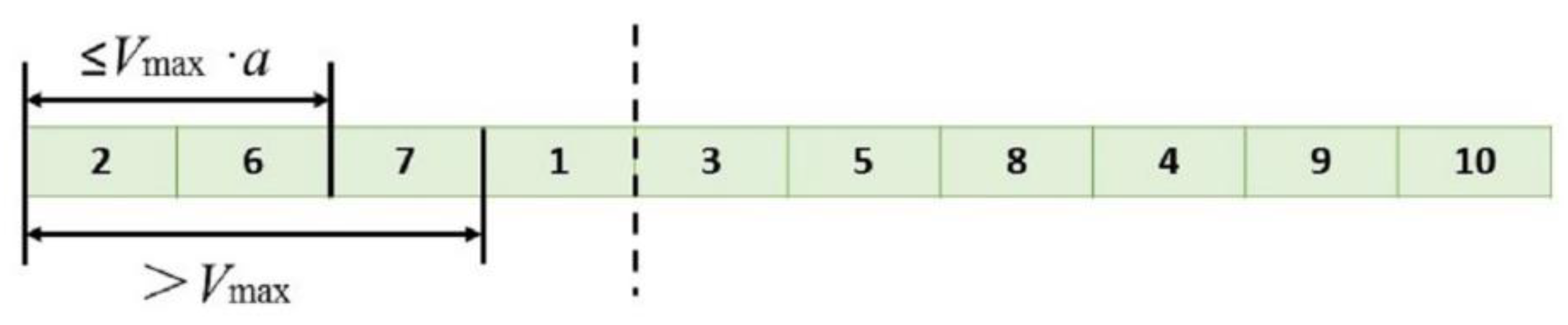

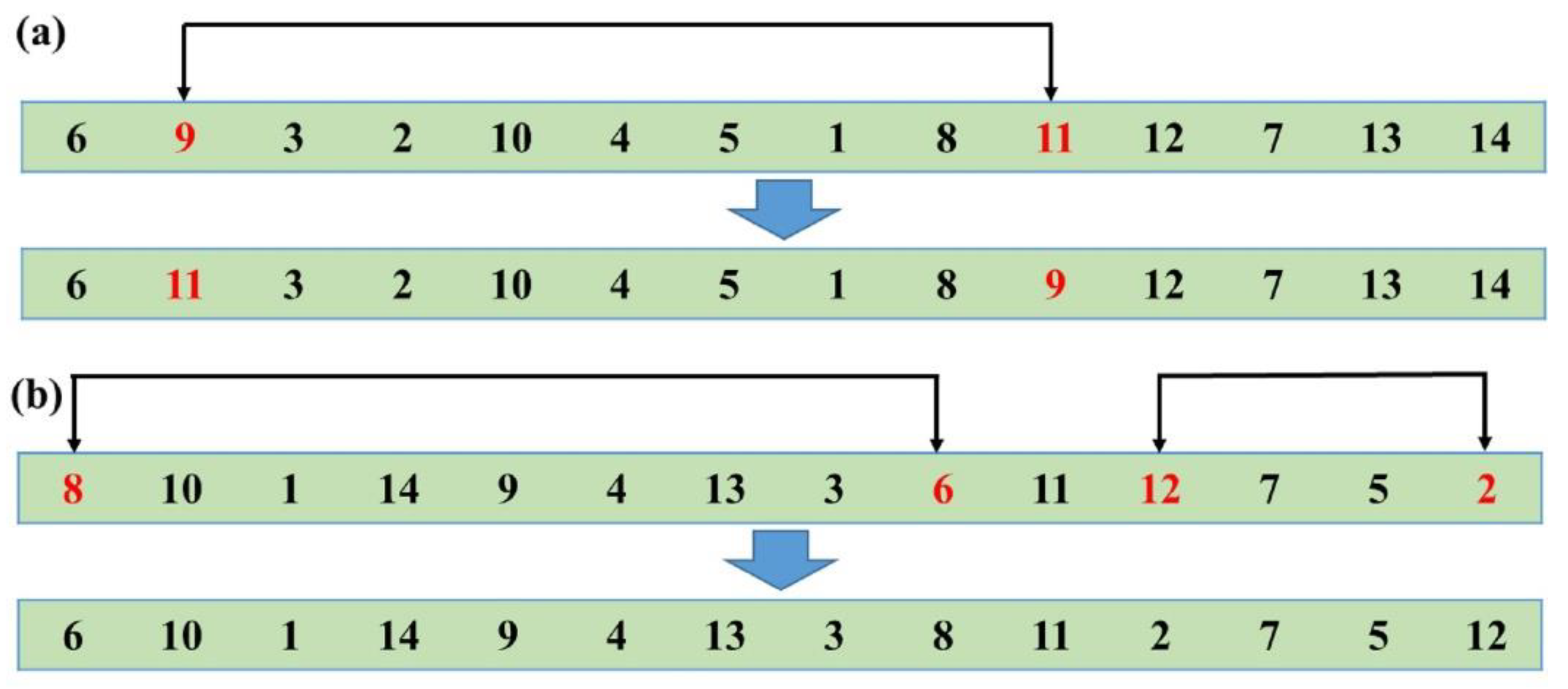

3.2. Algorithm Design
- p: index of objective function;
- Xq: individual q of the population;
- N: the population size;
- Xpq: the rank of individual q for objective p. The computing method is Xpq = N + 1 − l, where individual q is in position l according to objective p in ascending order;
- k: a constant between 1 and 2, which is used to increase the fitness value of the best individual for a single target;
- Ep(Xq): the single objective fitness of Xq for objective p;
- E(Xq): the fitness of Xq.
3.3. Procedure of TR-MOEA
4. Case Study
4.1. Algorithms Comparison and Parameter Settings

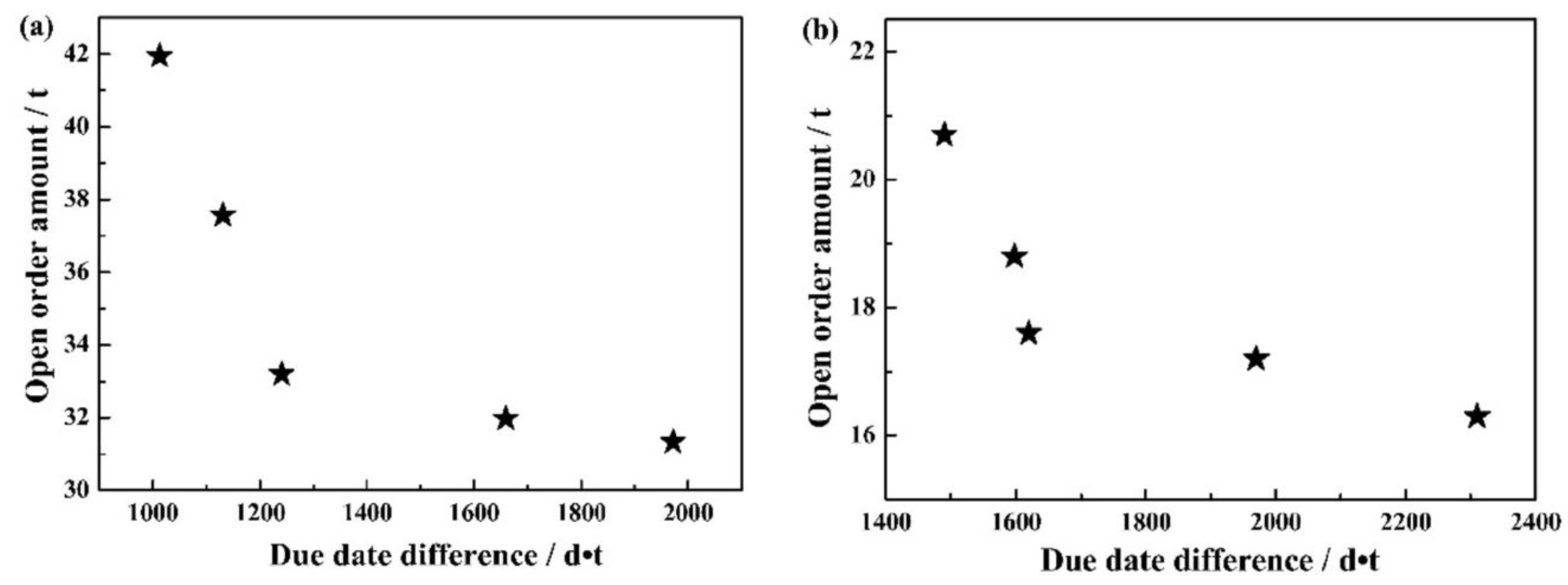

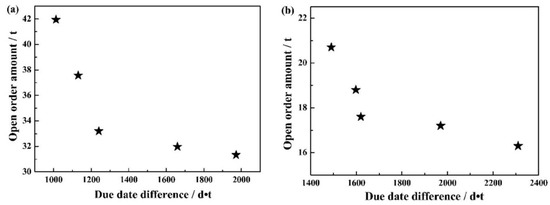

4.2. Results and Discussion
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Hofmann, E.; Rüsch, M. Industry 4.0 and the current status as well as future prospects on logistics. Comput. Ind. 2017, 89, 23–34. [Google Scholar] [CrossRef]
- Li, J.Q.; Yu, R.; Deng, G.Q. Industrial Internet: A Survey on the Enabling Technologies, Applications, and Challenges. IEEE Commun. Surv. Tutor. 2017, 19, 1504–1526. [Google Scholar] [CrossRef]
- Toshiya, K. New systems approach towards the realisation of society 5.0. IEEJ Trans. Electron. Inf. Syst. 2017, 137, 997–1000. [Google Scholar] [CrossRef]
- Raslavičius, L.; Striūgas, N.; Mantas, F. New insights into algae factories of the future. Renew. Sustain. Energy Rev. 2018, 81, 643–654. [Google Scholar] [CrossRef]
- Chen, W.; Kong, F.B.; Wang, B.X.; Li, Y. Application of grey relational analysis and extreme learning machine method for predicting silicon content of molten iron in blast furnace. Ironmak. Steelmak. 2018, in press. [Google Scholar] [CrossRef]
- Lee, S.J.; Kwon, W.; Koo, G.; Choi, H.; Kim, S.W. Recognition of Slab Identification Numbers Using a Fully Convolutional Network. ISIJ Int. 2018, 58, 696–703. [Google Scholar] [CrossRef]
- Zheng, Z.; Long, J.Y.; Gao, X.Q. Production scheduling problems of steelmaking-continuous casting process in dynamic production environment. J. Iron Steel Res. Int. 2017, 24, 586–594. [Google Scholar] [CrossRef]
- Liu, Q.; Wang, B.; Wang, Z.; Wang, B.; Xie, F.; Chang, J. Fine Production in Steelmaking Plants. Mater. Today Proc. 2015, 2, 348–357. [Google Scholar] [CrossRef]
- Yin, R.Y. Theory and Methods of Metallurgical Process Integration, 1st ed.; Metallurgical Industry Press: Beijing, China, 2016; pp. 115–117. ISBN 978-7-5024-7168-2. [Google Scholar]
- Xue, Y.C.; Zhou, Z.T.; Liu, F.; Yang, Q.W. Optimum steelmaking charge plan with unknown charge number based on the pseudo TSP model. In Proceedings of the 17th World Congress, International Federation of Automatic Control, IFAC, Seoul, Korea, 6–11 July 2008. [Google Scholar]
- Wang, C.; Liu, Q.; Li, Q.Y.; Wang, B.; Xie, F.M.; Wang, B.L. Optimal charge plan model for steelmaking based on modified partheno-genetic algorithm. Control Theory Appl. 2013, 30, 734–741. [Google Scholar] [CrossRef]
- Yadollahpour, M.R.; ArbabShirani, B. A comprehensive solution for continuous casting production planning and scheduling. Int. J. Adv. Manuf. Technol. 2016, 82, 211–226. [Google Scholar] [CrossRef]
- Zheng, Z.; Liu, Y.; Chen, K.; Gao, X.Q. Unified modeling and intelligent algorithm of production planning for the process of steelmaking, continuous casting and hot rolling. Beijing Keji Daxue Xuebao 2013, 35, 687–693. (In Chinese) [Google Scholar] [CrossRef]
- Tang, L.X.; Jiang, S.J. The Charge Batching Planning Problem in Steelmaking Process Using Lagrangian Relaxation Algorithm. Ind. Eng. Chem. Res. 2009, 48, 7780–7787. [Google Scholar] [CrossRef]
- Lin, J.H.; Liu, M.; Hao, J.H.; Jiang, S. A multi-objective optimization approach for integrated production planning under interval uncertainties in the steel industry. Comp. Oper. Res. 2016, 72, 189–203. [Google Scholar] [CrossRef]
- Liu, W.; Sun, L.L. Steel-Making and Continuous/Ingot Casting Scheduling of Mixed Charging Plan Based on Batch Splitting Policy. J. Iron Steel Res. Int. 2012, 19, 17–21. [Google Scholar] [CrossRef]
- Dong, H.Y.; Huang, M.; Wang, X.W. On the integrated charge planning with flexible jobs in primary steelmaking processes. Int. J. Prod. Res. 2010, 48, 6499–6535. [Google Scholar] [CrossRef]
- Yang, F.; Li, Q.Q. Improved Cross Entropy Algorithm for the Optimum of Charge Planning Problem. Abstr. Appl. Anal. 2014, 7, 1–5. [Google Scholar] [CrossRef]
- Rizk-Allah, R.; Hassanien, A.; Elhoseny, M. A multi-objective transportation model under neutrosophic environment. Comput. Electr. Eng. 2018, in press. [Google Scholar] [CrossRef]
- Sergey, P.; Rym, M. A hybrid feasibility constraints-guided search to the two-dimensional bin packing problem with due dates. Eur. J. Oper. Res. 2018, 266, 819–839. [Google Scholar] [CrossRef] [Green Version]
- Silveira, L.M.; Miyazawa, F.K.; Xavier, E.C. Heuristics for the strip packing problem with unloading constraints. Comp. Oper. Res. 2013, 40, 991–1003. [Google Scholar] [CrossRef]
- Elhoseny, M.; Tharwat, A.; Yuan, X.H.; Hassanien, A.E. Optimizing K-coverage of mobile WSNs. Expert Syst. Appl. 2018, 92, 142–153. [Google Scholar] [CrossRef]
- Chen, Y.; Zou, X.F.; Xie, W.C. Convergence of multi-objective evolutionary algorithms to a uniformly distributed representation of the Pareto front. Inf. Sci. 2011, 181, 3336–3355. [Google Scholar] [CrossRef]
- Schaffer, J.D. Multiple objective optimization with vector evaluated genetic algorithms. In Proceedings of the 1st International Conference on Genetic Algorithms, Pittsburgh, PA, USA, 24–26 July 1985. [Google Scholar]
- Golberg, D.E. Genetic Algorithms in Search, Optimization & Machine Learning, 1st ed.; Addison-Wesley Longman Publishing Co., Inc.: Boston, MA, USA, 1989; pp. 35–65. ISBN 0201157675. [Google Scholar]
- Fadaee, M.; Radzi, M. Multi-objective optimization of a stand-alone hybrid renewable energy system by using evolutionary algorithms: A review. Renew. Sustain. Energy Rev. 2012, 16, 3364–3369. [Google Scholar] [CrossRef]
- Tharwat, A.; Elhoseny, M.; Hassanien, A.; Gabel, T.; Kumar, A. Intelligent Bézier curve-based path planning model using Chaotic Particle Swarm Optimization algorithm. Clust. Comput. 2018, 4, 1–22. [Google Scholar] [CrossRef]
- Li, M.J.; Tong, D.S. A partheno-genetic algorithm and analysis on its global convergence. Acta Autom. Sin. 1999, 25, 68–72. [Google Scholar] [CrossRef]
- Liu, X.; Tu, Y.L.; Zhang, J.; Watson, L.G. A genetic algorithm heuristic approach to general outsourcing capacitated production planning problems. Int. J. Prod. Res. 2008, 46, 5059–5074. [Google Scholar] [CrossRef]
Order No. | Steel Grade | Dimension/mm × mm | Weigh/t | Due Date/d |
---|---|---|---|---|
0056 | 60Si2Mnb | 160 × 160 | 1.250 | 7 |
0012 | 60Si2Mnb | 160 × 160 | 1.250 | 7 |
0119 | 60Si2Mnb | 160 × 160 | 28.747 | 22 |
0089 | 60Si2Mnb | 180 × 180 | 0.625 | 7 |
0015 | 60Si2Mnb | 180 × 180 | 25.622 | 12 |
0016 | 60Si2Mnb | 180 × 180 | 12.499 | 12 |
0017 | SUP9b | 160 × 160 | 11.249 | 12 |
0100 | SUP9b | 160 × 160 | 6.874 | 17 |
0080 | SUP9b | 180 × 180 | 0.625 | 17 |
… … | … … | … … | … … | … … |
Parameters | Values |
---|---|
Population size (N) | 40 |
Generation (G) | 120 |
Lower limit coefficient of the total weight in a charge (a) | 95% |
Size of non-inferior solution set Q (n) | 8 |
Recombination probability | 80% |
Methods | Difference in the Due Dates/d·t | Open Order Amount/t | Penalty Value/¥ | Computation Time/s |
---|---|---|---|---|
TR-MOEA | 1971.645 | 31.340 | 5105.645 | 108 |
1659.185 | 31.975 | 4856.685 | ||
1240.480 | 33.208 | 4561.280 | ||
1131.105 | 37.572 | 4888.305 | ||
1012.380 | 41.943 | 5215.680 | ||
GA | 2275.370 | 30.518 | 5227.170 | 112 |
MPGA | 2149.665 | 30.345 | 5184.165 | 99 |
Manual | 2265.358 | 35.470 | 5812.358 | 2512 |
