Microstructure and Properties of Hybrid Laser Arc Welded Joints (Laser Beam-MAG) in Thermo-Mechanical Control Processed S700MC Steel

1
Welding Department, Silesian University of Technology, Konarskiego 18A, 44-100 Gliwice, Poland
2
Welding Institute in Gliwice, Bl. Czeslawa 16-18, 44-100 Gliwice, Poland
*
Author to whom correspondence should be addressed.
Metals 2018, 8(2), 132; https://doi.org/10.3390/met8020132
Received: 27 December 2017 / Revised: 8 February 2018 / Accepted: 9 February 2018 / Published: 15 February 2018
(This article belongs to the Special Issue Laser Welding)
  |
PDF [5536 KB, uploaded 22 February 2018]
  |

Abstract

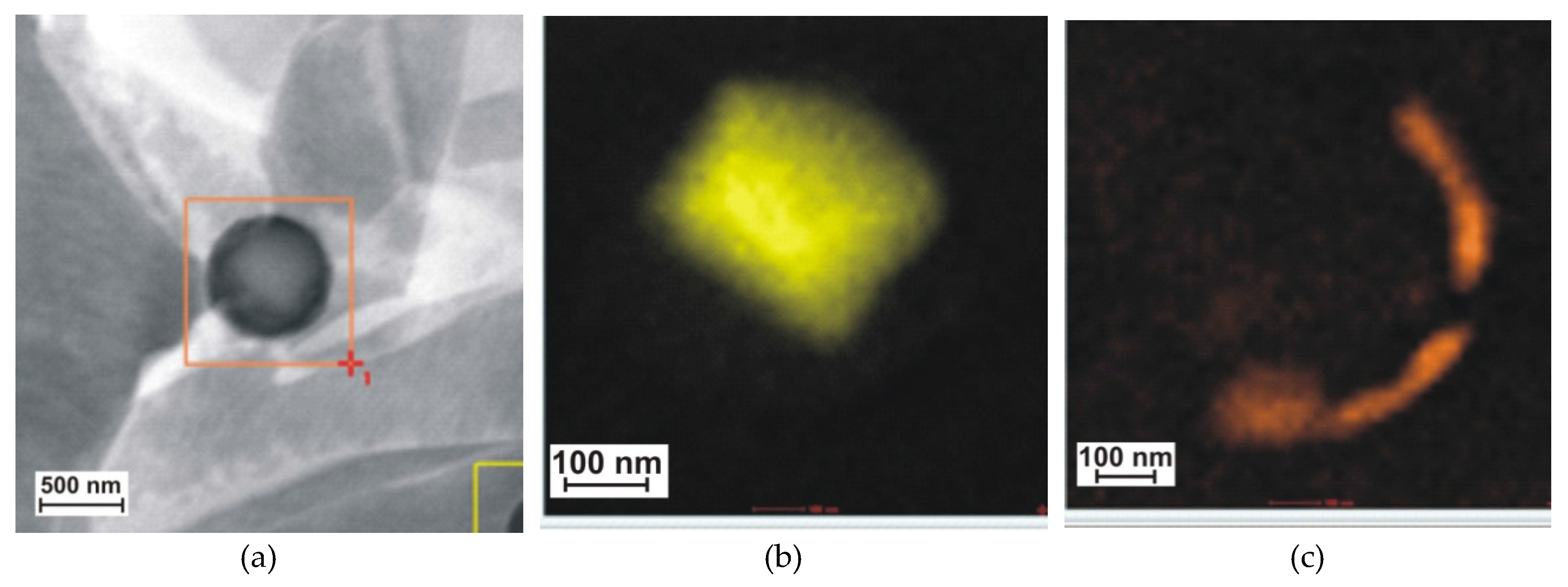

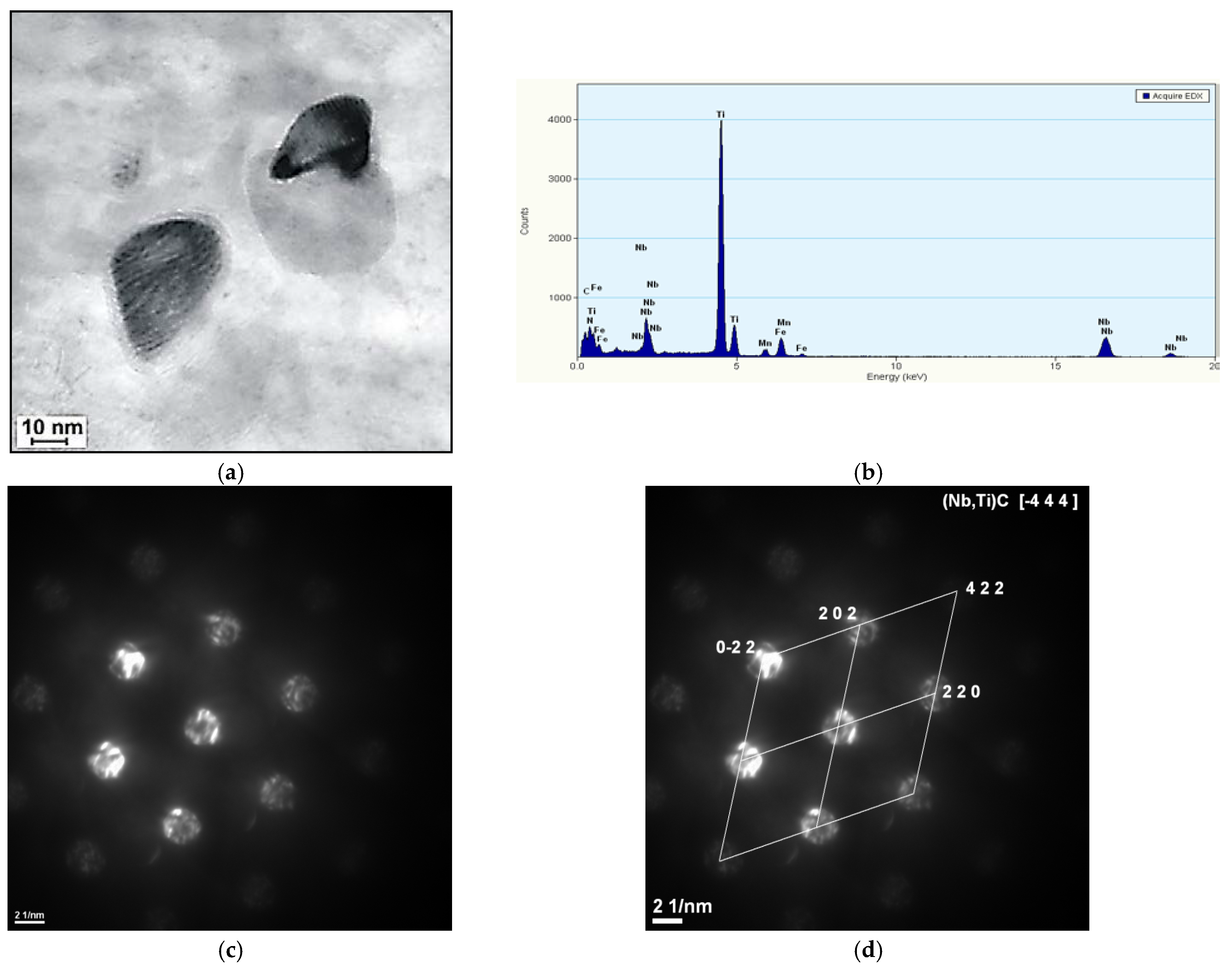

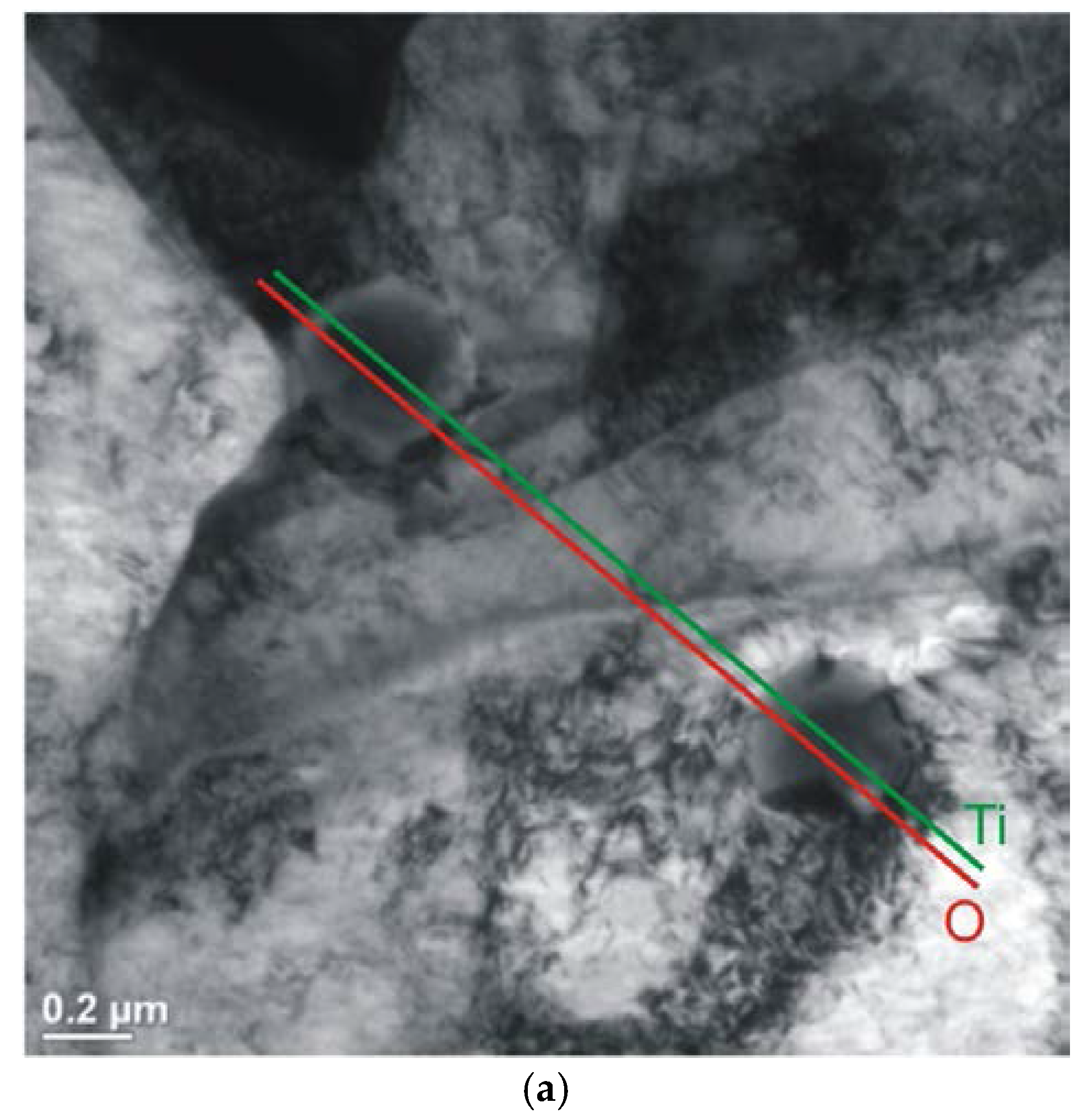

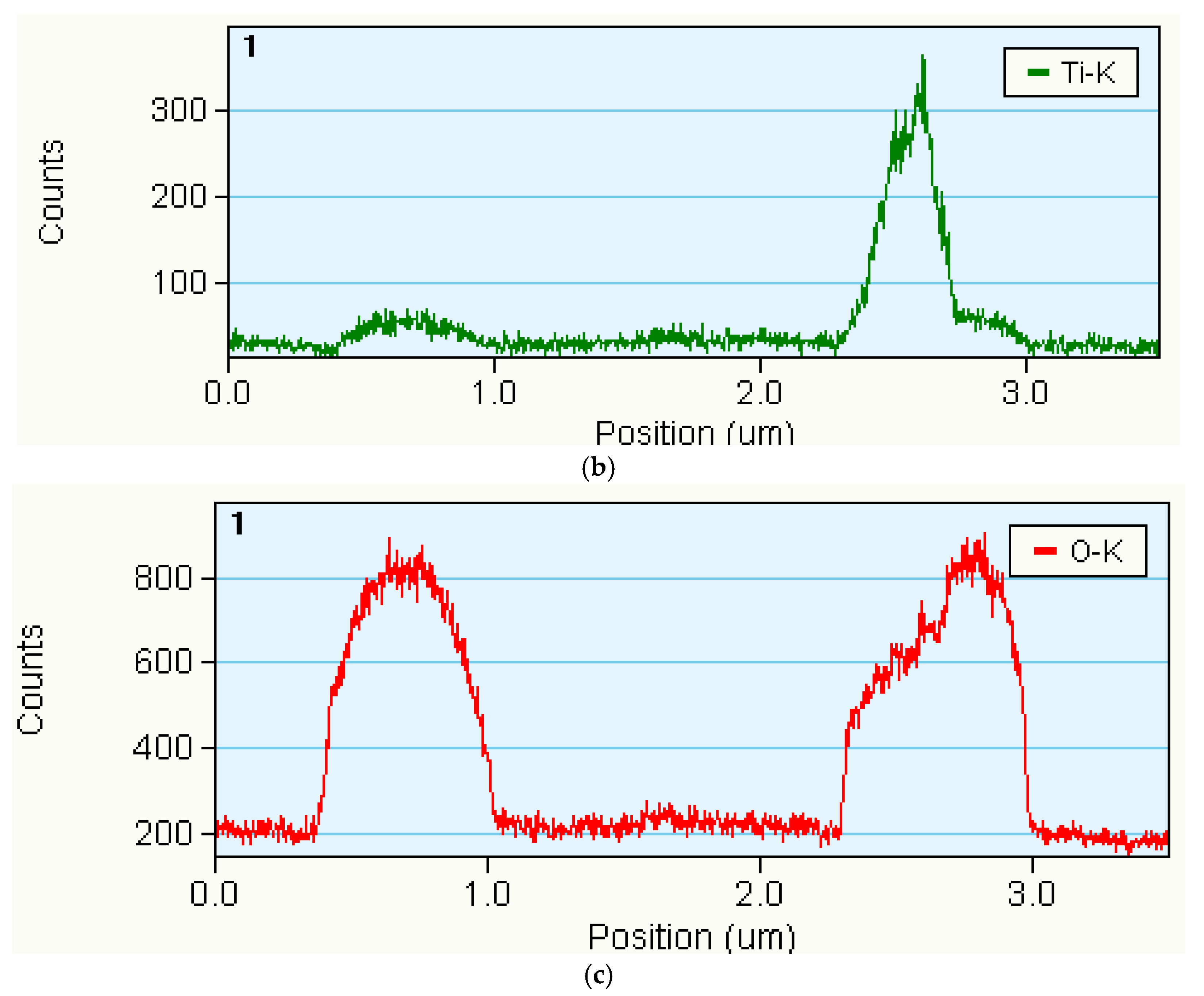

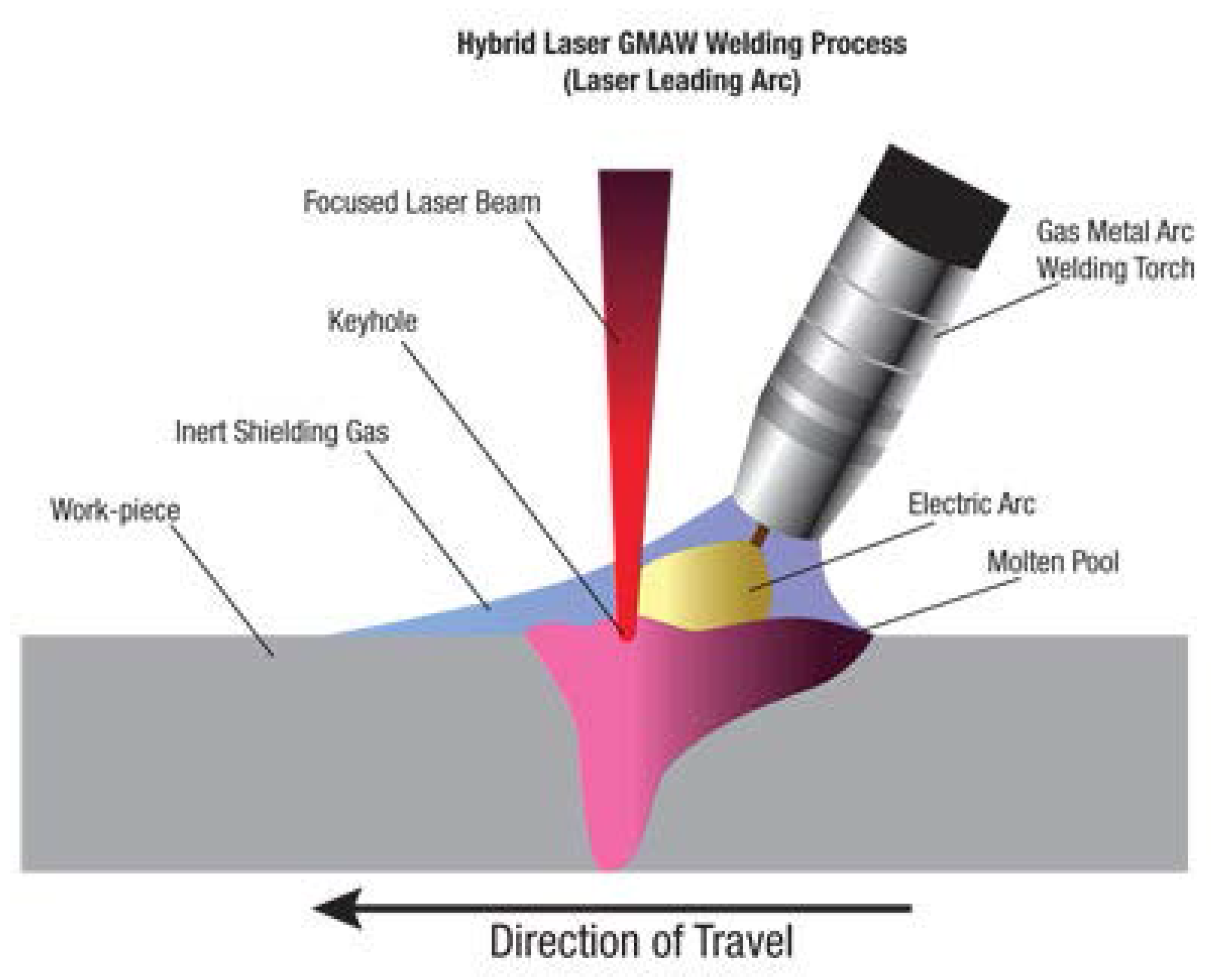

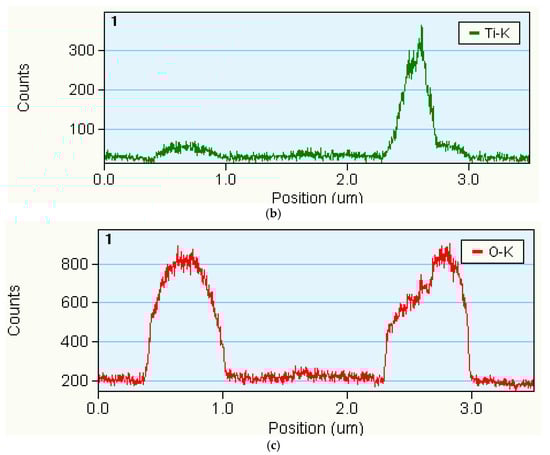

The article presents the microstructure and properties of joints welded using the Hybrid Laser Arc Welding (HLAW) method laser beam-Metal Active Gas (MAG). The joints were made of 10-mm-thick steel S700MC subjected to the Thermo-Mechanical Control Process (TMCP) and characterised by a high yield point. In addition, the welding process involved the use of solid wire GMn4Ni1.5CrMo having a diameter of 1.2 mm. Non-destructive tests involving the joints made it possible to classify the joints as representing quality level B in accordance with the ISO 12932 standard. Destructive tests of the joints revealed that the joints were characterised by tensile strength similar to that of the base material. The hybrid welding (laser beam-MAG) of steel S700MC enabled the obtainment of good plastic properties of welded joints. In each area of the welded joints, the toughness values satisfied the criteria related to the minimum allowed toughness value. Tests involving the use of a transmission electron microscope and performed in the weld area revealed the decay of the precipitation hardening effect (i.e., the lack of precipitates having a size of several nm) and the presence of coagulated titanium-niobium precipitates having a size of 100 nm, restricting the growth of recrystallised austenite grains, as well as of spherical stable TiO precipitates (200 nm) responsible for the nucleation of ferrite inside austenite grains (significantly improving the plastic properties of joints). The tests demonstrated that it is possible to make welded joints satisfying quality-related requirements referred to in ISO 15614-14. View Full-Text
Keywords: steel S700MC; hybrid welding; HLAW; laser beam; MAG steel S700MC; hybrid welding; HLAW; laser beam; MAG
