Next Article in Journal
Impact of Dynamic Non-Equilibrium Processes on Fracture Mechanisms of High-Strength Titanium Alloy VT23
Previous Article in Journal
Study of the Effect of Carbon on the Contraction of Hypo-Peritectic Steels during Initial Solidification by Surface Roughness
Article Menu
Issue 12 (December) cover image

Export Article

Open AccessArticle

Optimizing the Mechanical Properties in the Repair Zone of 5Cr5MoV by Controlling Welding Heat Input

Key Laboratory of Automobile Materials of Ministry of Education & School of Materials Science and Engineering, Nanling Campus, Jilin University, No. 5988 Renmin Street, Changchun 130025, China
*
Author to whom correspondence should be addressed.
Metals 2018, 8(12), 981; https://doi.org/10.3390/met8120981
Received: 10 October 2018 / Revised: 14 November 2018 / Accepted: 19 November 2018 / Published: 23 November 2018
  |
PDF [15194 KB, uploaded 23 November 2018]
  |

Abstract

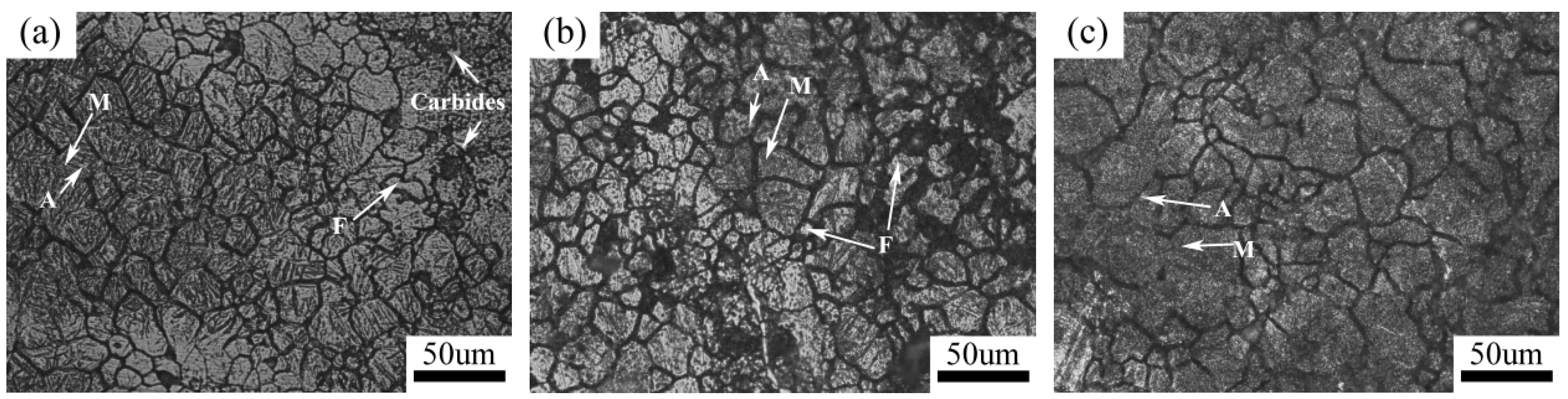

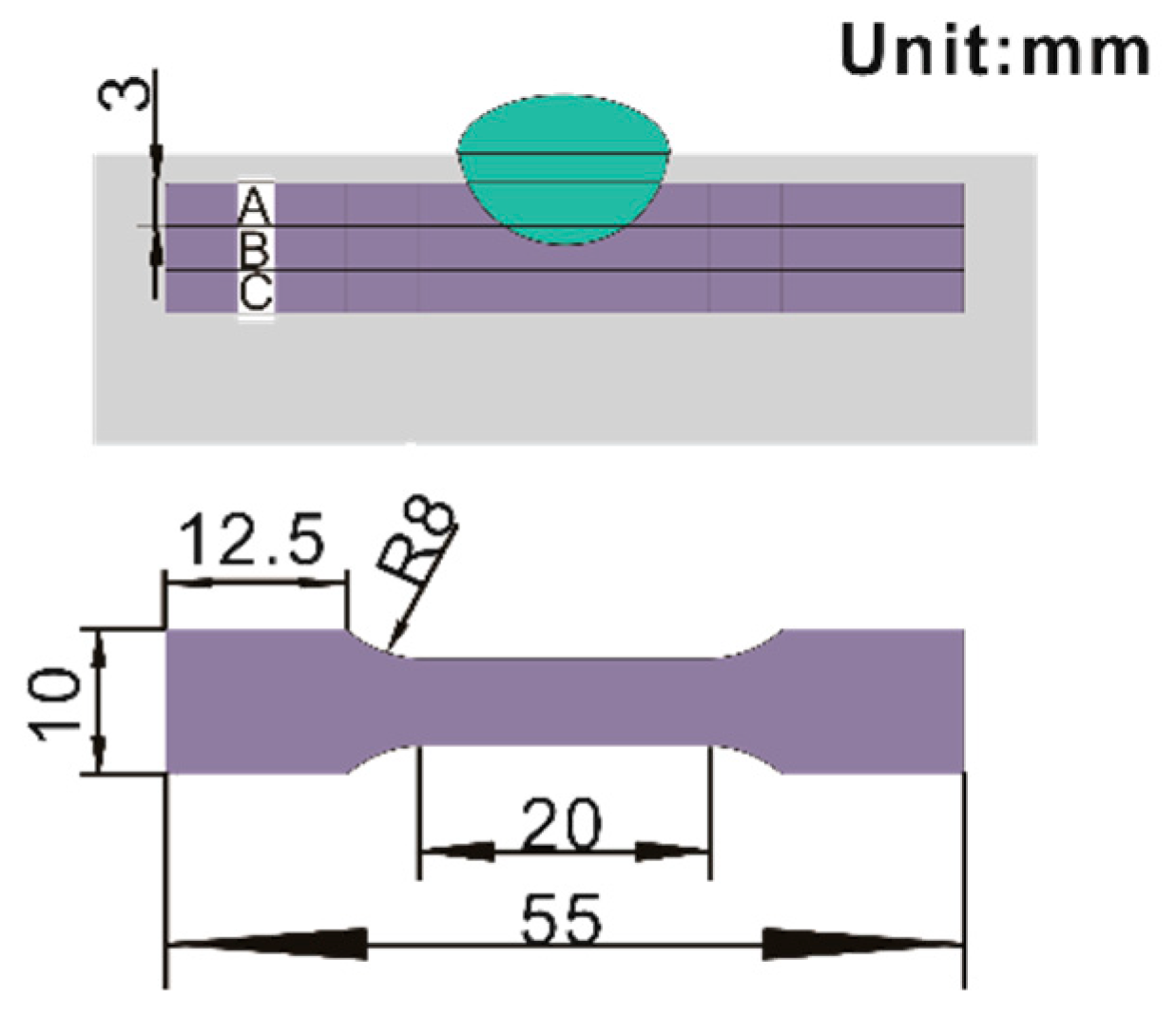

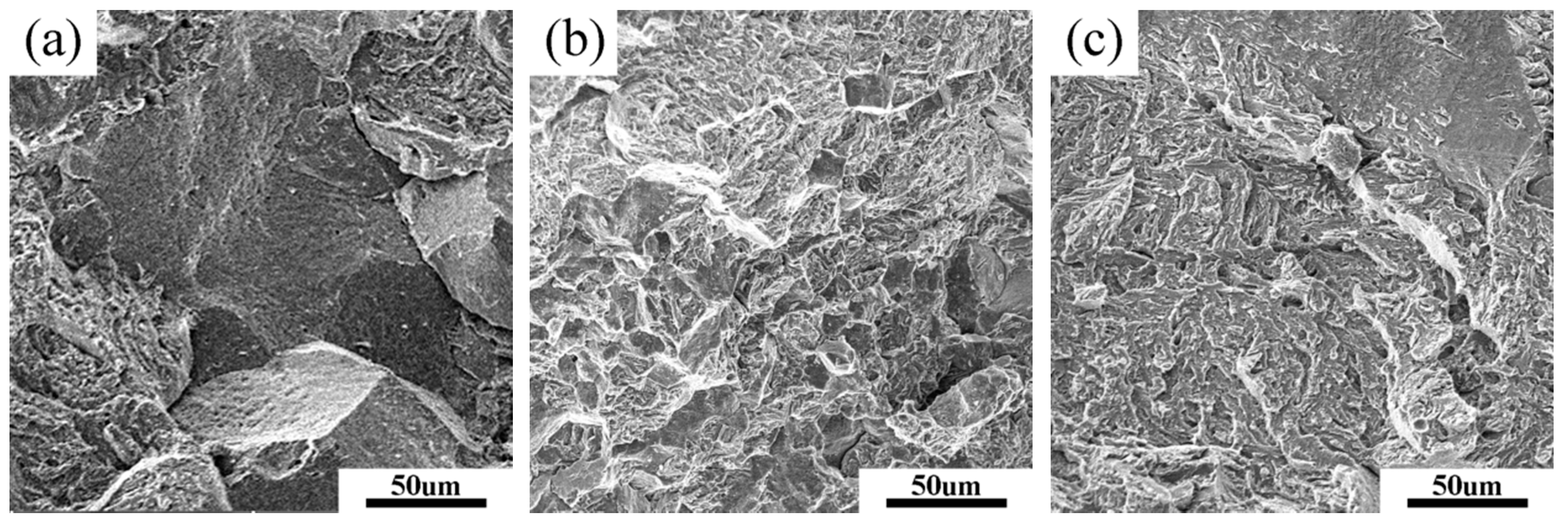

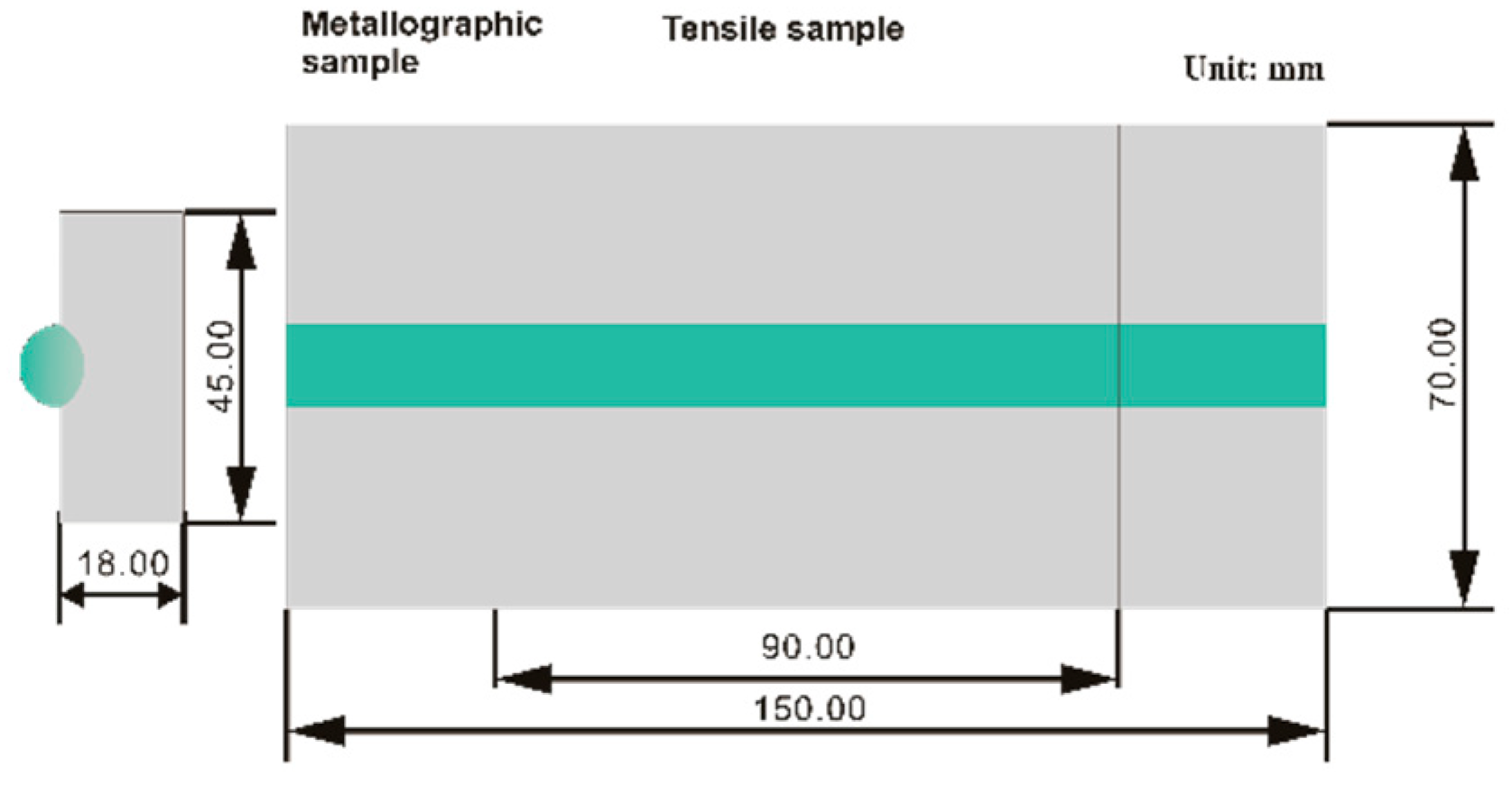

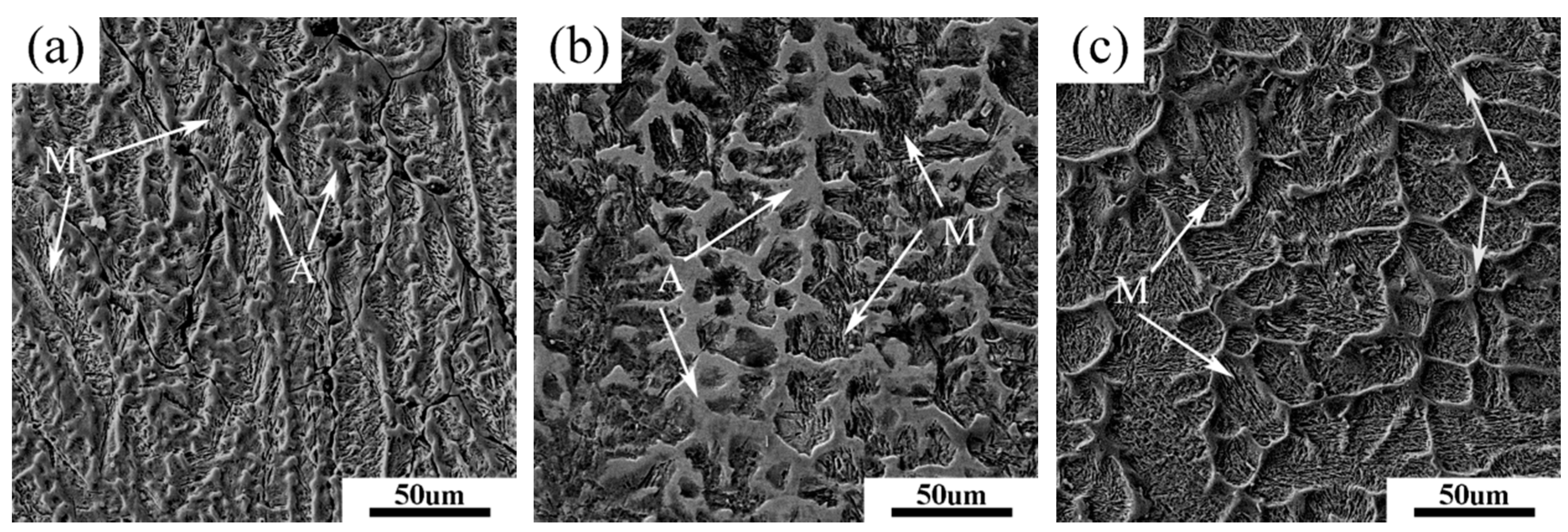

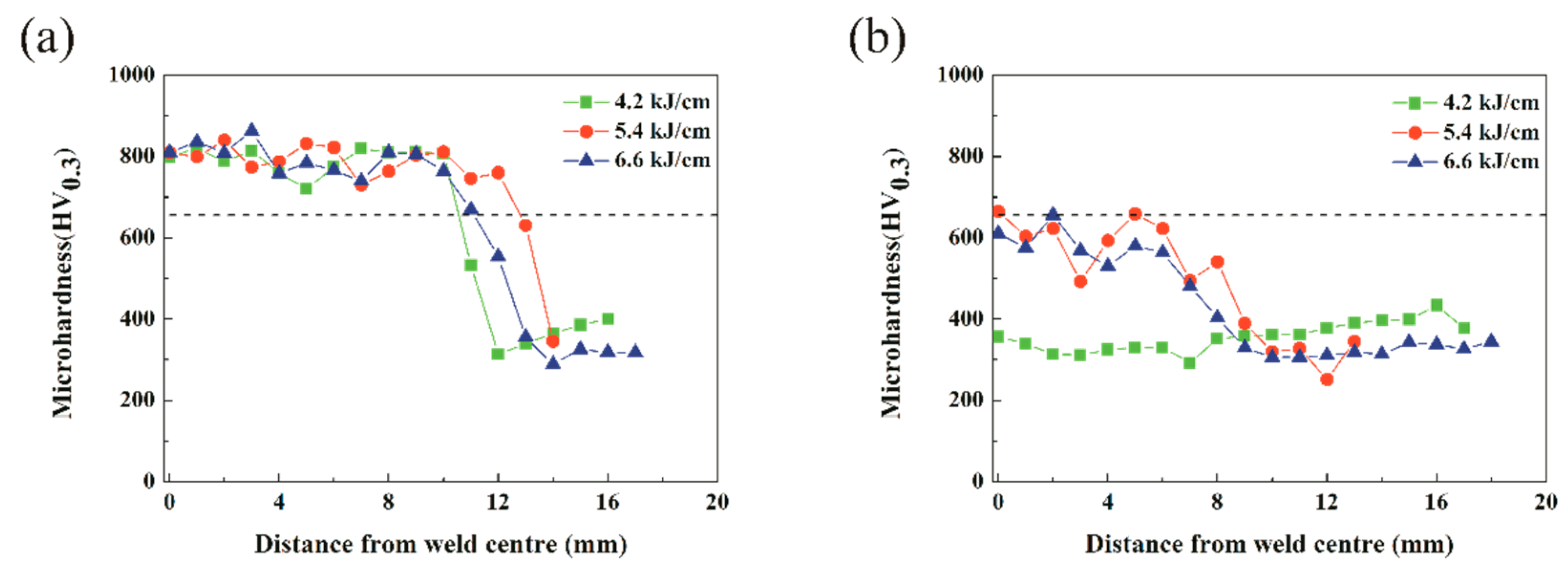

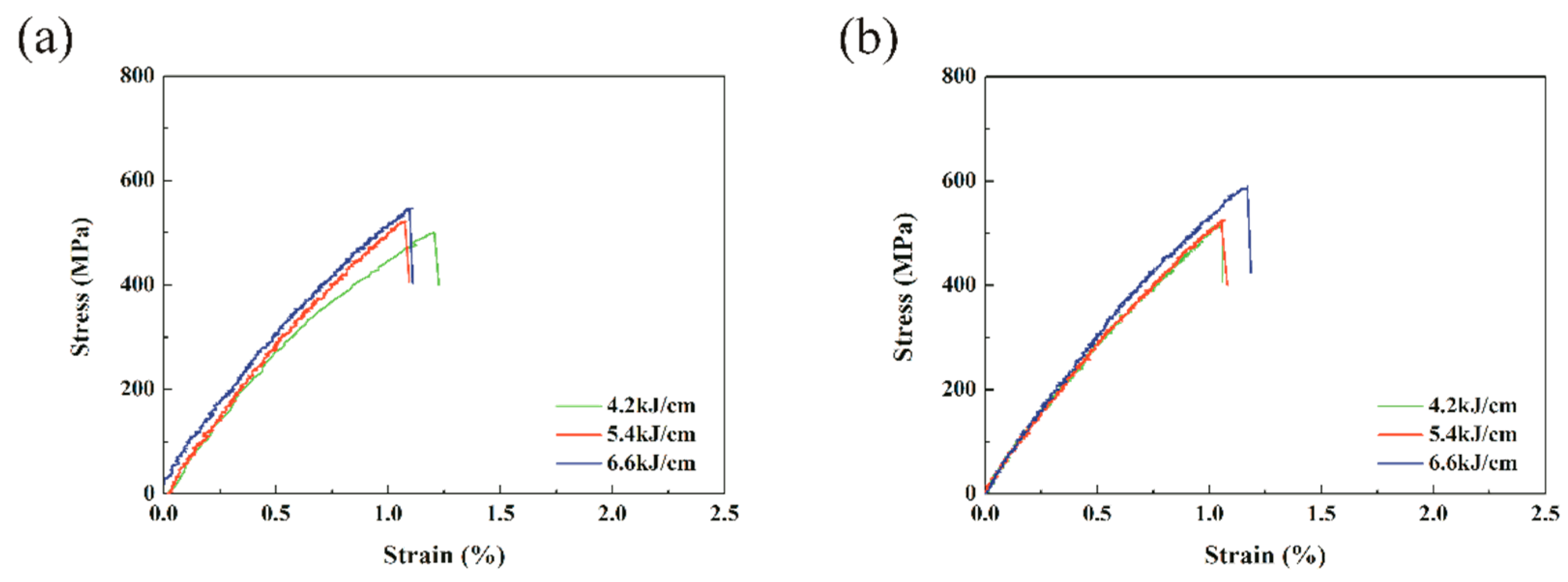

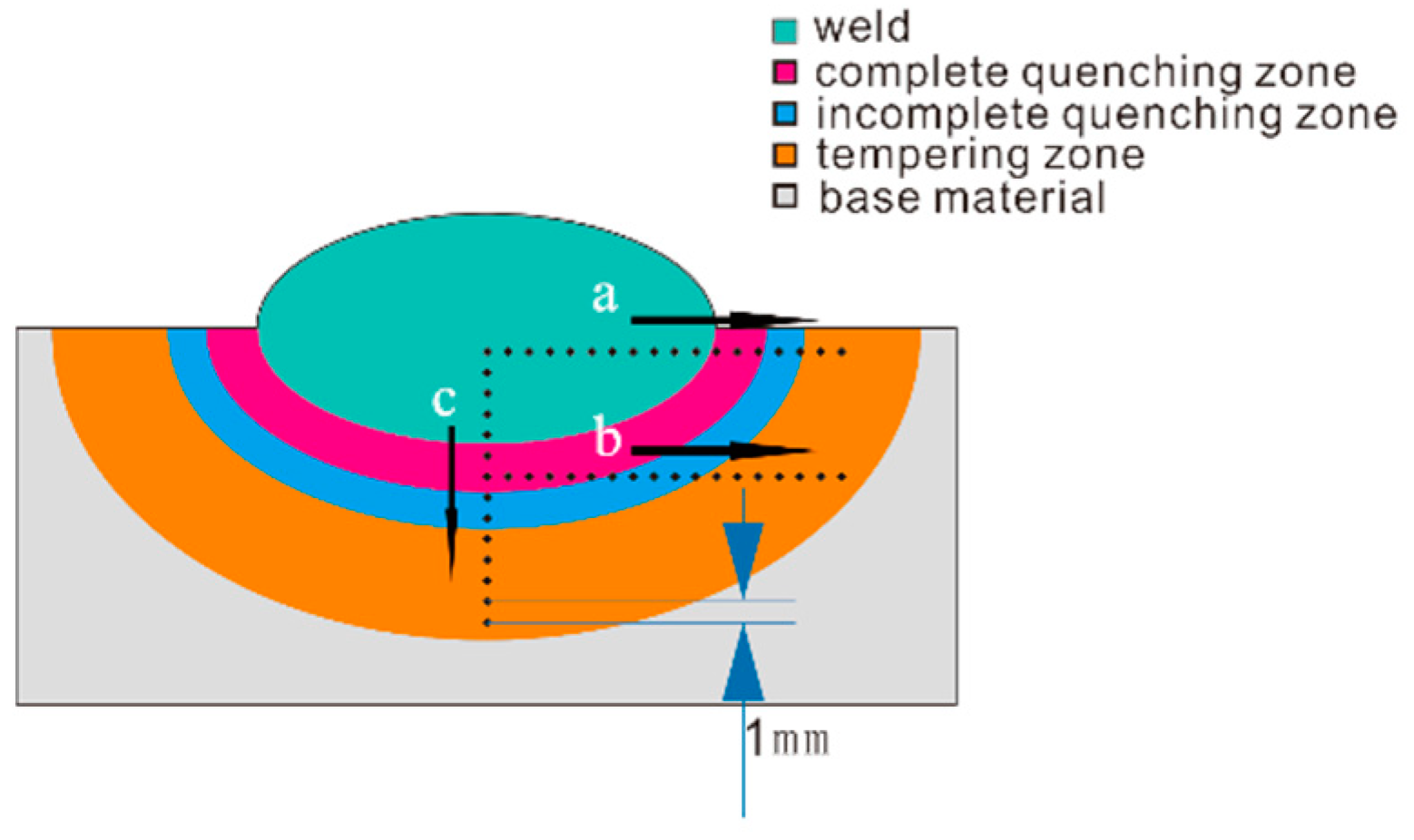

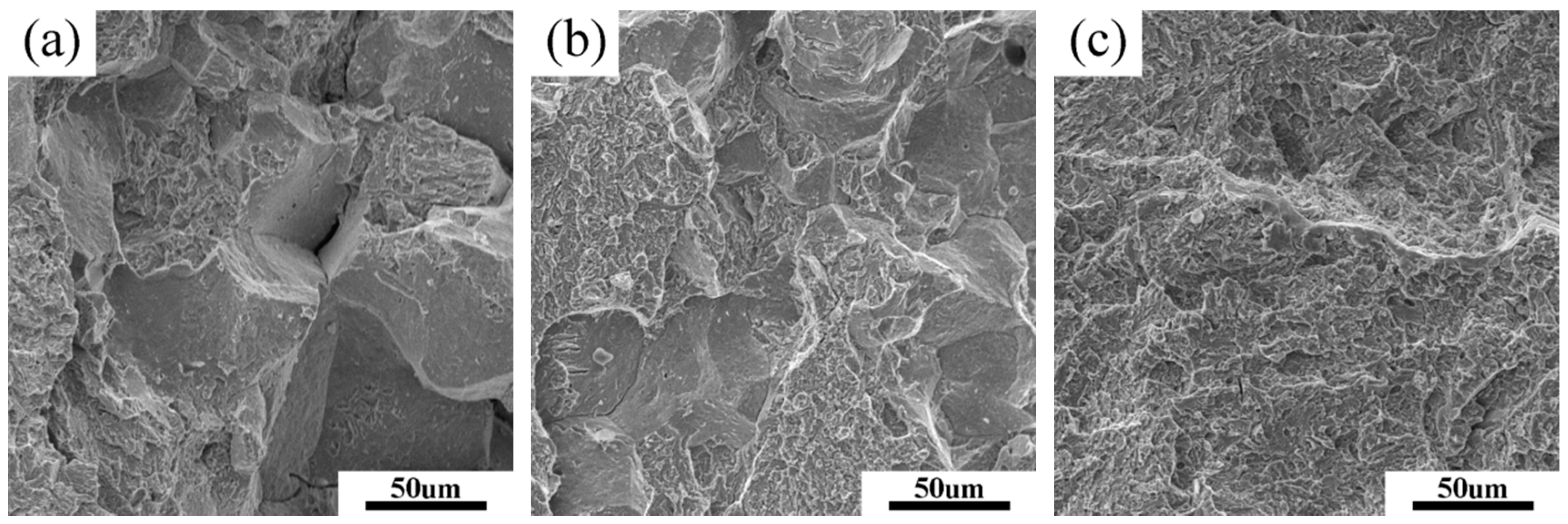

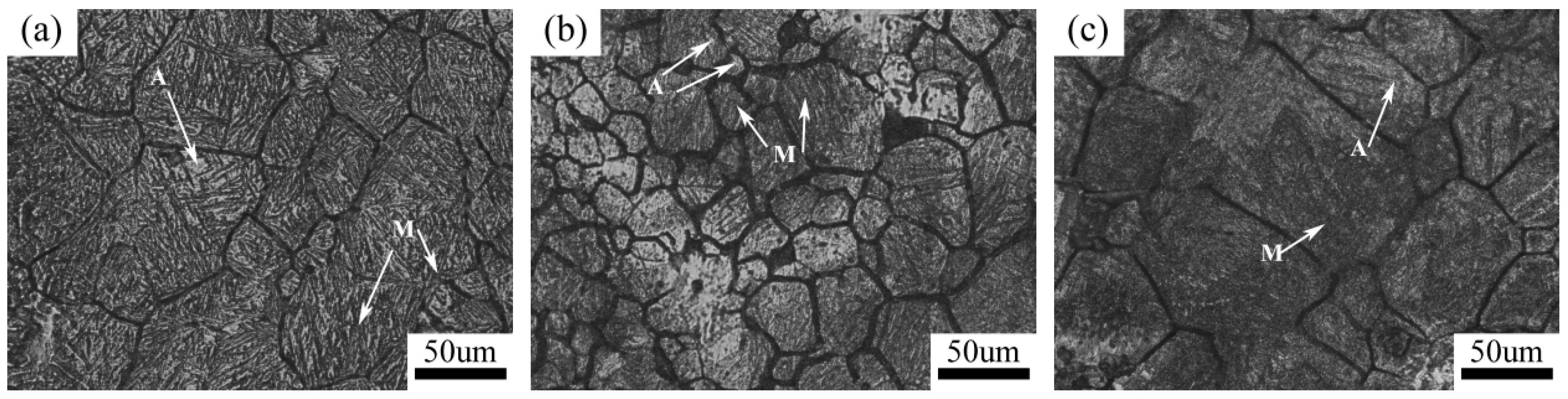

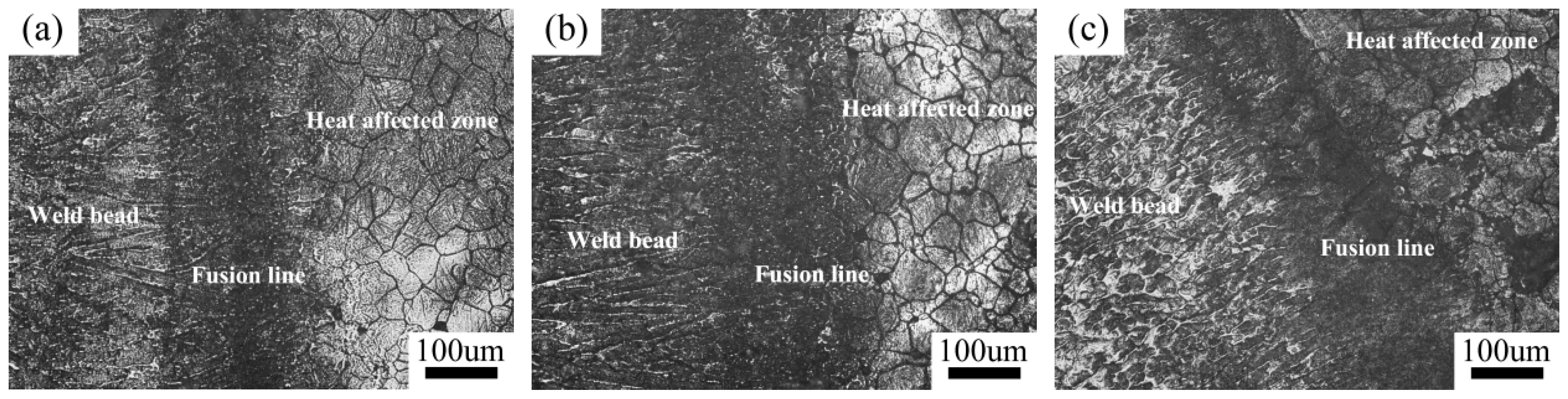

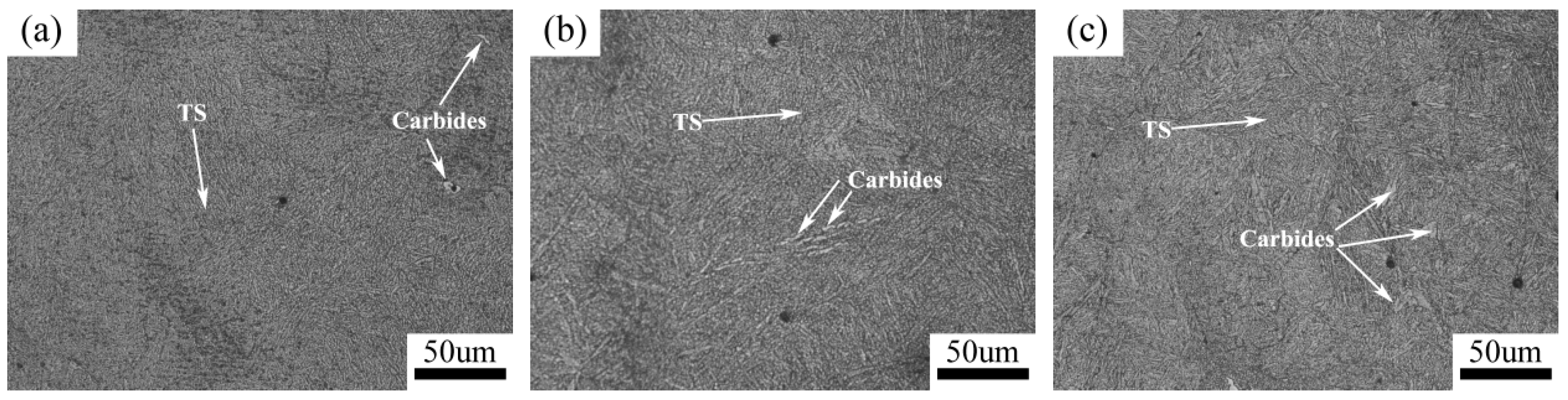

The influence of welding heat input on the microstructure and mechanical properties of 5Cr5MoV die steel was studied in order to improve the mechanical properties of the cold working die and extend its service life. Shielded metal arc welding (SMAW) method was used with different heat inputs in the range from 4.2 to 6.61 kJ/cm to repair the 5Cr5MoV die steel. Microhardness and tensile properties were performed to evaluate the repaired quality of the cold working die steel. The microhardness of the weld repaired zone gradually decreased from the weld to the tempering zone. The highest microhardness in the weld repaired zone was 863 HV, and finally, it decreased to about 300 HV. With the increase of heat input, the tensile strength of the weld and the heat affected zone increased; nevertheless, the tensile strength of the tempering zone increased first and then decreased. As a result, 6.6 kJ/cm is the best value of heat input judged from the microhardness distribution and the tensile properties. View Full-Text
Keywords: cold working die steel; repair welding; shielded metal arc welding process; tensile properties cold working die steel; repair welding; shielded metal arc welding process; tensile properties
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Liang, Y.; Liu, Y.; Song, Y.; Cui, W. Optimizing the Mechanical Properties in the Repair Zone of 5Cr5MoV by Controlling Welding Heat Input. Metals 2018, 8, 981.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
