Gold Extraction from Cyanidation Tailing Using Microwave Chlorination Roasting Method

Abstract

At present, gold mines are increasingly scarce in the world. The yield of cyanidation tailing (CT) of refractory gold ores with a grade of 10 g/T is huge; however, the effective capitalization of the cyanidation tailing is a significant problem in the gold industry. In this work, a new treatment method, a microwave-roasting process developed. The effect of roasting temperature, calcium chloride concentration, holding time and mineral size on the recovery of Au researched under conventional and microwave conditions. It found that, under the same processing conditions, the Au recovery in the microwave field is much higher than that of conventional conditions. The preliminary reinforcing role of the microwave discussed in the recovery of gold. This might be because of the microwave absorption ability of CaCl₂ is much better, heated quickly and the reactions intensified among CaCl₂, O_2, and H₂O. As a result, the extraction of gold in CT drastically increased in the microwave field, and the microwave roasting technology shows the characteristics of environmental protection in terms of low energy consumption and high efficiency.

1. Introduction

Gold is a kind of precious metal, and its ductility is the highest among the known metals. In modern life, gold is mainly used for international reserves, jewelry decoration, industrial, science, and technology application [1,2,3]. In some countries, gold is the standard for currency trading and used for making coins and jewelry. However, gold is a rare metal, it is not easy to exploit, and the rich gold mines decreasing day-by-day. Today, the cyanide residue of refractory gold ore with a grade of 10 g/T is huge, and it is a valuable secondary resource [4]. The conventional cyanidation process [5,6], thiourea method [7], mercury mixing method [8], and acid-base method [9] to treat the cyanide residue of refractory gold ore cannot meet the requirements of gold extraction so that the refractory gold deposits have not been effectively extracted and separated, thus causing serious waste of resources. According to the previous reports, the gold particles are very small, and hard to extract from cyanide residue of refractory gold ore [10,11,12]. In our previous work, the roasting method turned out to be an effective and easy way to treat with the cyanide residue [13,14]. However, the technological conditions, roasting temperature has to optimize, as the roasting temperature is high. At the same time, the microwave roasting technology has the characteristics of environmental protection with high efficiency.

The microwave is a kind of electromagnetic wave with a shorter wavelength. It has the advantages of low energy consumption, environmental protection, and cleanliness [15,16,17]. By transferring the energy required by the chemical reaction to the molecules and atoms through the dielectric loss in the mineral [15,17], forming temperature gradient, and then the chemical reaction of the interface promoted. Thus, the efficient separation and extraction of valuable elements achieved from the ores. In general, the chloride has an excellent absorbing property with preferred heating, which reflects the selective heating and creates good conditions for the conversion and decomposition of chlorine/HCl to strengthen the chlorination roasting process.

In this study, a new treatment method, microwave-roasting process, was developed. During the roasting process, the chlorination reagent, CaCl₂ reacts with mineral components as well as the O₂ and H₂O in the atmosphere [13]. As a result, Cl₂ and HCl gas will generate/release, and chlorinate the gold. Due to the feature of low boiling point and high volatile of metal chlorides, the gold chloride volatilizes from the cyanide residue.

Based on the unique advantages of internal heating and selective heating of microwave chlorination [15,16], the microwave roasting of cyanidation tailings was carried out. Under the condition of the microwave, the gold inclusions destroyed, and the gold can be transforming into chloride. The effect of roasting temperature, calcium chloride adding amount, holding time, mineral size on the recovery of Au studied with conventional muffle furnace and microwave furnace, and the reinforcing role of the microwave on the recovery of the microwave discussed preliminarily.

2. Materials and Methods

2.1. Materials

The cyanidation tailing obtained from Yantai city, China. Its main elements analyzed by X Ray Fluorescence (XRF) as shown in

Table 1. Elemental composition of cyanidation tailings (mass fraction, %).

Au (g/t)	Na	O	Fe	Si	Al	C	Mg	Ca
10	3.24	44.79	22.86	12.08	5.45	3.11	1.12	1.08

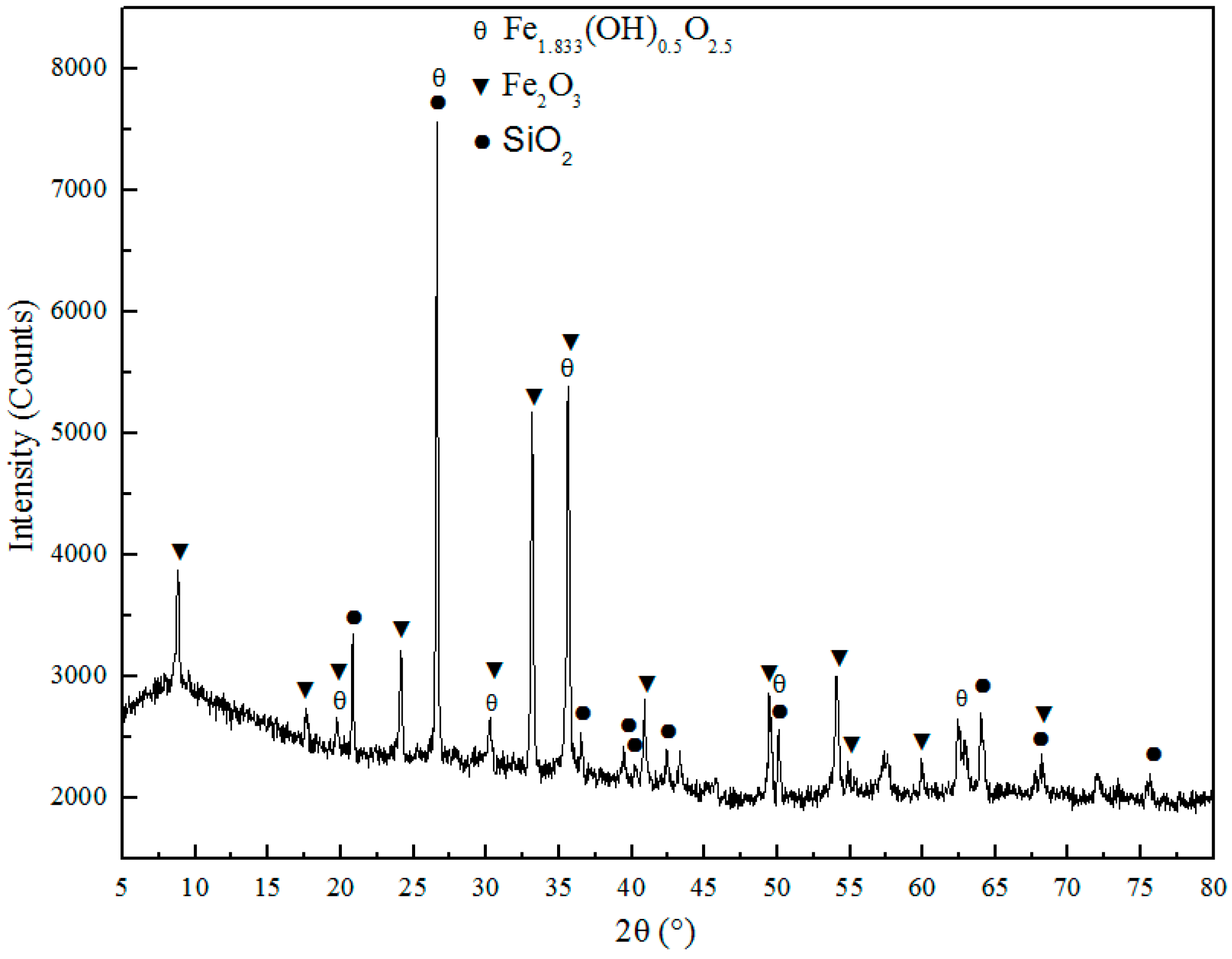

. The content of valuable element Au in CT detected by fire assaying is 10 g/T, and the fire assaying considered as the most reliable analytical method in metallurgy at home and abroad [18]. In addition, the cyanide content in CT is 6 g/T. The phase composition of CT were detected by X Ray Diffraction (XRD) and displayed in Figure 1, and it can be found that the main components in CT are Fe₂O₃, SiO_2, and Fe_1.833(OH)_0.5O_2.5. The microstructure of CT observed with Scanning Electron Microscope (SEM) and the element distribution analyzed with Energy Dispersive Spectrometer (EDS), as shown in Figure 2.

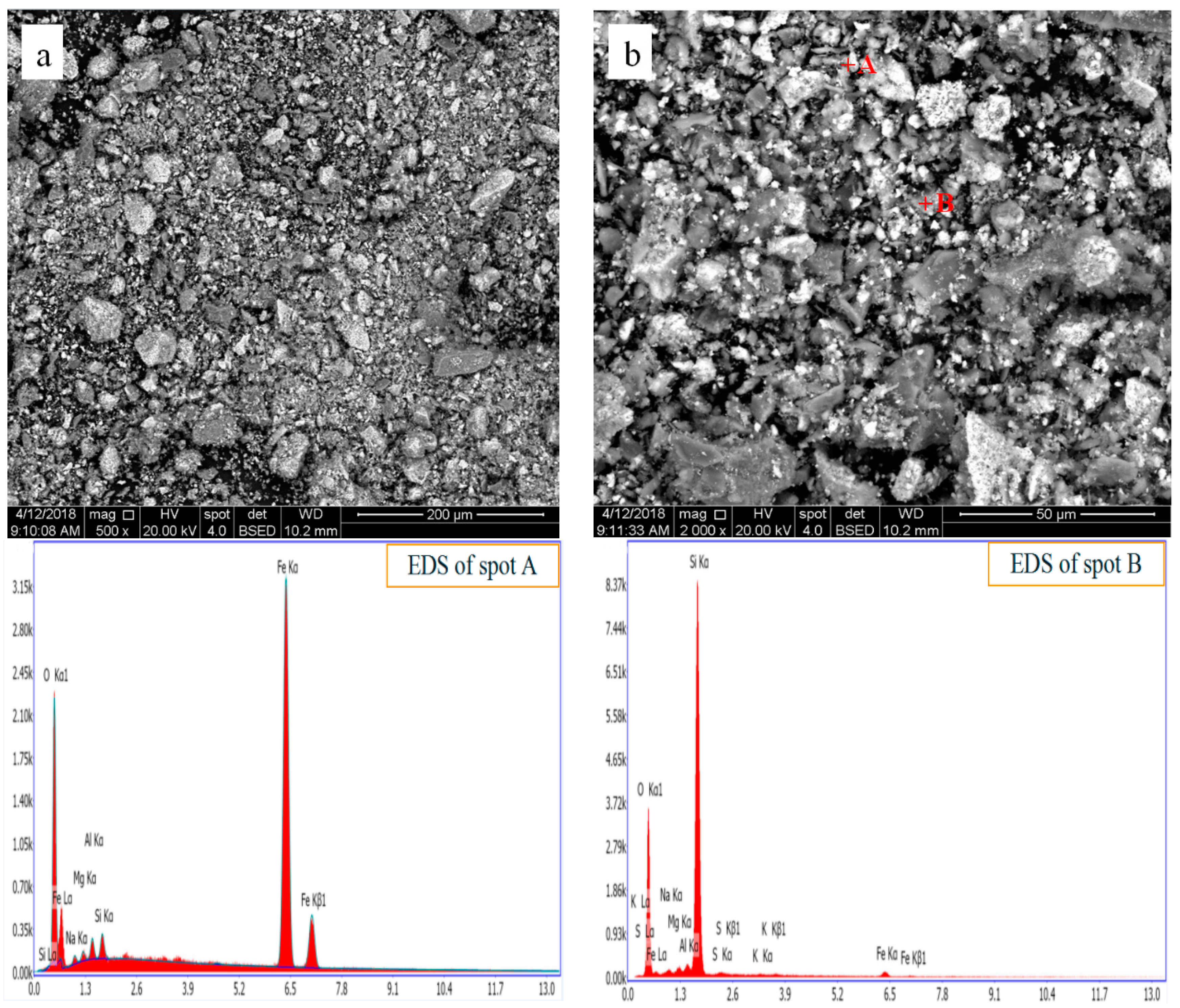

It is found that the CT consists of regular morphological particles with the size of 50 μm and amorphous powders with the size less than 30 μm. From the EDS spectra, the gold detected due to its too low content. Besides, the type of gold in CT is the main inclusive gold; maybe, it is another reason for the absence of Au from the EDS spectra.

2.2. Experimental Process

Before roasting experiments, the mixture of powder CT and the chlorinating agent was ball milled using a pelletizer with 1 to 2 cm diameter and dried in an oven at 120 °C for 3 h.

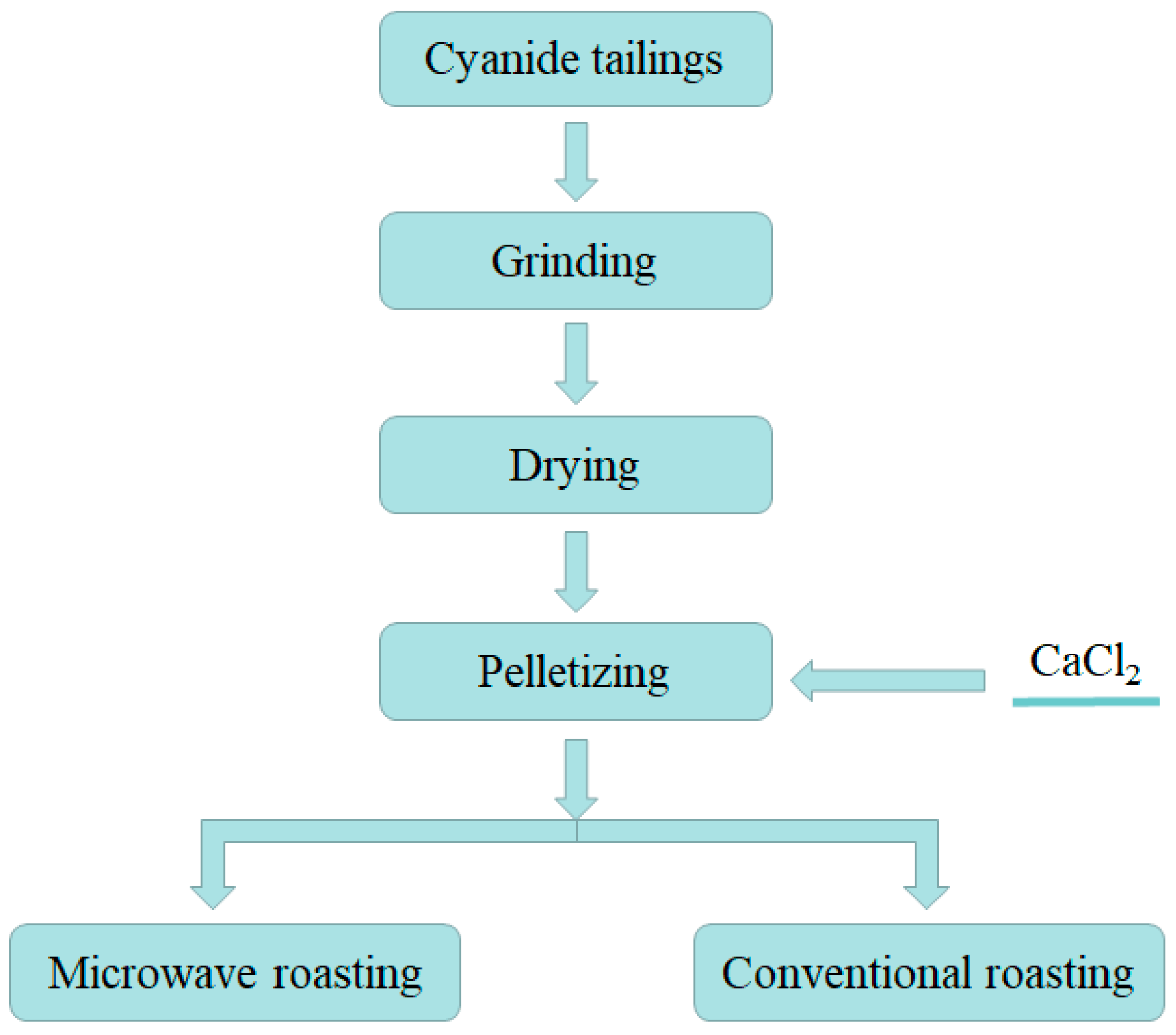

In order to explore the best experimental conditions, the CT roasted in the microwave reactor and the conventional muffle furnace, respectively. The process of roasting experiments is shown in Figure 3. The effect of reaction temperature (700 °C, 750 °C, 800 °C, 850 °C, 900 °C, 950 °C), CaCl₂ concentration (1%, 3%, 5%, 7%, 9%, 11%), holding time (15 min, 20 min, 25 min, 30 min, 35 min, 40 min), and particle size (200 mesh, 250 mesh, 300 mesh, 350 mesh, 400 mesh, 450 mesh) on the recovery of the Au was investigated. The recovery of Au was calculated using below formula (1):

$${\eta }_{Au}=\frac{m_1\times w_1-m_2\times w_2}{m_1\times w_1}\times 100\%$$

(1)

where, m₁ is the weight of unroasted CT (g); m₂ is the weight of roasted CT (g); w₁ is the content of Au in unroasted CT (g/T); w₂ is the content of Au in roasted CT (g/T).

After roasting, the sample roasted in the conventional muffle furnace was ground, and that roasted in the microwave field was polished with a metallographic polishing machine (P-1, Laizhou Weiyi Experiment Instrument Ltd., Laizhou, China). The microstructure and element distribution of the samples ground and polished contrasted with SEM and EDS, and their phase composition studied with XRD.

2.3. Technical Testing and Experimental Equipment

The equipment used in this experiment is a microwave box furnace (HAMiLab-M1500, Key Laboratory of Unconventional Metallurgy of the Ministry of Education, Kunming, China) and a conventional muffle furnace (YFX9/13Q-YC, Beijing Zhongyi Youxin Technology Ltd., Beijing, China). Under different equipment, the power controlled at 1400 W, and the cyanide tailings are treated. Under the control of different process parameters, the effect of gold extraction compared. At the same time, dynamic experiments of cyanide tailings carried out by microwave tube furnace to analyze its process mechanism.

The SEM with energy-dispersive X-ray spectroscopy (EDS-GENESIS, Mahwah, NJ, USA) measurements of Cyanide tailings performed to understand the structure, morphology and chemical composition. SEM-EDS at the voltage of 20 kV, multiples 2000, take out angle 35.9, activation time 29.3 s. The XRD patterns have recorded a pattern in the 2θ range of 5° to 80° at a scan rate of 4°·min⁻¹.

3. Results and Discussion

3.1. Effect of Roasting Temperature on Au Recovery

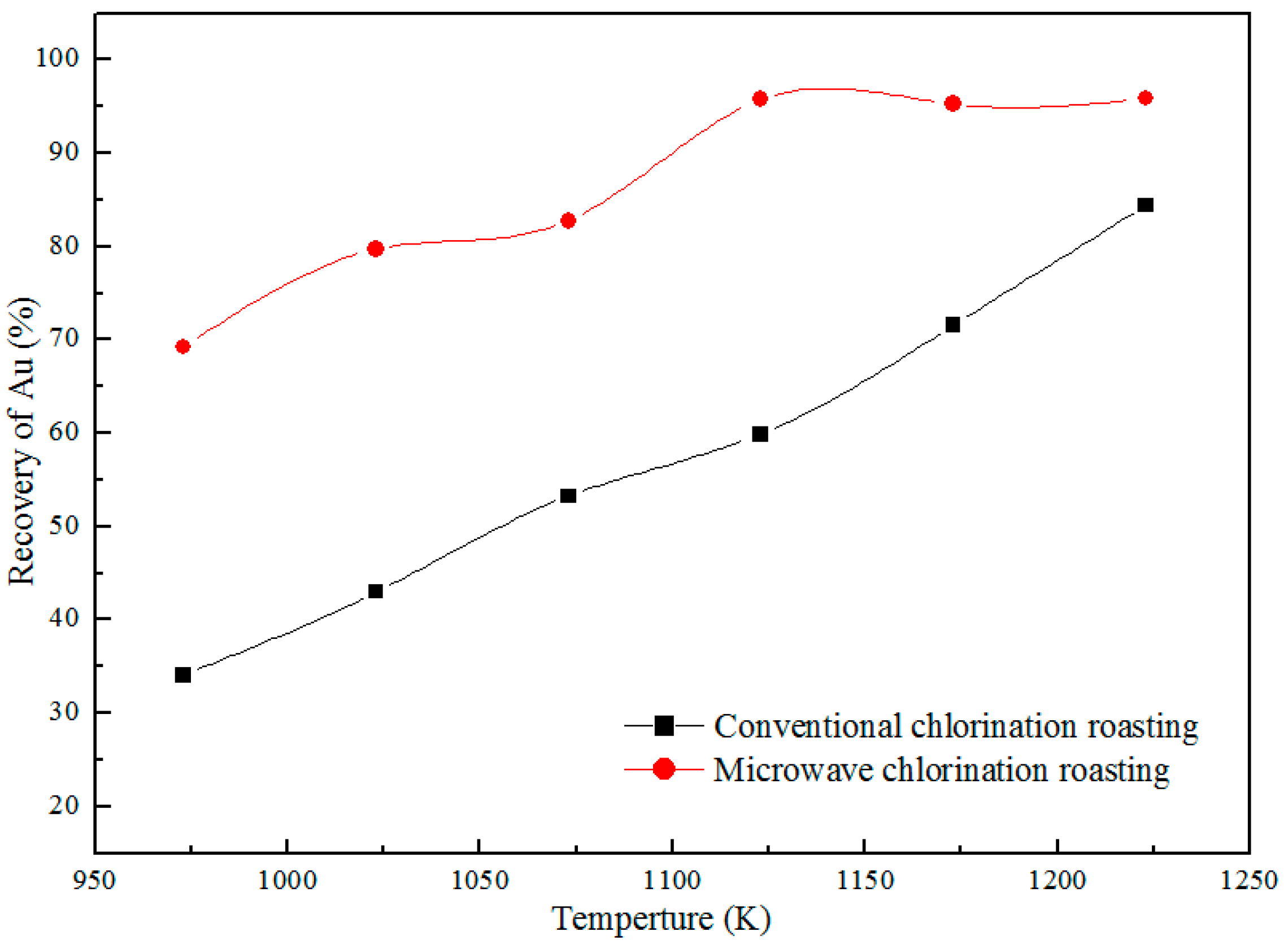

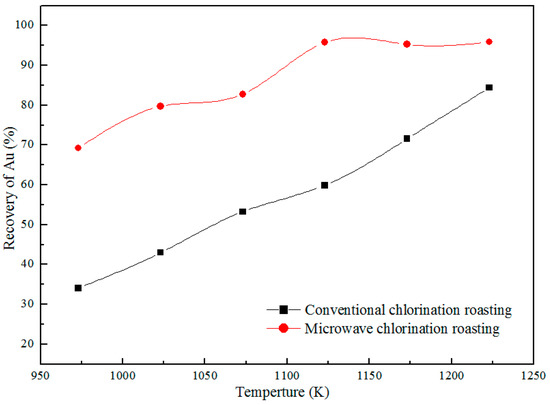

Under the optimization conditions during conventional roasting as follows [13]: calcium chloride adding amount 5%, holding time of 30 min, and CT granularity of 300 mesh, the effects of roasting temperature on the recovery of Au in the microwave field were studied, and the results are displayed in Figure 4. Apparently, the Au recovery of CT during microwave roasting rises sharply from 69.1% to 95.7% with the increase of roasting temperature from 973 K to 1123 K. The recovery of Au during conventional roasting is only 59.9%, which is much lower than that (95.7%) of microwave roasting at the same conditions. Notably, the Au recovery of CT roasted using conventional roasting at 1223 K is much lower than that (95.7%) of microwave roasting at 1123 K, and the microwave roasting is more efficient. Hence, the roasting temperature of 1123 K is chosen as a constant parameter in the subsequent experiments.

3.2. Effect of Calcium Chloride Concentration on Au Recovery

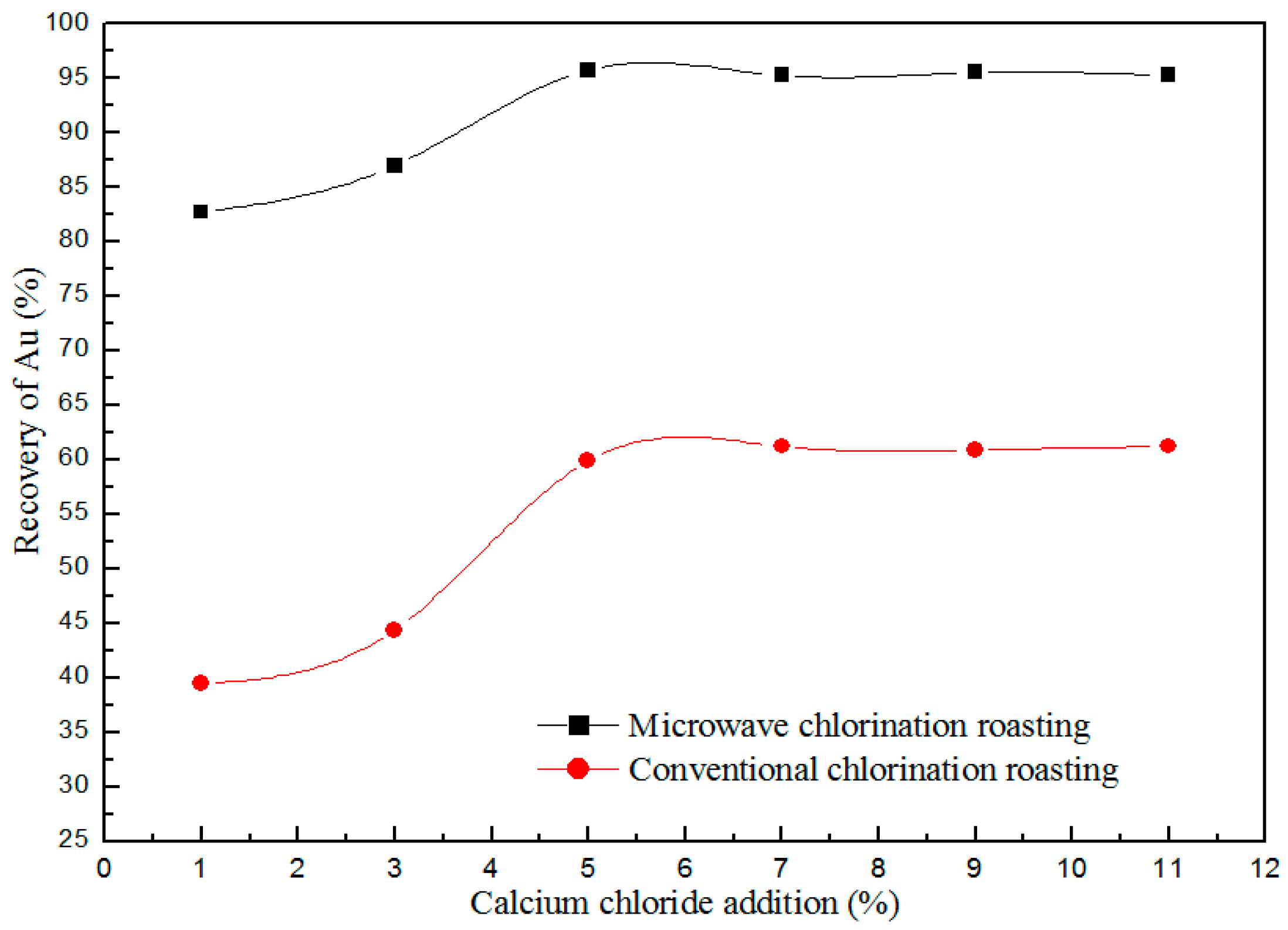

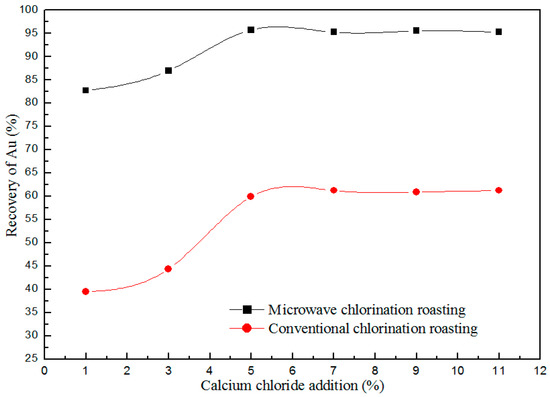

The effects of calcium chloride concentration on Au recovery studied in the experimental conditions as follows: roasting temperature of 1123 K, the reaction time of 30 min and CT granularity of 300 mesh, as shown in the Figure 5. As seen from Figure 5, the recovery of Au increases with increase in calcium chloride concentration from 1% to 5%. When the concentration of calcium chloride is 5%, the recovery of gold is 95.7%. The content of Au in CT is only 10 g/T, so the demand for HCl and Cl₂ decomposed shown as in equations (2) and (3) is limited. Thereby, the recovery of Au increases will not continue to increase with the increase of calcium chloride concentration from 5% to 11%. The calcium chloride concentration of 5% is chosen as a constant parameter in the subsequent experiments.

CaCl₂ + SiO₂ + H₂O (g) = CaSiO₃ + 2HCl (g)

(2)

CaCl₂ + 1/2O₂ (g) = CaO + Cl₂ (g)

(3)

Based on the selective heating of microwave [15,16], the dielectric constant of calcium chloride is large, which will become a hot spot (the point of high temperature), promote the (2) and (3) of the equation, so the chlorination process of gold increases.

3.3. Effect of Holding Time on Au Recovery

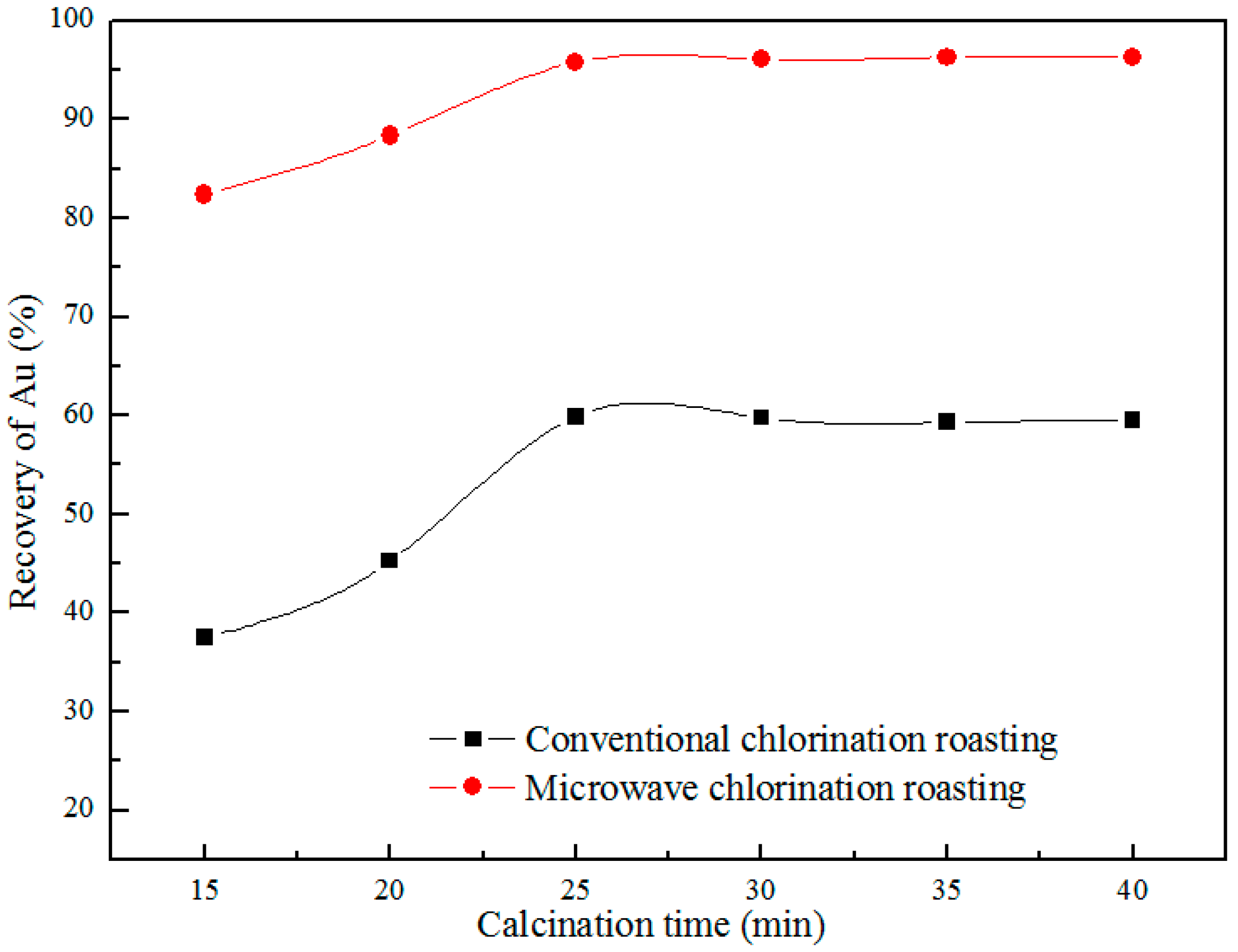

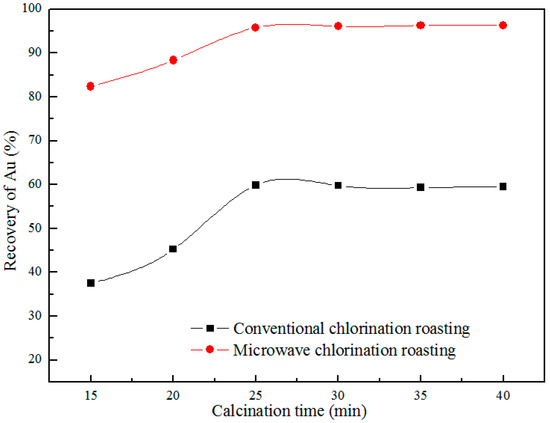

Under the conditions as follows: calcium chloride concentration amount 5%, roasting temperature of 1123 K and CT granularity of 300 mesh, the effects of holding time on the recovery of Au were investigated, and the results are shown in the Figure 6. It found that the recovery of Au reaches a maximum of 96.3% within 35 min during microwave roasting. It is worth to mention that the recovery of Au increases with the increasing of holding time in the conventional roasting. To reach higher level of Au recovery in the conventional roasting long roasting time needed. Therefore, the microwave roasting has the characteristics of high speed and high efficiency, and it shows the advantage of energy conservation. The holding time of 35 min is chosen as a constant parameter in the subsequent experiments.

3.4. Effect of Mineral Size on Au Recovery

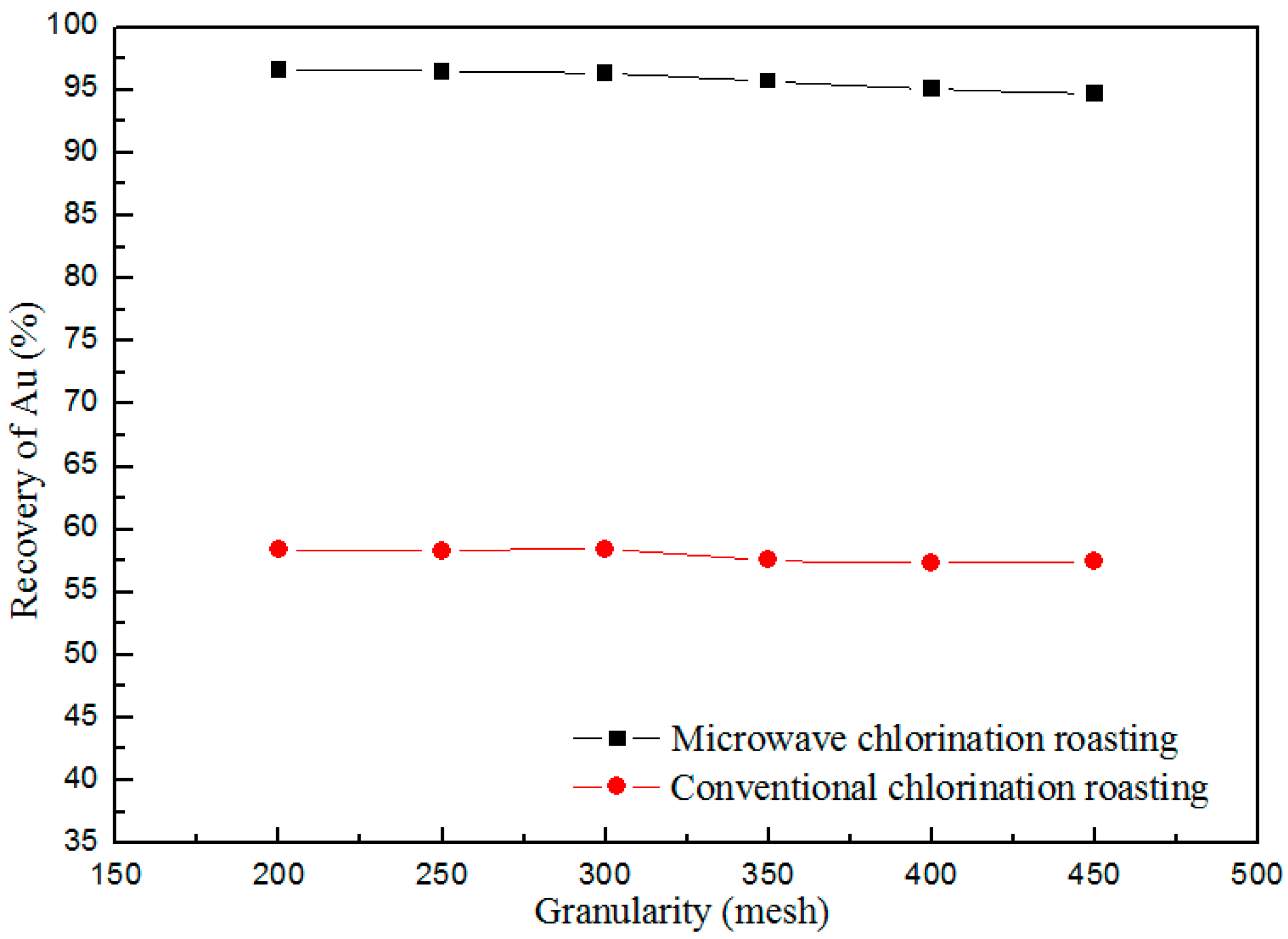

The mineral size depends on the grinding process. If the mineral size is smaller, the cost of grinding process will be higher. Moreover, the recovery of Au related to the mineral (CT) size. Therefore, it is necessary to find the relationship between the recovery of Au and mineral size. The roasting experiments about the mineral size carried out as the following conditions: calcium chloride concentration 5%, roasting temperature of 1123 K, the holding time of 35 min, and the results shown in Figure 7. The recovery of Au reduces slightly with decrease in mineral size, and the recovery of Au is 96.6% when the size of CT is 200 mesh. The permeability of CT with a smaller mineral size is worse, so the conversion process as shown in equations (2) and (3) suppressed, as well as the chlorination roasting process of Au. Therefore, the mineral size of 200 mesh is better for the chlorination roasting process.

3.5. Analysis of Techno-Mineralogical Properties

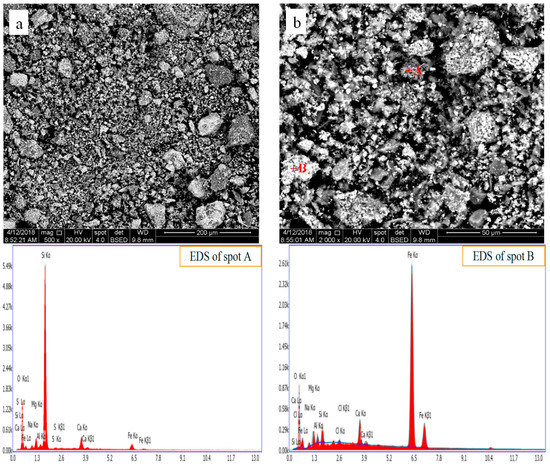

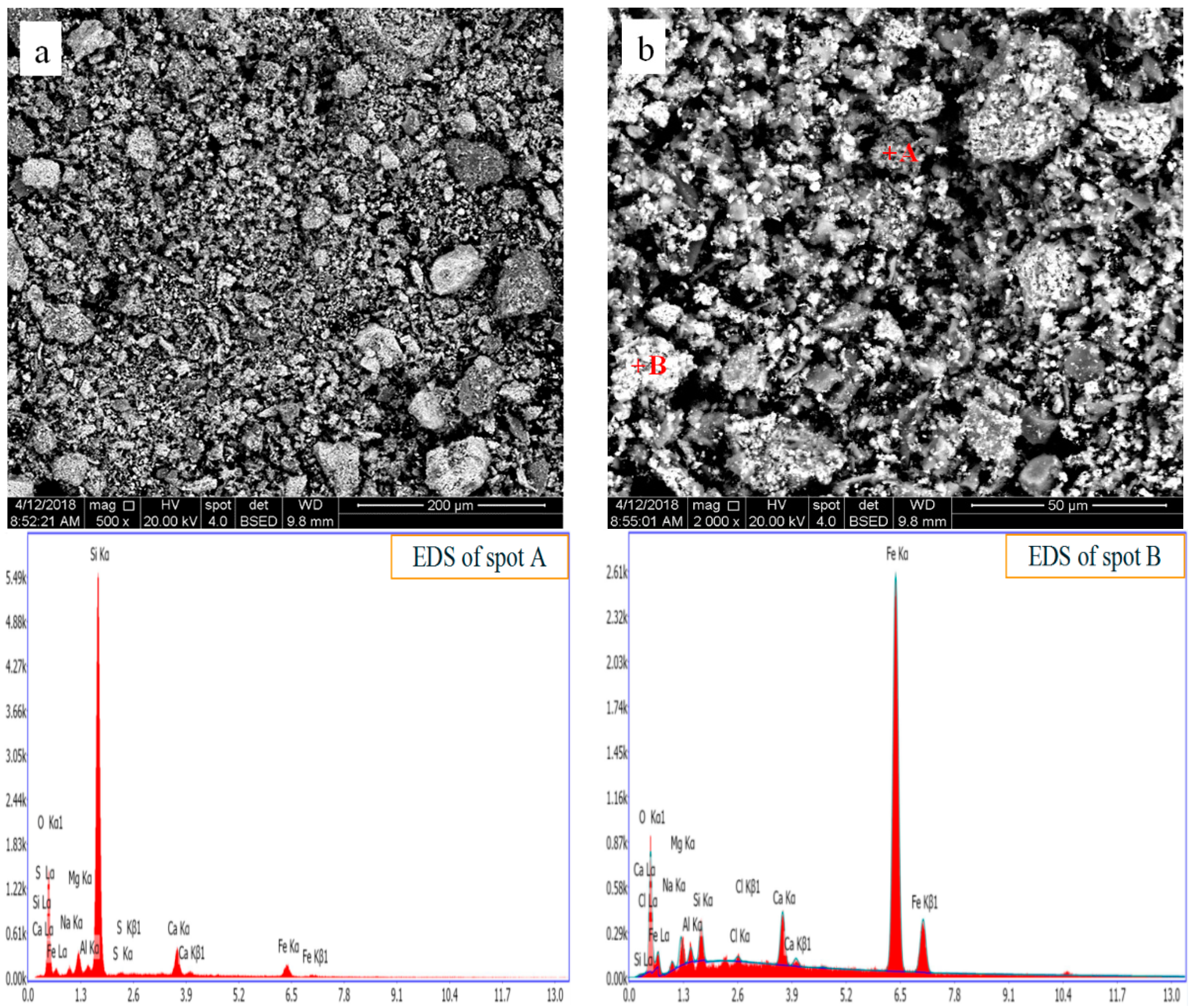

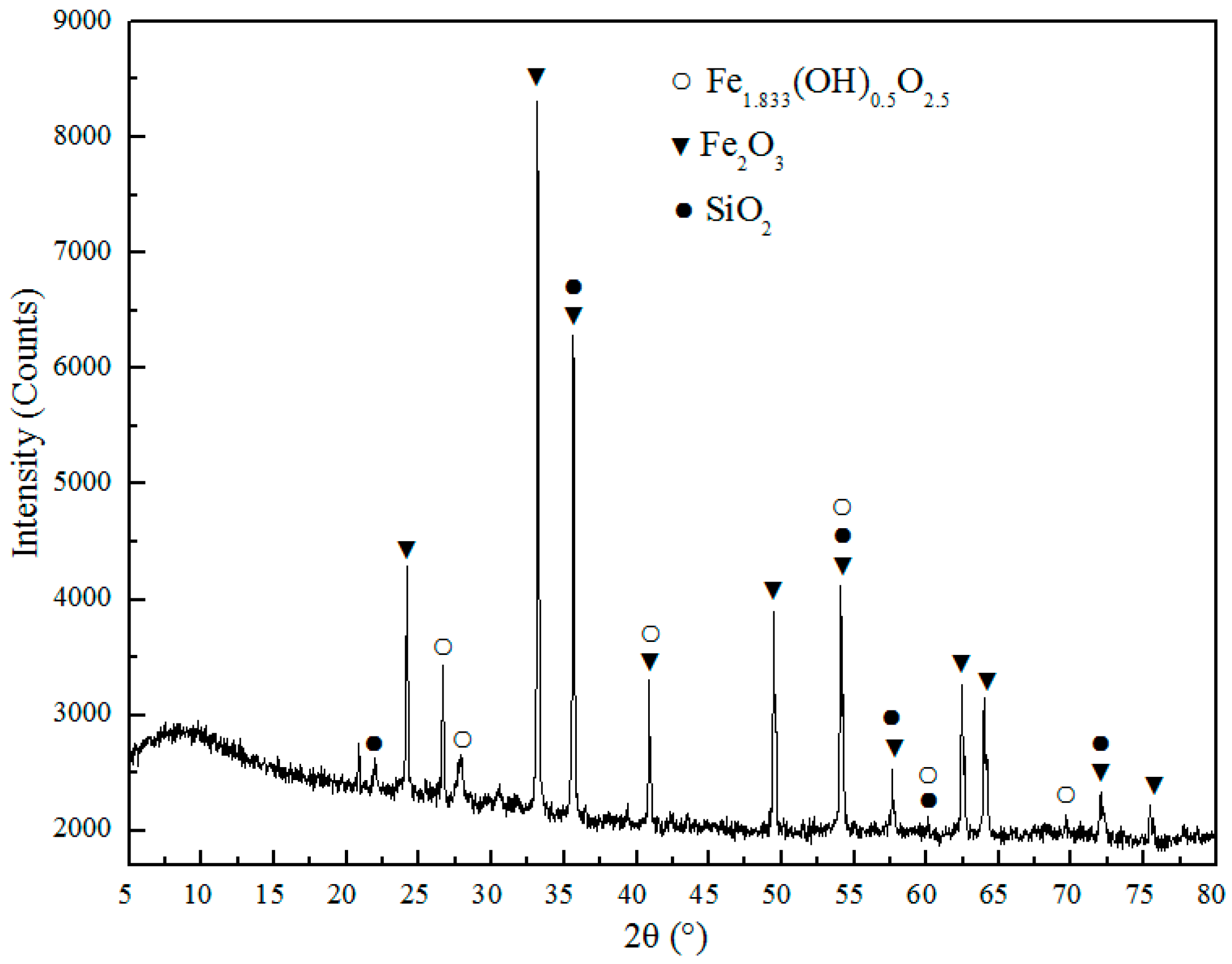

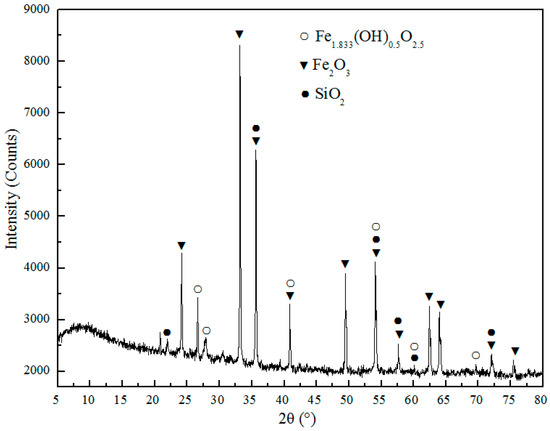

After conventional roasting, the sample was ground, and the microstructure and element distribution was analyzed with SEM and EDS, as displayed in Figure 8. It seen that the microstructures of unroasted CT (see Figure 2.) and CT roasted (as shown in the Figure 8.) with conventional roasting method do not show a significant difference. The elements of Ca and Cl in the white particles is rich (Figure 8b), which is due to a part of CaCl₂ did not decompose and transform as shown in the equations (2) and (3). The phase composition of CT roasted with conventional roasting method was detected by XRD, as displayed in the Figure 9, and it can be seen that the main components roasted in CT are Fe₂O₃, SiO_2, and Fe_1.833(OH)_0.5O_2.5. The main phases of CT before and after roasting are same, and CaCl₂ not able to detect due to its low content in the roasted CT.

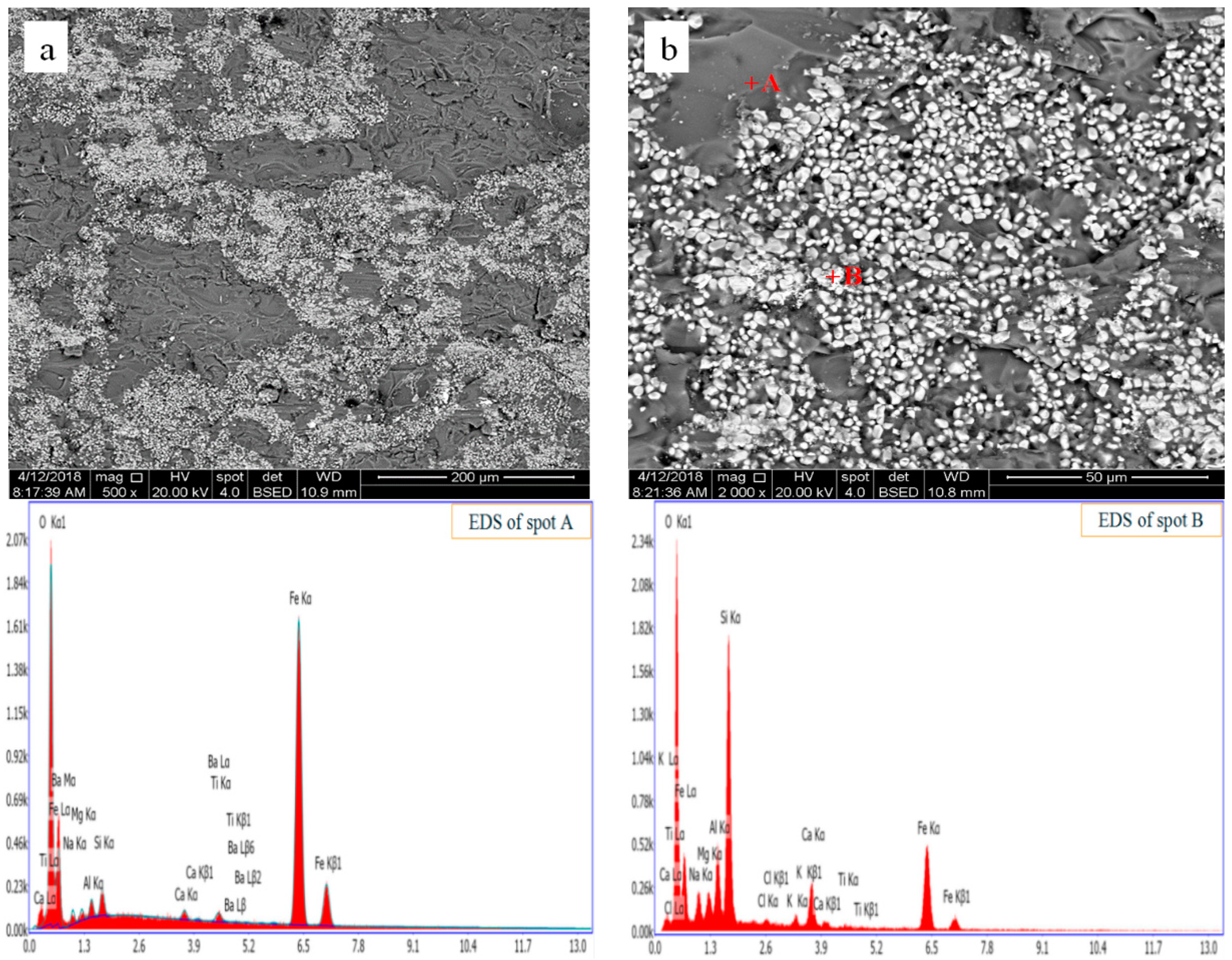

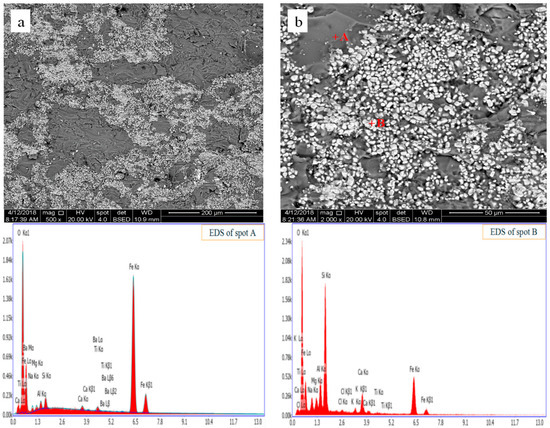

Figure 10 shows the microstructure and element distribution of CT roasted in the microwave field, and it is seen that the mineral particle size is much smaller than that of conventional roasting method (as shown in Figure 8).

The components of CT are very complex, and their dielectric properties are quite different. The temperature of the component with a high dielectric constant [15,19], such as CaCl₂ will rise fast in the microwave field, while that of the component with a low dielectric constant will rise tardy. As a result, a huge temperature gradient generated, and the CT will disintegrate. The dissociation on a micro level will reduce the reaction resistance between Au and Cl₂/HCl, which might be a reason for the superior recovery of Au roasted in the microwave field.

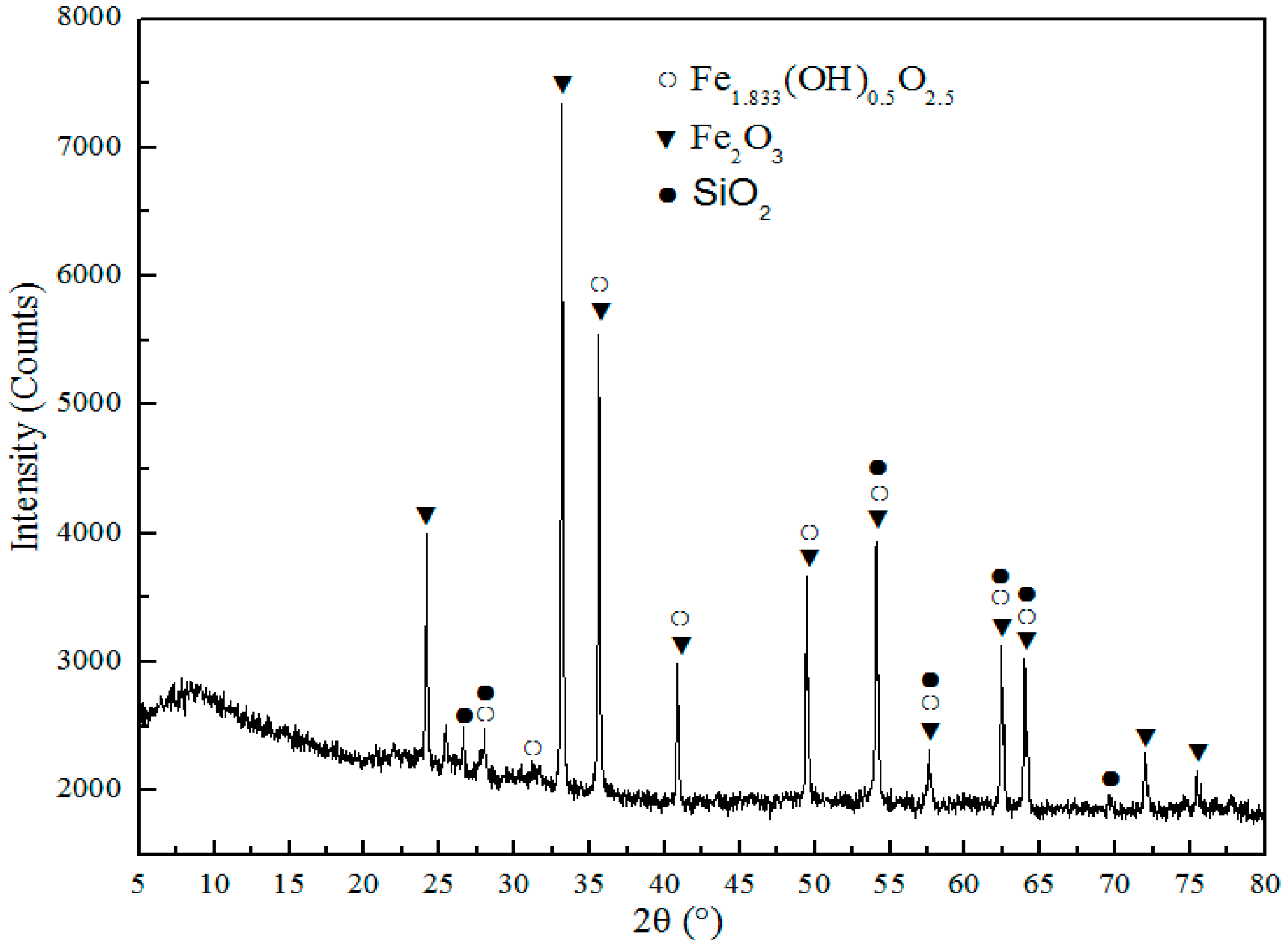

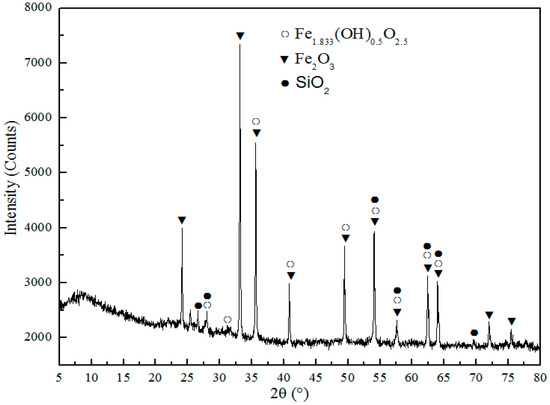

The phase composition of CT roasted in the microwave field detected by XRD, as displayed in Figure 11. It is seen that the main components of CT roasted with the conventional roasting method and microwave method are the same, thereby, the microwave roasting did not alert the main components of roasted CT compare to that of CT roasted with the conventional method.

4. Conclusions

(1) The recovery of Au is as high as 96.6% in the microwave field under optimal process parameters as follows: roasting temperature 1123 K, holding time 35 min, calcium chloride adding amount 5%, mineral size 200 mesh. The microwave roasting technology shows improved environmental protection characteristics in terms of energy consumption and efficiency.

(2) Under the same conditions, the recovery rate of the microwave chlorination of gold is higher than that of the conventional chlorination. Especially, the microwave roasting temperature is much lower than that of the conventional method, and microwave calcination roasting shows the advantage of energy savings.

(3) The Microwave Chlorination process, harness the feature of low boiling point and high volatile of metal chlorides. It demonstrates that CaCl₂, as a chlorination reagent, effectively break small particles and release gold.

(4) The diameter of the ore particles changed little after the conventional calcination. The different components show large electromagnetic properties difference in the microwave field, so the thermal stress between the different mineral phases generates easily. The dissociation reduces the activation energy between Au and Cl₂/HCl in micro level, as a result the recovery of Au roasted in the microwave field was improved.
