Next Article in Journal
The Corrosion Behavior of Ti-Based Metallic Glass Matrix Composites in the H2SO4 Solution
Next Article in Special Issue
Synthesis of Pure NiTiSn by Mechanical Alloying: An Investigation of the Optimal Experimental Conditions Supported by First Principles Calculations
Previous Article in Journal
FeS Corrosion Products Formation and Hydrogen Uptake in a Sour Environment for Quenched & Tempered Steel
Article

Synthesis and Thermoelectric Properties of Ni-Doped ZrCoSb Half-Heusler Compounds

School of Materials Science and Engineering, University of Jinan, Jinan 250022, China
*
Author to whom correspondence should be addressed.
Metals 2018, 8(1), 61; https://doi.org/10.3390/met8010061
Received: 28 December 2017 / Revised: 11 January 2018 / Accepted: 11 January 2018 / Published: 17 January 2018
(This article belongs to the Special Issue Heusler Compounds)

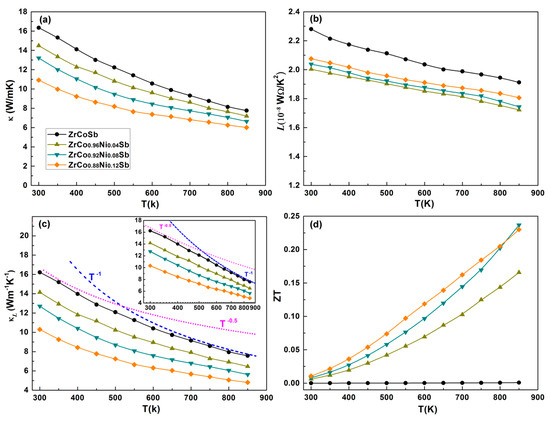

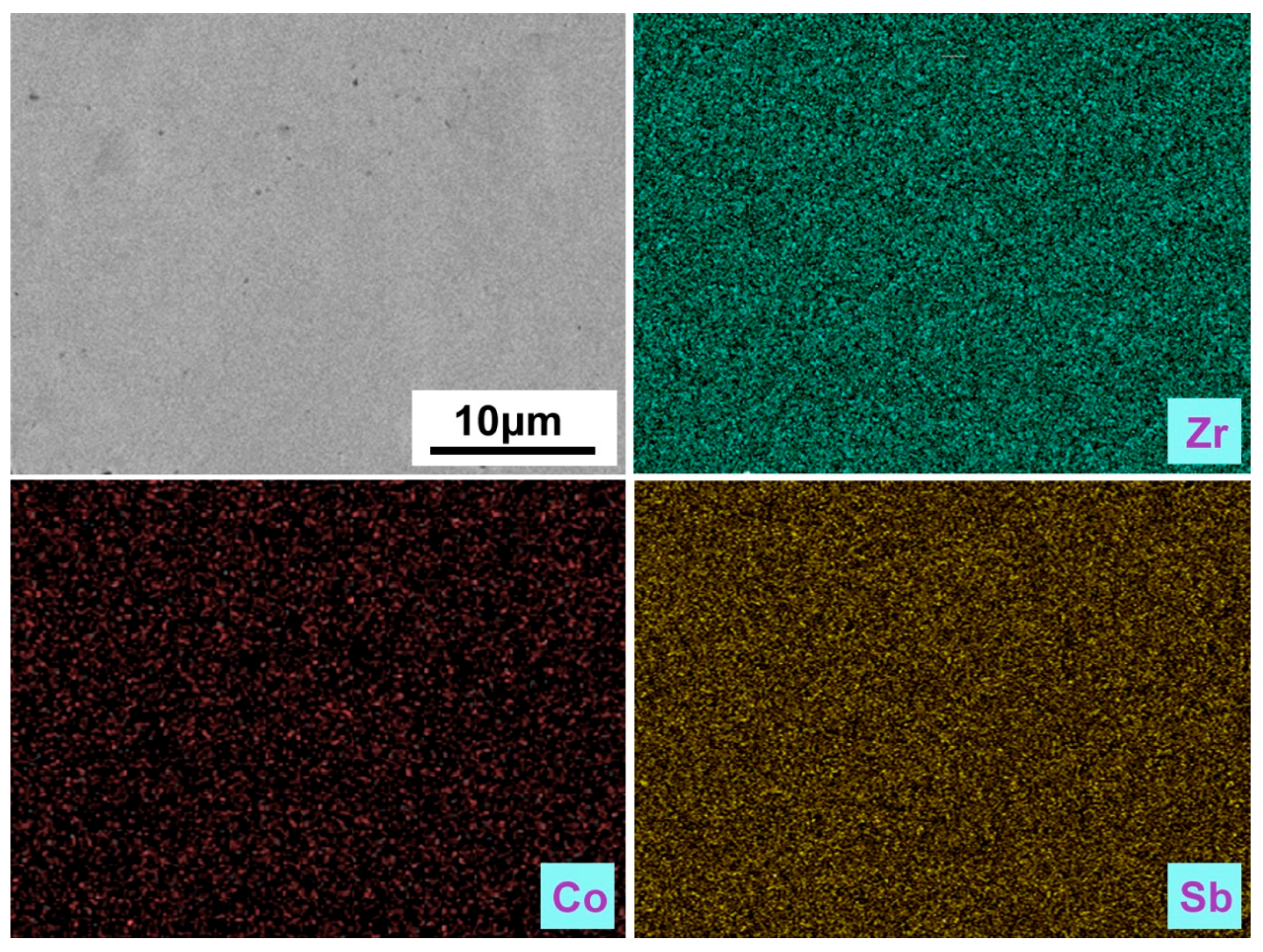

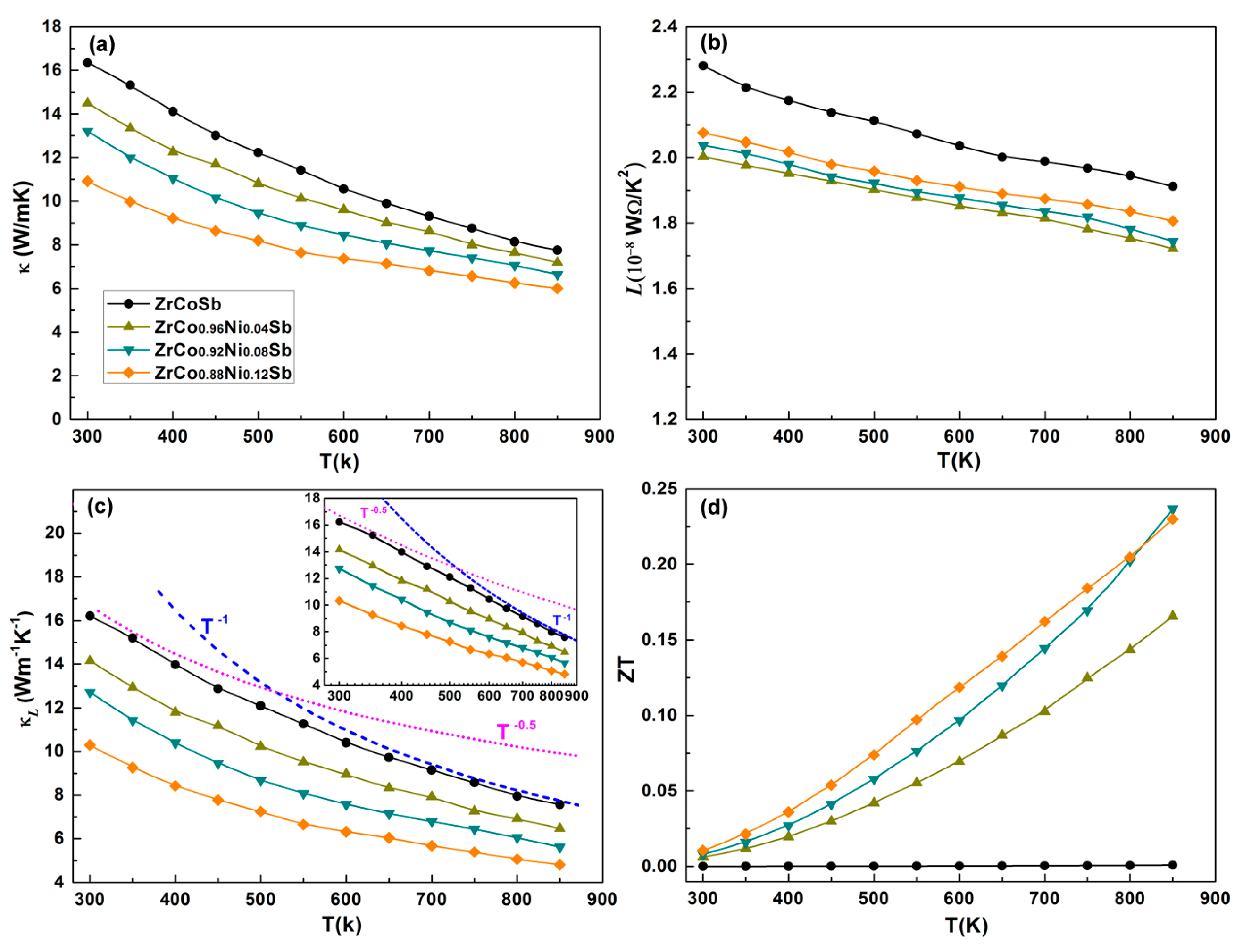

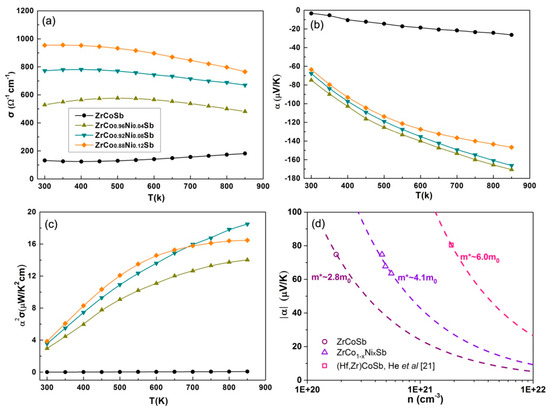

The Ni-doped ZrCo1−xNixSb half-Heusler compounds were prepared by arc-melting and spark plasma sintering technology. X-ray diffraction analysis results showed that all samples were crystallized in a half-Heusler phase. Thermoelectric properties of ZrCo1−xNixSb compounds were measured from room temperature to 850 K. The electrical conductivity and the absolute value of Seebeck coefficient increased with the Ni-doping content increasing due to the Ni substitution at Co. sites. The lattice thermal conductivity of ZrCo1−xNixSb samples was depressed dramatically because of the acoustic phonon scattering and point defect scattering. The figure of merit of ZrCo1−xNixSb compounds was improved due to the decreased thermal conductivity and improved power factor. The maximum ZT value of 0.24 was achieved for ZrCo0.92Ni0.08Sb sample at 850 K. View Full-Text
Keywords: half-Heusler compound; thermoelectric property; ZrCoSb; Ni-doping half-Heusler compound; thermoelectric property; ZrCoSb; Ni-doping
Show Figures

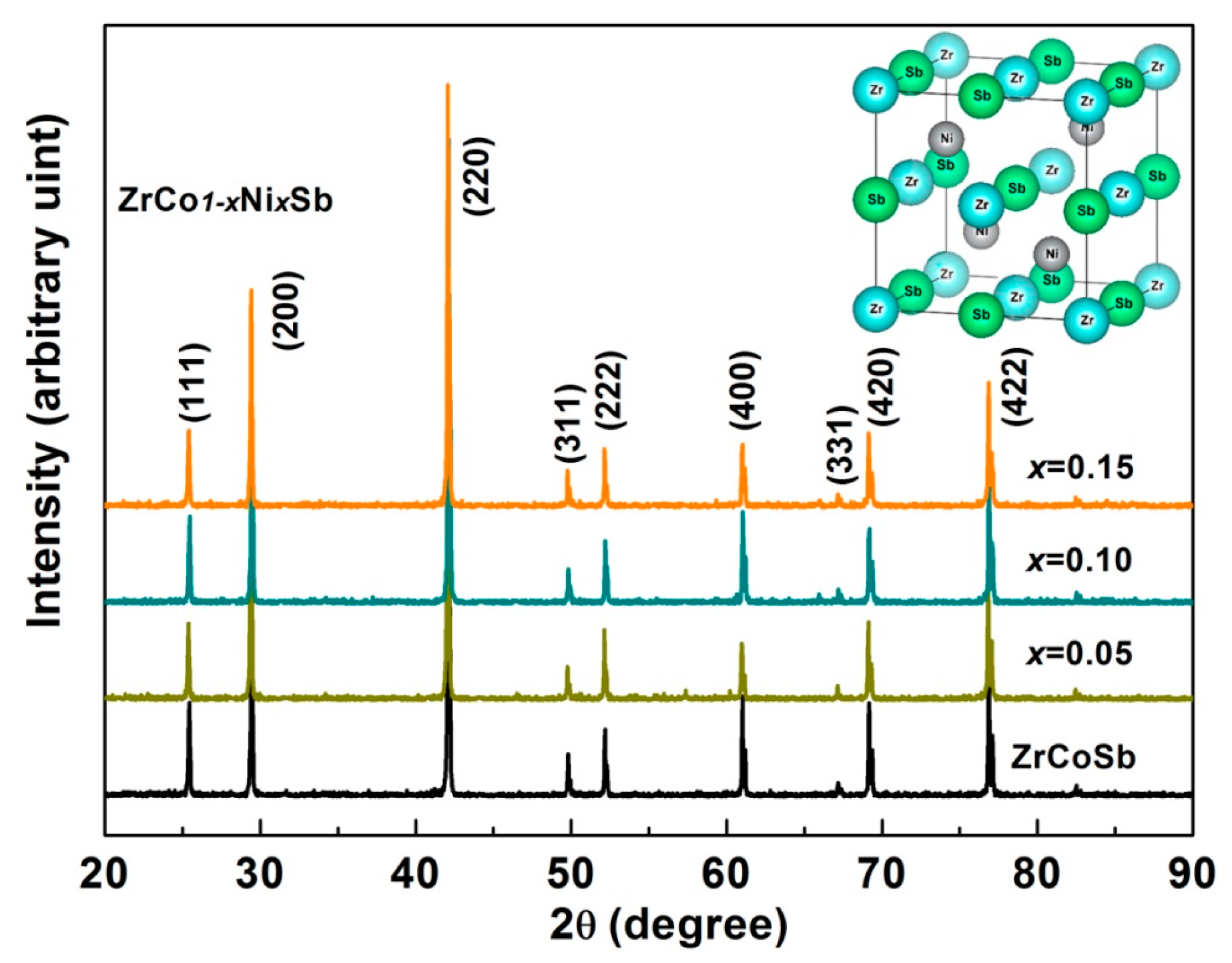

Figure 1

MDPI and ACS Style

Zhao, D.; Wang, L.; Bo, L.; Wu, D. Synthesis and Thermoelectric Properties of Ni-Doped ZrCoSb Half-Heusler Compounds. Metals 2018, 8, 61. https://doi.org/10.3390/met8010061

AMA Style

Zhao D, Wang L, Bo L, Wu D. Synthesis and Thermoelectric Properties of Ni-Doped ZrCoSb Half-Heusler Compounds. Metals. 2018; 8(1):61. https://doi.org/10.3390/met8010061

Chicago/Turabian Style

Zhao, Degang, Lin Wang, Lin Bo, and Di Wu. 2018. "Synthesis and Thermoelectric Properties of Ni-Doped ZrCoSb Half-Heusler Compounds" Metals 8, no. 1: 61. https://doi.org/10.3390/met8010061

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
