Next Article in Journal
Optimization of Copper Removal from Aqueous Solutions Using Emulsion Liquid Membranes with Benzoylacetone as a Carrier
Previous Article in Journal
Evaluation of Methods for Estimation of Cyclic Stress-Strain Parameters from Monotonic Properties of Steels
Article Menu
Issue 1 (January) cover image

Export Article

Open AccessFeature PaperArticle
Metals 2017, 7(1), 18;

The Al Effects of Co-Free and V-Containing High-Entropy Alloys

State Key Laboratory for Advanced Metals and Materials, University of Science and Technology Beijing, Beijing 100083, China
State Key Laboratory for Advanced Metallurgy, University of Science and Technology Beijing, Beijing 100083, China
College of Mechanical Engineering, Qinghai University, Xining 810016, China
State Key Laboratory of Nuclear Physics and Technology, Center for Applied Physics and Technology, Peking University, Beijing 100871, China
Authors to whom correspondence should be addressed.
Academic Editor: Vincent Fournée
Received: 19 December 2016 / Revised: 27 December 2016 / Accepted: 5 January 2017 / Published: 10 January 2017
Full-Text   |   PDF [4329 KB, uploaded 10 January 2017]   |

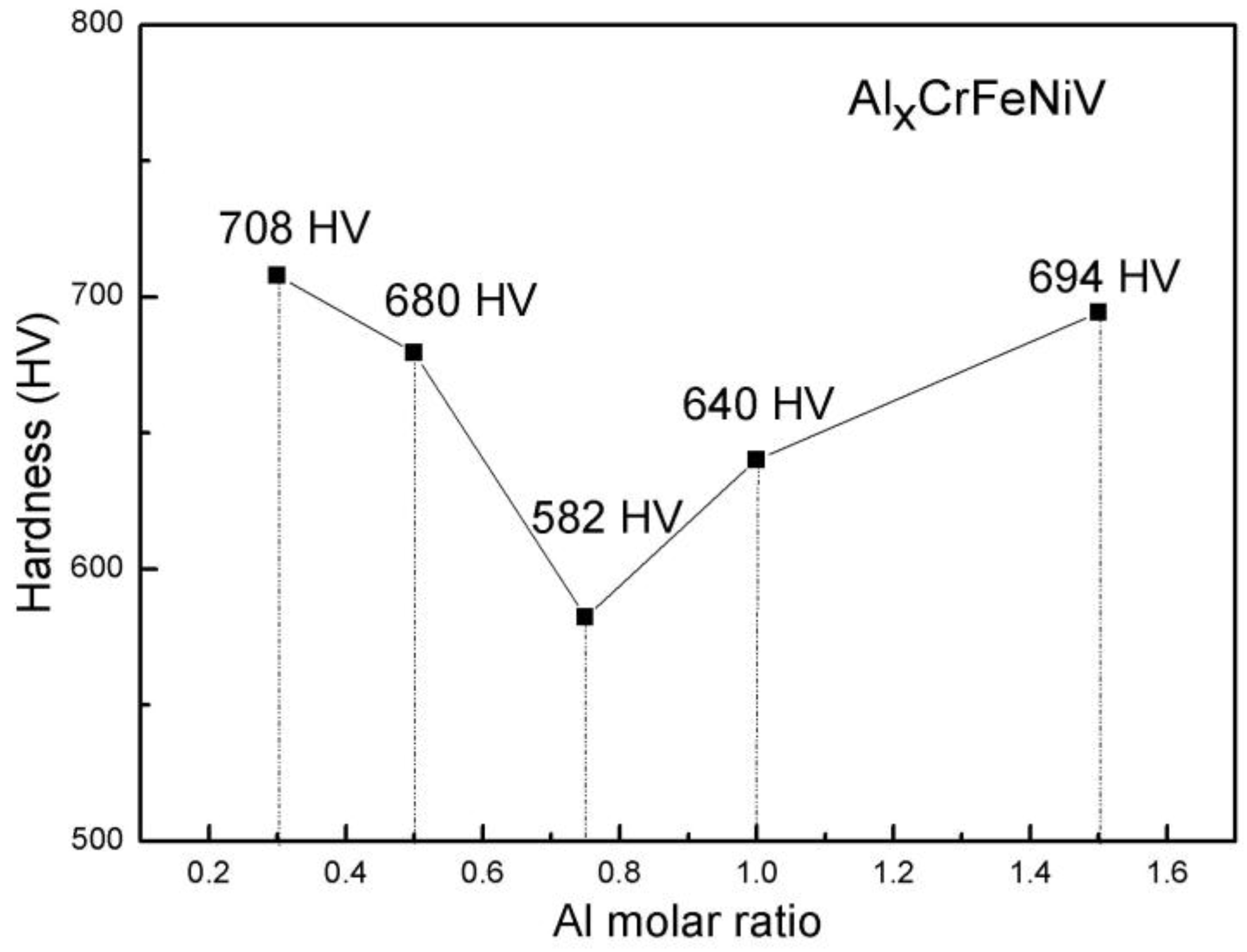

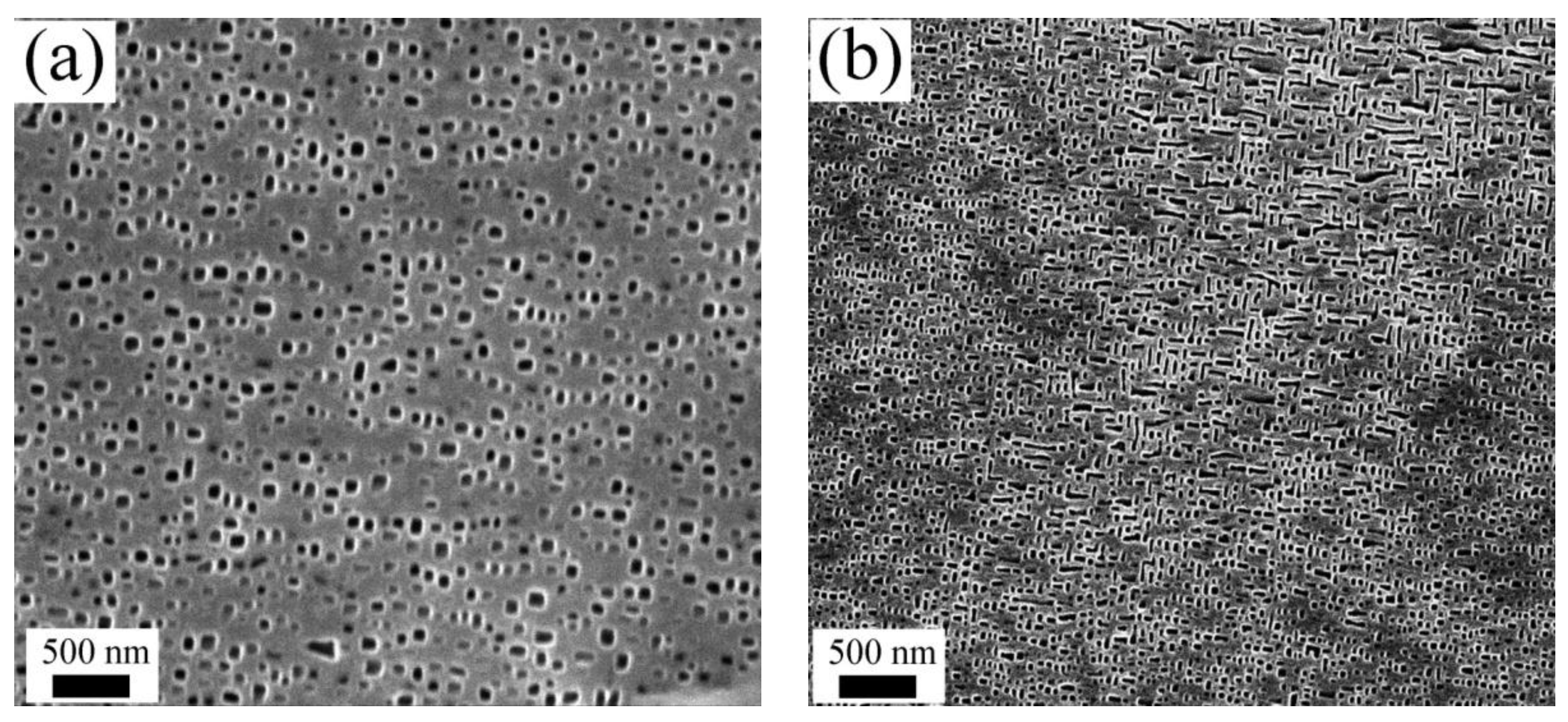

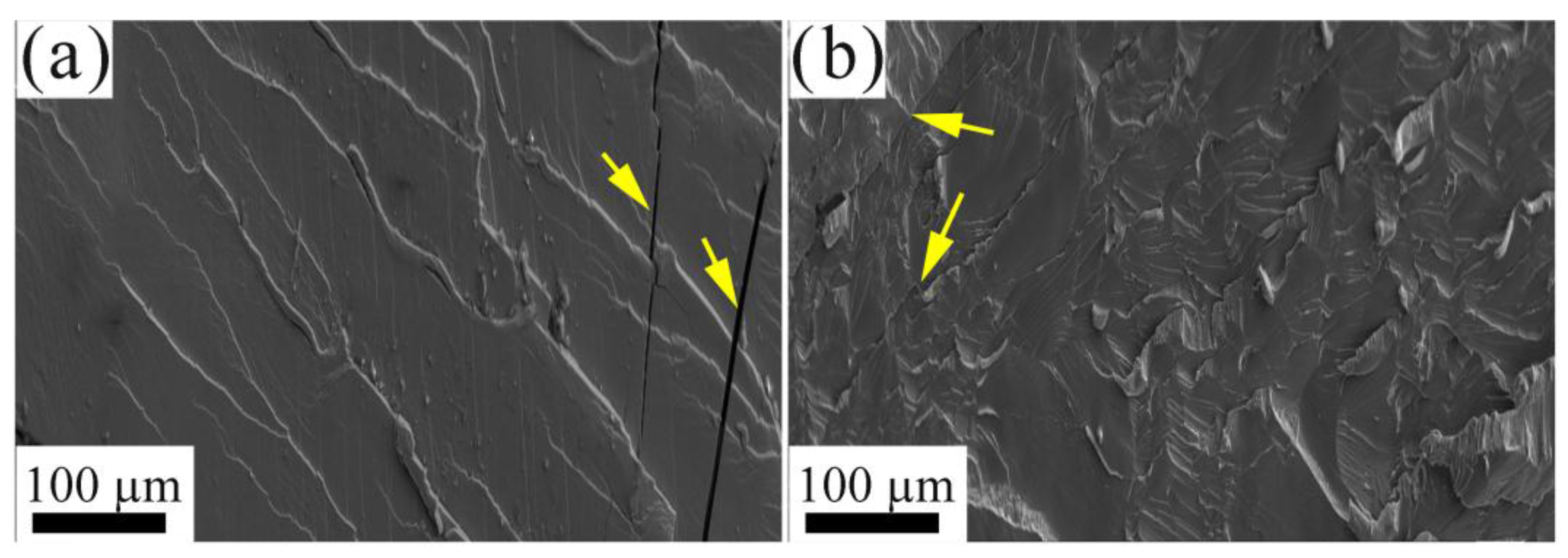

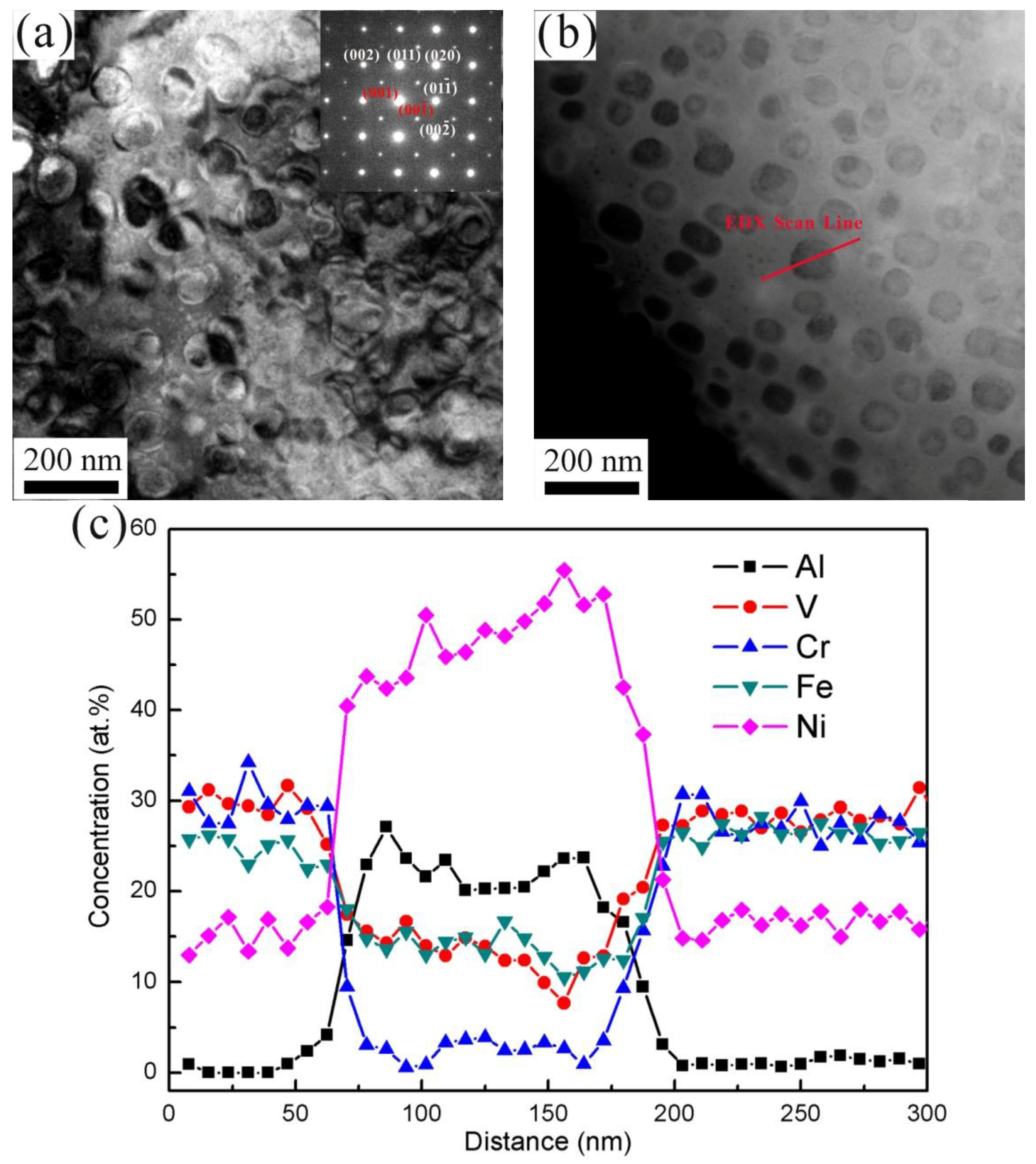

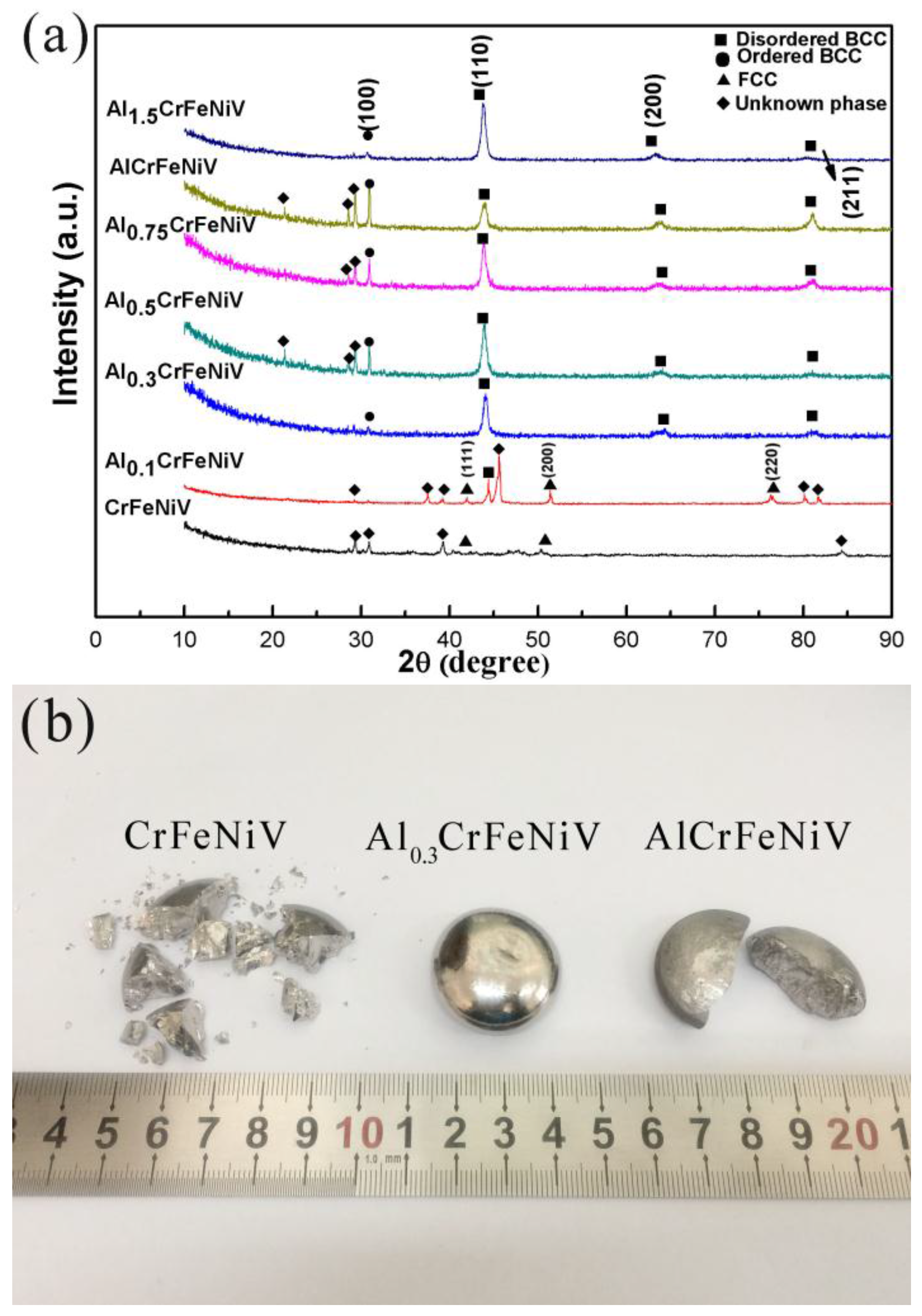

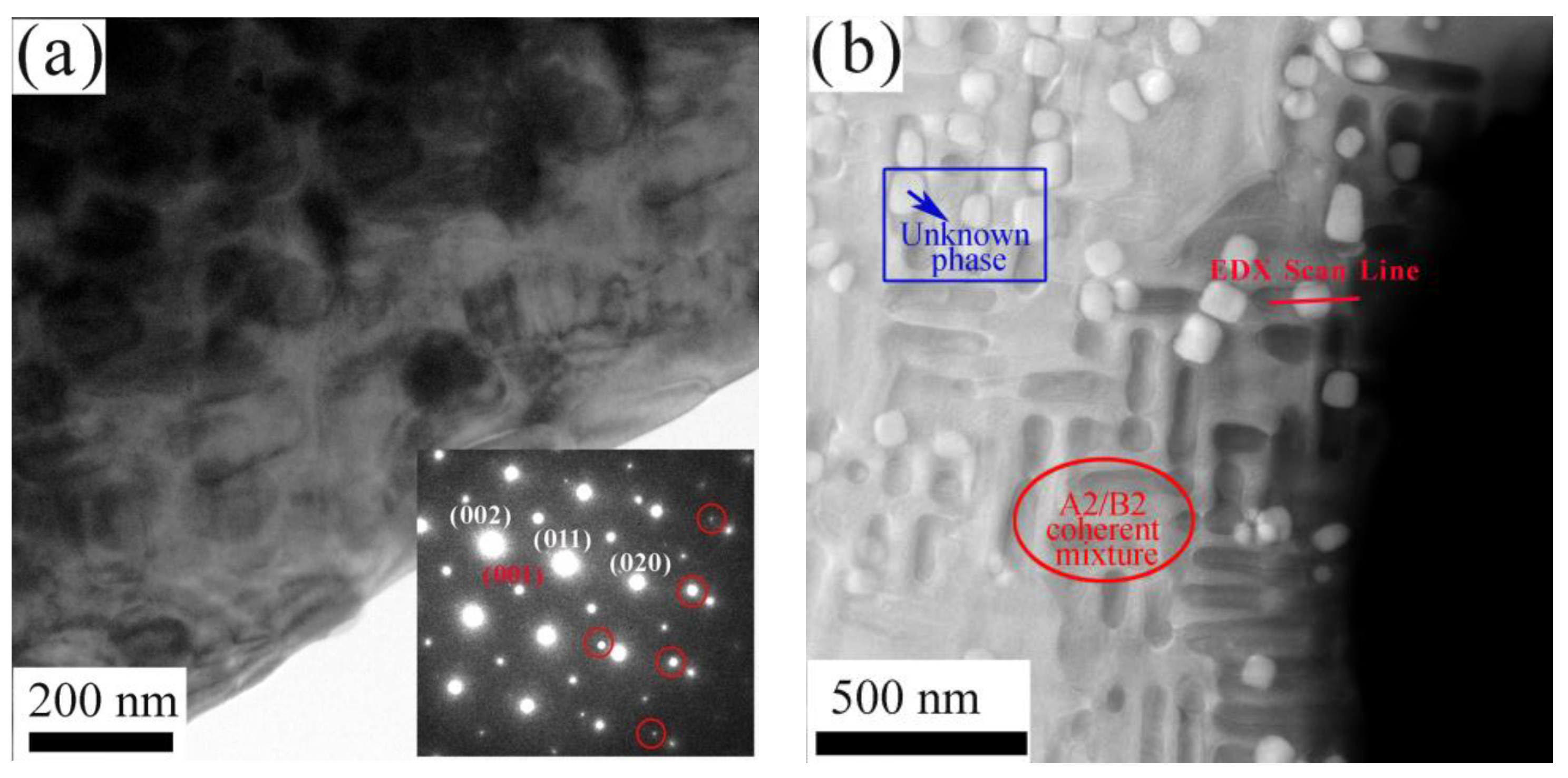

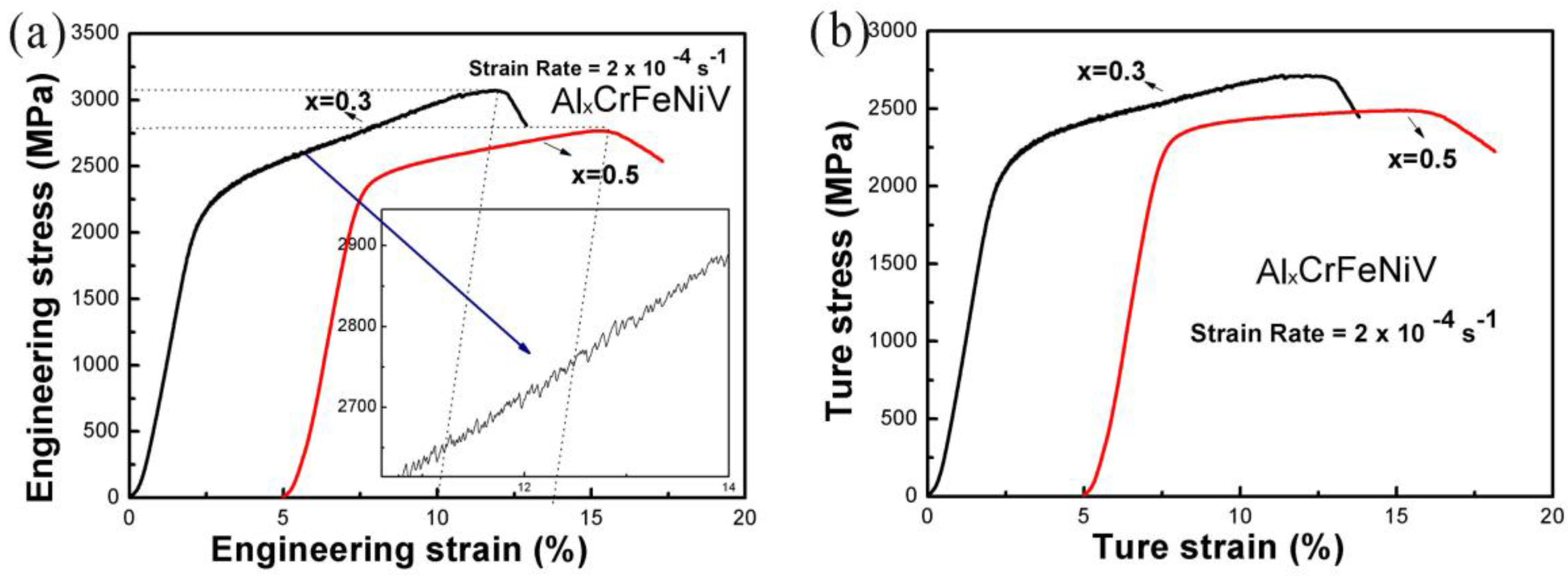

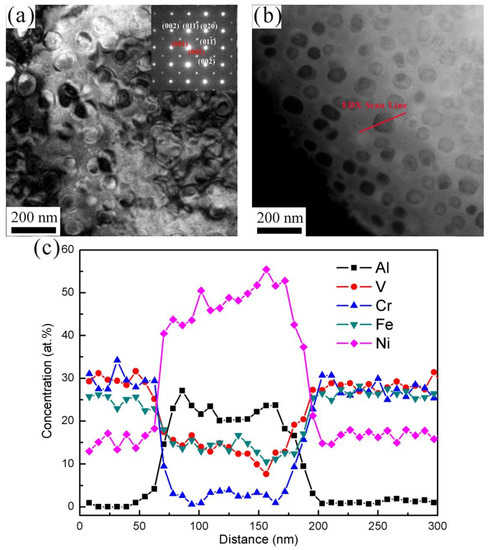

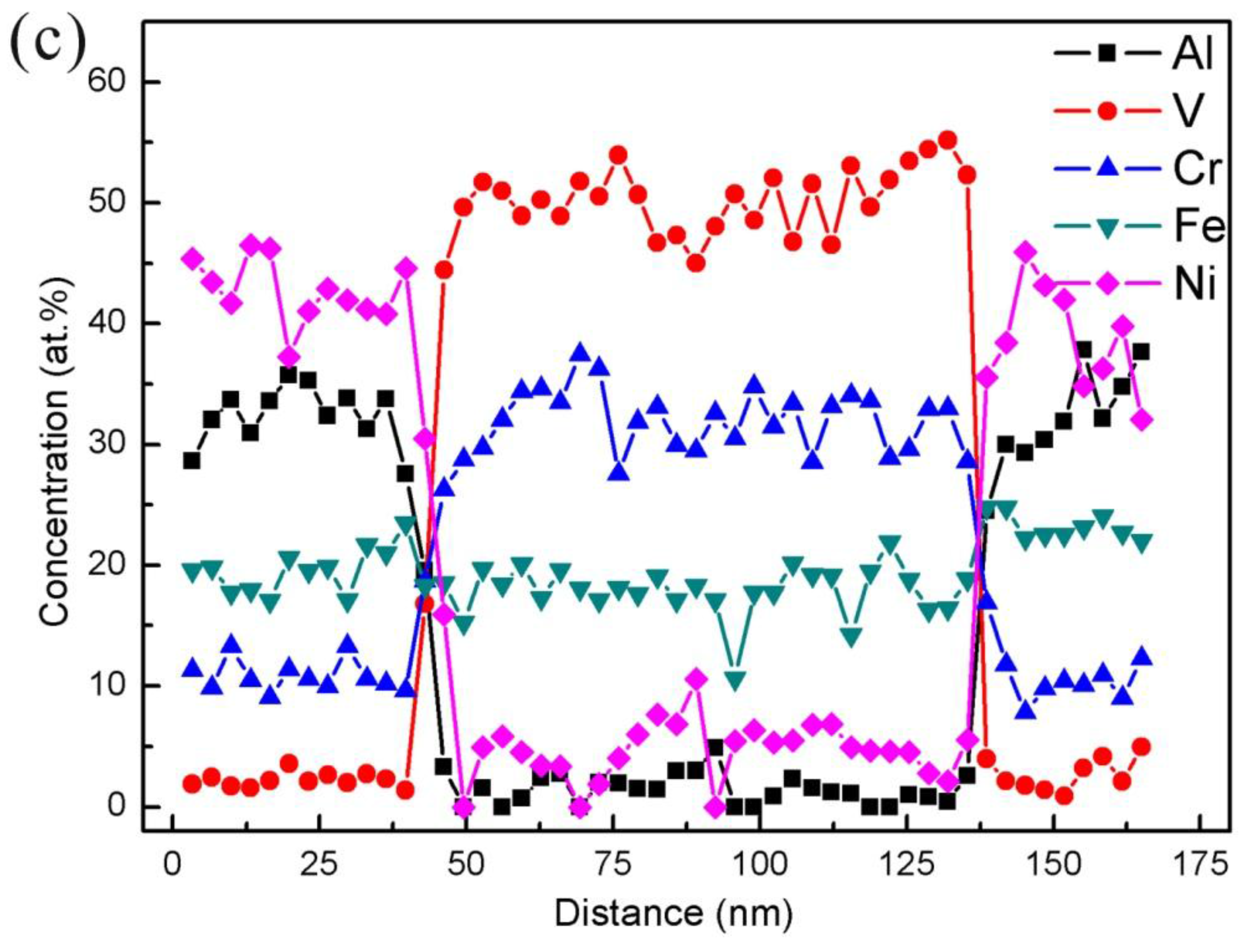

In this study, five-component high-entropy alloys (HEAs) AlxCrFeNiV (where x denotes the molar ratio, x = 0, 0.1, 0.3, 0.5, 0.75, 1, and 1.5) were prepared using an arc-melting furnace. The effects of the addition of the Al on the crystal structures were investigated using X-ray diffraction (XRD), scanning electron microscopy (SEM), and transmission electron microscopy (TEM). Also, two non-equiatomic ratio HEAs, AlxCrFeNiV (x = 0.3, and 0.5), were systematically studied through the use of various characterization methods in the as-cast state. The Al0.3CrFeNiV alloy displayed typical duplex body-centered cubic (BCC) structures, including disordered BCC (A2), and NiAl-type ordered BCC (B2) phases. Meanwhile, in regard to the Al0.5CrFeNiV alloy, this alloy was found to contain an unknown phase which was enriched in Cr and V, as well as the coherent A2/B2 phases. Both of these alloys displayed very high yield and fracture strengths. However, their compression fracture strains were approximately 10%. Also, the fracture surfaces showed mainly cleavage fracture modes. View Full-Text
Keywords: high-entropy alloys; microstructure; compressive properties high-entropy alloys; microstructure; compressive properties

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Xia, S.; Yang, X.; Chen, M.; Yang, T.; Zhang, Y. The Al Effects of Co-Free and V-Containing High-Entropy Alloys. Metals 2017, 7, 18.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
