XPS Investigation into Diffusion-Bonded Homogeneous Cu-Cu and Heterogeneous Cu-Al Junctions

Abstract

Diffusion bonding is an exciting technology expected to open new fields of application. To further develop this technology, it is necessary to investigate the inter-diffusion phenomena that occur at the atomic level at the interface of bonded junctions. A homogeneous Cu-Cu junction and heterogeneous Cu-Al junction were fabricated using the direct diffusion bonding method. Using XPS, we investigated the phenomena of recrystallization and inter-diffusion at the interface of the bonded junction. The Cu valence band spectrum observed using XPS measurements at the interface of the homogeneous Cu-Cu direct diffusion-bonded junction revealed that diffusion-induced recrystallization occurred. In a heterogeneous Cu-Al direct diffusion-bonded junction, the valence band spectrum observation using XPS measurements showed that the valence bands of Cu and Al overlapped at the interface of the bonded junction. Using a heterogeneous Cu-Al direct diffusion-bonded junction, we investigated the inter-diffusion at the interface of the bonded junction and found that the diffusion lengths of Al atoms in the Cu region and Cu atoms in the Al region were approximately 11.8 μm and 7.85 μm, respectively.

1. Introduction

Diffusion bonding is a joining process in which the principal mechanism for joint formation is solid-state diffusion [1]. Historically, the development of solid-phase diffusion bonding has been geared toward creating lightweight aerospace components. However, the joining process requires several strictly controlled conditions: clean and smooth contacting surfaces that are free from oxides, and high-temperature conditions to promote the diffusion process. In diffusion bonding, bond strength is achieved through factors such as pressure, temperature, time of contact, and surface cleanliness. The strength of the bond is primarily due to diffusion rather than plastic deformation.

Diffusion bonding has the following advantages:

• Diffusion bonding can be used to join not only the same metal but also dissimilar metals and ceramics together. A joined body with sufficient mechanical strength can also be realized via diffusion bonding. Diffusion bonding of steel can overcome the difficulties of segregation and distortion stresses that are usually formed in liquid-phase welding techniques [2].
• Adhesives are not used, and the joints are formed in a high-vacuum furnace; this ensures there is no contamination of impurities.
• Diffusion bonding occurs at temperatures lower than the melting point of the metal material used, preventing the thermal deformation of the bonded components.

With the advantages described above, diffusion bonding technology is expected to find further applications in areas such as the manufacture of electric vehicle components, in which further weight reduction remains an objective. Diffusion bonding is also expected to be utilized for joining metal components in space [3]. The development of diffusion bonding technology using impulse pressure methods has progressed alongside the constant pressure method [4]. Recently, Zhao, Z.H., Gao, L.Y., and Liu, Z.Q. presented a review paper on Cu-Cu direct bonding technology in advanced packaging [5].

In the initial stage of the diffusion bonding process, voids remain on the surface of the metal. An inter-diffusion phenomenon occurs at the bonded junction interface. For further development of diffusion bonding technology, it is important to investigate the inter-diffusion phenomenon that occurs at the bonded junction interface at the atomic level.

In this study, we fabricated homogeneous Cu-Cu and heterogeneous Cu-Al junctions using direct diffusion bonding technology and investigated the phenomena occurring due to changes occurring at and near the interface of bonded junctions using XPS. Since assessing the diffusion length and mutual diffusion coefficient is essential for developing advanced diffusion bonding technology that improves the bonding strength and thermal conductivity of the bonded components, we further analyzed the diffusion length and diffusion coefficient of Al atoms in the Cu region, as well as those of Cu atoms in the Al region, based on the XPS measurement results.

2. Experimental Section

2.1. Sample Preparation

The conditions for preparing homogeneous Cu-Cu directly bonded junctions and heterogeneous Cu-Al directly bonded junctions using diffusion bonding technology are as follows:

• The hybrid diffusion bonding machine: IHI Machinery Systems Co., Ltd. (Tokyo, Japan), Hybrid diffusion bonding machine HHVS-30/30/35-RF [6]. Pressure and temperature are kept constant during the diffusion bonding process. A thermocouple thermometer is used to measure the sample temperature without any temperature gradient.
• Oxygen-free Cu plate (C1020): 99.9% purity, length 80 mm × width 80 mm × thickness 20 mm. The plate edge surface, which is the surface of the bonded junction interface, was flattened to achieve an unevenness of 5 μm or less.
• Aluminum plate (A1050): 99.6% purity, length 80 mm × width 80 mm × thickness 20 mm. Plate edge surface, which will be the surface of bonded junction interface, was flattened so that the unevenness was 5 μm or less.
• Furnace vacuum: <6.0 × 10⁻² Pa.
• Pressure condition: Constant 1.5 MPa.
• Heating condition and retention time by external heating when homogeneous Cu-Cu direct diffusion-bonded junctions: 980 °C for 1 h.
• Heating condition and retention time by external heating when heterogeneous Cu-Al direct diffusion-bonded junctions: 540 °C for 3 h.
• Annealing conditions: A total of 15 h of cooling in the furnace after the heating retention time.

After removing a diffusion-bonded plate from the furnace at 60 °C, the samples were cut into 20 mm × 10 mm × 20 mm pieces using an electric wire-cutting machine (Mitsubishi Electric FA20S manufactured at Mitsubishi Electric Nagoya Works, Nagoya city 461-8670, Japan). The surfaces of the diffusion-bonded junctions were flattened via precision grinding. Specifically, a high-precision surface grinder was used to polish the surfaces of the diffusion-bonded junctions using a grinding wheel rotating at high speed. The surface roughness was Ra = 0.05 μm. Because the interface of the homogeneous Cu-Cu direct diffusion-bonded junction became completely invisible after bonding, markings were made on both ends of the junction before the diffusion bonding process so that the position of the bonded interface could be identified.

2.2. XPS Measurement Procedure

XPS analysis is a useful method for elucidating diffusion phenomena [7].

In this study, XPS measurements were performed using Quantera from Ulvac-Phi [https://www.ulvac-phi.com/en/?lang=en_US (accessed on 1 October 2025)]. The X-ray probe employed was the characteristic X-ray AlKα with energy of 1468.6 eV and energy resolution (FWHM) of 0.49 eV or less for Ag3d5/2 spectrum. Since carbons and oxygen were found to be adhering to the surface of the bonded sample, the surface of the diffusion-bonded junction—mounted on a sample stage made from Al in the XPS instrument—was initially cleaned using Ar beam sputtering. The sputter cleaning conditions were as follows: 2 min cleaning using an Ar ion gun with an acceleration voltage of 4 kV and a sputter rate of 26 nm/min in terms of SiO₂. The characteristic X-ray AlKα beam was subsequently irradiated onto the diffusion-bonded junction. We then used the wide scan function of the XPS instrument to confirm that no carbon or oxygen was attached to the surface of the bonded sample, particularly at the bonded interface and in its vicinity. The analysis region was determined by employing an SXI tool integrated into the XPS instrument used for measurement.

3. Results and Discussion

3.1. XPS Measurement Results for Homogeneous Cu-Cu Direct Diffusion-Bonded Junction

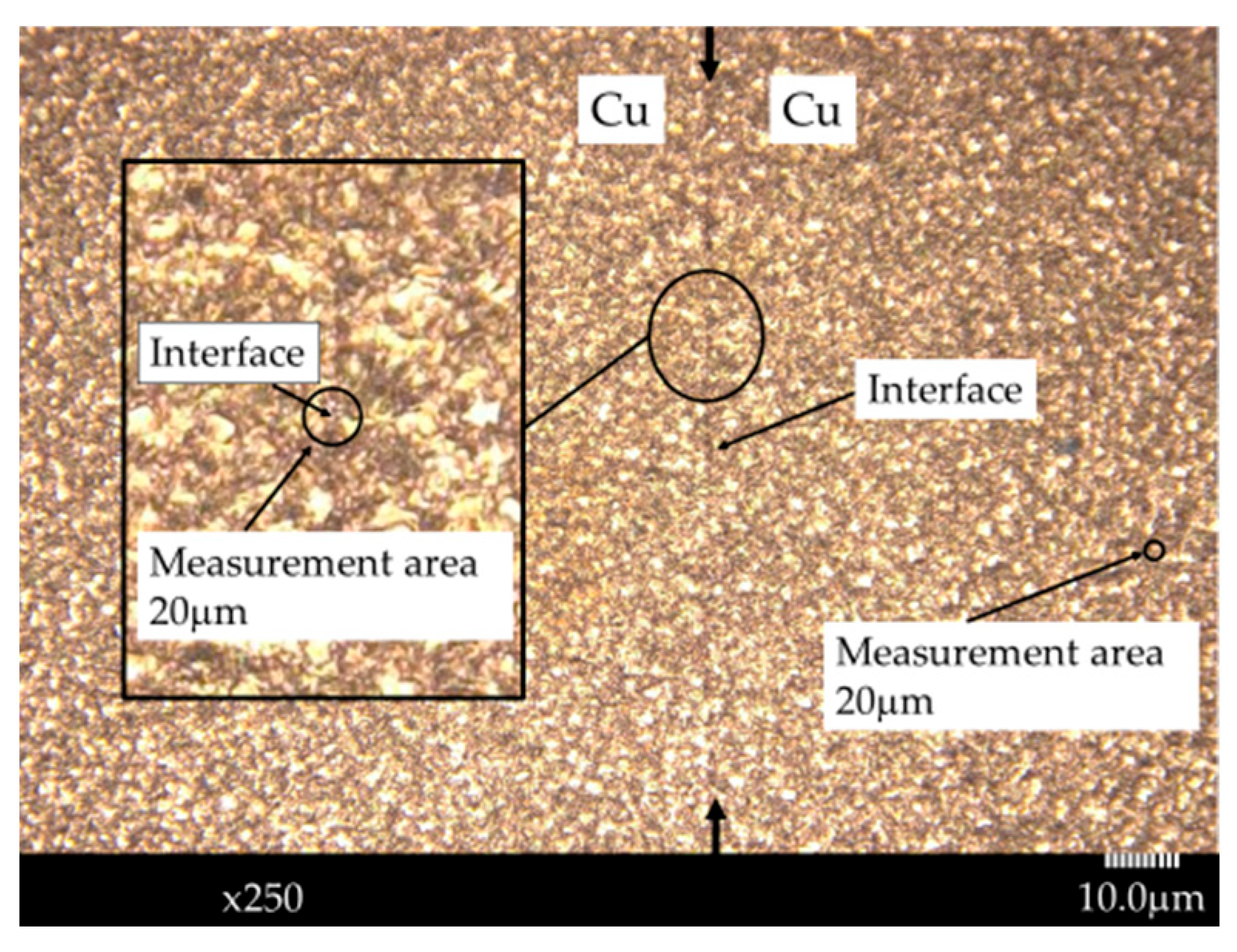

Figure 1 shows an optical microscope image with 250× magnification of the region surrounding the bonded interface of a homogeneous Cu-Cu direct diffusion-bonded junction prepared at a set temperature of 980 °C maintaining for 1 h. The inset shows a magnified image of an example region selected for XPS measurements using an X-ray AlKα beam with a diameter of 20 μm. The regions suitable for the XPS measurements were determined using SXI.

Figure 1. An optical microscope image with 250× magnification of a homogeneous Cu-Cu direct diffusion-bonded junction.

In this manuscript, in figures displaying XPS measurement results, 0 eV corresponds to the Fermi level of Al, which is the energy reference for the energy analyzer of the XPS instrument employed. The valence band of Cu is formed by 10 electrons in a 3d state. The conduction electron of Cu, a Cu4s electron, is almost not observed in the valence band spectrum since the photoionization cross-section of the Cu4s electron is less than one-tenth that of Cu3d electrons, as shown in Table 1 [8].

Table 1. Photoionization cross-sections/×10⁻²⁴ m² of Cu and Al at 1486.6 eV adapted from Ref. [8].

Element	Atomic No.	2s	2p1/2	2p3/2	3s	3p1/2	3p3/2	3d3/2	3d5/2	4s
Cu	29	7.426	11.78	22.71	1.302	1.153	2.217	0.326	0.475	0.030
Al	13	1.024	0.246	0.484	0.073	0.0015	0.003

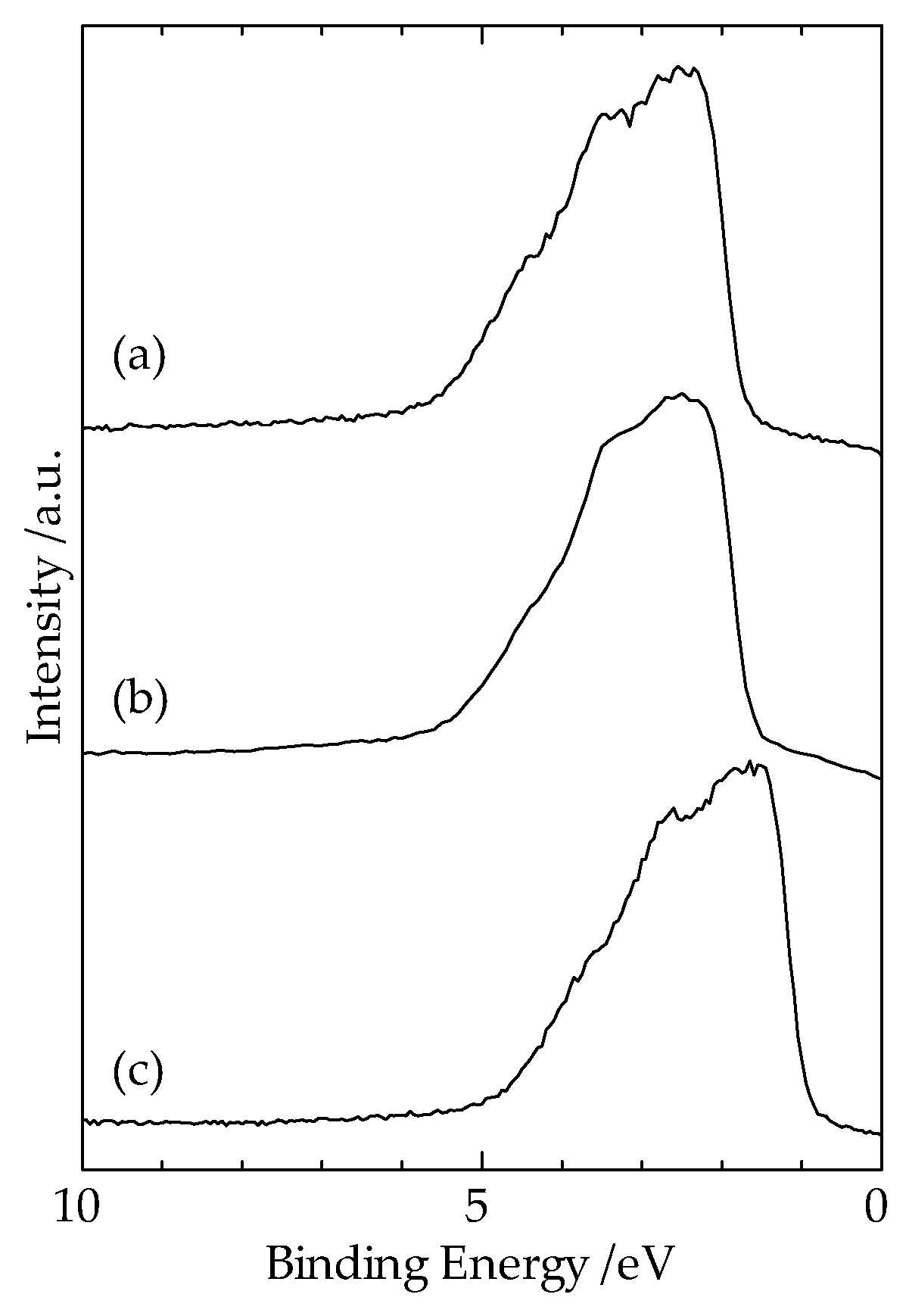

Figure 2a,b present the XPS analysis results following irradiation with 20 μm diameter characteristic X-ray AlKα beams on the pure Cu region of a Cu-Cu direct diffusion-bonded junction and the diffusion-bonded junction interface region, respectively. A comparison of Figure 2a,b reveals that the Cu valence band spectrum changes owing to the formation of a diffusion-bonded junction. Deng, X. et al. observed the valence band of polycrystalline Cu using UPS, and Figure 2a is consistent with their experimental results [9]. Moreover, when the valence band spectrum of polycrystalline Cu was measured using XPS, it was found to be broadened, which is consistent with the report by Shabanova et al. [10].

Figure 2. (a) The Cu valence band spectrum at the interface of the homogeneous Cu-Cu direct diffusion-bonded junction. (b) The valence band spectrum of polycrystalline Cu. (c) The valence band spectrum of a single-crystal Cu (111) surface.

For comparison, Figure 2c presents the result of XPS analysis performed by irradiating a single-crystal Cu (111) surface with a 20 μm diameter characteristic AlKα X-ray beam, showing the valence band spectrum of a single-crystal Cu (111) surface. The peak near the binding energy of 1.66 eV corresponds to the Cu3d5/2 state, and the peak near 2.6 eV corresponds to the Cu3d3/2 state. The position of the valence band of the single-crystal Cu (111) surface is closer to the Fermi level than that of polycrystalline Cu in Figure 2b because the work function of single-crystal Cu (111) surface is 4.94 eV, which is approximately 0.25 eV larger than that of polycrystalline Cu [11]. In a single crystal, the disturbance of the crystal potential is small, and the degeneracy of the energy levels is resolved, such that the spectra near the peaks of Cu3d3/2 and Cu3d5/2 are clearly observed. The valence band spectrum in Figure 2a appears to be almost similar to that in Figure 2c. We believe that diffusion-induced recrystallization occurs at the interface formed via diffusion bonding, aligning the plane orientation [12].

3.2. XPS Measurement Results for Heterogeneous Cu-Al Direct Diffusion-Bonded Junction

3.2.1. Junction Interface Region

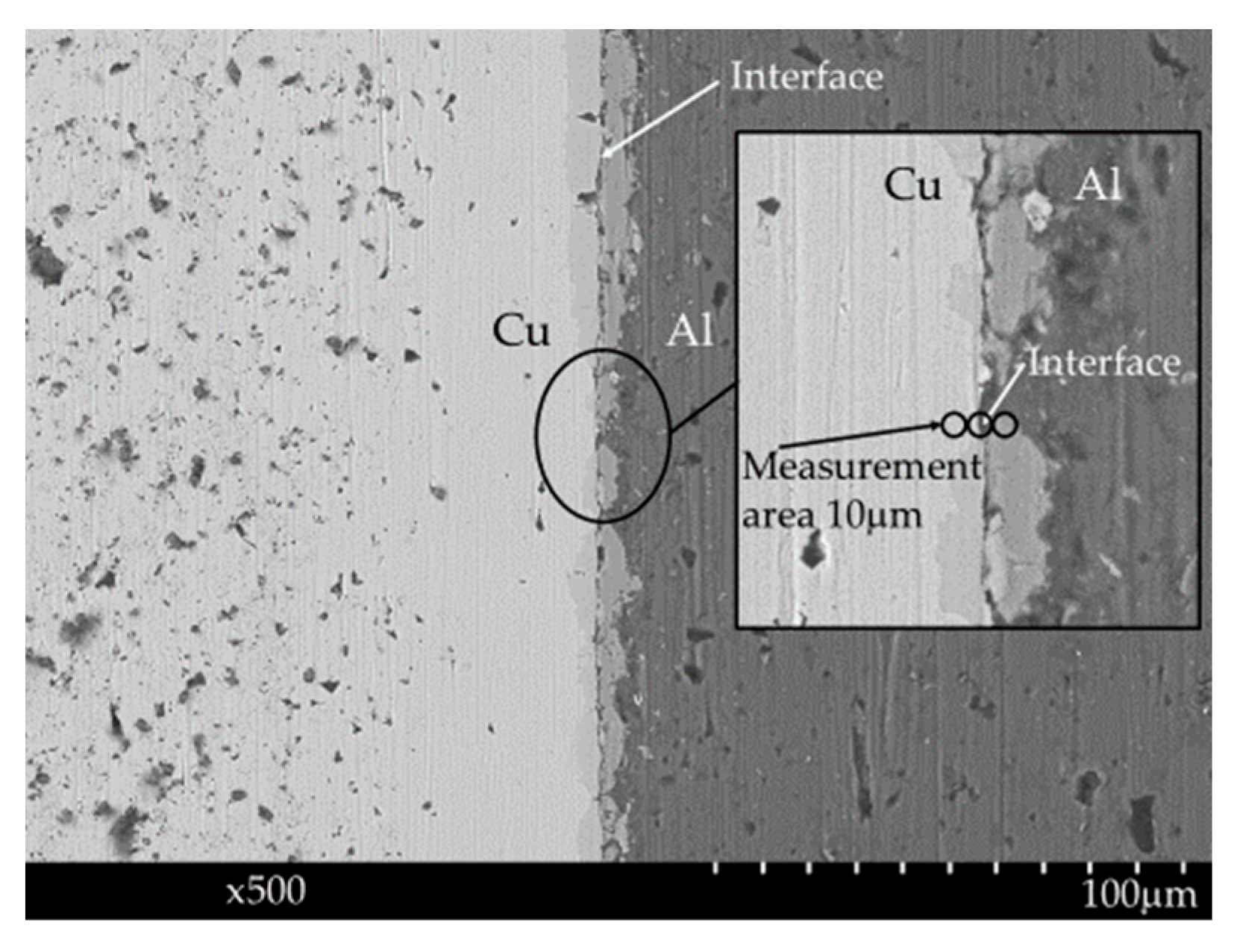

Figure 3 shows an SEM image with 500× magnification of the region surrounding the bonded interface of a heterogeneous Cu-Al direct diffusion-bonded junction prepared at a set temperature of 540 °C and maintained for 3 h. The inset shows a magnified image of an example region selected for XPS measurements. The regions suitable for the XPS measurements were determined using SXI.

Figure 3. An SEM image with 500× magnification of a heterogeneous Cu-Al direct diffusion-bonded junction.

XPS analysis was conducted on heterogeneous Cu-Al direct diffusion-bonded junctions by irradiating them with a characteristic AlKα X-ray beam with a diameter of 10 μm.

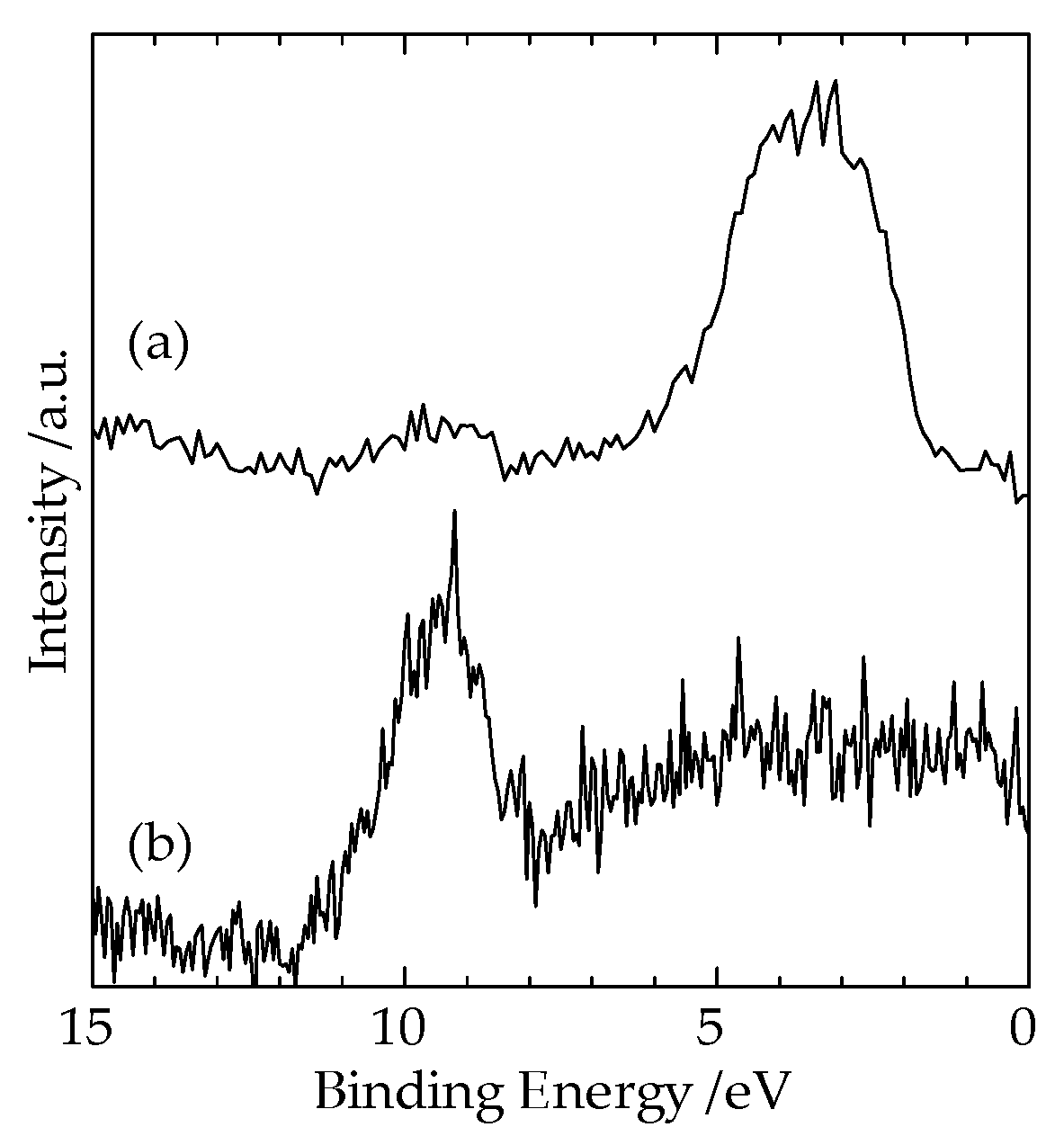

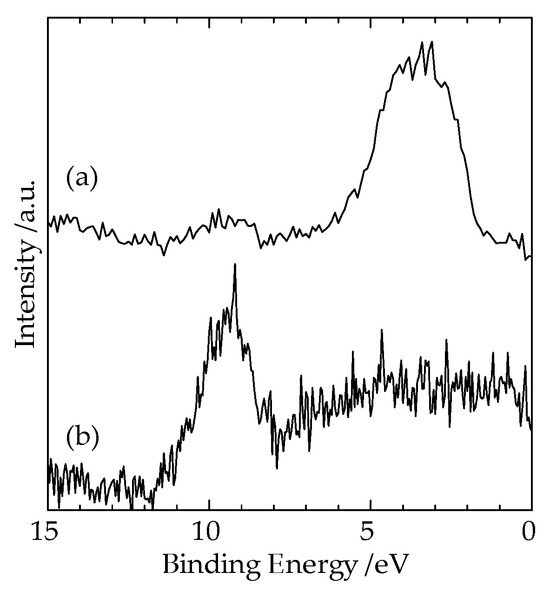

Figure 4a,b present the XPS analysis results, showing the valence band spectra at the interface and in the Al region, respectively. The valence electrons of Al are two 3s state electrons and one 3p state electron, which are also the conduction electrons. In the XPS measurements, the photoionization cross-sections of the Al3s and Al3p states were small, as shown in Table 1.

Figure 4. (a) The valence band spectrum at the interface of the heterogeneous Cu-Al diffusion-bonded junction. (b) The valence band spectrum in the Al region.

In Figure 4b, however, the Al3s spectrum can be observed between 8 eV and 11 eV, and a relatively broad Al3p spectrum can also be observed between 0 eV and 8 eV.

In the valence band spectrum at the interface of the heterogeneous Cu-Al direct diffusion-bonded junction in Figure 4a, the Al3s spectrum appears in the range of 8 eV to 11 eV, and the spectrum from 0 eV to 8 eV is an overlapping spectrum of the Al3p and Cu3d spectra shown in Figure 4b.

3.2.2. Estimation of Diffusion Length

The diffusion coefficient of the metal at a temperature just below its melting point is about 1 μm2/s, so the diffusion length is estimated to be about a hundred micrometers. Moreover, since diffusion bonding can occur at temperatures of about 50% to 80% of the metal’s melting point, metal atoms move between each other’s regions to fill voids and jump to fill atomic vacancies; as a result, the diffusion length is expected to be on the order of several micrometers.

Estimating the diffusion length during diffusion bonding is useful for achieving diffusion-bonded junctions with sufficient mechanical strength. In this study, we employed a heterogeneous Cu-Al direct diffusion-bonded junction and conducted XPS measurements 10 μm away from the interface on both the Cu and Al sides after irradiation with characteristic AlKα X-ray beams of 10 μm diameter.

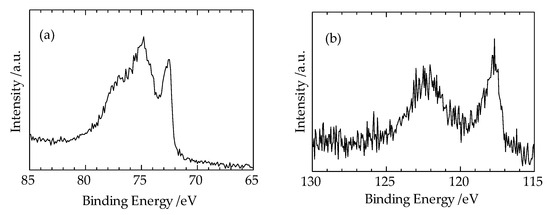

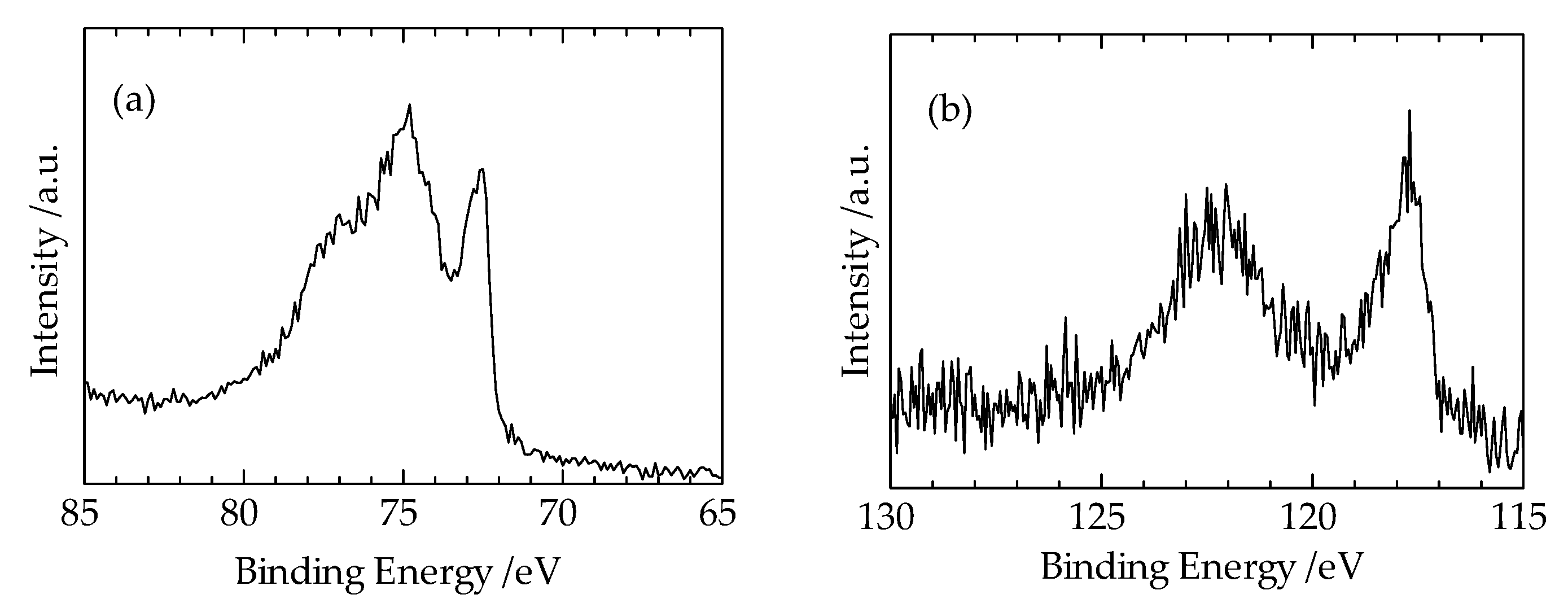

Figure 5a,b show the XPS measurement results of Cu3p, Al2p spectra, and Al2s and Cu3s spectra, respectively, taken from the Cu region 10 μm away from the interface of the heterogeneous Cu-Al direct diffusion-bonded junction. In Figure 5a, the spectrum from 75 eV to 77 eV corresponds to Cu3p, and the spectrum at 72.5 eV corresponds to Al2p. In Figure 5b, the spectrum at 117.5 eV corresponds to Al2s, and the spectrum at 122.5 eV corresponds to Cu3s. These results suggest that the diffusion length of Al atom in the Cu region is about 10 μm.

Figure 5. XPS measurement results in the Cu region 10 μm away from the interface of the heterogeneous Cu-Al direct diffusion-bonded junction. (a) Cu3p and Al2p spectra. (b) Al2s and Cu3s spectra.

Since the spectra of Cu3p and Al2p are clearly observed in Figure 5a, we attempted to estimate the diffusion length of Al atoms in the Cu region using the XPS spectra measurement results shown in Table 2. The method we adopted below is intended to estimate the approximate diffusion length, as obtaining an accurate diffusion length through quantitative analysis based on XPS spectrum measurement is difficult.

Table 2. XPS spectra measurement results in Figure 5a.

Spectrum	Peak Height/Count/s	Spectral FWHM/eV	Photoionization Cross-Section/× 10−24 m2
Cu3p 1	635.9	5.18	3.37
Al2p 1	377.8	0.61	0.73

¹ There are 6 electrons in the p state per atom.

Below, we estimated the diffusion lengths using a one-dimensional model. The x coordinate is set as follows: the interface at x = 0, x > 0 is the Cu region, and x < 0 is the Al region.

Similarly, when the normalized number of Al atoms ($N_{\mathrm{Al}}(x)$) as a function of x in the Al region sufficiently far from the interface is set to 1, $N_{\mathrm{Al}}(0)$ is equal to 0.5 at the interface. The following equation holds for any value of x:

$$N_{\mathrm{Cu}}(x)+N_{\mathrm{Al}}(x)=1.$$

(1)

The numbers of Cu atoms and Al atoms in the Cu region are proportional to the numbers of photoelectrons of each atom obtained via XPS measurements. The shape of the photoelectron spectrum is precisely given by the well-known formula of Doniach–Sunjic–Shirley, but here, for simplicity, the photoelectron spectrum is approximated by the Lorentz distribution function [13]. The following formula then holds:

$$N\propto {\displaystyle \frac{I_{peak}{(\Delta E)}_{FWHM}}{n{\sigma }_p}},$$

(2)

where $N$, $I_{peak}$, ${(\Delta E)}_{FWHM}$, n, and ${\sigma }_p$ are the number of atoms in the analysis region, the peak height in the measured spectrum, the spectral FWHM, the number of electrons in the orbital (state)—for example, n = 6 in the p state—and the photoionization cross-section of the orbital, respectively.

Using Table 2, the following formula holds:

$${\displaystyle \frac{N_{\mathrm{Al}}(x=10\mathsf{\mu }\mathrm{m})}{N_{\mathrm{Cu}}(x=10\mathsf{\mu }\mathrm{m})}}={\displaystyle \frac{\frac{377.8\times 0.61}{6\times 0.73}}{\frac{635.9\times 5.18}{6\times 3.37}}}=0.323.$$

(3)

This formula represents the ratio of Al atoms to Cu atoms at a specific point. The following result is therefore obtained using Equation (1):

$$N_{\mathrm{Al}}(x=10\mathsf{\mu }\mathrm{m})={\displaystyle \frac{1}{1+\frac{1}{0.323}}}=0.244.$$

(4)

This result indicates the concentration of Al atoms at the given point.

In the Cu region, the solution of the diffusion equation (Fick’s second law) is assumed to follow the formula when thermal diffusion stops after a certain time has passed since the diffusion bonding was formed:

$$N_{\mathrm{Al}}(x)={\displaystyle \frac{1}{2}}{e}^{-{\left({\displaystyle \frac{x}{L_{\mathrm{Al}}}}\right)}^2}.$$

(5)

Here, $L_{\mathrm{Al}}$ represents the diffusion length of an Al atom in the Cu region. The diffusion length ($L_{\mathrm{Al}}$) is estimated as follows:

$$L_{\mathrm{Al}}={\displaystyle \frac{10}{\sqrt{-\ln (2\times 0.244)}}}=11.8 \mathsf{\mu }\mathrm{m}.$$

(6)

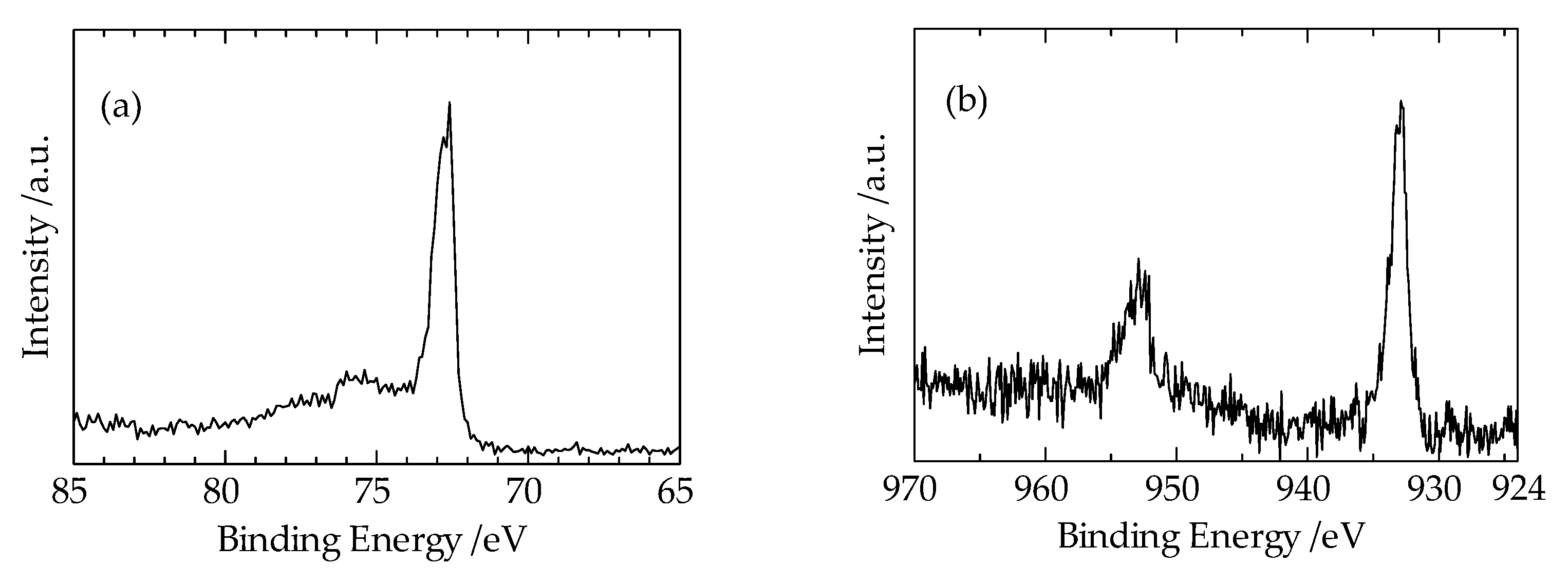

Figure 6a,b show the results of the XPS measurements of Al2p, Cu3p, and Cu2p spectra in the Al region 10 μm away from the interface of the heterogeneous Cu-Al direct diffusion-bonded junction, respectively. In Figure 6a, the spectrum from 75 eV to 77 eV corresponds to Cu3p, and the spectrum at 72.5 eV corresponds to Al2p. The spectra at 933 eV and 952 eV in Figure 6b correspond to Cu2p3/2 and Cu2p1/2, respectively.

Figure 6. XPS measurement results in the Al region 10 μm away from the interface of the heterogeneous Cu-Al direct diffusion-bonded junction. (a) Al2p and Cu3p spectra. (b) Cu2p spectrum.

The Al2p spectrum can be clearly observed in Figure 6a, while the Cu3p spectrum cannot be observed. Figure 6b also shows that the Cu2p spectrum can be observed in the Al region, even 10 μm away from the interface. These results suggest that the diffusion length of the Cu atom in the Al region is approximately several micrometers.

Since the spectra of Al2p and Cu2p are clearly observed in Figure 6a,b, respectively, we estimated the diffusion length ($L_{\mathrm{Cu}}$) of a Cu atom in the Al region using the XPS spectra measurement results shown in Table 3, as well as $L_{\mathrm{Al}}$.

Table 3. XPS spectra concerned with Figure 6a,b.

Spectrum	Peak Height/Count/s	Spectral FWHM/eV	Photoionization Cross-Section/× 10−24 m2
Al2p 1	1293.3	0.84	0.73
Cu2p1/2 2	359.8	1.15	11.78
Cu2p3/2 2	882.6	1.19	22.71

¹ There are 6 electrons in Al2p state per atom. ² There are 3 electrons in Cu2p1/2 and Cu2p3/2 per atom, respectively.

Using Table 3, the following formula holds:

$${\displaystyle \frac{N_{\mathrm{Cu}}(x=-10\mathsf{\mu }\mathrm{m})}{N_{\mathrm{Al}}(x=-10\mathsf{\mu }\mathrm{m})}}={\displaystyle \frac{\frac{359.8\times 1.15}{3\times 11.78}+\frac{882.6\times 1.19}{3\times 22.71}}{\frac{1293.3\times 0.84}{6\times 0.73}}}=0.11.$$

(7)

This formula represents the ratio of Cu atoms to Al atoms at a specific point. The following result is therefore obtained using Equation (1):

$$N_{\mathrm{Cu}}(x=-10\mathsf{\mu }\mathrm{m})={\displaystyle \frac{1}{1+\frac{1}{0.11}}}=0.099.$$

(8)

This result indicates the concentration of Cu atoms at the given point. The following formula holds in the Al region as well as in the Cu region:

$$N_{\mathrm{Cu}}(x)={\displaystyle \frac{1}{2}}{e}^{-{\left({\displaystyle \frac{x}{L_{\mathrm{Cu}}}}\right)}^2}.$$

(9)

The diffusion length ($L_{\mathrm{Cu}}$) is estimated as

$$L_{\mathrm{Cu}}={\displaystyle \frac{10}{\sqrt{-\ln (2\times 0.099)}}}=7.85 \mathsf{\mu }\mathrm{m}.$$

(10)

3.2.3. Estimation of Diffusion Coefficient

Inter-diffusion between two metals is also called chemical diffusion and is theoretically considered using Gibbs free energy. The diffusion phenomenon in the chemical field occurs in the liquid or gas phase. The temperature during diffusion bonding is relatively lower than the melting point of each material, so the diffusion phenomenon does not occur in the liquid phase. The explanation for inter-diffusion between two metals using free energy is that free energy decreases when two materials diffuse into each other.

However, inter-diffusion occurs at the diffusion-bonded interface when the two materials are not in the liquid phase. The XPS analysis revealed that the diffusion length of Al into the Cu region ($L_{\mathrm{Al}}$) was 11.8 μm, and the diffusion length of Cu ($L_{\mathrm{Cu}}$) into the Al region was 7.85 μm. The reason why the diffusion length ($L_{\mathrm{Al}}$) is greater than that of $L_{\mathrm{Cu}}$ is qualitatively considered below.

Diffusion-bonded junctions are prepared at temperatures below the melting point of the metals used. For example, in the case of Cu-Al direct diffusion bonding, the temperature during production is maintained at 540 °C. As shown in Table 4, the melting points of Cu and Al are 1085 °C and 660.3 °C, respectively. Therefore, the temperature during production is lower than the melting points of both metals, and the inter-diffusion phenomenon at the bonded interface occurs in the solid phase close to the liquid phase. At the beginning of the diffusion bonding process, voids exist at the end faces of the two metal materials used at the bonding interface, and diffusion and recrystallization occur to fill those voids. Thereafter, inter-diffusion is thought to proceed to fill lattice vacancies present in each region. The diffusion length ($L_{\mathrm{Al}}$) obtained in this study was about 50% larger than that of $L_{\mathrm{Cu}}$. The diffusion length we estimated is the value at which inter-diffusion stops after the Cu-Al direct diffusion bond is formed and the junction is cooled during annealing. It is challenging to determine the exact temperature at which inter-diffusion ceased. However, due to the rapid decrease in the diffusion coefficient of metals as temperature decreases, it is assumed that inter-diffusion halted before the temperature reached approximately 400 °C.

Table 4. Crystal data of Cu and Al.

Element	Crystal Structure	Atomic Radius/nm	Lattice Constant/nm	Melting Point/°C
Cu	FCC	0.128	0.361	1085
Al	FCC	0.143	0.405	660.3

We will subsequently analyze the variation in thermodynamic binding energy (enthalpy) (δH) [14]. Consider a scenario where Al atoms jump and diffuse into lattice vacancies within the Cu region. The temperature at which Cu-Al direct diffusion bonding samples are processed does not exceed 550 °C, which is below the melting points of Cu and Al as shown in Table 4, with the single vacancy mechanism being dominant. Here, an impurity–vacancy pair comprising one vacancy and one impurity atom is considered, with the interaction between the lattice vacancy of the Cu crystal and the Al impurity atom assumed to be electrostatic. Among the changes in free energy, if we focus on the change in binding energy (δH), it is proportional to the screening potential created by the impurity atoms [14]. If the Thomas–Fermi potential [15,16,17] is employed as the screening potential, the following equation applies:

$$\delta H=-{\displaystyle \frac{Z_{\mathrm{Cu}}(Z_{\mathrm{Al}}-Z_{\mathrm{Cu}})e^2}{4\pi {\epsilon }_{0}d}}\exp (-\lambda d)$$

(11)

Here, $Z_{\mathrm{Cu}}=1$ and $Z_{\mathrm{Al}}=3$ are the numbers of valence electrons in the outermost shells of Cu and Al atoms, respectively. Additionally, ${\epsilon }_0$, d, and e are the dielectric constant of vacuum, the shortest interatomic distance (jump distance), and the absolute value of the electron charge, respectively. In Equation (11), λ is the Thomas–Fermi screening constant, which is given by the following equation:

$$\lambda =\sqrt{{\displaystyle \frac{3e^2{n}_0}{2{\epsilon }_0{E}_F}}}.$$

(12)

Here, $E_F$ and $n_0$ are the Fermi energy and the electron density, respectively.

Table 5 presents the Fermi energy and the screening constant calculated using the free-electron model. The calculated values of binding energy (δH) are also presented in Table 5. Since the crystal structure of both Cu and Al is FCC, the shortest interatomic distance (d) is given by

$$d={\displaystyle \frac{\sqrt{2}}{2}}a.$$

(13)

Table 5. The electronic properties of Cu and Al calculated using the free-electron model.

Element	Valence Spectrum	Electron Density/m−3	Fermi Energy/eV	Screening Constant/m−1	Binding Energy/eV/Atom
Cu	4s1	8.502 × 1028	7.05	1.81 × 1010	−0.111
Al	3s2p1	1.806 × 1029	11.64	2.05 × 1010	0.028

Here, the lattice constant is denoted as a.

In this discussion, the key point is not the precision of δH’s value, but its sign. Specifically, when Al atoms jump and diffuse as impurity atoms into lattice vacancies in the Cu region, δH becomes negative, leading to a decrease in the crystal system’s free energy, thus enhancing stability.

Cu atoms, when acting as impurity atoms, tend to have a positive change in binding energy (δH) when diffusing into lattice vacancies in the Al region, as shown in Equation (11). This results in a smaller decrease in free energy compared to the diffusion of Al atoms into the Cu region. Consequently, Al atoms more readily diffuse into the Cu region, whereas Cu atoms do not easily diffuse into the Al region, resulting in a longer diffusion length ($L_{\mathrm{Al}}$) compared to $L_{\mathrm{Cu}}$.

Fujikawa, S. and Hirano, K. reported that the diffusion coefficient required for a Cu atom to be considered an impurity in Al was 1.40 × 10⁻¹³ m²/s at 550 °C through precise measurements using radioactive Cu isotopes [18]. Moreover, EPMA is a method for measuring intermetallic compounds formed via diffusion bonding, and Watanabe et al. reported on multiphase systems formed through this method [19]. Recently, Liu, K., Yu, H., Li, X., and Wu, S fabricated a diffusion-bonded Al-Cu junction at 540 °C for 48 h and performed experiments on the formation of intermetallic compounds between Al and Cu near the junction interface, reporting that θ(Al2Cu) grew on the Al side of the bonded interface, and γ1(Al4Cu9) grew on the Cu side [20,21]. They also reported that the inter-diffusion coefficients of θ(Al2Cu) and γ1(Al4Cu9) were 3.14 × 10⁻¹³ m²/s and 1.48 × 10⁻¹² m²/s, respectively [20].

Luu, H.T. and Merkert, N. analyzed the inter-diffusion phenomenon at the Cu-Al diffusion bonding interface using molecular dynamics simulations [22]. They found that the diffusion coefficients of Cu atom and Al atom at 577 °C are nearly the same, at approximately 2.0 × 10⁻¹⁶ m²/s. They also reported that this diffusion coefficient value agrees with the experimental results of Matsuo, N. and Oikawa, H. [23].

In our experiment, we assumed that the time from stopping heating until the inter-diffusion phenomenon stopped was τ = 5 h. We then estimated the time-average diffusion coefficient ($D_{Ave}$) using the following equation:

$$D_{Ave}={\displaystyle \frac{L^2}{4\tau }}.$$

(14)

Here, L denotes the diffusion length.

It was found that the time-average diffusion coefficients of the Al atom in the Cu region and the Cu atom in the Al region at 550 °C are approximately 1.84 × 10⁻¹⁵ m²/s and 8.45 × 10⁻¹⁶ m²/s, respectively. The values obtained for the diffusion coefficient agree with experimentally determined diffusion coefficients of Cu-Al solid solutions that are within an order of magnitude of 10⁻¹⁵ m²/s [22].

4. Conclusions

We fabricated homogeneous Cu-Cu junctions and heterogeneous Cu-Al junctions using the direct diffusion bonding method. Recrystallization and inter-diffusion phenomena occurring at the interface of bonded junctions were investigated using XPS.

As a result, the following became clear:

• In a homogeneous Cu-Cu direct diffusion-bonded junction, Cu valence band spectrum observation using XPS measurements revealed that diffusion-induced recrystallization occurred at the interface of the bonded junction, aligning the plane orientation.
• In a heterogeneous Cu-Al direct diffusion-bonded junction, the valence band spectrum observation using XPS measurements showed that the valence bands of Cu and Al overlapped at the interface of the bonded junction.
• Using a heterogeneous Cu-Al direct diffusion-bonded junction, we investigated the inter-diffusion at the interface of the bonded junction. It was found that the diffusion lengths of Al atoms in the Cu region and of Cu atoms in the Al region are approximately 11.8 μm and 7.85 μm, respectively. It was also found that the time-average diffusion coefficients of the Al atom in the Cu region and the Cu atom in the Al region at 550 °C are approximately 1.84 × 10⁻¹⁵ m²/s and 8.45 × 10⁻¹⁶ m²/s, respectively.
