Extraction of REEs and Other Elements from Estonian Graptolite-Argillite and Phosphorite Mineral Acid Solutions

Abstract

The chemical extraction of rare-earth elements (REEs) from Estonian graptolite-argillite (GA) and phosphate rock (Phosphorite, PH) samples has been conducted and analyzed. For the initial leaching process, HCl and HNO₃ with different concentrations were used to extract REEs from GA and PH. Different extraction agents, including ionic liquids, were examined for the extraction of REEs from acidic aqueous solutions in the liquid–liquid extraction step. After leaching and extraction, all samples were characterized using the inductively coupled plasma mass spectrometry method (ICP-MS/MS). The highest REE extraction efficiencies from GA were established with 1-ethyl-3-methyl imidazolium diethyl phosphate (EMImDEPO₄) and from PH using bis(2-ethylhexyl) phosphate (D2EHPA).

1. Introduction

Rare-earth elements (REEs) include 15 lanthanide elements (Z = 57 to 71) together with scandium (Z = 21) and yttrium (Z = 39), as stated in the International Union of Pure and Applied Chemistry (IUPAC) [1,2,3,4]. Due to their high reactivity and chemical similarity, REEs are complicated to separate and refine into pure metal. As a result, efforts to develop efficient separation processes began early in the 20th century [5].

Nowadays, REEs have an enormous impact on societies’ daily lives since it is impossible to develop any high-tech technology that would not contain any REEs [1,6,7,8]. Energy storage devices have become indispensable for storing and maintaining a continuous power supply to meet established renewable energy targets. Furthermore, REE-based permanent magnets are extensively used in wind turbines and electric vehicles [9,10,11]. Current supply chains are mainly controlled and fulfilled by the Chinese REE industry [12,13]. China dominates the REE industry by producing more than 90% of rare-earth requirements. Therefore, recycling REEs is currently necessary to alleviate market fluctuations [14].

Black shale formations, known as graptolite-argillite, are found along the northern coast of Estonia and on Vormsi and Hiiumaa islands [15,16]. The thickness of GA reaches up to 7.4 m in Northwest Estonia and decreases towards the east and south [15,16]. Black shales can be divided into classes based on the degree of commodity metal accumulation: black shale (0.01%), metalliferous black shales (0.1%), and hyper-enriched black shales (1%) [17]. The distribution of metals in GA has a complex pattern, but Mo, V, and U are the most characteristic. Moreover, GA contains high variability in the trace metal composition, including heterogeneous REE patterns [17,18,19].

Presumably, the largest unexploited sedimentary phosphate rock reserves in the European Union are also located in Estonia (about 700 million tons of P₂O₅) [20]. Estonian phosphate rock contains low amounts of Cd (1–5 ppm) and depleted U content compared to other worldwide deposit locations, but the total content of REEs has been identified with an average of 1500–2000 ppm [20].

REE leaching used in primary REE production is integral to hydrometallurgical REE processing [21]. These processes are defined as noncatalytic heterogeneous reactions between liquid and solid phases, ranging from acid leaching (H₂SO₄, HCl, or HNO₃) of primary ores to leaching with NaCl or (NH4)₂SO₄ of ion-adsorbed clays [22,23]. For industrial design and optimization processes, the kinetics aspect of the leaching is considered to be highly relevant, including various types of diffusion and chemical reaction mechanisms [24]. Therefore, establishing the most optimal pathway would significantly enhance the leaching process’s effectiveness and consider the environmental aspects.

Extraction of cations is an efficient technique for separating rare earths from acid solutions—it is relatively simple, rapid, and applicable in various concentrations, pH, and temperature ranges [25,26]. For example, triphenyl arsine in kerosene can extract yttrium and ytterbium from sulfuric acid medium. Ionic liquids (ILs) are studied as extraction agents, emphasizing the existing technologies and the principles of sustainable and green chemistry [27,28]. Common acidic extractants (organic phosphonic acids and carboxylic acids) require saponification, resulting in large amounts of wastewater [29]. Thus, designing alternative extractants is a matter of great urgency. The non-functional ILs showed better extraction ability and selectivity than conventional organic solvent systems [30].

This paper has two main novel objectives regarding the high amount of black shale formations and large phosphate rock reserves in Estonia. Firstly, develop a leaching process for Estonian graptolite-argillite and phosphorite ore samples. Secondly, to extract REEs (separate HREEs and LREEs) and other distributed rare metal cations (DRM) from prepared aqueous solutions using ionic liquids and other extraction agents. The concentration of REEs and DRM was determined before and after extraction by ICP-MS/MS to calculate the respective extraction efficiencies. The influence of different molar concentrations of acids has been discussed.

2. Experimental Section

2.1. Leaching Step of GA and PH Samples

The raw GA powder samples from Northeast Estonia (samples have been designated as Sillamäe, Sõtke top, Sõtke bottom, and Argillite from the collection) were homogenized using ball milling (stabilized ZrO₂ balls) and then treated with aqueous acidic solutions. GA was leached using Aqua Regia, 1 M HCl, 1 M HNO₃, 3 M HCl, 3 M HNO_3, and 7.5 M HNO₃ aqueous solutions in 1:10 solid-to-liquid mass ratios in separate vials. Demineralized water was used to prepare the acid solutions. The mixtures of GA and acid were stirred (300 rpm) at 70 °C for 3 h, followed by a cooling step (to room temperature), centrifugation for 30 min, and decantation (solid residual separation).

PH leaching experiments contained phosphorite ore samples from Northeast Estonia (designated as Ülgase, Toolse, and Iru outcrop) that were processed in 100 mL 7.5 M HNO₃, 7.5 M HCl, 3 M HNO_3, and 3 M HCl acidic aqueous solutions for 24 h at room temperature (22 ± 1 °C) in 1:10 solid-to-liquid mass ratios. A relatively high acid concentration and leaching time were necessary to dissolve REEs from the PH ore completely. Thereafter, the solution was filtered to remove any undissolved substances.

Estonian concentrated phosphorite ore (Ülgase, Toolse, and Iru from Northern Estonia) and graptolite-argillite (Sillamäe, Sõtke top, Sõtke bottom, and Argillite from the collection) samples were obtained from geological collections at the Institute of Ecology and Earth Sciences, University of Tartu.

Chemicals: HNO₃ and HCl (ACS grade) were purchased from Merck (Burlington, MA, USA).

2.2. Details of the Extraction Process

Acidic aqueous feed solution from the leaching step and extractant were added to the separation funnel at a fixed 9:1 (aqueous/organic) ratio in all cases (GA and PH samples) at room temperature. The mixture was shaken carefully in a separation funnel for 1 min and kept still to reach the reaction equilibration of the extraction for one hour. The procedure was repeated two more times for the best separation efficiencies.

Extractants: Tributyl phosphate (TBP, ≥99.0%) from Merck; 1-ethyl-3-methyl imidazolium diethyl phosphate (EMImDEPO₄, ≥97%) and tricaprylylmethylammonium chloride (Aliquat 336, ≥97.0%) from Sigma-Aldrich; bis(2-ethylhexyl) phosphate (D2EHPA, ≥95.0%) from Merck.

2.3. Experimental Methods for Determining the Detailed Chemical Composition of GA and PH

Trace element analysis of samples after the leaching step and extraction process was performed using Agilent 8800 QQQ ICP-MS/MS (Agilent Technologies, Santa Clara, CA, USA). All untreated extraction solutions were diluted to a final dilution factor of 4000 before the analysis using a 2% HNO₃ solution. ICP-MS/MS measurements were performed in NoGas mode, and collision mode was used for masses that exhibited polyatomic spectral overlaps. Calibration standard solutions were used.

3. Results and Discussion

3.1. GA Raw Deposit Analysis After Leaching with Modified Aqua Regia Using ICP-MS/MS Method

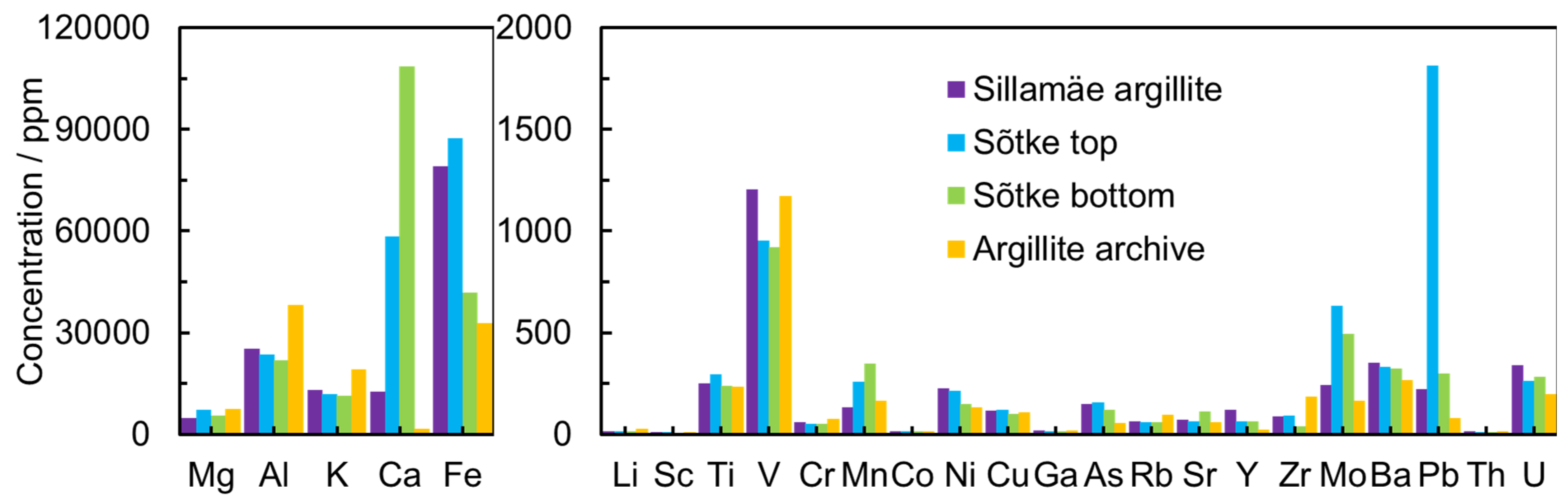

The GA is an argillaceous rock enriched with organic matter that contains high concentrations of several elements (U, V, Mo, Pb, Zn, Cd, Cu, As) and very low concentrations of REEs [31]. The current study of geochemical generalizations of Estonian GA shows that the content of elements in the solution obtained from leaching is heterogeneous and highly dependent on the location and origin (Figure 1). The concentration of metal cations in GA obtained after the leaching process with modified Aqua Regia is in good agreement with the data by Soesoo et al. [15,32,33].

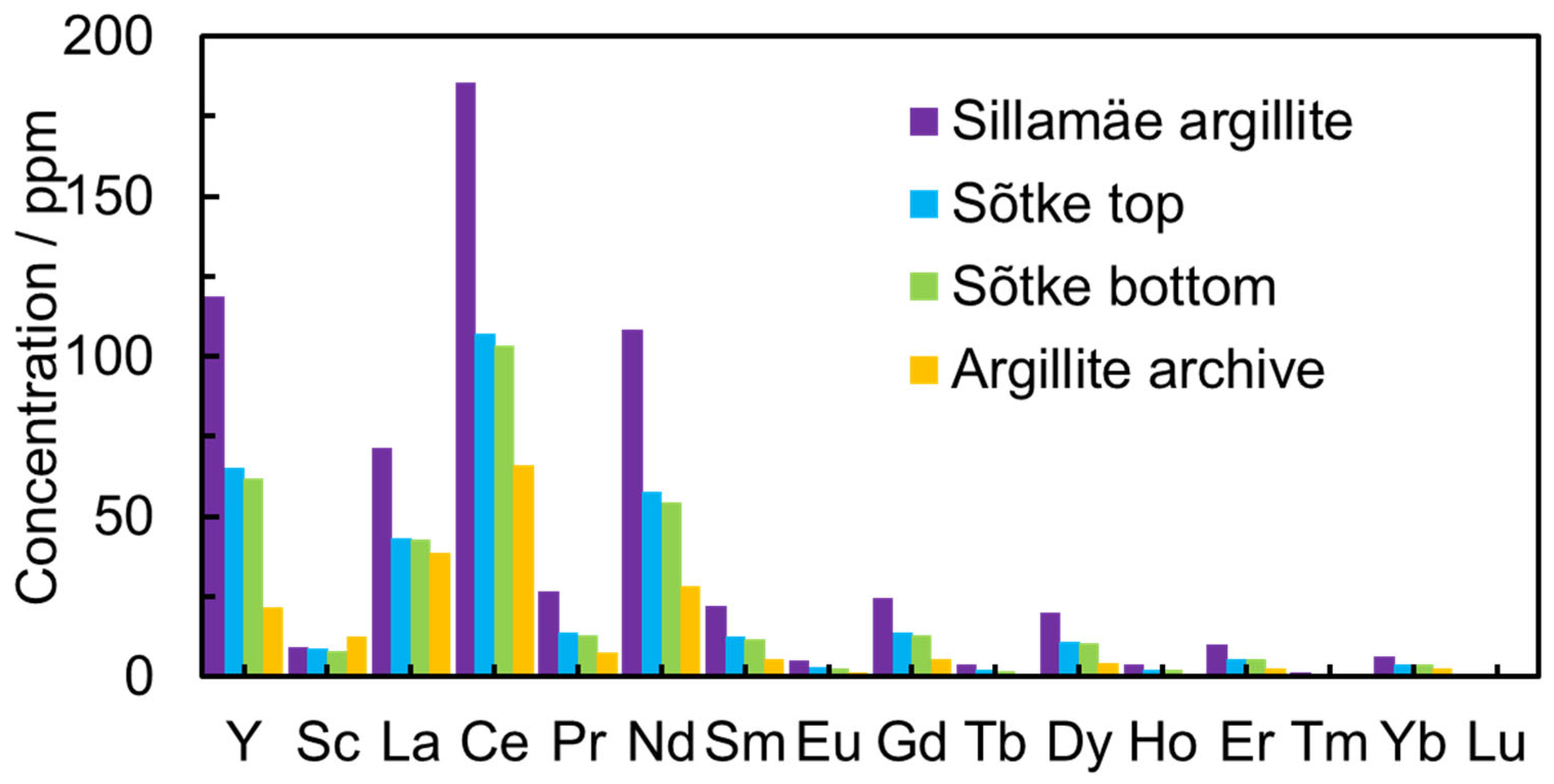

The concentrations of U (198–280 ppm) and Th (10–13 ppm) were moderate in all GA samples. The REEs’ total concentration (in the solution after the leaching process) in the Sillamäe sample reached 600 ppm but stayed between 200 and 350 ppm in other samples (Figure 2).

3.2. GA and PH Composition Analysis After Leaching with HCl and HNO₃ Aqueous Solutions Using the ICP-MS/MS Method

For metal extraction, various forms of hydrometallurgical routes are used for black shale processing [17]. The leaching process with typical mineral acids (H₂SO₄, HCl) with higher concentrations increases the leachability of metals at atmospheric pressure [34]. In this study, H₂SO₄ was excluded due to earlier findings that most of the REEs transfer to the gypsum (CaSO₄·2H₂O) during the sulfuric acid leaching [35]. Therefore, to analyze the influence of the acid concentration on the extraction efficiency (E %), HCl and HNO₃ with different concentrations were used for the GA and PH treatment processes.

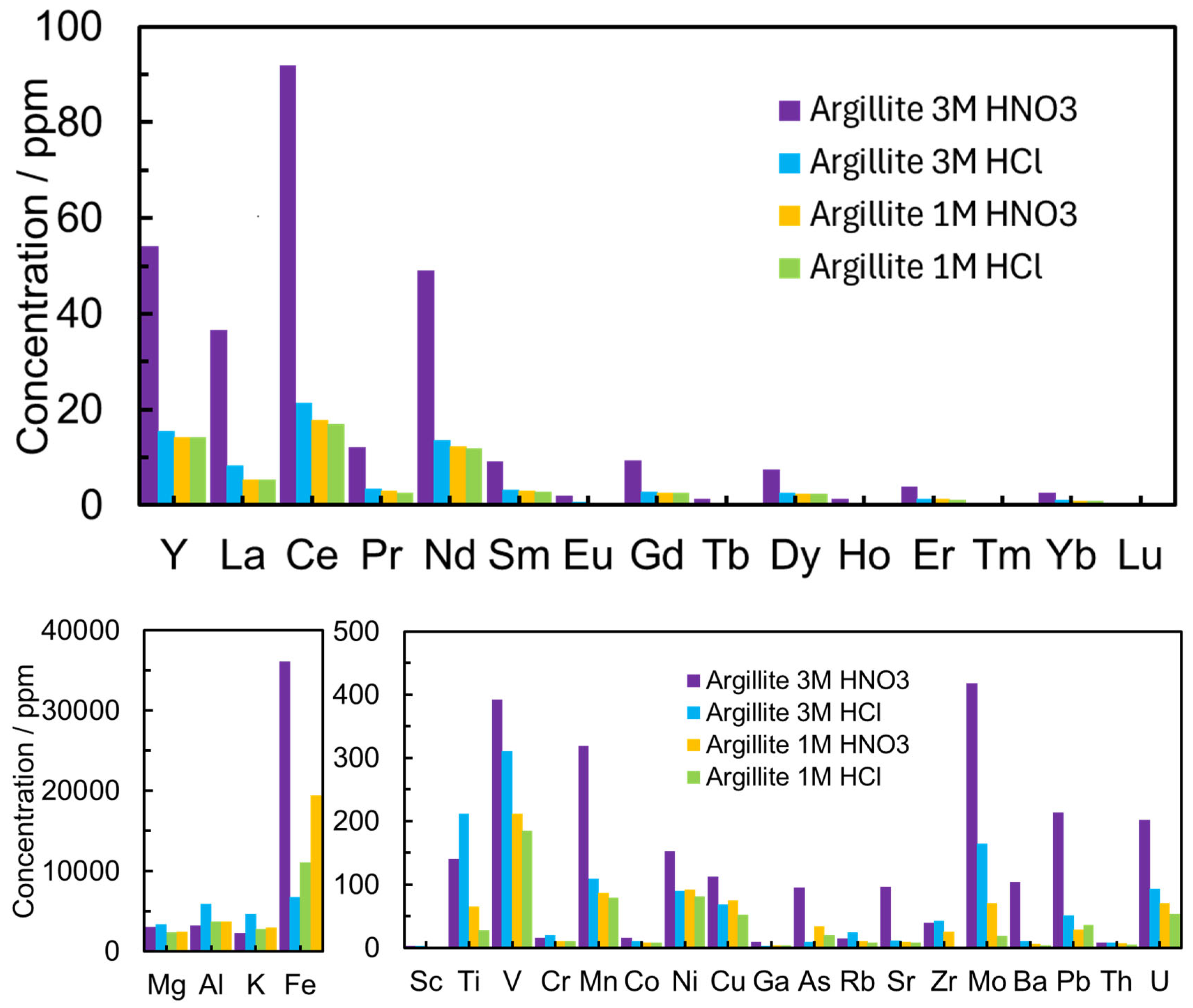

The leaching process results of GA using acids with different concentrations show that the concentration of REEs decreases with the dilution of acid from 3 M to 1 M (with increasing pH of acid solution) based on the ICP-MS/MS measurement results (Figure 3). The lower leaching efficiency of REEs in more dilute acid solution can be explained by the lack of protons.

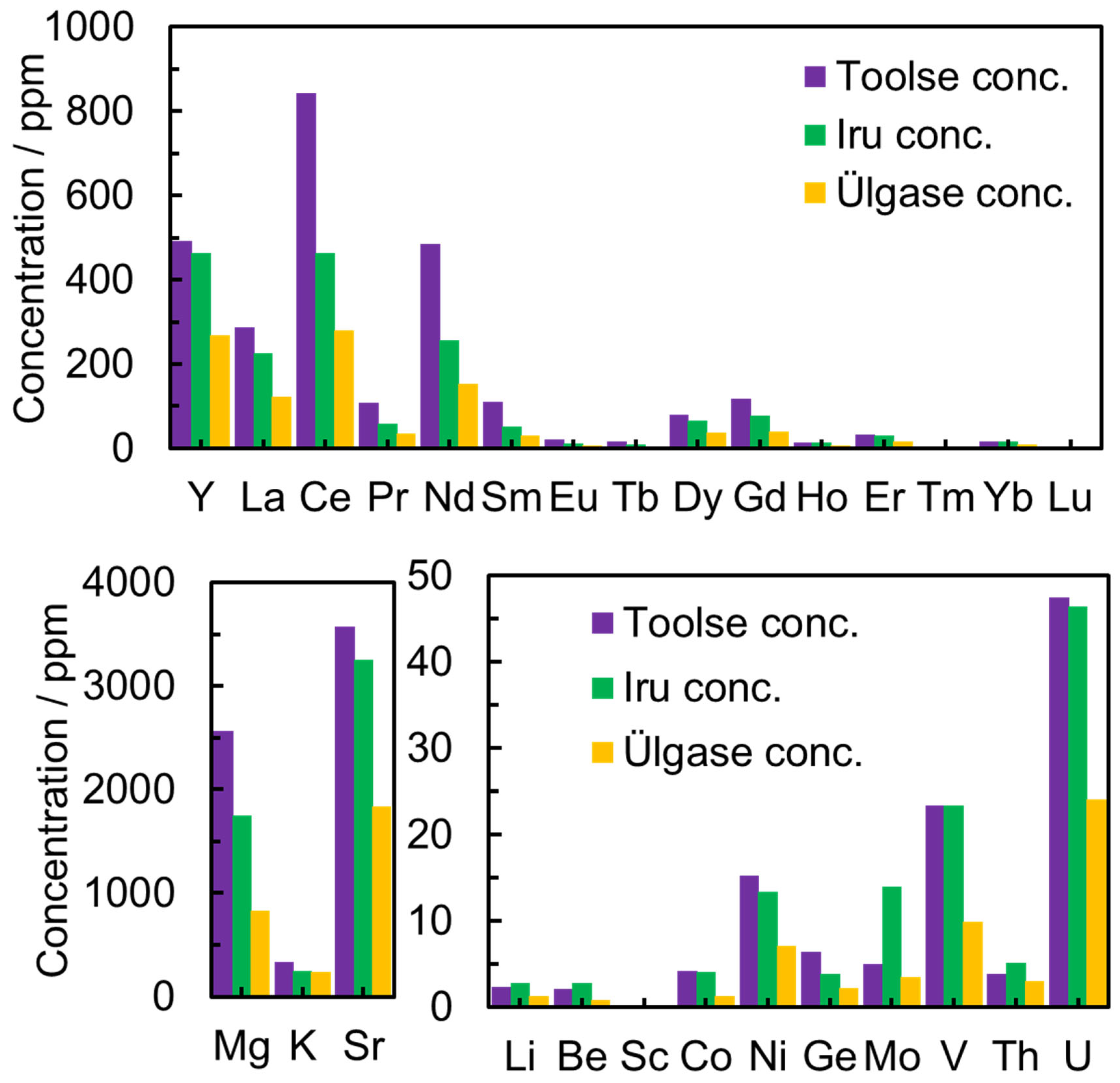

In the PH leaching experiments, the phosphorite ore samples from the Ülgase outcrop were leached in 7.5 M HNO_3, and the leaching efficiencies for different deposits are presented in Figure 4. High concentrations of La and Ce might be due to mineral grains of monazite (a mineral that contains rare-earth elements) in the sample [36].

A more systematic ICP-MS/MS data analysis (Figure 3 and Figure 4) indicates that HNO₃ gives more concentrated REE solutions in both ore samples (GA and PH) since (NO₃^─) is a slightly harder Pearson base than Cl^─. Kinetically, hard acids are electrophiles that react more quickly with hard bases (nucleophiles), while soft acids react more rapidly with soft bases. This principle also allows for the prediction of displacement reaction kinetics. Thus, the softness of ions can be used to rationalize the relative stability of the cation–anion interaction in water, which can influence the stability of ion pairs and metal–ligand complexes in water relevant to hydrometallurgical processes [37].

Previous studies have also demonstrated that nitric acid is considered a mineral structure weakener of black shales [38]. Zhu et al. demonstrated that the Mo concentration can be increased with a higher HCl concentration in shales [39]. At the same time, the presence of HNO₃ resulted in 74% of the total shale Mo being leached and caused a preferential release of heavy Mo isotopes.

3.3. Extraction Process of GA and PH Using Different Extractants

Based on the low waste materials production and natural resources conception accepted by the EU (recycling industry conditions), all REEs occurring in Estonian GA and PH should be extracted and separated [40].

All extraction agents applied were carefully chosen based on the literature data and our previous results [41,42,43]. Quaternary ammonium-based ionic liquid, Aliquat 336, modified with KNO₃ solution, has shown good extraction efficiency for La and Ce. The extraction efficiency with Aliquat 336 (NO₃) increased with an increase in the solution pH [44,45]. Therefore, the Aliquat 336(NO₃) extraction efficiency was also tested in the Estonian GA and PH systems. Phosphate-based extractants were applied to treat GA solutions, including TBP, EMImDEPO4, and Aliquat 336 (NO₃). Meanwhile, D2EHPA was used to extract REEs from PH aqueous acidic solutions in different concentrations, as it has been used in the literature before [46]. It is important to note that all REE concentrations (ppm) in this work depend on the sample’s geological and mineralogical properties (mining pit) in addition to the experimental conditions of the leaching and extraction processes.

Extraction efficiency values were calculated using the previously introduced equation [43]:

$$E={\displaystyle \frac{C\left(initial\right)-C\left(final\right)}{C\left(initial\right)}}\times 100\%$$

Table 1. Extraction efficiencies (E %) of REEs from graptolite-argillite using different extraction agents (marked in Table and text) from 3 M HNO₃ aqueous solutions.

E %
	Sc	±	Y	±	La	±	Ce	±	Pr	±	Nd	±	Sm	±	Eu	±
EMIMDEPO4	99.5	1.0	99.5	0.9	99.8	1.1	99.6	0.5	99.5	0.3	99.6	0.7	99.6	0.8	99.6	1.5
Aliquat336	0	0	0	0	79.6	3.6	24.2	2.1	0	0	0	0	1.4	0.2	0	0
TBP	0	0	0	0	0	0	0	0	0	0	0	0	4.1	0.5	0	0
	Gd	±	Tb	±	Dy	±	Ho	±	Er	±	Tm	±	Yb	±	Lu	±
EMIMDEPO4	99.6	1.5	99.6	2	99.6	0.8	99.5	0.9	99.5	0.7	99.5	1.2	99.4	2	99.3	1.2
Aliquat336	2.3	0.1	0	0	0	0	0.7	0.1	1.7	0.1	0	0	1.6	0.1	0	0
TBP	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0

demonstrates the extraction efficiencies of REEs from GA aqueous solutions. The REE extraction efficiencies of a common extractant, such as TBP, in Estonian GA systems are nonexistent compared to the 3 M HNO₃ solution before the extraction process. The calculated extraction efficiency values for ionic liquid, EMImDEPO₄, are excellent, higher than 98% for all REEs. It suggests that DEPO₄^─ strongly interacts with REEs in the acidic aqueous solution of GA. Based on previous results, imidazolium, ammonium, bifunctional, and other ionic liquids have high potential as extraction agents for REEs with high extraction efficiencies, replacing conventional extractants due to sustainability requirements [47,48]. Surprisingly, Aliquat 336(NO₃) did not give the expected REE extraction results, with the extraction efficiency values being extremely low in GA solutions, except for La (~80%) and Ce (~24%).

The extraction efficiencies calculated for the PH from the ICP-MS/MS results indicate that the concentration of HCl significantly influences the extraction profile using D2EHPA as an extraction agent (

Table 2. Extraction efficiencies of REEs from phosphorite ore (Ülgase) at different hydrochloric acid molar concentrations using D2EHPA as an extractant.

E %
	Sc	±	Y	±	La	±	Ce	±	Pr	±	Nd	±	Sm	±	Eu	±
5M HCl	98.08	1.0	16.55	2.9	−4.89	1.1	−4.62	0.5	−2.96	0.3	−3.01	0.7	−4.06	0.8	−4.21	1.5
3M HCl	75.57	2.3	13.39	2.3	−6.92	3.6	−6.98	2.1	−4.72	0	−6.59	0	−5.48	0.2	5.4	0
2M HCl	67.02	3.3	39.04	1.9	4.18	0.2	1.97	0.1	1.27	0.1	3.22	0.2	4.29	0.2	4.08	0.2
1M HCl	17.57	1.7	92.07	3.5	0.38	0	2.64	0	3.43	0	3.78	0	18.53	0.5	29.11	0
	Gd	±	Tb	±	Dy	±	Ho	±	Er	±	Tm	±	Yb	±	Lu	±
5M HCl	−2.33	1.5	−0.42	2	3.35	0.8	9.63	0.9	20.79	0.7	44.16	1.2	65.61	2	72.33	1.2
3M HCl	−3.88	0.1	−1.05	0	4.93	0	7.6	0.1	14.28	0.1	32.22	0	44.34	0.1	43.27	0
2M HCl	5.27	0	12.64	0	21.63	0	26.8	0	36.39	0	59.44	0	50.08	0	36.72	0
1M HCl	30.59	1.5	59.99	2.9	79.35	3.9	84.59	4.2	82.39	4.1	92.71	4.6	47.4	2.3	67.6	3.4

). The extraction efficiencies for Aliquat 336(NO₃) were low, and the results are not included in the analysis of this paper. Experimental data for D2EHPA show that in more concentrated HCl solutions (5 M and 3 M), HREE and Sc can be extracted selectively. In contrast, LREEs (La-Sm), Y, Eu, Gd, and Tb are not extracted under these conditions. This is in good agreement with previous observations that D2EHPA has better selectivity of HREE over LREE, which can be attributed to the higher charge density of HREE [49]. The LREEs, Y, Eu, Gd, Tb, and Dy can be extracted more effectively using lower HCl (2 M and 1 M) concentrations (Table 2). It is important to note that the extraction efficiency of Y increases significantly at lower concentrations, but the extraction efficiency of Sc is higher in a more acidic environment. We propose that for the extraction of LREE (La-Sm), the concentration of HCl needs to be lower than 1 M. Still, so far, our results indicate that leaching at less acidic concentrations becomes problematic. Therefore, leaching in a more acidic environment, followed by partial neutralization of leachate, might be an option. It can be concluded that extraction in HCl media using different acid concentrations shows promising results for separating HREE and Sc from LREE.

The extraction results of the PH (Iru) acidic solutions with D2EHPA are highly dependent on the concentration of HNO₃ (

Table 3. Extraction efficiencies of phosphorite ore (Iru) at different nitric acid molar concentrations using D2EHPA as an extractant.

E %
	Sc	±	Y	±	La	±	Ce	±	Pr	±	Nd	±	Sm	±	Eu	±
0.03 M HNO3	99.30	1.00	99.57	1.00	92.98	1.00	94.51	1.00	94.91	1.00	95.27	1.00	97.39	1.00	98.01	1.00
7.5 M HNO3	92.86	1.00	27.06	2.7	2.60	0.26	3.27	0.32	6.61	0.66	3.52	0.35	4.80	0.48	5.27	0.52
	Gd	±	Tb	±	Dy	±	Ho	±	Er	±	Tm	±	Yb	±	Lu	±
0.03 M HNO3	97.77	1.00	98.81	1.00	99.24	1.00	99.53	1.00	99.50	1.00	99.55	1.00	99.44	1.00	99.62	1.00
7.5 M HNO3	4.60	0.46	8.02	0.80	14.12	1.41	19.10	1.91	27.70	2.77	43.17	4.31	58.38	5.38	66.38	6.63

), similar to the HCl results. High extraction efficiency values were calculated for all REEs from dilute nitric acid solution with D2EHPA. However, the extraction efficiency values from the concentrated nitric acid solution are better for HREE and negligible for LREE.

It is essential to point out that the extraction efficiency of Sc is not influenced by the acidic concentration in nitric acid media and remains higher than 90%, which is different from hydrochloric acid media. Thus, for the selective extraction of HREE with D2EHPA, more concentrated HCl and HNO₃ should be used. All the results presented in this paper are promising, mainly if ionic liquid extraction has been conducted. However, additional systematic extraction and separation should be conducted to selectively separate REE and DRM from Estonian GA and PH ore samples.

4. Conclusions

The leaching process of Estonian GA and PH was thoroughly studied using HCl and HNO₃ with different concentrations, including Aqua Regia. A higher concentration of REEs in GA and PH was achieved in more concentrated acid solutions, especially in HNO₃. A variation in phosphate-based extractants and ILs was explored for the extraction process of REEs. The extraction efficiencies in GA complex systems are highest when EMImDEPO4 is used as an extraction agent. In PH systems, more concentrated HCl and HNO₃ solutions gave better results for the selective extraction of HREEs from LREEs.

Continuous and systematic analysis of different leaching and extraction agents should be conducted to extract and separate REEs from Estonian GA and PH successfully.
