Mechanical and Magnetic Properties of Porous Ni50Mn28Ga22 Shape Memory Alloy

by
Xinyue Li
,
Kunyu Wang
,
Yunlong Li
,
Zhiqiang Wang
,
Yang Zhao
and
Jie Zhu
*
State Key Laboratory for Advanced Metals and Materials, University of Science and Technology Beijing, 30 Xueyuan Road, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Metals 2024, 14(3), 291; https://doi.org/10.3390/met14030291
Submission received: 17 January 2024 / Revised: 6 February 2024 / Accepted: 9 February 2024 / Published: 29 February 2024
(This article belongs to the Topic Microstructure and Properties in Metals and Alloys, 2nd Volume)
Browse Figures
Review Reports Versions Notes

Abstract

:
A porous Ni50Mn28Ga22 alloy was produced using powder metallurgy, with NaCl serving as the pore-forming agent. The phase structure, mechanical properties, and magnetic properties of annealed bulk alloys and porous alloys with different pore sizes were analyzed. Vacuum sintering for mixed green billets in a tube furnace was employed, which facilitated the direct evaporation of NaCl, resulting in the formation of porous alloys characterized by a complete sinter neck, uniform pore distribution, and consistent pore size. The study found that porous alloys within this size range exhibit a recoverable shape memory performance of 3.5%, as well as a notable decrease in the critical stress required for martensitic twin shear when compared to that of bulk alloys. Additionally, porous alloys demonstrated a 2% superelastic strain when exposed to 353 K. Notably, under a 1.5 T magnetic field, the porous Ni50Mn28Ga22 alloy with a pore size ranging from 20 to 30 μm exhibited a peak saturation magnetization of 62.60 emu/g and a maximum magnetic entropy of 1.93 J/kg·K.

1. Introduction

Ni–Mn–Ga alloys have gained significant interest in the field of functional materials due to their various mechanical, thermal, and magnetic properties, magnetoresistance, elastic-caloric effect (eCE), and magnetocaloric effect (MCE) [1,2,3,4,5,6,7]. The strong superelasticity of the Ni–Mn–Ga alloy is attributed to the stress-induced martensitic transformation. The one-dimensional Ni–Mn–Ga wire produced using melt spinning reportedly exhibits a superelasticity of up to 14% [8]. This superelasticity is attributed to its bamboo-like grain structure, which effectively reduces the obstructive effect of grain boundaries on the martensitic transformation. By reducing the dimensionality, the number of grain boundaries can be decreased, and the constraint of martensitic transformation can be effectively weakened. However, stress-induced martensitic transformation in polycrystalline Ni–Mn–Ga alloy is impeded by grain boundaries, resulting in low macro-superelasticity [9]. To overcome this problem, researchers have decreased the number of alloy grain boundaries by introducing pores into the bulk alloy to reduce the resistance to martensitic transformation [10]. The porous Ni–Mn–Ga alloys prepared using infiltration exhibit a magnetic field-induced strain of 0.12%, surpassing the limit of the bulk alloy. This is due to the reduction in the hindrance to martensitic transformation caused by the addition of pores and subsequent heat treatment, which results in the formation of a large number of coarse grains in the alloy. Consequently, unlike one-dimensional materials, porous materials offer another approach to reducing the dimensionality while also effectively reducing grain boundary constraints.
Ni–Mn–Ga-based alloys exhibit a conventional MCE or eCE in the proximity of both the first-order martensite transformation (MT) and the second-order magnetic transition [11,12]. The MCE in Ni–Mn–Ga alloys has been found to be highly contingent on the alloy’s composition, thereby allowing for the tuning of the MT and magnetic transitions to overlap through chemical composition adjustments. This facilitates the achievement of the transformation entropy during paramagnetic austenite and ferromagnetic martensite, resulting in an enhancement of the MCE [13]. Furthermore, the tunable transformation temperature characteristic enables the potential design of a magnetic refrigerator with an operating temperature closely approximating room temperature [14,15,16,17]. The Ni–Mn–Ga alloy has been designed for use as a temperature sensor or heat accumulator in applications involving higher temperatures and larger temperature ranges, due to large entropy changes under a phase transition. Additionally, the porous structure of the alloy can significantly enhance the heat exchange efficiency between a fluid and a material, owing to its large specific surface area, which can improve the magnetic cooling effect (MCE) characteristics of materials. This paper focuses on the mechanical and MCE properties of porous materials using the cold pressing and sintering method, which differs from the imitation casting method used in a previous study [18,19,20,21].

2. Experimental Procedures

The Ni50Mn28Ga22 (at.%) alloy ingots were prepared using arc-melting high purity elements of Ni (99.99%), Mn (99.7%), and Ga (99.99%) four times to ensure uniform composition. After the alloy ingot was broken into powder, the alloy powder of 20–30 μm was sieved and mixed with NaCl. To control the pore size of the porous Ni50Mn28Ga22 alloy, the 50 vol.% sieved pure NaCl powders were mixed into the Ni–Mn–Ga powder as the space holders, where the NaCl powders were sieved into 20–30 μm, 50–75 μm, 112–200 μm, 200–355 μm, respectively. The mixed powder was obtained using ball milling mixtures consisting of 50 vol.% mechanically ground Ni50Mn28Ga22 powder and 50 vol.% NaCl powders of various sizes (>99.5% purity) for 5 h. Then, the mixed powder was placed into a steel mold and a unidirectional pressure of approximately 500 MPa was applied for 1 min. During the sintering process, the crucible containing the green billets was placed into a vacuum furnace and heated to 1023 K for 1 h and then heated to 1373 K and kept for 2 h to make NaCl volatilize from the compact to achieve complete sintering between the powders. It was then cooled to room temperature with a cooling rate of 5 K/min. The remaining NaCl was dissolved by immersing the sample into water for 48 h.
The porous alloys were characterized using an SEM (Carl Zeiss, Oberkochen, Germany) equipped with an EDS system to analyze the microstructure, fracture, and composition. To further examine the grain morphology, the corroded surface was observed using an optical microscope (Carl Zeiss, Oberkochen, Germany). The sample underwent mechanical polishing and etching using Kalling’ II solution (100 mL alcohol, 100 mL hydrochloric acid, and 5 g CuCl2) to prepare the porous surface for analysis. The phase analysis of Cu–Kα radiation (λ = 1.5406 Å) at room temperature was conducted using an X-ray diffractometer (XRD, Rigaku, Tokyo, Japan). The martensitic transformation was measured with a heating/cooling rate of 10 K/min using DSC (TA Instruments, New Castle, DE, USA). Isothermal magnetization M(H) curves within a temperature range of 298–353 K were obtained using a vibrating sample magnetometer (VSM) of PPMS (Quantum Design, San Diego, CA, USA) at a heating and cooling rate of 3 K/min, under magnetic fields up to 1.5 T. Specifically, to measure the M(H) curves, the sample was equilibrated at 353 K to achieve a full austenite state before being cooled to the test temperature and maintained for 1 min before starting measurements. Additionally, the magnetic field was applied perpendicular to the direction of green bodies pressing. The magnetocaloric effect (MCE), characterized by magnetic entropy change (ΔSm), was then calculated from the M(H) curves based on the Maxwell relation.
To investigate the mechanical properties of porous alloys, incremental cyclic compression tests were conducted to assess both their shape memory effect and superelasticity at room temperature and 353 K. Uniaxial loading and unloading experiments were carried out using a universal testing machine (DDL-50), with the axial displacement of the sample being monitored through an extensometer (YUU-25/5). The samples, with a dimension of diameter 3 × 6 mm, were subjected to a temperature of 353 K (Af + 15 K) for 10 min during the assessment of the superelasticity effect, ensuring a fully austenitic state and complete grain recovery. Additionally, to investigate the dependence of the recoverable shape memory effect on the pre-strain, the samples were immediately unloaded at the set strain value upon reaching the specified strain, under the same strain rate.

3. Results and Discussion

The microstructures of NaCl and Ni50Mn28Ga22 alloy powder are depicted in Figure 1a and Figure 1b, respectively. The NaCl powder displays an irregular shape with a size range of 20–30 μm after grinding and screening, with a few particles being smaller than 10 μm. Similarly, the alloy powder exhibits irregularity at a size of 20–30 μm.
The morphologies of porous alloys with varying pore sizes are presented in Figure 2. The dual pore structure consisted of a regular pore formed using a pore-forming agent and small sintered pores (<10 μm). When NaCl with pore sizes of 20–30 μm (a) and 50–75 μm (b) were added, the porous alloy exhibited an irregular polygonal pore morphology with sharp corners. Conversely, for larger NaCl pore sizes of 112–200 μm (c) and 200–355 μm (d), the pore morphology was relatively regular and the shape was similar to the added NaCl. The magnified view in Figure 2a reveals a complete through-hole structure in the prepared porous alloy, with well-formed sintering necks between the alloy particles, and a uniform distribution and relatively consistent size of pores. The pillar of the porous sample, with a grain size of approximately 25 μm, was composed of multiple martensitic twins arranged in different directions and formed a well-sintered neck. The illustration in the lower right corner of Figure 1 shows a microscopic image of a corroded porous alloy pillar captured using an optical microscope. It can be seen that an obvious lamellar martensite runs through the entire grain and sintering neck, suggesting that coarse martensite twins were achieved through pressing sintering without requiring further heat treatment. Moreover, this structural configuration effectively reduces the number of grain boundaries in the alloy, while the arrangement of martensitic plates perpendicular to the pillar direction facilitates the release of individual grain strain. It can be seen from the enlarged image in Figure 2c that the macropores were caused by the occupation of NaCl particles, but there were still small pores in the matrix. This is caused by the gaps between alloy particles during the green billet pressing process, and most of these pores are closed pores. Similarly, in Figure 2d, the larger pores (red box) in the porous alloy are attributed to the pore-forming agent, whereas the formation of smaller pores (yellow box) occurred between the alloy particles during the sintering process.
Table 1 lists the content and porosity of Ni50Mn28Ga22 porous alloy elements obtained using sintering at 1373 K. The actual porosity of the porous alloys was calculated using the following formula:
P = ( 1 − ρ 0 / ρ ) × 100 %
where P represents the porosity, and ρ0 and ρ denote the density of porous Ni50Mn28Ga22 alloy and bulk Ni50Mn28Ga22 alloy, respectively [22]. From the table, it can be seen that the composition of porous alloys with different sizes was similar, indicating that the pores did not affect the alloy composition. Compared to the experimental design, the composition of porous alloys with different pore sizes showed a small amount of Mn volatilization, which occurred during the sintering. In addition, the porosity was slightly lower than 50%, which is due to the slight melting of the alloy surface during sintering, causing alloy size shrinkage.
The DSC curves and room temperature XRD patterns of the Ni50Mn28Ga22 porous alloy with different pore sizes are depicted in Figure 3a and Figure 3b, respectively. The DSC curve reveals a singular endothermic peak during heating and a separate exothermic peak during cooling for samples with various pore sizes, indicating a one-step transformation consistent with the as-cast samples [23]. The phase transition start and finish temperatures (Ms, Mf, As, Af), as well as the Curie point (Tc) of the porous alloy, were determined using the tangent method and are presented in Table 2 for evaluation. The thermal hysteresis ΔT was calculated using Δ T = ( A s − M f + A f − M s ) / 2 . It is noteworthy that the positions of the endothermic and exothermic peaks and the phase transition temperature across various pore sizes exhibited no significant changes. In addition, as the pore size increased, the height of the phase transition peak decreased and widened, and this change in peak shape was caused by lattice distortion, which was caused by stress [24]. The larger pores cause severe deformation of the alloy powder during the pressing process, resulting in a stress concentration. The transformation of late heat ΔH calculated using the phase transition peak was 10.23, 9.62, 9.62, and 9.48 J/g, in order of pore size from small to large, with no significant difference. This indicates that the pore size does not affect the amount of grains involved in phase transformation in porous alloys. The XRD pattern in Figure 3b illustrates that the Ni50Mn28Ga22 porous alloy possesses a non-modulation martensite structure (NM) with a tetragonal arrangement at room temperature. Furthermore, all diffraction peaks can be attributed to the NM martensite phase, implying that the porous alloy retains a uniform composition and does not undergo second-phase precipitation subsequent to sintering [25,26,27,28]. The lattice constants and cell volumes of porous alloys with different pore sizes were calculated from XRD curves and are listed in Table 3. It can be seen that the pore size had no significant effect on the lattice constant and cell volume.

3.1. Shape Memory Effect

The mechanical properties of magnetocaloric materials are of crucial importance for their potential applications. The Af temperature of the samples, as depicted in Figure 3a, was approximately 340 K. Therefore, shape memory effect tests were conducted at room temperature (295 K), wherein the samples were in a completely martensitic state. The comparison between the annealed bulk alloy and porous alloys with different pore sizes (20–30 μm, 112–200 μm, and 200–355 μm) is illustrated in the compression experiment results shown in Figure 4. The sample underwent compression experiments using a cyclic increment method, wherein it was first subjected to a compression recovery of 1%, followed by heating at 473 K for 10 min to achieve shape memory recovery. Subsequently, after the sample cooled down, the next compression process was initiated. Each compression process increased the compression amount by 0.5% compared to the previous one until the sample eventually collapsed.
In Figure 4a, the annealed bulk alloy exhibits an observable inflection point during the compression process, marked by the red arrow, indicating the de-twinning process of the martensite variant. It is evident from Figure 4b that the porous sample experienced a significant reduction in maximum stress when subjected to the same compression force as the bulk alloy. This reduction can be attributed to the decrease in the equivalent cross-sectional area resulting from the presence of numerous pores. Simultaneously, the abundance of pores led to a decrease in the number of grain boundaries, thereby lowering the resistance of the martensite twin movement. Notably, the 20–30 μm porous alloy demonstrated an enhanced elastic recovery compared to the bulk material. This enhancement can be attributed to the pores serving as a buffer layer during the deformation process, absorbing some strain and augmenting the elastic deformation of the material.
At the same time, the critical stress of martensite variant detwinning gradually decreased with an increase in the compression time. This can be attributed to the path effect resulting from the repeated compression process, which also exists in bulk alloys [5,29,30,31,32,33,34]. The process leads to the reorientation of dislocations, causing some disadvantageously oriented dislocations to move outside the twin motion path [35]. Consequently, this results in a decreased resistance to twinning motion. Due to the difference in porosity between porous and block structures, when stress is applied to the porous structure, the actual stress borne by the structure is greater than that stress. In addition, if the stress is divided by the relative density of the sample, the actual force acting on the porous alloy pillar node can be obtained. It is worth noting that under a 1% pre-strain, the equivalent stress of porous alloys is 24.5   M P a 1 − 41.24 % = 41.69   M P a [36], which is significantly lower than that of bulk alloys (76.24 MPa), which also confirms that pores, as elastic layers, store some stress. The increase in twin stress caused by a 3% compression is attributed to work-hardening resulting from the accumulation of a large number of dislocations due to extensive deformation. During a 3.5% compression, the sample experienced a partial pillar fracture. As the pore size increased, the brittleness of samples with pore sizes of 112–200 μm and 200–355 μm also increased, leading to premature fracture (Figure 4c,d). This is because the larger pores reduced the overall structural strength of the alloy, causing significant local stress during the stress process, leading to the early collapse of the specimens.
To better analyze the phase transition process during the sample recovery stage, the recovery rate of each strain component of the annealed bulk and 20–30 μm porous alloy specimen are illustrated in Figure 5. The compression strain during each load–unload–heat recovery cycle comprises four components: elastic recovery strain εel, superelastic recovery strain εse, shape memory effect (SME) strain εsme, and irrecoverable strain εir, where the total strain εsum is the sum of these individual components, as shown in Figure 5a [18] and the following formula:
ε s u m = ε e l + ε s e + ε s m e + ε i r
Figure 5b shows the shape memory strain variation with pre-strain of bulk alloys and porous alloys with pore sizes of 20–30 μm. It can be seen that the shape memory strain of the bulk alloys gradually increased with the increase in pre-strain, while the shape memory strain of porous alloys remained constant. This is because the Ni50Mn28Ga22 bulk alloy can conduct stress between adjacent grains without loss during deformation. However, due to the addition of pores, stress can only be transmitted along the pillars or nodes, and pores act as elastic layers, absorbing a large amount of strain, resulting in fewer grains in porous alloys where stress reaches the critical stress of martensitic twin reorientation, resulting in lower shape memory strain and higher elastic recovery. It is worth noting from Figure 5c,d that the presence of superelastic strains in both bulk and porous alloys can be attributed to the austenitic phases in the alloys. Notably, the porous alloy exhibited a markedly higher elastic strain than the bulk alloy due to the abundance of pores in the former, effectively serving as a buffer layer. Despite this difference, both types of alloys displayed the same proportion of shape memory strain. However, it is important to highlight that the pores lead to a significant reduction in the irrecoverable strain of the alloy. This phenomenon is attributed to the presence of a large number of dislocations in bulk alloys, which tend to concentrate stress and form cracks at their sites. Conversely, the introduction of pores in porous alloys substantially decreases the number of grain boundaries, making it challenging for stress to concentrate in dislocations, and thereby minimizing the occurrence of grain boundary fractures. Nevertheless, the incorporation of pores also introduces structural drawbacks to the alloy. Owing to the reduced strength of the sintered neck area, the sample is unable to withstand considerable stress, resulting in a lower maximum deformation capacity for the porous alloy compared to the bulk alloy [37].
To further analyze the fracture process of the alloy, the fracture of the annealed bulk alloy and the 20–30 μm porous alloy were examined. Due to the inherent brittleness of the bulk NiMnGa alloy, most of the fracture surface was an intergranular fracture (Figure 6a), which aligned along the stress direction. There was also a small amount of transgranular fracture. In contrast, Figure 6b reveals a combination of intergranular and transgranular fractures on the porous alloy’s fracture surface. Notably, most of the intergranular fractures resulted from weak sintering necks, while well-sintered sintering necks exhibited transgranular fractures. It is obvious that the stress threshold for an intergranular fracture is lower than that for a transgranular fracture. Consequently, stress initially triggers the fracture of weak sintering necks in porous alloys and then concentrates on the grain of the alloy pillar, causing a transgranular fracture. Therefore, enhancing the strength of the sintering neck in porous alloys can significantly enhance their overall strength.

3.2. Superelastic Effect

The specimens of the Ni50Mn28Ga22 bulk and porous alloys displayed distinct mechanical properties in the martensitic and austenitic states as a result of the shape memory effect and superelastic effect exhibited in these two states, respectively. Testing the mechanical properties of the samples at various temperatures was therefore imperative. Based on the DSC curve of the Ni50Mn28Ga22 alloy, the Af point was approximately 340 K. Consequently, the samples were heated to 353 K to guarantee the complete transformation of the alloy into the austenitic phase, followed by conducting a superelastic mechanical test on the specimens.
The experimental method was similar to the shape memory testing process, excluding the heating recovery process. For clarity, the stress–strain curve was translated along the X-axis direction. The cyclic stress–strain curve of the bulk alloy is shown in Figure 7a. The bulk alloy exhibited a stress plateau at 42 MPa under a 1.5% pre-strain, while significant work hardening occurred at a 3% pre-strain. Compared with the stress–strain curve at room temperature, the bulk alloy at high temperature exhibited a significant recovery process during the stress release stage, but there was still a large amount of irrecoverable strain, which may be due to part of martensite undergoing reverse transformation during the stress release stage. Due to the accumulation of dislocations caused by a stress concentration, there was still some residual martensite in it [31,38]. As for the Ni50Mn28Ga22 alloy in Figure 7b, the recovery stage at high temperatures displayed significant recovery compared to room temperature, indicating that most of the grains were austenite and the sample underwent superelastic strain. Upon reaching a certain stress level, a noticeable inflection point is evident in the 1.5% and 2% compression curves, denoting a stress-induced martensitic transformation. Martensitic transformation occurs in austenite once the deformation of austenite reaches a specific value, resulting in a sudden change in the slope of the curve. During the initial loading stage, there was no significant change in the slope of each compression curve, suggesting elastic deformation. The presence of numerous pores enhances the activation of a dislocation slip or accumulation faults at high stress levels. The porous alloy collapsed at a preset strain of 2.5%, indicating that its ultimate compressive strain was approximately 2% at 353 K, and it could withstand a maximum stress of 100 MPa. The critical stress for martensitic transformation in the sample was approximately 83 MPa, significantly lower than that of polycrystalline bulk alloys (200 MPa) [18].
In order to better compare the stress conditions of bulk and porous alloys, the stress–strain curves were decomposed to obtain Figure 7c,d. Due to the collapse of porous alloys under a 2.5% pre-strain, only the 1–2% pre-strain curve was analyzed. It can be seen that compared with bulk alloys, porous alloys had a significantly lower irreversible deformation and a higher elastic deformation. This is because the addition of pores allows dislocations to only develop along a fixed path, reducing the accumulation of dislocations. Furthermore, a large number of pores act as buffer layers, absorbing some of the strain, leading to an increase in elastic deformation. It is worth noting that during the 1% and 2% pre-strain compression processes, the superelastic strain of porous alloys was significantly higher than that of bulk alloys, indicating once again that the addition of pores is beneficial in reducing the hindrance of grain boundaries to the phase transformation process. The porous structure reduces the number of grain boundaries, lowering the resistance of phase transformation and aligning the critical stress of stress-induced phase transformation of the porous alloy with that of the wire [9]. In addition, the red line in Figure 7c,d represents the energy absorption of the corresponding stress–strain curve. The energy absorption was obtained by calculating the area enclosed by the stress–strain curve and the X-axis in Figure 7a and Figure 7b, respectively. It can be seen that due to the lower critical stress of phase transformation, the energy absorption of porous alloys was significantly lower than that of the bulk alloys. A lower critical stress for phase transformation is advantageous in reducing the energy loss of the sample during cyclic compression.

3.3. Magnetocaloric Effect

The isothermal magnetization curves M(H) were measured to assess the magnetic properties and magnetocaloric effect (MCE) of the Ni50Mn28Ga22 porous alloy. Prior to the measurements, the sample was heated to the austenitic state and subsequently cooled to the measurement temperature without the influence of a magnetic field, following the method of zero field cooling (ZFC). After completing the measurement at a specific temperature, the sample was directly cooled down to the next temperature for the continuation of the measurements. The test involved the application of a vertical magnetic field ranging from 0 to 1.5 T, with a temperature interval of 5 K, as shown in Figure 8.
The saturation magnetization of the Ni50Mn28Ga22 alloy gradually increased with decreasing temperatures between 298 K and 353 K, as evidenced in Figure 8a,c,e,g, regardless of whether it was a bulk or a porous alloy. The magnetization curves exhibit distinct characteristics, with some belonging to martensite and others to austenite. It is important to note that both the low-temperature martensite and high-temperature austenite phases are ferromagnetic. The introduction of a porous structure into the alloy has a negligible effect on the saturation magnetization. At a magnetic field of 1.5 T, the magnetization of the annealed bulk and porous alloys with different pore size structures was approximately 49.30, 62.60, 61.99, and 59.93 emu/g, respectively. However, the varying pore sizes had a minimal impact on the saturation magnetization of the alloy, and any slight differences observed could be attributed to composition deviations.
The magnetic field-induced entropy change ΔSM can be calculated using the Maxwell relation, where the partial derivative is replaced by finite differences and integration numerically [26,39,40,41,42,43,44,45]:
Δ S M = S M ( T , H 2 ) − S M ( T , H 1 ) = ∫ H 1 H 2 ( ∂ M ∂ T ) H d H
The temperature-dependent ΔSM for annealed bulk and porous alloys with different porous sizes is shown in Figure 8b,d,f,g, respectively. A common characteristic of the samples was that the magnetic entropy change ΔSM value of the alloy increased gradually with the increase in the magnetic field, and there was a peak in the transformation temperature region. The origin of the large ΔSM peak in Ni50Mn28Ga22 could be attributed to the considerable magnetization jump caused by the phase transformation between martensite and austenite during heating. This is due to the large difference in magnetization between the high temperature austenite phase and the low temperature martensite phase, resulting in the alloy having the largest magnetic entropy change near the transformation temperature. Moreover, the magnetic entropy of alloys with a pore structure in the same magnetic field was larger than that of bulk alloys. Specifically, the magnetic entropy changes in the ΔSM of bulk and porous alloys with different pore sizes obtained under a 1.5 T magnetic field were 1.68, 1.93, 1.35, and 1.89 J/kg·K, respectively. This indicates that the porous alloy exhibited a better magnetocaloric effect under the same conditions. This may be attributed to the fact that the porous structure reduces the number of grain boundaries, thereby reducing the resistance to domain movement. Additionally, as a magnetic cooling material, the existence of a large number of through-holes can also increase the internal and external heat exchange efficiency of the material, thereby improving the magnetothermal refrigeration efficiency [46,47].
Porous alloys based on Ni–Mn–Ga exhibit various properties and possess an interesting characteristic—the capability to tune the martensitic–austenitic transition over a broad temperature range through adjustments in the Ni, Mn, and Ga content, or the addition of substitute elements [48,49,50]. Therefore, these alloys with porous structures have low costs, high magnetic entropy changes under relatively low external fields, easy-to-control transition temperatures, and significant surface areas that facilitate effective thermal medium conduction and heat exchange, making them powerful candidates for magnetic refrigerants. However, the current limitations in the application of these alloys stem from their low structural strength and the unclear impact of the pore structure on performance. Adjusting the heat treatment and composition to improve structural strength will further enhance the mechanical and magnetic properties of porous alloys.

4. Conclusions

This paper presents the successful preparation of a porous Ni50Mn28Ga22 alloy with a three-dimensional pore structure and approximately 50% porosity through a process involving cold pressing and sintering, using NaCl as a pore-forming agent. The preparation method is simple to implement and offers flexibility in adjusting the pore diameter and the morphology and porosity of the porous alloy. The resulting porous alloy, characterized by a pore size of 20–30 μm, demonstrated the capability to achieve a 3.5% recoverable strain at room temperature and 2% superelastic strain at 353 K. Notably, the introduction of pores in the Ni50Mn28Ga22 alloy significantly reduced the critical stress of the phase transformation, as observed at only 80 MPa, in comparison to polycrystalline bulk alloys. This reduction is advantageous for diminishing energy loss during the cycling process. Moreover, the introduction of pores into the alloy led to an improvement in its saturation magnetization and magnetocaloric effect. Specifically, under a 1.5 T magnetic field, the porous Ni50Mn28Ga22 alloy with a pore size of 20–30 μm exhibited a maximum saturation magnetization of 62.60 emu/g and a maximum magnetic entropy of 1.93 J/kg·K.

Author Contributions

Conceptualization, X.L. and J.Z.; methodology, K.W.; software, Y.L.; validation, K.W., Y.L. and Z.W.; formal analysis, Z.W.; investigation, Y.Z.; resources, Y.Z.; data curation. X.L.; writing—original draft preparation, X.L.; writing—review and editing, K.W.; visualization, K.W.; supervision, J.Z.; project administration, J.Z.; funding acquisition, J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by State Key Laboratory for Advanced Metals and Materials, grant number [2018Z-26].

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors on request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Villa, F.; Morlotti, A.; Fanciulli, C.; Passaretti, F.; Albertini, F.; Villa, E. Anomalous mechanical behavior in NiMnGa alloy sintered through open die pressing method. Mater. Today Commun. 2023, 34, 105391. [Google Scholar] [CrossRef]
  2. de Souza Silva, F.; Correa, M.A.; Bohn, F.; Bezerra da Silva, R.; dos Passos, T.A.; Torquato, R.A.; de Lima, B.A.G.; Cordeiro, C.H.N.; Oliveira, D.F.d. Effect of Nb doping on NiMnSn Heusler alloys: Mechanical, structural, and magnetic properties modifications. J. Mater. Res. Technol. 2023, 26, 5167–5176. [Google Scholar] [CrossRef]
  3. Gao, P.; Tian, B.; Xu, J.; Tong, Y.; Chen, F.; Li, L. Investigation on porous NiMnGa alloy and its composite with epoxy resin. J. Alloys Compd. 2022, 892, 162248. [Google Scholar] [CrossRef]
  4. Gao, P.; Liu, Z.-X.; Tian, B.; Tong, Y.-X.; Chen, F.; Li, L. Microstructure, phase transformation and mechanical properties of NiMnGa particles/Cu composites fabricated by SPS. Trans. Nonferrous Met. Soc. China 2022, 32, 3291–3300. [Google Scholar] [CrossRef]
  5. Li, D.; Li, Z.; Zhang, X.; Liu, C.; Zhang, G.; Yang, J.; Yang, B.; Yan, H.; Cong, D.; Zhao, X.; et al. Giant Elastocaloric Effect in Ni-Mn-Ga-Based Alloys Boosted by a Large Lattice Volume Change upon the Martensitic Transformation. ACS Appl. Mater. Interfaces 2022, 14, 1505–1518. [Google Scholar] [CrossRef] [PubMed]
  6. Liu, X.; Bai, J.; Sun, S.; Xu, J.; Jiang, X.; Guan, Z.; Gu, J.; Cong, D.; Zhang, Y.; Esling, C.; et al. A multielement alloying strategy to tune magnetic and mechanical properties in NiMnTi alloys via Co and B. J. Appl. Phys. 2022, 132, 095101. [Google Scholar] [CrossRef]
  7. Mishra, A.; Dubey, P.; Chandra, R.; Srivastava, S.K. Observation of large exchange bias field in Mn rich NiMnAl Heusler alloy thin film. J. Magn. Magn. Mater. 2021, 532, 167964. [Google Scholar] [CrossRef]
  8. Ding, Z.; Liu, D.; Qi, Q.; Zhang, J.; Yao, Y.; Zhang, Y.; Cong, D.; Zhu, J. Multistep superelasticity of Ni-Mn-Ga and Ni-Mn-Ga-Co-Cu microwires under stress-temperature coupling. Acta Mater. 2017, 140, 326–336. [Google Scholar] [CrossRef]
  9. Hong, S.H.; Park, H.J.; Song, G.; Liaw, P.K.; Kim, K.B. Ultrafine shape memory alloys synthesized using a metastable metallic glass precursor with polymorphic crystallization. Appl. Mater. Today 2021, 22, 100961. [Google Scholar] [CrossRef]
  10. Lynch, C.S.; Sozinov, A.; Likhachev, A.A.; Ullakko, K. Magnetic and magnetomechanical properties of Ni-Mn-Ga alloys with easy axis and easy plane of magnetization. In Smart Structures and Materials 2001: Active Materials: Behavior and Mechanics; SPIE: Bellingham, WA, USA, 2001. [Google Scholar]
  11. Sozinov, A.; Likhachev, A.A.; Lanska, N.; Söderberg, O.; Koho, K.; Ullakko, K.; Lindroos, V.K. Stress-induced variant rearrangement in Ni-Mn-Ga single crystals with nonlayered tetragonal martensitic structure. J. De Phys. IV 2004, 115, 121–128. [Google Scholar] [CrossRef]
  12. Straka, L.; Heczko, O. Superelastic response of Ni-Mn-Ga martensite in magnetic fields and a simple model. ITM 2003, 39, 3402–3404. [Google Scholar] [CrossRef]
  13. Huang, L.; Cong, D.Y.; Suo, H.L.; Wang, Y.D. Giant magnetic refrigeration capacity near room temperature in Ni40Co10Mn40Sn10 multifunctional alloy. Appl. Phys. Lett. 2014, 104, 132407. [Google Scholar] [CrossRef]
  14. Chen, F.; Tong, Y.-X.; Tian, B.; Li, L.; Zheng, Y.-F. Martensitic transformation and magnetic properties of Ti-doped NiCoMnSn shape memory alloy. Rare Met. 2013, 33, 511–515. [Google Scholar] [CrossRef]
  15. Chen, L.; Hu, F.X.; Wang, J.; Bao, L.F.; Zheng, X.Q.; Pan, L.Q.; Yin, J.H.; Sun, J.R.; Shen, B.G. Magnetic entropy change and transport properties in Ni45Co5Mn36.6In13.4 melt-spun ribbons. J. Alloys Compd. 2013, 549, 170–174. [Google Scholar] [CrossRef]
  16. Dey, S.; Roy, R.K.; Ghosh, M.; Basu Mallick, A.; Mitra, A.; Panda, A.K. Enhancement in magnetocaloric properties of NiMnGa alloy through stoichiometric tuned phase transformation and magneto-thermal transitions. J. Magn. Magn. Mater. 2017, 439, 305–311. [Google Scholar] [CrossRef]
  17. Hu, F.-X.; Sun, J.-R.; Wu, G.-H.; Shen, B.-G. Magnetic entropy change in Ni50.1Mn20.7Ga29.6 single crystal. J. Appl. Phys. 2001, 90, 5216–5219. [Google Scholar] [CrossRef]
  18. Wang, K.; Hou, R.; Xuan, J.; Li, X.; Zhu, J. Shape memory effect and superelasticity of Ni50Mn30Ga20 porous alloy prepared by imitation casting method. Intermetallics 2022, 149, 107668. [Google Scholar] [CrossRef]
  19. Otaru, A.J. Review on the Acoustical Properties and Characterisation Methods of Sound Absorbing Porous Structures: A Focus on Microcellular Structures Made by a Replication Casting Method. Met. Mater. Int. 2019, 26, 915–932. [Google Scholar] [CrossRef]
  20. Mohd Razali, R.N.; Abdullah, B.; Ismail, M.H.; Muhamad, N. Characteristic of Modified Geometrical Open-Cell Aluminum Foam by Casting Replication Process. Mater. Sci. Forum 2016, 846, 37–41. [Google Scholar] [CrossRef]
  21. Boonyongmaneerat, Y.; Chmielus, M.; Dunand, D.C.; Mullner, P. Increasing magnetoplasticity in polycrystalline Ni-Mn-Ga by reducing internal constraints through porosity. Phys. Rev. Lett. 2007, 99, 247201. [Google Scholar] [CrossRef] [PubMed]
  22. Huang, Y.; Wang, Z.; Zhang, L.; Wei, S. Pore/skeleton structure and compressive strength of porous Mo3Si-Mo5Si3-Mo5SiB2 intermetallic compounds prepared by spark plasma sintering and homogenization treatment. J. Alloys Compd. 2021, 856, 158150. [Google Scholar] [CrossRef]
  23. Laszcz, A.; Hasiak, M.; Kaleta, J. Temperature Dependence of Anisotropy in Ti and Gd Doped NiMnGa-Based Multifunctional Ferromagnetic Shape Memory Alloys. Materials 2020, 13, 2906. [Google Scholar] [CrossRef] [PubMed]
  24. Hong, S.H.; Kim, J.T.; Park, H.J.; Kim, Y.S.; Suh, J.Y.; Na, Y.S.; Lim, K.R.; Shim, C.H.; Park, J.M.; Kim, K.B. Influence of Zr content on phase formation, transition and mechanical behavior of Ni-Ti-Hf-Zr high temperature shape memory alloys. J. Alloys Compd. 2017, 692, 77–85. [Google Scholar] [CrossRef]
  25. Wu, Q.; Li, Z.; Chen, F.; Lin, N.Y.; Wang, X.Y.; Zhang, B.Y.; Li, L. Ferromagnetic shape memory alloy Ni52.5Mn22.5Ga25: Phase transformation at high pressure and effects on natural gas hydration. Mater. Lett. 2023, 343, 134371. [Google Scholar] [CrossRef]
  26. Cheng, P.; Zhang, G.; Li, Z.; Yang, B.; Zhang, Z.; Wang, D.; Du, Y. Combining magnetocaloric and elastocaloric effects to achieve a broad refrigeration temperature region in Ni43Mn41Co5Sn11 alloy. J. Magn. Magn. Mater. 2022, 550, 169082. [Google Scholar] [CrossRef]
  27. Lázpita, P.; Pérez-Checa, A.; Barandiarán, J.M.; Ammerlaan, A.; Zeitler, U.; Chernenko, V. Suppression of martensitic transformation in Ni-Mn-In metamagnetic shape memory alloy under very strong magnetic field. J. Alloys Compd. 2021, 874, 159814. [Google Scholar] [CrossRef]
  28. Hosoda, H.; Lazarczyk, J.; Sratong-on, P.; Tahara, M.; Chernenko, V. Elaboration of magnetostrain-active NiMnGa particles/polymer layered composites. Mater. Lett. 2021, 289, 129427. [Google Scholar] [CrossRef]
  29. Chen, P.; Cai, X.; Liu, Y.; Wang, Z.; Jin, M.; Jin, X. Combined effects of grain size and training on fatigue resistance of nanocrystalline NiTi shape memory alloy wires. Int. J. Fatigue 2023, 168, 107461. [Google Scholar] [CrossRef]
  30. Xuan, J.; Gao, J.; Ding, Z.; Li, X.; Zhu, J. Improved superelasticity and fatigue resistance in nano-precipitate strengthened Ni50Mn23Ga22Fe4Cu1 microwire. J. Alloys Compd. 2021, 877, 160296. [Google Scholar] [CrossRef]
  31. Tong, W.; Liang, L.; Xu, J.; Wang, H.J.; Tian, J.; Peng, L.M. Achieving enhanced mechanical, pseudoelastic and elastocaloric properties in Ni-Mn-Ga alloys via Dy micro-alloying and isothermal mechanical cyclic training. Scr. Mater. 2022, 209, 114393. [Google Scholar] [CrossRef]
  32. Bai, J.; Wang, J.; Shi, S.; Liang, X.; Yang, Y.; Yan, H.; Zhao, X.; Zuo, L.; Zhang, Y.; Esling, C. Theoretical prediction of structural stability, elastic and magnetic properties for Mn2NiGa alloy. Mod. Phys. Lett. B 2021, 35, 2150231. [Google Scholar] [CrossRef]
  33. Gao, J.; Ding, Z.; Fu, S.; Wang, K.; Ma, L.; Zhu, J. The magnetization and magnetoresistance of Ni46Mn23Ga22Co5Cu4 shape memory microwires after mechanical training. J. Mater. Res. Technol. 2023, 23, 1120–1129. [Google Scholar] [CrossRef]
  34. Chiu, W.-T.; Goto, A.; Tahara, M.; Inamura, T.; Hosoda, H. Investigation of the martensite variant reorientation of the single crystal Ni-Mn-Ga alloy via training processes and a modification with a silicone rubber. Mater. Chem. Phys. 2023, 297, 127390. [Google Scholar] [CrossRef]
  35. Gaitzsch, U.; Pötschke, M.; Roth, S.; Rellinghaus, B.; Schultz, L. Mechanical training of polycrystalline 7M Ni50Mn30Ga20 magnetic shape memory alloy. Scr. Mater. 2007, 57, 493–495. [Google Scholar] [CrossRef]
  36. Imran, M.; Zhang, X.; Qian, M.; Geng, L. Enhancing the Elastocaloric Cooling Stability of Ni Fe Ga Alloys via Introducing Pores. Adv. Eng. Mater. 2020, 22, 1901140. [Google Scholar] [CrossRef]
  37. Roth, S.; Gaitzsch, U.; Pötschke, M.; Schultz, L. Magneto-Mechanical Behaviour of Textured Polycrystals of NiMnGa Ferromagnetic Shape Memory Alloys. Adv. Mater. Res. 2008, 52, 29–34. [Google Scholar] [CrossRef]
  38. Liu, Y.; Zhang, X.; Xing, D.; Shen, H.; Qian, M.; Liu, J.; Chen, D.; Sun, J. Martensite transformation and superelasticity in polycrystalline Ni–Mn–Ga–Fe microwires prepared by melt-extraction technique. Mater. Sci. Eng. A 2015, 636, 157–163. [Google Scholar] [CrossRef]
  39. Zhou, H.; Wang, D.; Li, Z.; Cong, J.; Yu, Z.; Zhao, S.; Jiang, P.; Cong, D.; Zheng, X.; Qiao, K.; et al. Large enhancement of magnetocaloric effect induced by dual regulation effects of hydrostatic pressure in Mn0.94Fe0.06NiGe compound. J. Mater. Sci. Technol. 2022, 114, 73–80. [Google Scholar] [CrossRef]
  40. Cheng, P.; Zhou, Z.; Chen, J.; Li, Z.; Yang, B.; Xu, K.; Li, Z.; Li, J.; Zhang, Z.; Wang, D.; et al. Combining magnetocaloric and elastocaloric effects in a Ni45Co5Mn37In13 alloy. J. Mater. Sci. Technol. 2021, 94, 47–52. [Google Scholar] [CrossRef]
  41. Guan, Z.; Jiang, X.; Gu, J.; Bai, J.; Liang, X.; Yan, H.; Zhang, Y.; Esling, C.; Zhao, X.; Zuo, L. Large magnetocaloric effect and excellent mechanical properties near room temperature in Ni-Co-Mn-Ti non-textured polycrystalline alloys. Appl. Phys. Lett. 2021, 119, 051904. [Google Scholar] [CrossRef]
  42. Bai, J.; Liu, D.; Gu, J.; Jiang, X.; Liang, X.; Guan, Z.; Zhang, Y.; Esling, C.; Zhao, X.; Zuo, L. Excellent mechanical properties and large magnetocaloric effect of spark plasma sintered Ni-Mn-In-Co alloy. J. Mater. Sci. Technol. 2021, 74, 46–51. [Google Scholar] [CrossRef]
  43. Huang, X.-M.; Zhao, Y.; Yan, H.-L.; Jia, N.; Yang, B.; Li, Z.; Zhang, Y.; Esling, C.; Zhao, X.; Zuo, L. Giant magnetoresistance, magnetostrain and magnetocaloric effects in a Cu-doped<001>-textured Ni45Co5Mn36In13.2Cu0.8 polycrystalline alloy. J. Alloys Compd. 2021, 889, 161652. [Google Scholar] [CrossRef]
  44. Díaz-García, Á.; Law, J.Y.; Moreno-Ramírez, L.M.; Giri, A.K.; Franco, V. Deconvolution of overlapping first and second order phase transitions in a NiMnIn Heusler alloy using the scaling laws of the magnetocaloric effect. J. Alloys Compd. 2021, 871, 159621. [Google Scholar] [CrossRef]
  45. Wei, L.; Zhang, X.; Gan, W.; Ding, C.; Liu, C.; Geng, L.; Yan, Y. Large rotating magnetocaloric effects in polycrystalline Ni-Mn-Ga alloys. J. Alloys Compd. 2021, 874, 159755. [Google Scholar] [CrossRef]
  46. Aydogmus, T.; Bor, S. Superelasticity and compression behavior of porous TiNi alloys produced using Mg spacers. J. Mech. Behav. Biomed. Mater. 2012, 15, 59–69. [Google Scholar] [CrossRef] [PubMed]
  47. Aydoğmuş, T.; Bor, Ş. Processing of porous TiNi alloys using magnesium as space holder. J. Alloys Compd. 2009, 478, 705–710. [Google Scholar] [CrossRef]
  48. Golub, V.; L’Vov, V.A.; Salyuk, O.; Barandiaran, J.M.; Chernenko, V.A. Magnetism of nanotwinned martensite in magnetic shape memory alloys. J. Phys. Condens. Matter 2020, 32, 313001. [Google Scholar] [CrossRef]
  49. Li, Z.; Yang, B.; Zhang, Y.; Esling, C.; Zou, N.; Zhao, X.; Zuo, L. Crystallographic insights into the intermartensitic transformation in Ni–Mn–Ga alloys. Acta Mater. 2014, 74, 9–17. [Google Scholar] [CrossRef]
  50. Huang, L.; Cong, D.Y.; Wang, Z.L.; Nie, Z.H.; Dong, Y.H.; Zhang, Y.; Ren, Y.; Wang, Y.D. Direct evidence for stress-induced transformation between coexisting multiple martensites in a Ni–Mn–Ga multifunctional alloy. J. Phys. D Appl. Phys. 2015, 48, 265304. [Google Scholar] [CrossRef]
Metals 14 00291 g001

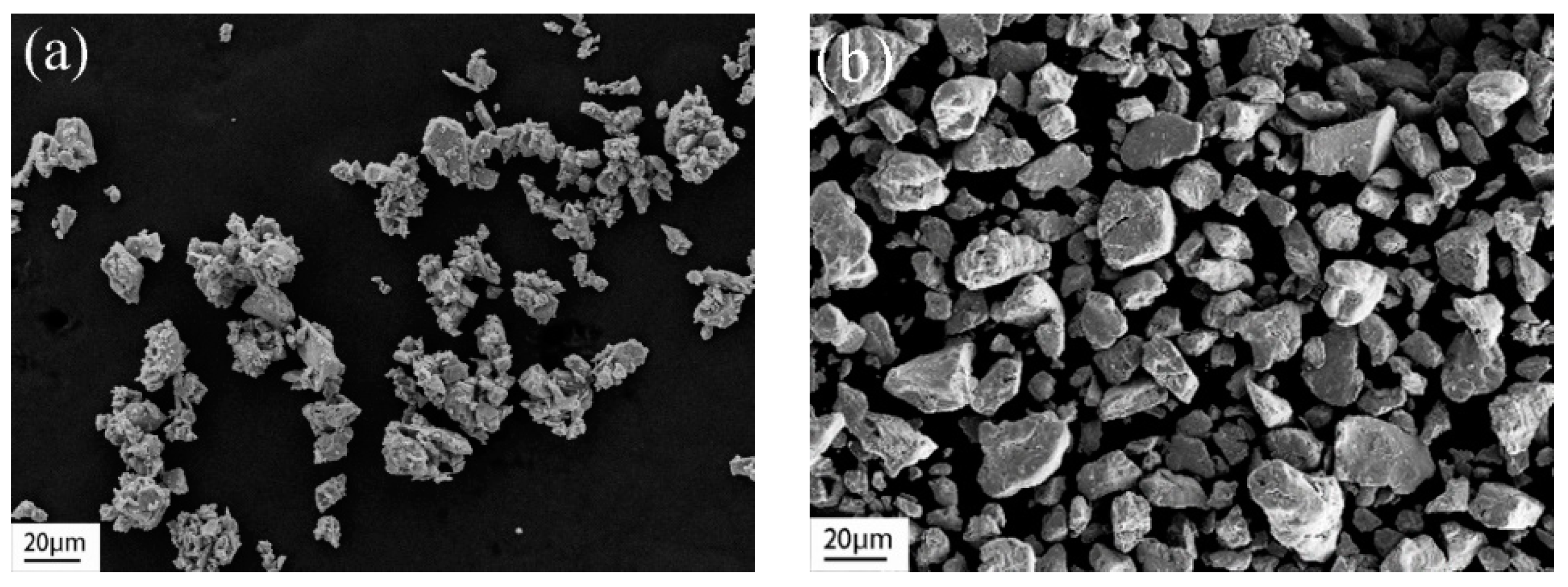

Figure 1. Microstructure of (a) NaCl powder and (b) Ni50Mn28Ga22 alloy powder.
Figure 1. Microstructure of (a) NaCl powder and (b) Ni50Mn28Ga22 alloy powder.
Metals 14 00291 g001
Metals 14 00291 g002

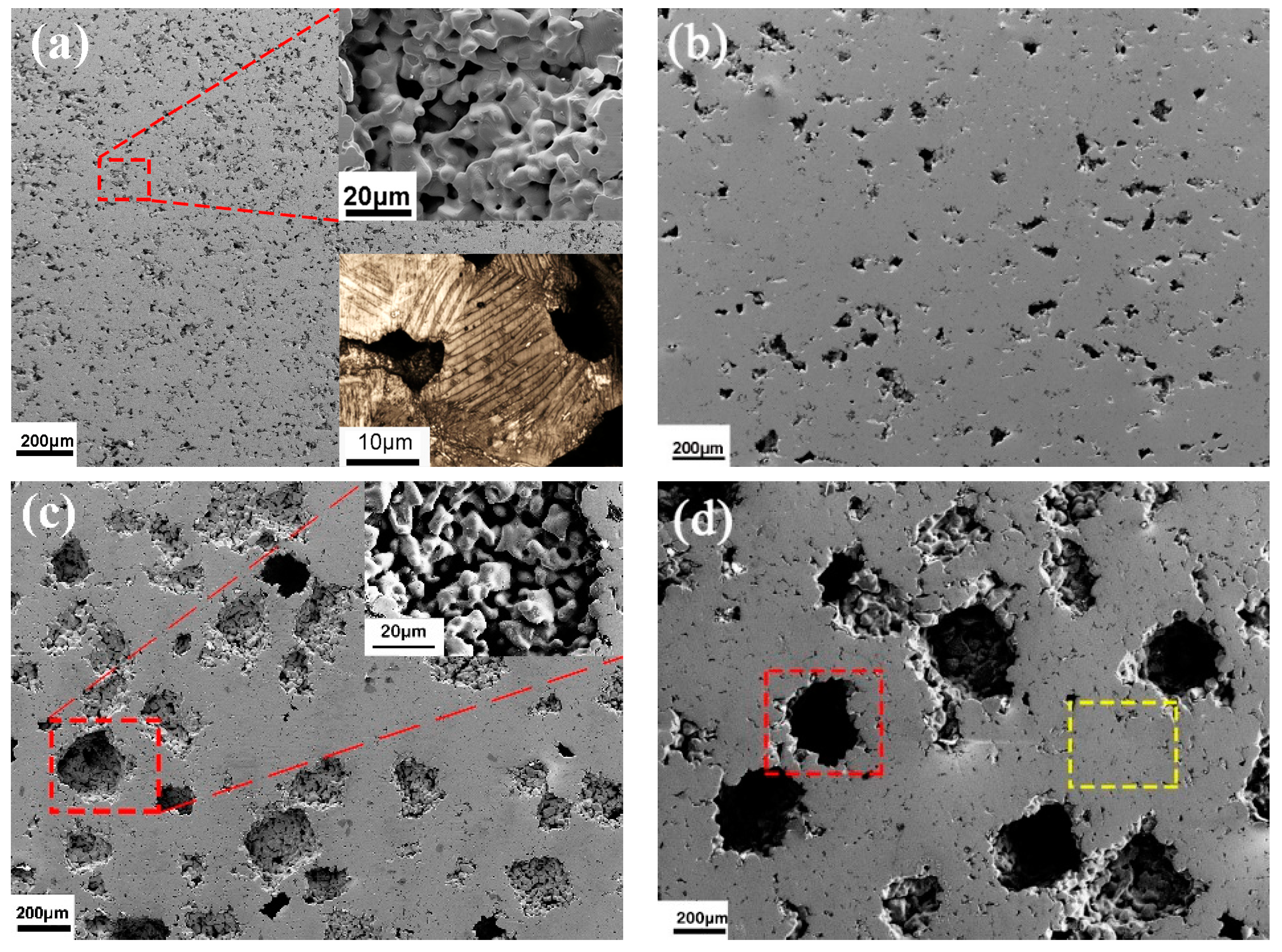

Figure 2. Microstructure of Ni50Mn28Ga22 porous alloy with pore sizes of (a) 20–30 μm, (b) 50–75 μm, (c) 112–200 μm, and (d) 200–355 μm.
Figure 2. Microstructure of Ni50Mn28Ga22 porous alloy with pore sizes of (a) 20–30 μm, (b) 50–75 μm, (c) 112–200 μm, and (d) 200–355 μm.
Metals 14 00291 g002
Metals 14 00291 g003

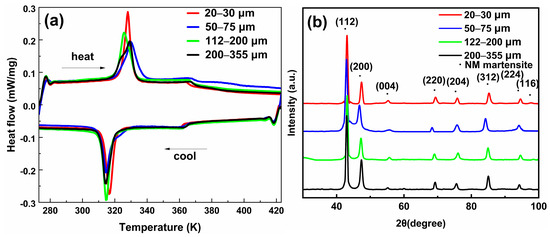

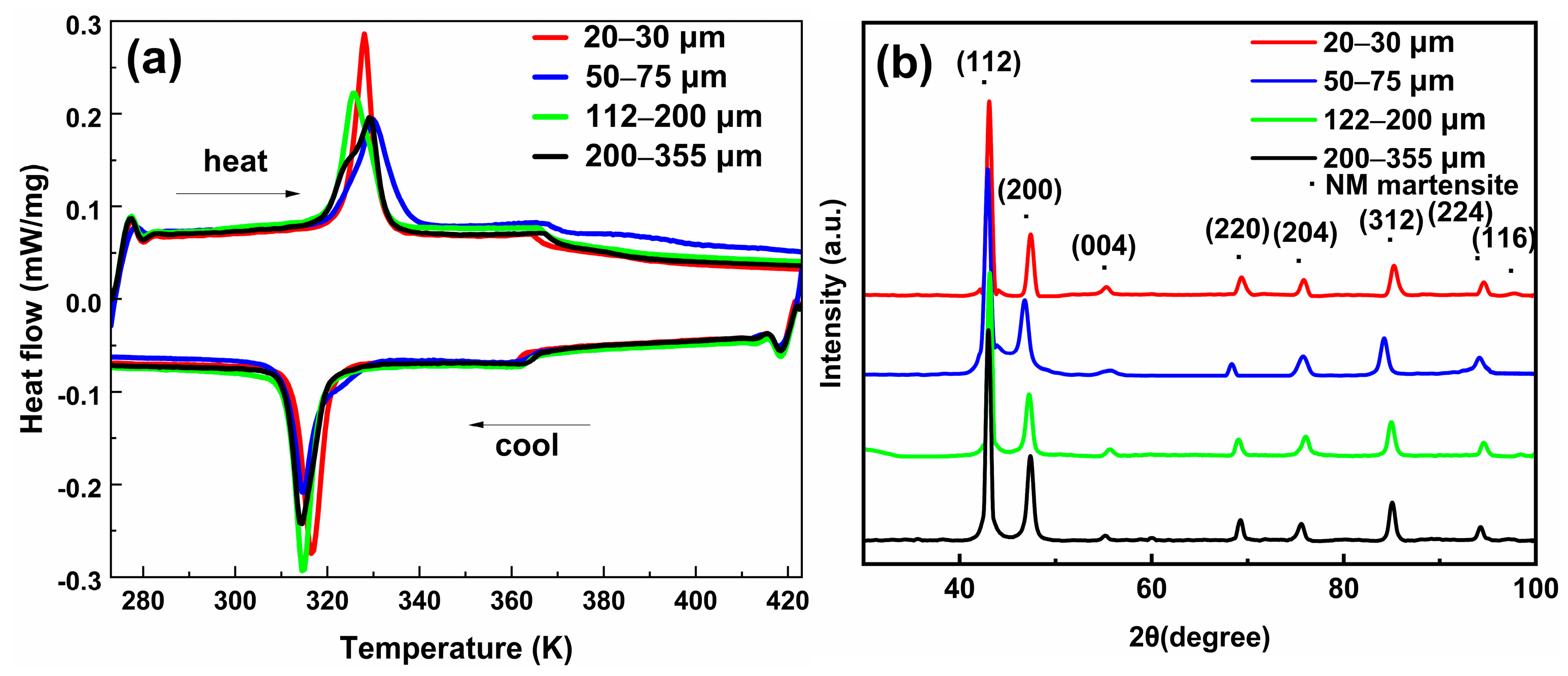

Figure 3. (a) DSC curves and (b) XRD patterns of Ni50Mn28Ga22 porous alloy.
Figure 3. (a) DSC curves and (b) XRD patterns of Ni50Mn28Ga22 porous alloy.
Metals 14 00291 g003
Metals 14 00291 g004

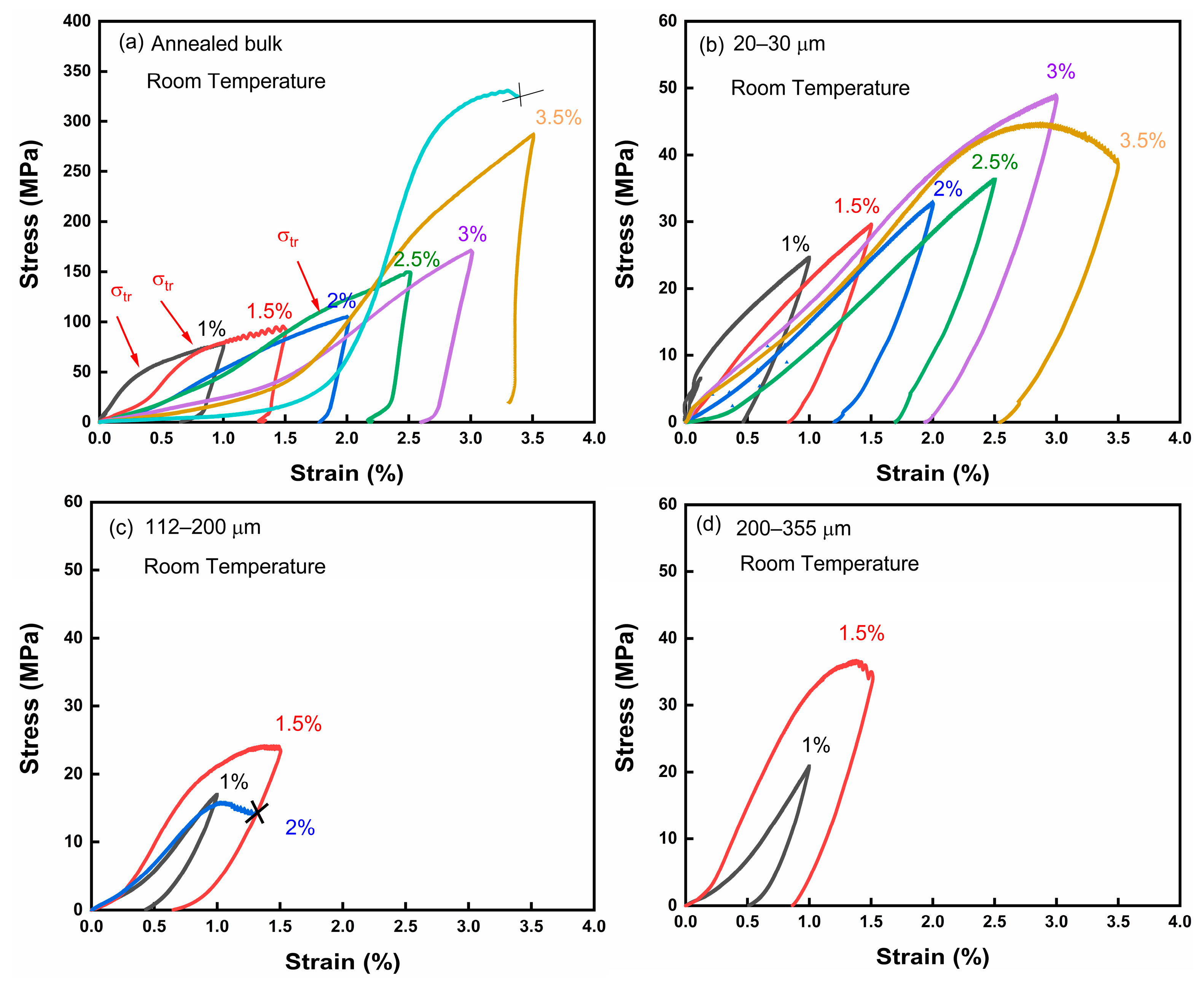

Figure 4. The shape memory effect curves of the Ni50Mn28Ga22 (a) annealed bulk and porous alloys with different pore sizes of (b) 20–30 μm, (c) 112–200 μm, and (d) 200–355 μm.
Figure 4. The shape memory effect curves of the Ni50Mn28Ga22 (a) annealed bulk and porous alloys with different pore sizes of (b) 20–30 μm, (c) 112–200 μm, and (d) 200–355 μm.
Metals 14 00291 g004
Metals 14 00291 g005aMetals 14 00291 g005b

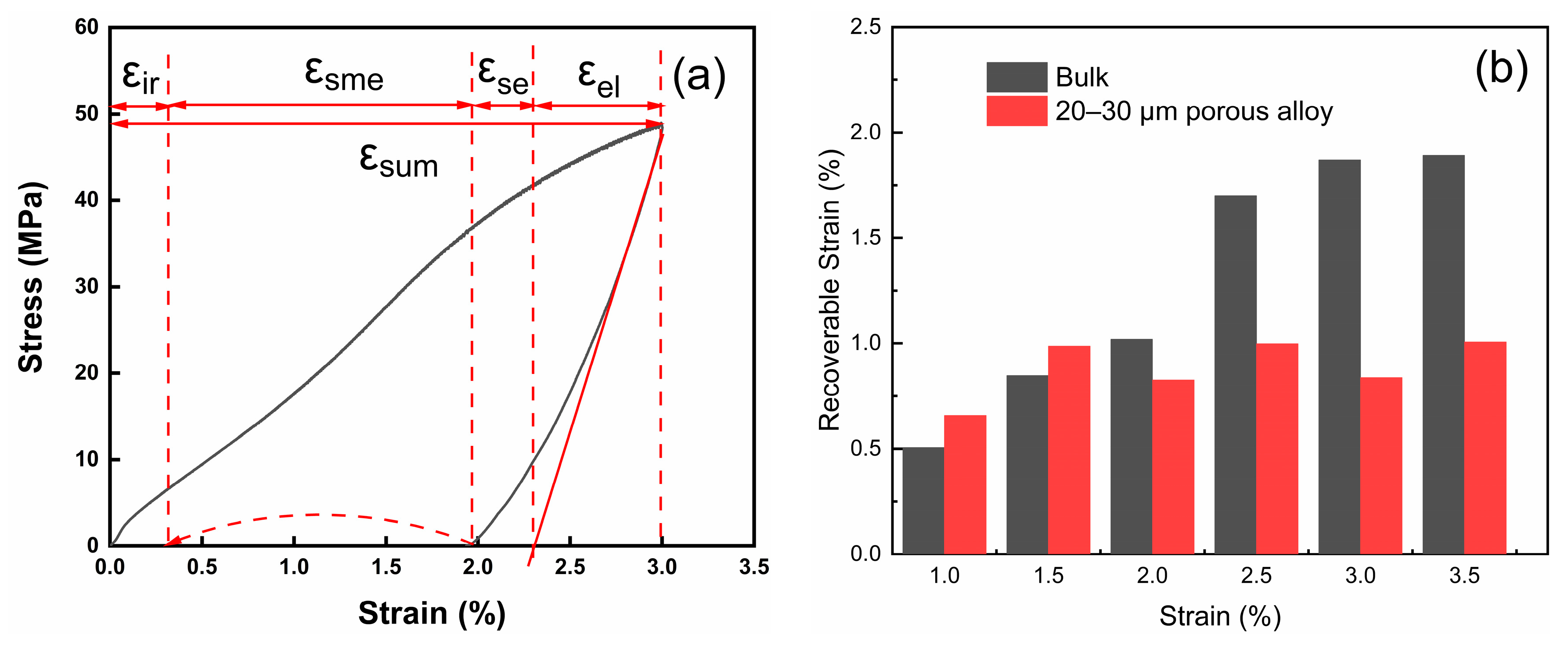

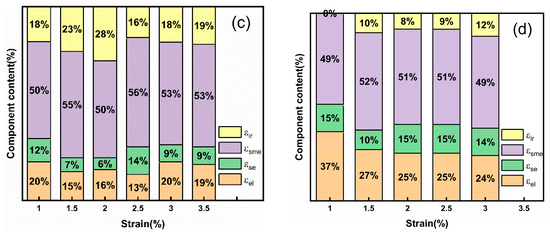

Figure 5. (a) Schematic of strain division during the recovery process. (b) Shape memory strain varies with pre-strain of bulk and porous alloys. Recovery ratio of each strain component curve of (c) Ni50Mn28Ga22 bulk alloy, (d) 20–30 μm porous alloy.
Figure 5. (a) Schematic of strain division during the recovery process. (b) Shape memory strain varies with pre-strain of bulk and porous alloys. Recovery ratio of each strain component curve of (c) Ni50Mn28Ga22 bulk alloy, (d) 20–30 μm porous alloy.
Metals 14 00291 g005aMetals 14 00291 g005b
Metals 14 00291 g006

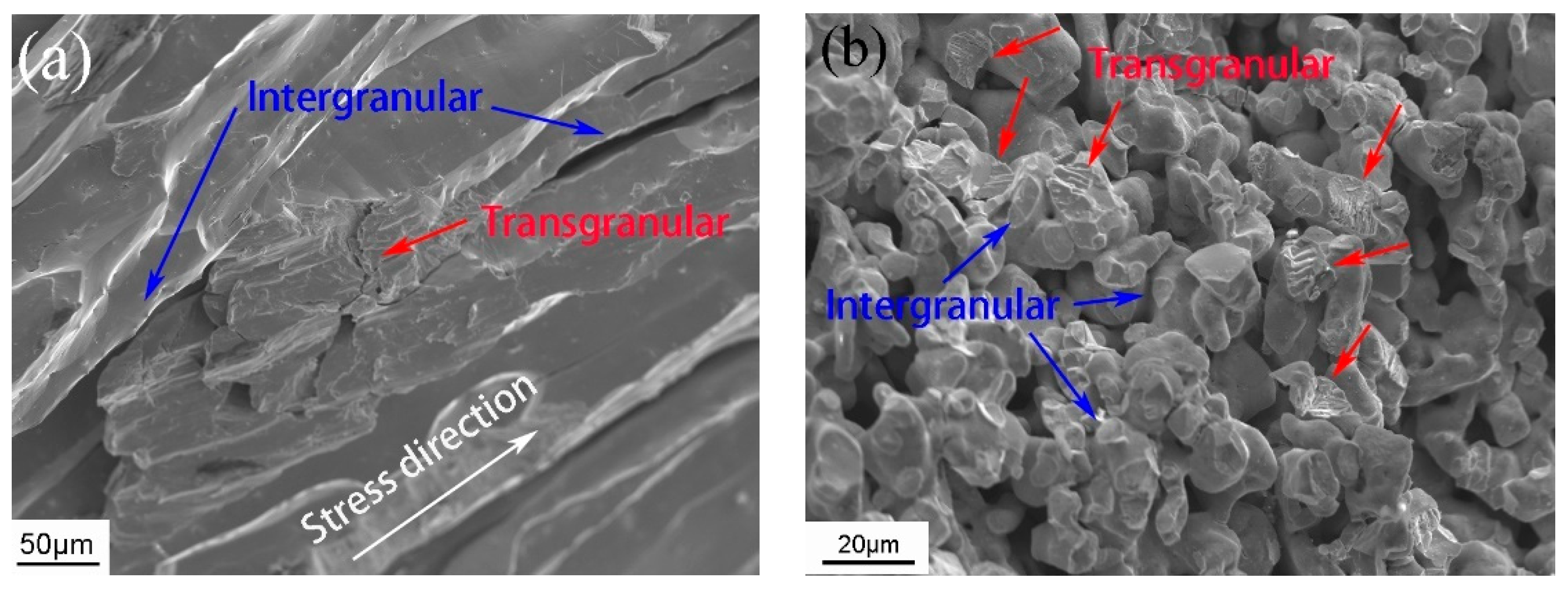

Figure 6. Fracture morphology of (a) annealed bulk alloy and (b) 20–30 μm porous alloy.
Figure 6. Fracture morphology of (a) annealed bulk alloy and (b) 20–30 μm porous alloy.
Metals 14 00291 g006
Metals 14 00291 g007

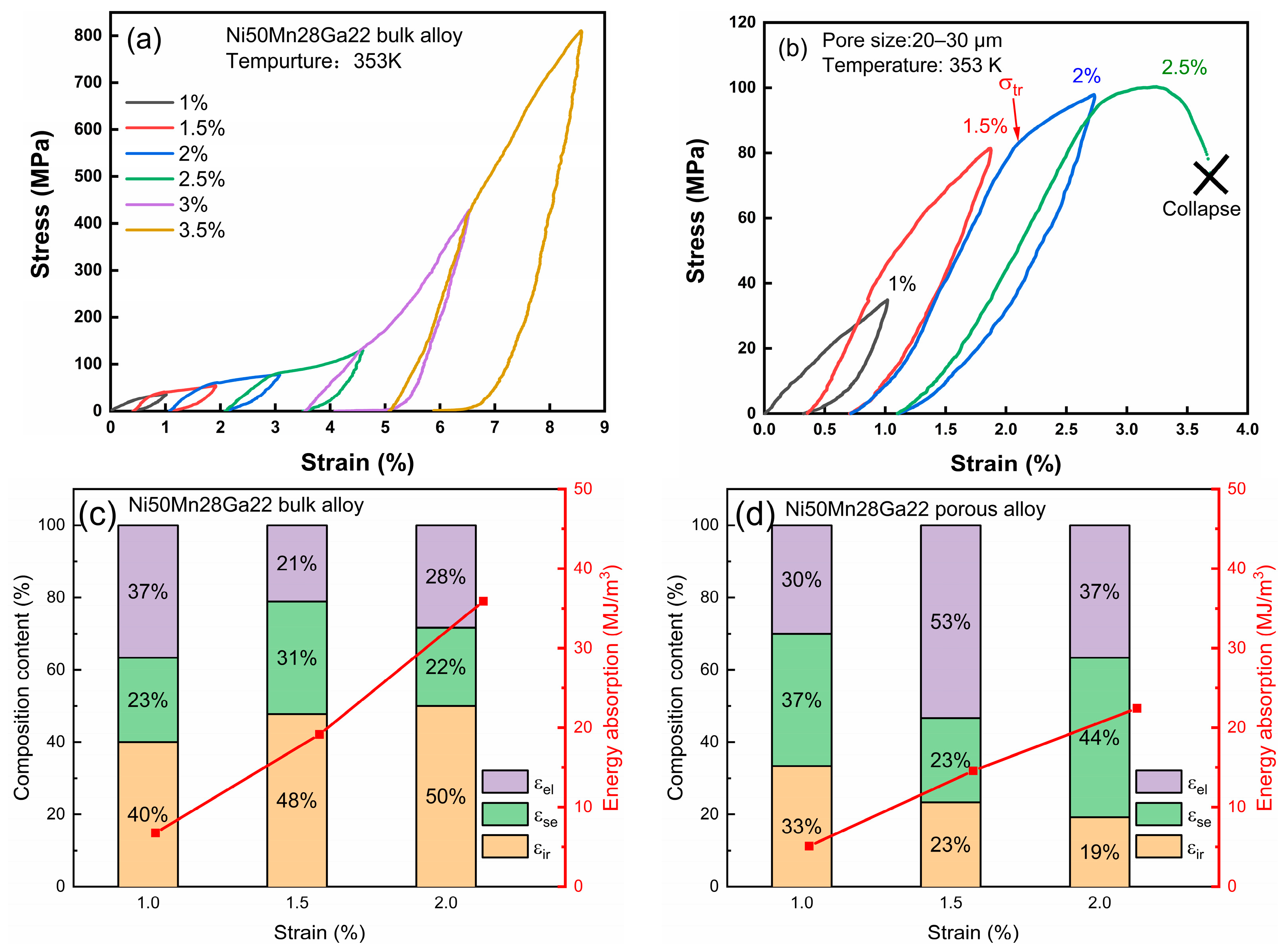

Figure 7. Cyclic compressive stress–strain curve at 353 K of (a) Ni50Mn28Ga22 bulk alloy and (b) Ni50Mn28Ga22 porous alloy with a pore size of 20–30 μm. Corresponding recovery ratio of each strain component curve of (c) annealed bulk alloy and (d) porous alloys.
Figure 7. Cyclic compressive stress–strain curve at 353 K of (a) Ni50Mn28Ga22 bulk alloy and (b) Ni50Mn28Ga22 porous alloy with a pore size of 20–30 μm. Corresponding recovery ratio of each strain component curve of (c) annealed bulk alloy and (d) porous alloys.
Metals 14 00291 g007
Metals 14 00291 g008aMetals 14 00291 g008b

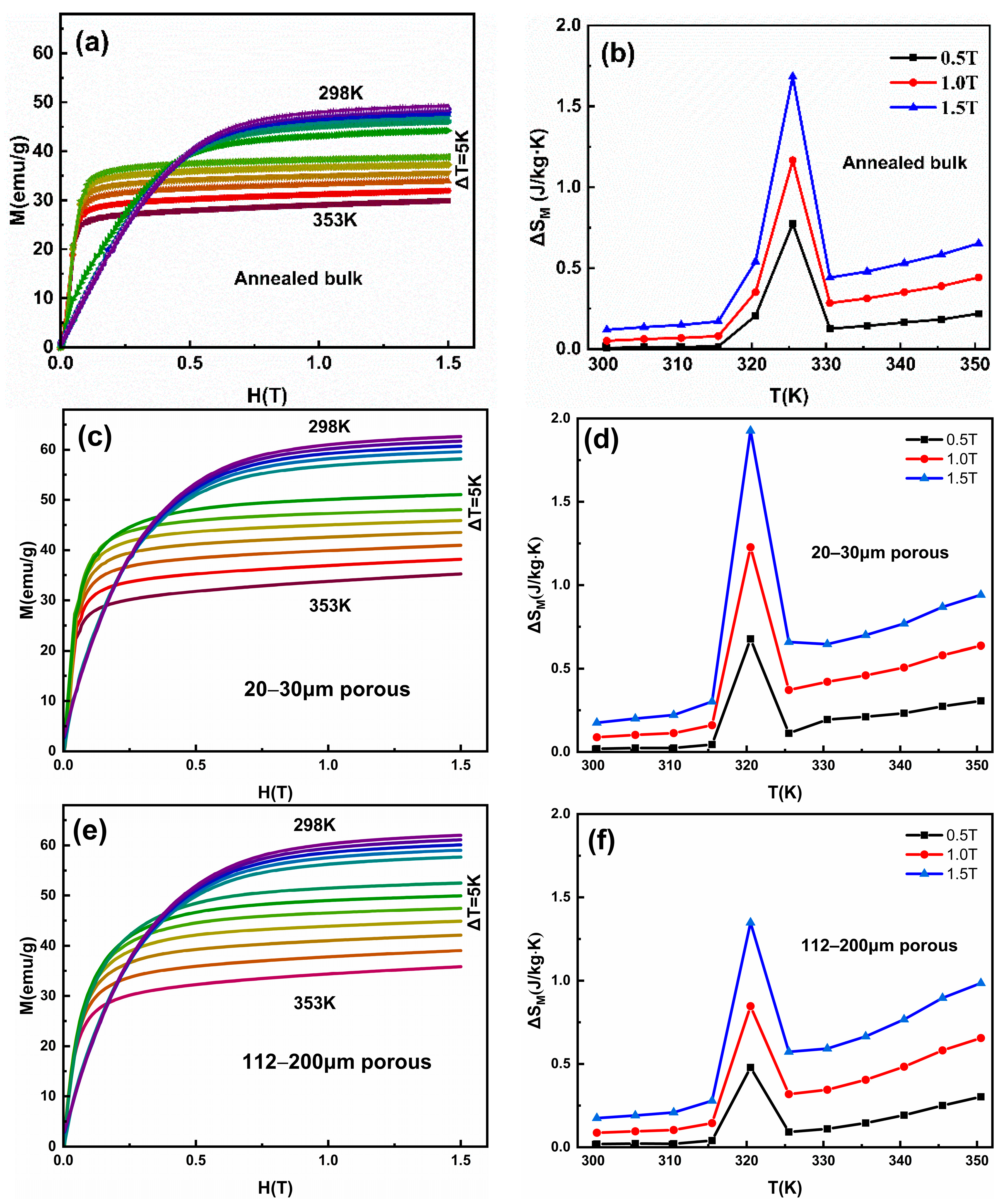

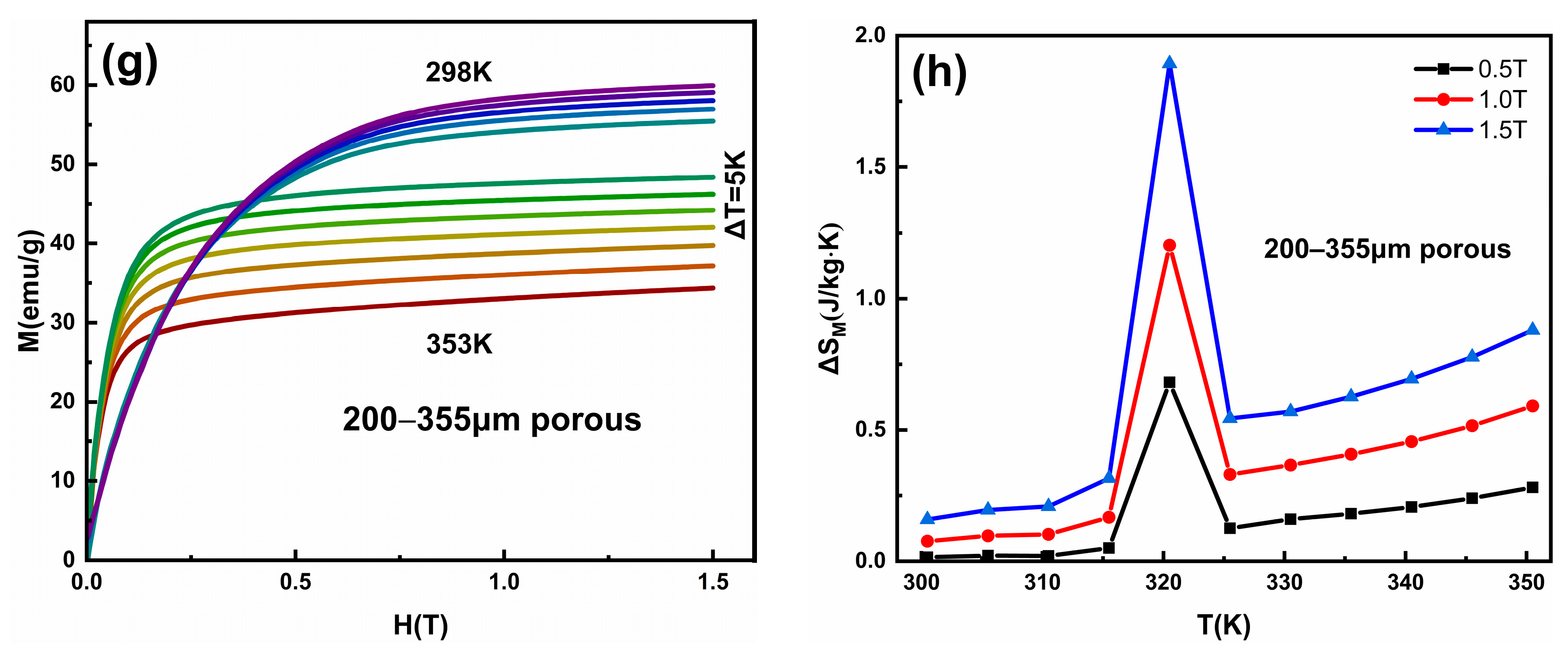

Figure 8. Isothermal magnetization M(H) curves and temperature-dependent magnetic field-induced entropy change ΔSM in the Ni50Mn28Ga22 (a,b) annealed bulk alloy, and (c,d) 20–30 μm, (e,f) 112–200 μm, and (g,h) 200–355 μm porous alloy.
