Corrosion of Titanium Alloys Anodized Using Electrochemical Techniques

Abstract

The anodization of titanium has been an excellent option for protecting titanium and its alloys from corrosive environments such as acids and chloride systems, by generating a homogenous oxide layer. The objective of the current investigation was to evaluate the electrochemical corrosion behavior of alloys Ti-6Al-2Sn-4Zr-2Mo and Ti-6Al-4V anodized in 1M H₂SO₄ and H₃PO₄ solutions at a current density of 2.5 × 10^–3 A/cm². The anodization’s electrochemical characterization was achieved in NaCl and H₂SO₄ at 3.5% wt. electrolytes. Scanning electron microscopy (SEM) was employed to determine the anodized thickness and morphology. Cyclic potentiodynamic polarization (CPP) and electrochemical impedance spectroscopy (EIS), based on ASTM G61-86 and G106-15 Standards, were the electrochemical techniques mainly employed. The anodized samples presented a change in E_corr values and a higher passivation zone. The EIS plot showed a higher resistance for samples anodized in H₃PO₄ and Ti-6Al-2Sn-4Zr-2Mo.

1. Introduction

Industries, including biomedicine and aerospace, require materials such as titanium for their great properties, both mechanical and chemical. For this reason, the study of the oxide layer produced on titanium has increased in recent years, with a view to increasing the life of components, reducing costs for preventive and corrective maintenance, and replacing steel in zones where corrosion is the higher priority [1,2,3].

Nonetheless, titanium and its alloys can present degradation when exposed to chloride and acid media due to the defects in the layers generated by natural processes. Authors have reported that the oxide film generated by titanium is composed of multivalent titanium, which provokes layer degradation by galvanic or crevice corrosion [4,5,6].

The classification of Ti-alloys can be divided into four classes: α, near to α, α + β, and metastable β; the classification will depend on the percentage of β elements that are present. Gloria et al. and Peters et al. [7,8] indicated that the β elements are mainly Mo, Cr, V, Ta, Fe, and Ni; the presence of these stabilizers can change the mechanical and chemical properties of alloys. Song et al. [9] related the presence of vanadium with a reduction in the oxide layer’s corrosion resistance to vanadium dissolution. Furthermore, for biomedical applications, elements such as V and Al are classified as toxic for the human body because they provoke genotoxicity, Alzheimer’s, and peripheral neuropathy [10,11].

A good option for the problems generated by vanadium dissolution is to employ alloys with elements such as Mo, Zr, Ta, or Sn. Mo and Ta are β stabilizers, so the properties generated by V can be substituted. Further, the properties of the passive layer will increase because authors have reported that alloys and passive layers with the presence of Mo increase the corrosion resistance and produce a layer that is more difficult to dissolve. Additionally, Mo presents a higher biocompatibility than V [12,13,14]. Alloys such as Ti-6Al-2Sn-4Zr-2Mo can be selected to substitute Ti-6Al-4V, due to the properties of Mo as a β stabilizer. Likewise, the chemical properties of Zr and Sn help to create a better passive layer, even for corrosion resistance and biocompatibility [15,16,17].

Titanium and its alloys are reactive to oxygen; the kinetics of oxidation occurs instantly and generate a TiO₂ protective layer, as indicated in the research by Rao, Sul and Wang [18,19,20]. Various surface treatments applied to generate an oxide layer on titanium to increase the corrosion resistance, such as sputtering, plasma, sol–gel, passivation, electrodeposition, and anodization, have been employed to obtain a passive layer [21,22,23]. Narayanan et al. and Jaquez-Muñoz et al. [24,25] found that anodizing could be considered one of the most important surface treatments due to the quality of the oxide layer, the easy manufacturing process, and the low production and operation costs.

Past research [26,27,28,29,30] demonstrated that the natural passive layer of titanium is susceptible to Cl⁻ ion attacks because the diffusion of Cl⁻ ions weakens the oxide layer. The presence of Cl⁻ and OH⁻ in passive materials increases the corrosion rates by interstitial penetration [31,32,33,34]. When electrochemical noise (EN) results were analyzed, anodized Ti-alloys showed that the pore size was directly related to the corrosion rate, and the anodized H₃PO₄ presented higher corrosion resistance due to H₂SO₄ creating bigger pores. Moreover, alloys with elements such as Mo, Zr, Sn, and Cr presented the best performance against corrosion. In the alloy Ti Beta-C, the performance was good, but the presence of V decreased the passive range of the material compared with materials that did not have V [26].

However, past researchers did not consider that the change in E_corr against the metal matrix and the electrochemical impedance spectroscopy (EIS) was more related to the thickness of the coating. Socorro-Perdomo et al. [35] obtained, in a Ti-Mo alloy, the presence of two different Randle circuits when samples were studied at different potentials. At passive potentials, two time constants were present and related to the presence of Mo with higher corrosion resistance.

Chávez-Díaz et al. [36] related the capacitive response with defects in passive oxides, mainly oxygen vacancies in the oxide layer, principally suboxides such as TiO, Ti₂O₃, and Al₂O₃, and the formation of oxyhydroxides and/or hydroxides. Mohazzab et al. [37] obtained one constant circuit for alloy without coating, and with the coatings’ two time constants, they related with the porous layer and the substrate/coating interface.

A low capacitive response is related to the protective layer and indicates better corrosion properties. However, not all the samples presented the common double-layer equivalent circuit of resistance and capacitance. Some samples have inductance, and this behavior is shown when the species are adsorbed on the electrode surface. It occurs when the alloying elements help to grow the oxide layer [38]. Some authors interpreted with three RC constants, but the behavior was similar to the diffusion process and associated with different porosity layers [39].

In other research, a diffusion process occurs; this is interpreted as Warburg’s element (W); when the resistance of W is high, it can be associated with the formation of oxide films [40]. Kulova et al. [41] related the W with the diffusion of sodium in the solid phase. Other authors related it to the diffusion of Cl⁻, and when W impedance was decreased by the concentration of ions, the passive layer was damaged [42].

This work aims to study the electrochemical behavior of anodization on Ti-6Al-2Sn-4Zr-2Mo and Ti-6Al-4V exposed at 3.5 wt. % to NaCl and H₂SO₄ solutions. The electrochemical characterization was performed by cyclic potentiodynamic polarization (CPP) and electrochemical impedance spectroscopy (EIS). The anodized layers were characterized by scanning electron microscopy (SEM).

2. Materials and Methods

2.1. Material

The materials used in this work were Ti-6Al-2Sn-4Zr-2Mo (Supra alloys, Camarillo, CA, USA) and, Ti-6Al-4V (Titanium Engineers, Stafford, TX, USA) used in the received condition. The chemical composition of these alloys was obtained by atomic absorption spectrometry and is listed in

Table 1. Chemical composition of the titanium alloys (wt. %).

Elements	Ti-6Al-2Sn-4Zr-2Mo	Ti-6Al-4V
Ti	84.65 ± 0.19	87.71 ± 0.36
Al	6.75 ± 0.20	7.14 ± 0.37
Sn	2.08 ± 0.01	–
V	–	4.03 ± 0.08
Zr	4.18 ± 0.01	–
Mo	1.99 ± 0.008	–

.

2.2. Microstructural Characterization

Titanium alloys were prepared by metallography technique [43]. The materials were polished using various SiC sandpaper grades 400, 600, and 800; each sample was ultrasonically cleaned for 10 min in ethanol (C₂H₅OH) and deionized water. The samples were subjected to a chemical attack using a Kroll solution made up of 3 mL of hydrofluoric acid (HF), 5 mL of nitric acid (HNO₃), and 100 mL of water (H₂O) for 30 s [44].

The surface and cross-section of titanium alloys were investigated using secondary electron (SE) and backscattered electron (BSE) detectors in a scanning electron microscope (SEM, JEOL-JSM-5610LV, Tokyo, Japan) operating at 20 kV and 8.5 and 12 mm work distance. The chemical composition of alloys was obtained by energy-dispersive X-ray spectroscopy (EDS, JEOL-JSM-5610LV, Tokyo, Japan).

2.3. Anodizing Process

Ultrasonic cleaning in ethanol (C₂H₅OH) and deionized water served as the pretreatment for 10 min.

The anodizing procedure was carried out in an electrochemical cell with a graphite rod serving as the cathode and 1 M electrolytes (analytical grade reagents (JT Baker)), with the anodizing electrolyte’s temperature being 25 °C ± 1. Using a DC power source, the titanium samples’ current density was 2.5 × 10⁻³ A·cm⁻² for 600 s (XLN300025-GL). The AMS2487 specification was followed during the anodizing procedure [45].

2.4. Electrochemical Measurements

Cyclic potentiodynamic polarization (CPP) and electrochemical impedance spectroscopy (EIS) were carried out at room temperature using a VersaSTAT 4 Princeton Applied Research (Ametek, Inc. Oak Ridge, TN, USA) in 3.5 wt. % NaCl and H₂SO₄ solutions. A conventional three-electrode cell configuration was employed for electrochemical characterization at room temperature and all the corrosion tests were performed in triplicate. The working electrode (WE, with an exposed surface of 1 cm²) was anodized for the current study, the reference electrode (RE) was saturated calomel (SCE), and the counter electrode (CE) of platinum [46].

The CPP parameters were a scan potential from −1.2 to 1.2 V vs. SCE of OCP. The potential sweep was 1 mV/s to complete 1 cycle [47].

EIS was realized with a potential amplitude of ±10 mV; the frequencies were from 100 kHz to 10 mHz. The equivalent circuit analysis was made in ZView [48].

3. Results

3.1. SEM Microstructural Analysis

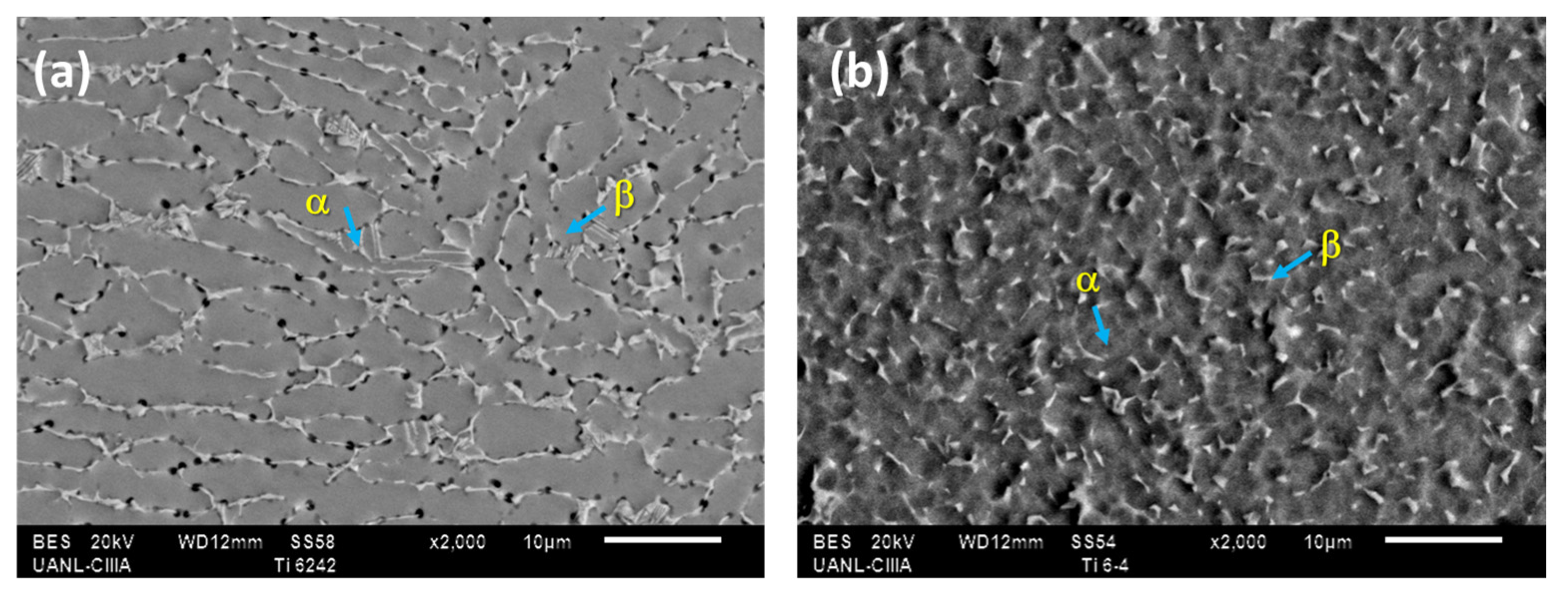

Figure 1 shows the microstructure of the initial samples in the superficial section of Ti-6Al-2Sn-4Zr-2Mo and Ti-6Al-4V. Figure 1a shows Ti-6Al-2Sn-4Zr-2Mo, presenting α phase grains deformed with triple junction zones for β phase. Ti-6Al-4V had an equiaxial and fine grain, the β phase had a spherical form, and α was the matrix.

3.2. SEM Surface Analysis of Anodized Alloys

Figure 2 shows the surface characterization of the samples anodized in H₂SO₄ and H₃PO₄. Figure 2a shows the Ti-6Al-2Sn-4Zr-2Mo anodized in H₂SO₄; this sample presented a homogenous porosity, and the different levels can be observed, associated with a high rugosity. Figure 2b of Ti-6Al-4V anodized in H₂SO₄ shows lower porosity but little crack zones at a different level, associating this with high rugosity. Samples anodized in H₃PO₄ showed similar morphology with great porosities and heterogenous distribution and size.

3.3. SEM Cross-Section Analysis of Anodized Alloys

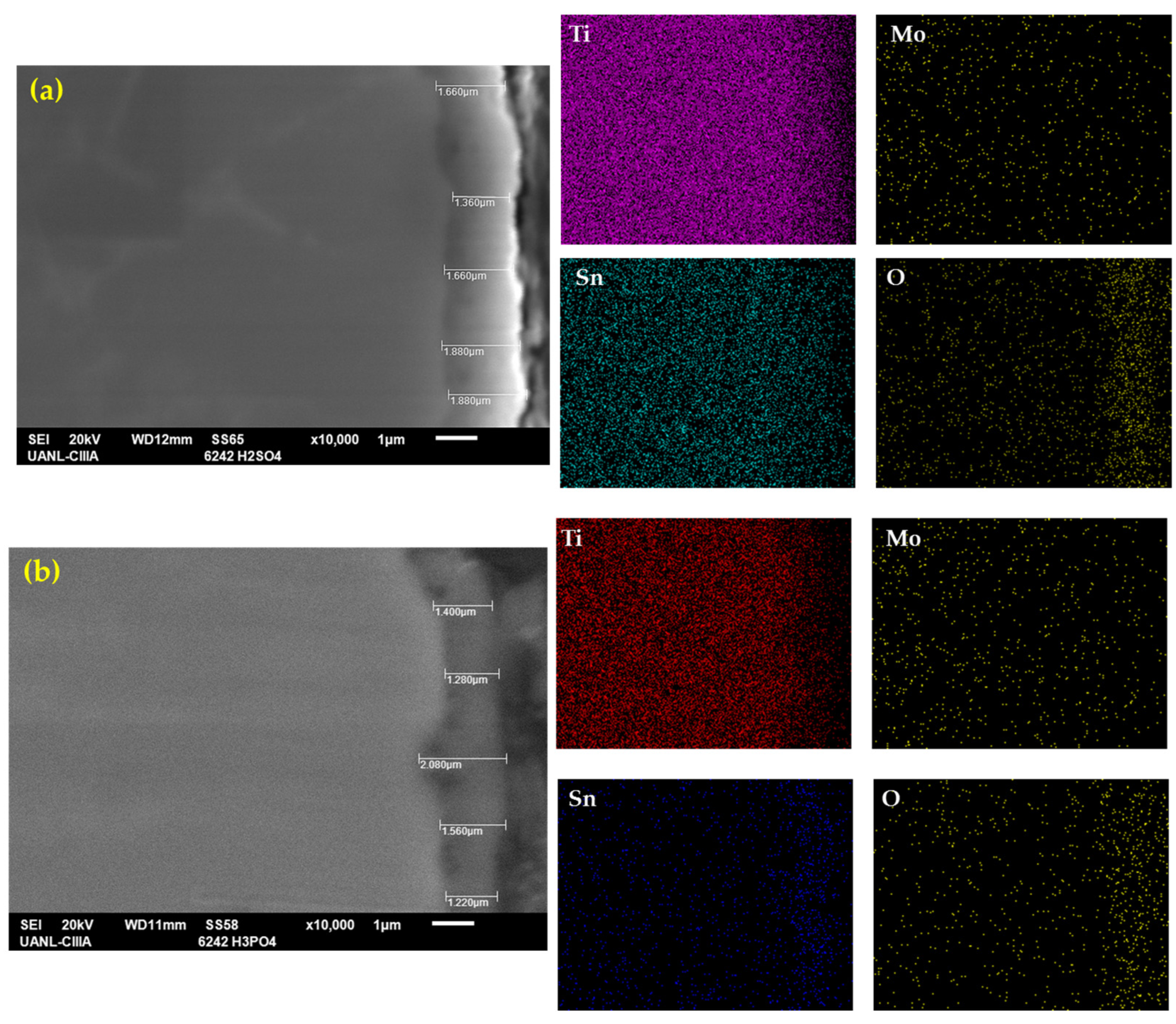

Figure 3 shows the cross-section of the anodized samples with the measurements and an element mapping by EDS for Ti-6Al-2Sn-4Zr-2Mo. Figure 3a shows the anodized sample in H₂SO₄, where the average anodized thickness was 1.62 µm, with a major thickness of 1.88 µm and a lower one of 1.36 µm, having a uniform and continuous coating. At the top, the material’s roughness can be observed, and cracks were not present. Figure 3b shows the anodization in H3PO4, where the average anodized coating was 1.65 µm higher than that anodized in H₂SO₄. However, this anodization presents more variability in the thickness with a lower measurement of 1.28 µm and a higher one of 2.08 µm. However, the thickness of the sample is within the specifications of AMS2487B.

For that reason, the porosities of Figure 2a,b could be localized at the top, but after that, a compact oxide layer was present. The element mappings of Figure 3 showed the presence of alloying elements. In the coating, titanium was localized in all alloys, but in the coating zone, the top was reduced; elements such as Sn had a presence in all the samples, including the top. The oxygen in Figure 3 is concentrated in the coating zone, relating that result to the oxide layer of Ti.

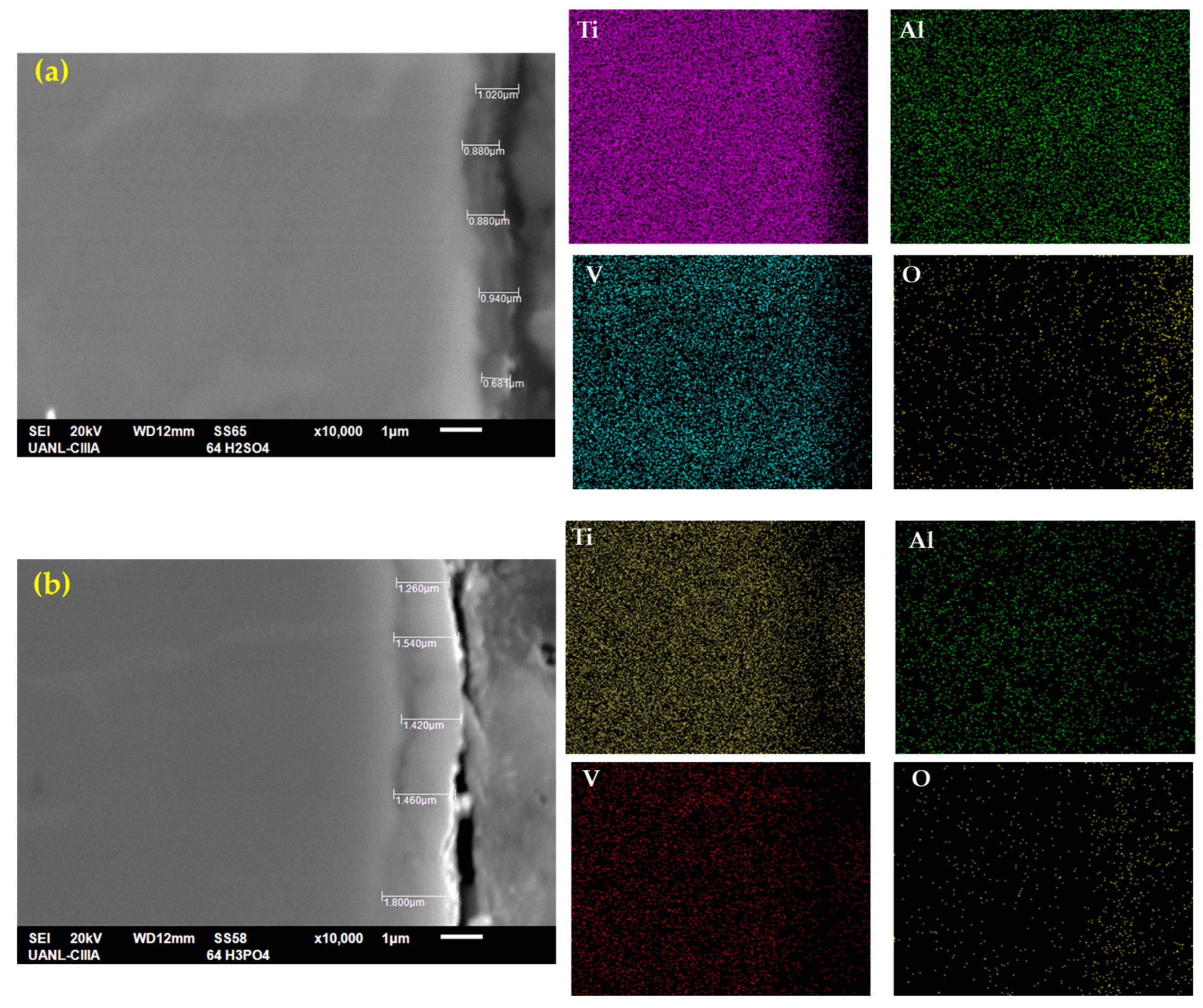

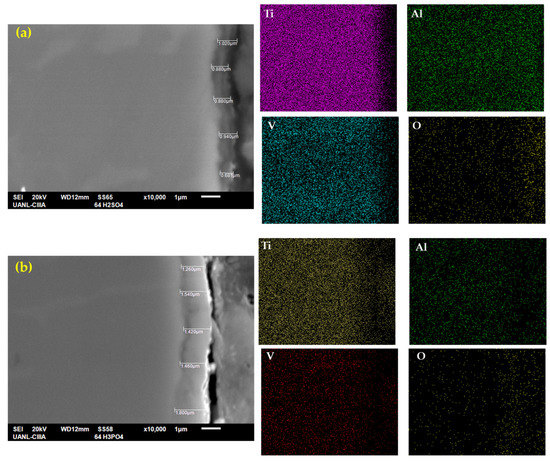

Figure 4 shows the cross-section of anodized Ti-6Al-4V with the measurements and the mapping of the chemical composition obtained by EDS. Figure 4a shows the sample anodized in H₂SO₄, where the average anodized thickness was 0.95 µm, with a higher thickness of 1.02 µm and a lower one of 0.88 µm. This coating also presented a high roughness, and the morphology could not be related to a compact layer. Figure 4b shows the H₃PO₄ anodization had a higher coating thickness than the Figure 4a sample, with an average of 1.53 µm. This coating also presented a higher thickness, and the layer was compact. In some anodized zones, some discontinuities could be observed. Only the sample anodized in H₃PO₄ achieved the AMS2487B specs.

Figure 4a,b show the presence of the chemical elements. Titanium was also present in all matrixes, but the coating had more presence at the bottom than at the top for both samples. These anodized samples showed the presence of aluminum and vanadium (more than in the H₂SO₄ coating). This behavior is related to the formation of secondary oxides. Oxygen had a presence in the coating zone, as previously explained.

3.4. Cyclic Potentiodynamic Polarization

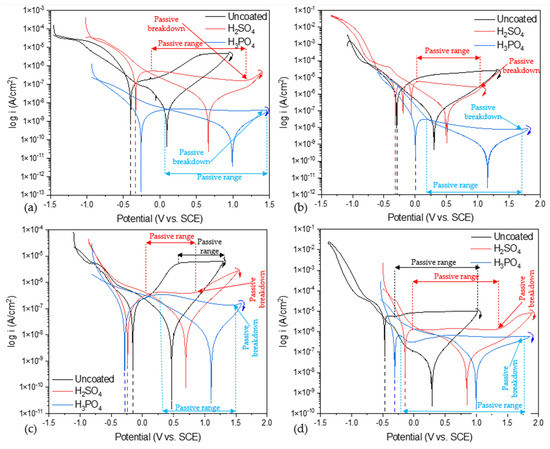

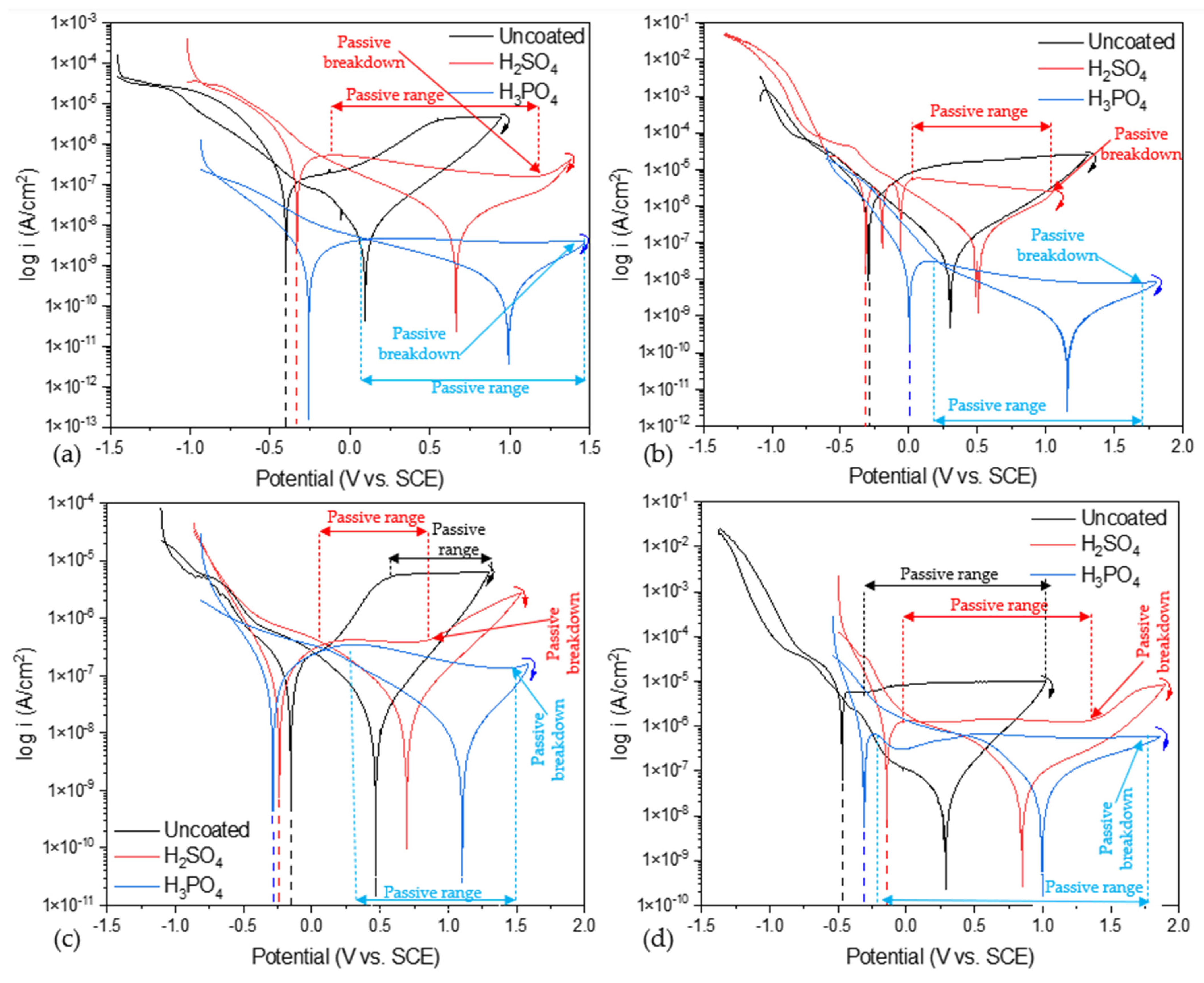

Figure 5 shows the uncoated CPP for alloys and anodized samples in NaCl and H₂SO₄ at 3.5 wt. %. Figure 5a shows the behavior of Ti-6Al-2Sn-4Zr-2Mo uncoated and anodized when exposed to NaCl; the uncoated sample presents a higher E_corr when exposed to NaCl compared with the anodized sample of Ti-6Al-2Sn-4Zr-2Mo, −0.397 V (see

Table 2. Parameters obtained by CPP.

Sample	Ecorr	icorr	Hysteresis	Range	Passive Breakdown (V)	Corrosion Rate (mpy)	—βc (V/decade)	βa (V/decade)	β (v)	Rp (Ω·cm2)
	(V)	(A/cm2)		Passive
				(V)
Ti-6Al-2Sn-4Zr-2Mo
3.5 wt. % NaCl
Uncoated	−0.397	1.0 × 10−7	Negative	N/A	N/A	0.071	1.2 × 10−1	7.1 × 10−1	4.5 × 10−2	4.2 × 105
H2SO4	−0.330	4.5 × 10−7	Negative	1.29	1.19	0.251	1.6 × 10−1	1.4	6.2 × 10−2	1.3 × 105
H3PO4	−0.257	2.6 × 10−9	Negative	1.24	1.42	0.0014	2.6 × 10−1	7.8 × 10−1	7.7 × 10−2	2.9 × 107
3.5 wt. % H2SO4
Uncoated	−0.301	1.8 × 10−6	Negative	N/A	N/A	1.39	2.4 × 10−1	4.1 × 10−1	6.7 × 10−2	3.6 × 104
H2SO4	−0.312	4.2 × 10−6	Negative	0.96	1.02	5.85	3.1 × 10−1	9.9 × 10−1	1.0 × 10−1	2.4 × 104
H3PO4	−0.002	3.2 × 10−8	Negative	1.24	1.42	0.022	1.8 × 10−1	4.6 × 10−1	5.6 × 10−2	1.7 × 106
Ti-6Al-4V
3.5 wt. % NaCl
Uncoated	−0.144	1.0 × 10−7	Negative	0.6552	1.28	0.0388	1.4 × 10−1	1.5 × 10−1	3.3 × 10−2	3.2 × 105
H2SO4	−0.237	1.2 × 10−7	Negative	0.48	0.77	0.0848	3.2 × 10−1	6.2 × 10−1	9.3 × 10−2	7.6 × 105
H3PO4	−0.287	4.2 × 10−7	Negative	1.17	1.44	0.1127	3.9 × 10−1	1.8	1.3 × 10−1	3.2 × 105
3.5 wt. % H2SO4
Uncoated	−0.475	6.7 × 10−6	Negative	0.92	1.01	9.31	1.9 × 10−1	11.2	8.3 × 10−2	1.2 × 104
H2SO4	−0.146	1.6 × 10−6	Negative	1.27	1.28	0.991	1.3 × 10−1	1.0	5.1 × 10−2	3.1 × 104
H3PO4	−0.318	4.6 × 10−7	Negative	1.78	0.94	0.382	9.2 × 10−2	6.9 × 1−1	3.5 × 10−2	7.7 × 104

), meaning that corrosion is most likely. The uncoated sample did not present a passivation zone, indicating activation and material dissolution. The sample anodized with H₂SO₄ showed the highest i_corr (4.53 × 10⁻⁷ A/cm²) in this media for the Ti-6Al-2Sn-4Zr-2Mo alloy; furthermore, the behavior corresponds to coating and means that the anodized sample presented a higher corrosion kinetics in comparison with the sample anodized in H₃PO₄. The H₃PO₄-anodized sample presented better corrosion resistance and did not show a significant passive breakdown potential, compared to that anodized in H₂SO₄.

Figure 5b shows the behavior of uncoated and anodized Ti-6Al-2Sn-4Zr-2Mo when exposed to H₂SO₄. In this case, the uncoated and the H₂SO₄ -anodized sample presented similar values of E_corr (−0.301 and −0.312 V) and i_corr (1.86 × 10⁻⁶ and 4.23 × 10⁻⁶ A/cm²), meaning a similar corrosion probability and kinetics. However, the H₂SO₄-anodized sample presented three unusual reactions in the anodic breach, associated with a fast electrochemical reaction on the surface due to the porosity. Furthermore, that reaction in the anodic breach is related to an unstable oxide layer generated on the surface, and the pitting and repassivation process that occurs. Additionally, the sample anodized with H₂SO₄ presented a passivation range with a reduction of current demand, meaning that the corrosion process was reduced. The sample anodized with H₃PO₄ presented the highest E_corr in this media, −0.002 V, and lower i_corr, 3.24 × 10⁻⁸ A/cm², associated with a lower corrosion rate. The passivation range was more extended with 1.17 V, and a reduction of current was presented.

Figure 5c shows the behavior of Ti-6Al-4V, uncoated and anodized, in NaCl at 3.5 wt %. The uncoated sample had the higher E_corr, −0.144 V (see Table 2) when exposed to NaCl and compared with the anodized of Ti-6Al-4V; meanwhile, the anodized sample in H₂SO₄ and H₃PO₄ presented −0.237 and −0.287 V (see Table 2). However, the uncoated sample presented the higher i_corr, with 6.71 × 10⁻⁶, relating this behavior with a faster corrosion kinetic. All the samples presented passivation, the highest being for the sample anodized in H₃PO₄, meaning that the passive layer was more stable against corrosion processes. The sample anodized in H₃PO₄ presented a passive region of 1.28 V, and also presented a decrease in the current demand, from values near to ×10⁻⁶ to ×10⁻⁷ A/cm², meaning a reduction of electron transference, associated with an increase in the passive layer efficiency. The anodized sample of Ti-6Al-4V in H₂SO₄ presented a lower passivation range (0.77 V), but in that short period, the current demand remained uniform without increasing, relating the process with passivation.

The high porosity and low thickness of anodized H₂SO₄ are related to the faster passivity breakdown, shown in Figure 5c; that breakdown is of the passive layer generated in the corrosion process. The decrease in the current demand for the samples anodized in H₃PO₄ is related to the possible development of a passive layer in the anodized sample corresponding to a diffusion process.

Figure 5c shows the behavior of uncoated and anodized Ti-6Al-4V in H₂SO₄ at 3.5 wt %. The uncoated sample presented the lowest E_corr and highest i_corr (−0.475 V and 6.71 × 10⁻⁶ A/cm²) when exposed to H₂SO₄ media. For the anodized samples, the worst corrosion performance characterized by CPP was for H₂SO₄, which presented a higher i_corr (1.69 × 10⁻⁶ A/cm²) but presented a higher E_corr (−0.146 V), associating this behavior with the demand of energy to begin an anodic process. The passivation range was higher for anodized in H₃PO₄, giving rise to the best coating layer.

Table 2 shows the values of CPP obtained by Tafel interpolation and the range and passive breakdown. All the samples presented a negative hysteresis, meaning that the corrosion process occurring on the surface is uniform. The Ti-6Al-2Sn-4Zr-2Mo anodized in H₃PO₄ showed the best corrosion performances in both media with the lowest i_corr values (2.64 × 10⁻⁹ and 3.24 × 10⁻⁸ A/cm²). Furthermore, the passivation zone did not present changes in current, which can be observed in the passivation range values.

In the case of Ti-6Al-2Sn-4Zr-2Mo, the sample anodized in H₃PO₄ showed the lowest corrosion rate in both media with 0.0014 and 0.022 mpy in NaCl and H₂SO₄. Even the polarization resistance was higher for the H₃PO₄ anodized sample, with values of 2.9 × 10⁷ and 1.7 × 10⁶ Ω·cm² for NaCl and H₂SO₄. In comparison with the sample anodized in H₂SO₄ and the uncoated sample, the one anodized in H₃PO₄ presented the best performance against corrosion.

For the Ti-6Al-4V, the sample anodized in H₂SO₄ presented a better corrosion performance in NaCl than the Ti-6Al-4V anodized in H₃PO₄ with corrosion rates of 0.0848 mpy. That performance was also higher than the Ti-6Al-2Sn-4Zr-2Mo anodized in H₂SO₄, meaning that samples anodized in H₂SO₄ showed a better conduct against corrosion when it was applied to Ti-6Al-4V. However, the R_p values presented showed a high dominance of the Ti-6Al-2Sn-4Zr-2Mo alloy in both anodized electrolytes, but it is important to consider the sample of Ti-6Al-4V anodized in H₂SO₄ as a good option for applications in acid media.

These results can be associated with a more uniform, compact, well-adherent oxide layer. However, samples anodized in H₃PO₄ had a higher porosity than those anodized in H₂SO₄. The former showed the best performance. The EIS technique may explain this phenomenon.

3.5. Electrochemical Impedance Spectroscopy

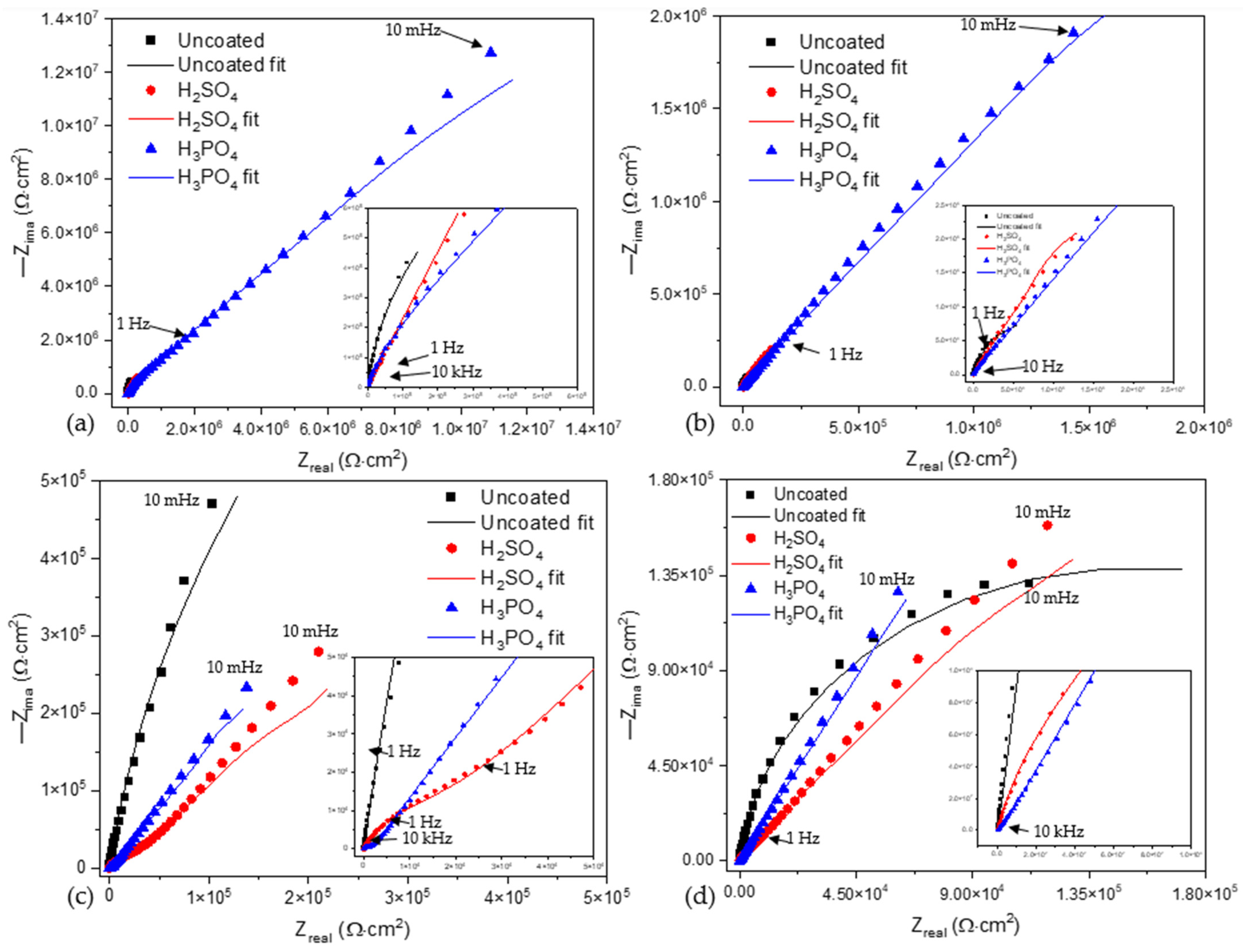

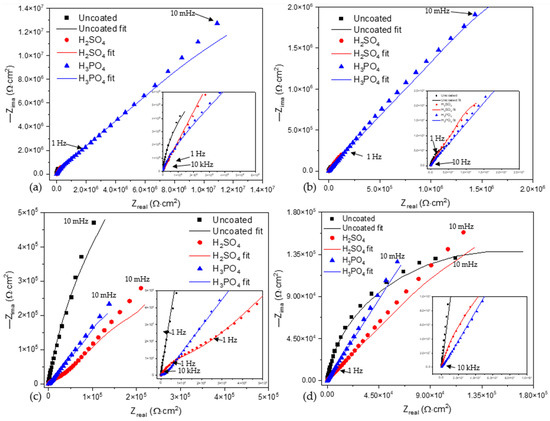

Figure 6a shows the Nyquist plot for anodized samples of Ti-6Al-2Sn-4Zr-2Mo exposed in NaCl at 3.5 wt. %. The uncoated sample presented titanium’s typical behavior with the development of a natural passive layer. As shown in Figure 7a, the coated samples presented similar behavior when the process was governed by diffusion. The H₃PO₄ anodized samples presented a higher resistance to porosity (R_por) 5.42 × 10⁴ Ω·cm². The porous layer is the first barrier, and afterward, the diffusion process occurs in the compact oxide layer, and the resistance increased for both samples.

In Figure 6b, the uncoated sample presented a different behavior compared to that presented in Figure 7b. This is related to the creation of a stable passive layer in H₂SO₄. The anodized samples showed processes dominated by diffusion. For those anodized in H₃PO_4, the Warburg’s resistance increased, meaning that oxygen diffusion occurred, increasing the passive layer.

Figure 6c shows the behavior of Ti-6Al-4V in NaCl at 3.5 wt. %. The uncoated sample showed a higher resistance due to the resistance of the metal–electrolyte interface. The anodized porous layer was lower for the sample anodized in H₃PO₄. After the resistance of the porous layer, a diffusion process governed the system.

Figure 6d shows the behavior when Ti-6Al-4V and the anodized sample were exposed to H₂SO₄. The sample anodized in H₃PO₄ presented a higher value of Warburg’s resistance, 9.16 × 10⁵ A/cm². Such a behavior is related to creating a passive layer in the compact oxide barrier. The resistance of the porous layer was lower for this sample due to the high heterogeneous porosity. Furthermore, the Warburg’s impedance increased as the thickness of the anodized samples was higher for H₃PO₄ than for H₂SO₄. This behavior was presented for NaCl. The porosity had the same conduct in NaCl and H₂SO₄.

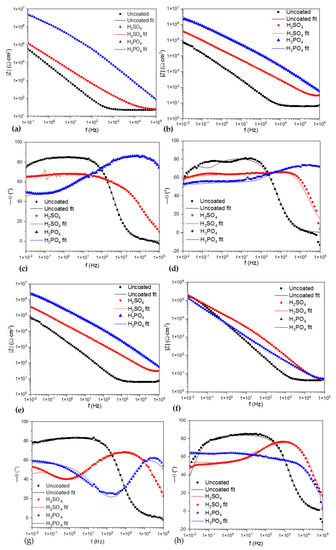

Figure 7 shows the Bode diagrams; Figure 7a,b shows the Bode diagrams for impedance magnitude for Ti-6Al-2Sn-4Zr-2Mo. The samples anodized in H₃PO₄ presented the higher impedance resistance with values of ×10⁶ order; this can be related with a high corrosion resistance. For the samples of Ti-6Al-4V, Figure 7e shows that samples anodized in H₃PO₄ exposed to NaCl presented higher impedance, associated with higher corrosion resistance. On the other hand, when samples of Ti-6Al-4V were exposed to H₂SO₄ (Figure 7f) the impedance of the anodized sample decreased to ×10⁵ order; the values obtained were so close to the uncoated sample, that it meant a possible anodizeddissolution.

Figure 7c,d show the Bode diagrams vs. angle phase; the uncoated sample showed one time constant in Figure 7c and two for Figure 7d. The anodized samples presented the superposition of signals, meaning that two processes were occurring at the same time; also, at low frequencies, a change in the slope was present. Figure 7g,d show Ti-6Al-4V; the uncoated sample presented the same behavior for one time constant. On the other hand, the anodized samples presented the behavior of two time constants, with a change in the process between 100 kHz and 1 Hz related to the behavior of intermetallic coatings. Both samples of Ti-6Al-4V showed the two time constants.

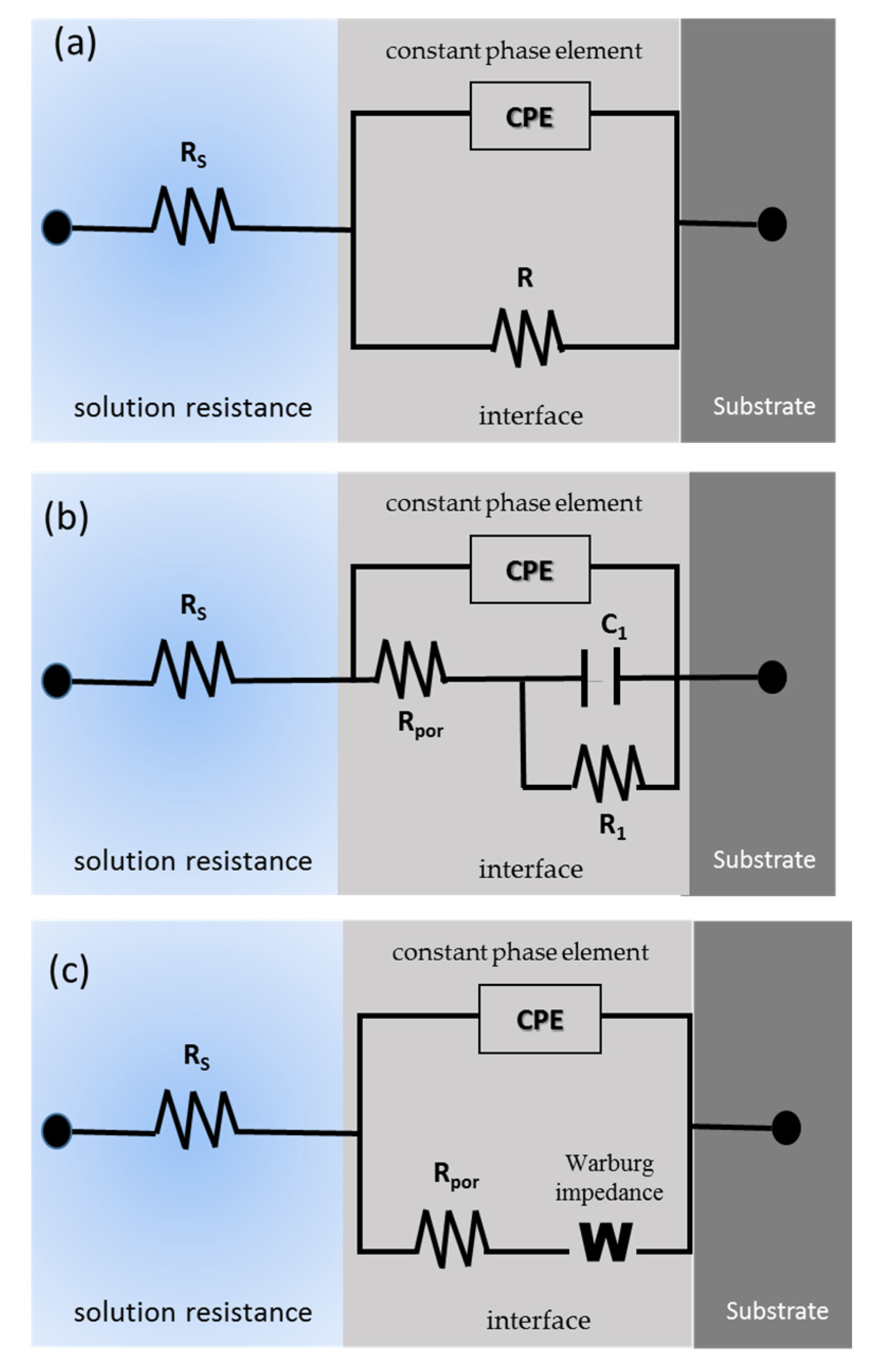

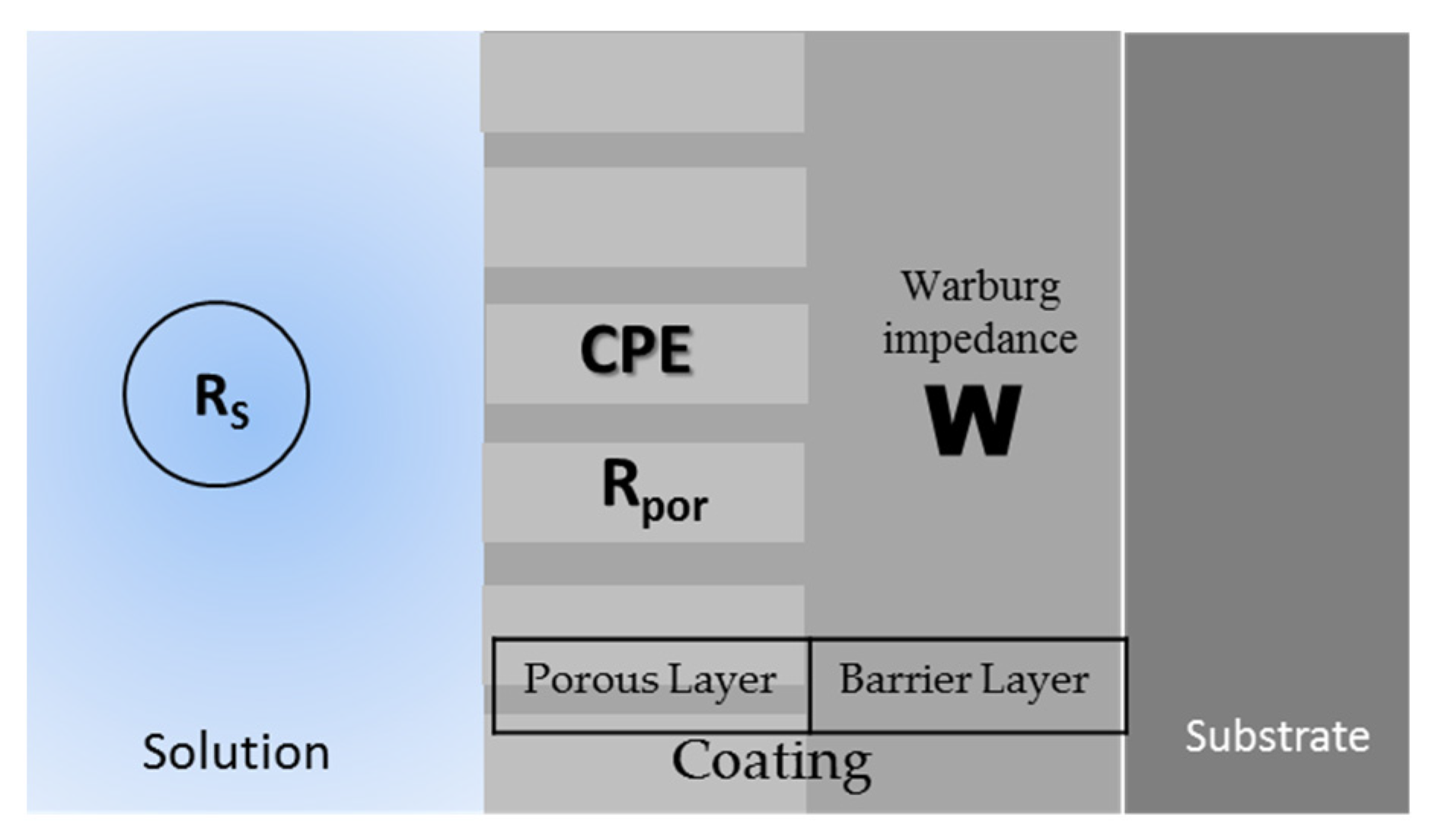

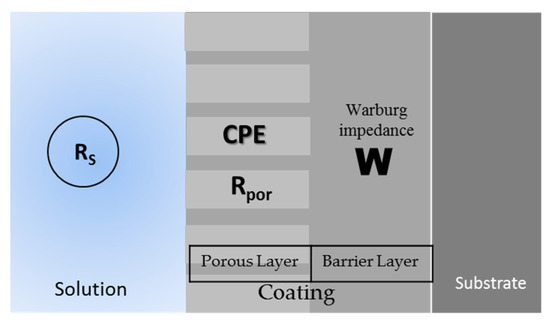

Figure 8 shows the equivalent circuit for the different systems. The uncoated samples present the typical R-CPE behavior of Figure 8a; only the Ti-6Al-2Sn-4Zr-2Mo sample presented the system from Figure 8b, related to the tendency to generate a passive layer in H₂SO₄, and the stability of this one. All the anodized samples showed an 8c circuit related to the resistance of the porosity barrier, and the diffusion in the compact barrier zone, associated with an increase in the barrier. Figure 9 shows the diffusion behavior of anodized samples, where the diffusion process begins in the barrier zone due to the compactness of the coating in that zone.

Table 3. Parameters obtained by EIS.

Sample	Rs (Ω·cm2)	Rpor (Ω·cm2)	CPE (F/cm2)	n	R (Ω·cm2)	C1 (F/cm2)	W (Ω·cm2)	X2
Ti-6Al-2Sn-4Zr-2Mo
3.5 wt. % NaCl
Uncoated	21.9	2.23 × 106	2.75 × 10−5	0.943	–	–	–	2.72 × 10−3
H2SO4	22.6	5.25 × 103	1.18 × 10−5	0.737	–	–	7.80 × 106	9.90 × 10−4
H3PO4	18.7	5.42 × 104	2.75 × 10−5	0.973	–	–	5.29 × 106	1.15 × 10−3
3.5 wt. % H2SO4
Uncoated	6.09	2.57 × 104	8.81 × 10−5	0.912	1.55 × 105	4.87 × 10−5	–	1.19 × 10−2
H2SO4	3.96	2.83 × 102	7.28 × 10−6	0.858	–	–	9.00 × 105	1.15 × 10−2
H3PO4	1.84	1.79 × 104	3.01 × 10−7	0.824	–	–	1.01 × 107	4.46 × 10−3
Ti-6Al-4V
3.5 wt. % NaCl
Uncoated	20.2	3.44 × 106	2.54 × 10−5	0.925	–	–	–	2.24 × 10−3
H2SO4	20.8	2.42 × 104	2.26 × 10−5	0.787	–	–	8.22 × 105	1.31 × 10−3
H3PO4	23.1	1.56 × 103	4.36 × 10−7	0.802	–	–	7.16 × 105	5.09 × 10−3
3.5 wt. % H2SO4
Uncoated	4.18	3.07 × 105	3.82 × 10−5	0.935	–	–	–	2.11 × 10−2
H2SO4	4.35	2.17 × 103	3.97 × 10−6	0.902	–	–	5.57 × 105	3.32 × 10−3
H3PO4	4.72	9.27 × 101	1.20 × 10−5	0.822	–	–	9.16 × 105	1.65 × 10−3

shows the parameters obtained by EIS. The anodized sample in Ti-6Al-2Sn-4Zr-2Mo presented lower capacitance values related to increased coating thickness. Furthermore, a porous barrier presented similar behavior. The samples anodized in H₂SO₄ showed lower values of n associated with a non-homogenous current distribution due to the heterogenous porosity of the samples, even Ti-6Al-2Sn-4Zr-2Mo and Ti-6Al-4V. The error of the equivalent circuit was acceptable for all the systems. The anodized Ti-6Al-2Sn-4Zr-2Mo presented this technique’s best behavior against corrosion, with values of ×10⁶ and ×10⁷ A/cm². The order of the porous barrier was 10 × 4 A/cm², so the porosity was more homogenous and stable.

The following equation defines the calculation of the oxide film formed:

$${\mathsf{\delta }}_{\mathrm{ox}}=\frac{{\mathsf{\epsilon }\mathsf{\epsilon }}_0}{{\mathrm{C}}_{\mathrm{cc}}}$$

In this case, the ε and ε₀ correspond to oxide film permittivity, and the vacuum permittivity (8.85 × 10⁻¹⁴ Fcm⁻¹) and C_cc are the system’s capacitance. δ_ox is the thickness of the oxide film formed in the process.

Table 4. Values of oxide film thickness generated by EIS.

Samples		δ (m)
		3.5 wt. % NaCl	3.5 wt. % H2SO4
Ti-6Al-2Sn-4Zr-2Mo	Uncoated	2.77 × 10−9	8.62 × 10−11
	H2SO4	6.45 × 10−9	1.05 × 10−8
	H3PO4	2.77 × 10−9	2.53 × 10−7
Ti-6Al-4V	Uncoated	2.15 × 10−9	1.99 × 10−9
	H2SO4	3.37 × 10−9	1.92 × 10−8
	H3PO4	1.75 × 10−7	6.34 × 10−9

shows the results of the thickness. The value of ε for TiO₂ was 86. The CPE can obtain the C_cc value from Table 3.

The results of Table 4 show that the anodized samples of Ti-6Al-2Al-4Zr-2Mo presented high values for the oxide layer generated when anodized in H₃PO₄. For Ti-6Al-4V, the H₃PO₄ anodized samples showed a higher oxide generation in NaCl with 1.75 × 10⁻⁷ m than all the anodized Ti-6Al-4V in any media. It is important to mention that the anodization of Ti-6Al-2Sn-4Zr-2Mo presented an easier generation in H₂SO₄ and Ti-6Al-4V had easier growth in NaCl media. Figure 10 schematizes the process of oxide layer growth.

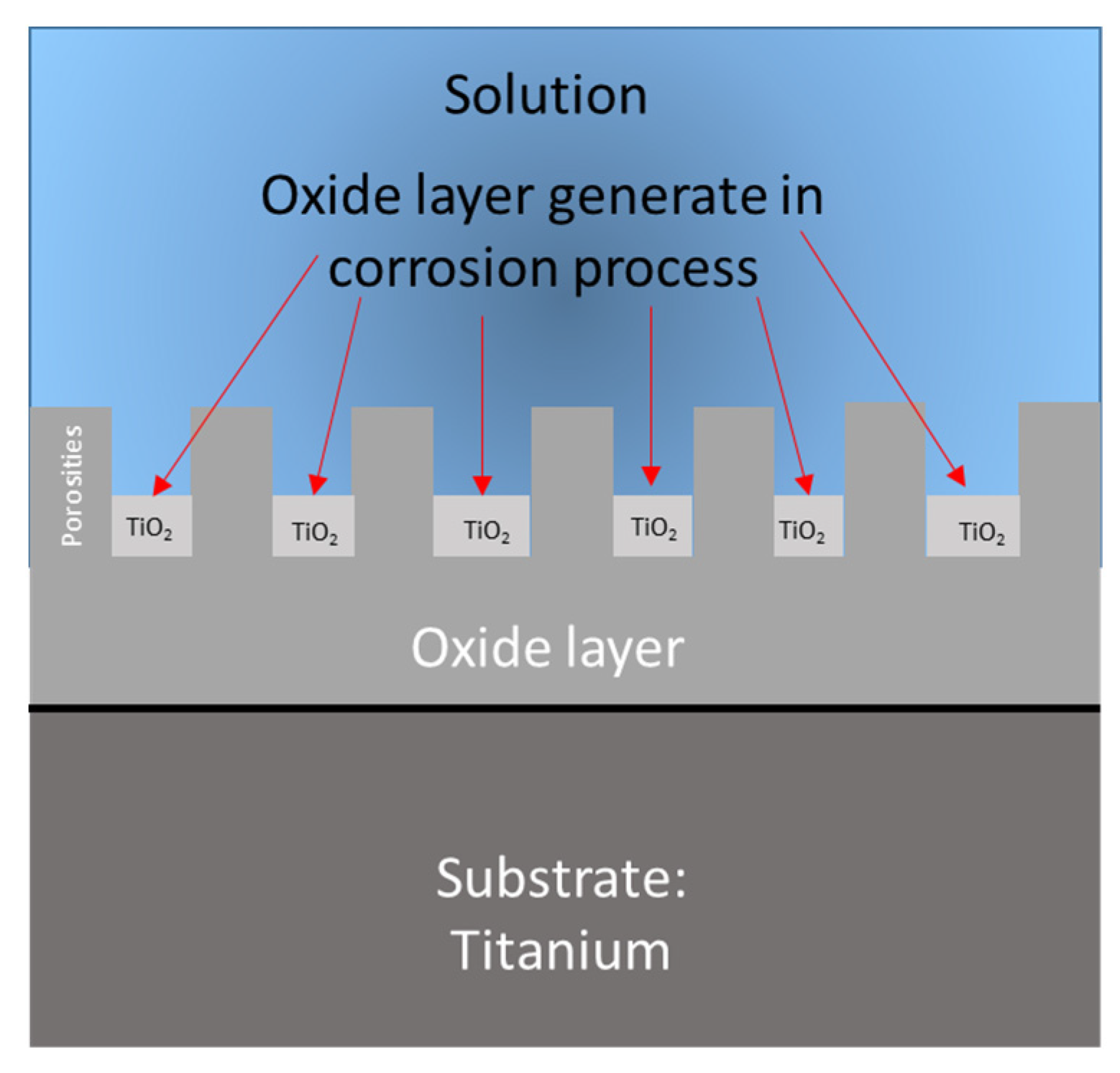

It is important to mention that the diffusion process begins in the oxide layer generated by the corrosion process due to the porosities of that part.

4. Discussion

Previous researchers have emphasized the role of the porosity of titanium alloys concerning their mechanical and corrosion resistance. Both samples showed porosity in both samples, decreasing the mechanical and corrosion resistance due to the pores being stress concentrators. This, in turn, makes the material susceptible to localized corrosion. However, the material can repassivate it. The tiny pores help to reduce the diffusion process in the electrolytes [49,50]. In this case, Ti-6Al-2Sn-4Zr-2Mo had a higher porosity, but the size was smaller than in Ti-6Al-4V and localized in β phases [51,52].

In Figure 1b, the microstructure of Ti-6Al-4V and the porosity can make the material vulnerable to problems in the coating. Kumar [53] mentioned that H₂SO₄, an anodized electrolyte, produces a stable oxide layer. For that reason, the thickness of the anodized samples in H₂SO₄ presented less variation in thickness measurements since the concentration of 1M helped the correct flow of current.

The reaction in the anodic breach of Ti-6Al-2Sn-4Zr-2Mo anodized in H₂SO₄ was explained by Cabral et al. [54] as a cathodic–anodic behavior in the system; however, various authors related the reaction to the change in the electrolyte concentration when there was a variation in pH and oxide reduction. Furthermore, it can be associated with a reduction of the protective layer [55,56,57,58,59]. For this anodized sample, the behavior presented was related to the reduction of anodized protection caused by oxygen reduction, and OH⁻ ions attacking the surface because of the heterogenous nature of the anodized sample. The continuity of the other passivation zones is related to forming an oxide film in the passivated or anodized surface [60,61].

However, the high thickness of the sample anodized in H₃PO₄ is associated with continuous oxygen evolution; when it occurs in the anodizing process, it increases the thickness, and it is also reported by various authors [62,63,64,65,66]. Conversely, El-Taib Heakal et al. [67] mentioned that anodized H₃PO₄ presented better behavior against dissolution than H₃PO₄. However, this research showed that anodizing in H₃PO₄ presented better behavior against dissolution by using CPP and EIS. It can be observed in the anodic breach of CPP, where the current densities of the passive layer in H₂SO₄ presented high current demand in the system. The breaking potential of the passive layer is also lower than samples anodized in H₃PO₄, indicating higher anodized stability. The facility of the diffusion process corresponds to the electrolyte resistance, and the low ionic resistance describes a faster kinetic [68].

Martinez et al. [69] related the increase in current density (i_corr) to a passive layer that does not contribute to corrosion protection, and also associated the increase in current density of passivation with an oxygen and chlorine evolution. Furthermore, they correlated the incorporation of Mo to inhibit chloride ion absorption. For that reason, the increase in corrosion resistance calculated by CPP was higher for Ti-6Al-2Sn-4Zr-2Mo, decreasing the dissolution.

The low corrosion rate of Ti-6Al-2Sn-4Zr-2Mo anodized in H₃PO₄ (0.0014 and 0.022 mpy) is related to lower anodized dissolution and the generation of a layer generated by the corrosion process. The EIS characterization can corroborate that behavior.

The EIS double circle shown in Figure 6b, for the uncoated Ti-6Al-2Sn-4Zr-2Mo at low frequencies, is related to the layer of the corrosion products and is called the double electrochemical layer [70]. The value of “n” has different interpretations depending on the authors. Fouda et al. [71] related the value of 1 with an ideal capacitor, and reducing values reduces the charge of samples. Gomes et al. [72] related the CPE behavior with the resistivity distribution in the thin oxide layer thickness. This method is possible and easily determines the oxide thickness. The second time constant is related to the diffusion inside the oxide layer. For that reason, Gateman et al. [73] concluded that CPE was directly related to the interfacial properties of the system, and the correct analysis would depend directly on that. Meanwhile, the n value being near 1 is related to a more homogenous surface. Furthermore, the values are related to capacitive systems, where energy accumulation begins with the process of charge transference.

The physical meaning of CPE has been a discussion motif for diverse authors. Macdonald et al. [74,75,76] mentioned that CPE represents the conductive behavior of the dielectric; however, the modeling is complex, and it is not easy to give an exactitude of the nature of the system. On the other hand, authors relate the CPE with the phenomenon of surface roughness, and when “n” values are between 1 and 0.9, the system is dominated by a power law; meanwhile, when the value is 0.5, there is talk of a contorted surface (Warburg’s diffusion) [77]. Kim et al. [78] related the CPE with the homogeneity of the surface reactions, and once Schiller et al. [79] associated CPE with the thickness composition and variation. Córdoba-Torres [80] mentioned that CPE at high frequencies is related to a less resistive film (in zones) and, at low frequencies, is associated with the power law distribution, dominating the low resistivity behavior of the distribution function. In this work, the results of CPE are directly related to the surface’s homogeneity and resistance; when the “n” value was near 1, the coating presented better properties against corrosion.

Additionally, that behavior can be observed in EIS with the increase in diffusion resistance represented by Warburg’s element (W), meaning that the oxide layer is more stable and increased.

Some authors relate the Warburg impedance at low frequencies with redox molecules that diffuse in the system, giving a high Warburg impedance. However, when the Warburg process occurs at high frequencies, it is associated with low impedance values [81]. In this case, the high values of the Warburg resistance were consequent to a diffusion process that occurred in the compact oxide layer–electrolyte interface, increasing the resistance of the anodized samples. Rajan et al. [82] associated the disappearance in the coating of Warburg impedance with the inhibition of diffusion, so the coating layer is very protective. It is essential to mention that the electrochemical reaction governed by the Warburg impedance is absorption, penetration and diffusion [83]. The absorption–penetration occurs in the porous zone and the interface of the compact barrier and the diffusion in the compact barrier; that process produces an increase in the properties against corrosion.

The process that decreases the corrosion rate by diffusion occurs with the continuous development of a passive layer by the following reaction [84]:

Ti + 2H₂O → TiO₂ + 4H⁺ + 4e⁻

For the electrolytes that contain Cl⁻ ions, the colocation of the ions in titanium or the anodized surface to form titanium oxide actuates by the following reactions:

Ti + 4Cl⁻ → [TiCl₄]⁻ → TiCl₄ + 4e⁻

TiCl₄ + 2H₂O → TiO₂ + 4Cl⁻ + 4H⁺

These results show that the diffusion process in titanium and titanium anodized surfaces occurs on the solid phase due to the diffusion of metal ions in the porous layer. The micropores of the first oxide layer act as preferent diffusion sites for the solution ions [85,86,87,88,89].

The use of the constant phase element in the equivalent circuits is related to the non-deal behavior of the capacitor. The physical explanation of this phenomenon is that the surface is non-homogeneous and presents porosities or differences in roughness [86,88]. Therefore, the value of “n” in the CPE element is lower for anodized H₂SO₄. The imperfection in the anodized sample is higher; meanwhile, in H₃PO₄, the values of “n” are close to 1, so the surface is more homogenous. Anodized Ti-6Al-4V presented values of “n” related to heterogeneities in the surface.

Sadek et al. [90] mentioned that the formation of a hydroxide layer (Ti(OH)_xO_y) is due to a limitation in the oxidation process by the increase in oxide. The layer created by the hydroxide is porous, resulting in diffusion [91,92,93]. This behavior is observed in Figure 5b of CPP, where a fast reaction produced the reaction in the anodic branch. In EIS, the effects of hydroxide and secondary oxides are associated with the graphics of the capacitive response [36].

5. Conclusions

• The anodized Ti-6Al-2Sn-4Zr-2Mo alloys presented the best properties against corrosion, as analyzed by the electrochemical techniques employed in this research work. This behavior is related to Mo and Zr presence in the alloy and the anodized forms.
• The anodizing H₂SO₄ solution showed a smaller porosity than the H₃PO₄ anodizing solution. However, the lower porosity helped to prevent ion penetration by capillarity.
• The samples of both alloys anodized in H₃PO₄ presented the biggest thickness measurement by SEM of the anodization with a maximum value of 2.08 µm. The presence of oxygen was higher in the oxide layer.
• The sample of Ti-6Al-2Sn-4Zr-2Mo presented the highest oxide growth of all, at 2.53 × 10⁻⁷ m, when it was anodized in H₃PO₄ and exposed to H₂SO₄. Meanwhile, the Ti-6Al-4V presented the lowest oxide growth layer (3.57 × 10⁻⁹ m).
• The H₂SO₄-anodized sample for Ti-6Al-4V did not reach the minimum specifications to accomplish the thickness required for AMS2487B for anodized aeronautical titanium. Furthermore, both Ti-6Al-4V anodized samples presented the imperfections of high roughness and lack of adherence.
• For characterization of the CPP, the alloys anodized with H₃PO₄ presented lower i_corr, meaning a lower corrosion kinetic. Additionally, both H₂SO₄-anodized samples exposed to NaCl presented current densities similar to uncoated samples, meaning that the Cl⁻ could easily penetrate the anodizing layer.
• The samples of Ti-6Al-4V presented high corrosion rate values (between 0.084 and 0.991 mpy); meanwhile, Ti-6Al-2Sn-4Zr-2Mo showed the lowest corrosion rate values of all the systems in NaCl and H₂SO₄ (0.0014 and 0.022 mpy).
• All the anodized samples studied by EIS were governed by a diffusion process represented by the Warburg element. The diffusion occurred after the porous layer finished in the compact oxide layer of anodization, meaning that the anodization protects the titanium from the electrolyte.
• The results obtained by CPP and EIS converged to characterize the anodized samples, where the results showed that Ti-6Al-2Sn-4Zr-2Mo anodized in H₃PO₄ presented the best properties against corrosion from both techniques. Furthermore, the results matched with the SEM characterization where the anodized samples presented the higher thickness (1.62 µm on average).
