Effect of Nano-Y2O3 Addition on Microstructure and Tensile Properties of High-Nb TiAl Alloy Prepared by Spark Plasma Sintering
Previous Article in Journal
Corrosion Fatigue Characteristics of 316L Stainless Steel Fabricated by Laser Powder Bed Fusion


Article

Research on Parameters of Wire-Filling Laser Welding and Quenching Process for Joints Microstructure and Mechanical Property of BR1500HS Steel

by 1,2, 1,2,3,*, 1 and 1,3
1
School of Materials Science and Engineering, Wuhan University of Technology, Wuhan 430070, China
2
Hubei Center for Quality Inspection of Special Purpose Vehicles, Suizhou 441300, China
3
Suizhou-WUT Industry Research Institute, Suizhou 441300, China
*
Author to whom correspondence should be addressed.
Academic Editor: Carlos Garcia-Mateo
Metals 2021, 11(7), 1047; https://doi.org/10.3390/met11071047
Received: 30 May 2021 / Revised: 20 June 2021 / Accepted: 23 June 2021 / Published: 30 June 2021
(This article belongs to the Section Metal Casting, Forming and Heat Treatment)

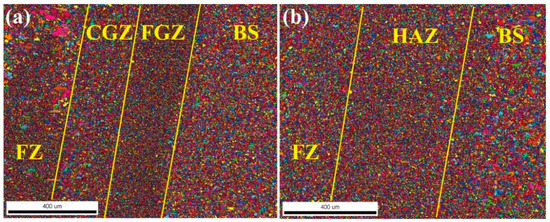

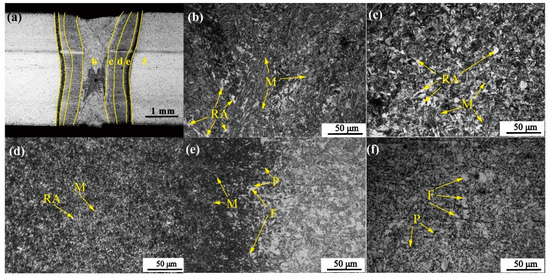

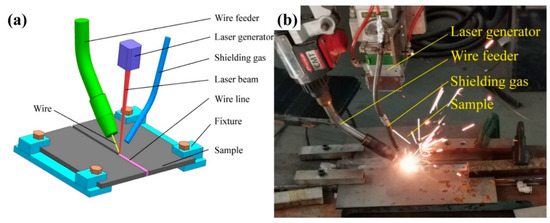

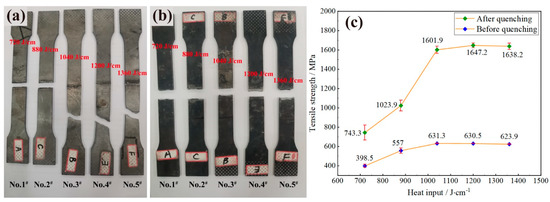

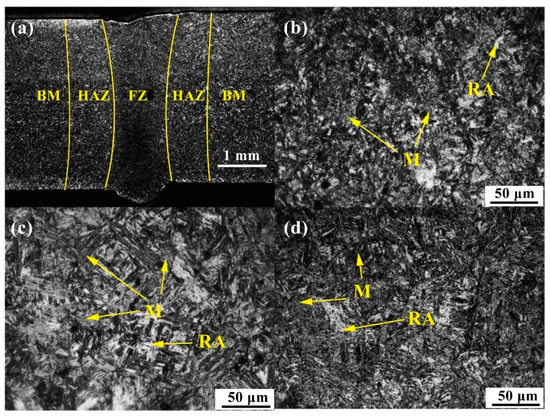

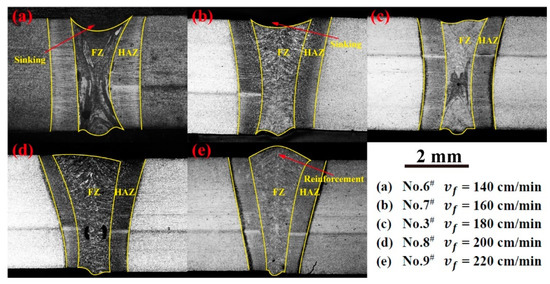

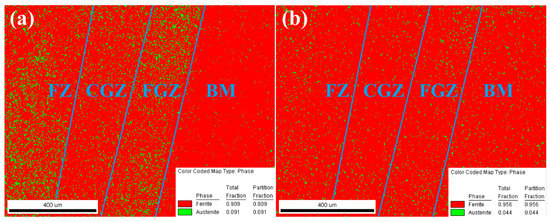

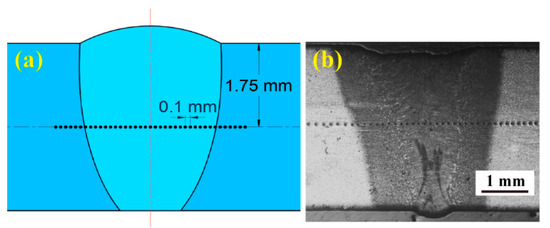

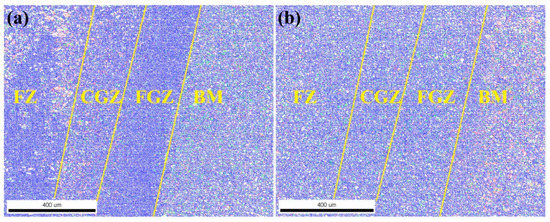

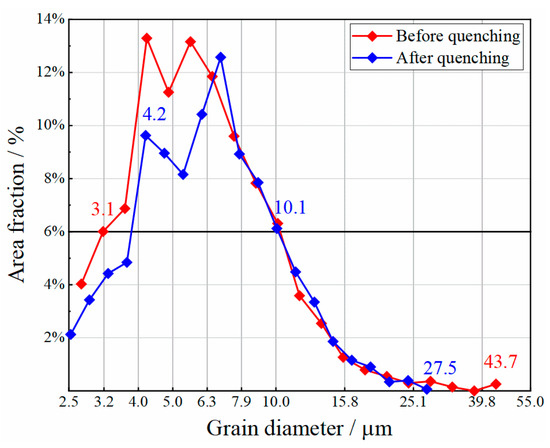

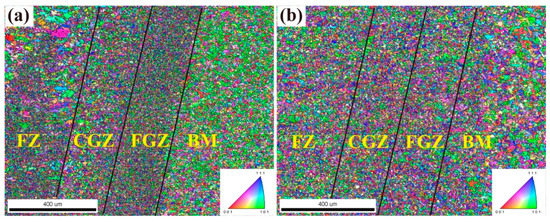

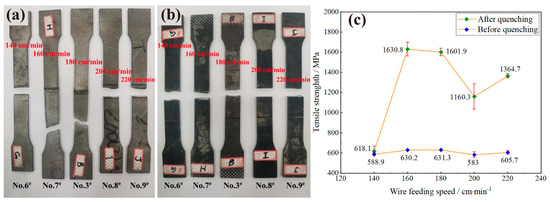

With the aim to investigate the effect of parameters and the quenching process on the joint microstructure and mechanical properties of hot stamping steel by laser welding, BR1500HS boron steel was welded by wire-filling laser welding with ER70-G welding wire under different parameters. The welded specimens were heated to 900 °C and held for 5 min before water quenching. A universal material test machine, optical microscope, Vickers hardness tester, scanning electron microscope, and electron backscatter diffraction (EBSD) were used to characterize. The results show that the heat input should be greater than 1040 J/cm and the optimal wire-feeding speed is between 160 cm/min and 180 cm/min. The tensile strength of the quenched joint can reach greater than 1601.9 MPa at compatible parameters. More retained austenite distributes in the fusion zone (FZ) and fine grain zone (FGZ) than the coarse grain zone (CGZ) before quenching. However, the retained austenite in FZ and heat-affected zone (HAZ) decreases clearly and distributes uniformly after quenching. The grain diameter in FZ before quenching is not uniform and there are some coarse grains with the diameter greater than 40 μm. After quenching, the grains are refined and grain diameter is more uniform in the joint. With the increase in heat input, the microhardness of FZ and HAZ before quenching decreases from 500 HV to 450 HV. However, if the wire-feeding speed increases, the microhardness of FZ and HAZ before quenching increases from 450 HV to 500 HV. After quenching, the joint microhardness of all samples is between 450 HV and 550 HV. The fracture morphology of the joint before quenching consists of a large number of dimples and little river patterns. After quenching, the fracture morphology consists of a large amount of river patterns and cleavage facets due to the generation of martensite. View Full-Text
Keywords: wire-filling laser welding; quenching; process parameters; grain diameter; retained austenite wire-filling laser welding; quenching; process parameters; grain diameter; retained austenite
