Ratcheting-Fatigue Behavior of Harmonic-Structure-Designed SUS316L Stainless Steel

Abstract

Stainless steels with harmonic-structure design have a great balance of high strength and high ductility. Therefore, it is imperative to investigate their fatigue properties for engineering applications. In the present work, the harmonic-structured SUS316L stainless steels were fabricated by mechanical milling (MM) and subsequent hot isostatic pressing (HIP) process. A series of ratcheting-fatigue tests were performed on the harmonic-structured SUS316L steels under stress-control mode at room temperature. Effects of grain structure and stress-loading conditions on ratcheting behavior and fatigue life were investigated. Results showed that grain size and applied mean stress had a significant influence on ratcheting-strain accumulation and fatigue life. Owing to the ultrafine grained structure, tensile strength of the harmonic-structured SUS316L steels could be enhanced, which restrained the ratcheting-strain accumulation, resulting in a prolonged fatigue life. A higher mean stress caused a faster ratcheting-strain accumulation, which led to the deterioration of fatigue life. Moreover, a modified model based on Smith–Watson–Topper (SWT) criterion predicted the ratcheting-fatigue life of the harmonic-structured SUS316L steels well. Most of the fatigue-life points were located in the 5 times error band.

1. Introduction

Austenitic stainless steels have excellent mechanical properties and corrosion resistance, and are often used as structural materials in petrochemical equipment, nuclear equipment, and medical equipment [1,2,3]. Therefore, it is imperative to realize high strength and high ductility in stainless steels for structural safety. Usually, these types of equipment are often subjected to cyclic loading in service. Thus, cyclic deformation and fatigue properties of stainless steels need to be considered [4,5,6].

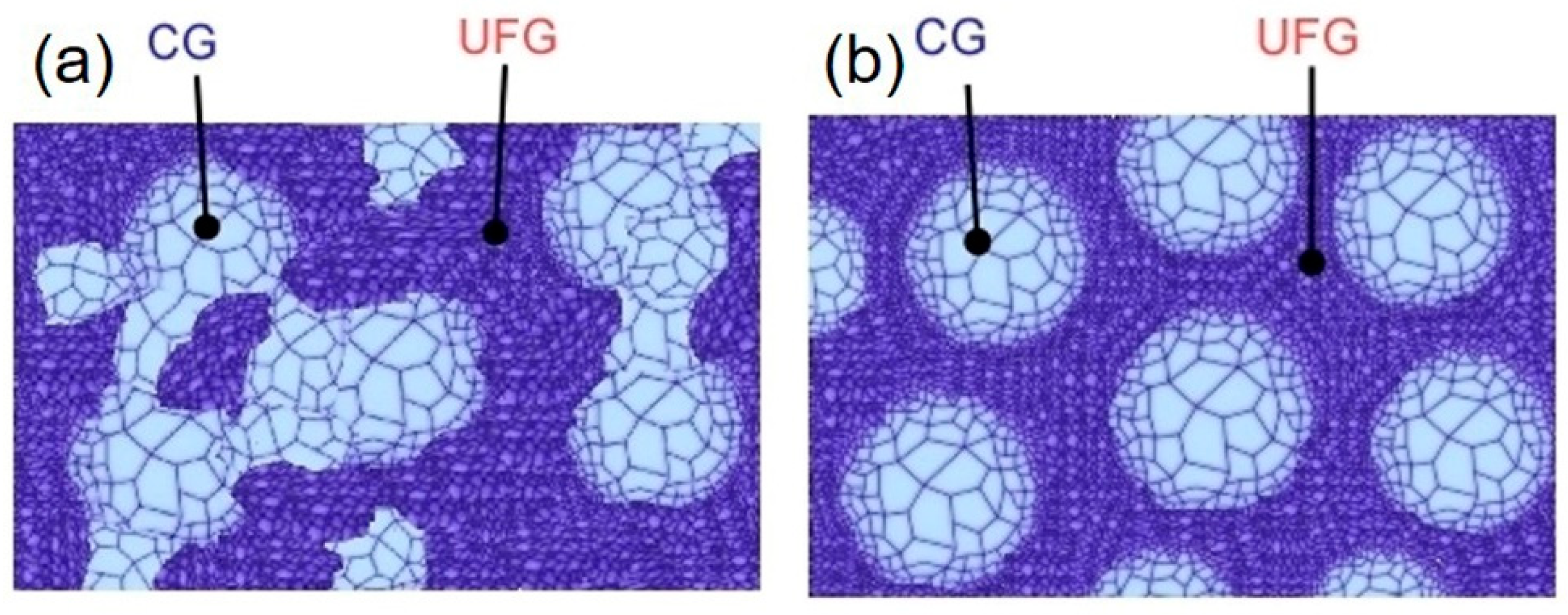

In recent years, structural materials with heterogenous microstructures have been proposed to achieve excellent mechanical properties and good fatigue resistance [7,8,9,10,11,12,13,14,15]. Mechanical properties and deformation mechanisms of some typical heterogenous microstructures, such as gradient nanograined (GNG) structure [9,10,11], lamellar structure [12,13,14], hierarchical and laminated grains and twins structure [15], and harmonic structure [16,17], have been investigated. As indicated in Figure 1a, the conventional bimodal structure has an irregular coarse grain (CG) and ultrafine grain (UFG) distribution. By contrast, harmonic structure has a regular bimodal grain-size distribution, whereas UFG structure (shell) exhibits a three-dimensional, continuously connected network structure (Figure 1b). The regular network structure could relieve strain localization during tensile deformation, which causes an extra strain hardening. Therefore, the harmonic-structure-designed materials exhibit a superior strength–ductility synergy [18,19,20,21,22,23].

For engineering applications in service, the cyclic response and fatigue properties of heterogenous-structured stainless steels have been studied in the past decades. GNG SUS316L steels demonstrated a superior balance of high strength and large uniform elongation, as well as good fatigue resistance. Due to the increased tensile strength by GNG surface layer, high-cycle fatigue resistance could be improved in GNG steels compared to CG or UFG steels. By contrast, it is remarkable that abnormal grain coarsening could suppress surface roughening and fatigue cracking. Thus, low-cycle fatigue resistance was also improved in GNG materials [9,10]. It was found that lamellar structure impeded fatigue-crack growth, which restrained fatigue-crack growth rates [13,14]. Therefore, the lamellar-structured steels also demonstrated good fatigue resistance. Furthermore, the steels with hierarchical and laminated grains and twins also induced a friction stress that acted on the crack surface and decelerated fatigue-crack opening and growth [15]. The high-cycle fatigue properties and fatigue-crack growth behavior of harmonic-structured SUS316L steels have been investigated [24,25]. Fatigue limits of the harmonic-structure SUS316L steels were higher than that of the CG SUS316L steels, which was related to the enhanced tensile strength [24]. As expected, the UFG structure had worse crack-growth resistance than the CG structure. Therefore, the harmonic-structured 316L steels had higher fatigue-crack growth rates and a lower threshold stress intensity factor range for crack growth (ΔK_th) compared to the homogeneous CG SUS316L steels. Fatigue cracks tended to propagate along UFG network structure in harmonic-structured SUS316L steels [25,26].

As mentioned, stainless steels are often used as structural materials in thin-wall piping systems, which are often subjected to cyclic loading and alternating temperature or internal pressure, especially during start/stop operation. Therefore, pipelines are subjected to an asymmetric stress cycling, which can cause an accumulation of plastic strain known as ratcheting strain [27,28,29,30,31]. For example, in the early 1990s, the ratcheting-fatigue behavior of nuclear pipes and its detrimental effect on the nuclear-reactor structure were contained in the American ITER design code and ASME NB 32xx code [27]. As reported, mean stress had a much higher influence on ratcheting-strain accumulation than stress amplitude or stress-loading rate. Therefore, the effects of mean stress on ratcheting strain and low-cycle fatigue life were investigated in stainless steels. In general, a larger mean stress induced a rapid -train accumulation, resulting in deterioration of fatigue life. Moreover, many stress-based criteria have been proposed to correct the effect of mean stress on fatigue-life prediction in the past decades, such as the Goodman criterion, Gerber criterion, Smith–Watson–Topper (SWT) criterion, and so on. It also has been reported that the models based on the SWT criterion possessed a higher prediction accuracy for ratcheting-fatigue life of steels subjected to asymmetrical stress cyclic loading [4,28]. However, comprehensive understanding of ratcheting behavior and fatigue-life prediction for harmonic-structured stainless steels still remains unclear.

In the present work, the ratcheting-fatigue properties of the harmonic-structured SUS316L steels were investigated. The effect of grain structure and applied mean stress on ratcheting strain and fatigue life are revealed. Moreover, a modified model based on the SWT criterion is proposed for the prediction of fatigue life of harmonic-structured SUS316L steels.

2. Materials and Experiments

SUS316L stainless steels with a harmonic-structure topology were fabricated using horizontal ball-milling and hot isostatic pressing (HIP) processes. The chemical composition of the SUS316L gas-atomized powders is shown in

Table 1. Chemical composition of SUS316L gas-atomized powders (mass%).

C	Si	Mn	P	S	Ni	Cr	Mo	Fe
0.018	0.9	1.07	0.032	0.017	12.44	17.31	2.11	Bal.

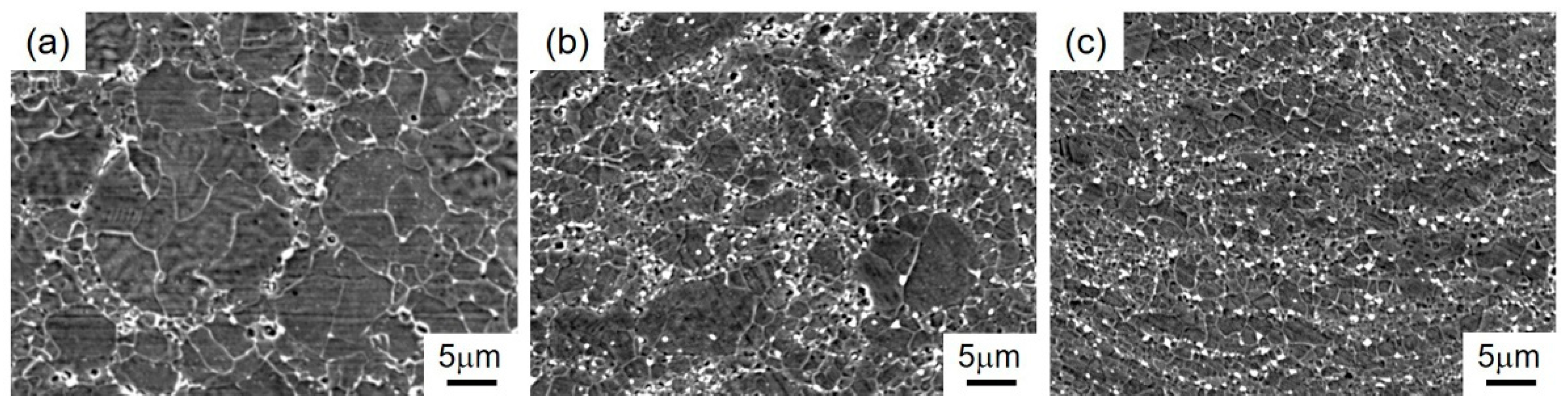

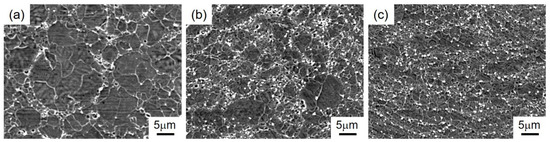

. The powder features, mechanical milling, and sintering process were introduced in our previous study [32]. In the present work, gas-atomized SUS316L steel powders were milled at room temperature for 10 h and 30 h. The compacts were sintered from initial powders and milled powders using a hot isostatic pressing (HIP) process with a pressure of 200 MPa at 900 °C for 4 h. The compact sintered from initial powders was denoted as the MM0h compact. The compacts sintered from milled powers for 10 h and 30 h were denoted as the MM10h compact and the MM30h compact, respectively. The grain structures of sintered compacts are shown in Figure 2. It can be seen in Figure 2a that the MM0h compact had a partial harmonic structure, which was attributed to an irregular initial powder size ranging from 1 μm to 20 μm. As indicated in Figure 2b,c, it was seen that the volume fraction of ultrafine grains increased as the mechanical milling time increased from 10 h to 30 h, resulting in a reduced grain size. Moreover, a continuous UFG network structure was observed, which indicated that a harmonic structure was produced in the compacts sintered from milled powders. Grain size and its volume fraction of sintered compacts are presented in

Table 2. Grain size of harmonic-structured SUS316L compacts.

Materials	Core Grain Size (CG), mm	Core Fraction	Shell Grain Size (UFG), mm	Shell Fraction
MM0h	3.94	86.7%	1.28	13.3%
MM10h	1.84	73.5%	0.64	26.5%
MM30h	1.16	45.5%	0.42	54.5%

. As indicated in

Table 3. Loading conditions and fatigue life of ratcheting-fatigue tests for harmonic-structured SUS316L steels.

Materials	Mean Stress σm (MPa)	Stress Amplitude σa (MPa)	Stress Rate (MPa/s)	Fatigue Life Nf (Cycles)
MM0h	300	300	300	29,774
	400			14,440
	450			432
MM10h	400			17,854
	450			14,666
MM30h	400			41,227
	450			18,599

, both yield strength (YS) and ultimate tensile strength (UTS) were enhanced with decreasing grain size [32].

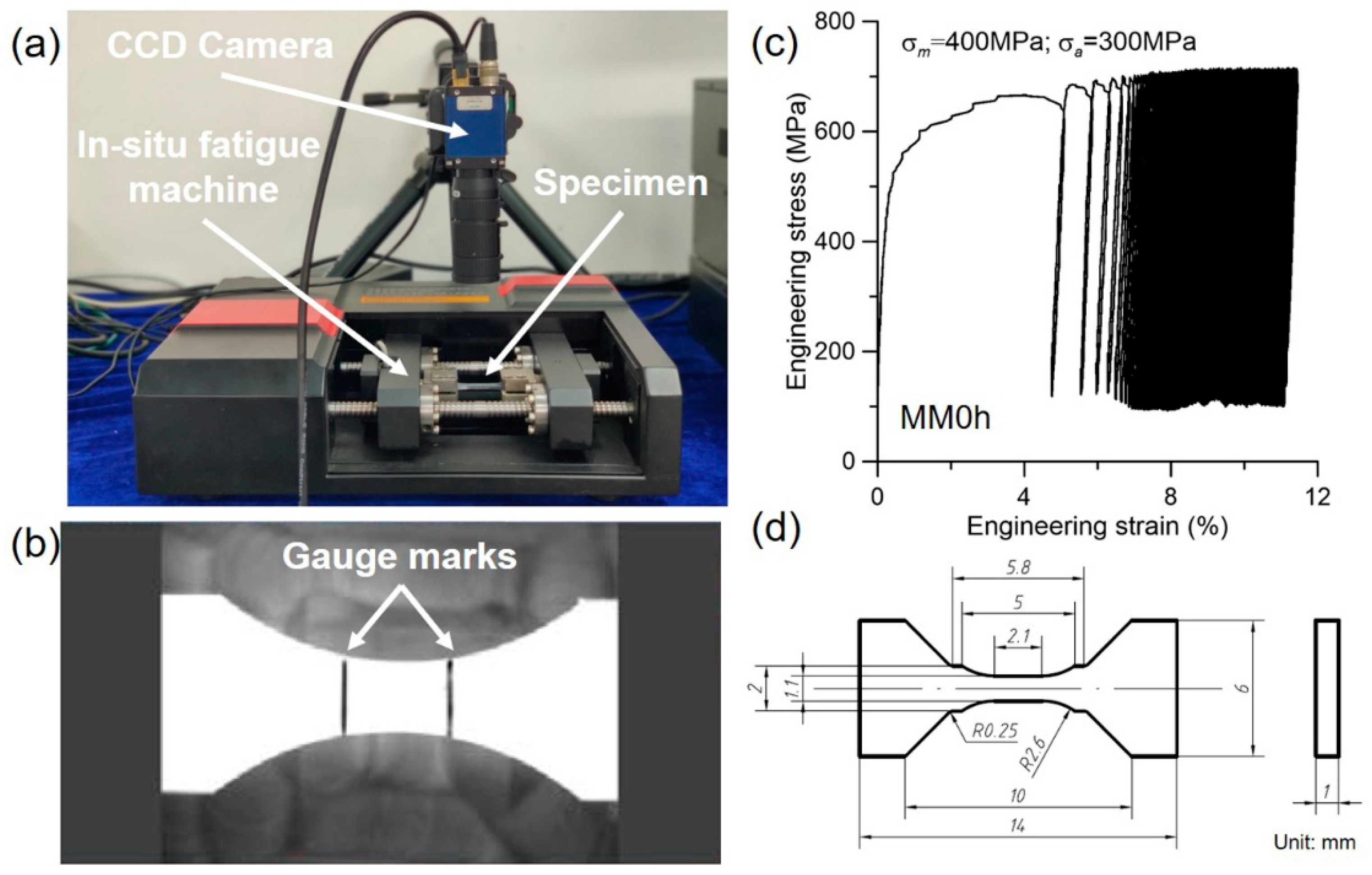

Figure 3 shows the setup of the ratcheting-fatigue test. As shown in Figure 3a, fatigue tests were conducted with an in-situ fatigue-testing machine (IBTC-5000, CARE, Tianjin, China) under stress-control mode at room temperature. A triangle waveform stress loading with a constant loading rate 300 MPa/s was carried out. In order to prevent buckling of the specimen, the stress ratio R was more than zero. Displacement of gauge area was recorded by a noncontact CCD camera (Figure 3c). The typical stress–strain response is shown in Figure 3b. The dimensions of specimens for the ratcheting fatigue tests are shown in Figure 3b. The specimens were ground using a 5000 grit SiC paper before fatigue tests. The ratcheting strain (ε_r) is defined as:

$${\epsilon }_r=\frac{1}{2}\left({\epsilon }_{max}+{\epsilon }_{min}\right)$$

(1)

where ε_max and ε_min are demoted as the maximum strain and minimum strain in each cycle, respectively. The loading conditions of ratcheting fatigue tests and observed fatigue life are listed in Table 3. Some high-cycle fatigue data of the harmonic-structured 316 L steels from our previous study were obtained [24]. These data were also used to analyze the fatigue-life-prediction model of harmonic-structured 316 L steels. Grain structure and fatigue fracture surface were examined by field emission-scanning electron microscopy (FE-SEM, SU4800, Tokyo, Japan) at 15 kV.

3. Results and Discussion

3.1. Effects of Grain Structure on Ratcheting-Fatigue Behavior of Harmonic-Structured SUS316L Steels

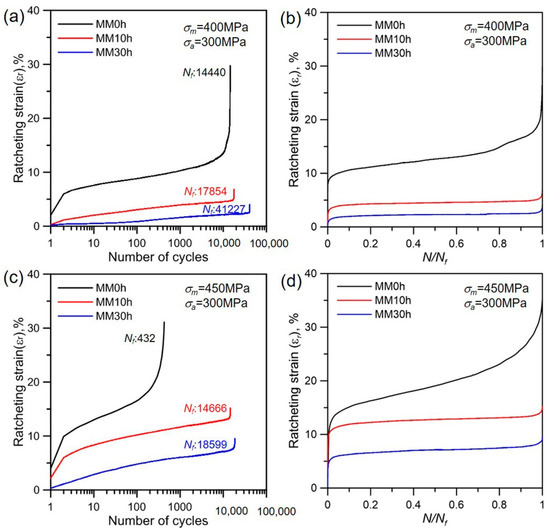

Figure 4 summarizes the effects of grain structure on ratcheting strain and fatigue life of the harmonic-structured SUS316L steels. As shown in Figure 4a,b, the ratcheting-fatigue tests of the harmonic structured SUS316L steels with different grain sizes were performed under the same loading condition (σ_m = 400 MPa, σ_a = 300 MPa). It is noted that the grain structure had a great influence on both ratcheting strain and fatigue life. Figure 4b shows the ratcheting strain versus N/N_f. It can be seen in Figure 4b that the ratcheting strain accumulated rapidly in the early stage of cyclic deformation. The ratcheting strain of MM0h compact was approximately 10.6% at 0.1N_f. By contrast, the values were approximately 4.2% and 2.5% for the MM10h compact and the MM30h compact, respectively. It is noteworthy that the ratcheting strain decreased with decreasing grain size. Subsequently, the increment of ratcheting strains was stable between 0.1N_f and 0.8N_f. At the final stage, the ratcheting strain increased rapidly to failure as N/N_f was over than 0.8. Moreover, the number of cycles to failure for the MM0h compact was 14,440 cycles, while the values for the MM10h compact and the MM30h compact were 17,854 cycles and 41,227 cycles, respectively. It was indicated that the harmonic-structured SUS316L steel with lower grain size possessed a longer fatigue life. A similar tendency was also observed in the results shown in Figure 4c,d at σ_m = 450 MPa, σ_a = 300 MPa.

As indicated in Figure 4, the variation of ratcheting strain could be divided into three stages, which appeared to be creep strain. It is known that creep strain is caused by microvoid formation and grain boundary sliding. However, the mechanism of ratcheting strain is different. Specifically, ratcheting strain is thought to be related to the progressive development of plastic deformation. Active dislocations decrease in the early stage of cyclic deformation, which leads to a rapid ratcheting strain accumulation. The dislocation structure becomes stable in the following stage, resulting in a stable ratcheting-strain rate. At the last stage, due to microcracks or main fatigue-crack growth, the true stress level increases, resulting in an accelerated ratcheting-strain rate [33].

Owing to the shell region in harmonic-structured SUS316L steels, the strength increases with increasing shell volume fraction. Moreover, the ratcheting strain is determined by accumulative plastic deformation. Therefore, it can be seen in Figure 4 that the ratcheting strains were restrained in the MM10h compact and the MM30h compact compared to the MM0h compact. A lower strength produced a higher plastic strain under the same stress level. The ratcheting strain obviously was produced in the first stage of cyclic deformation, and decreased with increasing strength of materials. Moreover, the ratcheting-strain rates of the harmonic-structured SUS316L steels were nearly stable in the secondary stage, which may indicate that the dislocation structure in the harmonic structure was stable under stress cycling [33].

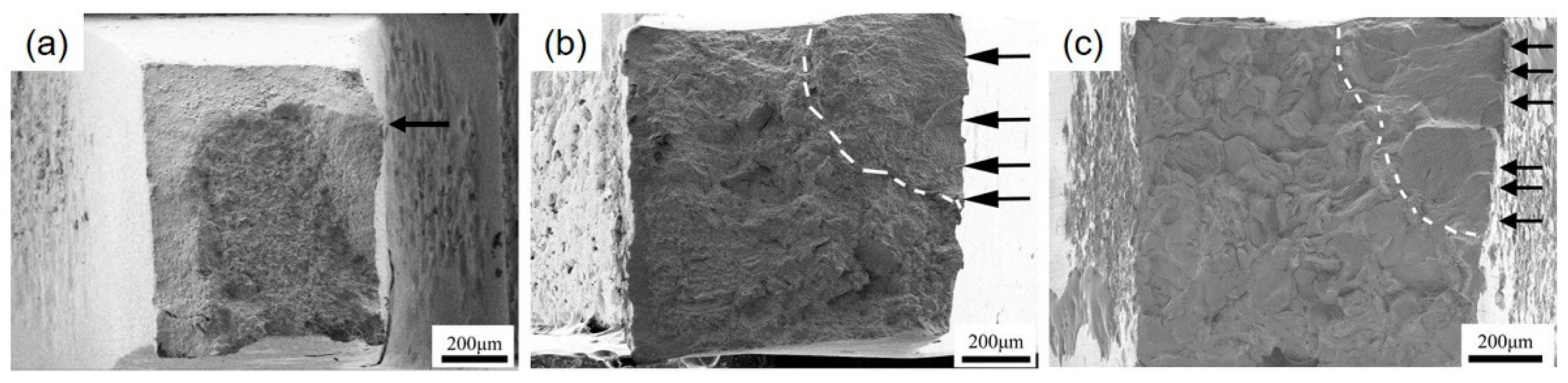

The morphology of ratcheting-fatigue fracture surfaces of the harmonic-structured SUS316L steels are presented in Figure 5. It can be seen in Figure 5a that an obvious necking was observed in the ratcheting-fractured MM0h compact. This indicates that a large plastic deformation occurred before the fatigue fracture. In contrast, the fracture surface area of the MM10h compact and the MM30h compact was larger than that of the MM0h compact. As grain size decreased, the necking became insignificant. Therefore, this also showed that the accumulative plastic deformation became lower as the grain size decreased. Moreover, it can be seen in Figure 5 that the crack initiated from the specimen surface in the harmonic-structured SUS316L steels subjected to ratcheting-fatigue tests.

As shown in Figure 4 and Figure 5, the fatigue life was prolonged as the grain size decreased. It has been reported that ratcheting strain is produced from accumulative plastic deformation, which has detrimental effects on the fatigue life of materials [31]. In the present work, it is worthy to note that the ratcheting strain could be restrained in the harmonic-structured SUS316L steels due to their enhanced strength, which has great benefits for fatigue life. Therefore, it is thought that the harmonic-structure design could improve fatigue resistance under asymmetric stress cycling.

3.2. Effects of Mean Stress on Ratcheting-Fatigue Behavior of Harmonic Structured SUS316L Steels

As mentioned, the ratcheting strain increases with the increase of mean stress, which also affects fatigue life [29,30,31]. Therefore, the ratcheting behavior and fatigue life of the harmonic-structured SUS316L steels under the same stress amplitude (σ_a = 300 MPa) but different mean stresses are presented in Figure 6. The results of ratcheting strain versus N/N_f for MM0h compact, MM10h compact, and MM30h compact are shown in Figure 6b,d,f, respectively. As expected, an increased mean stress level brought about a higher ratcheting strain for harmonic-structured SUS316L steels. It can be seen from Figure 6b that the ratcheting-strain rate of the MM0h compact was nearly zero in the secondary stage at σ_m = 300 MPa. In contrast, the stable ratcheting-strain rate increased at high stress levels. Both the ratcheting strain and ratcheting-strain rate increased as the mean stress increased from 300 MPa to 450 MPa. As indicated in Figure 6d,f, the higher mean stress also induced the higher ratcheting strain for the MM10h compact and the MM30h compact. However, the variation in the ratcheting-strain rate in the stable region was not significant.

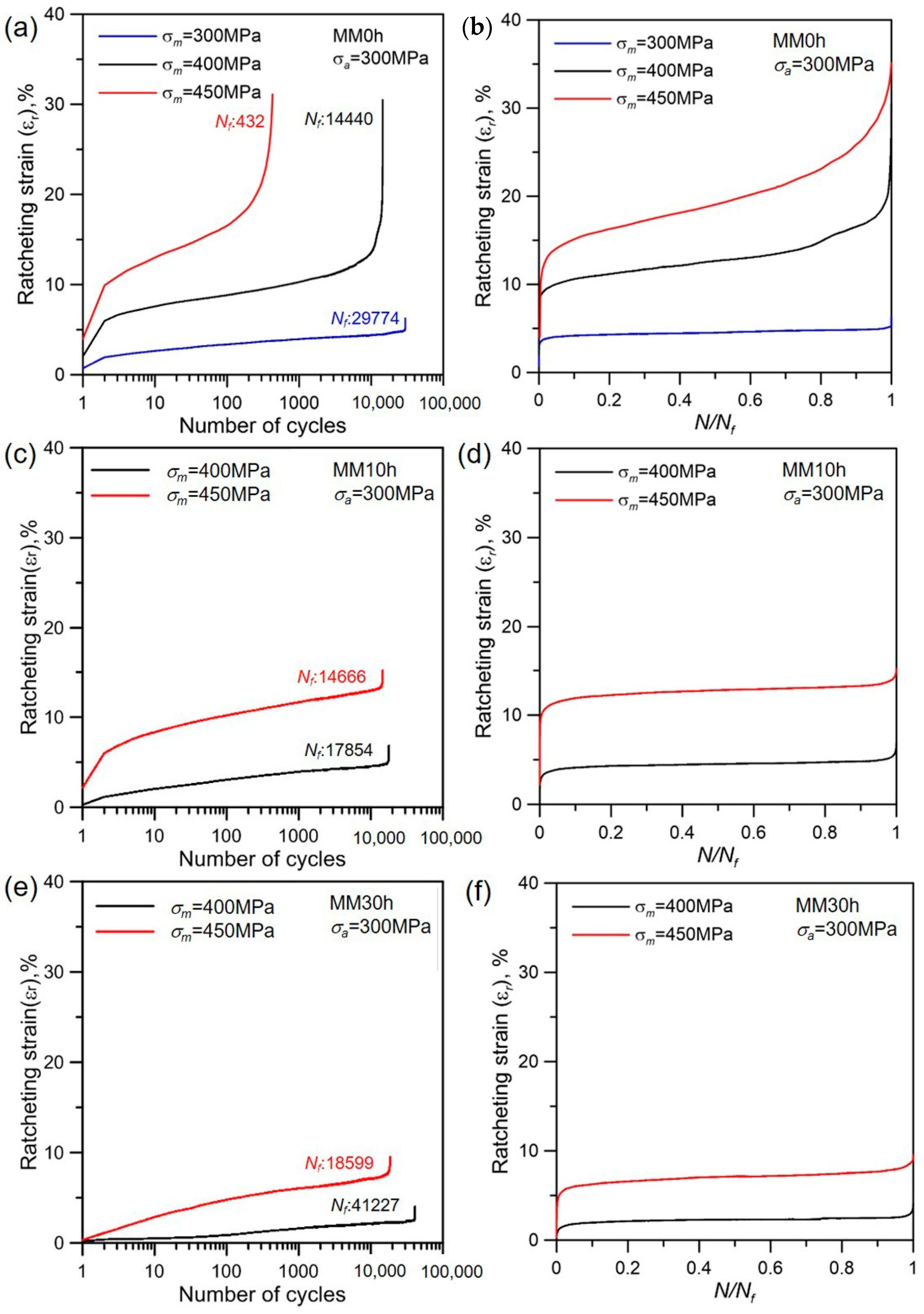

As expected, the increased mean stress produced a higher stress level, which promoted ratcheting-strain accumulation. The rapidly accumulative ratcheting strain was harmful for fatigue life. As indicated in Figure 6, the mean stress also played an important role in the ratcheting-fatigue life of harmonic-structured SUS316L steels subjected to asymmetric stress cycling. As the applied mean stress increased, the fatigue life decreased gradually. Therefore, the effects of mean stress on fatigue life need to be considered in fatigue-life prediction.

3.3. Ratcheting-Fatigue-Life Prediction of Harmonic-Structured SUS316L Steels

In the past decades, Basquin’s equation has been used as a classical fatigue-life-prediction model for fully reversed cyclic stress loading, as given in Equation (2) [28]:

$${\sigma }_a={\sigma }_f^{\prime }{\left(2N_f\right)}^b$$

(2)

where σ_a and N_f are the stress amplitude and fatigue life, respectively. σ_f’ is the fatigue strength coefficient, and b is the fatigue exponent. However, if the mean stress is not zero, ratcheting strain could appear, which is harmful for fatigue life. Therefore, equivalent stress amplitude (σ_a^eq) has been proposed in many modified models for considering mean stress effects. As mentioned, the modified model based on the SWT criterion showed a higher prediction accuracy for ratcheting-fatigue life of materials performed under asymmetrical cyclic stress loading, as given in Equation (3):

$${\sigma }_a^{eq}=\sqrt{{\sigma }_{max}{\sigma }_a}={\sigma }_a\sqrt{1+\frac{{\sigma }_m}{{\sigma }_a}}={\sigma }_f^{\prime }{\left(2N_f\right)}^b$$

(3)

where σ_max, σ_m, and σ_a are ultimate tensile strength, mean stress, and stress amplitude, respectively. In our previous work, a part of fatigue lives of harmonic-structured SUS316L steels were obtained under pulsating cyclic stress loading [24]. Although both mean stress and stress amplitude were changed in these experiments, the fatigue-life data can also be used to fit the parameters of the SWT fatigue-life-prediction model. Therefore, all fatigue life data under asymmetric stress cycling were used to analyze the fatigue life of the harmonic-structured SUS316L steels.

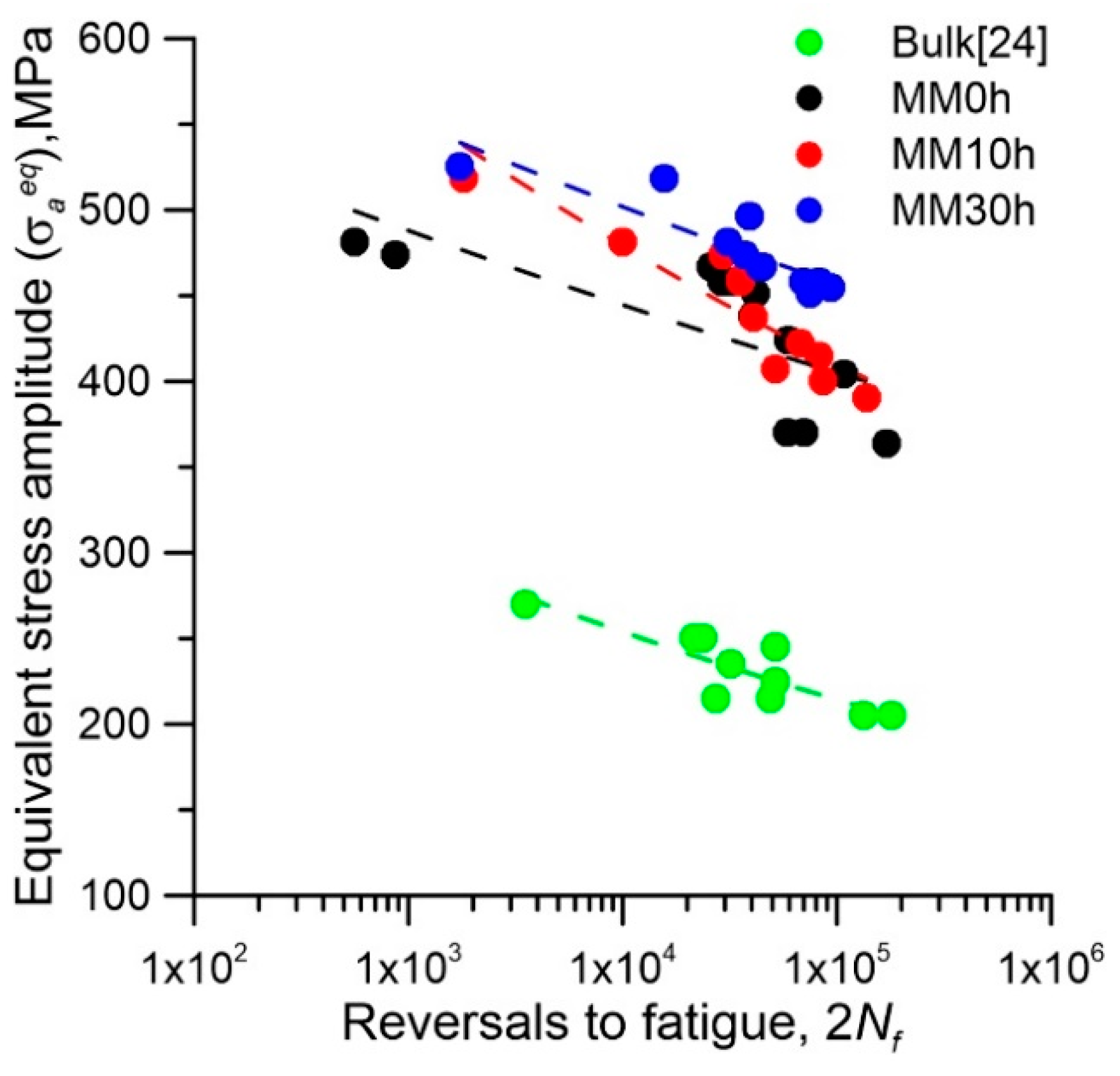

Figure 7 shows the relationship between equivalent stress amplitude based on the SWT criterion and fatigue life. Overall, the fatigue-life deviation of harmonic-structured SUS316L steels was significant. The fatigue life decreased with an increase of equivalent stress amplitude. Compared with the CG bulk SUS316L steels, the harmonic-structured SUS316L steels had a higher fatigue strength. The fatigue strength coefficient σ_f’ and fatigue exponent b in the SWT model are shown in

Table 4. Tensile strength and SWT parameters of harmonic-structured SUS316L steels.

Materials	Yield Strength σs (MPa)	Ultimate Tensile Strength σUTS (MPa)	Fatigue Strength Coefficient σf’	Fatigue Exponent b
MM0h	512	721	681	−0.046
MM10h	580	776	891	−0.069
MM30h	675	794	735	−0.041
Bulk [24]	315	607	499	−0.073

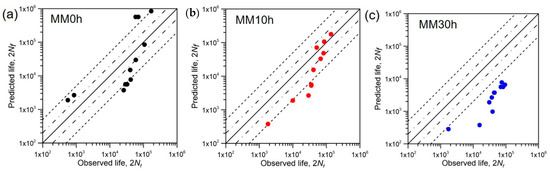

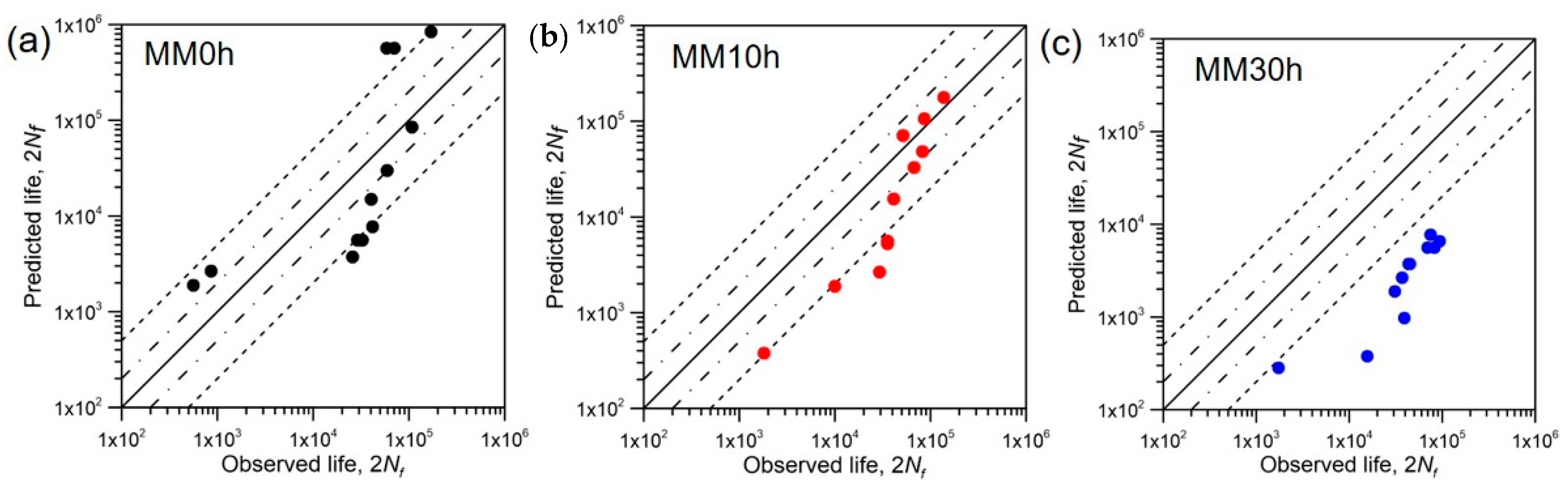

. As indicated in Table 4, no appreciable influence of grain structure on σ_f’ and b was observed. Figure 8 shows the comparison between the observed and predicted fatigue life determined from parameters of the SWT model for the MM0h compact. Due to the large deviation in fatigue life, it is seen in Figure 8a that the fatigue lives of MM0h compacts were almost located in the 5 times error band. However, as shown in Figure 8b,c, the fatigue lives of the MM10h and MM30h compacts could not be predicted well using the same parameters of the MM0h compacts. Therefore, this indicated that the deviation of the fatigue life of harmonic-structured SUS316L steels was significant, and fatigue life was influenced significantly by grain structure. The parameters for the MM0h compacts were not suitable for the MM10h and MM30h compacts.

As mentioned, the strength of harmonic-structured SUS316L steels increased with increasing shell volume fraction, which also enhanced the fatigue resistance. Therefore, the strength variation caused by different grain sizes needs to be considered in fatigue-life prediction. To improve the response of grain structure on fatigue-life prediction of harmonic-structured SUS316L steels, a modified equivalent stress amplitude for the SWT criterion is proposed in Equation (4):

$${\sigma }_a^{eq*}={\sigma }_a^{eq}\left(1-\frac{{\sigma }_u^{*}-{\sigma }_{u, MM0h}}{{\sigma }_{u, MM0h}}\right)$$

(4)

where ${\sigma }_a^{eq}$ and ${\sigma }_a^{eq*}$ are the as-reserved equivalent stress amplitude determined by the SWT equation and the modified equivalent stress amplitude of the MM10h or MM30h compacts. ${\sigma }_u^{*}$ is the ultimate tensile strength of the MM10h compact or the MM30h compact. ${\sigma }_{u, MM0h}$ is the ultimate tensile strength of the MM0h compact. Therefore, by introducing the effect of the enhanced ultimate tensile strength into the SWT criterion, the fatigue-life-prediction model for the harmonic-structured SUS316L steels under asymmetric stress cycling is proposed in Equation (5). The same parameters ${\sigma }_f^{\prime }$ and b for MM0h compacts are also used in the modified model:

$${\sigma }_a^{eq*}={\sigma }_a^{eq}\left(1-\frac{{\sigma }_u^{*}-{\sigma }_{u, MM0h}}{{\sigma }_{u, MM0h}}\right)={\sigma }_f^{\prime }{\left(2N_f\right)}^b$$

(5)

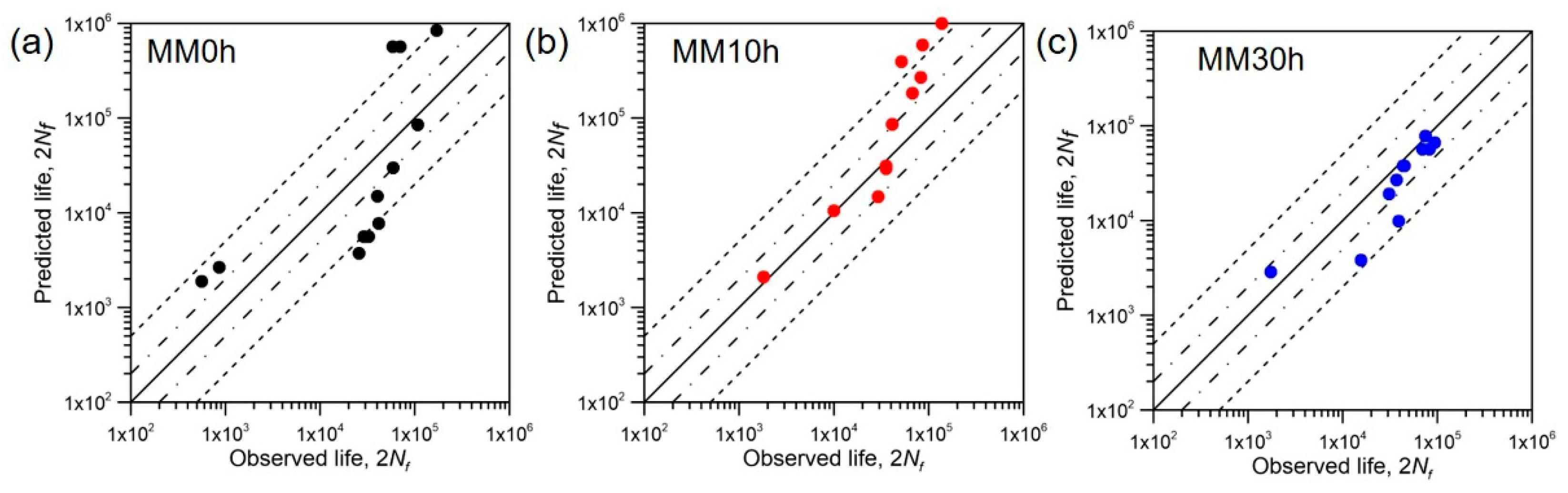

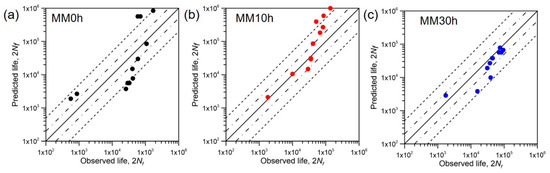

The comparison between observed fatigue life and predicted fatigue life determined by the modified model based on the SWT criterion is presented in Figure 9. As indicated in Figure 9b,c, most of the fatigue-life points of the harmonic-structured SUS316L steels were located in the 5 times error band. The predicted results for the MM10h compacts and MM30h compacts by the modified model was better than that predicted by the as-received SWT fatigue-life-prediction model.

4. Conclusions

In the present work, the ratcheting-fatigue behavior of harmonic-structured SUS316L stainless steels was investigated under asymmetrical stress cycling at room temperature. The effects of grain structure and mean stress on ratcheting strain and fatigue life were analyzed. The main conclusions are summarized as follows:

(1)

The ratcheting behavior of the harmonic-structured SUS316L steels subjected to under asymmetrical stress cycling was significant. The ratcheting strain was produced rapidly in the early stage of cyclic deformation, and became stable in the following stage. Finally, it increased near fatigue failure. The ratcheting-strain accumulation was highly influenced by grain structure and mean stress level. A lower grain size or higher mean stress tended to induce a higher ratcheting strain. The increased shell volume fraction enhanced the strength of materials, which restrained the ratcheting-strain accumulation under the same stress level.

(2)

The ratcheting strain had detrimental effects on the fatigue life of the harmonic-structured SUS316L steels. A rapid ratcheting-strain accumulation caused a shorter fatigue life. As the shell volume fraction increased or mean stress decreased, the ratcheting strain was restricted, which prolonged the fatigue life.

(3)

A proposed fatigue-life model based on the SWT criterion was employed to predict the fatigue life of the harmonic-structured SUS316L steels under asymmetrical stress cycling. The variation of ultimate tensile strength induced by grain refinement was considered in the modified fatigue-life-prediction model, which showed good predicting accuracy. Most of the fatigue-life points were located in the 5 times error band.

(4)

Compared with homogeneous CG materials, the harmonic-structure-designed materials had a good balance of high strength and high ductility. Meanwhile, the method also had great benefits for improving fatigue resistance under asymmetrical stress cycling.
