The Temperature Dependence of Deformation Behaviors in High-Entropy Alloys: A Review

Abstract

Over the past seventeen years, deformation behaviors of various types of high-entropy alloys (HEAs) have been investigated within a wide temperature range, from cryogenic to high temperatures, to demonstrate the excellent performance of HEAs under extreme conditions. It has been suggested that the dominated deformation mechanisms in HEAs would be varied with respect to the environmental temperatures, which significantly alters the mechanical properties. In this article, we systematically review the temperature-dependent mechanical behaviors, as well as the corresponding mechanisms of various types of HEAs, aiming to provide a comprehensive and up-to-date understanding of the recent progress achieved on this subject. More specifically, we summarize the deformation behaviors and microscale mechanisms of single-phase HEAs, metastable HEAs, precipitates-hardened HEAs and multiphase HEAs, at cryogenic, room and elevated temperatures. The possible strategies for strengthening and toughening HEAs at different temperatures are also discussed to provide new insights for further alloy development.

1. Introduction

The rapid development of modern industry requires high-performance engineering materials that can service in harsh environments, for instance, high strength and stability should be maintained for turbine blades at high temperatures and rocket tanks serviced in cryogenic environments. However, the endeavor on conventional alloys to achieve sufficiently high performance encounters bottlenecks, i.e., it is hard to further develop new alloys with enhanced performance based on traditional alloy systems. In the last nearly two decades, the concept of high-entropy alloys (HEAs) containing multi-principal elements breaks the restrictions of traditional alloy design principles, which enables the alloy composition to expand from the initial corner to the center region of the phase diagram [1,2]. Various HEAs have been reported to show high strength [3,4], high corrosion resistance [5,6,7,8], good thermal stability [9], excellent wear resistance [10] or impressive magnetic properties [11,12]. Even some of them have achieved a good combination of mechanical and functional properties [11,13]. These facts suggest that the HEAs have great potential in practical applications.

In recent years, HEA design has been developed from single-phase equiatomic to non-equiatomic even multiphase variants to pursue a better synergy of multiple properties, e.g., strength and ductility [14] or strength and anti-corrosion performance [15,16]. The expanded range of chemical composition promotes the development of a mass of new HEAs, and therefore more deformation mechanisms, such as mechanical twinning and phase transformation have been involved due to that the mechanisms sensitively depend on the chemical composition and microstructure. Theoretically, both displacive phase transformation and mechanical twinning are motivated by the slip of Shockley partial dislocations [17]. Further, dislocation behavior is closely related to the thermal conditions; thus, the mechanical properties of HEAs are strongly dependent on temperatures. For instance, with increasing temperature from 77 K to 1173 K, the strength and ductility of the Cantor alloy are gradually degraded [18,19] and a similar scenario is also found in the Al_0.1FeCoCrNi (at. %) HEA [20,21]. However, the elongation values of the metastable Fe₅₀Mn₃₀Co₁₀Cr₁₀ (at. %) [22] and Fe_49.5Mn₃₀Co₁₀Cr₁₀C_0.5 (at. %) [23] HEAs at cryogenic temperatures are lower than those at room temperature, respectively. The fact indicates that the influences of deformation temperature on the mechanical properties of various types of HEAs are different, implying that the underlying deformation mechanisms are changed accordingly.

A large number of investigations on the mechanical behaviors of various HEAs at different temperatures have been carried out, and the corresponding deformation mechanisms have also been elaborated to some extent in recent years. However, the correlations between deformation temperatures and fundamental mechanisms for the various HEAs are not fully clear when only considering the individual investigation. Therefore, this review aims to summarize the temperature-dependent deformation behaviors and the underlying mechanisms in HEAs, which is not only significant for further understanding the deformation mechanisms of HEAs but also important for promoting the engineering applications of HEAs in different environments. The review involves various HEA compositions reported in different articles. To fully comply with the original scientific intentions for alloy design, the designations of all alloys throughout this review are kept as their forms presented in the respectively cited publications.

2. Brief Review of the Temperature Effect on Dislocation Behavior

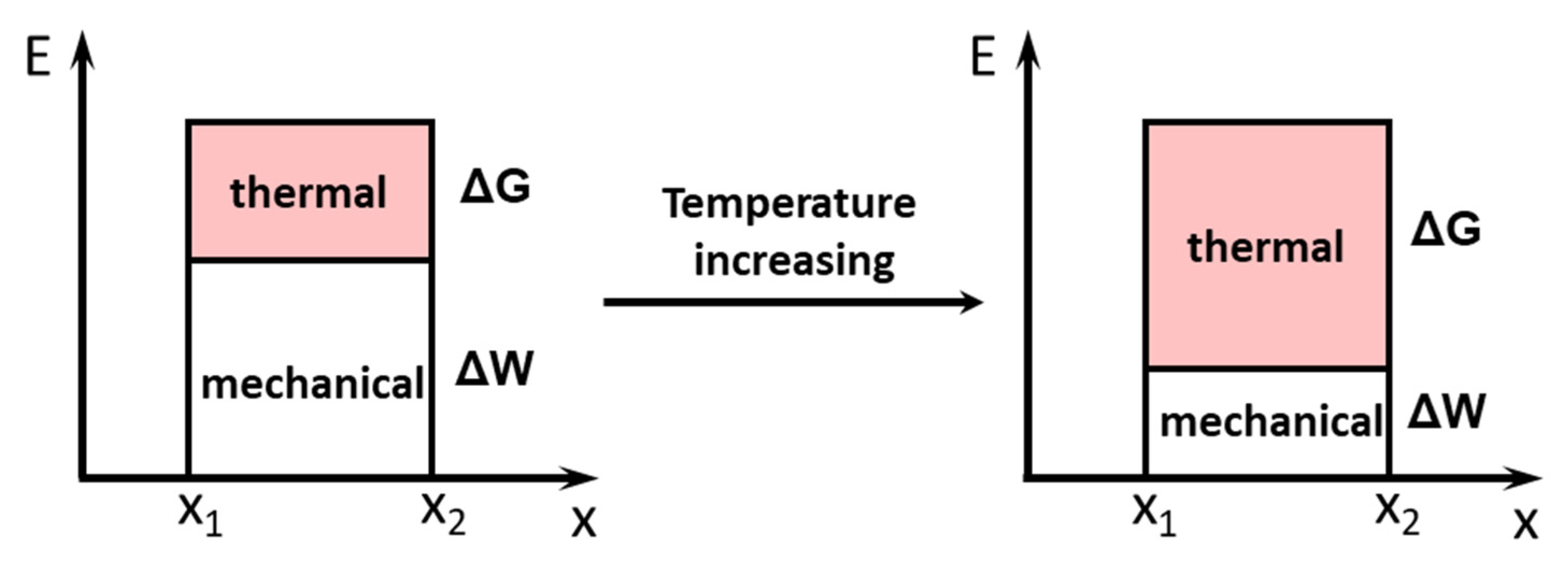

To facilitate a better understanding of the mechanisms responsible for the temperature dependence of deformation behavior in the various HEAs, we first briefly review the theoretical effects of temperature on dislocation behavior. Dislocation movement is the microscale performance for crystals to coordinate the plastic deformation. The energy for dislocations overcoming the barrier consists of thermal (ΔG) and athermal (ΔW) parts. Therefore, the increase of temperature provides part of thermal activation energy, thus decreasing the applied stress for triggering the movement of dislocations, as shown by the schematic diagram in Figure 1. In addition, the dependence of macroscopic shear strain rate ($\dot{\epsilon }$) on temperature can be given by [24]:

$$\dot{\epsilon }=b\rho {\upsilon }_{0}exp\left(-\frac{\Delta G\left(\tau \right)}{kT}\right)$$

(1)

where $b$, $\rho$, ${\upsilon }_0$, k and T are the Burgers vector, the density of mobile dislocations, the dislocation velocity, Boltzmann constant and temperature, respectively; $\Delta G\left(\tau \right)$ is the free energy of dislocation activation to overcome the obstacle under an applied stress $\tau$. This indicates that the dislocation motion becomes easier and the strain rate would also increase with the increase of temperature.

For face-centered cubic (FCC) structured materials, the dislocation behavior is strongly related to the value of stacking fault energy (SFE). Generally, the displacive phase transformation and the corresponding transformation-induced plasticity (TRIP) effect occur in low-SFE alloys (SFE ≤ 15 mJ/m²), and the deformation behavior of moderate SFE (15 mJ/m² < SFE < 45 mJ/m²) alloys can be dominated by mechanical twinning and the corresponding twinning-induced plasticity (TWIP) effect. At a high level of SFE (SFE ≥ 45 mJ/m²), dislocation glide is usually the main mechanism. Note that the threshold SFE values for the various mechanisms are not fully consistent in literature but a little disparity is usually presented [25]. The value of SFE (${\gamma }_0$) and the corresponding temperature-dependent change ($\frac{d{\gamma }_0}{dT}$) can be given by the following equations [26]:

$${\gamma }_0=\frac{\Delta G^{\gamma \to \epsilon }}{8.4V^{\frac{2}{3}}}=\frac{\Delta H^{\gamma \to \epsilon }-T\Delta S^{\gamma \to \epsilon }}{8.4V^{\frac{2}{3}}}$$

(2)

$$\frac{d{\gamma }_0}{dT}=-\frac{\Delta S^{\gamma \to \epsilon }}{8.4V^{\frac{2}{3}}}$$

(3)

where $\Delta G^{\gamma \to \epsilon }$, $\Delta H^{\gamma \to \epsilon }$ and $\Delta S^{\gamma \to \epsilon }$ are the Gibbs molar free energy, enthalpy and entropy difference between FCC phase ($\gamma$) and hexagonal close-packed (HCP) phase ($\epsilon$), respectively; V is the molar volume. $\Delta S^{\gamma \to \epsilon }$ is negative for the phase transformation process, consequently, $\frac{d{\gamma }_0}{dT}>0$, which suggests that SFE has a positive relation with temperature, namely, the increase of temperature would lead to the increase of SFE.

Therefore, the constriction and cross-slip of dislocations can be thermally activated since the vibration of atoms of dislocation partials is thermally promoted around their equilibrium position. The cross-slip frequency of dislocations for a given applied shear stress $\tau$ is expressed by [27,28]:

$${\mathsf{\Gamma }}_Q={\nu }_D\left(\frac{\tau }{{\tau }_M}\right)exp\left(\frac{A}{kT}\right)$$

(4)

where ${\tau }_M$ is the shear stress which has to be applied to enforce cross-slip without thermal activation. A is the so-called cross-slip constant. Both A and ${\tau }_M$ depend on SFE. The increased temperature can promote the constriction of extended dislocations; thus, dislocations are prone to cross-slip at high temperatures rather than dissociation. Accordingly, at elevated temperatures, the dissociation of perfect dislocations becomes difficult. Therefore, both displacive phase transformation and mechanical twinning are suppressed at high temperatures in the majority of alloys.

Note that at very high temperatures, i.e., above half of the melting temperature, additional diffusion-controlled plasticity becomes more active, which also alleviates the flow stress compared with that under an athermal condition. The activation energy compensated by environmental heat can promote the atomic diffusion of defects, which commonly leads to a time- and temperature-dependent deformation behavior, i.e., creep. For simplifying the creep model, mobile dislocation can be regarded as a rod moving in the viscoelastic medium. Then, the relationship between steady-state creep rate (${\dot{\epsilon }}_{SS}$) and applied stress (σ) follows the phenomenological power law equation [29]:

$${\dot{\epsilon }}_{SS}=A{\sigma }^{n}exp\left(-\frac{Q_C}{RT}\right)$$

(5)

where A is a material constant, n is the stress exponent, $Q_C$ is the apparent activation energy of creep, R is the ideal gas constant and T is the absolute temperature. The n values are below the commonly observed values (4–7) for dislocation climb-controlled creep but above that (~3) for viscous glide-controlled creep [30].

3. Mechanical Behaviors of Typical HEAs at Various Temperatures

The equiatomic HEAs had been a research hotspot at early stages, but later studies revealed that the maximum configurational entropy, i.e., guaranteeing each element in an equiatomic ratio, is not essential to achieve good mechanical performance. Thus, a mass of non-equiatomic HEAs with different compositions have been developed [14,18,31,32,33,34,35], which present different mechanical properties affected by temperature, as seen in Figure 2. Due to the limited length of the present review, we discuss four types of HEAs that can well represent the mainstream of reported HEAs so far, i.e., single-phase HEAs, metastable HEAs, precipitates-hardened HEAs and multiphase HEAs.

3.1. Single-Phase HEAs

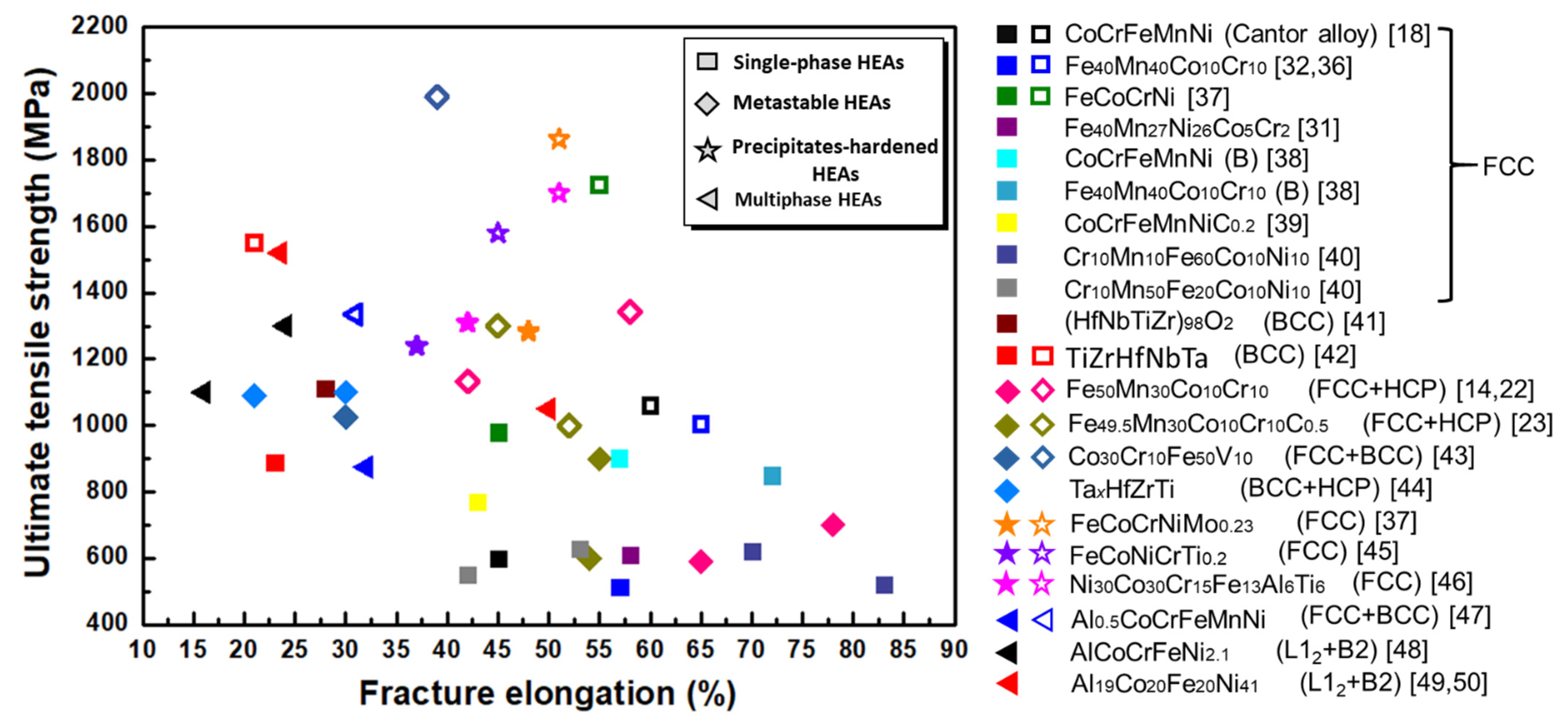

Single-phase HEAs show solid-solution structure with multi-principal elements. Most of them display relatively low strength and high ductility, as shown in Figure 2. Among the well-established single-phase HEA_S, the FCC and body-centered cubic (BCC) HEAs have been widely studied over the past years, while the HCP HEAs have been rarely reported. Therefore, in this section, we mainly focus on the deformation behaviors and related mechanisms of some typical FCC and BCC HEAs.

3.1.1. Room-Temperature Deformation of Single-Phase HEAs

Since the invention of FCC structured equiatomic CoCrFeMnNi HEA (Cantor alloy) in 2004 [51], a large number of multicomponent FCC HEAs have been developed so far. According to the early studies on the deformation behavior of Cantor alloy, dislocation slip prevails throughout the tensile deformation, while mechanical twinning participates at high strain levels at room temperature [52]. In a quaternary equiatomic FeCoCrNi HEA, dislocation slip governs the plastic deformation. The fact indicates that the quaternary equiatomic FeCoCrNi HEA owns a higher SFE than the quinary Cantor alloy [37].

In comparison with the equiatomic HEAs, the non-equiatomic single-phase HEAs also show good strength and ductility at room temperature. For instance, the non-equiatomic Fe₄₀Mn₂₇Ni₂₆Co₅Cr₂ (at. %) [31] and Cr₁₀Mn₅₀Fe₂₀Co₁₀Ni₁₀ (at. %) [40] HEAs deriving from the Cantor alloy show moderate strength and considerable ductility which is higher than that of the Cantor alloy, as shown in Figure 2. Although only dislocation slip prevails on the deformation of both alloys, a mass of dislocation cells is observed due to the frequent cross-slip of dislocations, which significantly enhances the work hardening rate and further improves the ductility. The TWIP effect also can be tailored and prevalent in Fe₄₀Mn₄₀Co₁₀Cr₁₀ (at. %) [32], Cr₂₀Mn₁₅Fe₃₄Co₂₀Ni₁₁ (at. %) [53] and Cr₁₀Mn₁₀Fe₆₀Co₁₀Ni₁₀ (at. %) [40] HEAs. Since the SFEs of these alloys are less than 30 mJ/m², perfect dislocations readily dissociate and form stacking faults. The dynamic Hall–Petch effect induced by the refining effect of mechanical twins enables them to have desirable ductility. Those investigations suggest that the non-equiatomic design strategy can provide more space to tune phase stability and trigger abundant deformation mechanisms for achieving better synergy of strength and ductility.

Due to the close atomic radii of principal elements, the lattice distortion is not prominent in the CoCrFeMnNi HEA system [54,55]. Rationally adding interstitial elements, such as B, C and N, into the HEA matrix is a simple and economical strategy to strengthen the alloys [35,39,56,57,58,59]. The interstitial atoms occupying the tetrahedral and octahedral interstices significantly enhance the resistance against mobile dislocations by inducing spatial lattice fluctuations [60,61]. The addition of C can tune the phase stability and suppress the displacive phase transformation of CoCrFeMnNi HEAs system [23,35,62]. The high-dose addition of C may induce the formation of carbides, which facilitates the crack nucleation and propagation, and consequently leads to the earlier fracture during deformation [39]. It is also found that B can strengthen the grain boundaries (GBs) via segregating there; thus, the strength of B-doped equiatomic CoCrFeMnNi and non-equiatomic Fe₄₀Mn₄₀Co₁₀Cr₁₀ (at. %) HEAs can be significantly enhanced compared with B-free HEAs [38], as illustrated in Figure 2. Furthermore, B-doped HEAs exhibit similar work hardening responses and distribution of twin thickness with the B-free counterpart, which indicates that B does not profoundly affect SFEs of these HEAs.

Compared with single-phase FCC HEAs, BCC HEAs, e.g., equiatomic NbMoTaW, VNbMoTaW, HfNbTiZr and TiZrHfNbTa HEAs [63,64,65,66,67,68,69,70], are much stronger but more brittle due to the poor mobility of perfect dislocations at room temperature or the lower temperatures. The deformation mechanism of the BCC equiatomic TiZrHfNbTa HEA is dominated by the slip of screw dislocation, while the work hardening rate is highly dependent on the dislocation propagation [69,70]. For details, the evolution of working hardening rate in the BCC refractory HEAs can be divided into three distinctive stages [70]: (i) in the beginning, a Peierls mechanism dominates the plasticity by inducing high friction stress exerted along the [111] directions against the activation of dislocation slip; (ii) then with dislocation propagation, a mass of dislocation bands is progressively generated. Dislocations are also partitioned to soft zones with few dislocations at hard zones containing highly dense dislocation debris; (iii) with the strain further increased, the density of dislocation considerably increases and their distribution turns more homogeneous. The planar motion and cross-slip of jogged screw dislocations become more active, which gradually form numerous debris.

The interstitial alloying strategy is also employed in BCC HEAs. For instance, it has been reported that adding interstitial O into the BCC refractory HfNbTiZr HEA generates ordered oxide complexes (OOCs), which prominently promotes the multiplication of dislocations via cross-slip then synchronically enhances the strength and ductility [41].

Bulk single-phase HCP HEAs and the corresponding deformation mechanisms are very rarely presented so far. As mentioned above, the FCC→HCP displacive phase transformation can happen in the Fe₅₀Mn₃₀Co₁₀Cr₁₀ (at. %) metastable HEA at room temperature [71]. Different from the conventional HCP alloys of which the deformation is dominated by single slip mode, the massive solid solution could tune the c/a ratio of the transformed HCP phase in the metastable HEA and lead dislocation slip mode to shift from basal <a> or non-basal <c + a> slip mode into mixed <c + a> and <a> modes. Although the study presented in [59] focuses on the deformation of the microsized HCP phase in a metastable HEA, the finding provides useful insights for further designing strong and ductile HCP HEAs.

3.1.2. Cryogenic-Temperature Deformation of Single-Phase HEAs

It is known that the strength of many single-phase FCC metals dramatically increases at liquid nitrogen temperature compared to that at room temperature, because the decrease of temperature enhances the lattice friction stress. In contrast, BCC and part of HCP metals commonly lose their plasticity at cryogenic temperatures, presenting the so-called ‘ductile to brittle transition’ [72]. As shown in Figure 2, single-phase FCC HEAs usually show good mechanical properties at cryogenic temperature, the strength and ductility of which increase compared with those at room temperature, implying the transition of deformation mechanisms.

It has been reported that the extremely low temperature dramatically reduces the SFE of Cantor alloy [73]. Consequently, profuse mechanical twins are activated at a low temperature (e.g., 77 K), which induces a strong dynamic Hall–Petch effect on improving the flow stress upon plastic deformation. In addition, twin–twin interaction gives rise to more pronounced work hardening compared with dislocation-dislocation and twin-dislocation interactions [74]. Since low temperatures lead to the high density of nanoscale twins in the vicinity of crack tips, the Cantor alloy displays a remarkable fracture toughness over 200 MPa·m^1/2 at crack initiation and rises to >300 MPa·m^1/2 for stable crack growth at 77 K [75]. The SFE and related phase stability of some more HEAs can be reduced at cryogenic temperatures compared to that at room temperature. For instance, the TRIP mechanism can be triggered in Fe₄₀Mn₄₀Co₁₀Cr₁₀ (at. %) [36,76] and V₁₀Cr₁₀Co₃₀Fe₄₅Ni₅ (at. %) [43] HEAs during deformation at cryogenic temperature, which significantly enhances the ductility of these alloys. Furthermore, the phase metastability of some BCC HEAs also can be awakened at low temperatures, e.g., the transformation from BCC phase to non-closed packed hexagonal ω was observed in the equiatomic TiZrHfNbTa HEA on tension [42]. Combining the other mechanisms including {112} <111> mechanical-twinning and screw dislocation glide, the equiatomic TiZrHfNbTa HEA thus shows a high strength-ductility combination at cryogenic temperature.

In addition, serration behavior is commonly observed in the deformation of HEAs at cryogenic temperatures. Theoretically, such a scenario can be attributed to mechanical or thermomechanical instability. It has been reported that the serration behavior in the stress-strain curve of Al_0.1CoCrFeNi (at. %) HEA at 77 K is ascribed to the presence of nanoscale deformation twins that are absent at 293 K [21], similar to the case of intermittent nucleation of twins in single-crystal Zn deformed at room temperature [28]. Sudden massive dislocation proliferation can also lead to the serration behavior in the Cantor alloy deformed at extremely low temperatures, e.g., 4.2 K [77]. Besides this, it has been found recently that the serration behavior of the Cantor alloy varies with the temperature due to thermodynamic instability [78].

3.1.3. High-Temperature Deformation of Single-Phase HEAs

An investigation on the high-temperature deformation behavior of the Cantor alloy, conducted by Woo et. al [79] via in situ neutron diffraction, has revealed that the microscale deformation mechanism changes when the temperature increases from 800 K to 1000 K. The dominant deformation at 800 K is dislocation slip while it turns to dislocation creep at 1000 K because dislocation regeneration and annihilation reach an equilibrium state at that temperature. Dislocation behaviors at high temperatures are also dependent on the applied strain rate. At low strain rates (<2 × 10⁻⁵ s⁻¹), the deformation of the Cantor alloy is governed by the viscous glide of dislocations since the stress exponent is less than 3 and the activation energy is about 280 kJ/mol; at high strain rates (>2 × 10⁻⁵ s⁻¹), the deformation is controlled by dislocation climb by virtue of the diffusion of Ni atoms because the stress exponent and the activation energy are increased to ~5 and ~330 kJ/mol, respectively [80].

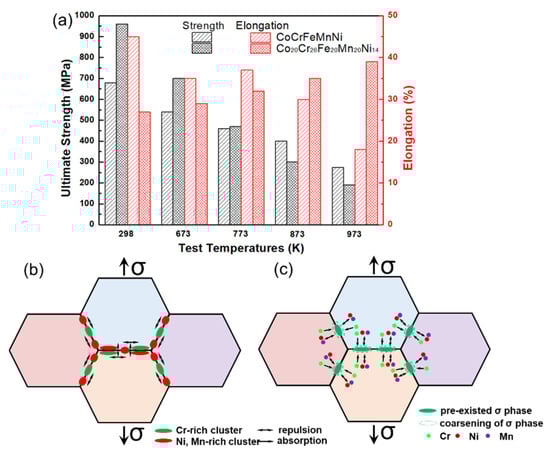

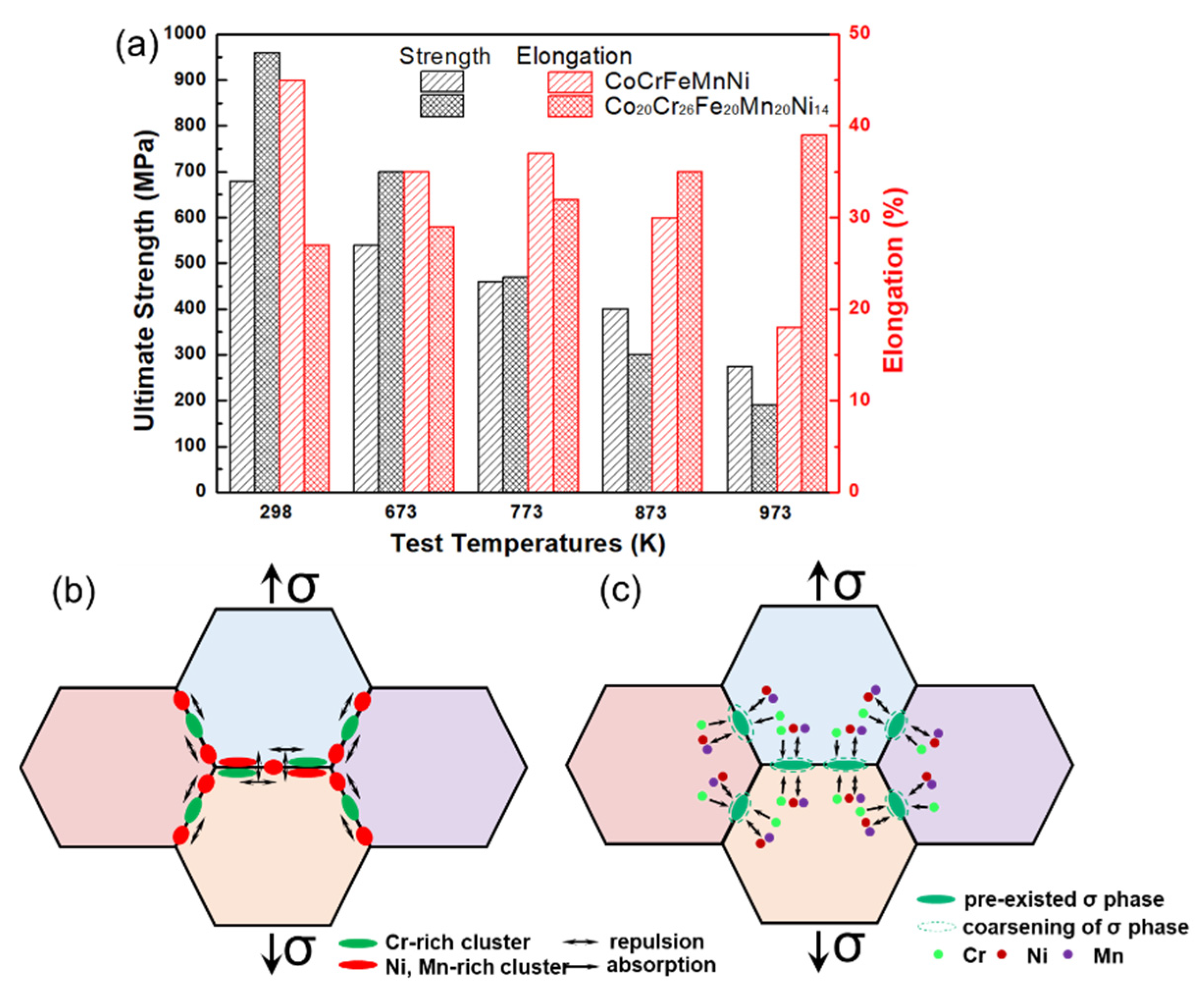

Besides this, it has been found that, upon increasing the temperature from 298 K to 973 K, both strength and ductility of the Cantor alloy are degraded, as indicated in Figure 3a [18,80,81]. The origin of high-temperature embrittlement in that alloy is the segregation of Cr, Ni and Mn at GBs [19]. These segregated elements mutually repel and weaken the cohesion of GBs (as shown in Figure 3b), which further lead to intergranular fracture on high-temperature deformation. The segregation behavior is rational. Previously, Gu et al. [82,83] and Li et al. [84] found the Cr-rich and Ni-rich precipitates in the long-time annealed cold-rolled Cantor alloy. To alleviate the high-temperature embrittlement of the HEA, Ming et.al. [19] increased the content of Cr and used the pre-existing Cr-rich σ phase to absorb Cr elements and repel Ni and Mn at GBs at high temperatures, which efficiently suppressed the elemental segregation at GBs thus enhanced the ductility of the Co₂₀Cr₂₆Fe₂₀Mn₂₀Ni₁₄ (at. %) alloy at high temperatures, as illustrated in Figure 3a,c. Moreover, the previous research [85] indicated that the occurrence of mechanical twinning was also suppressed by high temperatures, which lowered the strain hardening ability of TWIP HEAs. Apart from the aforementioned mechanisms, GB sliding can also lead to high-temperature embrittlement, which has been reported in several HEAs [9,86]. Thus, GB stability is a key factor for the resistance to high-temperature deformation. In terms of this issue, Wu et al. [87] proposed a strategy of building serrated grain boundaries (SEGBs) to enhance the mechanical stabilization of GB. Such SEGBs can improve the immunity of the alloy to early fracture along GBs by eliminating the severe strain location and limiting the slide of GB on high-temperature tension. Another strategy utilizing carbides to maintain strength and ductility at high temperatures will be introduced in Section 3.3.

Dynamic recovery and recrystallization behaviors commonly occur during the hot deformation processes. Previous studies indicate that GBs are preferential sites for recrystallization, which commonly forms a necklace structure along GBs in both FCC and BCC HEAs, involving equiatomic CoCrFeMnNi (FCC) [88,89], TiZrHfNbTa (BCC) [90] and AlCoCrFeNi (BCC) [91] HEAs. In AlCoCrFeNi HEA [91], a refined duplex microstructure is produced via hot compression at 1373 K at a strain rate of 10⁻³·s⁻¹ through dynamic recrystallization, which reconstructs the shape of FCC grains through phase transformation during the hot deformation. The scenario is also observed in the equiatomic TiZrHfNbTa HEA deformed at 1273 K and a strain rate of 10⁻³ s⁻¹ [92]. Besides the aforementioned necklace structure composed of fine recrystallized grains, micro-textures with prominent slip traces of dislocations are also observed to form in the unrecrystallized regions, and such textures can be intensified with increasing the strain, due to the significant GB slide during the high-temperature deformation [92]. Since the sluggish diffusion and solute drag effect resulted from the retarding effect of Al, Al_0.3CoCrFeNi (at. %) HEA (513 kJ/mol) has relatively high activation energy compared with high Mn TWIP steel (377 kJ/mol), Ni-based superalloy (474 kJ/mol), austenitic stainless steel (375 kJ/mol) and the Cantor alloy (350 kJ/mol). Further, the significant retarding effect of Al plays a role in the high-temperature deformation of dual-phase Al₀.₅CoCrFeNi (at. %) HEA [93,94]. Specifically, the solute atmosphere of Al atoms around dislocation cores prevents movement of dislocations, but the stress abruptly decreases once dislocation overcomes the barrier, resulting in a serration behavior in stress-strain curves [93,94].

3.2. Metastable HEAs

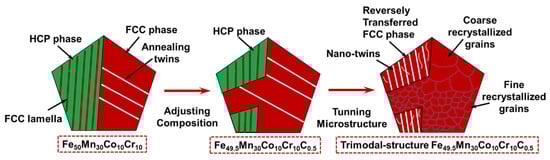

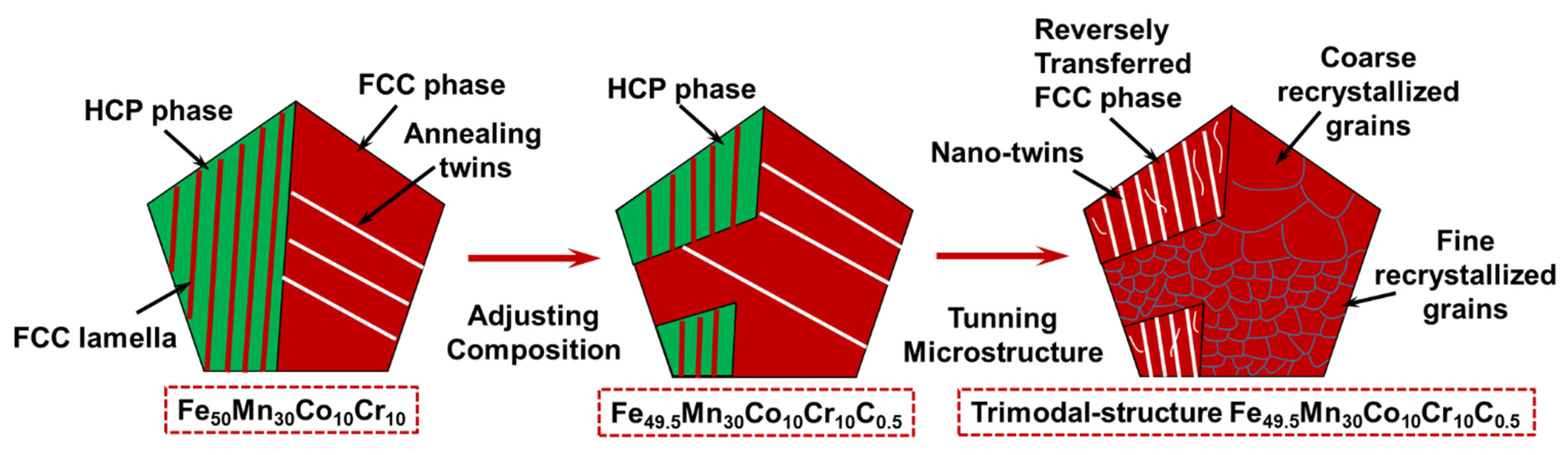

The trade-off of strength and ductility severely limits the application of structural materials. Inspired by the non-equiatomic design strategy, the metastable HEAs have been proposed, in which the displacive phase transformation triggered by the slip of partial dislocations upon deformation enables to have a desirable strain hardening capability [14,34,95]. Thus, the metastable-engineering strategy gives a potential solution to such strength–ductility trade-off. The displacive martensite transformation is sensitive to the temperature and the corresponding dislocation behavior should be more complicated than that of single-phase HEAs.

3.2.1. Room-Temperature Deformation of Metastable HEAs

It is known that plastic deformation of metastable HEAs is accommodated through a set of deformation mechanisms under ambient temperature. Typically, for the first metastable Fe₅₀Mn₃₀Co₁₀Cr₁₀ (at. %) HEA proposed by Li et al. [14], at the early stage of deformation, staking faults triggered in the FCC phase by mobile Shockley partials and massive interphases generated via displacive martensite transformation significantly hinder dislocation slip, which leads to the significant strain hardening. Then the displacive phase transformation turns to be the dominated deformation mechanism with further straining. As the applied strain increases further, dislocations and mechanical nano-twins can be activated in the HCP phase, contributing to strain hardening and then postponing necking. A study [34] furtherly revealed that the decreased grain size of the FCC matrix and the increased initial HCP phase fraction can lead to a lower fraction of the transformed HCP phase at certain strains. It is generally recognized that the displacive phase transformation process is unidirectional at room temperature. However, Lu et al. [96] found that the transformation mechanism was bidirectional in the metastable Fe₅₀Mn₃₀Co₁₀Cr₁₀ (at. %) HEA, i.e., forward (FCC→HCP) and backward (HCP→FCC) phase transformations both exist under room temperature tensile deformation, denoted as the ‘bidirectional transformation-induced plasticity (B-TRIP)’ effect. Under the assistance of a serial of mechanisms, most metastable HEAs display better synergy of strength and ductility compared with the majority of stable single-phase HEAs at room temperature, as shown in Figure 2. The metastability engineering strategy of HEAs thus provides a promising direction for the design of strong and ductile alloys.

Similar to the case of stable single-phase FCC HEAs, the addition of interstitial atoms can also tune the phase stability of metastable HEAs, then the deformation mechanisms are changed accordingly (seen in Figure 4). In a representative 0.5 at. % C-doped metastable Fe_49.5Mn₃₀Co₁₀Cr₁₀C_0.5 (at. %) HEA, mechanical twins, stacking faults and dislocations are observed at the early uniform deformation stage, but the occurrence of the displacive phase transformation is significantly postponed to the higher strain regime since interstitial C stabilizes the FCC matrix [34,35]. Furthermore, the displacive phase transformation was found to be suppressed in the C-N co-doped Fe_48.5Mn₃₀Co₁₀Cr₁₀C_0.5N_1.0 (at. %) on tension, which suggested that the high content of interstitial atoms efficiently enhanced the SFE of the metastable HEA [97]. Note that such C and N co-doped HEA subjected to severe deformation would exhibit the martensite transformation again [98], indicating that the phase metastability could be awakened by modifying the strain state. In the case of the recently reported Si_xV_9−xCr₁₀Mn₅Fe₄₆Co₃₀ (at. %) HEA [99], the initial FCC matrix would transfer to HCP and BCC phases successively with increasing the applied strain, which significantly enhances the strength and ductility. Moreover, the TRIP effect is also detected in some BCC HEAs. For instance, BCC→HCP transformation is observed in non-equiatomic Ti₃₅Zr_27.5Hf_27.5Nb₅Ta₅ (at. %) [100] and Ta_xHfZrTi (x = 0.4, 0.5, 0.6) (at. %) [44] HEAs, which enables them of a prominent strain hardening and puts off the onset of necking; as a consequence, a higher ductility is obtained compared to the equiatomic counterpart without phase transformation.

As discussed above, deformation mechanisms of metastable HEAs can be altered by minor addition of interstitial elements, but the excess addition of interstitial atoms may worsen the ductility of metastable HEAs [23,76]. For this problem, the hierarchical microstructure design is of benefit to achieve the considerable work hardening capacity and hence the strength–ductility synergy of such interstitial HEAs. Su et al. [101] proposed a trimodal microstructure containing small recrystallized grains, medium-sized recrystallized grains and large retained un-recrystallization grains by using a special mechanical heat treatment to achieve an excellent strength–ductility synergy in the metastable Fe_49.5Mn₃₀Co₁₀Cr₁₀C_0.5 (at. %) HEA (Figure 4). In comparison with the bimodal structured sample, such trimodal-structure sample exhibits a continuous strain hardening with four stages: (i) the work hardening rate continuously decreases at a strain range of 0–2% resulted by the rearrangement of the dislocations; (ii) a steep increase at low strains (2–5%) in the work hardening rate due to the nucleation of HCP-martensite lamellae and nanotwins in the medium-sized recrystallized grains; (iii) the work hardening rate reduces at the strain range of 5–18% ascribed to the growth of HCP-martensite and mechanical twins prevail in medium-sized grains; (iv) the work hardening rate declines with a lower decreasing slope over the strain of 18% due to the nucleation and growth of HCP-martensite and twins in the ultrafine recrystallized grains [101]. Consequently, the ductility of the trimodal structure specimen is significantly improved. The strategy of designing hierarchical structures was also applied to the metastable Co₂₀Cr₂₀Fe₄₀Mn₁₀Ni₁₀ (at. %) HEA [33], in which ~8 % (vol. %) unrecrystallized zones significantly improved the yield strength (σ_y: ~589 MPa) and the ultimate tensile strength (σ_b: ~865 MPa), and maintained a high elongation (~69.1%), compared with the fully recrystallized counterpart (~375 MPa,~785 MPa and ~77.5%, respectively).

3.2.2. Cryogenic-Temperature Deformation of Metastable HEAS

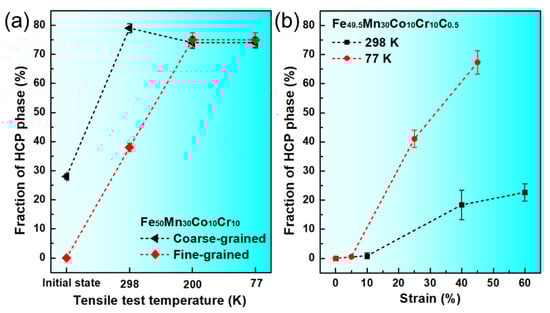

The deformation-driven phase transformation usually happens in low-SFE alloys. Since decreasing the temperature can furtherly lower SFE and increase flow stress, mechanical twinning and displacive phase transformation can be promoted at cryogenic temperatures. For example, when the metastable Fe₅₀Mn₃₀Co₁₀Cr₁₀ (at. %) and Fe_49.5Mn₃₀Co₁₀Cr₁₀C_0.5 (at. %) HEAs are strained at low temperatures, the fractions of transformed HCP phase are much higher than that at 293 K at identical strain levels [23], as shown in Figure 5. For the metastable V₁₀Cr₁₀Co₃₀Fe₅₀ (at. %) HEA, the strength increases to nearly 2 GPa at 77 K, which is double of that at 298 K, due to the accelerated martensitic transformation [43]. Besides this, the ductility of metastable Fe₄₅Co₃₀Cr₁₀V₁₀Ni_5−xMn_x (x = 2.5, 5) (at. %) HEAs can be deteriorated at 77 K since the lower SFE triggered by the cryogenic temperature causes more rapid exhaustion of TRIP capability [102].

3.2.3. High-Temperature Deformation of Metastable HEAs

It is known that the martensite is relatively stable only at low temperatures, and the displacive martensite transformation usually cannot occur over high temperatures (e.g., >773 K). For example, it has been found that the HCP phase disappears in a cold-rolled Fe_49.5Mn₃₀Co₁₀Cr₁₀C_0.5 (at. %) HEA after tempering at 673 K [101]. High temperatures facilitate the dislocation movement by supplementing more thermal activation energy; hence, cross-slip of dislocations is promoted and the displacive phase transformation triggered by planar slip is constrained. Although the high-temperature deformation of metastable HEAs has been rarely reported, we could adapt the findings from the traditional TRIP ferrous alloys. For example, the martensite transformation dominates the plastic flows in 304 stainless steel at a lower-temperature regime (<433 K), while the deformation is mainly governed by dislocation slip at higher temperatures [103].

3.3. Precipitates-Hardened HEAs

Most single-phase FCC HEAs possess considerable ductility, but the relatively low yield strength limits their industrial applications. Precipitate hardening has been widely used in ferrous and nonferrous alloys and nano-sized precipitates can efficiently interact with mobile dislocations to significantly enhance the strength of these alloys. Analogously, the strategy of precipitate hardening can also be applied to strengthen the HEAs, e.g., B2 phase [104,105,106,107], L1₂ structure γ’ phase, Mo-rich μ and Cr-rich σ phases [108,109,110,111,112,113,114] have been successfully introduced into several HEA systems for achieving higher yield strength by proper annealing treatments at intermediate temperatures. Among these, the L1₂ phase (e.g., Ni₃(Al,Ti)) is a typical precipitate easily generated in the Al/Ti-doped CoCrFeMnNi HEA system because of the negative mixing enthalpies among Ni, Al and Ti in favor of the formation of ordered nanoparticles [115]. Upon deformation, precipitates interact with dislocations and retard the slip of dislocations, so the deformation behaviors of precipitates-hardened HEAs are different from the precipitates-free HEAs. The characteristics of their deformation at different temperatures are presented below.

3.3.1. Room-Temperature Deformation of Precipitates-Hardened HEAs

The interaction behavior between dislocations and precipitates strongly depends on the size of precipitates in alloys. Deformation mechanisms and the corresponding mechanical properties are then affected by the size of precipitates in precipitates-hardened alloys. Generally, when sizes of incoherent particles exceed a critical value, the well-known Orowan mechanism prevails on deformation, and the shearing mechanism will dominate if the precipitates are sufficiently small and coherent with the matrix. He et al. [116] introduced L1₂ phase into FeCoCrNi-based HEA by adding Al/Ti and controlling ageing process, and the strength was increased by ~600 MPa compared to the Al/Ti-free alloy. It is known that the precipitate size depends on the ageing time. Ming et al. [114] aged the Al_0.2Co_1.5CrFeNi_1.5Ti_0.3 (at. %) HEA with different durations. They found that the shearing mechanism prevailed in the sample at the early ageing stage and the Orawan-loop mechanism turned to dominate as the ageing time exceeded 25 h, but the strength of the coarse-grained HEA was almost independent of the ageing time. These findings demonstrate that tailoring the size of precipitates by adjusting aging processing can facilitate the precipitate-dislocation interaction during deformation, which is beneficial to induce good ductility for precipitates-hardened HEAs.

3.3.2. Cryogenic-Temperature Deformation of Precipitates-Hardened HEAs

In the 0.2 at. % Ti-doped equiatomic FeCoCrNi HEA containing nanoprecipitates, extremely low temperatures can lower the SFE of the alloy matrix, whilst the chemical ordering of the γ’ nano-particles has been found to dramatically increase the local energy barrier for twin nucleation, both lead to stacking faulting prevailing at cryogenic temperatures upon deformation [45]. Analogously, the micro-deformation mechanism of the Co₃₀Cr₁₅Ni₃₀Fe₁₃Al₆Ti₆ (at. %) HEA composed of FCC matrix and L1₂ precipitates turns from the mechanical twinning to stacking faulting at room or cryogenic temperatures, due to the increase of critical stress for twinning nucleation [46]. Moreover, the low temperature enhances the lattice friction. Consequently, the precipitates-hardened FCC-based HEAs can possess high strength and good ductility at cryogenic temperatures. It should also be noted that the SFE of the matrix will be changed due to the precipitation behavior. Unexpectedly, besides being a hindrance, precipitates sometimes can even play a role in activating phase metastability. For instance, Kwon et al. [117] proposed a precipitation-driven metastability engineering on Co_17.5Cr_12.5Fe₅₅Ni₁₀Mo_xC_(5−x) (at. %) HEAs. The increase of C content from 1% to 2% led to the increase in volume fractions of the carbides from ~5.41% to ~6.61%, but the displacive phase transformation was enhanced at 77 K on tension, which was much different from the effect of C in Fe₅₀Mn₃₀Co₁₀Cr₁₀C_0.5 (at. %) HEA. The enhanced phase transformation enabled the 2% C specimen to have high tensile strength and ductility. However, the phenomenon disappears at room temperature. The relationship among precipitates, the phase metastability and temperature can be further clarified.

3.3.3. High-Temperature Deformation of Precipitates-Hardened HEAs

L1₂ phase formed in Ni-base alloys plays a significant role to maintain strength at high temperatures. By introducing such nanosize precipitates into the HEA matrix, for instance, (FeCoNiCr)₉₄Ti₂Al₄ (at. %) [118], Ni_45−x(FeCoCr)₄₀(AlTi)₁₅Hf_x (at. %) [119] and Ni₄₆Co₂₃Cr₁₀Fe₅Al_8.5Ti₄W₂Mo₁C_0.15B₀.₁Zr_0.02 (at. %) [87] HEAs, desirable mechanical performance can be attained at elevated temperatures. He et al. [118] systematically studied the flow behavior of a precipitates-hardened (FeCoNiCr)₉₄Ti₂Al₄ (at. %) HEA in the temperature range from 1023 to 1173 K. At the medium temperature regime (1023–1123 K), the alloy exhibits a high-stress component and activation energy for deformation, because the strengthening induced by nanosized γ′ coherent precipitates still come into play within such temperature regime. As the temperature increases to 1148–1173 K, the γ′ precipitates start to dissolute into the matrix, which facilitates the occurrence of dislocation climb thus decreases stress component and activation energy for dislocation movement.

Precipitates can also help to stabilize the microstructure at high temperatures, which efficiently contributes to inhibiting the high-temperature embrittlement of HEAs. For example, the high-temperature embrittlement of the Cantor alloy can also be alleviated by nano precipitates which can effectively prevent elemental segregation at GBs [19]. For another case, Lu et al. [120] stabilized twins in Co_19.84Cr_19.84Fe_19.84Mn_19.84Ni_19.84C_0.8 (at. %) HEA at high temperatures by introducing nanophases to twin boundaries. More specifically, carbides form along the 9R phase adjacent to incoherent nanotwin boundaries during the annealing process since the interstitial carbon and substitutional Cr are prone to enrich at 9R phase boundaries. Then, such elongated interfacial carbides hinder the de-twinning process and thereby stabilize nanotwins at high temperatures. Thus, the strategy overcomes the trade-off between the strength and thermal stability of nanotwinned materials. A similar stabilization effect from carbides was also reported in Cr_24.75Fe_24.75Co_24.75Ni_24.75Nb_0.5C_0.5 HEA deformed at a temperature range from 673 to 1073 K [121]. Carbides provide a significant strengthening effect thus the strength is double that of the equiatomic FeNiCoCr HEA at that temperature regime. Moreover, carbides can be employed to suppress the nucleation of micro-voids and cracks by reducing the GB sliding and acting as barriers against crack propagation at high temperatures [121]. In addition, Yang et al. [122] employed a duplex-ageing process on Ni_29.9Co₃₀Fe₁₃Cr₁₅Al₆Ti₆B_0.1 (at. %) alloy, which promoted the transformation from L1₂ phase to Heusler phase at GBs; thus, the embrittling intergranular heterostructures can be greatly eliminated, leading to a distinct brittle-to-ductile transition at 973 K as well as an increase of the tensile strength up to 1 GPa.

3.4. Multiphase HEAs

In this review, the multiphase HEAs refer to the HEAs consisting of two or more phases that are different in structure and composition. In general, the hard phases contribute to the strength and the soft phases ensure ductility. The temperature-dependent deformation behaviors of multiphase HEAs are associated with the characteristics of the contained phases, and thus are quite different from that of other HEAs.

3.4.1. Room-Temperature Deformation of Multiphase HEAs

In multiphase HEAs, strain partitioning does occur among different phases upon deformation. For instance, by using the digital image correlation (DIC) method, it has been found that the soft FCC phase can sustain much higher local strain at a low global strain (~2%) compared with the hard BCC/B2 phase in Al_0.5CoCrFeNi (at. %) HEA [123]. However, this strain partitioning behavior turns to trail off with increasing the total strain (almost disappear at ~24%), and then strain concentration can occur in the vicinity of interphase boundaries, leading to the formation of cracks at the interfaces upon deformation at room temperature [47,124], as schematically shown in Figure 6.

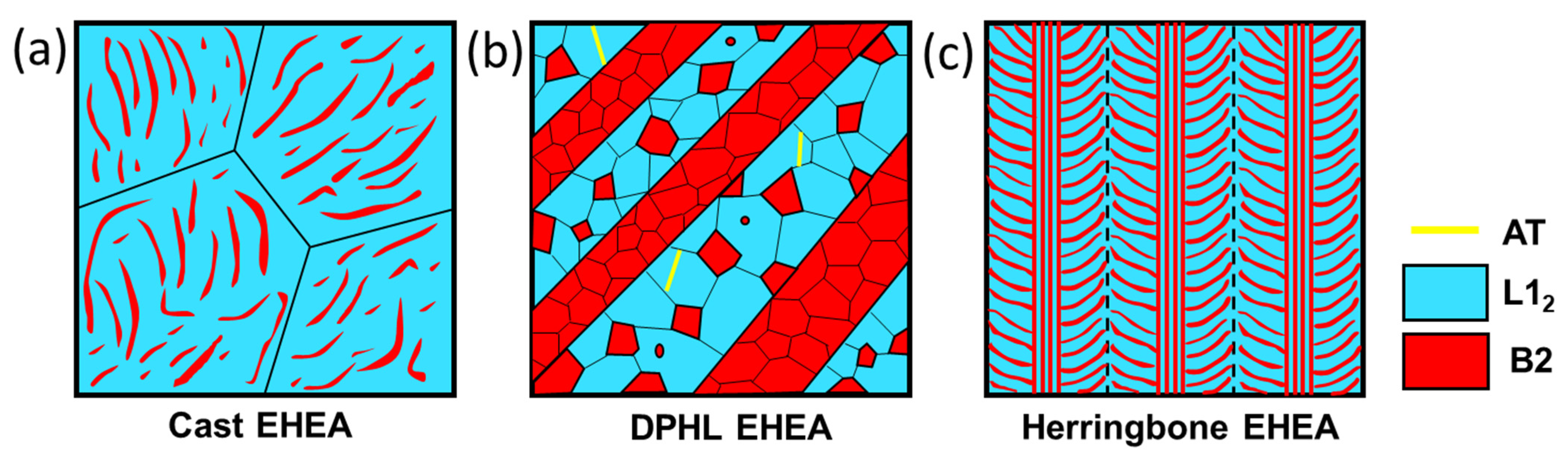

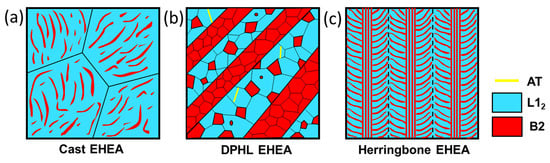

In AlCoCrFeNi_2.1 (at. %) eutectic HEA (EHEA), the L1₂ phase is deformed in the manner of planar dislocation slip, with a slip system of {111} <110>, and stacking faults due to the low SFE, contributing to the high strain hardening and ductility [48]. On the other hand, dislocations glide in B2 phase and the Cr-rich precipitates can further strengthen the B2 phase, contributing to the high strength of the material. Therefore, the as-cast AlCoCrFeNi_2.1 (at. %) EHEA exhibits high strength and decent ductility [48]. Besides this, the spatial configuration of multiple phases is supposed to significantly affect the mechanical properties of multiphase HEAs. As illustrated in Figure 7a, the disorder distribution of B2 phase in the L1₂ matrix of the as-cast AlCoCrFeNi_2.1 (at. %) EHEA is hard to enable good work hardening on deformation. With the well-tuned distribution of the phases by thermal–mechanical treatments, the mechanical properties of multiphase HEAs can be greatly improved by altering the deformation mechanisms. For instance, as illustrated in Figure 7b, AlCoCrFeNi_2.1 (at. %) EHEA with dual-phase heterogeneous lamella (DPHL) structure achieves a superior strength–ductility combination, due to the self-generated microcrack-arresting mechanism originated from the DPHL structure [125]. Further, the Al₁₉Co₂₀Fe₂₀Ni₄₁ (at. %) EHEA obtained through discarding Cr in AlCoCrFeNi_2.1 (at. %) EHEA shows heterogeneous lamella microstructure (similar to that in the schematic diagram of Figure 7b but the size of grains is in nanoscale) after thermo-mechanical treatment. Such special microstructure stimulates a sequential activation of stress-dependent multi-type twinning mechanisms upon deformation [49]. As a consequence, the alloy exhibits multistage work hardening and attains a more desirable strength-ductility synergy than that of DPHL EHEA. Further, a hierarchically organized herringbone structure is generated in Al₁₉Co₂₀Fe₂₀Ni₄₁ (at. %) EHEA by directional solidification, which efficiently renders special hierarchical buffering by adjacent dynamic strain-hardened features, then strongly prevents the catastrophic growth and percolation of microcracks, as schematically shown in Figure 7c. The self-buffering herringbone alloy shows a high uniform tensile elongation (~50%) much higher than the conventional nonbuffering EHEAs (~16%) but without sacrificing strength [50].

In addition, the strategy of crystal-glass dual-phase configuration has been also employed in the design of high-entropy materials [126]. The metallic glass phase of such nanocomposites can efficiently absorb and emit dislocations to prevent the formation of pile-up configurations, which alleviates the local strain localization and promotes homogenous plastic flow on deformation. Therefore, this nanocomposite owns a nearly ideal strength concurrently with remarkable deformability at room temperature. This strategy also provides a promising path to the further design of ultrastrong and ductile metallic materials in the future.

3.4.2. Cryogenic-Temperature Deformation of Multiphase HEAs

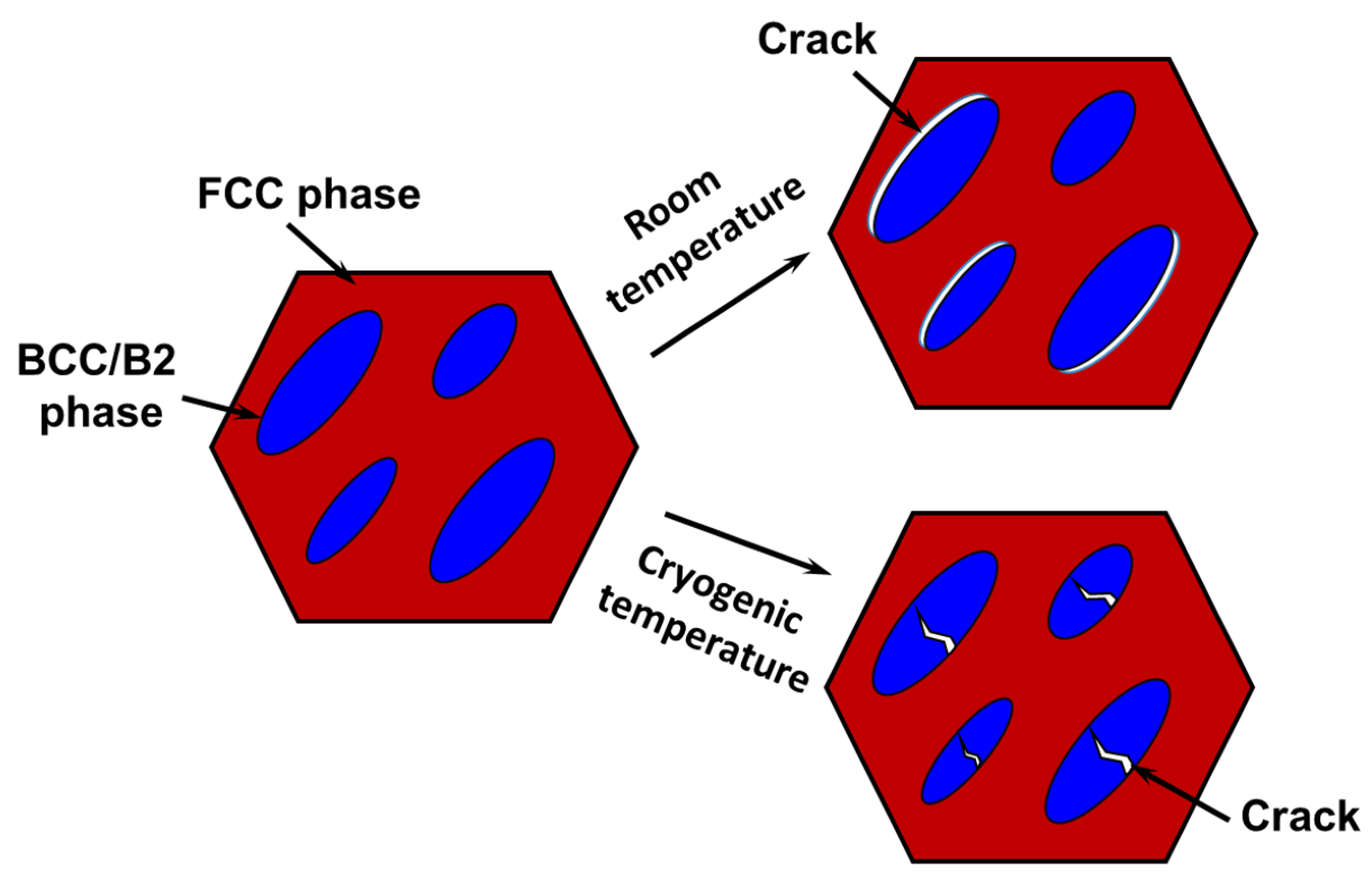

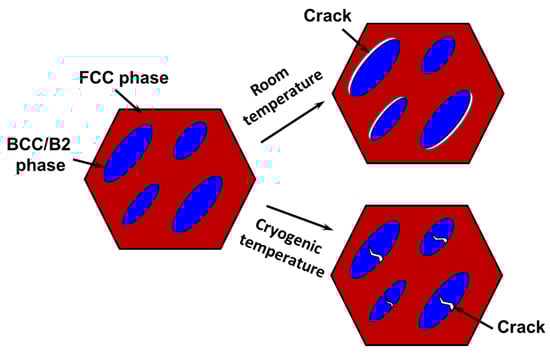

In general, the strength of multiphase HEAs increases with lowering the deformation temperature but the ductility is not prominently enhanced. Dislocation movement in BCC phase is more difficult at cryogenic temperatures but FCC phase becomes more deformable; thus, the plastic compatibility between the constituent phases can be degraded. For example, Park et al. [47] found that the geometrical necessary dislocations (GND) density in FCC phase was much higher than that of BCC phase when the Al_0.5CoCrFeMnNi (at. %) HEA was deformed at cryogenic temperatures. High back stress induced by the profuse GND in FCC phase provides an additional strengthening mechanism and improves the uniform deformation, which can alleviate the formation of micro-void and growth. However, the hard and brittle BCC phase could not withstand the strain and then break, as schematically shown in Figure 6. Therefore, the alloy displays a slightly higher uniform elongation at cryogenic deformation in comparison with that at room temperature, but it fractures suddenly on tension without the necking stage. The behaviors showed in this typical case could also be adapted in dual-phase AlCoCrFeNi_2.1 (at. %) EHEA [127,128,129].

3.4.3. High-Temperature Deformation of Multiphase HEAs

At elevated temperatures, the multiphase structure may reorganize via recrystallization, and precipitates are probably generated from the initial phases, leading to a change in the fractions of phases. For example, the fraction of B2 phase surpasses that of L1₂ phase after high-temperature deformation through dynamic recrystallization in AlCoCrFeNi_2.1 (at. %) EHEA [130]. During the dynamic recrystallization process, nano-sized B2_Ⅱ phases formed in L1₂ phase retard recrystallization and provide a strengthening effect, and recrystallization of the L1₂ matrix makes a significant contribution to the softening process by reducing the strain localization. Therefore, the strength of the alloy (~55 MPa) is maintained and the elongation is over 240% upon tension at 1273 K. Strain softening associated with the formation of a heterogeneous necklace microstructure via dynamic recrystallization is also found in an annealed TaMo_0.5ZrTi_1.5Al_0.1Si_0.2 (at. %) HEA when subjected to compression at 1273 K [131]. Further, dynamic precipitation strengthening effect is observed in a CoCrFeNiTa EHEA, i.e., the high-temperature precipitation of two kinds of nanoprecipitates (L1₂ ordered and Ni₃Ta type) in the FCC-solution phase extends the applicable temperature range of the material [132], which also provides a useful insight for designing high-performance alloys for high-temperature applications.

4. Summary and Outlook

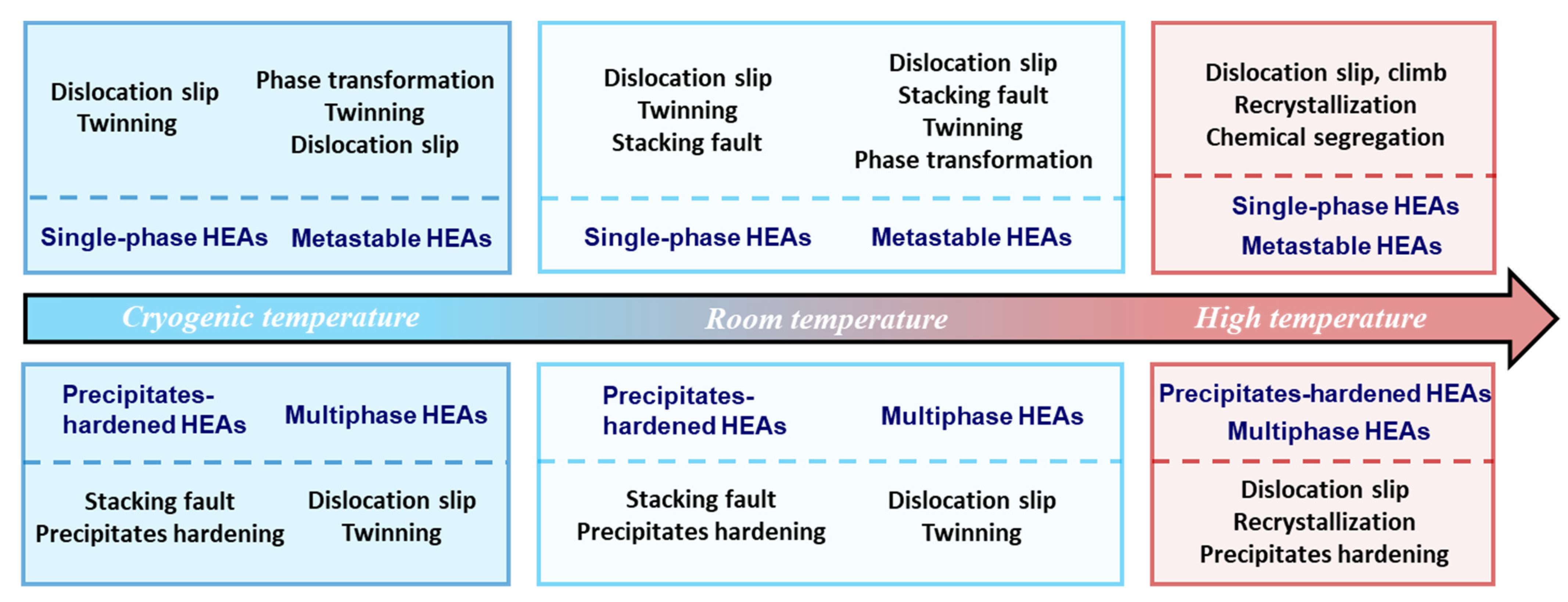

This article reviews the temperature-dependent deformation behaviors and the corresponding microscale mechanisms of various HEAs. Figure 8 outlines the main contents which can be summarized below.

• At room temperature, dislocation slip, mechanical twinning and stacking faulting can prevail to dominate the plasticity of different FCC structured HEAs, dependent on the chemical composition. Displacive phase transformation plays a key role during plastic deformation of metastable HEAs. Dislocation slip is the main way to accommodate the deformation in BCC structured HEAs, and phase transformation can also occur in a few cases. In precipitates-hardened FCC HEAs, the nanoprecipitates enhance the strength but usually deteriorate the ductility of HEAs, mechanisms of dislocation slip and stacking faulting in the matrix can still contribute to a decent ductility, and tailoring the size of precipitates by adjusting aging processing can tune the precipitate-dislocation interaction mechanism. In FCC-BCC multiphase HEAs, the soft FCC phase contributes more to the ductility through dislocation slip or mechanical twinning and the hard BCC phase provides a hardening effect. Moreover, numerous investigations have suggested that tuning the microstructure via specific processes is an efficient way to optimize the mechanical properties of HEAs.
• As decreasing temperature to the cryogenic regime, SFE of FCC HEAs accordingly decreases and the lattice friction increases. Hence, the strength is improved, and the propensity of mechanical twinning, stacking faulting and phase transformation get enhanced. Therefore, the strength and ductility as well as toughness of single-phase or precipitates-hardened FCC structured HEAs get improved. For the FCC HEAs, cryogenic processing can be a good way to enhance formability. For the metastable HEAs, the promoted phase transformation resulted by cryogenic temperatures contributes to higher ultimate strength, but the ductility is not always improved since the phase transformation can be completed at earlier deformation stages compared to that at room temperature. Moreover, since FCC phase still exhibits a considerable strain hardening capability but BCC phase turns brittle at cryogenic temperatures, the strength of multiphase HEAs can be further enhanced but the ductility is hardly improved.
• Under high-temperature deformation, dislocation activities of HEAs are promoted, e.g., cross-slip, climb, annihilation, recovery and recrystallization. TWIP/TRIP effects are suppressed in the metastable HEAs at high temperatures, which leads to the ductility decrease. Elemental segregation in single-phase HEAs also results in high-temperature embrittlement. To alleviate the embrittlement, pre-formed precipitates can be employed to maintain the mechanical and phase stability of HEAs, i.e., introducing additional phases to decorate grain boundaries can be an accessible method to optimize the mechanical performance of HEAs at high temperatures.

Overall, various HEAs display good mechanical properties in a wide range of temperatures and thus show great potential to be applied to harsh conditions. Moreover, the various strengthening and toughening strategies are worthy of being adapted in future alloys, including designing hierarchical microstructures and introducing nanophases alleviating high-temperature embrittlement. On the premise of tuning the above various microscale mechanisms, it is greatly possible to develop more HEAs with the combination of desirable mechanical properties and other functional properties, e.g., resistance to corrosion [13,15,133] and hydrogen-embrittlement [15,134,135], magnetic [11,12,136], thermal expansion [137,138] and electrical properties [139,140,141], which will render the novel HEAs more powerful and attractive for practical applications.
