Next Article in Journal
Tailoring the Austenite Fraction of a Cu and Ni Containing Medium-Mn Steel via Warm Rolling
Previous Article in Journal
Comparison of the Flow Field in a Slab Continuous Casting Mold between the Thicknesses of 180 mm and 250 mm by High Temperature Quantitative Measurement and Numerical Simulation


Article

Phase Transitions in the Co–Al–Nb–Mo System

1
Institute of Physics of Metals, Ural Branch of Russian Academy of Sciences, 620218 Ekaterinburg, Russia
2
Institute of New Materials and Technologies, Ural Federal University, 620002 Ekaterinburg, Russia
*
Author to whom correspondence should be addressed.
Academic Editor: Umberto Prisco
Metals 2021, 11(12), 1887; https://doi.org/10.3390/met11121887
Received: 26 October 2021 / Revised: 11 November 2021 / Accepted: 19 November 2021 / Published: 23 November 2021
(This article belongs to the Section Metal Casting, Forming and Heat Treatment)

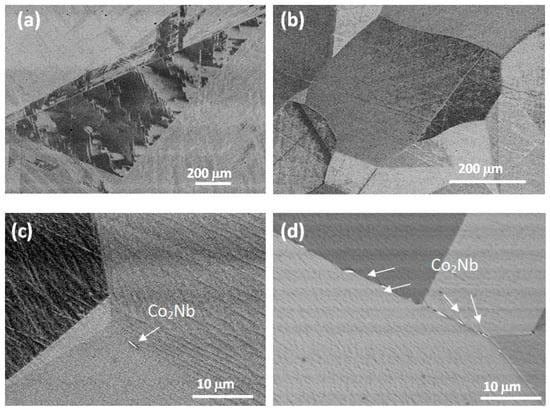

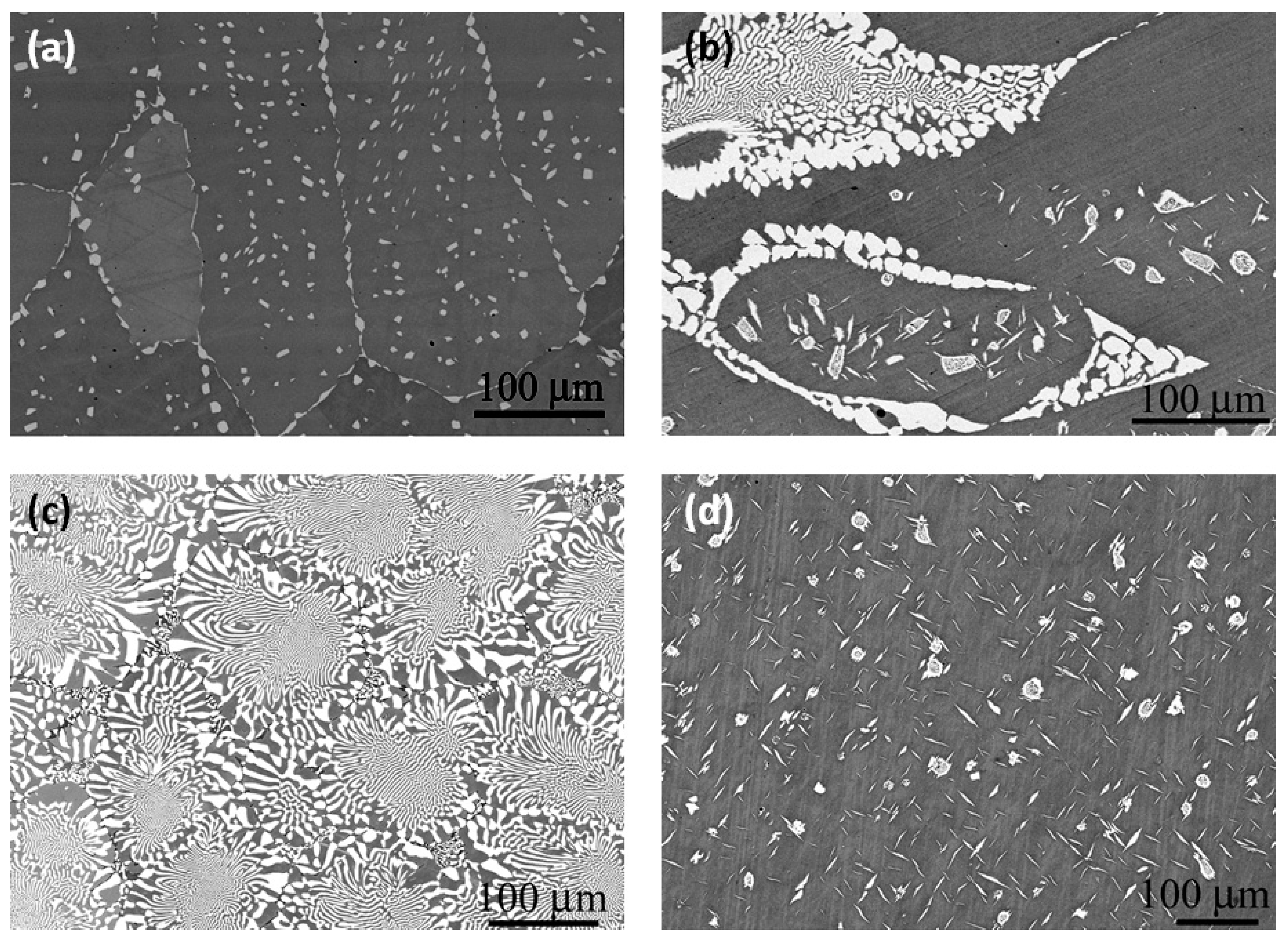

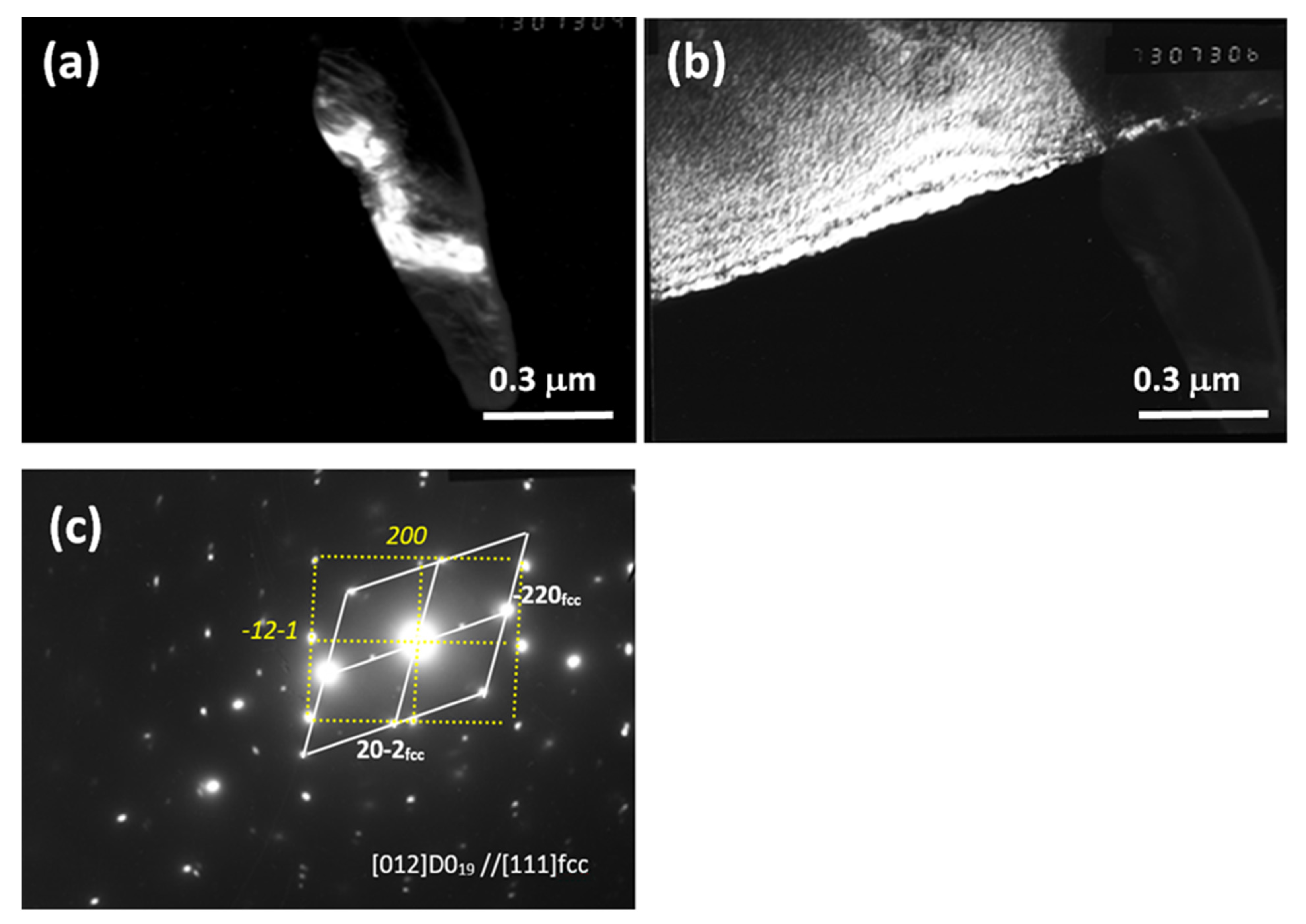

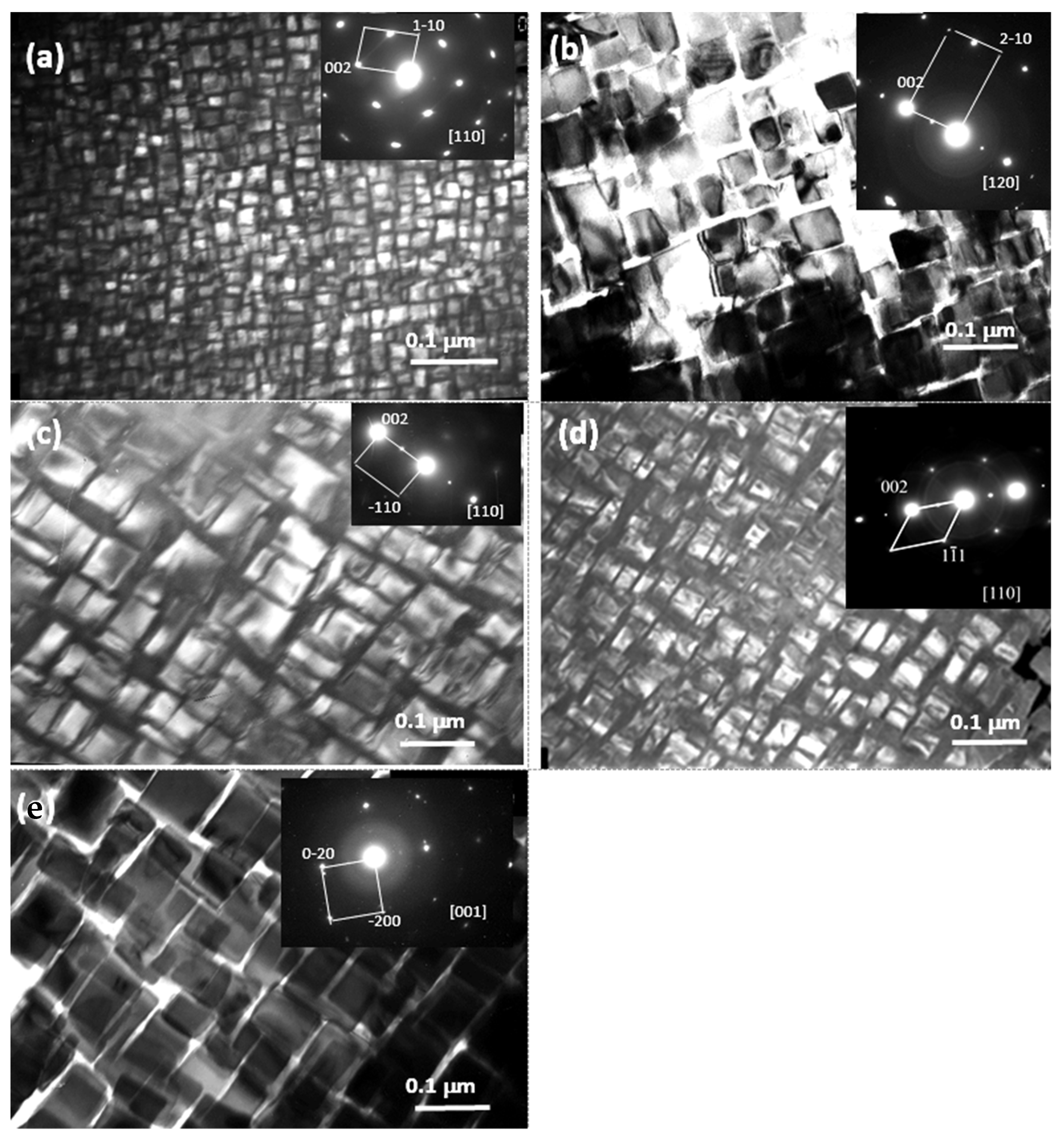

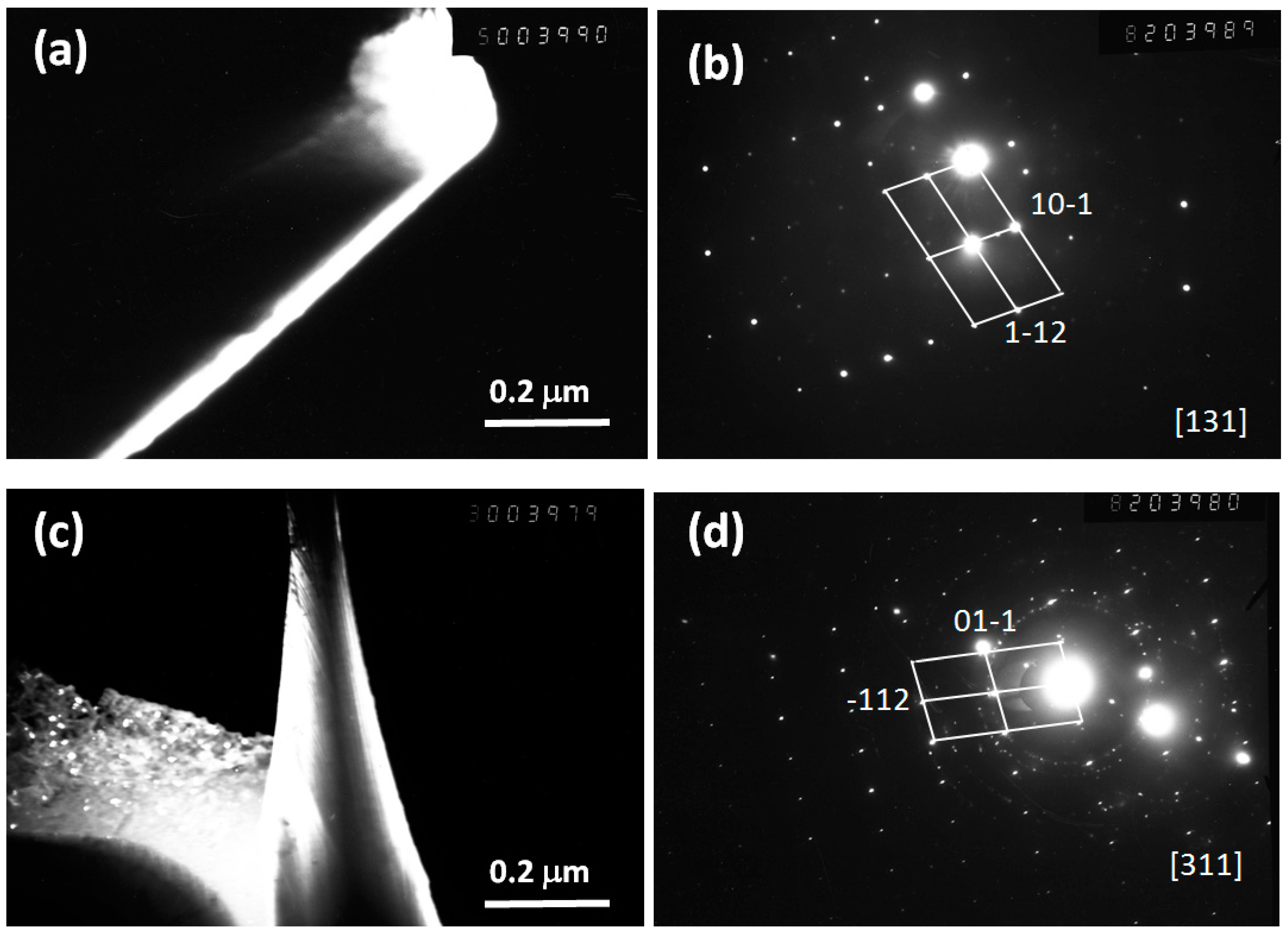

Phase transitions in the Co-rich part of the Co–Al–Nb–Mo phase diagram are studied by energy dispersive spectroscopy (EDS), X-ray analysis, transmission electron microscopy (TEM), and differential scanning calorimetry (DSC) measurements. The obtained results were compared with the results for alloys of the binary Co–Al and ternary Co–Al–Nb, and Co–Al–Mo systems. Formation of the intermetallic phase with the L12 structure was found in a range of alloys with 10 at.% Al, 2–9 at.% Nb, and 3–7 at.% Mo. Intermetallic compound Co2Nb, Laves phase with the different chemical composition and crystal structure (C14 and C36) was detected in the Co–Al–Nb and Co–Al–Nb–Mo samples after vacuum solution treating at 1250 °C for 30 h. View Full-Text
Keywords: heat resistant superalloys; phase transitions; Co–Al–Nb–Mo; L12 structure heat resistant superalloys; phase transitions; Co–Al–Nb–Mo; L12 structure
Show Figures

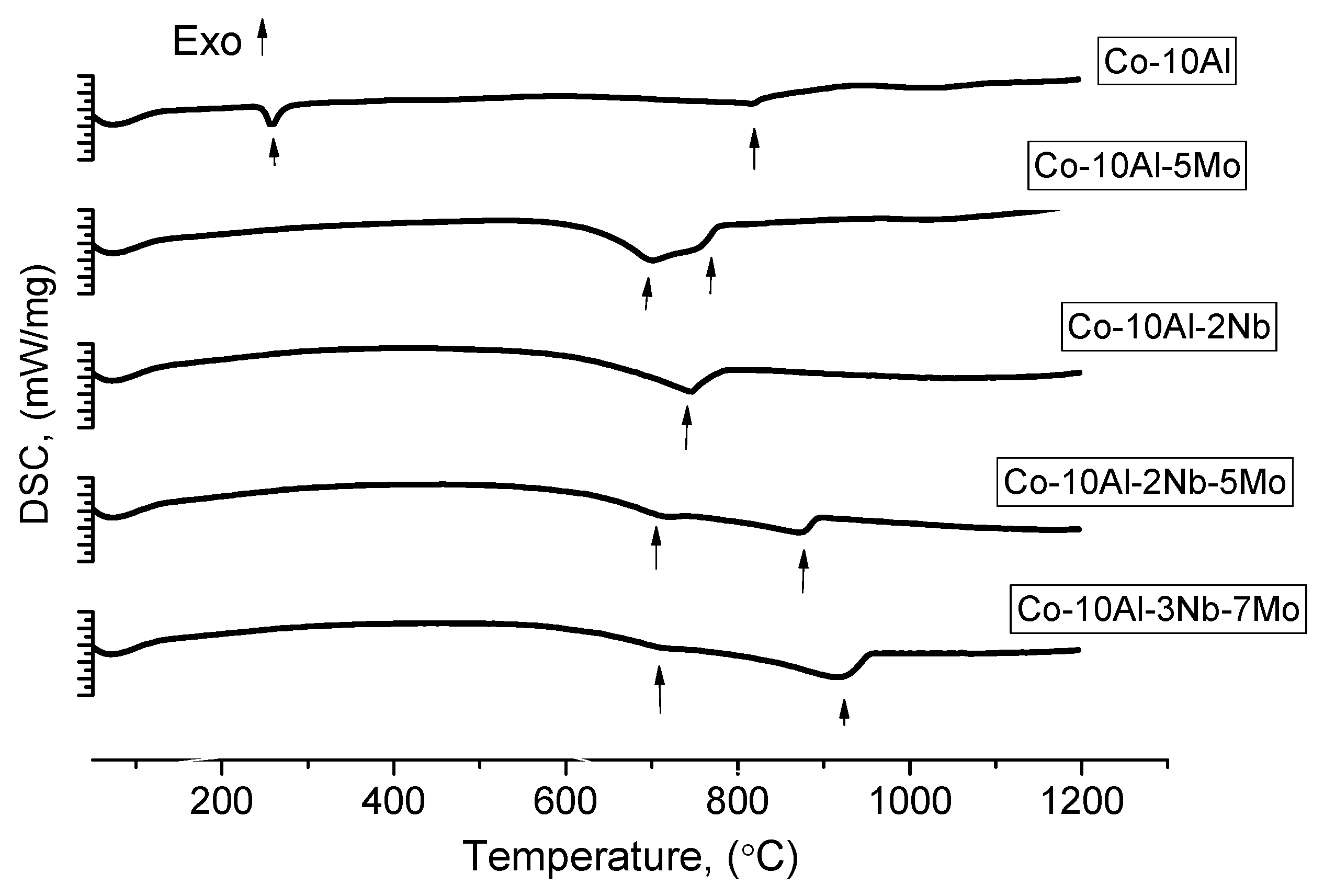

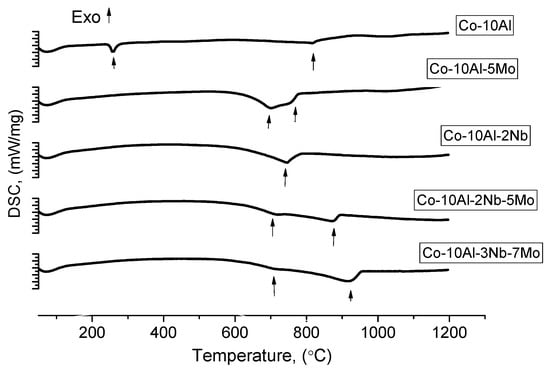

Figure 1

MDPI and ACS Style

Davydov, D.; Kazantseva, N.; Popov, N.; Vinogradova, N.; Ezhov, I. Phase Transitions in the Co–Al–Nb–Mo System. Metals 2021, 11, 1887. https://doi.org/10.3390/met11121887

AMA Style

Davydov D, Kazantseva N, Popov N, Vinogradova N, Ezhov I. Phase Transitions in the Co–Al–Nb–Mo System. Metals. 2021; 11(12):1887. https://doi.org/10.3390/met11121887

Chicago/Turabian Style

Davydov, Denis, Nataliya Kazantseva, Nikolai Popov, Nina Vinogradova, and Igor Ezhov. 2021. "Phase Transitions in the Co–Al–Nb–Mo System" Metals 11, no. 12: 1887. https://doi.org/10.3390/met11121887

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
