Effect of Zr Additions on Non-Metallic Inclusions in X11CrNiMo12 Steel

Abstract

The production of clean steel is associated with high-quality steel grades for demanding applications. The formation of oxide inclusions mainly depends on the deoxidation practice; it is usually carried out through Al additions, but alumina inclusions can have detrimental effects. An alternative zirconium inclusion modification was used in a creep-resistant steel to improve the cleanliness of laboratory-made steel. The thermodynamics behind the inclusion modification are presented, the reaction products are identified and the steel cleanliness improvement is quantified. The resulting influence of zirconium addition on non-metallic inclusions and mechanical properties is discussed. While the Zr additions drastically reduce the non-metallic inclusion size and area, additions above a certain amount result in the formation of zirconium nitrides that ultimately soften the martensitic steel due to the depletion of nitrogen in solid solution.

1. Introduction

The X11CrNiMo12 steel grade is a martensitic creep-resistant steel that is generally used for turbine blades and fittings in thermal power plants. The efficiency of thermal power plants depends on the steam operating temperature and pressure, which are limited by material properties [1]. The creep-resistant 9–12% Cr martensitic steels have proven to be reliable in withstanding high pressures and temperatures, therefore they are the most widely used steels in power plants [2,3,4,5,6]. They offer the best combination of high creep strength, high resistance against thermal fatigue, high steam oxidation resistance and good manufacturability at relative low costs [7]. However, they must fulfil very high-quality standards concerning mechanical properties and microstructure. One of the very important factors is steel cleanliness, which means that the content, size, shape and distribution of non-metallic inclusions is restricted. The so-called “clean steel” production can be achieved by the control of steel melting, refining and casting [8]. The use of deoxidation agents is very important, as they set the conditions for the formation of oxide non-metallic inclusions, both during refining and casting. Deoxidation is usually carried out through Al additions, but alumina inclusions can have detrimental effects. Al₂O₃ inclusions frequently cluster in the liquid state, leading to submerged entry nozzle clogging during casting (inclusions that are between 1 and 20 µm in diameter are the most detrimental for clogging), and an uneven distribution of hard brittle inclusions that will typically break during deformation. Furthermore, the combination of low bonding strength to the matrix during deformation leads to void creation and separation (debonding) [9,10,11,12].

Alternatively, deoxidation can also be performed with elements like zirconium, which can change the size, number and distribution of non-metallic inclusions [13]. Zirconium additions are known to modify manganese sulphide inclusion [14] by forming nuclei for the formation of smaller yet more numerous MnS, and they also promote the precipitation of small nitride, carbide and carbonitride particles that cause grain refinement [14,15,16], and reduce the grain growth during high temperature annealing [17] and in the heat-affected zone during welding [18,19]. Zirconium is known to reduce the size of oxide non-metallic inclusions, and improve their distribution in the steel matrix, thus improving steel cleanliness [20,21]. Zirconium oxides are also heterogeneous nucleation sites for austenite during solidification, therefore they inhibit δ-ferrite formation [22]. This can be beneficial, as δ-ferrite can be harmful to the final properties of high-chromium martensitic steels [23]. The present investigation was undertaken with the objective of determining the effect of Zr additions on the size, distribution and composition of inclusions in an Al-killed steel X11CrNiMo12 steel grade.

2. Materials and Methods

Experimental charges of X11CrNiMo12 steel were melted in an induction melting furnace with a protective inert Ar gas atmosphere. The three charges were produced by melting 9 kg of Al-killed X11CrNiMo12, minor additions of ferrochromium affine (68 g, 70% Cr, 0.1% C) and manganese metal (9 g, 99.9% Mn) were added to compensate for the losses, and the melt was also deoxidized with Al. The first charge was re-melted without Zr additions, the second charge (300 ppm Zr) was modified by adding 4.5 g zirconium (99.8% Zr) and the third charge (700 ppm Zr) was modified by adding 11 g zirconium. After the Zr addition, the melt was homogenized by strong induction melting for 3 min. The melt was cast into 60 × 60 × 300 mm ingots. The cast ingots were air-cooled to room temperature. The ingot heads were cut off to remove the shrinkage and ensure ingot soundness. The ingots were then homogenized at 1180 °C for 6 h in a gas heating furnace without protective atmosphere. The homogenized ingots were hot forged into 30 mm-diameter bars by a pneumatic forging hammer. After the hot forging, the samples were annealed in an electric box furnace at 720 °C for 2 h. The forged rods were cut into 200 mm samples and heat treated for further mechanical testing. The heat treatment regime is given in

Table 1. Heat treatment regime.

Austenitization	Cooling	Tempering 1	Cooling	Tempering 2	Cooling
1045 °C 4 h	oil	660 °C 4.5 h	air	640 °C 4.5 h	air

, and the heat treatments were done in electric box furnaces without a protective atmosphere. The samples were also taken for metallographic and automatic inclusion analysis. Metallographic analysis and the determination of the prior austenite grain size according to ASTM (American Society for Testing and Materials) E112 standard were done by light optical microscopy using an Olympus DP70 microscope (Olympus, Tokyo, Japan). The samples for optical microscopy were etched with Vilella’s reagent (5 mL HCl + 2 g Picric acid + 100 mL Ethyl alcohol) for 10 to 15 s, and the samples for electron microscopy were only polished. The electron backscatter diffraction (EBSD) analysis, the automatic non-metallic inclusion analysis and energy dispersive spectroscopy (EDS) analysis were done by electron microscopy (Jeol, Tokyo, Japan) using a FEG-SEM Jeol-JSM6500F with an Oxford system HKL Channel 5 system. The automatic non-metallic inclusion analysis was done by INCA Feature, and the total analysis area for each sample was 8.42 mm².

The chemical analysis of the steel samples was done by time-of-flight mass spectrometers (TOFMS) LECO CS600 (C and S) and LECO TC436 (N and O), Coupled Plasma-Optical Emission Spectrometers (ICP-OES) Varian 730-ES (Ti and Zr) and Optical Emission Spectroscopy (OES) ARL 3460 (Si, Mn, Cr, Ni, Mo, V and Al).

Mechanical testing was done on a Zwick/Roell Z100 tensile test machine. Three round 55 mm-long samples were made for each test according to EN ISO 6892-1:2019. The Brinell hardness was measured with a KB 3000 BVRZ Standalone hardness testing machine.

Calculation of Gibbs free energies for the formation of aluminum oxide, zirconium oxide and zirconium nitride at different temperatures were made with Outotec’s HSC 8.0 Chemistry Software.

3. Results

The resulting chemical composition of the samples is given in

Table 2. Chemical analysis of the samples.

	C	Si	Mn	S	Cr	Ni	Mo	V	Al	Zr	O	N
0 Zr	0.11	0.23	0.71	0.0055	11.65	2.70	1.63	0.30	0.021	<0.001	0.0058	0.033
300 Zr	0.11	0.22	0.73	0.0052	11.65	2.70	1.66	0.30	0.018	0.030	0.0088	0.034
700 Zr	0.11	0.22	0.72	0.0053	11.62	2.70	1.64	0.30	0.019	0.070	0.0085	0.034

. The calculated zirconium yield is roughly 60%. There was an increase in oxygen when Zr was added, which is due to reactions between Zr and oxygen in the protective atmosphere. There is also a minor increase of nitrogen, as Zr increases nitrogen solubility in the steel melt [24].

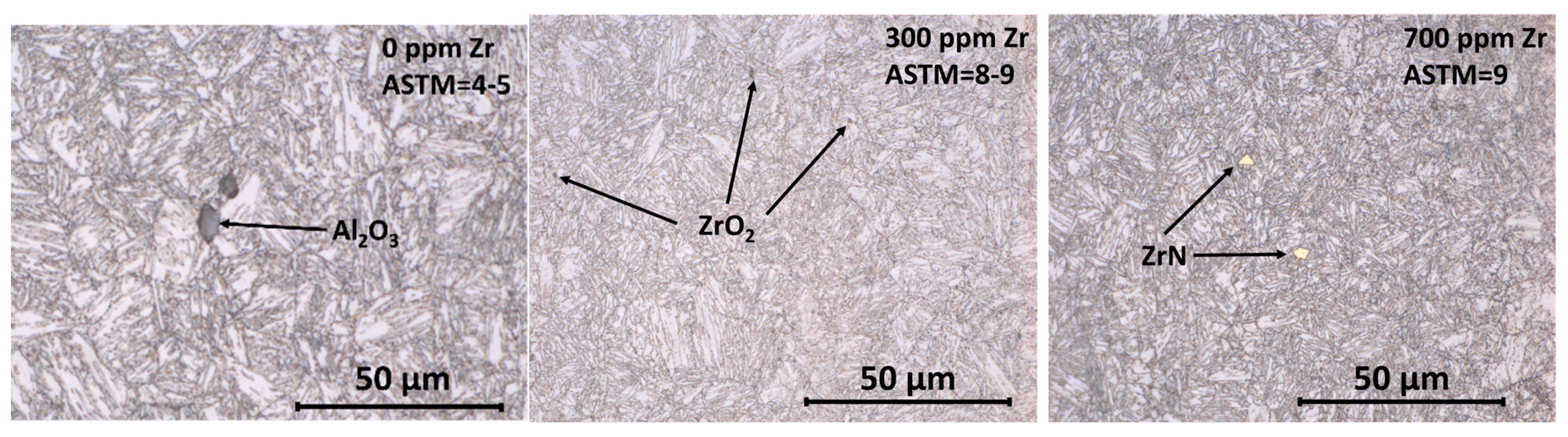

The microstructural analysis revealed that all samples consisted of tempered martensite, and the main difference was in the grain size. The Zr additions had refined the martensitic microstructure as shown in Figure 1. The light optical microscope analysis revealed that the samples with 0 and 300 ppm Zr have visible oxide inclusions, while the 700 ppm has only visible nitride inclusions.

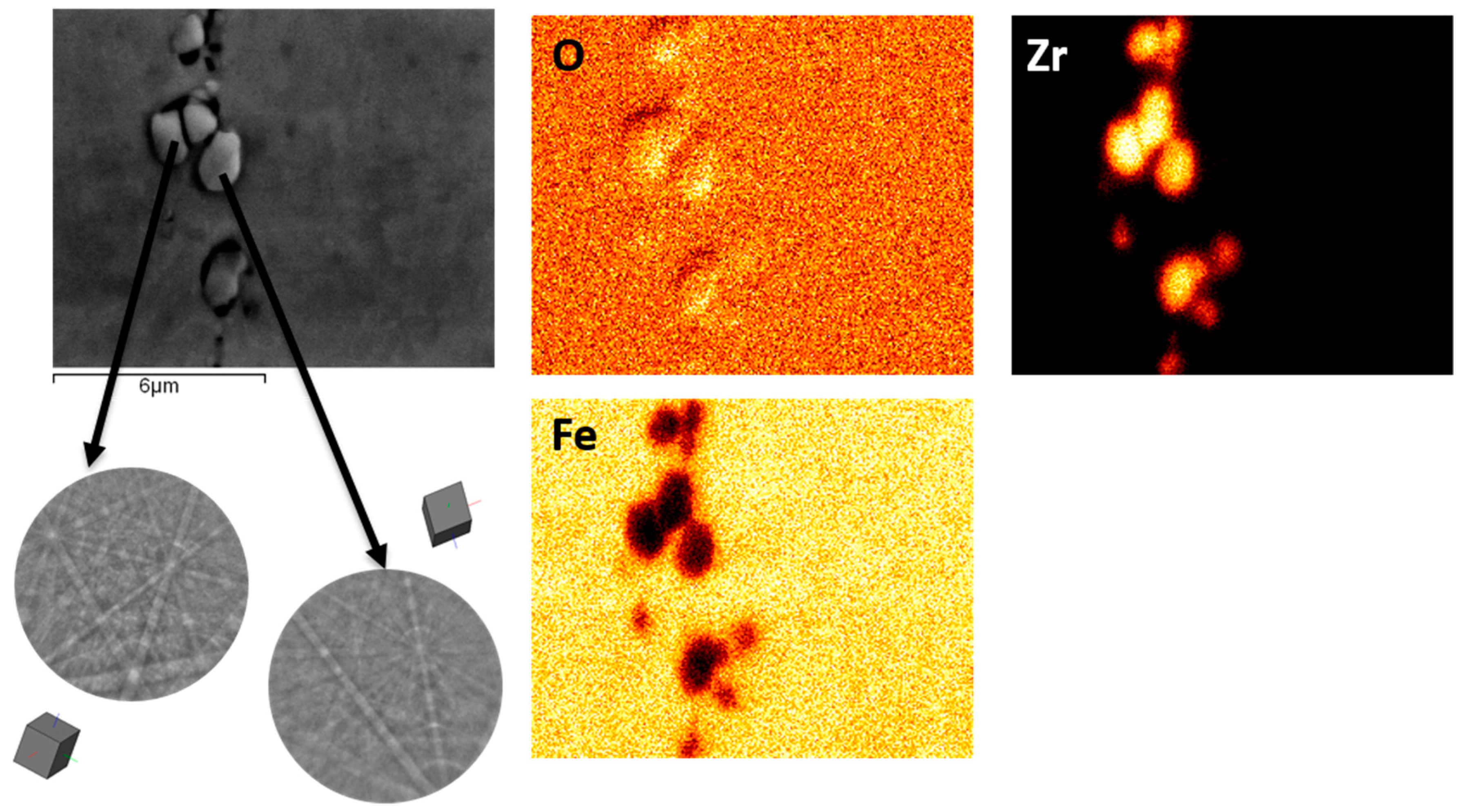

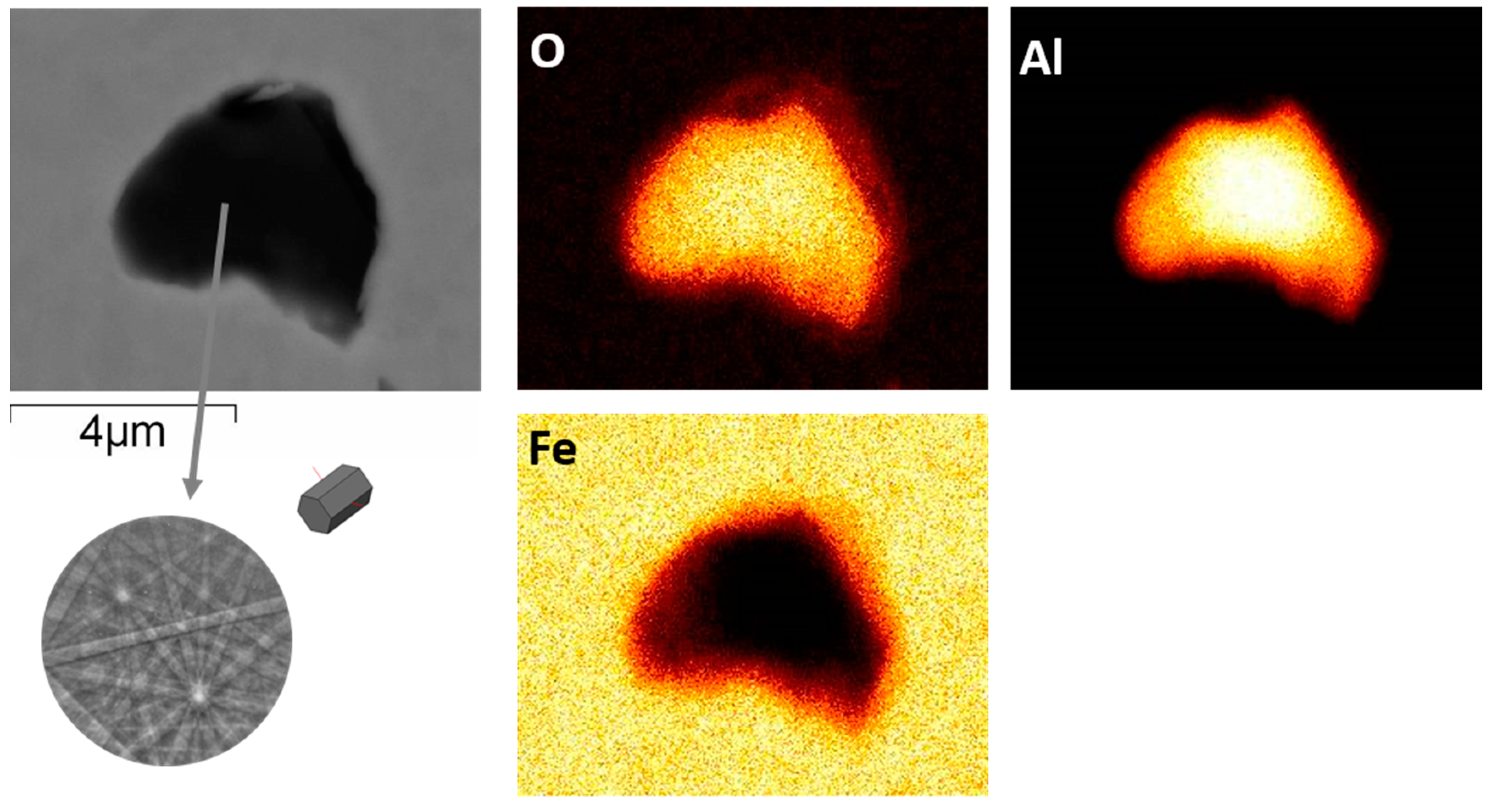

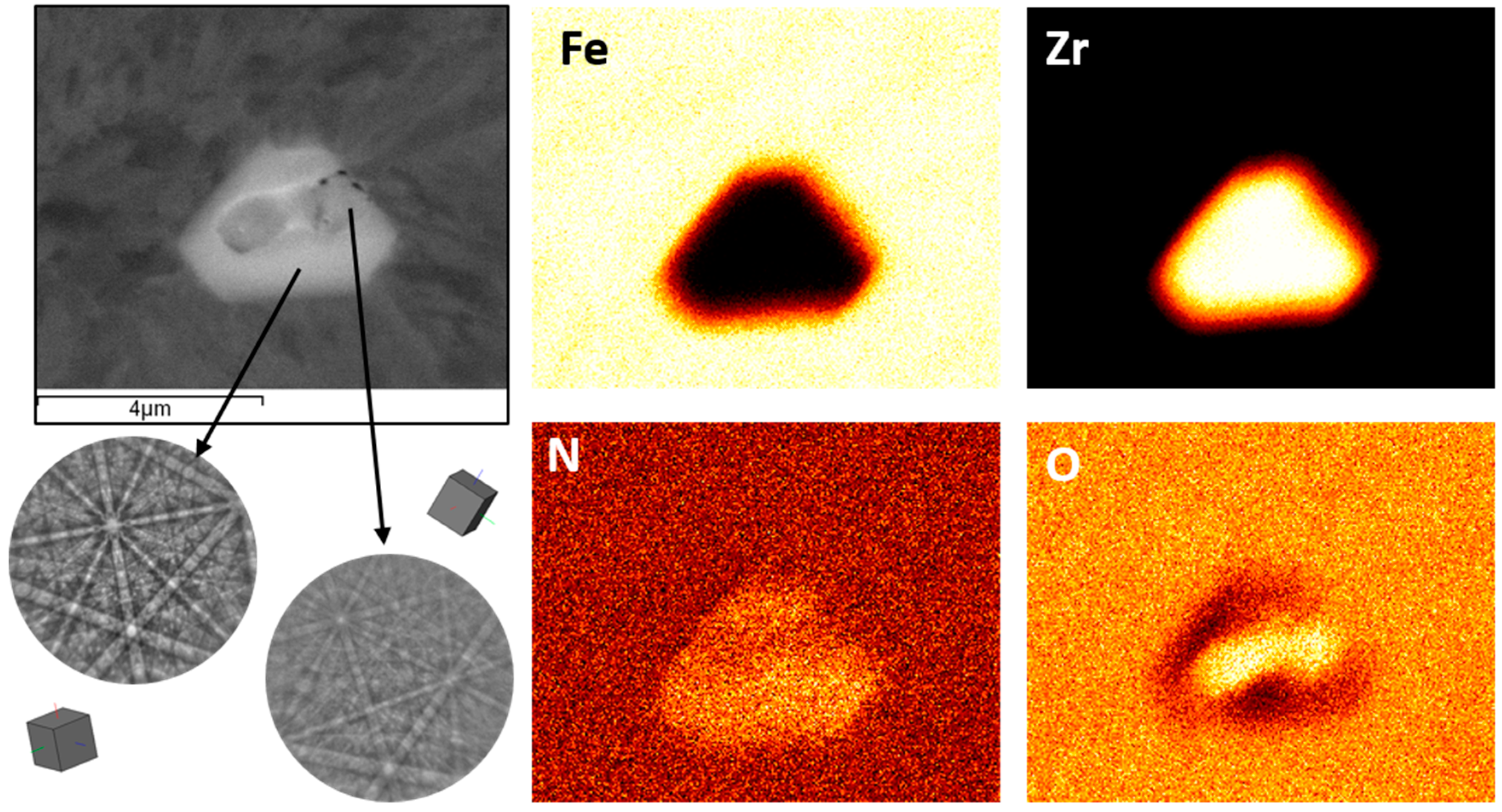

The SEM EBSD and EDS analysis of the representative non-metallic inclusions are presented in Figure 2, Figure 3 and Figure 4. The sample without Zr contains typical Al-killed alumina inclusions with the occasional silicate and manganese sulphide (Figure 2). Fine zirconium oxide (ZrO₂) inclusions are dominant in the sample, with 300 ppm Zr (Figure 3). The sample with 700 ppm Zr (Figure 4) has a slight increase in the size of the inclusions, compared to the sample with 300 ppm Zr, but this is mainly due to the formation of zirconium nitrides (ZrN) on the ZrO₂ nucleus. Although the oxides are still roughly the same size, the ZrN formation increases the total non-metallic inclusion area. The non-metallic inclusions were also analyzed by the EBSD technique that provides Kikuchi patterns. They were used for determining the inclusion crystal structure type. Figure 2, Figure 3 and Figure 4 also show the Kikuchi patterns and crystal structure types for the three typical types of inclusions (ZrN, ZrO₂ and Al₂O₃) found in the samples. The ZrN has a cubic face-centered crystal structure, while ZrO₂ has a monoclinic structure and Al₂O₃ has a hexagonal close-packed structure.

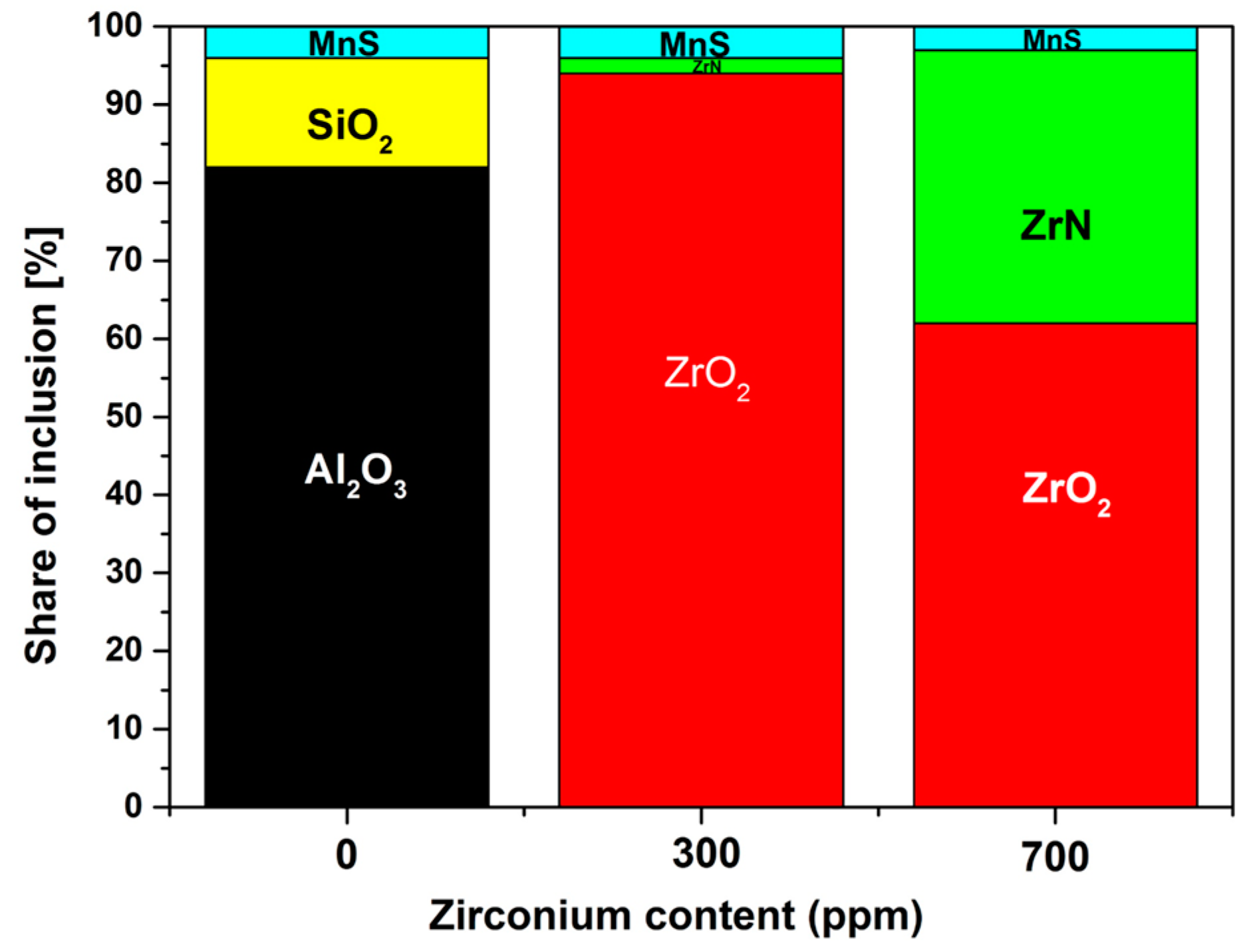

The inclusions were set into five categories—Al₂O₃, MnS, SiO₂, ZrN and ZrO₂—based on their composition. The SEM automatic inclusion analysis showed that most of the inclusions are alumina-based in the non-modified sample. After the Zr addition, most of the inclusions become ZrO₂ type. When additional Zr is added, ZrN appear in larger numbers, and the relative size also increases, as ZrN frequently form on previous ZrO₂ inclusions (as shown in Figure 5). Complex inclusions such as ZrN formed on ZrO₂, and were classified as ZrN, as they presented the bulk of the non-metallic inclusion, as well as the matrix/inclusion phase boundary.

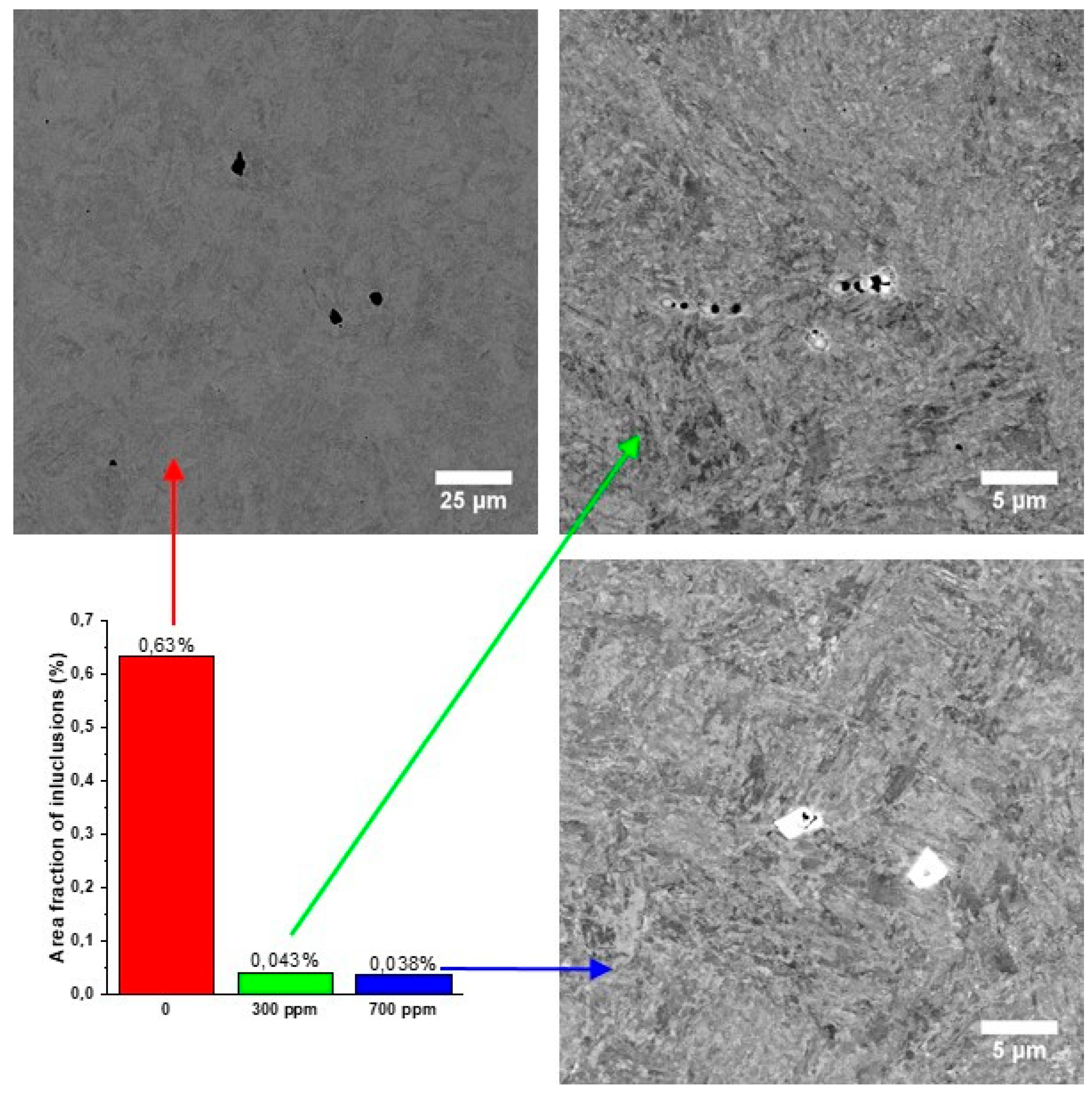

The SEM analysis revealed that zirconium drastically decreased the surface area of all non-metallic inclusion, as shown in Figure 6 (results of the Inca feature analysis). The dark inclusions are alumina and zirconium oxides, while the zirconium nitrides are seen as white inclusions.

The Zr additions promote the formation of numerous small homogeneously dispersed non-metallic inclusions. These results are in agreement with our previous work, where Zr was added to non-Al-killed steel [21]. One explanation for the formation of smaller ZrO₂ non-metallic inclusions is that zirconium oxides require a lower critical radius for nucleation, as the result of low free Gibbs formation energy and low surface tension energy (better steel melt wettability), in comparison to alumina inclusions [25]. Another reason for the homogeneous distribution is the fact that during solidification, the ZrO₂ particles are engulfed by the solidification front, while the alumina particles are pushed into the segregation bands by the solidification front [26].

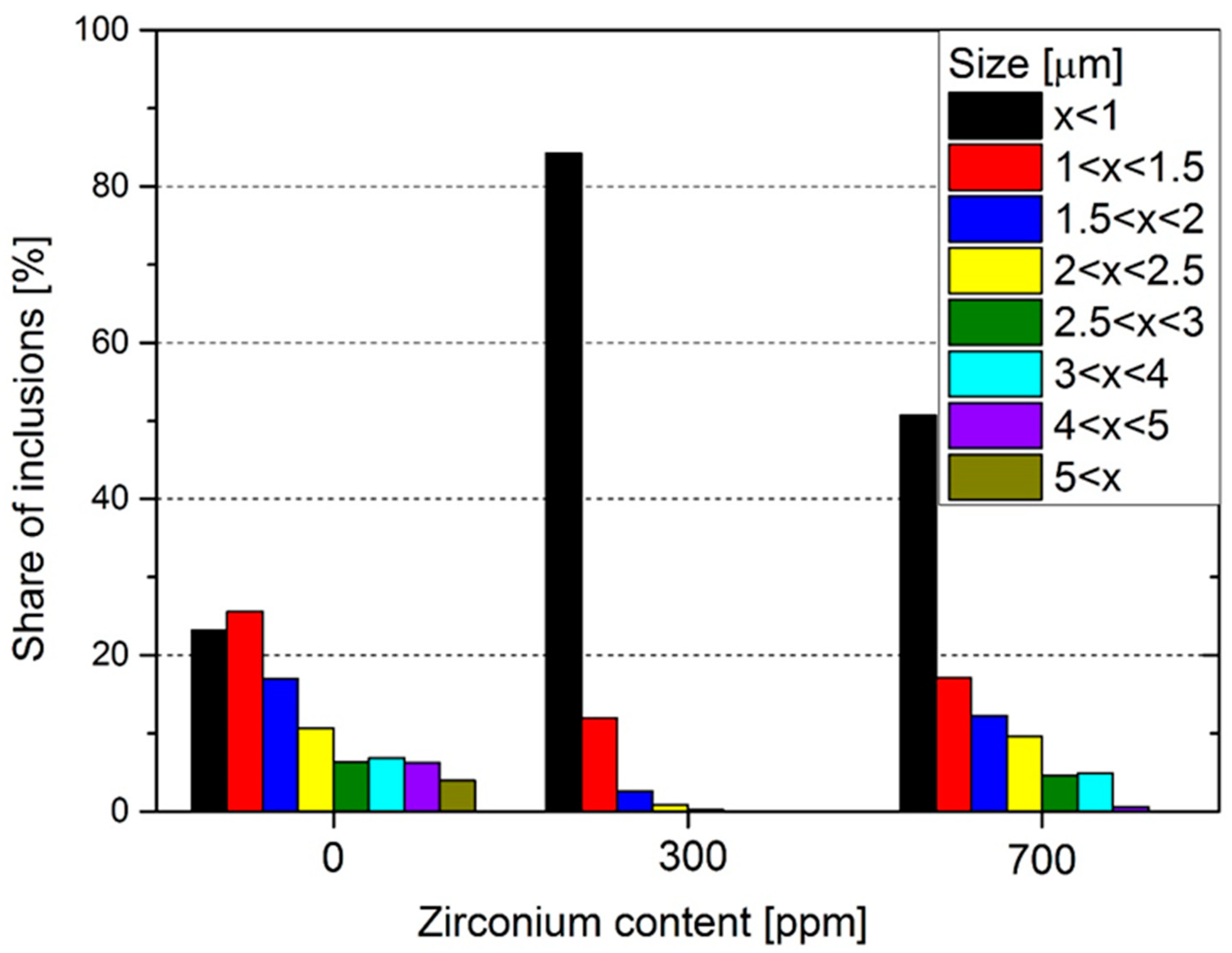

The histogram of inclusions showed that the total area reduction is the result of a significant drop in the size of the inclusions. Figure 7 clearly shows that the largest share of inclusions modified by Zr is smaller than 1 µm. In the case of 300 ppm Zr, over 80% of inclusions are smaller than 1 µm. This is in good agreement with the research of Karasov and Suito, where the majority of the Zr inclusions were less than 1 µm in diameter [27,28].

The results of the tensile test are presented in

Table 3. Mechanical properties at room temperature after heat treatment in Table 1.

	Rp02/MPa	Rm/MPa	A/%	Hardness HB
0 Zr	795 ± 7	1000 ± 8	15.4 ± 0.8	299 ± 3
300 Zr	796 ± 6	1010 ± 6	15.7 ± 0.5	302 ± 2
700 Zr	784 ± 8	985 ± 8	16.2 ± 0.9	298 ± 3

(room temperature) and

Table 4. Mechanical properties at 500 °C after heat treatment in Table 1.

	Rp02/MPa	Rm/MPa	A/%
0 Zr	585 ± 5	681 ± 7	21.3 ± 1.2
300 Zr	605 ± 5	688 ± 6	22.7 ± 1.3
700 Zr	584 ± 6	671 ± 5	23.0 ± 1.3

(500 °C). Surprisingly, there was no significant improvement in the mechanical properties after Zr additions. There was a slight improvement at 300 ppm Zr, but tensile properties decreased at 700 ppm Zr. This trend continues when the samples are tensile tested at 500 °C.

The slight increase in mechanical properties can be attributed to the decrease in grain size. The subsequent fall in tensile strength in the 700 ppm Zr sample and the minimal increase in the 300 ppm Zr sample can be attributed to the loss of the precipitation hardening effect caused by small submicron nitride precipitates such as V(C, N) and the formation of micron-sized ZrN during solidification, preventing their formation during heat treatment. The precipitation hardening effect is more effective when the precipitates are a couple of nanometers in size [29]. The multitude of Zr-based sharp edged inclusions, both oxide and nitride, probably decrease the mechanical properties due to the notch effect and subsequent void formation. Therefore, it can be concluded that the zirconium additions should be lower than 0.07% to prevent extensive nitride formation, and the weakening of the precipitation hardening effect during tempering.

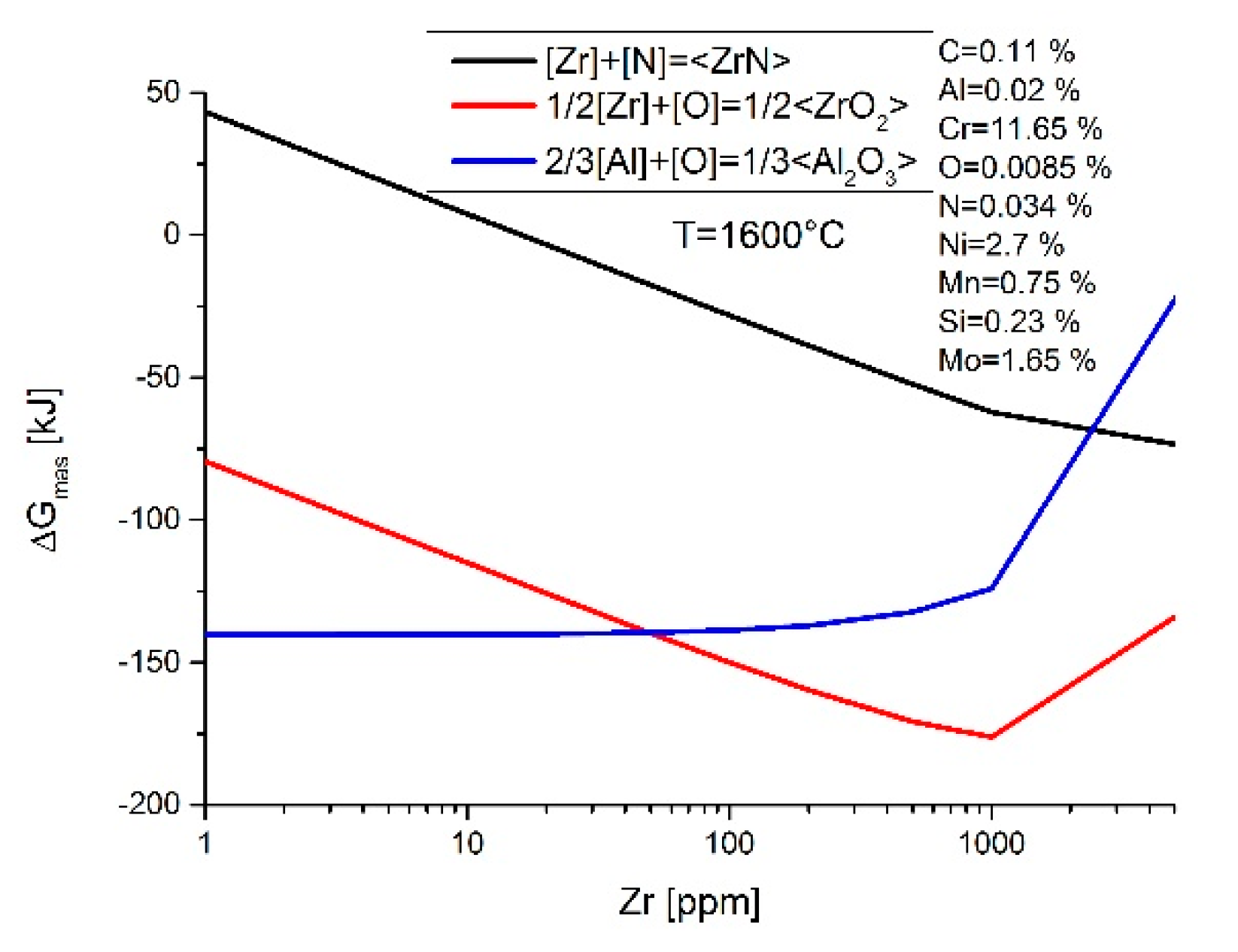

The diagram with Gibbs free energy for the formation of Al₂O₃, ZrN and ZrO₂ at 1600 °C in liquid X11CrNiMo12 steel for various zirconium contents is shown in Figure 8. The reason behind the modification effect of zirconium is the low Gibbs free energy for the formation of ZrO₂. When adding elements like Zr, the basic thermodynamic reactions must be considered, the yield strongly depends on reactions with oxygen. Zirconium has a high affinity to oxygen, and at around 50 ppm of Zr it starts to be more reactive than the 200 ppm Al in steel (Figure 8). The high affinity to oxygen is one of the reasons why so much zirconium is present in non-metallic inclusions. The exact thermodynamic values were taken from Outotec HSC 8.0 Chemistry Software at 1600 °C, and the interaction coefficients in dilute Fe(l) and the Gibbs free energy changes due to the solution in liquid iron in wt.% were taken from Sigworth et al. [30]. Furthermore, Figure 8 clearly shows that ZrN nitride non-metallic inclusions become more stable as the Zr content increases. This is why the ZrN content is low in the sample with 300 ppm Zr and high in the sample with 700 ppm Zr, and in addition, the active oxygen content is lowered due to oxide formation, which further promotes nitride formation.

4. Conclusions

The following effects of zirconium additions on X11CrNiMo12 steel are presented in the paper:

Zirconium additions refine the non-metallic inclusion size in Al-killed steels. Their size and overall inclusion area is decreased.

The zirconium non-metallic inclusions exhibit the pinning effect, and serve as grain growth, resulting in a finer microstructure.

Zirconium nitrides form at higher zirconium contents, and their formation is attributed to a weakening of the precipitation hardening effect, which is normally observed by carbo-nitride precipitation during tempering.

At higher zirconium contents (0.07%), the size of the non-metallic inclusions is increased due to zirconium nitride nucleation on the zirconium oxides, although the total inclusion area stays approximately the same.
