Integrating Flotation and Pyrometallurgy for Recovering Graphite and Valuable Metals from Battery Scrap

Department of Chemical and Metallurgical Engineering, School of Chemical Engineering, Aalto University, 02150 Espoo, Finland
*
Author to whom correspondence should be addressed.
Metals 2020, 10(5), 680; https://doi.org/10.3390/met10050680
Received: 29 April 2020 / Revised: 15 May 2020 / Accepted: 19 May 2020 / Published: 21 May 2020

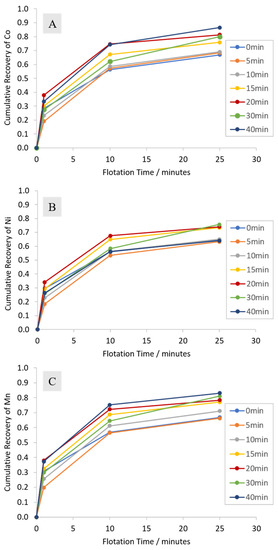

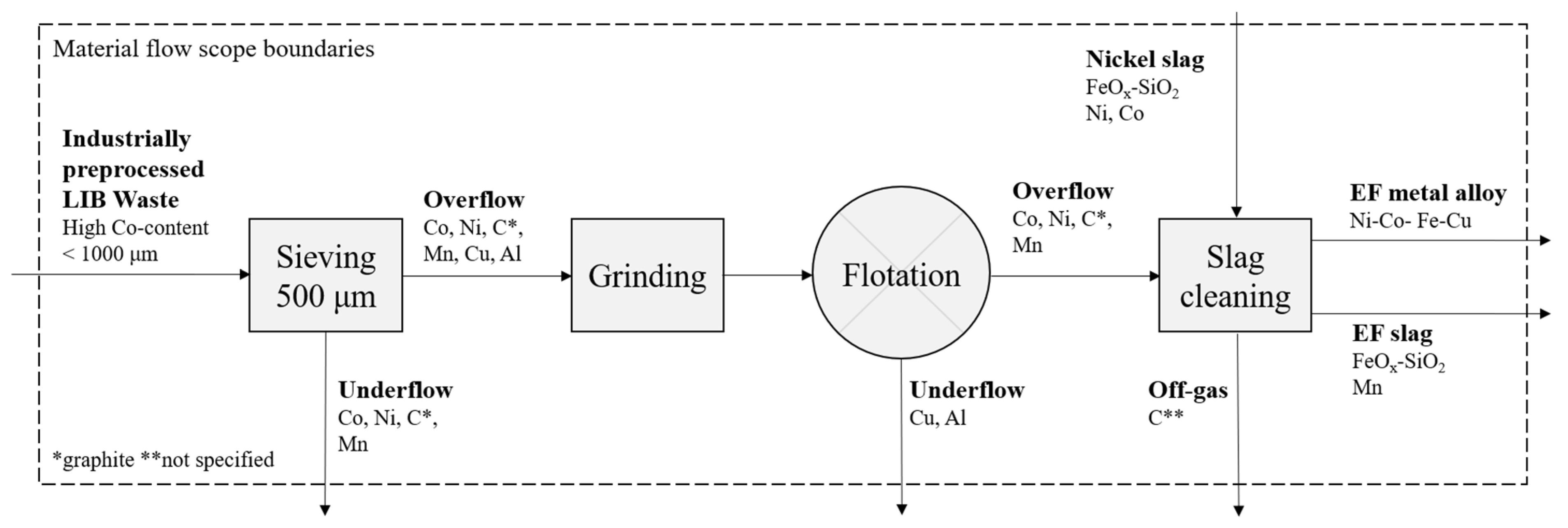

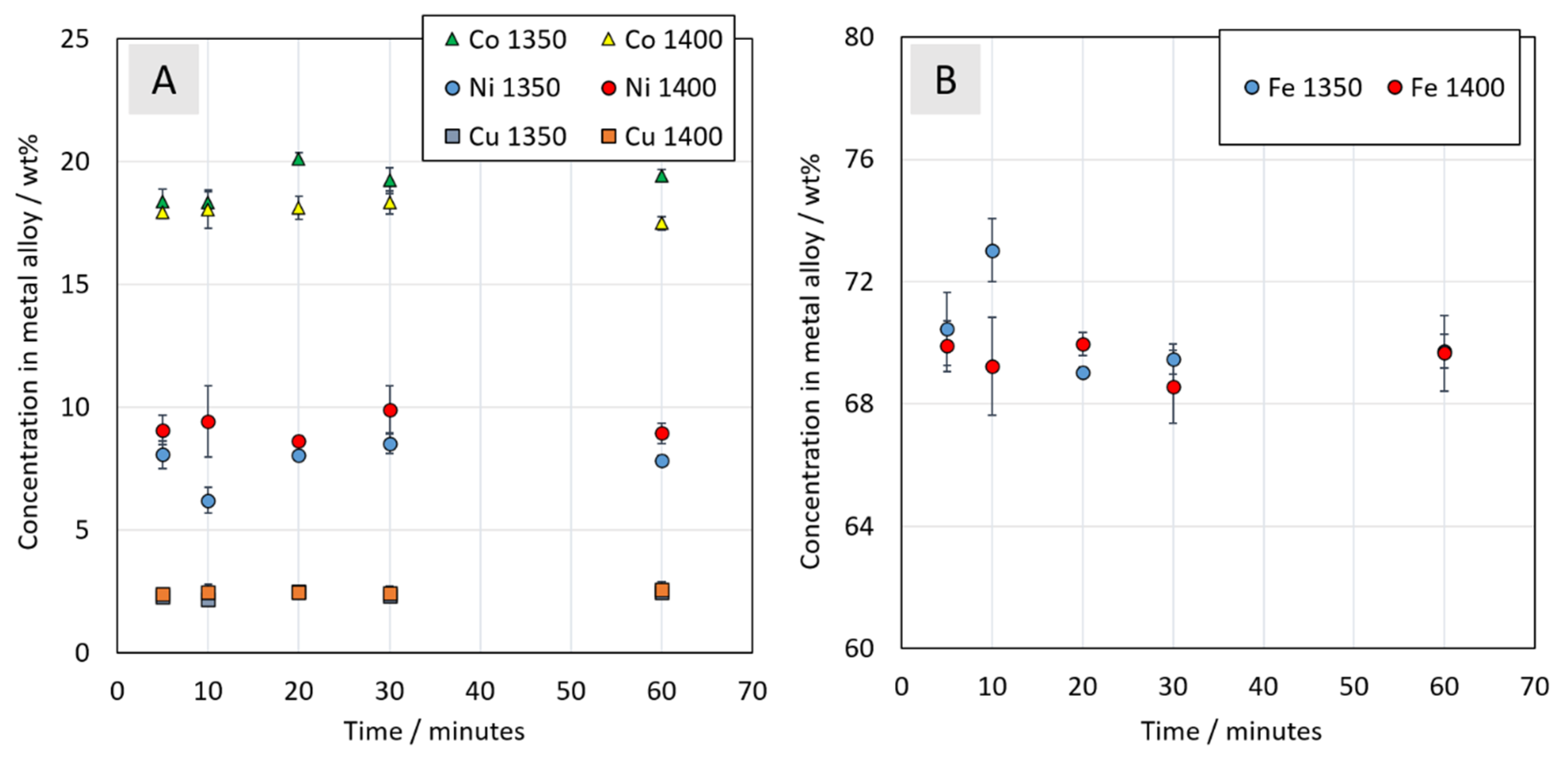

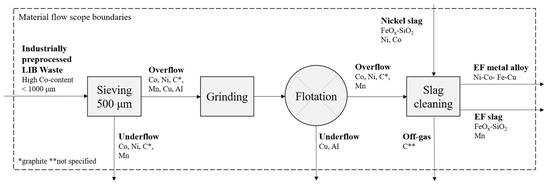

Since the current volumes of collected end-of-life lithium ion batteries (LIBs) are low, one option to increase the feasibility of their recycling is to feed them to existing metals production processes. This work presents a novel approach to integrate froth flotation as a mechanical treatment to optimize the recovery of valuable metals from LIB scrap and minimize their loss in the nickel slag cleaning process. Additionally, the conventional reducing agent in slag cleaning, namely coke, is replaced with graphite contained in the LIB waste flotation products. Using proper conditioning procedures, froth flotation was able to recover up to 81.3% Co in active materials from a Cu-Al rich feed stream. A selected froth product was used as feed for nickel slag cleaning process, and the recovery of metals from a slag (80%)–froth fraction (20%) mixture was investigated in an inert atmosphere at 1350 °C and 1400 °C at varying reduction times. The experimental conditions in combination with the graphite allowed for a very rapid reduction. After 5 min reduction time, the valuable metals Co, Ni, and Cu were found to be distributed to the iron rich metal alloy, while the remaining fraction of Mn and Al present in the froth fraction was deported in the slag. View Full-Text
Keywords: mechanical treatment; slag cleaning; cobalt; nickel; manganese; lithium-ion battery; recycling; circular economy mechanical treatment; slag cleaning; cobalt; nickel; manganese; lithium-ion battery; recycling; circular economy
