Next Article in Journal
Effects of Testing Temperature on the Serration Behavior of an Al–Zn–Mg–Cu Alloy with Natural and Artificial Aging in Sharp Indentation
Next Article in Special Issue
Process Performance Analysis and Improvement for the Manufacture of 6063 Aluminum Alloy
Previous Article in Journal
Bi-Material Micro-Part of Stainless Steel and Zirconia by Two-Component Micro-Powder Injection Molding: Rheological Properties and Solvent Debinding Behavior
Previous Article in Special Issue
The Effect of Elastic Strain and Small Plastic Deformation on Tensile Strength of a Lean Al–Mg–Si Alloy
Open AccessArticle

Microstructure and Wear Resistance of Mg2Si–Al Composites Fabricated Using Semi-Solid Extrusion

1
College of Mechanical Engineering, Beihua University, Jilin 132021, China
2
Engineering Training Center, Beihua University, Jilin 132021, China
3
College of Materials Science and Engineering, Jilin University, Changchun 130022, China
*
Authors to whom correspondence should be addressed.
Metals 2020, 10(5), 596; https://doi.org/10.3390/met10050596
Received: 16 April 2020 / Revised: 28 April 2020 / Accepted: 29 April 2020 / Published: 2 May 2020
(This article belongs to the Special Issue Aluminum Alloys and Aluminum Matrix Composites)

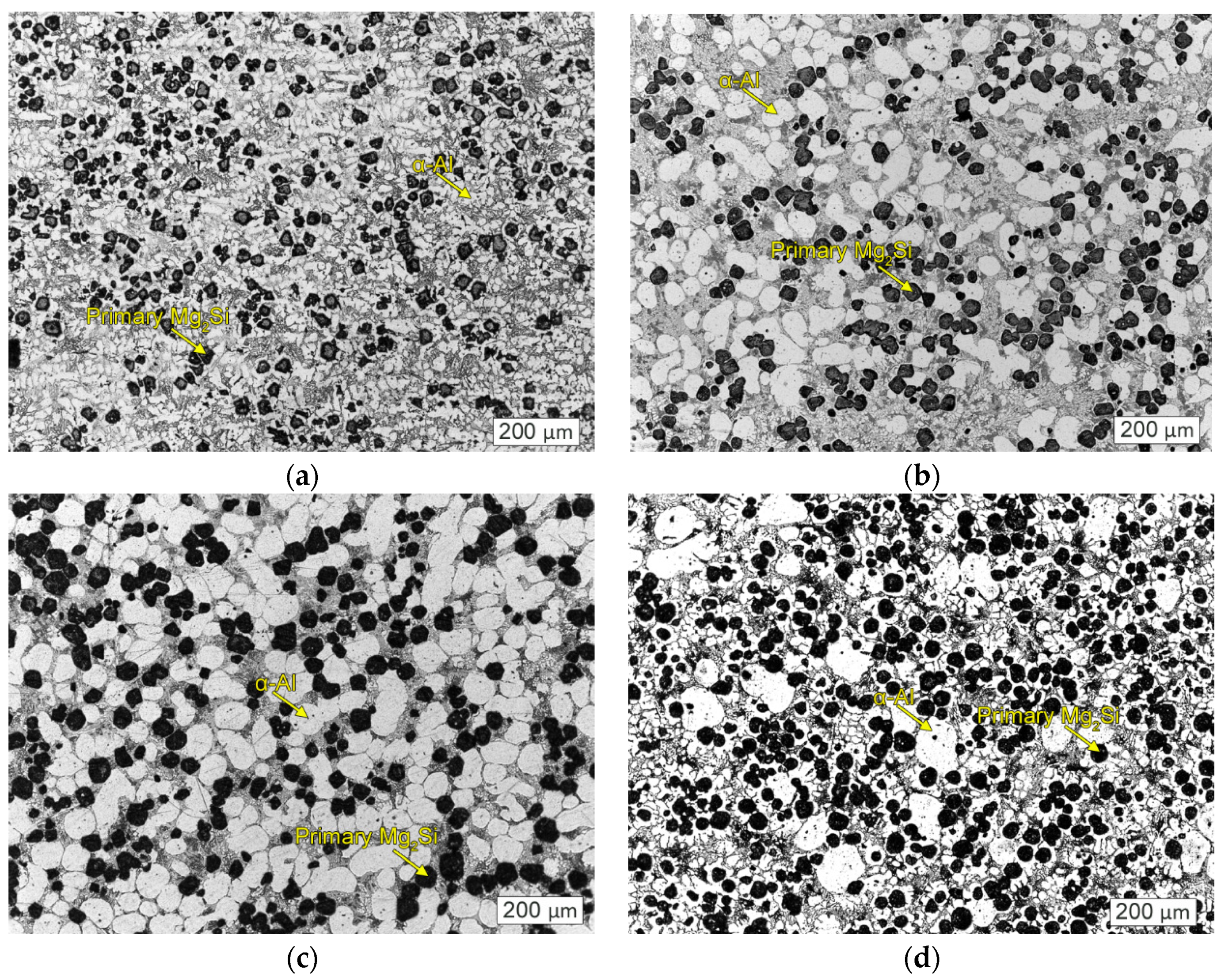

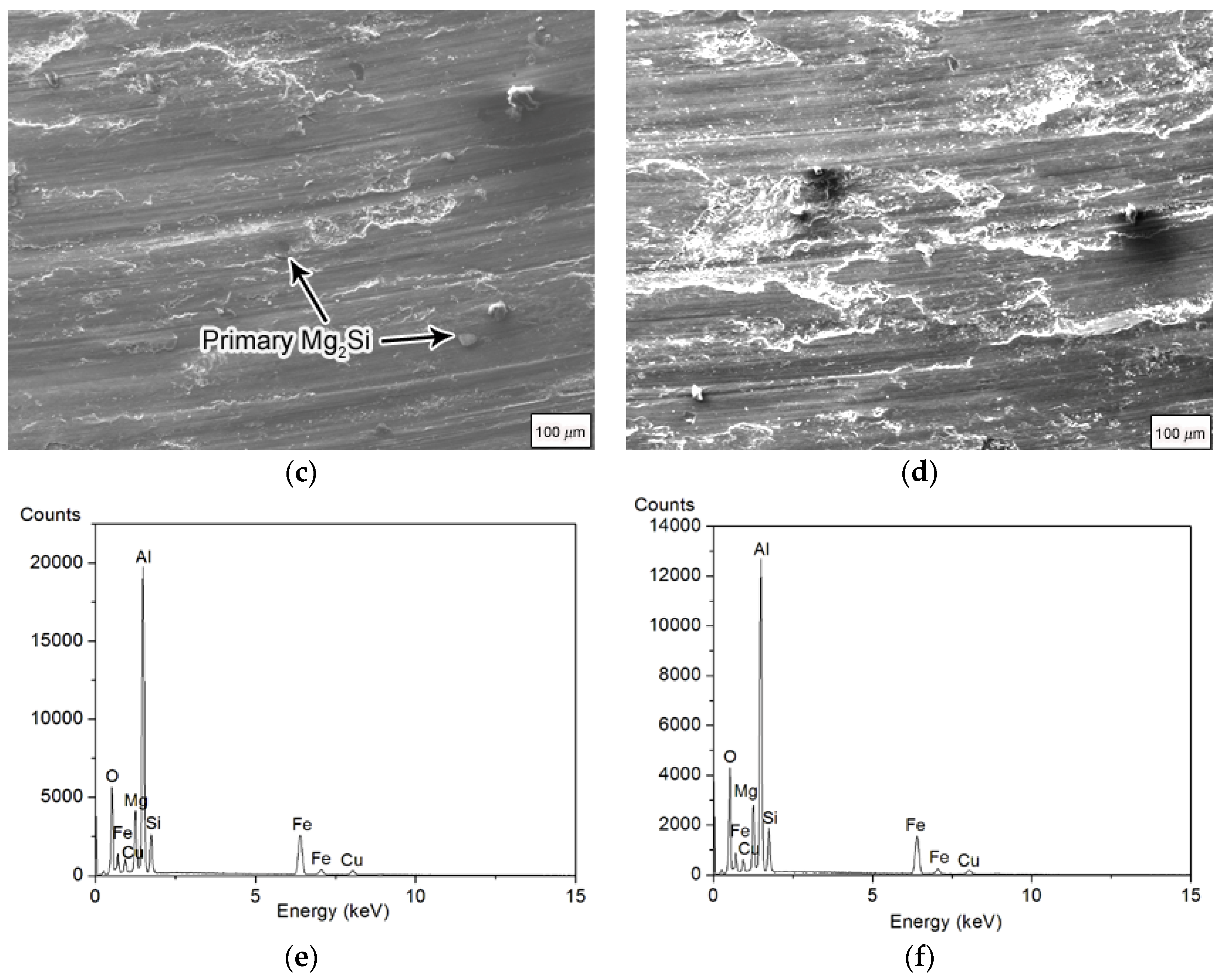

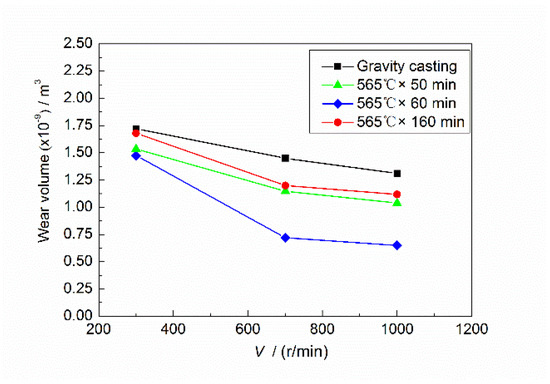

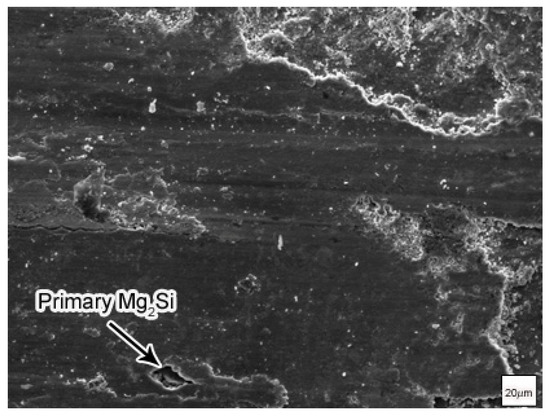

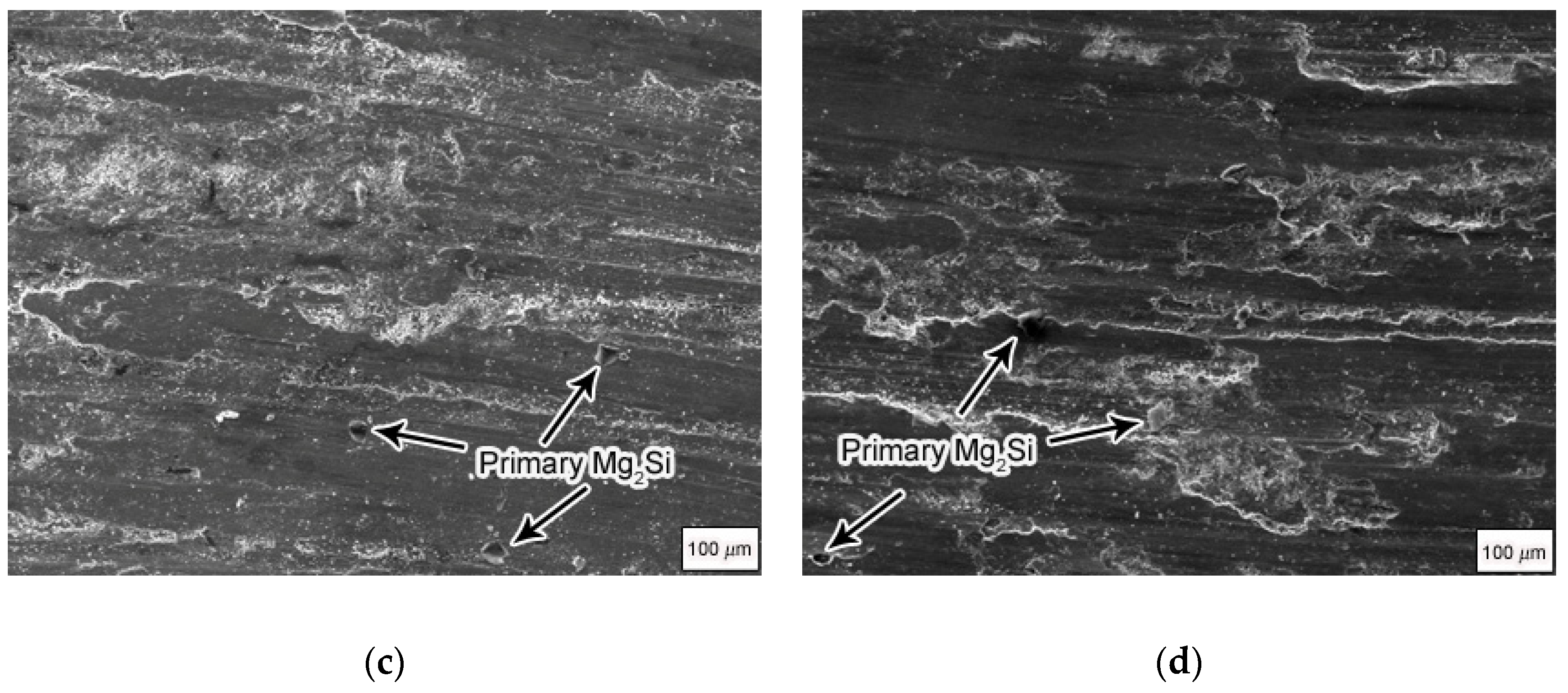

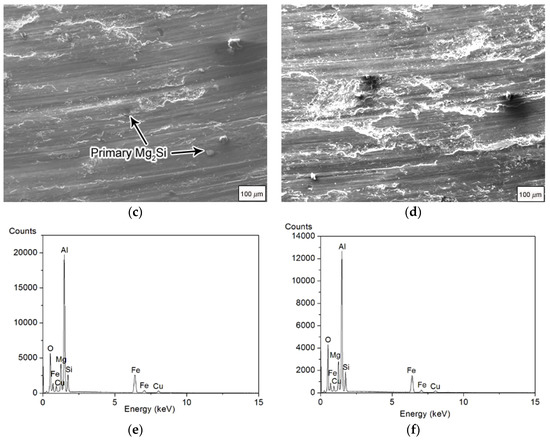

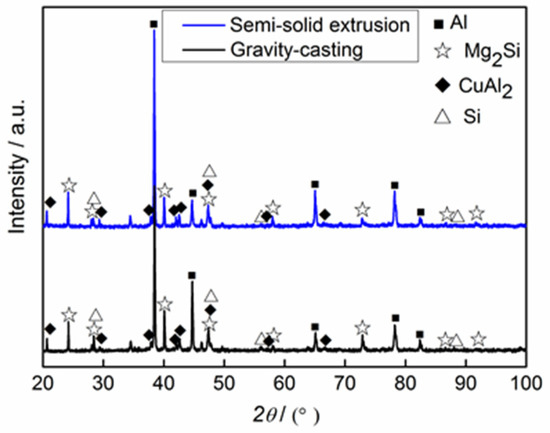

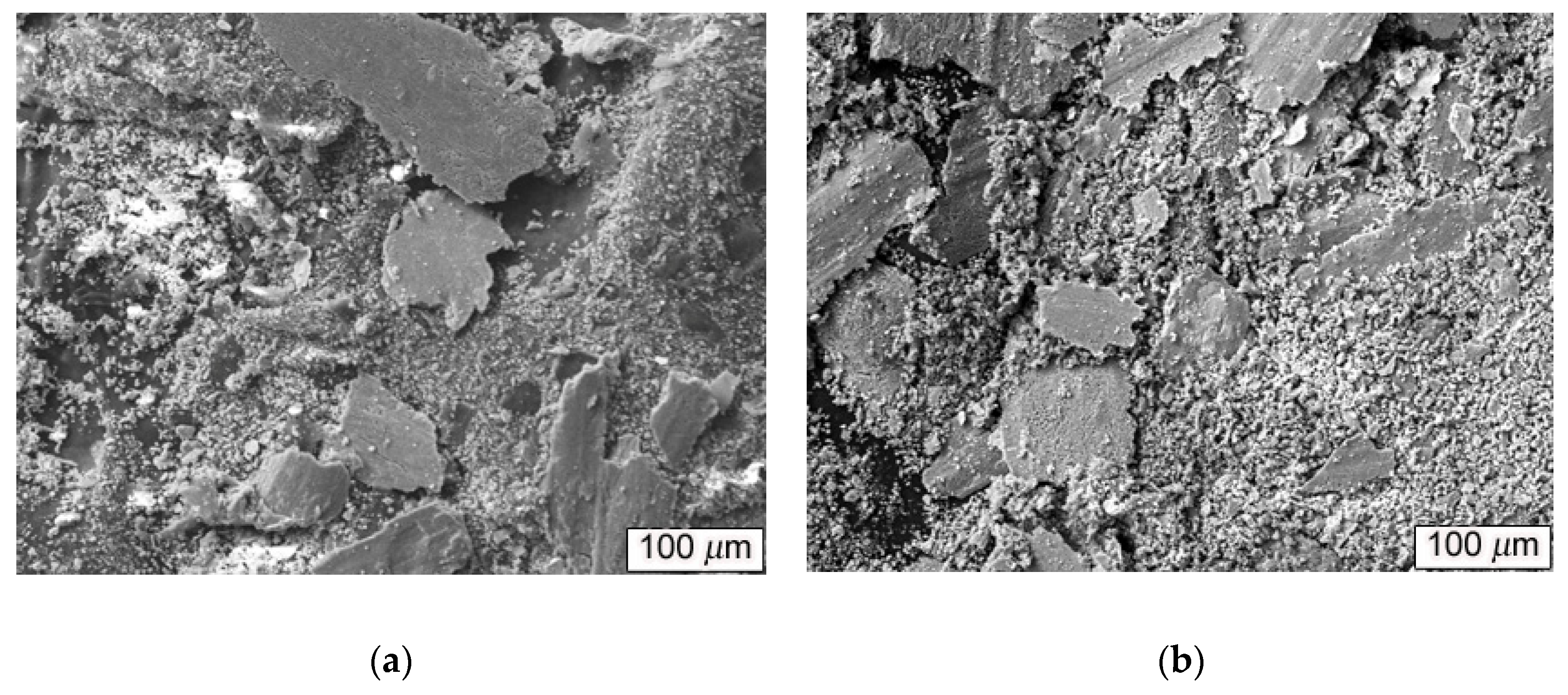

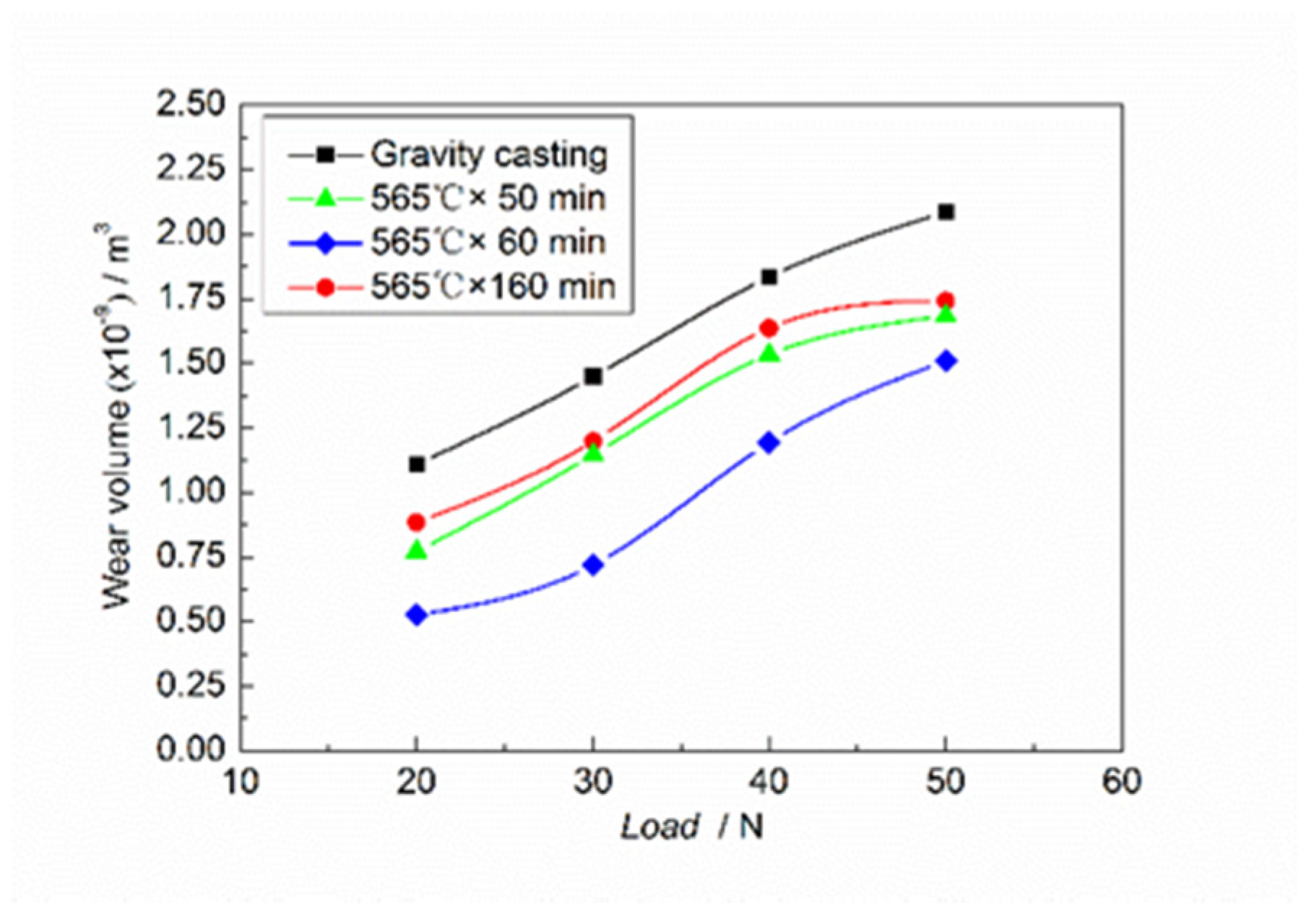

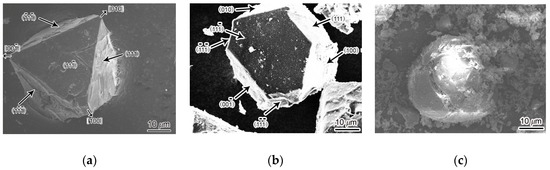

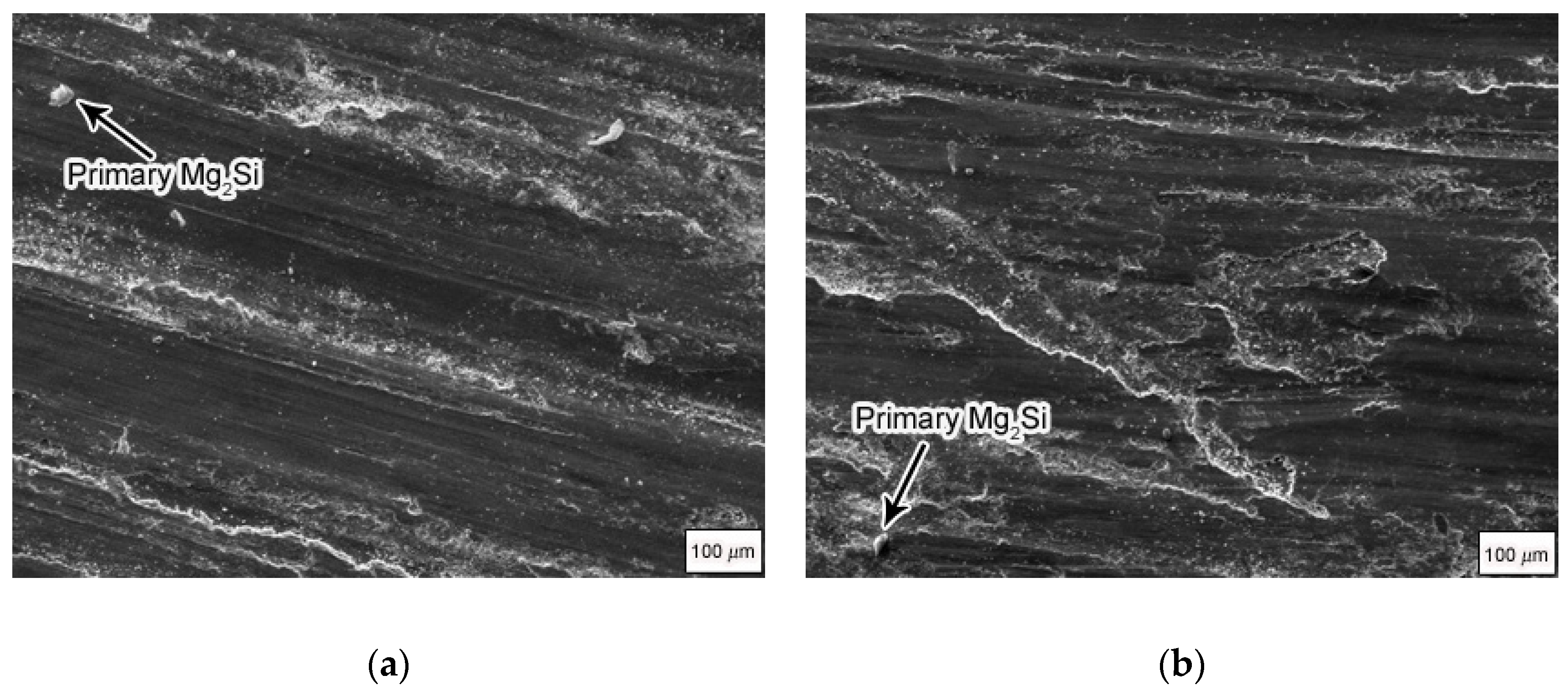

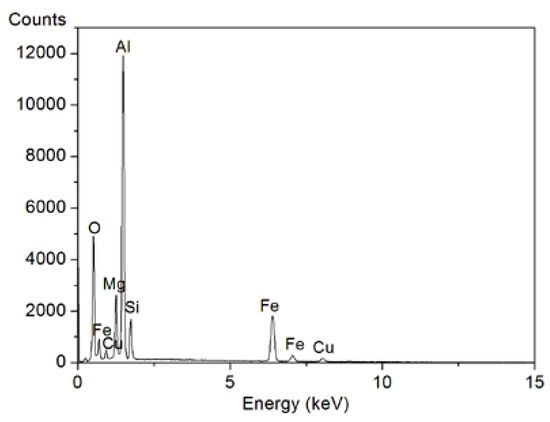

In situ Mg2Si–Al composites were prepared by using gravity casting and semi-solid extrusion. After P modification, the primary Mg2Si transformed to polygonal blocks. Extraction tests showed that the Mg2Si crystals had octahedral and tetrakaidekahedral morphologies. The semi-solid microstructure of the double-spheroidized α-Al matrix and reinforced-phase Mg2Si was successfully obtained by using semi-solid extrusion. Extraction tests showed that the Mg2Si crystals had a spherical morphology. Dry sliding wear behaviors of in situ Mg2Si–Al composites fabricated by using gravity casting and semi-solid extrusion with isothermal heat treatment holding times of 50, 60, and 160 min against 45 steel, under conditions of different sliding speeds and loads, were investigated. The worn surfaces were analyzed using SEM and EDS techniques. The results showed that Mg2Si–Al composites fabricated by using semi-solid extrusion were superior in terms of wear resistance to Mg2Si–Al composites fabricated by using gravity casting, because the former had uniformly distributed spherical reinforced phase particles of Mg2Si with weaker stress concentration around the particles, delaying the generation and expansion of cracks. The Mg2Si particles were not easily detached from the matrix, and once they fell off, the Mg2Si particles only served as spherical abrasive grains, with relatively small cutting and wear properties for the composite material. It was found that the Mg2Si/Al composite fabricated by using semi-solid extrusion with an isothermal heat treatment holding time of 60 min had the best wear resistance. The failure mechanisms of Mg2Si/Al composites were found to be mainly adhesive wear and abrasive wear. View Full-Text
Keywords: in situ Mg2Si–Al composite; semi-solid extrusion; microstructure; wear resistance in situ Mg2Si–Al composite; semi-solid extrusion; microstructure; wear resistance
Show Figures

Figure 1

MDPI and ACS Style

Liu, X.; Yang, M.; Zhou, D.; Zhao, Y. Microstructure and Wear Resistance of Mg2Si–Al Composites Fabricated Using Semi-Solid Extrusion. Metals 2020, 10, 596.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
