Effect of Cooling Path on Microstructures and Hardness of Hot-Stamped Steel
Abstract
:1. Introduction
2. Materials and Experimental Procedure
3. Results and Discussion
3.1. Continuous Cooling Transformation Behavior

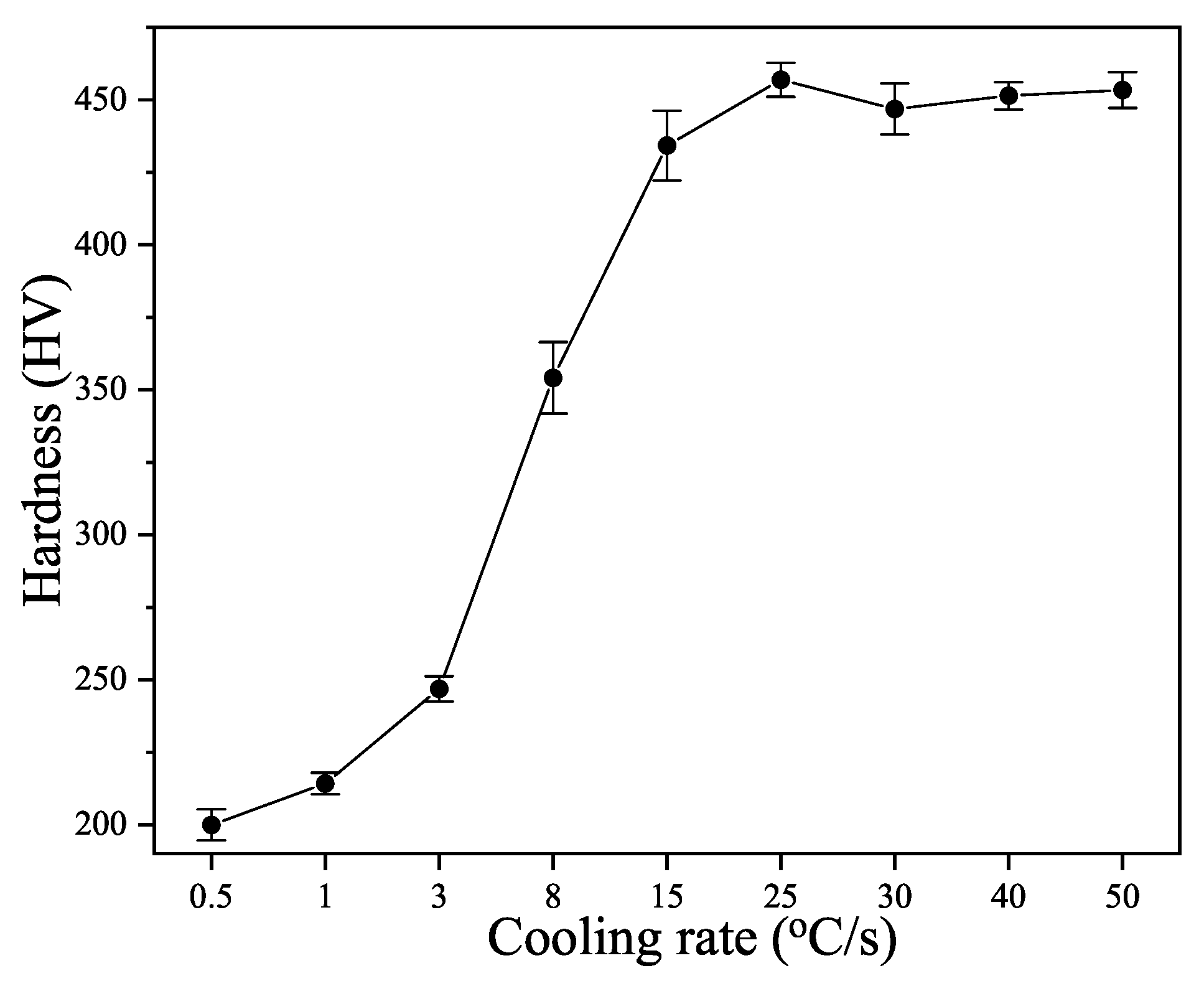

3.1.1. Microstructure and Hardness
3.1.2. Start and Finish of Phase Transformation
3.2. Discontinuous Cooling Process
3.2.1. Microstructures
3.2.2. Hardness
4. Conclusions
- In the continuous cooling process, there is a critical cooling rate of 25 for the formation of a fully martensitic microstructure in hot-stamped 22MnB5 steel.
- The secondary cooling rate greatly affects the auto-tempering of martensite transformed. The amount of carbides decreases with the secondary cooling rate. The hardness increases with secondary cooling rate when the cooling rate is lower than 25 , above which the hardness is not sensitive to the cooling rate.
- The primary cooling rate determines whether a martensite structure is formed. A higher primary cooling rate will inhibit the martensite auto-tempering and reduce and refine carbides. The discrepancy in hardness between the primary cooling rate diminishes when the secondary cooling rate is above 25 .
Author Contributions
Funding
Conflicts of Interest
References
- Venturato, G.; Novella, M.; Bruschi, S.; Ghiotti, A.; Shivpuri, R. Effects of Phase Transformation in Hot Stamping of 22MnB5 High Strength Steel. Procedia Eng. 2017, 183, 316–321. [Google Scholar] [CrossRef]
- Kesvarakul, R.; Chianrabutra, C.; Sirigool, W. Applying 2k Factorial Design to Study on Parameters Affecting Springback of Forming of Advanced High Strength Steel Sheets (AHSS). In Applied Mechanics and Materials; Trans Tech Publications: Stafa-Zurich, Switzerland, 2017; Volume 872, pp. 83–88. [Google Scholar]
- Fan, D.W.; Kim, H.S.; De Cooman, B.C. A Review of the Physical Metallurgy related to the Hot Press Forming of Advanced High Strength Steel. Steel Res. Int. 2009, 80, 241–248. [Google Scholar]
- Karbasian, H.; Tekkaya, A.E. A review on hot stamping. J. Mater. Process. Technol. 2010, 210, 2103–2118. [Google Scholar] [CrossRef]
- Merklein, M.; Lechler, J. Investigation of the thermo-mechanical properties of hot stamping steels. J. Mater. Process. Technol. 2006, 177, 452–455. [Google Scholar] [CrossRef]
- Merklein, M.; Wieland, M.; Lechner, M.; Bruschi, S.; Ghiotti, A. Hot stamping of boron steel sheets with tailored properties: A review. J. Mater. Process. Technol. 2016, 228, 11–24. [Google Scholar] [CrossRef]
- Suh, C.H.; Jang, W.S.; Oh, S.K.; Lee, R.G.; Jung, Y.C.; Kim, Y.S. Effect of cooling rate during hot stamping on low cyclic fatigue of boron steel sheet. Met. Mater. Int. 2012, 18, 559–566. [Google Scholar] [CrossRef]
- Li, X.; Yan, X.; Zhang, Z. Springback Prediction of a Hot Stamping Component Based on the Area Fractions of Phases. Metals 2019, 9, 694. [Google Scholar] [CrossRef] [Green Version]
- Li, F.; Fu, M.; Lin, J. Effect of cooling path on the phase transformation of boron steel 22MnB5 in hot stamping process. Int. J. Adv. Manuf. Technol. 2015, 81, 1391–1402. [Google Scholar] [CrossRef]
- Merklein, M.; Lechler, J.; Geiger, M. Characterisation of the Flow Properties of the Quenchenable Ultra High Strength Steel 22MnB5. CIRP Ann. Manuf. Technol. 2006, 55, 229–232. [Google Scholar] [CrossRef]
- Zhang, P.; Zhu, L.; Xi, C.; Luo, J. Study on Phase Transformation in Hot Stamping Process of USIBOR® 1500 High-Strength Steel. Metals 2019, 9, 1119. [Google Scholar] [CrossRef] [Green Version]
- Chang, Z.Y.; Li, Y.J.; Wu, D. Enhanced ductility and toughness in 2000 MPa grade press hardening steels by auto-tempering. Mater. Sci. Eng. A 2020, 784, 139342. [Google Scholar] [CrossRef]
- Nishibata, T.; Kojima, N. Effect of quenching rate on hardness and microstructure of hot-stamped steel. J. Alloys Compd. 2013, 577, S549–S554. [Google Scholar] [CrossRef]
- Tabata, S.i.; Hikida, K.; Kojima, N.; Mizui, N. Effect of Microstructures on Yield Strength in Hot-Stamped Steel Sheet. In MATEC Web of Conferences; EDP Sciences: Evry, France, 2015; Volume 33. [Google Scholar]
- Morito, S.; Nishikawa, J.; Maki, T. Dislocation Density within Lath Martensite in Fe-C and Fe-Ni Alloys. ISIJ Int. 2003, 43, 1475–1477. [Google Scholar] [CrossRef] [Green Version]
- Bhadeshia, H.; Honeycombe, R. Steels: Microstructure and Properties; Butterworth-Heinemann: Oxford, UK, 2017. [Google Scholar]
- Bhadeshia, H.; Chintha, A.; Lenka, S. Critical Assessment 34: Are χ (Hägg), η and ϵ carbides transition-phases relative to cementite in steels? Mater. Sci. Technol. 2019, 35, 1301–1305. [Google Scholar] [CrossRef] [Green Version]
- Bhadeshia, H.K.D.H. Cementite. Int. Mater. Rev. 2020, 65, 1–27. [Google Scholar] [CrossRef] [Green Version]
- Waterschoot, T.; Verbeken, K. Tempering kinetics of the martensitic phase in DP steel. ISIJ Int. 2006, 46, 138–146. [Google Scholar] [CrossRef] [Green Version]
- Cheng, L.; Brakman, C.M.; Korevaar, B.M.; Mittemeijer, E.J. The tempering of iron- carbon martensite; dilatometric and calorimetric analysis. Metall. Trans. A 1988, 19, 2415–2426. [Google Scholar] [CrossRef]
- Ohmori, Y.; Sugisawa, S. The Precipitation of Carbides during Tempering of High Carbon Martensite. Trans. Jpn. Inst. Met. 1971, 12, 170–178. [Google Scholar] [CrossRef] [Green Version]
- Galindo-Nava, E.I.; Rivera-Díaz-del Castillo, P.E.J. A model for the microstructure behaviour and strength evolution in lath martensite. Acta Mater. 2015, 98, 81–93. [Google Scholar] [CrossRef] [Green Version]
- Shi, Z.M.; Gong, W.; Tomota, Y.; Harjo, S.; Li, J.; Chi, B.; Pu, J. Study of tempering behavior of lath martensite using in situ neutron diffraction. Mater. Charact. 2015, 107, 29–32. [Google Scholar] [CrossRef]
- Krauss, G. Tempering of Lath Martensite in Low and Medium Carbon Steels: Assessment and Challenges. Steel Res. Int. 2017, 88, 1700038. [Google Scholar] [CrossRef]
- López de Lacalle, L.N.; Fernández Valdivielso, A.; Amigo, F.J.; Sastoque, L. Milling with ceramic inserts of austempered ductile iron (ADI): Process conditions and performance. Int. J. Adv. Manuf. Technol. 2020, 110, 899–907. [Google Scholar] [CrossRef] [PubMed]
- Fernández-Valdivielso, A.; López de Lacalle, L.; Fernández-Lucio, P.; González, H. Turning of Austempered Ductile Iron with ceramic tools. Proc. Inst. Mech. Eng. Part B J. Eng. Manuf. 2020, 0954405420957154. [Google Scholar] [CrossRef]
- Fernández-Valdivielso, A.; López de Lacalle, L.; Urbikain, G.; Rodriguez, A. Detecting the key geometrical features and grades of carbide inserts for the turning of nickel-based alloys concerning surface integrity. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2016, 230, 3725–3742. [Google Scholar] [CrossRef]
- Abbasi, M.; Naderi, M.; Saeed-Akbari, A. Isothermal versus non-isothermal hot compression process: A comparative study on phase transformations and structure-property relationships. Mater. Des. 2013, 45, 1–5. [Google Scholar] [CrossRef]
- di Schino, A.; Alleva, L.; Guagnelli, M. Microstructure Evolution during Quenching and Tempering of Martensite in a Medium C Steel. Mater. Sci. Forum 2012, 715–716, 860–865. [Google Scholar] [CrossRef]
- Kop, T.A.; Sietsma, J.; Van Der Zwaag, S. Dilatometric analysis of phase transformations in hypo-eutectoid steels. J. Mater. Sci. 2001, 36, 519–526. [Google Scholar] [CrossRef]
- Ju, Y.; Goodall, A.; Strangwood, M.; Davis, C. Characterisation of precipitation and carbide coarsening in low carbon low alloy Q&T steels during the early stages of tempering. Mater. Sci. Eng. A 2018, 738, 174–189. [Google Scholar]
- Caron, R.; Krauss, G. The tempering of Fe-C lath martensite. Metall. Mater. Trans. B 1972, 3, 2381–2389. [Google Scholar] [CrossRef]
- Saha, D.C.; Biro, E.; Gerlich, A.P.; Zhou, Y. Evolution of Transient Nature Nanoscale Softening during Martensite Tempering. Metall. Mater. Trans. A 2020, 51, 3772–3777. [Google Scholar] [CrossRef]
- Galindo-Nava, E.I.; Rivera-Díaz-del Castillo, P.E.J. Understanding the factors controlling the hardness in martensitic steels. Scr. Mater. 2016, 110, 96–100. [Google Scholar] [CrossRef]
- Morito, S.; Huang, X.; Furuhara, T.; Maki, T.; Hansen, N. The morphology and crystallography of lath martensite in alloy steels. Acta Mater. 2006, 54, 5323–5331. [Google Scholar] [CrossRef]
- Zhang, S.; Morito, S.; Komizo, Y.i. Variant selection of low carbon high alloy steel in an austenite grain during martensite transformation. ISIJ Int. 2012, 52, 510–515. [Google Scholar] [CrossRef] [Green Version]
- Suikkanen, P.P.; Cayron, C.; DeArdo, A.J.; Karjalainen, L.P. Crystallographic Analysis of Martensite in 0.2C-2.0Mn-1.5Si-0.6Cr Steel using EBSD. J. Mater. Sci. Technol. 2011, 27, 920–930. [Google Scholar] [CrossRef]
- Hutchinson, B.; Hagström, J.; Karlsson, O.; Lindell, D.; Tornberg, M.; Lindberg, F.; Thuvander, M. Microstructures and hardness of as-quenched martensites (0.1–0.5% C). Acta Mater. 2011, 59, 5845–5858. [Google Scholar] [CrossRef]
- Sherman, D.H.; Cross, S.M.; Kim, S.; Grandjean, F.; Long, G.J.; Miller, M.K. Characterization of the Carbon and Retained Austenite Distributions in Martensitic Medium Carbon, High Silicon Steel. Metall. Mater. Trans. A 2007, 38, 1698–1711. [Google Scholar] [CrossRef]
- Morsdorf, L.; Jeannin, O.; Barbier, D.; Mitsuhara, M.; Raabe, D.; Tasan, C.C. Multiple mechanisms of lath martensite plasticity. Acta Mater. 2016, 121, 202–214. [Google Scholar] [CrossRef]
- Morsdorf, L.; Tasan, C.C.; Ponge, D.; Raabe, D. 3D structural and atomic-scale analysis of lath martensite: Effect of the transformation sequence. Acta Mater. 2015, 95, 366–377. [Google Scholar] [CrossRef]
- Ramesh Babu, S.; Nyyssönen, T.; Jaskari, M.; Järvenpää, A.; Davis, T.P.; Pallaspuro, S.; Kömi, J.; Porter, D. Observations on the Relationship between Crystal Orientation and the Level of Auto-Tempering in an As-Quenched Martensitic Steel. Metals 2019, 9, 1255. [Google Scholar] [CrossRef] [Green Version]
- Tkalcec, I.; Azcoïtia, C.; Crevoiserat, S.; Mari, D. Tempering effects on a martensitic high carbon steel. Mater. Sci. Eng. A 2004, 387–389, 352–356. [Google Scholar] [CrossRef]
- Deng, X.T.; Fu, T.L.; Wang, Z.D.; Misra, R.D.K.; Wang, G.D. Epsilon carbide precipitation and wear behaviour of low alloy wear resistant steels. Mater. Sci. Technol. 2016, 32, 320–327. [Google Scholar] [CrossRef]
- Nagakura, S.; Hirotsu, Y.; Kusunoki, M.; Suzuki, T.; Nakamura, Y. Crystallographic study of the tempering of martensitic carbon steel by electron microscopy and diffraction. Metall. Trans. A 1983, 14, 1025–1031. [Google Scholar] [CrossRef]
- Speich, G.R.; Leslie, W.C. Tempering of steel. Metall. Trans. 1972, 3, 1043–1054. [Google Scholar] [CrossRef]
C | Si | Mn | P | S | Als | Ti | Nb | N | B | Cr | Fe |
---|---|---|---|---|---|---|---|---|---|---|---|
0.22 | 0.25 | 1.26 | 0.01 | 0.0018 | 0.031 | 0.029 | 0.028 | 0.0053 | 0.0026 | 0.2884 | Bal. |
Cooling Rate () | Ferrite and Pearlite () | Bainite () | Martensite () | |||
---|---|---|---|---|---|---|
Start | Finish | Start | Finish | Start | Finish | |
0.5 | 726 | 545 | - | - | - | - |
1 | 679 | - | - | 454 | - | - |
3 | 587 | - | - | 387 | - | - |
8 | 554 | - | - | 271 | - | - |
15 | - | - | 503 | - | 226 | |
25 | - | - | - | - | 392 | 208 |
30 | - | - | - | - | 399 | 203 |
40 | - | - | - | - | 394 | 213 |
50 | - | - | - | - | 402 | 215 |
