Nanoporous High-Entropy Alloy by Liquid Metal Dealloying

Abstract

High-entropy nanomaterials possessing high accessible surface areas have demonstrated outstanding catalytic performance, beating that found for noble metals. In this communication, we report about the synthesis of a new, nanoporous, high-entropy alloy (HEA) possessing open porosity. The nanoporous, high-entropy Ta_19.1Mo_20.5Nb_22.9V₃₀Ni_7.5 alloy (at%) was fabricated from a precursor (TaMoNbV)₂₅Ni₇₅ alloy (at%) by liquid metal dealloying using liquid magnesium (Mg). Directly after dealloying, the bicontinuous nanocomposite consisting of a Mg-rich phase and a phase with a bulk-centered cubic (bcc) structure was formed. The Mg-rich phase was removed with a 3M aqueous solution of nitric acid to obtain the open, porous, high-entropy Ta_19.1Mo_20.5Nb_22.9V₃₀Ni_7.5 alloy (at%). The ligament size of this nanoporous HEA is about 69 ± 9 nm, indicating the high surface area in this material.

1. Introduction

High-entropy alloys (HEAs) have attracted intensive research during the past decade due to their unique properties [1,2,3,4]. Unlike the conventional alloy systems based on one principal element, or occasionally two principal elements, HEAs contain at least five major elements at concentrations ranging between 5 and 35 at%. The implicit hypothesis in the term “high-entropy” is that the high mixing entropy of these modern types of alloys can exceed the enthalpies of compound formation. Therefore, single-phase solid solutions are formed. The outstanding chemical and mechanical properties of HEAs [1,4,5,6,7,8,9,10,11] are directly related to the four “core effects”, i.e., high entropy, sluggish diffusion, severe lattice distortion, and the cocktail effect [12]. Especially, the sluggish diffusion effect is important for the exceptional high-temperature strength [13,14] and high-temperature structural stability of HEAs [13]. Recently, a number of HEA nanomaterials possessing high intrinsic catalytic activity for the decomposition of ammonia, CO oxidation, and water splitting were discovered [15,16,17]. In this case, the excellent functional, e.g., catalytic, properties can only be revealed for HEAs possessing a very large accessible surface area.

Several methods have been used for the synthesis of high-entropy nanomaterials possessing large surface areas, including chemical dealloying [17], sputtering [18], and carbothermal shock synthesis [4]. Recently, Joo et al. demonstrated the synthesis of nanoporous HEAs by liquid metal dealloying (LMD) [19]. Liquid metal dealloying, invented by Wada and Kato et al. in 2011 [20], is a metallurgical method for the synthesis of porous and nanocomposite materials [21,22,23,24]. In contrast to conventional chemical dealloying, the LMD method utilizes a metallic melt instead of a chemical etchant. Thus, during the LMD process, oxidation is prevented and reactive materials such as Mg [25] can be synthesized. To date, a wide variety of porous materials obtained by LMD have been reported, including silicon (Si) [26], steels [24,27,28,29,30], graphene (C) [31,32,33,34], chromium (Cr) [27], niobium (Nb) [35,36], titanium (Ti) [37,38], and titanium alloys (TiZr, TiHf, TiNb, TiFe, and TiMo) [23,38,39,40,41]. Moreover, LMD was successfully applied for the surface functionalization of biomedical Ti–6Al–4V and Ti–6Al–7Nb alloys [42,43], design of low modulus composites such as Fe–Mg [39,44], and synthesis of high-coercivity NdFeB-based permanent magnets [45]. Since the LMD process is typically conducted at elevated temperatures, it demonstrates significantly higher dealloying rates as compared to chemical dealloying. On the other hand, the drawback of LMD is a significant and unavoidable microstructural coarsening due to the high temperatures. The coarsening destroys the functional properties of the nanoporous materials associated with their high surface area. In our recent study, we demonstrated a material design principle enabling avoiding thermal coarsening in nanoporous materials [19]. In this communication, we report about the synthesis of a new, open, porous, high-entropy Ta_19.1Mo_20.5Nb_22.9V₃₀Ni_7.5 (at%) alloy by the liquid metal dealloying of the (TaMoNbV)₂₅Ni₇₅ precursor alloy (at%).

2. Materials and Methods

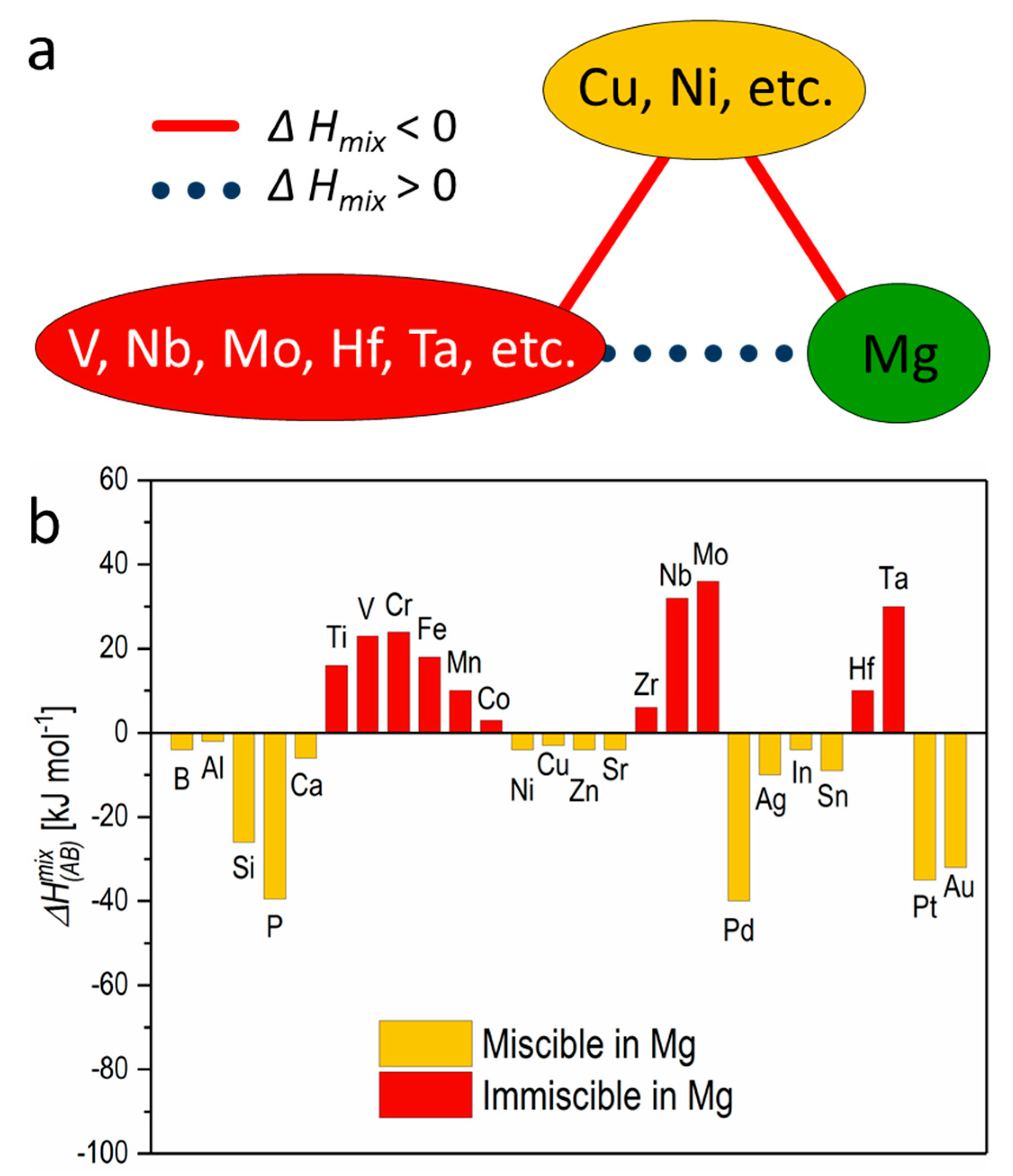

The design of a material system for liquid metal dealloying begins from the selection of elements. The elements for the liquid metal dealloying are selected based on the enthalpy of mixture ($\mathsf{\Delta }{H}_{\left(Mg-element\right)}^{mix}$) between a corrosive medium such as magnesium melt and the considered element (Figure 1a). Elements exhibiting a positive value of $\mathsf{\Delta }{H}_{\left(Mg-element\right)}^{mix}$ such as Ti, V, Cr, Fe, Mn, Co, Zr, Nb, Mo, Hf, and Ta (Figure 1b) are immiscible in Mg and, therefore, self-organize into bicontinuous structures upon dealloying. At the same time, elements with a negative value of $\mathsf{\Delta }{H}_{\left(Mg-element\right)}^{mix}$ such as B, Al, Si, P, Ca, Ni, Cu, Zn, Sr, Pd, Ag, In, Sn, Pt, and Au (Figure 1b) dissolve in Mg upon the dealloying process. Thereby, a large number of element combinations can be selected for liquid/solid metal dealloying and, particularly, for obtaining multicomponent porous scaffolds, including porous high-entropy alloys. To demonstrate the effectiveness of the above-described approach, a precursor (TaMoNbV)₂₅Ni₇₅ alloy (at%) was designed and dealloyed in magnesium at 1123 K for 20 min.

The precursor (TaMoNbV)₂₅Ni₇₅ alloy (at%) in the shape of rods (1 mm in diameter) was fabricated and prepared from pure metals (99.99%) with an arc melting device coupled with a suction casting set-up under an argon (Ar) atmosphere (Mini Arc Melter MAM-1, Edmund Bühler, Germany). To carry out dealloying, rods 2 mm long together with a magnesium mesh were heated in a glassy carbon crucible under Ar flow using an infrared furnace (IRF 10, Behr, Switzerland). Upon heating (at a heating rate of about 40 K s⁻¹), magnesium metal melts and diffuses into the precursor to selectively dissolve Ni out of the precursor alloy. The remaining elements diffuse along the metal/liquid interface [20,22] to form bicontinuous ligament structures. After dealloying, the crucible is cooled down to room temperature and the nanocomposite consisting of new phases, namely Mg-rich and high-entropy phases, is formed (Figure 2). To obtain porous HEA material, the Mg-rich phase was selectively etched out in 3 M HNO₃ for 5 h (Figure 2). Structural investigation of the precursor alloys and porous samples was performed by X-ray diffraction in Bragg–Brentano geometry (D8 Advance, Bruker, Germany) with Cu-K_α radiation. The device was equipped with a position-sensitive detector (LynxEye, Bruker, Germany), enabling us to achieve acceptable signal-to-noise ratios within a few hours of measuring time despite the smallness of the samples. Scanning electron microscopy (Nova Nanolab 200, FEI, Hillsboro, OR, USA) coupled with energy-dispersive X-ray analysis (EDAX, Weiterstadt, Germany) was used to explore the microstructure and composition.

3. Results and Discussion

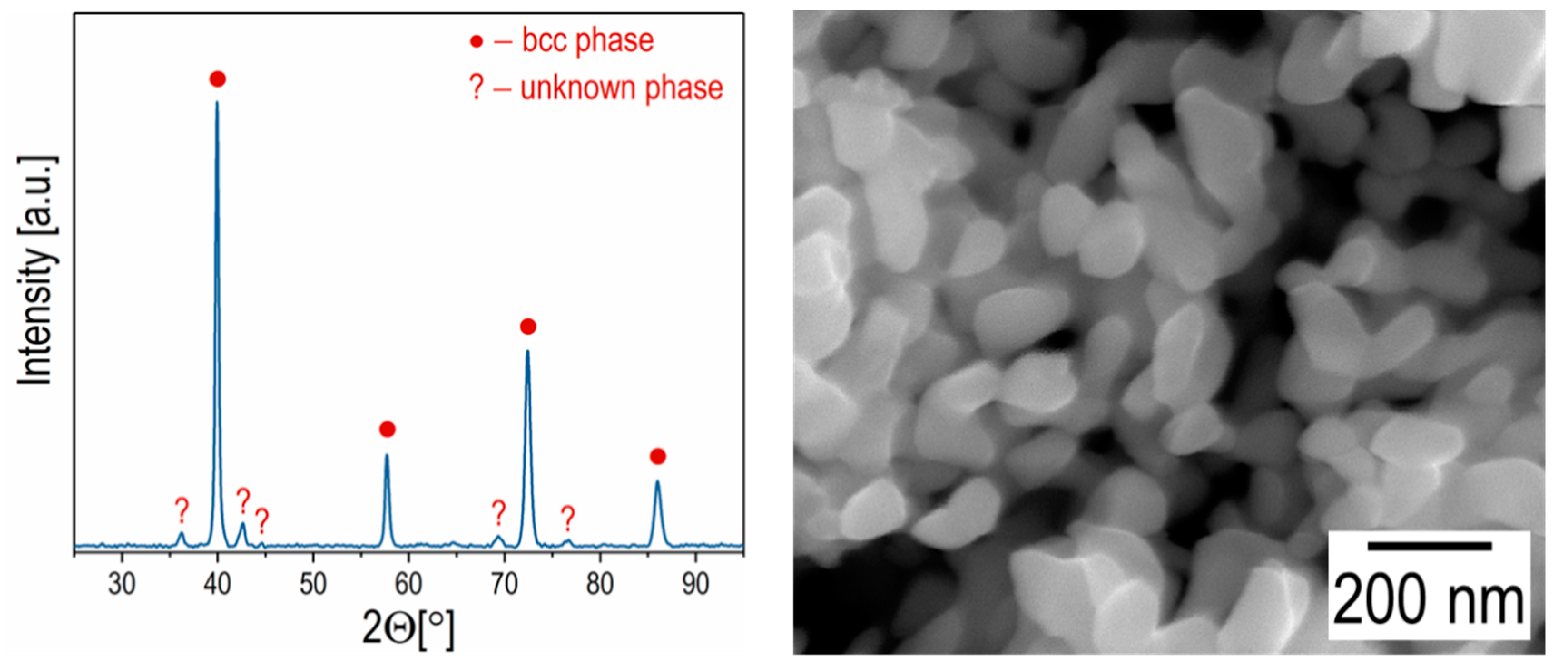

Figure 3 shows the X-ray diffraction pattern and microstructure of the final open nanoporous HEA. According to the X-ray analysis, the nanoporous HEA mainly consists of a phase with a bulk-centered cubic (bcc) structure and a minor amount of an unknown phase (Figure 3). According to the energy-dispersive X-ray analysis (EDX), the bcc phase is a solid solution of five elements with the following chemical composition: Ta_19.1Mo_20.5Nb_22.9V₃₀Ni_7.5 (at%). The single-phase structure and multicomponent chemical composition (the concentration of each element is above 5 at%) of the current porous material indicate that this is a high-entropy alloy. The SEM analysis reveals the nanoporous structure of the designed HEA (Figure 3). The average size of the ligaments is about 69 ± 9 nm, which is 1–2 orders of magnitude lower than is typically observed for the porous materials obtained by LMD [23,38]. The ligament coarsening during the liquid metal dealloying is primarily associated with surface diffusion [37]. Thus, the activation energy for the surface diffusion controls the coarsening. It seems that the sluggish diffusion effect observed in the high-entropy alloys [47] prevents coarsening in the current nanoporous HEA. However, the controversial results regarding the sluggish diffusion phenomenon require a deeper understanding of the basic mechanisms suppressing coarsening in the nanoporous HEAs.

As was proposed by Chen and Sieradzki [48], the microstructural length scale (ligament size) of porous materials fabricated by chemical dealloying at room temperature is correlated with the inverse “homologous dealloying temperature” or 1/T_H = T_{melting point}/T_298K. This universal correlation was expanded by McCue et al. [49] to the porous materials obtained by liquid metal dealloying. It was shown that the porous materials obtained by LMD follow a similar trend. The homologous dealloying temperature, in this case, was modified to T_H = T_{melting point}/T_{dealloying temperature}. Later, Joo and Okulov et al. demonstrated that porous HEAs synthesized by LMD possess a different correlation of ligament size with homologous temperature [19]. Specifically, the universal relationship for the nanoporous HEAs shifts down by one order of magnitude towards the smaller-size regime. Similar to the reported nanoporous HEAs [19], the currently designed nanoporous HEA also deviates from the universal relationship proposed by Chen and Sieradzki [48] and validates the recent high-entropy design strategy [19] for suppressing thermal coarsening in nanoporous materials obtained by dealloying (Figure 4).

In summary, we have successfully designed a new, open, nanoporous, high-entropy Ta–Mo–Nb–V–Ni alloy by liquid metal dealloying based on the design strategy proposed in our recent study [19]. The currently developed open, porous HEA predominantly consists of a body-centered cubic (bcc) solid solution phase. The ligament size of the nanoporous Ta–Mo–Nb–V–Ni alloy after 20 min of dealloying at 1123 K is 69 ± 9 nm, which indicates its high stability against thermal coarsening. The nanoporous, high-entropy materials are promising candidates for functional applications such as catalysis.
