Next Article in Journal
Evaluation of Welded Joints in P91 Steel under Different Heat-Treatment Conditions
Previous Article in Journal
Investigation of the Restored Joint for Aluminum Alloy


Article

The Effect of Microstructural Imperfections on Corrosion Fatigue of Additively Manufactured ER70S-6 Alloy Produced by Wire Arc Deposition

1
Department of Materials Engineering, Ben-Gurion University of the Negev, Beer-Sheva 8410501, Israel
2
Department of Engineering, University of Cambridge, Trumpington Street, CB2 1PZ Cambridge, UK
*
Author to whom correspondence should be addressed.
Metals 2020, 10(1), 98; https://doi.org/10.3390/met10010098
Received: 6 December 2019 / Revised: 29 December 2019 / Accepted: 30 December 2019 / Published: 8 January 2020

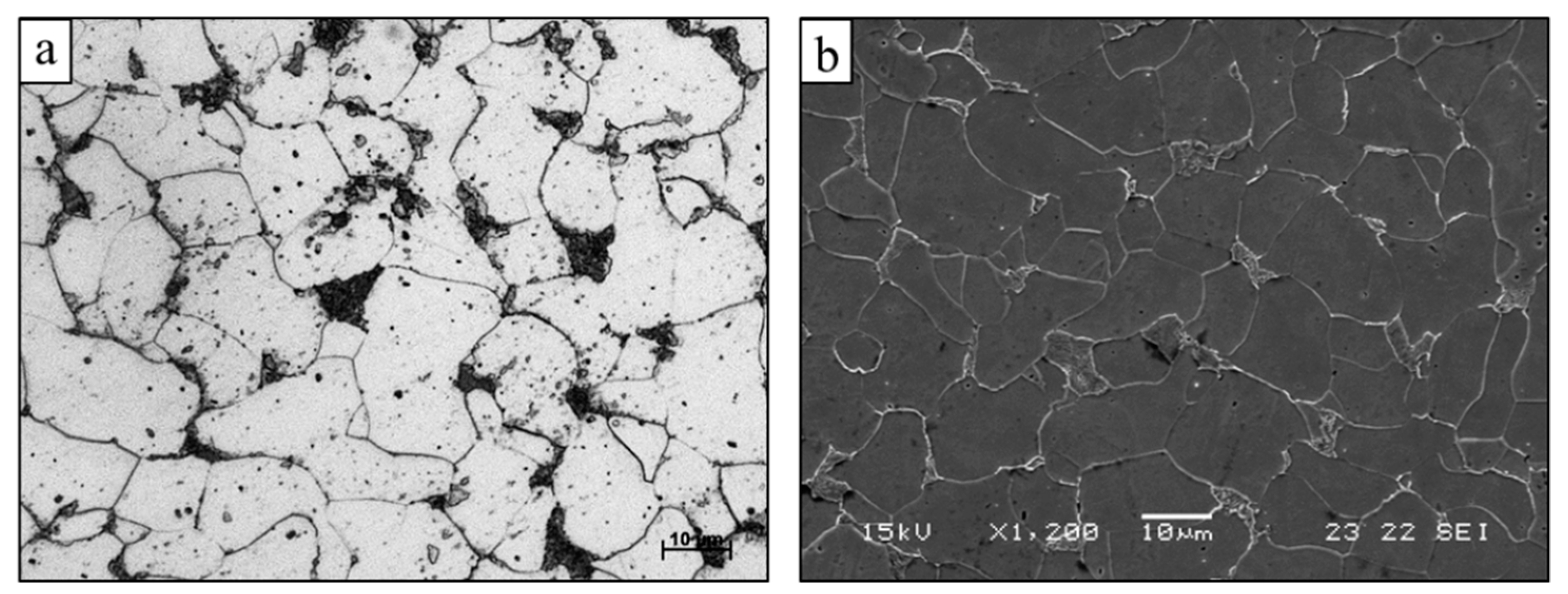

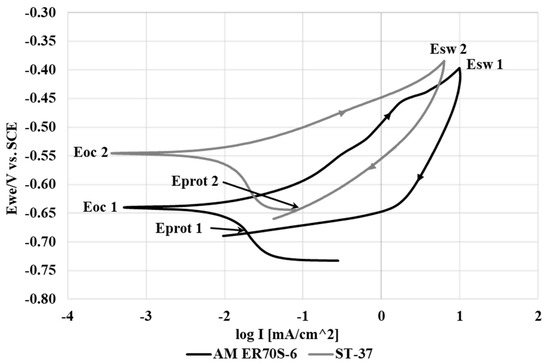

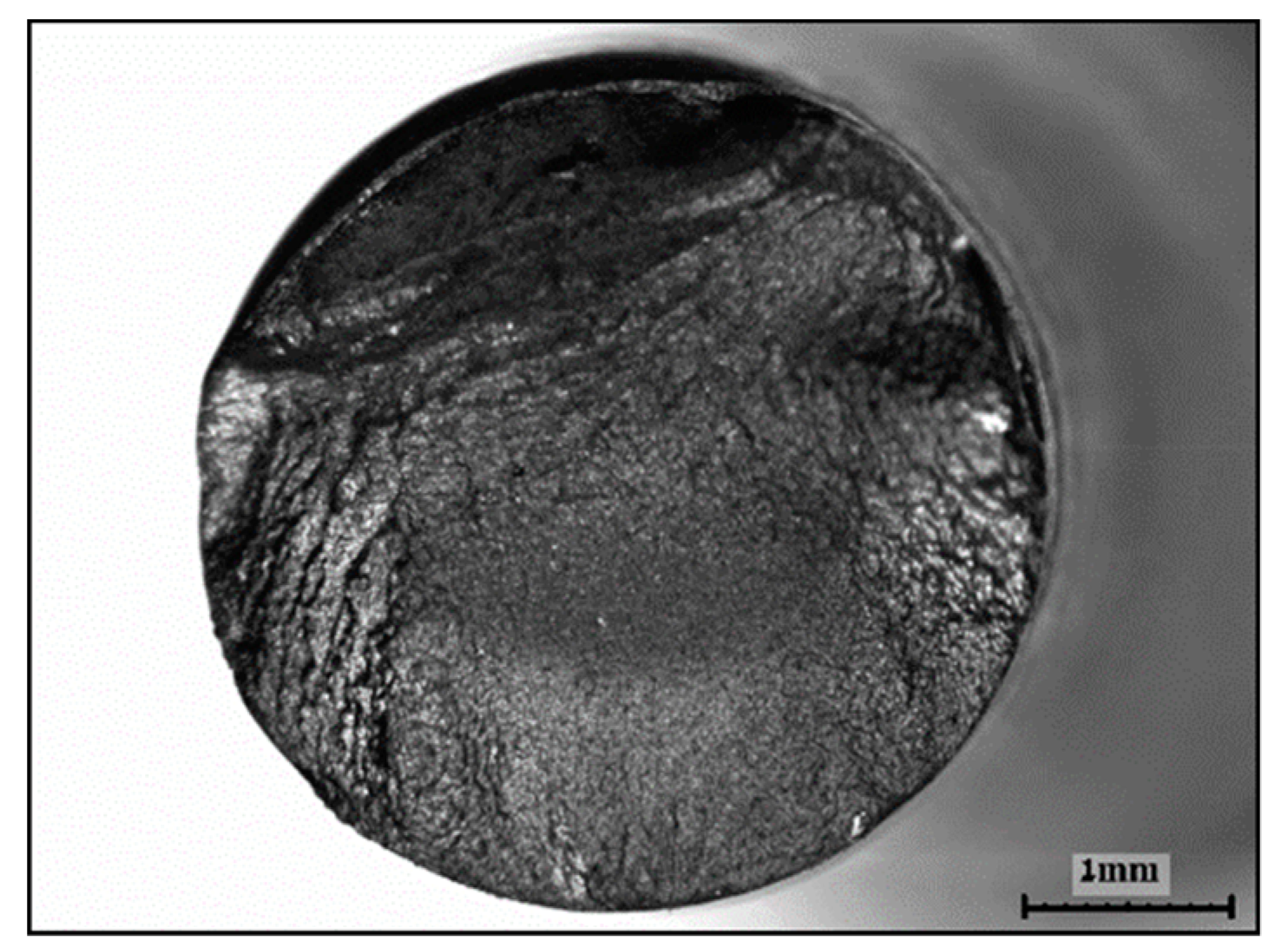

This study aims at evaluating the effect of microstructure imperfections on the corrosion fatigue performance of an ER70S-6 alloy produced by wire arc additive manufacturing (WAAM) process, in a 3.5% NaCl solution. For reference, a regular ST-37 alloy with relatively similar chemical composition was considered as a counterpart alloy. This was justified by the fact that the ER70S-6 alloy is usually used for conventional welding of ST-37 steel. The results obtained indicated that while the ST-37 alloy exhibited fatigue strength of 240 MPa in the corrosive solution, the additively manufactured ER70S-6 alloy showed fatigue strength of only 140 MPa. These differences were related to microstructural imperfections that are inherently produced during the WAAM process. View Full-Text
Keywords: additive manufacturing; ER70S-6; corrosion; fatigue; steel; wire arc deposition; direct energy deposition additive manufacturing; ER70S-6; corrosion; fatigue; steel; wire arc deposition; direct energy deposition
Show Figures

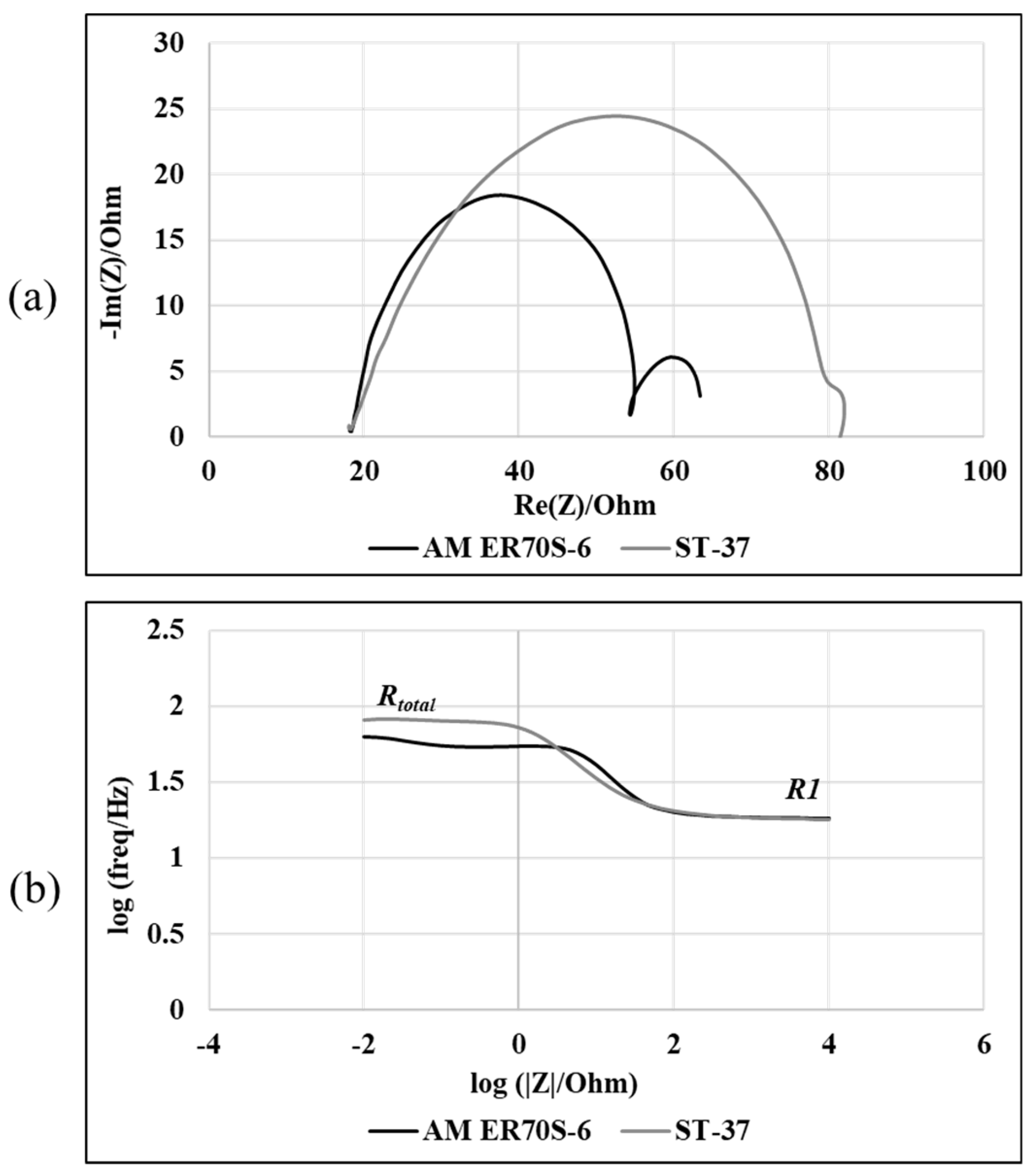

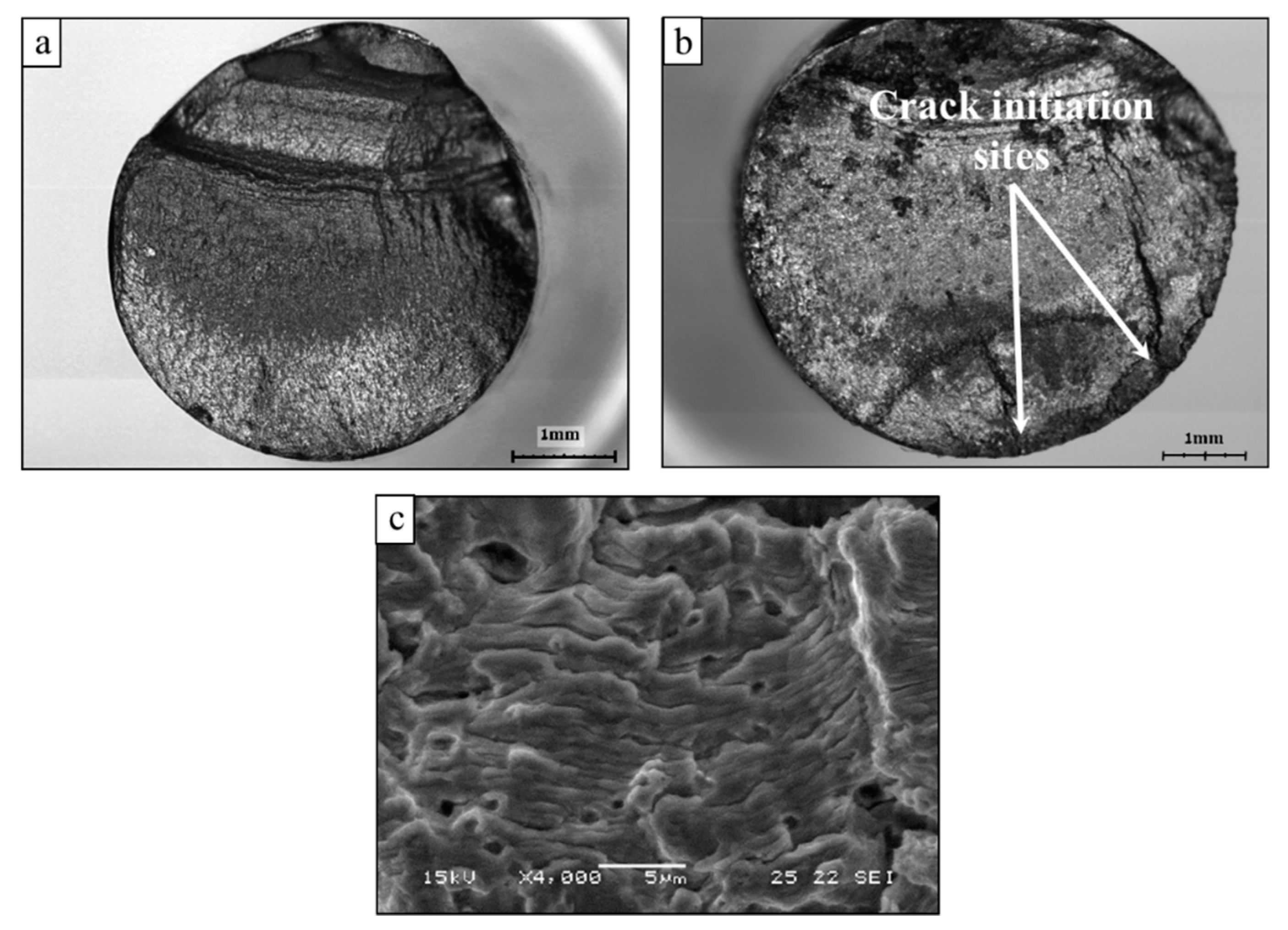

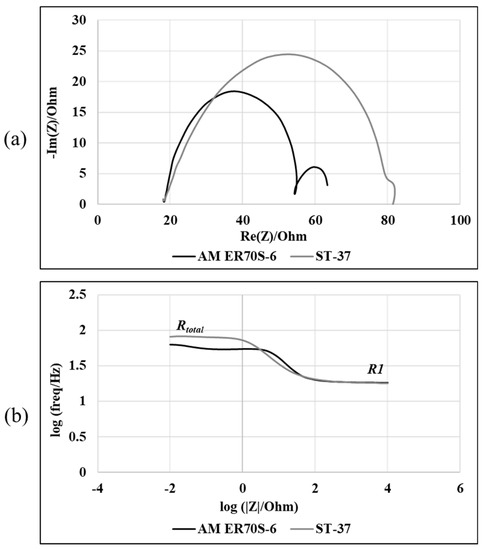

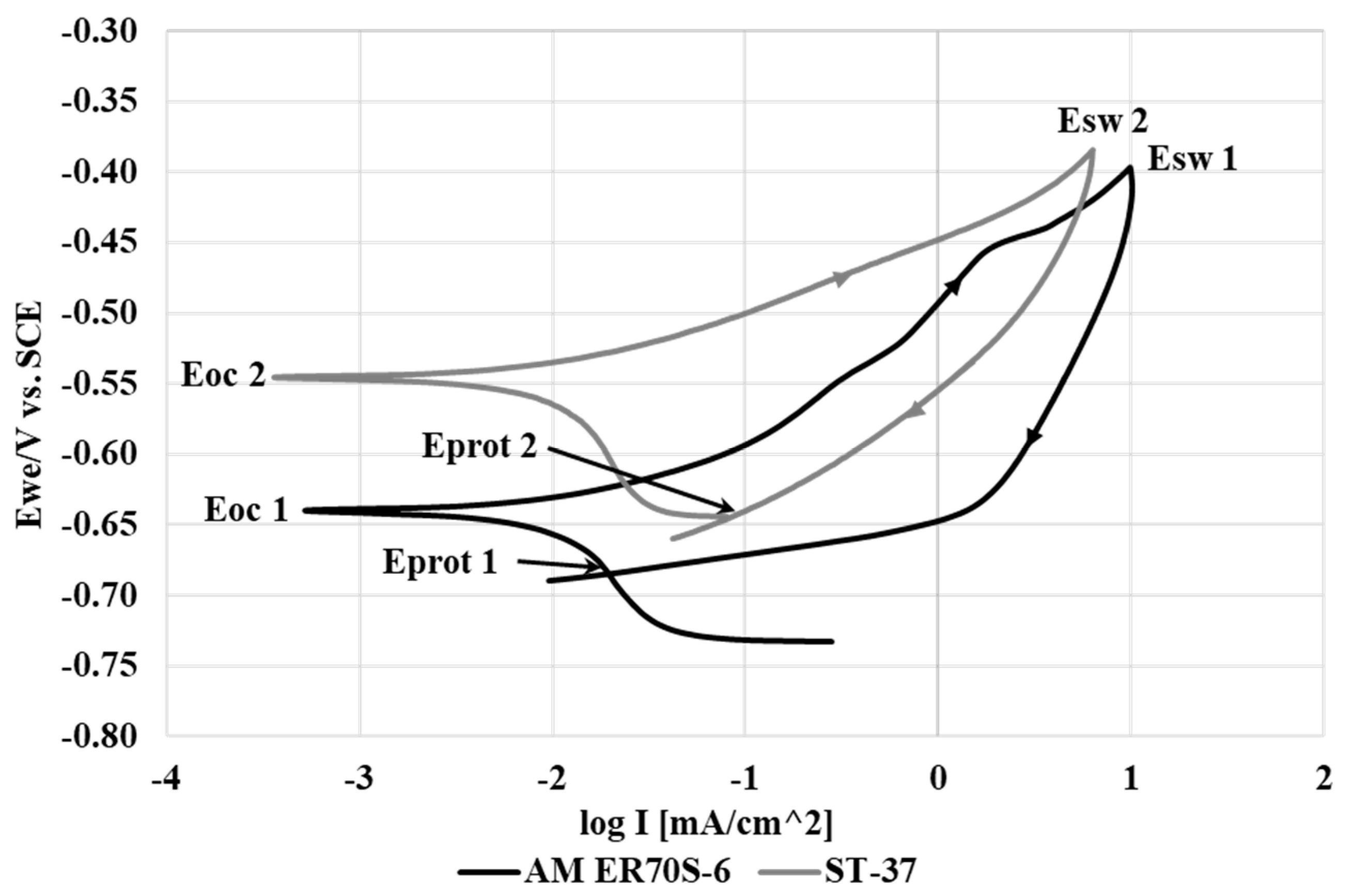

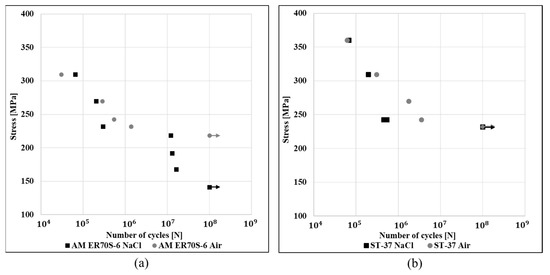

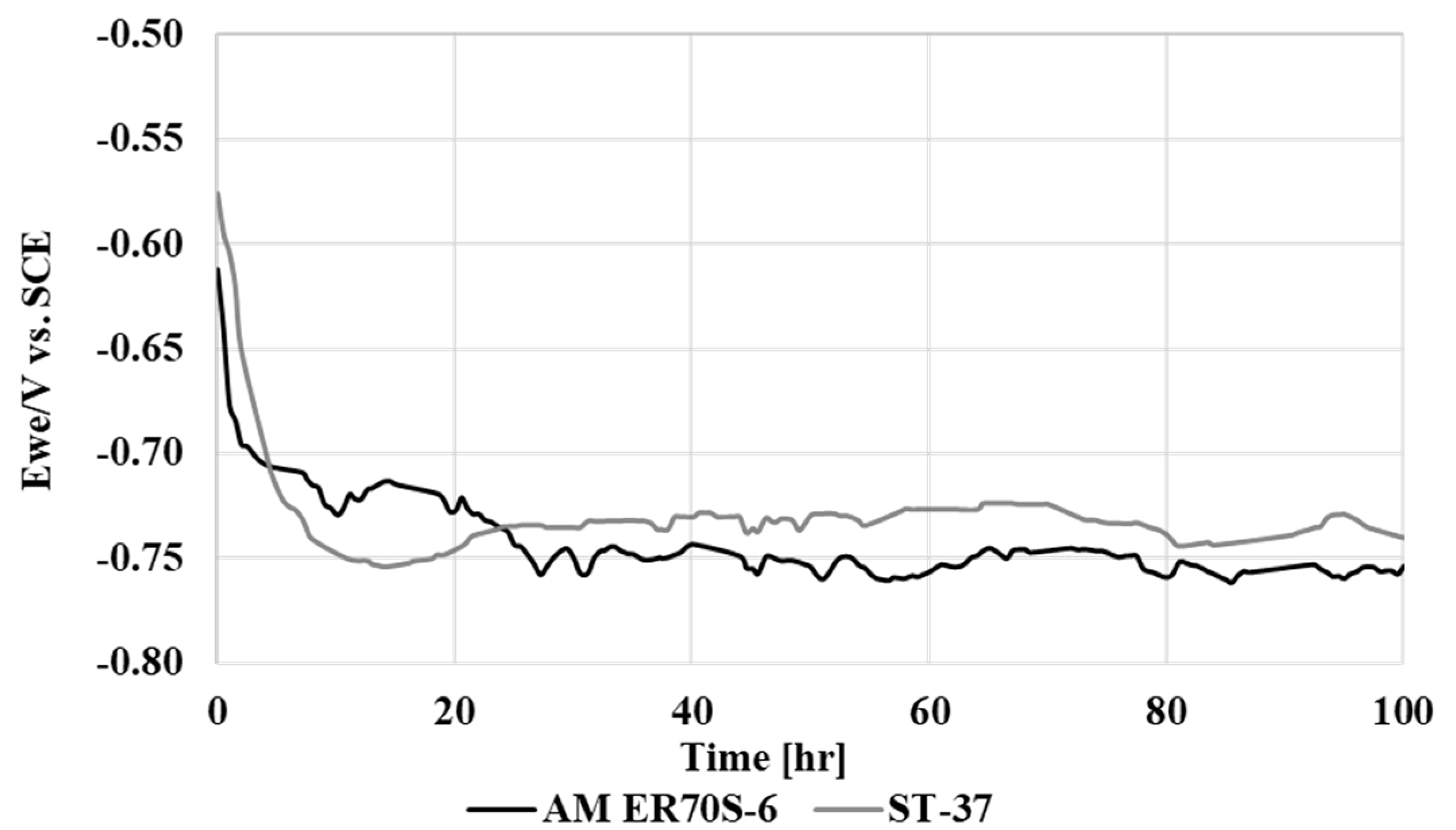

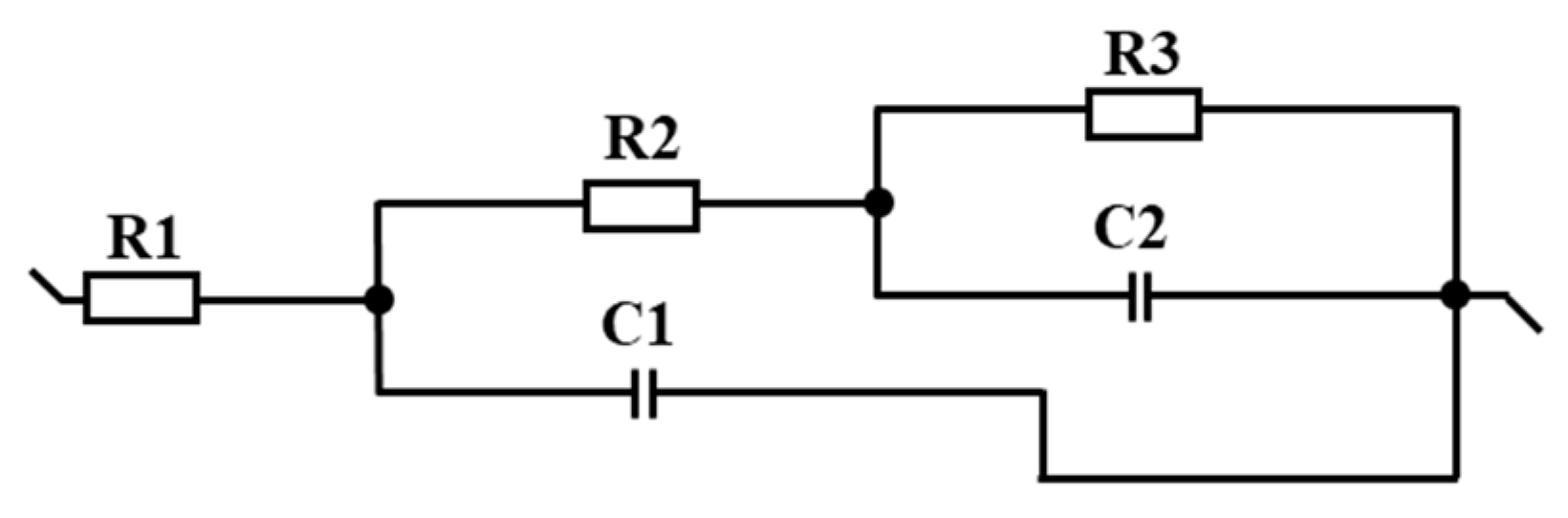

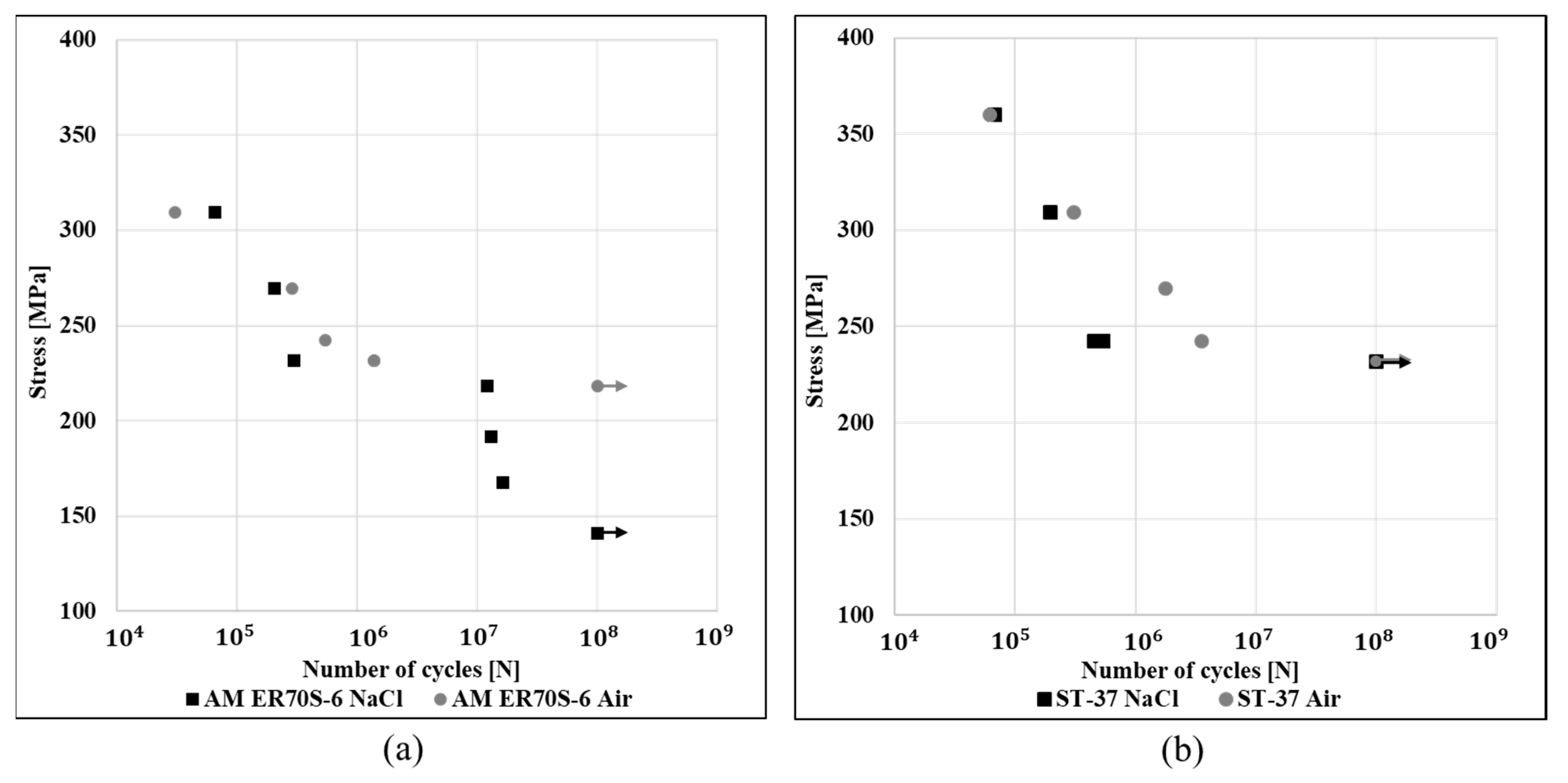

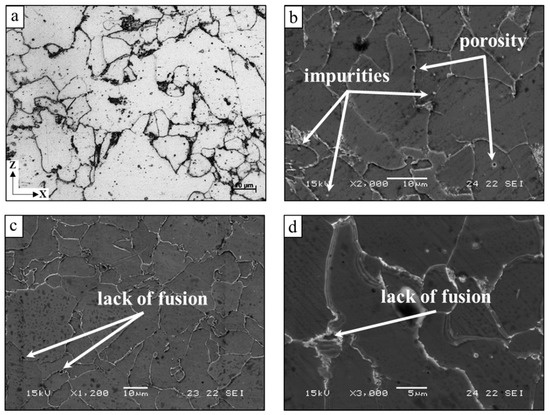

Figure 1

MDPI and ACS Style

Ron, T.; Levy, G.K.; Dolev, O.; Leon, A.; Shirizly, A.; Aghion, E. The Effect of Microstructural Imperfections on Corrosion Fatigue of Additively Manufactured ER70S-6 Alloy Produced by Wire Arc Deposition. Metals 2020, 10, 98. https://doi.org/10.3390/met10010098

AMA Style

Ron T, Levy GK, Dolev O, Leon A, Shirizly A, Aghion E. The Effect of Microstructural Imperfections on Corrosion Fatigue of Additively Manufactured ER70S-6 Alloy Produced by Wire Arc Deposition. Metals. 2020; 10(1):98. https://doi.org/10.3390/met10010098

Chicago/Turabian Style

Ron, Tomer, Galit Katarivas Levy, Ohad Dolev, Avi Leon, Amnon Shirizly, and Eli Aghion. 2020. "The Effect of Microstructural Imperfections on Corrosion Fatigue of Additively Manufactured ER70S-6 Alloy Produced by Wire Arc Deposition" Metals 10, no. 1: 98. https://doi.org/10.3390/met10010098

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
