Next Article in Journal
The Effect of Microstructural Imperfections on Corrosion Fatigue of Additively Manufactured ER70S-6 Alloy Produced by Wire Arc Deposition
Previous Article in Journal
Effect of Direct Energy Deposition Process Parameters on Single-Track Deposits of Alloy 718
Open AccessArticle

Investigation of the Restored Joint for Aluminum Alloy

by Chao Chen 1,2, Huiyang Zhang 1,2, Hao Peng 1,2, Xiangkun Ran 1,2 and Qing Pan 1,2,*
State Key Laboratory of High Performance Complex Manufacturing, Light Alloy Research Institute, Central South University, Changsha 410083, China
School of Mechanical and Electrical Engineering, Central South University, Changsha 410083, China
Author to whom correspondence should be addressed.
Metals 2020, 10(1), 97;
Received: 7 December 2019 / Revised: 25 December 2019 / Accepted: 27 December 2019 / Published: 7 January 2020

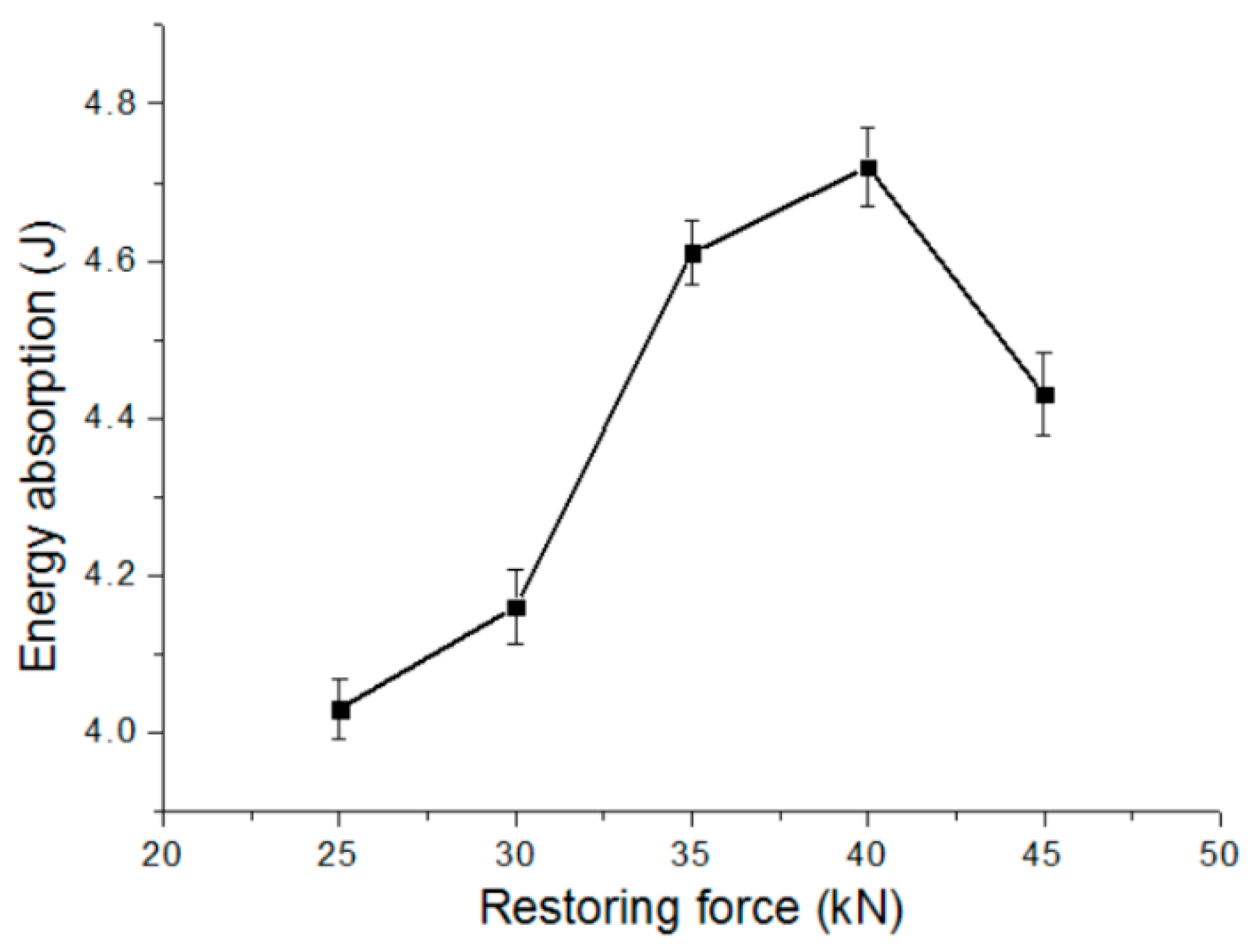

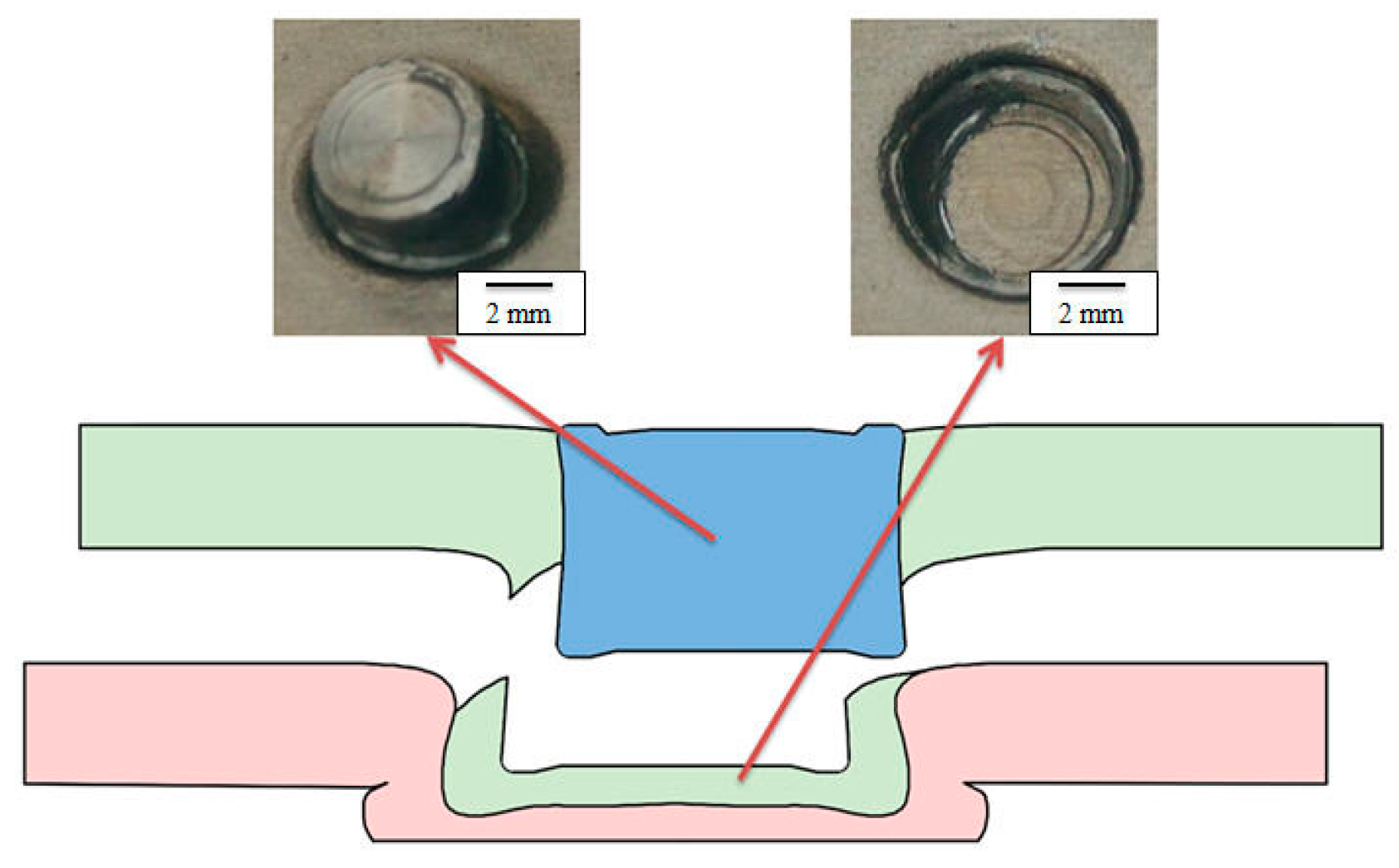

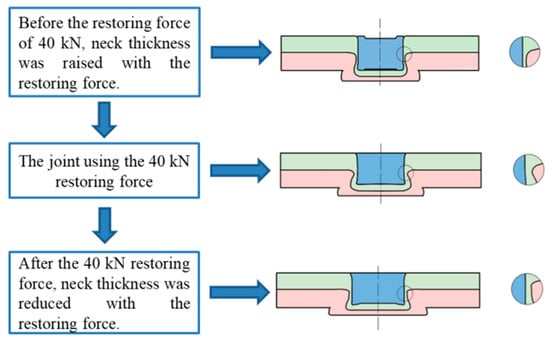

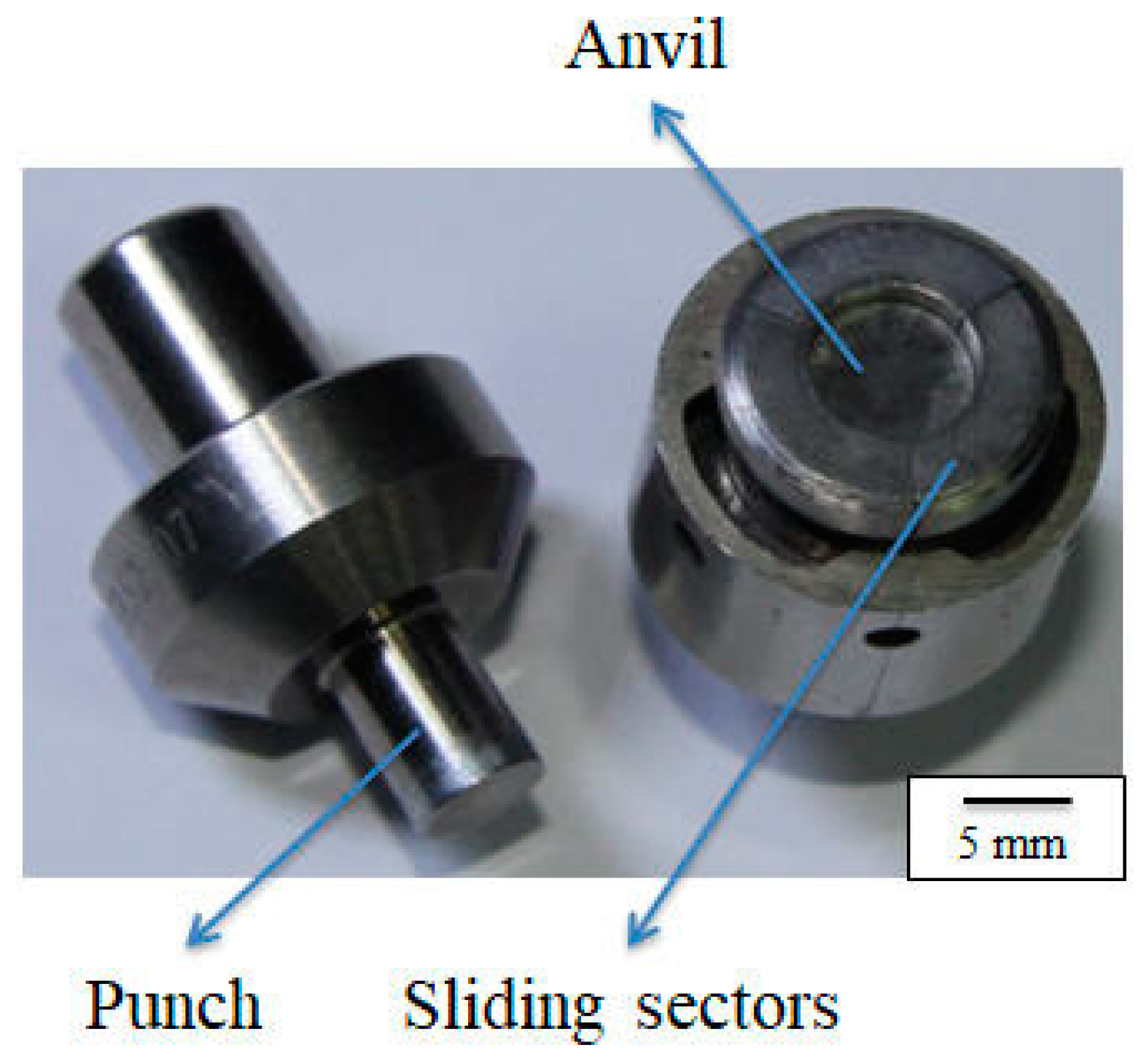

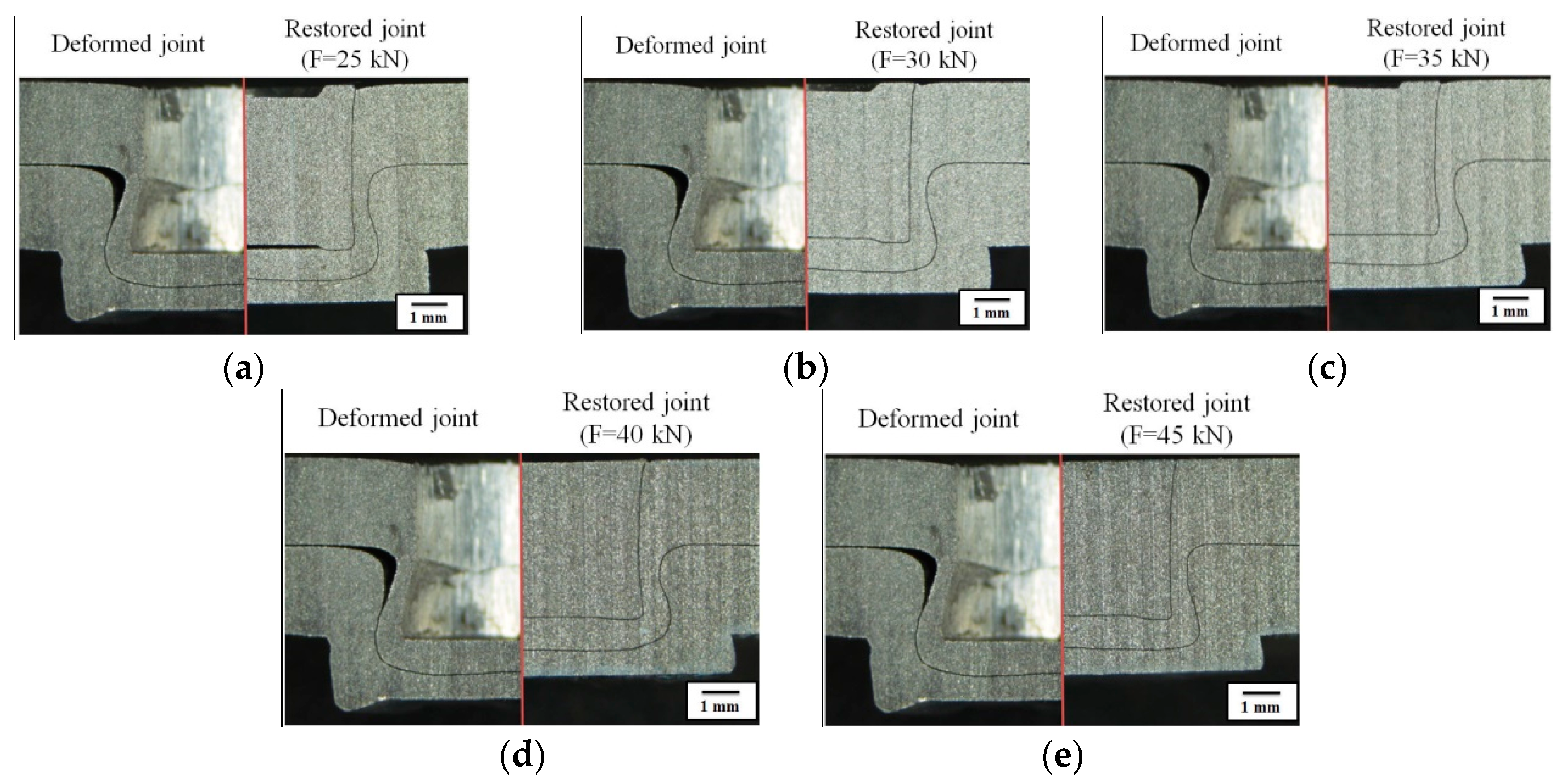

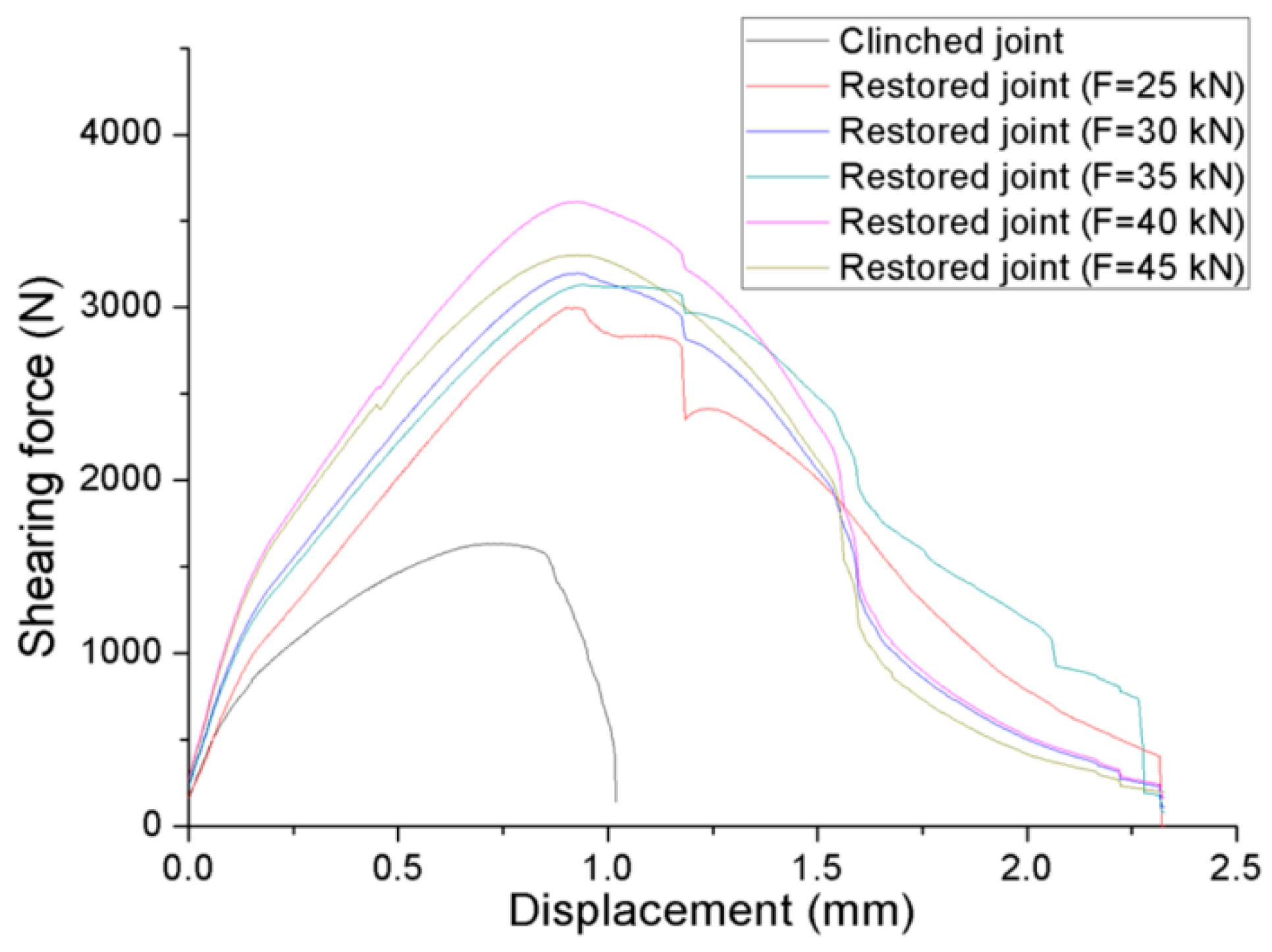

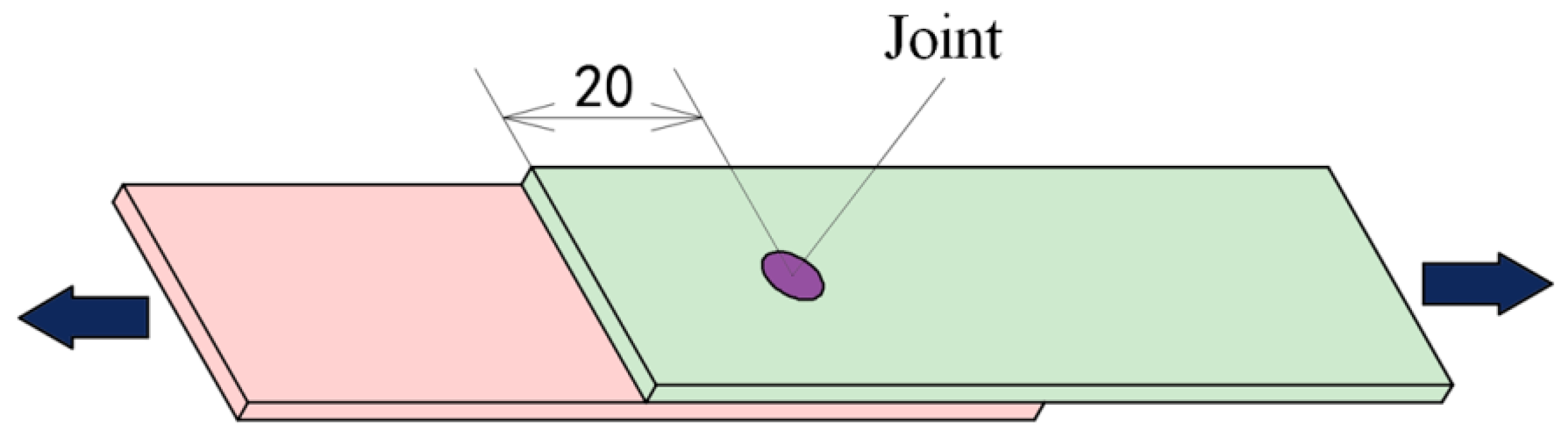

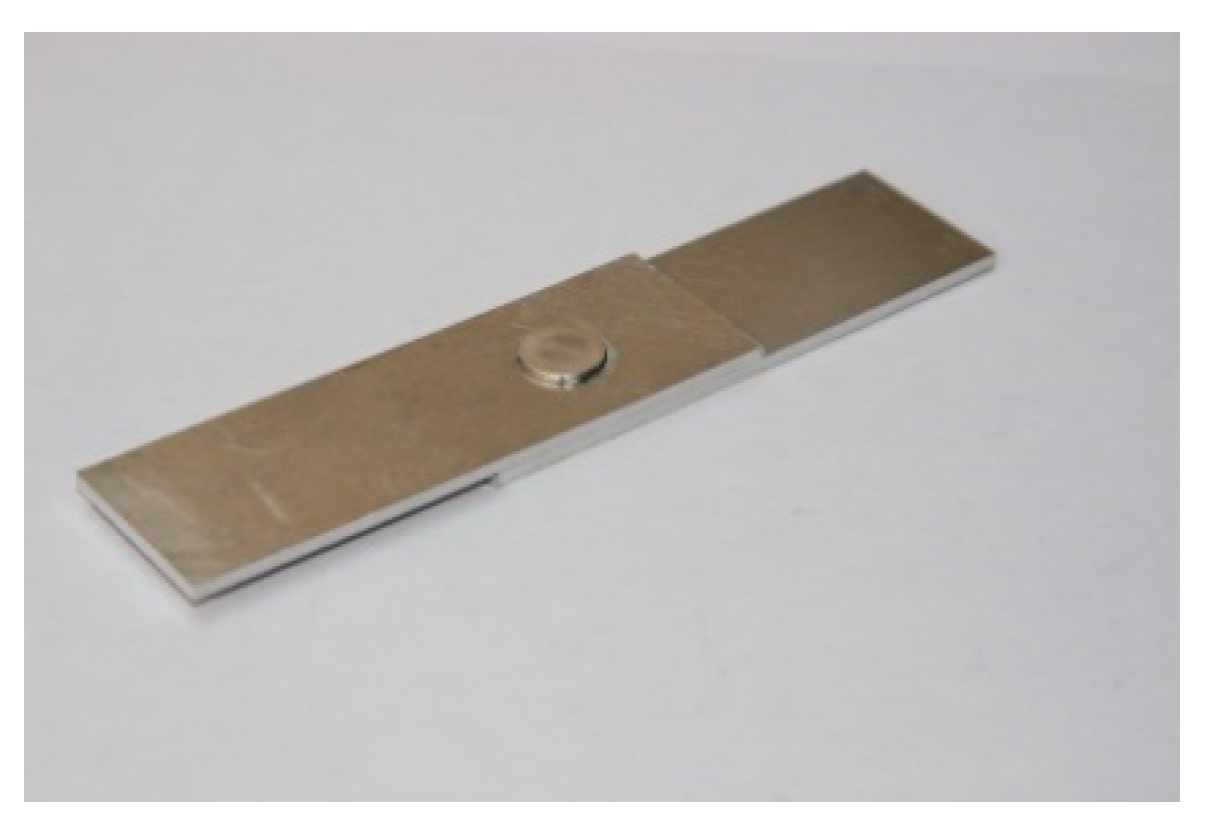

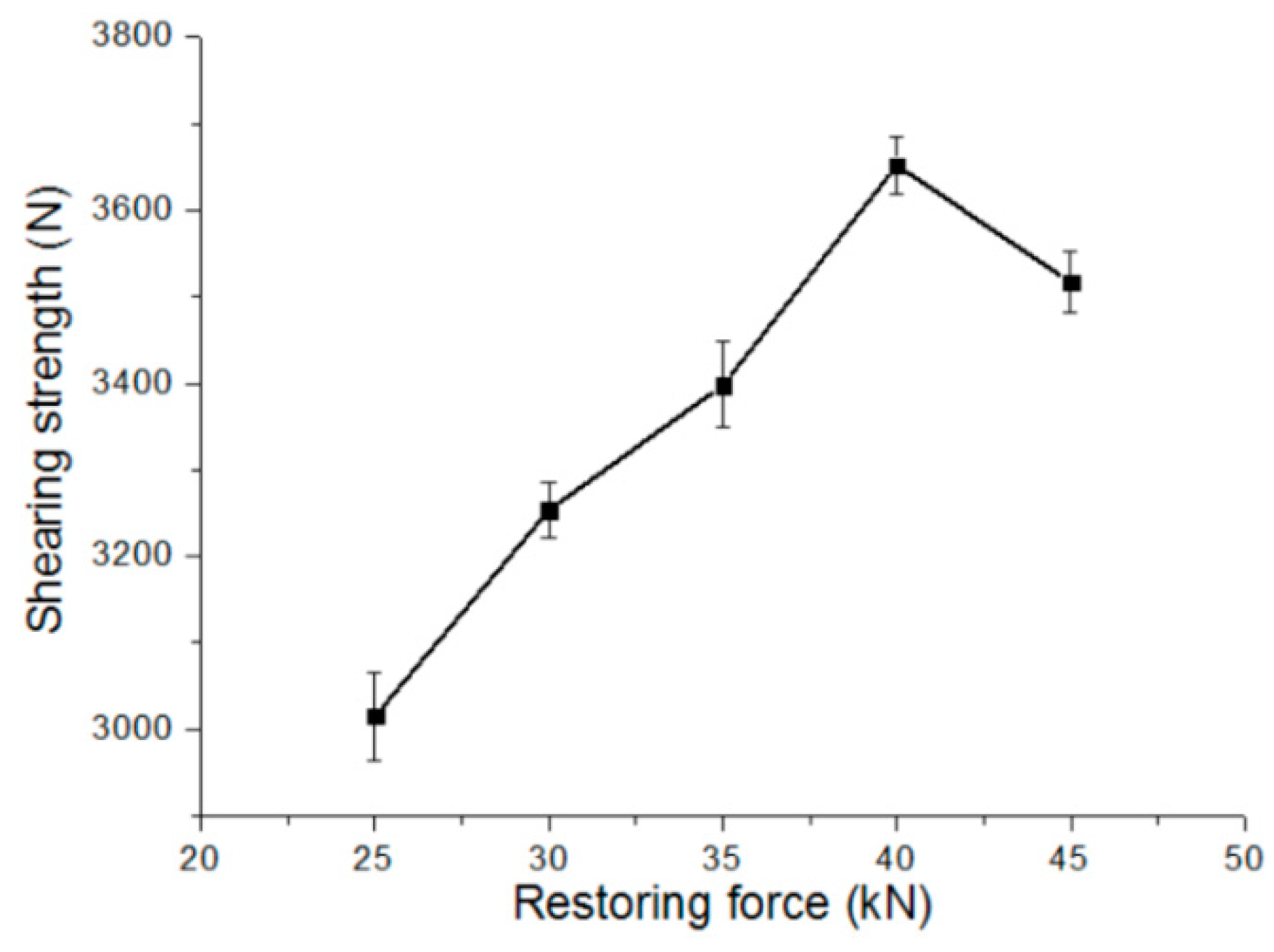

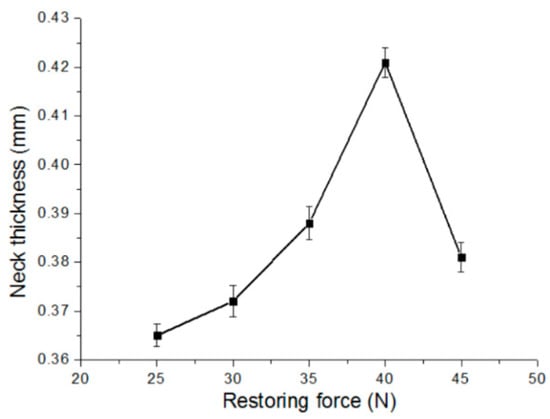

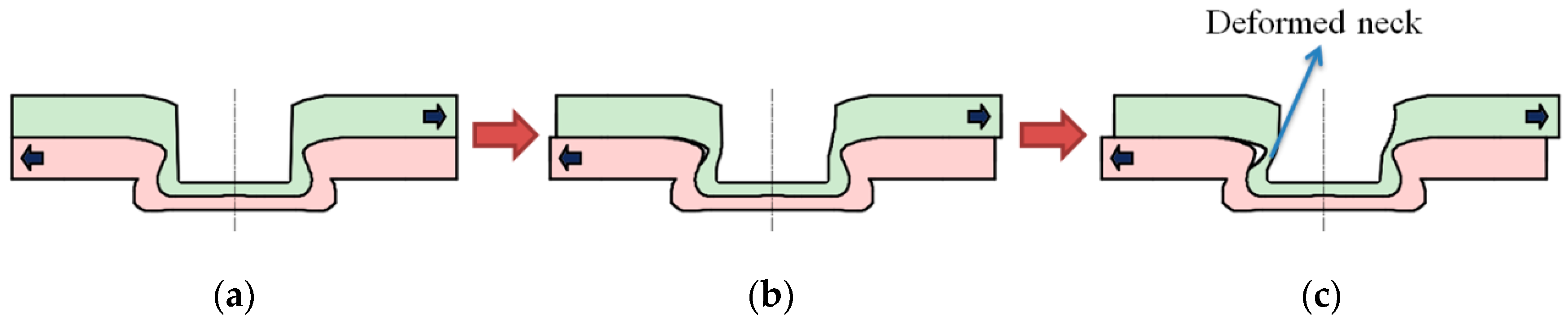

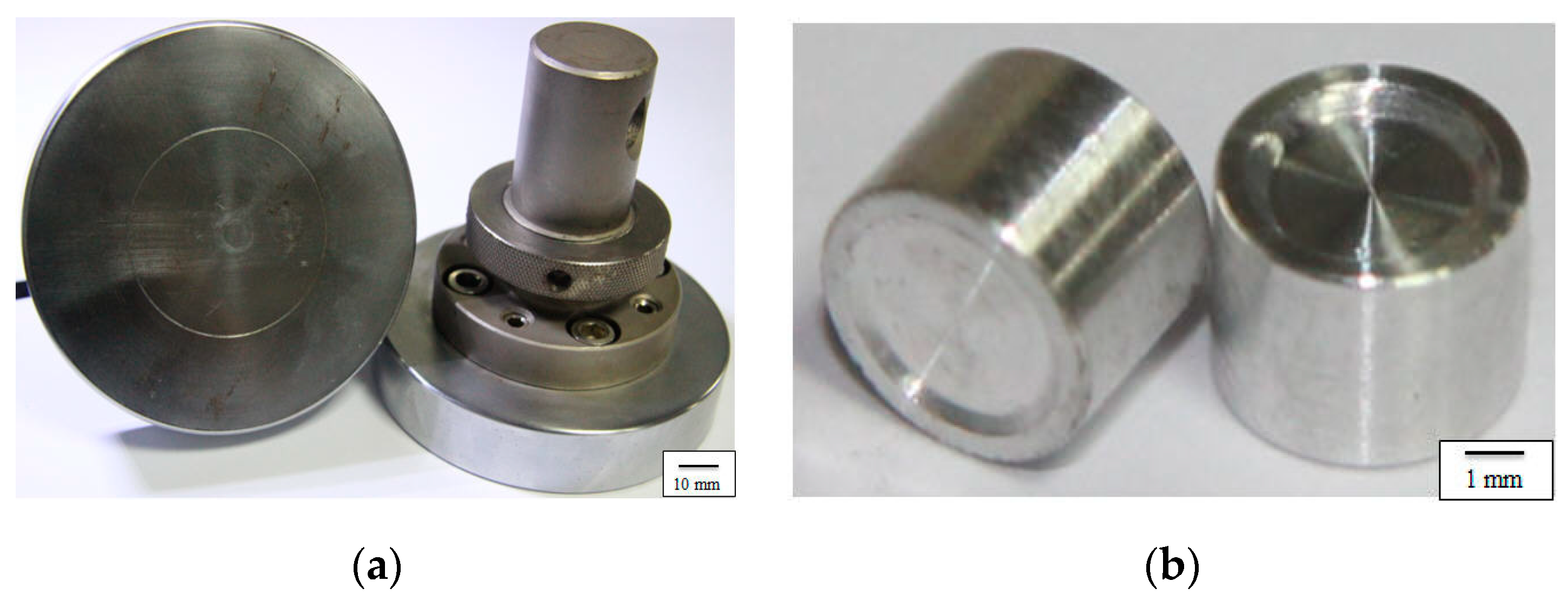

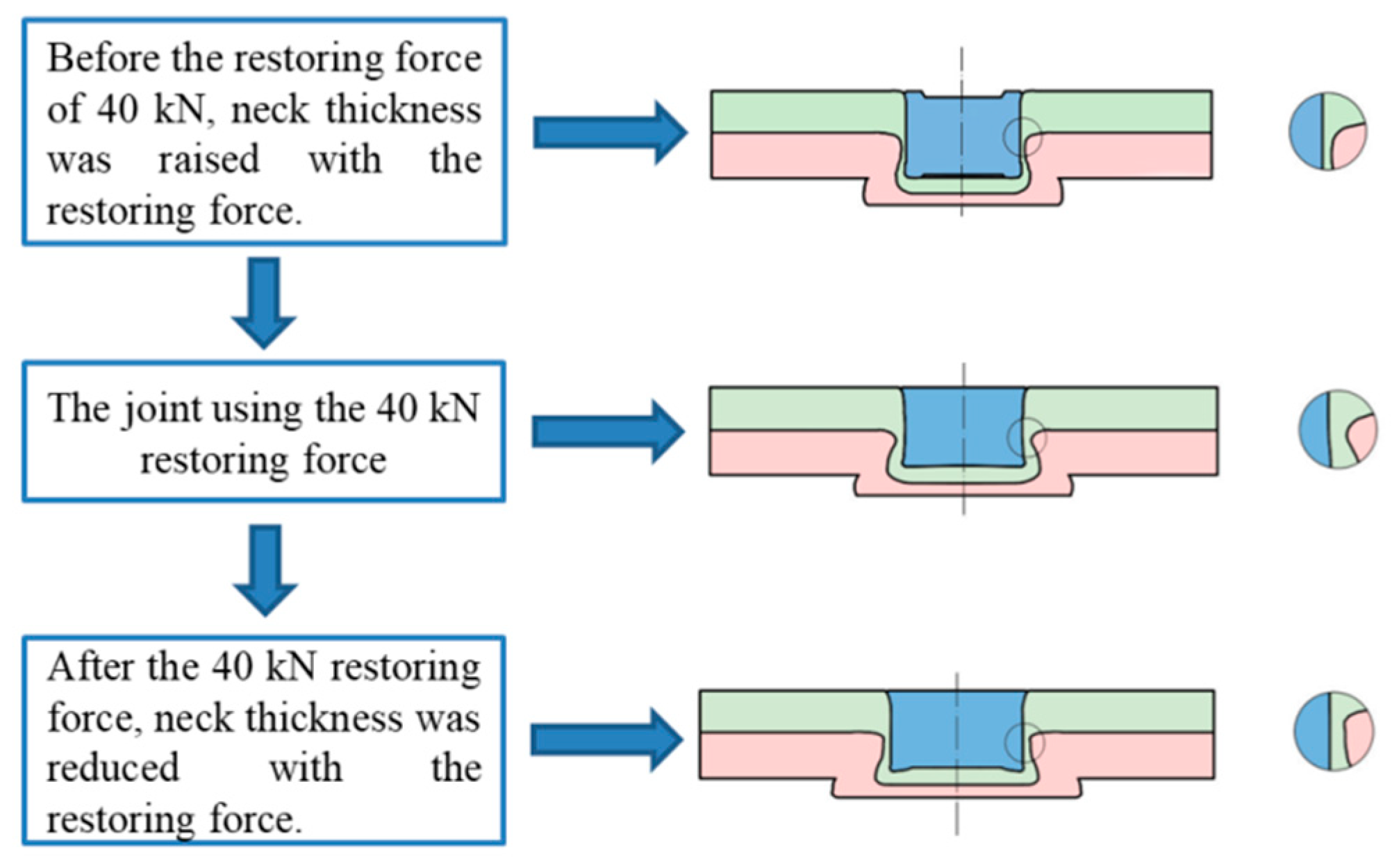

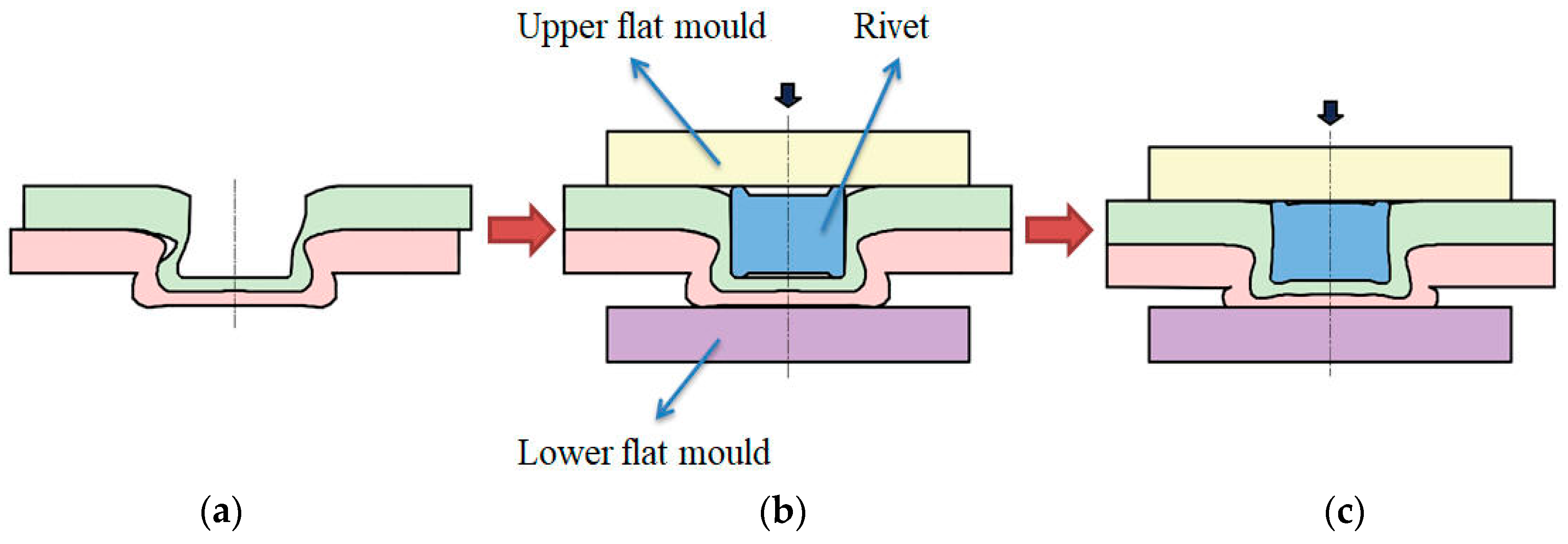

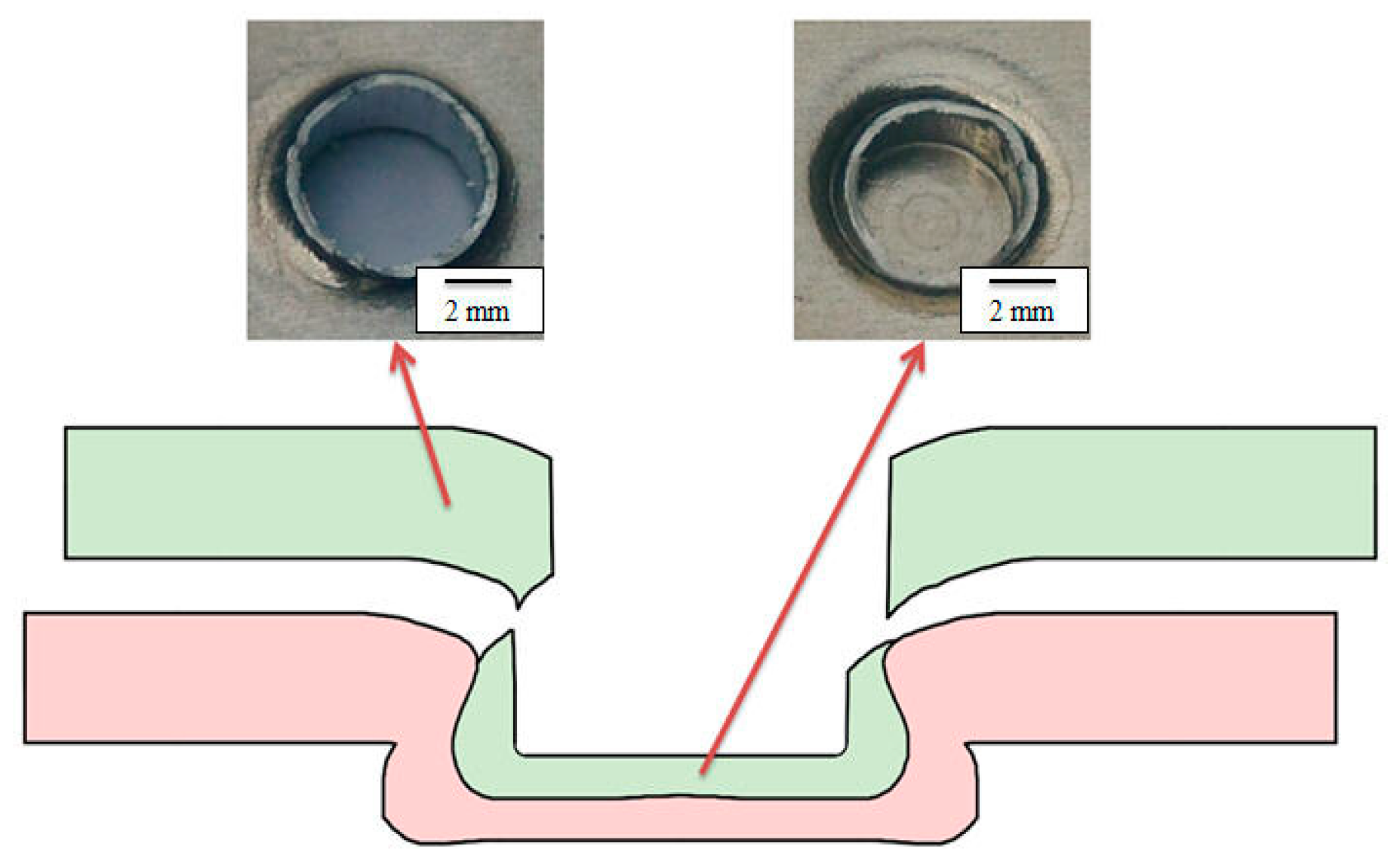

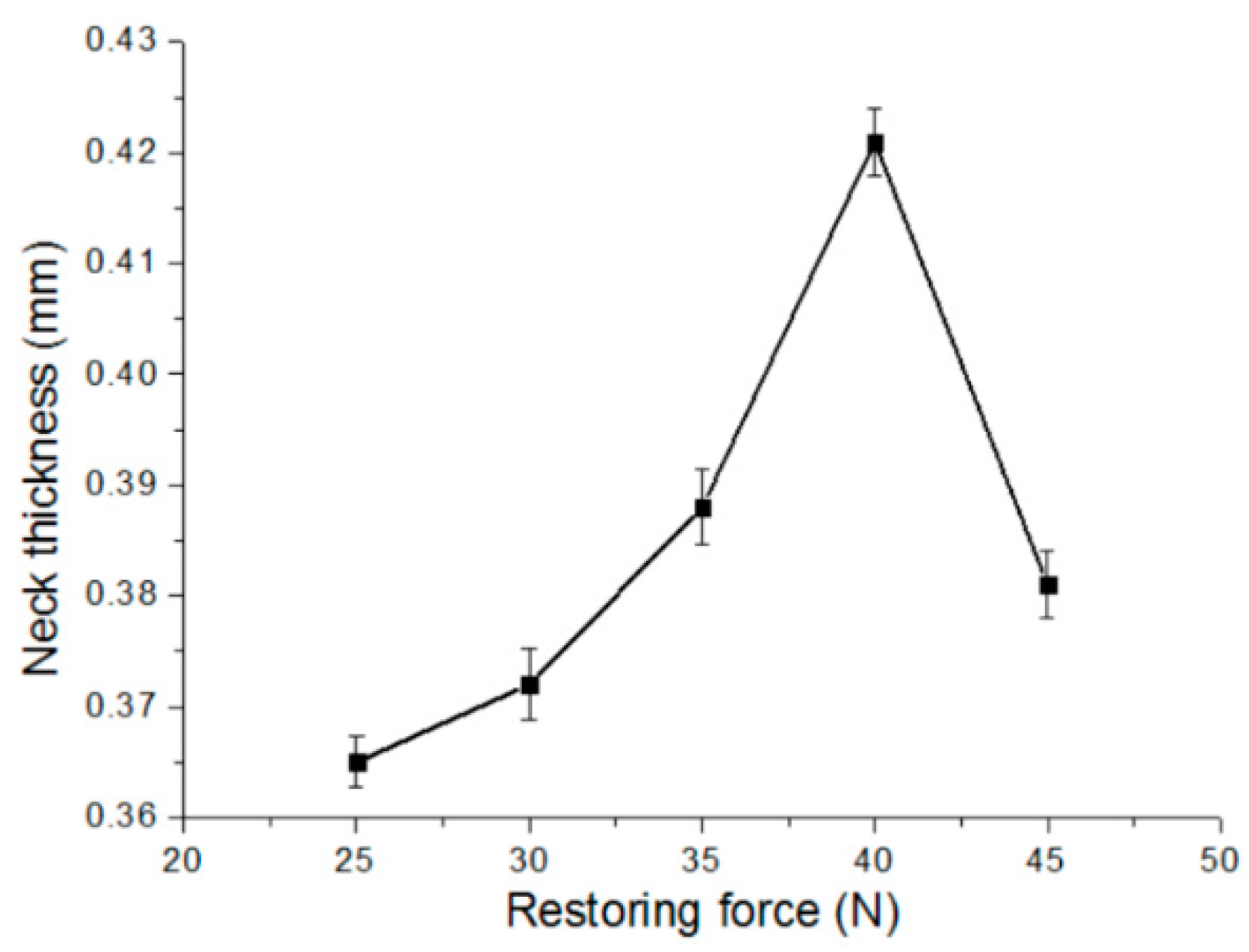

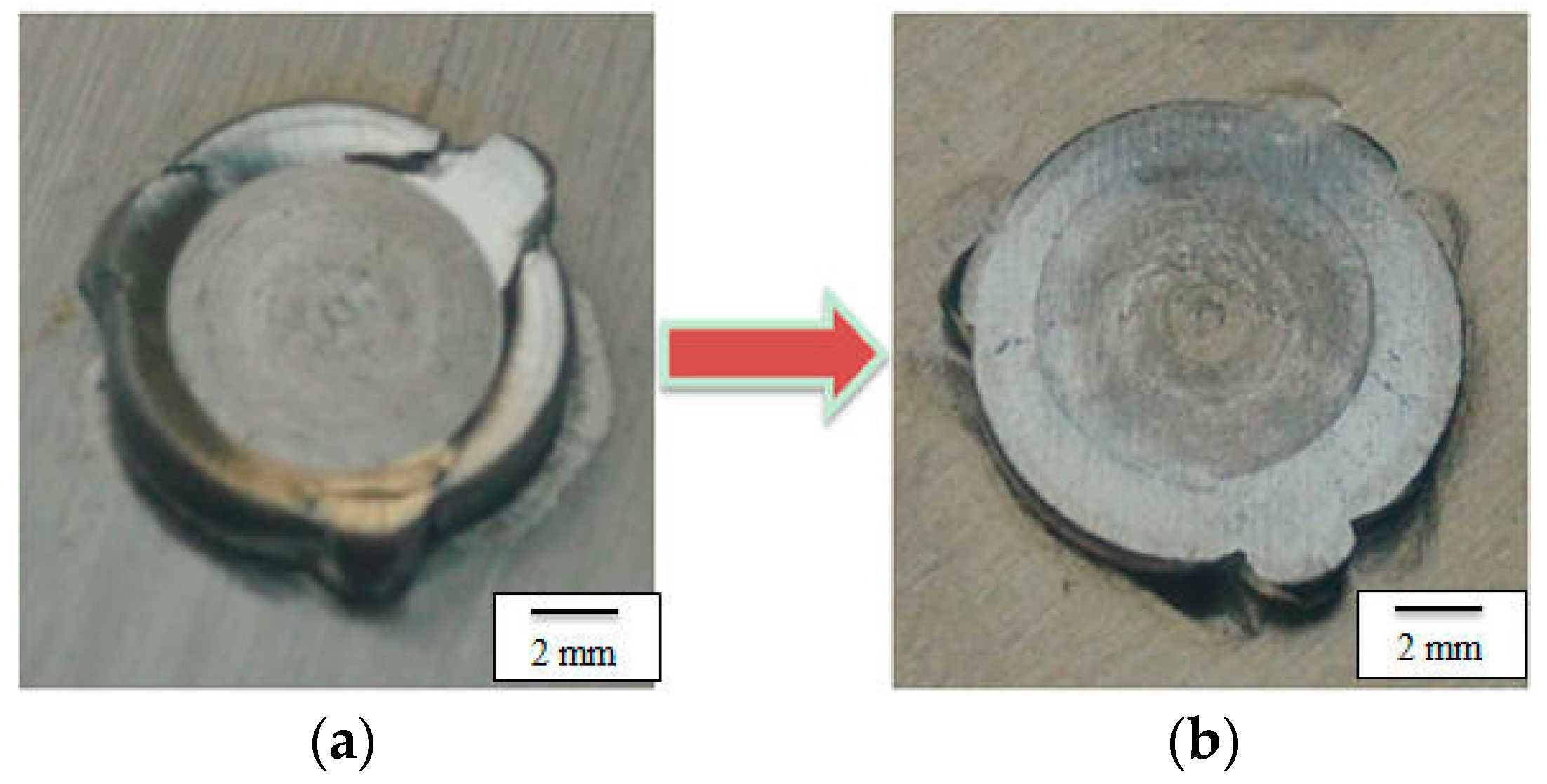

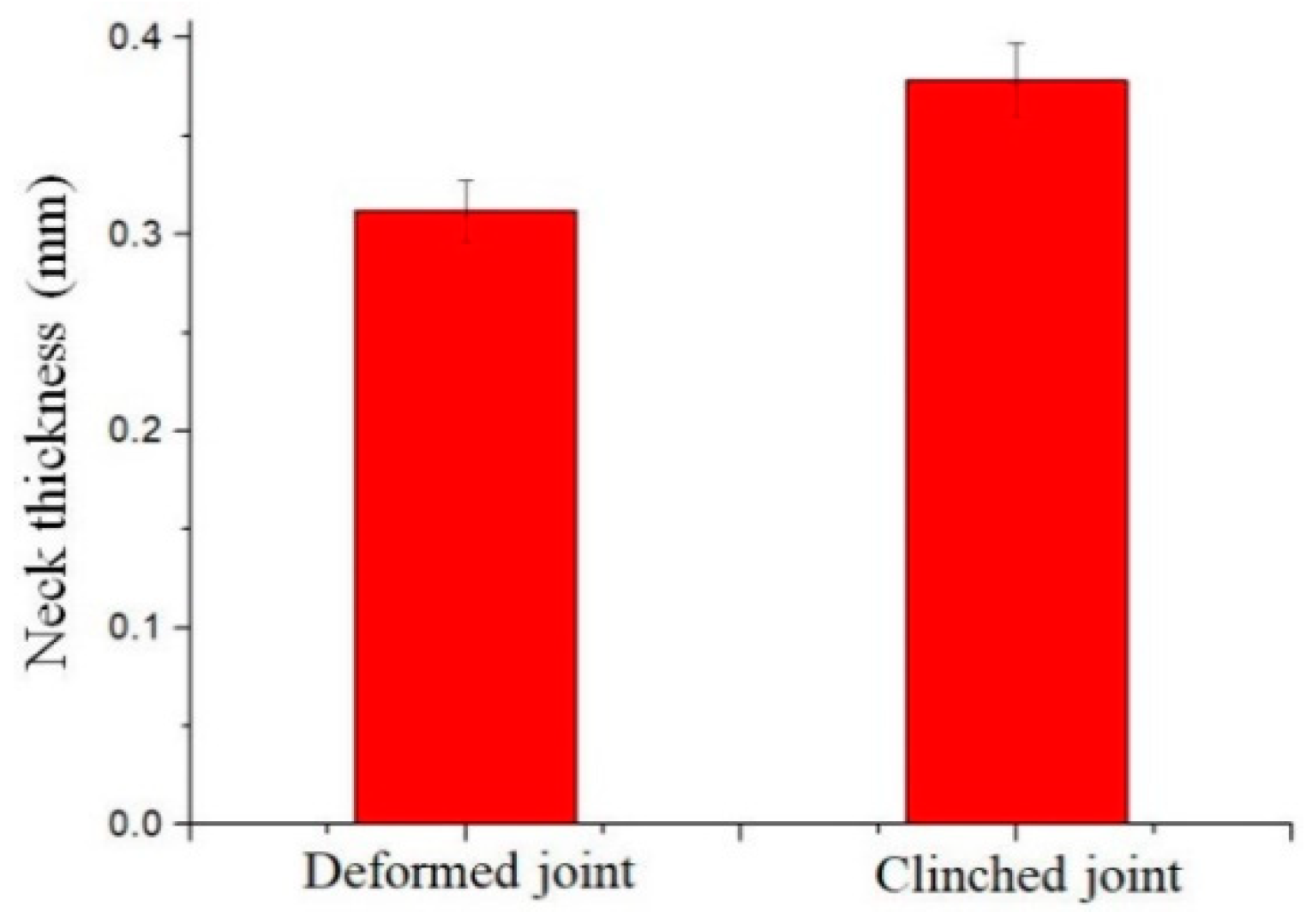

In recent years, the mechanical clinching method plays an increasingly important role in the building of thin-walled structures. The clinched joint can be employed to join the lightweight materials. Compared with other joining methods, the clinched joint has better mechanical behavior. However, the clinched joint may be deformed during use when it bears a high shear force. In this research, a process to join aluminum alloy and restore deformed joint was proposed and investigated. The clinched joint was deformed in the deforming process. Then, a customized rivet and two flat restoring tools were utilized for restoring the deformed joint to join aluminum alloy. Different restoring forces such as 45, 40, 35, 30, 25, and 20 kN were employed to produce diverse restored joints. Some shearing tests on the restored joint were utilized for understanding joint material flow, mode of failure, thickness of neck, shear strength, and absorption of energy. The thickness of neck can be increased in restoring process, which contributes to improve the shear strength. The rivet embedded in a pit also helps restored joint bear shear force, so all of the restored joints have higher absorption of energy and shear strength than the clinched joints. The restoring process effectively restores the deformed joint to obtain better mechanical behavior. View Full-Text
Keywords: aluminum alloy; restoring process; clinched joint; deforming process; material flow aluminum alloy; restoring process; clinched joint; deforming process; material flow
Show Figures

Figure 1

MDPI and ACS Style

Chen, C.; Zhang, H.; Peng, H.; Ran, X.; Pan, Q. Investigation of the Restored Joint for Aluminum Alloy. Metals 2020, 10, 97.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
