Insecticide Effect of Zeolites on the Tomato Leafminer Tuta absoluta (Lepidoptera: Gelechiidae)

by
Caroline De Smedt
*,
Veerle Van Damme
,
Patrick De Clercq
and
Pieter Spanoghe
Department of Crop Protection, Faculty of Bioscience Engineering, Ghent University, Coupure Links 653, Ghent 9000, Belgium
*
Author to whom correspondence should be addressed.
Insects 2016, 7(4), 72; https://doi.org/10.3390/insects7040072
Submission received: 27 April 2016 / Revised: 13 November 2016 / Accepted: 18 November 2016 / Published: 2 December 2016
(This article belongs to the Special Issue Plant Extracts as Insecticides in Pest Control)
Browse Figures
Versions Notes

Abstract

:
(1) Background: The tomato leafminer Tuta absoluta (Lepidoptera: Gelechiidae) is a key tomato insect pest. At present, it is considered to be a serious threat in various countries in Europe, North Africa, and Middle East. The extensive use and the developed resistance of T. absoluta to spinosad causes some concern, which leads to the need for alternative products. (2) Materials and Methods: Several laboratory experiments were conducted to investigate the ovicidal properties of a zeolite particle film on T. absoluta. The toxicity of three different zeolites and six zeolite formulations to T. absoluta eggs and larvae was determined using different exposure methods. (3) Results: In general, the formulated zeolites yielded higher egg and larvae mortality values, especially when the zeolite particle film was residually applied. Notable differences in mortality rates from exposure to zeolites compared to other products, such as kaolin, its formulated product Surround, and the insecticide spinosad, were observed. Kaolin and Surround exhibited little or no effect for both application methods, while the hatch rate was reduced by 95% when spinosad was applied topically. Spinosad yielded egg and larvae mortality rates of 100% for both application methods. Additionally, increased oviposition activity was observed in adults exposed to the wettable powder (WP) formulations. These WP formulations increased egg deposition, while Surround and spinosad elicited a negative oviposition response. (4) Conclusions: It can be derived that the tested products, zeolites BEA (Beta polymorph A), FAU (Faujasite), LTA (Linde type A), and their formulations, had no real insecticidal activity against the eggs of T. absoluta. Nevertheless, egg exposure to zeolites seemed to affect the development process by weakening the first instar larvae and increasing their mortality. Subsequently, based on the choice test, no significant difference was observed between the number of eggs laid on the treated leaves and control leaves.

1. Introduction

Tuta absoluta (Lepidoptera, Gelechiidae), known as the South American tomato leafminer or pinworm, is one of the most devastating pests for tomato crops (Solanum lycopersicum L.), both in greenhouse and open-field locations in different parts of the world [1]. It originates from South America and was first described in Peru in 1917 as Phthorimaea absoluta (Meyrick, 1917) [2]. Recently, T. absoluta has also become a serious threat to tomato production in the Mediterranean region [3]. In Europe, this pest was first detected at the end of 2006 in the northern part of Castellón de la Plana in eastern Spain [4]. Since then, it has rapidly invaded other European countries and spread throughout the Mediterranean basin, including parts of North Africa and the Middle East where it immediately reached damaging levels [2,5,6].
This pest attacks leaves, flowers, stems, and fruits at any developmental stage, from seedlings to mature plants. In the absence of control strategies, yield losses can reach 80%–100% [2]. The damage is caused by the larvae mining the leaves and, sometimes, also the tomato fruits. The larvae feed on the mesophyll, which affects the photosynthetic capacity of the crop, decreases the production, and makes the tomatoes unsuitable for the market [7,8].
Nowadays, biological control, based on the predators Nesidiocoris tenuis (Hemiptera: Miridae) and Macrolophus pygmaeus (Hemiptera: Miridae), has been used to regulate the T. absoluta population [4]. Nevertheless, in many countries (South America, Italy, Spain, etc.) chemical control still is the main method to control T. absoluta. In order to decrease the damage caused by T. absoluta, horticultural growers applied insecticides [1,7]. They applied the chemical products more than twice a week during a single cultivation period, which not only resulted in food and environmental contamination, but also increased the cost of production and reduced the number of natural enemies of the pest [9]. Furthermore, extensive use of insecticides may lead to the development of resistance in insect populations. Development of resistance in T. absoluta populations was previously reported in South America [7,10,11,12]. Studies have shown that T. absoluta can develop resistance to many classes of insecticides when resistance management strategies are not properly established. Accordingly, high risks are involved in the use of insecticides based on spinosyns, one of the few classes of insecticides still effective against T. absoluta in South America [13,14].
Subsequently, the bioinsecticide “emamectin benzoate” is a new macrocyclic lactone insecticide derived from the avermectin family of natural products. These products have been developed for the control of Lepidoptera pests on a variety of vegetable crops worldwide, with a particular efficacy against T. absoluta [15]. Mortality rates of 90% were observed, which was similar to the results obtained by Lopez et al. [15,16].
However, Campos et al. [17] have already detected low levels of resistance of T. absoluta to spinosad. Notwithstanding the good results of emamectin benzoate, farmers should be careful using this product when natural enemies are involved in the control of the pest [15]. Subsequently, the introduction of the European Directive on the sustainable use of pesticides (2009/128/EC) requires that all professional users of pesticides follow the general principles of IPM (integrated pest management). Thus, the implementation of environmentally safe alternatives, reducing the use of chemicals, should contribute to the sustainability of tomato production.
One of the alternatives is the use of zeolites as an insecticide. Zeolites represent a broad range of natural or synthetic microporous, crystalline aluminosilicates. Generally, their structure is built of [SiO4]4− and [AlO4]5− tetrahedra, linked by the sharing of the oxygen atoms [18]. Zeolites are used for a great number of applications in different domains, including agriculture [19]. The use of particle films on plant surfaces is intended to prevent most of the negative effects that occur with the current application of chemical plant protection products. Moreover, such particle films might also provide a number of beneficial effects in terms of reduction in pesticide use, control of pests and diseases, water efficiency, increase in crop yield, and tolerance to abiotic stress [19].
In addition to the applied product, insecticide susceptibility also varies with the life stage of an insect [20]. Although the egg stage is sometimes perceived as the most vulnerable, it is a difficult target for insecticide application because the sessile condition of the eggs are often at concealed sites [21,22,23,24]. In addition, egg structure and physiology protect the developing embryos and may minimize insecticide penetration [21,24,25]. The insect chorion is a compound set of envelopes, remarkably effective in providing the oocyte with protection against possible disadvantageous environmental influences like desiccation, water loss, bacterial infection, and physical destruction. On the other hand, the egg shell enables gas exchange and maintenance of the water balance [26,27]. However, this does not apply to female insects that lay their eggs inside the leaf or that protect their eggs with scales and other materials.
This study aimed to assess the insecticidal effect of zeolites on T. absoluta. The treatments were mainly targeted against eggs and larvae. Ovicidal properties were studied by spraying the eggs directly (topically) or by treating leaves before oviposition (residually). A final experiment was done to assess whether the used products had repellent or attractant properties to adult females. This oviposition behavior of females was determined by choice tests.

2. Materials and Methods

2.1. Plants

Tomato seedlings (Solanum lycopersicon L. cv. Madison F1) were obtained from the company BPK Duffel N.V. (Duffel, Belgium) and placed in a greenhouse at 25 ± 1 °C, 65% ± 15% RH, and 16:8 h (lightness:darkness, L:D).

2.2. Insects

Eggs of T. absoluta were obtained from a laboratory colony maintained on tomato plants in controlled conditions (25 ± 1 °C, 65% ± 15% RH, 16:8 h (L:D)) at the Institute for Agricultural and Fisheries Research (ILVO) in Merelbeke, Belgium. This colony was started in 2011 with individuals collected in commercial fields of an organic tomato cultivation in Sint-Martens-Lennik, Belgium.

2.3. Insecticide Materials

Three commercially available zeolite types, selected based on the results of De Smedt et al. [28], together with two formulations of each type were compared with a commercial insecticide and a control treatment. Additionally, two biological equivalents of the zeolites, namely kaolin and its commercial formulation “Surround” (Tessenderlo Kerley, Phoenix, AZ, USA), were taken into account (Table 1).

2.4. Topical and Residual Bioassays

To evaluate the toxicity of zeolites against T. absoluta eggs and larvae hatched from these eggs, a test was designed, based on topical and residual exposure bioassays. For the topical exposure bioassays, eggs were collected from tomato leaves in the laboratory colony after 24 h of oviposition and gently transferred to tomato leaf discs. To keep the tomato leaf discs turgid for more than one week, they were deposited on top of an agar layer (1.5% concentration) in Petri dishes 35 mm in diameter. Subsequently, the test products (Table 1) were sprayed on the leaf discs with eggs in the open dishes. A fine nozzle sprayer, connected to a 100 mL Erlenmeyer, was used at a pressure of 1 bar. The residual exposure bioassays followed a similar protocol, with the exception that the eggs were placed on the tomato leaf discs 24 h after spraying. For both topical and residual bioassays, three concentrations were tested—all test products were dispersed in distilled water to obtain concentrations of 400, 4000, and 20,000 mg·L−1. Control treatments consisting of distilled water were also included. There were eight replicates per treatment and one replicate consisted of one leaf disc with five eggs. All treated Petri dishes were kept in controlled conditions (25 ± 1 °C, 65% ± 15% RH, 16:8 h (L:D)) until they were evaluated. Egg mortality was determined by scoring the number of unhatched eggs 9 days after treatment, and larval survival was determined by scoring the number of living larvae in the leaf discs 9 days after treatment.

2.5. Choice Tests for Oviposition Behavior

Oviposition site preference of T. absoluta female adults was studied by using a simultaneous choice arrangement. For these tests, groups of five adult females and five adult males (distinguished using morphological characteristics of pupae under a stereomicroscope) were released within a cage (30 cm × 30 cm × 30 cm) and allowed to mate [29]. After 24 h, two plants were placed inside the cage—one that had been exposed to one of the test products (Table 1) and one untreated plant. Three concentrations were tested—all test products were dispersed in distilled water to obtain concentrations of 400, 4000, and 20,000 mg·L−1. Control treatments (i.e., a cage containing two untreated plants) were also included. Each product was tested in four separate cages.
The experiment was completely randomized. After 24 h, the number of eggs deposited in each plant was counted to assess the oviposition preference of the T. absoluta females. This short time period was chosen to exclude the possibility that suitable oviposition sites would become saturated during the course of the experiment.

2.6. Data Analysis

Mortality data obtained from concentration–response bioassays were corrected by the mortality observed in the control treatment [30] using the formula:
Corrected   mortality   ( % ) = P − P 0 100 − P 0 100
where P is the percent mortality of treated insects and P0 is the percent mortality of insects in the control treatment. This adjusted value is permissible when the mortality in the control treatment does not exceed 20% or when mortality data are based on a sufficiently large number of replications [31]. Normality of the data was firstly tested using the Kolmogorov-Smirnov test (p > 0.05). The mortality values were analyzed using a four-way analysis of variance (ANOVA) with the following factors: product, dose, life stage, and application method.
The oviposition activity of adult females was expressed by an oviposition activity index (OAI) calculated using the formula:
OAI = N t − N c N t + N c
where Nt is the number of eggs laid on plants exposed to the test solution and Nc is the number of eggs laid on the untreated plants [32]. The OAI ranges from −1 to +1, meaning that 0 indicates a neutral response, a negative value indicates deterrence, and a positive value indicates a stimulant effect. A Kolmogorov-Smirnov test was used to indicate the normality (p > 0.05). A Student’s t-test (p < 0.05) was used to test for significant differences between the number of eggs laid on the treated and the control plants.
Data analysis was performed using a statistical software program (SPSS Version 12.0, SPSS Inc., Chicago, IL, USA).

3. Results

3.1. Topical and Residual Bioassays

Results from bioassays testing the effects of topical and residual exposure are shown in Figure 1. The mortality registered in the control treatments was lower than 10% in all assays (Supplementary Materials, Tables S1 and S2). Therefore, the corrected mortality was used to present the results.
In general, and particularly in the topical application method, higher mortality values were noticed for the formulated zeolites as compared to the mortality values for the non-formulated zeolites. However, none of the zeolites were significantly different in mortality.
Despite no significant differences between the zeolite products, it can be deduced that the outcome of this bioassay was affected by the application method. To verify this statement, a four-way analysis of variance (ANOVA) was performed (Table 2).
No four- or three-factorial interactions were observed among the factors dose, application method, product, and insect life stage for the mortality of eggs and eggs + larvae. However, significant interactions (p < 0.05) were obtained for application method × product and application method × life stage, which indicates that the product and the life stage influenced the effect of the application method on the mortality of T. absoluta. The main factors application method (p < 0.01) and life stage (p < 0.001) also had a significant impact on the mortality.
Notwithstanding the difference between the application methods, little biological effect on eggs was observed when a zeolite particle film was sprayed topically or residually onto leaves. Although T. absoluta egg viability was little affected by the zeolites, the mortality of neonate larvae hatching on treated leaves was significantly higher for all zeolites. Larval mortality increased sharply to 60%, indicating that the zeolites have larvicidal properties. These larval survival results were also significantly different from the control.
Nevertheless, differences of the mortality rates were observed when using zeolites compared to the alternative products. First of all, kaolin had very little or no larvicidal effect compared to the zeolites. The opposite effect was observed when using the commercial formulation of spinosad. In both exposure treatments, it was observed that almost all of the larvae that hatched out of egg masses treated with spinosad died within 48 h. Spinosad was the least active after the residually application at all concentrations tested, yielding 21.64%–29.48% mortality for concentrations ranging between 400 and 20,000 mg·L−1. Figure 1 clearly points out the significant differences between the zeolites and their formulations regarding the chemical plant protection product.

3.2. Choice Tests for Oviposition Behavior

The results of the oviposition bioassays are illustrated in Figure 2. The number of eggs laid by T. absoluta females on the treated leaves did not differ significantly from the control, with the exception of leaves treated with 20,000 mg·L−1 of zeolite 5.

4. Discussion

4.1. Topical and Residual Toxicity

Topical and residual toxicity tests were performed on the eggs of Tuta absoluta in order to examine whether zeolites could have a desiccating effect on eggs or not. In order to fight the tomato leafminer, it is of great importance to treat their eggs. Although the chorion surface layer has limited permeability to ovicidal and toxic substances, some chemicals can pass through it. These compounds can adversely affect embryonic development or cause death [33,34,35,36,37]. In particular, before egg hatching, egg exposure to zeolites seemed to significantly affect the development process by weakening the first instar larvae and increasing their mortality. Exposure of larvae to insecticidal compounds occurs through direct body contact as well as ingestion of residues on leaf surfaces [38]. There should be no difference between the numbers of surviving larvae for both application methods because the larvae were not treated after hatching.
Based on the Si/Al composition, described by De Smedt et al. [28], zeolite 1 (Si/Al: 11.84) and zeolite 4 (Si/Al: 15.40) can both be classified as hydrophobic zeolites, while zeolite 7 (Si/Al: 1.15) can be classified as hydrophilic. It was noticed that the ovicidal effect of the tested zeolites correlated well with their hydrophobic properties. This is in contrast with the phenomenon observed by Hoffmann et al. [39]. They noticed a correlation between the ovicidal activity of neonicotinoids against the plum curculio Conotrachelus nenuphar (Coleoptera: Curculionidae) and the octanol-water partitioning coefficient (log Kow) of these compounds. Hydrophilic compounds are unlikely to reach target sites within the embryo, since the lipid layers of the insect chorion provide a general barrier to hydrophilic materials [39]. However, the results of the adsorption experiment, described by De Smedt et al. [28], indicated that hydrophobic zeolites preferentially adsorb the intermediate and nonpolar PPPs. Therefore, it can be presumed that the more hydrophobic zeolites are more attached to the hydrophobic egg surface and are more able to desiccate the eggs and the leaf surface. Low relative humidity can prevent embryo development and egg hatching [40]. Norhisham et al. [41] found that dehydration of the Dinoderus minutus Fabricius (Coleoptera: Bostrychidae) egg leads to contraction and shrinkage of the chorion and the embryo. This effect on eggs caused by loss of water has also been reported by Woods and Singer [42] on Lepidoptera. Eggs of Lepidoptera in general have no special morphological or physiological equipment for water uptake, although the eggshell of some species may be more porous over its ventral surfaces than on lateral or upper surfaces [42].
The lower hatching rates of the T. absoluta eggs for the topical application were rather unexpected. A decrease in adhesion of the insect eggs on the leaf surface can be an explanation for the higher mortality in the residual trials. Adhesive fluids have been repeatedly reported to surround insect eggs and glue them to substrates [43,44]. The eggs of many lepidopteran species are tightly glued onto the lower leaf surface [45].
Plants can also have an impact on the mortality, which explains the higher mortality for the residual bioassay. The eggs of herbivorous insects are usually closely associated with leaf surfaces. As a consequence of living in these microclimates modified by their host plants, these eggs may take advantage of the leaf physiology [46]. However, eggs laid on a leaf are enclosed by the leaf’s boundary layer, consisting of leaf volatiles and atmospheric gases, which may affect embryonic development [47]. A plant may respond to insect eggs by forming necrotic tissue at the site of egg deposition, where humidity decreases and local temperature increases [48,49,50]. As a result, the egg will probably desiccate and the stressed embryo will die [47].
Subsequently, it is possible that larvae hatch at the side of the leaf surface and directly penetrate into the leaf. The probability that the zeolite particles and newly emerged larvae come into contact with each other increases for the residual method.
In addition to the zeolites, other products were also tested, such as kaolin, Surround, and spinosad. Kaolin and Surround are products that control insects by creating a particle barrier on plant surfaces that irritates and repels them, rather than actually killing these insects [51]. Despite the low effect on hatching rate, there appeared to be a slight tendency toward reduced hatching when eggs were laid onto kaolin residues. Similar results were also observed in other studies [52,53,54].
As for spinosad, the obtained results were in line with those obtained by Temerak [55] and Hanan and Samya [56], who found that spinosad produced 100% mortality of the egg masses of Spodoptera littoralis (Lepidoptera: Noctuidae) after hatching. Spinosad was the least active in its indirect ovicidal activity at all concentrations tested by Hanan and Samya [56], recording 0%–45% inhibition for concentrations ranging between 0.1 and 100 mg·L−1. However, the high toxicity of spinosad on lepidopterous eggs was also supported by Boiteau and Noronha [57], who found that spinosad residues caused high immediate (24 h after exposure) contact mortality in the European corn borer, Ostrinia nubilalis (Lepidoptera: Crambidae). Dagli and Bahsi [38] also noticed that topical exposure of Orius majusculus (Hemiptera: Anthocoridae) adults to spinosad resulted in greater mortality compared to the mortalities during residue tests. These findings can be explained by the fact that spinosad is effective on target insects through both ingestion and contact exposure. It is more a potent larvicide, which is in line with our findings of 100% larval mortality. Nevertheless, it can also have an ovicidal effect, mostly when it is mixed into organic solvents [57]. It is not highly systemic, but does possess some leaf-penetrating characteristics, which clarifies the high egg mortality after topical exposure [58]. This indicates that spinosad can penetrate the egg, causing the exposed egg to stop further development.

4.2. Choice Tests for Oviposition Behavior

Zeolites work by creating a barrier film by covering the leaves with a white powdery film, which adheres and irritates insects. Additionally, using zeolites on plants can help to repel many types of insects. Identification of suitable oviposition sites is a critical feature of insects’ life history because it ultimately influences the survivorship of their progeny [59].
Oviposition behavior is influenced by visual, tactile, and olfactory cues, with the first considered to be of primary importance when zeolites are used [60]. The layer of particle film covering the leaves reduces the attractiveness of visual cues and prevents insects from recognizing and finding plant parts on which they prefer to lay eggs [19]. Subsequently, odor of plants, the plant surface, and the plant’s interior guide egg-laying herbivorous insect females to their host plants and influence the choice of oviposition sites [61]. To be effective, complete coverage of the plant is necessary. Hence, high levels of zeolite coverage over the leaves are needed to achieve any sort of control [62]. In this study, no significant difference was observed between the number of eggs laid on the treated leaves and the control leaves. Despite these results, a slight trend was noticed in the oviposition activity of T. absoluta females exposed to leaves treated with the wettable powder formulations. However, this effect could be the result of the additives used in the formulations. Subsequently, olfaction also might have played a role in the increased amount of eggs laid onto the treated leaves. The effect of additives is possible here as well, given that some additives are responsible for a mild attractiveness to female insects.
The negative oviposition response towards spinosad and Surround can be clarified by the statements given above.
Nevertheless, all these findings did not significantly differ from each other. Therefore, it can be concluded that these products had no effect on the oviposition behavior of T. absoluta. Even kaolin and its formulated product Surround, which is already commercially used in agriculture and has insect repellent properties, did not show repellent effects on T. absoluta.

5. Conclusions

Based on the results, it can be derived that the tested products, BEA, FAU, LTA and their formulations, had no real insecticidal activity against the eggs of T. absoluta. Nevertheless, egg exposure to zeolites seemed to affect the development process by weakening the first instar larvae and increasing their mortality. Consequently, zeolites can be applied as a preventive control measure, but cannot control a pest that is already established. To be effective, a continuous coverage of plant material with a zeolite particle film is needed. This requires multiple applications and a better coverage than that obtained in these tests, as newly expanding foliage needs to be covered as well. However, particle films are less effective in suppressing T. absoluta compared with spinosad. Nevertheless, they may be an important supplement to other biological and chemical control measures in future T. absoluta management strategies.
Subsequently, based on the choice test, no significant difference was observed between the number of eggs laid on the treated leaves and control leaves.

Supplementary Materials

The supplementary materials are available online at https://www.mdpi.com/2075-4450/7/4/72/s1, Table S1: Percentage corrected mortality (±SE) of Tuta absoluta eggs in topical and residual bioassays, using the insecticide materials presented in Table 1 (n = 8), Table S2: Percentage corrected mortality (±SE) of Tuta absoluta eggs and larvae in topical and residual bioassays, using the insecticide materials presented in Table 1 (n = 8).

Acknowledgments

The authors gratefully acknowledge the funding of this work, associated with the ECO-ZEO project, by the European Commission under the 7th Framework Programme (Project Number: 282865 www.ecozeo.eu).

Author Contributions

Caroline De Smedt has conducted the experiments and has written the article. Veerle Van Damme has provided the insects and has contributed to the experiments and article. Pieter Spanoghe, promotor of Caroline De Smedt, has contributed to the article. Patrick De Clercq, promotor of Veerle Van Damme, has contributed to the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Moreno, S.C.; Carvalho, G.A.; Picanco, M.C.; Morais, E.G.F.; Pereira, R.M. Bioactivity of compounds from Acmella oleracea against Tuta absoluta (Meyrick) (Lepidoptera: Gelechiidae) and selectivity to two non-target species. Pest Manag. Sci. 2012, 68, 386–393. [Google Scholar] [CrossRef] [PubMed]
  2. Desneux, N.; Wajnberg, E.; Wyckhuys, K.A.G.; Burgio, G.; Arpaia, S.; Narvaez-Vasquez, C.A.; Gonzalez-Cabrera, J.; Ruescas, D.C.; Tabone, E.; Frandon, J.; et al. Biological invasion of European tomato crops by Tuta absoluta: Ecology, geographic expansion and prospects for biological control. J. Pest Sci. 2010, 83, 197–215. [Google Scholar] [CrossRef]
  3. Seplyarsky, V.; Weiss, M.; Haberman, A. Tuta absoluta Povolny (Lepidoptera: Gelechiidae), a new invasive species in Israel. Phytoparasitica 2010, 38, 445–446. [Google Scholar] [CrossRef]
  4. Urbaneja, A.; Montón, H.; Mollá, O. Suitability of the tomato borer Tuta absoluta as prey for Macrolophus pygmaeus and Nesidiocoris tenuis. J. Appl. Entomol. 2009, 133, 292–296. [Google Scholar] [CrossRef]
  5. Desneux, N.; Luna, M.G.; Guillemaud, T.; Urbaneja, A. The invasive South American tomato pinworm, Tuta absoluta, continues to spread in Afro-Eurasia and beyond: The new threat to tomato world production. J. Pest Sci. 2011, 84, 403–408. [Google Scholar] [CrossRef]
  6. Kilic, T. First record of Tuta absoluta in Turkey. Phytoparasitica 2010, 38, 243–244. [Google Scholar] [CrossRef]
  7. Urbaneja, A.; González-Cabrera, J.; Arnó, J.; Gabarra, R. Prospects for the biological control of Tuta absoluta in tomatoes of the Mediterranean basin. Pest Manag. Sci. 2012, 68, 1215–1222. [Google Scholar] [CrossRef] [PubMed]
  8. Van Damme, V.; Moekens, R.; Berckmoes, E.; Wittemans, L.; De Vis, R.; Beck, B.; Nuyttens, D.; Casteels, H.; Tirry, L.; De Clercq, P. Control of the invasive leafminer Tuta absoluta by leaf application of entomopathogenic nematodes. IOBC-WPRS Bull. 2014, 102, 219. [Google Scholar]
  9. Filho, M.M.; Vilela, E.F.; Jhan, J.M.; Attygalle, A.; Svatos, A.; Meinwald, J. Initial studies of mating disruption of the tomato moth Tuta absoluta (Lepidoptera: Gelechiidae) using synthetic sex phermone. J. Braz. Chem. Soc. 2000, 11, 621–628. [Google Scholar] [CrossRef]
  10. Siqueira, H.A.A.; Guedes, R.N.C.; Picanço, M.C. Cartap resistance and synergism in populations of Tuta absoluta (Lep., Gelechiidae). J. Appl. Entomol. 2000, 124, 233–238. [Google Scholar] [CrossRef]
  11. Siqueira, H.A.A.; Guedes, R.N.C.; Picanço, M.C. Insecticide resistance in populations of Tuta absoluta (Lepidoptera: Gelechiidae). Agric. For. Entomol. 2001, 2, 147–153. [Google Scholar] [CrossRef]
  12. Lietti, M.M.M.; Botto, E.; Alzogaray, R.A. Insecticide Resistance in Argentine Populations of Tuta absoluta (Meyrick) (Lepidoptera: Gelechiidae). Neotrop. Entomol. 2005, 34, 113–119. [Google Scholar] [CrossRef]
  13. Silva, G.A.; Picanço, M.C.; Bacci, L.; Crespo, A.L.B.; Rosado, J.F.; Guedes, R.N.C. Control failure likelihood and spatial dependence of insecticide resistance in the tomato pinworm, Tuta absoluta. Pest Manag. Sci. 2011, 67, 913–920. [Google Scholar] [CrossRef] [PubMed]
  14. Gontijo, P.C.; Picanço, M.C.; Pereira, E.J.G.; Martins, J.C.; Chediak, M.; Guedes, R.N.C. Spatial and temporal variation in the control failure likelihood of the tomato leaf miner, Tuta absoluta. Ann. Appl. Biol. 2013, 162, 50–59. [Google Scholar] [CrossRef]
  15. Gacemi, A.; Guenaoui, Y. Efficacy of Emamectin Benzoate on Tuta absoluta Meyrick (Lepidoptera: Gelechiidae) Infesting a Protected Tomato Crop in Algeria. Acad. J. Entomol. 2012, 5, 37–40. [Google Scholar]
  16. López, J.M.; Artín, L.M.; López, A.; Correia, R.; González, F.; Sanz, E.; Gallardo, M.; Cantus, J.M. Affirm® (Emamectin), a new weapon against Tuta absoluta and other lepidopteran caterpillars. Phytoma-Spain 2010, 217, 5. [Google Scholar]
  17. Campos, M.R.; Silva, T.B.M.; Silva, W.M.; Silva, J.E.; Siqueira, H.A.A. Spinosyn resistance in the tomato borer Tuta absoluta (Meyrick) (Lepidoptera: Gelechiidae). J. Pest Sci. 2015, 88, 405–412. [Google Scholar] [CrossRef]
  18. Payra, P.; Dutta, P.K. Zeolites: A primer. In Handbook of Zeolite Science and Technology; Auerbach, S.M., Carrado, K.A., Dutta, P.K., Eds.; Marcel Dekker: New York, NY, USA, 2003; pp. 1–19. [Google Scholar]
  19. De Smedt, C.; Someus, E.; Spanoghe, P. Potential and actual uses of zeolites in crop protection. Pest Manag. Sci. 2015, 71, 1355–1367. [Google Scholar] [CrossRef] [PubMed]
  20. Tomé, H.V.V.; Cordeiro, E.M.G.; Rosado, J.F.; Guedes, R.N.C. Egg exposure to pyripoxyfen in the tomato leaf miner Tuta absoluta: Ovicidal activity or behavioural-modulated hatching mortality? Ann. Appl. Biol. 2012, 160, 35–42. [Google Scholar] [CrossRef]
  21. Beament, J.W.L. The role of cuticle and egg-shell membranes in the penetration of insecticides. Ann. Appl. Biol. 1952, 39, 142–143. [Google Scholar] [CrossRef]
  22. Smith, E.H.; Salkeld, E.H. The use and action of ovicides. Annu. Rev. Entomol. 1966, 11, 331–368. [Google Scholar] [CrossRef] [PubMed]
  23. Martin, D.E.; Lopez, J.D.; Lan, Y.; Fritz, B.K.; Hoffman, W.C.; Duke, S.E. Novaluron as an ovicide for bollworm on cotton: Deposition and efficacy of fieldscale aerial applications. J. Cotton Sci. 2010, 14, 99–106. [Google Scholar]
  24. Koppel, A.L.; Herbert, D.A., Jr.; Kuhar, T.P.; Malone, S.; Arrington, M. Efficacy of selected insecticides against eggs of Euchistus servus and Acrosternum hilare (Hemiptera: Pentatomidae) and the egg parasitoid Telenomus podisi (Hymenopera: Scelionidae). J. Econ. Entomol. 2011, 104, 137–142. [Google Scholar] [CrossRef] [PubMed]
  25. Zschintzsch, J.; O’Brien, R.D.; Smith, E.H. The relation between uptake and toxicity of organophosphates for eggs of the large milkweed bug. J. Econ. Entomol. 1965, 58, 614–621. [Google Scholar] [CrossRef] [PubMed]
  26. Furneaux, P.J.S.; Mackay, A.L. The composition, structure, and formation of the chorion and the vitelline membrane of the insect egg-shell. In The Insect Integument; Hepburn, H.R., Ed.; Elsevier: Amsterdam, The Netherlands, 1976; pp. 157–176. [Google Scholar]
  27. Al-Dosary, M.M.; Al-Bekairi, A.M.; Moursy, E.B. Morphology of the egg shell and the developing embryo of the Red Palm Weevil, Rhynchophorus ferrugineus. Saudi J. Biol. Sci. 2010, 17, 177–183. [Google Scholar] [CrossRef] [PubMed]
  28. De Smedt, C.; Ferrer, F.; Leus, K.; Spanoghe, P. Removal of pesticides from aqueous solutions by adsorption on zeolites as solid adsorbents. Adsorpt. Sci. Technol. 2015, 33, 457–485. [Google Scholar] [CrossRef] [Green Version]
  29. Van Der Walt, A.; Du Plessis, H.; Van den Berg, J. Using morphological characteristics to distinguish between male and female larvae and pupae of the groundnut leafminer, Aproaerema modicella (Deventer) (Lepidoptera: Gelechiidae). South Afr. J. Plant Soil 2008, 25, 182–184. [Google Scholar] [CrossRef]
  30. Abbott, W.S. A method of computing the effectiveness of an insecticide. J. Econ. Entomol. 1925, 18, 265–267. [Google Scholar] [CrossRef]
  31. World Health Organization. Guidelines for Efficacy Testing of Household Insecticide Products; World Health Organization: Geneva, Switzerland, 2009. [Google Scholar]
  32. Kramer, L.W.; Mulla, S.M. Oviposition attractants and repellents of mosquitoes: Oviposition responses of Culex mosquito to organic infusions. Environ. Entomol. 1979, 8, 1111–1117. [Google Scholar] [CrossRef]
  33. Trisyono, A.; Puttler, B.; Chippendale, G.M. Effect of the ecdysone agonists, methoxyfenozide and tebufenozide, on the lady beetle, Coleomegilla maculata. Entomol. Exp. Appl. 2000, 94, 103–105. [Google Scholar] [CrossRef]
  34. Consoli, F.L.; Botelho, P.S.M.; Parra, J.R.P. Selectivity of insecticides to the egg parasitoid Trichogramma. galloi Zucchi, 1988, (Hym., Trichogrammatidae). J. Appl. Entomol. 2001, 125, 37–43. [Google Scholar] [CrossRef]
  35. Galvan, T.L.; Koch, R.L.; Hutchison, W.D. Toxicity of commonly used insecticides in sweet corn and soybean to multicolored Asian lady beetle (Coleoptera: Coccinellidae). J. Econ. Entomol. 2005, 98, 780–789. [Google Scholar] [CrossRef] [PubMed]
  36. Nation, J.L. Reproduction. In Insect Physiology and Biochemistry; Nation, J.L., Ed.; CRC Press: Boca, FL, USA, 2008; pp. 497–498. [Google Scholar]
  37. Fogel, M.N.; Schneider, M.I. Impact of the neonicotinoid acetamiprid on immature stages of the predator Eriopis connexa (Coleoptera: Coccinellidae). Ecotoxicology 2013, 22, 1063–1071. [Google Scholar] [CrossRef] [PubMed]
  38. Dagli, F.; Bahsi, S.U. Topical and residual toxicity of six pesticides to Orius majusculus. Phytoparasitica 2009, 37, 399–405. [Google Scholar] [CrossRef]
  39. Hoffmann, E.J.; Middleton, S.M.; Wise, J.C. Ovicidal Activity of Organophosphate, Oxadiazine, Neonicotinoid and Insect Growth Regulator Chemistries on Northern Strain Plum Curculio, Conotrachelus nenupha. J. Insect Sci. 2008. [Google Scholar] [CrossRef]
  40. Guarneri, A.A.; Lazzari, C.; Diotaiuti, L.; Lorenzo, M.G. The effect of relative humidity on the behaviour and development of Triatoma brasiliensis. Phys. Entomol. 2002, 27, 142–147. [Google Scholar] [CrossRef]
  41. Norhisham, A.R.; Abood, F.; Rita, M.; Hakeem, K.R. Effect of humidity on egg hatchability and reproductive biology of the bamboo borer (Dinoderus minutus Fabricius). Springerplus 2013, 2, 1–9. [Google Scholar] [CrossRef] [PubMed]
  42. Woods, H.A.; Singer, M.S. Contrasting responses to desiccation and starvation by eggs and neonates of two Lepidoptera. Phys. Biochem. Zoo 2001, 74, 594–606. [Google Scholar] [CrossRef] [PubMed]
  43. Adiyodi, K.G.; Adiyodi, R.G. Morphology and cytology of the accessory sex glands in invertebrates. Int. Rev. Cytol. 1976, 43, 353–398. [Google Scholar]
  44. Hilker, M.; Stein, C.; Schroeder, R.; Varama, M.; Mumm, R. Insect egg deposition induces defence responses in Pinus sylvestris: Characterisation of the elicitor. J. Exp. Biol. 2005, 20, 1849–1854. [Google Scholar] [CrossRef] [PubMed]
  45. Hilker, M.; Meiners, T. Early herbivore alert: Insect eggs induce plant defense. J. Chem. Ecol. 2006, 32, 1379–1397. [Google Scholar] [CrossRef] [PubMed]
  46. Potter, K.A.; Davidowitz, G.; Woods, H.A. Insect eggs protected from high temperatures by limited homeothermy of plant leaves. J. Exp. Biol. 2009, 212, 3448–3454. [Google Scholar] [CrossRef] [PubMed]
  47. Woods, H.A. Water loss and gas exchange by eggs of Manduca sexta: Trading off costs and benefits. J. Insect Physiol. 2010, 56, 480–487. [Google Scholar] [CrossRef] [PubMed]
  48. Balbyshev, N.F.; Lorenzen, J.H. Hypersensitivity and egg drop, a novel mechanism of host–plant resistance to Colorado potato beetle (Coleoptera: Chrysomelidae). J. Econ. Entomol. 1997, 90, 652–657. [Google Scholar] [CrossRef]
  49. Little, D.; Gouhier-Darimont, C.; Bruessow, F.; Reymond, P. Oviposition by pierid butterflies triggers defense responses in Arabidopsis. Plant. Physiol. 2007, 143, 784–800. [Google Scholar] [CrossRef] [PubMed]
  50. Shapiro, A.M.; De Vay, J.E. Hypersensitivity reaction of Brassica nigra L. (Cruciferae) kills eggs of Pieris butterflies (Lepidoptera: Pieridae). Oecologia 1987, 71, 631–632. [Google Scholar] [CrossRef]
  51. Glenn, D.M.; Puterka, G.J. Particle films: A new technology for agriculture. Hortic. Rev. 2005, 31, 1–44. [Google Scholar]
  52. Unruh, T.R.; Knight, A.L.; Upton, J.; Glenn, D.M.; Puterka, G.J. Particle films for suppression of the Codling Moth (Lepidoptera: Tortricidae) in Apple and Pear Orchards. J. Econ. Entomol. 2000, 93, 737–743. [Google Scholar] [CrossRef] [PubMed]
  53. Larentzaki, E.; Shelton, A.M.; Plate, J. Effect of kaolin particle film on Thrips tabaci (Thysanoptera: Thripidae), oviposition, feeding and development on onions: A lab and field case study. Crop Prot. 2008, 27, 727–734. [Google Scholar] [CrossRef]
  54. Bengochea, P.; Saelices, R.; Amor, F.; Adan, A.; Budia, F.; del Estal, P.; Vinuela, E.; Medina, P. Non-target effects of kaolin and coppers applied on olive trees for the predatory lacewing Chrysoperla carnea. Biocontrol. Sci. Technol. 2014, 24, 625–640. [Google Scholar] [CrossRef]
  55. Temerak, S.A. Ovicidal activity of the natural bio-product spinosad through field observation of tagged egg masses of Spodoptera littoralis on cotton in five Governorates of Egypt Assiut. J. Agric. Sci. 2005, 36, 85–95. [Google Scholar]
  56. Hanan, S.A.; Samya, Z.S. Effects of certain insecticides on eggs of Spodoptera Littoralis. Egypt J. Agric. Res. 2014, 92, 875–883. [Google Scholar]
  57. Boiteau, G.; Noronha, C. Topical, residual and ovicidal contact toxicity of three reduced-risk insecticides against the European corn borer, Ostrinia nubilalis (Lepidoptera: Crambidae), on potato. Pest Manag. Sci. 2007, 63, 1230–1238. [Google Scholar] [CrossRef] [PubMed]
  58. Dow AgroSciences. Conserve SC Turf and Ornamental. Available online: http://www.dowagro.com/turf/products/insecticides/conserve.htm (accessed on 5 September 2015).
  59. Huang, J.; Walker, E.D.; Giroux, P.Y.; Vulule, J.; Miller, J.R. Ovipositional site selection by Anopheles gambiae: Influences of substrate moisture and texture. Med. Vet. Entomol. 2005, 19, 442–450. [Google Scholar] [CrossRef] [PubMed]
  60. Guha, L.; Seenivasagan, T.; Bandyopadhyay, P.; Iqbal, S.T.; Sathe, M.; Sharma, P.; Parashar, B.D.; Kaushik, M.P. Oviposition and flight orientation response of Aedes aeqypti to certain aromatic aryl hydrazono esters. Parasitol. Res. 2012, 111, 975–982. [Google Scholar] [CrossRef] [PubMed]
  61. Städler, E. Plant chemicals important for egg deposition in herbivorous insects. In Chemoecology of Insect Eggs and Egg Deposition; Hilker, M., Meiners, T., Eds.; Blackwell Publishing Ltd.: Berlin, Germany, 2002; pp. 171–197. [Google Scholar]
  62. Reddy, P. Disguising the leaf surface. In Recent Advances in Crop Protection; Reddy, P., Ed.; Springer: New York, NY, USA, 2012; pp. 91–102. [Google Scholar]
Insects 07 00072 g001 550

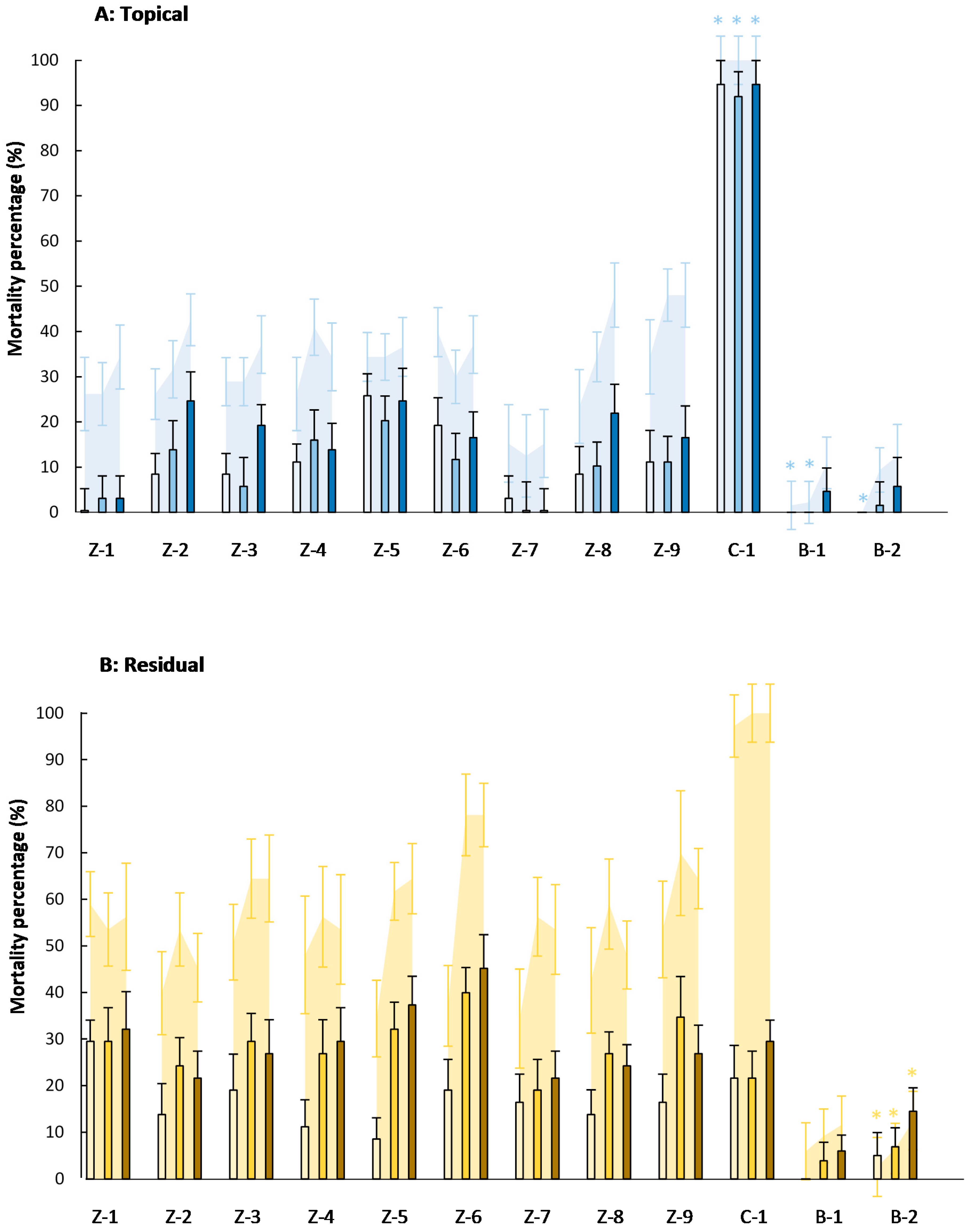

Figure 1. Percentage of corrected mortality (±SE) of Tuta absoluta eggs (bars) and eggs + larvae (area) in topical (A) and residual (B) exposure bioassays, using different concentrations of the insecticide materials (Table 1)—400 ( Insects 07 00072 i001, Insects 07 00072 i002), 4000 ( Insects 07 00072 i003, Insects 07 00072 i004), and 20,000 ( Insects 07 00072 i005, Insects 07 00072 i006) mg·L−1. Asterisks indicate no significant differences (p < 0.05) between eggs and eggs + larvae mortality (n = 8).
Figure 1. Percentage of corrected mortality (±SE) of Tuta absoluta eggs (bars) and eggs + larvae (area) in topical (A) and residual (B) exposure bioassays, using different concentrations of the insecticide materials (Table 1)—400 ( Insects 07 00072 i001, Insects 07 00072 i002), 4000 ( Insects 07 00072 i003, Insects 07 00072 i004), and 20,000 ( Insects 07 00072 i005, Insects 07 00072 i006) mg·L−1. Asterisks indicate no significant differences (p < 0.05) between eggs and eggs + larvae mortality (n = 8).
Insects 07 00072 g001
Insects 07 00072 g002 550

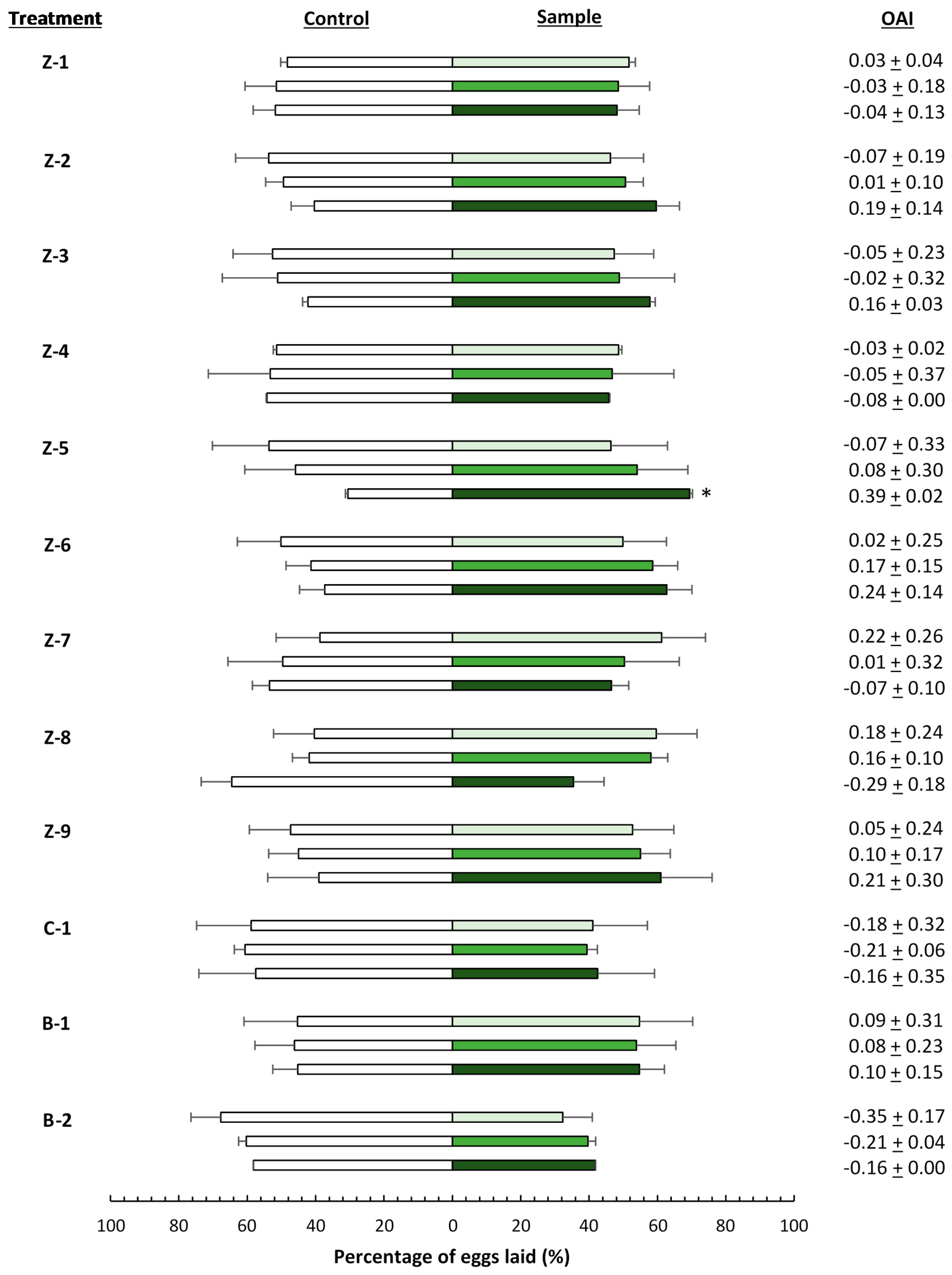

Figure 2. Oviposition response of Tuta absoluta to plants treated with different concentrations of the insecticide materials (Table 1). White bars indicate the mean percentage of eggs laid on control leaves, green bars indicate the mean percentage of eggs laid on leaves treated with a concentration of 400 ( Insects 07 00072 i007), 4000 ( Insects 07 00072 i008), and 20,000 ( Insects 07 00072 i009) mg·L−1. Asterisks indicate significant differences (p < 0.05) in oviposition activity between treated and control leaves (n = 4). OAI: oviposition activity index.
Figure 2. Oviposition response of Tuta absoluta to plants treated with different concentrations of the insecticide materials (Table 1). White bars indicate the mean percentage of eggs laid on control leaves, green bars indicate the mean percentage of eggs laid on leaves treated with a concentration of 400 ( Insects 07 00072 i007), 4000 ( Insects 07 00072 i008), and 20,000 ( Insects 07 00072 i009) mg·L−1. Asterisks indicate significant differences (p < 0.05) in oviposition activity between treated and control leaves (n = 4). OAI: oviposition activity index.
Insects 07 00072 g002
Table
Table 1. Insecticide materials used in this study.
Table 1. Insecticide materials used in this study.
TreatmentMaterial NameFormulation TypeManufacturers
Z-1BEA (Beta polymorph A)Technical productClariant
Z-2BEA 850 aWP cFitofarmacia
Z-3BEA 950 bWPFitofarmacia
Z-4FAU (Faujasite)Technical productZeolyst
Z-5FAU 850 aWPFitofarmacia
Z-6FAU 920 bWPFitofarmacia
Z-7LTA (Linde type A)Technical productFMC
Z-8LTA 800SC cFitofarmacia
Z-9LTA 850WPFitofarmacia
C-1Spinosad (Conserve Pro)SCDow Agrosciences B.V.
B-1KaolinTechnical productSigma Aldrich
B-2Kaolin (Surround)WPTessenderlo Group
a,b The formulations with a similar letter contain the same adjuvants.; c WP: wettable powder, SC: suspension concentrate.
Table
Table 2. Four-way ANOVA results indicating the effect of dose, application method, product, and life stage on the mortality of Tuta absoluta.
Table 2. Four-way ANOVA results indicating the effect of dose, application method, product, and life stage on the mortality of Tuta absoluta.
FactorFdfp
Dose3.23410.074
Application method6.92510.010 b
Product1.05710.306
Life stage45.47210.000 c
Dose × application method0.04310.836
Dose × product0.00110.971
Dose × life stage0.00410.947
Application method × product4.88310.029 a
Application method × life stage3.93810.049 a
Product × life stage0.77210.381
Dose × application method × product0.00010.996
Dose × application method × life stage0.04310.836
Dose × product × life stage0.00310.958
Application method × product × life stage0.14410.705
Dose × application method × product × life stage0.00010.989
Error 128
a,b,c Significant differences, with a: p < 0.05, b: p < 0.01 and c: p < 0.001.

Share and Cite

MDPI and ACS Style

De Smedt, C.; Van Damme, V.; De Clercq, P.; Spanoghe, P. Insecticide Effect of Zeolites on the Tomato Leafminer Tuta absoluta (Lepidoptera: Gelechiidae). Insects 2016, 7, 72. https://doi.org/10.3390/insects7040072

AMA Style

De Smedt C, Van Damme V, De Clercq P, Spanoghe P. Insecticide Effect of Zeolites on the Tomato Leafminer Tuta absoluta (Lepidoptera: Gelechiidae). Insects. 2016; 7(4):72. https://doi.org/10.3390/insects7040072

Chicago/Turabian Style

De Smedt, Caroline, Veerle Van Damme, Patrick De Clercq, and Pieter Spanoghe. 2016. "Insecticide Effect of Zeolites on the Tomato Leafminer Tuta absoluta (Lepidoptera: Gelechiidae)" Insects 7, no. 4: 72. https://doi.org/10.3390/insects7040072

APA Style

De Smedt, C., Van Damme, V., De Clercq, P., & Spanoghe, P. (2016). Insecticide Effect of Zeolites on the Tomato Leafminer Tuta absoluta (Lepidoptera: Gelechiidae). Insects, 7(4), 72. https://doi.org/10.3390/insects7040072

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
