Passive Animal Surveillance to Identify Ticks in Wisconsin, 2011–2017

by
Xia Lee
1,
Darby S. Murphy
2,
Diep Hoang Johnson
3 and
Susan M. Paskewitz
4,*
1
Department of Entomology, University of Wisconsin-Madison, Madison, WI 53706, USA
2
MPH program, University of Wisconsin-Madison, Madison, WI 53706, USA
3
Infection Control, University of Wisconsin Health, Madison, WI 53715, USA
4
Department of Entomology, University of Wisconsin-Madison, Madison, WI 53706, USA
*
Author to whom correspondence should be addressed.
Insects 2019, 10(9), 289; https://doi.org/10.3390/insects10090289
Submission received: 14 August 2019 / Revised: 29 August 2019 / Accepted: 5 September 2019 / Published: 8 September 2019
(This article belongs to the Special Issue Tick Surveillance and Tick-borne Diseases)
Browse Figures
Versions Notes

Abstract

:
The introduction of new tick species poses a risk to human and animal health. Systematic active surveillance programs are expensive and uncommon. We evaluated a passive animal surveillance program as a monitoring tool to document the geographic distribution and host associations of ticks in Wisconsin. Passive surveillance partners included veterinary medical clinics, domestic animal shelters, and wildlife rehabilitation centers from 35 of the 72 Wisconsin counties. A total of 10,136 tick specimens were collected from 2325 animals from July 2011 to November 2017 and included Dermacentor variabilis Say (29.7% of all ticks), Ixodes texanus Banks (25.5%), Ixodes scapularis Say (19.5%), Haemaphysalis leporispalustris Packard (13.8%), Ixodes cookei Packard (4.4%), and Dermacentor albipictus Packard (1.7%). Less common species (<1% of collection) included Ixodes dentatus Marx, Ixodes sculptus Neumann, Ixodes marxi Banks, Amblyomma americanum Linnaeus, and Rhipicephalus sanguineus Latreille. Of the 2325 animals that were examined, most were domestic dogs (53%), eastern cottontail rabbits (16%), domestic cats (15%), and North American raccoons (11%). An additional 21 mammal and 11 bird species were examined at least once during the six years of the study. New county records are summarized for each species. Public health, academic, and veterinary and animal care partners formed a community of practice enabling effective statewide tick surveillance.

1. Introduction

Hard ticks (Acari: Ixodidae) are vectors of several pathogens causing diseases that are of medical and veterinary importance. The blacklegged tick, Ixodes scapularis Say, is one of the most important hard ticks in the eastern United States as the vector for the etiologic agents causing Lyme disease, anaplasmosis, and babesiosis, among others. Due to its role in vector-borne disease transmission, I. scapularis is the only tick species that has been well documented in Wisconsin, using both active and passive surveillance methods [1,2,3,4,5,6,7,8,9,10,11,12,13,14]. These studies demonstrated that I. scapularis has undergone a dramatic range expansion in Wisconsin since the 1980s [15]. Another vector species, Amblyomma americanum Linnaeus, formerly unknown in Wisconsin, has also been detected with increasing frequency [16,17]. Our current understanding of the presence and geographical range of other ixodid tick species in Wisconsin comes from studies that summarize the results of collections from animals or humans that largely occurred between the early 1900s and the 1970s ([3,6,18,19,20,21,22,23,24,25,26,27,28,29] and references therein). These studies recorded fifteen species, beginning with detection of Dermacentor albipictus Packard in 1907. Whether changes have occurred in the diversity and distribution of ticks that do not feed on humans is unknown.
Active tick surveillance, including dragging or flagging, captures important information regarding density and ecological correlates for specific tick species, but such methods are labor intensive and not effective for many species. Passive surveillance, involving the submission of ticks from collaborators or the general public, is a tool that has been successfully implemented to provide information on tick and pathogen distribution as well as host associations in other areas [30,31,32,33,34,35,36,37,38,39,40]. The Wisconsin Department of Health Services and the University of Wisconsin Medical Entomology Laboratory implemented a passive surveillance program in 2011 with the goal of collecting ticks for examination of the extent of the distribution of a newly emerging pathogen, Ehrlichia muris eauclairensis [41]. The Surveillance of Wisconsin Animals for Ticks (SWAT) program utilized a network of animal health providers to collect ticks from animals seen at each facility. A variety of animals were sampled, providing an opportunity to update previous records for human- as well as non-human-feeding ticks in Wisconsin.
The objective of this study was to describe the occurrence, distribution, and host associations of ticks resulting from the collection of specimens from domestic and wildlife species by participating veterinary medical clinics, domestic animal shelters, and wildlife rehabilitation centers in Wisconsin.

2. Materials and Methods

Veterinarians, domestic animal shelters, and licensed wildlife rehabilitation centers in the state of Wisconsin were contacted by the Wisconsin Department of Health Services by email and telephone for participation in a passive tick surveillance program (SWAT). Collection materials (vials containing ethanol, data sheets, labeled mailers) were provided for all partners. Participants removed ticks from domestic and wild animals and placed all specimens from an individual animal in one 2 mL plastic vial containing 70% ethanol. Participants recorded the name of the facility, the county, the date the tick specimen was removed, the host species on which the tick was found, dog breed (if applicable), exact or approximate location where the tick may have been picked up (where known), travel history (for domestic animals) within the preceding two weeks, approximate number of ticks removed, and any other information the recorder believed important. Samples and datasheets were mailed to the University of Wisconsin–Madison for tick identification.
All tick specimens were identified by use of standard adult, nymphal, and larval taxonomic keys [23,26,42]. Poor condition of some specimens made morphologic identification past the genus level impossible; these specimens were recorded to genus or marked as unknown. Physical specimens are archived at the University of Wisconsin Insect Research Collection. Collection records will be available through the Vector Records Repository at the University of Wisconsin–Madison.

3. Results

Tick specimens were submitted by 22 veterinary medical clinics, 20 domestic animal shelters, 7 wildlife rehabilitation clinics, and 4 other partners in 35 Wisconsin counties (Figure 1) from August 2011 to November 2017. Most participants were involved for 1–3 years. Partners sometimes collected ticks from animals brought in from neighboring counties and submitted those samples; these counties are identified in Figure 1. Any ticks that were collected from animals with a documented travel history outside of Wisconsin within two weeks of their veterinary visit were excluded from this analysis. A total of 10,136 ticks were removed from 2325 animals of 25 mammal and 11 bird species (Table 1). Of these, the host animal was not recorded for fifty-two samples (255 ticks). Domestic dogs (Cans familiaris), domestic cats (Felis domesticus), eastern cottontail rabbits (Sylvilagus floridanus), and North American raccoons (Procyon lotor) were most frequently sampled and yielded 39%, 8%, 30%, and 12% (total of 89%) of all ticks collected, respectively.
The species, stage, sex, and host species of the most commonly collected ticks is summarized in Table 1. Eleven of the sixteen ixodid tick species previously reported from Wisconsin (including A. americanum) were collected: Dermacentor variabilis Say (3214; 29.7%), Ixodes texanus Banks (2588; 25.5%), I. scapularis (2463; 19.5%), Haemaphysalis leporispalustris Packard (1232; 13.8%), Ixodes cookei Packard (461; 4.4%), D. albipictus (Packard) (121; 1.7%), Ixodes dentatus Marx (27; 0.3%), Ixodes marxi Banks (17; 0.2%), Ixodes sculptus Neumann (5; 0.05%), Rhipicephalus sanguineus Latreille(5; 0.05%) and A. americanum (3; 0.03%).
I. scapularis had the broadest host range and was collected from 15 mammal and ten bird species, including an adult tick removed from a big brown bat (Eptesicus fuscus; new host record) and two larvae removed from a fisher (Martes pennanti). D. variabilis was collected from 15 mammal species but only one bird, the American Robin (Turdus migratorius). I. cookei was found on 12 mammal species, including the fisher as well as other members of the canid and mustelid families. I. texanus was found on six mammal species, including raccoon, woodchuck (Marmorata monax), Virginia opossum (Didelphis virginiana), domestic cat, domestic ferret (Mustela putorius furo), and an eastern cottontail rabbit; however almost all the specimens were from raccoons (2577 of 2588 collected). Most raccoons had fewer than 50 I. texanus but on one occasion, a family of three pups were sampled in Brown County and yield 765 nymphs (June, 2014). H. leporispalustris was also found on six species, including two birds, but nearly all of the more than 1000 specimens were from eastern cottontail rabbits. Three tick species were collected from only one or two host species. These included I. dentatus (27 adults from Eastern cottontail rabbits), I. marxi (seven nymphs, seven adult females, three males; all from raccoons) and D. albipictus (121 adults from a farmed elk/white tailed deer operation that did not identify the host species). I. sculptus was collected from one raccoon (two nymphs) and three thirteen-lined ground squirrels (Spermophilus tridecemlineata; two adult females; one adult male). A. americanum was collected from a stray cat and from two dogs, all from southern counties (Jefferson, Dane, Iowa, WI, USA). These associations are consistent with previous host records [23,43,44,45,46,47,48].
I. scapularis ticks were submitted from 34 of the 35 counties with participating organizations (no specimens submitted from Forest County). Updated distribution maps for this species that included SWAT results were reported in Eisen et al. [15] and we found no additions for the additional 2016–2017 collections included herein. Similarly, A. americanum records have been recently summarized [17] and no additions were identified. D. variabilis was widely distributed as it was submitted by 32 of the 35 participating counties (no specimens from La Crosse, Vernon, or Marathon Counties) with reports for eight additional nonparticipant counties. We add 18 new county records for this species (Figure 2) to the published record. I. texanus, I. cookei, and H. leporispalustris were submitted from 11, 14, and 10 of the contributing organizations, respectively. We add 12 new county records for I. texanus (Figure 3), 11 for I. cookei (Figure 4), and 8 for H. leporispalustris (Figure 5) to the published record. Fewer collections were made for I. marxi (Racine, Milwaukee, Brown Counties, Figure 6), I. sculptus (Brown, Waukesha Counties, Figure 7), R. sanguineus (Wood County, Figure 8), D. albipictus (Marinette and Oconto Counties, Figure 9), and I. dentatus (Dane County only, Figure 10). Note that wildlife sampling was most intense in the eastern half of the state where most of the wildlife rehabilitators were located.

4. Discussion

Passive tick surveillance is an effective and sensitive method for early detection of the emergence of newly established tick populations and tick-borne disease risk [30,31,40,49], as well as for mapping the geographic distribution and diversity of tick species [36,50]. Significant changes in the distribution and local abundance of multiple tick species have been documented in the last two decades in North America (e.g., I. scapularis, A. americanum, Amblyomma maculatum, D. variabilis, Haemaphysalis longicornis Neumann) [51] and involvement of veterinary partners provides an effective and engaged network enabling surveys of large geographic areas and greater access to a wide variety of host species.
This study documents the presence of ten tick species collected from 36 different mammal and bird species. The most commonly reported ticks were I. scapularis and D. variabilis with submissions from 46 of the 72 Wisconsin counties for both species (several partners saw patients from multiple counties). We also recorded a large number of I. texanus, H. leporispalustris, and I. cookei; the majority of these three tick species came from wildlife rehabilitation centers and wildlife sanctuaries located in a more limited set of counties (Brown, Dane, Kenosha, Milwaukee, Oneida, Walworth, Waukesha, and Winnebago Counties). While 97% (992/1020) of all H. leporispalustris ticks were collected from eastern cottontail rabbits, we did receive 18 larval tick specimens removed from one cat by the Dane County Humane Society. Our SWAT partners did not note whether this animal was a stray or a domestic cat or whether the animal was in proximity to a rabbit while held at the Humane Society. These ticks were examined by colleagues working with the newly invasive species, H. longicornis [52], who were able to confirm the H. leporispalustris identification.
This study also documents the submission of two brown dog ticks, R. sanguineus, both from dogs. This tick is of interest because of its involvement in the transmission of Rickettsia rickettsii, the pathogen causing Rocky Mountain Spotted Fever in the southwestern United States [53]. R. sanguineus is not frequently encountered in Wisconsin and we could find few prior published reports of this tick in the state [20,27,54]. Knipping et al. [27] identified three counties with occurrence of this species in the 1940s: Dane, Milwaukee, and Fond du Lac. One of the SWAT submissions was from a facility in a county at the border between Wisconsin and Michigan (Marinette County) in 2011. The tick was on a Rottweiler and was removed in November. The dog owner reported frequent travel between the two states with uncertainty about where the tick was picked up. The other SWAT submission was from Wood County in central Wisconsin in June of 2013 and the owner of the dog did not report travel. In addition to the two SWAT submissions, during 2018 two separate cases of possible introduction of this tick were reported to the Insect Diagnostic Lab in the Department of Entomology at the University of Wisconsin–Madison, with specimens provided for identifications. These were from Barron (northwest Wisconsin) and Dane (southern Wisconsin) Counties. R. sanguineus is associated with indoor environments and dog kennels and is more common in the southern and southwestern United States.
The results reported here provide an updated baseline and extend knowledge about the distribution and host associations of the various tick species found in Wisconsin. One important limitation to the study concerns the range of hosts that were surveyed. In Wisconsin, there are 16 recorded ixodid tick species, of which five species were not detected with the SWAT program (Ixodes muris, Ixodes angustus, Ixodes banksi, Ixodes brunneus, and Haemaphysalis chordeilis). In addition, there were few submissions of four other species (I. dentatus, I. sculptus, I. marxi, and R. sanguineus). I. dentatus is most commonly found on rabbits; cottontail rabbits were frequently sampled by veterinary partners but I. dentatus was only found in Dane County. This confirms a prior report in 1957 where a survey of cottontail rabbits in Wisconsin also found the tick only in Dane county, indicating the northern edge of the range for this species has not changed [28]. With the exception of R. sanguineus and I. dentatus, the underrepresentation of the other seven ticks is likely a result of the few examinations of their preferred hosts. I. muris, I. angustus, and I. marxi are predominantly found on small rodents such as voles, white-footed mice, deer mice, and shrews [23,55], and both I. muris and I. angustus have been found through small mammal trapping for studies of Lyme Disease in Wisconsin (unpublished data). I. sculptus is often found on small burrowing rodents such as prairie dogs and thirteen-lined ground squirrels; only three thirteen-lined ground squirrels were sampled for the SWAT study [56,57,58]. I. brunneus and H. chordeilis are ectoparasites of birds [46,59] and relatively few birds were checked by our partners. However, our primary goals were to look for introduced species and to determine host association through passive surveillance by veterinary and wildlife care partners, and as such, we expected a bias towards large and medium sized mammals.

5. Conclusions

We provide updated maps of tick species occurrence in Wisconsin based on surveillance of wild and domestic animals. These data provide a valuable baseline enabling evaluation of future changes in tick range and abundance and will be useful in the event of detection of species that are not currently established in Wisconsin.

Author Contributions

Conceptualization, S.M.P., D.H.J. and D.S.M.; methodology, S.M.P., D.H.J. and D.S.M.; validation, D.S.M. and X.L.; formal analysis, S.M.P. and X.L.; investigation, D.S.M. and X.L.; resources, D.H.J. and S.M.P.; data curation, X.L., D.S.M. and S.M.P.; writing—original draft preparation, D.S.M. and X.L.; writing—review and editing, S.M.P. and D.H.J.; visualization, S.M.P.; supervision, X.L., S.M., S.M.P. and D.H.J.; project administration, S.M.P. and D.H.J.; funding acquisition, S.M.P. and D.H.J.

Funding

This research received financial support from the Wisconsin Department of Health Services under the Epidemiology and Laboratory Capacity for Infectious Diseases program funded by the Centers for Disease Control and Prevention. The work also was partially supported by Cooperative Agreement Number U01CK000505, funded by the Centers for Disease Control and Prevention. Its contents are solely the responsibility of the authors and do not necessarily represent the official views of the Centers for Disease Control and Prevention or the Department of Health and Human Services.

Acknowledgments

The authors would like to thank all the Wisconsin veterinary medical clinics, domestic animal humane shelters, wildlife rehabilitation centers, and volunteers for their participation in this study. We also thank the many undergraduate and graduate research assistants at the Wisconsin Department of Health and the University of Wisconsin–Madison, Department of Entomology for help with processing and identification of tick specimens.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. French, J.B., Jr.; Schell, W.L.; Kazmierczak, J.J.; Davis, J.P. Changes in population density and distribution of Ixodes dammini (Acari: Ixodidae) in Wisconsin during the 1980s. J. Med. Entomol. 1992, 29, 723–728. [Google Scholar] [CrossRef] [PubMed]
  2. Jackson, J.O.; DeFoliart, G.R. Ixodes scapularis Say in northern Wisconsin. J. Med. Entomol. 1970, 7, 124–125. [Google Scholar] [CrossRef] [PubMed]
  3. Amin, O.M. Lice, mites, and ticks of southeastern Wisconsin mammals. Great Lakes Entomol. 1976, 9, 195–198. [Google Scholar]
  4. Davis, J.P.; Schell, W.L.; Amundson, T.E.; Godsey, M.S., Jr.; Spielman, A.; Burgdorfer, W.; Barbour, A.G.; LaVenture, M.; Kaslow, R.A. Lyme disease in Wisconsin: Epidemiologic, clinical, serologic, and entomologic findings. Yale J. Biol. Med. 1984, 57, 685–696. [Google Scholar] [PubMed]
  5. Diuk-Wasser, M.A.; Hoen, A.G.; Cislo, P.; Brinkerhoff, R.; Hamer, S.A.; Rowland, M.; Cortinas, R.; Vourc’h, G.; Melton, F.; Hickling, G.J.; et al. Human risk of infection with Borrelia burgdorferi, the Lyme disease agent, in eastern United States. Am. J. Trop. Med. Hyg. 2012, 86, 320–327. [Google Scholar] [CrossRef] [PubMed]
  6. Riehle, M.; Paskewitz, S.M. Ixodes scapularis (Acari: Ixodidae): Status and changes in prevalence and distribution in Wisconsin between 1981 and 1994 measured by deer surveillance. J. Med. Entomol. 1996, 33, 933–938. [Google Scholar] [CrossRef]
  7. Guerra, M.; Walker, E.; Jones, C.; Paskewitz, S.; Cortinas, M.R.; Stancil, A.; Beck, L.; Bobo, M.; Kitron, U. Predicting the risk of Lyme disease: Habitat suitability for Ixodes scapularis in the north central United States. Emerg. Infect. Dis. 2002, 8, 289–297. [Google Scholar] [CrossRef] [PubMed]
  8. Michalski, M.; Rosenfield, C.; Erickson, M.; Selle, R.; Bates, K.; Essar, D.; Massung, R. Anaplasma phagocytophilum in central and western Wisconsin: A molecular survey. Parasitol. Res. 2006, 99, 694–699. [Google Scholar] [CrossRef]
  9. Paskewitz, S.M.; Vandermause, M.; Belongia, E.A.; Kazmierczak, J.J. Ixodes scapularis (Acari: Ixodidae): Abundance and rate of infection with Borrelia burgdorferi in four state parks in Wisconsin. J. Med. Entomol. 2001, 38, 33–38. [Google Scholar] [CrossRef]
  10. Coyle, D.R.; Murphy, M.W.; Paskewitz, S.M.; Orrock, J.L.; Lee, X.; Murphy, R.J.; McGeehin, M.A.; Raffa, K.F. Belowground herbivory in red pine stands initiates a cascade that increases abundance of Lyme disease vectors. For. Ecol. Manag. 2013, 302, 354–362. [Google Scholar] [CrossRef]
  11. Lee, X.; Hardy, K.; Johnson, D.H.; Paskewitz, S.M. Hunter-killed deer surveillance to assess changes in the prevalence and distribution of Ixodes scapularis (Acari: Ixodidae) in Wisconsin. J. Med. Entomol. 2013, 50, 632–639. [Google Scholar] [CrossRef] [PubMed]
  12. Caporale, D.A.; Johnson, C.M.; Millard, B.J. Presence of Borrelia burgdorferi (Spirochaetales: Spirochaetaceae) in southern Kettle Moraine State Forest, Wisconsin, and characterization of strain W97F51. J. Med. Entomol. 2005, 42, 457–472. [Google Scholar] [CrossRef] [PubMed]
  13. Steiner, F.E.; Pinger, R.R.; Vann, C.N.; Grindle, N.; Civitello, D.; Clay, K.; Fuqua, C. Infection and co-infection rates of Anaplasma phagocytophilum variants, Babesia spp., Borrelia burgdorferi, and the rickettsial endosymbiont in Ixodes scapularis (Acari: Ixodidae) from sites in Indiana, Maine, Pennsylvania, and Wisconsin. J. Med. Entomol. 2014, 45, 289–297. [Google Scholar] [CrossRef]
  14. French, J.B. Ixodes scapularis (Acari: Ixodidae) at the edge of its range in southern Wisconsin. J. Med. Entomol. 1995, 32, 876–881. [Google Scholar] [CrossRef] [PubMed]
  15. Eisen, R.J.; Eisen, L.; Beard, C.B. County-scale distribution of Ixodes scapularis and Ixodes pacificus (Acari: Ixodidae) in the continental United States. J. Med. Entomol. 2016, 53, 349–386. [Google Scholar] [CrossRef] [PubMed]
  16. Springer, Y.P.; Eisen, L.; Beati, L.; James, A.M.; Eisen, R.J. Spatial distribution of counties in the continental United States with records of occurrence of Amblyomma americanum (Ixodida: Ixodidae). J. Med. Entomol. 2014, 51, 342–351. [Google Scholar] [CrossRef]
  17. Christenson, M.; Lee, X.; Larson, S.; Johnson, D.H.; Jensen, J.; Meller, M.; Paskewitz, S. Occurrence of Amblyomma americanum (Acari: Ixodidae) and human infection with Ehrlichia chaffeensis in Wisconsin, 2008–2015. J. Med. Entomol. 2017, 54, 752–756. [Google Scholar] [PubMed]
  18. Amin, O. Preliminary survey of vertebrate ectoparasites in southeastern Wisconsin. J. Med. Entomol. 1973, 10, 110–111. [Google Scholar] [CrossRef]
  19. Banks, N. Tick-borne diseases and their origin. J. Econ. Entomol. 1908, 1, 213–215. [Google Scholar] [CrossRef]
  20. Bishopp, F.C.; Trembley, H.L. Distribution and hosts of certain North American Ticks. J. Parasitol. 1945, 31, 1–54. [Google Scholar] [CrossRef]
  21. Cooley, R. Note on the Tick, Ixodes-Angustus Neumann. J. Parasitol. 1946, 32, 210. [Google Scholar] [CrossRef] [PubMed]
  22. Cooley, R.A.; Kohls, G.M. The genus Ixodes in North America. Natl. Inst. Health Bull. 1945, 184, 1–246. [Google Scholar]
  23. Durden, L.A.; Keirans, J.E. Nymphs of the Genus Ixodes (Acari: Ixodidae) of the United States: Taxonomy, Identification Key, Distribution, Hosts, and Medical/veterinary Importance; Thomas Say Publications; Entomological Society of America: Annapolis, MD, USA, 1996; pp. 1–96. [Google Scholar]
  24. Godsey, M.; Amundson, T.; Burgess, E.; Schell, W.; Davis, J.; Kaslow, R.; Edelman, R. Lyme disease ecology in Wisconsin—Distribution and host preferences of Ixodes dammini, and prevalence of antibody to Borrelia burgdorferi in small mammals. Am. J. Trop. Med. Hyg. 1987, 37, 180–187. [Google Scholar] [CrossRef] [PubMed]
  25. Keirans, J.E.; Clifford, C.M. The genus Ixodes in the United States: A scanning electron microscope study and key to the adults. J. Med. Entomol. Suppl. 1978, 2, 1–149. [Google Scholar] [CrossRef] [PubMed]
  26. Keirans, J.; Litwak, T. Pictorial key to the adults of hard ticks, Family Ixodidae (Ixodida, Ixodoidea), east of the Mississippi River. J. Med. Entomol. 1989, 26, 435–448. [Google Scholar] [CrossRef] [PubMed]
  27. Knipping, P.A.; Morgan, B.B.; Dicke, R.J. Notes on the distribution of Wisconsin ticks. Trans. Wis. Acad. Sci. Arts Lett. 1950, 40, 185–197. [Google Scholar]
  28. Haas, G.E. Ectoparasites of the Mearns Cottontail in Wisconsin. Ph.D. Thesis, University of Wisconsin, Madison, WI, USA, 1957. [Google Scholar]
  29. Anderson, J.; Duray, P.; Magnarelli, L. Prevalence of Borrelia burgdorferi in white-footed mice and Ixodes dammini at Fort McCoy, Wisconsin. J. Clin. Microbiol. 1987, 25, 1495–1497. [Google Scholar] [PubMed]
  30. Ogden, N.H.; Trudel, L.; Artsob, H.; Barker, I.K.; Beauchamp, G.; Charron, D.F.; Drebot, M.A.; Galloway, T.D.; O’Handley, R.; Thompson, R.A.; et al. Ixodes scapularis ticks collected by passive surveillance in Canada: Analysis of geographic distribution and infection with Lyme Borreliosis agent Borrelia burgdorferi. J. Med. Entomol. 2006, 43, 600–609. [Google Scholar] [CrossRef] [PubMed]
  31. Rand, P.W.; Lacombe, E.H.; Dearborn, R.; Cahill, B.; Elias, S.; Lubelczyk, C.B.; Beckett, G.A.; Smith, R.P. Passive surveillance in Maine, an area emergent for tick-borne diseases. J. Med. Entomol. 2007, 44, 1118–1129. [Google Scholar] [CrossRef]
  32. Xu, G.; Mather, T.N.; Hollingsworth, C.S.; Rich, S.M. Passive surveillance of Ixodes scapularis (Say), their biting activity, and associated pathogens in Massachusetts. Vector Borne Zoonotic Dis. 2016, 16, 520–527. [Google Scholar] [CrossRef]
  33. Nieto, N.C.; Porter, W.T.; Wachara, J.C.; Lowrey, T.J.; Martin, L.; Motyka, P.J.; Salkeld, D.J. Using citizen science to describe the prevalence and distribution of tick bite and exposure to tick-borne diseases in the United States. PLoS ONE 2018, 13, e0199644. [Google Scholar] [CrossRef] [PubMed]
  34. Porter, W.T.; Motyka, P.J.; Wachara, J.; Barrand, Z.A.; Hmood, Z.; McLaughlin, M.; Pemberton, K.; Nieto, N.C. Citizen science informs human-tick exposure in the Northeastern United States. Int. J. Health Geogr. 2019, 18, 9–23. [Google Scholar] [CrossRef] [PubMed]
  35. Tulloch, J.S.P.; Mcginley, L.; Sanchez-Vizcaino, F.; Medlock, J.M.; Radford, A.D. The passive surveillance of ticks using companion animal electronic health records. Epidemiol. Infect. 2017, 145, 2020–2029. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Smith, R.P.; Lacombe, E.H.; Rand, P.W.; Dearborn, R. Diversity of tick species biting humans in an emerging area for Lyme disease. Am. J. Public Health 1992, 82, 66–69. [Google Scholar] [CrossRef] [PubMed]
  37. Schillberg, E.; Lunny, D.; Lindsay, L.R.; Nelder, M.P.; Russell, C.; Mackie, M.; Coats, D.; Berry, A.; Hoon, K.N.Y. Distribution of Ixodes scapularis in northwestern Ontario: Results from active and passive surveillance activities in the northwestern health unit catchment area. Int. J. Environ. Res. Public Health 2018, 15, 2225. [Google Scholar] [CrossRef] [PubMed]
  38. Ripoche, M.; Gasmi, S.; Adam-Poupart, A.; Koffi, J.K.; Lindsay, L.R.; Ludwig, A.; Milord, F.; Ogden, N.H.; Thivierge, K.; Leighton, P.A. Passive tick surveillance provides an accurate early signal of emerging Lyme disease risk and human cases in southern Canada. J. Med. Entomol. 2018, 55, 1016–1026. [Google Scholar] [CrossRef] [PubMed]
  39. Gasmi, S.; Ogden, N.H.; Ripoche, M.; Leighton, P.A.; Lindsay, R.L.; Nelder, M.P.; Rees, E.; Bouchard, C.; Vrbova, L.; Rusk, R.; et al. Detection of municipalities at-risk of Lyme disease using passive surveillance of Ixodes scapularis as an early signal: A province-specific indicator in Canada. PLoS ONE 2019, 14, e0212637. [Google Scholar] [CrossRef] [PubMed]
  40. Koffi, J.K.; Leighton, P.A.; Pelcat, Y.; Trudel, L.; Lindsay, L.R.; Milord, F.; Ogden, N.H. Passive surveillance for Ixodes scapularis ticks: Enhanced analysis for early detection of emerging Lyme disease risk. J. Med. Entomol. 2012, 49, 400–409. [Google Scholar] [CrossRef]
  41. Murphy, D.S.; Lee, X.; Larson, S.R.; Johnson, D.K.H.; Loo, T.; Paskewitz, S.M. Prevalence and distribution of human and tick infections with the Ehrlichia muris-like agent and Anaplasma phagocytophilum in Wisconsin, 2009–2015. Vector Borne Zoonotic Dis. 2017, 17, 229–236. [Google Scholar] [CrossRef]
  42. Clifford, C.M.; Anastos, G.; Elbl, A. The Larval Ixodid Ticks of the Eastern United States (Acarina-Ixodidae); Miscellaneous Publications of the Entomological Society of America; Entomological Society of America: College Park, MD, USA, 1961; Volume 2, pp. 215–237. [Google Scholar]
  43. Cohen, S.B.; Freye, J.D.; Dunlap, B.G.; Dunn, J.R.; Jones, T.F.; Moncayo, A.C. Host associations of Dermacentor, Amblyomma, and Ixodes (Acari: Ixodidae) ticks in Tennessee. J. Med. Entomol. 2010, 47, 415–420. [Google Scholar]
  44. Darsie, R.F.; Anastos, G. Geographical distribution and hosts of Ixodes texanus Banks (Acarina, Ixodidae). Ann. Entomol. Soc. Am. 1957, 50, 295–301. [Google Scholar] [CrossRef]
  45. Hertz, J.C.; Clemons, B.C.F.; Lord, C.C.; Allan, S.A.; Kaufman, P.E. Distribution and host associations of ixodid ticks collected from wildlife in Florida, USA. Exp. Appl. Acarol. 2017, 73, 223–236. [Google Scholar] [CrossRef] [PubMed]
  46. Kollars, T.M.; Oliver, J.H. Host associations and seasonal occurrence of Haemaphysalis leporispalustris, Ixodes brunneus, I. cookei, I. dentatus, and I. texanus (Acari: Ixodidae) in Southeastern Missouri. J. Med. Entomol. 2003, 40, 103–107. [Google Scholar] [CrossRef] [PubMed]
  47. Keirans, J.E.; Hutcheson, H.J.; Durden, L.A.; Klompen, J.S.H. Ixodes (Ixodes) scapularis (Acari: Ixodidae): Redescription of all active stages, distribution, hosts, geographical variation, and medical and veterinary importance. J. Med. Entomol. 1996, 33, 297–318. [Google Scholar] [CrossRef] [PubMed]
  48. Lubelczyk, C.; Lacombe, E.H.; Elias, S.P.; Beati, L.; Rand, P.W.; Smith, R.P. Parasitism of mustelids by ixodid ticks (Acari: Ixodidae), Maine and New Hampshire, USA. Ticks Tick Borne Dis. 2014, 5, 432–435. [Google Scholar] [CrossRef] [PubMed]
  49. Ogden, N.H.; Bouchard, C.; Kurtenbach, K.; Margos, G.; Lindsay, L.R.; Trudel, L.; Nguon, S.; Milord, F. Active and passive surveillance and phylogenetic analysis of Borrelia burgdorferi elucidate the process of Lyme disease risk emergence in Canada. Environ. Health Perspect. 2010, 118, 909–914. [Google Scholar] [CrossRef] [PubMed]
  50. Walker, E.D.; Stobierski, M.G.; Poplar, M.L.; Smith, T.W.; Murphy, A.J.; Smith, P.C.; Schmitt, S.M.; Cooley, T.M.; Kramer, C.M. Geographic distribution of ticks (Acari: Ixodidae) in Michigan, with emphasis on Ixodes scapularis and Borrelia burgdorferi. J. Med. Entomol. 1998, 35, 872–882. [Google Scholar] [CrossRef] [PubMed]
  51. Sonenshine, D.E. Range expansion of tick disease vectors in North America: Implications for spread of tick-borne disease. Int. J. Environ. Res. Public Health 2018, 15, 478. [Google Scholar] [CrossRef] [PubMed]
  52. Rainey, T.; Occi, J.L.; Robbins, R.G.; Egizi, A. Discovery of Haemaphysalis longicornis (Ixodida: Ixodidae) parasitizing a sheep in New Jersey, United States. J. Med. Entomol. 2018, 55, 757–759. [Google Scholar] [CrossRef]
  53. Demma, L.J.; Traeger, M.S.; Nicholson, W.L.; Paddock, C.D.; Blau, D.M.; Eremeeva, M.E.; Dasch, G.A.; Levin, M.L.; Singleton, J.J.; Zaki, S.R.; et al. Rocky mountain spotted fever from an unexpected tick vector in Arizona. N. Engl. J. Med. 2005, 353, 587–594. [Google Scholar] [CrossRef]
  54. Cooley, R.A. The Genera Boophilus, Rhipicephalus, and Haemaphysalis (Ixodidae) of the New World; National Institute Health Bulletin; U.S. Government Publishing Office: Washington, DC, USA, 1946; pp. 1–54.
  55. Murrell, B.P.; Durden, L.A.; Cook, J.A. Host associations of the tick, Ixodes angustus (Acari: Ixodidae), on Alaskan mammals. J. Med. Entomol. 2003, 40, 682–685. [Google Scholar] [CrossRef] [PubMed]
  56. Miller, R.S.; Ward, R.A. Ectoparasites of pocket gophers from Colorado. Am. Midl. Nat. 1960, 64, 383–391. [Google Scholar] [CrossRef]
  57. Brillhart, D.; Fox, L.; Upton, S. Ticks (Acari, Ixodidae) collected from small and medium-sized Kansas mammals. J. Med. Entomol. 1994, 31, 500–504. [Google Scholar] [CrossRef] [PubMed]
  58. Salkeld, D.J.; Eisen, R.J.; Antolin, M.F.; Stapp, P.; Eisen, L. Host usage and seasonal activity patterns of Ixodes kingi and I. sculptus (Acari: Ixodidae) nymphs in a Colorado prairie landscape, with a summary of published North American host records for all life stages. J. Vector Ecol. 2006, 31, 168–180. [Google Scholar] [CrossRef]
  59. Kohls, G. Records and new synonymy of New World Haemaphysalis ticks, with descriptions of the nymph and larva of H. juxtakochi Cooley. J. Parasitol. 1960, 46, 355–361. [Google Scholar] [CrossRef] [PubMed]
Insects 10 00289 g001 550

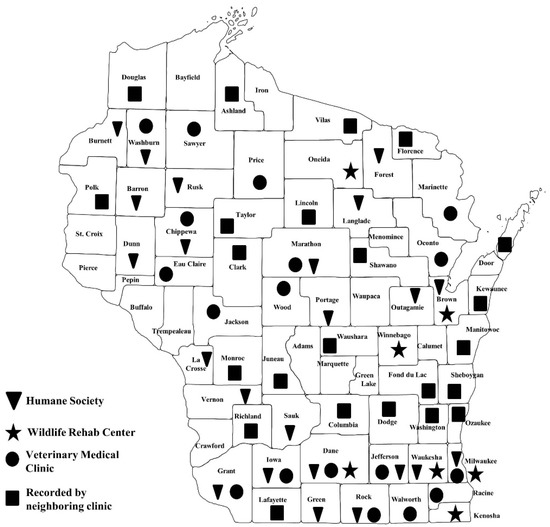

Figure 1. Wisconsin counties where veterinary, humane society, and licensed animal rehabilitators surveyed animals and submitted ticks for identification.
Figure 1. Wisconsin counties where veterinary, humane society, and licensed animal rehabilitators surveyed animals and submitted ticks for identification.
Insects 10 00289 g001
Insects 10 00289 g002 550

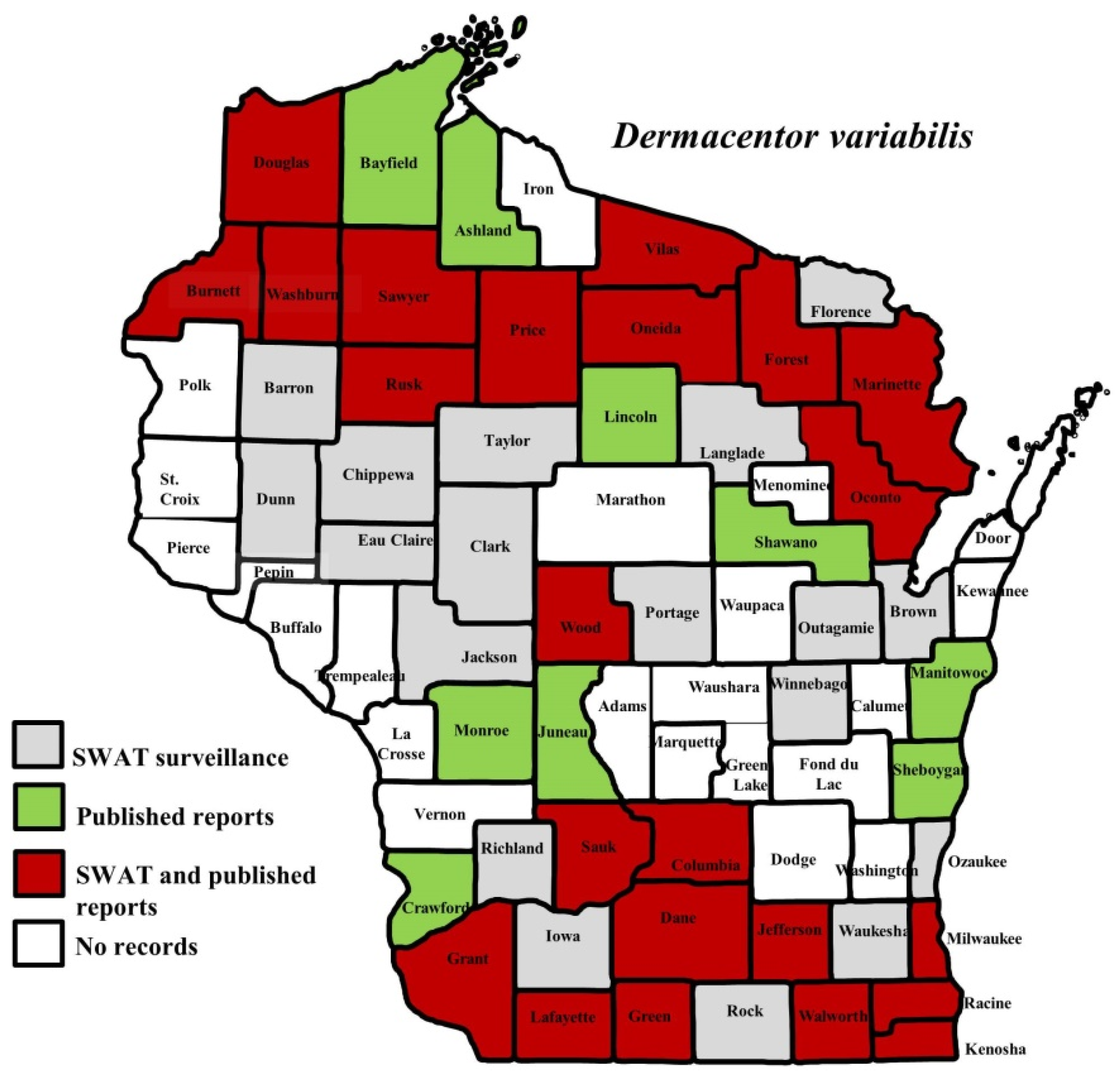

Figure 2. County records for the American dog tick, Dermacentor variabilis in Wisconsin [2,3,14,18,27,28].
Figure 2. County records for the American dog tick, Dermacentor variabilis in Wisconsin [2,3,14,18,27,28].
Insects 10 00289 g002
Insects 10 00289 g003 550

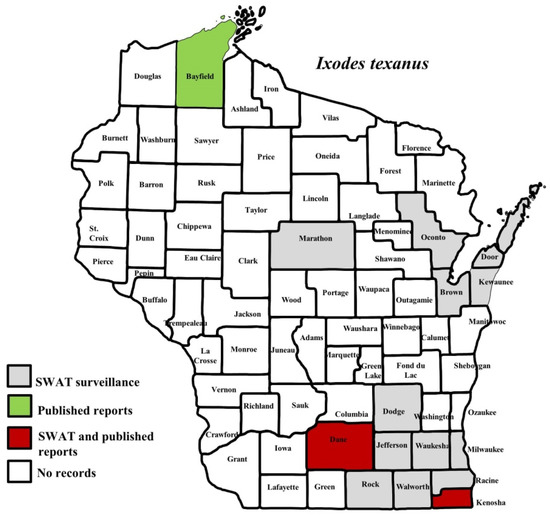

Figure 3. County records for Ixodes texanus in Wisconsin [3,27,44].
Figure 3. County records for Ixodes texanus in Wisconsin [3,27,44].
Insects 10 00289 g003
Insects 10 00289 g004 550

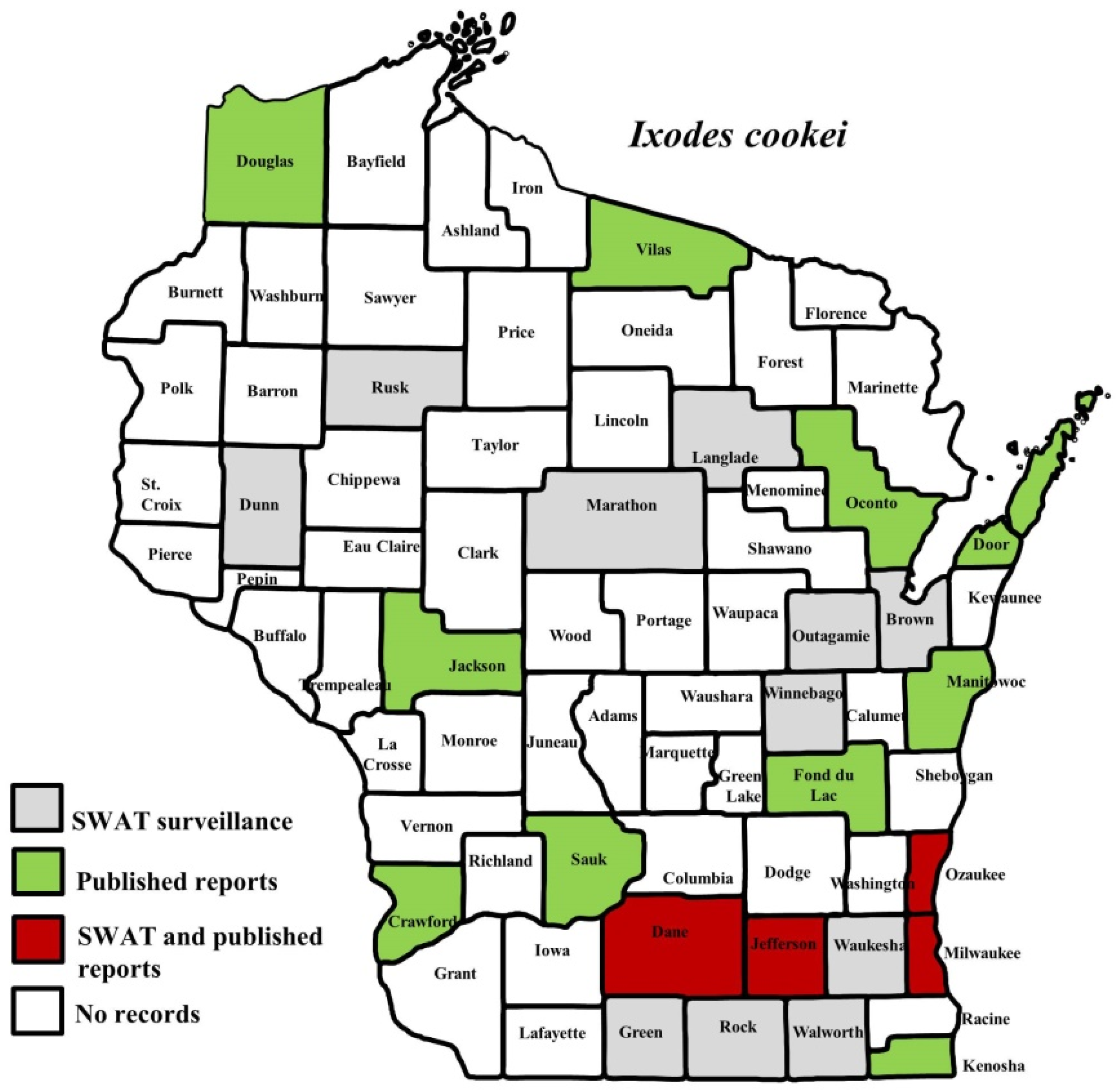

Figure 4. County records for Ixodes cookei in Wisconsin [18,27].
Figure 4. County records for Ixodes cookei in Wisconsin [18,27].
Insects 10 00289 g004
Insects 10 00289 g005 550

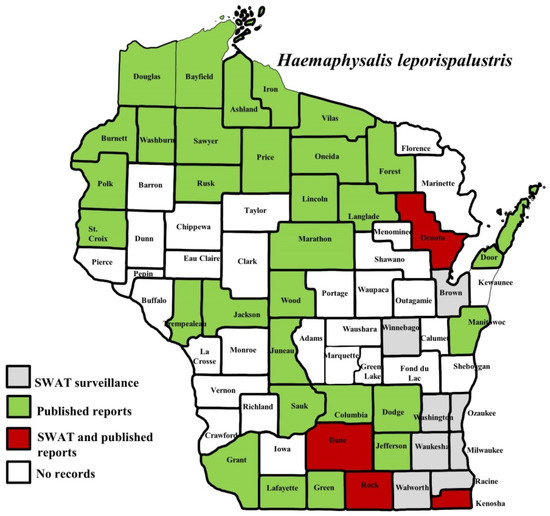

Figure 5. County records for Haemaphysalis leporispalustris in Wisconsin [18,27,28].
Figure 5. County records for Haemaphysalis leporispalustris in Wisconsin [18,27,28].
Insects 10 00289 g005
Insects 10 00289 g006 550

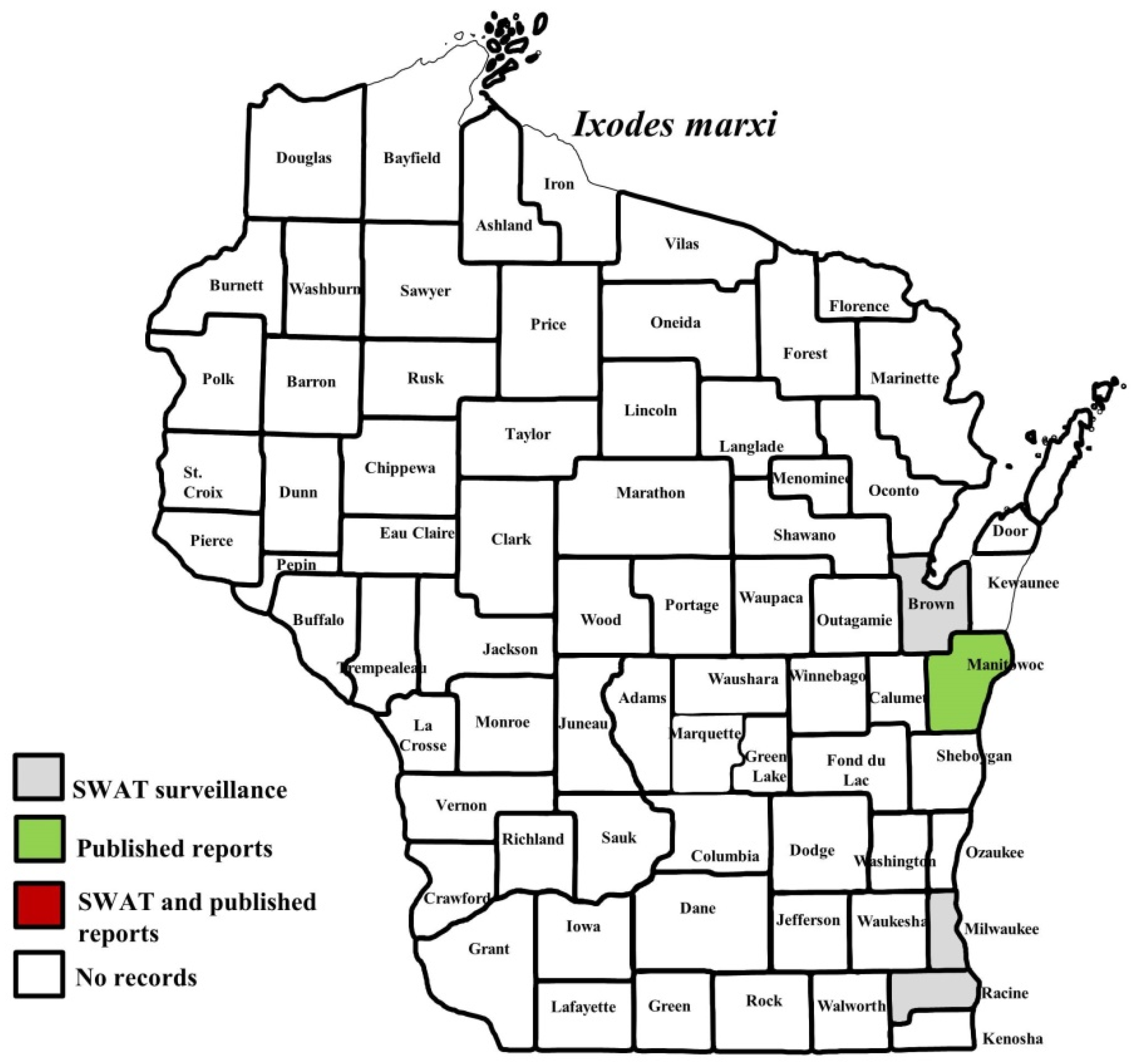

Figure 6. County records for Ixodes marxi in Wisconsin [27].
Figure 6. County records for Ixodes marxi in Wisconsin [27].
Insects 10 00289 g006
Insects 10 00289 g007 550

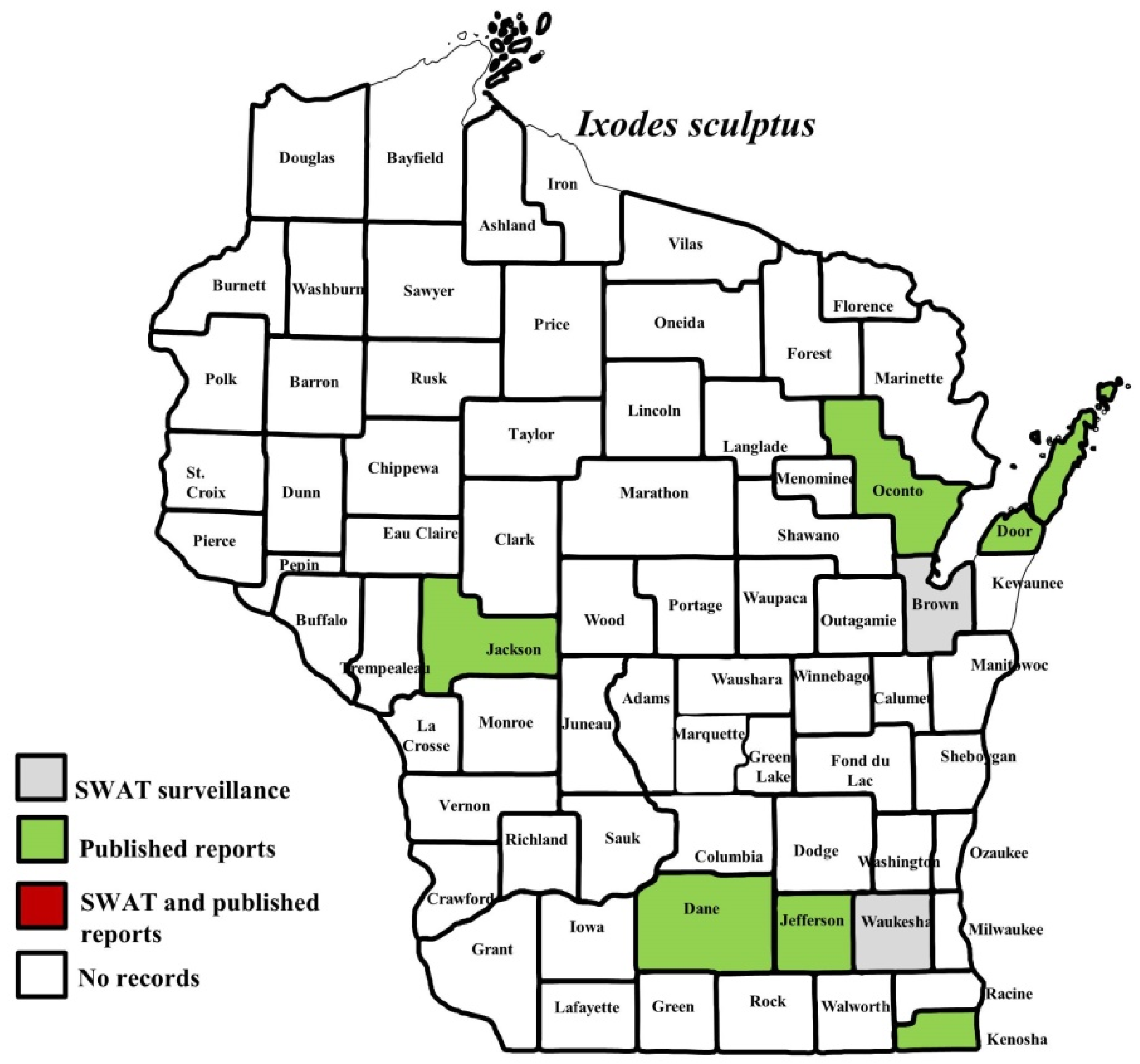

Figure 7. County records for Ixodes sculptus in Wisconsin [27].
Figure 7. County records for Ixodes sculptus in Wisconsin [27].
Insects 10 00289 g007
Insects 10 00289 g008 550

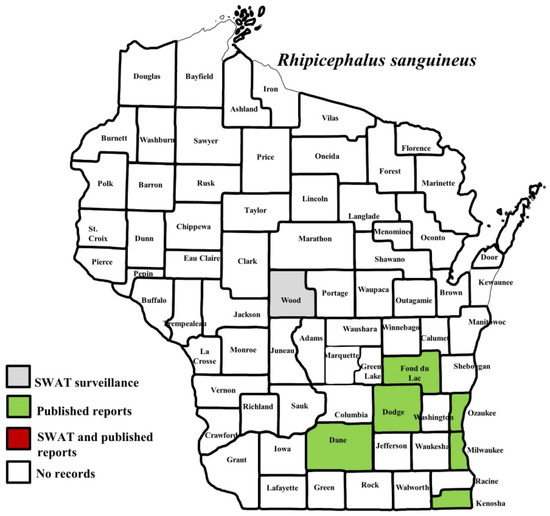

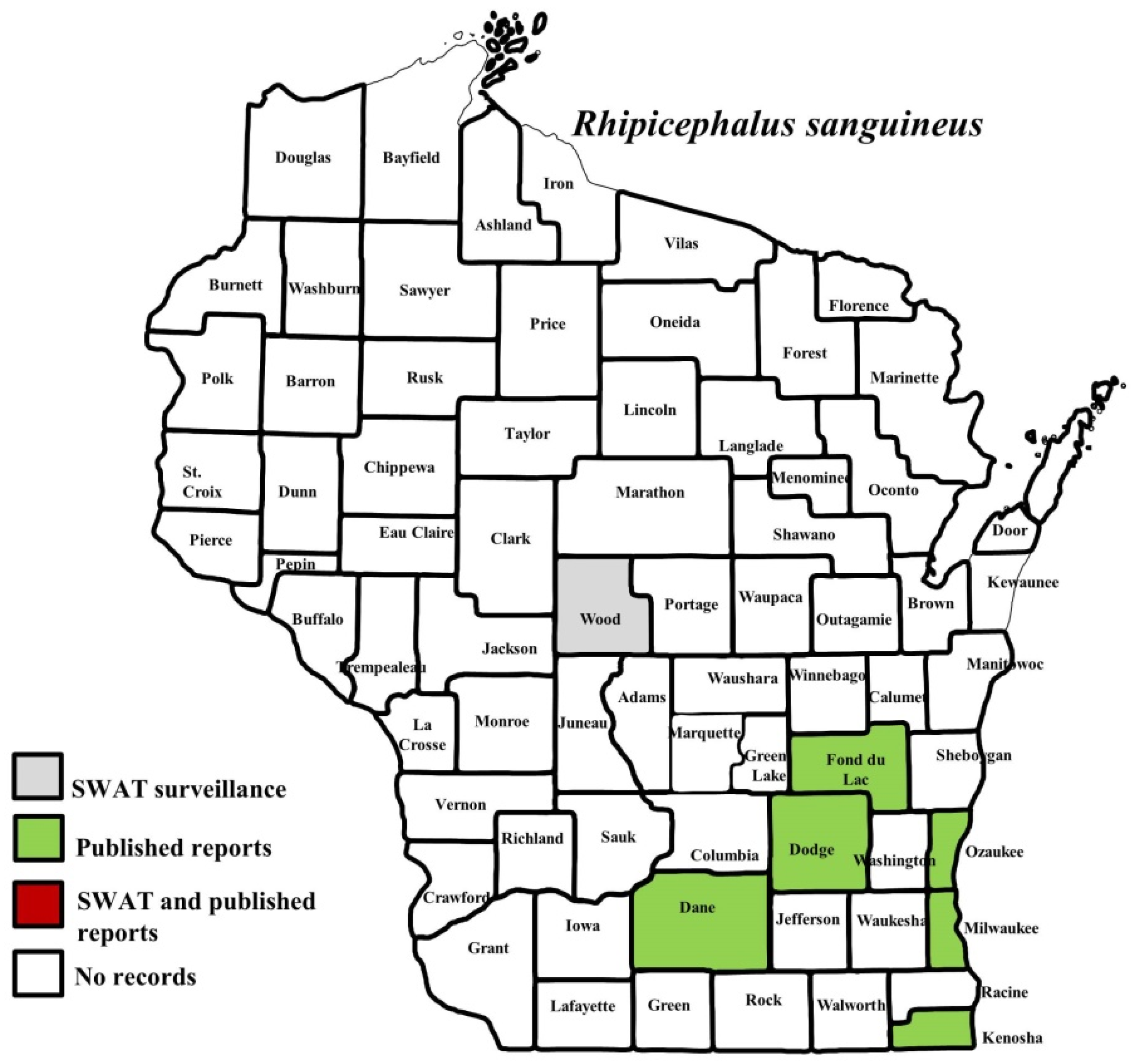

Figure 8. County records for Rhipicephalus sanguineus in Wisconsin [3,20,27].
Figure 8. County records for Rhipicephalus sanguineus in Wisconsin [3,20,27].
Insects 10 00289 g008
Insects 10 00289 g009 550

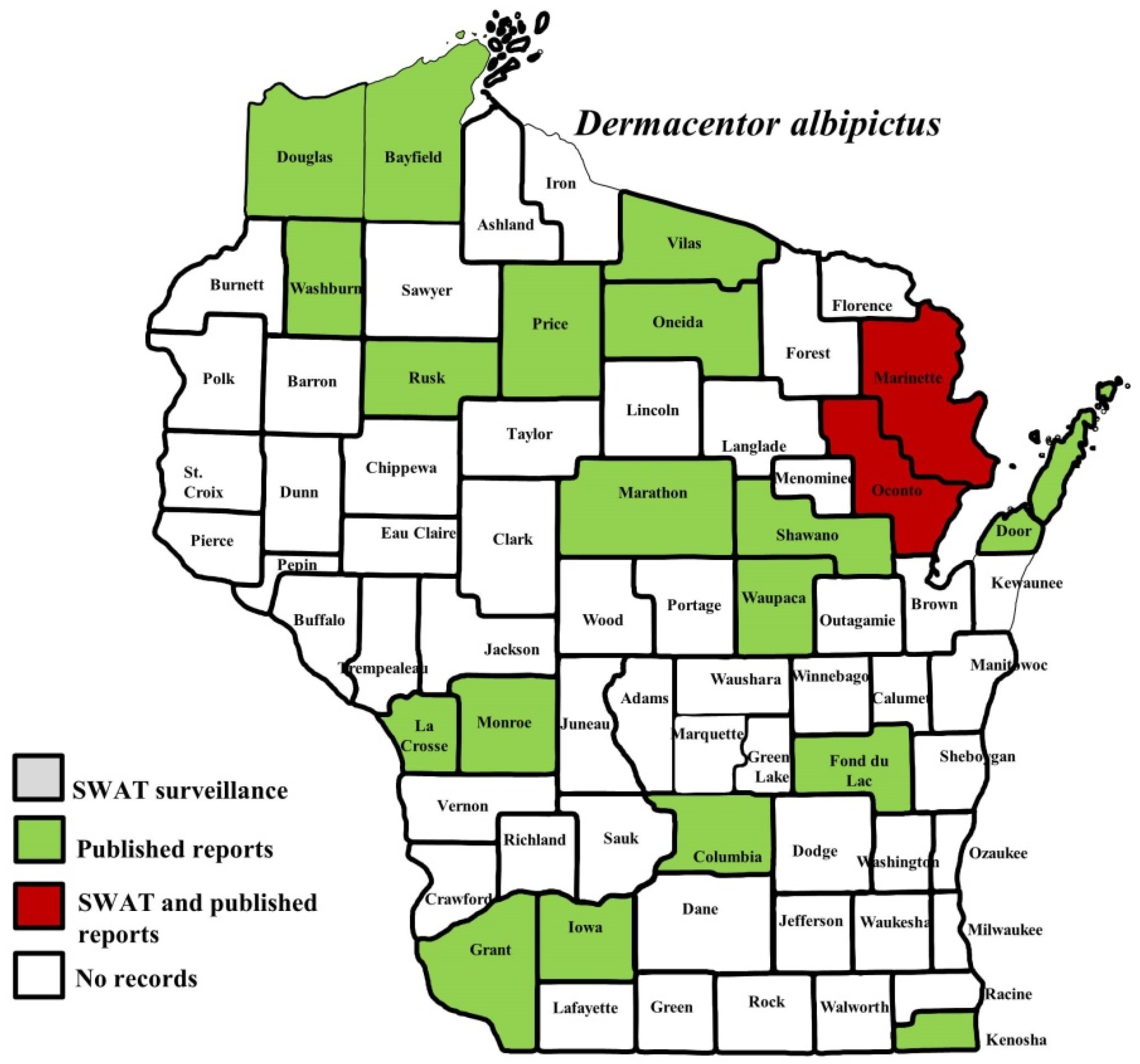

Figure 9. County records for Dermacentor albipictus in Wisconsin [1,6,20,27,29].
Figure 9. County records for Dermacentor albipictus in Wisconsin [1,6,20,27,29].
Insects 10 00289 g009
Insects 10 00289 g010 550

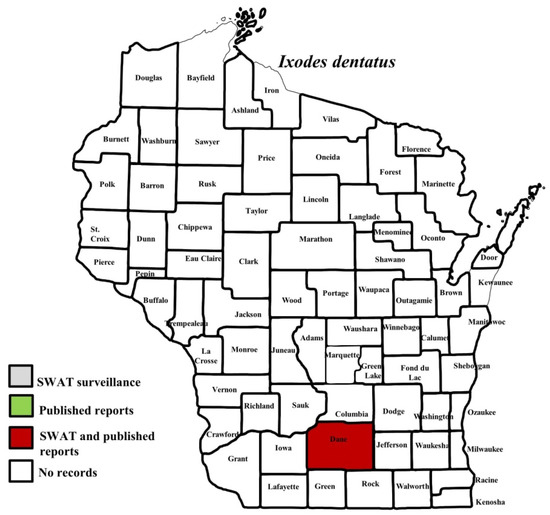

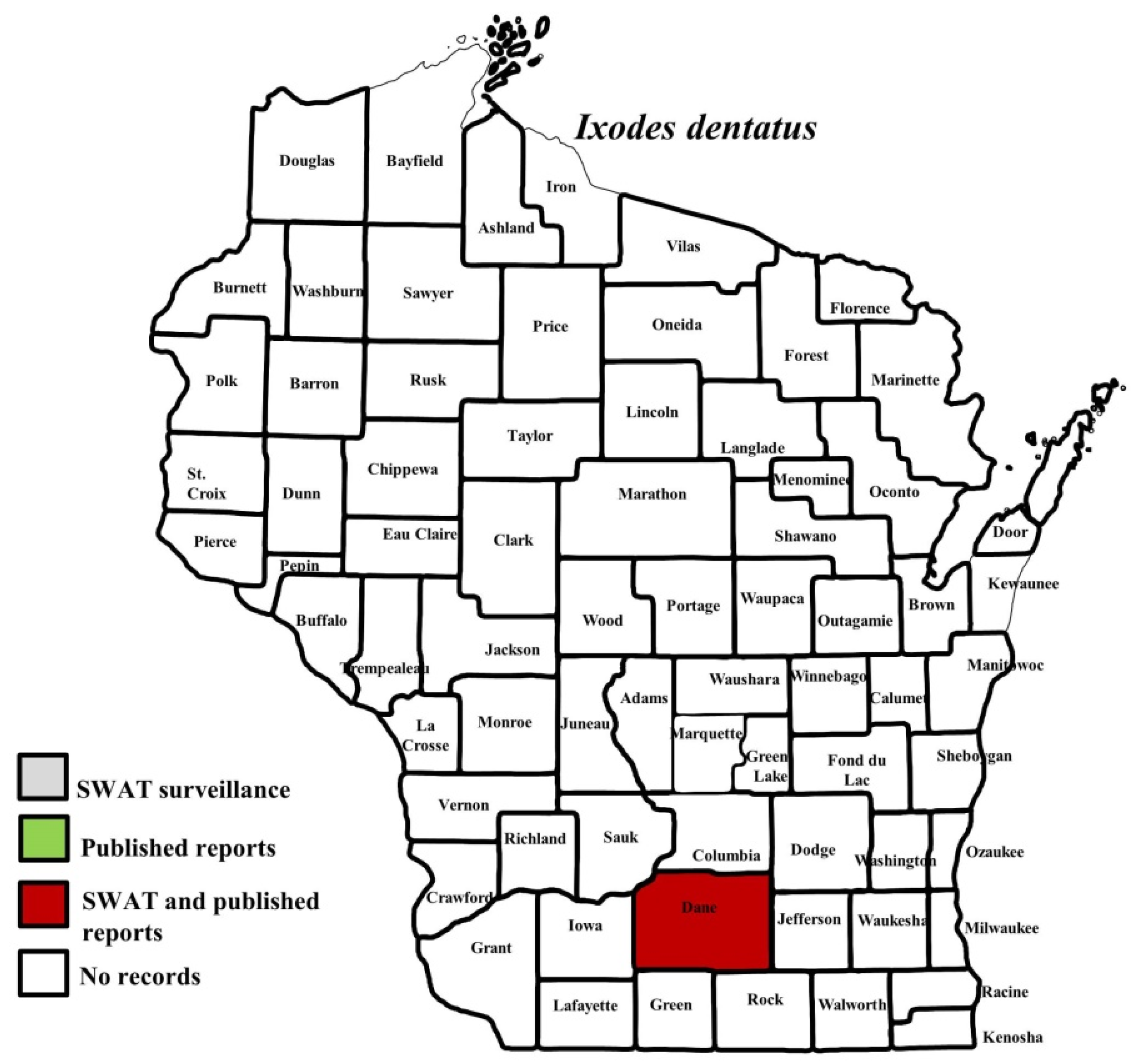

Figure 10. County records for Ixodes dentatus in Wisconsin [28].
Figure 10. County records for Ixodes dentatus in Wisconsin [28].
Insects 10 00289 g010
Table
Table 1. Summary of the animals examined for the Surveillance of Wisconsin Animals for Ticks (SWAT) program (2011–2017) and the most commonly collected ixodid ticks.
Table 1. Summary of the animals examined for the Surveillance of Wisconsin Animals for Ticks (SWAT) program (2011–2017) and the most commonly collected ixodid ticks.
HostCommon Name for Host# Of Animals *I. scapularisD. variabilisH. leporispalustrisI. cookeiI. texanus
ANLANLANLANLANL
Mammals
Canis familiarisDog1204161913-23174-1--31----
Canis latransCoyote645-39-----------
Didelphis virginianaOpossum9---112------1-1--
Eptesicus fuscusBig brown bat12--------------
Equus ferusHorse1---1-----------
Erethizon dorsatumPorcupine107--44-----------
Felis domesticusCat350449683216154--18212263--
Glaucomys volansSouthern Flying Squirrel1----2----------
Marmota monaxWoodchuck217--4-----5485-3--
Martes pennantiFisher1--234------3----
Mephitis mephitisStriped Skunk3---4-----63----
Mustela ermineShort-tailed Weasel1----------15--11
Mustela putorius furoFerret3---3-----212----
Neovison visonMink3---------2939----
Odocoileus virginianus, Cervus canadensisElk/White-tailed Deer832-112---------
Ondatra zibethicusMuskrat11--------------
Peromyscus spp.Deer Mice2--2------------
Procyon lotorRaccoon25320551230--1--88342100115697
Sciurus carolinensisGrey Squirrel51--10-----1-----
Spermophilus tridecemlineatusThirteen lined Squirrel3---------------
Sylvilagus floridanusEastern Cottontail36424-65-11251463---1--
Tamias striatusEastern Chipmunk1-3-------------
Tamiasciurus hudsonicusRed Squirrel3-10291-----------
Urocyon cinereoargenteusGray Fox1---1-----------
Vulpes vulpesRed Fox4---8-----882---
Birds
Bonasa umbellusRuffed Grouse1-1720------------
Buteo jamaicensisRed-tailed Hawk3111----3-------
Catharus guttatusHermit Thrush1-1-------------
Corvus coraxRaven1-3-------------
Grus canadensisSandhill Crane1-4-------------
Meleagris gallopavoWild turkey115--------------
Pheucticus ludovicianusRose-breasted Grosbeak1-2-------------
Seiurus aurocapillaOvenbird11--------------
Spinus tristisAmerican Goldfinch1-1-------------
Turdus migratoriusAmerican Robin2-1-1-----------
Zenaida macrouraMourning dove1------1--------
Not identifiedUnknown Animal5285--147--6--16--1--
Totals 232522171905831792761134178122822310101015708
A = Adults, N = Nymphs, L = Larvae; * Number of animals with at least one tick.

Share and Cite

MDPI and ACS Style

Lee, X.; Murphy, D.S.; Hoang Johnson, D.; Paskewitz, S.M. Passive Animal Surveillance to Identify Ticks in Wisconsin, 2011–2017. Insects 2019, 10, 289. https://doi.org/10.3390/insects10090289

AMA Style

Lee X, Murphy DS, Hoang Johnson D, Paskewitz SM. Passive Animal Surveillance to Identify Ticks in Wisconsin, 2011–2017. Insects. 2019; 10(9):289. https://doi.org/10.3390/insects10090289

Chicago/Turabian Style

Lee, Xia, Darby S. Murphy, Diep Hoang Johnson, and Susan M. Paskewitz. 2019. "Passive Animal Surveillance to Identify Ticks in Wisconsin, 2011–2017" Insects 10, no. 9: 289. https://doi.org/10.3390/insects10090289

APA Style

Lee, X., Murphy, D. S., Hoang Johnson, D., & Paskewitz, S. M. (2019). Passive Animal Surveillance to Identify Ticks in Wisconsin, 2011–2017. Insects, 10(9), 289. https://doi.org/10.3390/insects10090289

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
