Solid Lubrication with MoS₂: A Review

Abstract

Molybdenum disulfide (MoS₂) is one of the most broadly utilized solid lubricants with a wide range of applications, including but not limited to those in the aerospace/space industry. Here we present a focused review of solid lubrication with MoS₂ by highlighting its structure, synthesis, applications and the fundamental mechanisms underlying its lubricative properties, together with a discussion of their environmental and temperature dependence. The review also includes an extensive overview of the structure and tribological properties of doped MoS₂, followed by a discussion of potential future research directions.

1. Introduction

With their notable influence on an overwhelming number of natural and technical processes, friction, wear and lubrication are subjects worthy of intense scientific investigation. Despite their importance, studying individual aspects of these phenomena (which are influenced by a multitude of factors including the structural, mechanical, and chemical properties of the involved surfaces) in an isolated fashion has been a challenging endeavor. Nevertheless, with improved computational and experimental techniques, tribology (a term coined in the 1960s that describes the study of friction, wear and lubrication) is now an active field of inquiry, with research groups around the world working on understanding and utilizing its various aspects [1,2].

Considering that a few percent of the gross domestic product of a developed nation is wasted on overcoming the negative impacts of friction and wear (in the form of direct loss of useful energy as well as replacement costs associated with machine components damaged by wear) [3], a major goal of tribology research involves the design and application of methods to minimize friction and wear at interfaces in relative motion. Toward this goal, significant effort is spent on (i) understanding the properties and improving the usefulness of existing lubricants and (ii) coming up with new ways of lubricating interfaces in a more effective fashion (e.g., by decreasing the coefficient of friction, reducing the wear rate and improving the lifetime of components).

Liquid lubricants are typically what comes to mind when one thinks of lubrication in an industrial setting [4]. It is indeed true that oils and greases are conventionally employed in many mechanical systems for lubrication purposes, mostly due to the robust reduction in friction and wear rate that they provide, the ease with which they can be replenished and the straightforward manner with which they can be applied to a variety of surfaces. However, certain operating conditions strictly require the use of solid lubricants instead [5]. The most common examples involve aerospace/space applications, where low temperatures preclude the use of liquid lubricants which simply become too viscous for effective lubrication or may even solidify [6,7]. In fact, most of the technical progress involving solid lubricants was achieved in the second half of the 20th century, motivated by the advent of the space age. Other examples of applications for solid lubricants involve dry machining operations, where the use of solid lubricants on machine tools (mainly for wear reduction purposes) may significantly cut down on the cost of using large amounts of liquid lubricants, and also the food processing and textile industries, where contamination by liquid lubricants may pose health hazards [8]. In general, solid lubricants are suitable for many applications that operate in conditions too extreme for liquid lubrication.

Among solid lubricants currently in use, molybdenum disulfide (MoS₂) [9] holds special importance. Being a lamellar solid material that consists of individual atomically-thin planes that can easily slide against each other, the use of MoS₂ as a solid lubricant in modern technology dates back to the previous century [10]. Like graphite (another lamellar material), MoS₂ can be used as a dry lubricant by itself, as an additive in oils or greases, or as an individual component of a composite coating [2]. Unlike graphite, MoS₂ does not require humid environments to perform well and it has indeed been shown that its lubricative properties improve drastically in oxygen-deficient environments [11]. Combined with its ability to operate reliably in a wide range of temperatures (from the cryogenic regime to several hundred degrees Celsius), the ability to function effectively in vacuum makes MoS₂ a particularly attractive lubricant for aerospace/space applications. Consequently, a great body of scientific work exists on the synthesis, properties and applications of MoS₂ as a solid lubricant and reviews as well as books on the topic have been published as early as the 1960s (see, e.g., [8,9,12,13]). However, there is still active research on understanding and improving the lubricative properties of MoS₂, with some of the recent focus areas being on its incorporation into (nano-)composite coatings and improving its properties via controlled doping [14,15].

This review provides a focused overview of the tribology of MoS₂ in the form of a snapshot of our current physical understanding of this exciting solid lubricant, with the hope that it could potentially guide future fundamental work. In alignment with this mindset, we focus specifically on MoS₂ by itself as a solid lubricant and do not cover the rather extensive body of work related to its use as an additive in oils and greases or its utilization in (nano-)composite coatings. Specifically, Section 2 describes the structure and synthesis of MoS₂, while Section 3 includes an overview and specific examples of its applications as a solid lubricant. Section 4 details the fundamental mechanisms of low friction and wear associated with the material, followed by Section 5 which discusses the environmental and temperature dependence of its lubricative properties. Section 6 deals with doped MoS₂ and, finally, Section 7 concludes the review by providing a brief summary along with highlights of some of the emerging research directions for MoS₂ as a solid lubricant.

2. Structure and Synthesis

MoS₂ belongs to the family of layered two-dimensional transitional metal dichalcogenides (TMDs). Like graphite and hexagonal boron nitride, its crystal structure consists of covalently bonded sheets, which form stacks that are held together only by weak van der Waals interactions [16]. It occurs naturally as the mineral molybdenite, an important Mo ore. Due to the strong bonding in-plane and weak bonding out-of-plane, mechanical, and other properties are highly anisotropic [17], and the stacks can be easily sheared. Single-layer or few-layer (i.e., 2D) MoS₂ (analogous to graphene) can be produced and studied individually [18].

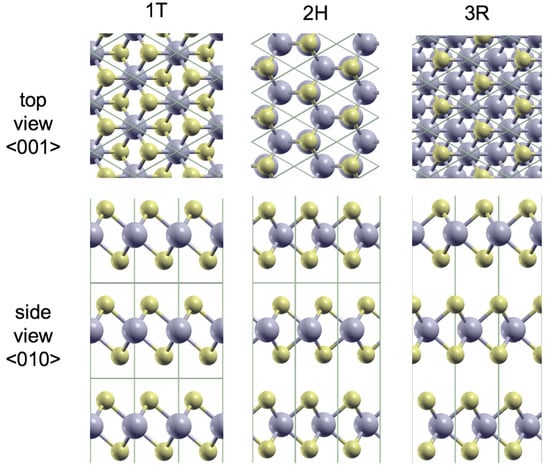

MoS₂ has several different possible structures (polytypes), depending on the bonding within the sheets and the stacks of the sheets. While graphite has a single plane of atoms per sheet, in MoS₂ each sheet consists of a plane of Mo atoms sandwiched between two planes of S atoms. The single-sheet structure can feature trigonal prismatic coordination around Mo, which is the semiconducting 1H (“hexagonal”) structure, or octahedral bonding, which is the metallic 1T (“trigonal”) phase. 1H and the ideal 1T each have three atoms (MoS₂) per unit cell (Figure 1); however, theoretical calculations with density-functional theory (DFT) [19] and X-ray diffraction (XRD) experiments [20] have shown that in fact 1T is unstable with respect to distortions. The most commonly reported distorted 1T structure is a reconstruction that triples the unit cell, known as the 1T′ phase [21].

Each single-sheet structure can be stacked into a crystal where the next sheet is exactly above the preceding one (AA stacking), producing the 1H, 1T, and 1T′ polytypes. The naturally occurring polytypes in molybdenite, however, are only based on the 1H sheet, and show more complicated stacking [9]. The more common is the 2H structure with 2 sheets per cell in AB stacking, where an S atom in one layer is above an Mo atom in the layer below [22,23]. The less common 3R (“rhombohedral”) structure has three sheets per cell with ABC stacking [22,24]. These structures are shown in Figure 1. Mo-S bond lengths are around 2.4 Å for all polytypes [25]. DFT calculations show only very small energy differences between the 2H and 3R phases [25]. This insensitivity to stacking, and the low surface energy for 2H-MoS₂ of 47 mJ/m² = 0.025 eV/cell [26], are indicative of low barriers to sliding and hence low friction. By contrast, 1T and 1T′ are calculated to be higher in energy by 0.8 eV [25] and 0.5 eV per MoS₂ unit, respectively [19].

Lattice parameters and space groups for the polytypes are summarized in

Table 1. The structures of the three polytypes of MoS₂. In each case, a = b, and the unit cell angles are α = 90°, β = 90°, γ = 120°. Lattice parameters are reported from XRD studies. The 3R structure also has a rhombohedral primitive cell with three atoms.

Polytype	Space Group	Point Group	Atoms Per Conv. Cell	Stacking	XRD Lattice Parameters	Properties
1T′	P$\overline{3}$m1	D3d	9	AAAAAA	a = 5.60 Å, c = 5.99 Å [21]	metallic, metastable
2H	P63/mmc	D6h	6	ABABAB	a = 3.16 Å, c = 12.29 Å [34]	semiconducting, naturally occurring
3R	R3m	C3v	9	ABCABC	a = 3.17 Å, c = 18.38 Å [34]	semiconducting, naturally occurring

. Nonetheless, deviations from the pristine bulk crystal are common. Calculations have indicated that S vacancies are the most favorable defects in this material [27]. Various kinds of MoS₂ nanostructures can be produced, including nanoclusters [28], nanometer-size sheets [29], nanotubes and even inorganic fullerenes [30]. The nanoparticles often show relatively poor crystallinity in XRD [31]. Amorphous or nanocrystalline MoS₂ has also been reported (see, e.g., [32]).

While the 2H and 3R polytypes of MoS₂ are found in abundance in nature, their bulk single crystals can also be synthesized in the laboratory using the method of chemical vapor transport (CVT), whereby a two-zone quartz furnace is utilized for a duration of multiple days to continuously vaporize parent elemental solids (in this case, Mo and S) in the presence of a catalytic transport agent (mostly halogens), which eventually results in the synthesis of bulk MoS₂ single crystals [33]. Selective synthesis of the 2H and 3R polytypes in CVT can be achieved by the proper choice of transport agent (I₂ for 2H, Cl₂ for 3R) [33]. Despite the fact that the thermodynamically-favored polytypes of MoS₂ (2H and 3R) have been known for a long time, the metastable 1T polytype was only discovered in the early 1990s, through hydration and subsequent oxidation of alkali-intercalated MoS₂ compounds (most commonly KMoS₂) [21].

Research on 2D materials has accelerated rapidly in the last decade and a half, thanks to the advent of graphene and the discovery of its exceptional physical properties [35]. Since MoS₂ is one of the layered TMDs, its synthesis/production in 2D form (consisting of single or only a few layers) has also been a subject of intense research. While mechanical exfoliation (i.e., cleaving) through the now-famous adhesive tape method [36] or chemical exfoliation via the use of appropriate solvents [37] and electrochemically-induced bubbling [38] regularly yield 2D MoS₂ flakes of exceptional quality, their lateral size is only limited to a few tens of micrometers and as such, require the establishment of alternative methods for the synthesis of large-scale 2D MoS₂ films for many technological applications. The most promising method toward that direction is chemical vapor deposition (CVD), which entails the use of precursor gases flowing over a substrate (e.g., SiO₂ [39,40,41], sapphire [42] or Au [43]) at elevated temperatures in a furnace, which eventually results in the synthesis of 2D MoS₂ sheets. With proper choice of precursor gases and deposition parameters, the method now allows the wafer-scale growth and subsequent transfer of high-quality monolayer MoS₂ films for use in various promising applications [44]. Another route toward obtaining 2D films of MoS₂ involves thermal decomposition (i.e., thermolysis) of ammonium thiomolybdate ((NH₄)₂MoS₄), which has been demonstrated at the wafer-scale on insulating substrates, with potential use in device applications [45,46,47].

While 2D MoS₂ films are of potential interest as solid lubricants for nano- and micro-scale mechanical systems, virtually all current applications where MoS₂ is utilized as a solid lubricant involve films/coatings that are significantly thicker (from a few tenths of μm up to a few μm). Traditional methods of applying MoS₂ as a solid lubricant onto solid surfaces include approaches such as burnishing and spray bonding; on the other hand, the great majority of MoS₂ films employed in modern systems are coated onto target surfaces using physical vapor deposition (PVD) and in particular, sputtering. Sputtering involves the bombardment of a MoS₂ target by a noble gas plasma in a vacuum chamber, followed by the ejection and eventual deposition of MoS₂ particles onto the target substrate, creating a conformal coating. The main advantages associated with sputtered MoS₂ films when compared with those obtained by other methods are improved adhesion to the substrate, higher density and significantly higher purity (owing to the deposition process taking place under vacuum), all of which are factors contributing to improved tribological properties including low coefficient of friction and enhanced wear resistance [8]. Sputtered MoS₂ films, which may, in the as-sputtered state, consist of mainly columnar (with MoS₂ crystallites oriented perpendicular to the substrate) or basal (with MoS₂ crystallites oriented parallel to the substrate) morphologies [48], are utilized both for fundamental studies [49] as well as critical applications, e.g., as solid lubricants on bearings employed in spacecraft [7,50]. A particular advantage of the sputtering method is that other materials can be co-sputtered with MoS₂ relatively easily in order to achieve doped coatings with improved properties [15], as discussed further in Section 6. The method of sputtering MoS₂ onto the target surface (in particular, the choice of RF (radio frequency), DC (direct current) and/or magnetron-assisted sputtering, etc.) can also have important implications for the structure and tribological performance of the resulting films [15]. For example, morphology depends on the deposition system and deposition temperature [51,52]. It has also been shown that sputtering methods as well as substrate bias greatly influence the Mo–to–S ratio in both pure and doped coatings [53,54]. Having said this, a detailed discussion of the relationship between the deposition method and the resulting structure and composition of MoS₂ coatings is not part of this review. Finally, it should be mentioned that alternative methods such as pulsed laser deposition [55] have also been utilized for MoS₂ coatings, although not as widely as sputtering.

3. Tribological Applications of MoS₂

Generally, solid lubricants are used when liquid lubricants do not meet the advanced requirements of a given application. For example, oils or greases cannot be used in many applications because of issues with application, sealing problems, weight, or environmental conditions [56]. Solid lubricants also reduce weight, simplify lubrication and, in some cases, are less expensive than oil and grease lubrication systems [8,56,57].

Table 2. Examples of conditions or environments where liquid lubricants are either undesirable or ineffective and solid lubricants can be used, and representative applications where those conditions exist; adapted from Ref. [56].

	Space Mechanisms	Medical or Dental Equipment	Nuclear Reactors	Food Processing Equipment	Hard Disks, Microscopes, Cameras	Semiconductor Manufacturing	Furnaces/ Metalworking Equipment	Refrigeration/Liquid Nitrogen Pumps	Bridge, Plant or Building Supports
High Temperature	x						x
Cryogenic Temperature	x							x
Radiation	x		x
Corrosive Gas	x					x
High Pressure/Load	x						x		x
Product Contamination Unacceptable		x		x	x	x
Service Difficult or Impossible	x		x
Weight Limited Applications	x

summarizes the conditions and corresponding applications where solid lubricants can be used to overcome limitations associated with standard greases and oils.

In high or ultrahigh vacuum conditions, liquid lubricants can evaporate such that they are unable to perform their lubricating function and can potentially contaminate the device. Similarly, liquid lubricants can decompose or oxidize at high temperatures. At the other end of the spectrum, at cryogenic temperatures, liquid lubricants can solidify or become too viscous to flow effectively. Under radiation or corrosive gas environments liquid lubricants can decompose. High pressure applications can exceed the load carrying capacity of liquids. In cases where contamination is a major issue, liquid lubricants can be problematic because they tend to pick up dust and other contaminants from the environment. In applications where weight is of primary importance, liquid lubricants and the associated components can be too heavy. Lastly, if service is difficult or impossible, it may not be viable to use a liquid lubricant that degrades over time, particularly if the application experiences long storage or idle periods. Solid lubricants overcome many of these issues.

Notable in Table 2 is one application where almost all the conditions for poor liquid lubrication exist, i.e., in space mechanisms. Moving systems in space include vehicles, satellites, telescopes, antennas, and rovers. Such systems must operate for long periods of time with little or no service under a wide range of extreme environmental conditions. Since most space applications operate in vacuum environments, the typical solid lubricant of choice is MoS₂ [7,58]. Unlike graphite, which requires sufficient vapor pressure of water to provide lubrication, MoS₂ performs best in vacuum environments [59]. Representative examples of components in space applications that already rely on MoS₂ lubricants are ball bearings, pointing mechanisms, slip rings, gears, and release mechanisms [15,60]. It has indeed been suggested that most, if not all, the American satellites and spacecraft contain MoS₂ for some application [13].

The continuing interest in the development of solid lubricants (including MoS₂) for space applications stems from the fact that planned space missions increasingly involve a wide range of operating conditions (in particular, in terms of temperature) and longer durations during which the mechanisms that enable relative motion will need to operate in a robust and reliable fashion without regular maintenance. A particularly important example highlighting the importance of related efforts is the catastrophic high-gain antenna deployment failure associated with the Galileo spacecraft [61], caused by the failure of the MoS₂-based solid lubricant during operation in space that was successfully tested before deployment on Earth under ambient conditions. In order to meet the requirements of demanding space missions, basic and applied research is being conducted around the world to understand and improve the properties of solid lubricants in general and MoS₂-based lubricants in particular. Illustrative examples of such ambitious missions include NASA’s planned lander mission to Europa (the surface of which can be below −200 °C) for astrobiology research, as well as ESA′s BepiColombo mission to Mercury, where the spacecraft will be exposed to temperatures on the order of 250 °C [7].

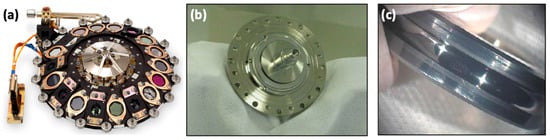

Based on the fact that MoS₂ is the most extensively used solid lubricant in space mechanisms, a particularly timely example will be highlighted here: the James Webb Space Telescope (JWST), which is planned for launch in 2021 and is the successor to the Hubble Space Telescope. MoS₂ has been determined as the solid lubricant of choice for sensitive mechanisms employed in a number of precision instruments on JWST, including the Near Infrared Spectrograph (NIRSpec) and the Mid-Infrared Instrument (MIRI) (Figure 2) [50,62]. Critical to the choice of MoS₂ as the preferred solid lubricant for these high-precision instruments was the fact that it preserves its lubricative properties down to cryogenic temperatures (which include 30 K, the temperature around which JWST will be operating) [63] and the high uniformity with which it can be deposited on precision bearings employed in the instruments at sub-micron thicknesses, ensuring stable operation. In order to minimize the chances of a lubricant-related catastrophic failure after deployment (like the Galileo), a significant amount of work has been performed to characterize the tribological performance of bearings under various operating conditions on earth and it has been determined that a run-in procedure performed under vacuum is necessary to ensure low-friction torques for eventual use in space [64].

The impressive tribological properties of MoS₂ under vacuum and in a wide range of temperatures make it a natural choice as a solid lubricant for applications in space; however, the fact that its lubricity rapidly deteriorates under humid conditions represents a significant barrier to its extensive use in demanding terrestrial applications. On the other hand, recent developments in coating technology, in particular the use of closed field unbalanced magnetron sputter ion plating (CFUBMSIP) employed to co-sputter MoS₂ with Ti, has resulted in lubricant coatings with notable improvement in mechanical properties and resistance to humidity [65,66,67]. These improvements resulted in the successful use of MoS₂-based coatings in dry machining operations, such as cutting and forming, as well as certain machine components that do not operate under vacuum conditions. Despite these developments, it is projected that the main use of MoS₂ as solid lubricant will be in aerospace/space applications for the foreseeable future, with ongoing fundamental and applied research directed at adjusting the properties of MoS₂ coatings toward long-term missions and a wider range of operating conditions.

Before concluding this section, it needs to be mentioned that MoS₂ has numerous other applications besides lubrication that are not covered in this review. One of the most important is heterogeneous catalysis, in which active sites are edges, defects, or near “promoter” dopants (Ni, Co). MoS₂ can catalyze reactions including hydrodesulfurization, hydrogen evolution reaction, oxygen reduction reaction, and photo-catalytic water splitting [68]. The ability of MoS₂ to absorb Li between its layers (intercalation) has been utilized for batteries [68]. Electronic and optical applications have become a particular focus after the advent of few-layer MoS₂, which have been reviewed recently [18,69]. Some unique features are strong excitonic effects, a direct-to-indirect band-gap transition with number of layers, tunability by strain, and ease of creating heterojunctions by stacking. The presence of multiple inequivalent low-energy valleys in the band structure might be used in “valleytronics”, and the strong spin-orbit coupling suggests spintronic applications. These properties have been explored for use in transistors, sensors, photovoltaics, light-emitting diodes, and lasers [18,69].

4. Mechanisms of Low Friction and Wear

While MoS₂ has been known to be a good solid lubricant for many years [12], the mechanisms through which this performance is achieved have been a subject of ongoing research. This section will provide an overview of experimental and computational efforts aimed at understanding the physical reasons behind the extraordinary lubricity of this lamellar material. Moreover, key results of atomic force microscopy (AFM) based friction studies on 2D MoS₂ samples (which only consist of a single layer or a few layers stacked on top of each other) will be reviewed.

The most widely-referenced works in the literature aimed at elucidating the lubricative properties of MoS₂ are the detailed transmission electron microscopy (TEM) studies by Martin et al. that were performed in the early 1990s [49,70]. While techniques such as XRD have been employed before to understand some aspects of the friction mechanisms related to MoS₂ coatings [71], the TEM images provided convincing visual evidence for the processes by which MoS₂ was thought to exhibit low friction and wear [49,70]. In particular, by performing pin-on-flat tribometer experiments under ultrahigh vacuum conditions on sputter-deposited, stoichiometric, polycrystalline MoS₂ films followed by TEM imaging of the wear debris as well as the film itself, the following key processes were determined to take place during relative sliding motion between components lubricated by MoS₂:

(1)

The establishment of a transfer film on the counter-surface as it slides against the MoS₂-coated component.

(2)

The shear-induced orientation of the basal planes of MoS₂ (in the original coating, the transfer film and eventually in third bodies/wear particles) in the sliding direction.

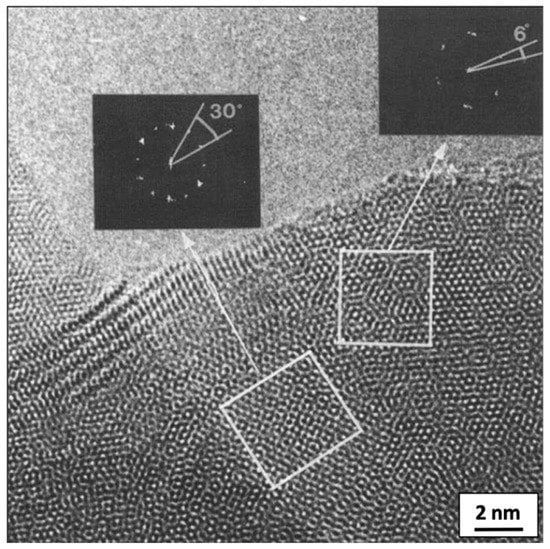

Careful study of the Moiré patterns that emerge during TEM imaging showed that a key feature leading to ultra-low friction (often referred to as superlubricity [72], with friction coefficients on the order of 0.001) of MoS₂ coatings is significant variability in the rotational registry of individual MoS₂ crystallites around the surface-normal direction (Figure 3). This leads to a rotational structural mismatch between basal plane pairs that come into contact with each other at the interfaces that form between the original coating, the transfer film and the third bodies, leading to a systematic cancellation of atomic-scale lateral forces. This results in the establishment of an ultra-low friction regime, in agreement with the theory of structural superlubricity that was spearheaded by Hirano [73] and Sokoloff [74], and is still being investigated in many different experimental systems [72].

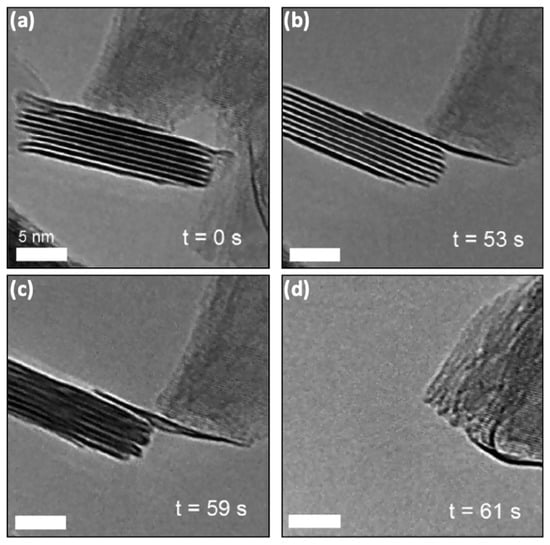

Even though the pioneering TEM works described above pinpoint structural superlubricity between basal planes of MoS₂ as the main reason for its ultra-low friction characteristics, a particular limitation involves the inability to directly observe, in an in situ fashion, the sliding process between the layers and to directly measure the shear forces that take place during sliding. These shortcomings were partially addressed in a careful experimental study performed by Oviedo et al., where two custom cross-sectional TEM setups were used to (i) visualize in situ with high-resolution the sliding between individual basal planes of MoS₂ (Figure 4) and (ii) quantify the shear strength of the interface between the layers [75]. In particular, the upper bound for the shear strength was determined (by focusing on interlayer sliding between MoS₂ layers in commensurate registry) to be 24.8 ± 0.5 MPa. In another important work, utilizing a mechanical force sensor in the form of a silicon nanowire inside a scanning electron microscope (SEM), an individual, single-layer flake of MoS₂ was controllably detached from and slid on its bulk parent MoS₂ substrate in structurally incommensurate registry [76]. In what constituted the first direct measurement of friction forces between incommensurate basal planes of MoS₂, the authors obtained an ultra-low friction coefficient on the order of 0.0001 (well within the superlubric regime [77]), supporting the original proposition by Martin et al. that easy-shear sliding between incommensurate basal planes of MoS₂ is responsible for its ultra-low friction. In yet another rather challenging experimental study, AFM tip apexes were intentionally wrapped with sheets of 2D materials (including MoS₂) and slid on a bulk graphite substrate, with experimentally-recorded friction coefficients smaller than 0.002 [78].

Due to experimental difficulties associated with the measurement of friction forces between individual MoS₂ planes in an isolated fashion and the requirement of highly customized setups that are not readily accessible, computational efforts play an important role in the elucidation of low friction mechanisms of MoS₂. Importantly, simulations of sliding between individual MoS₂ sheets based on molecular dynamics (MD) have uncovered (i) a 100-fold decrease in friction force when the sheets are rotated with respect to each other to transition from a commensurate to an incommensurate state; (ii) that the highest energy barriers to sliding are located on top of S atoms; and (iii) that Coulombic repulsion between the layers plays an important role in the easy shear characteristics, supplementing the reduction in energy barriers to sliding that is induced by structural mismatch [79,80]. A subsequent study based on DFT focused on the load-dependence of friction between individual MoS₂ planes by simulating potential energy landscapes, and determined that inter-layer friction increases with increasing load based on electrostatic effects [81]. Another study of inter-layer motion using both DFT and MD showed that the energy barriers to sliding in MoS₂ are larger than those of other 2D materials (graphene and boron-nitride) due to the corrugated nature of the MoS₂ surface, which increases both the dispersion binding and the energy barriers, and also because the sulfur anions are more polarizable than the first-row atoms in graphene and boron-nitride [82].

The main characteristics that make MoS₂ a low-friction material (in particular, the ability of its basal planes to orient in the direction of sliding) are also mainly responsible for its wear-resistant properties. TEM-based studies performed on MoS₂ films deposited by CVD have established that mechanical properties including strength, elastic modulus and strain to fracture improve during the initial stages of sliding, accompanied by a marked decrease in wear rate [83]. The physical mechanism behind the in situ enhancement of mechanical properties and thus, wear resistance, is thought to involve an interplay of film densification (induced by individual crystallites pushing into the pores in the as-synthesized films under contact stresses) and the ability of the MoS₂ crystallites to easily re-orient themselves in the direction of sliding to accommodate shear strain and delay the onset of fracture that would eventually manifest as wear [83,84]. The wear resistance of pure MoS₂ films can be further augmented by the use of dopants [85], as described in Section 6.

It is also important to note that the tribological behavior of MoS₂ depends on the test conditions, as reflected in the stability and thickness of the generated tribofilm. The properties of the tribofilm are determined by the conditions at the interface and so are intrinsic to the tribological system. Therefore, one approach to understanding the tribological mechanisms of MoS₂ is to analyze the transfer film. This has been done, for example, using techniques that involve stylus-based roughness measurements on the counterface [86] or using approaches based on digital microscopy to characterize tribofilm evolution [87,88].

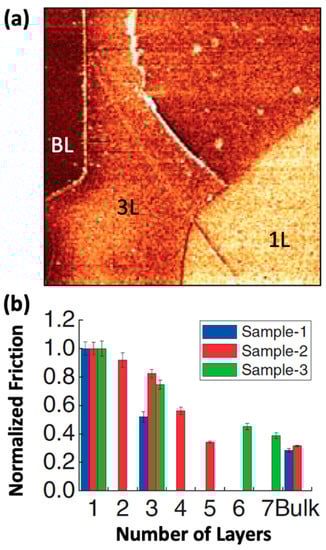

The invention of the AFM [89] and the realization that it can be used to study frictional properties on the nanometer scale [90], opened up a new era in tribology research where friction could, for the first time, be studied at the “single asperity” level, with the potential to provide fundamental physical information about this ubiquitous phenomenon. Moreover, the realization that graphene can be readily obtained from its lamellar bulk form by simple mechanical exfoliation [91] and the booming interest in related 2D materials that followed, resulted in a number of AFM-based studies regarding the frictional properties of such materials. The motivation to study the frictional properties of 2D materials is mainly based on the desire to establish robust and effective lubrication schemes for nano- and micro-scale mechanical systems, where increasing surface-to-volume ratios amplify surface effects (e.g., surface tension, stiction) that preclude the use of liquid lubricants and lubrication via thick layers of lamellar solids is generally impractical because of geometric constraints associated with the size of the components.

At this point, it should be emphasized that AFM-based friction studies on 2D materials (including MoS₂) probe mechanisms and properties that are fundamentally different from those that are largely responsible for the lubricity of such materials in their bulk form. In particular, while the excellent frictional properties of MoS₂ have been mainly attributed to easy shear between its basal planes and related processes as discussed above, no interlayer shear takes place during AFM experiments, where the measured friction forces occur at the interface between the AFM tip and the top surface of the MoS₂ sample. Based on this, it is perhaps surprising that AFM-based studies of friction on such materials still reveal miniscule friction forces and drastically decreased friction when compared with typical substrates (e.g., SiO₂) on which they are deposited. As no interlayer sliding takes place during experiments that feature a few-layers of material (and interlayer sliding is, by definition, not possible for single-layer samples), the significant lubricative properties of 2D materials in AFM experiments are attributed to other physical factors [92], including their (i) atomic-scale smoothness; (ii) mechanical strength and (iii) chemical inertness.

Despite the fact that the great majority of AFM-based nanotribological studies on 2D materials have been performed on graphene, single- or few-layer MoS₂ have also been the target of some recent experimental work. Although AFM-based friction measurements on single-layer MoS₂ have been performed as early as 1996 [93], the first systematic, comparative report of AFM-based friction measurements on 2D materials (which also includes results obtained on mechanically exfoliated flakes of single- and few-layers of MoS₂) appeared in 2010 [94]. Specifically, it was observed that the magnitude of friction measured on MoS₂ (deposited on SiO₂ substrates) decreased monotonically with increasing number of layers (until a total of ~5 layers was reached, see Figure 5). The authors attributed the consistent behavior of decreasing friction with increasing number of layers to a mechanical process called puckering, whereby the AFM tip apex that probes the 2D samples creates locally deformed areas (puckers) around itself, which increases friction due to an increase in contact area. As the number of layers increases, the bending stiffness of the 2D material in the vertical direction also increases, leading to a decrease in puckering and consequently, in friction. While factors, such as electron-phonon coupling [95] as well as surface roughness [96], may also play a role in the layer-dependent friction of 2D materials, the puckering phenomenon is generally accepted to be the dominant mechanism.

Recent work performed on polycrystalline, single- to few-layer MoS₂ samples grown by CVD featuring grains up to a few hundreds of nanometers in size revealed a strikingly different layer-dependence of friction than single crystal samples obtained by mechanical exfoliation [97]. In particular, under ambient conditions, the layer dependence was found to be of an “oscillatory” nature, whereby samples with odd numbers of layers exhibited higher friction relative to those samples with even numbers of layers. This rather interesting result was attributed to a mechanism involving the enhanced adsorption of charged species at samples with odd numbers of layers due to the existence of permanent dipoles. The adsorption of such species changes the interactions of the sample surface with the probing tip apex, ultimately leading to enhanced friction when compared with samples featuring even numbers of layers [97].

In AFM experiments, it is widely observed that the physical properties of the tip apex have a profound effect on the recorded data. This observation is also true for AFM-based investigation of friction mechanisms on MoS₂, as it has been recently shown that layer-dependent friction on 2D MoS₂ becomes strongly non-monotonic (first decreasing when switching from one to two layers, and then progressively increasing with increasing number of layers) when probed with blunt, pre-worn tips [98]. These results point to the conclusion that the physical properties of individual sliding components, in addition to those of the solid lubricant, need to be carefully evaluated in the design of small-scale mechanical systems to achieve adequate lubricative performance.

The anisotropy of friction on MoS₂ is another topic that has been investigated via AFM on 2D samples. Specifically, Cao et al. determined, by means of consecutive friction measurements performed on MoS₂ flakes gradually rotated with respect to the AFM scanning direction, that the friction forces on MoS₂ exhibit anisotropic behavior with a periodicity of 180° [99]. This observation is surprising at first glance, as a periodicity of 60° would have been expected based on crystal symmetry. Inspired by previous anisotropy work on graphene [100], the authors attributed their observations to the existence of parallel ripples in the MoS₂ samples induced by in-plane strain that occurs during the deposition of the samples on the SiO₂ substrate in conjunction with the puckering effect, which leads to the emergence of high- and low-friction sliding directions (separated by 90°) that correspond to the tip moving across or along the ripples, respectively. While the work by Cao et al. also discusses the effect of sample thickness and load on friction anisotropy in a convincing fashion, the specific role played by the AFM tip apex (for instance, by its size and stiffness) in friction anisotropy remains to be studied in future work.

The frictional properties of 2D MoS₂ have been recently compared with those of graphene [101], employing samples grown by CVD, which provides films of lateral sizes that are much more suitable for practical purposes than those obtained by mechanical exfoliation. By combining AFM-based imaging and micro-tribometer tests, it was determined that the MoS₂ film exhibited superior friction and wear characteristics when compared with graphene. The authors attributed this observation to the fact that MoS₂ is directly grown on the SiO₂ substrate employed in the measurements, whereas graphene needs to be grown on copper foils first and then transferred onto SiO₂ through chemical means. This process inevitably introduces contaminants, which prevent intimate contact and adhesion between graphene and the underlying substrate, ultimately leading to inferior friction and wear performance [101]. This result is in contrast to another recent direct comparison between MoS₂ and graphene conducted via AFM measurements of both materials in the same scan line that showed graphene consistently exhibited lower friction. The experimental results were analyzed using DFT and MD simulations, which revealed the mechanism underlying the friction contrast to be a higher energy barrier to sliding on MoS₂ [102]. These studies will almost certainly encourage future comparisons between 2D materials which will highlight their strengths and weaknesses and inform their use in specific applications.

5. Environment and Temperature Dependence

The tribological behavior of MoS₂ is extremely sensitive to environmental conditions. As stated before, one of the main prerequisites to achieve ultralow friction with MoS₂ lubricants is the absence of contaminants, such as oxygen, water, and hydrocarbons [49]. Among the first observations of the environmental dependence of the lubricative properties of MoS₂, Peterson and Johnson [103] showed in 1953 that the friction between metal surfaces lubricated by MoS₂ increased with relative humidity (R.H.) up to 65% and then decreased. After this work, the presence of water and various forms of oxygen was shown to increase friction and wear in several studies [104,105,106,107,108]. In the following, we summarize the effect of oxygen and then water on the friction and wear behavior of MoS₂ as a solid lubricant.

The presence of molecular and atomic oxygen can lead to surface-limited oxidation (or near-surface-limited, due to the subsequent protection that occurs via the oxidation layer) of MoS₂ films, significantly affecting their tribological performance. The oxidized layers of MoS₂ films can cause high friction during the run-in process; then, once the initial oxide has been removed, the friction drops to its low steady-state value as long as the oxide removal rate is higher than the oxidation rate in the system [109,110]. This high friction run-in regime can cause problems particularly in aerospace and satellite devices in which operation is infrequent and oxidation can occur by molecular oxygen during the assembly and testing of a device on earth [111]. Oxidation may also happen in the presence of atomic oxygen, which is extremely reactive and quickly oxidizes the surface of MoS₂ [112], particularly during operation in the low earth orbit (LEO) environment (altitudes of 100–1000 km). The pre-operation exposure to the terrestrial environment before space missions enhances the premature failure risk in satellite devices. The failure of the high gain antenna in the Galileo spacecraft is an example caused by this problem, whereby the failure of bearings during deployment was attributed to the prolonged storage and transportation of the components [113].

Molecular oxygen was shown not to affect the tribological properties of MoS₂ at room temperature [109,114]; however, it can oxidize the MoS₂ edge sites at high temperature, whereby MoO₃ (and MoO₂), as a product of this oxidation, disrupts the easy shear properties of the MoS₂ lubricant film and creates high wear [115]. The oxidation of MoS₂ starts with the physisorption of oxygen on the surface of MoS₂ and then the chemical formation of Mo oxides. MoS₂ oxidation increases with an increase in temperature [116]. The transition temperature at which the oxidation rate increases substantially has been reported to be from 100 [117,118] to 400 °C [119,120], which may depend strongly on the preparation method of the MoS₂ film and on film conditioning induced by deliberate thermal cycling during sliding prior to testing [109]. In general, powdered coatings (i.e., mechanically deposited coatings) exhibit higher transition temperatures compared to sputtered coatings, which might stem from (i) larger grain sizes in the mechanically deposited films which decrease the susceptibility to oxidation and/or (ii) the porous structure of the sputtered films which can speed up the oxidation of MoS₂ as a result of tribochemical reactions [109,119,121,122]. The effect of microstructure on tribological performance of MoS₂ coatings under ambient environment was further studied by comparing the friction of highly oriented N₂-spray-deposited MoS₂ films and amorphous films produced via DC magnetron sputtering [123,124]. Highly-ordered MoS₂ films with surface-parallel basal orientation exhibited higher resistance to oxidation compared to amorphous MoS₂ films. Moreover, X-ray photoelectron spectroscopy (XPS), and high-sensitivity low-energy ion scattering (HS-LEIS) analysis revealed that highly oriented MoS₂ lamellae restricted the oxidation to the first few top layers, which led to a shorter run-in period compared to amorphous MoS₂, where the deeper penetration of oxygen into the surface resulted in a longer run-in period (Figure 6b,d) [124]. Therefore, deposition techniques that result in a lower density of edge sites or highly oriented lamellae of MoS₂ can reduce the possibility of oxidation, thereby minimizing the degradation of tribological performance under ambient conditions.

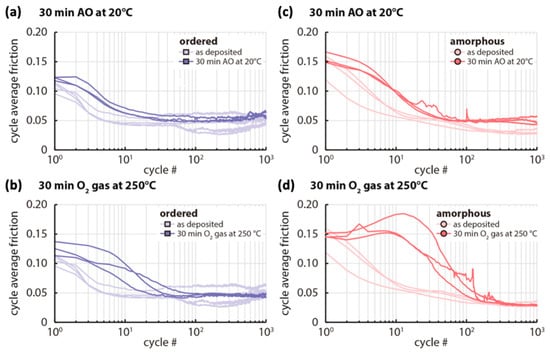

Atomic oxygen (AO) is an abundant species (with a high flux density on the order of 10¹³–10¹⁵ atoms·cm⁻²·s⁻¹ and kinetic energy ∼5 eV) that acts on exposed surfaces of devices and components employed in space applications, and can cause deterioration of material properties [125]. There has been extensive research on the effect of AO on the tribological performance of MoS₂ lubricants (see, e.g., [122,125,126,127,128,129]). However, there are some discrepancies in the reported results: for instance, no change in the tribological properties of MoS₂ after AO exposure was reported by [128]; whereas most other studies reported high initial friction due to the limited depth of oxidation, and S loss on the MoS₂ coating surface [125,126,127,129]. Moreover, Wang et al. observed an overall higher mean friction for a pure MoS₂ sample with AO exposure as well as a direct correlation between the wear-volume/friction and the AO exposure time [122]. The atomic oxygen flux density during sliding has also been shown to inversely affect the life of the coating [127]. The discrepancies in these results might stem from differences in experimental conditions such as atomic oxygen beam energy (thermal to keV), fluence (i.e., intensity, 10¹²–10²⁴ atoms/cm²), sample preparation and/or tribological test conditions [130].

The effect of a humid environment, i.e., water vapor, on the friction and wear properties of MoS₂ lubricant coatings has been extensively studied since the mid-20th century [12,103,106,107,109,131]. Generally, the presence of water molecules in the environment (e.g., while storing MoS₂ under humid conditions) leads to an increase in sliding friction and wear rate regardless of the MoS₂ film deposition technique employed [13,93,105,132,133]. Despite general agreement in the literature about the effect of water on the tribological behavior of MoS₂, there are discrepancies regarding the governing mechanism associated with this phenomenon. Common hypotheses for the increase in friction in humid environments include:

• Water-driven oxidation of MoS₂ edge sites [104,105,106,107,132];
• Physisorption of water molecules at the surface which deteriorates the tribological behavior of MoS₂ via disruption of the easy shear of lamellae [131,133,134,135,136,137], adhesion enhancement [138,139], hydrogen bonding between basal planes of MoS₂ [140,141] and restriction of the growth and reorientation of the tribofilm [123].

For many years, oxidation of MoS₂ at edge sites was thought to be the mechanism responsible for increasing friction and wear rate of MoS₂ under humid environments [104,105,106,107,132]. This hypothesis was mainly tested in the presence of both water and oxygen species and an enhancement in oxide formation (and subsequent sulfur loss at the surface) was observed as the relative humidity (i.e., partial pressure of water) increased. As mentioned before, oxygen alone can oxidize the MoS₂ film, so the important question about the effective and distinctive role of water in oxide formation remained unanswered in these studies. Recent experiments [109,117,131,133], and simulations [136] decoupled the role of water and oxygen in the tribological behavior of MoS₂ in humid environments. It was found that water did not promote MoS₂ oxidation at room temperature. This statement was supported by energy-dispersive X-ray spectroscopy (EDS) analysis in which no oxygen Kα was detected on the worn surface of lubricant films in humid nitrogen environment; i.e., water did not cause the degree of oxidation necessary for detection in this test [131]. This finding is in agreement with Raman spectroscopy results of Windom et al. in which a humid environment had little effect on oxidation compared to dry air or O₂ environments [117]. Moreover, increasing the temperature to values between room temperature and the transition temperature for oxidation greatly improved the tribological properties of the coating [131,133]. This evidence indicates that adsorption/desorption of water is a reversible process, i.e., physisorption rather than chemisorption. Furthermore, ab initio MD simulations modeling the interaction of water with MoS₂ bilayers showed that intercalated water molecules inhibit the sliding motion of both regular and defective layers considerably and that the sliding distance and velocity after a given shear stress are reduced by increasing amounts of water molecules at the interface, consistent with viscous friction behavior [136]. In a recent study, Lee et al. [137] attributed friction enhancement in the presence of intercalated water to the enhancement of phononic energy dissipation at the MoS₂-water interface. It has also been suggested that liquid water could be formed by capillary condensation of vapor in the defects of the MoS₂ crystal structure and that water could then inhibit the easy shear between basal planes [138]; however, no direct observation of adhesion enhancement has yet been reported.

A new interpretation on the role of water in the tribological behavior of MoS₂ was recently proposed by Curry et al. [123]. It was observed that the run-in coefficient of friction for highly-oriented MoS₂ remains the same under dry and humid environments, whereas the run-in behavior is highly environment-dependent in the case of amorphous films. Consequently, it was suggested that water restricted the formation and growth of the shear-induced, highly ordered tribofilms instead of deteriorating the shear strength of existing highly ordered tribofilms. This hypothesis needs further investigation for confirmation.

Recent computational studies [136,142,143,144] of the energetics and mechanisms of water adsorption and dissociation on MoS₂ films showed that oxidation is much less likely than the simple adsorption of water molecules at edge sites. Additionally, the most favorable locations for the adsorption of water molecules were determined to be Mo edge sites. However, at room temperature, water molecules could dissociate to O and OH that bind to all available edge sites on MoS₂ (i.e., not just Mo) [143]. The higher reactivity of the edges in MoS₂ films emphasizes the potential role of the microstructure in the tribological response of MoS₂ under ambient conditions; the presence of highly ordered structures can significantly improve the tribological behavior of MoS₂ coatings in humid environments [48,123,145,146,147]. To tailor the microstructure for improving the lubricative properties of MoS₂ under ambient conditions, Chhowalla et al. [148] followed a different approach and generated a thin film of lubricant made of hollow fullerene-like MoS₂ clusters (“onions”) using the localized arc discharge method. Ultra-low friction and wear were observed in a humid environment and attributed to the presence of curved S–Mo–S planes that prevented oxidation and preserved the layered structure [148].

Overall, the presence of any environmental contaminant degrades the excellent tribological properties of MoS₂ observed in vacuum. Below the transition temperature for oxidation, water adsorption disrupts the easy-shear properties of MoS₂, whereby oxygen plays only a marginal role in degrading its tribological properties. The adsorption of water is thermodynamically favored, and water diffusion in the bulk has a direct correlation with R.H. and exposure time. As the temperature increases, water species desorb and an improvement in the tribological properties of MoS₂ can be observed. As the temperature approaches the transition temperature, oxygen-driven, surface-limited oxidation becomes significant and thus, oxidation deteriorates the excellent lubricity of MoS₂ at high temperatures in ambient conditions [131].

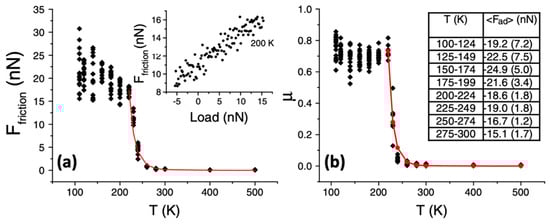

At high service temperatures (i.e., above the transition temperature), friction increases with increasing temperature; under ambient conditions this is due to increasing oxidation rates, whereas the thermal dissociation rates of MoS₂ rapidly increase in inert gas or vacuum environments at temperatures above 500 °C [109,118,149,150]. Within this context, the maximum temperature at which MoS₂ provides effective lubrication is highly dependent on (i) the operating environment, e.g., the presence or absence of vacuum and the humidity level, and (ii) the microstructural properties of the MoS₂ coating, including its crystal structure, density, and surface roughness. For instance, in vacuum, the maximum operating temperature of burnished MoS₂ is in the range of 600–700 °C because thermal dissociation of MoS₂ around these temperatures deteriorates its lubricative properties [149]. However, mechanically deposited MoS₂ coatings under ambient conditions could have a maximum operation temperature of 400 °C due to the rapid oxidation of MoS₂ [115,150]. The main challenge therefore is to develop MoS₂ based coatings which can be used over a wide range of operating temperatures.

While the influence of temperature on the tribological properties of MoS₂ under ambient conditions is related to effects associated with the presence of oxygen and water vapor [109,118,149], temperature has also been shown to affect friction and wear under vacuum conditions [151,152,153,154] and dry nitrogen environments [155,156,157]. However, there is disagreement in these reports for the low temperature tribological behavior of MoS₂ (from the cryogenic regime to around −150 °C). Some studies [152,156] reported monotonic increases in friction coefficient with decreasing temperature, while other studies [151,153,155,157] suggested that decreasing the temperature below a certain level does not lead to increasing friction coefficients (Figure 7). At moderate temperatures (up to around 200 °C), the friction, in a thermally activated process, monotonically decreases as temperature increases. Wear rate in this temperature range has been reported to increase as temperature increases, such that the wear rate of an MoS₂ coating doubled as temperature increased from −100 to 100 °C [151]. Curry et al. [154] recently developed a predictive model to correlate the macroscale interfacial shear strength of MoS₂ to temperature, based on the temperature-dependent probabilities for commensurate or incommensurate sliding to occur, taking into account the corresponding energy barriers to sliding. One hypothesis that has emerged from these studies is that the thermally-activated friction behavior is limited to situations where negligible wear takes place, and that the transition from thermally activated friction to athermal friction is a direct result of wear.

Research efforts aimed at achieving MoS₂ solid lubricant coatings that are robust with respect to changes in environment and temperature have primarily used two approaches: (i) changing the method and parameters of deposition and (ii) adding dopants. First, microstructural properties can be improved by varying the deposition method (such as by using N₂-spray-deposition [123], unbalanced magnetron sputtering [145] or ion-beam-assisted deposition [158]) or parameters (such as lowering the sputter gas pressure [159]) during film preparation to obtain dense films with highly oriented basal planes parallel to the substrate and with the lowest possible density of defects and edge sites. As briefly mentioned above, this approach can improve the environmental resistance of MoS₂ lubricants [123,145,146,147]. Second, by addition of a small amount of other materials such as metals and inorganic sulfides/oxides, the coating density (and consequently, internal stress), hardness and oxidation resistance can be improved. The effect of dopants on the tribological properties of MoS₂ lubricants is discussed in more detail in Section 6.

To extend the operating range of MoS₂ coatings, adaptive composite coatings have been widely studied. The composite coating improves lubrication not only by the presence of the coating constituents but also by the lubricious products of chemical or physical reactions that happen during sliding. While a comprehensive coverage of the utilization of MoS₂ in composite coatings is not within the scope of this review article, several notable examples will be mentioned here due to their relevance for temperature dependence work. Examples of such adaptive composite coatings include PbO/MoS₂ [55,160], YSZ–Ag–Mo–MoS₂ [161], Mo₂N/MoS₂/Ag [162] and Ag/MoS₂/graphite [163] which extend effective lubrication capabilities over a wide temperature range by combining the lubricity of MoS₂ at lower temperatures and the creation of oxides with easy shear properties at high temperatures [164,165,166]. However, the chemical reactions are not reversible and the oxides do not provide lubrication at low temperatures, so the ability to withstand thermal cycling is a challenge [167]. One approach is to establish barrier layers to protect some MoS₂ from oxidation [168]. In a different approach to extend the effective lubrication temperature range, Zhang et al. [169] achieved a low friction coefficient (∼0.03) and low wear rate (∼10−13 mm³/N·mm) at 300 °C using carbon nanotube (CNT)/MoS₂ composite coatings. These improvements in tribological properties were attributed to an enhancement of mechanical strength due to the high load-bearing capacity of CNTs. Several studies [170,171] showed that diamond-like carbon (DLC) can also be added to the adaptive coating in order to enhance its service temperature range. The DLC phase in these coatings increased hardness and provided a source of carbon for surface graphitization effective for humid environment lubrication. For a detailed description of adaptive coatings designed to improve the temperature range for effective lubrication by MoS₂, readers are referred to [164,172].

6. Structure and Tribological Properties of Doped MoS₂

6.1. Structure of Doped MoS₂

While most studies of structural characterization on doped MoS₂ have focused on synthetic approaches and the effects of doping on electronic structure and catalysis, the obtained results on atomic-scale structure can also be beneficial for the use of doped MoS₂ as a solid lubricant. Here we review the available literature with atomistic characterization of the structures of doped MoS₂, with a focus on bulk rather than monolayers. Experimental characterization of a heterogeneous structure (unlike a single crystal) is quite challenging and, therefore, DFT calculations have played a key role in elucidating structures.

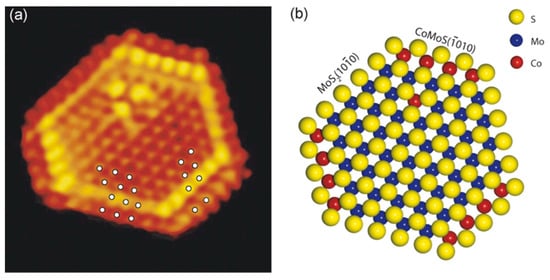

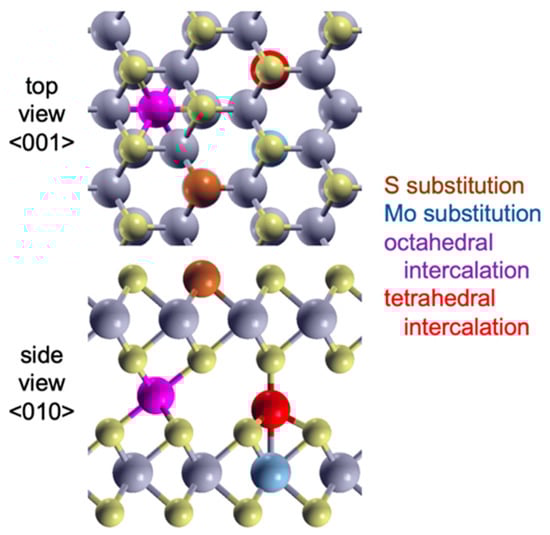

Dopants in MoS₂ can be incorporated in several possible locations. Substitution can occur at either the Mo or S site. Atoms can be added (intercalated) between the MoS₂ layers. They can also be adsorbed at a surface, as adatoms on an MoS₂ sheet (basal plane) or on an edge, which is particularly likely for few-layer MoS₂ or nanosheets. In principle, there could be interstitials within a MoS₂ layer, in the sites within an Mo plane, but there is very limited space and such a structure does not seem to be observed. Adatoms can occur in several high-symmetry sites such as atop Mo, atop S, bridging an Mo-S bond, or in the center of a hexagonal hollow [173]. If an atom is intercalated between two layers in the 2H polytype, these become just two high-symmetry positions: tetrahedrally- or octahedrally-coordinated [174]. These possible dopant locations in bulk 2H MoS₂ are depicted in Figure 8.

The favorable dopants and their locations can be understood with several considerations [175]. Since MoS₂ formally involves Mo⁴⁺ and S^2– ions, atoms that can adopt a 4⁺ oxidation state naturally fit the Mo site, while atoms that can adopt a 2⁻ oxidation state fit the S site. Intercalated atoms are expected to be neutral. The atom′s ionic radius and its compatibility with the Mo or S radii, whether the atom has similar bond length with Mo or S when compared to those in MoS₂, and whether the atom forms a crystal with Mo or S of similar structure to MoS₂ are key points. When these are all similar to MoS₂, alloying in varying proportions may be possible, as is the case for Mo_1-xW_xS₂, MoS_2(1-x)Se_2x, and Mo_1-xNb_xS₂, which have favorable mixing energies and can show substitutional disorder [174,176]. The chemical potentials of Mo, S, and the dopant under synthesis conditions will control which dopant location is favored: for example, S-rich conditions favor Mo substitution [177]. Doping can perturb the local structure (including symmetry breaking and Jahn-Teller distortions) [178,179], alter lattice parameters, or even favor an overall change in crystal structure to a different polytype: Li intercalation causes a change from 2H to 1T [180], and Nb substitution of Mo favors 3R over 2H [181]. Dopants can affect the growth process [182] and the morphology of the resulting crystals or nanostructures, via kinetic or thermodynamic effects [175]. Dopants can be well dispersed or may tend to cluster [177], and in some cases may segregate into competing phases [182,183]. Theoretical studies are complicated by the non-equilibrium conditions in many synthesis approaches, meaning that not only lowest energy structures but also other thermodynamically metastable phases can be formed.

Most doping studies of MoS₂ have used transition metals, which are chemically similar to Mo. DFT calculations for monolayer MoS₂ found that Fe, Mn, W, Cr, V, and Ti dopants substituting for Mo maintain its six-fold coordination, whereas Zn, Au, Ag, Cu, Pt, Pd, Ni, and Co break symmetry and adopt four-fold coordination [178]. A DFT study of Mo substitution on the basal plane surface of the bulk found five-fold coordination for Co, Ni, and Cu, and a six-fold coordination but distorted geometry for Fe; all had shorter M–S bond lengths. Substitution at the edge rather the basal plane was energetically favored [179]. By contrast to the DFT study, experimental results on Zn doping of MoS₂ nanosheets showed little change in Raman or XRD, and were interpreted as Mo substitution without structural distortion [184].

Re can occur naturally in MoS₂. Re substitution of Mo has a low calculated formation energy [27], and it can drive structural changes to 1T or 3R. ReS₂ has a similar structure to MoS₂ although it does have Re-Re bonds in plane [175]; Re doping by a diffusion process resulted in a 1:100 Re:Mo ratio. No Raman changes were observed, and in particular no sign of ReS₂ formation. TEM showed Re in Mo sites, and a small increase in the in-plane lattice spacing, while scanning tunneling microscopy (STM) suggested Mo substitution within grains and intercalation at grain boundaries [185]. Another STM study also showed Mo substitution by Re [186]. Pt doping has been studied for catalysis. Extended X-ray absorption fine structure (EXAFS) showed Pt–S bonds, indicated Mo substitution, and showed no signs of Pt–Pt bonds, indicating that Pt clusters were not present [178].

Nb doping has been extensively studied since it causes little change in the bonding or electronic structure, which is ideal for electronic doping [177,181]. DFT calculations showed alloying is possible with Nb substituting for Mo up to 25% [174]. Nb has the same oxidation state and a similar ionic radius to Mo, and the NbS₂ phase exists, albeit with a different stacking. DFT shows the octahedral intercalated site is favored over tetrahedral, but Mo substitution is much more favored. There is a local distortion toward the NbS₂ bond lengths [174]. Pairing of Nb dopants in the monolayer is favored by 0.16 eV [177] but only by 0.01 eV in bulk [174]. TEM showed the lattice spacing is preserved and the Raman spectrum showed only subtle changes. Energy-filtered electron transmission microscopy spectrum imaging (EFTEM-SI) showed well dispersed Nb, and EXAFS showed the same atomic environment for Nb and Mo [187]. Interestingly, Nb doping can also induce a transformation from the 2H structure to 3R [181].

Ni doping has been investigated for tribology and catalysis. Sputtering can incorporate 5%–7% concentrations, and it increases the size of acicular (needle-shaped) crystallites [85]. Low concentrations of Ni increase MoS₂ crystal size in hydrothermal synthesis, and change crystallographic orientations. XPS showed the presence of Ni⁰ and Ni²⁺, consistent with intercalation and substitution. High concentrations of Ni cause formation of Ni sulfides instead; Ni₃S₄ was seen in XRD and Raman [182], which is the most stable Ni_xS_y phase according to the Materials Project′s calculated phase diagram [22,188]. Another XPS study suggested Ni in nanoclusters is neutral but easily oxidizes in air to Ni²⁺ [28]. Mo substitution is suggested by an XRD/AFM study of 10% doping showing the same structure as undoped material [189]. Co doping is also common for catalysis. Co and Ni in MoS₂ nanoclusters occur as Mo substituents near the edges, changing them from triangular to truncated shapes, which is seen by STM (Figure 9) and predicted by DFT. EXAFS indicates Co and Ni have approximately five bonds to S neighbors, consistent with Mo sites near an edge (or a distorted geometry) [190]. Evidence from EXAFS, STEM (scanning transmission electron microscopy) and DFT for monolayer MoS₂ has shown Co not only in Mo sites but also S sites, and as adatoms in various positions [173].

Doping with Ti and Zr has been found to distort the structure and reduce crystallinity at high doping levels, related to the octahedral coordination in TiS₂ and ZrS₂. The out-of-plane lattice parameter was not found to change much in XRD. V intercalates and shows expanded layers in XRD, remaining in the 2H polytype. Cr has 2+ and 3+ oxidation states, unlike 4+ for Mo, and therefore causes disordering [175]. Cr doping enhances the MoS₂ longitudinal acoustic band in the Raman spectrum, with an intensity linear with doping level. Energy-dispersive X-ray spectroscopy (EDX) showed dispersal of Cr throughout flakes, and the elastic modulus was found to be increased [191].

Group VI elements can straightforwardly substitute for S. MoSe_2(1-x)S_2x alloys are reported to be favorable [176]. MoS_2(1-x)O_2x (based on MoO₄) has been observed by EXAFS [183] and found to have decreased crystallinity and an expanded interlayer spacing [192]. MoS_xO_3-x (based on MoO₃) has been identified through Raman and XPS [193]. Se and Te substitution at 25% causes small systematic changes in lattice parameter. AFM showed the same surface structure for Se, but Te was found to result in surface protrusions [189]. Halogens (F, Cl, Br, I) substituting on the S site have been calculated to have large formation energies, but perhaps substitution could occur by filling S vacancies [177], as suggested by experiments [194]. N doping at the S site has been suggested by XPS, with DFT showing N adopting a “groove” position lower than the S atom plane [195]. Phosphorus is believed to substitute for S, as shown in a laser-doping study of the monolayer, in which sulfur vacancies are created as a first step. The long-term stability of photoluminescence suggested substitution by P rather than surface adsorption as adatoms [196]. H or alkali (Li, K, Cs) atoms can adsorb on MoS₂ and donate electrons, preferring a location atop the Mo site [177]. Li can also intercalate, driving 2H to 1T crystal structure transformations, and large changes in the Raman spectrum; this process can be used in Li-ion batteries [180].

6.2. Tribological Properties of Doped MoS₂

Dopants have been used to improve the tribological properties of MoS₂ coatings for several decades [175]. As discussed in Section 6.1, dopant atoms can exist in layered structures through substitution of atoms in the lattice, at interstitial sites between atoms in the lattice, intercalated between layers, or as a separate phase dispersed in the material. Which of these is observed depends on the dopant and its concentration, as well as the deposition process used to create the coating. Doped coatings are produced using various deposition methods. Sputter deposition, also called sputtering, was one of the earliest techniques and is still commonly used. However, also applied for doped MoS₂ coatings are unbalanced magnetron sputtering, ion beam deposition, and pulsed laser deposition [15]. Dopants that have been studied and shown to improve tribological properties of MoS₂ are Ni, Cr, Ti, Au, Zr, and Sb₂O₃. Doped MoS₂ coatings have been shown to exhibit better tribological properties (i.e., friction, wear and life) than undoped MoS₂ in vacuum, as well as exhibit superior resistance to oxidation which improves performance and storability in air [15].

Understanding the mechanisms by which dopants improve the tribological and oxidation properties of MoS₂ is still a topic of active research. In terms of oxidation resistance, multiple mechanisms have been proposed. First, dopants are thought to affect the growth of MoS₂ crystallites which reduces MoS₂ phase size and in turn increases density [15]. Higher density can improve oxidation resistance by reducing crystalline breakage [197], as well as decreasing the number of edge sites available to oxidize [15]. Dopants are also proposed to passivate edge sites so that they are less reactive with available oxygen [198]. Lastly, in cases where dopants exist as a separate phase, it has been proposed that the dopant atoms bond with oxygen to form an oxide [199].

The beneficial effects of dopants on friction, wear and coating life have also been explained via multiple mechanisms. However, the most widely cited mechanism is increased hardness [65,67,175,200,201,202,203]. It has been proposed that hardness increases as a result of distortion of the MoS₂ crystal structure in doped films [65,67]. Hardness directly benefits wear, which is critical for coating life (or endurance) in many applications, including space missions where coatings must function for many years without replacement. Some papers that report improved hardness also observe that dopants can increase the elastic modulus of the coating [201,202,203]. Hardness has also been associated with increased density (sometimes referred to as reduced porosity) that contributes to improved friction and wear [204,205]. However, increased hardness is not the only mechanism available, and it has been shown that some dopants decrease hardness yet improve performance [198]. For some dopants, the primary mechanism is proposed to be the presence of the dopant as a separate nanoscale phase which imparts beneficial properties related to the transfer film [200,206,207]. In practice, the mechanism or mechanisms by which a dopant improves coating performance depends on the dopant, its concentration and, to some degree, conditions during coating deposition and operation. For some of the mostly commonly studied dopants, these effects are discussed in more detail below, grouped by proposed mechanism.

Of the dopants believed to improve tribological performance through hardening, Ti has been the most widely studied [65,85,157,198,201,208,209]. It has been proposed that the Ti atoms are either intercalated between MoS₂ layers [67] or substituted with Mo based on observation of a lack of change in crystal c-axis after doping [210]. Ti atoms have been found to be uniformly distributed in the MoS₂ matrix with no Ti-rich clusters or precipitates present [211]. Measurements of 16% Ti coatings showed that the films are slightly sub-stoichiometric in sulfur and amorphous [209]. Ti-doped coatings have been reported to have a columnar platelet structure, with higher concentrations of Ti corresponding to increasing density [212]. Ti has been found to increase coating hardness, but only up to a limiting concentration, after which additional Ti has a detrimental effect [67,212]. Tribological properties also improve with the amount of Ti in the coating, up to a limiting value that has been reported to be 18% [67]. Ti improves oxidation resistance, as verified by measuring the same friction with 10.8% Ti across a range of humidities [212]. Lastly, it was found that Ti-doped MoS₂ performance depends on the counterface material, with ZrO₂ being best among brass, GCr15 steel, WC and ZrO₂ [203].

The hardening mechanism has also been used to explain the beneficial effects of Cr [65,85,198] [208], Zn [65,200], and Ni [85,157,197] dopants to improve friction and wear. The optimum concentration of Cr was found to be 16.6% for hardness and 10% for friction and wear [208]. Zr-doped coatings were found to consist of nanocrystalline Zr in an amorphous matrix and optimum performance was observed at a concentration of 10% [200]. Ni has been shown to improve tribological performance and particularly to mitigate the increase in friction with decreasing temperature that is commonly observed with both MoS₂ and other doped MoS₂ coatings (see Figure 10) [157]. Ni dopants are currently used in several space components [15] because they improve tribological performance at low temperature [157] and are available at more reasonable cost than some of the other metallic dopant options [85]. In general, metal dopants have been shown to increase performance up to some maximum concentration (e.g., 11% [197]), above which the solubility limit is reached, resulting in layering and poor tribological performance [65]. Lastly, doping with Sb₂O₃ [157,197] results in a fine-grained microstructure and a two-phase system with MoS₂ crystallites dispersed in amorphous antimony oxide [197]. The Sb₂O₃-doped coatings were found to have increased density and hardness [205] with an optimum concentration of 35% [197].

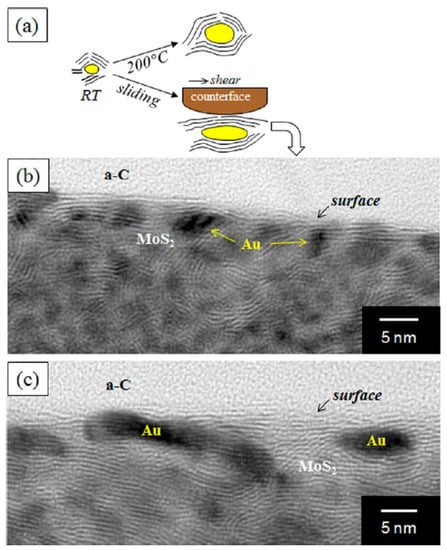

The most commonly studied dopant that does not increase hardness is Au [198,201,204,206,207,213]. Unlike Ti, Au-doped MoS₂ consists of domains of nanocrystalline Au particles dispersed in the MoS₂ matrix, where the size of the particles depends on temperature [206,207]. Au dopants have been shown to decrease hardness [198], so tribological improvement is through a different mechanism. It has been proposed that subsurface coarsening of Au nanoparticles provides load support to allow shear of surface MoS₂ basal planes [206]. Direct comparison of MoS₂, Au and Au-doped MoS₂ (at relatively high concentrations >42%) showed the doped coating was superior to both MoS₂ and Au alone. Further, it was reported that the optimal amount of Au was dependent on contact stress, where less Au was better at high stress and more Au was better at low stress [207,213]. To explain this observation, it was hypothesized that, at high stress, Au provided the optimum amount of MoS₂ in the contact, while at low stress more Au limited the amount/size of MoS₂ transferred, providing a thinner, more uniform transfer film [213]. This hypothesis was consistent with the observation that sliding on Au-doped MoS₂ results in the formation of pure, crystalline, aligned MoS₂ about 1 nm thick on the coating (see Figure 11) [206,207].

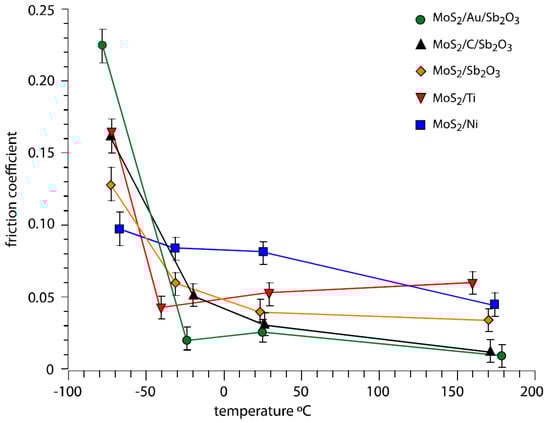

It is also possible to co-dope MoS₂ to leverage the two different mechanisms that are available, to achieve even better tribological performance (particularly in terms of wear resistance). Specifically, Sb₂O₃/Au doped MoS₂ has been frequently studied [157,197,202,214]. For example, coatings with good tribological performance consisted of 11% Sb₂O₃ and 7% Au [214]. Sb₂O₃/Au-doped MoS₂ was found to have an order of magnitude lower wear rate than Sb₂O₃-doped MoS₂ at room temperature [157]. This feature is particularly important for space applications for which endurance is the most important factor, so Sb₂O₃/Au coatings are currently in use for some space components [15].

Several studies have compared multiple dopants. In measurements of friction and life of Ni, Fe, Au, and Sb₂O₃ doped coatings, all were better than undoped MoS₂ and, among the group, the best was found to be Sb₂O₃/Au [197]. Another comparative study of friction and endurance that included Al, Pt, Ag, W, Cr, Co, Ni, and Ti showed some dopants did not improve performance (Al, Pt, Ag, W) while others had a positive effect (Cr, Co, Ni Ti). For those that improved performance, the optimal metal content was found to be 5%–8% [85]. Another study of metallic dopants showed no difference between the various dopants [65]. In a comparison between Au, Ti, Cr, and WSe₂, the lowest friction and life were exhibited by WSe₂, followed by Au, Ti, and then Cr [198]. Another study focused on temperature dependence measured friction and wear from −80 to 180 °C for Sb₂O₃/Au, Sb₂O₃/C, Sb₂O₃, Ti, and Ni [157]. As shown in Figure 10, they found that Sb₂O₃/Au had the lowest friction above −25 °C, but Ni had the lowest friction at −80 °C. Sb₂O₃/Au exhibited the lowest wear rate at room temperature. An inverse relationship between wear rate and the change in friction coefficient with temperature was also observed, i.e., high room-temperature wear corresponded to smaller increase in friction with decreasing temperature [157]. Opposite trends in friction and wear were observed in another study as well [198]. One challenge with comparison between doped coatings is that different deposition methods may be used for different dopants, which can affect the properties of the resultant coating. One study isolated this parameter by comparing undoped MoS₂, Ti-doped, and Sb₂O₃/Au-doped coatings deposited in the same way [202]. In terms of wear, MoS₂ was best at 30 °C and worst at 100 °C, Sb₂O₃/Au was highly abrasive at 30 °C but performed well at 100 °C, and Ti exhibited good tribological behavior at both temperatures [202].

In summary, dopants have been shown to consistently improve the tribological performance of MoS₂ coatings. There are many different types of dopants, but they can be generally categorized into hard materials (Ti, Ni, Sb₂O₃) and soft materials (Au). In terms of oxidation resistance, the possible roles of these dopants are to densify the film (limiting the number of reactive sites available), passivate edge sites, and sacrificially bond with oxygen. It is possible that all these mechanisms contribute to improved oxidation resistance of doped MoS₂ films. Friction, wear and life of the coatings can also be improved through different mechanisms. However, these mechanisms are highly dependent on the dopant and can be mutually exclusive. Hard materials densify and harden the film, providing direct wear resistance. Soft materials appear to enable formation of thinner and more even MoS₂ films on the surface of the coating, indirectly leading to lower wear. Coatings that contain both hard and soft materials, e.g., Sb₂O₃/Au, may take advantage of both mechanisms. However, a key observation is that wear is often inversely related to friction, particularly friction at low temperatures. Therefore, dopants should be selected based on the priorities of a specific application.

The research performed on doped MoS₂ coatings over the past few decades has clearly demonstrated their great promise. However, as with all new technologies, there are challenges and opportunities. First, scalability is an issue for some deposition techniques [175], which can limit the potential applications for which doped MoS₂ may be considered. Second, not all elements can be used for doping, since doping layered structures with elements that exhibit competing bonding coordination can lead to formation of 3D as opposed to layered structures [175]. Third, and probably most significant, massive amounts of testing will be required before sufficient data are available for doped MoS₂ coatings to be widely used in engineering applications. One limitation to broad testing is that head-to-head comparison of tribological properties is challenging because different coatings are often produced using different deposition techniques and under inconsistent conditions [202]. Testing for a broad range of applications is also hindered by the fact that many of those applications will operate in extreme environments for long durations (e.g., decade-long space missions in vacuum and extreme temperatures); these conditions are difficult to reproduce in a lab setting. Another challenge is lack of availability of doped MoS₂ coatings with controlled composition and deposition. Only a few research labs have the equipment and experience to produce such materials and, while some coatings (Ni-doped and Sb₂O₃/Au-doped) are commercially available, details about deposition conditions or composition are not usually openly shared. Lastly, given the limitations of experimental testing and the fact that the mechanisms by which these coatings perform their function is hidden from view (i.e., “buried”) in sliding interfaces, simulations would be an ideal tool for exploration. However, such simulations require empirical potentials to describe the interatomic interactions and, to model wear, require reactive potentials (which capture bond formation and breaking). At this point, there is no reactive potential available for MoS₂ with commonly used dopants. The development of such a model would enable the direct interrogation of doped MoS₂ sliding mechanisms, which could provide the knowledge base necessary to tune dopants in order to provide optimized tribological properties for specific applications.

7. Conclusions and Outlook

This review provided a focused overview of solid lubrication with MoS₂, starting from the fundamentals of its structure and synthesis, followed by an analysis of the conditions under which its use as a solid lubricant is advantageous, and corresponding tribological applications. The current understanding of the fundamental mechanisms underlying the low friction and wear properties of MoS₂ was discussed in detail, as well as the dependence of these properties on the operating environment and temperature. Finally, the structure and tribological properties of doped MoS₂ were reviewed. The main conclusions of the review and thoughts on emerging research directions are provided below.

There is now agreement regarding the fundamental mechanisms responsible for the lubricative character of MoS₂, namely the ability of its basal planes to orient themselves parallel to the sliding direction during sliding and the low shear strength of the interface between basal planes, facilitating inter-plane sliding with minimal frictional resistance to motion. Despite this general agreement, the conclusions are based mostly on investigating MoS₂ surfaces after the sliding experiments, which does not provide a direct means of studying the details of the dynamic behavior of MoS₂ during sliding. As such, great strides in our understanding of MoS₂ solid lubrication can be made by devising new experimental methods that provide an in situ, high-resolution view of the sliding interface in a MoS₂-lubricated contact. While this would be certainly a long-term goal, such an approach would also provide concrete answers to questions about how wear occurs in MoS₂. Recent cross-sectional TEM work performed on isolated MoS₂ flakes is promising in this regard and future work could build on this achievement to focus on MoS₂ coatings that are more application-oriented.

Research shows that the tribological behavior of MoS₂ is highly sensitive to operating conditions. Based on growing interest in the use of MoS₂ in aerospace/space applications where components are expected to operate in a wide range of temperatures (from the cryogenic to several hundred degrees Celsius) and in different environments, the temperature and environmental dependence of the tribological properties of MoS₂ has been the subject of many studies. In particular, the presence of water or oxygen degrades the excellent lubricative properties of MoS₂ observed in vacuum environments. While some studies show that water adsorption plays an important role in the deterioration of the tribological properties of MoS₂ around room temperature, at higher temperatures oxidation was shown to be responsible for diminishing tribological performance. Generally, in vacuum environment and in the absence of wear, friction has been found to decrease with increasing temperature as predicted for a thermally activated process. Wear rate, however, has been found to increase as the temperature increases. Despite agreement regarding the effect of the operating environment and temperature on the tribological properties of MoS₂, there are still significant discrepancies in the proposed mechanisms, mostly due to difficulties associated with studying different environmental factors (e.g., the presence of water, oxygen or other species) in an isolated fashion as well as design and construction of new experimental setups that would allow extended tests of lubricants at extreme temperatures. Systematic experiments conducted in well-controlled environments, as well as detailed atomistic simulations employing realistic interaction potentials, can thus provide insight into the structural and chemical changes that occur at the buried sliding interface, which can eventually enable MoS₂ to operate reliably in varying environmental conditions.

The improved tribological performance exhibited by doped MoS₂ coatings when compared with their pristine counterparts (in particular, under challenging environmental conditions) has enabled their use in critical technologies, including, but not limited to those related to space exploration. Despite this fact, significant limitations/challenges remain related to scalability, the range of materials that can be successfully used for doping, and the lack of availability of relevant test setups that can successfully simulate, for instance, decade-long missions under vacuum and at cryogenic temperatures. Moreover, while the specific method of deposition and related parameters are known to affect the tribological performance of doped MoS₂ coatings significantly, systematic studies evaluating these relations do not currently exist, in part due to the fact that details of composition and deposition of commercially successful coatings are not openly shared. Given the experimental difficulties, simulations arise as a viable route for (i) evaluating and understanding the properties of existing doped MoS₂ coatings, especially by studying the buried sliding interface not accessible to conventional experiments, and (ii) predicting new dopants and doping strategies for improved performance. Naturally, the success of such simulations will crucially depend on the availability of accurate, reactive interaction potentials, the development of which could constitute an important direction of research in the near future.

Progress in doped MoS₂ tribology will also benefit from advancement in experimental structural characterization. Standard methods for the analysis of periodic crystals, with diffraction of X-rays, electrons, or neutrons, can provide only limited and average information for heterogeneous structures. Most doping studies have not conclusively identified the structure of the doped materials. More work employing methods that can provide localized information (such as EXAFS and XPS, and high-resolution STM, AFM, and TEM), in conjunction with DFT calculations, is needed to elucidate dopant locations, local environments, and structural distortions. Study of vibrations by Raman and infrared spectroscopy or neutron scattering, supplemented by theoretical studies, are also promising ways to investigate signatures of dopant concentrations and environments. Correlation of detailed structural characterization with tribology studies is needed to identify the structure-property-function relations. Knowledge from the extensive literature on MoS₂ doping for electronic and catalytic applications can also be leveraged to provide new insight and ideas for tribology. Experimental and theoretical work is then needed to better understand how dopants affect growth processes and morphology, and how the resulting structures can be controlled, to target the structures found to be beneficial to tribological performance.

The rapidly widening range of conditions in which mechanical systems and components have to operate efficiently will certainly maintain and accelerate interest in solid lubrication in the near future. Within this context, this review summarized the properties, applications and mechanisms of MoS₂ as a solid lubricant, with the aim of providing a snapshot of our current understanding of this material, as well as inspire future research directions. Focused experimental and computational work are expected to accelerate developments in this field, potentially providing new opportunities for solid lubrication using MoS₂ in applications that traditionally employ oils and greases.
