Next Article in Journal
Linear and Nonlinear Viscoelastic Modulus of Rubber
Previous Article in Journal
Adhesion and Friction for Three Tire Tread Compounds
Open AccessArticle

The Effect of Elements of Secondary Structures on the Wear Resistance of Steel in Friction against Experimental Aluminum Alloys for Monometallic Journal Bearings

1
Laboratory of Electric Current Assisted Sintering Technologies, Moscow State University of Technology “STANKIN”, Vadkovsky Lane 3a, Moscow 127055, Russia
2
Department of Scientific Research Programs, Grants and Projects, Railway Research Institute JSC “VNIIZHT”, 3rd Mytischinskaya Street 10, Moscow 107996, Russia
*
Author to whom correspondence should be addressed.
Lubricants 2019, 7(3), 21; https://doi.org/10.3390/lubricants7030021
Received: 30 December 2018 / Revised: 19 February 2019 / Accepted: 26 February 2019 / Published: 7 March 2019

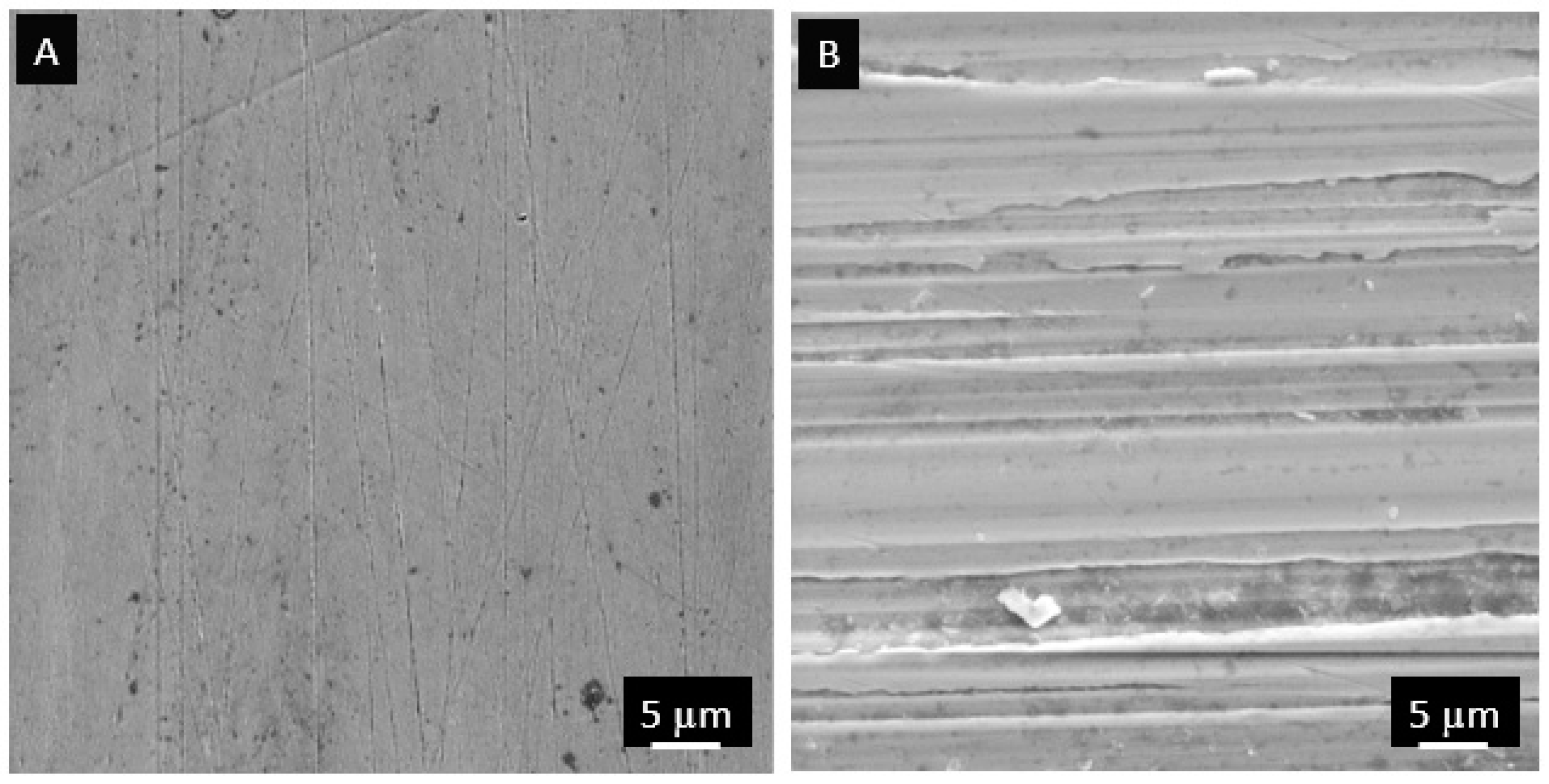

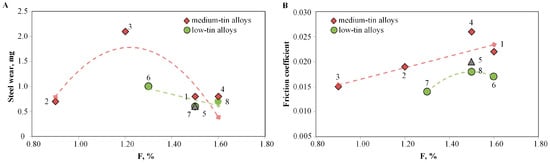

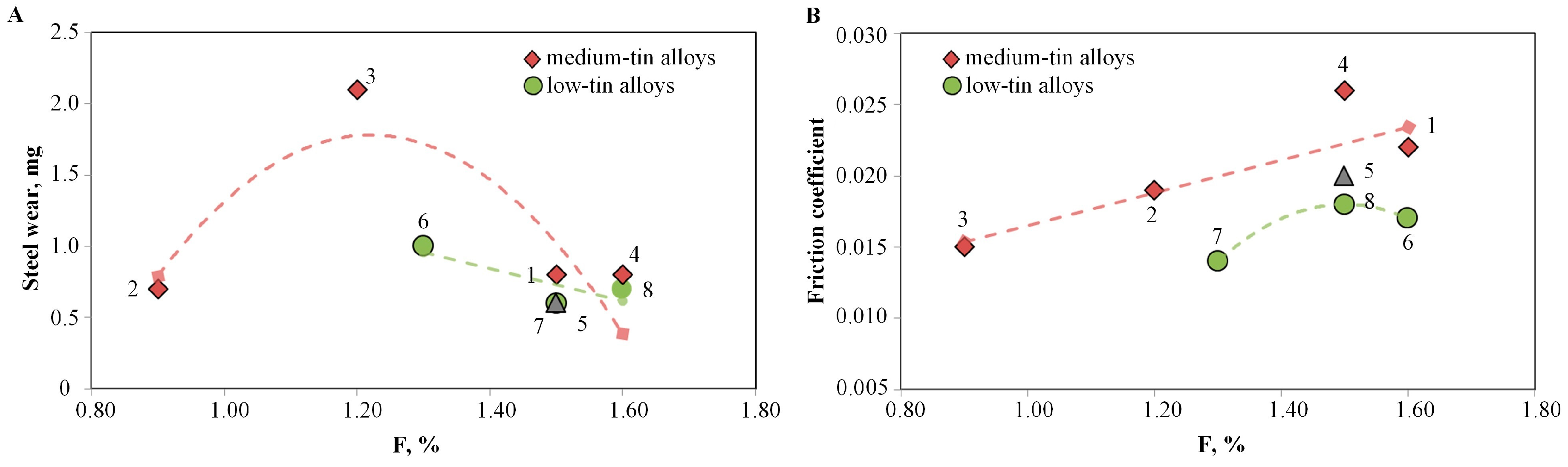

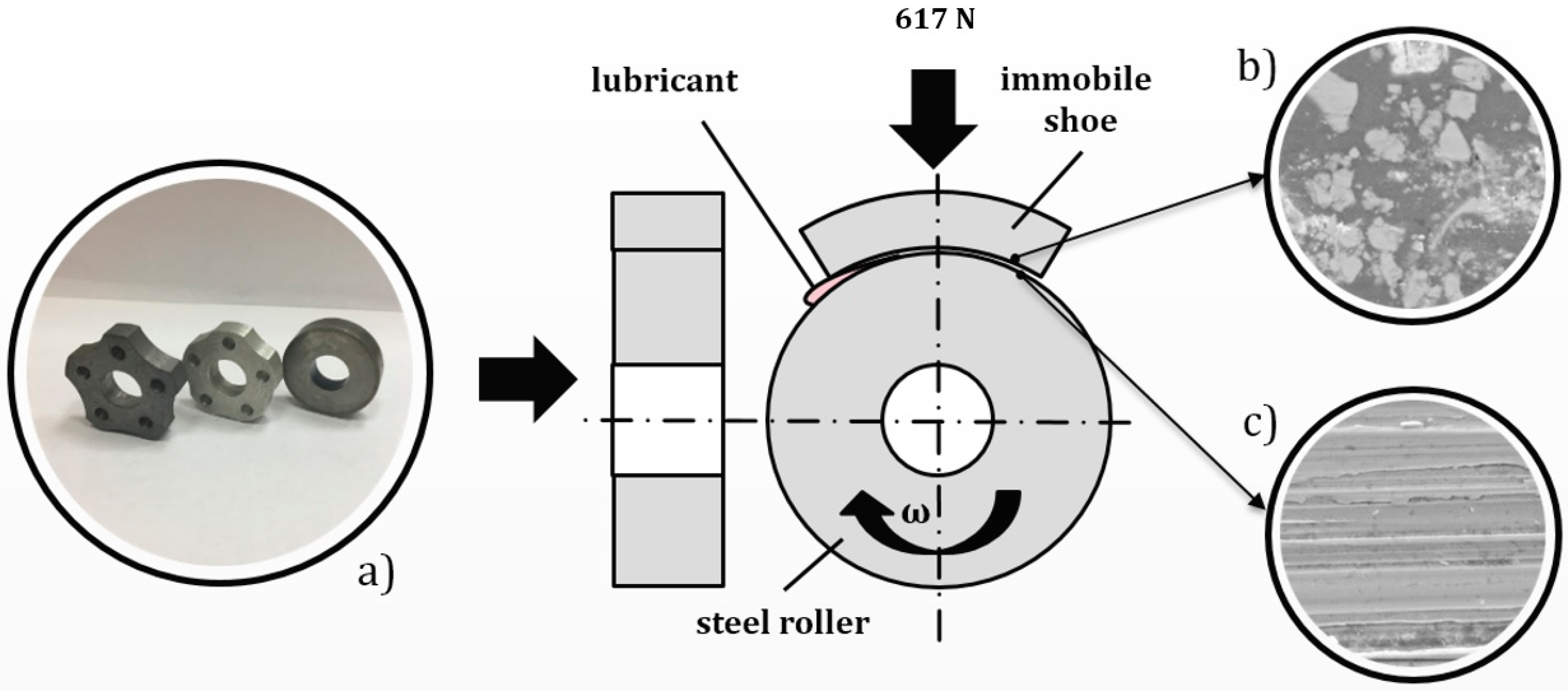

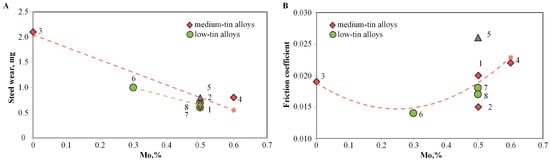

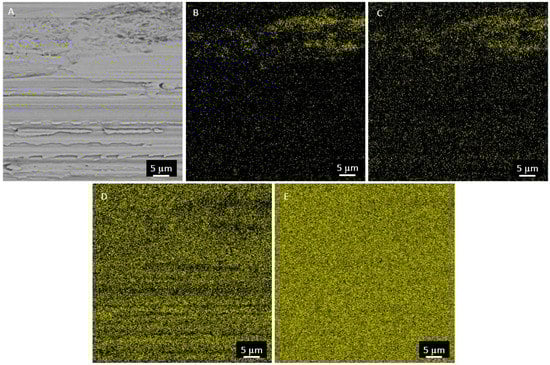

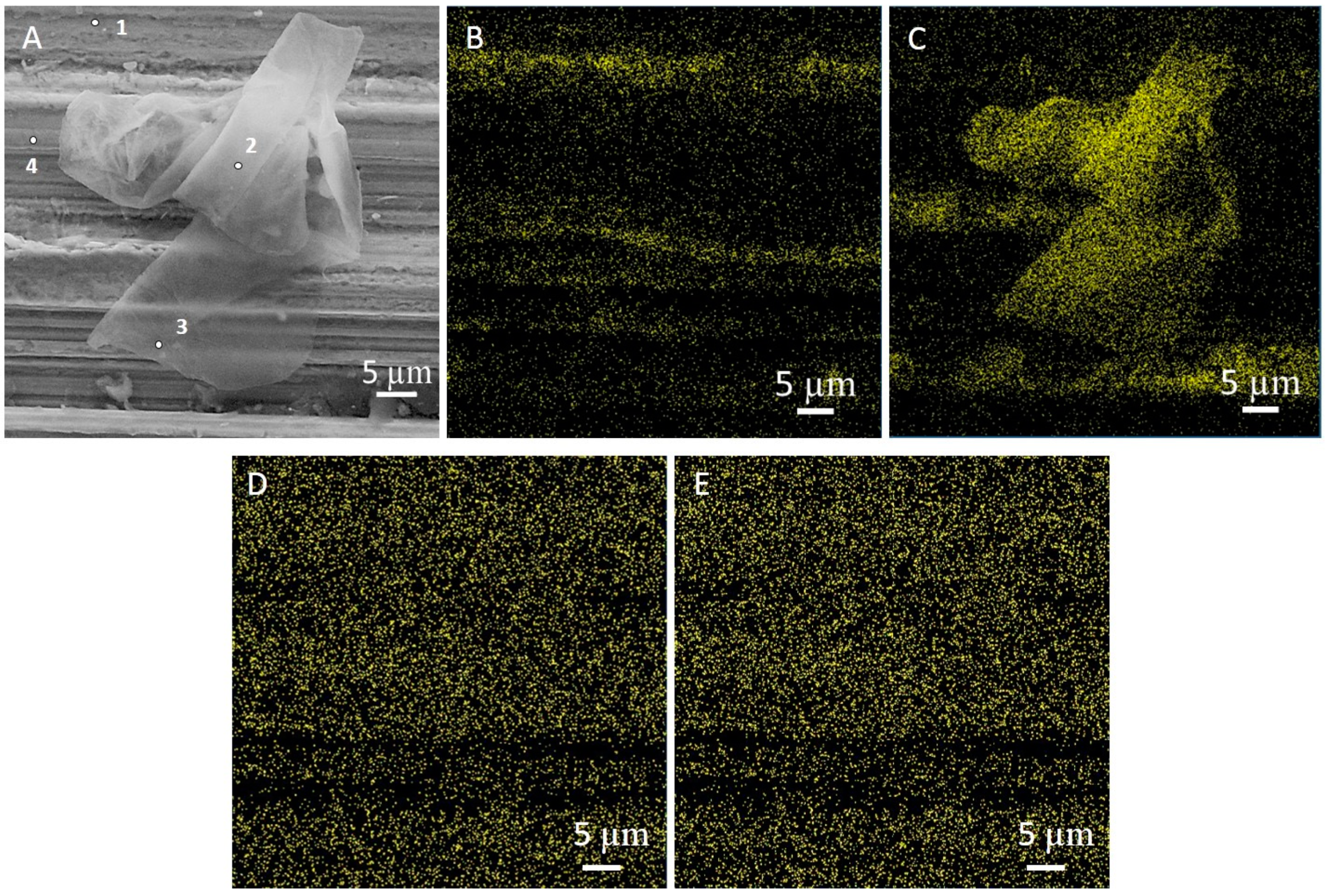

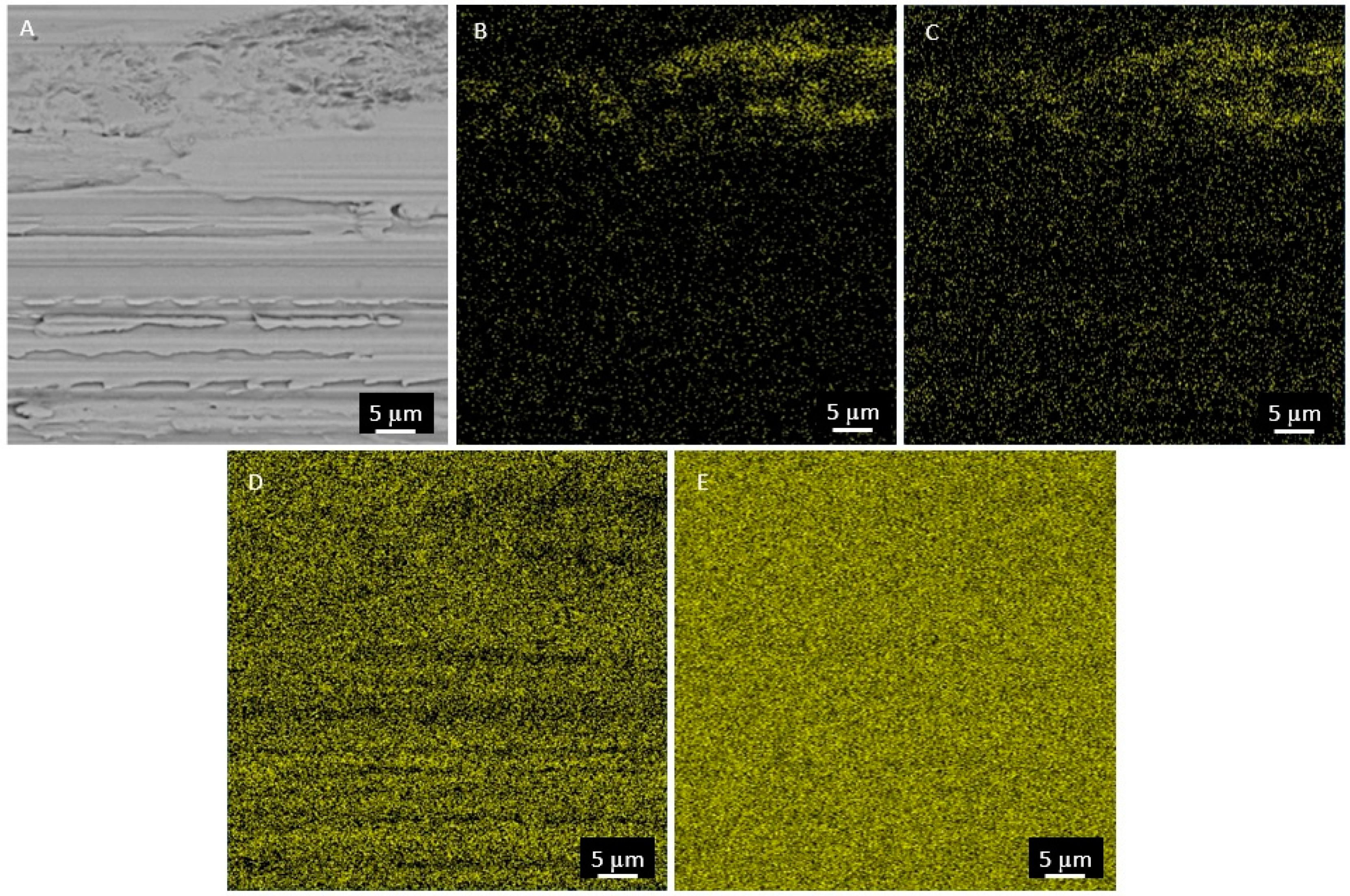

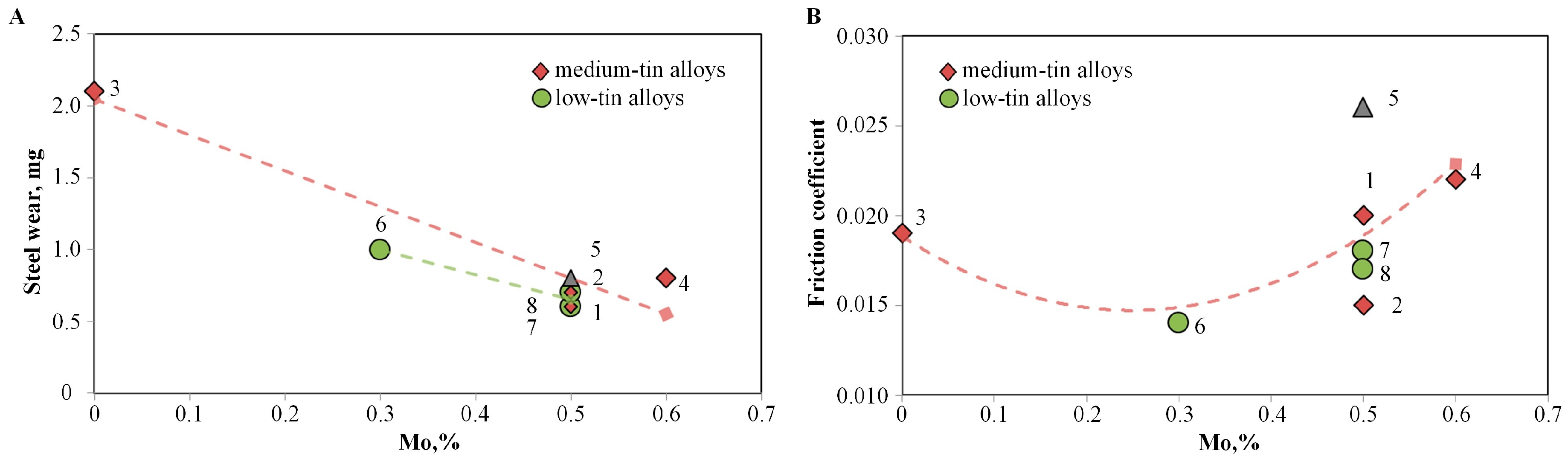

This article describes the elemental composition of secondary structures formed on the steel contact surface during wear test against experimental Al alloys. Wear tests were carried out according to the rotating steel roller-fixed shoe of an antifriction alloy scheme under boundary lubrication conditions. The duration of the test was 40 h, and motor oil M14V2 was used as a lubricant. The microstructure and elemental characterization of the steel surface before and after the tribological test was obtained by scanning electron microscopy equipped with EDX. The simultaneous presence of various constituents of oil, steel, and Al alloys can produce both positive and negative effects on the friction characteristic of the tribosystem. It was shown that presence of Mo, F, S, Si, Ni, and Cr have a favorable effect on the wear resistance of steel and the friction coefficient of the rubbing surfaces due to the formation of secondary structures with optimal composition. View Full-Text
Keywords: steel friction surface; secondary structures; self-organization; metal-polymer films; wear resistance; aluminum journal bearings steel friction surface; secondary structures; self-organization; metal-polymer films; wear resistance; aluminum journal bearings
Show Figures

Graphical abstract

MDPI and ACS Style

Kuznetsova, E.; Gershman, I.; Mironov, A.; Podrabinnik, P.; Peretyagin, P. The Effect of Elements of Secondary Structures on the Wear Resistance of Steel in Friction against Experimental Aluminum Alloys for Monometallic Journal Bearings. Lubricants 2019, 7, 21.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
