Open AccessArticle
Lubricants 2018, 6(2), 47; https://doi.org/10.3390/lubricants6020047

Detailed Investigations on the Oil Flow in Dip-Lubricated Gearboxes by the Finite Volume CFD Method

Gear Research Centre (FZG), Technical University of Munich, Boltzmannstraße 15, 85748 Garching b. München, Germany
This paper is an extended version of our paper published in 6th World Tribology Congress, Beijing, China.
*
Author to whom correspondence should be addressed.
Received: 9 February 2018 / Revised: 10 April 2018 / Accepted: 2 May 2018 / Published: 9 May 2018
(This article belongs to the Special Issue Selected Papers in the Sixth World Tribology Congress (WTC 2017))
Full-Text   |   PDF [14730 KB, uploaded 15 May 2018]   |

Abstract

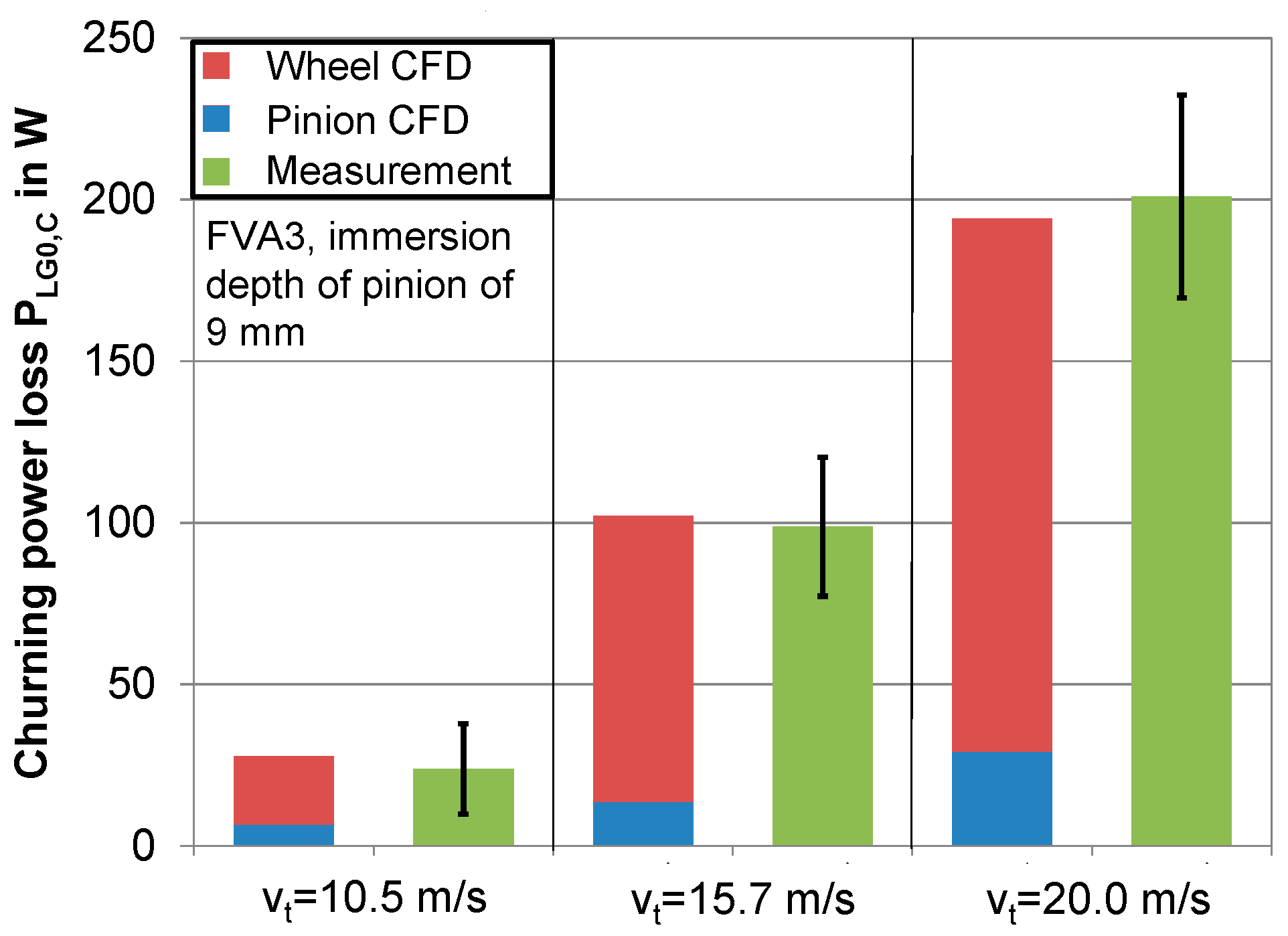

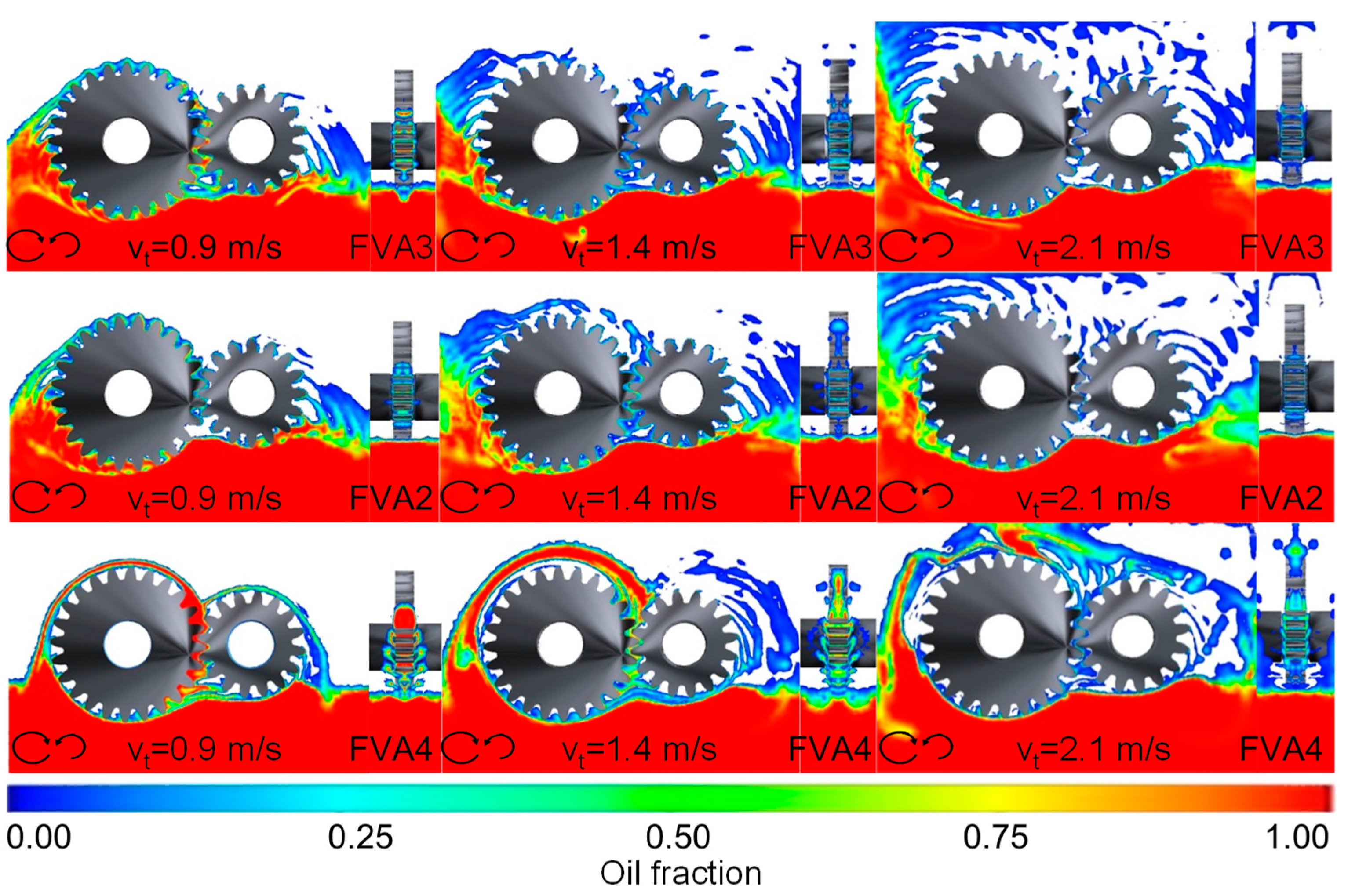

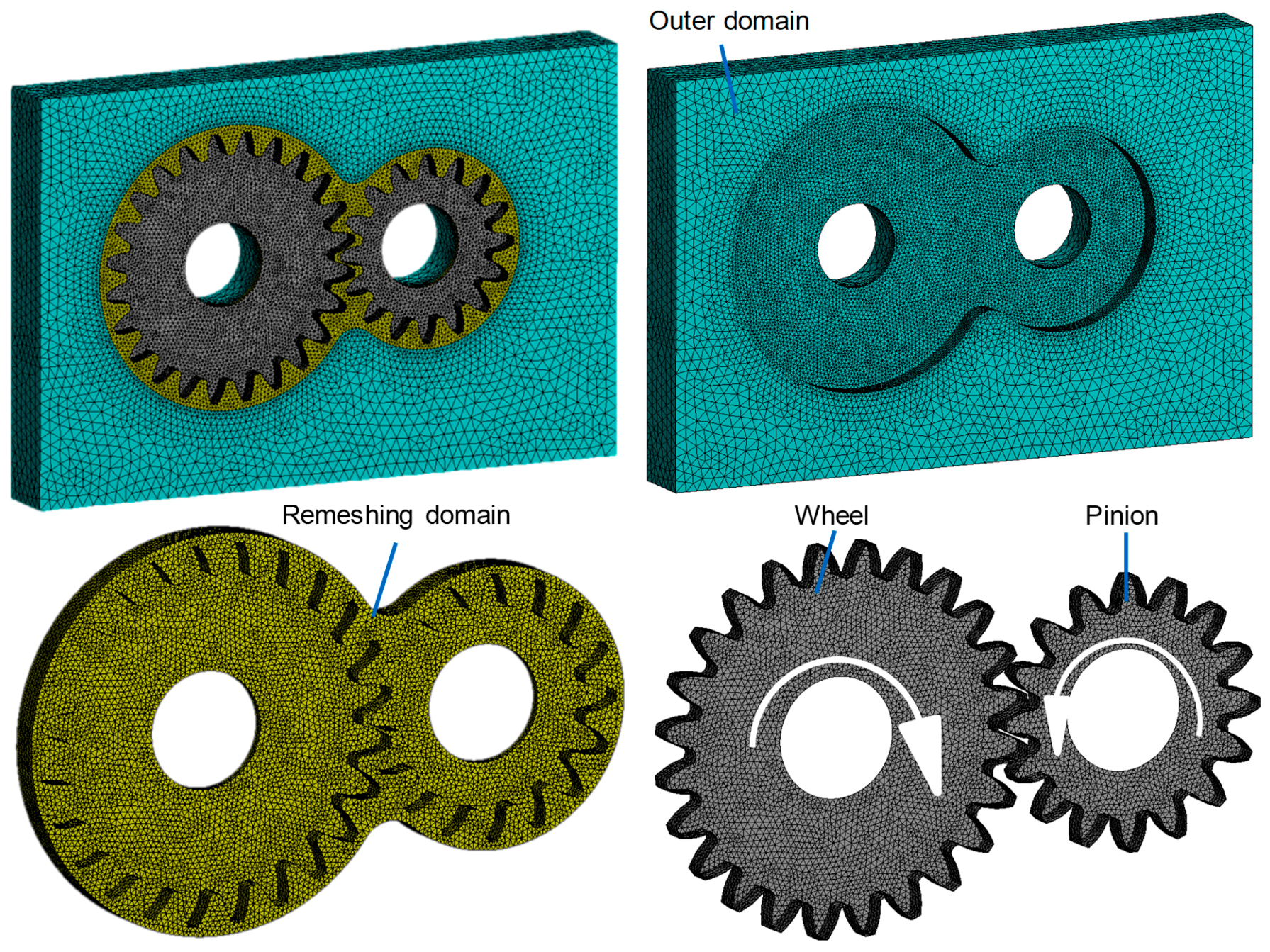

Three main concerns are in the focus of the development of geared transmissions nowadays: load carrying capacity, noise–vibration–harshness (NVH) behavior, and efficiency. Increasing the efficiency of modern gearboxes contributes significantly to the reduction of energy consumption and the saving of resources. Gearboxes are frequently designed conservatively with an oversupply of oil to guarantee operational reliability. An oversupply of oil results in an unnecessarily high amount of oil kept in motion and to high no-load losses. Detailed information on the oil distribution in the early design stages of gearboxes would help to optimize the lubrication and to increase the efficiency. Thereby, CFD (computational fluid dynamics) methods offer a very flexible way to visualize the oil flow inside gearboxes with much fewer restrictions compared to measurements with transparent gearbox designs. In this study, a verified CFD model based on the finite volume method is used to investigate the oil flow in a single-stage gearbox. Different oil viscosities and circumferential speeds are considered. The investigations focus on the oil flow. The gear churning loss, as part of the no-load loss, is additionally considered. Experimental validation is obtained by high-speed camera recordings and measurements at the FZG no-load power loss test rig. The results show very strong agreement between simulation and measurement. The results show that CFD simulations can visualize the oil flow behavior with a very high degree of detail. View Full-Text
Keywords: gear efficiency; CFD simulation; oil distribution; oil flow; churning losses gear efficiency; CFD simulation; oil distribution; oil flow; churning losses
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Liu, H.; Jurkschat, T.; Lohner, T.; Stahl, K. Detailed Investigations on the Oil Flow in Dip-Lubricated Gearboxes by the Finite Volume CFD Method. Lubricants 2018, 6, 47.
