A Critical Review of High-Temperature Tribology and Cutting Performance of Cermet and Ceramic Tool Materials
Abstract
:1. Introduction
- Higher hardness and wear resistance. Ceramic tools have a substantially higher hardness than HSS tools, and the cutting speed is approximately ten times that of HSS tools, which can effectively improve machining efficiency.
- Higher heat resistance. The hardness of ceramic tools can still be maintained at 80 HRA at 1200 °C, enabling dry cutting and meeting the requirements of green manufacturing.
- Lower coefficient of friction. Low affinity with metal and low coefficients of friction can significantly reduce cutting forces and cutting temperatures, ensuring machining accuracy.
- Higher chemical stability. It is not easy to produce adhesion with the metal, which can effectively reduce the adhesive wear of the tool and improve the tool’s lifetime.
2. Types of Ceramic Tool Materials
2.1. Aluminum Oxide-Based Ceramic Tools
2.2. Silicon Nitride-Based Ceramic Tools
2.3. SiAlON Ceramic Tools
2.4. WC-Co-Cemented Carbide and Ti(C, N)-Based Cermet Tools
3. Manufacturing of Inserts of Cutting Tool

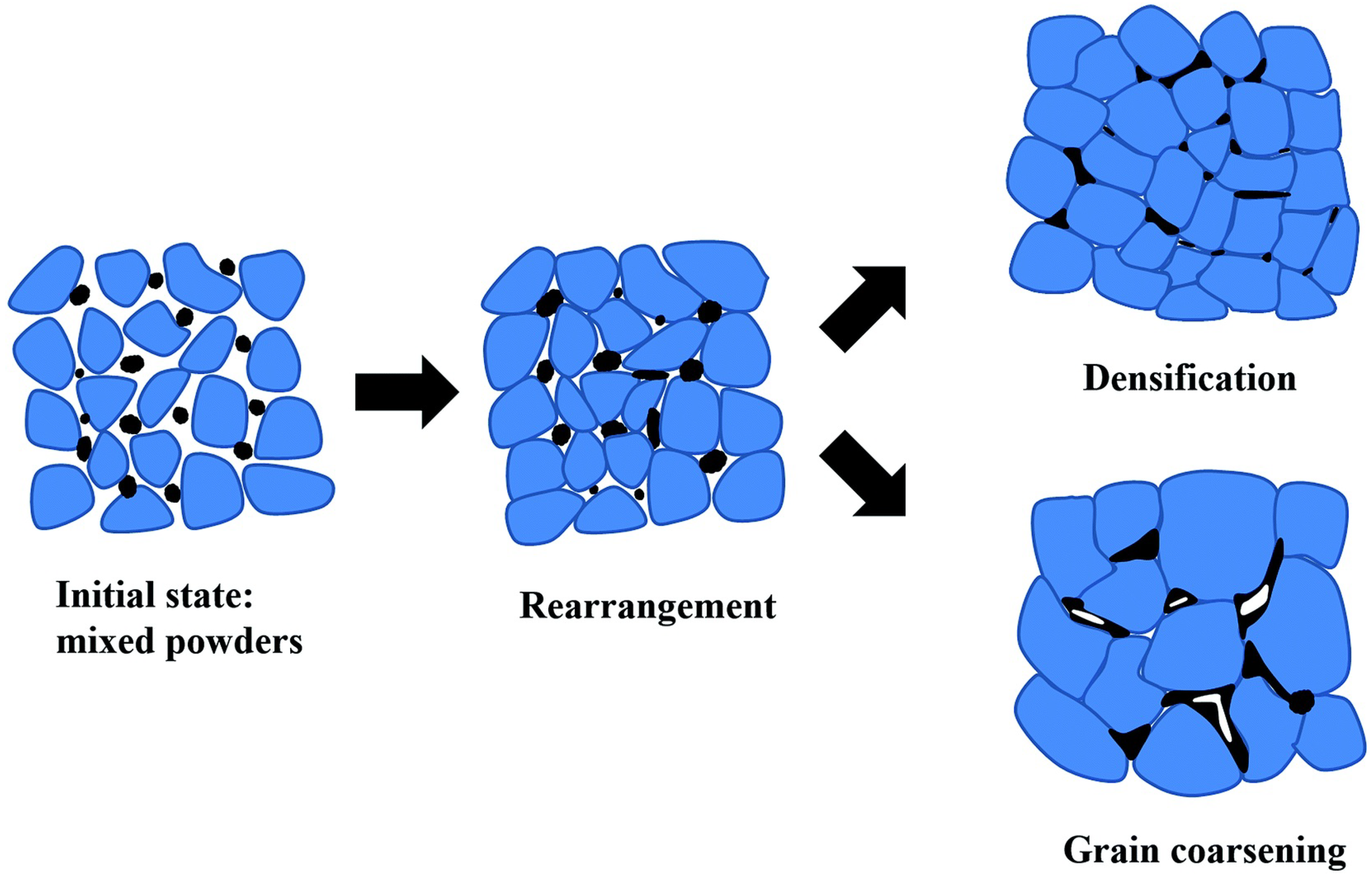

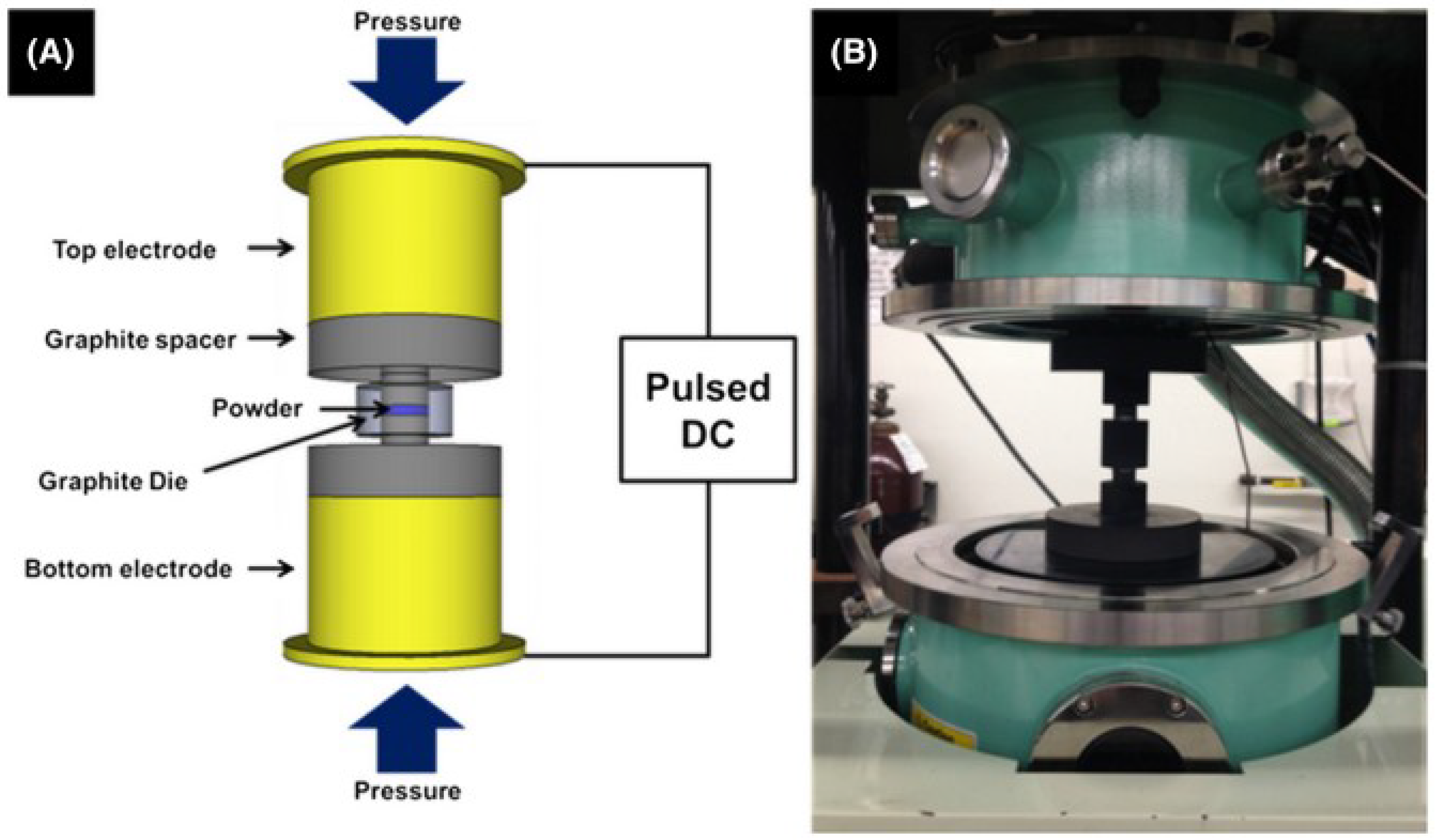

3.1. Sintering of Ceramic Tools

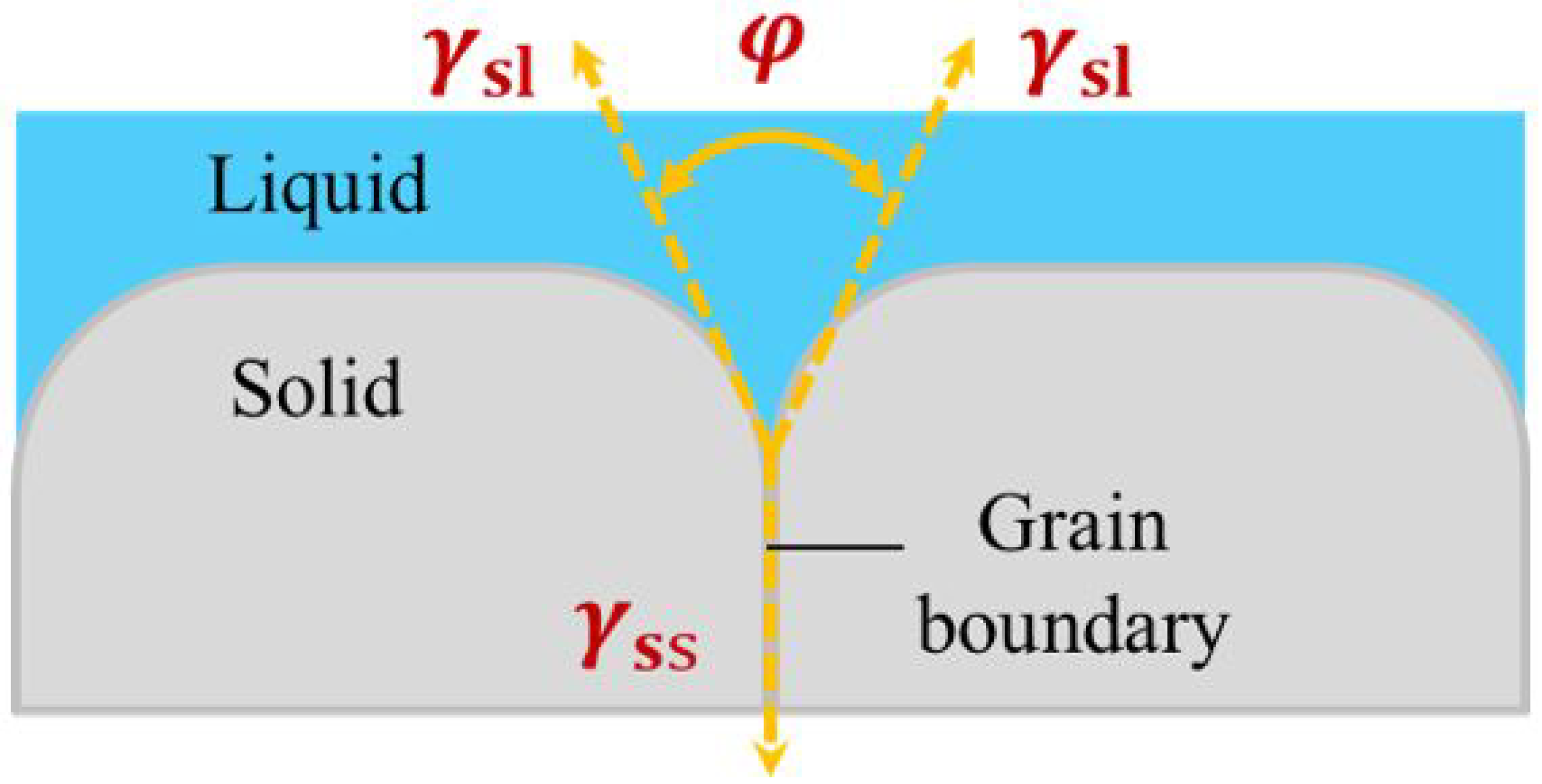

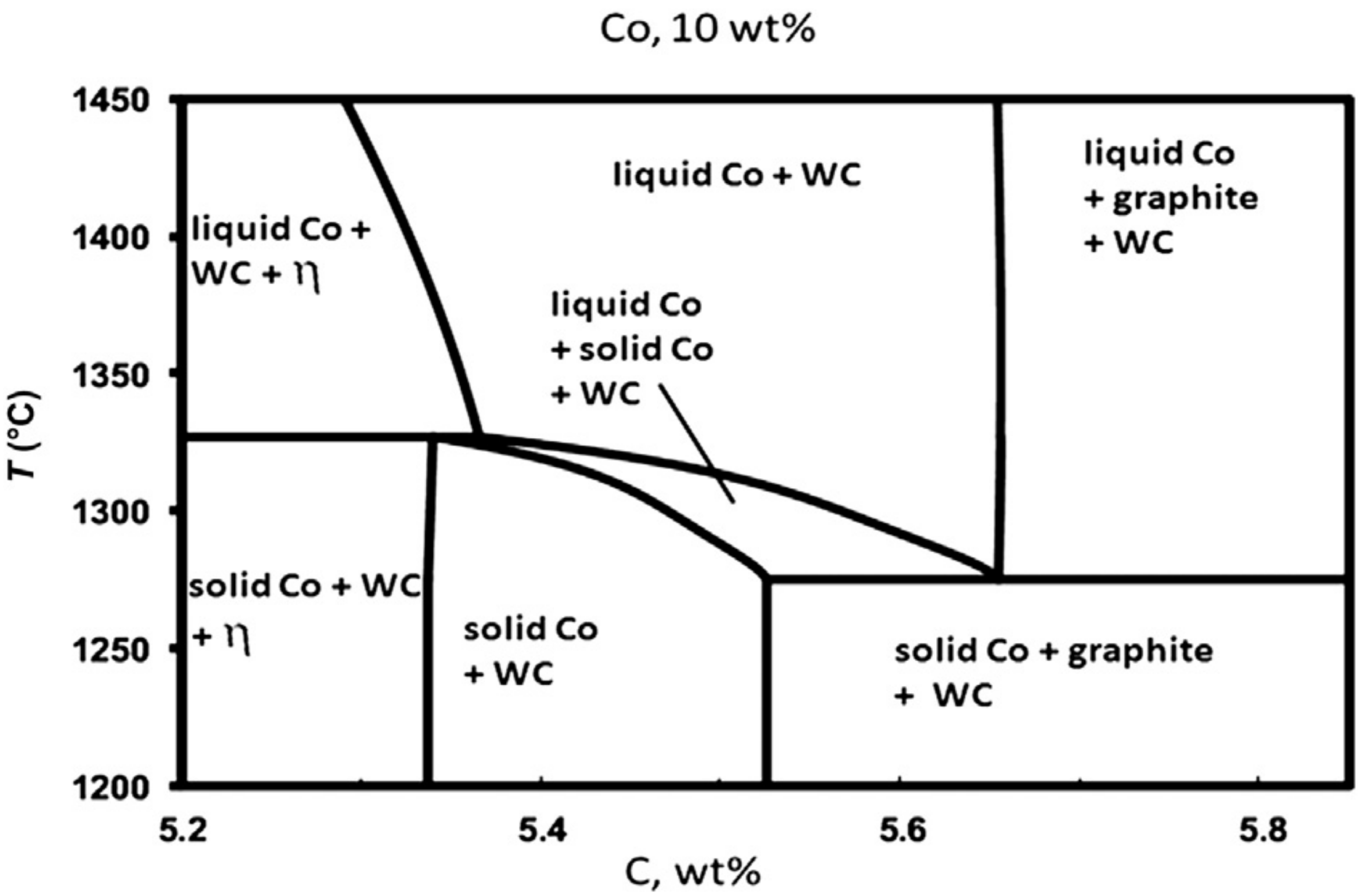

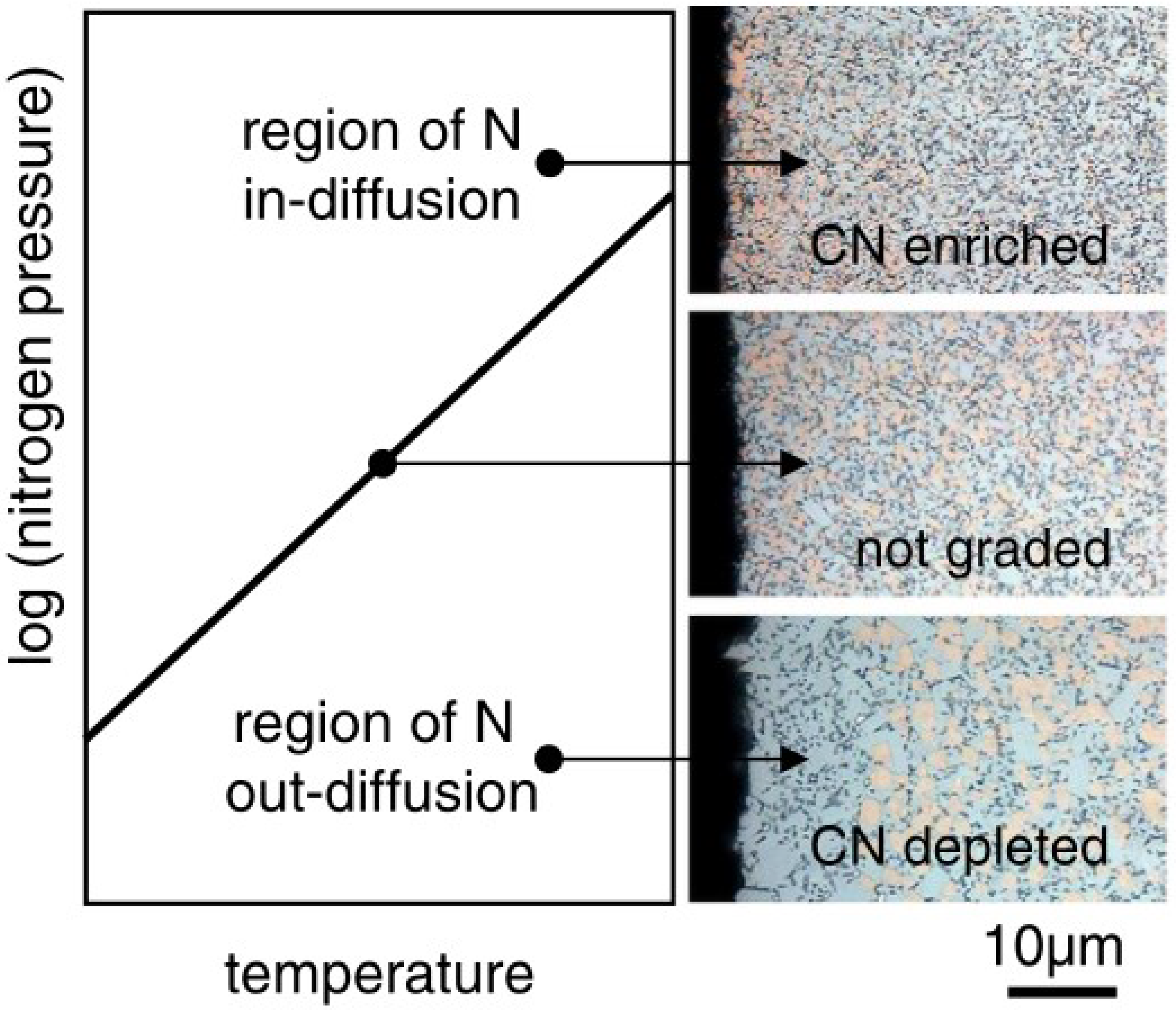

3.2. Sintering of Cermet Tools
4. Solid Lubricants for High-Temperature Metal Cutting

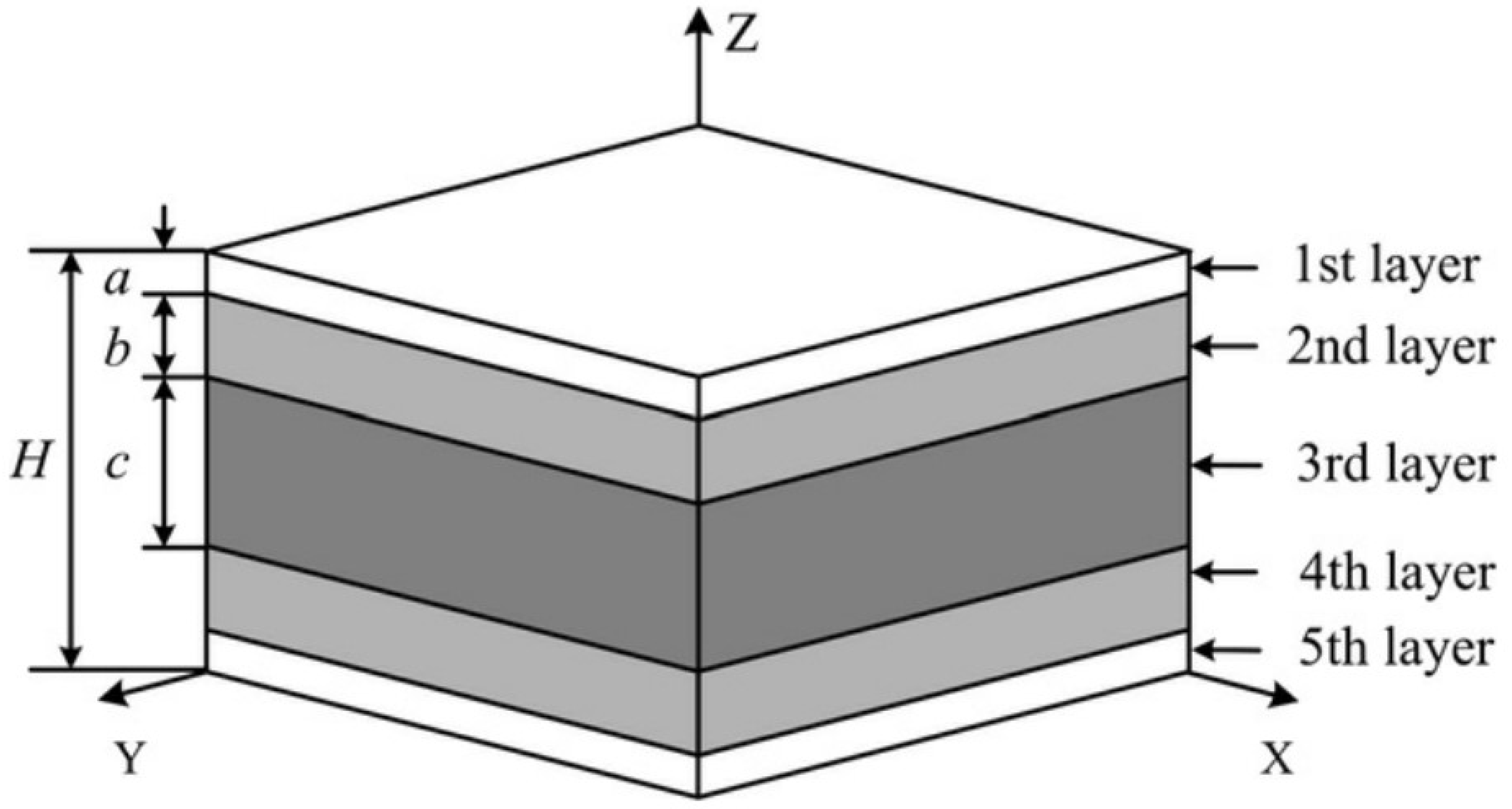

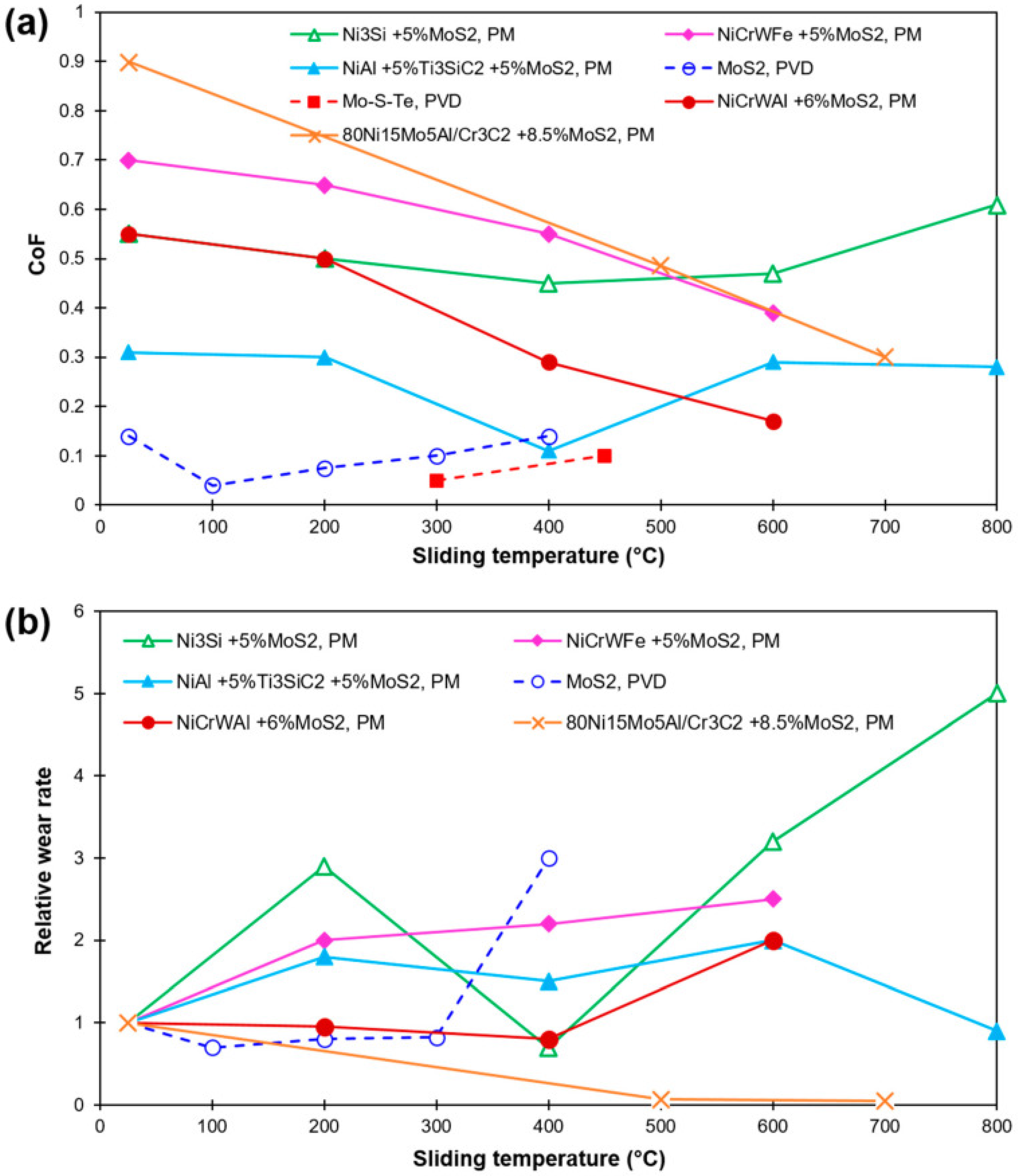

4.1. Multi-Layered Structures of Solid Lubricants and the Corresponding Benefits
References | Base Matrix | Solid Lubricants Type | Lubricating Additives | Process, Counterpart, and Parameter of Tribological Testing | Remarks |
---|---|---|---|---|---|
C. Muratore, A.A. Voevodin [111] | YSZ–20% at% Ag–10at%Mo | Layered structure | 8 at %MoS coating | Ball-on-disc; SiN; applied force: 1 N; sliding time: 20–25 min; speed of sliding: 0.2 m/s; condition: RT to 700 °C | Low COF 0.1 at 300 °C |
Hector Torres, et al. [127] | NiCrSiB matrix | Soft metals | Coating of 5 wt% Ag and 10 wt% MoS | flat pins on-disc; AISI 52, 100; load: 225 N; test duration: 900 s; rotational speed: 28 rpm; condition: RT to 600 °C | MoS added to Ag in nickel-based cladding slowed Ag depletion at high temperatures. |
Xu, Zengshi, et al. [119] | TiAl-based | Layered structure | 3.5 wt% graphene | Ball-on-disc;SiN load: 10 N; sliding time: 80 min; speed of sliding: 0.2 m/s; condition: 100 °C to 700 °C | Generating a lubricious film within 100 and 550 °C. Nearly 580 °C Because of oxidation, graphene lost its lubricating property. |
Kong, Lingqian, et al. [128] | ZrO(YO)-Mo | Oxides | 5 wt% CuO | Ball-on-disc; alumina; load: 10 N; test time: 30 min; speed of sliding: 0.2 m/s; condition: 700 °C to 1000 °C | From 700 °C to 800 °C, 5 wt% CuO showed outstanding wear resistance properties. The creation of CuO and MoO can improve the tribological properties with lower friction coefficients 0.18–0.3 from 700 °C to 1000 °C. |
Liu, Eryong, et al. [129] | Ni-based composites | Oxides | AgMoO | Pin-on-disc; Inconel 718 alloy; load: 2 N; sliding distance: approx. 1000 m; speed of sliding: 0.287 m/s; condition: 20 °C to 700 °C | AgMoO is a compound of MoO and AgO that created silver ions through dry sliding. At 700 °C, the lowest COF was 0.25 and the specific wear rate was 9.37 × . |
Zhen, Jinming, et al. [130] | Ni matrix | Fluorides | 12.5 wt% Ag -5 wt% BaF-CaF | Ball-on-disc; SiN; speed of sliding 0.8 m/s; load: 5 N; condition: RT to 800 °C in vacuum. | At 600 °C in a vacuum condition, the least COF is 0.18 and the specific wear rate is . |
Zhang, Chao, et al. [131] | Ti-MoS | Fluorides | 0.8 at% LaF coating | Ball–on-disc; SS; rotational speed: 1000 rpm; load: 5 N; condition: RT | With 0.8 at.% LaF, the smallest COF is about 0.05. |
Ouyang, J.H., et al. [132] | ZrO(YO)+20 wt% AlO | Oxides | BaSO | Ball-on-disc; alumina; load: 2–20 N; sliding time: 20 min; 0.5–4 Hz frequency; condition: RT to 800 °C | Moreover, BaCrO was added to the ZrO(YO) matrix, which lessened the friction coefficient by up to 400 °C owing to BaCrO’s small shear strength. |
A.A. Voevodin et al. [133] | 440C steel | Soft metals | MoN/Cu | Ball-on-disc; alumina; load: 1 N; sliding time: 90 min; speed of sliding: 50 mm/s; condition: RT and 400 °C | Cu, such as Ag, has a superior thermal conductivity. It may also accelerate dissipation of the heat through elevated temperature conditions, enhancing the specific wear rate property. |
4.2. Solid Lubricants of Soft Metals
4.3. Single and Mixed Oxides Lubricants
4.4. Alkaline-Earth Fluoride Solid Lubricants

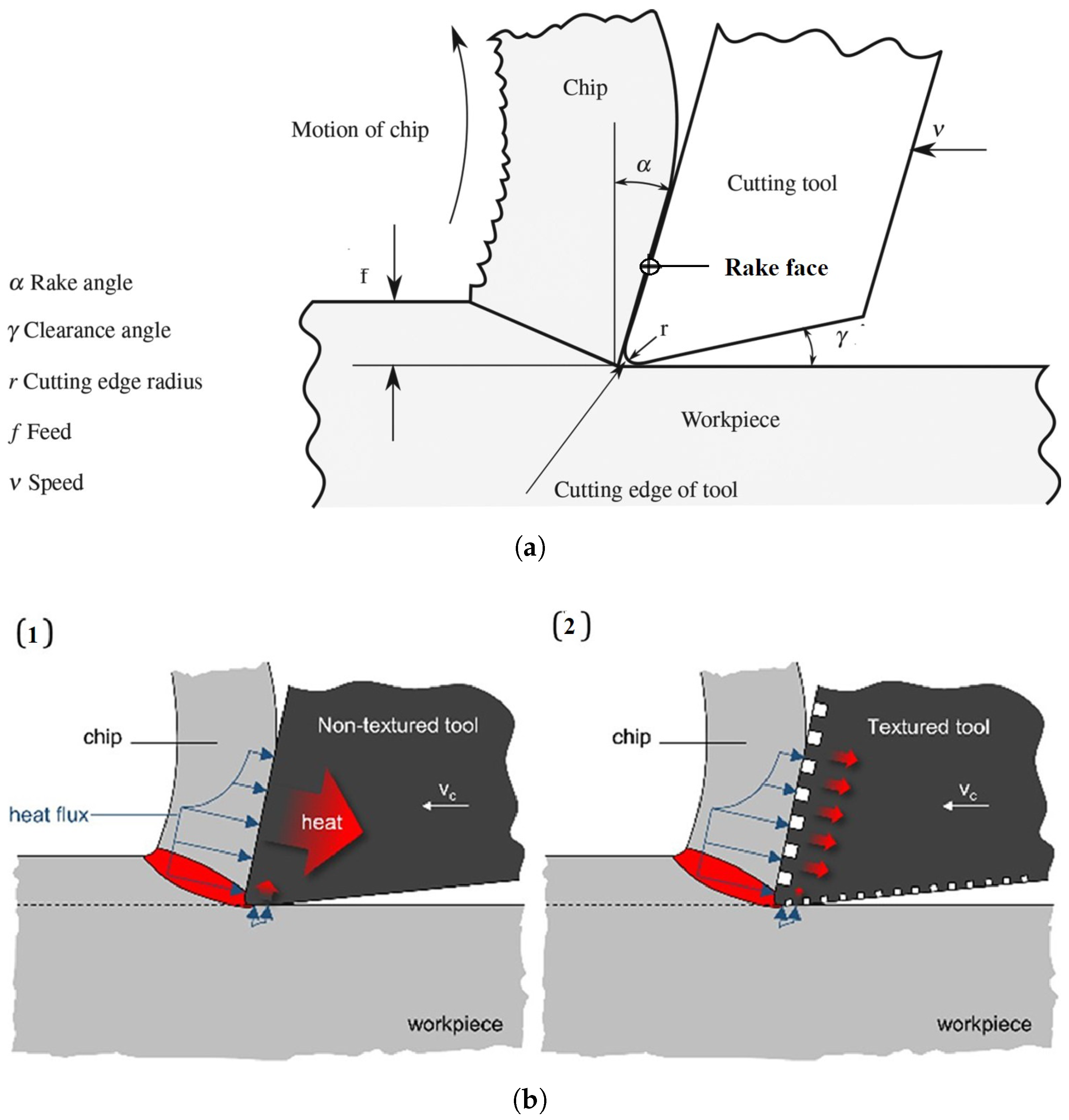

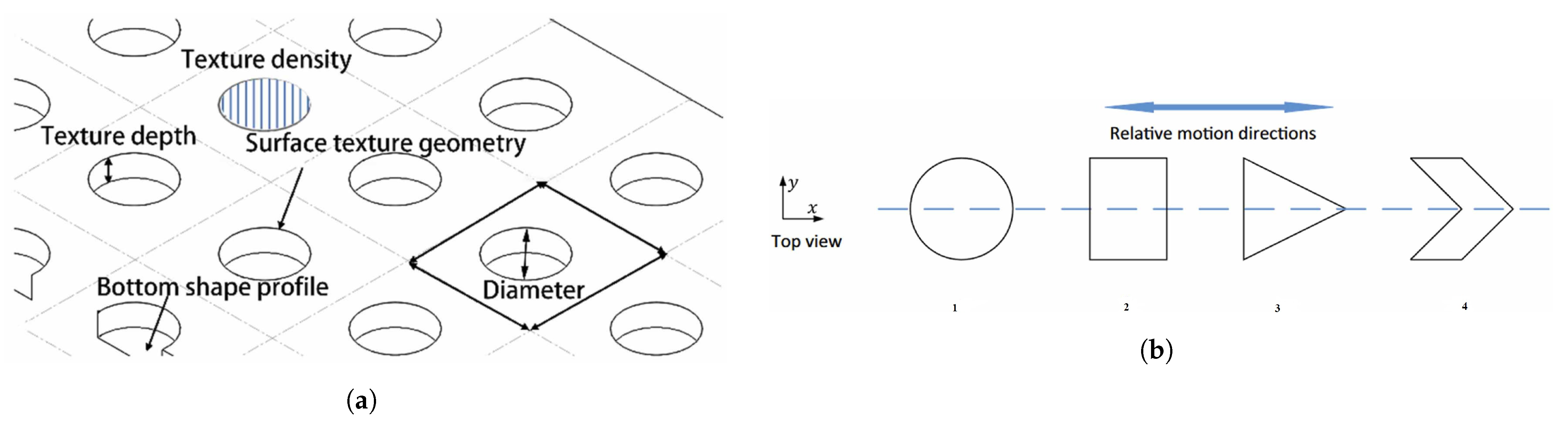

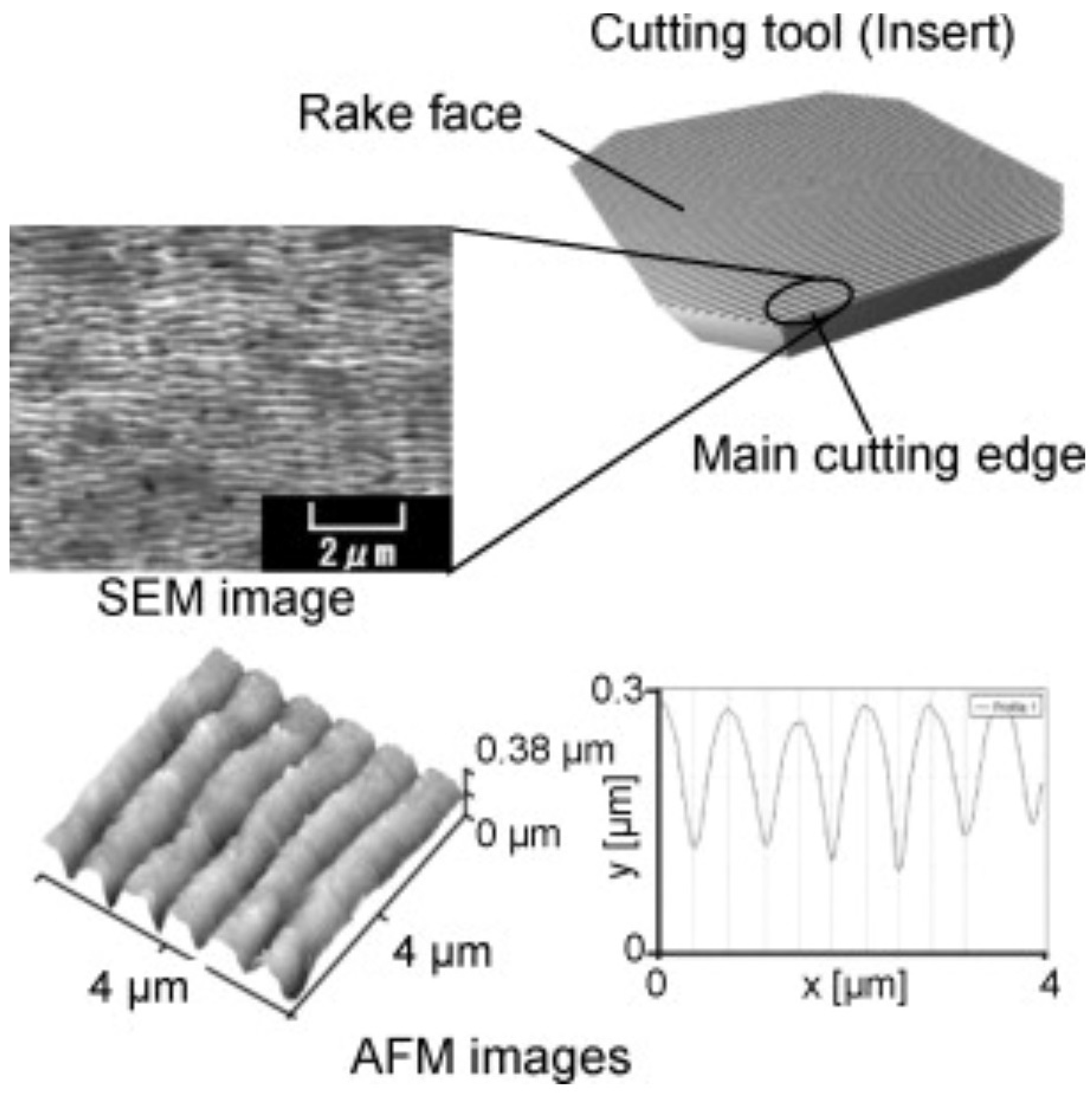

5. Influence of Surface Texturing on the Tribological Behavior and Efficiency of the Cutting Tool
5.1. The Influences of Surface Textures and Lubricants on Tribological Properties

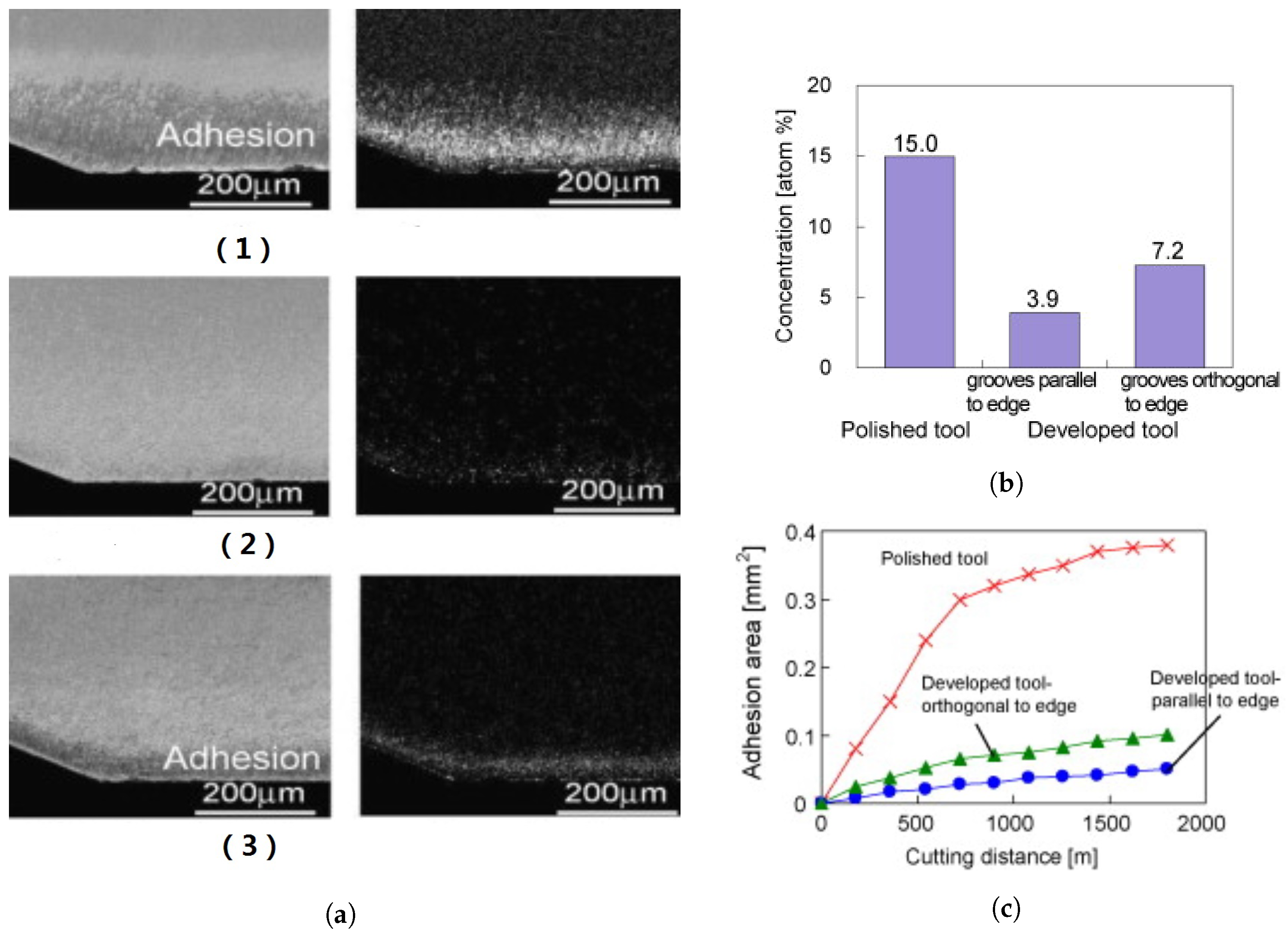

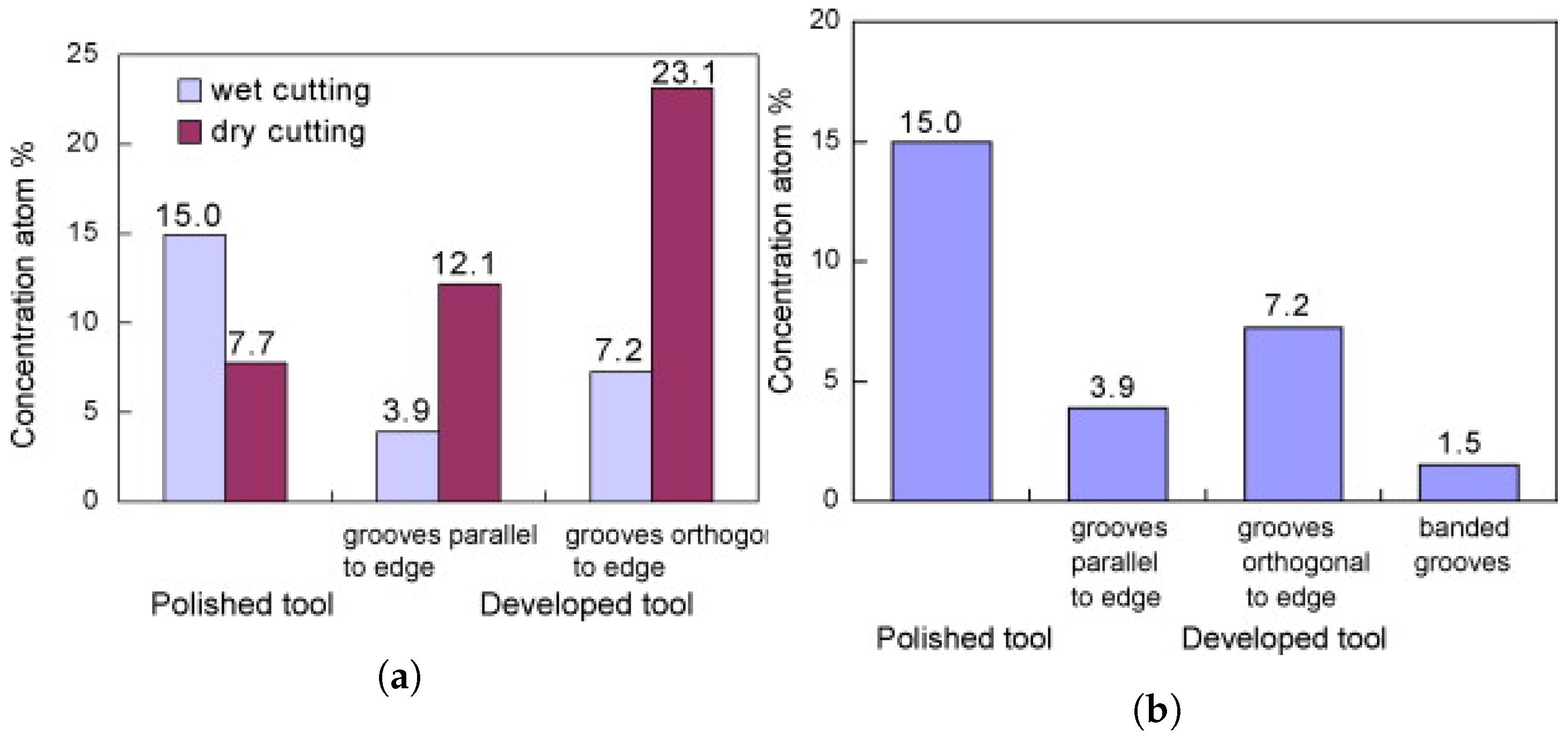

5.1.1. Dry and Wet Machining Using Textured Tools

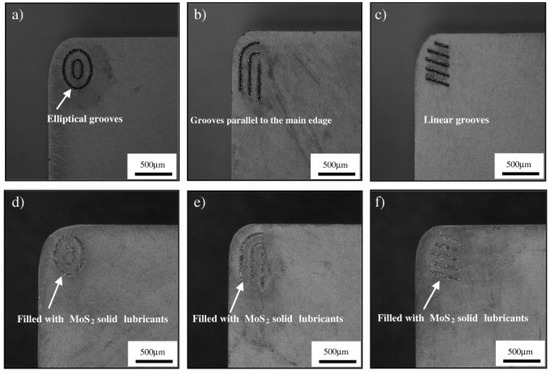

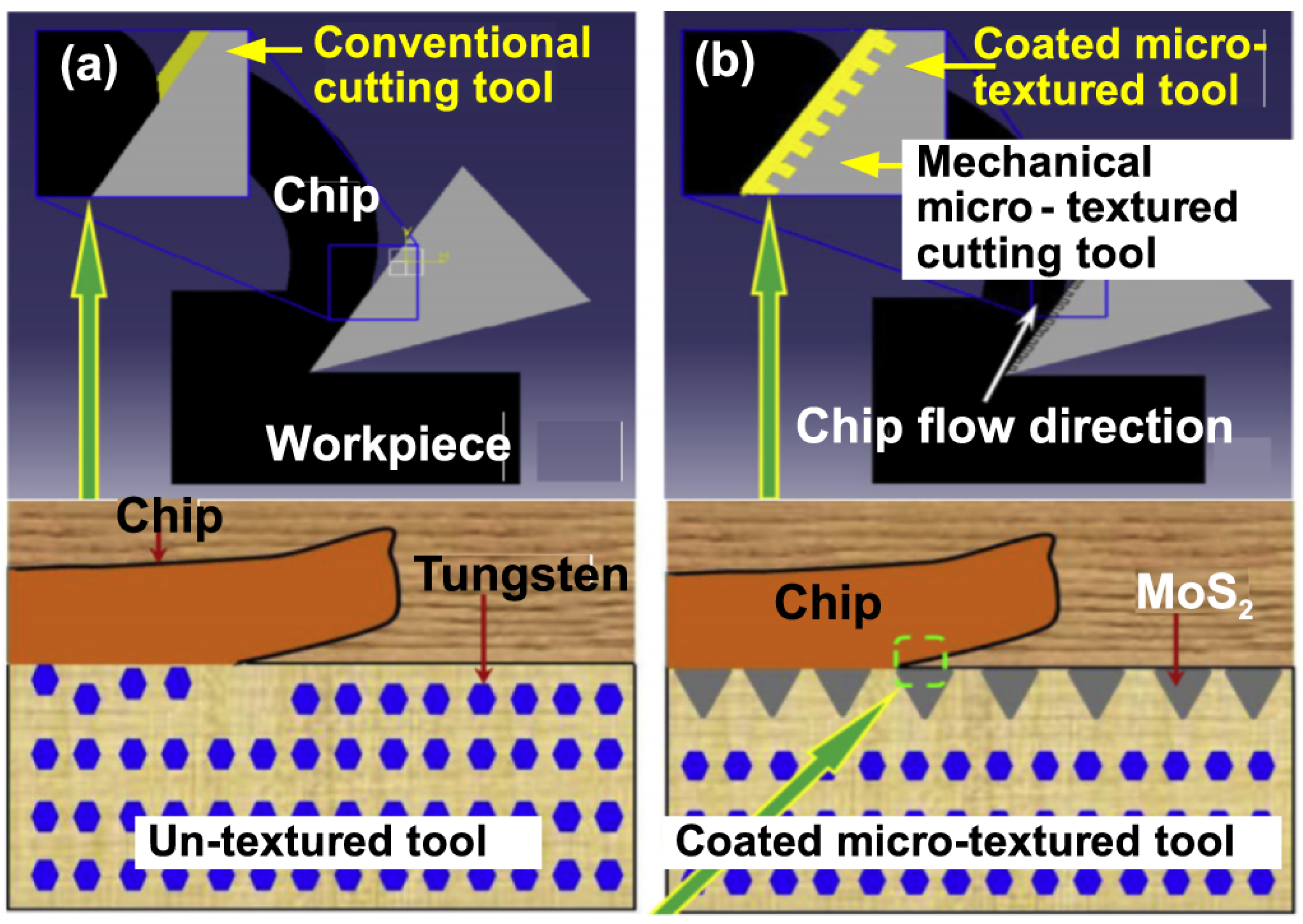

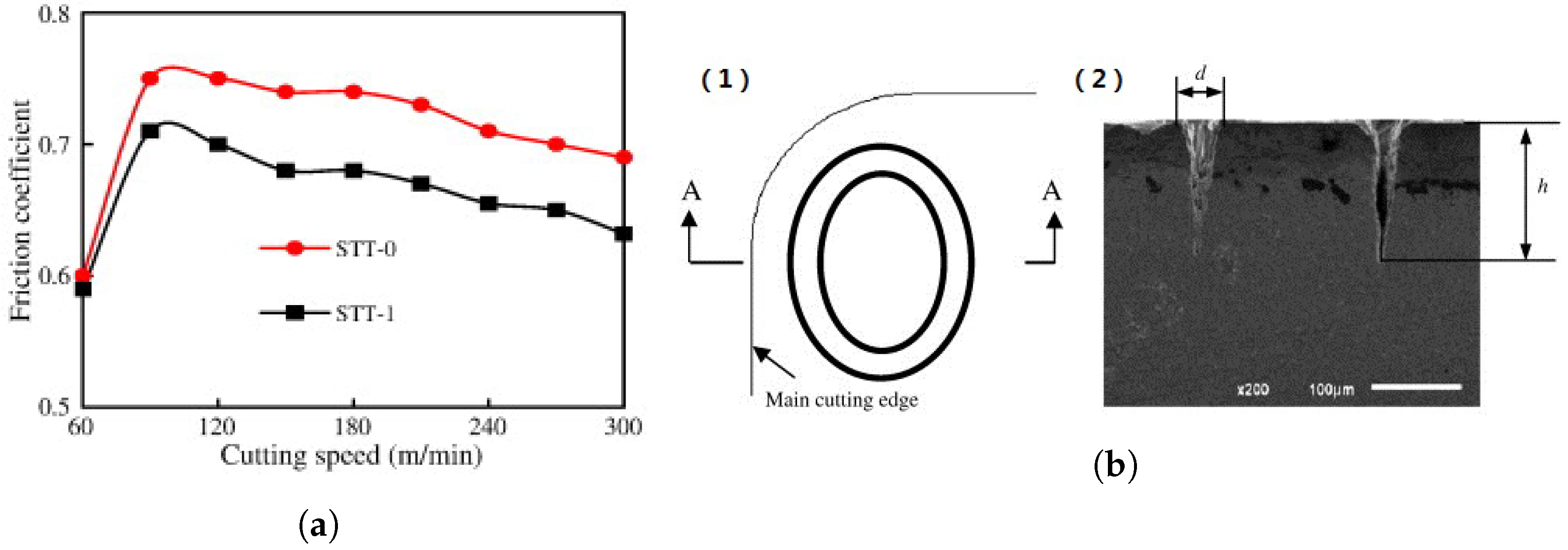

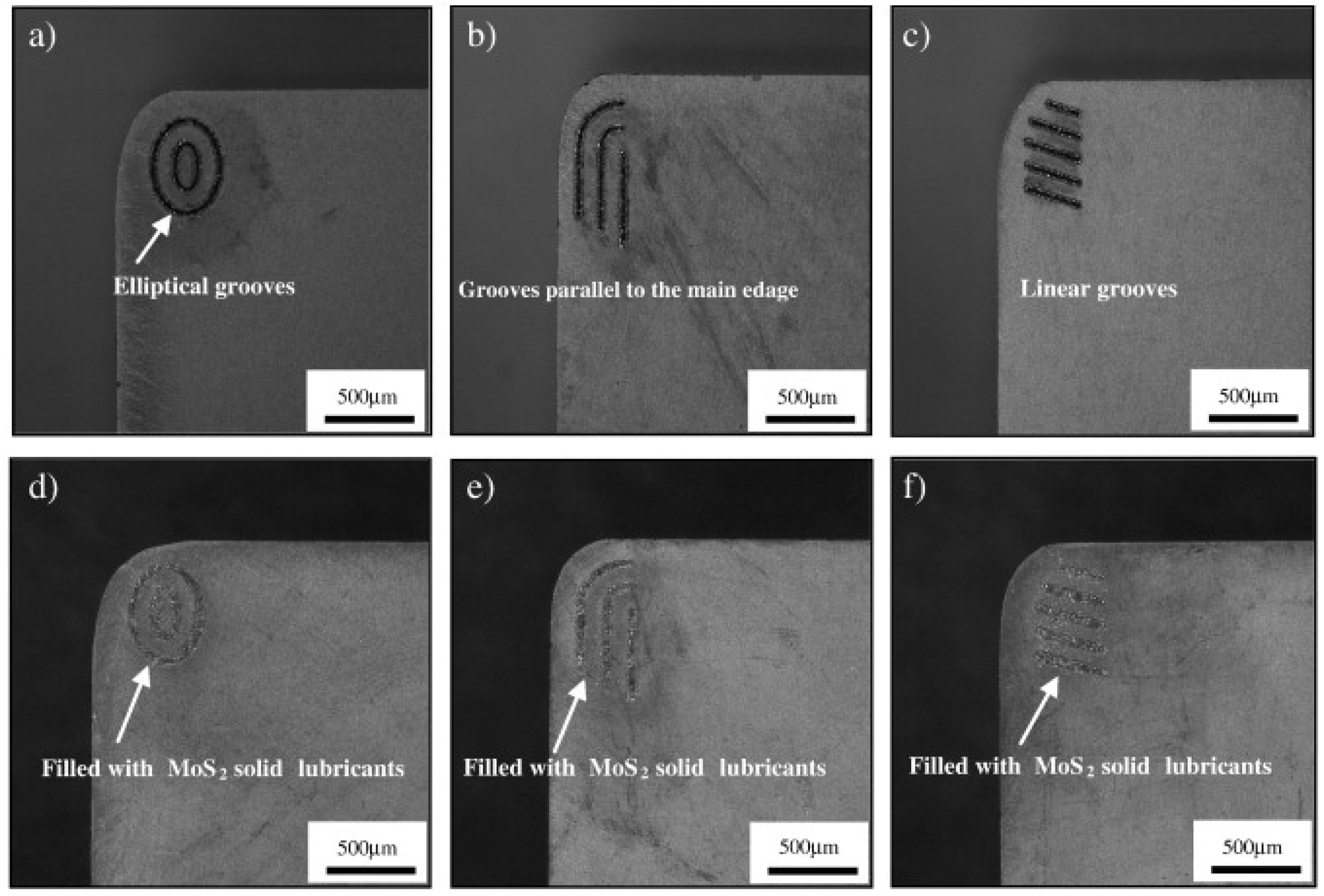

5.1.2. Solid Lubricant-Filled Textured Tools
6. Effects of Lubricants on the Machining Process
6.1. The Influence of Lubricants on the Surface Properties of Cutting Materials and Tools

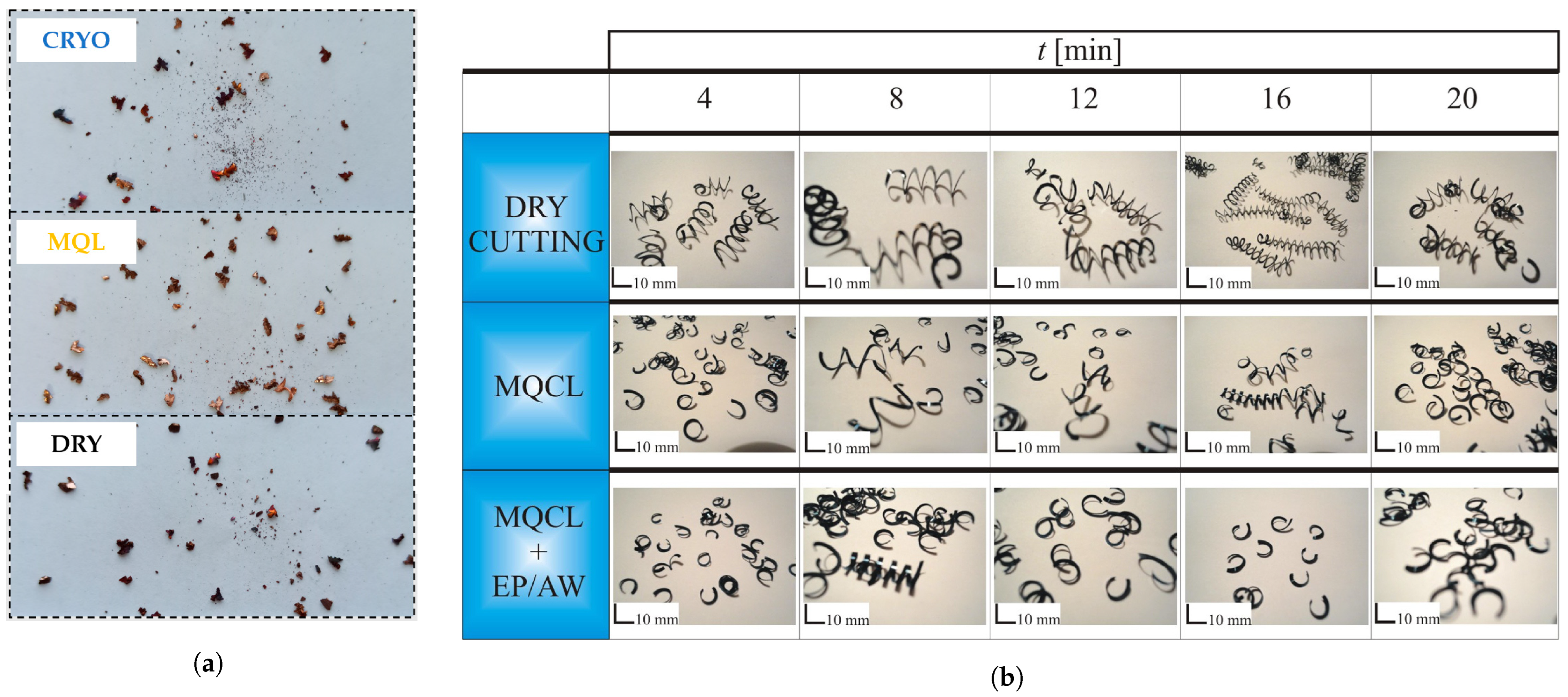

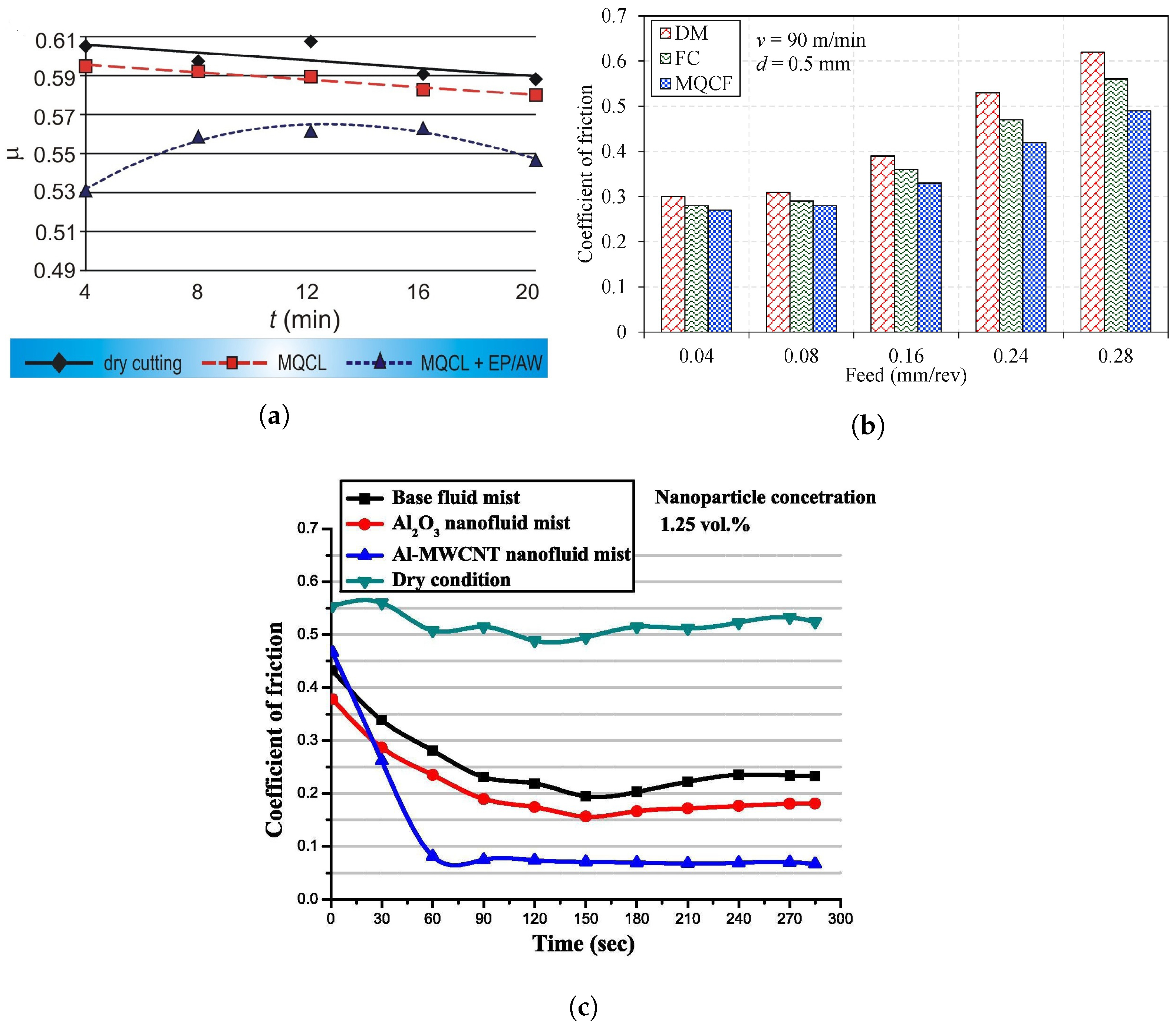

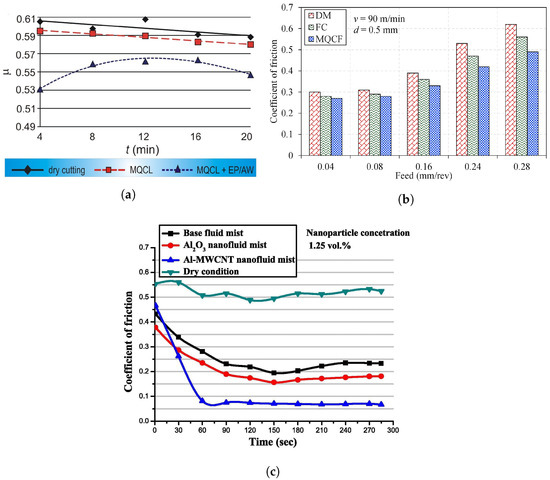

6.2. The Effect of Cooling/Lubrication on Friction Behavior

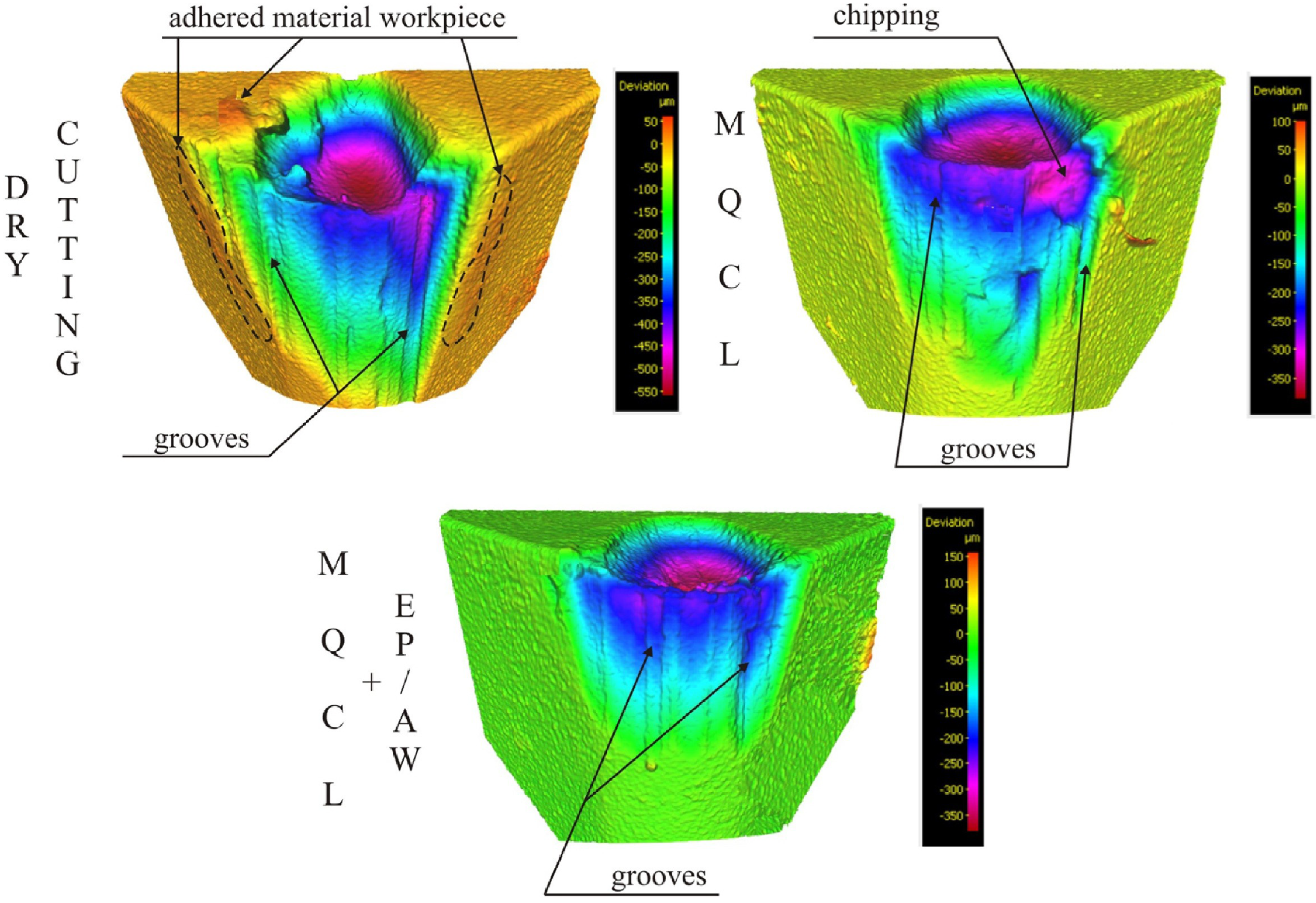

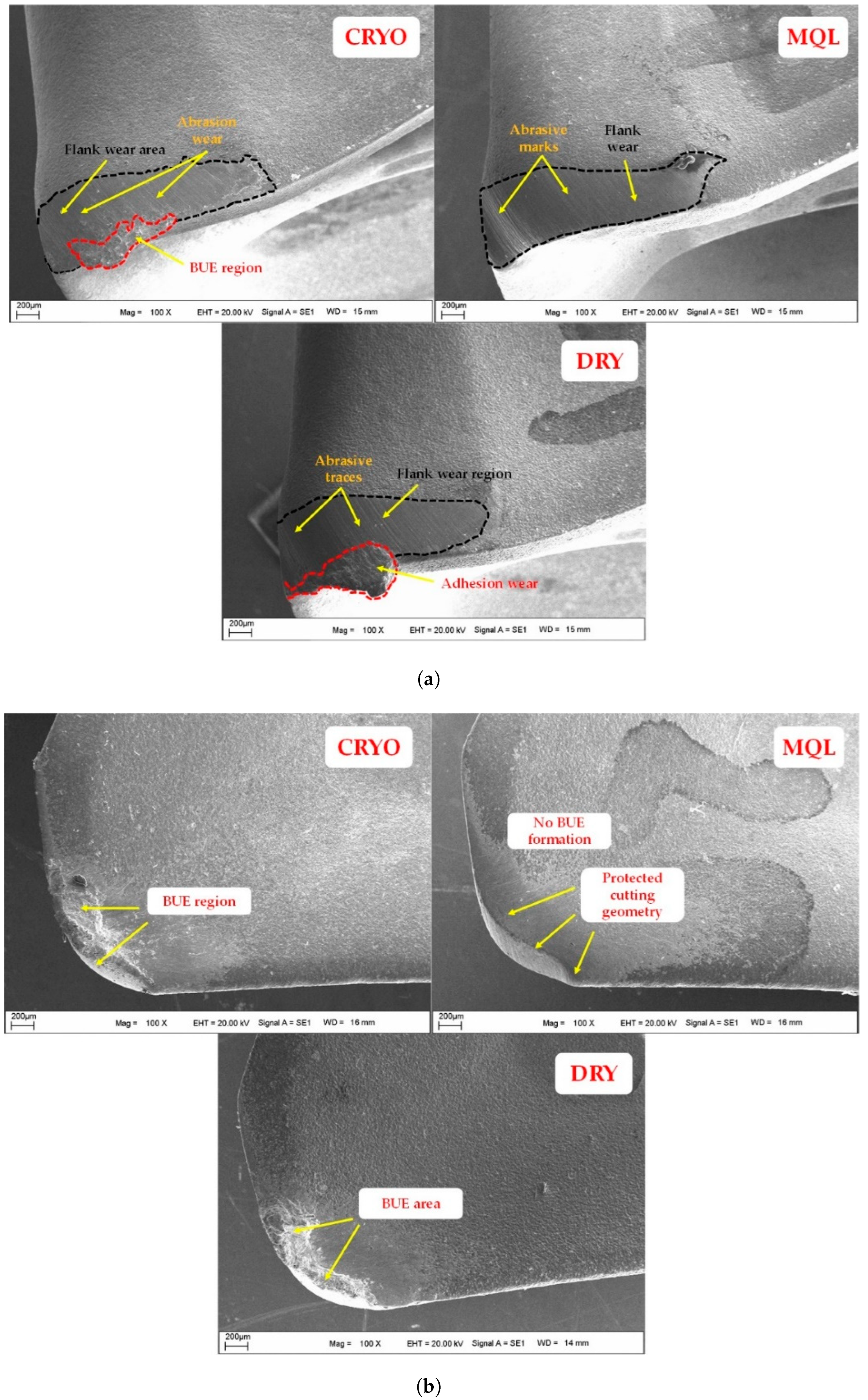

6.3. The Relative Influence of Lubricants on the Wear Property

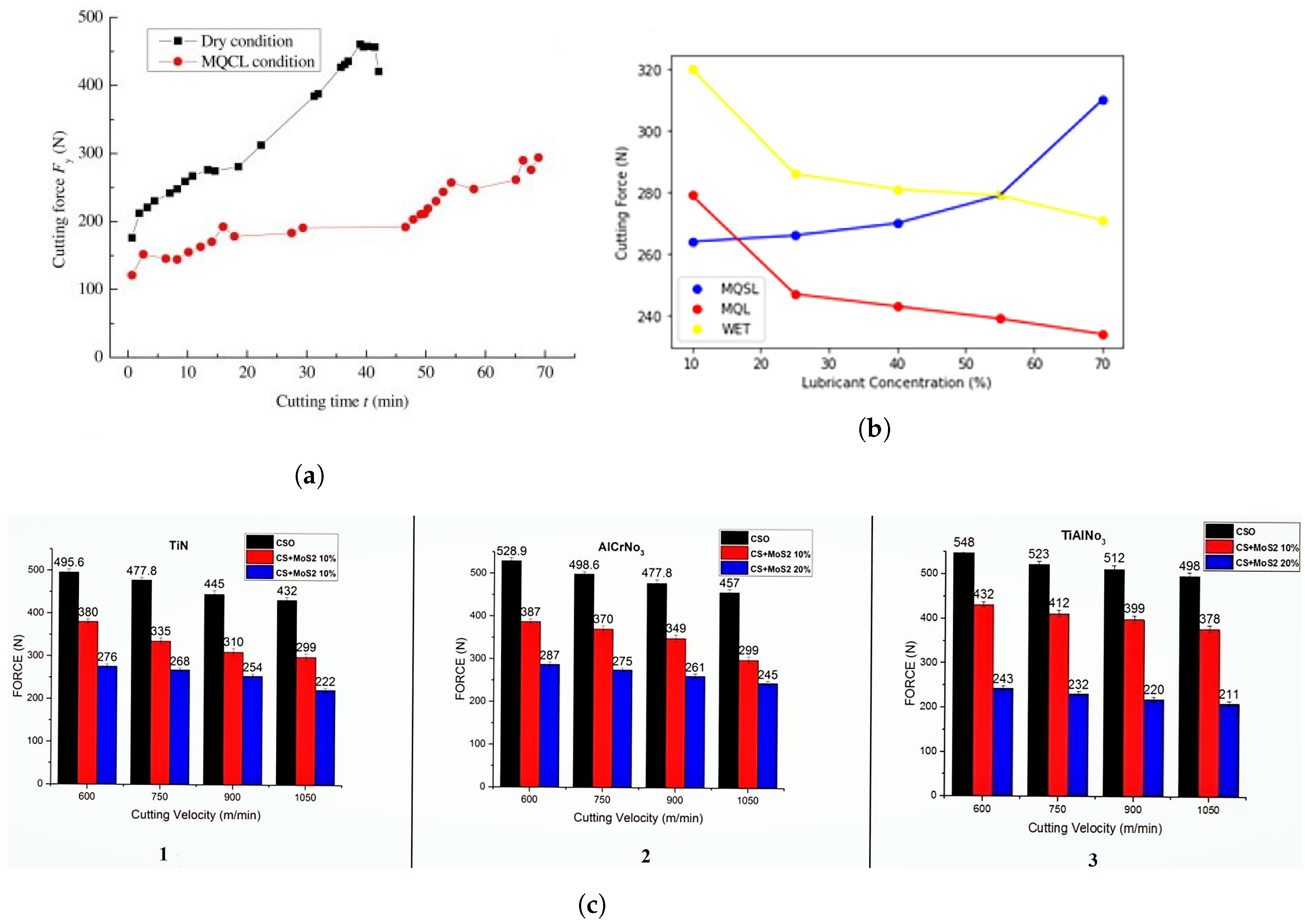

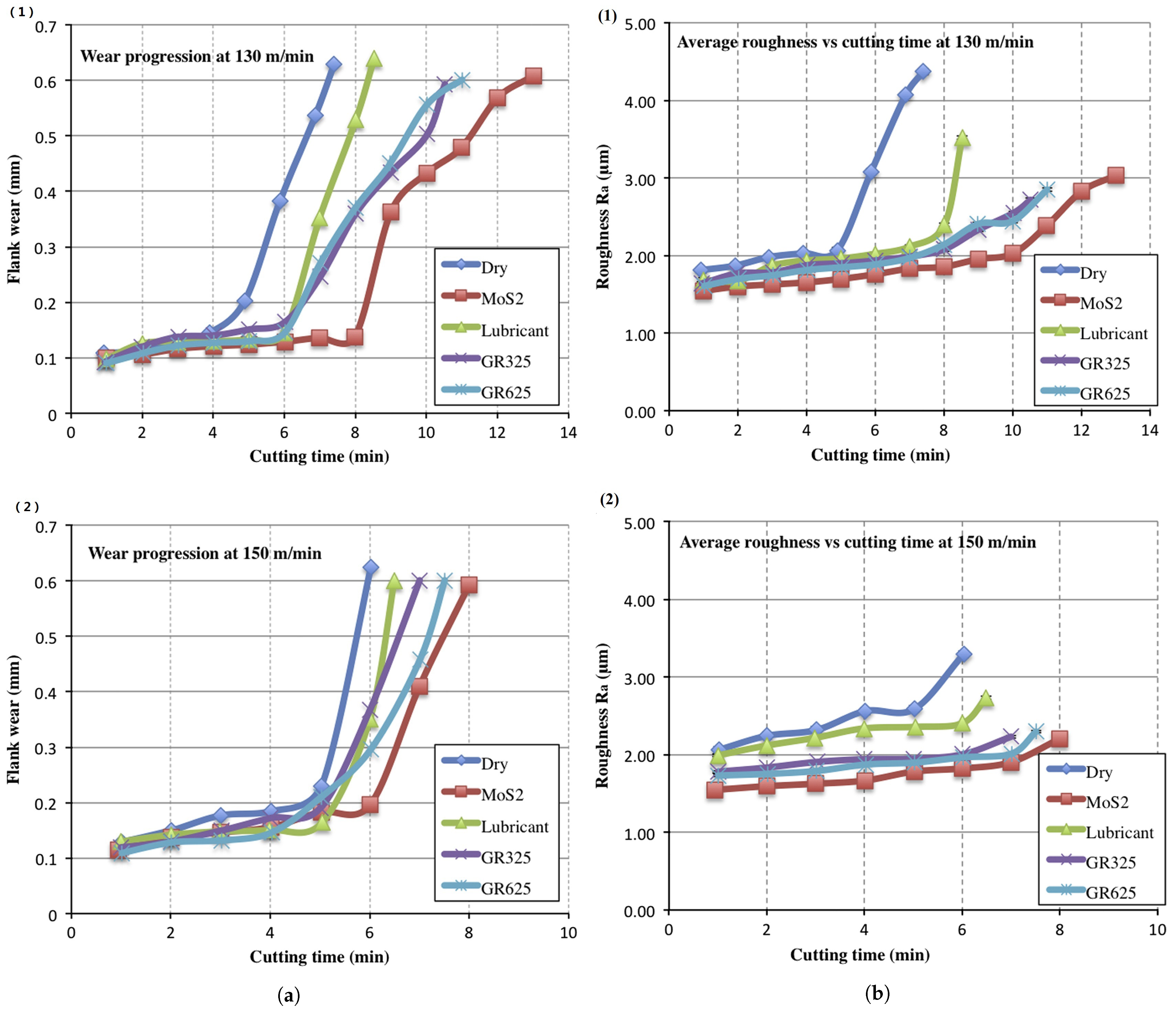

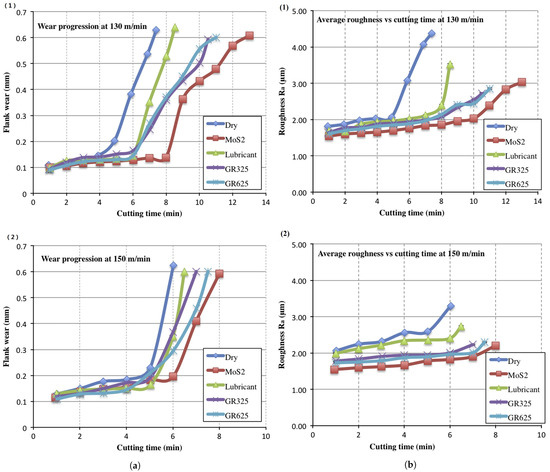

6.4. The Effects of Cooling and Lubrication on the Cutting Forces and Chip Formation
7. Finite Element Analysis of the Machining Process of the Cutting Tool
7.1. Finite Element Formulations
7.1.1. Lagrangian Approach
7.1.2. Eulerian Formulation
7.1.3. Arbitrary Lagrangian–Eulerian Formulation

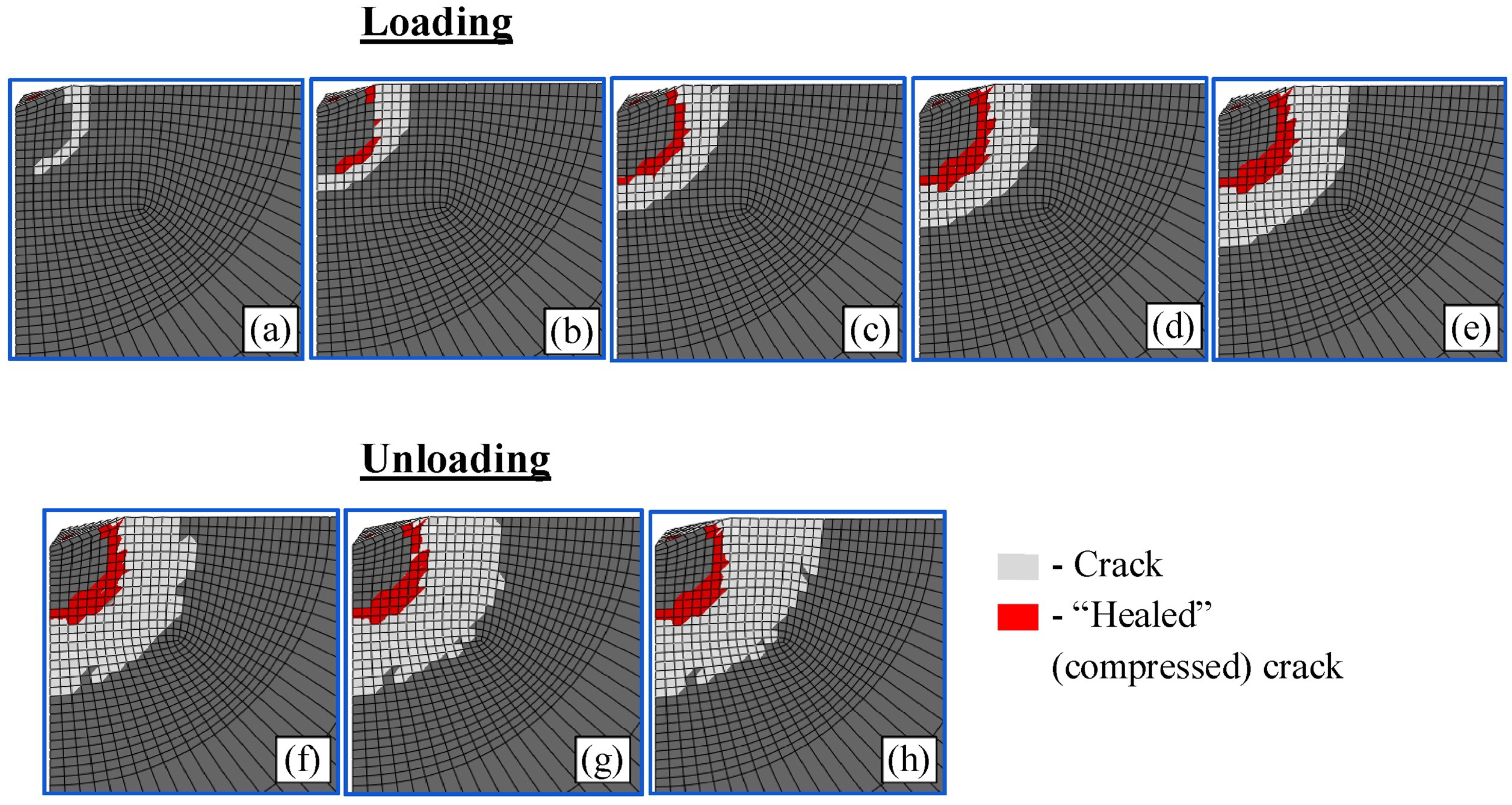

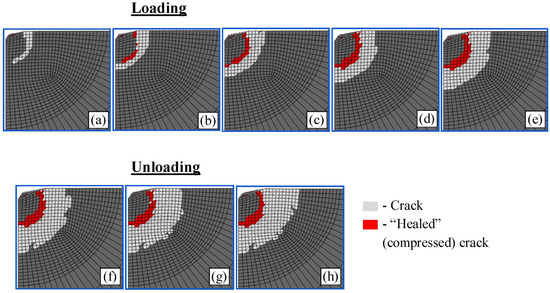

7.2. Finite Element Indentation of Cutting Tool

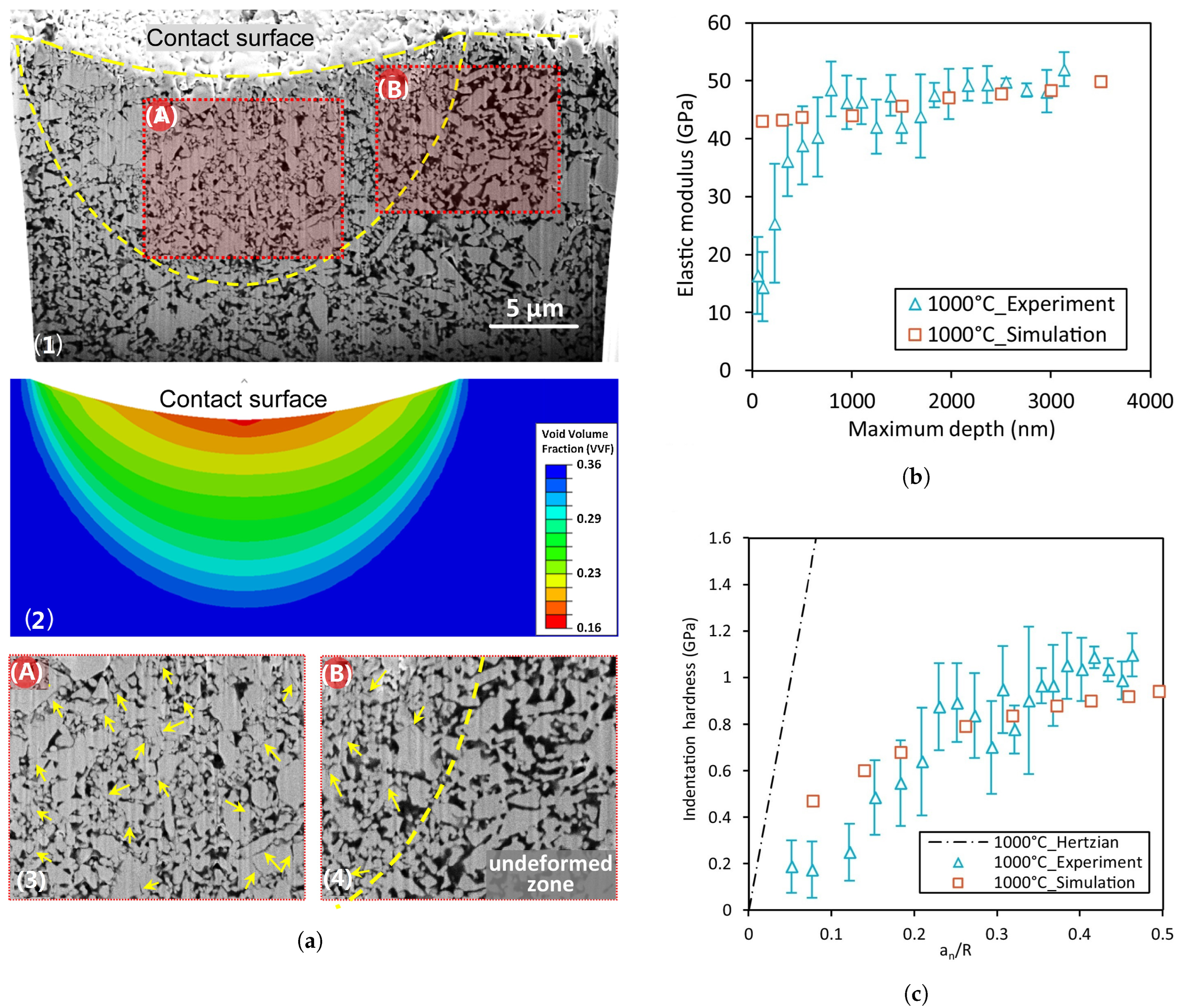

7.2.1. Spherical Indentation
7.2.2. Vickers Indentation
8. Conclusions
- One of the most common cutting tool failures occurs when there is a rapid temperature rise in the contact zone between the cutting tool and workpiece throughout higher cutting speed operations (from 50 up to 300 m/min), where liquid lubrication is incapable of sustaining excessive deformation in the machining zone, resulting in tool failure. By using a solid lubricant, recent technologies have attempted to reduce the frictional heating region and energy consumption during high-speed marching.
- Both pressureless sintering (vacuum or nitrogen atmosphere) and hot-pressing are the preferred methods of producing cutting tools. Contactless techniques, such as microwaves as well as certain SPS sintering, are, nevertheless, being aggressively pursued.
- Under dry cutting conditions, solid lubricants and surface texturing have been observed to significantly reduce friction and wear. These two methods have been merged in recent decades to maximize the benefits of each for higher tribological performance.
- For surface-textured cutting tools, the majority of research studies have employed a form of a joint structure named a “groove”. However, the best orientation for a grove is still being researched. These textures may be helpful for dry and wet-cutting machining, whereas the application of discontinuous textures on cutting tools requires more exploration. Pattern- and groove- optimizations are dependent on cutting parameters and workpiece or tool materials. Finally, surface texturing can be utilized effectively in combination with solid lubricants and coatings.
- Overall, the finite element analysis matches the experimental approach very well.
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
COF | coefficient of friction |
DLC | diamond-like carbon |
FEA | finite element analysis |
ALE | arbitrary Lagrangian–Eulerian |
FIB | focused ion beam |
YSZ | yttria-stabilized zirconia |
Dp | deformation plasticity |
DLC | diamond-like carbon |
SEM | scanning electron microscope |
EDX | energy-dispersive X-ray |
HSS | high-speed steel |
HRA | Rockwell hardness A-class |
HP | hot pressing |
SPS | spark plasma sintering |
HIP | hot isostatic pressing |
MS | microwave sintering |
PTFE | polytetrafluoroethylene |
PEEK | polyether ether ketone |
hBN | hexagonal boron nitride |
MQL | minimum quantity lubrication |
MQCL | minimum quantity cooling lubrication |
MWCNT | multi-walled carbon nanotubes |
HSS | high-speed steel |
EP/AW | extreme pressure and anti-wear additives |
