# Identification and Validation of Linear Friction Models Using ANOVA and Stepwise Regression

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Experimental Setup and Data Collection

_{1}, J

_{2}). Friction work of the clutch can be adjusted through variable configurations of the fly wheels J

_{1}and by engaging inertia J

_{2}.

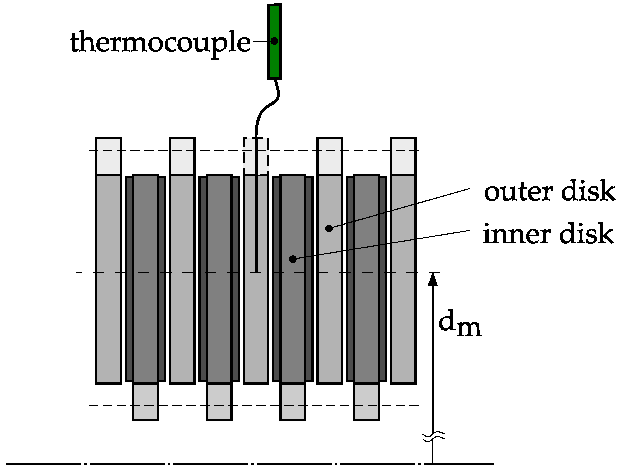

_{m}) positioned in the midplane of the respective steel plate. To determine the mass temperature of the steel plate, the signals of the thermocouples distributed around the circumference are averaged.

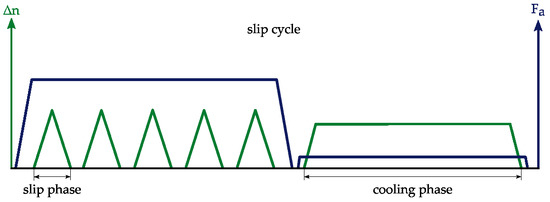

_{a}) and differential speed (Δn) during non-steady slip. The clutch is closed by applying the axial force. The following multiple slip phases are characterized by acceleration of the clutch to a maximum differential speed Δn and immediately after reaching this differential speed, it is decelerated again with the same gradient to the initial speed of zero. The slip phases are repeated for a defined number of times (in this study 5). After the last slip phase, the clutch is briefly released. A cooling phase follows to allow the clutch components to cool down. This is defined by a fixed differential speed of Δn = 20 rpm and an axial force of F

_{a}= 100 N, which is maintained until the middle steel plate reaches a steady temperature. The low axial force ensures distribution of the cooling oil in the grooves around the circumference of the clutch.

_{top}which represents the value of the CoF at maximum differential speed. Figure 5 shows an explanation for the measured value for two types of friction characteristics (course of CoF over sliding velocity) leading to equivalent values of µ

_{top}. We evaluate µ

_{top}of the last slip phase of each slip cycle. We use the mean average of µ

_{top}from the last five slip cycles of each load stage as an input parameter for our linear friction models. The values µ

_{top}are used as output values for the model.

_{top}) of each slip cycle of system D117/MP-C during the first run of the full-factorial test. Each block consists of 160 data samples, respectively slip cycles.

## 3. Methods

_{f}main effects and all their two-fold interactions according to [27] can be described as

^{2}describes the model quality and continuously decreases with the removal of factors. It can be interpreted as the percentage of variability that can be described by the model and is defined as

_{r}and the number of factors included in the model n

_{m}into account:

## 4. Results

#### 4.1. Application of ANOVA with Cross Validation for Model Derivation

^{2}and ${\mathrm{R}}_{\mathrm{adj}}^{2}$ has a smaller number of parameters. Therefore, every ANOVA analysis leads to a range, where the number of parameters is low enough to avoid overfitting and high enough to allow for an accurate representation of the characteristic value µ

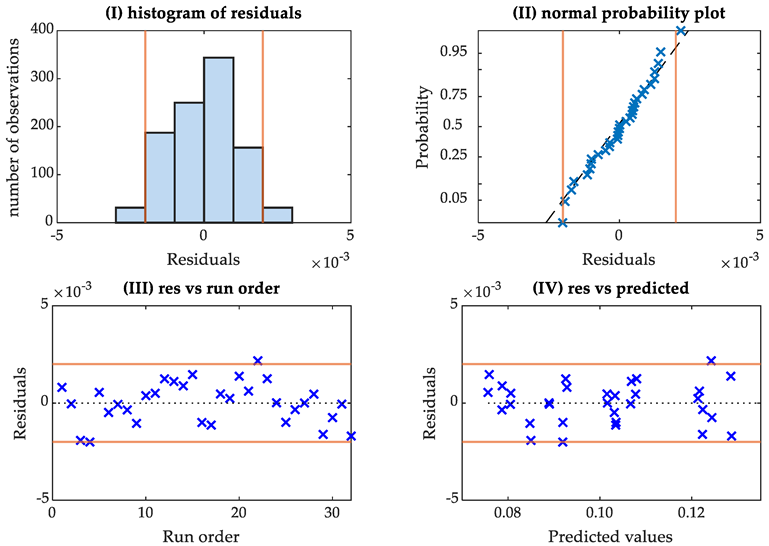

_{top}. After validating the statistical prerequisites with the residual plots, the models in Table 7 are chosen as the most promising ones. Friction systems D88, MC-B and D117, MP-C are used to derive models. Friction system D88, MP-A was only used for validation of those models and was not used for model derivation itself. Model 1 and model 2 show values of R

^{2}and ${\mathrm{R}}_{\mathrm{adj}}^{2}$ greater 99.5%, model 3 shows R

^{2}= 97.4% and ${\mathrm{R}}_{\mathrm{adj}}^{2}$ = 96.7%.

^{2}and ${\mathrm{R}}_{\mathrm{adj}}^{2}$ after the factor of feeding oil flow rate is removed. This drop suggests that the remaining factors contribute more to the quality of the model.

#### 4.2. Application of Stepwise Regression with Cross Validation for Model Derivation

#### 4.3. Model Validation

^{−}) and the solid lines representing 3 N/mm² (p

^{+}). Although each model was derived for one specific friction system, all models react to the change in clutch pressure for all friction systems and can reproduce the level of CoF. Considering the behavior of CoF, the models perform differently in specific areas. In particular, the non-linear and asymmetric behavior of D117-MP-C L-204, caused by strong temperature dependence of CoF, is not reproduced by the linear models. Here, friction system D88-MP-A L-103 is used for validation only.

^{−}) and solid lines 90 °C (ϑ

^{+}). It can be observed that all models react to the change in oil temperature and can reproduce the level of the CoF.

## 5. Discussion

## 6. Conclusions

_{top}. Reasonable factors and corresponding factor levels are used for the experimental investigations.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Göppert, G. Adaptation of a wet clutch torque model in electrified drivelines. Forsch. Im Ing.-Eng. Res.
**2021**, 85, 913–922. [Google Scholar] [CrossRef] - Hensel, M. Thermische Beanspruchbarkeit und Lebensdauerverhalten von nasslaufenden Lamellenkupplungen. Ph.D. Thesis, Technische Universität München, München, Germany, 2014. [Google Scholar]
- Lingesten, N.; Marklund, P.; Höglund, E. The influence of repeated high-energy engagements on the permeability of a paper-based wet clutch friction material. Proc. Inst. Mech. Eng. Part J. J. Eng. Tribol.
**2017**, 231, 1574–1582. [Google Scholar] [CrossRef] - Voelkel, A.K.; Pflaum, H.; Stahl, K. Thermal Behavior and Cooling Conditions of Wet Multi-Plate Clutches in Modern Applications. In Proceedings of the STLE 72nd Annual Meeting and Exhibition of the Society of Tribologists and Lubrication Engineers, Atlanta, GA, USA, 21–25 May 2017. [Google Scholar]
- Ingram, M.; Noles, J.; Watts, R.; Harris, S.; Spikes, H.A. Frictional Properties of Automatic Transmission Fluids: Part I—Measurement of Friction-Sliding Speed Behavior. Tribol. Trans.
**2010**, 145–153. [Google Scholar] [CrossRef] - Katsukawa, M. Effects of the Physical Properties of Resins on Friction Performance. In Proceedings of the WCX SAE World Congress Experience, Detroit, MI, USA, 9–11 April 2019; SAE International: Warrendale, PA, USA, 2019. [Google Scholar]
- Mäki, R.; Nyman, P.; Olsson, R.; Ganemi, B. Measurement and Characterization of Anti-shudder Properties in Wet Clutch Applications; SAE Technical Paper Nr. 2005-01-0878; SAE International: Warrendale, PA, USA, 2019. [Google Scholar] [CrossRef]
- Acuner, R.; Pflaum, H.; Stahl, K. Friction Screening Test for Wet Multiple Disc Clutches with Paper Type Friction Material. In Society of Tribologists and Lubrication Engineers Annual Meeting and Exhibition 2014; Society of Tribologists and Lubrication Engineers (STLE): Park Ridge, IL, USA, 2014; pp. 392–394. [Google Scholar]
- Groetsch, D.; Voelkel, K.; Pflaum, H.; Stahl, K. Real-time temperature calculation and temperature prediction of wet multi-plate clutches. Forsch. Im Ing.-Eng. Res.
**2021**, 85, 923–932. [Google Scholar] [CrossRef] - Ma, B.; Yu, L.; Chen, M.; Li, H.Y.; Zheng, L.J. Numerical and experimental studies on the thermal characteristics of the clutch hydraulic system with provision for oil flow. Ind. Lubr. Tribol.
**2019**, 71, 733–740. [Google Scholar] [CrossRef] - Björling, M.; Habchi, W.; Bair, S.; Larsson, R.; Marklund, P. Towards the true prediction of EHL friction. Tribol. Int.
**2013**, 66, 19–26. [Google Scholar] [CrossRef] [Green Version] - Ingram, M.; Noles, J.; Watts, R.; Harris, S.; Spikes, H.A. Frictional Properties of Automatic Transmission Fluids: Part II—Origins of Friction-Sliding Speed Behavior. Tribol. Trans.
**2010**, 154–167. [Google Scholar] [CrossRef] [Green Version] - Yoshizumi, F.; Tani, H.; Sanda, S. Simulation of the Friction Coefficient of Paper-Based Wet Clutch With Wavy Separators. J. Tribol.
**2019**, 141, 11702. [Google Scholar] [CrossRef] - Wang, Y.; Guo, C.; Li, Y.; Li, G. Modelling the influence of velocity on wet friction-element friction in clutches. Ind. Lubr. Tribol.
**2018**, 70, 42–50. [Google Scholar] [CrossRef] - Yang, Y.; Lam, R.C.; Fujii, T. Prediction of Torque Response During the Engagement of Wet Friction Clutch. In SAE Technical Paper Series, Proceedings of the SAE International Congress & Exposition, Detroit, MI, USA, 23–26 February 1998; SAE International: Warrendale, PA, USA, 1998. [Google Scholar]
- Gao, H.; Barber, G.C.; Shillor, M. Numerical Simulation of Engagement of a Wet Clutch With Skewed Surface Roughness. J. Tribol.
**2002**, 124, 305–312. [Google Scholar] [CrossRef] - Davis, C.L.; Sadeghi, F.; Krousgrill, C.M. A simplified approach to modeling thermal effects in wet clutch engagement: Analytical and experimental comparison. J. Tribol.
**2000**, 122, 110–118. [Google Scholar] [CrossRef] - Marklund, P.; Mäki, R.; Larsson, R.; Höglund, E.; Khonsari, M.M.; Jang, J. Thermal influence on torque transfer of wet clutches in limited slip differential applications. Tribol. Int.
**2007**, 40, 876–884. [Google Scholar] [CrossRef] - Häggström, D.; Nyman, P.; Sellgren, U.; Björklund, S. Predicting friction in synchronizer systems. Tribol. Int.
**2016**, 97, 89–96. [Google Scholar] [CrossRef] - Zhang, J.-L.; Ma, B.; Zhang, Y.-F.; Li, H.-Y. Simulation and Experimental Studies on the Temperature Field of a Wet Shift Clutch during One Engagement. In Proceedings of the 2009 International Conference on Computational Intelligence and Software Engineering, CiSE 2009, Wuhan, China, 11–13 December 2009; IEEE: Piscataway, NJ, USA, 2009; pp. 1–5, ISBN 978-1-4244-4507-3. [Google Scholar]
- Zhao, E.-h.; Ma, B.; Li, H.-Y. The Tribological Characteristics of Cu-Based Friction Pairs in a Wet Multidisk Clutch Under Nonuniform Contact. J. Tribol.
**2018**, 140, 011401. [Google Scholar] [CrossRef] - Barr, M.; Srinivasan, K. Estimation of Wet Clutch Friction Parameters in Automotive Transmissions; SAE Technical Paper Series; SAE International: Warrendale, PA, USA, 2015. [Google Scholar]
- Wu, B.; Qin, D.; Hu, J.; Liu, Y. Experimental Data Mining Research on Factors Influencing Friction Coefficient of Wet Clutch. J. Tribol.
**2021**, 143, 121802. [Google Scholar] [CrossRef] - Shui, H.; Zhang, Y.; Yang, H.; Upadhyay, D.; Fujii, Y. Machine Learning Approach for Constructing Wet Clutch Torque Transfer Function. SAE Int. J. Adv. Curr. Prac. Mobil.
**2021**, 3, 2738–2744. [Google Scholar] - Stockinger, U.; Pflaum, H.; Stahl, K. Zeiteffiziente Methodik zur Ermittlung des Reibungsverhaltens nasslaufender Lamellenkupplungen mit Carbon-Reibbelag. Forsch. Im Ing.-Eng. Res.
**2018**, 82, 1–7. [Google Scholar] [CrossRef] - Stockinger, U.; Groetsch, D.; Reiner, F.; Voelkel, K.; Pflaum, H.; Stahl, K. Friction behavior of innovative carbon friction linings for wet multi-plate clutches. Forsch. Im Ing.-Eng. Res.
**2021**, 2, 471. [Google Scholar] [CrossRef] - Siebertz, K.; van Bebber, D.; Hochkirchen, T. Statistische Versuchsplanung: Design of Experiments (DoE), 2nd ed.; Vieweg: Kranzberg, Germany, 2017; ISBN 978-3-662-55743-3. [Google Scholar]
- Sudarsanam, N.; Frey, D.D. Using ensemble techniques to advance adaptive one-factor-at-a-time experimentation. Qual. Reliab. Engng. Int.
**2011**, 27, 947–957. [Google Scholar] [CrossRef] - Frisch, H.; Schulz, R.K.; Sittig, K.; Dörfler, D.; Möller, K. Untersuchung der Drehmomentgleichförmigkeit durch geometrische Zwangserregung bei nasslaufenden Doppelkupplungen. In VDI-Berichte Nr. 2309, VDI-Fachtagung Kupplungen und Kupplungssysteme in Antrieben 2017, 2. VDI-Fachkonferenz Schwingungsreduzierung in mobilen Systemen 2017; Verein Deutscher Ingenieure (VDI): Ettlingen, Germany, 2017; pp. 359–370. [Google Scholar]
- Bischofberger, A.; Ott, S.; Albers, A. Einfluss von Betriebsgrößen auf die Schwingungsreduzierungswirkung im nasslaufenden Kupplungssystem: Empirische Modellbildung–Kennfelder und Skalierbarkeit. Forsch. Im Ing.-Eng. Res.
**2021**, 85, 933–944. [Google Scholar] [CrossRef] - Mansouri, M.; Khonsari, M.M.; Holgerson, M.H.; Aung, W. Application of analysis of variance to wet clutch engagement. Proc. Inst. Mech. Eng. Part J. J. Eng. Tribol.
**2002**, 216, 117–125. [Google Scholar] [CrossRef] - Meingaßner, G.J.; Pflaum, H.; Stahl, K. Test-Rig Based Evaluation of Performance Data of Wet Disk Clutches. In Proceedings of the 14th International CTI Symposium 2015, Berlin, Germany, 30 November–1 December 2015; pp. 1–11. [Google Scholar]
- Groetsch, D.; Motzet, R.; Voelkel, K.; Pflaum, H.; Stahl, K. Analysis of Oil Distribution and Reduction of Axial Force due to Oil Supply in a Multi-Plate Clutch. J. Serb. Tribol. Soc.
**2022**, 44, 268–282. [Google Scholar] [CrossRef] - Baumgartner, A. Reibungsverhalten nasslaufender Lamellenkupplungen—Messunsicherheiten und Auswertemethoden. Master’s Thesis, Technical University of Munich, Munich, Germany, 2020. [Google Scholar]
- Polifke, W.; Kopitz, J. Wärmeübertragung: Grundlagen, Analytische und Numerische Methoden, 2. Aktual. Aufl.; Pearson Studium: München, Germany, 2009; ISBN 978-3-8273-7349-6. [Google Scholar]
- Voelkel, K. Charakterisierung des Einlaufverhaltens Nasslaufender Lamellenkupplungen. Ph.D. Thesis, Technical University of Munich, Munich, Germany, 2020. [Google Scholar]

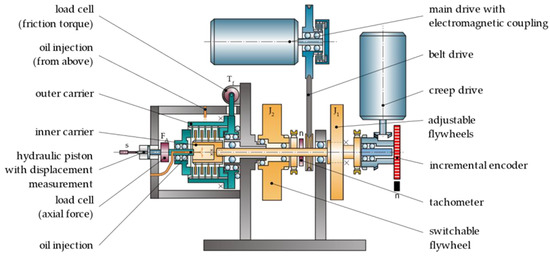

**Figure 1.**ZF/FZG KLP-260 test rig—schematic sketch according to [32].

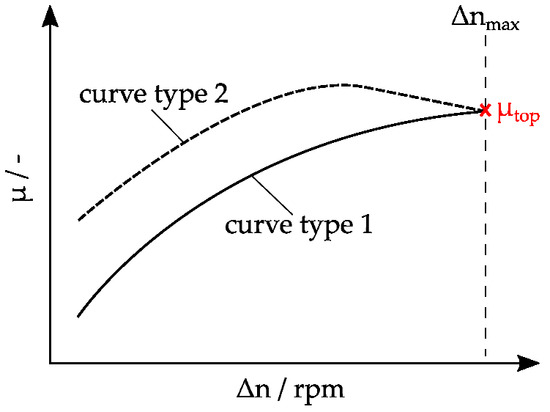

**Figure 5.**Explanation of µ

_{top}for two types of friction characteristics with equivalent values of µ

_{top.}

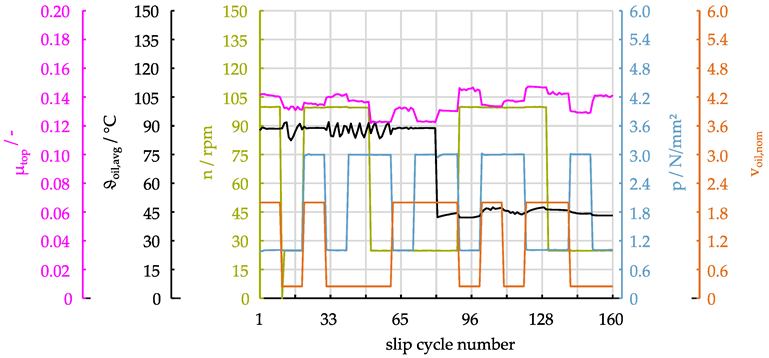

**Figure 6.**Trend plot of full factorial design of system D117/MP-C—values per cycle of varied parameters (oil injection temperature, nominal feeding oil flow rate, clutch pressure, maximum differential speed) and the measured variable (µ

_{top}).

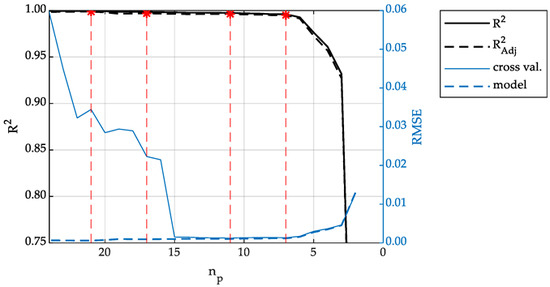

**Figure 7.**Representative example of behavior of coefficients R

^{2}and ${\mathrm{R}}_{\mathrm{adj}}^{2}$ and RMSE values for model and cross validation over number of parameters n

_{p}, D88 MC-B, L-201.

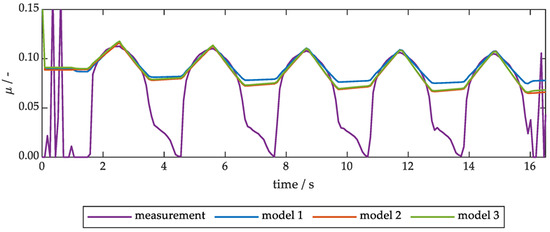

**Figure 9.**Comparison of measurement and simulation of CoF for load stage LS3 for three models fitted to D88, MC-B.

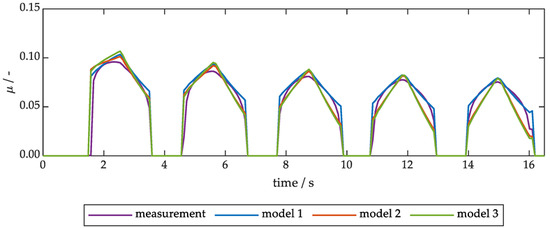

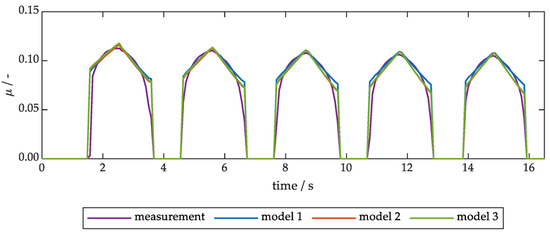

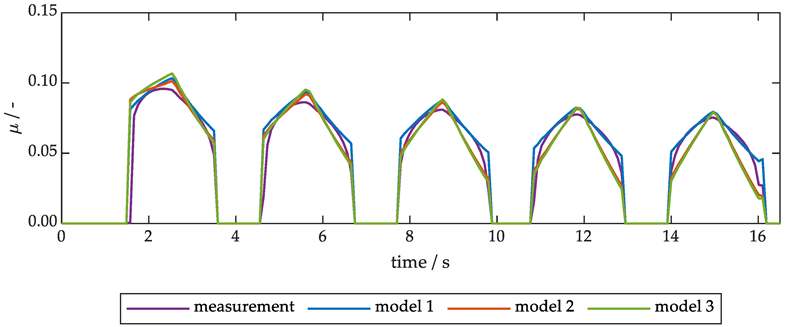

**Figure 10.**Comparison of measurement and simulation of CoF for load stage LS3 for three models fitted to D88, MC-B, restricted to ∆n > 1 rpm.

**Figure 11.**Comparison of measurement and simulation of CoF for load stage LS1 for three models fitted to D88, MC-B, restricted to ∆n > 1 rpm.

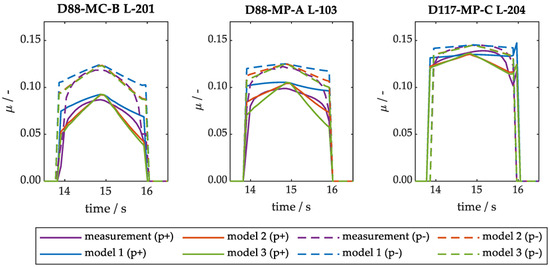

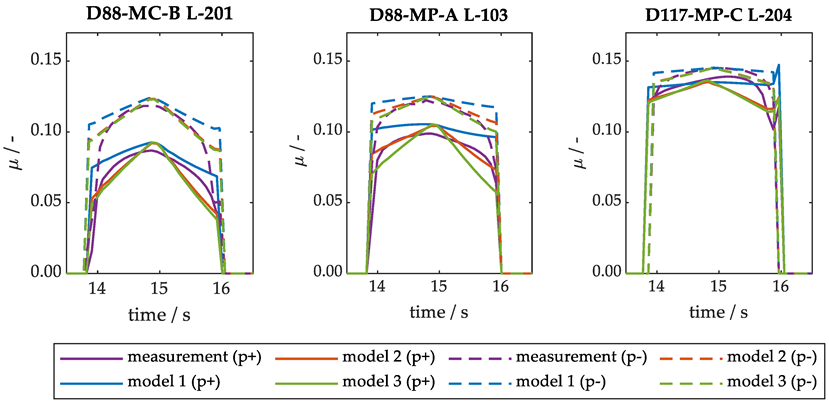

**Figure 12.**Comparison of measurement and simulation of CoF for load stages LS13 and LS15 with different pressures 1 N/mm² and 3 N/mm², restricted to ∆n > 1 rpm.

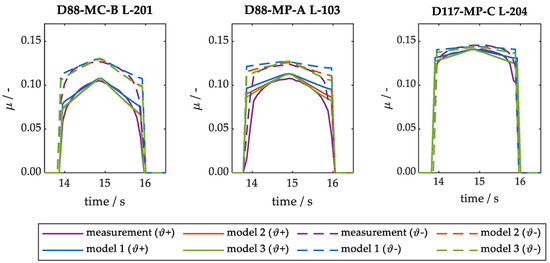

**Figure 13.**Comparison of measurement and simulation of CoF for load stage LS1 for three models fitted to D88, MC-B, restricted to ∆n > 1 rpm.

**Table 1.**Technical data of ZF/FZG KLP-260 test rig according to [33].

variable small fly wheels | J_{1} = 0.12 … 0.75 kgm² |

basic inertia | J_{2} = 1.0 kgm² |

plate diameters | d = 75 … 260 mm |

max. torque | T_{f,max} = 2000 Nm |

differential speed | Δn = 0 … 7000 rpm |

slip speed | Δn = 0 … 140 rpm (creep drive) Δn = 0 … 7000 rpm (main drive) |

torque in slip mode | T_{f,slip,max} = 2000 Nm (creep drive)T _{f,slip,max} = 60 Nm (main drive) |

max. axial force | F_{a,max} = 40 kN |

feeding oil temperature | ϑ_{oil} = 30 … 150 °C |

feeding oil flow rate | $\stackrel{.}{v}$_{oil} = 0 … 7 L/min |

feeding oil pressure | p_{oil} = 0 … 6 bar |

**Table 2.**Overview of measurement accuracy on the ZF/FZG KLP-260 test rig (confidence level 95 %) extended version according to [33].

Measured Variable | Uncertainty |
---|---|

axial force | +/− 1.3% |

torque | +/− 0.4% |

CoF | +/− 1.3% |

speed (main drive) | +/− 0.2% |

speed (creep drive) | +/− 0.9% |

thermocouple type K class 1 | +/− 1.8 K (DIN)/+/− 0.3 K (Estimated from calibration) |

feeding oil pressure | +/− 0.1 bar |

axial force | +/− 1.3% |

Lubricant | Kinematic Viscosity at 40 °C | Kinematic Viscosity at 100 °C |
---|---|---|

L-103 | 35 mm²/s | 7 mm²/s |

L-201 | 47 mm²/s | 9 mm²/s |

L-205 | 30 mm²/s | 6 mm²/s |

System | Mean Diameter | Friction Lining | Lubricant |
---|---|---|---|

D117 | 117 mm | MP-C | L-205 |

D88 | 88 mm | MP-A | L-103 |

D88 | 88 mm | MC-B | L-201 |

Name | p/N/mm² | ∆n/rpm | Number of Slip Phases |
---|---|---|---|

E1 | 0.75 | 25 | 5 |

E2 | 3.0 | 25 | 5 |

E3 | 1.5 | 25 | 5 |

E4 | 1–5 | 50 | 5 |

E5 | 0.75 | 50 | 5 |

E6 | 3.0 | 50 | 5 |

EC | 0 | 20 | 1 |

Symbol | A | B | C | D |
---|---|---|---|---|

Factor | Oil Injection Temperature | Feeding Oil Flow | Clutch Pressure | Max. Differential Speed |

Low Level (−) | 40 °C | 0.25 mm³/mm²s | 1 N/mm² | 25 rpm |

High Level (+) | 90 °C | 2 mm³/mm²s | 3 N/mm² | 100 rpm |

Name | Factor Level | |||

LS1 | + | + | + | + |

LS2 | + | + | + | − |

LS3 | + | + | − | + |

LS4 | + | + | − | − |

LS5 | + | − | + | + |

LS6 | + | − | + | − |

LS7 | + | − | − | + |

LS8 | + | − | − | − |

LS9 | − | + | + | + |

LS10 | − | + | + | − |

LS11 | − | + | − | + |

LS12 | − | + | − | − |

LS13 | − | − | + | + |

LS14 | − | − | + | − |

LS15 | − | − | − | + |

LS16 | − | − | − | − |

Friction System | Number of Parameters | Model |
---|---|---|

D88, MC-B | 7 | c_{0} + c_{A}·A+c_{c}·C+c_{D}·D+c_{E}·E+c_{AC}·AC+c_{AD}·AD (model 1) |

D88, MC-B | 8 | c_{0} + c_{A}·A + c_{c}·C + c_{D}·D + c_{E}·E + c_{AC}·AC + c_{CD}·CD + c_{DE}·DE (model 2) |

D117, MP-C | 7 | c_{0} + c_{A}·A + c_{c}·C + c_{D}·D + c_{E}·E + c_{AC}·AC + c_{DE}·DE (model 3) |
