Planets in Binaries: Formation and Dynamical Evolution

Abstract

Binary systems are very common among field stars, yet the vast majority of known exoplanets have been detected around single stars. While this relatively small number of planets in binaries is probably partly due to strong observational biases, there is, however, statistical evidence that planets are indeed less frequent in binaries with separations smaller than 100 au, strongly suggesting that the presence of a close-in companion star has an adverse effect on planet formation. It is indeed possible for the gravitational pull of the second star to affect all the different stages of planet formation, from proto-planetary disk formation to dust accumulation into planetesimals, to the accretion of these planetesimals into large planetary embryos and, eventually, the final growth of these embryos into planets. For the crucial planetesimal-accretion phase, the complex coupling between dynamical perturbations from the binary and friction due to gas in the proto-planetary disk suggests that planetesimal accretion might be hampered due to increased, accretion-hostile impact velocities. Likewise, the interplay between the binary’s secular perturbations and mean motion resonances lead to unstable regions, where not only planet formation is inhibited, but where a massive body would be ejected from the system on a hyperbolic orbit. The amplitude of these two main effects is different for S- and P-type planets, so that a comparison between the two populations might outline the influence of the companion star on the planet formation process. Unfortunately, at present the two populations (circumstellar or circumbinary) are not known equally well and different biases and uncertainties prevent a quantitative comparison. We also highlight the long-term dynamical evolution of both S and P-type systems and focus on how these different evolutions influence the final architecture of planetary systems in binaries.

1. Introduction

In a binary star system, the gravity of the companion star may strongly influence both the formation of planets and their subsequent dynamical evolution. The final architecture of a system strongly depends on how the efficiency of the accretion process is affected by the presence of a close massive body and on how the subsequent evolution due to migration by interaction with the circumstellar disk, tidal interaction with the star, planet–planet scattering or Kozai mechanism, is altered by the second star. The differences in planet growth and dynamics in binaries, with respect to single stars, should show up in the fraction of binary systems harboring planets and in their present dynamical configurations. However, to interpret properly what the data tell us, we need to develop models that can explain the specificities of these planetary systems compared to those around single stars.

We will focus here on the main characteristics of planets in both S and P–type orbital configurations which significantly differ in terms of perturbations by the companion star. In the S-type configuration, where planets orbit one of the star of the system, the most critical regions for planet formation are the outer ones where the gravity of the second star may excite large eccentricities, potentially leading to instability via resonance superposition and, in case of orbital misalignment, may also be involved in fast Kozai cycles with large eccentricity/inclination variations. The inner regions of the circumstellar disk appears then most promising for a ’regular’ core–accretion growth of planets and for subsequent stable orbital behavior. In the case of P–type configurations, where the planets orbit around both stars, perturbations are the strongest in the inner regions close to the central binary. In this configuration, instability is expected close to the center of the system, while planet formation should safely occur in the outer regions of the circumbinary disk. In this case, planet migration may play a major role in bringing outer planets close to the binary.

We expect that these diversities in the dynamics of S and P–type trajectories lead to distinct populations of planets, differing both from a physical and dynamical point of view. The diversity would be a consequence of the different effect the companion star has on the formation of planets and on their subsequent dynamical evolution. Unfortunately, modeling the formation and evolution of planets in binaries is a very complex task due to the wide parameter space to explore, which include the binary mass ratio and the semi-major axis, eccentricity and inclination of the binary orbit. A change in these parameters may increase/decrease the dynamical perturbation at different locations in the planet forming disk affecting all the stages of the evolution of the system, from proto-planetary disk formation to the final dynamical evolution of the system. Due to this variety of binary configurations it is an impossible task to outline a ’standard model’ of planet formation in binaries as opposed to that around single stars. In some configurations of the binary the growth of planets may follow a path similar to that around single stars, while in others, due to the companion star stronger influence, the evolution may be completely different, either favoring the formation of more/less massive planets or inhibiting the presence of stable planets at given radial distances from the primary star or from the baricenter of the pair, or leading to planets which are more eccentric or more inclined with respect to those around single stars. In addition, the two populations of planets, either circumstellar or circumbinary, are not equally well known since more than 120 planets on S-type orbits are known, as compared to only a dozen of P-type planets. In addition, the majority of confirmed S-type planets were detected by radial velocities, whereas circumbinary planets were mostly detected by transits.

In this paper we summarize the properties and peculiarities of planets in binaries and relate them to the formation process and the subsequent complex dynamics caused by the companion star.

2. Planets in S–Type Orbits

2.1. Observational Constraints

2.1.1. Adverse Biases

As of July 2019, 122 exoplanet host stars, out of 3055, are known to be part of binary or multiple systems. In an ideal world, the effect of binarity on exoplanet presence could be directly inferred from this raw data, by simply estimating the binarity rate among exoplanet hosts, as well as the distribution of separations for these planet-bearing binaries, and compare it to the corresponding statistics for field stars. Unfortunately, such a simple comparison is almost certainly misleading.

Taken at face value, 122 out of 3055 exoplanet-host stars would indeed yield a very low binary fraction of ∼4%, as compared to approximately 50% for solar type field stars [1,2], which would imply that binarity has a very strong adverse effect on the presence of exoplanets. However, this fraction should be taken with great caution because it suffers from very strong biases. The first issue is that radial velocity (RV) surveys, which account for roughly half of the discovered S-type exoplanets, are in general strongly biased against binaries, and often discard any binaries with separation ≤2${}^{″}$ that can fall to within the spectrograph slit [3,4]. An additional problem is that these biases are never well characterized and might differ from one survey to the other. One of the few attempts at investigating the effect of binarity on exoplanet occurrence within one coherent RV survey is that of Eggenberger and her team [3,5,6], which compared the binarity fraction of a sample of exoplanet host stars to a control sample of stars with no RV planets, and found these fraction to be ∼5.5% and ∼13.7%, respectively [3], thus confirming the global adverse effect of binarity on exoplanet presence. Note, however, that, despite these adverse selection effects, the vast majority of exoplanets in tight binaries (of separation ≤50 au) were detected by radial velocity surveys (Figure 1).

Transit surveys, which account for ∼40% of S-type exoplanets, do not suffer from these adverse selection effects. However, the stars they are targeting, in particular those of the NASA Kepler telescope, are generally more distant and have often not been vetted for binarity yet, so that a significant fraction might be wrongly labelled as singles. To alleviate this problem, several adaptive optic (AO) surveys were carried out in recent years, which detected a large number of companion stars to known transit-planet hosts [4,9,10,11]1. Note, however, that most of these surveys were targeting non-confirmed Kepler Objects of Interest (KOIs), so that the actual binarity fraction among confirmed exoplanets stays relatively low. This is why, even if transit detections represent more than 70% of known exoplanets, they only account for ∼40% of confirmed exoplanets in binaries.

However, despite their respective shortcomings and limitations, RV and transit detections have uncovered some general and relatively robust trends regarding exoplanets in binaries.

2.1.2. Characteristics of Exoplanets in Binaries

An investigation that is in principle not sensitive to target selection biases is the comparison between the exoplanet populations in single and multiple systems.

A trend that was identified early on, albeit on a relatively limited sample of RV-detected systems, is the high fraction of massive close-in planets (“hot Jupiters”) in tight ($\rho \le 100$ au) binaries as compared to their fraction in wide binaries or single stars [5,15,16]. More recent studies, considering larger samples of exoplanet systems, confirmed that there is indeed a clear difference regarding the populations of hot Jupiters in multiple and single stars, but the picture that emerges is different from the one envisaged early on. On the one hand, contrary to early estimates, the tendency towards more frequent hot-Jupiters in tight binaries is no longer found. Indeed, reference [17] find that, for separations ≤50 au, the stellar multiplicity rate for hot-Jupiters is in fact 4 times lower than that of field stars, which is approximately the same ratio as the one derived, for the same separation range, for the general population of exoplanet hosts [18]. On the other hand, there is a clear tendency towards a very high fraction of hot-Jupiter in moderate-to-wide binaries. For the $50\le \rho \le 2000$ au separation range, reference [17] indeed find a multiplicity fraction that is 2.9 times higher for hot-Jupiter hosts than for field stars, a result which was confirmed by [19] for close-in companions up to the brown dwarf regime.

Regarding the population of exoplanets with semi-major axis $a_P\ge 0.1$ au, however, there does not seem to be any statistical difference between single and multiple stellar systems [4], neither regarding planet masses nor their orbital parameters.

2.1.3. Multiplicity Rate of Exoplanet Hosts

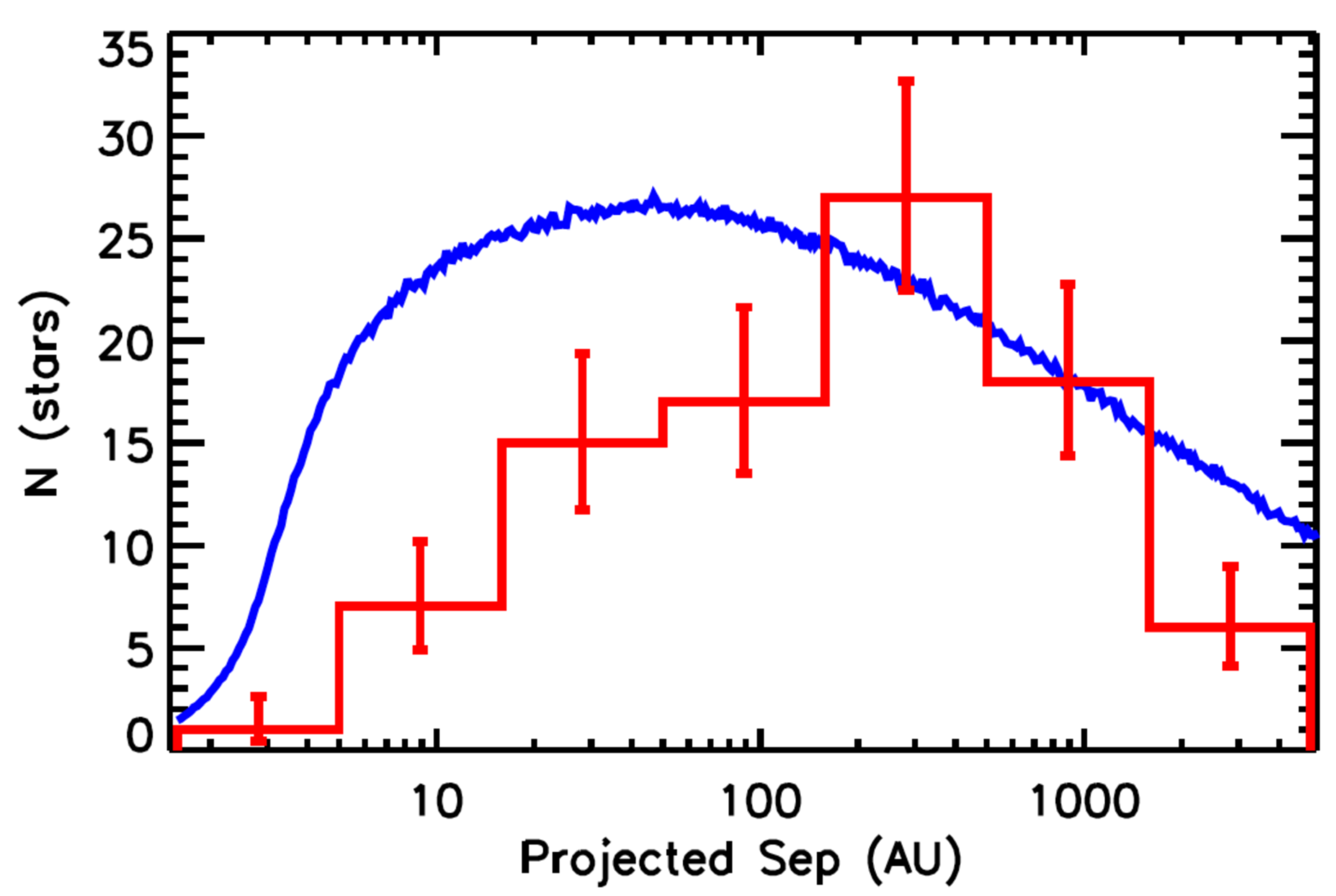

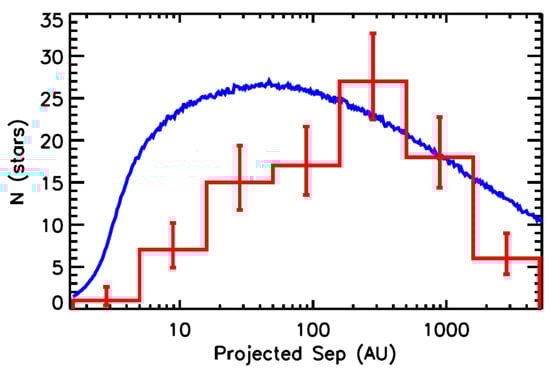

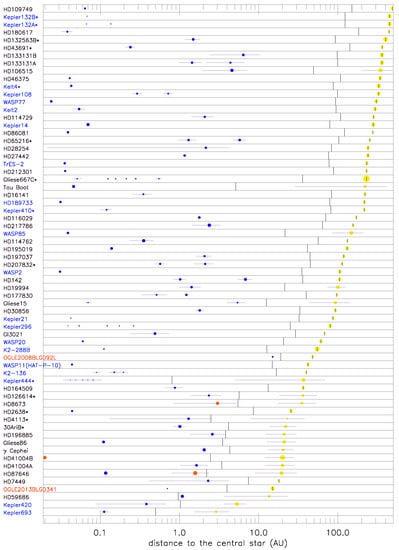

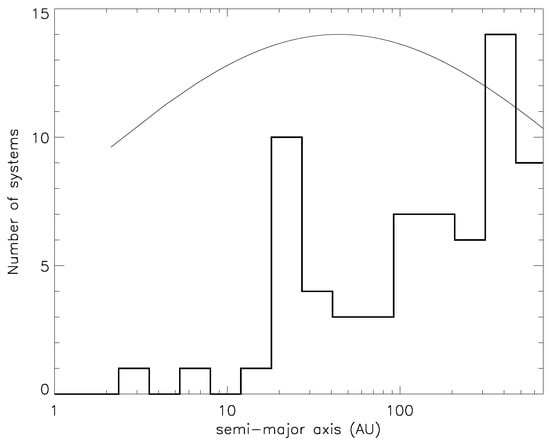

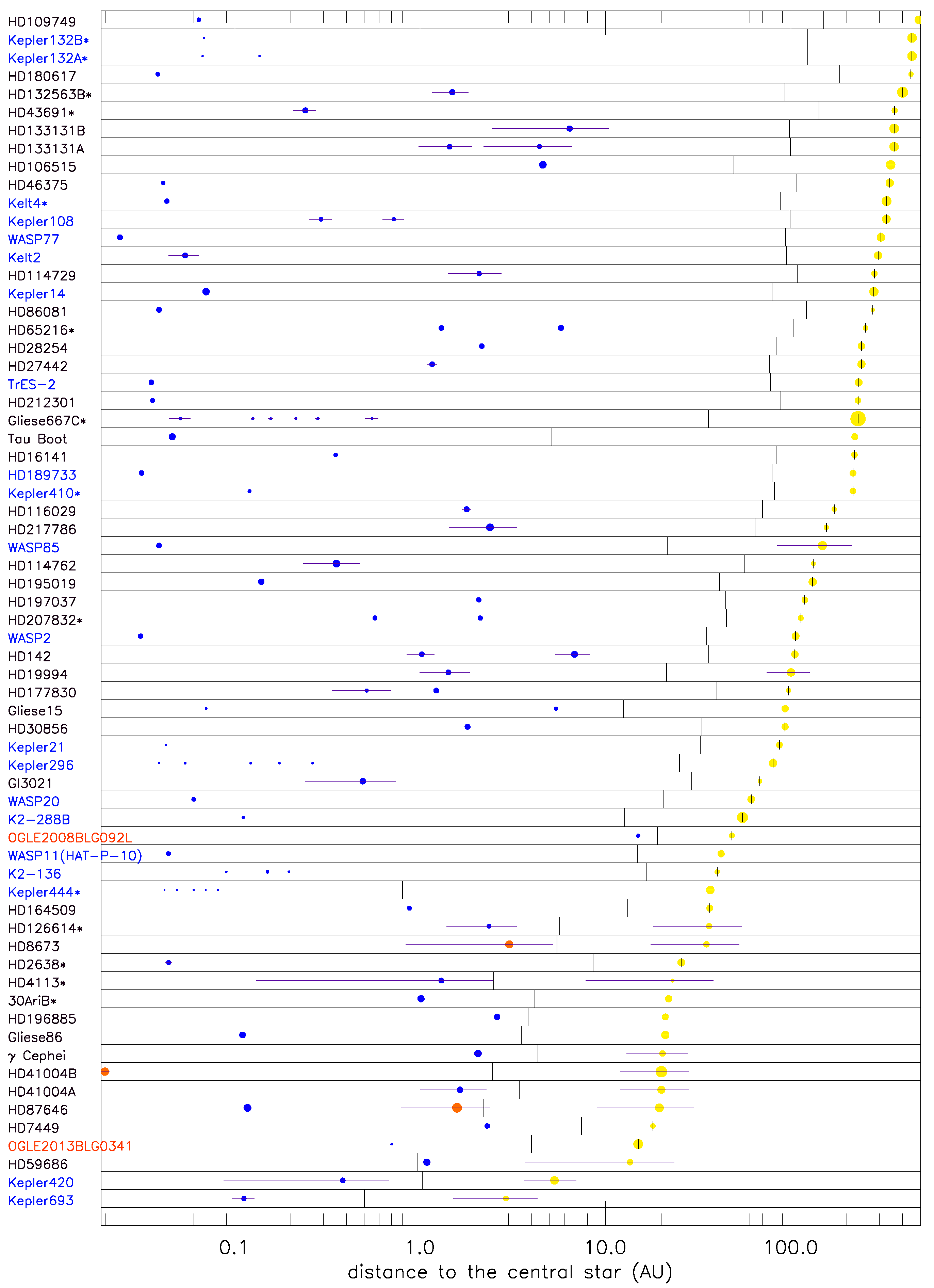

One of the most obvious trends that shows up on the global raw distribution of separations $\rho$ of exoplanet-hosting binaries is a depletion of close-in companions ($\rho \le 100$ au) as compared to the distribution of binary separations for solar-type field stars, which peaks around 30–50 au (see Figure 2). This trend did already show up in the results of AO surveys looking for companions to RV-exoplanet hosts [16,20], but the complexity of selection biases in RV targets prevented an undisputed confirmation as to its reality. It is the large-scale surveys looking for companions to transit exoplanet hosts that allowed to confirm this trend. The Doppler and AO–based search of [9] and the AO survey of [18] showed that, while the multiplicity fraction is statistically indistinguishable between planet and non-planet hosts for binary separations ≥100 au, there is a very strong depletion of tighter companions for exoplanet hosts, comprised between a factor ∼4 and ∼15. Reference [18] estimated that the distributions of close-in companions to exoplanet-hosting primary stars can be fitted by considering that the separation distribution for field stars is diminished by a factor ∼3 below a limiting separation ${\rho }_{cut}=47$ au. In the absence of selection biases, this is equivalent to saying that the planet occurrence rate is 3 times smaller in $\rho \le 47$ au binaries than for single stars. Note, however, that this issue is not fully settled yet. As an example, while [10] confirm a strong drop of planet occurrences in close-in binaries, they also found that this lower occurrence rate extends, albeit less pronounced, up to separations of ∼1500 au. On the contrary, the recent AO survey by [21] did not find any depletion of $\rho \le 50$ au binaries in K2 exoplanet host stars. These conflicting results might be due to the fact that, for Kepler targets, the $\rho \le 50$ au separation domain is at the limit of what is feasible with AO companion searches. Note also that these statistics about multiplicity rates in planet-hosts are only valid for the type of exoplanets that are detectable by given observing facilities. As an example, the planet occurrence suppression rate for tight binaries found by [10] or [18] apply to the short period (typically less than 100 days) planets investigated by Kepler, while the results regarding companions to RV-exoplanet hosts found by [16,20] are less biased in orbital-periods but strongly biased towards large mass planets.

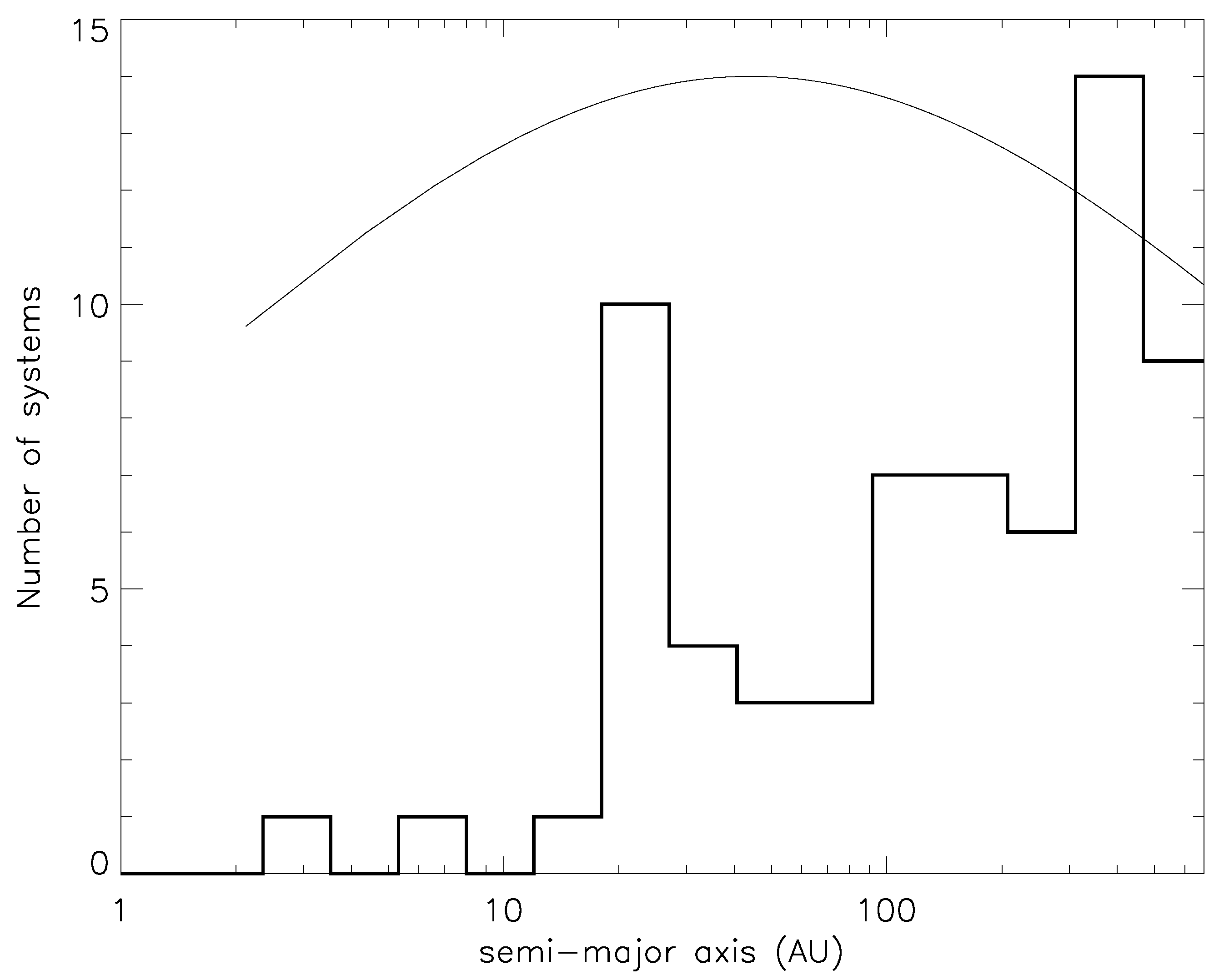

There remains one potentially significant feature that shows up on the raw distribution of binary separations of exoplanet-hosts that has not been investigated yet, which is the apparent accumulation of exoplanet-host binaries around a $\rho \sim 20$ au separation (Figure 3). Given the still limited number (9) of systems concerned it is still difficult to assess the reality of this feature, but should it be confirmed then it would put very strong constraints on the formation and evolution of planets in multiple systems. At any rate, the very presence of planets in such “extreme” systems, where a stellar companion is located at the same position as Uranus in the solar system, is a challenge to the standard model of planet formation, especially when considering that some of these planets (HD196885b, $\gamma$ Cephei b, HD41004Ab) are both very massive and beyond 1.5 au from their central star.

2.2. Planet Formation in Binaries

As shown in the previous section, there seems to be reliable observational evidence that a close-in stellar companion (≤50 au) has a detrimental effect on the presence of an exoplanet around a host star. In addition, for the few exoplanets that have been found to inhabit “extreme” systems with binary separation of the order of 20 au or less, it is very unlikely that their formation process could have proceeded without being strongly affected by the perturbations of the companion star. At any rate, studying planet formation in binaries can be used as a test bench for planet formation models, by confronting them to an unusual and sometimes “extreme” environment where some crucial parameters might be pushed to extreme values.

For a detailed discussion on the issue of planet formation in binaries, we refer the reader to the review by [22]. We shall here highlight the main aspects of this very complex issue.

2.2.1. Early Stages

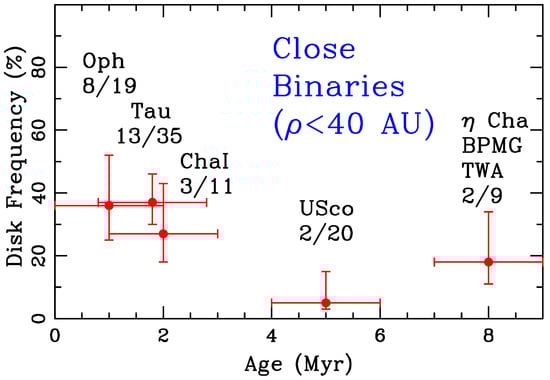

The presence of a close-in stellar companion can have an effect early on in the planet formation, by tidally truncating the circumstellar proto-planetary disk. This truncation radius is typically located at 1/3 to 1/4 of the binary’s separation [23,24], which means that, if we assume that the dense parts of a proto-planetary disk have a typical size of ∼50–100 au, then this truncation effect should affect all binaries with separation ≤150–200 au. Observations show that disks are indeed less frequent in tight binaries, even though this trend is clearly confirmed only for separations of less than 40 au, with a disc frequency of only ∼30–40% as compared to ∼80% for single stars (Figure 4). Observational surveys also show that, even when present, disks are on average less massive in tight binaries [25].

This can have two major consequences on the planet-formation process. The first one is that a truncated disk has a faster viscous evolution and should be more short-lived, leaving less time for planet formation [26]. This could be especially troublesome for giant gaseous planets that need to accrete vast amount of gas before the primordial disk’s dispersal, and numerical studies have shown for example that the giant planet in the $\gamma$ Cephei binary (of separation ∼20 au) would not have enough time to form in situ by the canonical core-accretion scenario. There is observational backing to this shorter lifetime of disks-in-binaries, with [23] showing that the the typical lifetime of disks in ≤40 au binaries is less than 1Myr, as compared to the 5–10 Myrs typical of single stars. The other potential consequence of disk truncation is that there might not be enough mass left to form jovian planets in close-in binaries. Studies focusing on the specific case of $\gamma$ Cephei found that a truncated proto-planetary disk might contain just enough mass to form the observed planet [26,27], but recent re-evaluations of this planet’s mass to 9 M${}_{Jup}$ might challenge these optimistic results [28].

2.2.2. Planetesimal Accretion

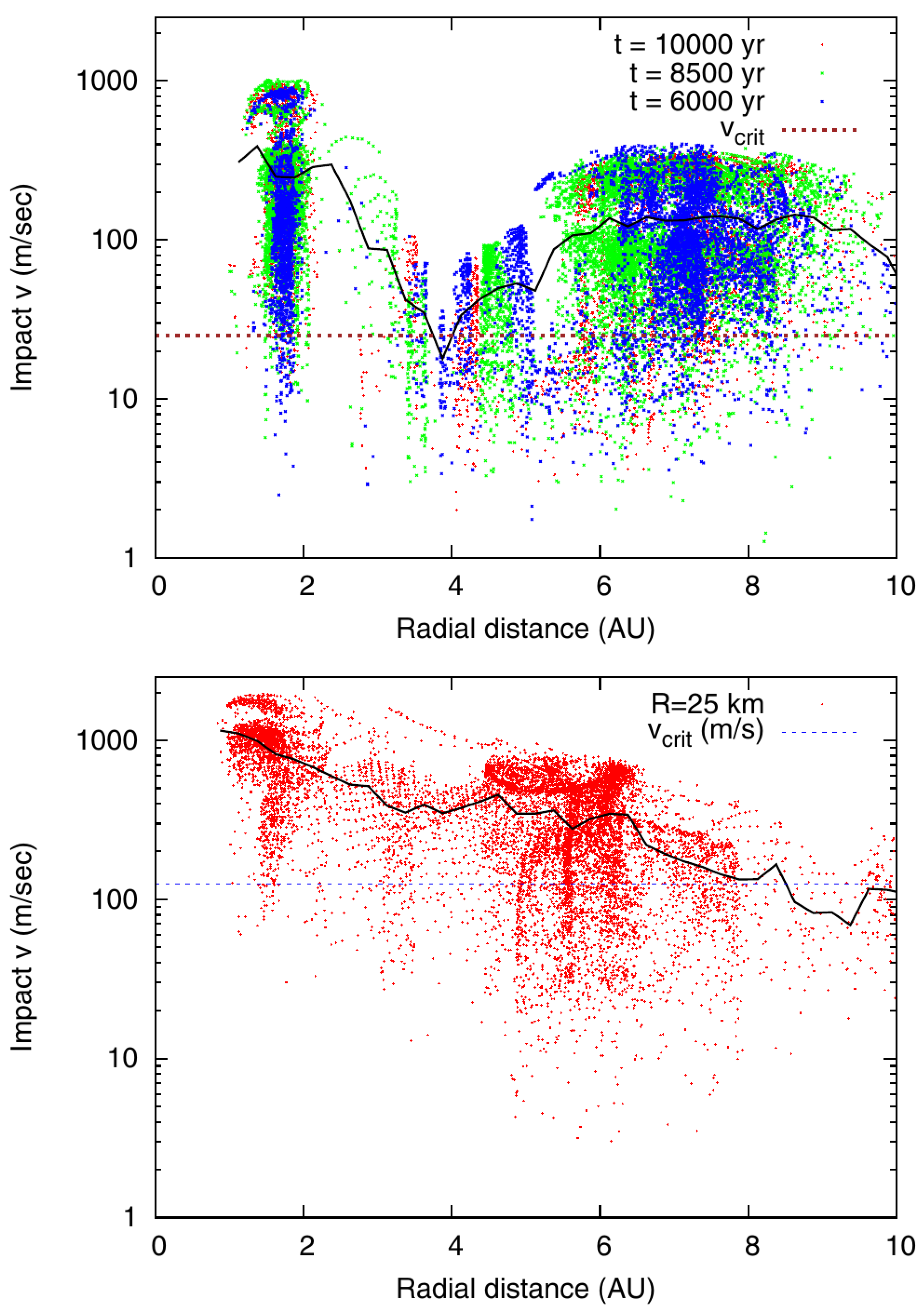

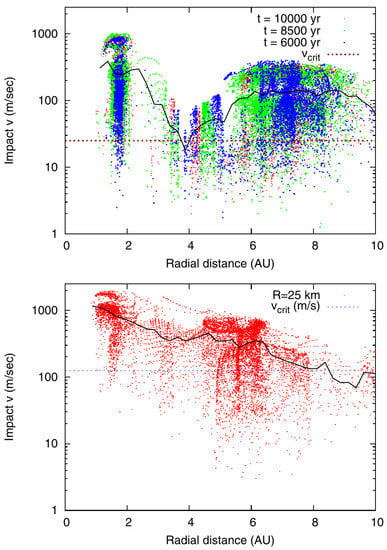

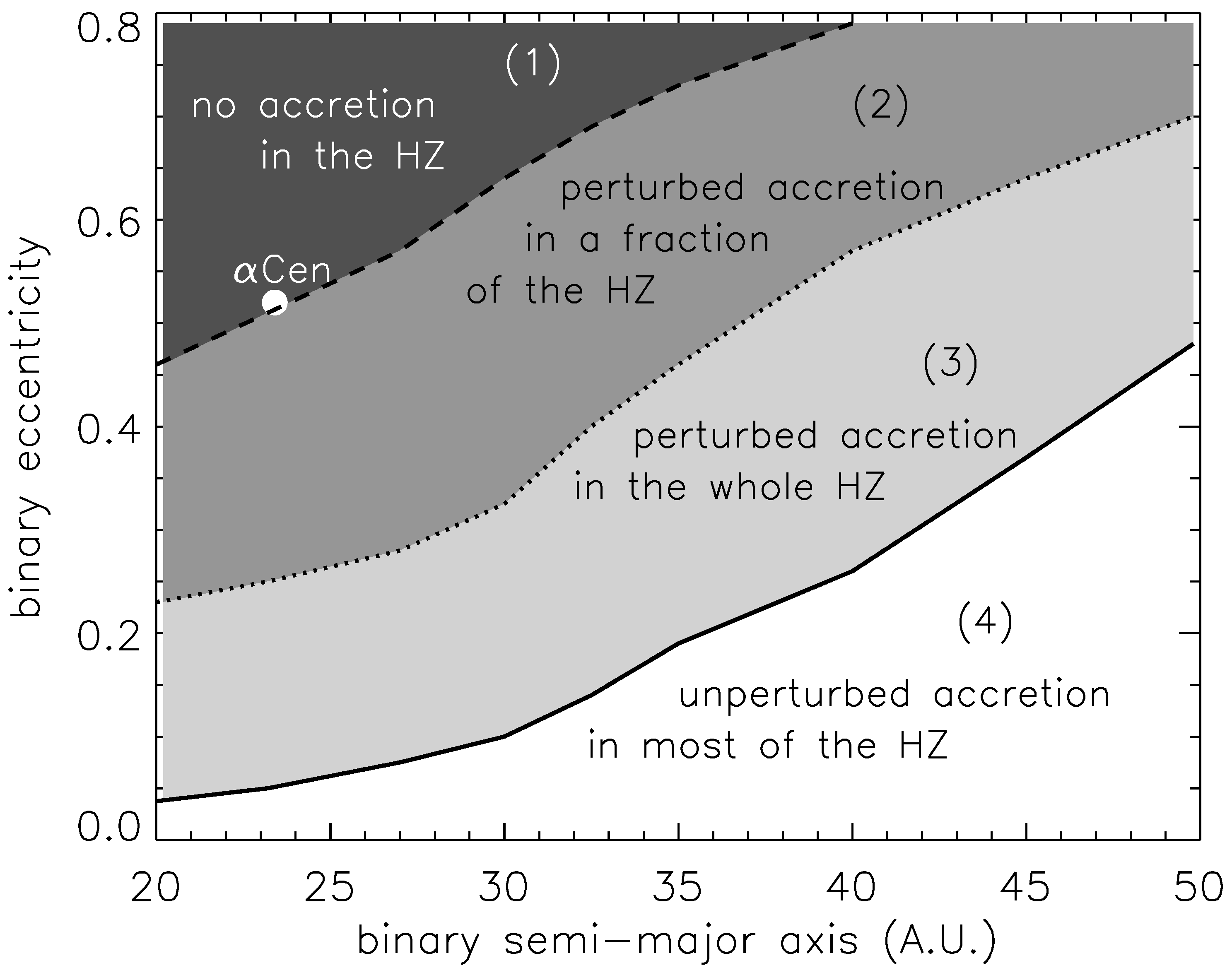

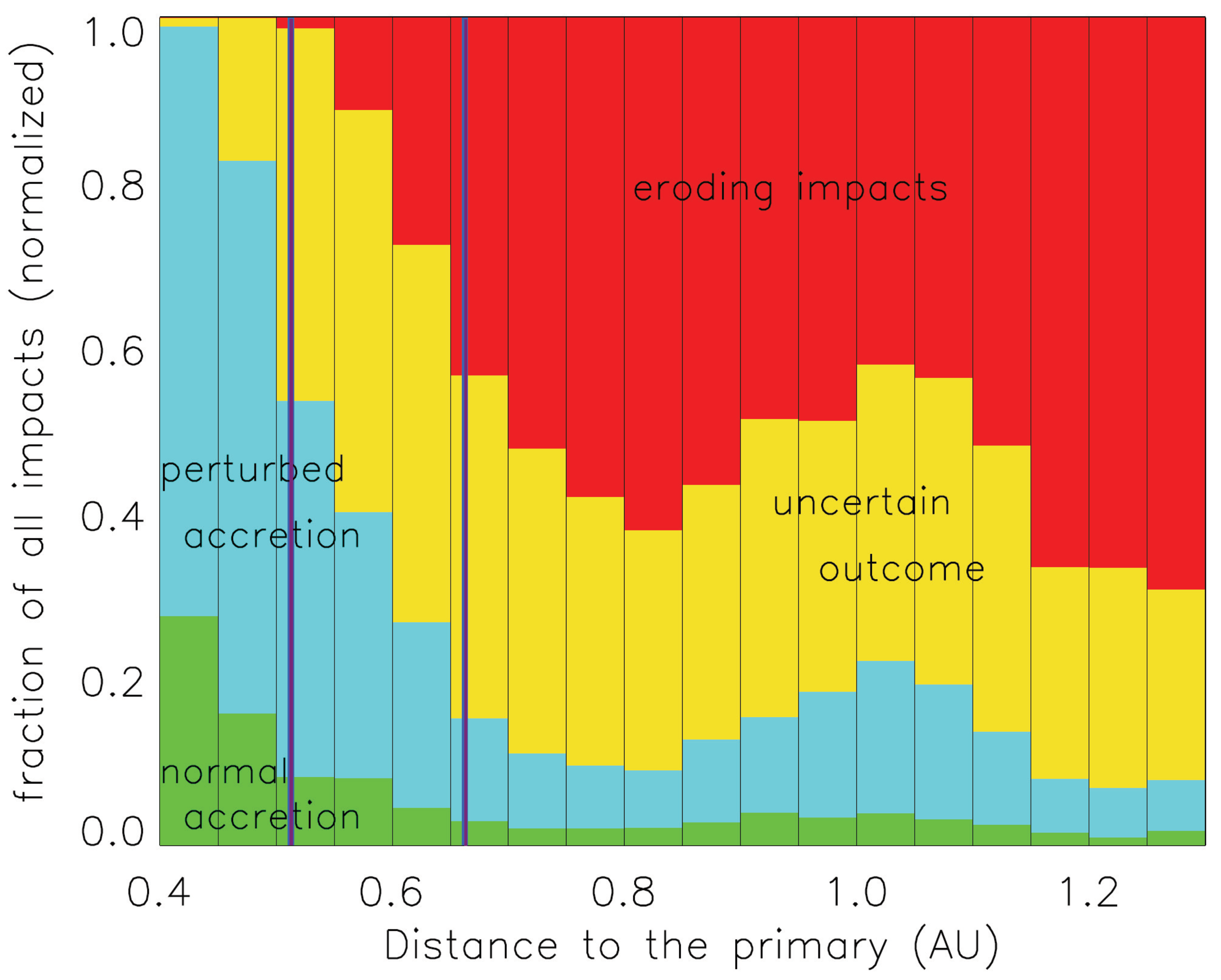

The planet-formation stage that has been, by far, the most studied in the context of binaries is the intermediate stage leading from kilometer-sized planetesimals to Lunar-sized planetary embryos. This is probably because planetesimal accretion, controlled by their mutual gravity, requires very low encounter velocities, of the order of a few m s${}^{-1}$ for km-sized bodies, in order to successfully proceed (e.g., [29]), and is thus very sensitive to dynamical perturbations such as those coming from a stellar companion. Various studies performed by the authors of this review showed that a crucial mechanism is in this case the coupling between the gravitational pull of the companion and the drag from the still-present primordial gas disk on the planetesimals. This coupling induces a strong size-dependent phasing of planetesimal orbits which reduces impact velocities among same-sized objects [30,31] but strongly increases those between non-equally sized bodies, leading to collision velocities far above the threshold allowing mutual accretion [32,33]. For any realistic distribution of planetesimal sizes, the latter effect dominates the former, leading to a globally adverse consequence of the companion star on the accretion process. Assuming a small inclination between the binary and the circumstellar planetesimal disks tend to mitigate this effect, but at the costly price of a drastic slowing down of the growth rate [34,35]. All in all, for close-in binaries with separation ∼20 au, models show that planetesimal accretion is prevented beyond ∼0.5–1 au from each star [36,37]. This makes the in situ formation of the HD196885b, $\gamma$ Cephei b or HD41004Ab planets problematic [31,38], and also raises issues as to the potential formation of planets in the habitable zones within the $\alpha$ Centauri system (Figure 5).

Recent analytical investigations showed that, if the gas disk is massive ($M_d\ge 0.01M_{\odot }$) and nearly axisymmetric ($e_d\le 0.01$), then the disk’s self-gravity could reduce encounter velocities among planetesimals to values low enough to allow their mutual accretion [39,40,41]. However, numerical studies of gas disk dynamics in binaries showed that $e_d$ is probably never low enough (with $e_d\ge 0.03$) for this mechanism to be effective [26,42,43,44,45]. Moreover, the only preliminary numerical study that has, to this day, investigated planetesimal dynamics taking into account gas disk self gravity has found that disk gravity tends to increase impact velocities instead of reducing them [46]. More detailed investigations are required to quantitatively assess this issue.

2.2.3. Late Stages

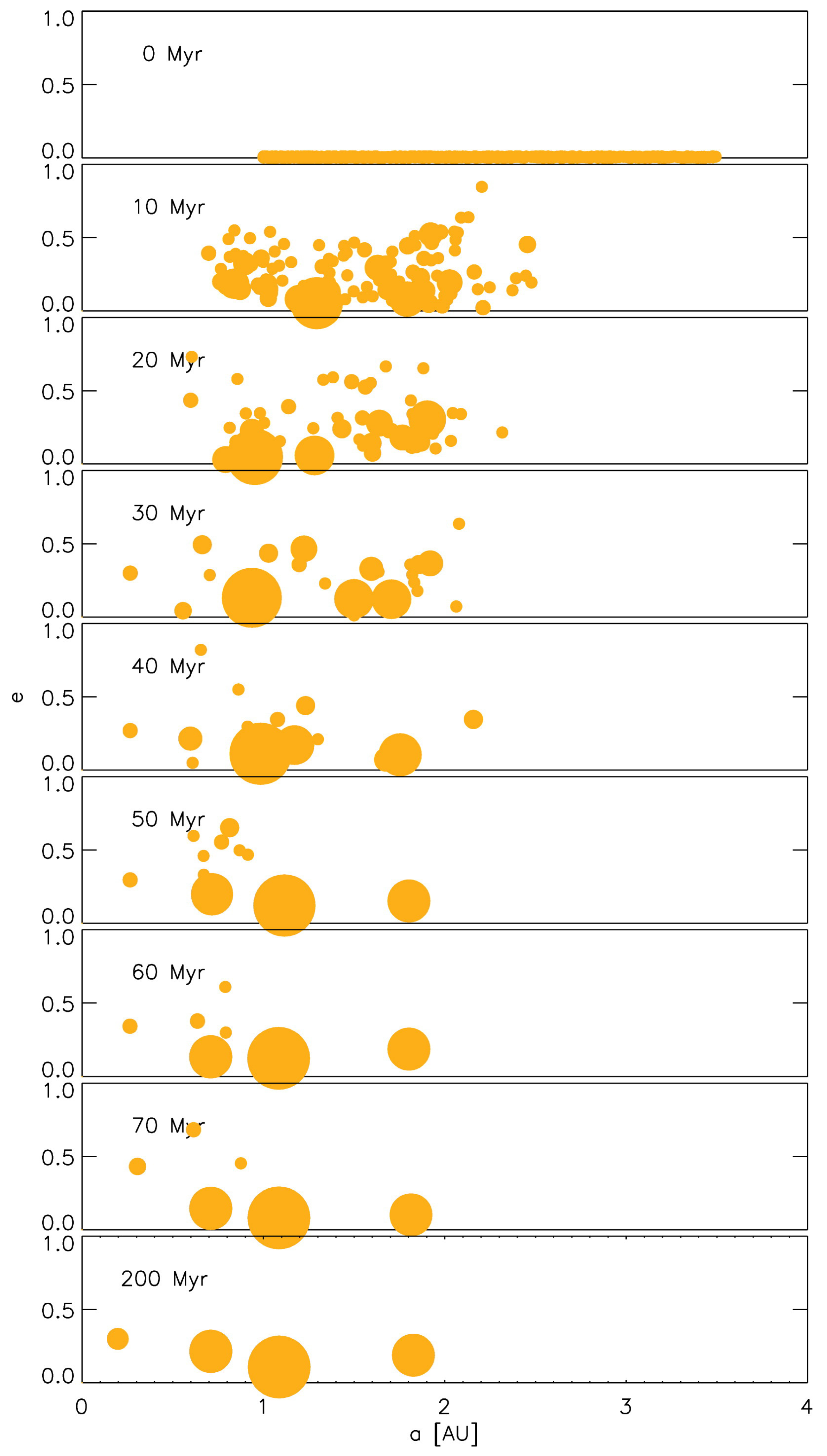

The prospects for the last stages of planet formation, leading from lunar-sized embryos to fully formed planets, look much more promising. This mainly comes down to the fact that it is much more difficult to hinder the accretion of ∼1000 km objects than that of kilometer-sized ones. The companion star perturbations would indeed have to induce impact velocities exceeding ∼1 km s${}^{-1}$ instead of a few m s${}^{-1}$. This was confirmed by several numerical studies (see Figure 6) which showed that the mutual growth of large embryos is possible in mostly all the regions of orbital stability around each star [32,47,48,49,50,51]. The one caveat is that, of course, this last stage can proceed only if the preceding stage of planetesimal accretion has been successful in forming lunar-sized embryos.

2.2.4. Alternative Scenarios?

Given the potential concerns regarding some stages of the canonical planet-formation scenario, several authors considered alternative explanations for the paradoxical presence of exoplanets in close-in binaries. One possibility is that these planets formed closer to their host star, in regions more protected from the adverse influence of the stellar companion, and later migrated outward. However, it seems that this migration is not large enough, limited to a radial displacement of ∼30%, to explain the HD196885 or $\gamma$ Cephei planets [52]. In the same family of scenarios, there is the possibility that these planets were injected in their current orbit after dynamical scattering with another planet [53]. However, this would require the presence of another, more massive but yet undetected planet closer to the central star, which might be difficult to explain given that this second planet should in principle be easier to detect than the first one. On a related note, reference [54] showed that such planet-planet scattering followed by tidal capture might transfer a planet from a circumbinary orbit (P-type) to a circumstellar one (S-type), effectively creating a tight planet-hosting binary. However, this process might only work for binary separations of less than ∼3 au.

Another possibility is that planet formation follows a different channel in a binary environment. References [55,56] for example showed that planetesimal growth might still be possible, but in a different form, in a high impact velocities environment. The basic idea is that, while mutual planetesimal collisions are destructive and produce small fragments, these produced fragments might be easily re-accreted by other planetesimals that were not destroyed by mutual impacts. These “lucky seeds” will then continue to sweep up such small dust-sized debris until they reach sizes big enough to be protected against destructive impacts with other planetesimals. However, these two studies remain very qualitative and this sweeping growth mode should be quantitatively investigated by more detailed models. Reference [57] considers a more radical alternative, which is that most planets in ≤100 au binaries are not formed by “classical” core accretion but by the concurrent gravitational instability scenario. The main argument is that binary-truncated proto-planetary disks are more compact and thus more gravitationally unstable, and also that companion perturbations could act as an additional trigger to start these instabilities. This explanation would also explain why planets in tight binaries tend to be larger than around single stars. However, this scenario does not seem to be backed by numerical models, which show that, on the contrary, the development of instabilities is hindered by the presence of a close-in companion [58,59], so that the presence of larger planets in tight binaries is probably not due to this alternative formation channel.

The last family of solutions to the planets-in-tight-binaries paradox invokes stellar interactions that could have modified the dynamical environment around the host star after the formation of the planet. Reference [60] showed that some tight planet-hosting binaries can be formed from unstable hierarchical triple systems, after the ejection of the third star shrinks the central binary, which was thus initially wider and less disruptive for planet formation. Similarly, reference [61] showed that early stellar encounters in stellar clusters also lead, on average, to a shrinking of binary separations, so that the accretion-hostile binary configuration could come about after the formation of the planet (Figure 7). More recently, reference [62] estimated that there is a limited but non-zero possibility for a planet-hosting star to be injected into a pre-existing binary after an encounter with it, ejecting the former companion star and replacing it in the binary, at a separation that is, on average, smaller than that of the initial binary.

3. Planets in P–Type Orbits: Circumbinary Planets

The number of known exoplanets on P–type orbits (circumbinary) is smaller compared to those in S-type orbits, leaving their dynamical and physical properties less constrained. Most of them (at present 10) were discovered by Kepler with the transit method while the more massive ones ($2.3M_J<m<10M_J$) were found either by eclipsing binary timing [63] around evolved stars or direct imaging. The most interesting among transiting circumbinary planets is Kepler–47, the only multi–planet system that has 3 exoplanets with masses ranging from 2 to about 43 Earth masses moving in almost circular orbits, coplanar to the binary orbital plane, stable at least over 100 Myr and with the inner and less massive planet right next to the dynamical stability limit [64]. Almost all Kepler circumbinary planets found so far orbit their stars very close to the plane of the binary in a prograde direction. This coplanarity seems to be suggested also by the statistical analysis of [65] showing that if planetary orbital inclinations were randomly distributed with respect to the binary orbital plane, then the inferred frequency of planets in circumbinary orbits should be exceptionally high compared to that around single stars. On the other hand, if coplanarity is the preferred orbital architecture, then the rate of occurrence of circumbinary planets appears to be consistent with that of single stars.

The three main features that seem to pop up from the current known population of circumbinary transiting planets are:

(1)

A lack of planets around tight binaries ($T_{bin}<7$ days) [66]

(2)

A pile–up close to the inner dynamical stability limit

(3)

Masses smaller than that of Jupiter

The last two items face the exception of Kepler-1647 [67], which is both the most massive (∼1.5 $M_J$) P-type planet and the one with the widest orbit, with a semi-major axis of 27 au well beyond the inner stability limit of the system.

The reason no P-type planet has been found around tight binaries is possibly due to the formation path of such tight binaries, which might be the outcome of the evolution of a triple system via the Kozai–Lidov mechanism followed by dynamical instability that ejected the third star (see [68] for recent modeling). As for the pile-up of planets smaller than Jupiter, it is possibly due to the formation mechanism and subsequent evolution of planets in the circumbinary disk.

3.1. Formation and Evolution of Circumbinary Planets

Several theoretical works have shown that the binary perturbations may create a hostile environment for forming a planet close to the stellar pair. Reference [69] modeled the planetesimal accretion phase in Kepler 16, the first circumbinary planet detected with Kepler, with an N-body code including the aerodynamic drag induced by an axisymmetric gaseous disk. He found that, although the size-dependent pericenter phasing of the orbits might allow planetesimal accumulation in a narrow region in between 1 and 1.8 au, the most likely region for the growth of planetary embryos lies beyond 4 au. Reference [70] improved this calculation by including, in their model, dust accretion onto planetesimals and extending the computations to the cases of Kepler-34 and Kepler-35. Their simulations confirm that planetesimal accumulation close to the central stars is strongly inhibited by the binary perturbations. An additional refinement to these N-body models was done by [71], which included the effect of the planetesimal disk self-gravity and considered an improved collisional model. Their results confirm that, in the case of Kepler-34, the inner region of the circumbinary disk is a hostile environment for planetesimal accretion even for planetesimals as large as 120 km. According to [72], the region where planetesimal accumulation is forbidden may be reduced if we consider the effects of the gravity field of the gaseous disk on the secular evolution of the planetesimals. The precession rates of the pericenters of the planetesimals are indeed faster once perturbed by a massive circumbinary disk and a strong damping of the planetesimal eccentricity is expected beyond 2–3 au from the stars, shifting inwards the location of the accretion friendly zone, even if not enough to encompass the region where the planets are currently located.

In all the previous models the effects of gas drag on planetesimals were computed assuming a fixed axisymmetric gas disk. References [73,74] relaxed this assumption and used an hybrid algorithm solving at the same time the evolution of the gaseous disk with the FARGO model [75] and the N-body equations for the planetesimals including gas drag and the gravitational pull of the disk. They find that density waves and a significant disk eccentricity strongly affect the planetesimal orbital evolution, both via a non-axisymmetric gas drag force and direct gravitational pull, leading to a higher dephasing of the pericenters and to higher mutual encounter velocities causing erosive impacts. Figure 8 shows that, for Kepler-16, the whole region within 10 au from the central binary is very hostile to planetesimal accretion due to the gravity from the eccentric gas disk. All these studies rule out the formation of a planet by core-accretion close to its present location (near the binary inner stability limit), strongly suggesting a scenario in which the planet forms further out in the disk and subsequently moves with traditional migration processes to its current orbit.

3.2. Migration Towards the Inner Hole

The pile-up of most circumbinary planets just outside the inner stability limit despite the difficulty of forming them in these highly perturbed regions suggests that they formed further out and later migrated inward by interaction with the circumbinary disk. Indeed, if a massive Jupiter-like planet forms in a circumbinary disk, it carves a gap and it drifts inward in the regime of Type II migration. At some stage of its inward drift, the planet-carved gap will reach the outer edge of the large cavity formed by tidal pull around the central binary, merging with it to form a single wide gap in which both the stellar pair and the planet are embedded [76]. The planet will then continue to migrate until it reaches the 4:1 MMR with the binary’s orbit and, at that point, either it stalls close to the MMR or it may follow different unstable paths [76]. According to [77], in most cases the planet is ejected out of the system on a hyperbolic orbit, filling the population of free floating planets, or it may impact either the secondary star (more frequently) or the primary contributing to develop a difference in star metallicity between the two due to their different amount of planet pollution. More complex is the evolution in the case of less massive planets not opening a gap in the disk. Type I migration drives them close to the stellar pair, but when they get close to the inner border of the disk hole, their final location is determined by a balance between the gravitational pull of the stars and the interaction with the disk in which they are still embedded. According to the modeling of [78,79] the main relevant parameter is then the thermal profile of the disk, which may significantly influence the last stages of evolution of these lower-mass planets as they approach the 4:1 or 5:1 MMRs. In addition, they find that, to prevent the scattering of the planet out of the system, a low density disk is required and, possibly, the present of a second planet in the system.

4. Dynamics and Stability in S-Type Orbits

The main players determining the dynamical evolution of planets orbiting in the S-type configuration are:

• The interaction with the circumstellar disk. In the early phases of evolution of the system it may significantly change the architecture of the planetary system [80].
• Mean Motion Resonances (hereinafter MMR) between the planets and between the planets and the binary companion.
• Secular perturbations and secular resonances, linear and non-linear [81,82], with the main frequencies of the system.
• The Kozai dynamics when significant mutual inclinations are present among the bodies [83].
• Planet–planet or planet–star scattering if the system becomes temporarily unstable [53].

All these mechanism may act, together or at different times, to determine the evolution of a system of planets in binaries. In particular, to determine the outer limit of stability of a planet orbit [7,84], secular and mean motion resonances are the most active players. Superposition of resonances may determine large areas of instability where planets cannot survive for a long enough time [85,86]. Secular perturbations, by increasing the average eccentricity of the planet(s) orbit, may drive them into these chaotic region caused by resonance overlap.

4.1. Secular Evolution

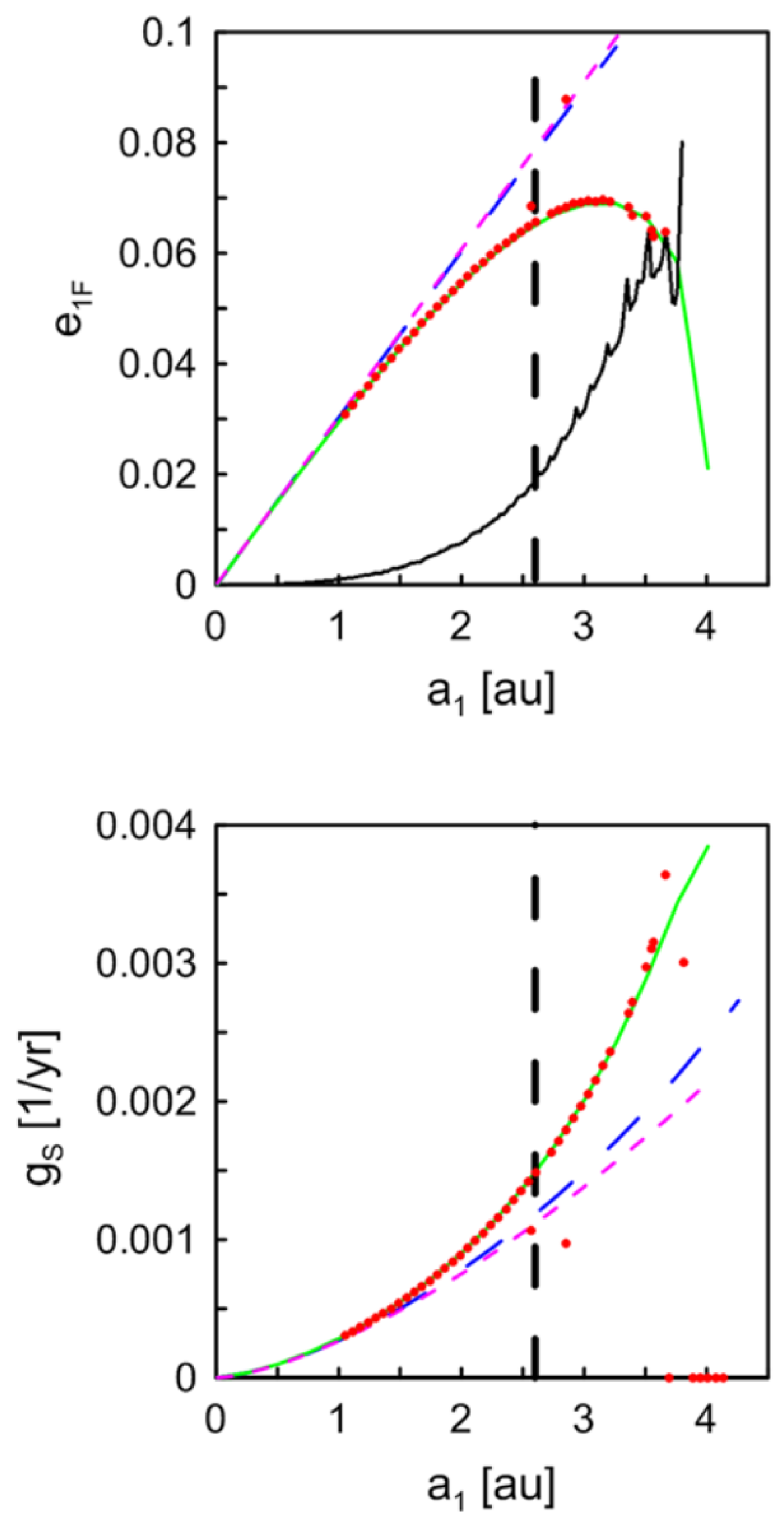

A simple model for the secular perturbations of the binary companion on the orbit of a circumstellar planet is given by [87] which derived an averaged disturbing function in the orbital elements of the planet and binary star which leads to the solution for the planet $h,k$ non-singular orbital elements of the form:

$$\frac{dh}{dt}=g_s(k-e_F),\frac{dk}{dt}=-g_{s}h$$

(1)

where $g_s$, the frequency of circulation of the pericenter longitude of the planet, is given by:

$$g_s=\frac{3}{4}\mu \frac{a_p^3}{a_b^3}\frac{n_p}{{(1-e_b^2)}^{3/2}}$$

(2)

The forced eccentricity $e_F$ is computed as:

$$e_F=\frac{5}{4}\frac{a_p}{a_b}\frac{e_b}{(1-e_b^2)}$$

(3)

with $a_p,n_p$ the semi-major axis and mean motion of the planet, $a_b,e_b$ the semi-major axis and eccentricity of the binary companion, $m_0$ the mass of the central star, $m_b$ that of the secondary and $\mu =\frac{m_0}{m_b}$ their ratio. From Equation (3) it follows that $e_F$ is proportional to $a_p$ and it increases while approaching the outer stability limit of the planet while the frequency $g_s$ also depends on the mass ratio $\mu$.

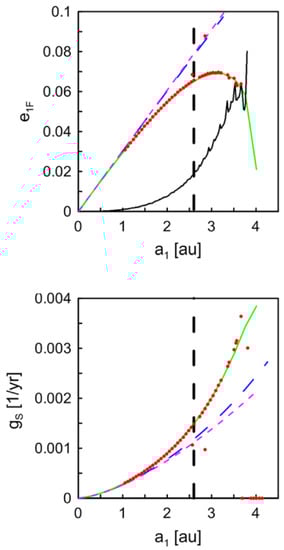

Higher order theories are needed when either the ratio $a_p/a_b$ or $e_p$, or both, are not small. Reference [88] has shown that, under these circumstances, second order theories are more accurate in computing both $e_F$ and $g_s$ close to the outer border of stability. As illustrated in Figure 9, the model of [87] in general predicts too high values of $e_F$ and slower oscillation frequencies $g_s$ respect to the outcome of a direct numerical integration while the second order analytical model follows more closely the numerical solution.

4.2. Stability Limit for One Planet

A planet in a binary system is affected both by secular and resonant perturbations which may interact and lead to instability beyond a given value of $a_p/a_b$. The threshold value of $a_p$, for a given value of $a_b$, is called the critical semi-major axis $a_c$ and it has been estimated for different values of $a_p/a_b$, $e_b$ and mass ratio $\mu$ by [7,89] via a large number of numerical simulations. The more accurate semi-empirical formula for $a_c$, given by [7], is:

$$\begin{array}{ccc}{a}_c\hfill & =& [(0.464\pm 0.006)+(-0.380\pm 0.010)\overline{\mu }\hfill \\ & & +(-0.631\pm 0.034)e_b+(0.586\pm 0.061)\overline{\mu }{e}_b\hfill \\ & & +(0.150\pm 0.041)e_b^2+(-0.198\pm 0.074)\overline{\mu }{e}_b^2]a_b,\hfill \end{array}$$

(4)

where the mass ratio is defined as $\overline{\mu }=m_b/(m_0+m_b)$. The source of instability beyond $a_c$ is related to the growth of the forced eccentricity $e_F$ due to the secular perturbations which becomes higher for larger values of $a_p/a_b$ (Equation (3)). This drives the planet into the region where mean motion resonances (MMRs) overlap leading to chaos [85]. The critical semi-major axis estimated by [7] is, however, a lower estimate. A more accurate numerical approach based on the FMA (Frequency Map Analisys, referneces [90,91,92]) by [84] has shown that:

• The value of $a_c$ computed by [7] underestimates the real stability limit and stable planetary orbits can be found beyond $a_c$.
• Some planets may be trapped in low order resonance (3:1, 5:2) with the companion star, far beyond $a_c$, and be stable over a long timescale.
• For large values of $e_b$, large unstable regions can be found within $a_c$ due to non-linear secular resonances with the binary companion.

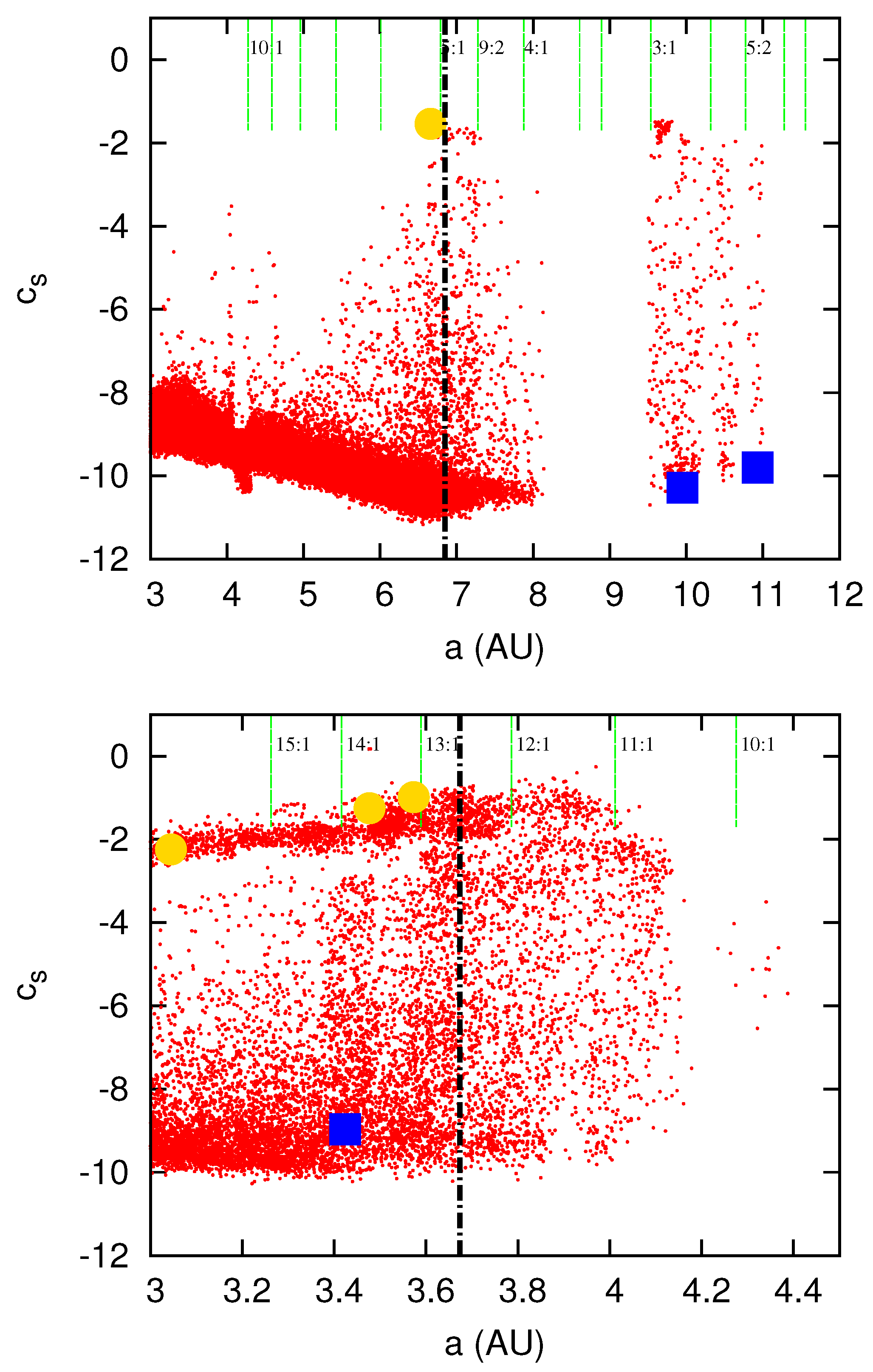

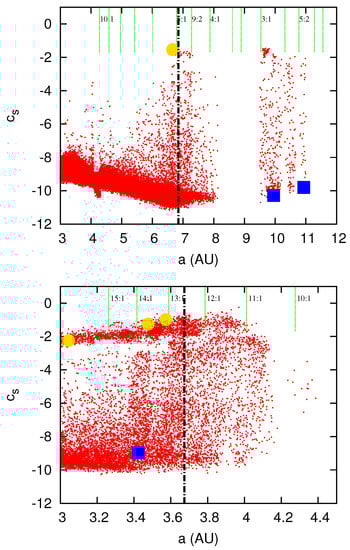

In Figure 10 this behavior is illustrated for a circular and eccentric ($e_b=0.4$) binary with a semi-major axis $a_b=25$ au. The FMA diffusion index $c_s$ is plotted for different values of the planet semi-major axis. Low values mean stability, high values suggest chaotic behavior. In both cases the stability limit exceeds that derived from [7] while unstable cases can be found within it, in particular in the eccentric case. In addition, in the circular case, some putative planets are trapped in stable mean motion resonances with the companion star well beyond the stability limit.

4.3. Stability of Multiple Planet Systems

When two or more planets are present in the system, the situation is more complex since, in addition to the resonances with the binary, mean motion and secular resonances develop among the planets that may overlap with those due to the companion star. As a consequence, we do not expect that a system of two planets in binaries to be necessarily stable if both planets orbit within $a_c$. Reference [93] studied the location of secular resonances and chaos in a system with two planets, focusing their investigation on the system HD 41004. They consider different binary configurations and test the stability of a putative inner planet perturbed also by the giant planet detected in the system. The stability of the inner planet is studied with the maximum eccentricity criterion and a semi-analytical method is outlined to determine the location of secular resonances within $a_c$ with a reduced computational load. Reference [84] has instead applied the FMA method to test the influence of a binary companion on the Hill stability limit for two giant planets orbiting within $a_c$. They found that the minimum separation between the two planets for stability is still marked by the 3:2 mean motion resonance between them but that the level of chaoticity close to this threshold is higher in a binary system. In addition, they derived a semi-empirical equation giving the minimum semi-major axis $a_b^{\prime }$ of a binary orbit compatible with a stable two-planet system orbiting the main star. This computation is different from the calculation of the critical $a_c$ for a single planet [7] since it requires that two planets are present in the system. The value of $a_b^{\prime }$ is given by:

$$a_b^{\prime }=\frac{10}{1-e_b}(1-0.54(1-{\mu }^2))·a_1$$

(5)

where $\mu =m_b/m_0$ and $a_1$ is the semi-major axis of the inner planet. This equation has a limited range of validity i.e., $e_b<0.6$, $10<a_b<100$ au, $0.1<\mu <1$ and $2<a_1<4$ au but it can be exploited to predict the presence of an additional planet when one has been already detected. It is an approximated formula based on a large number of numerical tests but it does not have an accuracy estimate due to the complexity of the numerical interpretation.

4.4. Kozai Evolution in Presence of Inclined Binaries

Planets in binaries may have their orbital plane tilted with respect to that of the binary. This may occur either because the rotation axes of the stars in the binary are misaligned at the moment of their formation [94,95,96,97] or because a dynamical mechanism like planet-planet scattering [53] has lead to large inclinations of the planets with respect to their original orbital plane (possibly the equator of the central star). In either cases, the misalignment has important dynamical consequences on the long term evolution of the planetary orbits related to the Kozai mechanism. The classical Kozai evolution is usually described by the quadrupole approximation of the Hamiltonian that, neglecting the Keplerian terms, is:

$$F_q=-\frac{e^2}{2}+co{s}^2\left(i\right)+\frac{3}{2}{e}^{2}co{s}^2\left(i\right)+\frac{5}{2}{e}^2(1-co{s}^2\left(i\right))cos\left(2\omega \right)$$

(6)

where $a,e,i,\omega$ are the orbital elements of the planet in a reference frame attached to the binary orbit. Since $F_q$ does not depend on the node $\mathsf{\Omega }$, the component of the angular momentum along z is constant and this leads to the classical conservation law:

$$J_z=\sqrt{(1-e^2)}cos\left(i\right)$$

(7)

If the initial mutual inclination between the planet and the binary companion is higher than approximately 39${}^{\circ }$ the oscillations in eccentricity, always in anti-phase with those in inclination, may become wide even if the initial eccentricity of the orbit was small. This behavior was invoked to explain the high eccentricity of the giant planet orbiting the star 16 Cygn B [98]. If the planet formed in a circular orbit but on a plane misaligned by more than 39${}^{\circ }$ with respect to that of the binary, its orbit would switch between low-eccentricity and high-eccentricity orbits. During the high eccentricity phase, a strong tidal interaction with the central star may cause an inward migration of the planet, the so-called ‘Kozai migration’ [99].

The classical formulation of the Kozai mechanism assumes that the planet is handled as a massless test particle. If the planet is massive, than the expression for $F_q$ changes but the main properties of the evolution are similar. However, if the coefficient:

$$ϵ=\frac{(a/a_b)e_b}{1-e_b^2}$$

(8)

is not negligible, in particular when the eccentricity of the binary is high, then the quadrupole approximation is not accurate and the octupole term must be considered [83,100]. Interesting behaviors appear when the octupole term is considered, in particular the planet (either as a test particle or as a massive body) may undergo flips from prograde to retrograde orbits and the large oscillations in both eccentricity and inclinations may become chaotic. The large eccentricity achieved during the oscillations may also lead the planet to impact the star, unless some mechanisms like the General Relativity periastron precession and tides suppress the eccentricity excitations.

5. Dynamics and Stability in P-Type Orbits

Circumbinary orbits are perturbed by the tidal gravity field of the stellar couple which establishes a web of MMRs close to them. This web is responsible for:

• The unstable region surrounding the two stars due to resonance overlap,
• Halting the planet migration in the early phases of the evolution of the system by trapping the planet in a stable resonance.

5.1. A Secular Theory

Reference [101] developed a secular theory for bodies orbiting around a stellar binary which leads to equations similar to those derived for S-type orbits. The non-singular variables $h,k$ are solution of the following differential equations:

$$\frac{dh}{dt}=Ak-Bcos\left({\varpi }_b\right),\frac{dk}{dt}=-Ah-Bsin\left({\varpi }_b\right)$$

(9)

where

$$\begin{array}{cc}A\hfill & =\frac{3}{4}\frac{n_b^2}{n}{\left(\frac{a_b}{a}\right)}^5\overline{\mu }(1-\overline{\mu })\left(1+\frac{3}{2}{e}_b^2\right)\hfill \end{array}$$

(10)

$$\begin{array}{cc}B\hfill & =\frac{15}{16}\frac{n_b^2}{n}{\left(\frac{a_b}{a}\right)}^6\overline{\mu }(1-\overline{\mu })(1-2\overline{\mu })\left(1+\frac{3}{4}{e}_b^2\right)e_b\hfill \end{array}$$

(11)

and $\overline{\mu }=m_b/(m_0+m_b)$. The forced eccentricity is given by:

$$e_F=\frac{B}{A}=\frac{5}{4}(1-2\nu )\frac{a_b}{a}\left(\frac{1+\frac{3}{4}{e}_b^2}{1+\frac{3}{2}{e}_b^2}\right)$$

(12)

The frequency $g_s$ of oscillation of the free eccentricity is equal to A. Contrary to the case of S-type orbits, both $e_F$ and $g_s$ increase while approaching the baricenter of the stars since both quantities are inversely proportional to the semi-major axis of the body. The increase of $e_F$ for smaller radial distances facilitates the entry into the chaotic region surrounding the two stars and due to resonance overlap.

In the initial stages of a circumbinary system, when the gaseous disk is still present, the secular evolution of the system has to include the gravity of the disk. As shown in [72], the term A in Equation (11) becomes $A+\dot{{\varpi }_d}$ where the additional term $\dot{{\varpi }_d}$ is given by:

$$\dot{{\varpi }_d}\sim -\frac{1}{4}n\frac{M_d}{M_b}{\left(\frac{r}{r_0}\right)}^{1/2}$$

(13)

assuming an initial superficial density profile for the disk:

$$\Sigma \left(r\right)\sim \frac{M_d}{4\pi r_0^2}{\left(\frac{r}{r_0}\right)}^{3/2}$$

(14)

with $M_d$ mass of the disk, $M_b$ the binary mass equal to the sum of the masses of the two stars and $r_0$ a reference radial distance. In addition, the term $Bcos\left({\varpi }_b\right)$ is no longer constant because ${\varpi }_b$ changes with time. The precession of the binary orbit forced by the disk potential is given by:

$$\dot{{\varpi }_b}\sim -\frac{1}{8}{n}_b\frac{M_d}{M_b}\left(\frac{a_b^3}{r_0^{1/2}{r}_{in}^{5/2}}\right)$$

(15)

where $r_{in}$ is approximately equal to $2a_b$, i.e., twice the binary semi-major axis. The forced eccentricity in this scenario assumes a value given by:

$$e_F=\frac{B}{A+\dot{{\varpi }_d}-\dot{{\varpi }_b}}$$

(16)

and its value depends on both ${\dot{\varpi }}_d$ and ${\dot{\varpi }}_b$ while the precession frequency becomes $g_s=A+\dot{{\varpi }_d}$, faster than in the case without the disk potential. While this correction to the secular theory is expected to be important for the planetesimal evolution, it is probably less relevant when dealing with fully formed planets since, at that evolutionary stage, the disk is significantly less massive.

5.2. The Inner Unstable Hole

Bodies orbiting a stellar pair are influenced by its tidal time-periodic gravitational potential. References [7,89,102] explored the effects of these potential on putative planets orbiting the binary proving the existence of an unstable chaotic region surrounding the two stars. Planets ending up in this region have their eccentricity pumped up and they have a close encounter with the binary. This gap surrounding the stars has been shown to form also for circumbinary disk by [103]. Following the same procedure adopted to outline the stability region for S-type orbits, [7] calculated a critical semi-major axis beyond which orbits are dynamically stable. It can be computed as:

$$\begin{array}{ccc}{a}_c\hfill & =& [(1.60\pm 0.04)+(5.10\pm 0.05)e_b+(-2.22\pm 0.11)e_B^2\hfill \\ & & +(4.12\pm 0.09)\overline{\mu }+(-4.27\pm 0.017)e_B\overline{\mu }\hfill \\ & & +(-5.09\pm 0.11){\overline{\mu }}^2+(4.61\pm 0.36)e_B^2{\overline{\mu }}^2]a_b,\hfill \end{array}$$

(17)

As stated above, the mechanism responsible for the dynamical instability within $a_c$ is the resonance overlap of MMRs with the binary while the forced eccentricity $e_F$ (Equation (12)) favors the entry into the chaotic region. If multiple planets are present in the system, the behavior is also influenced by mutual secular perturbations, in addition to those with the binary, and mutual MMRs. In this scenario General Relativity is not expected to be relevant since the planets orbit always far enough from the star. Beyond the critical value of $a_c$ there may be islands of instability, in particular for high value of $e_b$, due to mean motion resonances [77].

Reference [104] has shown that the Kozai evolution is not important in this scenario, at least for planets with masses smaller than 5 $M_J$ and a binary mass ratio $\mu >0.1$. The stellar binary system is not significantly affected by the perturbations of the outer body in this case.

6. Perspectives

An important step towards a better understanding of the formation and evolution of planets in binaries is to enrich the sample of known planets, in particular for the circumbinary ones. At present, only a dozen of them are known and it is still not clear if some of their properties, like the pile-up at the inner edge of the stable region or the overall low mass, are real characteristics due to the perturbations of the binary or if they are due to under-sampling and bias. As for planets on S-type orbits, what is crucially needed is a large-scale survey that is both unbiased against binaries and target stars that are close enough for their potential multiplicity to be well established beforehand. Another potentially interesting survey would be one specifically targeting a statistically significant sample of all the nearest binaries.

Another important issue that requires a significant observational effort concerns the orientation of the binary orbit with respect to the equator of the main star and the potential misalignment of the planetary orbit. The early study by [94] pointed toward a transition from alignment to misalignment around 30–40 au of separation, but updated observational investigations, as well as theoretical works, are now clearly needed. Locating the transition from alignment to misalignment may help the interpretation of the dynamical features of planets in binaries and, in particular, give an estimate of the importance of the Kozai mechanism in sculpting planetary systems in binaries.

From a theoretical point of view, additional work is needed on one important stage of the planet-formation scenario that has so far barely been investigated in the context of binaries, that is the coagulation of the first condensed grains into to kilometer-sized planetesimals. The pioneering work by [58] has for instance shown that the heat generated by spiral shock waves might inhibit dust coagulation in $>50$ au binaries. In addition, 3-D simulations by [105] showed that strong hydraulic jumps occur at the shock front of spiral waves which are expected to affect the vertical distribution of dust particles and their accretion process by different merging mechanisms (collisional or instability driven accumulation, dust traps etc., see [106] for a review). The presence of spirals will not only affect the timescale and initial size distribution of planetesimals but also the following stages of the core-accretion process like the fast pebble accumulation of planetary cores [107] which is expected to accelerate the growth of giant planets.

Regarding the stage that has so far proven to be the most sensitive to binary perturbations, i.e., the mutual accretion of planetesimals into Lunar-sized embryos, a crucial step forward would be the development of a numerical model coupling the dynamics of planetesimals and of the gas disk, and taking into account both the gas drag and the effect of the disk’s self gravity. This would allow quantitatively assessing the respective importance of the concurring accretion-favoring and accretion-inhibiting effects triggered by the response of the gas disk to binary perturbations.
