Imaging Assessment of Interval Metastasis from Melanoma

Radiology Division, Istituto Nazionale Tumori-IRCCS-Fondazione G. Pascale, 80131 Napoli, Italy
Radiology Division, “ASL Napoli II Nord”, 33939 Naples, Italy
Medical Oncology Division, Igea SpA, 80013 Napoli, Italy
Italian Society of Medical and Interventional Radiology (SIRM), SIRM Foundation, 20122 Milan, Italy
Melanoma, Cancer Immunotherapy and Development Therapeutics Unit, Istituto Nazionale Tumori-IRCCS-Fondazione G. Pascale, 80131 Naples, Italy
Radiology Division, Ospedale Fatebenefratelli, 80123 Naples, Italy
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
J. Pers. Med. 2022, 12(7), 1033;
Submission received: 31 May 2022 / Revised: 22 June 2022 / Accepted: 23 June 2022 / Published: 24 June 2022
(This article belongs to the Special Issue Imaging Biomarkers in Oncology)


Interval metastasis is a particular metastatic category of metastatic localizations in the lymph nodes in patients with melanoma. Interval nodes are generally located at nonregional lymphatic stations placed along the pathway of the spread of melanoma, such as the epitrochlear lymph node station, the popliteal fossa, and the retroareolar station. Imaging techniques for evaluation of patients with interval metastasis from melanoma diseases include ultrasound (US), computed tomography (CT), magnetic resonance imaging (MRI), lymphoscintigraphy (LS), and positron emission tomography (PET). A literature review was conducted through a methodical search on the Pubmed and Embase databases. The evaluation of lymph node metastases represents a critical phase in the staging and follow-up of melanoma patients. Therefore, a thorough knowledge of the imaging methods available and the interactions between the clinician and the radiologist are essential for making the correct choice for individual patients, for a better management, and to improve treatment and survival.

1. Introduction

Melanoma accounts for approximately 1% of all skin cancers diagnosed, with a global number of new cases in 2020 of 324,635 and a death toll of 57,043. The highest incidence is in Europe (150,627—46.4%), followed by Northern America (105,172—32.4%) and Asia (23,753—7.3%), with death rates in Europe of 26,360 (46.2%), in Asia of 11,986 (21%) and in Northern America of 8412 (14.7%) [1].
Although melanoma represents only a minority of all skin cancers, this tumor type causes the majority of skin-cancer-related deaths worldwide [1]. In this scenario, an early diagnosis and accurate treatment should improve outcomes and survival [1]. However, today, there are still a significant number of patients who present with or later develop loco-regional or distant recurrence [1]. These patients require ongoing management, and for them, an accurate risk assessment remains an open but critical and key question [1].
Current melanoma treatments include multidisciplinary approaches that involve surgery, chemotherapy, and radiotherapy. Nevertheless, with the exception of those with early-stage disease, patients typically have poor prognoses. Consequently, the need for new treatments has arisen. Immunotherapies and targeted therapies have appeared as promising treatments in trials and in clinical settings [1]. Furthermore, combination therapies are starting to be administered, with favorable outcomes in terms of safety and efficacy [1].
Immunotherapy is based on a complicated process that includes multiple phases, during which there is a stimulation of the immune system. Consequently, a number of immune cells are transferred to the cancer site with the increase in tumor size and/or growth of new lesions [1].
The staging of melanoma is based on clinical and pathological data described by the staging system of the American Joint Committee on Cancer (AJCC) [1,2]. According to this model, routine imaging is not generally recommended in patients with lower risk (stage I and II) when specific signs or symptoms are absent. However, for clinically node-negative patients, an accurate evaluation of regional lymph nodes should be obtained by employing lymphoscintigraphy (LS) and sentinel lymph node biopsy (SLNB), which remain the gold standards of regional lymph node staging [1,2]. With regard to lymph node assessments with ultrasound (US), this tool shows an overall sensitivity of only 24% for the detection of metastases in SLNs mapped on pre-operative LS [3]. This low rate is due to the inability to detect micrometastases. Several studies have shown that the sensitivity improved with increased cross-sectional area (CSA) of lesion deposits, with a significantly better value when the tumor size exceeded 4.5 mm in diameter [3]. So, pre-surgical US cannot replace SN biopsy in the evaluation of regional lymph nodes [3].
A particular category of lymph nodal metastases is interval or intermediate metastasis, which is characterized by the involvement of non-regional lymphatic stations placed along the pathway of the spread of melanoma, such as the epitrochlear lymph node station, the popliteal fossa, and the retroareolar station [4,5,6,7,8]. The incidence of intermediate metastases in melanoma patients ranges from 3.1% to 7.8%, and, in several patients, these types of lesions could be the only metastatic side [4,7,9,10]. Evidence suggests that the presence of intermediate nodal metastases may represent a negative prognostic feature, since it is associated with an increase in the recurrence and mortality rate [4]. Intermediate metastases should be differentiated from in-transit and satellite metastases, which are both subtypes of superficial metastases. Indeed, metastatic localizations are defined as being “in transit” if they are localized more than 2 cm from the primary melanoma, while they are defined as “satellites” if they are at a distance of less of 2 cm [11]. Our purpose is to report on a comprehensive review of the radiological literature on current radiological data with recent evidence regarding the imaging characteristics and localizations of intermediate metastases.

2. Methods

This overview and update is the result of an autonomous study without a protocol or registration number.

2.1. Search Criteria

Several electronic datasets were searched: PubMed (US National Library of Medicine, Bethesda, MD, USA, (accessed on 1 May 2022)), Scopus (Elsevier, Alpharetta, GA, USA, (accessed on 1 May 2022)), Web of Science (Thomson Reuters, Toronto, ON, Canada, (accessed on 1 May 2022)), and Google Scholar ( (accessed on 1 May 2022)). The following search criteria were used: “Melanoma”, “intermediate metastases”, “US”, “CT”, “PET-CT”, and “MRI”.
The search covered the years from January 1995 to April 2022. Moreover, the reference lists of the papers found were assessed for papers that were not indexed in the electronic databases. All titles and abstracts were analyzed. The inclusion criteria were clinical studies (e.g., retrospective analyses, case series, prospective cohort studies) evaluating the imaging tools in the assessment of intermediate metastases. Articles published in the English language from January 1995 to April 2022 were included. The exclusion criteria were different topics, unavailability of the full text, insufficient data, or letters to editors.

2.2. Results

The search strategy resulted in 6 studies (5 for lymphoscintigraphy and 1 for US and intraoperative lymphoscintigraphy), comprising 18,022 patients, which were further analyzed.
The tumor locations were as follows: epitrochlear lymph node (148), popliteal area (27), peri-umbilical area (10), occipital and postauricular/mastoid areas (12), lateral axillary nodes (3), central axillary nodes (3), triangular inter-muscular space (5), flank (4), peri-areolar area (2), over the deltoid muscle (1), bicipital sulcus (1), cubital nodes (1), subscapular node (1), internal mammary lymph node (2), and aberrant lymph nodes (5). The details of the results are shown in Table 1.

2.3. Assessment and Imaging in a Clinical Setting

The localization of intermediate metastases is mainly based on the site of the primary melanoma. In fact, specific drainage patterns have been reported on the basis of the primary lesion [4,12]. For melanomas of the upper extremities, particularly of the ulnar side, the epitrochlear lymph node stations are the typical localizations of intermediate metastases [4,12]. For melanomas of the lower extremities, particularly of the lateral aspect of the heel, the popliteal fossa is a typical site of intermediate metastases [4,12]. For melanomas of the trunk, the triangular intermuscular space and other subcutaneous sites in the back and flank are the most common sites of metastatic localizations, while melanomas on the lateral chest wall are generally drained at the axillary stations [4,12].
Scalp melanomas commonly drain to the occipital or post-auricular/mastoid areas [4,12].
Imaging techniques for the evaluation of patients with melanoma diseases include high-resolution US, computed tomography (CT), magnetic resonance imaging (MRI), and positron emission tomography (PET) [1,10,11,12].

2.4. Ultrasound Assessment

Ultrasound is the first choice for the evaluation, staging, and follow-up of patients with melanoma, as it is a non-invasive and inexpensive imaging method, and it shows more sensitivity and specificity than physical examinations [10,13,14,15,16].
In fact, US evaluation allows the detection of metastases that are localized deeper in soft tissues and that are impalpable in clinical examinations [15,16]. Moreover, US can show smaller metastases, which are not well assessed by CT examinations [17].
Sonographic evaluations should be performed with a high-resolution multifrequency linear probe (>7.5 MHz); it would be advisable to have two linear probes with a range of different frequencies available to better evaluate areas of different depths [14,18]. The high frequencies allow the study of superficial areas, while the low frequencies allow the evaluation of deeper lesions (especially in obese patients) and bulky nodal masses [14]. Furthermore, color and power Doppler imaging is essential for the evaluation of intralesional vascular flow; in particular, power Doppler imaging is more sensitive in the evaluation of slower flows [14]. In this regard, the detection of a flow signal when evaluating in-transit nodules is indicative of their solid nature [14,15].
Instead, regarding the use of real-time elastography, some studies have reported the usefulness of this method in the differentiation between reactive and malignant lymph nodes in malignant cutaneous melanoma [19,20]. This examination method involves the exploration of a skin area of at least 10 cm in width around the primary lesion and, subsequently, along the course of the lymph vessels up to the locoregional lymph node station [14].
Sonographic evaluation of the lymph node station should include analysis of the number, the size, the shape, the borders, the internal echo texture, and the hilar structure and distribution [21,22,23].
Regarding the size, lymph nodal measurement should be calculated in two planes to report the maximum diameter and the respective perpendicular diameter (longitudinal and transverse diameters). Regarding the longitudinal diameter, some older studies considered its being greater than 2 or 3 cm as a criterion for suspicion [14,24,25]. Regarding the shape of the lymph node, it should be considered suspicious when it is oval and uniform (Figure 1), and even more suspicious when it is round (Figure 2), while it should not be considered suspicious when it is elongated [14,17,26]. The evaluation of the shape, moreover, should always be integrated with the calculation of the ratio between the longitudinal and transverse diameters (L/T) [14,17,27]. According to some authors, it can be considered suspicious if the L/T ratio is less than 2, while according to other authors, the L/T ratio is suspect when it is less than 1.5 [14,26,27,28]. However, other authors reported that this single criterion is not sufficient for the definition of lymph node malignancy, and it should always be combined with other findings [14].
The borders, instead, may be sharp or irregular [29,30]. Generally, sharp margins are indicative of a reactive lymphadenopathy, while irregular margins are indicative of a metastatic localization; however, this evaluation alone does not allow an adequate differentiation [29,30].
Regarding the evaluation of the internal echostructure, a typical finding is that a metastatic lymph node has a markedly and diffusely hypoechoic echo texture (Figure 1, Figure 2 and Figure 3) [14]. However, some authors considered the importance of the examination of cortical morphological abnormalities, as they may indicate an early stage of lymph node metastasis, possibly preceding the other typical features [14]. In this regard, it is well known that cancer cells transmitted by lymphatic vessels reach and grow first within the cortex and then in the rest of the lymph node [31]. Consequently, cortical thickening, which can be circumferential (symmetric), unilateral (asymmetric), or focal (possibly nodular), may representant an early finding [31]. Unilateral cortical thickening should be considered much more suspicious than circumferential thickening, while nodular thickening should be clearly interpreted as metastatic [31]. Nodular thickening, also called a “nodule within the node”, can be isoechoic or hypoechoic to the rest of the cortex; in both cases, it indicates a metastatic localization [14,31]. Moreover, another suspicious cortical abnormality may be a focal bulging or protuberance [31].
Regarding color and power Doppler sonography evaluation, in metastatic lymph nodes, the hilar region, which is normally centrally localized, may be dislocated or small in size, and may even disappear (Figure 2) [32].
Other vascular signal features to be evaluated include intensity, origin, and distribution [21].
The intensity can be increased in metastatic lymph nodes; however, this finding is not very specific, as it can also be present in benign lymph nodes [21].
The origin is typically hilar in benign lymph nodes, with monopolar vascularity; in malignant lymph nodes, multiple vessels can penetrate the lymph node through the capsule [32,33,34].
The distribution is generally homogeneous in benign lymph nodes, while it is inhomogeneous or anarchic in malignant lymph nodes [14,33,35].
Therefore, the combination of US findings, such as round or oval morphology, markedly hypoechoic structure, focal or nodular and asymmetric cortical thickening, and hilum loss or dislocation with anarchic distribution of the vascular signal, regardless of size, is virtually diagnostic of metastasis [14,28,34,35,36,37,38,39,40,41].

2.5. Assessment with Other Imaging Techniques (CT, MRI, PET)

Regarding the use of different imaging techniques for intermediate melanoma metastases, each method has advantages and disadvantages [42,43,44].
CT is currently the most widely used imaging technique for melanoma staging and follow-up [13,45,46,47,48,49,50,51]. PET allows a functional study, as well as a whole-body evaluation, in a single scan [13,45,46].
In CT evaluation, there are no features that reliably indicate metastatic lymph node involvement. The only reliable morphological feature is the size; in fact, an increase in nodal size compared to the previous examination is generally indicative of malignancy [13,45,46].
MRI shows superior accuracy, sensitivity, and specificity to those of CT when detecting lymph nodes ranging in size from 1 to 5 mm, without using ionizing radiation [52,53,54,55,56,57,58].
A metanalysis assessed the roles of four imaging methods (US, TC, PET, and PET–CT) in the staging and follow-up of melanoma patients, and it showed that ultrasonography had the highest sensitivity (60%, 95% CrI = 33% to 83%), specificity (97%, 95% CrI = 88% to 99%), and diagnostic odds ratio (42, 95% CrI = 8.08 to 249.8). For staging of distant metastases, PET–CT had the highest sensitivity (80%, 95% CrI = 53% to 93%), specificity (87%, 95% CrI = 54% to 97%), and diagnostic odds ratio (25, 95% CrI = 3.58 to 198.7). Similar trends were observed for the surveillance of involvement of lymph nodes in melanoma, with ultrasonography having the highest sensitivity (96%, 95% CrI = 85% to 99%), specificity (99%, 95% CrI = 95% to 100%), and diagnostic odds ratio (1675, 95% CrI = 226.6 to 15,920). For distant metastases, PET–CT had the highest sensitivity (86%, 95% CrI = 76% to 93%), specificity (91%, 95% CrI = 79% to 97%), and diagnostic odds ratio (67, 95% CrI = 20.42 to 229.7). Positive predictive values were likewise the highest for ultrasonography in lymph node staging and for PET–CT in detecting distant metastases [59].

3. Discussion and Conclusions

The evaluation of lymph node metastases represents a fundamental point in the staging and follow-up of melanoma. In fact, detection of interval metastases has a crucial role in the management of patients with melanoma, as it has a negative prognostic role associated with an increase in the recurrence and mortality rates [4]. In the case of a negative lymph node biopsy, the patient is staged at level I or II [13]. Instead, a positive lymph node biopsy is indicative of clinical stage III disease and requires baseline imaging to detect the possibility of clinically occult stage IV disease [13].
The usefulness of imaging studies in patients with melanoma generally depends on the stage of the disease. In patients with early-stage disease, surgery is often curative, and, generally, the most commonly used preoperative imaging methods for the evaluation of regional nodal drainage, as well as potential alternative or unpredictable nodal drainage basins, are ultrasound and/or lymphoscintigraphy [13].
In patients with stage III and IV disease, the imaging techniques performed are a contrast-enhanced whole-body CT scan or PET–CT [13]. However, superficial lymph node stations, i.e., the intermediate and in-transit stations, are difficult to detect with CT and MRI, which is mainly due to their small size, while they are more easily detectable in clinical examinations and with US [13].
Therefore, a thorough knowledge of the imaging methods available and the interactions between the clinician and the radiologist are essential for making the correct choices for individual patients, for better management, and to improve treatment and survival [60,61,62,63].
Although US is non-invasive, it involves costs and sophisticated machines. In addition, a high expertise of the physician is mandatory to recognize the normal structures of the lymph nodes draining the lesion. The first sign of metastasis in an SN is habitually identified in the sub-capsular sinus at the point of entry of the afferent lymphatic that drains the primary melanoma. An early metastasis in the sub-capsular sinus is an elongated tumor cell aggregate. Several lesions with a low CSA are not detectable when utilizing the existing technologies. However, in these situations, it is possible to evaluate indirect signs of metastasis, such as an increase in the vascular signal. This feature can be detected by using color Doppler sonography, although other pathological conditions could cause an increase in blood flow in this site. However, US is more sensitive and specific than physical evaluation, and, with respect to other diagnostic tools, such as CT or PET–CT, it is superior for detecting lymph node metastases during surveillance.
Regarding differential diagnoses, many conditions can be associated with the presence of a nodular image within soft tissues, including normal or abnormal vessels, dense scars, and nodal and extra-nodal diseases [34,64,65,66]. Nodal causes include acute lymphadenitis (e.g., cat scratch disease), tubercular lymphadenitis, sarcoidosis-related lymphadenitis, lymphomas, and metastatic lymphadenopathies (especially from melanomas, but also from other cutaneous and non-cutaneous cancers) [34,64,65,67]. Extra-nodal causes include cysts, fluid collections (seromas, hematomas, and lymphoceles), abscesses, tumors (nerve tumors, fibromas, hemangiomas, lipomas, and Merkel cell tumors), cutaneous and subcutaneous hematogenous metastases, and Kimura’s disease [22,32,34,64,65,67,68,69,70,71,72,73].
However, the combination of the patient’s history information with features of B-mode and color/power Doppler US usually allows an adequate differential diagnosis [14,22,34].
In conclusion, a thorough knowledge of the main localizations, findings, and imaging methods for intermediate metastases is necessary for better management and to improve the treatment and survival of patients with melanoma.

Author Contributions

All authors contributed equally at each part of manuscript. All authors have read and agreed to the published version of the manuscript.


Founding by the Ministry of Health—Current Research 2022.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available at (accessed on 1 May 2022).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef]
  2. Amin, M.B.; Greene, F.L.; Edge, S.B.; Compton, C.C.; Gershenwald, J.E.; Brookland, R.K.; Meyer, L.; Gress, D.M.; Byrd, D.R.; Winchester, D.P. The Eighth Edition AJCC Cancer Staging Manual: Continuing to build a bridge from a population-based to a more “personalized” approach to cancer staging. CA Cancer J. Clin. 2017, 67, 93–99. [Google Scholar] [CrossRef] [PubMed]
  3. Sanki, A.; Uren, R.F.; Moncrieff, M.; Tran, K.L.; Scolyer, R.A.; Lin, H.Y.; Thompson, J.F. Targeted high-resolution ultrasound is not an effective substitute for sentinel lymph node biopsy in patients with primary cutaneous melanoma. J. Clin. Oncol. 2009, 27, 5614–5619. [Google Scholar] [CrossRef] [PubMed]
  4. Mcmasters, K.M.; Chao, C.; Wong, S.L.; Wrightson, W.R.; Ross, M.I.; Reintgen, D.S.; Noyes, R.D.; Cerrito, P.B. Interval Sentinel Lymph Nodes in Melanoma. Arch. Surg. 2020, 137, 543–549. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Hunt, J.A.; Thompson, J.F.; Uren, R.F.; Howman-Giles, R.; Harman, C.R. Epitrochlear lymph nodes as a site of melanoma metastasis. Ann. Surg. Oncol. 1998, 5, 248–252. [Google Scholar] [CrossRef]
  6. Ishihara, T.; Kageshita, T.; Matsushita, S.; Ono, T. Investigation of sentinel lymph nodes of the axillary and cubital regions in upper-extremity malignant skin tumors: A series of 15 patients. Int. J. Clin. Oncol. 2003, 8, 297–300. [Google Scholar] [CrossRef]
  7. Uren, R.F.; Howman-Giles, R.; Thompson, J.F.; McCarthy, W.H.; Quinn, M.J.; Roberts, J.M.; Shaw, H.M. Interval nodes: The forgotten sentinel nodes in patients with melanoma. Arch. Surg. 2000, 135, 1168–1172. [Google Scholar] [CrossRef] [Green Version]
  8. Balch, C.M.; Buzaid, A.C.; Soong, S.J.; Atkins, M.B.; Cascinelli, N.; Coit, D.G.; Fleming, I.D.; Gershenwald, J.E.; Houghton, A.J.; Kirkwood, J.M.; et al. Final version of the American Joint Committee on Cancer staging system for cutaneous melanoma. J. Clin. Oncol. 2001, 19, 3635–3648. [Google Scholar] [CrossRef]
  9. Roozendaal, G.K.; De Vries, J.D.H.; Van Poll, D.; Jansen, L.; Schraffordt Koops, H.; Nieweg, O.E.; Kroon, B.B.R. Sentinel nodes outside lymph node basins in patients with melanoma. Br. J. Surg. 2001, 88, 305–308. [Google Scholar] [CrossRef]
  10. Thelmo, M.C.; Morita, E.T.; Treseler, P.A.; Nguyen, L.H.; Allen, R.E.; Sagebiel, R.W.; Kashani-sabet, M.; Leong, S.P.L. Micrometastasis to In-Transit Lymph Nodes From Extremity and Truncal Malignant Melanoma. Ann. Surg. Oncol. 2001, 8, 444–448. [Google Scholar] [CrossRef]
  11. Exhibit, S.; Nunziata, A.; Catalano, O.; Sandomenico, F.; Saturnino, P.P. The tail sign and the string sign: A new sonography (US) finding in patients with superficial melanoma metastasis. In Proceedings of the European Congress of Radiology-ECR 2012, Vienna, Austria, 1–5 March 2012; pp. 1–26. [Google Scholar]
  12. Uren, R.F.; Howman-Giles, R.B.; Thompson, J.F.; Shaw, H.M.; McCarthy, W.H. Lymphatic drainage from peri-umbilical skin to internal mammary nodes. Clin. Nucl. Med. 1995, 20, 254–255. [Google Scholar] [CrossRef] [PubMed]
  13. Patnana, M.; Bronstein, Y.; Szklaruk, J.; Bedi, D.G.; Hwu, W.; Gershenwald, J.E.; Prieto, V.G.; Ng, C.S. Multimethod imaging, staging, and spectrum of manifestations of metastatic melanoma. Clin. Radiol. 2011, 66, 224–236. [Google Scholar] [CrossRef] [PubMed]
  14. Catalano, O.; Setola, S.V.; Vallone, P.; Raso, M.M.; D’Errico, A.G. Sonography for locoregional staging and follow-up of cutaneous melanoma: How we do it. J. Ultrasound Med. 2010, 29, 791–802. [Google Scholar] [CrossRef] [PubMed]
  15. Nijhuis, A.; Chung, D.; London, K.; Uren, R. Ultrasound Examination of the Lymphatic Drainage Area and Regional Lymph Nodes in Melanoma Patients with In-Transit Metastases. Ann. Surg. Oncol. 2021, 28, 1625–1631. [Google Scholar] [CrossRef]
  16. Lomoro, P.; Simonetti, I.; Nanni, A.L.; Corsani, G.; Togni, G.; Fichera, V.; Verde, F.; Formica, M.; Trovato, P.; Vallone, G.; et al. Imaging of head and neck lipoblastoma: Case report and systematic review. J. Ultrasound 2021, 24, 231–239. [Google Scholar] [CrossRef] [PubMed]
  17. Testori, A.; Ribero, S.; Bataille, V. Diagnosis and treatment of in-transit melanoma metastases. Eur. J. Surg. Oncol. 2017, 43, 544–560. [Google Scholar] [CrossRef] [PubMed]
  18. Voit, C.; Mayer, T.; Kr, M.; Schoengen, A.; Sterry, W.; Weber, L.; Proebstle, T.M. Efficacy of ultrasound B-scan compared with physical examination in follow-up of melanoma patients. Cancer 2001, 91, 2409–2416. [Google Scholar] [CrossRef]
  19. Uematsu, T.; Kasami, M.; Kiyohara, Y. B-Mode Ultrasound Imaging, Doppler Imaging, and Real-Time Elastography in Cutaneous Malignant Melanoma and Lymph Node Metastases. Healthcare 2013, 1, 84–95. [Google Scholar] [CrossRef] [Green Version]
  20. Ogata, D.; Uematsu, T.; Yoshikawa, S. Accuracy of real-time ultrasound elastography in the differential diagnosis of lymph nodes in cutaneous malignant melanoma (CMM): A pilot study. Int. J. Clin. Oncol. 2013, 19, 716–721. [Google Scholar] [CrossRef]
  21. Catalano, O.; Nunziata, A.; Siani, A. Fundamentals in Oncologic Ultrasound: Sonographic Imaging and Intervention in the Cancer Patient; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2009; ISBN 9788847013544. [Google Scholar]
  22. Shirakawa, T.; Miyamoto, Y.; Yamagishi, J.; Fukuda, K.; Tada, S. Color/power Doppler sonographic differential diagnosis of superficial lymphadenopathy: Metastasis, malignant lymphoma, and benign process. J. Ultrasound Med. 2001, 20, 525–532. [Google Scholar] [CrossRef]
  23. Catalano, O.; Nunziata, A.; Saturnino, P.P.; Siani, A. Epitrochlear lymph nodes: Anatomy, clinical aspects, and sonography features. Pictorial essay. J. Ultrasound 2010, 13, 168–174. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Rossi, C.R.; Seno, A.; Vecchiato, A.; Foletto, M.; Tregnaghi, A.; De Candia, A.; Rubaltelli, L.; Montesco, C.; Lise, M. The impact of ultrasound scanning in the staging and follow-up of patients with clinical stage I cutaneous melanoma. Eur. J. Cancer Part A 1997, 33, 200–203. [Google Scholar] [CrossRef]
  25. Brountzos, E.N.; Panagiotou, I.E.; Bafaloukos, D.I.; Kelekis, D.A. Ultrasonographic detection of regional lymph node metastases in patients with intermediate or thick malignant melanoma. Oncol. Rep. 2003, 10, 505–510. [Google Scholar] [CrossRef] [PubMed]
  26. Kunte, C.; Schuh, T.; Eberle, J.Y.; Baumert, J.; Konz, B.; Volkenandt, M.; Ruzicka, T.; Schmid-Wendtner, M.H. The use of high-resolution ultrasonography for preoperative detection of metastases in sentinel lymph nodes of patients with cutaneous melanoma. Dermatol. Surg. 2009, 35, 1757–1765. [Google Scholar] [CrossRef]
  27. Testori, A.; Lazzaro, G.; Baldini, F.; Tosti, G.; Mosconi, M.; Lovati, E.; Bossi, C.; Sanvito, S.; Stanganelli, I.; Mazzarol, G.; et al. The role of ultrasound of sentinel nodes in the pre- and post-operative evaluation of stage I melanoma patients. Melanoma Res. 2005, 15, 191–198. [Google Scholar] [CrossRef]
  28. Schmid-Wendtner, M.H.; Dill-Müller, D.; Baumert, J.; Wagner, A.; Eberle, J.; Tilgen, W.; Plewig, G. Lymph node metastases in patients with cutaneous melanoma: Improvements in diagnosis by signal-enhanced color Doppler sonography. Melanoma Res. 2004, 14, 269–276. [Google Scholar] [CrossRef]
  29. Schmid-Wendtner, M.H.; Burgdorf, W. Ultrasound scanning in dermatology. Arch. Dermatol. 2005, 141, 217–224. [Google Scholar] [CrossRef]
  30. Tregnaghi, A.; De Candia, A.; Calderone, M.; Cellini, L.; Rossi, C.R.; Talenti, E.; Blandamura, S.; Borsato, S.; Muzzio, P.C.; Rubaltelli, L. Ultrasonographic evaluation of superficial lymph node metastases in melanoma. Eur. J. Radiol. 1997, 24, 216–221. [Google Scholar] [CrossRef]
  31. Bedi, D.G.; Krishnamurthy, R.; Krishnamurthy, S.; Edeiken, B.S.; Le-Petross, H.; Fornage, B.D.; Bassett, R.L.; Hunt, K.K. Cortical morphologic features of axillary lymph nodes as a predictor of metastasis in breast cancer: In vitro sonographic study. Am. J. Roentgenol. 2008, 191, 646–652. [Google Scholar] [CrossRef]
  32. Schäfer-Hesterberg, G.; Schoengen, A.; Sterry, W.; Voit, C. Use of ultrasound to early identify, diagnose and localize metastases in melanoma patients. Expert Rev. Anticancer Ther. 2007, 7, 1707–1716. [Google Scholar] [CrossRef]
  33. Catalano, O.; Siani, A. Cutaneous Melanoma: Role of Ultrasound in the Assessment of Locoregional Spread. Curr. Probl. Diagn. Radiol. 2010, 39, 30–36. [Google Scholar] [CrossRef] [PubMed]
  34. Pow, S.Y.; Teo, M. Unusual presentation of primary cutaneous melanoma of the forearm with epitrochlear and axillary lymphadenopathy. BMJ Case Rep. 2018, 2018, bcr2017222518. [Google Scholar] [CrossRef] [PubMed]
  35. Blum, A.; Schlagenhauff, B.; Stroebel, W.; Breuninger, H.; Rassner, G.; Garbe, C. Ultrasound examination of regional lymph nodes significantly improves early detection of locoregional metastases during the follow-up of patients with cutaneous melanoma: Results of a prospective study of 1288 patients. Cancer 2000, 88, 2534–2539. [Google Scholar] [CrossRef]
  36. Hussein, M.A.M.; Cafarelli, F.P.; Paparella, M.T.; Rennie, W.J.; Guglielmi, G. Phosphaturic mesenchymal tumors: Radiological aspects and suggested imaging pathway. Radiol. Med. 2021, 126, 1609–1618. [Google Scholar] [CrossRef]
  37. Soyer Güldoğan, E.; Ergun, O.; Taşkın Türkmenoğlu, T.; Yılmaz, K.B.; Akdağ, T.; Özbal Güneş, S.; Durmaz, H.A.; Hekimoğlu, B. The impact of TI-RADS in detecting thyroid malignancies: A prospective study. Radiol. Med. 2021, 126, 1335–1344. [Google Scholar] [CrossRef]
  38. Celletti, I.; Fresilli, D.; De Vito, C.; Bononi, M.; Cardaccio, S.; Cozzolino, A.; Durante, C.; Grani, G.; Grimaldi, G.; Isidori, A.M.; et al. TIRADS, SRE and SWE in INDETERMINATE thyroid nodule characterization: Which has better diagnostic performance? Radiol. Med. 2021, 126, 1189–1200. [Google Scholar] [CrossRef]
  39. Lomoro, P.; Simonetti, I.; Vinci, G.; Fichera, V.; Prevedoni Gorone, M.S. Pancake kidney, a rare and often misdiagnosed malformation: A case report and radiological differential diagnosis. J. Ultrasound 2019, 22, 207–213. [Google Scholar] [CrossRef]
  40. Sandomenico, F.; Corvino, A.; Setola, S.V.; Simonetti, I.; Porcaro, M.; Trovato, P.; Catalano, O.; Petrillo, A. Post-amputation neuroma of radial nerve in a patient with ephitelioid sarcoma: Case report and literature review. Acta Biomed. 2020, 91, 122–127. [Google Scholar] [CrossRef]
  41. De Muzio, F.; Cutolo, C.; Aversana, F.D.; Grassi, F.; Ravo, L.; Ferrante, M.; Danti, G.; Flammia, F.; Simonetti, I.; Palumbo, P.; et al. Complications after Thermal Ablation of Hepatocellular Carcinoma and Liver Metastases: Imaging Findings. Diagnostics 2022, 12, 1151. [Google Scholar] [CrossRef]
  42. Fusco, R.; Sansone, M.; Granata, V.; Setola, S.V.; Petrillo, A. A systematic review on multiparametric MR imaging in prostate cancer detection. Infect. Agents Cancer 2017, 12, 57. [Google Scholar] [CrossRef] [Green Version]
  43. Granata, V.; Fusco, R.; de Lutio di Castelguidone, E.; Avallone, A.; Palaia, R.; Delrio, P.; Tatangelo, F.; Botti, G.; Grassi, R.; Izzo, F.; et al. Diagnostic performance of gadoxetic acid-enhanced liver MRI versus multidetector CT in the assessment of colorectal liver metastases compared to hepatic resection. BMC Gastroenterol. 2019, 19, 129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Granata, V.; Fusco, R.; Filice, S.; Catalano, O.; Piccirillo, M.; Palaia, R.; Izzo, F.; Petrillo, A. The current role and future prospectives of functional parameters by diffusion weighted imaging in the assessment of histologic grade of HCC. Infect. Agents Cancer 2018, 13, 23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Mao, Y.; Hedgire, S.; Harisinghani, M. Radiologic Assessment of Lymph Nodes in Oncologic Patients. Curr. Radiol. Rep. 2014, 2, 36. [Google Scholar] [CrossRef] [Green Version]
  46. Finkelstein, S.E.; Carrasquillo, J.A.; Hoffman, J.M.; Galen, B.; Choyke, P.; White, D.E.; Rosenberg, S.A.; Sherry, R.M. A prospective analysis of positron emission tomography and conventional imaging for detection of stage IV metastatic melanoma in patients undergoing metastasectomy. Ann. Surg. Oncol. 2004, 11, 731–738. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Granata, V.; Fusco, R.; Setola, S.V.; Piccirillo, M.; Leongito, M.; Palaia, R.; Granata, F.; Lastoria, S.; Izzo, F.; Petrillo, A. Early radiological assessment of locally advanced pancreatic cancer treated with electrochemotherapy. World J. Gastroenterol. 2017, 23, 4767–4778. [Google Scholar] [CrossRef] [PubMed]
  48. Granata, V.; Petrillo, M.; Fusco, R.; Setola, S.V.; De Lutio Di Castelguidone, E.; Catalano, O.; Piccirillo, M.; Albino, V.; Izzo, F.; Petrillo, A. Surveillance of HCC patients after liver RFA: Role of MRI with hepatospecific contrast versus three-phase CT scan—Experience of high volume oncologic institute. Gastroenterol. Res. Pract. 2013, 2013, 469097. [Google Scholar] [CrossRef] [PubMed]
  49. Cicero, G.; Mazziotti, S.; Silipigni, S.; Blandino, A.; Cantisani, V.; Pergolizzi, S.; D’Angelo, T.; Stagno, A.; Maimone, S.; Squadrito, G.; et al. Dual-energy CT quantification of fractional extracellular space in cirrhotic patients: Comparison between early and delayed equilibrium phases and correlation with oesophageal varices. Radiol. Med. 2021, 126, 761–767. [Google Scholar] [CrossRef]
  50. Cellini, F.; Di Franco, R.; Manfrida, S.; Borzillo, V.; Maranzano, E.; Pergolizzi, S.; Morganti, A.G.; Fusco, V.; Deodato, F.; Santarelli, M.; et al. Palliative Radiotherapy Indications during the COVID-19 Pandemic and in Future Complex Logistic Settings: The NORMALITY Model; Springer: Milan, Italy, 2021; Volume 126, ISBN 0123456789. [Google Scholar]
  51. Danti, G.; Flammia, F.; Matteuzzi, B.; Cozzi, D.; Berti, V.; Grazzini, G.; Pradella, S.; Recchia, L.; Brunese, L.; Miele, V. Gastrointestinal neuroendocrine neoplasms (GI-NENs): Hot topics in morphological, functional, and prognostic imaging. La Radiol. Med. 2021, 126, 1497–1507. [Google Scholar] [CrossRef]
  52. Saokar, A.; Islam, T.; Jantsch, M.; Saksena, M.A.; Hahn, P.F.; Harisinghani, M.G. Detection of lymph nodes in pelvic malignancies with computed tomography and magnetic resonance imaging. Clin. Imaging 2010, 34, 361–366. [Google Scholar] [CrossRef]
  53. Simonetti, I.; Sandomenico, F.; Rocco, M.P.; Fusco, R.; Setola, S.V.; Granata, V.; Iasevoli, D.M.; Ascierto, P.A.; Grassi, R.; Petrillo, A. Metastatic endo and perineural involvement of the ulnar nerve from malignant melanoma: Ultrasound (US) and magnetic resonance imaging (MRI) findings. Eur. Rev. Med. Pharmacol. Sci. 2021, 25, 3478–3482. [Google Scholar] [CrossRef]
  54. Fusco, R.; Petrillo, M.; Granata, V.; Filice, S.; Sansone, M.; Catalano, O.; Petrillo, A. Magnetic resonance imaging evaluation in neoadjuvant therapy of locally advanced rectal cancer: A systematic review. Radiol. Oncol. 2017, 51, 252–262. [Google Scholar] [CrossRef] [PubMed]
  55. Petrillo, A.; Fusco, R.; Petrillo, M.; Granata, V.; Delrio, P.; Bianco, F.; Pecori, B.; Botti, G.; Tatangelo, F.; Caracò, C.; et al. Standardized Index of Shape (DCE-MRI) and Standardized Uptake Value (PET/CT): Two quantitative approaches to discriminate chemo-radiotherapy locally advanced rectal cancer responders under a functional profile. Oncotarget 2017, 8, 8143–8153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Avallone, A.; Pecori, B.; Bianco, F.; Aloj, L.; Tatangelo, F.; Romano, C.; Granata, V.; Marone, P.; Leone, A.; Botti, G.; et al. Critical role of bevacizumab scheduling in combination with presurgical chemo-radiotherapy in MRI-defined high-risk locally advanced rectal cancer: Results of the branch trial. Oncotarget 2015, 6, 30394–30407. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Granata, V.; Fusco, R.; Avallone, A.; Filice, F.; Tatangelo, F.; Piccirillo, M.; Grassi, R.; Izzo, F.; Petrillo, A. Critical analysis of the major and ancillary imaging features of LI-RADS on 127 proven HCCs evaluated with functional and morphological MRI: Lights and shadows. Oncotarget 2017, 8, 51224–51237. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Ossola, C.; Curti, M.; Calvi, M.; Tack, S.; Mazzoni, S.; Genesio, L.; Venturini, M.; Genovese, E.A. Role of ultrasound and magnetic resonance imaging in the prognosis and classification of muscle injuries in professional football players: Correlation between imaging and return to sport time. Radiol. Med. 2021, 126, 1460–1467. [Google Scholar] [CrossRef] [PubMed]
  59. Xing, Y.; Bronstein, Y.; Ross, M.I.; Askew, R.L.; Lee, J.E.; Gershenwald, J.E.; Royal, R.; Cormier, J.N. Contemporary diagnostic imaging modalities for the staging and surveillance of melanoma patients: A meta-analysis. J. Natl. Cancer Inst. 2011, 103, 129–142. [Google Scholar] [CrossRef] [Green Version]
  60. Billé, A.; Pelosi, E.; Skanjeti, A.; Arena, V.; Errico, L.; Borasio, P.; Mancini, M.; Ardissone, F. Preoperative intrathoracic lymph node staging in patients with non-small-cell lung cancer: Accuracy of integrated positron emission tomography and computed tomography. Eur. J. Cardiothorac. Surg. 2009, 36, 440–445. [Google Scholar] [CrossRef] [Green Version]
  61. Bimonte, S.; Leongito, M.; Barbieri, A.; Del Vecchio, V.; Barbieri, M.; Albino, V.; Piccirillo, M.; Amore, A.; Di Giacomo, R.; Nasto, A.; et al. Inhibitory effect of (-)-epigallocatechin-3-gallate and bleomycin on human pancreatic cancer MiaPaca-2 cell growth. Infect. Agents Cancer 2015, 10, 22. [Google Scholar] [CrossRef]
  62. Granata, V.; Fusco, R.; Catalano, O.; Piccirillo, M.; De Bellis, M.; Izzo, F.; Petrillo, A. Percutaneous ablation therapy of hepatocellular carcinoma with irreversible electroporation: MRI findings. Am. J. Roentgenol. 2015, 204, 1000–1007. [Google Scholar] [CrossRef]
  63. Giurazza, F.; Contegiacomo, A.; Calandri, M.; Mosconi, C.; Modestino, F.; Corvino, F.; Scrofani, A.R.; Marra, P.; Coniglio, G.; Failla, G.; et al. IVC filter retrieval: A multicenter proposal of two score systems to predict application of complex technique and procedural outcome. Radiol. Med. 2021, 126, 1007–1016. [Google Scholar] [CrossRef]
  64. Chen, H.; Thompson, L.D.R.; Aguilera, N.S.I.; Abbondanzo, S.L. Kimura Disease: A Clinicopathologic Study of 21 Cases. Am. J. Surg. Pathol. 2004, 28, 505–513. [Google Scholar] [CrossRef] [PubMed]
  65. Seth, V.; Kabra, S.K.; Jain, Y.; Semwal, O.P.; Mukhopadhyaya, S.; Jensen, R.L. Tubercular lymphadenitis: Clinical manifestations. Indian J. Pediatr. 1995, 62, 565–570. [Google Scholar] [CrossRef] [PubMed]
  66. Trovato, P.; Simonetti, I.; Verde, F.; Lomoro, P.; Vinci, G.; Tarotto, L.; Corvino, F.; Corvino, A. Acute epiploic appendagitis: Ultrasound and computed tomography findings of a rare case of acute abdominal pain and the role of other imaging techniques. Pol. J. Radiol. 2020, 85, e178–e182. [Google Scholar] [CrossRef] [PubMed]
  67. Nazarian, L.N.; Alexander, A.A.; Rawool, N.M.; Kurtz, A.B.; Maguire, H.C.; Mastrangelo, M.J. Malignant melanoma: Impact of superficial US on management. Radiology 1996, 199, 273–277. [Google Scholar] [CrossRef]
  68. Lomoro, P.; Simonetti, I.; Nanni, A.; Cassone, R.; Di Pietto, F.; Vinci, G.; Prevedoni, M.S.; Romano, S.; Sammarchi, L. Extrapelvic Sciatic Nerve Endometriosis, the Role of Magnetic Resonance Imaging: Case Report and Systematic Review. J. Comput. Assist. Tomogr. 2019, 43, 976–980. [Google Scholar] [CrossRef]
  69. Qin, H.; Que, Q.; Lin, P.; Li, X.; Wang, X.R.; He, Y.; Chen, J.Q.; Yang, H. Magnetic resonance imaging (MRI) radiomics of papillary thyroid cancer (PTC): A comparison of predictive performance of multiple classifiers modeling to identify cervical lymph node metastases before surgery. Radiol. Med. 2021, 126, 1312–1327. [Google Scholar] [CrossRef]
  70. Assadsangabi, R.; Babaei, R.; Songco, C.; Ivanovic, V.; Bobinski, M.; Chen, Y.J.; Nabavizadeh, S.A. Multimodality oncologic evaluation of superficial neck and facial lymph nodes. Radiol. Med. 2021, 126, 1074–1084. [Google Scholar] [CrossRef]
  71. Benedetti, G.; Mori, M.; Panzeri, M.M.; Barbera, M.; Palumbo, D.; Sini, C.; Muffatti, F.; Andreasi, V.; Steidler, S.; Doglioni, C.; et al. CT-derived radiomic features to discriminate histologic characteristics of pancreatic neuroendocrine tumors. Radiol. Med. 2021, 126, 745–760. [Google Scholar] [CrossRef]
  72. Pozzessere, C.; Boudiaf, M.; Cirigliano, A.; Dohan, A.; Mazzei, M.A.; Barat, M.; Volterrani, L.; Soyer, P. MR-enterography: Role in the assessment of suspected anastomotic recurrence of Crohn disease after ileocolic resection. Radiol. Med. 2022, 127, 238–250. [Google Scholar] [CrossRef]
  73. Cozzi, D.; Bindi, A.; Cavigli, E.; Grosso, A.M.; Luvarà, S.; Morelli, N.; Moroni, C.; Piperio, R.; Miele, V.; Bartolucci, M. Exogenous lipoid pneumonia: When radiologist makes the difference. Radiol. Med. 2021, 126, 22–28. [Google Scholar] [CrossRef]

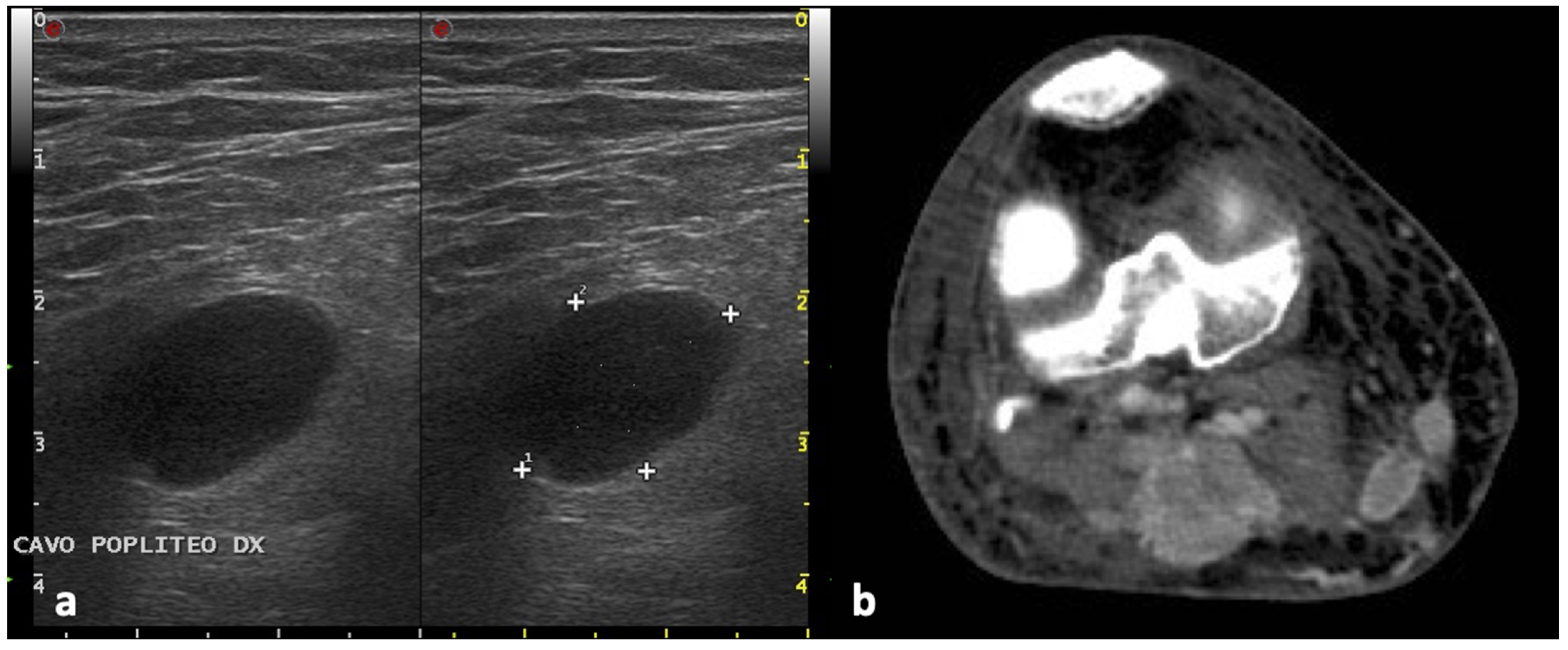

Figure 1. Lymphadenopathy of the right popliteal fossa from cutaneous melanoma of the calf. The B-Mode US scan (a) shows an oval, heterogeneous, predominantly hypoechoic lymph node with sharp margins. The contrast-enhanced CT axial-scan image (b) demonstrates a partially necrotic lymphadenopathy with peripheral enhancement.
Figure 1. Lymphadenopathy of the right popliteal fossa from cutaneous melanoma of the calf. The B-Mode US scan (a) shows an oval, heterogeneous, predominantly hypoechoic lymph node with sharp margins. The contrast-enhanced CT axial-scan image (b) demonstrates a partially necrotic lymphadenopathy with peripheral enhancement.
Jpm 12 01033 g001

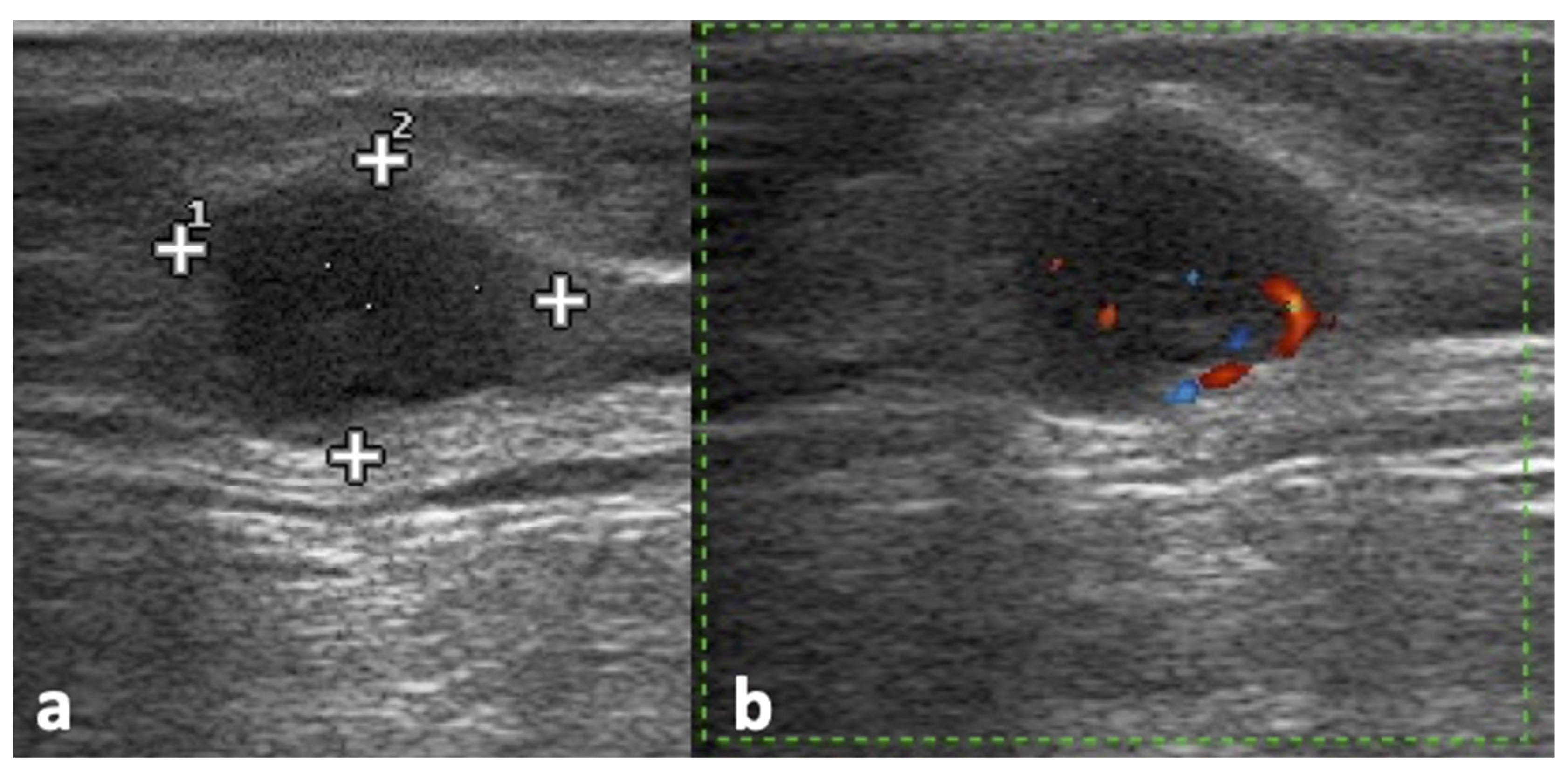

Figure 2. Left subscapular lymphadenopathy representing the recurrence of a cutaneous melanoma on the trunk. The B-Mode US scan (a) shows an oval, markedly hypoechoic, inhomogeneous lymph node with irregular borders. The color Doppler scan (b) shows prevalent peripheral flow signals.
Figure 2. Left subscapular lymphadenopathy representing the recurrence of a cutaneous melanoma on the trunk. The B-Mode US scan (a) shows an oval, markedly hypoechoic, inhomogeneous lymph node with irregular borders. The color Doppler scan (b) shows prevalent peripheral flow signals.
Jpm 12 01033 g002

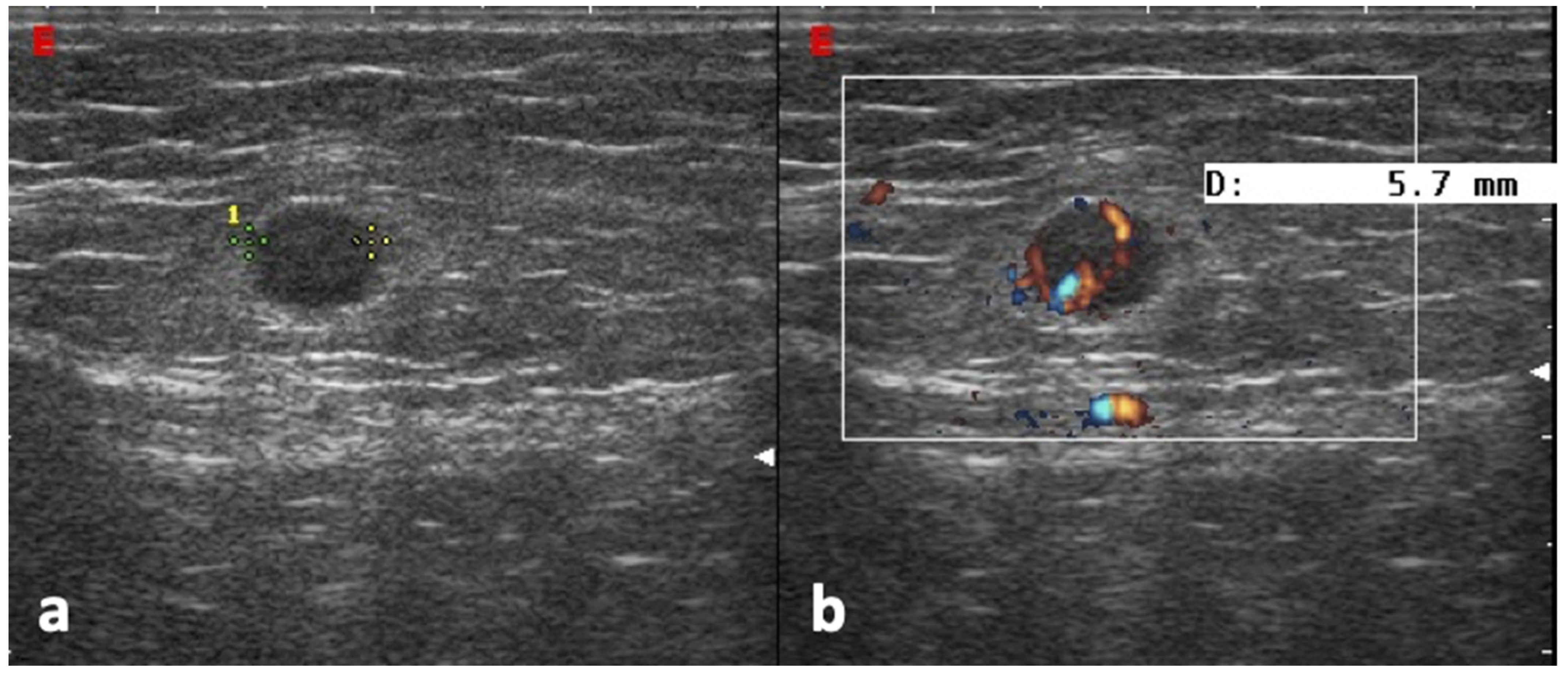

Figure 3. Epitrochlear lymphadenopathy from cutaneous melanoma of the elbow. The B-Mode US scan (a) shows a round, hypoechoic, and heterogeneous lymph node with irregular borders. The color Doppler scan (b) shows an intense and anarchic vascularity.
Figure 3. Epitrochlear lymphadenopathy from cutaneous melanoma of the elbow. The B-Mode US scan (a) shows a round, hypoechoic, and heterogeneous lymph node with irregular borders. The color Doppler scan (b) shows an intense and anarchic vascularity.
Jpm 12 01033 g003
Table 1. Assessed studies: number of patients; tumor locations; SNL locations.
Table 1. Assessed studies: number of patients; tumor locations; SNL locations.
Uren et al. [12]Hunt et al. [5]Uren et al. [7]Roozendaal et al. [9]Ishihara et al. [6]Mcmasters et al. [4]
Number of Patients45013,139204537992000
Tumor location
head and neck 30435 219
trunk 905133 901
lower extremities 451 457
leg or foot 153
upper extremities 385 423
arm 58
upper arm 2
forearm/elbow 700 1
hand 102 1
fingers 5
SLN location 148
epitrochlear lymph node 10 2 15
popliteal area 3 8
peri-umbilical area10
occipital and postauricular/mastoid areas 12
lateral axillary nodes 3
central axillary nodes 3
triangular inter-muscular space 5
flank 4
peri-areolar area 2
over the deltoid muscle 1
bicipital sulcus 1
cubital nodes 1
subscapular node 1
internal mammary lymph node2
aberrant lymph nodes 41
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Simonetti, I.; Trovato, P.; Granata, V.; Picone, C.; Fusco, R.; Setola, S.V.; Mattace Raso, M.; Caracò, C.; Ascierto, P.A.; Sandomenico, F.; et al. Imaging Assessment of Interval Metastasis from Melanoma. J. Pers. Med. 2022, 12, 1033.

AMA Style

Simonetti I, Trovato P, Granata V, Picone C, Fusco R, Setola SV, Mattace Raso M, Caracò C, Ascierto PA, Sandomenico F, et al. Imaging Assessment of Interval Metastasis from Melanoma. Journal of Personalized Medicine. 2022; 12(7):1033.

Chicago/Turabian Style

Simonetti, Igino, Piero Trovato, Vincenza Granata, Carmine Picone, Roberta Fusco, Sergio Venanzio Setola, Mauro Mattace Raso, Corrado Caracò, Paolo A. Ascierto, Fabio Sandomenico, and et al. 2022. "Imaging Assessment of Interval Metastasis from Melanoma" Journal of Personalized Medicine 12, no. 7: 1033.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
