Dynamics and Predictors of Cognitive Impairment along the Disease Course in Multiple Sclerosis

Center of Neuroimmunology, Laboratory of Advanced Imaging in Neuroimmunological Diseases, Hospital Clinic Barcelona, Institut d’Investigacions Biomediques August Pi i Sunyer (IDIBAPS) and Universitat de Barcelona, 08036 Barcelona, Spain
Imaging of Mood- and Anxiety-Related Disorders (IMARD) Group, IDIBAPS and CIBERSAM, 08036 Barcelona, Spain
Centre for Psychiatry Research, Department of Clinical Neuroscience, Karolinska Institutet, Solna, 171 77 Stockholm, Sweden
Early Psychosis: Interventions and Clinical-Detection (EPIC) Laboratory, Department of Psychosis Studies, Institute of Psychiatry, Psychology and Neuroscience, King’s College London, London WC2R 2LS, UK
Multiple Sclerosis Unit, Neurology Department, Hospital Universitari de Bellvitge, IDIBELL, 08907 Barcelona, Spain
Neurology Department: Hospital del Mar Medical Research Institute (IMIM), 08003 Barcelona, Spain
Authors to whom correspondence should be addressed.
These authors share co-senior authorship.
J. Pers. Med. 2021, 11(11), 1107;
Received: 30 September 2021 / Revised: 22 October 2021 / Accepted: 26 October 2021 / Published: 28 October 2021
(This article belongs to the Special Issue Personalized Diagnosis and Therapy for Multiple Sclerosis)


(1) Background: The evolution and predictors of cognitive impairment (CI) in multiple sclerosis (MS) are poorly understood. We aimed to define the temporal dynamics of cognition throughout the disease course and identify clinical and neuroimaging measures that predict CI. (2) Methods: This paper features a longitudinal study with 212 patients who underwent several cognitive examinations at different time points. Dynamics of cognition were assessed using mixed-effects linear spline models. Machine learning techniques were used to identify which baseline demographic, clinical, and neuroimaging measures best predicted CI. (3) Results: In the first 5 years of MS, we detected an increase in the z-scores of global cognition, verbal memory, and information processing speed, which was followed by a decline in global cognition and memory (p < 0.05) between years 5 and 15. From 15 to 30 years of disease onset, cognitive decline continued, affecting global cognition and verbal memory. The baseline measures that best predicted CI were education, disease severity, lesion burden, and hippocampus and anterior cingulate cortex volume. (4) Conclusions: In MS, cognition deteriorates 5 years after disease onset, declining steadily over the next 25 years and more markedly affecting verbal memory. Education, disease severity, lesion burden, and volume of limbic structures predict future CI and may be helpful when identifying at-risk patients.

1. Introduction

Multiple sclerosis (MS) is a chronic inflammatory demyelinating disease of the central nervous system that entails physical and cognitive impairment (CI). The latter has been reported in 40–70% of people with MS and it has a severe impact on the individual’s quality of life [1,2]. CI can be detected in the early phases of MS, but it is more frequent as overall disability accrues [3]. The pattern of cognitive decline predominantly affects information processing speed (IPS) and episodic memory, although executive functions, semantic fluency, and visuospatial analysis may also be altered [4,5]. However, how this deterioration evolves and affects different cognitive domains as the disease progresses is still to be determined.
A few longitudinal studies have investigated the association between clinical and imaging features of MS with cognitive decline, suggesting a predictive value of baseline cognitive status [5], baseline IPS [6], education, and aging [7]. Using different magnetic resonance imaging (MRI) techniques, a relationship has been demonstrated between CI and the combined effect of white matter (WM) and gray matter (GM) damage [8]. In addition, identifying neurodegeneration in specific and cognitively relevant GM regions may help to more accurately predict CI.
Characterizing the natural course of cognitive performance in MS, and identifying predictors of CI, are still distant milestones in clinical MS research. Therefore, in this study, we first describe the temporal dynamics of global cognition and cognitive domains using mixed-effects models, which allowed us to obtain model estimates of specific parameters and to control for between- and within-subject variability. Subsequently, we investigated the baseline demographic, clinical, and MRI measures that best predicted the CI using machine learning (ML) techniques. These issues were addressed in an appropriately large cohort of MS patients with a wide range of disease duration.

2. Materials and Methods

2.1. Participants, Clinical, and Cognitive Assessment

For this longitudinal study, we collected data from a prospective cohort recruited at the MS Unit of the Hospital Clinic of Barcelona from January 2011 to February 2020 [9,10]. The criteria for inclusion in this study were aged between 18 and 65 years, and having at least two clinical and cognitive assessments, with MRI scans available at the first evaluation. Patients did not present any relapse or received any corticosteroid treatment in the last 30 days of the study visit. As such, 212 MS patients fulfilled the inclusion criteria and were analyzed. We collected data regarding sex, age, educational level, disease duration, disease type, the number of relapses before study inclusion, the use of disease-modifying therapies (DMTs), and their global disability evaluated with the Expanded Disability Status Scale (EDSS) [11]. The Ethics Committee at the Hospital Clinic of Barcelona approved the study, and all the participants provided their signed informed consent prior to their enrolment.
At each visit, the participants underwent a neuropsychological evaluation using the Rao’s battery [12], with alternate versions when available. Raw values were transformed into z-scores by adjusting for age and education according to the Spanish normative data, and they were grouped in terms of global cognition and for each cognitive domain (verbal and visual memory, attention-IPS, and semantic fluency) [13]. Failure in any test was considered when z-score was below −1.5 standard deviation (SD) of the norm. CI in a given cognitive domain was defined as a failure in at least one test assessing that domain, and global CI was defined as an impairment in at least two cognitive tests evaluating the same or different cognitive domains.

2.2. Magnetic Resonance Imaging (MRI)

2.2.1. MRI Acquisition and Processing

Baseline MRI were acquired on a 3 Tesla Magnetom Trio (SIEMENS, Erlanger, Germany) scanner using a 32-channel phased-array head coil, as described previously [10]. Two different acquisition protocols were used, involving a 3D-Magnetization Prepared Rapid Acquisition Gradient Echo (MPRAGE) and 3D-T2 fluid attenuated inversion recovery (FLAIR) sequence (see Supplementary Material).

2.2.2. Structural MRI Processing for Volumetric Analysis

WM lesions were defined semi-automatically into the 3D-MPRAGE space with the registered 3D-FLAIR image as a reference to improve lesion identification using the Jim7 Software ( Lesion in-painting was applied to the 3D-MPRAGE image to enhance segmentation and registration. GM regions were parcellated using the Mindboggle software (, applying the Desikan–Killiany Tourville cortical labeling atlas, and the automated subcortical segmentation was achieved with the FSL-FIRST package (, resulting in 31 cortical and 7 subcortical labels per hemisphere [14,15]. The volumetric measurements were analyzed using the SIENAX [16] scaling factor to reduce the head-size variability.
We removed interscan variability between the different acquisition protocols using the ComBat function in the R software [17,18].

2.3. Statistical Analysis

All baseline demographic, clinical, and neuroimaging data were described through the median and interquartile range (IQR) or the mean (±SD) for quantitative variables as appropriate as well as through the absolute numbers and the proportions of the qualitative variables. The normal distribution of the data was checked by histograms inspection and using the Shapiro–Wilks test.
We used mixed-effects linear regression to model the dynamics of cognition throughout the course of MS. Models adjusted for age at MS onset, educational level, and sex were used to fit the rates of global cognitive performance and of each cognitive domain using disease duration as a main fixed-effect predictor. In addition, we used linear spline models with the same variables as in the mixed-effects regressions to divide the duration of the disease into three periods. Using visual inspection of the raw data together with prior evidence [19] and the Akaike Information Criterion [20], we selected knots at 5 and 15 years of disease duration to model our data. These models provided three parameters, beta coefficients, for the change in cognition relative to disease duration.
We used ML techniques to identify which baseline demographic, clinical, and MRI measures best serve as predictors of CI. A priori, potential predictor variables were sex, educational level (basic, primary, secondary, or higher), disease duration, disease type, EDSS score, use of DMTs (yes or no), number of relapses before study inclusion, lesion volume, and 76 cortical and subcortical regional volumes [15]. Multiple imputation was employed to handle missing data: we used multiple regression to find the variable distribution and we replaced the missing value by taking a random value from the distribution found. Logistic Lasso regressions were performed to predict the global cognitive status (preserved or impaired, see above). The effect of age was removed from the anatomical brain features, although we included age as a predictor variable in the Lasso model. Lasso regressions automatically select a small number of baseline measures, avoiding overfitting. To validate the performance of the ML models, we used a 10-fold cross-validation method, splitting the overall sample into training and test datasets. We created the imputation algorithms and Lasso regressions using the training datasets alone, while we assessed the performance of the predictions in the independent test datasets. Due to the use of multiple imputation and folds, we created several ML models. We selected the most representative model as the one with the highest overlaps (Dice coefficient) with the other models in the selection of the baseline measures. The same procedure was used for each specific cognitive domain.
All the analyses were performed using the R statistical software (version 3.6.0,, and the statistical significance was set at p < 0.05.

3. Results

A cohort of 212 MS patients who performed a median of three clinical visits per patient (range, 2–5; total assessments = 605) with a median follow-up time of 2.1 years (range 0.9–7.9 years) were included in this study. In terms of the baseline characteristics (Table 1), the patients were mostly female (68%), middle aged-adults (41 ± 9.47 years), with a relapsing-remitting MS (83%) and with a median disease duration of 8.2 years (range, 0.1–29.0).
One hundred and eleven patients (52%) were receiving DMTs at baseline, and from them, 94 patients (85%) used moderate-efficacy DMTs (Table S1).
At the latest follow-up, 77 patients (36%) had global CI, 58 patients (27%) had verbal memory impairment, 51 patients (24%) had visual memory impairment, 38 patients (18%) had attention-IPS impairment, and 41 patients (20%) had semantic fluency impairment.

3.1. Cognitive Trajectory throughout Disease Course

According to the linear mixed-effects models, there was an annual cognitive decline that affected verbal memory, visual memory, and semantic fluency (Figure 1A, Figure 1B, and Table S2). A trend was found in global cognition (p = 0.058), and no significant model was found for attention-IPS (p = 0.345).
When we divided the duration of the disease into three periods, we detected distinct cognitive slopes for each stage (Figure 1C,D and in Table S3). The initial period extended over the first 5 years of the disease, during which an increase in cognition was evident. In the second period, covering 5–15 years of the disease and the third phase, 15–30 years, the cognitive decline in the participants became increasingly accentuated. In the first 5 years of MS, we detected an enhancement in global cognition (β = 0.080 (95% CI, 0.04 to 0.12) z-score/year; p = <0.001), verbal memory (β = 0.083 (95% CI, 0.01 to 0.16) z-score/year; p = 0.037), and attention-IPS (β = 0.107 (95% CI, 0.05 to 0.16) z-score/year; p = <0.001). However, this trajectory was followed by a decline in global cognition (β = −0.029 (95% CI, −0.05 to −0.01) z-score/year; p = 0.013), verbal memory (β = −0.041 (95% CI, −0.08 to 0.00) z-score/year; p = 0.047), and visual memory (β = −0.041 (95% CI, −0.08 to −0.01) z-score/year; p = 0.024) between 5 and 15 years of the disease. Moreover, similar dynamics were observed during the 15–30 years of MS course, during which cognitive decline continued in global cognition (β = −0.031 (95% CI, −0.06 to −0.01) z-score/year; p = 0.021) and verbal memory (β = −0.055 (95% CI, −0.10 to −0.01) z-score/year; p = 0.018), and a trend was observed toward a decline in attention-IPS (β = −0.035 (95% CI, −0.07 to 0.00) z-score/year; p = 0.055). No significant effect was detected on semantic fluency performance.

3.2. Demographic, Clinical, and MRI Baseline Predictors of Future CI

A Lasso regression was employed to predict CI at the latest follow-up. The models that showed the strongest performance were verbal memory (positive predictive value (PPV) = 62%; negative predictive value (NPV) = 90%) and attention-IPS (PPV = 38%; NPV = 92%), which were more accurate (79% and 73%, respectively) in predicting CI than the other models (Table 2).
The resulting predictive model of global CI included educational level, disease duration, EDSS score, and the number of previous relapses as clinical parameters. The model also included lesion volume and six cortical regional volumes, covering the bilateral parahippocampus, left hippocampus, and right caudate entorhinal and rostral anterior cingulate (Table 3).
In terms of verbal memory, CI was predicted by educational level, disease type, EDSS score, and the number of previous relapses. The MRI predictors identified involved lesion volume and six cortical regional volumes, including the right parahippocampus and rostral anterior cingulate, and the pars opercularis, pericalcarine, thalamus, and accumbens of the left hemisphere. Lesion volume was the only predictor selected for CI in terms of visual memory. CI in attention-IPS was predicted by the EDSS, lesion volume and volume of the right hippocampus, caudal anterior cingulate and entorhinal, and the left pericalcarine. The prediction of semantic fluency CI was explained by a model that involved lesion volume and the volume of the left hippocampus and the right rostral anterior cingulate.

4. Discussion

In this longitudinal study, we set out to better understand the deterioration of cognition in MS by describing its temporal dynamics and by identifying predictors of CI. The results reveal different patterns of worsening over the disease course, both in terms of global cognition and the distinct cognitive domains, suggesting a progressive decline after the first 5 years of disease onset that most markedly affects verbal memory. When focusing on the five models that best predicted CI, we found that verbal memory and attention-IPS models had the strongest predictive performance. The results reinforce the importance of the educational level, disease severity, lesion load, and certain GM regional volumes, mainly involving the medial temporal lobe areas and the cingulate, as predictors of cognitive deficits.
There have been some attempts to describe the evolution of cognitive performance in patients with MS, mainly focusing on short time follow-up periods [3,5]. However, the diversity of cohort characteristics and the use of disparate range of cognitive tests and criteria for diagnosing impairment has produced quite heterogeneous data that prove to be difficult to compare across studies. Here, we characterized temporal modifications to different cognitive domains in a cohort of patients with wide ranging disease duration. Our data showed a progressive decline as opposed to an abrupt development of CI, supporting a combined role of age, neurodegeneration, the exhaustion of cognitive reserve, and a loss of plasticity in this clinical manifestation of MS [21]. Moreover, we modeled the trajectory in three different periods by providing differential slopes of the cognitive change during the course of the disease. The results showed an increase in global cognition, verbal memory, and attention-IPS in the first five years after MS onset, which was followed by a decline in cognitive performance. This is a surprising finding even though it is consistent with previous data indicating that cognitive deterioration occurs mainly after the fifth year following disease onset [22]. Several explanations may account for the former. First, it may reflect the capacity of the brain to compensate for the pathological effects of MS lesions through its cognitive reserve, which is a response that may be particularly protective in early stages before structural damage accumulates. Second, the mood disorders such as anxiety or depressive symptoms associated with the diagnosis of MS may negatively affect the results of a first cognitive assessment [23]. Finally, there might be a possible effect of learning in the retesting of cognition that could be present at any stage of the disease, even though we used alternate forms of the tests at each evaluation whenever this was possible.
The cognitive trajectory from the fifth year after MS onset onwards was driven by a decline in verbal and visual memory, although only verbal memory continued to deteriorate until the 30th year of the disease, along with a trend for attention-IPS to decline. Our data reinforce other smaller longitudinal studies, where CI was driven by evolving dysfunction in verbal memory and IPS [5]. By contrast, it was recently shown that IPS was the first domain to be affected [24]. This incongruence may reflect methodological differences, as we grouped the results from the attention-IPS tests into a single cognitive domain, and our cohort also had a lower educational level. Moreover, we cannot rule out a contribution of the distinct cognitive phenotypes in MS [25], as they may differ between cohorts of patients.
Little is known about what may serve to predict the development of CI, hampering research into early prevention and treatment. In the present analysis, the verbal memory and the attention-IPS prediction models produced the highest predictive balanced accuracy and a very high NPV. Educational level was a predictor in the global cognition and verbal memory models, which might reflect the protective role of cognitive reserve in CI [26,27]. In addition, the disease severity indicated by the EDSS and the number of previous relapses seemed to be related to future impairment in global cognition, verbal memory, and attention-IPS models.
Regarding MRI features, global lesion volume was selected as a predictor in all models. In fact, lesion accumulation has been associated with more severe cognitive dysfunction [28] by promoting brain network disruption [10]. Even so, the present results enabled the identification of the specific cortical regional areas related to future cognition. The hippocampus influences global cognition, verbal memory, and semantic fluency, which is consistent with the theory that it is an integral component of the brain network that supports verbal memory and word generation [25,29,30,31]. Similarly, the volume of the anterior cingulate cortex was present in all predictive models, except for the visual memory model. This region is involved in the fronto-parietal network, and it plays a key role in executive functions, as well as participating in the working memory network [32,33]. Moreover, the thalamus, a highly connected nucleus, has been associated with learning and memory function, and it seems to be a good predictor for CI in MS [5,34], although here, it was more specifically associated with verbal memory impairment. All these areas are part of the limbic system, which plays a crucial role in various cognitive functions [35].
This study has several strengths, including the fact that participants were prospectively and consecutively recruited, thereby preventing a selection bias and enhancing the generalizability of the results. Drawing up a global pattern of cognition in MS was only possible because our cohort included patients with a clinical disease duration of up to 30 years. In addition, all the analyses were performed for global and stratified cognition. Our study also has some limitations. Working with a real-world MS cohort implies that it is predominantly composed of relapsing-remitting MS patients, the most common phenotype encountered clinically in the current treatment era. Moreover, we were unable to assess the influence of mood disorders and fatigue on cognition because, unfortunately, the protocol did not include any mood or fatigue specific test. Furthermore, we do not have a matched control group, although we used z-scores based on normative data to address the changes in cognition that can be expected in accordance with age and educational level. In addition, it has not been possible to analyze the effect of DMTs on cognition, as the predictive models could be influenced by the low proportion of treated patients (52%) at the study initiation predominantly using moderate-efficacy DMTs. Finally, the inclusion of GM lesion volume, WM lesion location, or advanced quantitative MRI measures, such as functional and diffusion MRI, in future studies might be useful to improve our understanding of cognition and its MRI related factors in MS.

5. Conclusions

In conclusion, cognition in MS patients progressively deteriorates after the first 5 years of the disease, with a steady decline over the next 25 years that affects verbal memory more markedly. Moreover, CI is predicted by the educational level, disease severity, lesion load, and volume of high-order regions, including the hippocampus and anterior cingulate cortex, with a strong NPV for the verbal memory and attention-IPS in particular. Consequently, beneficial cognitive maintenance strategies should be adopted that focus on predictors that identify patients at risk of CI and which promote activities such as intellectual enrichment that attenuate the impact of brain burden in the initial years of the disease as an adequate treatment window.

Supplementary Materials

The following are available online at, MRI acquisition parameters, Table S1: Use of disease-modifying therapies at baseline, Table S2: Cognitive changes throughout the disease course, Table S3: Cognitive changes at the different phases of MS.

Author Contributions

Conceptualization, E.L.-S., E.S. and S.L.; Methodology, E.L.-S., E.M.-H., M.A., E.S. and S.L.; Formal Analysis, E.L.-S., M.A., A.S. (Aleix Solanes), J.R. and E.S.; Data Curation, E.L.-S., C.M., S.A.-A., N.S.-V., I.P.-V., M.S., L.R.-P., E.M., J.E.M.-R., Y.B., E.H.M.-L., A.S. (Albert Saiz), E.S. and S.L.; Writing—Original Draft Preparation, E.L.-S., E.M.-H., M.A., A.S. (Aleix Solanes), J.R., E.S. and S.L.; Writing—Review and Editing, E.L.-S., E.M.-H., M.A., A.S. (Aleix Solanes), J.R., E.S. and S.L.; Supervision, E.H.M.-L., P.V., A.S. (Albert Saiz), E.S. and S.L.; Project Administration, A.S. (Albert Saiz) and S.L.; Funding Acquisition, A.S. (Albert Saiz) and S.L. All authors have read and agreed to the published version of the manuscript.


The author(s) disclose receipt of the following financial support for the research, authorship, and/or publication of this article. This work was funded by: a Proyecto de Investigación en Salud (PI15/00587 to S.LL., and A.S.; PI15/00061 to P.V.; PI18/01030 to S.LL. and A.S.; and JR16/00006; MV17/00021; PI17/01228; RD16/0015/0003 to E.H.M-L.), integrated into the Plan Estatal de Investigación Científica y Técnica de Innovación I+D+I, and co-funded by the Instituto de Salud Carlos III-Subdirección General de Evaluación and the Fondo Europeo de Desarrollo Regional (FEDER, “Otra manera de hacer Europa”); by the Red Española de Esclerosis Múltiple (REEM: RD16/0015/0002, RD16/0015/0003, RD12/0032/0002, RD12/0060/01-02); by TEVA Spain, the Ayudas Merck de Investigación 2017 from the Fundación Merck Salud and the Proyecto Societat Catalana Neurologia 2017; and by the MS Innovation GMSI, 2016 to E.H.M.-L., E.L.-S. holds a predoctoral grant from the University of Barcelona (APIF). M.A. holds equities in Bionure and Goodgut. C.M. was awarded by the Hospital Clinic Emili Letang, and she holds a P-FIS contract (FI19/00111). J.R. holds a Miguel Servet Research Contract (CPII19/00009) and Research Project PI19/00394 from the Plan Nacional de I+D+I 2013–2016, the Instituto de Salud Carlos III-Subdirección General de Evaluación y Fomento de la Investigación and the European Regional Development Fund (FEDER, ‘Investing in your future’). None of the funding bodies had any role in the design and performance of the study; the collection, management, analysis, and interpretation of the data; the preparation, revision, or approval of the manuscript; and the decision to submit the manuscript for publication.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committee of the Hospital Clinic of Barcelona (protocol code HCB/2009/4905 on 7 April 2009; protocol code HCB/2015/0236 on 23 November 2015; protocol code HCB/2912/7965 on 2 December 2015; protocol code HCB/2016/0827 on 12 December 2016).

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The datasets generated during and/or analyzed in the current study are available from the corresponding authors upon reasonable request.


The authors are grateful to Núria Bargalló, Cesar Garrido and the IDIBAPS Magnetic resonance imaging facilities, and to the Fundació Cellex for their support of this study. This work was carried out at the Centro Esther Koplowitz of the IDIBAPS (Barcelona, Spain), which is supported by the CERCA Programme/Generalitat de Catalunya.

Conflicts of Interest

The authors declare the following potential conflicts of interest with respect to their research, authorship, and/or the publication of this article: E.M.-H., A.S., J.R., C.M. and S.A.-A. have nothing to disclose; E.L.-S. and E.S. received travel reimbursement from Sanofi and ECTRIMS; M.A. holds equity shares of Bionure, S.L. and Goodgut S.L., stock options for Attune Neurosciences Inc., and he is currently an employee of Roche, although his contribution to this work is associated with his previous work at IDIBAPS; N.S.-V. received compensation for consulting services and speaker honoraria from Genzyme-Sanofi, Almirall, Novartis, Roche and Almirall; I.P.-V. received travel reimbursement from Roche and Genzyme, she holds stock options in Aura Innovative Robotics and currently, she is an employee at UCB Pharma, the contribution to this study is associated with her previous work at IDIBAPS; M.S. received speaker honoraria from Genzyme, Novartis, and Biogen; L.R.-P. received honoraria compensation to participate in advisory boards, collaborations as a consultant and scientific communications and received research support, funding for travel, and congress expenses from Biogen Idec, Novartis, TEVA, MerckSerono, Genzyme, Almirall, Bayer, Celgene and Roche; E.M. received speaking honoraria from Merck and Novartis; J.E.M.-R. has participated as principal investigators in pharmaceutical company-sponsored clinical trials by Novartis, Roche, Merck-Serono, Actelion, Celgene, Oryzon Genomics, and Medday, carried out at the Hospital del Mar, IMIM, Barcelona. J.E.M.-R. also received fees for consulting services and lectures from Novartis, Sanofi and Biogen Idec, and travel funding from Biogen Idec and Sanofi; Y.B. received speaking honoraria from Biogen, Novartis, and Genzyme; E.H.M.-L. received travel support for international and national meetings from Roche and Sanofi-Genzyme, and honoraria for consultancies from Novartis, Roche, and Sanofi before joining the European Medicines Agency where she is currently employed (Human Medicines, since 16 April 2019), although her contribution to this article is related to her activity at the Hospital Clinic of Barcelona/IDIBAPS and consequently, it does not represent the views of the Agency or its Committees. She is a member of the International Multiple Sclerosis Visual System (IMSVISUAL) Consortium; P.V. is a shareholder and has received consultancy fees from Accure Therapeutics SL, Attunne Neurosciences Inc., QMenta Inc., Spiral Therapeutix Inc, CLight Inc. and NeuroPrex Inc., as well as having held grants from the Instituto de Salud Carlos III and the European Commissions; A.S. received compensation for consulting services and speaker honoraria from Bayer-Schering, Merck-Serono, Biogen-Idec, Sanofi-Aventis, TEVA, Novartis and Roche; S.L. received compensation for consulting services and speaker honoraria from Biogen Idec, Novartis, TEVA, Genzyme, Sanofi and Merck.


  1. Chiaravalloti, N.D.; DeLuca, J. Cognitive Impairment in Multiple Sclerosis. Lancet Neurol. 2008, 7, 1139–1151. [Google Scholar] [CrossRef]
  2. Højsgaard Chow, H.; Schreiber, K.; Magyari, M.; Ammitzbøll, C.; Börnsen, L.; Romme Christensen, J.; Ratzer, R.; Soelberg Sørensen, P.; Sellebjerg, F. Progressive Multiple Sclerosis, Cognitive Function, and Quality of Life. Brain Behav. 2018, 8, e00875. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Amato, M.P.; Portaccio, E.; Goretti, B.; Zipoli, V.; Hakiki, B.; Giannini, M.; Pastò, L.; Razzolini, L. Cognitive Impairment in Early Stages of Multiple Sclerosis. Neurol. Sci. 2010, 31, 211–214. [Google Scholar] [CrossRef] [PubMed]
  4. Sumowski, J.F.; Benedict, R.; Enzinger, C.; Filippi, M.; Geurts, J.J.; Hamalainen, P.; Hulst, H.; Inglese, M.; Leavitt, V.M.; Rocca, M.A.; et al. Cognition in Multiple Sclerosis: State of the Field and Priorities for the Future. Neurology 2018, 90, 278–288. [Google Scholar] [CrossRef][Green Version]
  5. Damasceno, A.; Pimentel-Silva, L.R.; Damasceno, B.P.; Cendes, F. Cognitive Trajectories in Relapsing–remitting Multiple Sclerosis: A Longitudinal 6-Year Study. Mult. Scler. 2020, 26, 1740–1751. [Google Scholar] [CrossRef]
  6. Heled, E.; Aloni, R.; Achiron, A. Cognitive Functions and Disability Progression in Relapsing-Remitting Multiple Sclerosis: A Longitudinal Study. Appl. Neuropsychol. Adult 2021, 28, 210–219. [Google Scholar] [CrossRef]
  7. Eijlers, A.J.C.; Meijer, K.A.; van Geest, Q.; Geurts, J.J.G.; Schoonheim, M.M. Determinants of Cognitive Impairment in Patients with Multiple Sclerosis with and without Atrophy. Radiology 2018, 288, 544–551. [Google Scholar] [CrossRef][Green Version]
  8. Di Filippo, M.; Portaccio, E.; Mancini, A.; Calabresi, P. Multiple Sclerosis and Cognition: Synaptic Failure and Network Dysfunction. Nat. Rev. Neurosci. 2018, 19, 599–609. [Google Scholar] [CrossRef]
  9. Martínez-Lapiscina, E.H.; Fraga-Pumar, E.; Gabilondo, I.; Martínez-Heras, E.; Torres-Torres, R.; Ortiz-Pérez, S.; Llufriu, S.; Tercero, A.; Andorra, M.; Roca, M.F.; et al. The Multiple Sclerosis Visual Pathway Cohort: Understanding Neurodegeneration in MS. BMC Res. Notes 2014, 7, 910. [Google Scholar] [CrossRef] [PubMed][Green Version]
  10. Llufriu, S.; Martinez-Heras, E.; Solana, E.; Sola-Valls, N.; Sepulveda, M.; Blanco, Y.; Martinez-Lapiscina, E.H.; Andorra, M.; Villoslada, P.; Prats-Galino, A.; et al. Structural Networks Involved in Attention and Executive Functions in Multiple Sclerosis. NeuroImage Clin. 2017, 13, 288–296. [Google Scholar] [CrossRef] [PubMed]
  11. Kurtzke, J.F. Rating Neurologic Impairment in Multiple Sclerosis: An Expanded Disability Status Scale (EDSS). Neurology 1983, 33, 1444–1452. [Google Scholar] [CrossRef][Green Version]
  12. Rao, S.M.; Leo, G.J.; Bernardin, L.; Unverzagt, F. Cognitive Dysfunction in Multiple Sclerosis. I. Frequency, Patterns, and Prediction. Neurology 1991, 41, 685–691. [Google Scholar] [CrossRef] [PubMed]
  13. Sepulcre, J.; Vanotti, S.; Hernández, R.; Sandoval, G.; Cáceres, F.; Garcea, O.; Villoslada, P. Cognitive Impairment in Patients with Multiple Sclerosis Using the Brief Repeatable Battery-Neuropsychology Test. Mult. Scler. 2006, 12, 187–195. [Google Scholar] [CrossRef]
  14. Klein, A.; Ghosh, S.S.; Bao, F.S.; Giard, J.; Häme, Y.; Stavsky, E.; Lee, N.; Rossa, B.; Reuter, M.; Chaibub Neto, E.; et al. Mindboggling Morphometry of Human Brains. PLoS Comput. Biol. 2017, 13, e1005350. [Google Scholar] [CrossRef] [PubMed]
  15. Desikan, R.S.; Ségonne, F.; Fischl, B.; Quinn, B.T.; Dickerson, B.C.; Blacker, D.; Buckner, R.L.; Dale, A.M.; Maguire, R.P.; Hyman, B.T.; et al. An Automated Labeling System for Subdividing the Human Cerebral Cortex on MRI Scans into Gyral Based Regions of Interest. Neuroimage 2006, 31, 968–980. [Google Scholar] [CrossRef]
  16. Smith, S.M.; Jenkinson, M.; Woolrich, M.W.; Beckmann, C.F.; Behrens, T.E.J.; Johansen-Berg, H.; Bannister, P.R.; De Luca, M.; Drobnjak, I.; Flitney, D.E.; et al. Advances in Functional and Structural MR Image Analysis and Implementation as FSL. Neuroimage 2004, 23 (Suppl. S1), S208–S219. [Google Scholar] [CrossRef][Green Version]
  17. Fortin, J.-P.; Parker, D.; Tunç, B.; Watanabe, T.; Elliott, M.A.; Ruparel, K.; Roalf, D.R.; Satterthwaite, T.D.; Gur, R.C.; Gur, R.E.; et al. Harmonization of Multi-Site Diffusion Tensor Imaging Data. Neuroimage 2017, 161, 149–170. [Google Scholar] [CrossRef] [PubMed]
  18. Radua, J.; Vieta, E.; Shinohara, R.; Kochunov, P.; Quidé, Y.; Green, M.J.; Weickert, C.S.; Weickert, T.; Bruggemann, J.; Kircher, T.; et al. Increased Power by Harmonizing Structural MRI Site Differences with the ComBat Batch Adjustment Method in ENIGMA. Neuroimage 2020, 218, 116956. [Google Scholar] [CrossRef]
  19. Scalfari, A.; Neuhaus, A.; Daumer, M.; Muraro, P.A.; Ebers, G.C. Onset of Secondary Progressive Phase and Long-Term Evolution of Multiple Sclerosis. J. Neurol. Neurosurg. Psychiatry 2014, 85, 67–75. [Google Scholar] [CrossRef][Green Version]
  20. Akaike, H. A New Look at the Statistical Model Identification. Springer Ser. Stat. 1974, 215–222. [Google Scholar]
  21. Mahad, D.H.; Trapp, B.D.; Lassmann, H. Pathological Mechanisms in Progressive Multiple Sclerosis. Lancet Neurol. 2015, 14, 183–193. [Google Scholar] [CrossRef]
  22. Achiron, A.; Chapman, J.; Magalashvili, D.; Dolev, M.; Lavie, M.; Bercovich, E.; Polliack, M.; Doniger, G.M.; Stern, Y.; Khilkevich, O.; et al. Modeling of Cognitive Impairment by Disease Duration in Multiple Sclerosis: A Cross-Sectional Study. PLoS ONE 2013, 8, e71058. [Google Scholar]
  23. Leavitt, V.M.; Brandstadter, R.; Fabian, M.; Sand, I.K.; Klineova, S.; Krieger, S.; Lewis, C.; Lublin, F.; Miller, A.; Pelle, G.; et al. Dissociable Cognitive Patterns Related to Depression and Anxiety in Multiple Sclerosis. Mult. Scler. J. 2020, 26, 1247–1255. [Google Scholar] [CrossRef]
  24. Wojcik, C.; Fuchs, T.A.; Tran, H.; Dwyer, M.G.; Jakimovski, D.; Unverdi, M.; Weinstock-Guttman, B.; Zivadinov, R.; Eshaghi, A.; Benedict, R.H. Staging and Stratifying Cognitive Dysfunction in Multiple Sclerosis. Mult. Scler. 2021, 13524585211011390. [Google Scholar]
  25. De Meo, E.; Portaccio, E.; Giorgio, A.; Ruano, L.; Goretti, B.; Niccolai, C.; Patti, F.; Chisari, C.G.; Gallo, P.; Grossi, P.; et al. Identifying the Distinct Cognitive Phenotypes in Multiple Sclerosis. JAMA Neurol. 2021, 78, 414–425. [Google Scholar] [CrossRef]
  26. Sumowski, J.F.; Chiaravalloti, N.; DeLuca, J. Cognitive Reserve Protects against Cognitive Dysfunction in Multiple Sclerosis. J. Clin. Exp. Neuropsychol. 2009, 31, 913–926. [Google Scholar] [CrossRef] [PubMed]
  27. Lopez-Soley, E.; Solana, E.; Martínez-Heras, E.; Andorra, M.; Radua, J.; Prats-Uribe, A.; Montejo, C.; Sola-Valls, N.; Sepulveda, M.; Pulido-Valdeolivas, I.; et al. Impact of Cognitive Reserve and Structural Connectivity on Cognitive Performance in Multiple Sclerosis. Front. Neurol. 2020, 11, 581700. [Google Scholar] [CrossRef] [PubMed]
  28. Papadopoulou, A.; Müller-Lenke, N.; Naegelin, Y.; Kalt, G.; Bendfeldt, K.; Kuster, P.; Stoecklin, M.; Gass, A.; Sprenger, T.; Radue, E.W.; et al. Contribution of Cortical and White Matter Lesions to Cognitive Impairment in Multiple Sclerosis. Mult. Scler. 2013, 19, 1290–1296. [Google Scholar] [CrossRef]
  29. Glikmann-Johnston, Y.; Oren, N.; Hendler, T.; Shapira-Lichter, I. Distinct Functional Connectivity of the Hippocampus during Semantic and Phonemic Fluency. Neuropsychologia 2015, 69, 39–49. [Google Scholar] [CrossRef] [PubMed]
  30. Llufriu, S.; Rocca, M.A.; Pagani, E.; Riccitelli, G.C.; Solana, E.; Colombo, B.; Rodegher, M.; Falini, A.; Comi, G.; Filippi, M. Hippocampal-Related Memory Network in Multiple Sclerosis: A Structural Connectivity Analysis. Mult. Scler. 2019, 25, 801–810. [Google Scholar] [CrossRef]
  31. Sepulcre, J.; Masdeu, J.C.; Sastre-Garriga, J.; Goñi, J.; Vélez-de-Mendizábal, N.; Duque, B.; Pastor, M.A.; Bejarano, B.; Villoslada, P. Mapping the Brain Pathways of Declarative Verbal Memory: Evidence from White Matter Lesions in the Living Human Brain. Neuroimage 2008, 42, 1237–1243. [Google Scholar] [CrossRef] [PubMed]
  32. Weygandt, M.; Wakonig, K.; Behrens, J.; Meyer-Arndt, L.; Söder, E.; Brandt, A.U.; Bellmann-Strobl, J.; Ruprecht, K.; Gold, S.M.; Haynes, J.-D.; et al. Brain Activity, Regional Gray Matter Loss, and Decision-Making in Multiple Sclerosis. Mult. Scler. 2018, 24, 1163–1173. [Google Scholar] [CrossRef] [PubMed]
  33. Sepulcre, J.; Masdeu, J.C.; Pastor, M.A.; Goñi, J.; Barbosa, C.; Bejarano, B.; Villoslada, P. Brain Pathways of Verbal Working Memory: A Lesion-Function Correlation Study. Neuroimage 2009, 47, 773–778. [Google Scholar] [CrossRef] [PubMed]
  34. Amin, M.; Ontaneda, D. Thalamic Injury and Cognition in Multiple Sclerosis. Front. Neurol. 2020, 11, 623914. [Google Scholar] [CrossRef]
  35. Keser, Z.; Hasan, K.M.; Mwangi, B.; Younes, K.; Khayat-Khoei, M.; Kamali, A.; Lincoln, J.A.; Nelson, F.M. Quantitative Limbic System Mapping of Main Cognitive Domains in Multiple Sclerosis. Front. Neurol. 2018, 9, 132. [Google Scholar] [CrossRef]

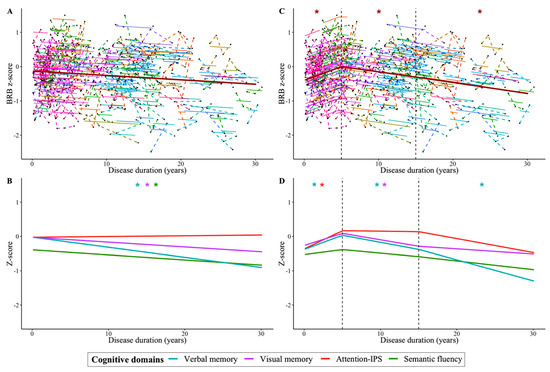

Figure 1. Dynamics of cognitive performance in MS as the disease progresses. The global cognition z-score (A) and cognitive domains z-score (B) were modeled by mixed-effect regressions. The duration of the disease was divided into three periods by spline models with two knots (at 5 and 15 years of disease duration) represented by dotted black vertical lines (for the global cognition z-score (C) and each domain z-score (D). Black points joined by a broken line represent the individual trajectories of the changes in the global cognition z-scores, the continuous lines represent the individual fit of the model, and the thicker brown line represents the population model (A,C). Population model lines of cognitive domains are differentiated by color (B,D): blue for verbal memory, purple for visual memory, red for attention-IPS, and green for semantic fluency. The x-axis represents the time in years from clinical onset. All models were fitted using the lme4 package in R version 3.5.2 (R Foundation for Statistical Computing: * p < 0.05).
Figure 1. Dynamics of cognitive performance in MS as the disease progresses. The global cognition z-score (A) and cognitive domains z-score (B) were modeled by mixed-effect regressions. The duration of the disease was divided into three periods by spline models with two knots (at 5 and 15 years of disease duration) represented by dotted black vertical lines (for the global cognition z-score (C) and each domain z-score (D). Black points joined by a broken line represent the individual trajectories of the changes in the global cognition z-scores, the continuous lines represent the individual fit of the model, and the thicker brown line represents the population model (A,C). Population model lines of cognitive domains are differentiated by color (B,D): blue for verbal memory, purple for visual memory, red for attention-IPS, and green for semantic fluency. The x-axis represents the time in years from clinical onset. All models were fitted using the lme4 package in R version 3.5.2 (R Foundation for Statistical Computing: * p < 0.05).
Jpm 11 01107 g001
Table 1. Demographic, clinical, and MRI characteristics of MS patients at baseline.
Table 1. Demographic, clinical, and MRI characteristics of MS patients at baseline.
Entire Cohort (n = 212)
Female, n (%)145 (68)
Age, mean (SD)41 (9.47)
Educational level, n (%)
Basic (0–8 years)16 (8)
Primary (9–12 years)85 (40)
Secondary (13–16 years)75 (35)
Higher (>17 years)36 (17)
Disease duration, median (range)8.20 (0.1–29.0)
Disease type, n (%)
Clinically isolated syndrome19 (9)
Relapsing-remitting MS176 (83)
Secondary progressive MS13 (6)
Primary progressive MS4 (2)
EDSS score, median (range)2.0 (0–7.0)
Use of DMTs, n (%)111 (52)
Number of previous relapses, median [IQR]3 (2–4)
Lesion volume (cm3), median [IQR]5.16 (2.37–12.15)
The data represent the absolute numbers and the proportions of the qualitative data, or the median and the interquartile range (IQR) for the quantitative data, unless otherwise specified. SD: standard deviation; MS: multiple sclerosis; EDSS: Expanded Disability Status Scale; DMTs: Disease-Modifying Therapies.
Table 2. Performance evaluation of each Lasso regression model.
Table 2. Performance evaluation of each Lasso regression model.
Cognitive DomainNBalanced
Accuracy (%)
(%, 95% CI)
(%, 95% CI)
(%, 95% CI)
(%, 95% CI)
Global cognition2127170 (59–80)71 (63–79)58 (47–68)81 (72–87)
Verbal memory2127976 (63–86)82 (76–88)62 (50–73)90 (84–94)
Visual memory2126271 (56–82)54 (46–62)33 (24–42)85 (77–91)
Attention-IPS2127371 (54–85)75 (68–81)38 (27–50)92 (86–96)
Semantic fluency2106251 (44–59)73 (57–86)89 (81–94)29 (19–36)
Balanced Accuracy is defined as the arithmetic mean of sensitivity and specificity. Sensitivity is defined as the proportion of subjects who developed cognitive impairment that are correctly classified. Specificity is defined as the proportion of subjects who did not develop cognitive impairment that are correctly classified. The predictive model of cognitive impairment in semantic fluency was generated with 210 patients. CI: confidence interval; PPV: positive predictive value; NPV: negative predictive value; IPS: information processing speed.
Table 3. Predictors of each Lasso regression model.
Table 3. Predictors of each Lasso regression model.
Cognitive DomainNPredictorsβPredictors
Selection Rates
(Frequency *, %)
Global cognition212Educational level−0.0601253 (63)
Disease duration0.034936 (47)
EDSS score0.3252000 (100)
Number of previous relapses0.0691635 (82)
Lesion volume0.3882000 (100)
LH parahippocampal0.1271793 (90)
Left hippocampus0.0701595 (80)
Right caudate−0.0571133 (57)
RH entorhinal0.0441087 (54)
RH parahippocampal0.0851836 (92)
RH rostral anterior cingulate0.1951984 (99)
Verbal memory212Educational level−0.3861983 (99)
Disease type0.2291557 (78)
EDSS score0.4582000 (100)
Number of previous relapses0.1151935 (97)
Lesion volume0.3091998 (100)
LH parsopercularis−0.1011046 (52)
LH pericalcarine0.2261894 (95)
Left thalamus proper−0.0961536 (77)
Left accumbens area0.0381102 (55)
RH parahippocampal0.6802000 (100)
RH rostral anterior cingulate0.0401407 (70)
Visual memory212Lesion volume0.0541949 (97)
Attention-IPS212EDSS score0.6542000 (100)
Lesion volume0.1991975 (99)
LH pericalcarine0.1031838 (92)
Right hippocampus0.0780.919 (83)
RH caudal anterior cingulate0.035881 (44)
RH entorhinal0.1111275 (64)
Semantic fluency210Lesion volume−0.0191005 (50)
Left hippocampus−0.0171071 (53)
RH rostral anterior cingulate−0.021658 (33)
The demographic, clinical, and MRI variables that remained in the age-adjusted predictive model of cognitive impairment in each domain are shown. EDSS: Expanded Disability Status Scale; RH: right hemisphere; LH: left hemisphere; IPS: information processing speed. * Frequency up to 2000 models.
