Article

GWAS of Post-Orthodontic Aggressive External Apical Root Resorption Identified Multiple Putative Loci at X-Y Chromosomes

by
Paula Iber-Díaz
1,
Raquel Senen-Carramolino
1,
Alejandro Iglesias-Linares
1,2,*,
Pablo Fernández-Navarro
3,4,
Carlos Flores-Mir
5 and
Rosa M Yañez-Vico
1,2
1
Section of Orthodontics, School of Dentistry, Complutense University, 28040 Madrid, Spain
2
BIOCRAN Craniofacial Biology Research Group, Complutense University, 28040 Madrid, Spain
3
Cancer and Environmental Epidemiology Unit, National Center for Epidemiology, Carlos III Institute of Health, 28029 Madrid, Spain
4
Consortium for Biomedical Research in Epidemiology and Public Health (CIBERESP), 28029 Madrid, Spain
5
Professor and Interim Graduate Orthodontic Program Director, School of Dentistry, University of Alberta, Edmonton, AB T6G 1C9, Canada
*
Author to whom correspondence should be addressed.
J. Pers. Med. 2020, 10(4), 169; https://doi.org/10.3390/jpm10040169
Submission received: 12 September 2020 / Revised: 6 October 2020 / Accepted: 12 October 2020 / Published: 14 October 2020
Browse Figure
Versions Notes

Abstract

:
Personalized dental medicine requires from precise and customized genomic diagnostic. To conduct an association analysis over multiple putative loci and genes located at chromosomes 2, 4, 8, 12, 18, X, and Y, potentially implicated in an extreme type of external apical root resorption secondary to orthodontic forces (aEARR). A genome-wide association study of aEARR was conducted with 480 patients [ratio~1:3 case/control]. Genomic DNA was extracted and analyzed using the high-throughput Axiom platform with the GeneTitan® MC Instrument. Up to 14,377 single nucleotide polymorphisms (SNPs) were selected at candidate regions and clinical/diagnostic data were recorded. A descriptive analysis of the data along with a backward conditional binary logistic regression was used to calculate odds ratios, with 95% confidence intervals [p < 0.05]. To select the best SNP candidates, a logistic regression model was fitted assuming a log-additive genetic model using R software [p < 0.0001]. In this sample the top lead genetic variants associated with aEARR were two novel putative genes located in the X chromosome, specifically, STAG 2 gene, rs151184635 and RP1-30E17.2 gene, rs55839915. These variants were found to be associated with an increased risk of aEARR, particularly restricted to men [OR: 6.09; 95%CI: 2.6–14.23 and OR: 6.86; 95%CI: 2.65–17.81, respectively]. Marginal associations were found at previously studied variants such as SSP1: rs11730582 [OR: 0.54; 95%CI: 0.34–0.86; p = 0.008], P2RX7: rs1718119 [OR: 0.6; 95%CI: 0.36–1.01; p = 0.047], and TNFRSF11A: rs8086340 [OR: 0.6; 95%CI: 0.38–0.95; p = 0.024]), found solely in females. Multiple putative genetic variants located at chromosomes X and Y are potentially implicated in an extreme phenotype of aEARR. A gender-linked association was noted.

1. Introduction

External apical root resorption (EARR) resulting from orthodontic forces represents one of the most undesirable iatrogenic effects secondary to mechanical strain during orthodontic movement, provoking an irreversible loss of root structure and tooth attachment in the apical third of the tooth root [1,2]. EARR is mostly manifested in its mild to moderate forms [3,4,5]; however, the most aggressive phenotype, with a frequency <1–5% and >5 mm apical loss, might critically compromise tooth viability [6,7].
EARR of any degree represents a complex pathological trait with multilevel etiological-risk factors that have not been completely elucidated to date [8]. Several diagnostic and clinical factors have been associated with EARR [9]. Several factors, such as treatment time, apical displacement, and gender-specific risk have been found to be associated with EARR, but these findings systematically show some degree of inconsistency and controversy in literature [10,11,12]. In fact, EARR occurrence and severity remains unpredictable and is not fully explained by clinical evidence alone. In this context, a genetic component and its contribution to this pathological feature, has been a critical issue that has recently garnered considerable attention [13,14]. Particularly, risk loci in somatic chromosomes have been targeted extensively, whereas very few studies are available regarding regions potentially associated with EARR at sexual chromosomes [15]. To date, a limited number of candidate gene association studies [15,16,17,18,19,20,21,22,23,24] have provided evidence suggesting that some genetic variants might exert a positive or negative influence over EARR of a mild to moderate degree at the level of the IL1 gene cluster [15,20,21,22,23,24], TNFRSF11B [25], P2RX7 [17,18], SSP1 [19,23], or TNFRSF11A [15,26] at an autosomic level but also at IRAK1 gene [27] on sexual chromosome X. Despite the above mentioned studies, there is no available scientific evidence regarding how genetic factors might be specifically associated with the most severe phenotype of EARR, i.e., aggressive EARR (aEARR). Moreover, whether aEARR is positively/negatively associated with previous genetic variants and the studied clinical/diagnostic factors remains to be elucidated.
Therefore, the present study aimed to perform the first genome-wide association study conducting an association analysis over multiple putative loci and genes located at somatic chromosomes 2, 4, 8, 12, 18, and at sexual chromosomes X and Y, potentially implicated in aEARR.

2. Materials and Methods

2.1. Study Design

We performed a genome-wide association study of aEARR, a derived extreme and well-delimited root resorption phenotype, in UCM3Dg consortium participants (Figure 1). The UCM3Dg consortium database is based on a general-population cohort of roughly 0.01 million patients aged 9–67 years old, recruited across Spain between 2005 and 2019.

2.2. Sample Size, Study Cohorts, and Ethics Statement

2.2.1. Sample Size Calculation

Sample size estimation was based on the minimum sample size required for a genetic association study based on: (a) the prevalence of the disease: 0.01; (b) ratio of cases to controls (~1:3); (c) alpha error 1 × 10−4/beta error: <0.20; (d) base relative risk: 2.9; and (f) frequency of risk allele: 0.25. Sample size was calculated using the freely available Genetic Power Calculation software [28]. It was determined that 450 patients would be needed to establish an association between the presence of a single nucleotide polymorphism (SNP) of interest under these conditions and the appearance of an advanced state of EARR, 100 cases for the aggressively affected cohort and 350 controls, with 3% overestimation to include expected dropouts were required.

2.2.2. Cohort Distribution and Ethics Statement

The study population comprised 480 patients [ratio ~1:3; case:control] with available radiographic, diagnostic, and clinical records from the UCM3Dg consortium database, who were eligible for participation in the present study and met the inclusion criteria detailed in Supporting Information File 1. Up to 4.8% of the eligible UCM3Dg consortium patients with available diagnostic, clinical, and radiographic records were enrolled with the complete available genetic data used in the present study. We were granted approval from the Institutional Ethical Review Board of the Clinical Hospital San Carlos, Madrid (IRB) [ref#:17/038-E] and permission was previously obtained from each individual to participate in the present study, allowing their clinical, diagnostic, radiographic, and genomic data to be used for health-related research as part of this study. This study was carried out in accordance with the ethical principles governing medical research and human subjects, as laid down in the Helsinki Declaration (Helsinki Declaration 2013 version. Available online: https://jamanetwork.com/journals/jama/fullarticle/1760318 (accessed on 3 March 2017),). Details of the consenting process are described elsewhere [29].

2.3. Knowledge Discovery in UCM3Dg and SALUDR Databases: Data Mining

Quality Control (QC), Data Filtering, and Extraction

A pre-piloted protocol was followed for data filtering and extraction from the UCM3Dg and SALUDR databases. As detailed in Supporting Information File 2, the diagnostic variables, clinical setting variables, and radiological values were collected and subjected to QC (accession registered URI+i ref#:5-201119). Manifest-codifying data errors in the database were removed by selecting and identifying implausible values in each category of diagnostic, clinical, or radiological variables (e.g., Discrepancy index (DI) = 400) or others that were not adequately recorded in terms of the type of unit or quantitative/categorical format (e.g., age = a). Extreme values of duration of mechanical loading (treatment time > 72 months) justified elimination as they were more likely to be data errors or non-physiological extremes rather than feasible variable inputs. The quality-checked data were processed in the next steps (Figure 1).

2.4. Phenotyping and Radiographic Measurements

All subjects selected for final inclusion in the study were assigned to the affected or control cohorts of patients according to radiological screening, using radiographic measurements performed in duplicate and in a double-blinded (P.I. and R.S) manner on orthopantomographic and teleradiographic projections that were already available and used at the clinic for routine diagnosis and treatment. Subjects were classified and divided into these two groups, based on the presence or absence of the phenotype of aggressive post-orthodontic EARR of more than 5 mm in blinded radiographic measurements. The affected cohort included patients with severe EARR > 5 mm and the control group was composed of patients with EARR < 5 mm [7].
The following methods have been detailed previously; an aEARR phenotype was assessed after the roots were measured from before and after treatment on panoramic radiographs focusing on the maxillary central and lateral incisors [4,5,15]. All pre- and post-treatment images were calibrated beforehand and a correction factor for magnification was applied in all cases. Measurements were performed on digital radiographs using diagnostic software (Adobe Photoshop CS8, Adobe Systems Incorporated, San Jose, CA, USA) enabling the image filters to provide maximum precision when localizing the terminal points of the roots. Accordingly, the tooth with the highest EARR value was selected as the dependent variable of interest for that subject using the method described by Linge and Linge [30], modified by Brezniak et al., (2004) [31]. Pre- and post-treatment radiographs through the initial and final root (r1 and r2, respectively) and crown (c1 and c2, respectively) lengths were used to determine the changes in dental and root length. If the root became shorter during treatment, the EARR value resulted from r1–r2 [c1/c2]).
Apical displacement and variation in tooth inclination were quantified using the superimposition of radiographic measurements on a lateral radiograph, using a modified version of the method described by Baccetti et al., (1998) [32].

2.5. Genotyping

DNA Extraction, Genotyping

Genomic DNA was extracted from saliva according to the manufacturer’s instructions (prepIT•L2P, DNA Genotek, Ottawa, ON, Canada). Total genomic DNA was checked for purity and integrity [OD260/OD280: 1.8–2.0; OD260/OD230 > 1.5; 1% agarose gel integrity: 90% DNA size > 10Kb]. Quality control was then performed per sample using the Agena Bioscience MassARRAY plattform iPLEX GOLD technology to eliminate samples with poor quality.
DNA samples were genotyped using the high-throughput Axiom platform with the GeneTitan® MC Instrument (Axiom Genome-Wide Human Assay technology, CeGen). This method has been extensively validated in literature [33,34].
Data were analyzed, using the Axiom Analysis Suite 4.0 software for genotype clustering and calling. We then implemented a quality control for the data, where we checked possible sample stratification, missing SNP genotype, SNP monomorphic status, and SNP minor allele frequency (see Supporting Information File 3) from 687,133 markers. Next, to achieve our objectives, we selected 14,377 SNPs located in the X and Y-chromosomes along with other candidate genes at chromosomes 2, 4, 8, 12, and 18 for the analysis (see Supporting Information File 4).

2.6. Statistics

2.6.1. Overall Statistical Analysis of Clinical and Radiological Variables

A descriptive analysis of the data for quantitative and categorical variables based on diagnostic or treatment factors was performed (mean, SD, ranges, frequencies, and distributions). Backward conditional binary logistic regression was used to assess the extent to which specific diagnostic and treatment parameters interfere within the observed aEARR process; odds ratios (OR) with a 95% confidence interval were also calculated. SPSS was used for data analysis (version 22.0; LEAD Technologies, Chicago, IL, USA), with statistical significance set at a value of p < 0.05 [35].

2.6.2. Genetic Association Tests

To select our best SNP candidates, we fitted a logistic regression model adjusted by the type of treatment, total length of treatment (load duration), and gender, and assumed a log-additive genetic model. These statistical analyses were performed using R software (R Core Team, Vienna, Austria. version 3.6.1) [35].

2.6.3. Reliability and Accuracy of the Measurement Method

To prevent inter-observer variation, the same experienced operator (R.S) carried out all the measurements defined previously. However, a second experienced examiner (P.I) replicated the measurements on a subset of 50 patients to calculate the inter-observer error. The kappa coefficient was analyzed to determine concordance between EARR-affected and non-affected group assignment, based on radiological screening, and the result was a value of one. The method error was also calculated for measurements acquired from radiographic records, comparing double measurements of 20 randomly chosen subjects at an interval of 20 days. A paired Student’s t-test was used for calculations, with an absence of significance being regarded as indicative of concordance between repeated measurements; the intraclass correlation coefficient (ICC) for absolute agreement was also calculated for both intra- and inter-observer errors. Accuracy of measurement was obtained from the equation:
SE = √(Σd2/2n)
where d is the difference between the double measurements and n is the number of paired double measurements [36].

3. Results

3.1. Phenotyping: Reliability of the Radiographic Measurement Methods and the Associated Errors

aEARR was phenotyped according to radiographic measurements with a threshold for root resorption value greater than 5 mm. Reliability of the measurements retrieved no statistically significant differences between replicated assessments (p > 0.05) and intraclass correlation coefficient (ICC: 0.930), and the concordance index resulted in optimal values (k = 1.00) for both intra- and inter-examiner measurements, respectively [37]. Method error for measurements obtained from panoramic radiographs following the described method was calculated to be below <0.04 mm.

3.2. Sample Characteristics, Description and Analysis of aEARR Risk Associated with Clinical Features

The flow chart diagram (Figure 1) describes the sampling filtering steps and the following research strategy. The present study sample included a cohort of patients with relatively homogenous diagnostic characteristics, who had undergone mechanical load during a full orthodontic treatment, as detailed in Table 1. The mean ages of patients treated in the affected and control cohorts were ~21 ± 12 and ~23 ± 12 years old, respectively, with a fair balance found for sex distribution. The American Board of Orthodontics (ABO) discrepancy index was found to be quite homogenous in both groups [~16 ± 9 and ~15 ± 8] with a mean treatment time of ~27 ± 9 and ~25 ± 8 months, respectively (Table 1). Results from the associative testing by regression analysis are detailed in Table 1. The results showed that recorded clinical factors do not confer an additional risk of aEARR when compared to the control cohort. Specifically, differences in treatment time [OR: 0.974; 95%CI: 0.944–1.005; p = 0.095] or treatment type, extraction vs. non-extraction [OR: 1.668; 95%CI: 0.839–3.316; p = 0.145], did not confer an additional risk for aEARR process when results from both the study cohorts in the regression analysis were compared.

3.3. Genotype Distributions and Analysis of aEARR Risk Associated with Genetic Variants at Multiple Putative Loci on Chromosomes 2, 4, 8, 12, 18, X, and Y.

In addition to diagnostic and treatment-related co-variables, patients included in the present study were genotyped for specific novel target genetic variants and other SNPs explored in previous studies with regard to a risk of any degree of EARR found along the genome in chromosomes 2, 4, 8, 12, 18, X, and Y (see Supporting Information File 3).
When the whole cohort sample was explored within the associated risk for aEARR, a gender-dependent effect was detected to influence the results. The top lead genetic variants associated with aEARR [p value < 1 × 10−4], after gender stratification, focused on two novel putative genes located in the X chromosome, specifically, STAG 2 gene, stromal antigen 2 gene, rs151184635 (prior to and after adjustment for confounding factors) and RP1-30E17.2, clone-based (Vega) gene rs55839915 (after adjustment for confounding factors). These two target variants were found to be associated with an increased risk of aEARR; this effect was particularly restricted to men [OR: 6.09; 95% CI: 2.6–14.23 and OR: 6.86; 95% CI: 2.65–17.81, respectively] (Table 2 and Table 3).
In addition to these two top genetic variants (as compiled in Table 2 and Table 3), a total number of 27 novel genetic variants out of 14,717 [p value < 0.001] were identified with marginal association values, specifically in the sexual chromosomes; some of them were associated particularly with an independent susceptibility risk of experiencing aEARR in men or women secondary to mechanical orthodontic load. None of the previously studied genetic variants located at chromosomes 2, 4, 8, 12, and 18, also included in the present study, were found to be marginally associated with a positive or negative risk of aEARR [p value > 0.001]. In this respect, when a p value threshold was set to a conventional value of <0.05, the number of potential associations increased substantially as provided in Supporting Information File 5. In this line, previously studied variants at chromosomes 4, 12, and 18, i.e., SSP1: rs11730582 [OR: 0.54; 95%CI: 0.34–0.86; p = 0.008], P2RX7: rs1718119 [OR: 0.6; 95%CI: 0.36–1.01; p = 0.047], and TNFRSF11A: rs8086340 [OR: 0.6; 95%CI: 0.38–0.95; p = 0.024], respectively, showed marginal associations that interestingly, were found only in females, not showing the same trend for males. Importantly, all the above described marginal associations and their effects should be interpreted with caution as adjustment for multiple comparisons retrieves false discovery rate (FDR) values superior to 0.05 for all genetic targets, which does not yet allow precise discarding of the variants as not having an unequivocal modulatory effect over aEARR (Table 2 and Table 3, Supporting Information File 5).

4. Discussion

The present study offers, for the first time, significant valuable data on genetic variants located on chromosomes X and Y that are potentially implicated in aEARR facilitated by orthodontic forces. aEARR has been defined as a permanent loss of apical dental root structure of more than 5 mm. Severe forms of EARR secondary to orthodontic forces are the least frequent type of EARR, which is more often detected as of mild or moderate degrees [7]. Thus, aEARR describes a clearly radiographically identifiable phenotype of EARR with an apical third loss of more than 5 mm that is produced within a limited period, as this is the case of a mean orthodontic treatment length of ~20 months [38]. Despite being relatively rare, aggressive phenotypes are prone to exacerbate patient morbidity and are more likely to provoke mechanical and functional disabling consequences for the tooth, potentially inducing irreversible pulp or periodontal damage and triggering an inflammatory and/or infectious process that might result in eventual tooth loss [6,39].
Therefore, from a clinical perspective, it is clearly urgent to suitably define the triggering factors that might contribute to the etiology of this complex aggressive pathology [7]. In line with this, several diagnostic and clinical factors have been previously associated with moderate degrees of EARR secondary to orthodontic forces [2,40]. Demographic factors such as age and gender, morphological factors such as root shape type or clinical factors such as treatment duration, magnitude of orthodontic forces, previous dental trauma, maxillary expansion degree, direction of tooth movement, extraction treatment, use of intermaxillary elastics, or even appliance type have been suggested [9,41,42,43,44]. Nevertheless, a significant number of controversial related results are also found in literature. Recent meta-analysis and systematic reviews have suggested a greater relevance to some of them, but these are usually based on scientific evidence with low certainty levels [9,45]. Hence, several differing clinical management protocols for aEARR have been suggested [1].
Regression analysis performed in the present study suggests that both cohorts are unlikely to be marginally influenced (p > 0.05) by some of the collected covariables. In this regard, the treatment time has been described as a risk factor influencing EARR severity within a degree-time dependent effect [44]; however, this suggestion is not supported for the case of aEARR based on the present research data. A robust risk association was not directly imputed to treatment length by itself according to comparisons between both cohorts in the current study [44,45,46]. It is thus plausible that some confounding factors associated with treatment length and not treatment time itself, might explain some of the differences in some cases [38,47]. In this respect, some of the lengthiest treatments are very often associated with non-conventional tooth-movement rates or uncharacteristic treatment mechanics, which might be linked with infra-diagnosed conditions or factors, i.e., this may be the case for basal differences in bone remodeling metabolism and rates, and also for differences in craniofacial muscular responses which might affect occlusal loading and even tooth micro-trauma during orthodontic treatment and may even interfere with medications such as AINES and bisphosphonates [48,49,50]. Although a meticulous medical history was recorded; no unquestionable certainty should be presumed from the patients’ responses. Further non-compliance, round tripping movements, and movements near the bone cortex might also be associated with lower orthodontic tooth movement rates and/or extended treatment times [45,51]. Even considering these reflections, heterogeneity between study designs, ethnic differences, and the differences within phenotypic characterization might contribute to some of the observed results [17,23,52,53].
Apart from clinical-related factors, accumulating evidence supports the influence that genetic factors exert over the occurrence of post-orthodontic EARR with moderate severity. Previously published studies have provided useful evidence regarding the suggestive role of some specific genetic variants within the EARR process following candidate gene approaches [15,16,17,18,19,20,21,22,23]. In this respect, none of the previously studied genetic variants, also examined in the current study, showed robust statistically significant associations with aEARR [p > 0.0001], while a few of them (SSP1: rs11730582, P2RX7: rs1718119, TNFRSF11A: rs8086340) showed marginal associations [p < 0.05]. Interestingly, these marginal associations were found just in the female group, not showing the same trend in males, prior to and after adjustment with the clinical confounders. This might suggest a gender-specific effect. In this respect, this is the first study to perform a deep analysis regarding the influence of more than 14,000 specific genetic variants located on sexual chromosomes within an aggressive phenotype of EARR in the context of mechanical orthodontic loading. Moreover, this paper offers very valuable data regarding multiple novel putative loci and the genes potentially implicated in this type of extreme phenotype located not chromosomes X and Y, as well as at the level of other candidate genes with less power imputation located at autosomes 2, 4, 8, 12, and 18. Specifically, just two variants located at chromosome X, STAG 2 rs151184635 and RP1-30E17.2 rs55839915, where identified as the best associated SNPs [p value < 0.0001]. Interestingly, these associations showed a gender-dependent association limited to men [54,55]. We detected several statistically significant sex-specific interactions for many SNPs in the targeted genes. This sexual dimorphism is present in a vast majority of human pathologies based on genetic and hormonal differences that might modulate gene expression increase or minimize disease risk and progression [56,57,58,59]. In this regard, differences in bone remodeling rate have been described to be highly influenced by sex-specific features along with potential differences in bone mineral density and metabolism, or even hormone balance status [48,51,60]. Moreover, other gene expression factors directly linked to cytotoxic protection mechanism or related cytokine secretion might be underlying in the sex-specific differences as in other pathological entities [61,62,63]. Future studies should thus clarify if these results imply a potential interaction of these candidate genes with specific pathways related to gonadal steroids or additional gender-dependent mediators [64].
The top identified associations in the current study targeted rs151184635 and rs55839915 variants. RP1-30E17.2 [Ensembl: ENSG00000225689.1] contains 216,374 genetic variants with at least four splice variants. The SNP rs55839915 associated in the present study overlaps in three different transcripts being a long intergenic non-coding RNA type (lincRNA) that lacks coding potential [65]; however, lncRNAs have been described as regulators of gene expression, scaffold formation, and epigenetic control mediating within different pathological complex entities and physiological processes [66,67]. No specific underlying mechanisms have been described associated with this variant, and so, further studies should provide some potential explanatory hypothesis for aEARR. Meanwhile, STAG 2 encodes stromal antigen 2 protein, a subunit of the cohesin complex [Ensembl: ENSG00000101972 MIM: 300826]. This gene is linked to separation of chromatids during cell division, and its inactivation is associated with several types of human cancer [68]. The rs151184635 variant codes a non-coding transcript variant occurring within an intron overlapping three different transcripts at STAG2, TEX13D, and SH2D1A, all long non-coding RNA genes [69,70,71,72]. Although no direct robust functional consequence has been described in literature, SH2D1A, which is a mediator in cytolytic pathways as key activator of T- and NK cell-cytotoxicity, showed differential gene expression associated with specific immunopathologies as is the case of systemic juvenile idiopathic arthritis, associated with the potential onset of macrophage activation syndrome [73]. In this regard, extremely high overproduction of pro-inflammatory cytokines, IFN-γ, IL-1, IL-18, TNF, IL-2, IL-6, and macrophage colony-stimulating factor (M-CSF), as well as repressors such as circulating TNF receptors and IL-1ra are correlated with this macrophage-based pathology [74]. In connection with this, it has been described that prolonged mechanical strain within the periodontal ligament (PDL) around the tooth root is associated with an increase in CD68+, iNOS+ M1-like macrophages, an imbalance in the M1 > M2 ratio polarization and root resorption pathology linked to IFN-γ oversecretion by T-cells and PDL stem cells [75,76]. Whether any potential functional consequence in terms of alternative splicing or gene expression modulation might have a direct/indirect effect on the onset of aggressive phenotype of EARR, remains to be a remote hypothesis that should be explored deeply based on robust future molecular studies. Interestingly, X-chromosome activation of the vast majority of genes linked to the X chromosomes occurs in one of the two X chromosomes of any cell in women. Random or quasi-random selection of which X chromosome will remain inactivated in females follows a different process in males, which might lead to differential expression or repression of some inherited X-linked genes. This raises the possibility that expression of specific long non-coding RNAs, as should be the case for STAG2, TEX13D, or SH2D1A, might exert an influence in modulating gene expression in specific domains that escape X silencing, as occurs in other species, in a gender-dependent way. This should partially explain whether the genetic variants (rs151184635 and rs55839915) in the present study are at least marginally associated in males but not in females [77,78,79].

Limitations

The present study recruited a representative cohort of severely EARR affected patients that were radiographically screened by means of panoramic projections measurements >5 mm as assessed by two experienced examiners [7]. The radiographic diagnostic method used for patient assignment to affected and control groups is not exempt from limitations in terms of accuracy compared to other x-ray methods such periapical radiographs, Cone Beam Computerized Tomography (CBCT), Computerized Tomography (CT), or ex vivo methods (histological and/or histochemical) [80]. Nevertheless, panoramic radiograph assessments might produce sufficient reliability to perform absolute linear measurements when the head position is controlled in a range of 10° of the inclination in regard to the horizontal plane. Moreover, panoramic radiographs have been associated with underestimation of the tooth root lesion in mild lesions; however, this type of screening for assessing such types of aggressive phenotypes (>5 mm) is less prone to misclassification as shown by optimal reproducibility and error method results retrieved by the two experienced operators in the present study.
Secondly, although the UCM3Dg consortium database provides a unique opportunity to investigate the underlying influence of genetics over aEARR, the sample size is still relatively moderate, once the obtained results are re-analyzed, and the present design did not use an independent external cohort as a replication study due to the particularity of this aggressive phenotype. Thus, spurious associations remain a challenge and the external validity of the present findings need to be confirmed in further investigations by using different external cohorts to test the model.
Lastly, differences observed between study results in terms of the diagnostic, clinical, and genetic factors associated with EARR of different degrees are a major concern that should be addressed. With respect to this, it seems plausible that the heterogeneity found between study designs, ethnic differences [52], absence of a standardized and unique phenotypic characterization of EARR in terms of diagnostic methods and diagnostic criteria values/thresholds between studies might have contributed to some of this controversy. Nevertheless, this is a critical issue that should be clearly revisited and global consensus-based standards should be achieved in this regard to grant a next generation improvement, not only in internal validity of the studies but equally critical, in external validity of the research in the field. This should support bench-to-clinic research findings with increased certainty levels [1,81,82].
Despite all the aforementioned relevant concerns, this study offers novel and extremely valuable data regarding multiple putative loci and genes located at chromosomes X and Y potentially implicated in this type of extreme phenotype, along with other candidate genes with less imputation power at chromosomes 2, 4, 8, 12, 18, X, and Y. To the best of our knowledge, this is the first XY- chromosome-wide association study (XYWAS) to investigate sex-specific genetic effects on XY chromosomes within one of the most severe phenotypes of EARR in the context of orthodontic forces.

5. Conclusions

Multiple putative genetic variants located at chromosomes X and Y are potentially implicated in an extreme phenotype of aEARR. Particularly, STAG2 genetic variants rs151184635 and RP1-30E17.2 genetic variant rs55839915 were found to be associated with an increased risk of being afflicted with aEARR, only in men.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-4426/10/4/169/s1, Supporting Information File 1: eligibility criteria for inclusion/exclusion from the study research and diagnostic-clinical-genetic data recorded for each patient; Supporting Information File 2: full set of diagnostic, clinical, radiogrametric variables recorded for each participant; Supporting Information File 3: quality control steps performed in the genotyped sample; Supporting Information File 4: genetic variants explored in the research at chromosomes 2, 4, 8, 12, 18, X and Y; Supporting Information File 5: SNPs marginally associated with aEARR [p < 0.05] at chromosomes 2, 4, 8, 12, 18, X and Y.

Author Contributions

Conceptualization, A.I.-L., R.M.Y.-V., P.I.-D., P.F.-N.; methodology, A.I.-L., A.I.-L., R.S.-C., P.F.-N., C.F.-M.; software, P.F.-N.; validation, A.I.-L., R.M.Y.-V., P.I.-D., R.S.-C.; formal analysis, A.I.-L., R.M.Y.-V., P.I.-D., R.S.-C., P.F.-N., C.F.-M.; investigation, P.I.-D., R.S.-C.; resources, A.I.-L.; data curation, P.I.D.; writing—original draft preparation, A.I.-L., R.M.Y.-V., P.F.-N., C.F.-M.; writing—review and editing, A.I.-L., R.M.Y.-V., P.F.-N., C.F.-M., P.I.-D., R.S.-C.; funding acquisition, A.I.-L., R.M.Y.-V., C.F.-M. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the European Orthodontic Society Research Award, 2017.

Acknowledgments

The authors thank Mario González-Sánchez and Javier González-Palacios (“Bioinformatics and Data Management Group” (BIODAMA, ISCIII)) for their technical support.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Sondeijker, C.F.W.; Lamberts, A.A.; Beckmann, S.H.; Kuitert, R.B.; van Westing, K.; Persoon, S.; Kuijpers-Jagtman, A.M. Development of a clinical practice guideline for orthodontically induced external apical root resorption. Eur. J. Orthod. 2020, 42, 115–124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Ahuja, R.; Almuzian, M.; Khan, A.; Pascovici, D.; Dalci, O.; Darendeliler, M.A. A preliminary investigation of short-term cytokine expression in gingival crevicular fluid secondary to high-level orthodontic forces and the associated root resorption: Case series analytical study. Prog. Orthod. 2017, 18, 23. [Google Scholar] [CrossRef] [PubMed]
  3. Fontana, M.L.; de Souza, C.M.; Bernardino, J.F.; Hoette, F.; Hoette, M.L.; Thum, L.; Ozawa, T.O.; Capelozza Filho, L.; Olandoski, M.; Trevilatto, P.C. Association analysis of clinical aspects and vitamin D receptor gene polymorphism with external apical root resorption in orthodontic patients. Am. J. Orthod. Dentofac. Orthop. 2012, 142, 339–347. [Google Scholar] [CrossRef] [PubMed]
  4. Al-Qawasmi, R.A.; Hartsfield, J.K., Jr.; Everett, E.T.; Flury, L.; Liu, L.; Foroud, T.M.; Macri, J.V.; Roberts, W.E. Genetic predisposition to external apical root resorption. Am. J. Orthod. Dentofac. Orthop. 2003, 123, 242–252. [Google Scholar] [CrossRef]
  5. Harris, E.F.; Kineret, S.E.; Tolley, E.A. A heritable component for external apical root resorption in patients treated orthodontically. Am. J. Orthod. Dentofac. Orthop. 1997, 111, 301–309. [Google Scholar]
  6. Matsuyama, Y.; Tsakos, G.; Listl, S.; Aida, J.; Watt, R.G. Impact of Dental Diseases on Quality-Adjusted Life Expectancy in US Adults. J. Dent. Res. 2019, 98, 510–516. [Google Scholar] [CrossRef]
  7. Artun, J.; Van’t Hullenaar, R.; Doppel, D.; Kuijpers-Jagtman, A.M. Identification of orthodontic patients at risk of severe apical root resorption. Am. J. Orthod. Dentofac. Orthop. 2009, 135, 448–455. [Google Scholar] [CrossRef]
  8. Mirabella, A.D.; Artun, J. Risk factors for apical root resorption of maxillary anterior teeth in adult orthodontic patients. Am. J. Orthod. Dentofac. Orthop. 1995, 108, 48–55. [Google Scholar] [CrossRef]
  9. Currell, S.D.; Liaw, A.; Blackmore Grant, P.D.; Esterman, A.; Nimmo, A. Orthodontic mechanotherapies and their influence on external root resorption: A systematic review. Am. J. Orthod. Dentofac. Orthop. 2019, 155, 313–329. [Google Scholar] [CrossRef]
  10. Guo, Y.; He, S.; Gu, T.; Liu, Y.; Chen, S. Genetic and clinical risk factors of root resorption associated with orthodontic treatment. Am. J. Orthod. Dentofac. Orthop. 2016, 150, 283–289. [Google Scholar] [CrossRef]
  11. Mohandesan, H.; Ravanmehr, H.; Valaei, N. A radiographic analysis of external apical root resorption of maxillary incisors during active orthodontic treatment. Eur. J. Orthod. 2007, 29, 134–139. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Aman, C.; Azevedo, B.; Bednar, E.; Chandiramami, S.; German, D.; Nicholson, E.; Nicholson, K.; Scarfe, W.C. Apical root resorption during orthodontic treatment with clear aligners: A retrospective study using cone-beam computed tomography. Am. J. Orthod. Dentofac. Orthop. 2018, 153, 842–851. [Google Scholar] [CrossRef] [PubMed]
  13. Nowrin, S.A.; Jaafar, S.; Ab Rahman, N.; Basri, R.; Alam, M.K.; Shahid, F. Association between genetic polymorphisms and external apical root resorption: A systematic review and meta-analysis. Korean J. Orthod. 2018, 48, 395–404. [Google Scholar] [CrossRef] [PubMed]
  14. Tarallo, F.; Chimenti, C.; Paiella, G.; Cordaro, M.; Tepedino, M. Biomarkers in the gingival crevicular fluid used to detect root resorption in patients undergoing orthodontic treatment: A systematic review. Orthod. Craniofac. Res. 2019, 22, 236–247. [Google Scholar] [CrossRef]
  15. Al-Qawasmi, R.A.; Hartsfield, J.K., Jr.; Everett, E.T.; Flury, L.; Liu, L.; Foroud, T.M.; Macri, J.V.; Roberts, W.E. Genetic predisposition to external apical root resorption in orthodontic patients: Linkage of chromosome-18 marker. J. Dent. Res. 2003, 82, 356–360. [Google Scholar] [CrossRef] [PubMed]
  16. Borges de Castilhos, B.; Machado de Souza, C.; Simas Netta Fontana, M.L.S.; Pereira, F.A.; Tanaka, O.M.; Trevilatto, P.C. Association of clinical variables and polymorphisms in RANKL, RANK, and OPG genes with external apical root resorption. Am. J. Orthod. Dentofac. Orthop. 2019, 155, 529–542. [Google Scholar] [CrossRef] [PubMed]
  17. Pereira, S.; Lavado, N.; Nogueira, L.; Lopez, M.; Abreu, J.; Silva, H. Polymorphisms of genes encoding P2X7R, IL-1B, OPG and RANK in orthodontic-induced apical root resorption. Oral Dis. 2014, 20, 659–667. [Google Scholar] [CrossRef]
  18. Sharab, L.Y.; Morford, L.A.; Dempsey, J.; Falcao-Alencar, G.; Mason, A.; Jacobson, E.; Kluemper, G.T.; Macri, J.V.; Hartsfield, J.K., Jr. Genetic and treatment-related risk factors associated with external apical root resorption (EARR) concurrent with orthodontia. Orthod. Craniofac. Res. 2015, 18 (Suppl. 1), 71–82. [Google Scholar] [CrossRef] [Green Version]
  19. Iglesias-Linares, A.; Yanez-Vico, R.M.; Moreno-Fernandez, A.M.; Mendoza-Mendoza, A.; Orce-Romero, A.; Solano-Reina, E. Osteopontin gene SNPs (rs9138, rs11730582) mediate susceptibility to external root resorption in orthodontic patients. Oral Dis. 2014, 20, 307–312. [Google Scholar] [CrossRef]
  20. Iglesias-Linares, A.; Yanez-Vico, R.M.; Ortiz-Ariza, E.; Ballesta, S.; Mendoza-Mendoza, A.; Perea, E.; Solano-Reina, E. Postorthodontic external root resorption in root-filled teeth is influenced by interleukin-1beta polymorphism. J. Endod. 2012, 38, 283–287. [Google Scholar]
  21. Bastos, H.N.; Antao, M.R.; Silva, S.N.; Azevedo, A.P.; Manita, I.; Teixeira, V.; Pina, J.E.; Gil, O.M.; Ferreira, T.C.; Limbert, E.; et al. Association of polymorphisms in genes of the homologous recombination DNA repair pathway and thyroid cancer risk. Thyroid 2009, 19, 1067–1075. [Google Scholar] [CrossRef] [PubMed]
  22. Gulden, N.; Eggermann, T.; Zerres, K.; Beer, M.; Meinelt, A.; Diedrich, P. Interleukin-1 polymorphisms in relation to external apical root resorption (EARR). J. Orofac. Orthop. 2009, 70, 20–38. [Google Scholar] [CrossRef] [PubMed]
  23. Linhartova, P.; Cernochova, P.; Izakovicova Holla, L. IL1 gene polymorphisms in relation to external apical root resorption concurrent with orthodontia. Oral Dis. 2013, 19, 262–270. [Google Scholar] [CrossRef] [PubMed]
  24. Iglesias-Linares, A.; Yanez-Vico, R.M.; Ballesta, S.; Ortiz-Ariza, E.; Mendoza-Mendoza, A.; Perea, E.; Solano-Reina, E. Interleukin 1 gene cluster SNPs (rs1800587, rs1143634) influences post-orthodontic root resorption in endodontic and their contralateral vital control teeth differently. Int. Endod. J. 2012, 45, 1018–1026. [Google Scholar] [CrossRef] [PubMed]
  25. Shank, S.; Shank, K.; Caudill, R.; Foroud, T.; Wetherill, L.; Weaver, M. Evaluation of SNPs in orthodontic patients with root resorption. J. Dent Res. 2007, 86(Spec Iss A), abstract-1922. [Google Scholar]
  26. Chung, P.Y.; Beyens, G.; Riches, P.L.; Van Wesenbeeck, L.; de Freitas, F.; Jennes, K.; Daroszewska, A.; Fransen, E.; Boonen, S.; Geusens, P.; et al. Genetic variation in the TNFRSF11A gene encoding RANK is associated with susceptibility to Paget’s disease of bone. J. Bone Miner. Res. 2010, 25, 2592–2605. [Google Scholar] [CrossRef]
  27. Pereira, S.; Nogueira, L.; Canova, F.; Lopez, M.; Silva, H.C. IRAK1 variant is protective for orthodontic-induced external apical root resorption. Oral Dis. 2016, 22, 658–664. [Google Scholar] [CrossRef]
  28. Skol, A.D.; Scott, L.J.; Abecasis, G.R.; Boehnke, M. Joint analysis is more efficient than replication-based analysis for two-stage genome-wide association studies. Nat. Genet. 2006, 38, 209–213. [Google Scholar] [CrossRef]
  29. World Medical, A. World Medical Association Declaration of Helsinki: Ethical principles for medical research involving human subjects. JAMA 2013, 310, 2191–2194. [Google Scholar]
  30. Linge, L.; Linge, B.O. Patient characteristics and treatment variables associated with apical root resorption during orthodontic treatment. Am. J. Orthod. Dentofac. Orthop. 1991, 99, 35–43. [Google Scholar] [CrossRef]
  31. Brezniak, N.; Goren, S.; Zoizner, R.; Dinbar, A.; Arad, A.; Wasserstein, A.; Heller, M. The use of an individual jig in measuring tooth length changes. Angle Orthod. 2004, 74, 780–785. [Google Scholar] [PubMed]
  32. Baccetti, T.; McGill, J.S.; Franchi, L.; McNamara, J.A., Jr.; Tollaro, I. Skeletal effects of early treatment of Class III malocclusion with maxillary expansion and face-mask therapy. Am. J. Orthod. Dentofac. Orthop 1998, 113, 333–343. [Google Scholar] [CrossRef]
  33. Genomes Project, C.; Abecasis, G.R.; Altshuler, D.; Auton, A.; Brooks, L.D.; Durbin, R.M.; Gibbs, R.A.; Hurles, M.E.; McVean, G.A. A map of human genome variation from population-scale sequencing. Nature 2010, 467, 1061–1073. [Google Scholar]
  34. Hoffmann, T.J.; Kvale, M.N.; Hesselson, S.E.; Zhan, Y.; Aquino, C.; Cao, Y.; Cawley, S.; Chung, E.; Connell, S.; Eshragh, J.; et al. Next generation genome-wide association tool: Design and coverage of a high-throughput European-optimized SNP array. Genomics 2011, 98, 79–89. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. R Core Team. R: A language and environment for statistical computing. In R Foundation for Statistical Computing; R Core Team: Vienna, Austria, 2014; Available online: http://www.R-project.org/ (accessed on 2 December 2019).
  36. Houston, W.J.B. The analysis of errors in orthodontic measurements. Am. J. Orthod. 1983, 83, 382–390. [Google Scholar] [CrossRef]
  37. Siegel, S.; Castellan, N.J. Non Parametric Statistics for the Behavioural Sciences; McGraw-Hill: New York, NY, USA, 1998. [Google Scholar]
  38. Tsichlaki, A.; Chin, S.Y.; Pandis, N.; Fleming, P.S. How long does treatment with fixed orthodontic appliances last? A systematic review. Am. J. Orthod. Dentofac. Orthop. 2016, 149, 308–318. [Google Scholar] [CrossRef]
  39. Righolt, A.J.; Jevdjevic, M.; Marcenes, W.; Listl, S. Global-, Regional-, and Country-Level Economic Impacts of Dental Diseases in 2015. J. Dent. Res. 2018, 97, 501–507. [Google Scholar] [CrossRef]
  40. Roscoe, M.G.; Meira, J.B.; Cattaneo, P.M. Association of orthodontic force system and root resorption: A systematic review. Am. J. Orthod. Dentofac. Orthop. 2015, 147, 610–626. [Google Scholar] [CrossRef]
  41. Qin, F.; Zhou, Y. The influence of bracket type on the external apical root resorption in class I extraction patients—A retrospective study. BMC Oral Health 2019, 19, 53. [Google Scholar] [CrossRef]
  42. Majorana, A.; Bardellini, E.; Conti, G.; Keller, E.; Pasini, S. Root resorption in dental trauma: 45 cases followed for 5 years. Dent. Traumatol. 2003, 19, 262–265. [Google Scholar] [CrossRef]
  43. Celikoglu, M.; Halicioglu, K.; Caglaroglu, M. Association between root resorption incident to orthodontic treatment and treatment factors. Eur. J. Orthod. 2013, 35, 273. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Fernandes, L.Q.P.; Figueiredo, N.C.; Montalvany Antonucci, C.C.; Lages, E.M.B.; Andrade, I., Jr.; Capelli Junior, J. Predisposing factors for external apical root resorption associated with orthodontic treatment. Korean J. Orthod. 2019, 49, 310–318. [Google Scholar] [CrossRef] [PubMed]
  45. Theodorou, C.I.; Kuijpers-Jagtman, A.M.; Bronkhorst, E.M.; Wagener, F. Optimal force magnitude for bodily orthodontic tooth movement with fixed appliances: A systematic review. Am. J. Orthod. Dentofac. Orthop. 2019, 156, 582–592. [Google Scholar] [CrossRef] [PubMed]
  46. Kim, K.W.; Kim, S.J.; Lee, J.Y.; Choi, Y.J.; Chung, C.J.; Lim, H.; Kim, K.H. Apical root displacement is a critical risk factor for apical root resorption after orthodontic treatment. Angle Orthod. 2018, 88, 740–747. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Jiang, R.P.; McDonald, J.P.; Fu, M.K. Root resorption before and after orthodontic treatment: A clinical study of contributory factors. Eur. J. Orthod. 2010, 32, 693–697. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Iglesias-Linares, A.; Morford, L.A.; Hartsfield, J.K., Jr. Bone Density and Dental External Apical Root Resorption. Curr. Osteoporos. Rep. 2016, 14, 292–309. [Google Scholar] [CrossRef] [Green Version]
  49. Kaklamanos, E.G.; Makrygiannakis, M.A.; Athanasiou, A.E. Does medication administration affect the rate of orthodontic tooth movement and root resorption development in humans? A systematic review. Eur. J. Orthod. 2020, 42, 407–414. [Google Scholar] [CrossRef]
  50. Zymperdikas, V.F.; Yavropoulou, M.P.; Kaklamanos, E.G.; Papadopoulos, M.A. Effects of systematic bisphosphonate use in patients under orthodontic treatment: A systematic review. Eur. J. Orthod. 2020, 42, 60–71. [Google Scholar] [CrossRef]
  51. Sirisoontorn, I.; Hotokezaka, H.; Hashimoto, M.; Gonzales, C.; Luppanapornlarp, S.; Darendeliler, M.A.; Yoshida, N. Tooth movement and root resorption; the effect of ovariectomy on orthodontic force application in rats. Angle Orthod. 2011, 81, 570–577. [Google Scholar] [CrossRef] [Green Version]
  52. Wang, J.; Rousso, C.; Christensen, B.I.; Li, P.; Kau, C.H.; MacDougall, M.; Lamani, E. Ethnic differences in the root to crown ratios of the permanent dentition. Orthod. Craniofac. Res. 2019, 22, 99–104. [Google Scholar] [CrossRef]
  53. Hartsfield, J.K., Jr.; Everett, E.T.; Al-Qawasmi, R.A. Genetic Factors in External Apical Root Resorption and Orthodontic Treatment. Crit. Rev. Oral Biol. Med. 2004, 15, 115–122. [Google Scholar] [CrossRef]
  54. Penoni, D.C.; Fidalgo, T.K.; Torres, S.R.; Varela, V.M.; Masterson, D.; Leao, A.T.; Maia, L.C. Bone Density and Clinical Periodontal Attachment in Postmenopausal Women: A Systematic Review and Meta-Analysis. J. Dent. Res. 2017, 96, 261–269. [Google Scholar] [CrossRef]
  55. Thompson, D.M.; Lee, H.M.; Stoner, J.A.; Golub, L.M.; Nummikoski, P.V.; Payne, J.B. Loss of alveolar bone density in postmenopausal, osteopenic women is associated with circulating levels of gelatinases. J. Periodontal Res. 2019, 54, 525–532. [Google Scholar] [CrossRef] [PubMed]
  56. Cook, M.B.; McGlynn, K.A.; Devesa, S.S.; Freedman, N.D.; Anderson, W.F. Sex disparities in cancer mortality and survival. Cancer Epidemiol. Biomarkers Prev. 2011, 20, 1629–1637. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Wang, Y.; Freemantle, N.; Nazareth, I.; Hunt, K. Gender differences in survival and the use of primary care prior to diagnosis of three cancers: An analysis of routinely collected UK general practice data. PLoS ONE 2014, 9, e101562. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Barford, A.; Dorling, D.; Davey Smith, G.; Shaw, M. Life expectancy: Women now on top everywhere. BMJ 2006, 332, 808. [Google Scholar] [CrossRef]
  59. Garufi, C.; Giacomini, E.; Torsello, A.; Sperduti, I.; Melucci, E.; Mottolese, M.; Zeuli, M.; Ettorre, G.M.; Ricciardi, T.; Cognetti, F.; et al. Gender effects of single nucleotide polymorphisms and miRNAs targeting clock-genes in metastatic colorectal cancer patients (mCRC). Sci. Rep. 2016, 6, 34006. [Google Scholar] [CrossRef] [Green Version]
  60. Liu, C.T.; Estrada, K.; Yerges-Armstrong, L.M.; Amin, N.; Evangelou, E.; Li, G.; Minster, R.L.; Carless, M.A.; Kammerer, C.M.; Oei, L.; et al. Assessment of gene-by-sex interaction effect on bone mineral density. J. Bone Miner. Res. 2012, 27, 2051–2064. [Google Scholar] [CrossRef]
  61. Ober, C.; Loisel, D.A.; Gilad, Y. Sex-specific genetic architecture of human disease. Nat. Rev. Genet. 2008, 9, 911–922. [Google Scholar] [CrossRef] [Green Version]
  62. Winkler, T.W.; Justice, A.E.; Graff, M.; Barata, L.; Feitosa, M.F.; Chu, S.; Czajkowski, J.; Esko, T.; Fall, T.; Kilpelainen, T.O.; et al. The Influence of Age and Sex on Genetic Associations with Adult Body Size and Shape: A Large-Scale Genome-Wide Interaction Study. PLoS Genet. 2015, 11, e1005378. [Google Scholar] [CrossRef] [Green Version]
  63. Ruiz-Perera, L.M.; Schneider, L.; Windmoller, B.A.; Muller, J.; Greiner, J.F.W.; Kaltschmidt, C.; Kaltschmidt, B. NF-kappaB p65 directs sex-specific neuroprotection in human neurons. Sci. Rep. 2018, 8, 16012. [Google Scholar] [CrossRef] [PubMed]
  64. Tannenbaum, C.; Ellis, R.P.; Eyssel, F.; Zou, J.; Schiebinger, L. Sex and gender analysis improves science and engineering. Nature 2019, 575, 137–146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Engreitz, J.M.; Haines, J.E.; Perez, E.M.; Munson, G.; Chen, J.; Kane, M.; McDonel, P.E.; Guttman, M.; Lander, E.S. Local regulation of gene expression by lncRNA promoters, transcription and splicing. Nature 2016, 539, 452–455. [Google Scholar] [CrossRef] [PubMed]
  66. Deniz, E.; Erman, B. Long noncoding RNA (lincRNA), a new paradigm in gene expression control. Funct. Integr. Genom. 2017, 17, 135–143. [Google Scholar] [CrossRef]
  67. Zhu, J.; Yu, W.; Wang, Y.; Xia, K.; Huang, Y.; Xu, A.; Chen, Q.; Liu, B.; Tao, H.; Li, F.; et al. lncRNAs: Function and mechanism in cartilage development, degeneration, and regeneration. Stem Cell Res. Ther. 2019, 10, 344. [Google Scholar] [CrossRef] [Green Version]
  68. Mondal, G.; Stevers, M.; Goode, B.; Ashworth, A.; Solomon, D.A. A requirement for STAG2 in replication fork progression creates a targetable synthetic lethality in cohesin-mutant cancers. Nat. Commun. 2019, 10, 1686. [Google Scholar] [CrossRef]
  69. Kellis, M.; Wold, B.; Snyder, M.P.; Bernstein, B.E.; Kundaje, A.; Marinov, G.K.; Ward, L.D.; Birney, E.; Crawford, G.E.; Dekker, J.; et al. Defining functional DNA elements in the human genome. Proc. Natl. Acad. Sci. USA 2014, 111, 6131–6138. [Google Scholar] [CrossRef] [Green Version]
  70. Lai, Y.; Xu, P.; Li, Q.; Ren, D.; Wang, J.; Xu, K.; Gao, W. Downregulation of long noncoding RNA ZMAT1 transcript variant 2 predicts a poor prognosis in patients with gastric cancer. Int. J. Clin. Exp. Pathol. 2015, 8, 5556–5562. [Google Scholar]
  71. Saghaeian Jazi, M.; Samaei, N.M.; Ghanei, M.; Shadmehr, M.B.; Mowla, S.J. Identification of new SOX2OT transcript variants highly expressed in human cancer cell lines and down regulated in stem cell differentiation. Mol. Biol. Rep. 2016, 43, 65–72. [Google Scholar] [CrossRef]
  72. Available online: https://www.ncbi.nlm.nih.gov/snp/rs151184635 (accessed on 10 December 2019).
  73. Fall, N.; Barnes, M.; Thornton, S.; Luyrink, L.; Olson, J.; Ilowite, N.T.; Gottlieb, B.S.; Griffin, T.; Sherry, D.D.; Thompson, S.; et al. Gene expression profiling of peripheral blood from patients with untreated new-onset systemic juvenile idiopathic arthritis reveals molecular heterogeneity that may predict macrophage activation syndrome. Arthritis Rheum. 2007, 56, 3793–3804. [Google Scholar] [CrossRef]
  74. Grom, A.A.; Horne, A.; De Benedetti, F. Macrophage activation syndrome in the era of biologic therapy. Nat. Rev. Rheumatol. 2016, 12, 259–268. [Google Scholar] [CrossRef] [PubMed]
  75. He, D.; Kou, X.; Luo, Q.; Yang, R.; Liu, D.; Wang, X.; Song, Y.; Cao, H.; Zeng, M.; Gan, Y.; et al. Enhanced M1/M2 macrophage ratio promotes orthodontic root resorption. J. Dent. Res. 2015, 94, 129–139. [Google Scholar] [CrossRef] [PubMed]
  76. Iglesias-Linares, A.; Hartsfield, J.K., Jr. Cellular and Molecular Pathways Leading to External Root Resorption. J. Dent. Res. 2017, 96, 145–152. [Google Scholar] [CrossRef] [PubMed]
  77. Johansson, M.M.; Pottmeier, P.; Suciu, P.; Ahmad, T.; Zaghlool, A.; Halvardson, J.; Darj, E.; Feuk, L.; Peuckert, C.; Jazin, E. Novel Y-Chromosome Long Non-Coding RNAs Expressed in Human Male CNS During Early Development. Front. Genet. 2019, 10, 891. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  78. Reinius, B.; Shi, C.; Hengshuo, L.; Sandhu, K.S.; Radomska, K.J.; Rosen, G.D.; Lu, L.; Kullander, K.; Williams, R.W.; Jazin, E. Female-biased expression of long non-coding RNAs in domains that escape X-inactivation in mouse. BMC Genom. 2010, 11, 614. [Google Scholar] [CrossRef] [PubMed]
  79. Yang, X.; Hoshino, A.; Taga, T.; Kunitsu, T.; Ikeda, Y.; Yasumi, T.; Yoshida, K.; Wada, T.; Miyake, K.; Kubota, T.; et al. A female patient with incomplete hemophagocytic lymphohistiocytosis caused by a heterozygous XIAP mutation associated with non-random X-chromosome inactivation skewed towards the wild-type XIAP allele. J. Clin. Immunol. 2015, 35, 244–248. [Google Scholar] [CrossRef] [PubMed]
  80. Dudic, A.; Giannopoulou, C.; Leuzinger, M.; Kiliaridis, S. Detection of apical root resorption after orthodontic treatment by using panoramic radiography and cone-beam computed tomography of super-high resolution. Am. J. Orthod. Dentofac. Orthop. 2009, 135, 434–437. [Google Scholar] [CrossRef]
  81. Russell, J.F. If a job is worth doing, it is worth doing twice. Nature 2013, 496, 7. [Google Scholar] [CrossRef]
  82. Steckler, A.; McLeroy, K.R. The importance of external validity. Am. J. Public Health 2008, 98, 9–10. [Google Scholar] [CrossRef]
Jpm 10 00169 g001 550

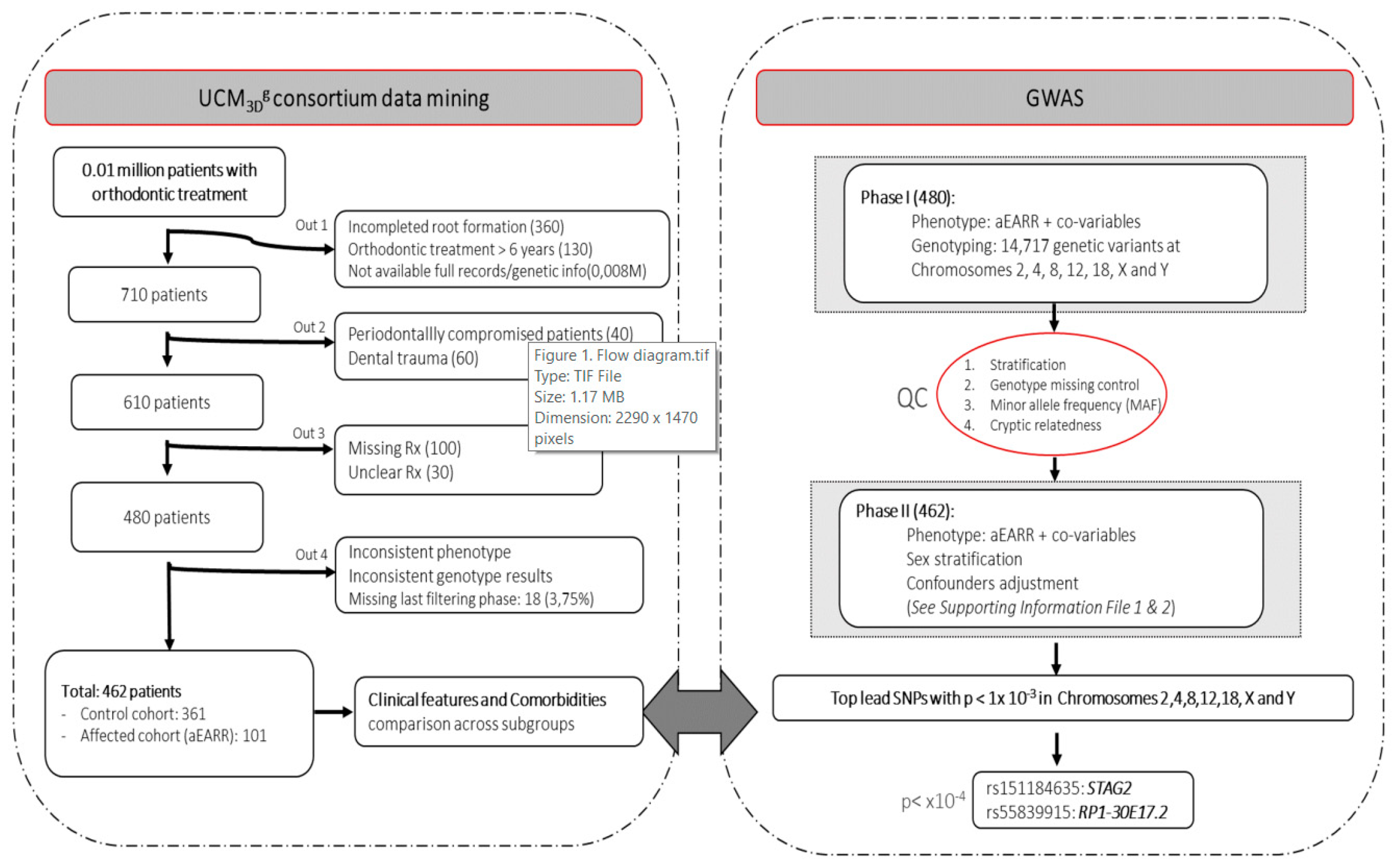

Figure 1. Flow diagram of the filtering process and genome-wide association study.
Figure 1. Flow diagram of the filtering process and genome-wide association study.
Jpm 10 00169 g001
Table
Table 1. Population demographics, diagnostic and clinical characteristics of the included patients.
Table 1. Population demographics, diagnostic and clinical characteristics of the included patients.
D & Cl ParametersaEARR CohortControl Group (n = 361)p Value **OR95% CI
(n = 101)LowerUpper
Mean age [years]21.52 ± 11.6522.83 ± 11.660.06710240.9981051
Sex [n (%)] 0.20914130.8242.42
female51 (50.49%)205 (56.78%)
male50 (49.50%)156 (43.21%)
Angle classification [n (%)] 0.161---
Class I 49 (48.51%)184 (51.80%)0.62811490.6552018
Class II 39 (38.61%)153 (42.38%)10.490.2091145
Class III 13 (12.87%)24 (6.64%)
Treatment [n (%)] 0.14516680.8393316
extraction20 (19.80%)59 (16.34%)
non-extraction81 (80.19%)302 (83.65%)
Treatment time (m)27.0 ± 9.1025.43±7.960.0950.9740.9441005
ABO Discrepancy index15.92 ± 8.9115.10±8.300.8760.9970.9661030
Apical displacement
Vertical (mm)−4.44 ± 5.91−2.83 ± 7.750.0710450.9961095
Sagittal (mm)−0.57 ± 5.39−0.25 ± 4.630.75810090.9531068
Vertical (mm) [absolute]5.32 ± 4.574.85 ± 6.880.9320.9980.9571041
Sagittal (mm) [absolute]4.04 ± 3.893.31 ± 3.120.1820.9510.8831024
D&Cl: Diagnostic and clinical factors; aEARR: aggresive external apical root resorption secondary to mechanical strain; m: months; ABO: American Board of Orthodontics; DI: ABO Discrepancy index (from Cangialosi TJ, et al. The ABO discrepancy index: a measure of case complexity. Am J Orthod Dentofacial Orthop. 2004;125:270-278); at least one maxillary incisor with EARR lesion > 5 mm; **: Conditional backward binary logistic regression analysis. Dependent variable = control vs affected patients.
Table
Table 2. Lead genetic variants associated with aggresive external apical root resorption [stratified by sex] *.
Table 2. Lead genetic variants associated with aggresive external apical root resorption [stratified by sex] *.
Stratification CodeLead SNPORLowerUpperp-Value £FDRChromosomeGene Name; Source and Description
Malers1118265583.81.748.210.0009593160.894103771Chr. XDMD; dystrophin [Source:HGNC Symbol;Acc:2928]
rs7058963.61.827.270.0001471320.522979691Chr. X-
rs48280680.60.390.820.0007738190.894103771Chr. XNOX1; NADPH oxidase 1 [Source:HGNC Symbol;Acc:7889]
rs59118061.81.292.520.000568940.894103771Chr. XSTAG2; stromal antigen 2 [Source:HGNC Symbol;Acc:11355]
rs1511846355.92.5513.720.000033 **0.480531966Chr. XSTAG2; stromal antigen 2 [Source:HGNC Symbol;Acc:11355]
rs59750244.51.9210.370.000592860.894103771Chr. XRP1-30E17.2; Clone-based (Vega) gene
rs5583991562.3715.120.0001463190.522979691Chr. XRP1-30E17.2; Clone-based (Vega) gene
rs59768344.41.8510.460.0009729510.894103771Chr. XLOC107985698
rs9268093.81.927.580.000136320.522979691Chr. X-
rs66362783.31.76.490.0004072880.894103771Chr. X-
Femalers59622265.22.2212.020.0002119951Chr. X-
rs1125122846.22.1817.540.0007606671Chr. XTMEM47; transmembrane protein 47 [Source:HGNC Symbol;Acc:18515]
rs65210420.50.270.740.0007670821Chr. X-
rs70587870.40.260.740.0009230931Chr. X-
rs48279530.40.250.720.0008891851Chr. X-
rs21802710.40.210.650.0002211281Chr. XTAF7L; TAF7-like RNA polymerase II, TATA box binding protein (TBP)-associated factor, 50 kDa [Source:HGNC Symbol;Acc:11548]
rs66381622.51.524.160.000237481Chr. X-
rs70496610.40.260.750.0009649351Chr. X-
rs287295872.81.485.40.0005272691Chr. XSPRY3; sprouty homolog 3 (Drosophila) [Source:HGNC Symbol;Acc:11271]
* Not adjusted; £Selected p value threshold p < 1 × 10−3; ** p < 1 × 10−4; OR: Odds Ratio; FDR: false discovery rate; Chr.: Chromosome.
Table
Table 3. Lead genetic variants (adjusted) associated with aggresive external apical root resorption [stratified by sex].
Table 3. Lead genetic variants (adjusted) associated with aggresive external apical root resorption [stratified by sex].
Stratification CodeLead SNPORLowerUpperp-Value £FDRChromosomeGene Name; Source and Description
Malers48929240.370.180.770.0006875810.778251314Chr. X-
rs6258181200 0.0008896780.778251314Chr. XFAM9B; family with sequence similarity 9, member B [Source:HGNC Symbol;Acc:18404]
rs6146399900 0.0002508610.57740729Chr. XRP11-40F8.2; Clone-based (Vega) gene
rs15025588822.232.48199.290.0008061440.778251314Chr. X-
rs7058963.71.847.450.0001410110.501260262Chr. X-
rs59693330.440.250.770.0007171170.778251314Chr. X-
rs595602400 0.0002175920.57740729Chr. X-
rs48258560.30.110.830.0008342880.778251314Chr. XGRIA3; glutamate receptor, ionotropic, AMPA 3 [Source:HGNC Symbol;Acc:4573]
rs59118061.871.322.630.0003248650.57740729Chr. XSTAG2; stromal antigen 2 [Source:HGNC Symbol;Acc:11355]
rs1511846356.092.614.230,0000291**0.41510095Chr. XSTAG2; stromal antigen 2 [Source:HGNC Symbol;Acc:11355]
rs59750244.932.0911.670.0003168190.57740729Chr. XRP1-30E17.2; Clone-based (Vega) gene
rs558399156.862.6517.810,0000641**0.456213349Chr. XRP1-30E17.2; Clone-based (Vega) gene
rs59768344.691.9411.350.0006956160.778251314Chr. XLOC107985698
Femalers59622265.312.2712.430.0001795540.873550665Chr. X-
rs1125122846.472.2518.60.0006241150.873550665Chr. XTMEM47; transmembrane protein 47 [Source:HGNC Symbol;Acc:18515]
rs48279530.420.240.720.0008134140.873550665Chr. X-
rs21802710.350.20.640.0001786480.873550665Chr. XTAF7L; TAF7-like RNA polymerase II, TATA box binding protein (TBP)-associated factor, 50 kDa [Source:HGNC Symbol;Acc:11548]
rs6173601800 0.000900460.873550665Chr. XARMCX4; armadillo repeat containing, X-linked 4 [Source:HGNC Symbol;Acc:28615]
£ Selected p value threshold p < 1 × 10−3; **: p < 1 × 10−4; OR: Odds Ratio; FDR: false discovery rate; Chr.: Chromosome; Co-variables used for adjustment: Sex, Treatment time, Treatment type.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Iber-Díaz, P.; Senen-Carramolino, R.; Iglesias-Linares, A.; Fernández-Navarro, P.; Flores-Mir, C.; Yañez-Vico, R.M. GWAS of Post-Orthodontic Aggressive External Apical Root Resorption Identified Multiple Putative Loci at X-Y Chromosomes. J. Pers. Med. 2020, 10, 169. https://doi.org/10.3390/jpm10040169

AMA Style

Iber-Díaz P, Senen-Carramolino R, Iglesias-Linares A, Fernández-Navarro P, Flores-Mir C, Yañez-Vico RM. GWAS of Post-Orthodontic Aggressive External Apical Root Resorption Identified Multiple Putative Loci at X-Y Chromosomes. Journal of Personalized Medicine. 2020; 10(4):169. https://doi.org/10.3390/jpm10040169

Chicago/Turabian Style

Iber-Díaz, Paula, Raquel Senen-Carramolino, Alejandro Iglesias-Linares, Pablo Fernández-Navarro, Carlos Flores-Mir, and Rosa M Yañez-Vico. 2020. "GWAS of Post-Orthodontic Aggressive External Apical Root Resorption Identified Multiple Putative Loci at X-Y Chromosomes" Journal of Personalized Medicine 10, no. 4: 169. https://doi.org/10.3390/jpm10040169

APA Style

Iber-Díaz, P., Senen-Carramolino, R., Iglesias-Linares, A., Fernández-Navarro, P., Flores-Mir, C., & Yañez-Vico, R. M. (2020). GWAS of Post-Orthodontic Aggressive External Apical Root Resorption Identified Multiple Putative Loci at X-Y Chromosomes. Journal of Personalized Medicine, 10(4), 169. https://doi.org/10.3390/jpm10040169

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
