Effects of the Plastic of the Realistic GeePS-L2S-Breast Phantom

Department of Electrical Engineering, Chalmers University of Technology, 41258 Gothenburg, Sweden
Thayer’s School of Engineering, Dartmouth College, Hanover, NH 03755, USA
Author to whom correspondence should be addressed.
Diagnostics 2018, 8(3), 61;
Received: 29 June 2018 / Revised: 28 August 2018 / Accepted: 29 August 2018 / Published: 1 September 2018
PDF [7061 KB, uploaded 1 September 2018]

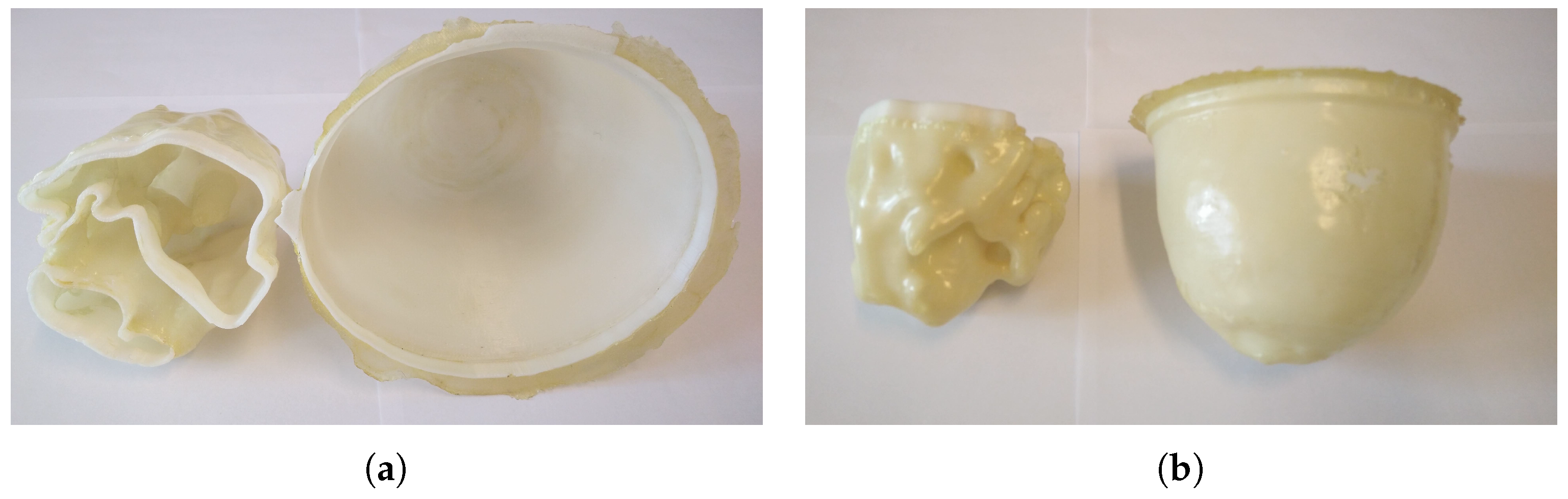

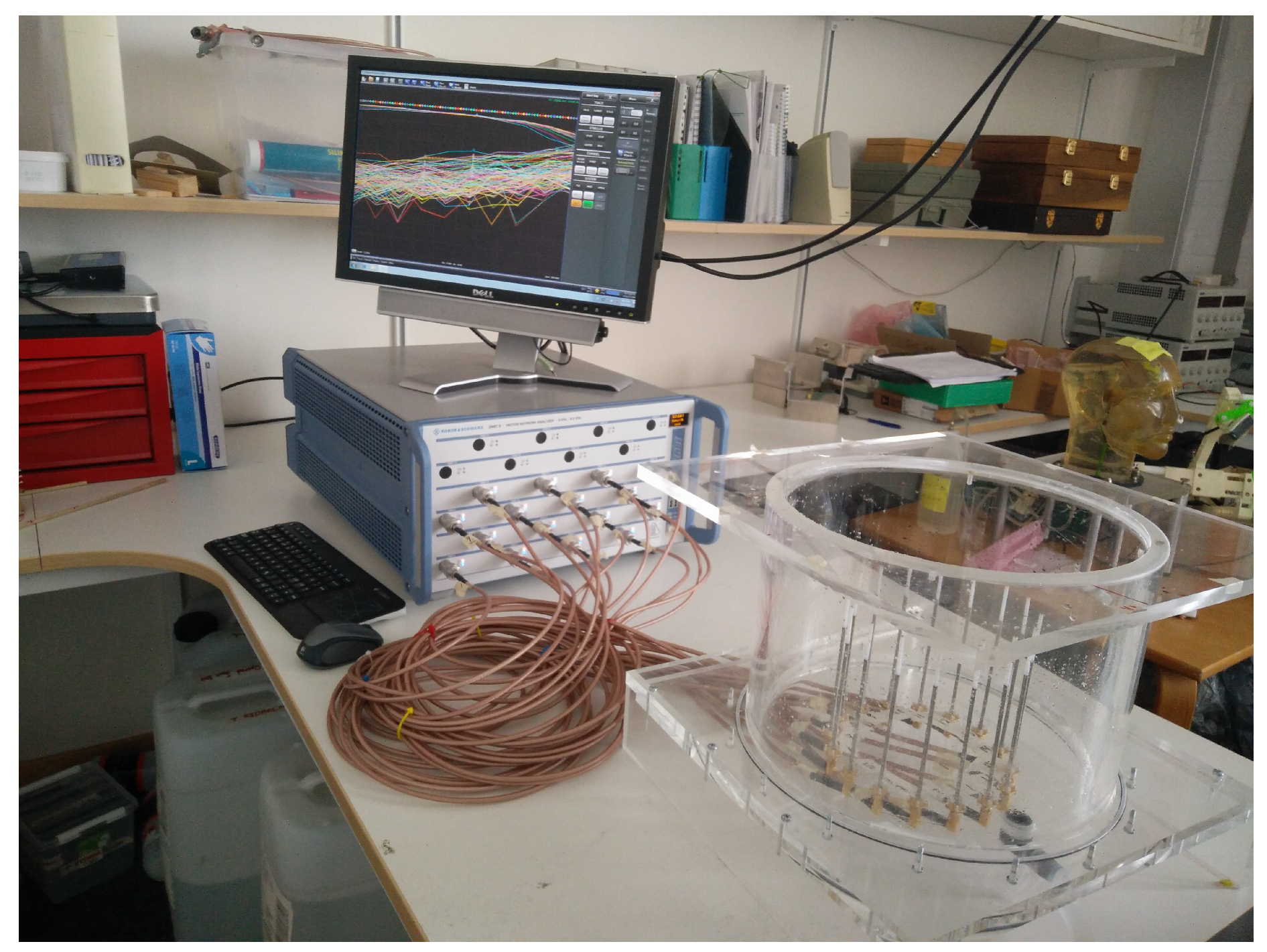

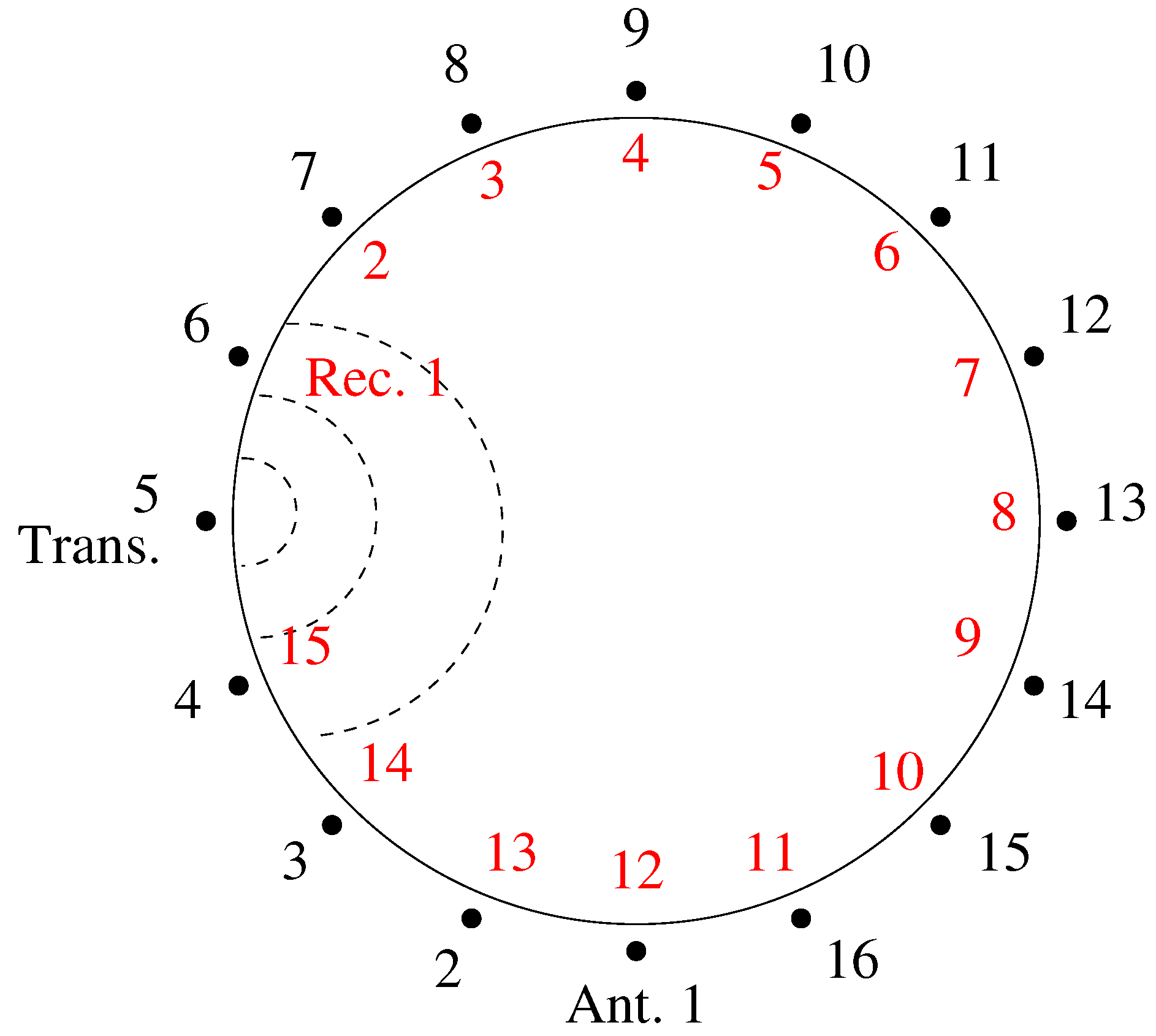

A breast phantom developed at the Supelec Institute was interrogated to study its suitability for microwave tomography measurements. A microwave measurement system based on 16 monopole antennas and a vector network analyzer was used to study how the S-parameters are influenced by insertion of the phantom. The phantom is a 3D-printed structure consisting of plastic shells that can be filled with tissue mimicking liquids. The phantom was filled with different liquids and tested with the measurement system to determine whether the plastic has any effects on the recovered images or not. Measurements of the phantom when it is filled with the same liquid as the surrounding coupling medium are of particular interest. In this case, the phantom plastic has a substantial effects on the measurements which ultimately detracts from the desired images. View Full-Text
Keywords: breast cancer; microwave imaging; phantom; tomography breast cancer; microwave imaging; phantom; tomography

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
Printed Edition Available!
A printed edition of this Special Issue is available here.

Share & Cite This Article

MDPI and ACS Style

Rydholm, T.; Fhager, A.; Persson, M.; Geimer, S.D.; Meaney, P.M. Effects of the Plastic of the Realistic GeePS-L2S-Breast Phantom. Diagnostics 2018, 8, 61.
